1. OPTICAL 5 GHz
5 GHz Fiber Optic Outdoor
Benefits
Wireless
• Ideal for sites with the presence of strong electromagnetic fields
• Input data directly in Optical Fiber
• Immune disorders to 100MHz from the Ethernet cable
• Immune to shock and surge on entry data
• Point-Point and Point-to-Multipoint System
• WPA2 encryption, WPA or WEP
• Throughput up to 54MB/s
• DFS: Dynamic Frequency Selection
• ACCS: Automatic Clear Channel Selection
• 10/100 Fast Ethernet interfaces
• Degree of Protection IP67
• TPC: Transmit Power Control
• Radio type OFDM or DSSS capacity and NLOS
• Drag'n'drop System backup
• Plug'n'Play simple installation
• Turbo mode for high performance
• Stack TCP / IP, flexible configuration
• Diagnostics equipment "on board" or remote
• Upgrade software, monitoring and remote configuration
• Power Over Ethernet (POE) Power Supply 48Vdc or 12Vdc
• Installed with "general authorization"
Applications
• Wireless Internet Service Provider - WISP
• Security and Urban Video
• System Integrator
• Telco Carrier
• Private Point-to-Multipoint Wireless Networking
• Emergency back up / Disaster Recovery
• Military, government or university
• Alternative to cable CDN, HDSL or Optic Fiber
www.res-ingenium.com

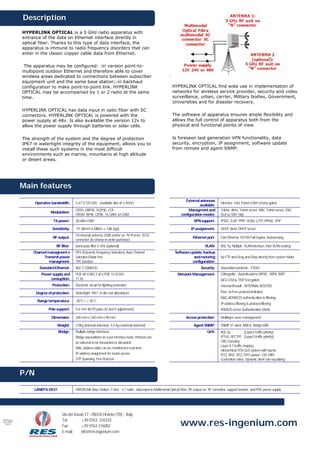

2. Description
HYPERLINK OPTICAL is a 5 GHz radio apparatus with
entrance of the data on Ethernet interface directly in
optical fiber. Thanks to this type of data interface, the
apparatus is immune to radio frequency disorders that can
enter in the classic copper cable data from Ethernet.
The apparatus may be configured: -in version point-to-
multipoint outdoor Ethernet and therefore able to cover
wireless areas dedicated to connections between subscriber
equipment unit and the same base station;-in backhaul
configuration to make point-to-point link. HYPERLINK HYPERLINK OPTICAL find wide use in implementation of
OPTICAL may be accompanied by 1 or 2 radio at the same networks for wireless service provider, security and video
time. surveillance, urban, carrier, Military bodies, Government,
Universities and for disaster recovery.
HYPERLINK OPTICAL has data input in optic fiber with SC
connectors. HYPERLINK OPTICAL is powered with the The software of apparatus ensures ample flexibility and
power supply at 48v. Is also available the version 12v to allows the full control of apparatus both from the
allow the power supply through batteries or solar cells. physical and functional points of view.
The strength of the system and the degree of protection Is foreseen last generation VPN functionality, data
IP67 in watertight integrity of the equipment, allows you to security, encryption, IP assignment, software update
install these such systems in the most difficult from remote and agent SNMP.
environments such as marine, mountains at high altitude
or desert areas.
Main features
External antennas
Operative bandwidth: 5,47-5,725 GHz (available also at 2.4GHz) Directive Grid, Panel o Dish (many gains)
available:
DSSS: DBPSK, DQPSK, CCK Managment and Telnet, client, Telnet server, MAC Telnet server, SSH,
Modulation:
OFDM: BPSK, QPSK, 16 QAM, 64 QAM configuration modes: GUI su SSH, http
TX power: 30 dBm EIRP VPN support: IPSEC, EoIP, PPtP, VLAN, L2TP, PPPoE, IPIP
Sensitivity: -91 dBm@ 6 Mbit/s ± 1dB (typ) IP assignment: DHCP client, DHCP server
On internal antenna 23dB and/or on “N”/Femm. 50 Ω
RF output: Ethernet port: Fast Ethernet 10/100 Full Duplex, Autosensing
connector (to choose in order purchase)
RF filter: band-pass filter 5 GHz (optional) VLAN: 802.1q, Multiple VLAN interface, inter VLAN routing
Channel managment e DFS (Dynamic Frequency Selection), Auto Channel Software update, backup
Transmit power Selection,Radar free and restoring By FTP and Drag and Drop directly from system folder
managment: TPC function configuration:
Standard Ethernet: 802.3 CSMA/CD Security: Association protocol – ESSID
Power supply and POE 48 V 802.3 af o POE 12 V/24V Network Management: Crittografia : Autenticazione WPA2 , WPA, WEP
consuption: 11 W AES-CCM & TKIP Encryption
Protection: Electronic circuit for lighting protection Internal firewall ; INTERNAL ROUTER
Degree of protection: Watertight IP67 in die-cast alluminium Peer to Peer protocol limitation
MAC-ADDRESS authentication & filtering
Range temperatura: -40°C / + 55°C
IP address filtering & protocol filtering
Pole support: For mm 40/70 poles (H and V adjustment). RADIUS server Authentication (AAA)
Dimension: 340 mm x 340 mm x 90 mm Access protection: Multilayer users management
Weight: 2,9Kg (internal antenna); 4,4 Kg (external antenna) Agent SNMP: SNMP V1 client, MIB II, Bridge MIB
Bridge: Multiple bridge interfaces QoS: 802.1p (Layer2 traffic priority)
Bridge associations on a per interface basis, Protocol can IPToS RFC791 (Layer3 traffic priority)
be selected to be forwarded or discarded CBQ Queuing
Layer 4-7 traffic shaping
MAC address table can be monitored in real time
Hierarchical HTB QoS system with bursts
IP address assignment for router access PCQ, RED, SFQ, FIFO queue; CIR, MIR
STP Spanning Tree Protocol Contention ratios, dynamic client rate equalizing
P/N
LANRTX-0531 HIPERLINK Base Station 5 GHz ; n.1 radio , data input in Mulltimodal Optical Fibre, RF output on “N” connettor, support bracket and POE power supply
