1. Understanding Backhaul for
Critical Infrastructure
August 23 2012
Entire Presentation
Exalt Communications Inc.
Confidential & Proprietary
©2009 Exalt Communications Inc. All Rights Reserved. www.exaltcom.com

2. Critical Infrastructure Applications
> Video Surveillance
- Water Utility reservoirs and sensitive areas
- Electric Utility Generation plants and Substations
- Pipelines
- Petro Chemical plants
- Traffic Intersections and Rail Crossings
- Schools
- Borders
> Redundancy for Fiber and leased line backup
> Two-way Radio backhaul to Dispatch
> Interconnectivity between fire and Police Stations
> SCADA Backhaul
> Military Communications
page 2

3. Considerations for Critical Infrastructure
Backhaul
> Native TDM and Ethernet connectivity
> All-Indoor radios AES Encryption
> 4.9GHz First Responders band
> 4.5GHz Federal Band
> Licensed Bands = security
> Products made in the US
> 1+1 Hot Standby
> GigE speeds for fiber backup
> Vendor with strong financial footing
> Warranty-minimum 2 years
> Support of products in the US
> Hardened devices- Temp, EMI, etc..
page 3

4. Exalt Introduction
WORLDWIDE
Presence in
all regions
YOUNG TRUSTED
Founded 2004 1,300+
Silicon Valley customers
INNOVATIVE
Unique
technology
platform
GLOBAL NIMBLE
World bands 160+ unique
2 – 43 GHz systems
FOCUSED
Backhaul is our
only business
page 4

5. What’s driving our business?
Mobile computing Rural broadband SmartGrid
Massive subscriber growth Anytime, anywhere connectivity New services
Business critical applications Mission critical applications Global connectivity
IT cost-effectiveness Homeland security No one left behind
page 5

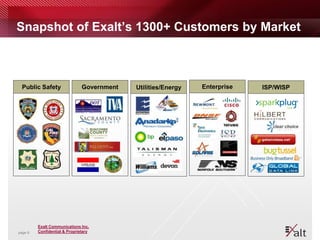

6. Snapshot of Exalt’s 1300+ Customers by Market
Public Safety Government Utilities/Energy Enterprise ISP/WISP
Exalt Communications Inc.
page 6 Confidential & Proprietary

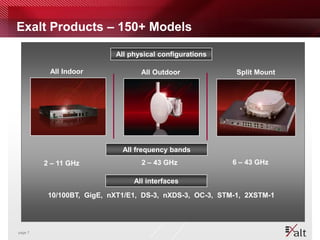

7. Exalt Products – 150+ Models
All physical configurations
All Indoor All Outdoor Split Mount
All frequency bands
2 – 11 GHz 2 – 43 GHz 6 – 43 GHz
All interfaces
10/100BT, GigE, nXT1/E1, DS-3, nXDS-3, OC-3, STM-1, 2XSTM-1
page 7

8. Exalt Platforms
ExtendAir® ExploreAir® ExtremeAir™
Up to 100 Mbps Up to 1 Gbps 1 Gbps-plus
4.9 – 43 GHz 5 – 43 GHz 5 – 43 GHz
Last mile Middle mile Core
Access Access, ring, mesh Access, ring, mesh
EX
(-i, -r / rc, -s)
Up to 1 Gbps
2 – 43 GHz
Last mile, Middle mile, Core
Access, ring, mesh
page 8

9. Licensed FCC Portfolio
$25K to EX-i GigE (6, 11 GHz)
$50K All-indoor
$17K to ExtremeAir (dual-carrier 11, 18, 23 GHz)
$20K All-outdoor
Base List Price per Link
ExploreAir LR (6, 11 GHz)
< $15K
All-outdoor
$13K to EX-s GigE (6, 11, 18, 23, 38 GHz)
$30K Split-mount
Four Platforms
$10K to ExploreAir (6, 11, 18, 23, 28 GHz) EX
$12K All-outdoor ExtendAir
ExploreAir
ExtremeAir
$5K to ExtendAir (11, 18, 23 GHz)
$8K All-outdoor
200 400 600 800 1000
Maximum Full-duplex Layer 2 Throughput (Mbps) per Terminal
page 9

10. Multiple Capacity Regimes
License-Exempt and Lightly Licensed
Three Platforms
EX
ExtendAir
EX-i GigE (5.8 GHz) ExploreAir
All-indoor
Base List Price
EX-r GigE (4.5, 5 GHz)
All-outdoor
EX-i, EX-r (2.4, 5 GHz)
All-indoor, all-outdoor
ExtendAir (4.5, 4.9, 5, 24 GHz)
All-outdoor
100 200 300 400 500
Maximum Aggregate Layer 2 Throughput (Mbps) per Terminal
page 10

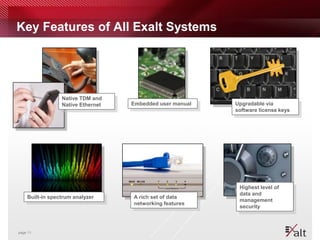

11. Key Features of All Exalt Systems
Native TDM and
Native Ethernet Embedded user manual Upgradable via
software license keys
Highest level of
data and
Built-in spectrum analyzer A rich set of data
management
networking features
security
page 11

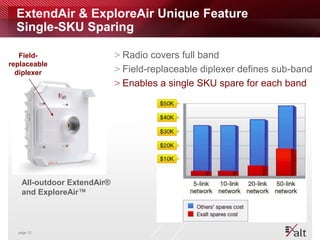

12. ExtendAir & ExploreAir Unique Feature
Single-SKU Sparing
Field- > Radio covers full band
replaceable
diplexer > Field-replaceable diplexer defines sub-band
> Enables a single SKU spare for each band
All-outdoor ExtendAir®
and ExploreAir™
page 12

13. Spotlight – ExploreAir Platform
ExploreAir Highest
LR capacity
L o n g e s t range
Lowest
cost of ownership
page 13

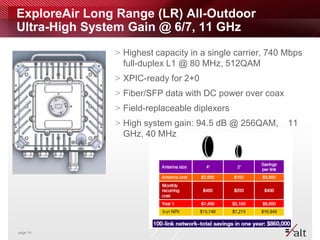

14. ExploreAir Long Range (LR) All-Outdoor
Ultra-High System Gain @ 6/7, 11 GHz
> Highest capacity in a single carrier, 740 Mbps
full-duplex L1 @ 80 MHz, 512QAM
> XPIC-ready for 2+0
> Fiber/SFP data with DC power over coax
> Field-replaceable diplexers
> High system gain: 94.5 dB @ 256QAM, 11
GHz, 40 MHz
page 14

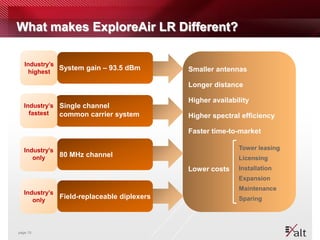

15. What makes ExploreAir LR Different?
Industry’s
System gain – 93.5 dBm Smaller antennas
highest
Longer distance
Higher availability
Industry’s Single channel
fastest common carrier system Higher spectral efficiency
Faster time-to-market
Industry’s Tower leasing
only 80 MHz channel Licensing
Lower costs Installation
Expansion
Maintenance
Industry’s
only
Field-replaceable diplexers Sparing
page 15

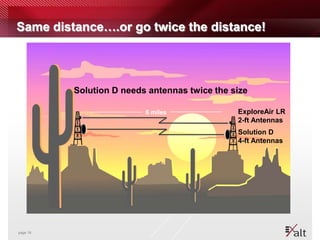

16. Same distance….or go twice the distance!
Solution D needs antennas twice the size
6 miles ExploreAir LR
2-ft Antennas
Solution D
4-ft Antennas
page 16

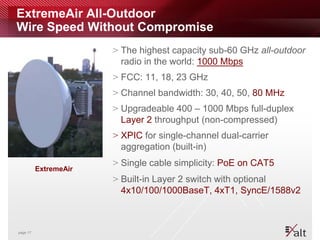

17. ExtremeAir All-Outdoor
Wire Speed Without Compromise
> The highest capacity sub-60 GHz all-outdoor
radio in the world: 1000 Mbps
> FCC: 11, 18, 23 GHz
> Channel bandwidth: 30, 40, 50, 80 MHz
> Upgradeable 400 – 1000 Mbps full-duplex
Layer 2 throughput (non-compressed)
> XPIC for single-channel dual-carrier
aggregation (built-in)
> Single cable simplicity: PoE on CAT5
ExtremeAir
> Built-in Layer 2 switch with optional
4x10/100/1000BaseT, 4xT1, SyncE/1588v2
page 17

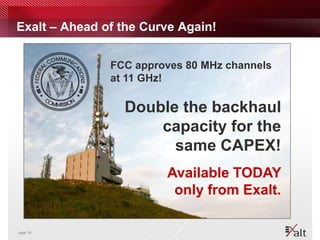

18. Exalt – Ahead of the Curve Again!
FCC approves 80 MHz channels
at 11 GHz!
Double the backhaul
capacity for the
same CAPEX!
Available TODAY
only from Exalt.
page 18

19. See the Difference in Maximum Data Throughput
Exalt ExploreAir® and ExtremeAir® systems provide twice
the single-carrier capacity achievable before the ruling –
without the need to buy additional hardware.
*Throughput based on theoretical maximum over the air data rates.
ExploreAir, ExploreAir LR, ExploreAir HP, and ExtremeAir radios support the
80 MHz channels now available in the 11 GHz frequency band
ExploreAir LR, also supports the 60 MHz channels now available in the 6 GHz Lower band
page 19

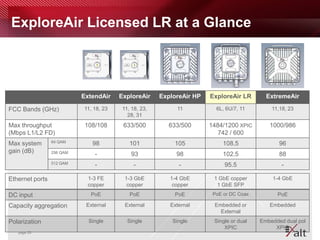

20. ExploreAir Licensed LR at a Glance
ExtendAir ExploreAir ExploreAir HP ExploreAir LR ExtremeAir
FCC Bands (GHz) 11, 18, 23 11, 18, 23, 11 6L, 6U/7, 11 11,18, 23
28, 31
Max throughput 108/108 633/500 633/500 1484/1200 XPIC 1000/986
(Mbps L1/L2 FD) 742 / 600
64 QAM
Max system 98 101 105 108.5 96
gain (dB) 256 QAM
- 93 98 102.5 88
512 QAM
- - - 95.5 -
Ethernet ports 1-3 FE 1-3 GbE 1-4 GbE 1 GbE copper 1-4 GbE
copper copper copper 1 GbE SFP
DC input PoE PoE PoE PoE or DC Coax PoE
Capacity aggregation External External External Embedded or Embedded
External
Polarization Single Single Single Single or dual Embedded dual pol
XPIC XPIC
page 20

21. Product Selection: How to Choose
Band Capacity Configuration Interface System Gain DC PWR Input
HW
11 GHz 2+0 redundant No
7 GHz Integrated or No
6, 7 or 11 GHz 1+0 or 2+0 SFP High power PoE or Coax
HW redundant
PoE
Requirement 6 GHz 1+0
Integrated Yes Yes
Coax
No
Yes Port
512QAM Tower or port Max Sys Gain
upgradeable term
No Tower Yes
Yes
SFP
ExtremeAir User 1RU No
Fiber/PoE END
END
ExploreAir LR END END END END
User 1RU
Fiber/PoE
ExploreAir HP
END END END
END
page 21

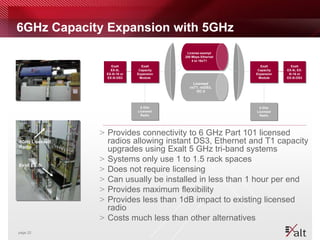

22. 6GHz Capacity Expansion with 5GHz
License-exempt
200 Mbps Ethernet
4 to 16xT1
Exalt
Exalt Exalt
Exalt Exalt
Exalt Exalt
Exalt
EX-5i,
EX-5i, Capacity
Capacity Capacity
Capacity EX-5i, EX-
EX-5i, EX-
EX-5i-16 or
EX-5i-16 or Expansion
Expansion Expansion
Expansion 5i-16 or
5i-16 or
EX-5i-DS3
EX-5i-DS3 Module
Module Module
Module EX-5i-DS3
EX-5i-DS3
Licensed
nxT1, nxDS3,
OC-3
6 GHz
6 GHz 6 GHz
6 GHz
Licensed
Licensed Licensed
Licensed
Radio
Radio Radio
Radio
> Provides connectivity to 6 GHz Part 101 licensed
6GHz Licensed radios allowing instant DS3, Ethernet and T1 capacity
Radio
upgrades using Exalt 5 GHz tri-band systems
> Systems only use 1 to 1.5 rack spaces
Exalt EX-5i
> Does not require licensing
> Can usually be installed in less than 1 hour per end
> Provides maximum flexibility
> Provides less than 1dB impact to existing licensed
radio
> Costs much less than other alternatives
page 22

23. What if 5 GHz Is Too Crowded?
ExtendAir 24 GHz: The 5 GHz Alternative
License-exempt operation in an interference-free
environment
24 GHz UL band operation
New
Band supports three 64 MHz channels
200 Mbps aggregate Layer 2 throughput
Up to 5 miles at 99.99% w/ 2’ antenna
Higher capacity, shorter range alternative to ExtendAir 5
GHz
page 23

24. Customer Case Study
City of Garland, Texas
Garland, Texas is home to more than 200,000
residents. The City’s network links 30-plus
facilities, and supports computer-aided police/fire
dispatch systems, public safety radio traffic, VoIP
systems and office productivity applications.
 Challenges
 Replace T1 lines to eliminate recurring
monthly charges
 Rapidly increase network capacity for
critical applications
 Minimize network latency for public
safety radio and VoIP applications
“If we want more bandwidth it’s just a
 Solutions license upgrade with Exalt. With a lot of
 Deploy Exalt all-indoor 11 GHz and the other vendors’ systems, you’re
5 GHz microwave radio systems stuck – if you want more bandwidth you
 Configure Exalt radio systems to have to replace the whole radio.”
deliver 27 Mbps of Ethernet,
upgradeable via software license keys Jonathan Morgan
to 100 Mbps City of Garland, Texas
 Use Exalt native TDM to minimize
latency for delay-sensitive applications
page 24

25. Customer Case Study
South Texas Electric Cooperative (STEC)
STEC, headquartered in Nursery, Texas
provides wholesale electrical power to eight
member cooperatives serving more than
150,000 members in 33 South Texas counties.
STEC generates power from a variety of
fuels, including natural gas, diesel and hydro-
electric.
 Challenges
 Increase IP and T1 capacity with the ability to
scale higher
 Eliminate truck rolls for configuration and
frequency band selection
“We had deployed Exalt backhaul
 Ensure complete reliability radios at other sites, and we consider
 Solution Exalt to be a leader in the wireless
 Exalt all-indoor microwave backhaul systems backhaul industry because of some of
delivering 16 T1 lines and 200 Mbps Ethernet their technical capabilities and other
 Exalt SNMPv3 web-based management system features.”
for remote configuration Warren Buckhorn
Communications Technician
 Exalt managed failover feature eliminates South Texas Electric Cooperative
risk of outages
page 25

26. Microwave Backhaul
Systems
Designed, B
uilt &
Supported
page 26 in the USA

27. No. America Enterprise Sales Team-May 2012
Ken DuBuque
VP of Enterprise Canadian Region
Sales, Americas Tim Adlington
O: 617-886-9128 Regional Sales
M: 617-510-8991 Manager, Canada
kdubuque@exaltcom.com T: 519-301-4455
Sheila Kuri
Sr. Dir., Channel Sales
AK tadlington@exaltcom.com
Western Region North America
Leslie Green (Temp. OOO) M: 949-636-7466
Regional Sales Director skuri@exaltcom.com
Western Region YT
M: 831-236-0686 Western Region
lgreen@exaltcom.com Stephen Kim NT NU
Acting – Reg. Sales Dir.
M: 425-802-5335 Eastern Region
Paul Vallesteros
Systems Engineer – skim@exaltcom.com Central & West
NL Russ Cook
CAN Regional Sales Manager
Western Region, Plus
M: 603-247-1931
AZ, UT BC rcook@exaltcom.com
QC
AB
M: 408-561-3717 SK
MB
QC
PE
Glenn Garbinski
pvallesteros@exaltcom.co ON
NB Senior Systems Engineer –
East CAN NS
Eastern Region, Plus
Central Region ME
Brett Bonomo WA
East CAN
ND VT
Regional Sales Director MT MN NH
MA
M: 303-317-4449 OR WI
NY
CT RI
O: 443-567-6226
ID SD
bbonomo@exaltcom.com WY MI
PA NJ
M: 443-655-8282
NE IA
DE
MD
ggarbinski@exaltcom.com
OH
IN
Mike Duke NV
UT
IL
WV
DC
Systems Engineer – CO KS
VA Southern Region
MO KY
Central Region, Plus HI CA NC Todd Ishee
TN
Regional Sales Manager
AZ OK SC
Central & West NM AR O: 256-829-9219
CAN MS AL GA
M: 256-520-7965
Southwest Region TX LA tishee@exaltcom.com
T: 515-422-4924 Matt Musial
mduke@exaltcom.com Mark Kullberg
Regional Sales Manager Systems Engineer – FL Bruce Glick
M: 512-284-3777 TX, OK, NM System Engineer –
mmusial@exaltcom.com T: 817-283-0957 Southern Region
Exalt Communications Inc. M: 817-703-2883 M: 404-242-3687
page 27
Confidential & Proprietary mkullberg@exaltcom.com bglick@exaltcom.com

28. No. America Carrier Sales Team-May 2012
Canadian Region
Fred Corsentino Sheila Kuri
Sr. VP, North America Sales Tim Adlington
Regional Sales Sr. Dir., Channel Sales
T: 516-624-0714 North America
M: 516-353-1299 Manager, Canada
T: 519-301-4455 M: 949-636-7466
fcorsentino@exaltcom.com skuri@exaltcom.com
tadlington@exaltcom.com
AK Western & Central CAN
Mike Duke
Systems Engineer
Western Region YT
T: 515-422-4924
mduke@exaltcom.com Eastern Region
Chris Ramirez
NT NU Daryle Smith
Dir. Strategic Carrier Accts, RSM
Regional Sales Manager
M: 805-448-6083
T: 215-402-0834
cramirez@exaltcom.com
NL M: 215-219-1013
dsmith@exaltcom.com
Paul Vallesteros
Systems Engineer – Western BC Glenn Garbinski
Region, excluding NM QC Senior Systems Engineer –
AB
M: 408-561-3717 SK
MB
QC
PE
Eastern Region, Plus
pvallesteros@exaltcom.co ON
NB
East CAN NS
East CAN
ME
Central Region WA O: 443-567-6226
Daren Jackson MT
ND
MN
VT
NH M: 443-655-8282
Regional Sales Manager OR WI
NY
MA
CT RI
ggarbinski@exaltcom.com
ID SD MI
M: 214-668-5388 WY
PA NJ Southeast Region
DE
djacksonl@exaltcom.com NE IA
OH MD & Puerto Rico
IN DC
NV
UT
IL
WV VA
Dave Smith
Mark Kullberg CO KS MO
KY Sr. Regional Sales Manager
Systems Engineer – CA NC
M: 770-331-5104
TN
Central Region, Plus OK SC davesmith@exaltcom.com
AZ AR
NM
MS AL GA
NM HI Bruce Glick
TX LA
T: 817-283-0957 System Engineer –
M: 817-703-2883 Southeast Region
FL
Kevin Renaud Caribbean M: 404-242-3687
mkullberg@exaltcom.com
Director of Strategic Accounts Paul Moubarak bglick@exaltcom.com
Exalt Communications Inc. O: 314-837-1300 Regional Sales Manager Caribbean Islands
Confidential & Proprietary
page 28 M: 314-378-1090 M: +525584217720 (Bermuda, Bahamas, Haiti, DR, PR,
Jamaica, Cayman, VI, etc.)
krenaud@exaltcom.com pmoubarak@exaltcom.com

29. QUESTIONS ?
Entire Presentation
Exalt Communications Inc.
Confidential & Proprietary Thank you.
page 29
