The Motorola AP 7181 is an outdoor, multi-radio 802.11n mesh access point that delivers high network capacity and performance. It utilizes 802.11n technology and optimized hardware and software to achieve maximum throughput and connections for mesh networking. The dual-radio device features 3x3 MIMO and supports data rates up to 300Mbps. It provides robust mesh routing and fast handoffs for mobile applications. The AP 7181 is designed for flexible mounting and easy deployment to minimize costs.

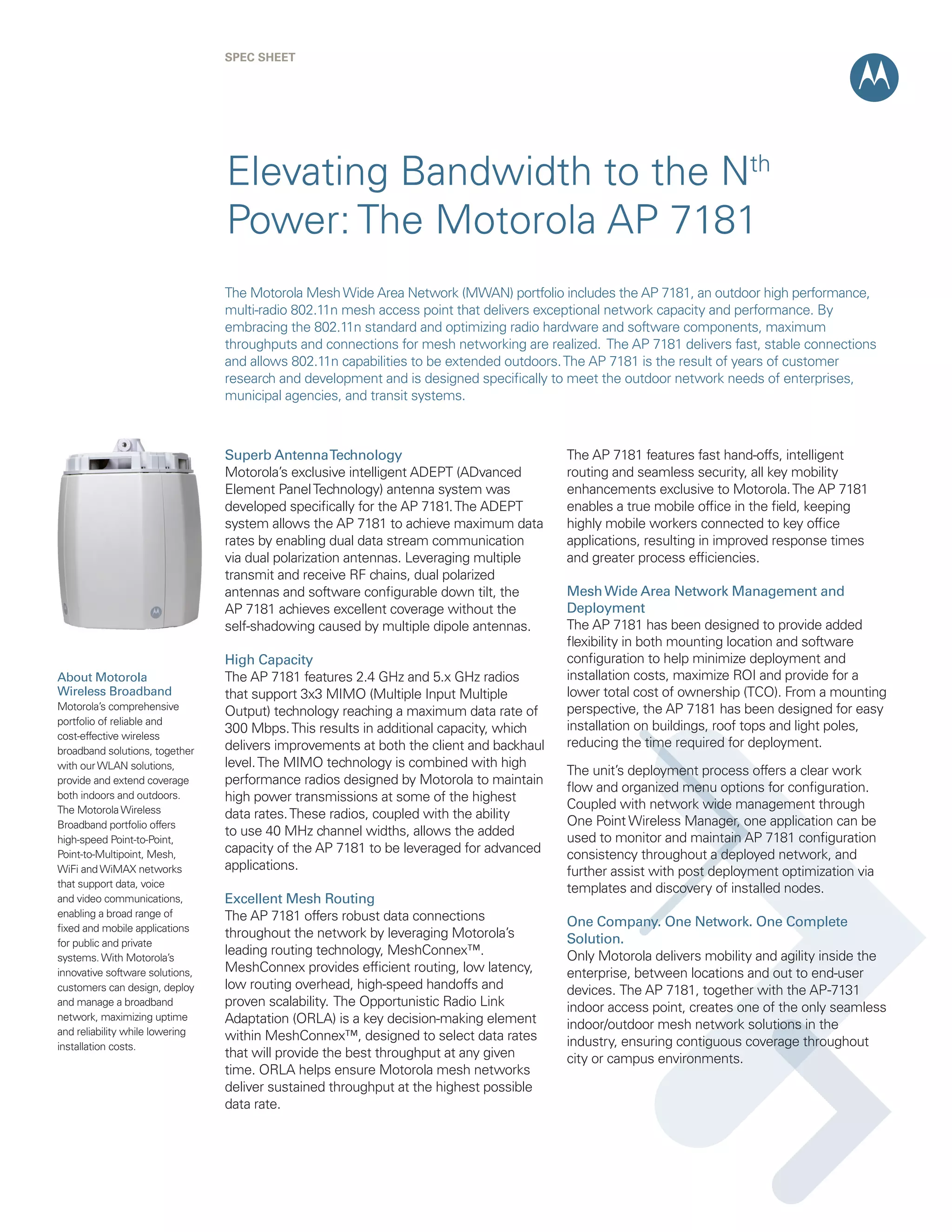

1. SPEC Sheet
Elevating Bandwidth to the Nth
Power: The Motorola AP 7181
The Motorola Mesh Wide Area Network (MWAN) portfolio includes the AP 7181, an outdoor high performance,
multi-radio 802.11n mesh access point that delivers exceptional network capacity and performance. By
embracing the 802.11n standard and optimizing radio hardware and software components, maximum
throughputs and connections for mesh networking are realized. The AP 7181 delivers fast, stable connections
and allows 802.11n capabilities to be extended outdoors. The AP 7181 is the result of years of customer
research and development and is designed specifically to meet the outdoor network needs of enterprises,
municipal agencies, and transit systems.
Superb Antenna Technology The AP 7181 features fast hand-offs, intelligent
Motorola’s exclusive intelligent ADEPT (ADvanced routing and seamless security, all key mobility
Element Panel Technology) antenna system was enhancements exclusive to Motorola. The AP 7181
developed specifically for the AP 7181. The ADEPT enables a true mobile office in the field, keeping
system allows the AP 7181 to achieve maximum data highly mobile workers connected to key office
rates by enabling dual data stream communication applications, resulting in improved response times
via dual polarization antennas. Leveraging multiple and greater process efficiencies.
transmit and receive RF chains, dual polarized
antennas and software configurable down tilt, the Mesh Wide Area Network Management and
AP 7181 achieves excellent coverage without the Deployment
self-shadowing caused by multiple dipole antennas. The AP 7181 has been designed to provide added
flexibility in both mounting location and software
High Capacity configuration to help minimize deployment and
About Motorola The AP 7181 features 2.4 GHz and 5.x GHz radios installation costs, maximize ROI and provide for a
Wireless Broadband that support 3x3 MIMO (Multiple Input Multiple lower total cost of ownership (TCO). From a mounting
Motorola’s comprehensive perspective, the AP 7181 has been designed for easy
Output) technology reaching a maximum data rate of
portfolio of reliable and installation on buildings, roof tops and light poles,
cost-effective wireless
300 Mbps. This results in additional capacity, which
delivers improvements at both the client and backhaul reducing the time required for deployment.
broadband solutions, together
with our WLAN solutions, level. The MIMO technology is combined with high
The unit’s deployment process offers a clear work
provide and extend coverage performance radios designed by Motorola to maintain
flow and organized menu options for configuration.
both indoors and outdoors. high power transmissions at some of the highest
The Motorola Wireless Coupled with network wide management through
data rates. These radios, coupled with the ability
Broadband portfolio offers One Point Wireless Manager, one application can be
to use 40 MHz channel widths, allows the added used to monitor and maintain AP 7181 configuration
high-speed Point-to-Point,
Point-to-Multipoint, Mesh, capacity of the AP 7181 to be leveraged for advanced consistency throughout a deployed network, and
WiFi and WiMAX networks applications. further assist with post deployment optimization via
that support data, voice templates and discovery of installed nodes.
and video communications, Excellent Mesh Routing
enabling a broad range of The AP 7181 offers robust data connections
fixed and mobile applications
One Company. One Network. One Complete
throughout the network by leveraging Motorola’s Solution.
for public and private
systems. With Motorola’s
leading routing technology, MeshConnex™. Only Motorola delivers mobility and agility inside the
innovative software solutions, MeshConnex provides efficient routing, low latency, enterprise, between locations and out to end-user
customers can design, deploy low routing overhead, high-speed handoffs and devices. The AP 7181, together with the AP-7131
and manage a broadband proven scalability. The Opportunistic Radio Link indoor access point, creates one of the only seamless
network, maximizing uptime Adaptation (ORLA) is a key decision-making element indoor/outdoor mesh network solutions in the
and reliability while lowering within MeshConnex™, designed to select data rates
installation costs. industry, ensuring contiguous coverage throughout
that will provide the best throughput at any given city or campus environments.
time. ORLA helps ensure Motorola mesh networks
deliver sustained throughput at the highest possible
data rate.

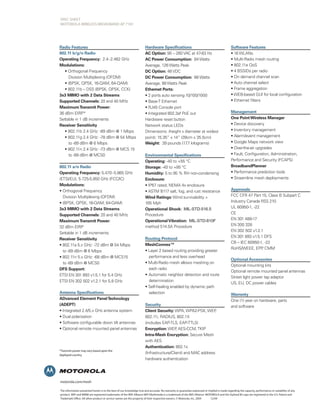

2. SPEC SHEET
Motorola WIRELESS BROADBAND AP 7181
Radio Features Hardware Specifications Software Features
802.11 b/g/n Radio AC Option: 90 – 260 VAC at 47-63 Hz • 16 WLANs
Operating Frequency: 2.4 - 2.462 GHz AC Power Consumption: 84 Watts • Multi-Radio mesh routing
Modulations: Average, 126 Watts Peak • 802.11e QoS
• Orthogonal Frequency DC Option: 48 VDC • 4 BSSIDs per radio
Division Multiplexing (OFDM) DC Power Consumption: 66 Watts • On demand channel scan
• (BPSK, QPSK, 16-QAM, 64-QAM) Average, 99 Watts Peak • Auto channel select
• 802.11b – DSS (BPSK, QPSK, CCK) Ethernet Ports: • Frame aggregation
3x3 MIMO with 2 Data Streams • 2 ports auto sensing 10/100/1000 • WEB-based GUI for local configuration
Supported Channels: 20 and 40 MHz • Base-T Ethernet • Ethernet filters
Maximum Transmit Power: • RJ45 Console port
36 dBm EIRP* • Integrated 802.3af PoE out Management
Settable in 1 dB increments Hardware reset button One Point Wireless Manager
Receiver Sensitivity Network status LEDs • Device discovery
• 802.11b 2.4 GHz: -89 dBm @ 1 Mbps Dimensions: (height x diameter at widest • Inventory management
• 802.11g 2.4 GHz: -78 dBm @ 54 Mbps point): 15.35” x 14” (39cm x 35.5cm) • Alarm/event management
to -89 dBm @ 6 Mbps Weight: 39 pounds (17 kilograms)
.7 • Google Maps network view
• 802.11n 2.4 GHz: -73 dBm @ MCS 15 • Over-the-air upgrades
to -89 dBm @ MCS0 Environmental Specifications • Fault, Configuration, Administration,
Operating: -40 to +55 °C Performance and Security (FCAPS)
802.11 a/n Radio Storage: -40 to +85 °C BroadbandPlanner
Operating Frequency: 5.470 - 5.865 GHz Humidity: 5 to 95 % RH non-condensing • Performance prediction tools
(ETSI/EU), 5.725-5.850 GHz (FCC/IC) Enclosure: • Streamline mesh deployments
Modulations: • IP67 rated, NEMA 4x enclosure
• Orthogonal Frequency • ASTM B117 salt, fog, and rust resistance Approvals
Division Multiplexing (OFDM) Wind Ratings: Wind survivability > FCC CFR 47 Part 15, Class B Subpart C
• (BPSK, QPSK, 16-QAM, 64-QAM) 165 Mph Industry Canada RSS 210
3x3 MIMO with 2 Data Streams Operational Shock: MIL-STD-516.5 UL 60950-1, -22
Supported Channels: 20 and 40 MHz Procedure CE
Maximum Transmit Power: Operational Vibration: MIL-STD-810F EN 301 489-17
method 514.5A Procedure EN 300 328
32 dBm EIRP
EN 302 502 v1.2.1
Settable in 1 dB increments
Routing Protocol EN 301 893 v1.5.1 DFS
Receiver Sensitivity
CB – IEC 60950-1, -22
• 802.11a 5.x GHz: -72 dBm @ 54 Mbps MeshConnex™
RoHS/WEEE, EPP CMM
,
to -89 dBm @ 6 Mbps • Layer 2 based routing providing greater
• 802.11n 5.x GHz: -68 dBm @ MCS15 performance and less overhead
Optional Accessories
to -89 dBm @ MCS0 • Multi-Radio mesh allows meshing on
Optional mounting kits
DFS Support: each radio
Optional remote mounted panel antennas
ETSI EN 301 893 v1.5.1 for 5.4 GHz • Automatic neighbor detection and route
Street light power tap adaptor
ETSI EN 302 502 v1.2.1 for 5.8 GHz determination
US, EU, DC power cables
• Self-healing enabled by dynamic path
Antenna Specifications selection Warranty
ADvanced Element Panel Technology One (1) year on hardware, parts
(ADEPT) Security and software
• Integrated 2.4/5.x GHz antenna system Client Security: WPA, WPA2-PSK, WEP ,
• Dual polarization 802.11i, RADIUS, 802.1X
• Software configurable down tilt antennas (includes EAP-TLS, EAP-TTLS)
• Optional remote mounted panel antennas Encryption: WEP AES-CCM, TKIP
,
Intra-Mesh Encryption: Secure Mesh
with AES
Authentication: 802.1x
*Transmit power may vary based upon the
deployed country.
(Infrastructure/Client) and MAC address
hardware authentication
