Streamlined data sharing and analysis to accelerate cancer research
- 1. Streamlined data sharing andanalysis to accelerate cancer research Ian Foster The University of Chicago and Argonne National Laboratory 1
- 2. 2 Thesis: We enhance sharingand analysis by eliminating friction
- 3. 3 1919 Motor TransportCorps convoy Washington, DC., to San Francisco 56 days, average speed of 9 km/h

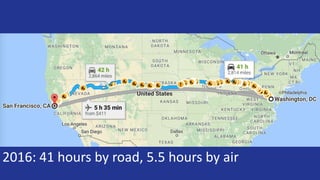

- 4. 2016: 41 hoursby road, 5.5 hours by air

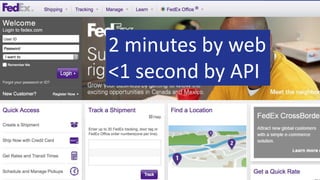

- 5. 5 2 minutes byweb <1 second by API
- 6. Cloud: Outsourcing andautomation 6 Software as a service: SaaS Infrastructure as a service: IaaS Platform as a service: PaaS (web & mobile apps)

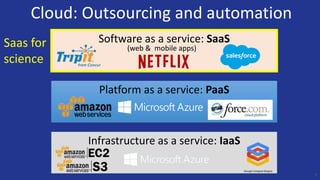

- 7. Cloud: Outsourcing andautomation 7 Software as a service: SaaS Infrastructure as a service: IaaS Platform as a service: PaaS (web & mobile apps)Saas for science
- 8.
- 9. Inherited hematological malignancies Impact: •Familial blood cancer syndromes are being included in the 2016 revision of World Health Organization Classification of Hematological Malignancies; NCCN guidelines; European LeukemiaNet • Identification of germline mutations is important for prevention/intervention and early diagnosis, and may change treatment (e.g., stem cell transplant from related donor w/o mutation or matched unrelated donor) Background: • Familial predisposition to blood cancers has not been widely appreciated, like some solid cancers • Identifying the genes involved informs understanding of biology and may impact patient care (prevention, diagnosis and treatment) Jane Churpek, MD Lucy Godley, MD, PhD Research highlights: • With samples from >500 families, the team has identified novel germline mutations that predispose to familial myelodysplastic syndromes and leukemia • These mutations are much more common than previously known • Specific genes with identified mutations include RUNX1, ETV6, DDX41, ANKRD26

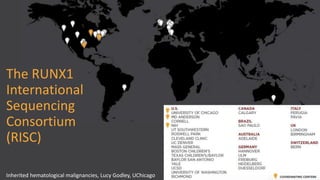

- 10. The RUNX1 International Sequencing Consortium (RISC) Inherited hematologicalmalignancies, Lucy Godley, UChicago

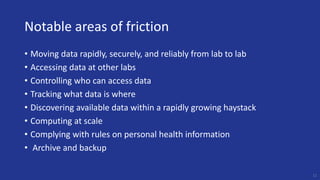

- 11. Notable areas offriction • Moving data rapidly, securely, and reliably from lab to lab • Accessing data at other labs • Controlling who can access data • Tracking what data is where • Discovering available data within a rapidly growing haystack • Computing at scale • Complying with rules on personal health information • Archive and backup 11

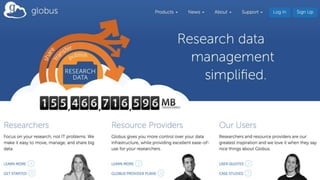

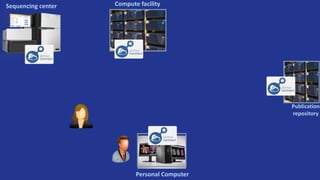

- 13.
- 14. Researcher initiates transfer request; orrequested automatically by script, science gateway Publication repository Personal Computer 1 Sequencing center Compute facility
- 15. Researcher initiates transfer request; orrequested automatically by script, science gateway Compute facilityGlobus transfers files reliably, securely 2 Personal Computer Transfer 1 Sequencing center Publication repository

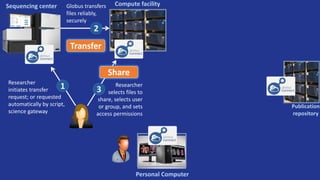

- 16. Researcher initiates transfer request; orrequested automatically by script, science gateway Researcher selects files to share, selects user or group, and sets access permissions Publication repository Personal Computer 1 3 Share Compute facilityGlobus transfers files reliably, securely 2 Transfer Sequencing center

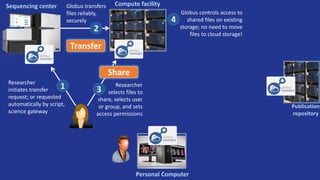

- 17. Researcher initiates transfer request; orrequested automatically by script, science gateway Globus controls access to shared files on existing storage; no need to move files to cloud storage! Researcher selects files to share, selects user or group, and sets access permissions Publication repository Personal Computer 1 3 Share 4 Compute facilityGlobus transfers files reliably, securely 2 Transfer Sequencing center

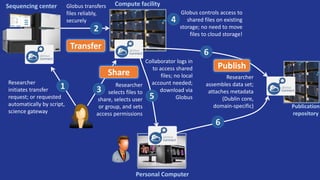

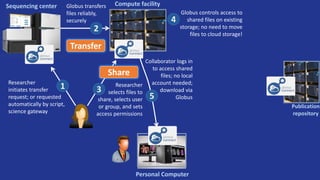

- 18. Researcher initiates transfer request; orrequested automatically by script, science gateway Researcher selects files to share, selects user or group, and sets access permissions Collaborator logs in to access shared files; no local account needed; download via Globus Publication repository Personal Computer 1 3 Share 5 Compute facilityGlobus transfers files reliably, securely 2 Transfer Sequencing center Globus controls access to shared files on existing storage; no need to move files to cloud storage! 4
- 19. Researcher initiates transfer request; orrequested automatically by script, science gateway Researcher selects files to share, selects user or group, and sets access permissions Collaborator logs in to access shared files; no local account needed; download via Globus Researcher assembles data set; attaches metadata (Dublin core, domain-specific) Publication repository Personal Computer 1 3 Share Publish 5 6 6 Compute facilityGlobus transfers files reliably, securely 2 Transfer Sequencing center Globus controls access to shared files on existing storage; no need to move files to cloud storage! 4

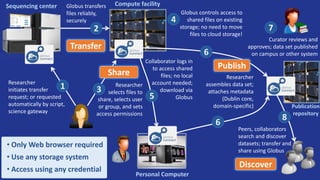

- 20. Researcher initiates transfer request; orrequested automatically by script, science gateway Curator reviews and approves; data set published on campus or other system Researcher selects files to share, selects user or group, and sets access permissions Collaborator logs in to access shared files; no local account needed; download via Globus Researcher assembles data set; attaches metadata (Dublin core, domain-specific) Publication repository Personal Computer 1 3 Share Publish 5 6 6 7 Compute facilityGlobus transfers files reliably, securely 2 Transfer Globus controls access to shared files on existing storage; no need to move files to cloud storage! 4 Sequencing center
- 21. Researcher initiates transfer request; orrequested automatically by script, science gateway Curator reviews and approves; data set published on campus or other system Researcher selects files to share, selects user or group, and sets access permissions Collaborator logs in to access shared files; no local account needed; download via Globus Researcher assembles data set; attaches metadata (Dublin core, domain-specific) Peers, collaborators search and discover datasets; transfer and share using Globus Publication repository Personal Computer 1 3 Share Publish Discover 5 6 6 7 8 Compute facilityGlobus transfers files reliably, securely 2 Transfer Globus controls access to shared files on existing storage; no need to move files to cloud storage! 4 Sequencing center
- 22. Researcher initiates transfer request; orrequested automatically by script, science gateway Curator reviews and approves; data set published on campus or other system Researcher selects files to share, selects user or group, and sets access permissions Collaborator logs in to access shared files; no local account needed; download via Globus Researcher assembles data set; attaches metadata (Dublin core, domain-specific) Peers, collaborators search and discover datasets; transfer and share using Globus Publication repository Personal Computer • Only Web browser required • Use any storage system • Access using any credential 1 3 Share Publish Discover 5 6 6 7 8 Compute facilityGlobus transfers files reliably, securely 2 Transfer Sequencing center Globus controls access to shared files on existing storage; no need to move files to cloud storage! 4

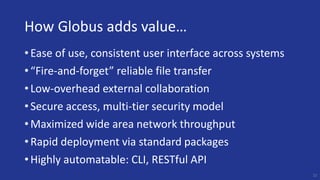

- 23. How Globus addsvalue… • Ease of use, consistent user interface across systems • “Fire-and-forget” reliable file transfer • Low-overhead external collaboration • Secure access, multi-tier security model • Maximized wide area network throughput • Rapid deployment via standard packages • Highly automatable: CLI, RESTful API 23
- 24.
- 25.
- 26.

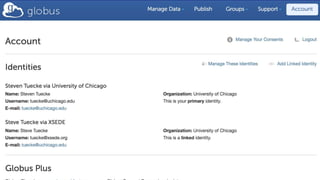

- 27.
- 28.
- 29.

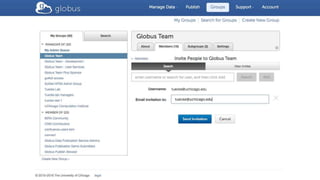

- 30.

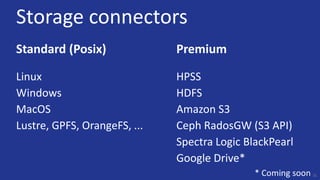

- 31. Storage connectors Standard (Posix) Linux Windows MacOS Lustre,GPFS, OrangeFS, ... 31 Premium HPSS HDFS Amazon S3 Ceph RadosGW (S3 API) Spectra Logic BlackPearl Google Drive* * Coming soon
- 32. Globus accelerates disk-to-diskthroughput 0 1,000 2,000 3,000 4,000 5,000 6,000 7,000 8,000 9,000 scp scp (w/HPN) sftp GridFTP (1 stream) GridFTP (4 streams) Disk-to-Disk Throughput (Mbps) 32Source: ESnet (2016) • Berkeley, CA to Argonne, IL (RTT: 53 ms, Capacity: 10Gbps) • scp is 24x slower than GridFTP • >1 Gbps (125 MB/s) disk-to-disk requires RAID array
- 34.
- 35.
- 36.

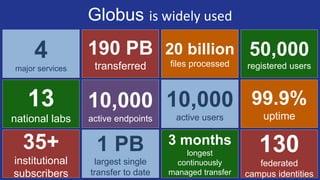

- 37. Globus is widelyused 4 major services 13 national labs 190 PB transferred 10,000 active endpoints 20 billion files processed 10,000 active users 50,000 registered users 99.9% uptime 35+ institutional subscribers 1 PB largest single transfer to date 3 months longest continuously managed transfer 130 federated campus identities

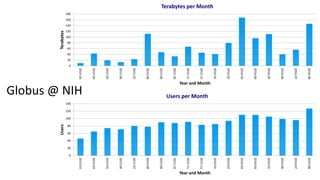

- 38. 0 20 40 60 80 100 120 140 160 180 2015-03 2015-04 2015-05 2015-06 2015-07 2015-08 2015-09 2015-10 2015-11 2015-12 2016-01 2016-02 2016-03 2016-04 2016-05 2016-06 2016-07 2016-08 Terabytes Year and Month Terabytesper Month 0 20 40 60 80 100 120 140 2015-03 2015-04 2015-05 2015-06 2015-07 2015-08 2015-09 2015-10 2015-11 2015-12 2016-01 2016-02 2016-03 2016-04 2016-05 2016-06 2016-07 2016-08 Users Year and Month Users per Month Globus @ NIH

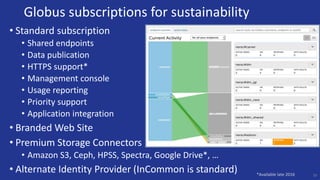

- 39. Globus subscriptions forsustainability • Standard subscription • Shared endpoints • Data publication • HTTPS support* • Management console • Usage reporting • Priority support • Application integration • Branded Web Site • Premium Storage Connectors • Amazon S3, Ceph, HPSS, Spectra, Google Drive*, … • Alternate Identity Provider (InCommon is standard) 39*Available late 2016
- 41.

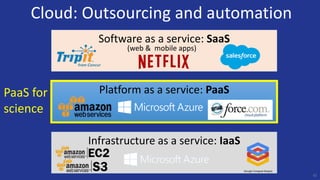

- 42. Cloud: Outsourcing andautomation 42 Software as a service: SaaS Infrastructure as a service: IaaS Platform as a service: PaaS (web & mobile apps) PaaS for science
- 43.
- 44.
- 45.
- 46.

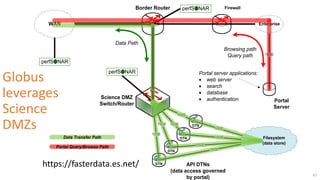

- 47. 10GE10GE 10GE 10GE Border Router WAN Science DMZ Switch/Router Firewall Enterprise perfSONAR perfSONAR 10GE 10GE 10GE 10GE DTN DTN APIDTNs (data access governed by portal) DTN DTN perfSONAR Filesystem (data store) 10GE Portal Server Browsing path Query path Portal server applications: web server search database authentication Data Path Data Transfer Path Portal Query/Browse Path 47 https://fasterdata.es.net/ Globus leverages Science DMZs
- 48. Prototypical research dataportal • Move portal storage into Science DMZ, with Globus endpoint • Leave portal web server behind firewall • Globus handles security and data heavy lifting 48 Desktop Globus Cloud Firewall Science DMZ Globus Transfer Service Portal Web Server (Client) Globus Auth Browser User’s Endpoint (optional) Portal Endpoint Other Endpoints HTTPS GridFTP REST Other Services Globus Web Widgets
- 50.
- 51.
- 52. Workflows can beeasily defined and automated with integrated Galaxy Platform capabilities Data movement is streamlined with integrated Globus transfer Resources can be provisioned on- demand with Amazon Web Services cloud based infrastructure Globus Genomics: Genomics analysis as a service Ravi Madduri et al., University of Chicago

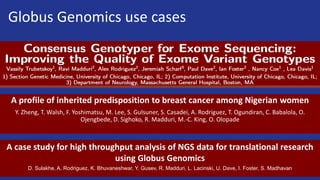

- 53. Globus Genomics usecases A profile of inherited predisposition to breast cancer among Nigerian women Y. Zheng, T. Walsh, F. Yoshimatsu, M. Lee, S. Gulsuner, S. Casadei, A. Rodriguez, T. Ogundiran, C. Babalola, O. Ojengbede, D. Sighoko, R. Madduri, M.-C. King, O. Olopade A case study for high throughput analysis of NGS data for translational research using Globus Genomics D. Sulakhe, A. Rodriguez, K. Bhuvaneshwar, Y. Gusev, R. Madduri, L. Lacinski, U. Dave, I. Foster, S. Madhavan

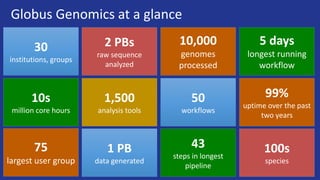

- 54. Globus Genomics ata glance 30 institutions, groups 10s million core hours 2 PBs raw sequence analyzed 1,500 analysis tools 10,000 genomes processed 50 workflows 99% uptime over the past two years 1 PB data generated 43 steps in longest pipeline 100s species 75 largest user group 5 days longest running workflow

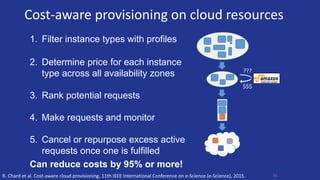

- 55. Cost-aware provisioning oncloud resources 55 1. Filter instance types with profiles 2. Determine price for each instance type across all availability zones 3. Rank potential requests 4. Make requests and monitor 5. Cancel or repurpose excess active requests once one is fulfilled Can reduce costs by 95% or more! $$$ ??? R. Chard et al. Cost-aware cloud provisioning, 11th IEEE International Conference on e-Science (e-Science), 2015.

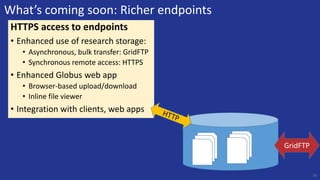

- 56. What’s coming soon:Richer endpoints HTTPS access to endpoints • Enhanced use of research storage: • Asynchronous, bulk transfer: GridFTP • Synchronous remote access: HTTPS • Enhanced Globus web app • Browser-based upload/download • Inline file viewer • Integration with clients, web apps 56 GridFTP

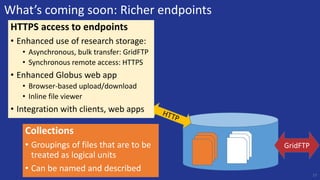

- 57. What’s coming soon:Richer endpoints 57 GridFTP Collections • Groupings of files that are to be treated as logical units • Can be named and described HTTPS access to endpoints • Enhanced use of research storage: • Asynchronous, bulk transfer: GridFTP • Synchronous remote access: HTTPS • Enhanced Globus web app • Browser-based upload/download • Inline file viewer • Integration with clients, web apps

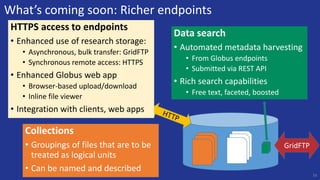

- 58. What’s coming soon:Richer endpoints 58 Data search • Automated metadata harvesting • From Globus endpoints • Submitted via REST API • Rich search capabilities • Free text, faceted, boosted GridFTP HTTPS access to endpoints • Enhanced use of research storage: • Asynchronous, bulk transfer: GridFTP • Synchronous remote access: HTTPS • Enhanced Globus web app • Browser-based upload/download • Inline file viewer • Integration with clients, web apps Collections • Groupings of files that are to be treated as logical units • Can be named and described
- 59. Thank you toour sponsors U . S . D E P A R T M E N T O F ENERGY 59 Thanks to: Rachana Ananthakrishnan, Kyle Chard, Ravi Madduri, Brigitte Raumann, Steve Tuecke, Vas Vasiliadis, and others in the Globus team at the University of Chicago
- 60. Globus provides anew global-scale data fabric that can accelerate discovery by streamlining scientific data sharing and analysis • Globus-enabled storage systems enable robust, secure access • Globus cloud services implement transfer, sharing, publication, discovery, and other capabilities This fabric is: • Being applied in cancer research • Spreading rapidly by word of mouth (scientists like it!) • Widely deployed across universities and labs (thanks, NSF & DOE) • On a path to sustainability based on subscriptions • Being integrated into research infrastructures and applications 60

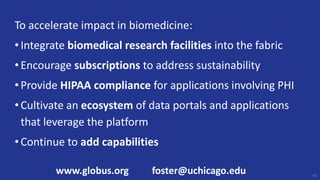

- 61. To accelerate impactin biomedicine: •Integrate biomedical research facilities into the fabric •Encourage subscriptions to address sustainability •Provide HIPAA compliance for applications involving PHI •Cultivate an ecosystem of data portals and applications that leverage the platform •Continue to add capabilities 61 www.globus.org foster@uchicago.edu
Editor's Notes
- #4 Colonel Dwight D. Eisenhower
- #7 Amazon VPC Microsoft one Add consumers Consumers, SMBs, large enterprises
- #8 Amazon VPC Microsoft one Add consumers Consumers, SMBs, large enterprises

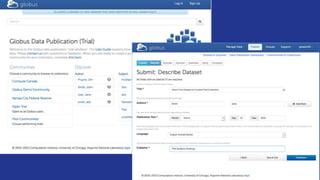

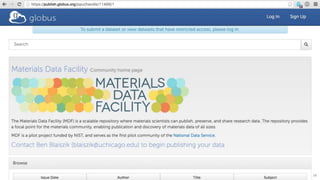

- #35 Data Publication and Discovery
