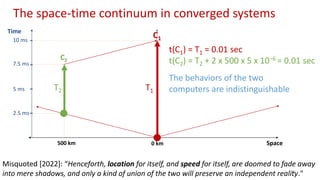

![23
500 km
2.5 ms
The space-time continuum in converged systems
5 ms
7.5 ms
10 ms
0 km
C2
C1
Misquoted [2022]: “Henceforth, location for itself, and speed for itself, are doomed to fade away
into mere shadows, and only a kind of union of the two will preserve an independent reality."
The behaviors of the two
computers are indistinguishable
t(C1) = T1 = 0.01 sec
t(C2) = T2 + 2 x 500 x 5 x 10−6 = 0.01 sec
T1
T2
Time
Space](https://image.slidesharecdn.com/ian-foster-kenkennedy-wed-830am-final-221118181302-53c95fb6/85/Better-Information-Faster-Programming-the-Continuum-23-320.jpg)
Uploaded byIan Foster
Better Information Faster: Programming the Continuum
This document discusses the computing continuum and efforts to enable better information faster through computation. It provides examples of how techniques like executing tasks closer to data sources or on specialized hardware can significantly accelerate applications. Programming models and managed services are explored for specifying and executing workloads across diverse infrastructure. There are still open questions around optimizing networks, algorithms, and applications for the computing continuum.
More Related Content
Similar to Better Information Faster: Programming the Continuum
More from Ian Foster
Better Information Faster: Programming the Continuum
- 1. Better Information Faster Programmingthe Continuum Ian Foster

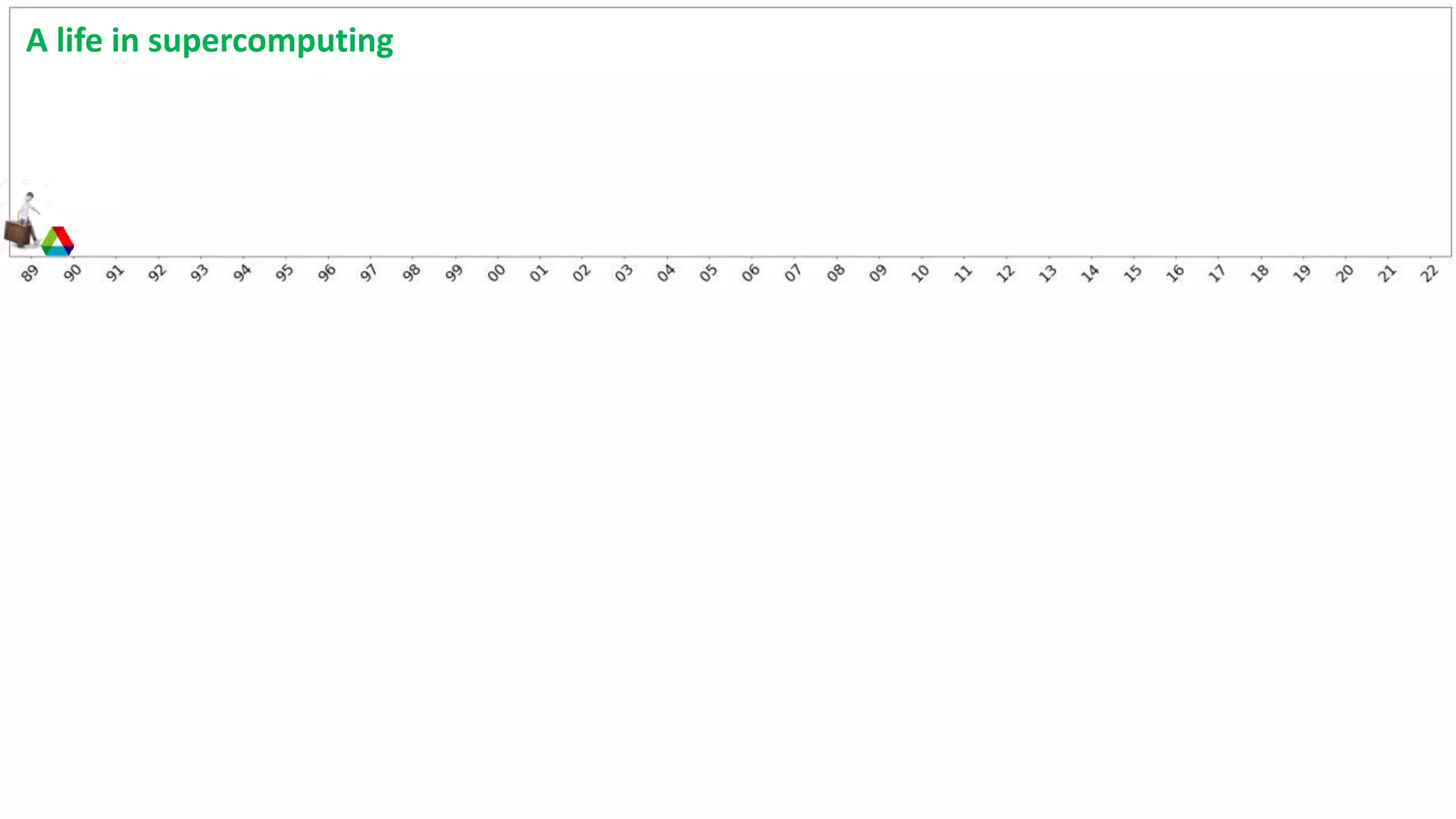

- 2. A life insupercomputing
- 3. A life insupercomputing Ken Kennedy 1945-2007 1998-2000
- 4. A life insupercomputing
- 5. A life insupercomputing … papers accepted to SC
- 6. A life insupercomputing … papers accepted to SC … and co-authors
- 7. A life insupercomputing … papers accepted to SC … and student and postdoc co-authors
- 8. A life insupercomputing … papers accepted and rejected Data available

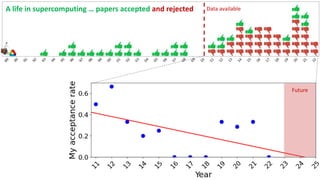

- 9. Data available A lifein supercomputing … papers accepted and rejected Future
- 10. An overarching concern:Better information faster
- 11. An overarching concern:Better information faster
- 12. 90 days in 1980 Anoverarching concern: Better information faster
- 13. 90 msec in 2022 Anoverarching concern: Better information faster

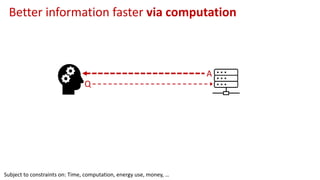

- 14. A Better information fastervia computation Subject to constraints on: Time, computation, energy use, money, … Q

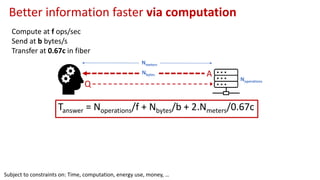

- 15. A Compute at fops/sec Send at b bytes/s Transfer at 0.67c in fiber Noperations Nmeters Nbytes Better information faster via computation Tanswer = Noperations/f + Nbytes/b + 2.Nmeters/0.67c Subject to constraints on: Time, computation, energy use, money, … Q

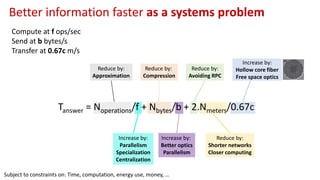

- 16. Compute at fops/sec Send at b bytes/s Transfer at 0.67c m/s Better information faster as a systems problem Nbytes Reduce by: Shorter networks Closer computing Reduce by: Avoiding RPC Reduce by: Compression Increase by: Better optics Parallelism Tanswer = Noperations/f + Nbytes/b + 2.Nmeters/0.67c Reduce by: Approximation Increase by: Parallelism Specialization Centralization Increase by: Hollow core fiber Free space optics Subject to constraints on: Time, computation, energy use, money, …
- 17. Better systems: Domany different things at once Swift, Parsl, … Swift: Parallel Computing 2007 HPF+MPI: SC’96, JPDC’97 Parsl: HPDC’19 Colmena: MLHPC’21
- 18. Managed research accelerationservices Cloud hosted for reliability + global footprint for scientific impact https://globus.org
- 19. Collins Australian Clear SchoolAtlas, 1964 Wellington, New Zealand to Madrid, Spain: 19,855 km Circumference of the earth: 40,075 km Semi-circumference: 20,037 km

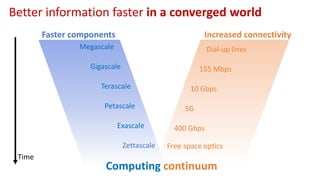

- 20. Megascale Gigascale Terascale Petascale Exascale Zettascale Faster components Increasedconnectivity Dial-up lines 155 Mbps 10 Gbps 5G 400 Gbps Free space optics Computing continuum Time Better information faster in a converged world
- 21. A universal communicationfabric Aalyria’s “Spacetime” [originally “Minkowski”] platform Free-space optics
- 22. A universal communicationfabric Free-space optics ”Henceforth, space for itself, and time for itself, are doomed to fade away into mere shadows, and only a kind of union of the two will preserve an independent reality.” – Hermann Minkowski, 109 Aalyria’s “Spacetime” [originally “Minkowski”] platform
- 23. 23 500 km 2.5 ms Thespace-time continuum in converged systems 5 ms 7.5 ms 10 ms 0 km C2 C1 Misquoted [2022]: “Henceforth, location for itself, and speed for itself, are doomed to fade away into mere shadows, and only a kind of union of the two will preserve an independent reality." The behaviors of the two computers are indistinguishable t(C1) = T1 = 0.01 sec t(C2) = T2 + 2 x 500 x 5 x 10−6 = 0.01 sec T1 T2 Time Space

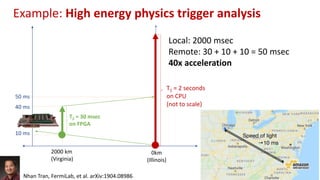

- 24. 24 0km (Illinois) 2000 km (Virginia) 10 ms Example:High energy physics trigger analysis T1 = 2 seconds on CPU (not to scale) T2 = 30 msec on FPGA Local: 2000 msec Remote: 30 + 10 + 10 = 50 msec 40x acceleration 40 ms 50 ms Nhan Tran, FermiLab, et al. arXiv:1904.08986

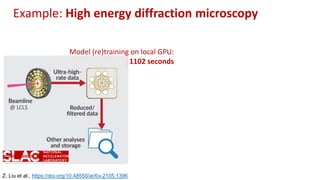

- 25. ources Request Z. Liu etal., https://doi.org/10.48550/arXiv.2105.13967 Example: High energy diffraction microscopy Cerebras CS-2 1102 1102 1102 1102 Model (re)training on local GPU: 1102 seconds @ LCLS
- 26. ources Request Z. Liu etal., https://doi.org/10.48550/arXiv.2105.13967 Example: High energy diffraction microscopy 7 seconds 7 + 19 + 5 = 31 s 35x faster 5 seconds 19 seconds Cerebras CS-2 @ LCLS

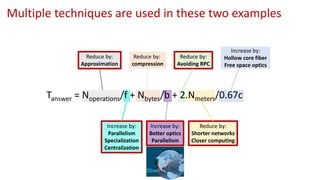

- 27. Multiple techniques areused in these two examples Nbytes Reduce by: Shorter networks Closer computing Reduce by: Avoiding RPC Reduce by: compression Increase by: Better optics Parallelism Tanswer = Noperations/f + Nbytes/b + 2.Nmeters/0.67c Reduce by: Approximation Increase by: Parallelism Specialization Centralization Increase by: Hollow core fiber Free space optics

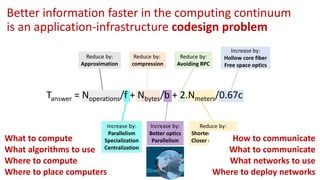

- 28. Better information fasterin the computing continuum is an application-infrastructure codesign problem Nbytes Reduce by: Shorter networks Closer computing Reduce by: Avoiding RPC Reduce by: compression Increase by: Better optics Parallelism Tanswer = Noperations/f + Nbytes/b + 2.Nmeters/0.67c Reduce by: Approximation Increase by: Parallelism Specialization Centralization Increase by: Hollow core fiber Free space optics What to compute What algorithms to use Where to compute Where to place computers How to communicate What to communicate What networks to use Where to deploy networks
- 29. Continuum-aware programming Compute fabricData fabric Trust fabric Compute anywhere Access data anywhere Ensure only authorized operations occur in trusted locations Develop efficient, reliable, reusable applications New methods and tools are needed to enable exploration and exploitation
- 30. Continuum-aware programming Compute fabricData fabric Trust fabric We are exploring new programming abstractions https://braid-project.org https://globus.org “Flows”

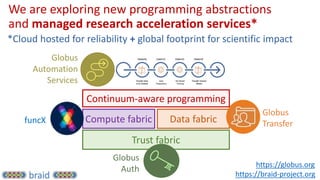

- 31. Continuum-aware programming Compute fabricData fabric Trust fabric Globus Transfer funcX Globus Automation Services Globus Auth We are exploring new programming abstractions and managed research acceleration services* https://braid-project.org https://globus.org *Cloud hosted for reliability + global footprint for scientific impact

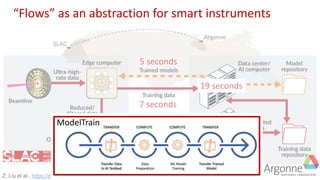

- 32. ources Request Z. Liu etal., https://doi.org/10.48550/arXiv.2105.13967 7 seconds 7 + 19 + 5 = 31 s 5 seconds 19 seconds “Flows” as an abstraction for smart instruments ModelTrain
- 33. Globus automation services:Managed research acceleration services for flow specification, execution, and management R. Chard et al., https://doi.org/10.48550/arXiv.2208.09513

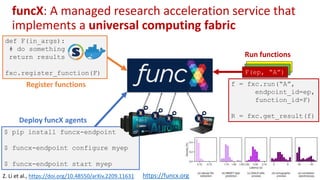

- 34. def F(in_args): # dosomething return results fxc.register_function(F) $ pip install funcx-endpoint $ funcx-endpoint configure myep $ funcx-endpoint start myep funcX: A managed research acceleration service that implements a universal computing fabric https://funcx.org Z. Li et al., https://doi.org/10.48550/arXiv.2209.11631 F(ep, arg) F(ep, arg) F(ep, “A”) f = fxc.run(“A”, endpoint_id=ep, function_id=F) R = fxc.get_result(f) Deploy funcX agents Register functions Run functions

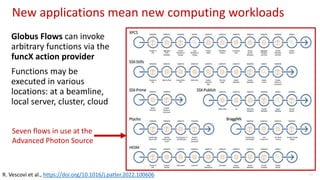

- 35. New applications meannew computing workloads Globus Flows can invoke arbitrary functions via the funcX action provider Functions may be executed in various locations: at a beamline, local server, cluster, cloud 35 R. Vescovi et al., https://doi.org/10.1016/j.patter.2022.100606 Seven flows in use at the Advanced Photon Source
- 36. New applications meannew computing workloads Globus Flows can invoke arbitrary functions via the funcX action provider Functions may be executed in various locations: at a beamline, local server, cluster, cloud 36 R. Vescovi et al., https://doi.org/10.1016/j.patter.2022.100606 Execution times at the Argonne Leadership Computing Facility

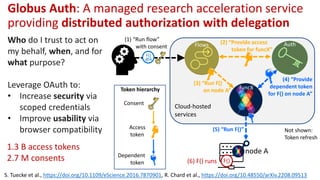

- 37. (5) “Run F()” F() @A nodeA F() Auth (3) “Run F() on node A” Flows (2) “Provide access token for funcX” (4) “Provide dependent token for F() on node A” (6) F() runs Consent Dependent token Token hierarchy (1) “Run flow” with consent funcX Access token Cloud-hosted services Globus Auth: A managed research acceleration service providing distributed authorization with delegation Not shown: Token refresh Who do I trust to act on my behalf, when, and for what purpose? Leverage OAuth to: • Increase security via scoped credentials • Improve usability via browser compatibility S. Tuecke et al., https://doi.org/10.1109/eScience.2016.7870901, R. Chard et al., https://doi.org/10.48550/arXiv.2208.09513 1.3 B access tokens 2.7 M consents

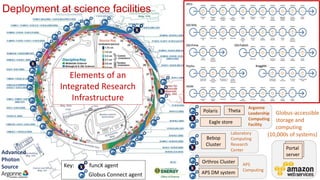

- 38. Polaris Bebop Cluster Argonne Leadership Computing Facility Laboratory Computing Research Center Eagle store APS Computing Orthros Cluster APSDM system Portal server Portal server Theta Advanced Photon Source Key: funcX agent Globus Connect agent Globus-accessible storage and computing (10,000s of systems) Deployment at science facilities Elements of an Integrated Research Infrastructure
- 39. Foucault’s pendulum, ParisPanthéon Problems we have solved, in part • Authorization (“enterprise grade security, consumer-grade usability”) • Universal connectivity • Location-independent computing • Programming New opportunities and challenges • New devices and applications • Massive performance and scale • Energy as a ubiquitous constraint • Global data space architecture • Programming Utility (‘60s) … xSP (’80s) … Grid (‘90s) … Cloud (2010) … Edge … Continuum … The pendulum swings between centralization and decentralization

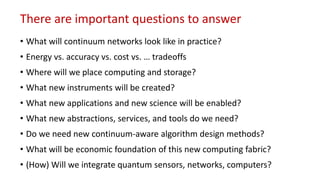

- 40. There are importantquestions to answer • What will continuum networks look like in practice? • Energy vs. accuracy vs. cost vs. … tradeoffs • Where will we place computing and storage? • What new instruments will be created? • What new applications and new science will be enabled? • What new abstractions, services, and tools do we need? • Do we need new continuum-aware algorithm design methods? • What will be economic foundation of this new computing fabric? • (How) Will we integrate quantum sensors, networks, computers?
- 41. Thank you foryour attention! Two wonderful institutions: Argonne National Laboratory and the University of Chicago Federal agencies for continued support: DOE, NSF, NIH, NIST Wonderful colleagues: Rachana Ananthakrishnan, Ben Blaiszik, Pete Beckman, Charlie Catlett, Kyle Chard, Ryan Chard, Carl Kesselman, Rick Stevens, Vas Vasiliadis, Logan Ward, & many more To learn more about our work: https://labs.globus.org Ask questions or share your thoughts: foster@anl.gov Experiment with tools: https://braid-project.org Thanks to: https://doi.org/10.1016/j.patter.2022.100606
Editor's Notes
- #3 A brief retrospective of my life from the perspective of the SC conference. Here is me arriving at Argonne in January 1989. Jack Dongarra had just left for Tennessee.
- #4 I had the great good fortune to be welcomed soon after my arrival into the Center for Research on Parallel Computation, an NSF Science and Technology Center, led by Ken Kennedy. CRPC under Ken’s leadership was a remarkably collegial and productive community. Ken was also very supportive of me, for example by providing resources that allowed me to recruit a young 22-year-old hot shot, Steve Tuecke.
- #5 Steve and I worked together for 30 years until his recent passing. So much of what I talk about here was dreamed up in joint brainstorming sessions. I dedicate this talk to his memory.
- #6 But to return to the SC conference. I have published 30 papers here since 1993, my first SC conference.
- #7 Here are the faces of 91 of my 97 wonderful SC co-authors. Time is too short to call them out by name, but what exceptional people. The people that we work with are much of what makes HPC a joy.
- #8 Many of these were students or postdocs at the time. Now, you may be thinking that publishing 30 papers in 30 years suggests a consistent ability to impress SC reviewers.
- #9 But with help from Mark Montague from Linklings, I refreshed my memory of all papers from 2011 onwards. I can reveal here that some were less appreciated.
- #10 Furthermore, applying the powerful AI method of linear regression, I can build a predictor of my future personal acceptance rates. My last paper to be accepted at SC will be in 2023, and only if I submit around 20 papers. The power of data.
- #11 Back to the theme of my talk. I have always been fascinated by the question of how to use computing to deliver better information faster to decision makers.
- #12 Perhaps relates to growing up in New Zealand, which is a long way away from anywhere.
- #13 Indeed, when I left in 1980, which for idiosyncratic reasons I did on a sailboat, it took me 90 days to reach North America.
- #14 Now we can transmit information much faster, reaching all the way to Dallas in just 90 msec: Close to 100M times faster But still quite slow for many purposes, and not directly improvable further, given light speed limits.
- #15 So let’s look briefly at what is involved in obtaining useful information. We send a message to retrieve an answer, which often requires computation.
- #16 The time required to get that answer depends on the number of operations, data communication needs, the distance to be traversed, and the speeds of computation and communication.
- #17 We can accelerate each element in this equation in numerous ways, from better algorithms that reduce the number of operations to be performed to better computers and networks. This complexity is of course what makes HPC so much fun. My colleagues and I have worked to optimize various of these elements over the years. Let me mention just a few of those activities.
- #18 One area of focus has been using HPC systems to do many different things at once. Back in the day, HPC systems were used only for single program multiple data, or SPMD, computations. To escape this straightjacket, my colleagues and I have developed new methods and tools, like Strand, Swift, Parsl, and Colmena that applications that combine different components to be defined and executed. These tools have been used to build large heterogeneous applications that, for example, perform AI-guided simulation. Many talented contributors here; I will call out Mike Wilde, Justin Wozniak, Kyle Chard, Shantenu Jha, Logan Ward as leaders of individual projects. Today, such applications are largely mainstream, although arguably our runtimes and operating systems still need to catch up.
- #19 As a second example of work intended to produce better information faster, I will describe the work of the Globus team on science services to accelerate complex tasks, for example, by making fast and reliable data transfer a one-click operation. The Globus system, developed and operated by a wonderful team at the University of Chicago, uses software running on the Amazon cloud to manage data transfers, and more, with extreme reliability and high performance: what we may call a managed research acceleration service. I created this animation of Globus transfers from late 2010 to today. The x-axis is the great circle distance between source and destination, from 0 to 20,000 kilometers. The y-axis the transfer size, from 100MB to several petabytes. Each dot represents a transfer. I also track total exabytes and gigafiles. I label a few source-destination pairs You’ll see a large gap around 5000 km. It turns out that the sizes of the continents and oceans means that few communications occur over that distance. You may also see a point to the far right at 19855 kilometers. Can any two places be that far apart?
- #20 It turns out those dots represent transfers between Madrid and Wellington, And those two cities are as about as far apart on the globe as you can get, as shown in this map from a childhood atlas explaining the concept of ”antipodes.”
- #21 Now to the title of my talk,, computing in the continuum. Jack talked yesterday about how computers have grown ever faster. Over that same period, networks have become not only faster but also immensely more reliable. We can now envision a world in which barriers to remote computing, other than the speed of light, disappear. When computation can be accessed remotely as easily as locally, we may talk about a computing continuum.
- #22 One aspect of this new world is that the large white spaces in our maps, in which little or no communication is possible, will be filled in. 5G and 6G are one reason. Another technology that may be even more transformative is coherent light free-space optics: that is, space lasers. This image depicts such a device, on the right, and the “SpaceTime” platform that ah-Leer-eeh-ah, a Google spinout, is developing to provide global communication. The original name for their platform was Minkowski, after Herman Minkowski
- #23 Hermann Minkowski, a colleague of Einstein’s, observed about the special theory of relativity that it defined a space-time continuum
- #24 With universal high-speed communications, we may adapt his words to refer to location and speed. The speed of a computer, as perceived by its user, is not an absolute, but rather varies with its distance, As shown here where a computer twice as fast but 500 km distance takes the same time to compute as a local computer
- #25 For example: Nhan Tran of FermiLab observes that he can accelerate a trigger analysis code from 2000 to 50 ms by running it on an FPGA. The FPGA is in an Amazon data center in Virginia, 10 ms away. The actual computation takes 30 msec, round trip time is 50ms. Net result is 40x acceleration.
- #26 Another example, involving work by Zhengchun Liu and others at Argonne and SLAC. High energy diffraction microscopy experiments at the Linac Coherent Light Source use a deep neural network, running on a GPU, to extract information from high-rate measurements of microstructure evolution in materials. The GPU is not powerful enough, however, for the periodic retraining required to respond to structural deformation.
- #27 Dispatching requests to a Cerebras system at Argonne reduces this time to 31 seconds: 12 seconds to move data and the new model; 19 seconds for training. So 35x faster
- #28 Several techniques are used in these two examples. Scientists use NN as efficient approximators, stream data, and use parallelism, specialized hardware, and data center AI systems. ESNet is increasing communication rates and reducing latency, and ALCF is deploying specialized computers.
- #29 In general, solving massive co-design problem: designing applications,
- #30 We have identified the following key requirements. Surely not a complete list, but all essential.
- #31 As I’ll briefly describe, we are developing new methods in each area to allow experimentation. One is a notation for expressing data pipelines.
- #32 Others include methods for managing flows, computing anywhere, accessing data anywhere, and delegating credentials. As with Globus Transfer, we make extensive use of cloud-hosted research acceleration services, Which I remind you combine cloud hosted management logic for high reliability with local agents for global footprint
- #33 Flows are built up from simple operations like data transfer, computation, data cataloging.
- #34 A wonderful team at the University of Chicago led by Rachana Ananthakrishnan has developed Globus Automation Services to manage the execution of such flows. As a cloud-hosted service, they can manage flows that run for seconds or months.
- #35 Another managed research acceleration service, funcX, led by Kyle Chard, …
- #36 I’ll mention that these new applications represent a new source of increasingly different workloads. Here, for example, I show for thousands of instances of seven synchrotron light source flows the average duration of each action. Durations range from seconds to hours Globus services ensure reliable execution.
- #37 I’ll mention that these new applications represent a new source of increasingly different workloads. Here, for example, I show for thousands of instances of seven synchrotron light source flows the average duration of each action. Durations range from seconds to hours Globus services ensure reliable execution.
- #38 Another essential building block, this one operational for several years, is the Globus Auth identity and access management platform service. We need flows to perform actions on instruments, computers, repositories, and networks at remote locations. To do this securely, we provide consent and tokens mechanisms for controlling what agents acting on a users behalf can do.
- #39 Using managed research automation services, we can create what Ben Brown of DOE calls an “integrated research infrastructure” by deploying local agents at each system that is to be integrated into the continuum. Here I show what this means at Argonne. Most beamlines at the Advanced Photon Source run Globus Connect agents, and a variety of computers run funcX agents.
- #40 You might ask, how are the problems and solutions that I have presented here different from those deployed 10, 20, or 30 years ago? Dan Reed has observed that computing differs from other sciences in that the questions often stay the same while the answers change. Far more reliable and performant networks, and effective containerization, allow us to revisit old answers. And new concerns, like energy, result in new questions.
- #41 Indeed, our early experiences programing the continuum suggest numerous other questions.
