Simplified Research Data Management with the Globus Platform
The document provides an overview of the Globus platform's capabilities for research data management, highlighting its history, core functions, and features such as secure file sharing, automated data movement, and data publication. It emphasizes the platform's flexibility in accessing diverse storage systems and its role in supporting researcher needs for data stewardship and automation. Additionally, the document discusses themes of sustainability, security in data handling, and the platform's growing user base and statistics.
More Related Content
![[Data Innovation Summit 2015] Belga Big Content Platform](https://cdn.slidesharecdn.com/ss_thumbnails/disbelgabigdata-150330084608-conversion-gate01-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Simplified Research Data Management with the Globus Platform
Simplified Research Data Management with the Globus Platform
- 1. Simplified Research DataManagement with the Globus Platform CNI Membership Meeting, Fall 2018 - Project Update Vas Vasiliadis vas@uchicago.edu

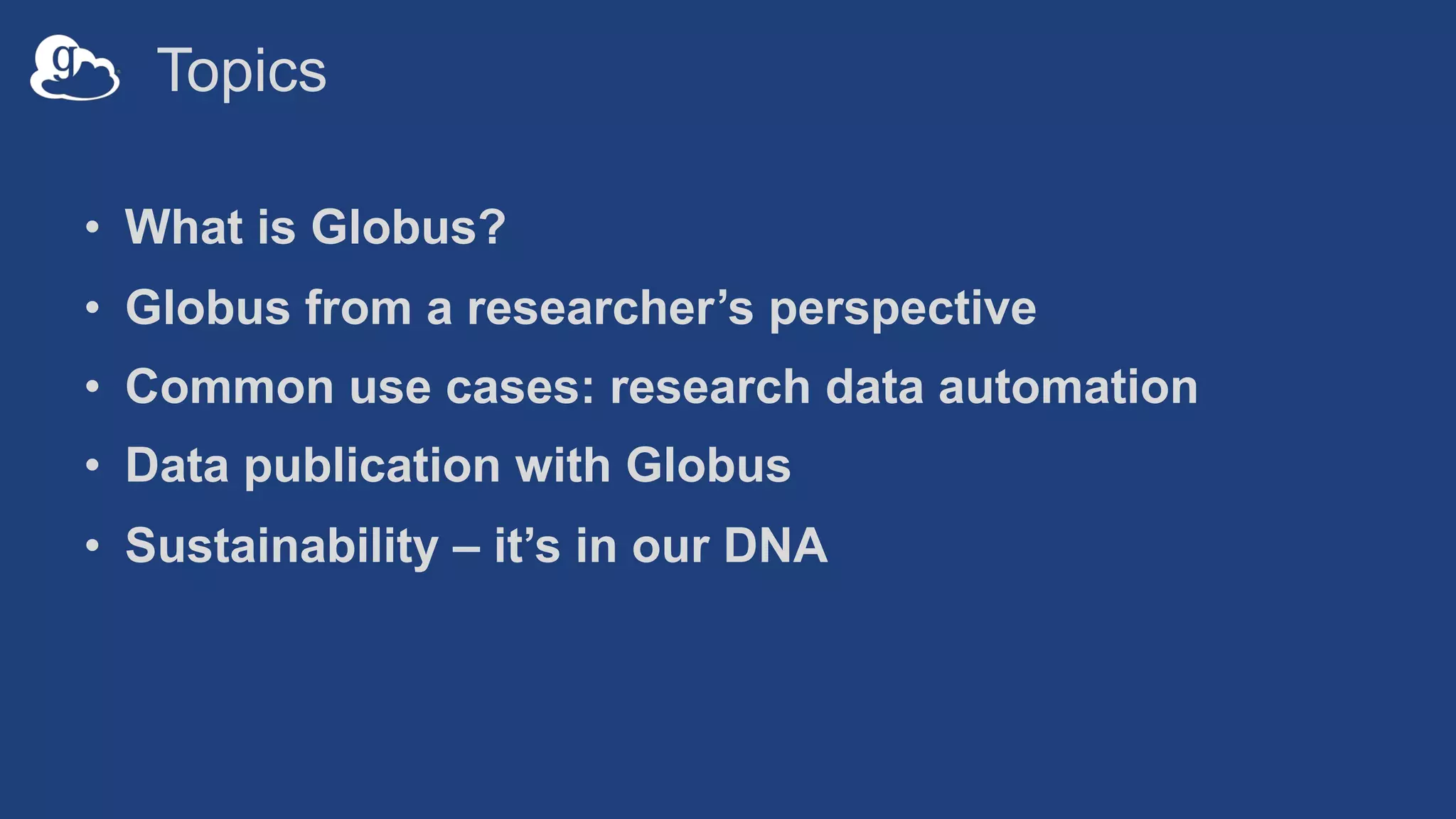

- 2. Topics • What isGlobus? • Globus from a researcher’s perspective • Common use cases: research data automation • Data publication with Globus • Sustainability – it’s in our DNA

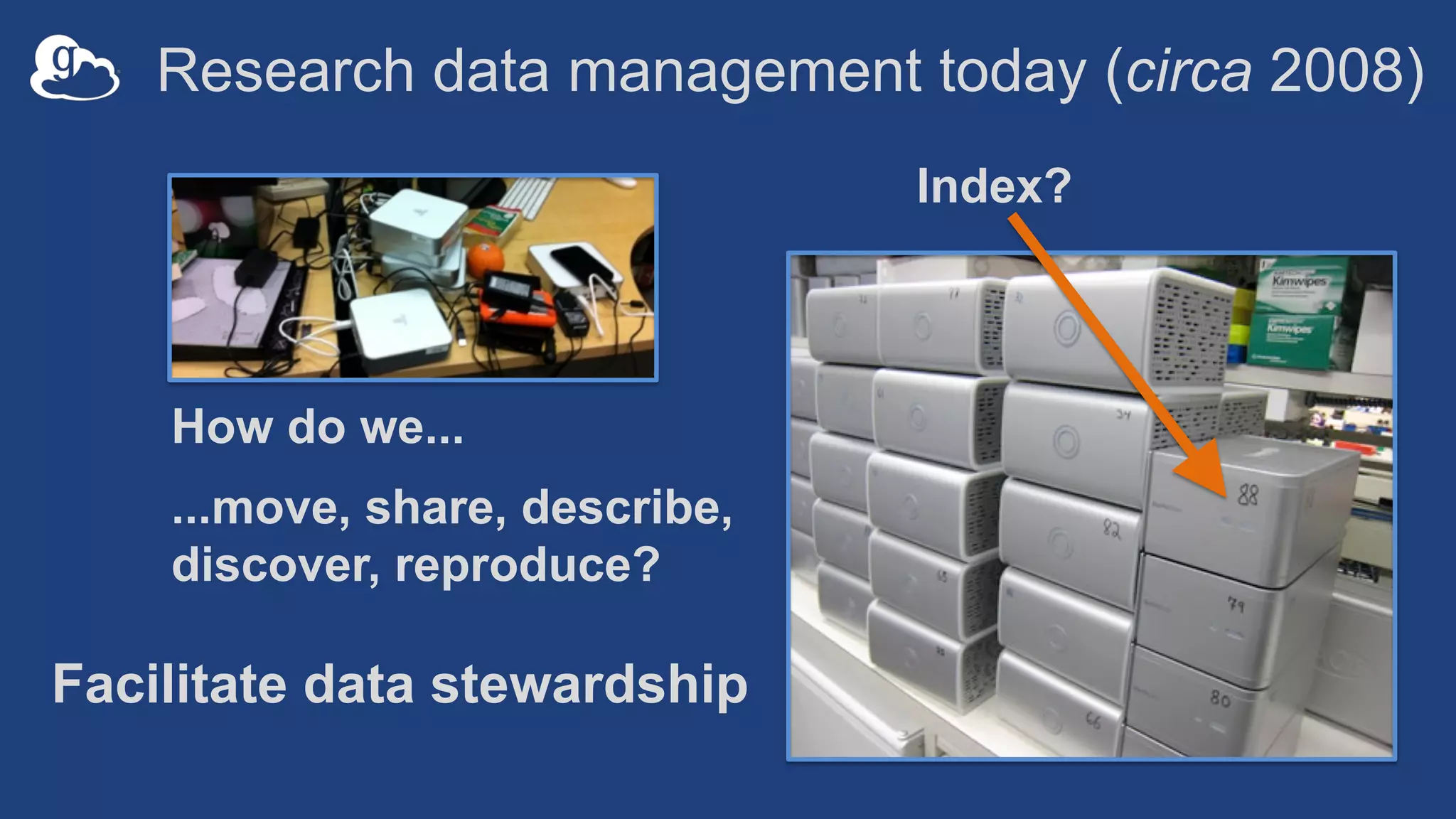

- 3. Research data managementtoday (circa 2008) How do we... ...move, share, describe, discover, reproduce? Index? Facilitate data stewardship

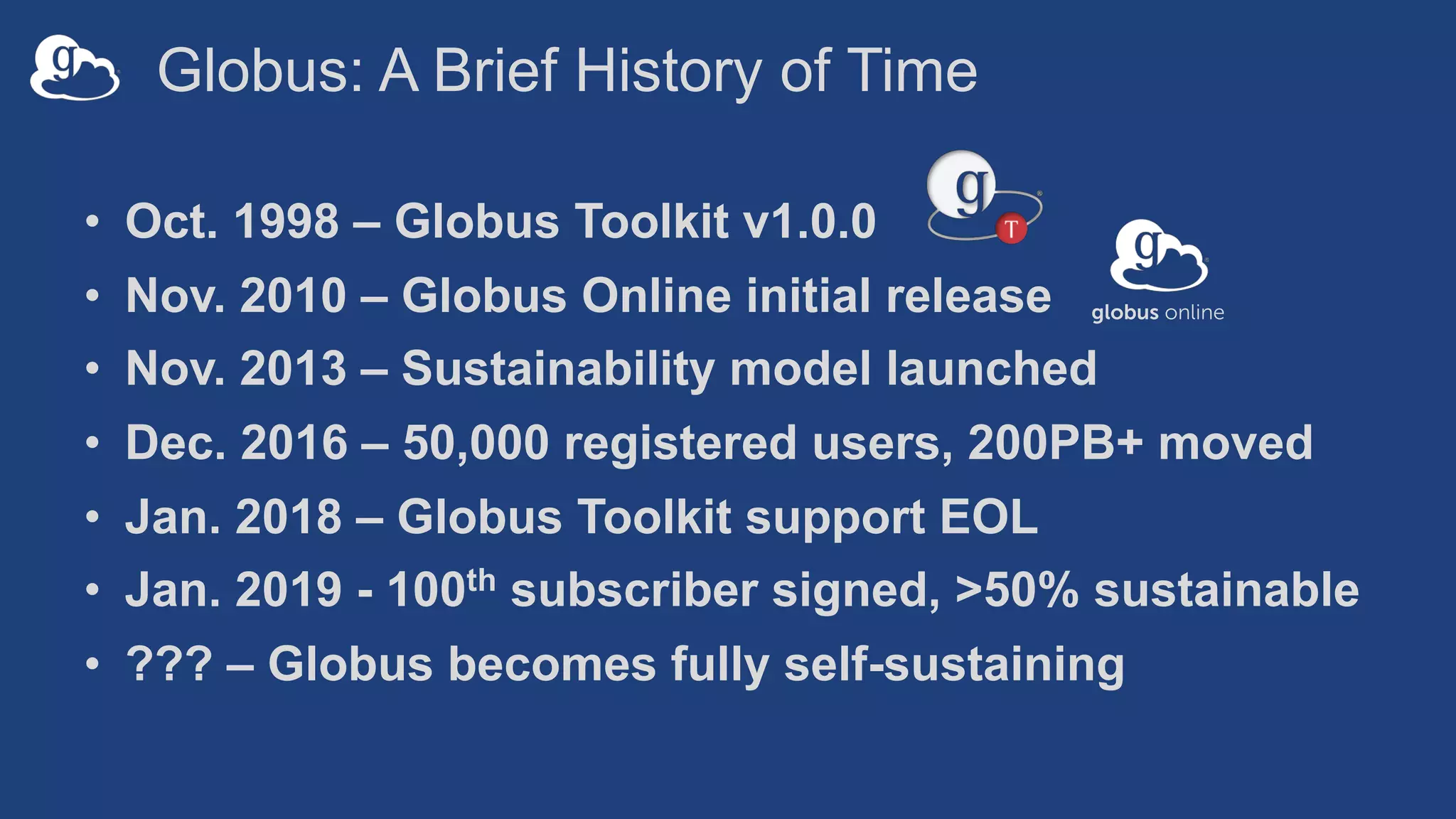

- 4. Globus: A BriefHistory of Time • Oct. 1998 – Globus Toolkit v1.0.0 • Nov. 2010 – Globus Online initial release • Nov. 2013 – Sustainability model launched • Dec. 2016 – 50,000 registered users, 200PB+ moved • Jan. 2018 – Globus Toolkit support EOL • Jan. 2019 - 100th subscriber signed, >50% sustainable • ??? – Globus becomes fully self-sustaining globus online
- 5. Globus… bridges data andpeople within and beyond organizational boundaries

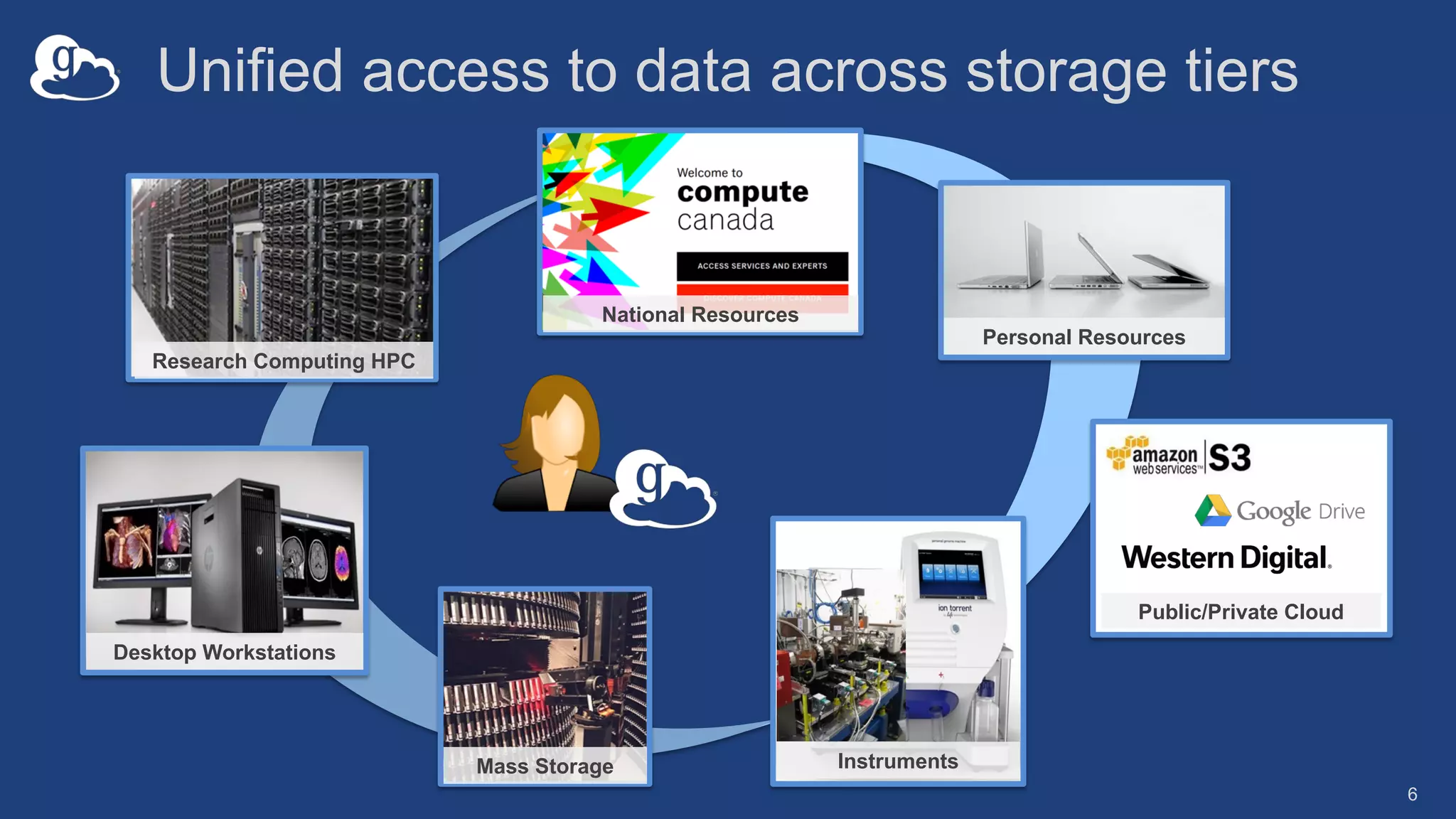

- 6. 6 Research Computing HPC DesktopWorkstations Mass Storage Instruments Personal Resources Public/Private Cloud National Resources Unified access to data across storage tiers

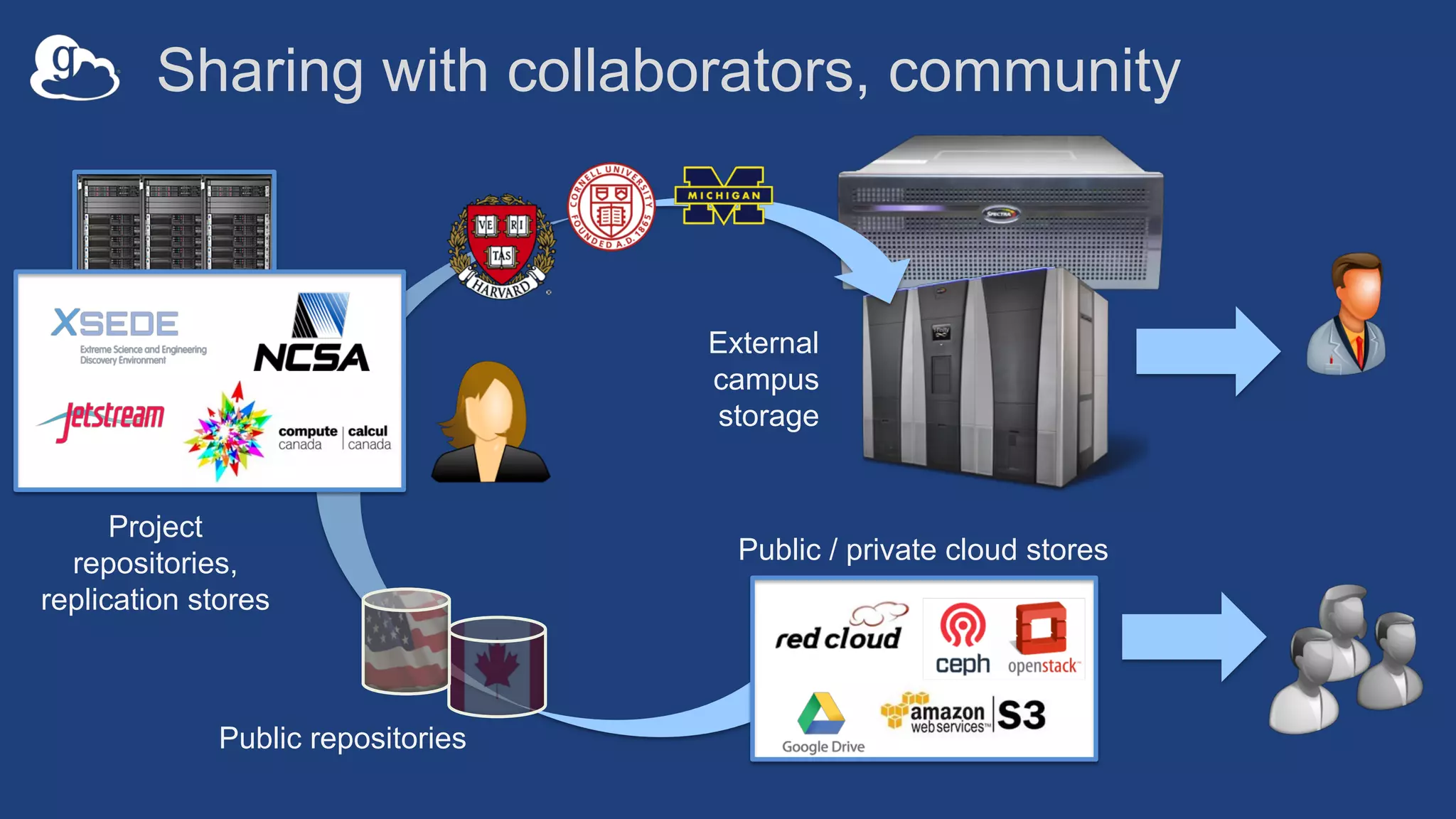

- 7. Public / privatecloud stores External campus storage Project repositories, replication stores Public repositories Sharing with collaborators, community

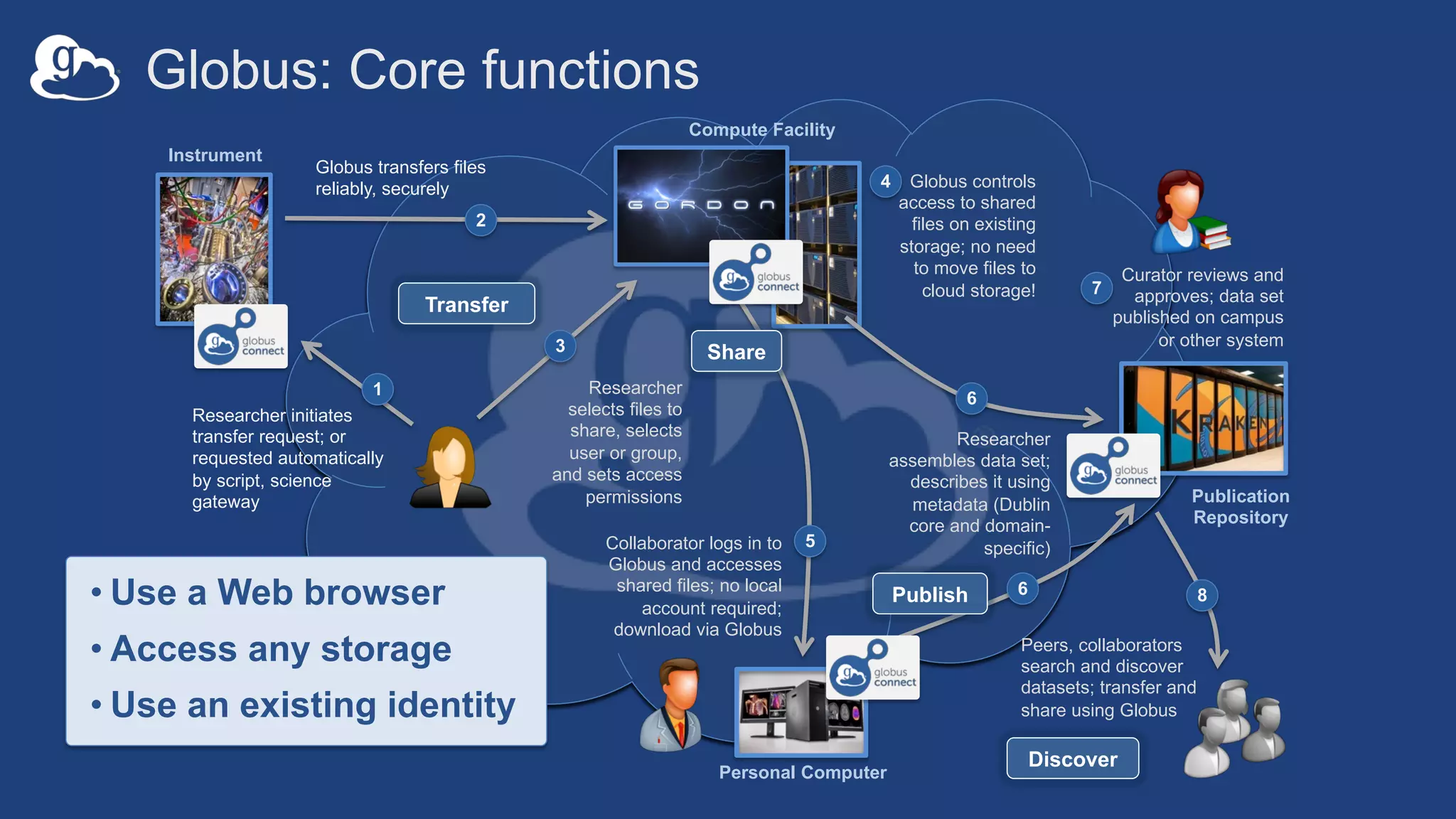

- 8. Globus: Core functions Researcherinitiates transfer request; or requested automatically by script, science gateway 1 Instrument Compute Facility Globus transfers files reliably, securely 2 Globus controls access to shared files on existing storage; no need to move files to cloud storage! 4 Curator reviews and approves; data set published on campus or other system 7 Researcher selects files to share, selects user or group, and sets access permissions 3 Collaborator logs in to Globus and accesses shared files; no local account required; download via Globus 5 Researcher assembles data set; describes it using metadata (Dublin core and domain- specific) 6 6 Peers, collaborators search and discover datasets; transfer and share using Globus 8 Publication Repository Personal Computer Transfer Share Publish Discover • Use a Web browser • Access any storage • Use an existing identity
- 9.

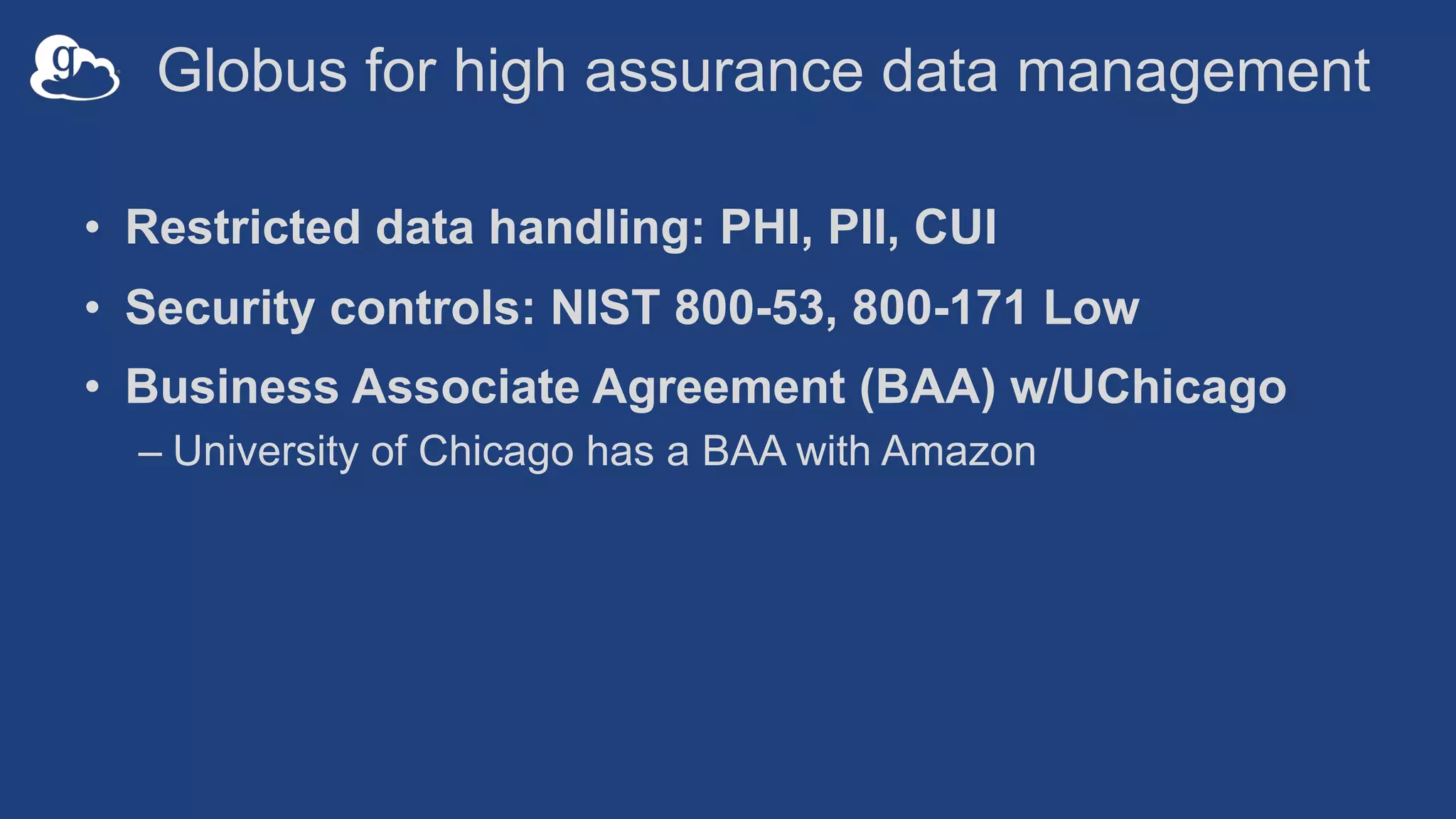

- 23. Globus for highassurance data management • Restricted data handling: PHI, PII, CUI • Security controls: NIST 800-53, 800-171 Low • Business Associate Agreement (BAA) w/UChicago – University of Chicago has a BAA with Amazon

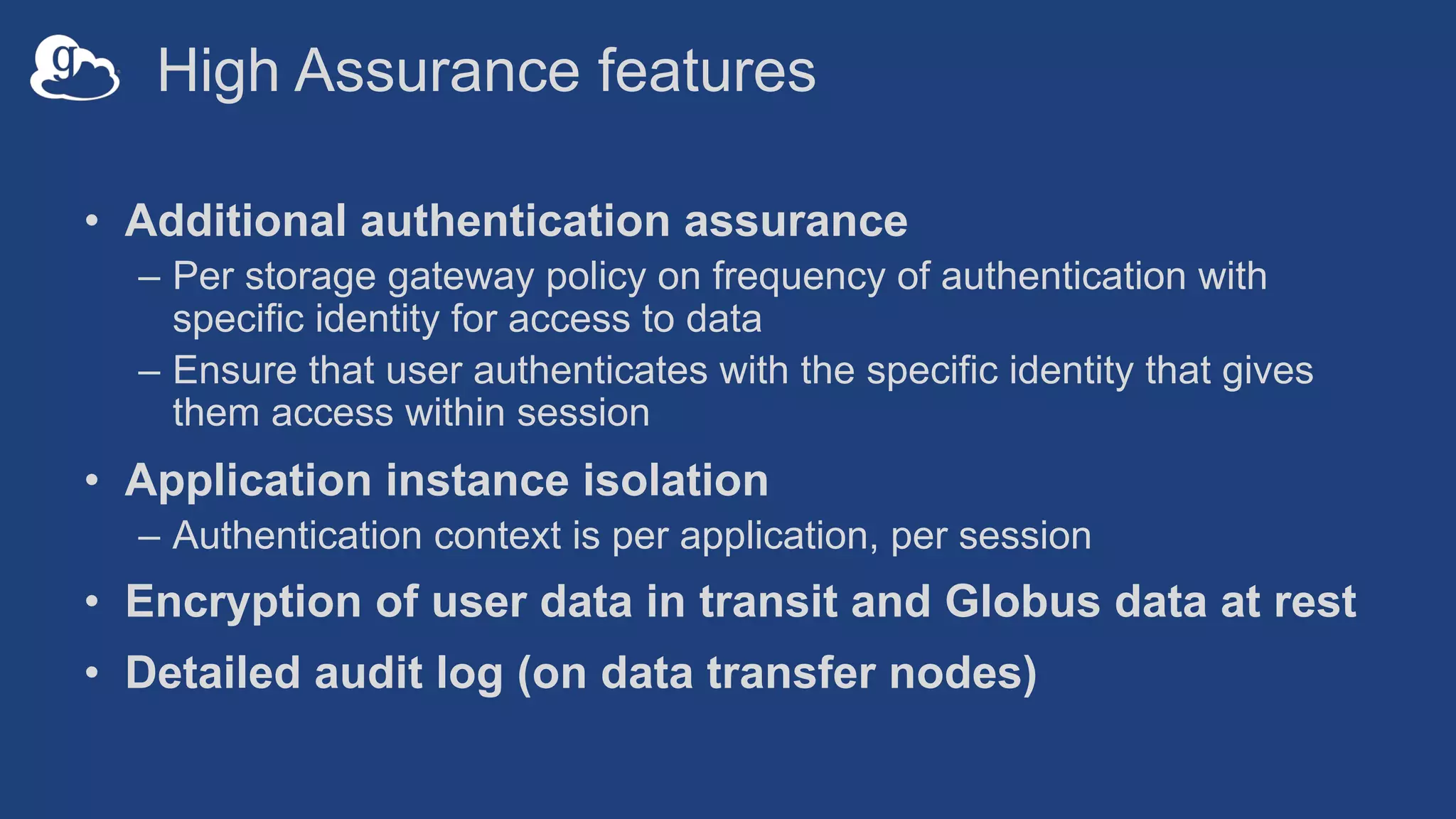

- 24. High Assurance features •Additional authentication assurance – Per storage gateway policy on frequency of authentication with specific identity for access to data – Ensure that user authenticates with the specific identity that gives them access within session • Application instance isolation – Authentication context is per application, per session • Encryption of user data in transit and Globus data at rest • Detailed audit log (on data transfer nodes)
- 28. Accessing Globus from yourown storage
- 29. …client software that makesa storage system accessible via Globus
- 30. Globus Connect Personal •Installers do not require admin access • Zero configuration; auto updating • No firewall changes required; handles NATs

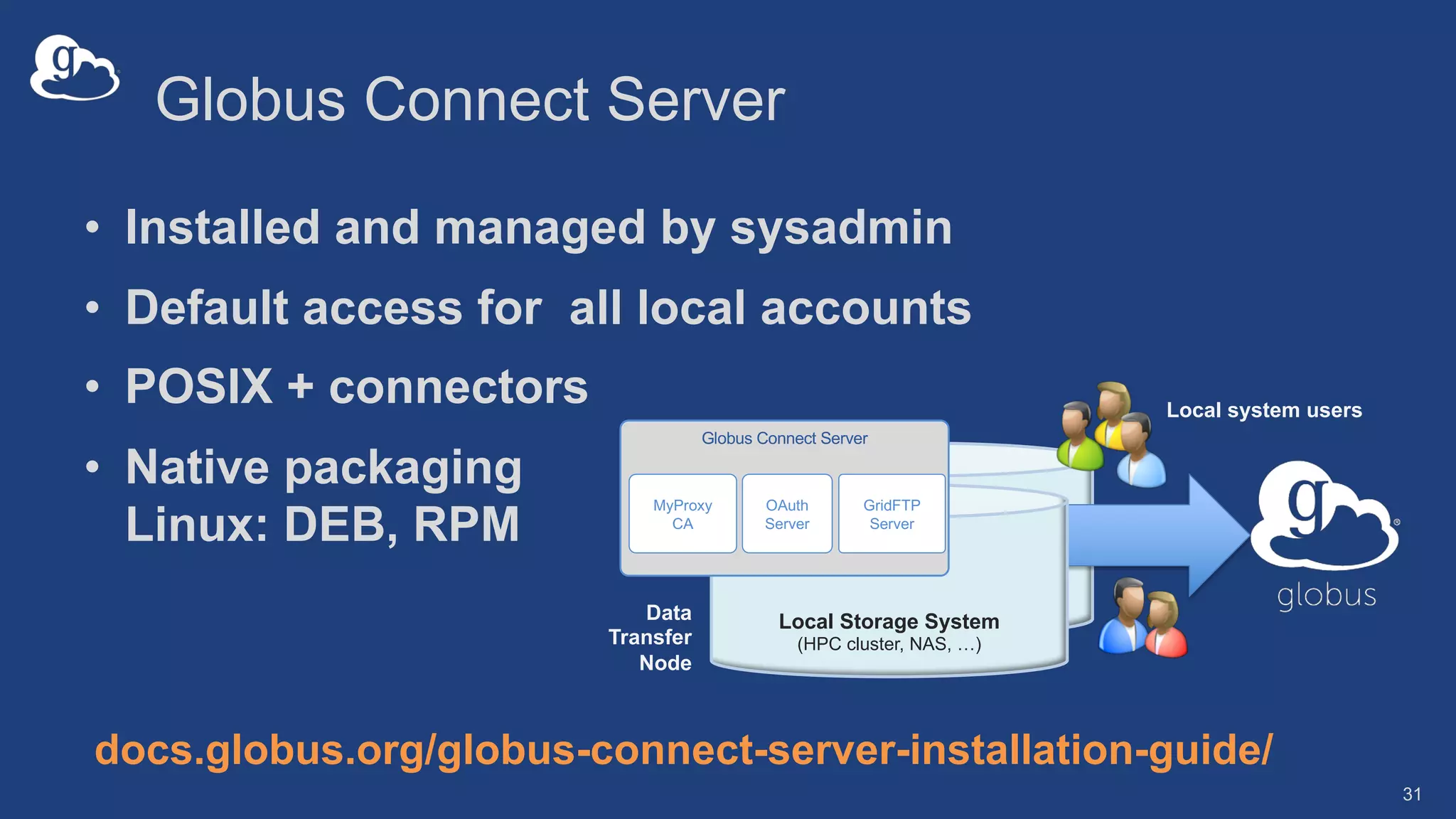

- 31. Globus Connect Server •Installed and managed by sysadmin • Default access for all local accounts 31 docs.globus.org/globus-connect-server-installation-guide/ Local system users Local Storage System (HPC cluster, NAS, …) Globus Connect Server MyProxy CA GridFTP Server OAuth Server Data Transfer Node • POSIX + connectors • Native packaging Linux: DEB, RPM
- 32. IBM Spectrum Scale CurrentPlanned Storage Connectors - globus.org/connectors ActiveScale

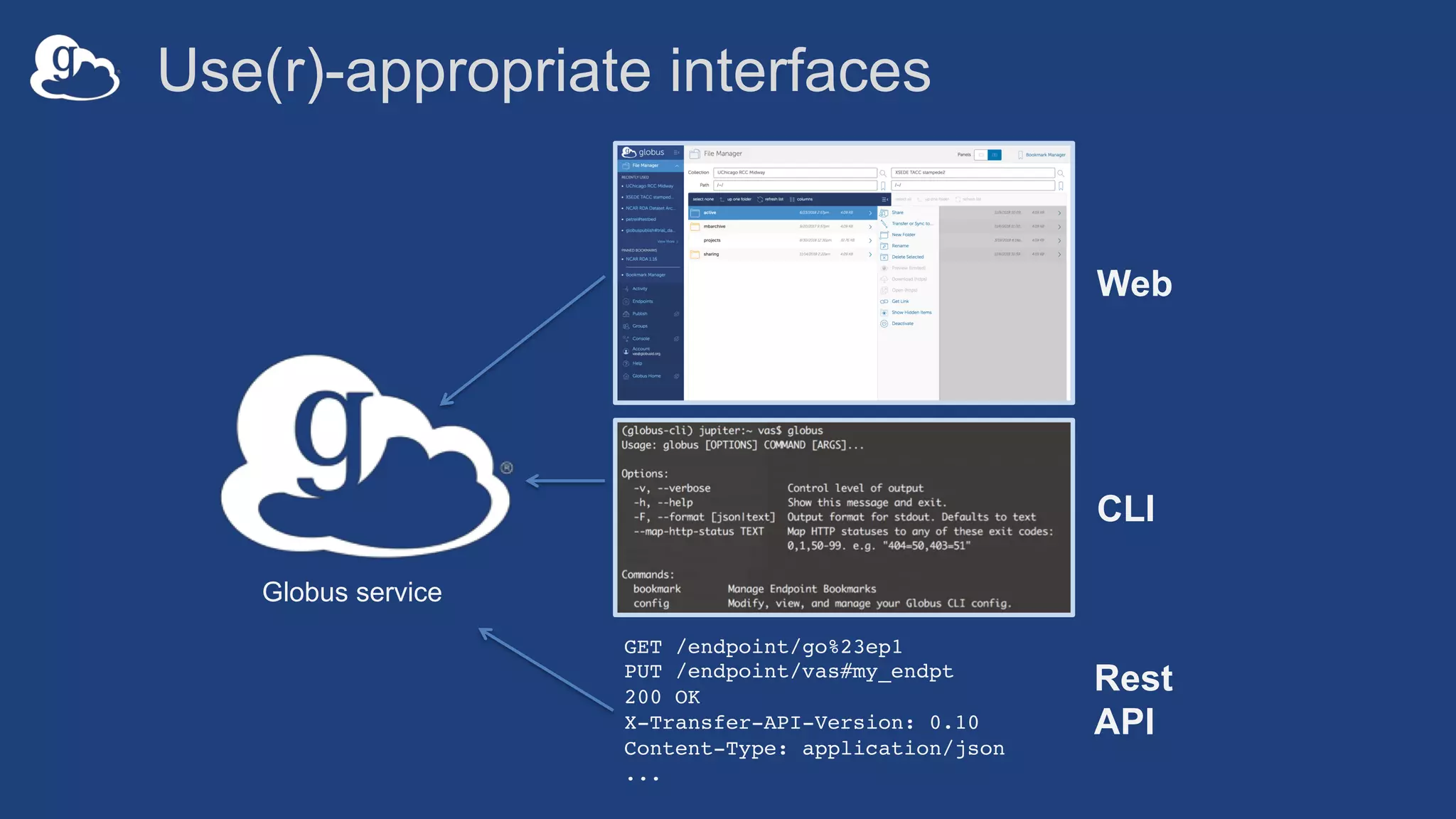

- 33. Use(r)-appropriate interfaces GET /endpoint/go%23ep1 PUT/endpoint/vas#my_endpt 200 OK X-Transfer-API-Version: 0.10 Content-Type: application/json ... Globus service Web CLI Rest API

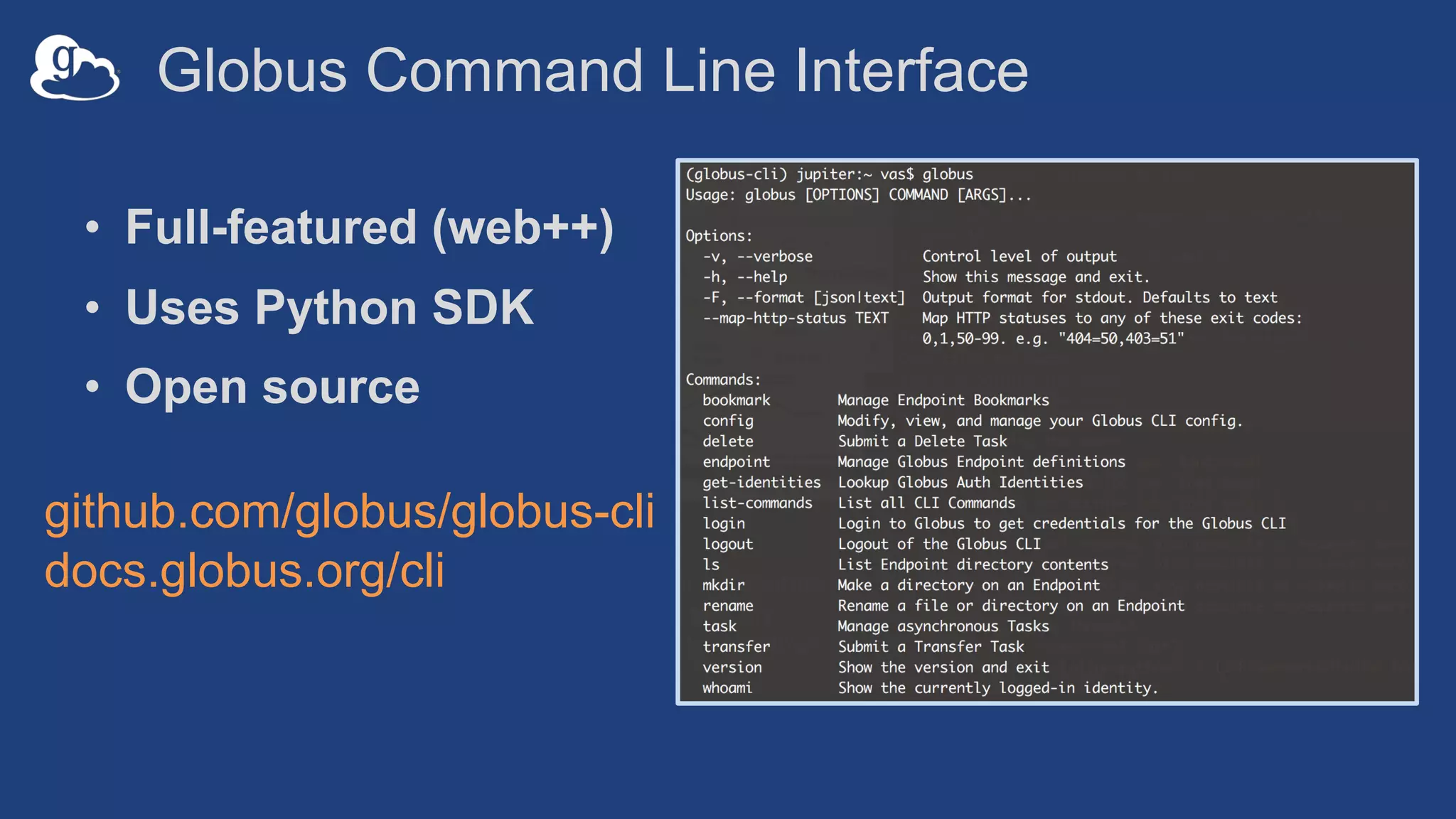

- 34. Globus Command LineInterface • Full-featured (web++) • Uses Python SDK • Open source github.com/globus/globus-cli docs.globus.org/cli
- 35. Globus is PaaS… …forbuilding science gateways, portals, and other web applications in support of research and education

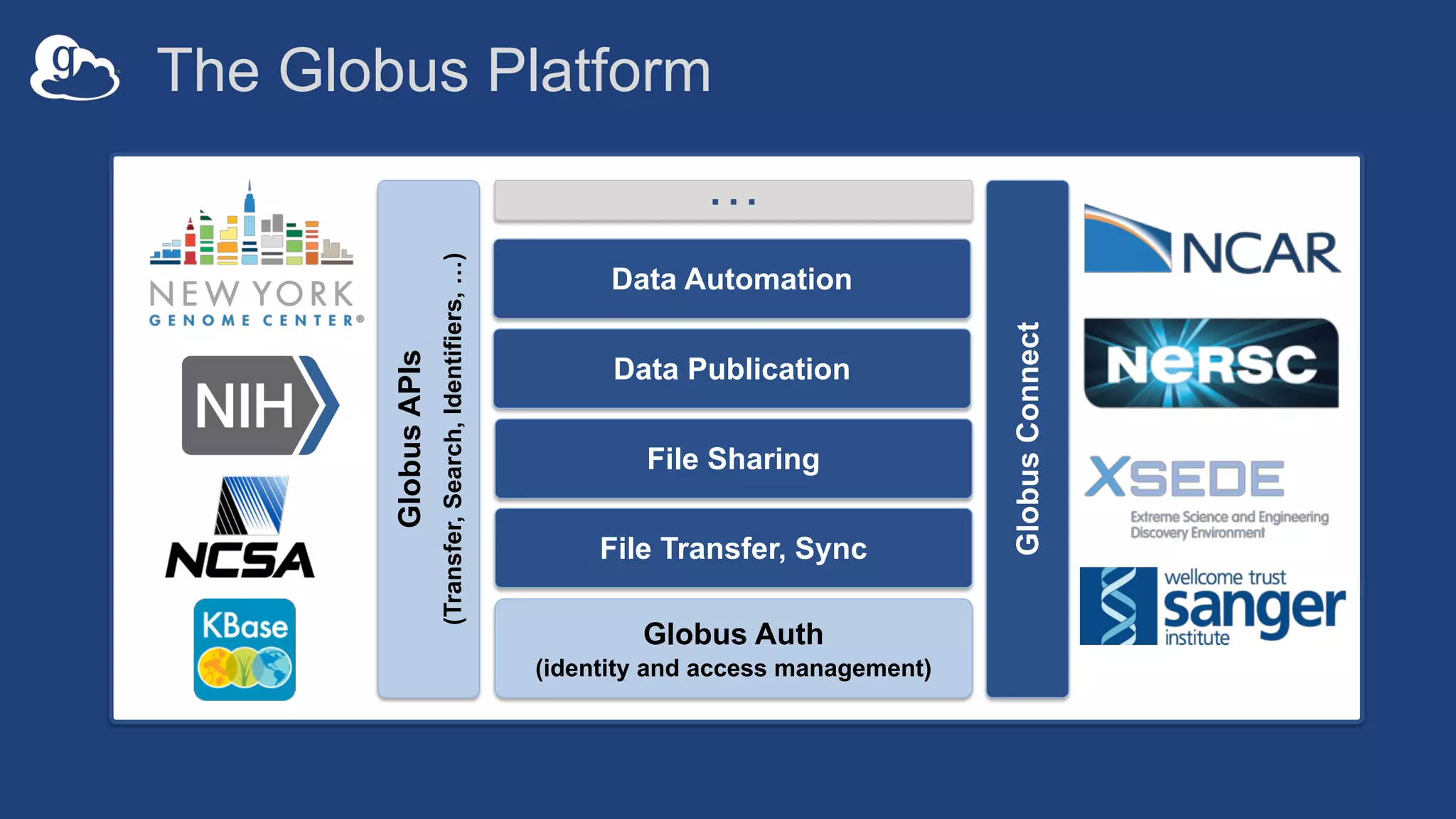

- 36. Globus Auth (identity andaccess management) … GlobusAPIs (Transfer,Search,Identifiers,…) GlobusConnect Data Publication File Sharing File Transfer, Sync The Globus Platform Data Automation

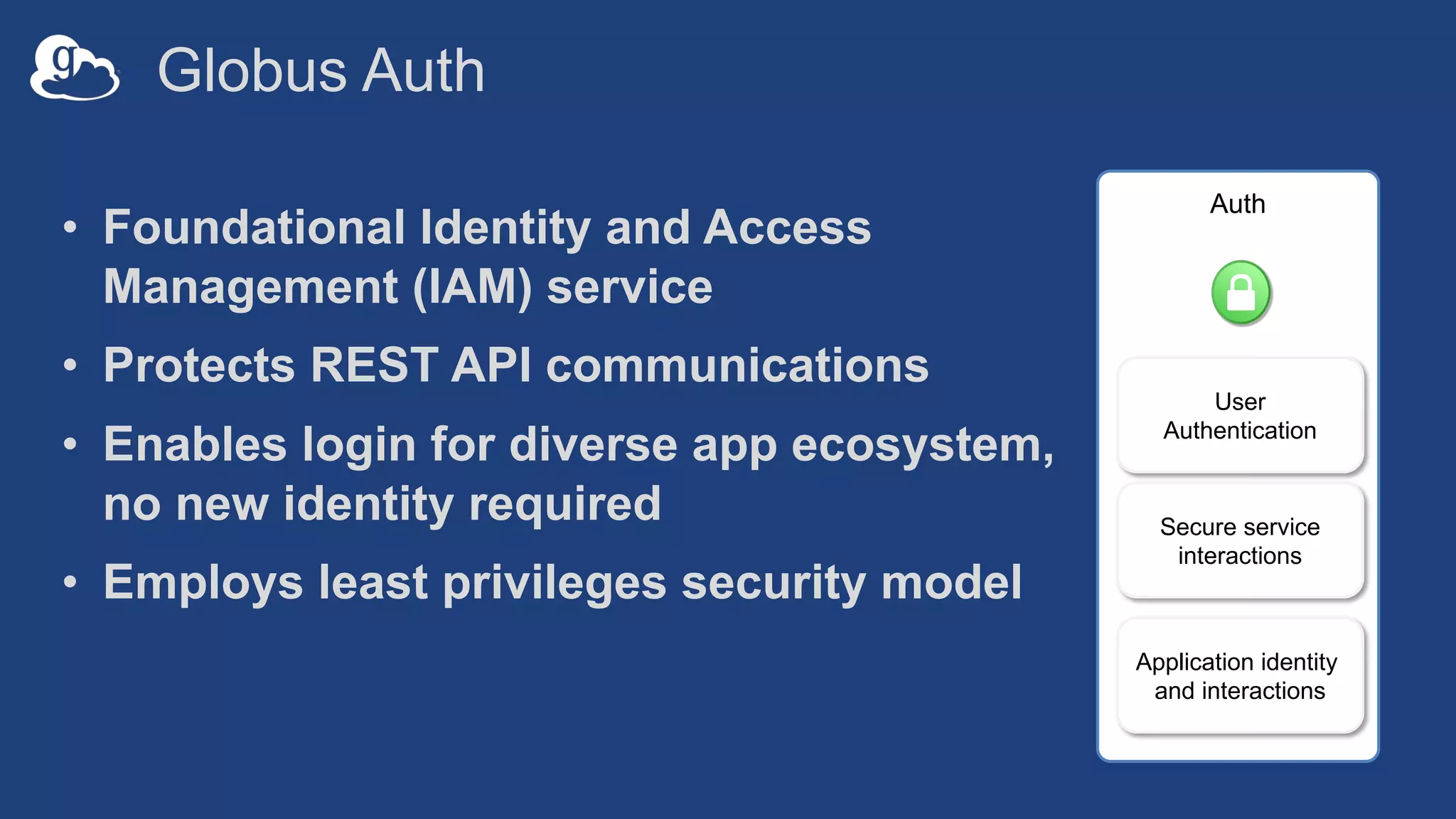

- 37. Globus Auth • FoundationalIdentity and Access Management (IAM) service • Protects REST API communications • Enables login for diverse app ecosystem, no new identity required • Employs least privileges security model Auth User Authentication Secure service interactions Application identity and interactions
- 38.

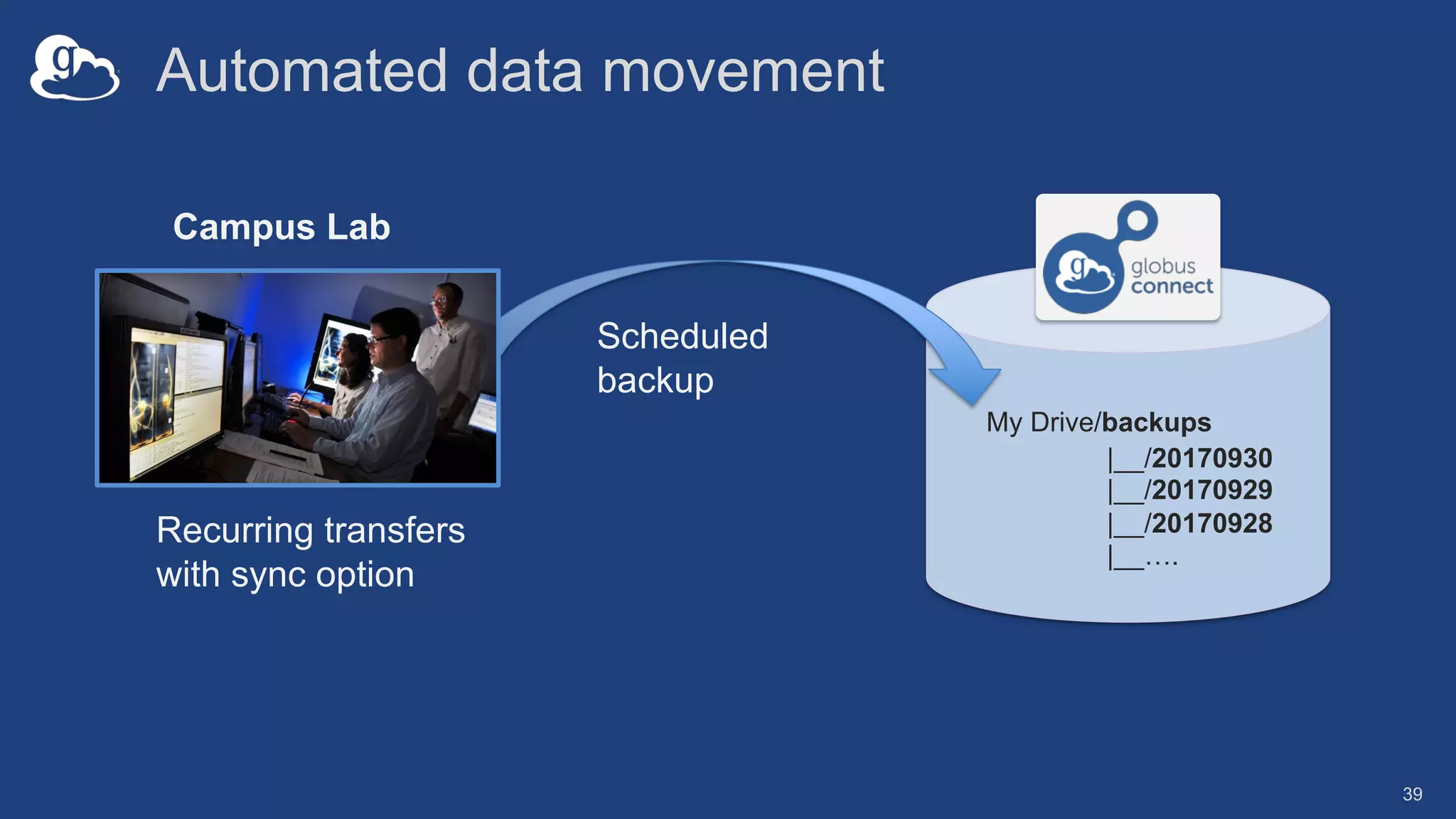

- 39. Automated data movement 39 Scheduled backup MyDrive/backups |__/20170930 |__/20170929 |__/20170928 |__…. Recurring transfers with sync option Campus Lab

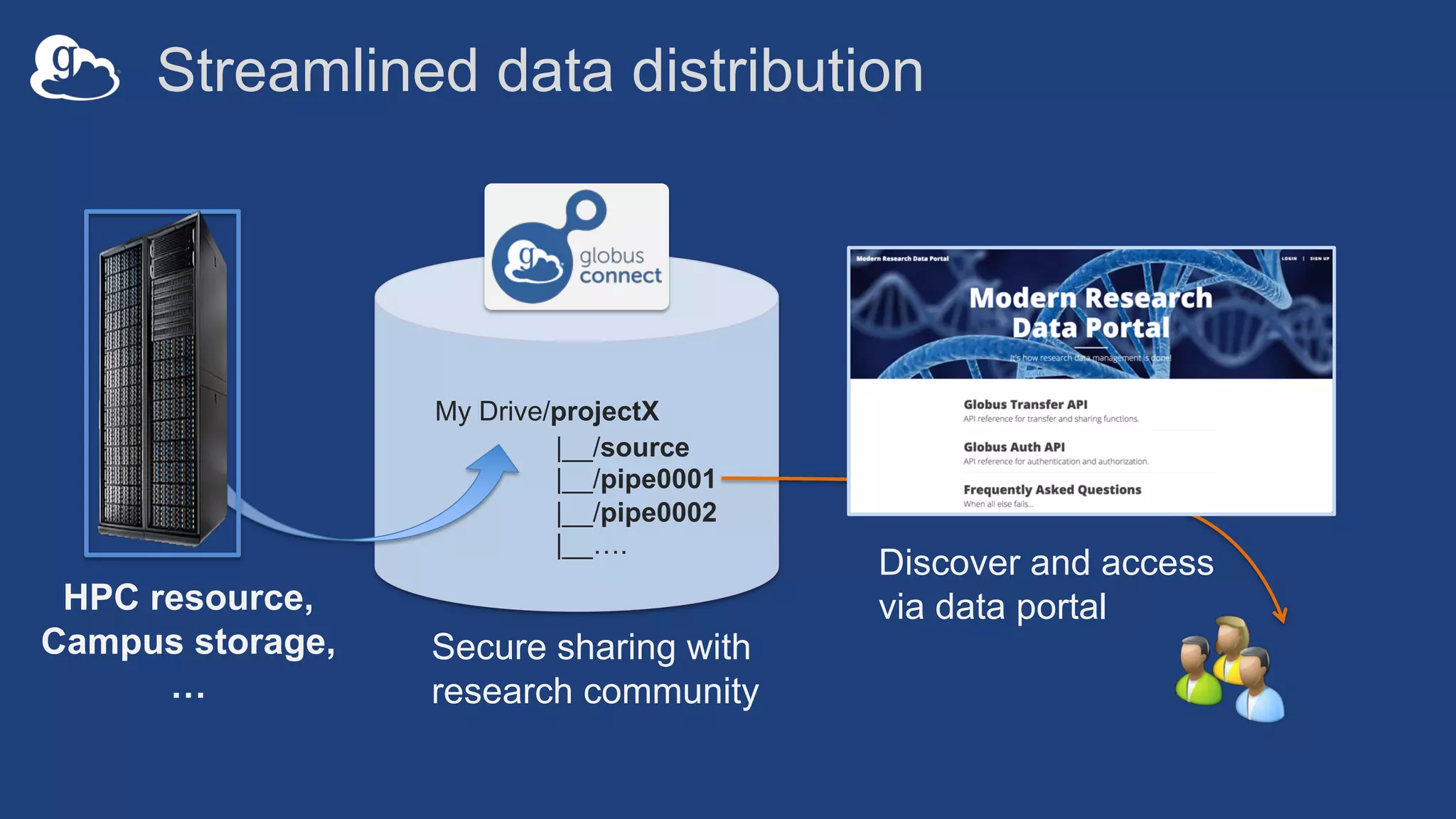

- 40. Streamlined data distribution MyDrive/projectX |__/source |__/pipe0001 |__/pipe0002 |__…. Secure sharing with research community Discover and access via data portalHPC resource, Campus storage, …

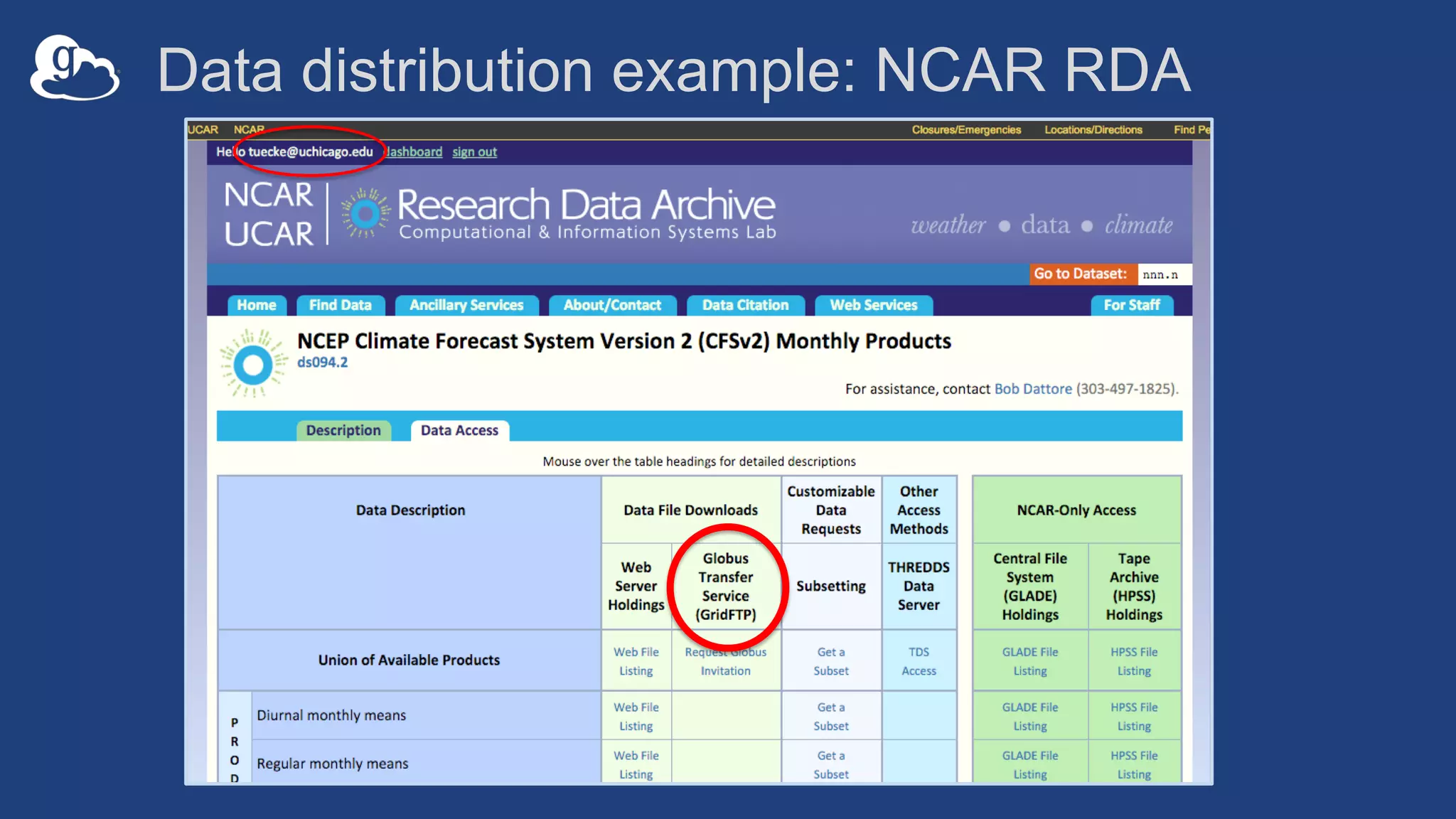

- 41. Data distribution example:NCAR RDA

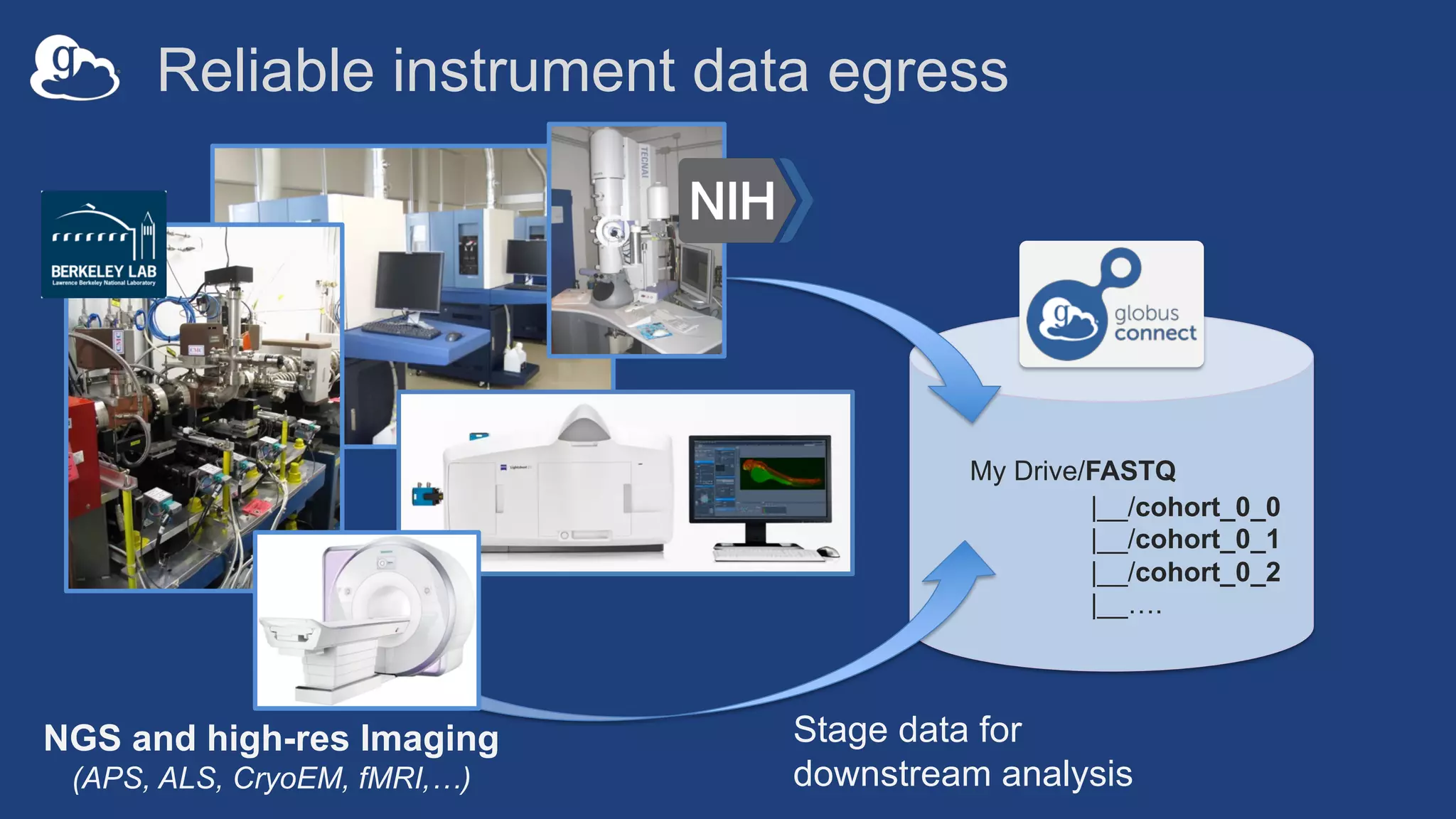

- 42. Reliable instrument dataegress My Drive/FASTQ |__/cohort_0_0 |__/cohort_0_1 |__/cohort_0_2 |__…. Stage data for downstream analysis NGS and high-res Imaging (APS, ALS, CryoEM, fMRI,…)

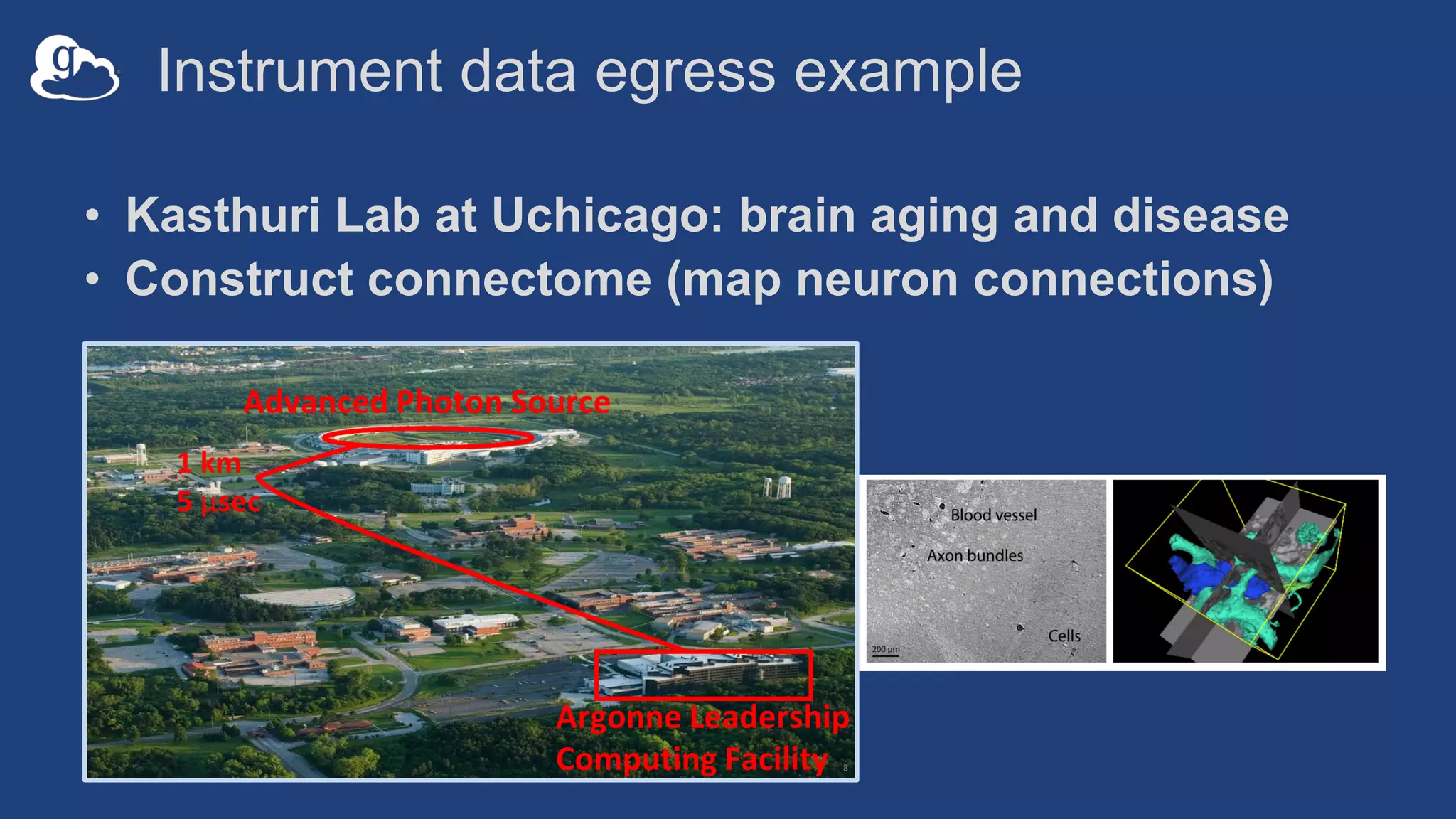

- 43. Instrument data egressexample • Kasthuri Lab at Uchicago: brain aging and disease • Construct connectome (map neuron connections)

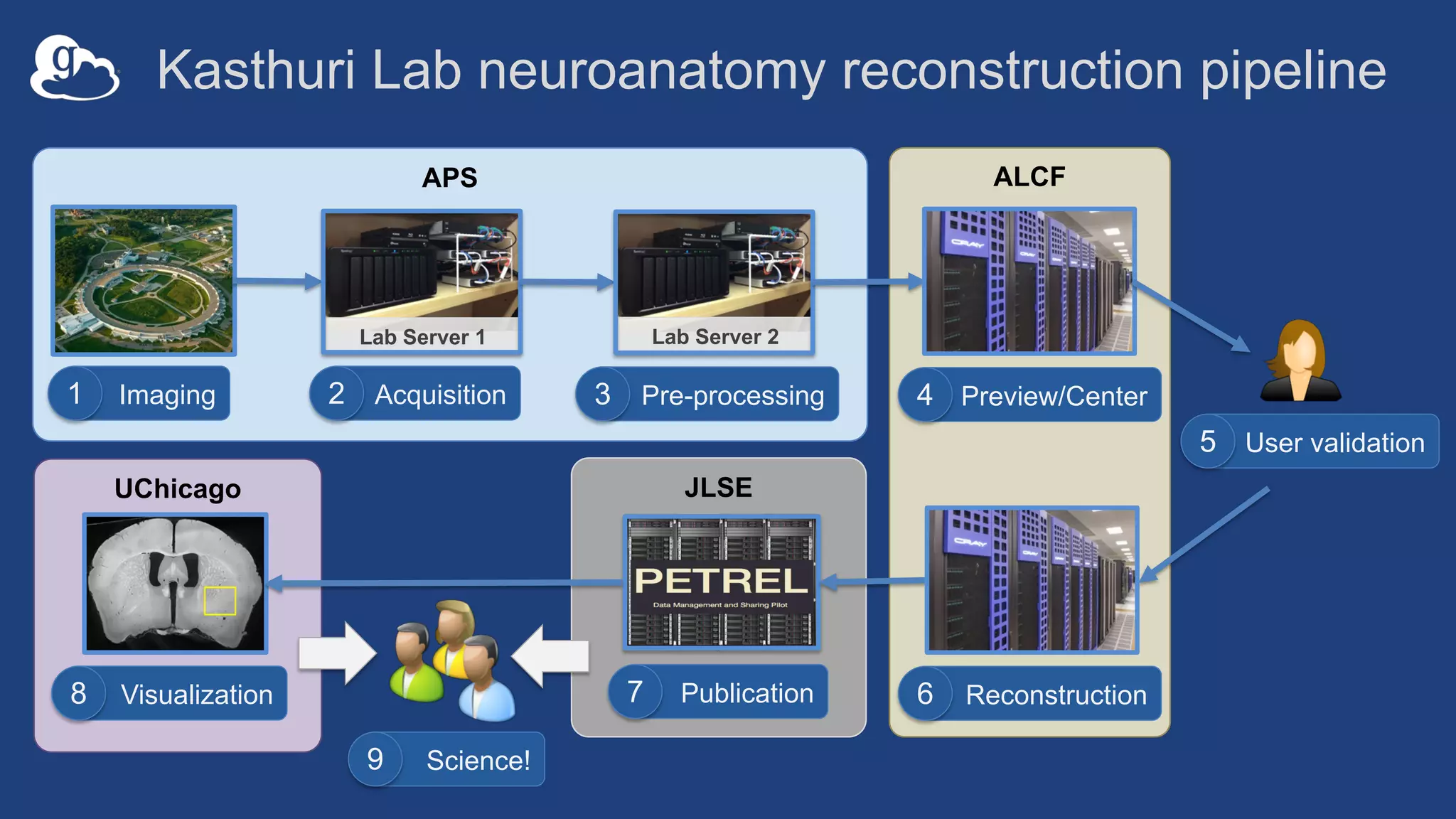

- 44. JLSEUChicago ALCFAPS Publication7 Kasthuri Lab neuroanatomyreconstruction pipeline Imaging1 Lab Server 1 Acquisition2 Lab Server 2 Pre-processing3 Preview/Center4 Reconstruction6Visualization8 User validation5 Science!9

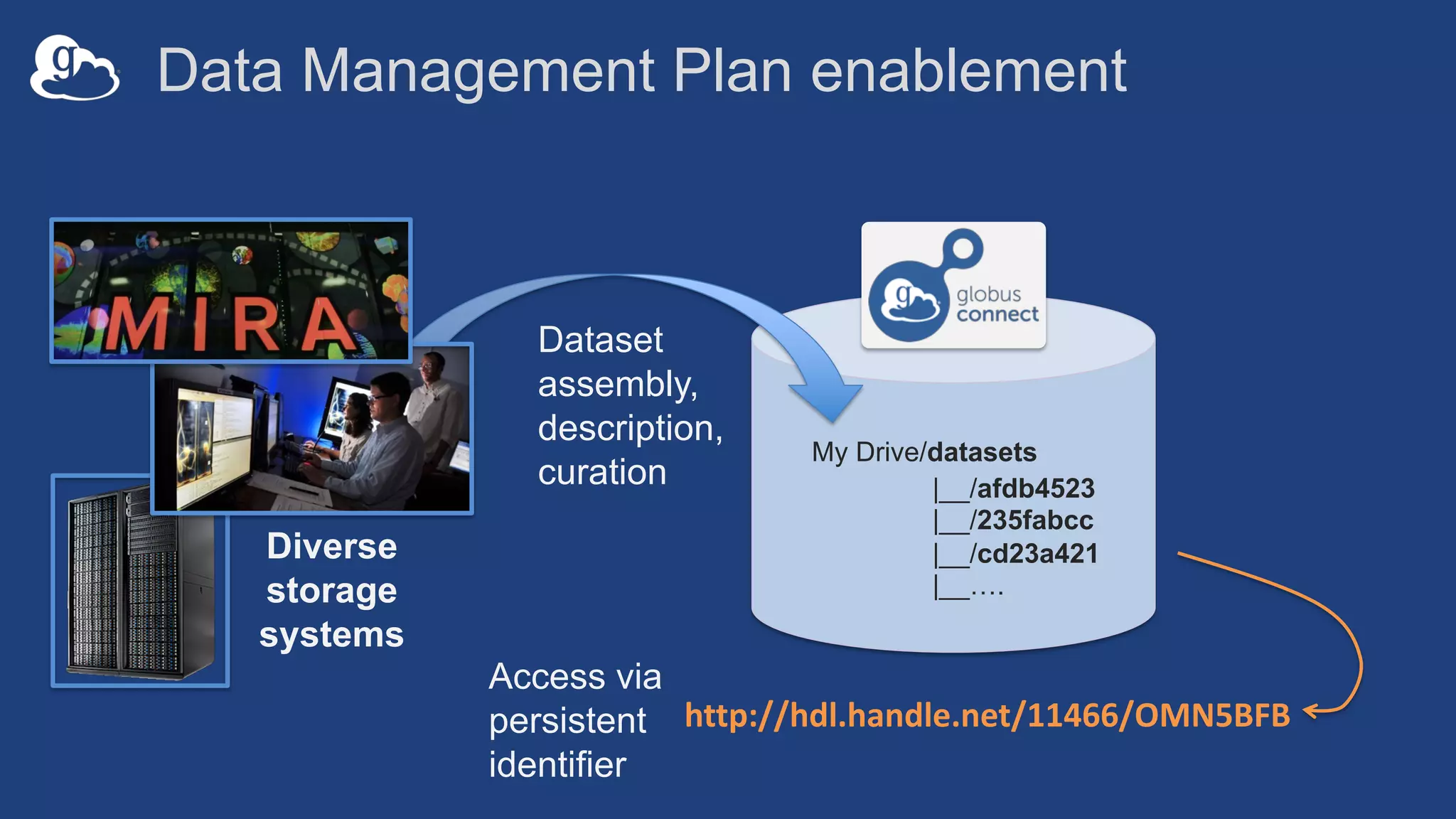

- 45. Data Management Planenablement My Drive/datasets |__/afdb4523 |__/235fabcc |__/cd23a421 |__…. Dataset assembly, description, curation http://hdl.handle.net/11466/OMN5BFB Access via persistent identifier Diverse storage systems

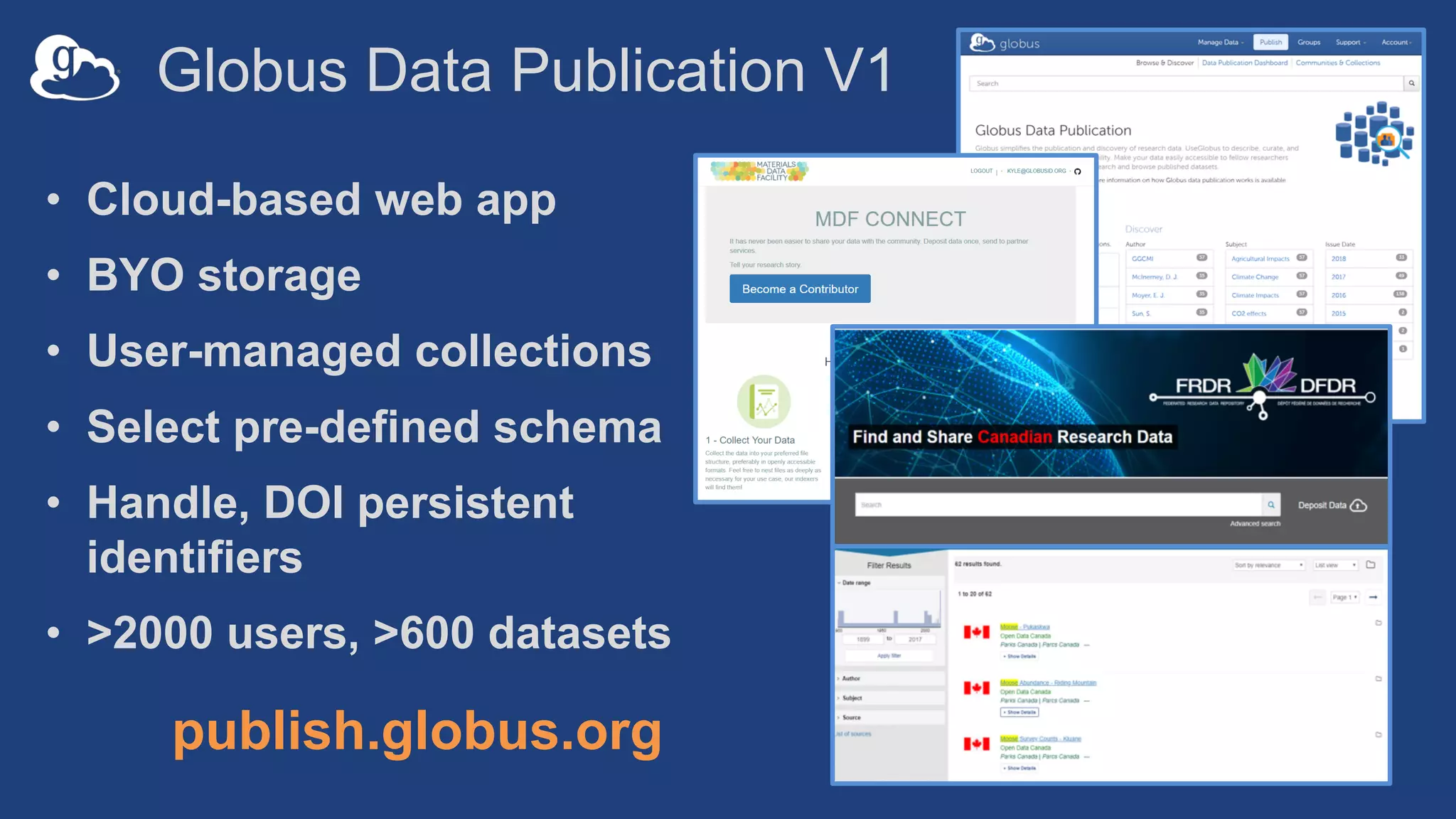

- 46. Globus Data PublicationV1 • Cloud-based web app • BYO storage • User-managed collections • Select pre-defined schema • Handle, DOI persistent identifiers • >2000 users, >600 datasets publish.globus.org
- 47. Many variations ofdata publication… Citable Data • Standard metadata • Persistent identifiers • Durable storage • Many domains • Custom metadata • Locally managed storage Institutional Data • Agreed schema • Larger datasets • Fine grained metadata Community Data
- 48. …Including active datamanagement Active Research Data • Less standard and evolving schema • Data organized independent of storage • Support active collaboration • Location agnostic identifiers

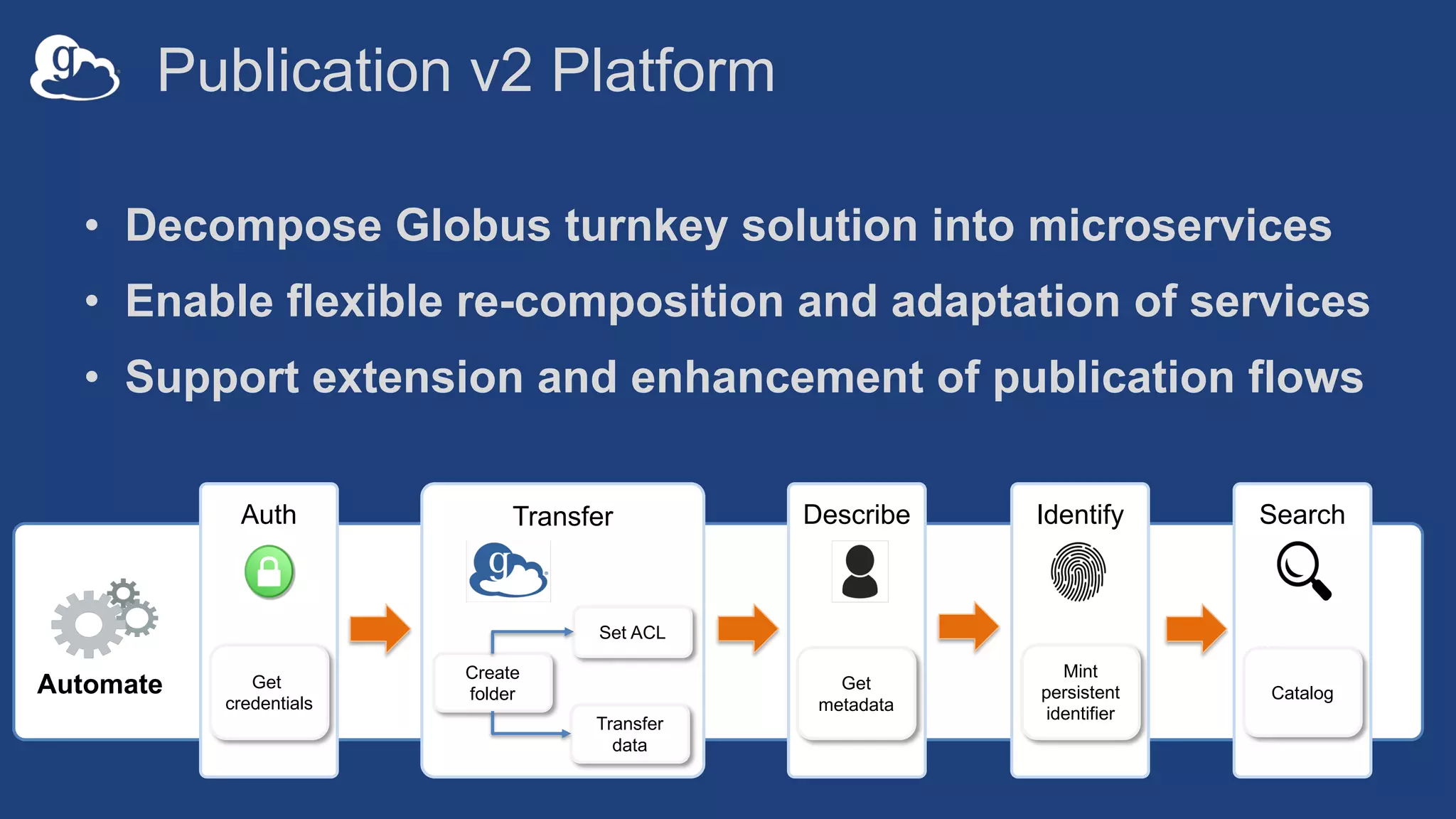

- 49. Publication v2 Platform •Decompose Globus turnkey solution into microservices • Enable flexible re-composition and adaptation of services • Support extension and enhancement of publication flows Automate SearchIdentifyDescribeTransferAuth Create folder Transfer data Get metadata Mint persistent identifier Catalog Get credentials Set ACL

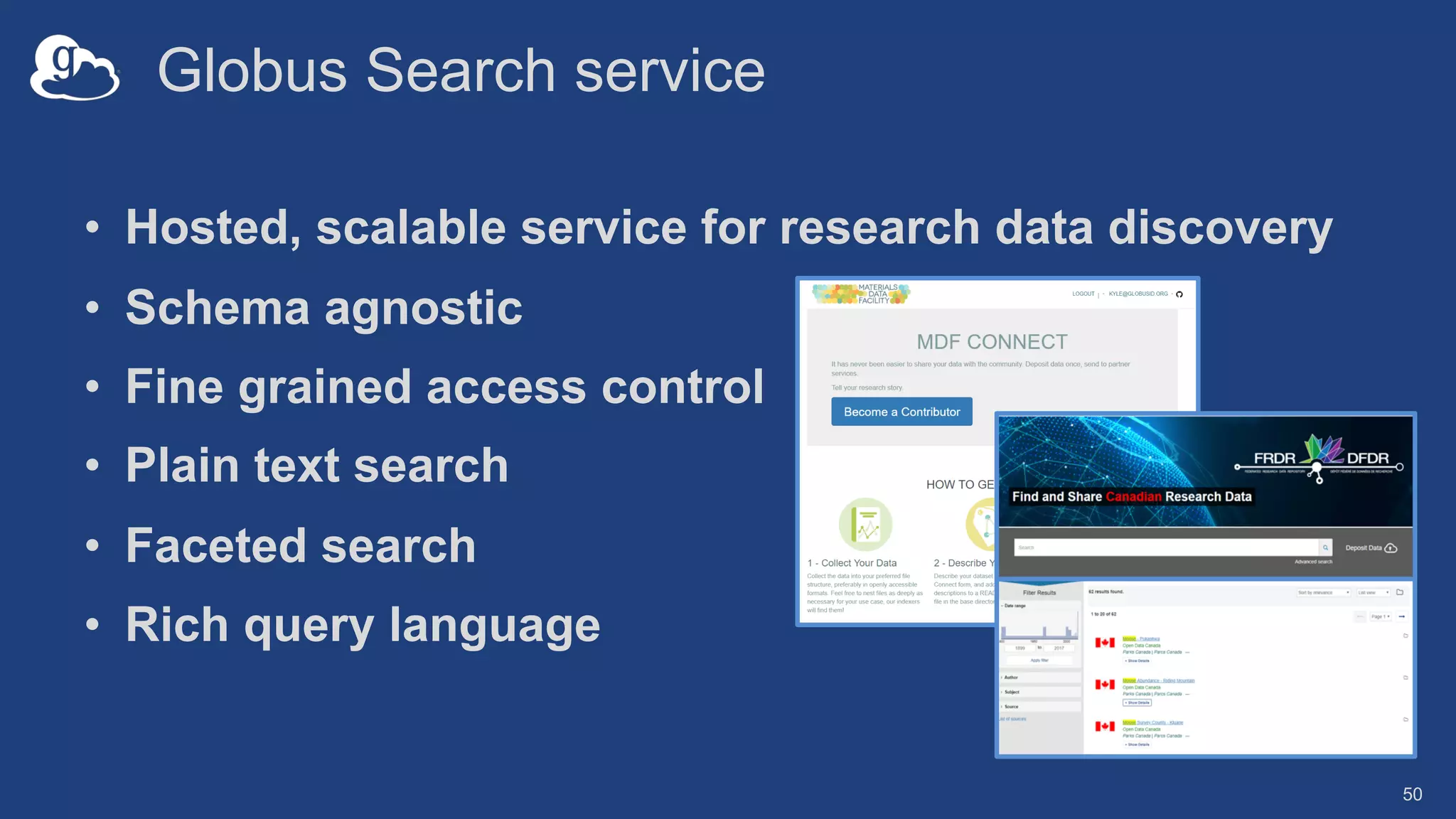

- 50. Globus Search service •Hosted, scalable service for research data discovery • Schema agnostic • Fine grained access control • Plain text search • Faceted search • Rich query language 50

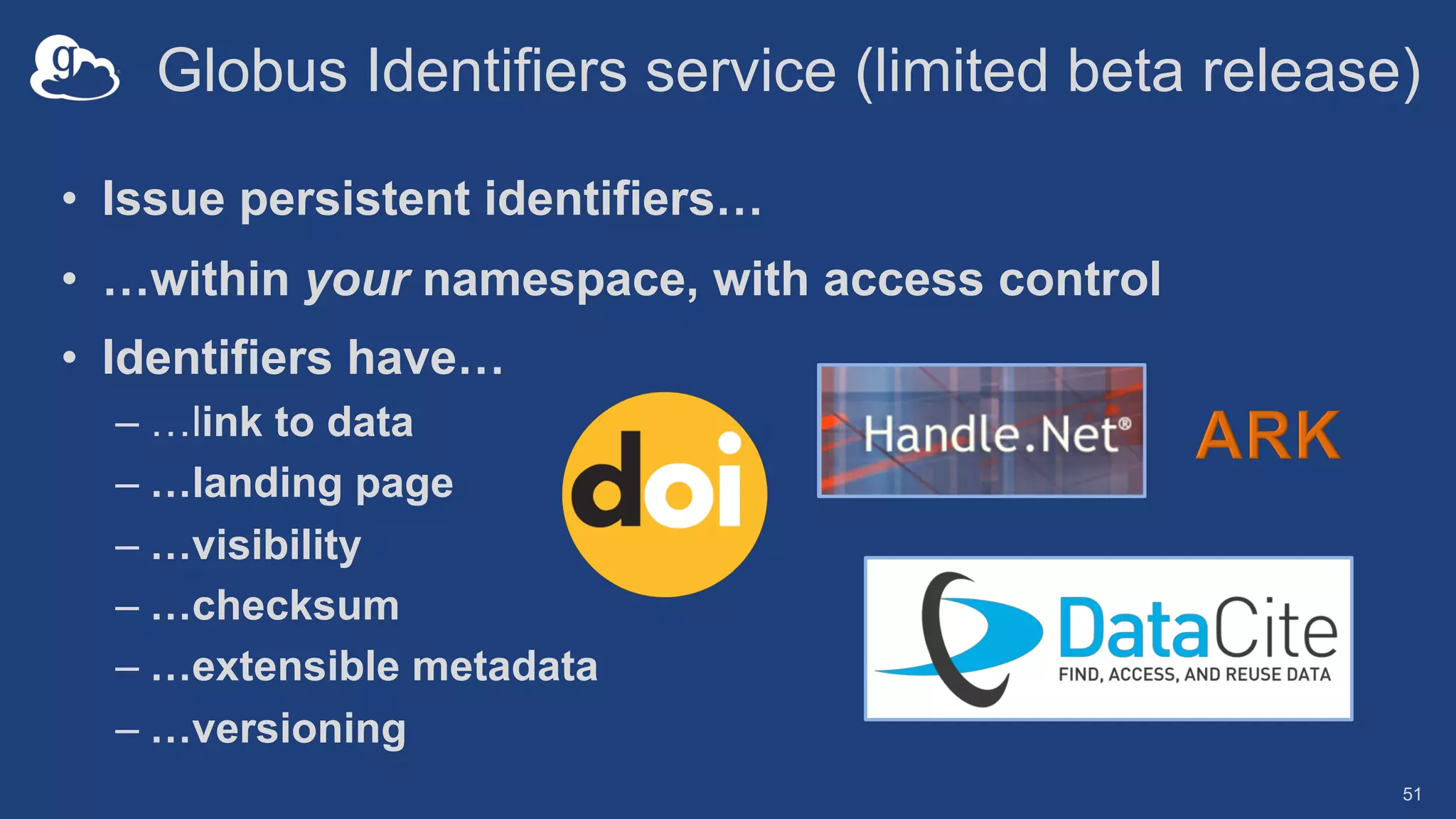

- 51. Globus Identifiers service(limited beta release) • Issue persistent identifiers… • …within your namespace, with access control • Identifiers have… – …link to data – …landing page – …visibility – …checksum – …extensible metadata – …versioning 51
- 52. Globus Automate (comingsoon) • Composition and execution service for automating research data management • Higher level flow description language and authoring tools • Pluggable API to integrate any actions – e.g. automated validation, metadata extraction • Flexible invocation of actions: user or event driven
- 53.

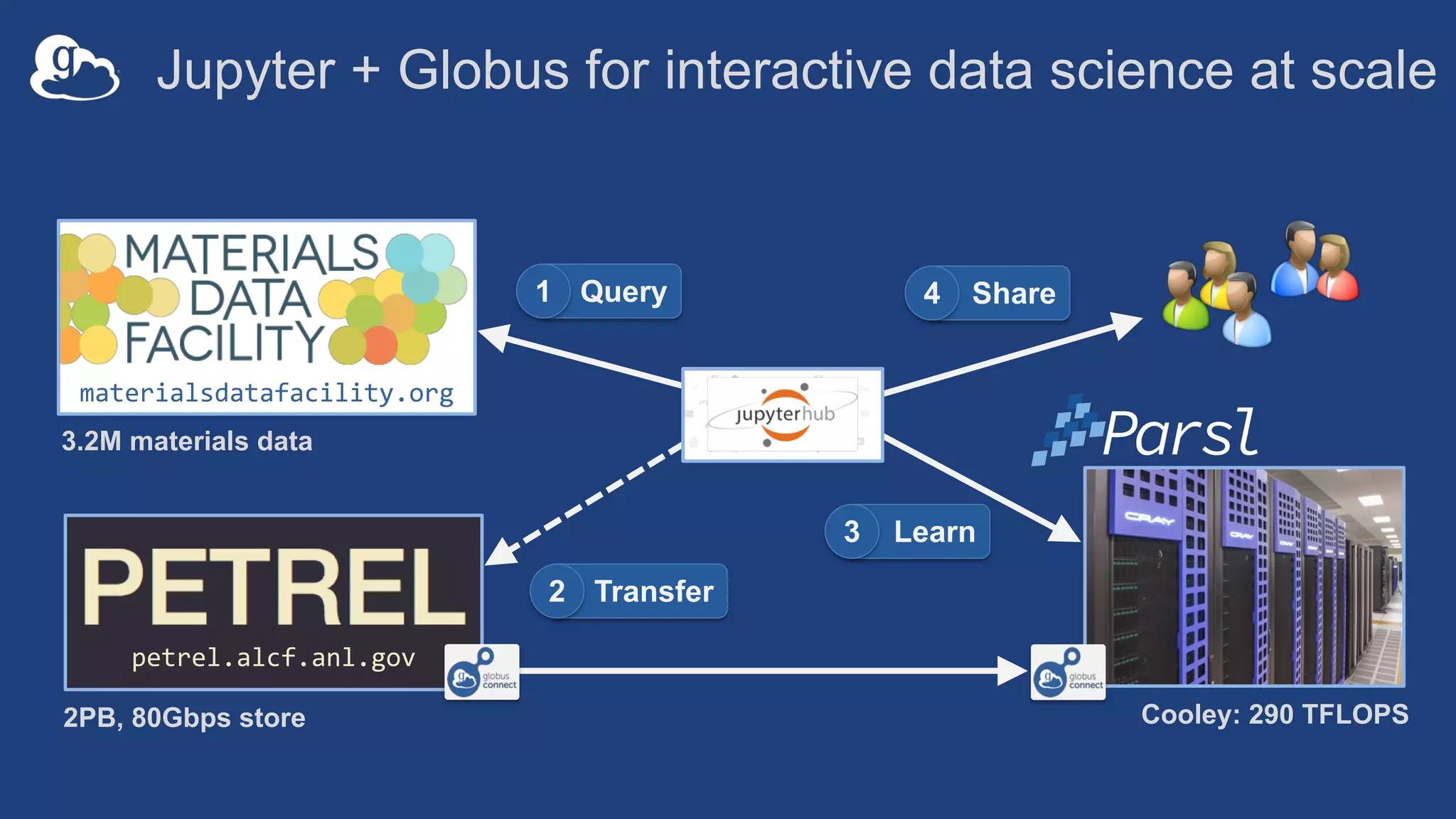

- 54. Jupyter + Globusfor interactive data science at scale petrel.alcf.anl.gov materialsdatafacility.org 2PB, 80Gbps store 3.2M materials data Cooley: 290 TFLOPS Query1 Share4 Transfer2 Learn3
- 55.
- 56.
- 57.

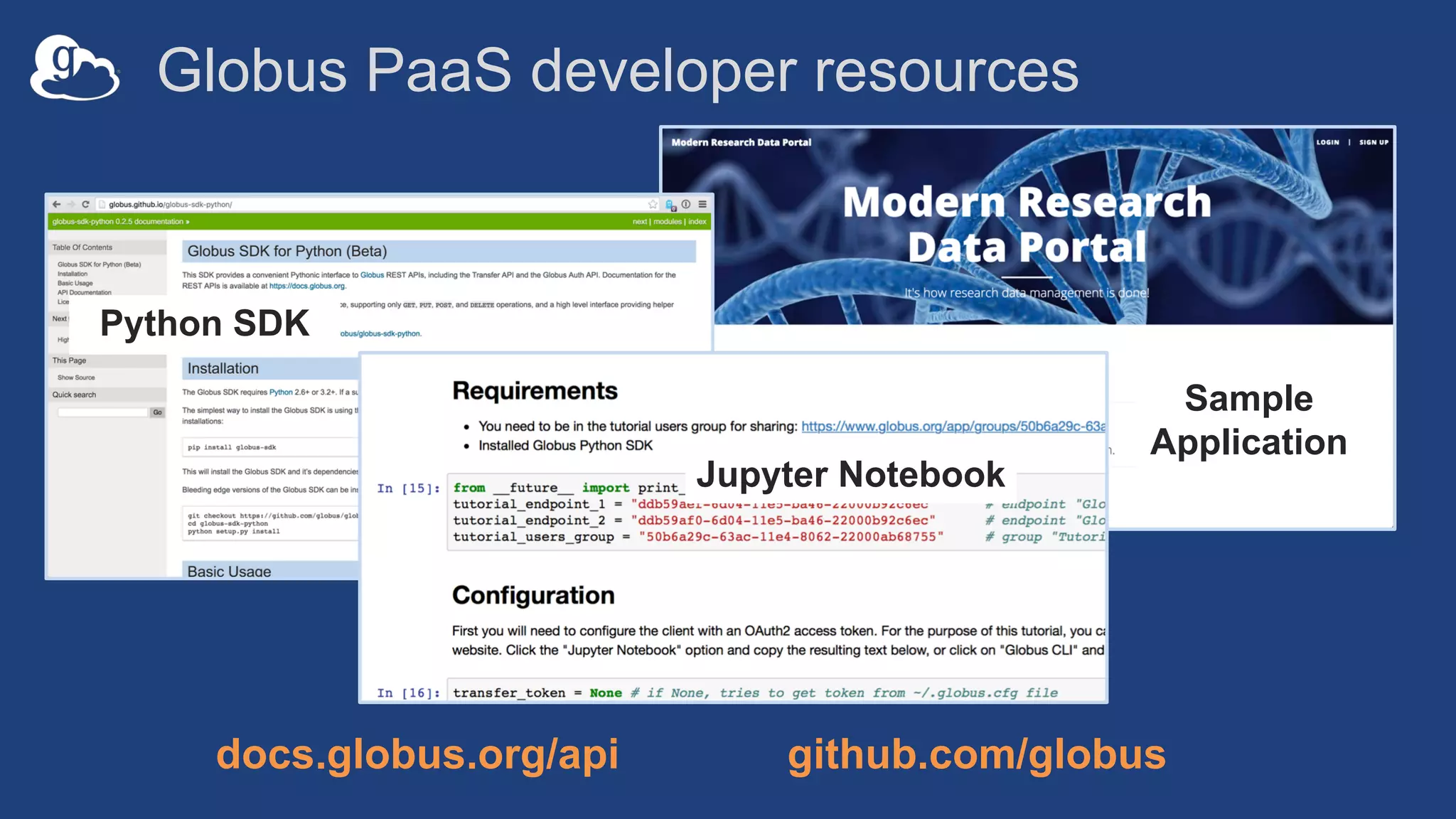

- 58. Globus PaaS developerresources Python SDK Sample Application docs.globus.org/api github.com/globus Jupyter Notebook
- 59.

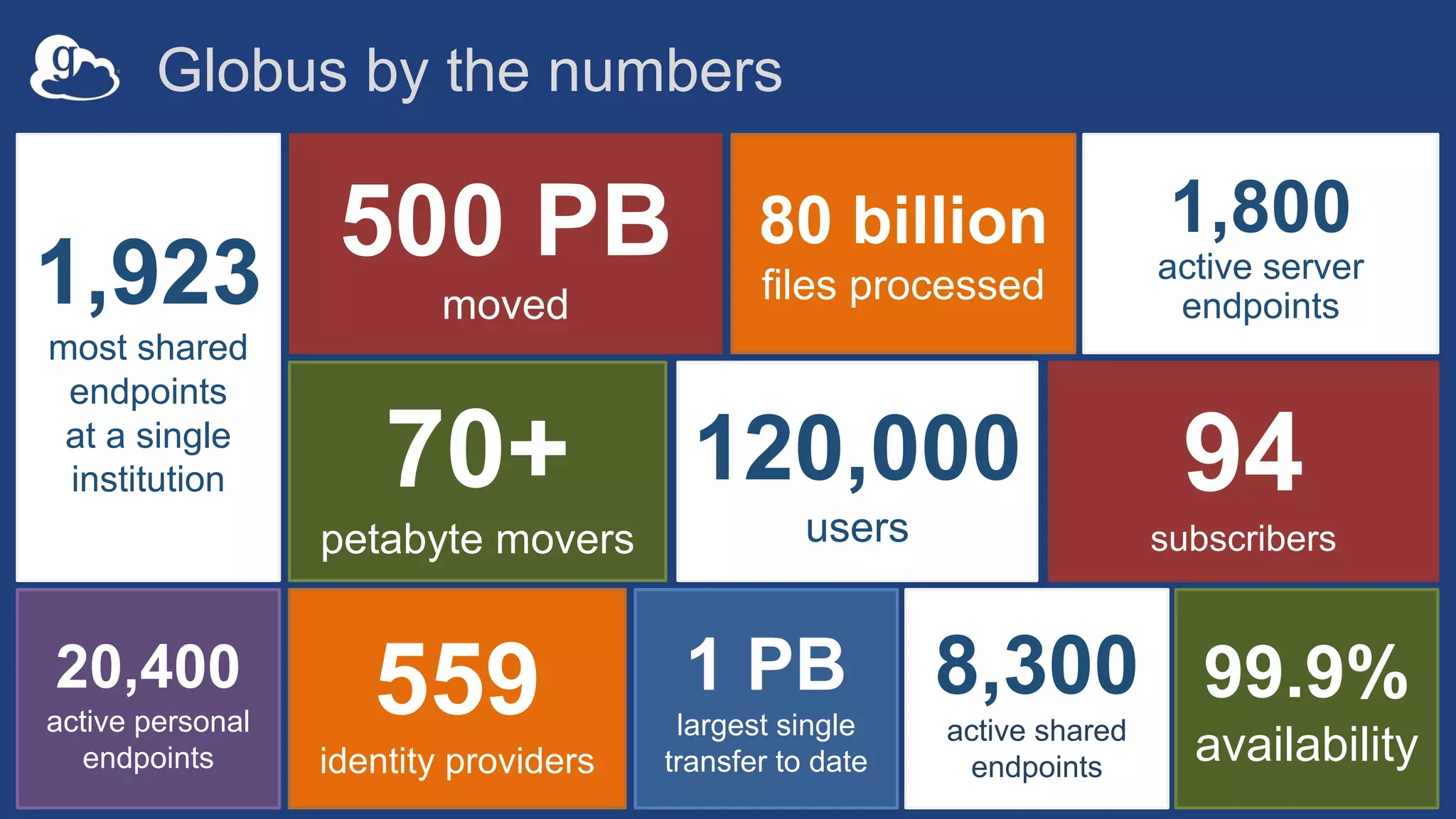

- 60. 8,300 active shared endpoints 70+ petabyte movers 500PB moved 20,400 active personal endpoints 80 billion files processed 1,800 active server endpoints 94 subscribers 1 PB largest single transfer to date 99.9% availability 559 identity providers 1,923 most shared endpoints at a single institution 120,000 users Globus by the numbers
- 61. Thank you toour sponsors... U . S . D E P A R T M E N T O F ENERGY
- 62. …and THANK YOU,subscribers!

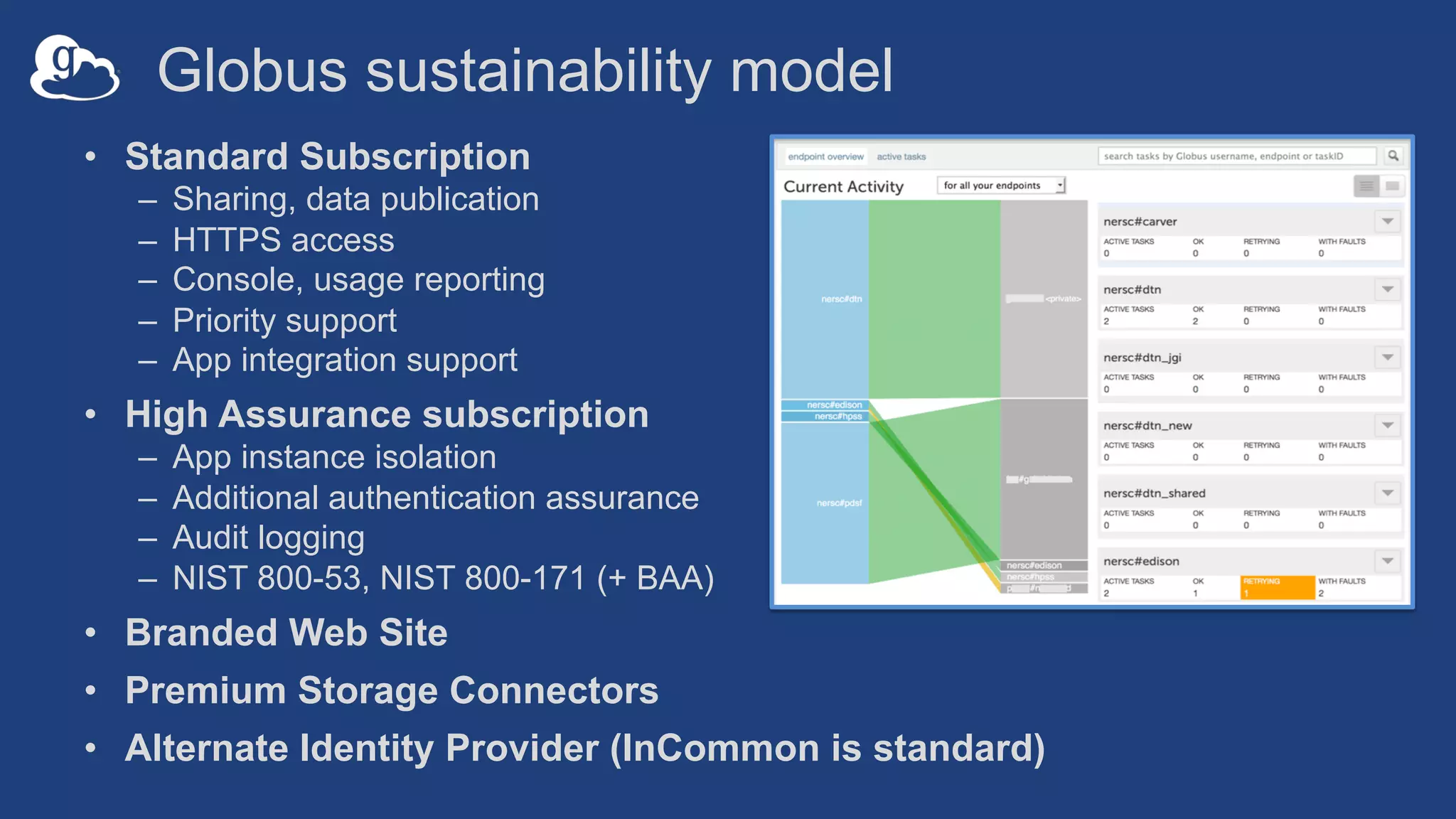

- 63. Globus sustainability model •Standard Subscription – Sharing, data publication – HTTPS access – Console, usage reporting – Priority support – App integration support • High Assurance subscription – App instance isolation – Additional authentication assurance – Audit logging – NIST 800-53, NIST 800-171 (+ BAA) • Branded Web Site • Premium Storage Connectors • Alternate Identity Provider (InCommon is standard)

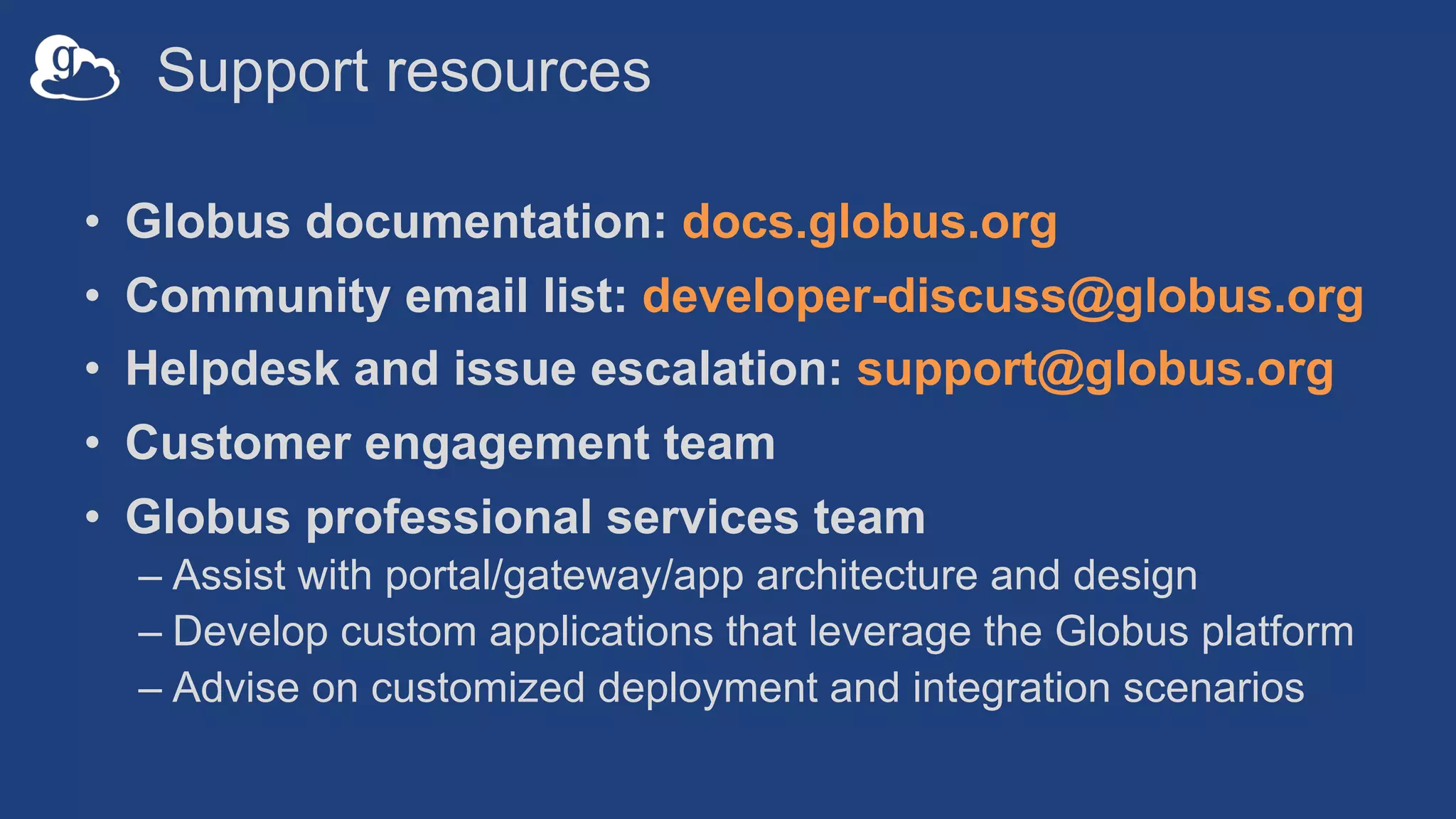

- 64. Support resources • Globusdocumentation: docs.globus.org • Community email list: developer-discuss@globus.org • Helpdesk and issue escalation: support@globus.org • Customer engagement team • Globus professional services team – Assist with portal/gateway/app architecture and design – Develop custom applications that leverage the Globus platform – Advise on customized deployment and integration scenarios
