Олег Купреев - Обзор и демонстрация нюансов и трюков из области беспроводных сетей.
The document discusses various aspects of 802.11 wireless networking, including hardware and software options, antenna types, and channel planning for optimal performance. It also highlights hacking tools and techniques, along with considerations for interference and legal regulations in different regions. Additionally, there's a focus on the impacts of weather and other environmental factors on wireless signal quality and reliability.
More Related Content
![[Defcon Russia #29] Александр Ермолов - Safeguarding rootkits: Intel Boot Gua...](https://cdn.slidesharecdn.com/ss_thumbnails/intelbgpart2-170328124242-thumbnail.jpg?width=640&height=640&fit=bounds)
![[DCG 25] Александр Большев - Never Trust Your Inputs or How To Fool an ADC](https://cdn.slidesharecdn.com/ss_thumbnails/presentationdefconrussia-160406215741-thumbnail.jpg?width=640&height=640&fit=bounds)
![[Defcon Russia #29] Михаил Клементьев - Обнаружение руткитов в GNU/Linux](https://cdn.slidesharecdn.com/ss_thumbnails/revealingrootkitsv5-170328122611-thumbnail.jpg?width=640&height=640&fit=bounds)
![[Defcon Russia #29] Борис Савков - Bare-metal programming на примере Raspber...](https://cdn.slidesharecdn.com/ss_thumbnails/preza-170328124723-thumbnail.jpg?width=640&height=640&fit=bounds)
![[Defcon Russia #29] Алексей Тюрин - Spring autobinding](https://cdn.slidesharecdn.com/ss_thumbnails/springautobinding-170328123002-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Олег Купреев - Обзор и демонстрация нюансов и трюков из области беспроводных сетей.
![Wi fi[1]](https://cdn.slidesharecdn.com/ss_thumbnails/wi-fi1-130219234008-phpapp02-thumbnail.jpg?width=640&height=640&fit=bounds)
Олег Купреев - Обзор и демонстрация нюансов и трюков из области беспроводных сетей.
- 1. 802.11 tips andthreats @090h

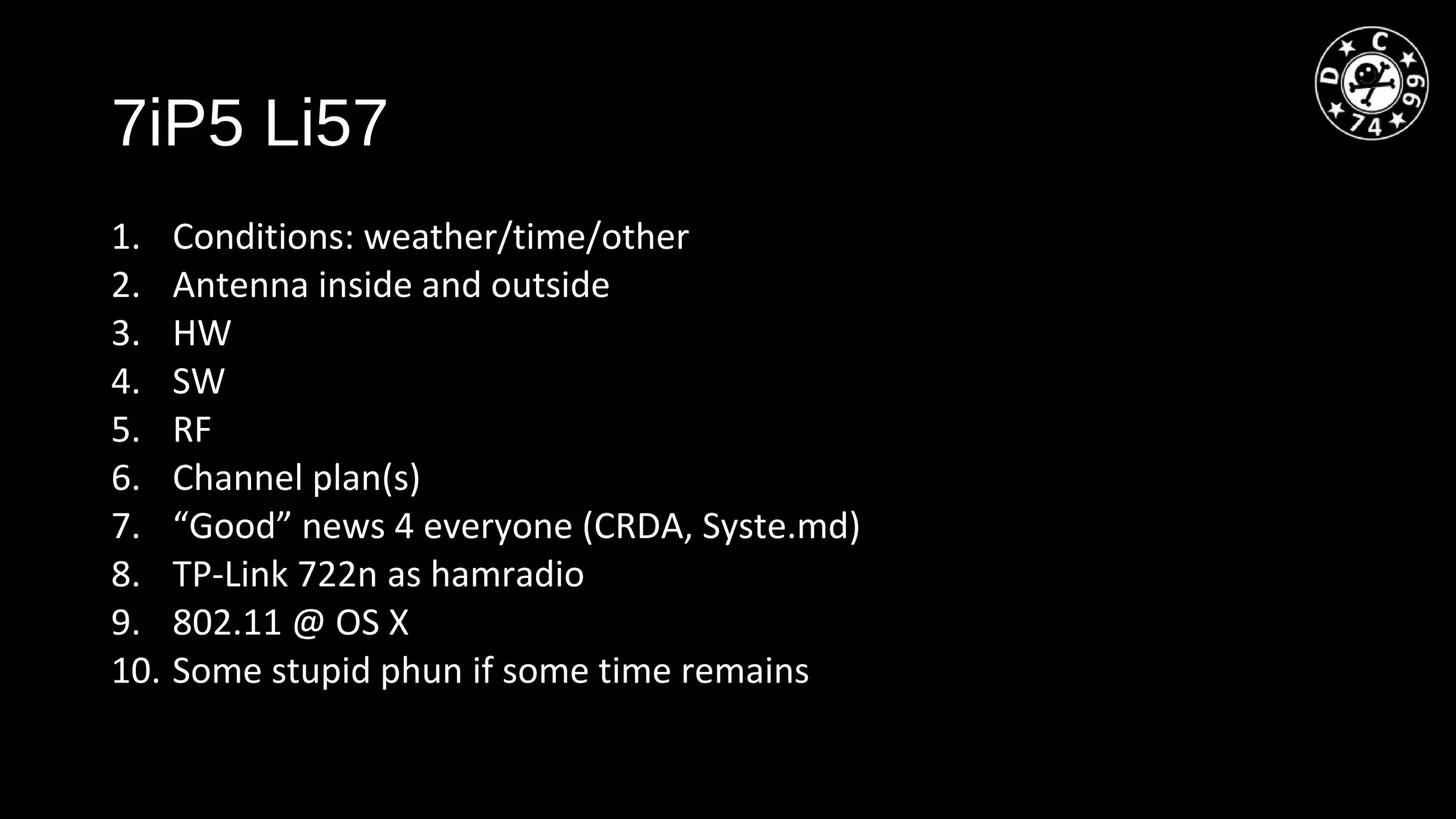

- 2. 7iP5 Li57 1. Conditions:weather/time/other 2. Antenna inside and outside 3. HW 4. SW 5. RF 6. Channel plan(s) 7. “Good” news 4 everyone (CRDA, Syste.md) 8. TP-Link 722n as hamradio 9. 802.11 @ OS X 10. Some stupid phun if some time remains
- 3. Independent conditions Weather: •H2O +RF = ? Remember borsch in microwave. •WWW - Wardriving/Warwalking/Warsitting 8). IT’S TiME TO HACK!! •DFS* Happy hours: •WEP - anytime •WPS - night •WPA-Personal - evening •WPA-Enterprise – 9:00 or when normal people come to the job? 8) Other: •Depends on your neighbors, interference, PRNG, ISP, etc..
- 4. Antenna types • Omnidirectional •Uda Yagi • Panel • Parabolic • Sector

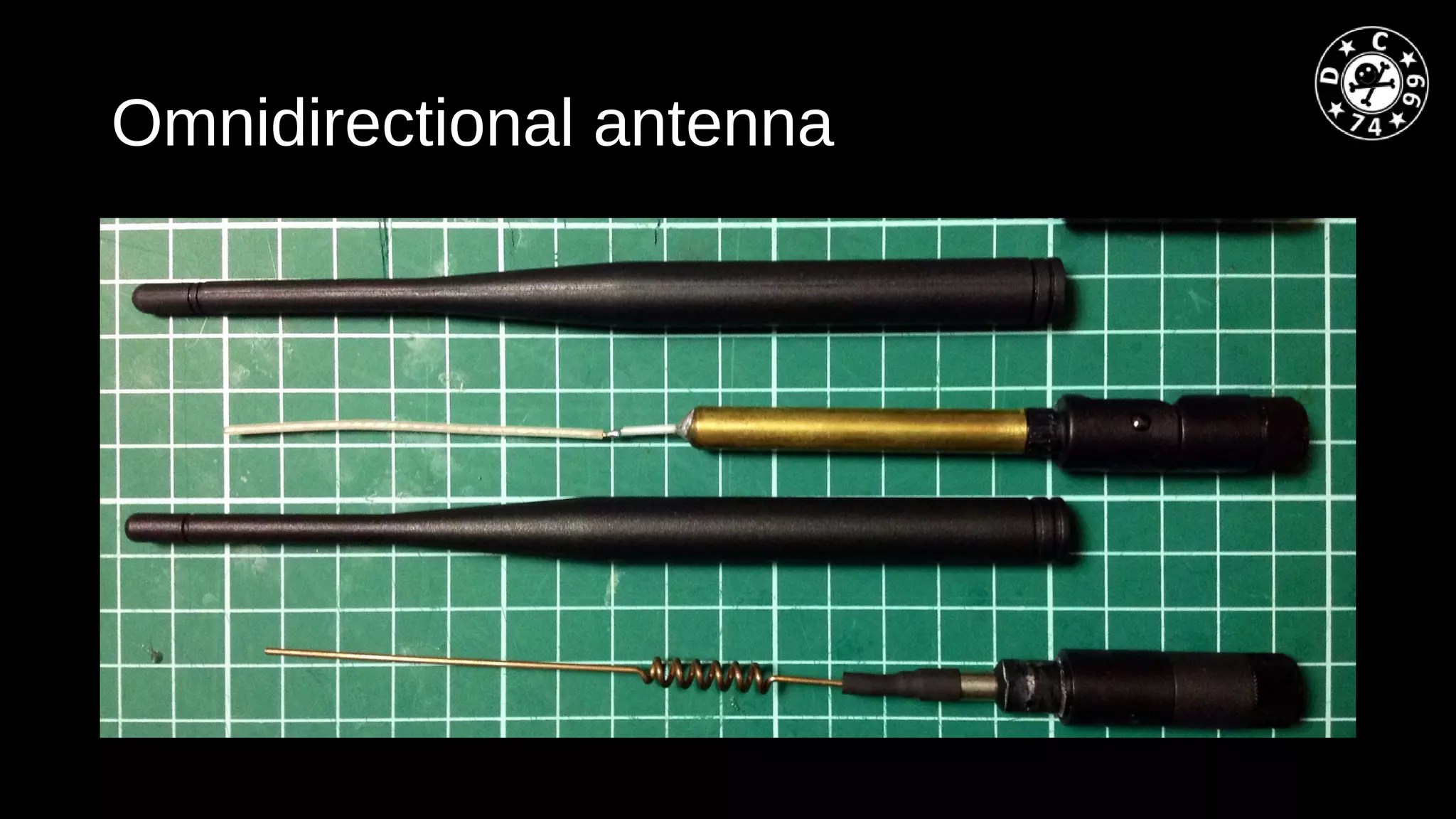

- 5.
- 6. Omnidirectional Antenna RFGain Pattern

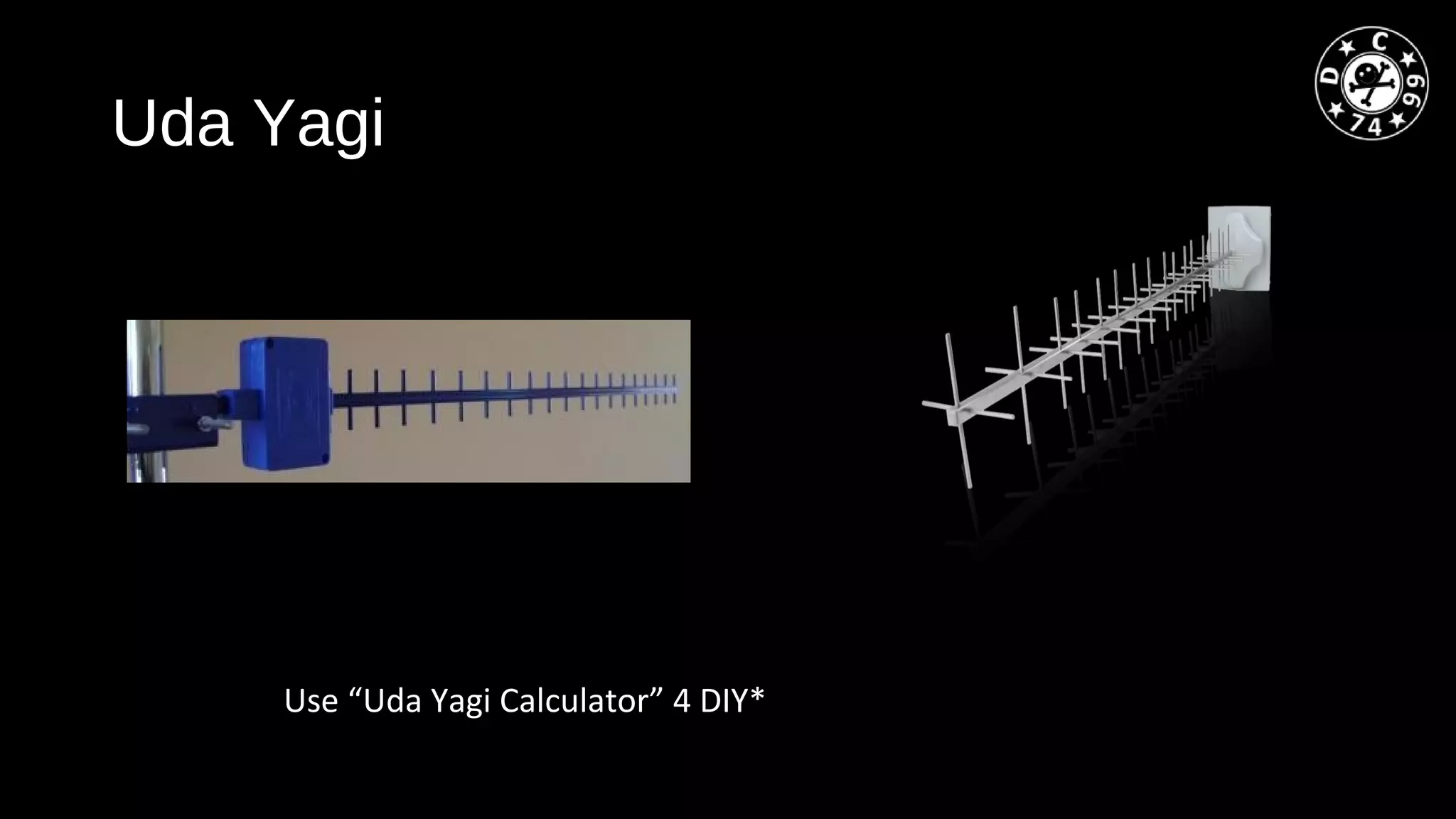

- 7. Uda Yagi Use “UdaYagi Calculator” 4 DIY*

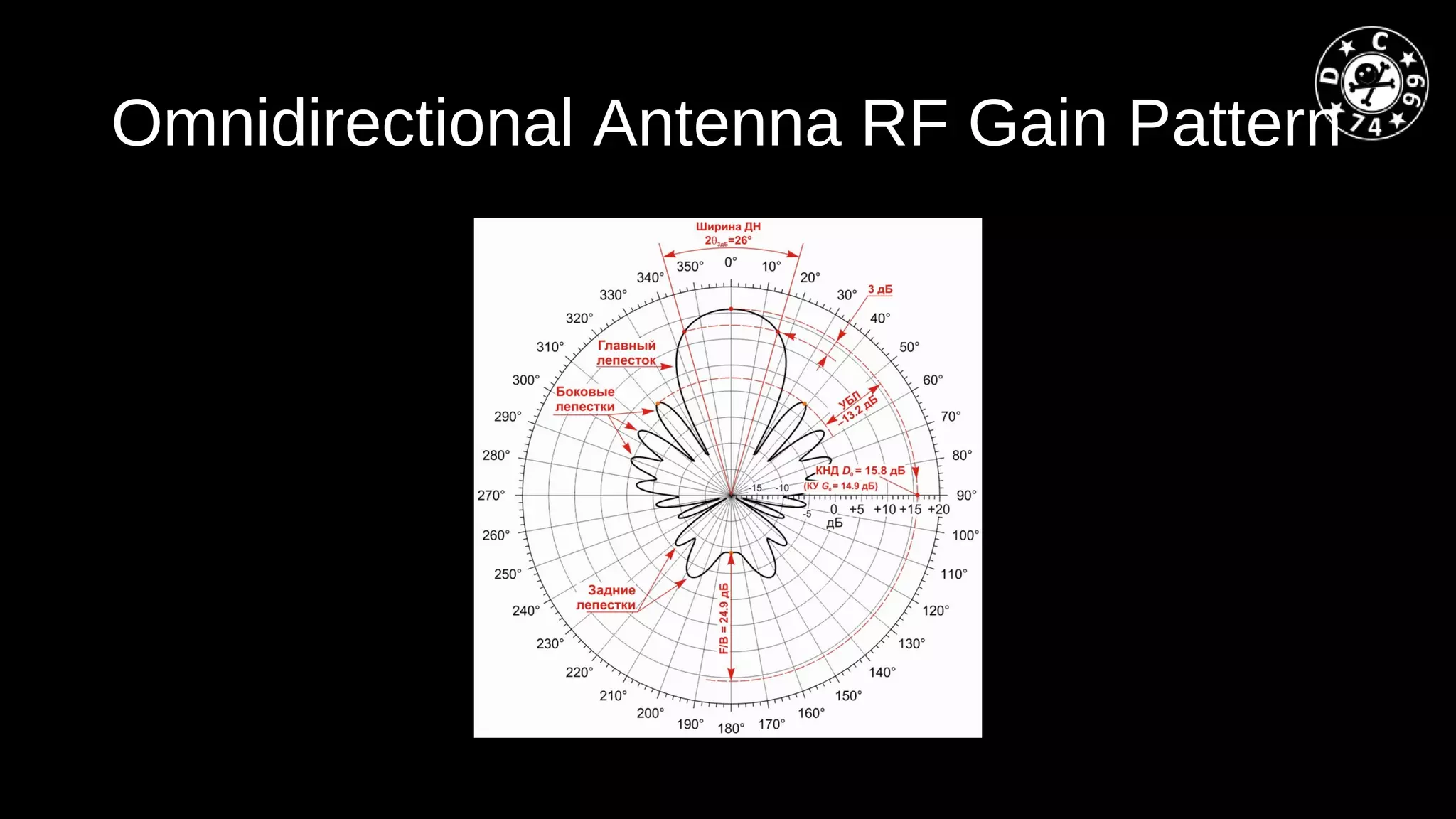

- 8. Omnidirectional Antenna RFGain Pattern

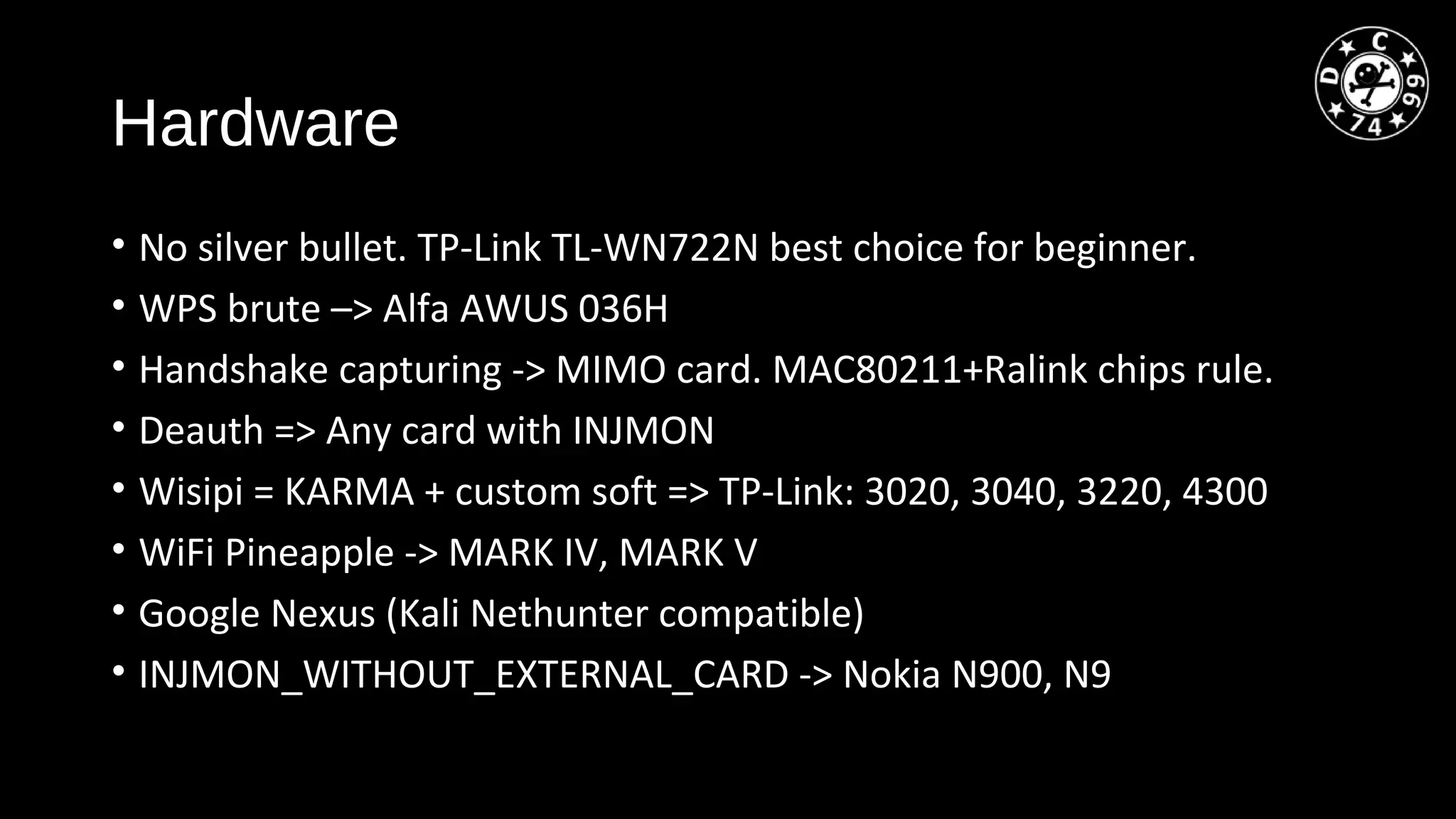

- 9. Hardware • No silverbullet. TP-Link TL-WN722N best choice for beginner. • WPS brute –> Alfa AWUS 036H • Handshake capturing -> MIMO card. MAC80211+Ralink chips rule. • Deauth => Any card with INJMON • Wisipi = KARMA + custom soft => TP-Link: 3020, 3040, 3220, 4300 • WiFi Pineapple -> MARK IV, MARK V • Google Nexus (Kali Nethunter compatible) • INJMON_WITHOUT_EXTERNAL_CARD -> Nokia N900, N9

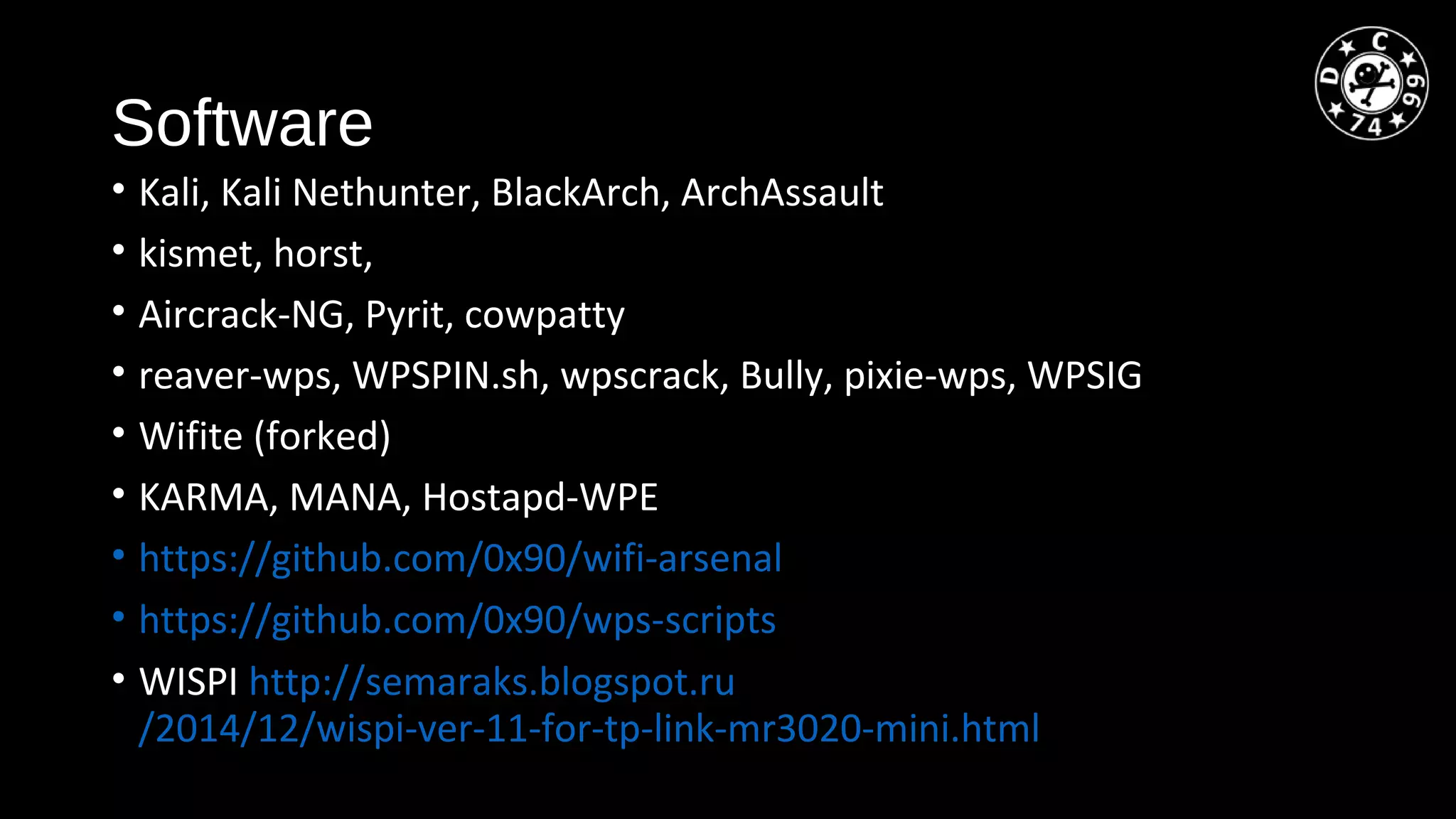

- 10. Software • Kali, KaliNethunter, BlackArch, ArchAssault • kismet, horst, • Aircrack-NG, Pyrit, cowpatty • reaver-wps, WPSPIN.sh, wpscrack, Bully, pixie-wps, WPSIG • Wifite (forked) • KARMA, MANA, Hostapd-WPE • https://github.com/0x90/wifi-arsenal • https://github.com/0x90/wps-scripts • WISPI http://semaraks.blogspot.ru /2014/12/wispi-ver-11-for-tp-link-mr3020-mini.html

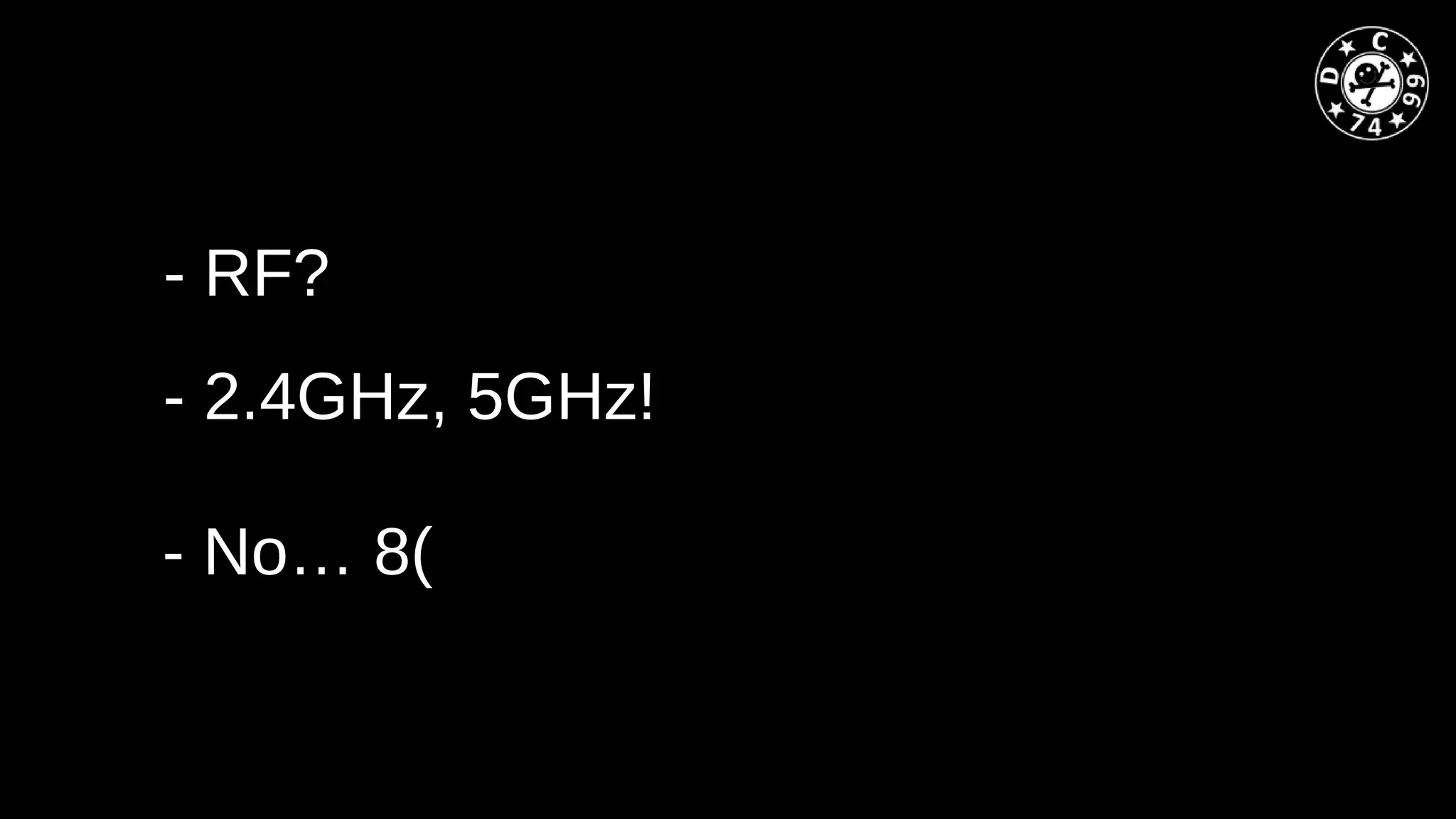

- 11. - RF? - No…8( - 2.4GHz, 5GHz!
- 12. RF • 700MHz –ITS in Japan • 900 MHz (802.11ah) – US unlicensed • 2.4 GHz (802.11b/g/n) – everyone uses @ home • 3.6 GHz, 4.9GHz (802.11y) – US, Public Safety WLAN 50 MHz of spectrum from 4940 MHz to 4990 MHz (WLAN channels 20–26) are in use by public safety entities in the US. • 5 GHz (802.11a/h/j/n/ac) – 802.11ac is what you should use @ home • 5.9 GHz (802.11p) – Wireless Access in Vehicular Environments (WAVE), ITS in EU • 60 GHz (802.11ad) – WiGig. 7Gbit/s, 10m, beamforming, HDMI over WiFi

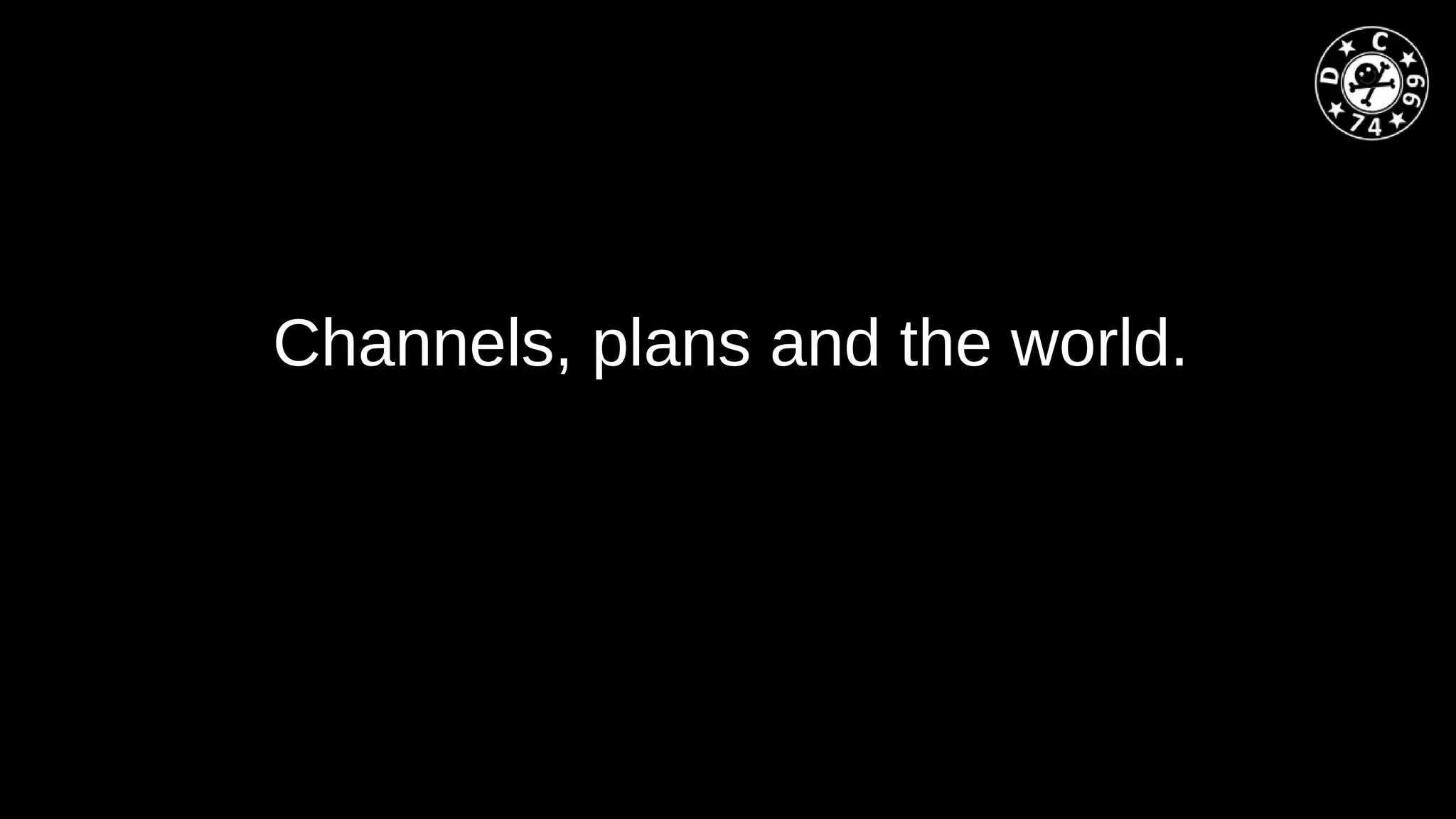

- 13. Channels, plans andthe world.
- 14. 802.11b channel centerfrequency

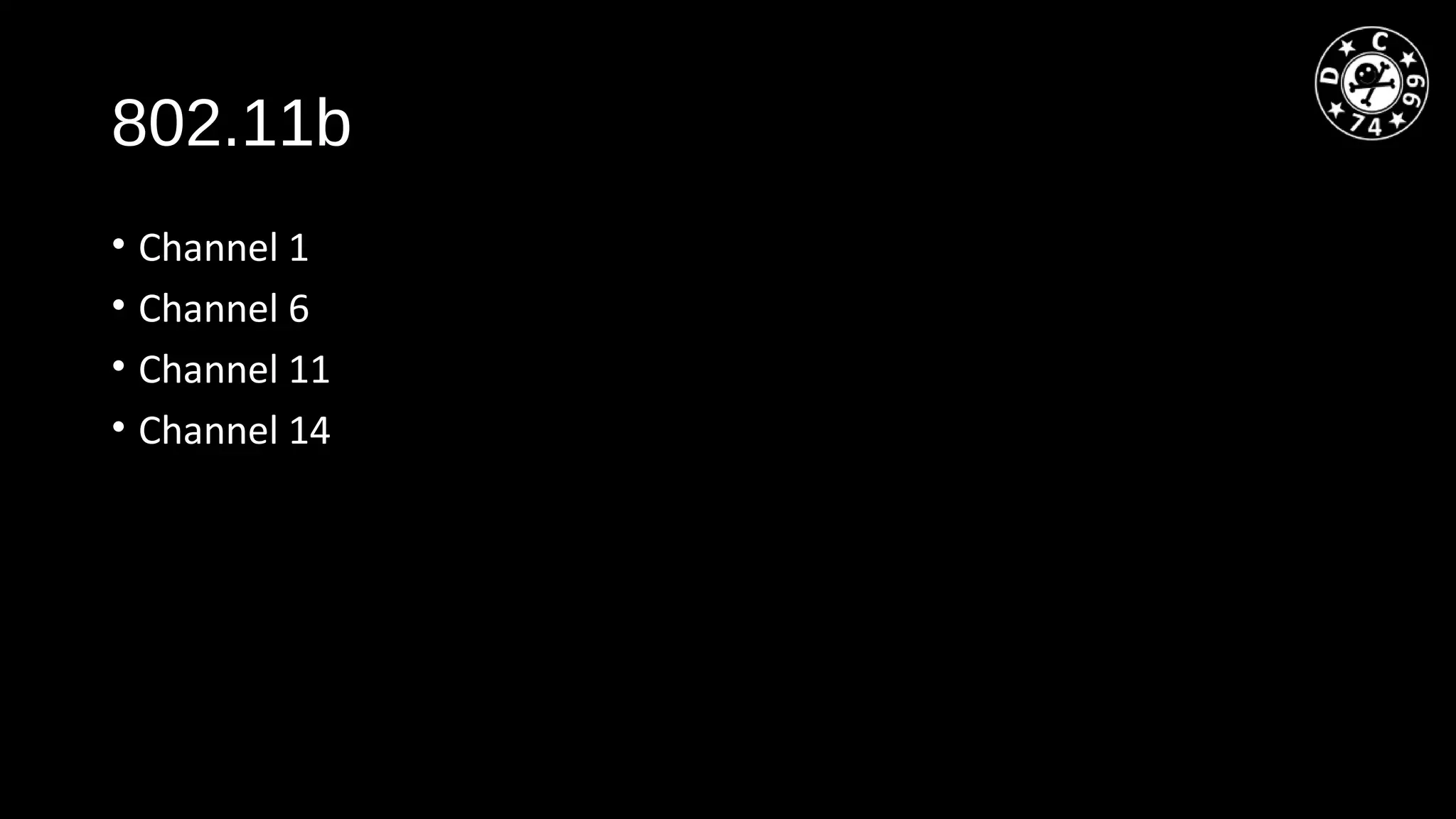

- 15. 802.11b • Channel 1 •Channel 6 • Channel 11 • Channel 14

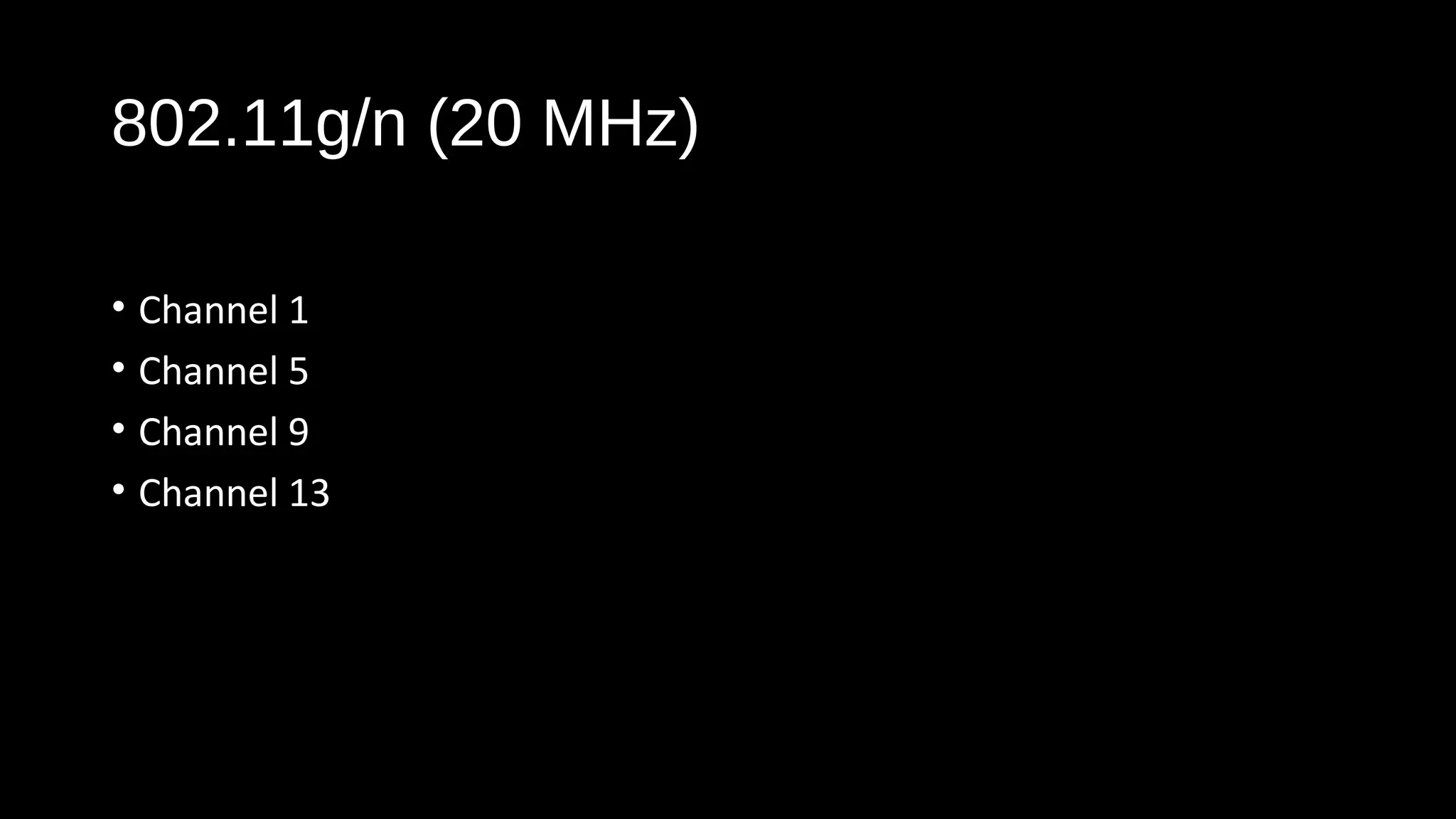

- 16. 802.11g/n (20 MHz) •Channel 1 • Channel 5 • Channel 9 • Channel 13

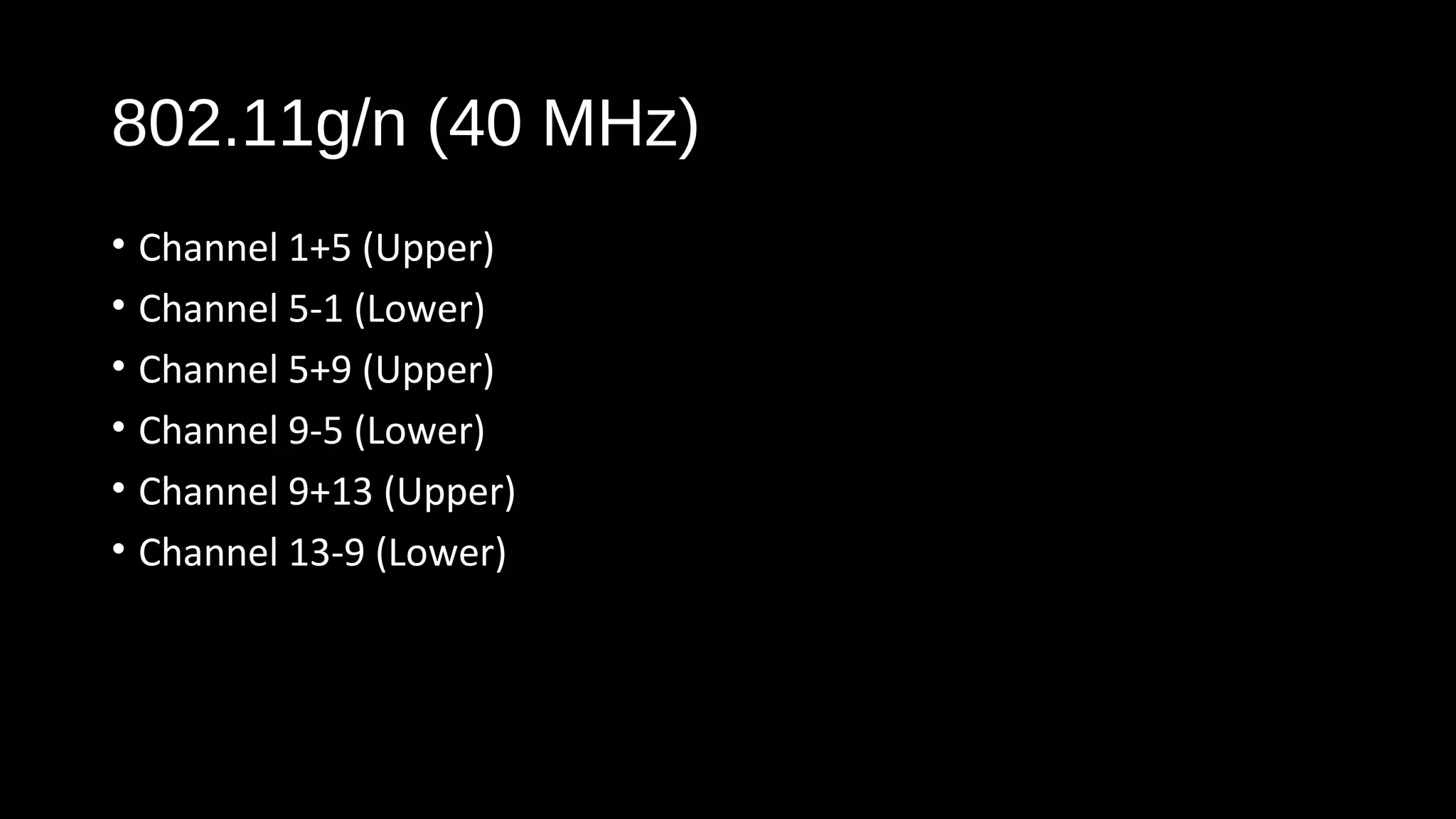

- 17. 802.11g/n (40 MHz) •Channel 1+5 (Upper) • Channel 5-1 (Lower) • Channel 5+9 (Upper) • Channel 9-5 (Lower) • Channel 9+13 (Upper) • Channel 13-9 (Lower)
- 18.

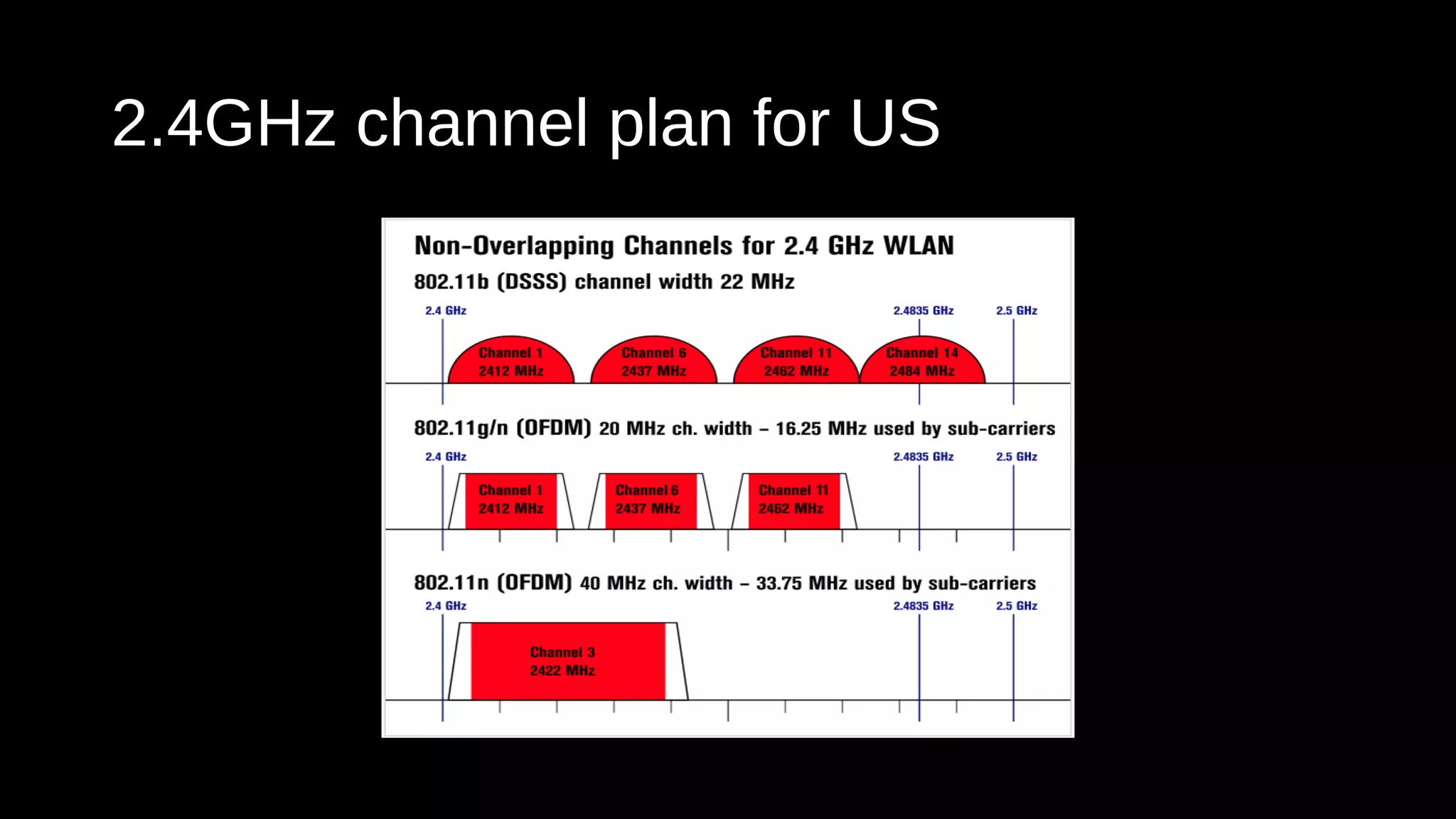

- 19. 2.4GHz channel planfor US

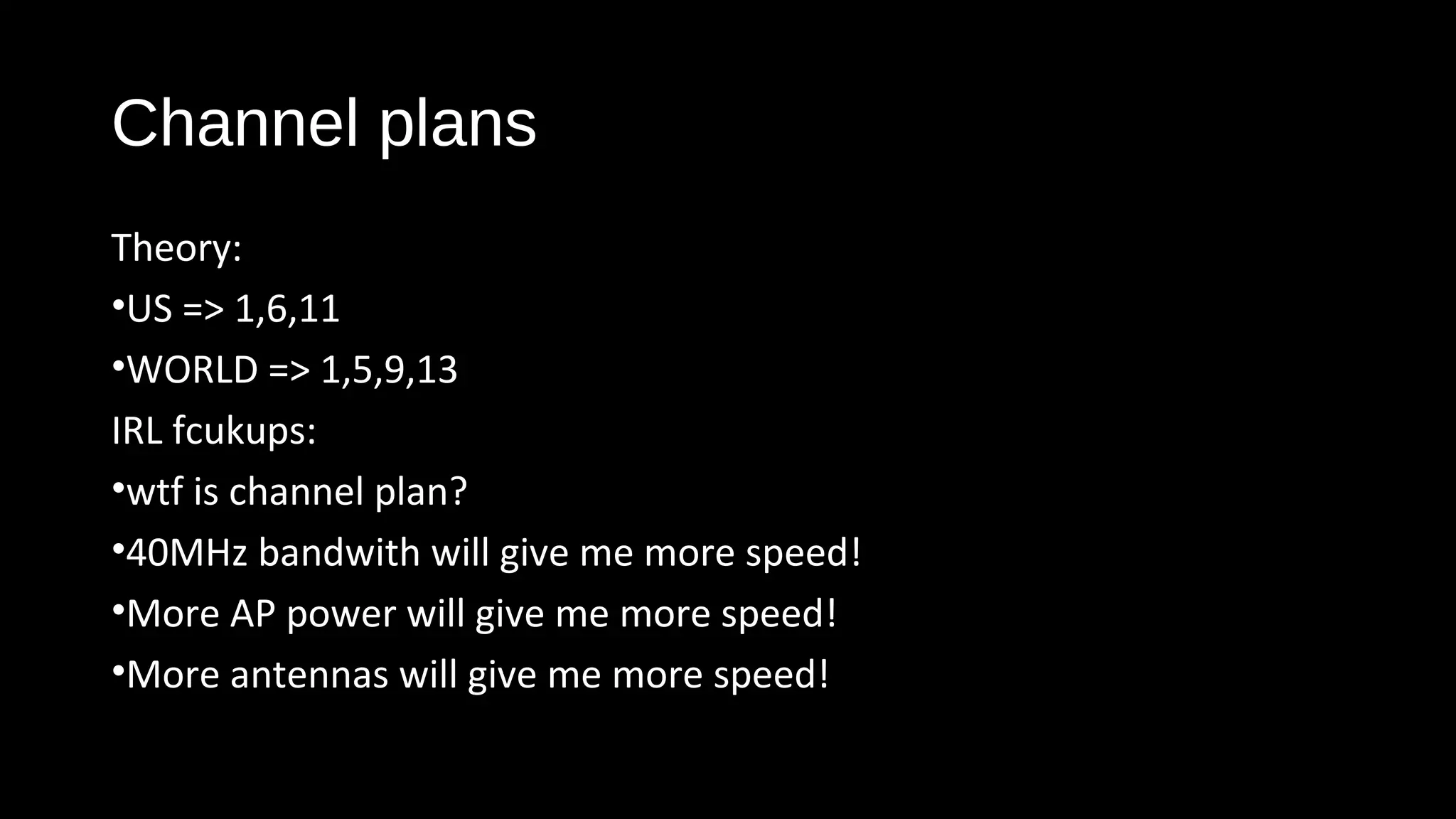

- 20. Channel plans Theory: •US =>1,6,11 •WORLD => 1,5,9,13 IRL fcukups: •wtf is channel plan? •40MHz bandwith will give me more speed! •More AP power will give me more speed! •More antennas will give me more speed!
- 23.
- 24. Gr337z fly 2JBFC
- 25. 5GHz around theworld

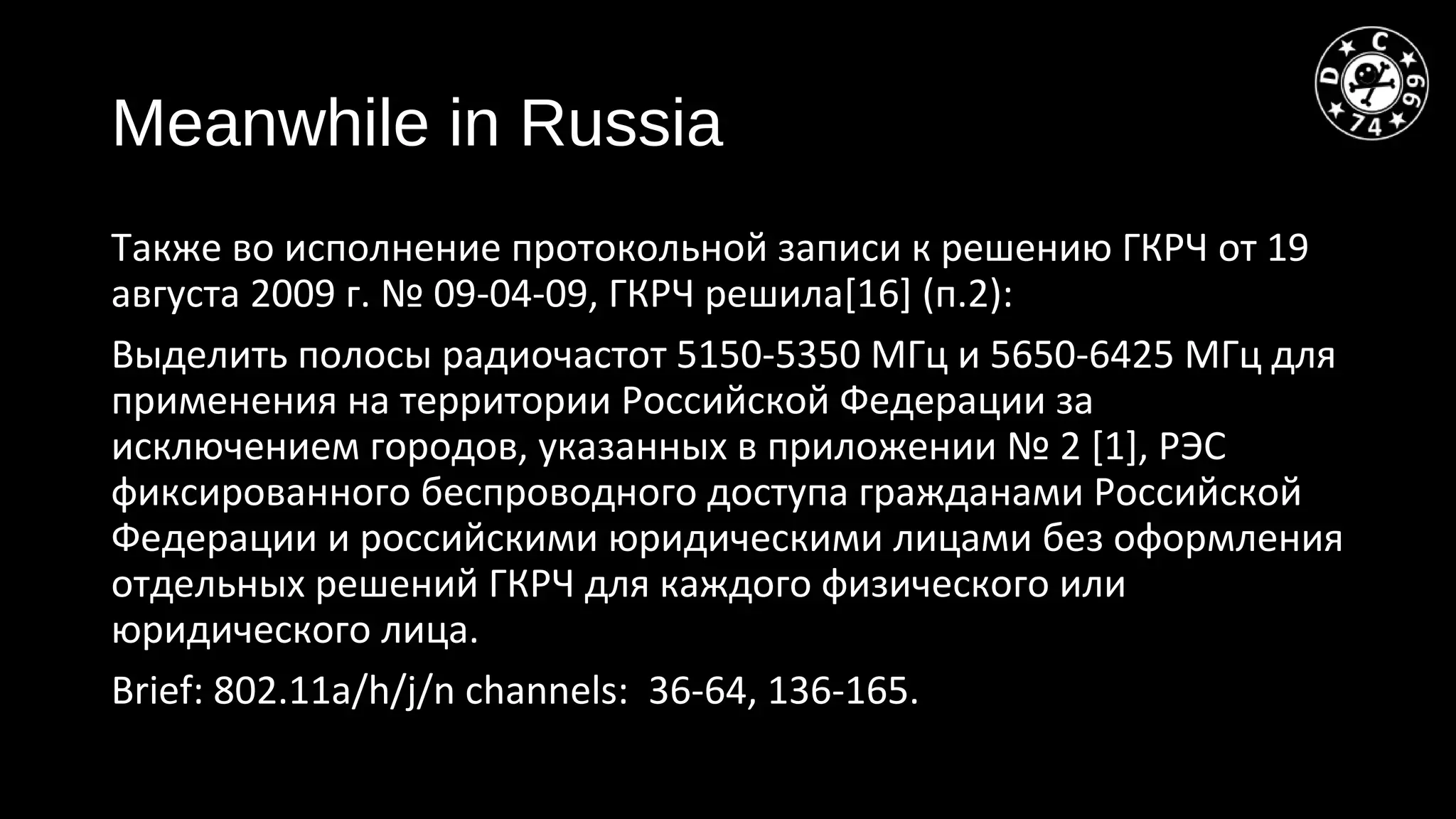

- 26. Meanwhile in Russia Такжево исполнение протокольной записи к решению ГКРЧ от 19 августа 2009 г. № 09-04-09, ГКРЧ решила[16] (п.2): Выделить полосы радиочастот 5150-5350 МГц и 5650-6425 МГц для применения на территории Российской Федерации за исключением городов, указанных в приложении № 2 [1], РЭС фиксированного беспроводного доступа гражданами Российской Федерации и российскими юридическими лицами без оформления отдельных решений ГКРЧ для каждого физического или юридического лица. Brief: 802.11a/h/j/n channels: 36-64, 136-165.

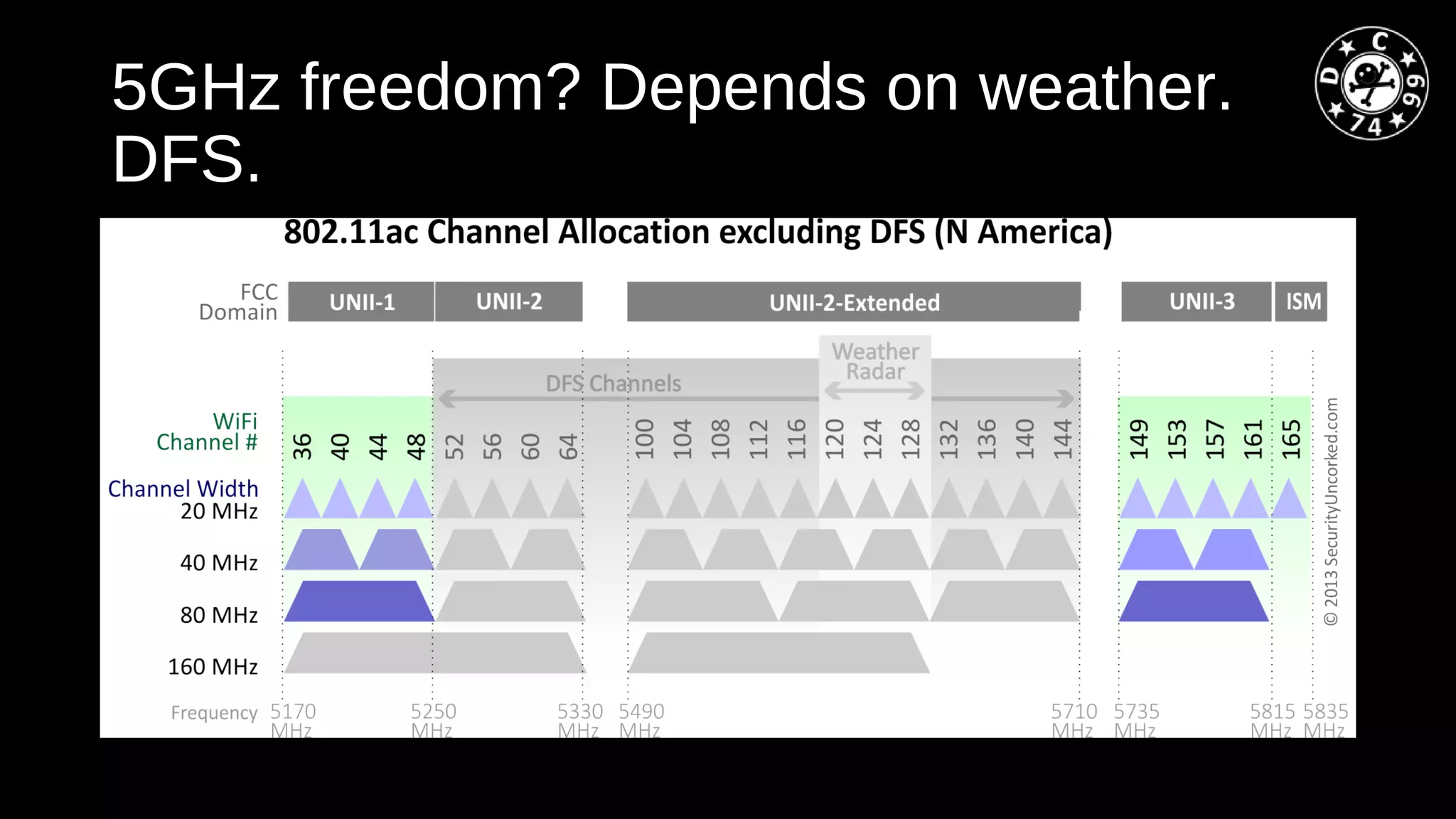

- 27. 5GHz freedom? Dependson weather. DFS.
- 29.

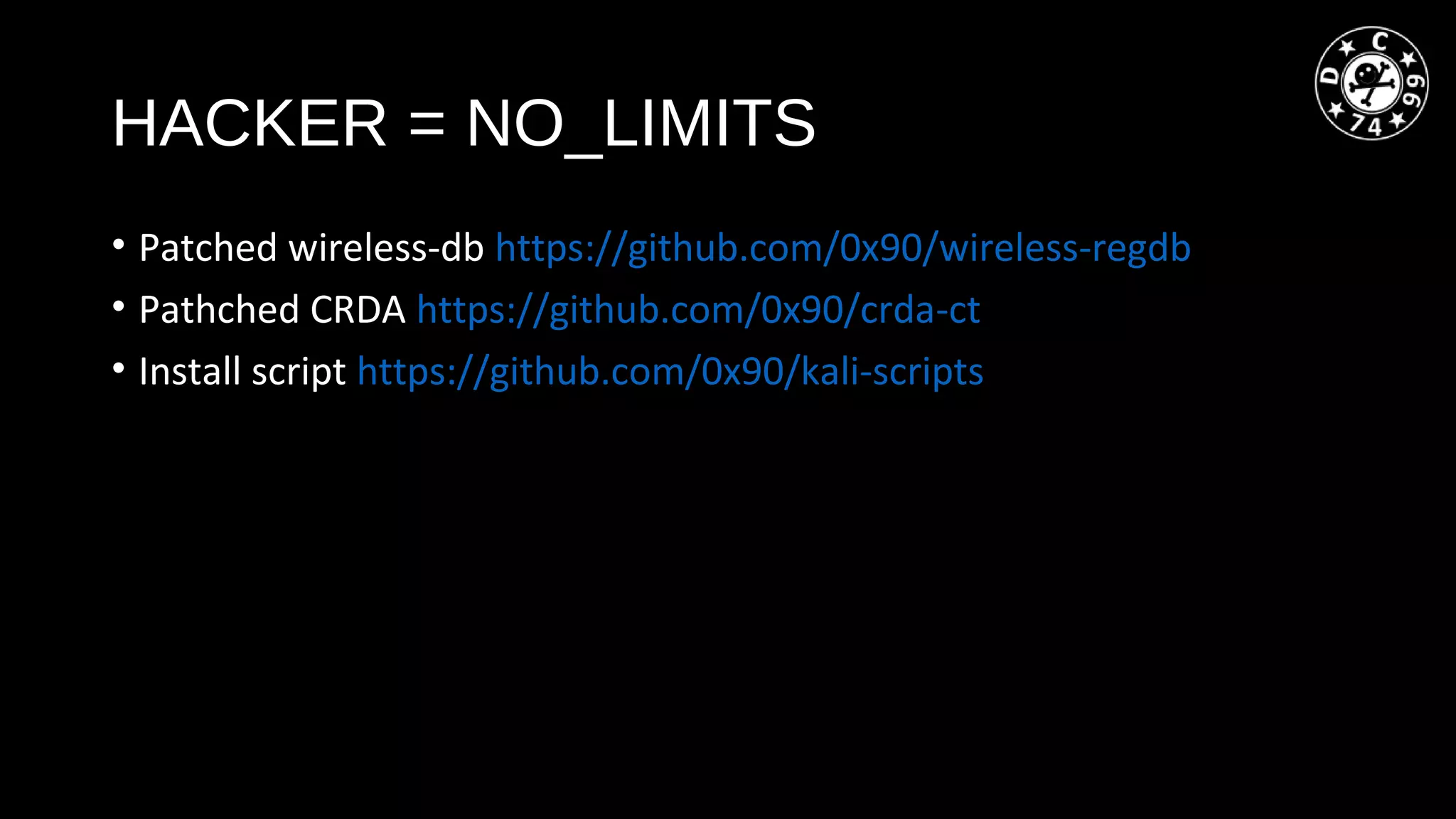

- 30. HACKER = NO_LIMITS •Patched wireless-db https://github.com/0x90/wireless-regdb • Pathched CRDA https://github.com/0x90/crda-ct • Install script https://github.com/0x90/kali-scripts
- 31. UDEV IFACE NAMING •wlan0 -> wlp3s0 • mon0 -> wlp3s0mon • wlan1 -> wlp0s20u9 • mon2 -> wlp0s29f7u2mon • All mon0 based bash scripts fcuked up • Lorcon + PyLorcon2 broken
- 32. ath9k low level •http://blog.altermundi.net/article/playing-with-ath9k-spectral-scan/ • Ath9k/ath9k_htc open source driver, firmware • FFT disable • Channels: -19- if ath9k.driver.has_sw_limits() && ’kernel patching’ in hacker.skills[]: hacker.patch(ath9k.driver) ath9k.channel = -5 ath9k.power = 30 ath9k.bandwith = 5
- 33. ath9k spectral scan •Fluke Spectral Analyser = many $$$ • Atheros AR92XX, AR93XX chips support spectral scan (???) • http://pages.cs.wisc.edu/~patro/htc_spectral/0003-Update-spectral- scan-calls-to-support-both-ath9k-and.patch • http://blog.altermundi.net/article/playing-with-ath9k-spectral-scan/
- 34.
- 35. ath9k advanced • echo"$bandwidth" > /sys/kernel/debug/ieee80211/$phy/ath9k/chanbw • ls /sys/kernel/debug/ieee80211/phy*/ath9k_htc/registers/ • ath9k_htc AP mode client fw limit https://lists.ath9k.org/pipermail/ath9k-devel/2013- April/010513.html • echo '1' > /sys/kernel/debug/ieee80211/phy0/ath9k/disable_ani • iw --debug dev wlan0 info
- 36. 802.11 hacking @OS X • No INJ, only RFMON => No sending deauth frames* • Use reaver-wps, aircrack-ng, tcpdump from mac ports • airport cmd with RFMON support /System/Library/PrivateFrameworks/Apple80211.framework/Version s/Current/Resources/airport • Scapy patched for RFMON @ OSX https://github.com/0x90/scapy-osx • WPSIK • PrivateFrameworks: Apple80211, CoreWLAN, etc… • Horst to be patched

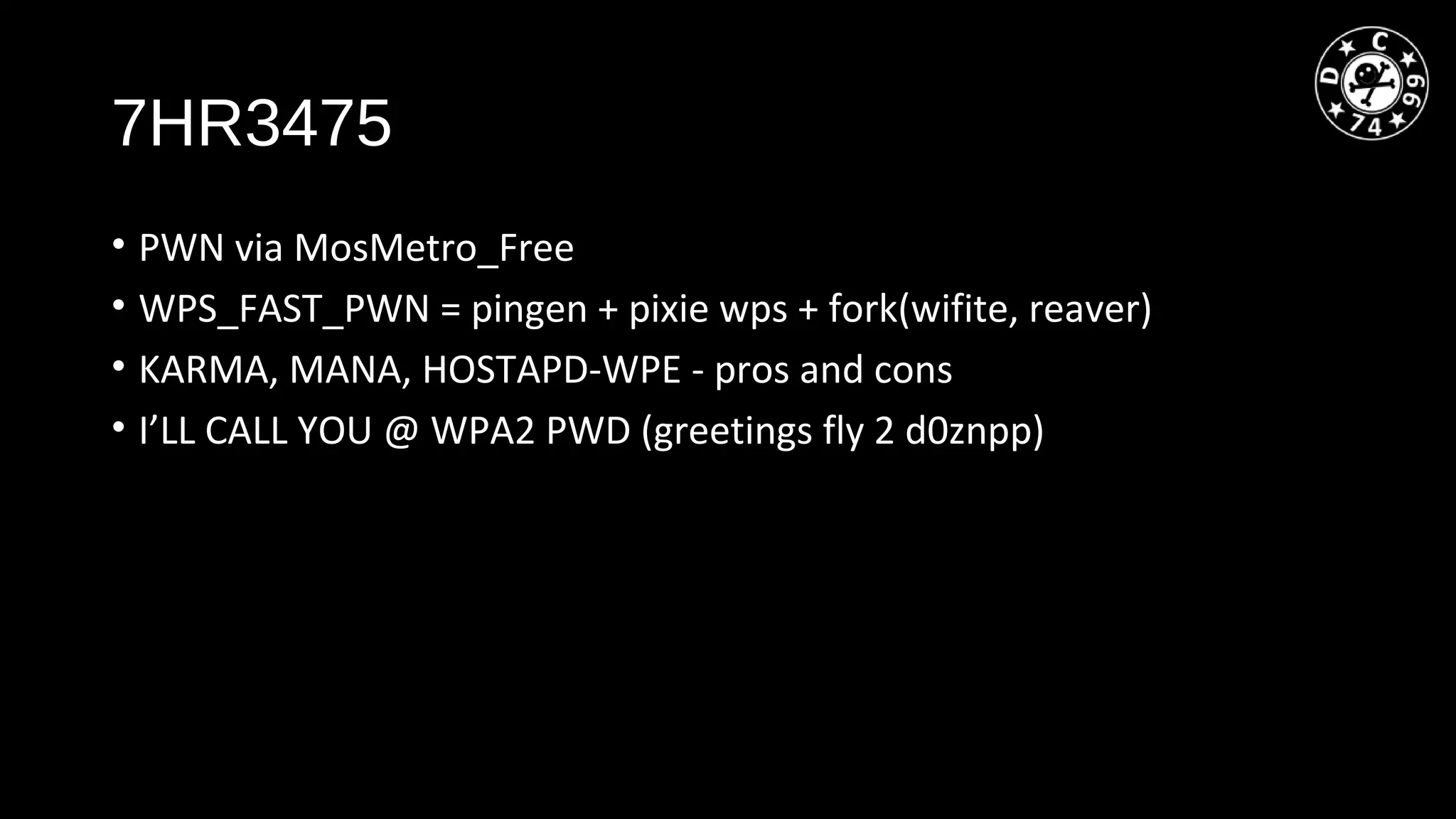

- 37. 7HR3475 • PWN viaMosMetro_Free • WPS_FAST_PWN = pingen + pixie wps + fork(wifite, reaver) • KARMA, MANA, HOSTAPD-WPE - pros and cons • I’LL CALL YOU @ WPA2 PWD (greetings fly 2 d0znpp)
- 38.

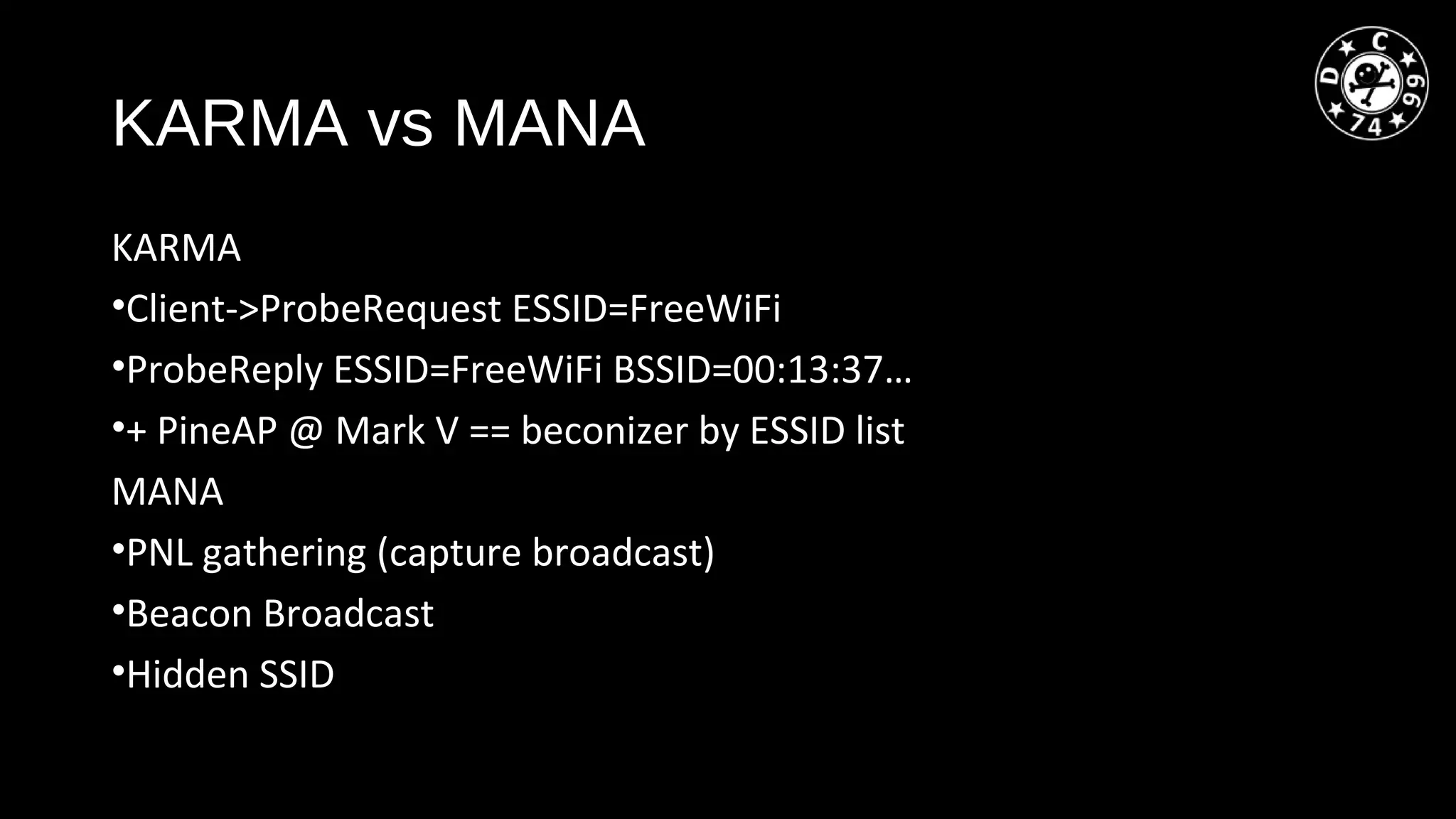

- 39. KARMA vs MANA KARMA •Client->ProbeRequestESSID=FreeWiFi •ProbeReply ESSID=FreeWiFi BSSID=00:13:37… •+ PineAP @ Mark V == beconizer by ESSID list MANA •PNL gathering (capture broadcast) •Beacon Broadcast •Hidden SSID
- 40. QUESTIONS? PWN’EM ALL! @090h/root@0x90.ru Code@ •http://github.com/0x90/ • http://github.com/dc7499
