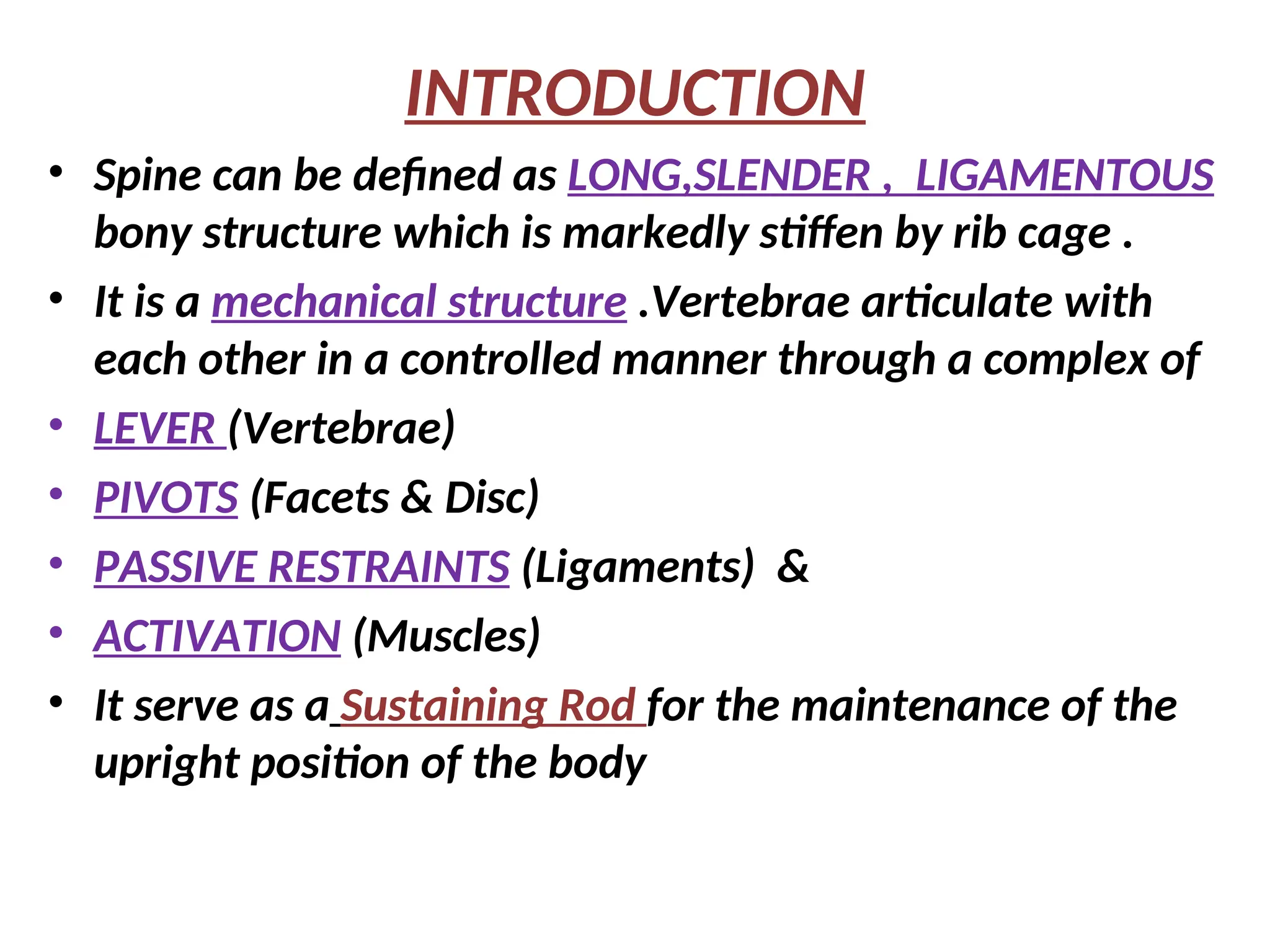

1. INTRODUCTION
• Spine can be defined as LONG,SLENDER , LIGAMENTOUS
bony structure which is markedly stiffen by rib cage .
• It is a mechanical structure .Vertebrae articulate with
each other in a controlled manner through a complex of
• LEVER (Vertebrae)
• PIVOTS (Facets & Disc)
• PASSIVE RESTRAINTS (Ligaments) &
• ACTIVATION (Muscles)
• It serve as a Sustaining Rod for the maintenance of the
upright position of the body

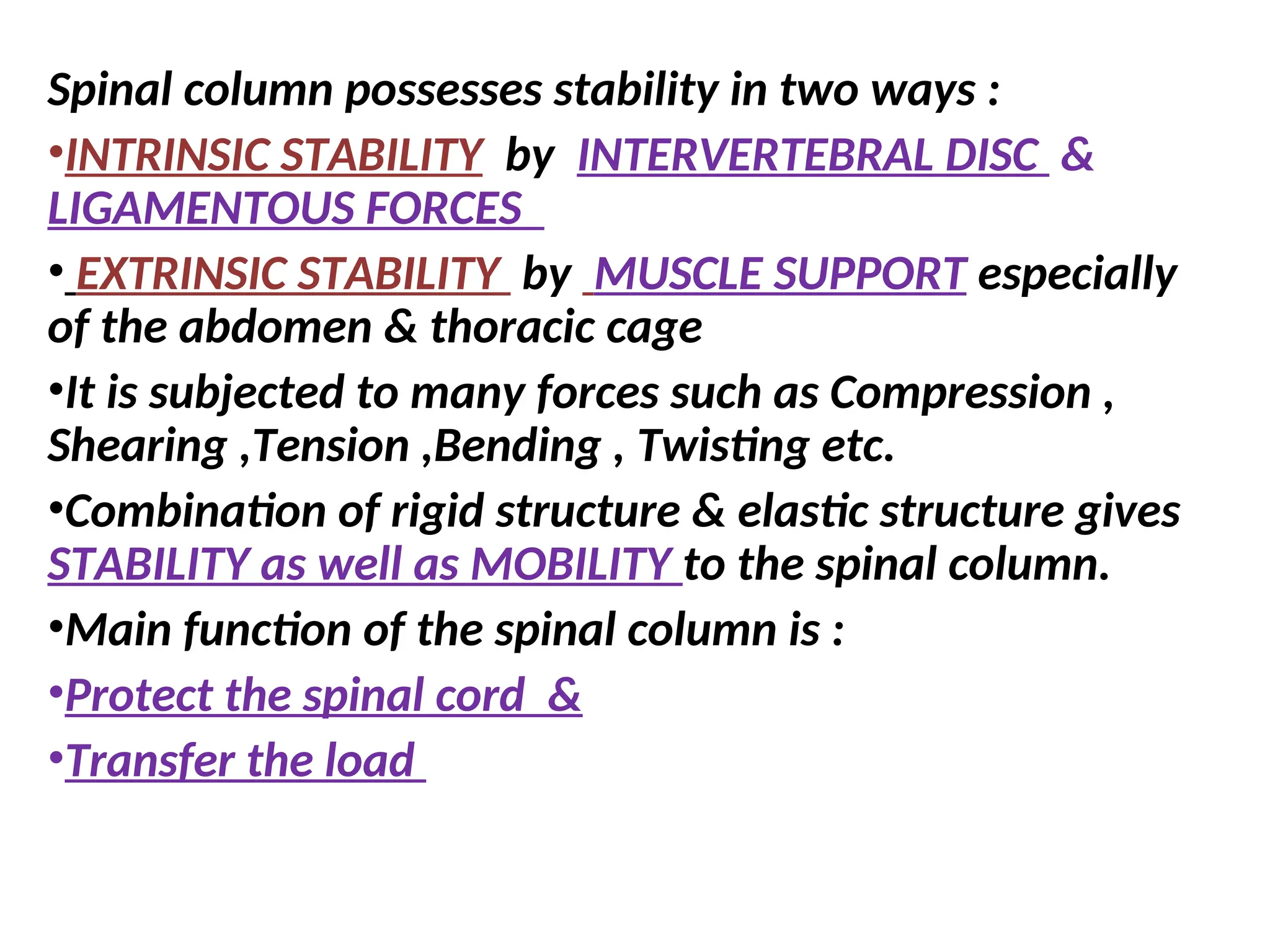

2. Spinal column possesses stability in two ways :
•INTRINSIC STABILITY by INTERVERTEBRAL DISC &
LIGAMENTOUS FORCES
• EXTRINSIC STABILITY by MUSCLE SUPPORT especially
of the abdomen & thoracic cage
•It is subjected to many forces such as Compression ,
Shearing ,Tension ,Bending , Twisting etc.
•Combination of rigid structure & elastic structure gives
STABILITY as well as MOBILITY to the spinal column.
•Main function of the spinal column is :
•Protect the spinal cord &
•Transfer the load

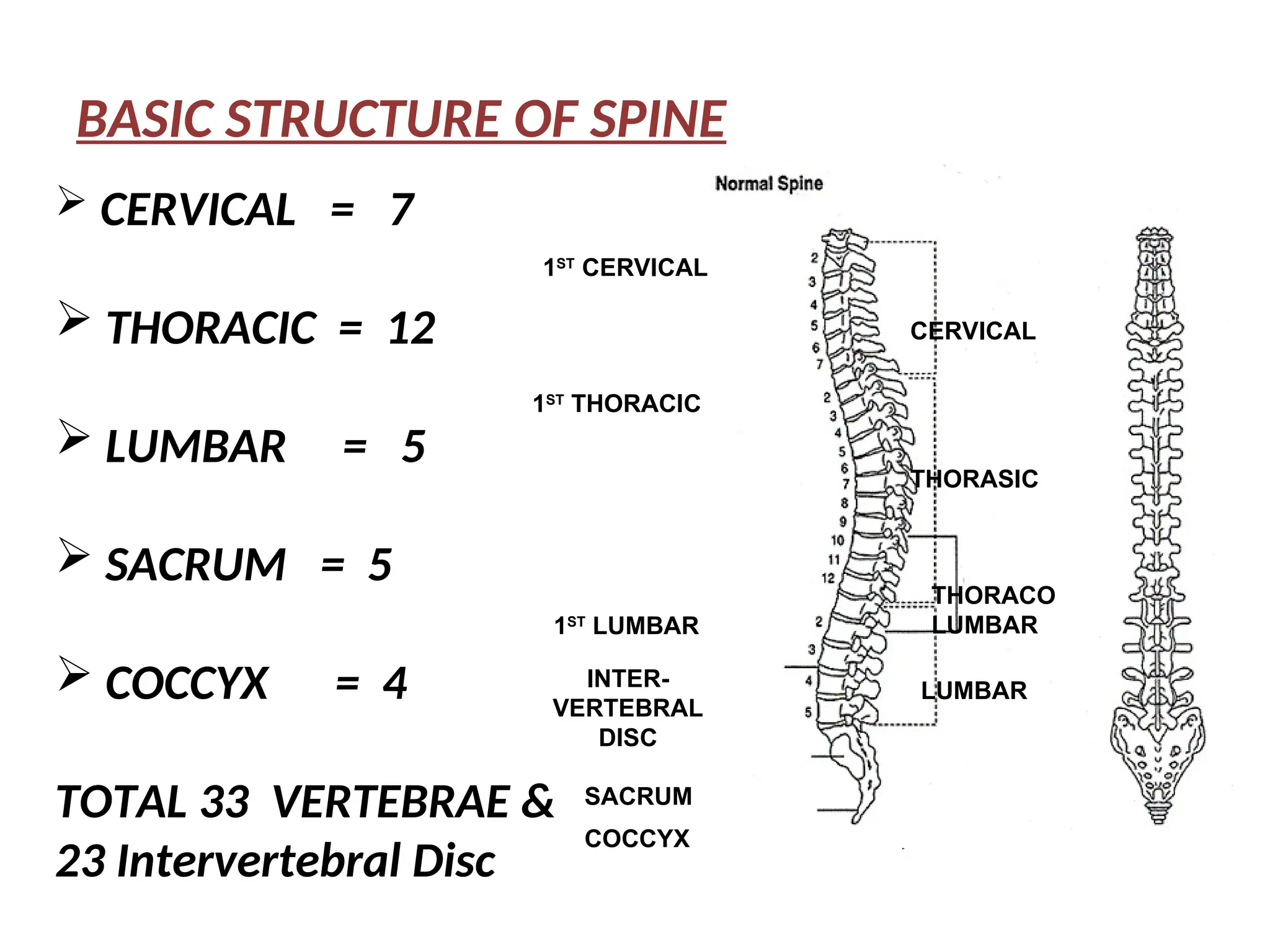

3. BASIC STRUCTURE OF SPINE
CERVICAL
THORASIC
THORACO
LUMBAR
LUMBAR
COCCYX
SACRUM
INTER-
VERTEBRAL
DISC
1ST
LUMBAR
1ST
THORACIC
1ST
CERVICAL
 CERVICAL = 7
 THORACIC = 12
 LUMBAR = 5
 SACRUM = 5
 COCCYX = 4
TOTAL 33 VERTEBRAE &
23 Intervertebral Disc

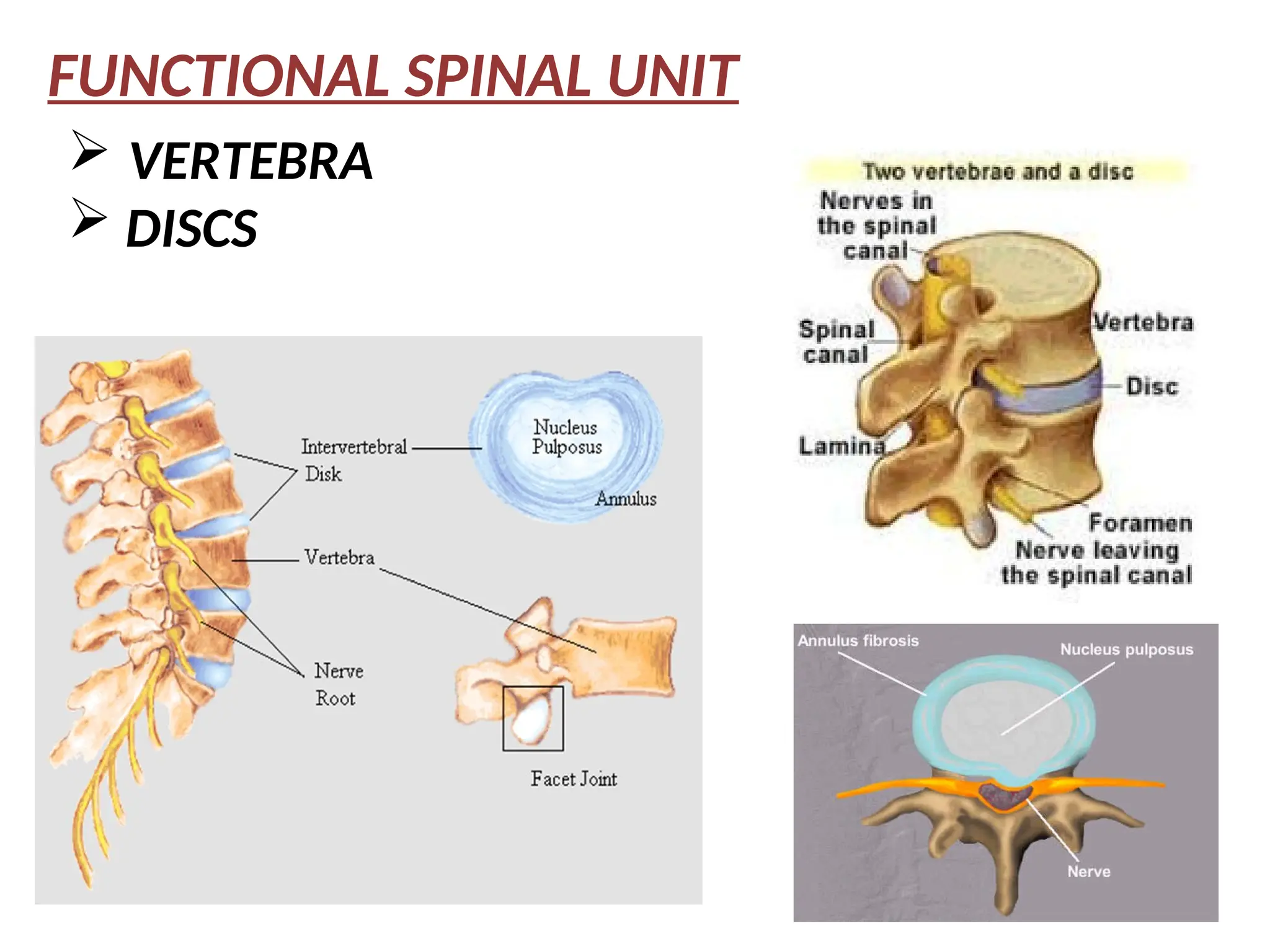

4. FUNCTIONAL SPINAL UNIT
 VERTEBRA
 DISCS

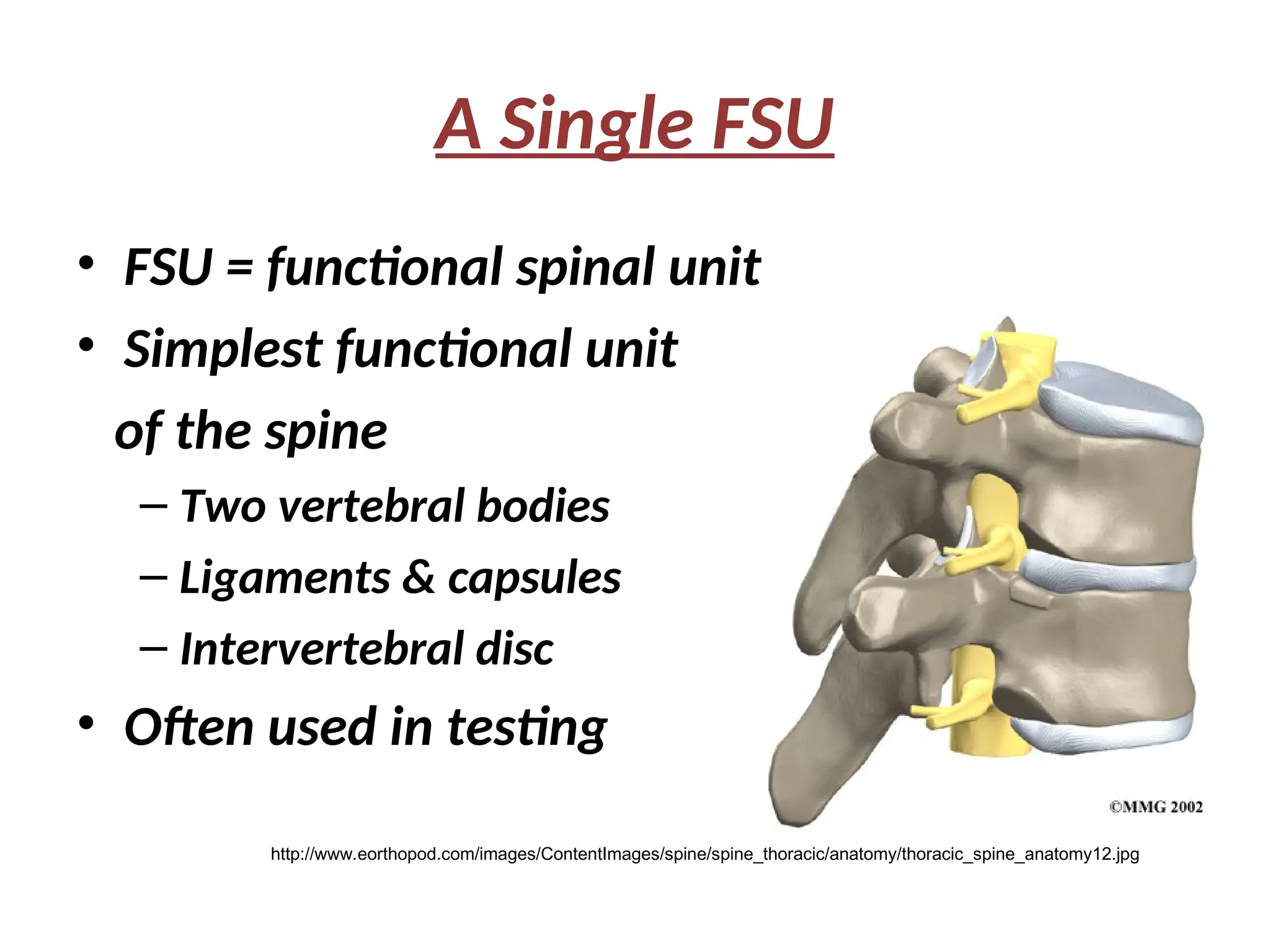

5. A Single FSU
• FSU = functional spinal unit
• Simplest functional unit
of the spine
– Two vertebral bodies
– Ligaments & capsules
– Intervertebral disc
• Often used in testing
http://www.eorthopod.com/images/ContentImages/spine/spine_thoracic/anatomy/thoracic_spine_anatomy12.jpg

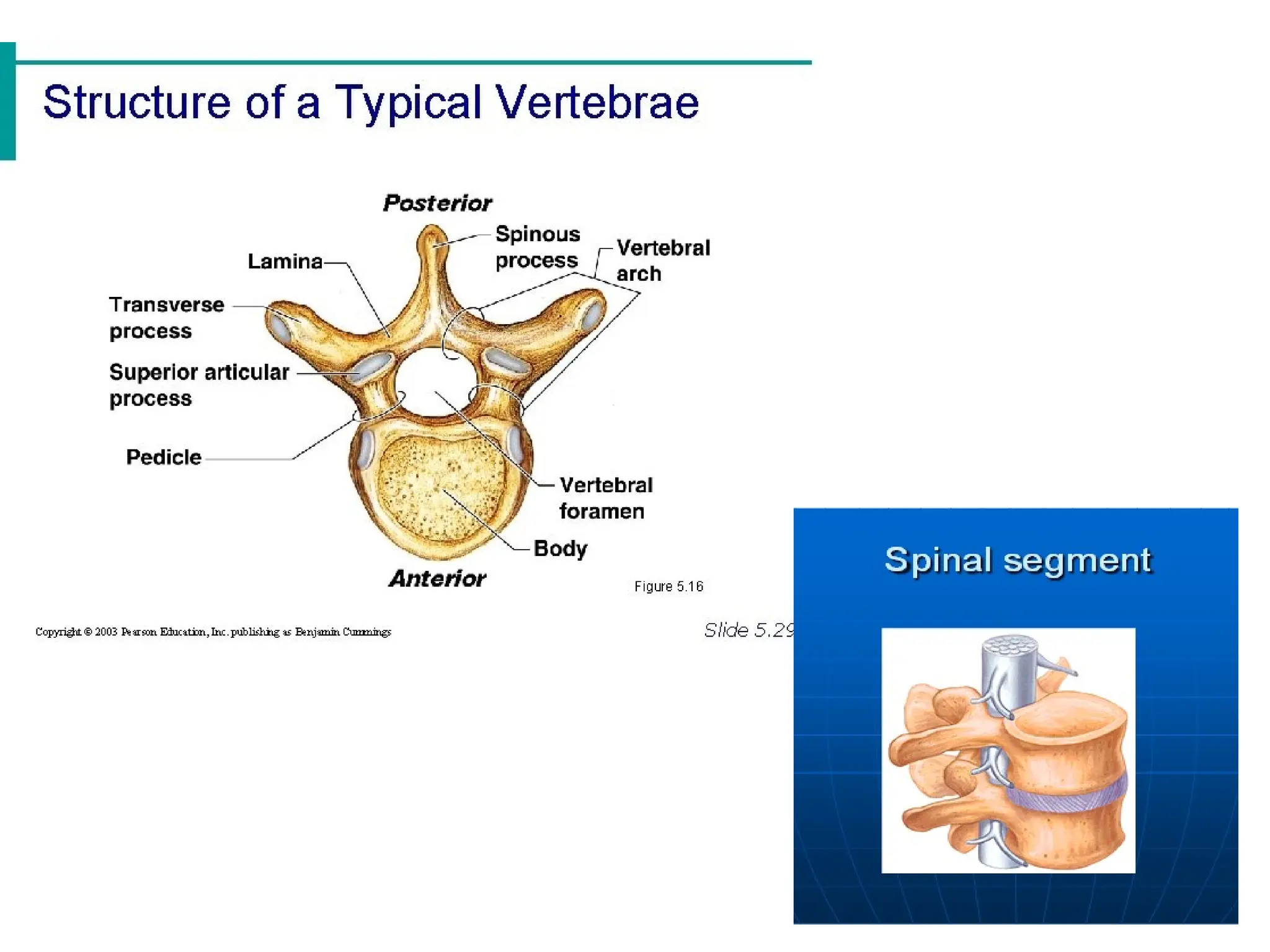

6. BASIC ANATOMY OF SPINAL COLUMN
• Spinal Column is a DYNAMIC structure composed of
STATIC ELEMENTS .
1. VERTEBRAL BODY (RIGID STRUCTURE)
2. INTERVERTEBRAL DISC (ELASTIC SEGMENT)
• Each vertebrae is composed of 4 parts
1. BODY which transmit the forces
2. LAMINA & PEDICLE which encloses the spinal canal
3.SPINOUS & TRANSVERSE PROCESSES which provides
attachment for muscles & ligaments
4. POSTERIOR ARTICULAR PROCESSES OR FACETS
which guides & limit motion between adjacent vertebrae.

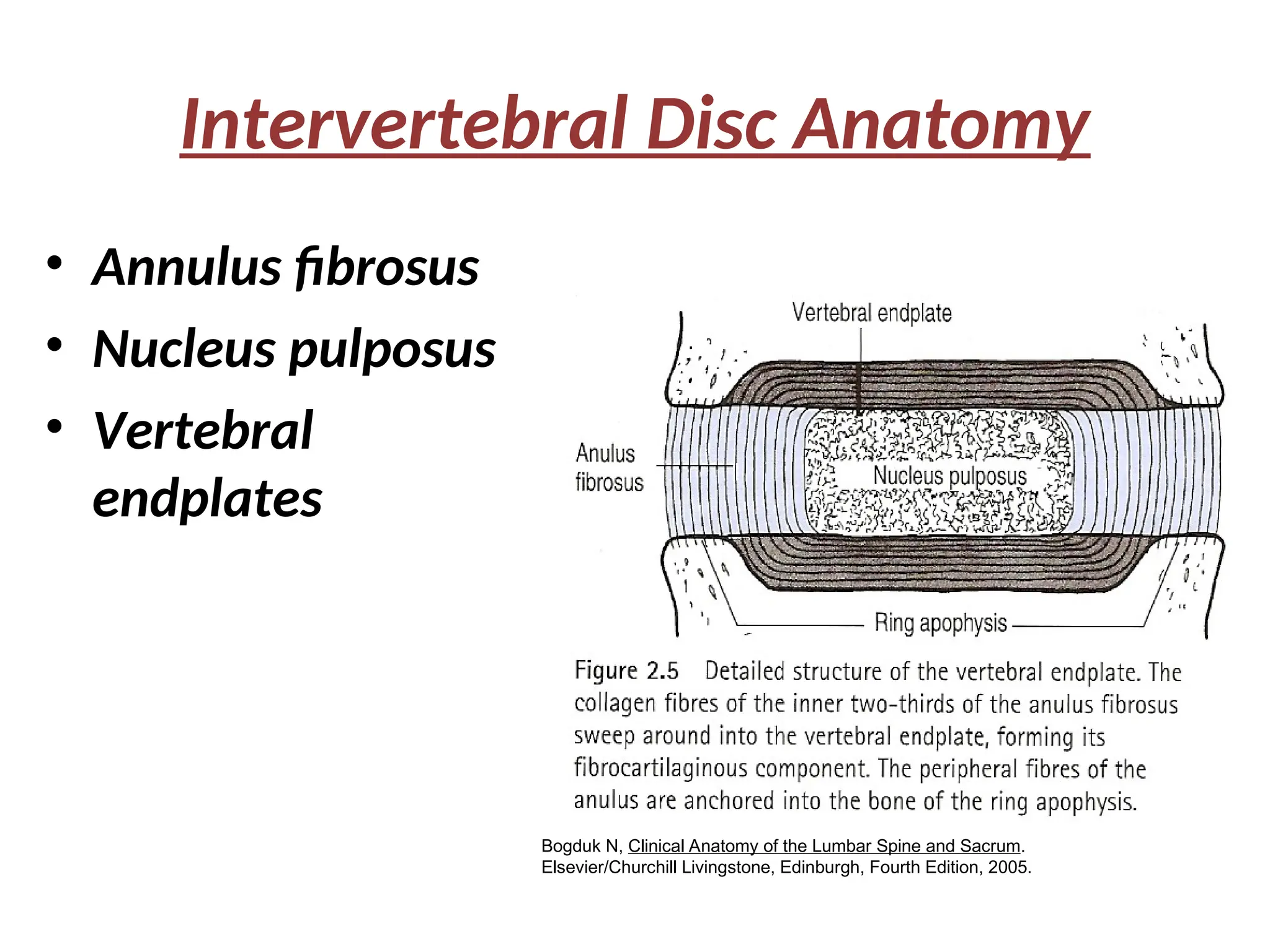

8. Intervertebral Disc Anatomy
• Annulus fibrosus
• Nucleus pulposus
• Vertebral
endplates
Bogduk N, Clinical Anatomy of the Lumbar Spine and Sacrum.
Elsevier/Churchill Livingstone, Edinburgh, Fourth Edition, 2005.

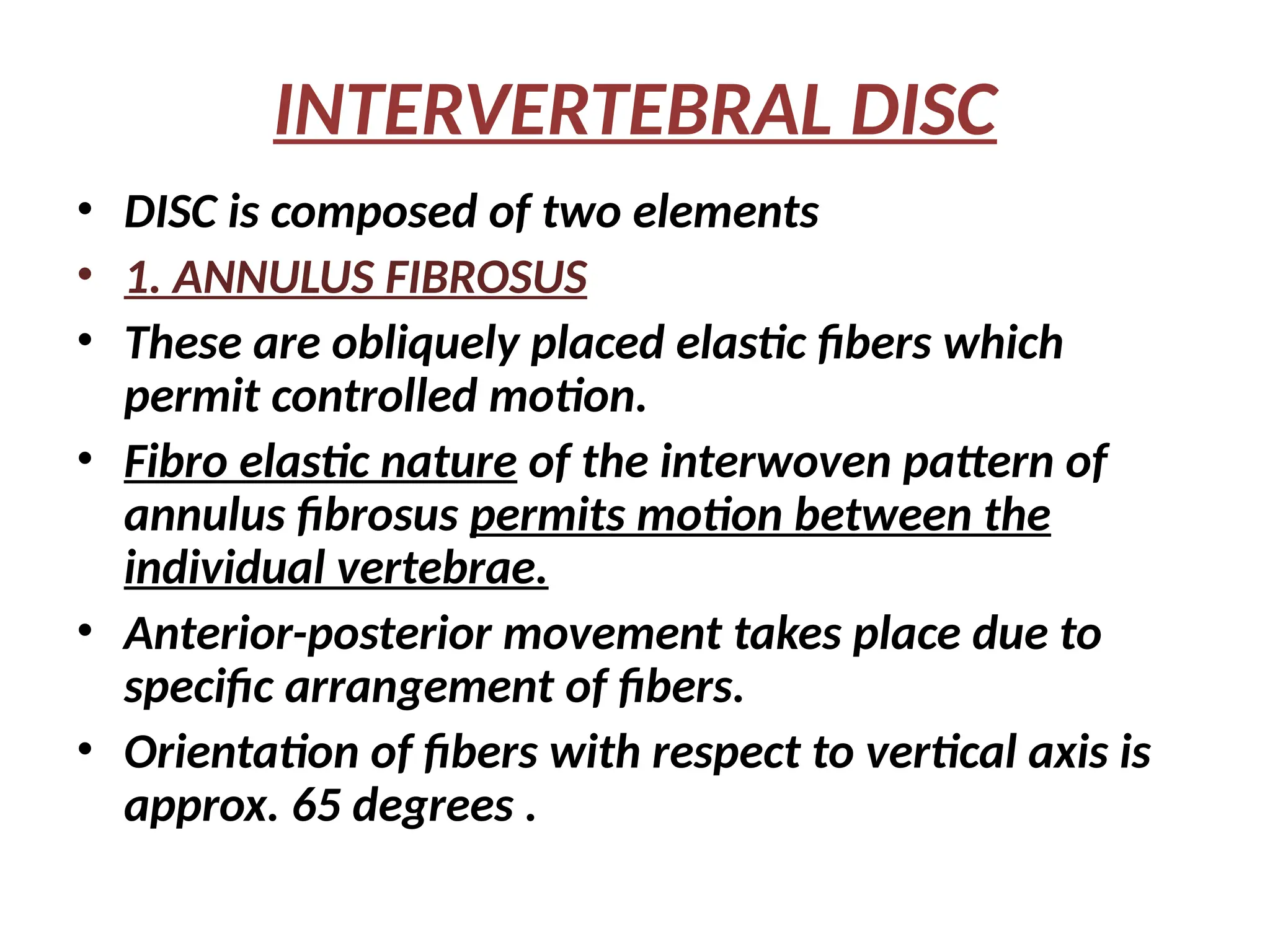

9. INTERVERTEBRAL DISC
• DISC is composed of two elements
• 1. ANNULUS FIBROSUS
• These are obliquely placed elastic fibers which
permit controlled motion.
• Fibro elastic nature of the interwoven pattern of
annulus fibrosus permits motion between the
individual vertebrae.
• Anterior-posterior movement takes place due to
specific arrangement of fibers.
• Orientation of fibers with respect to vertical axis is
approx. 65 degrees .

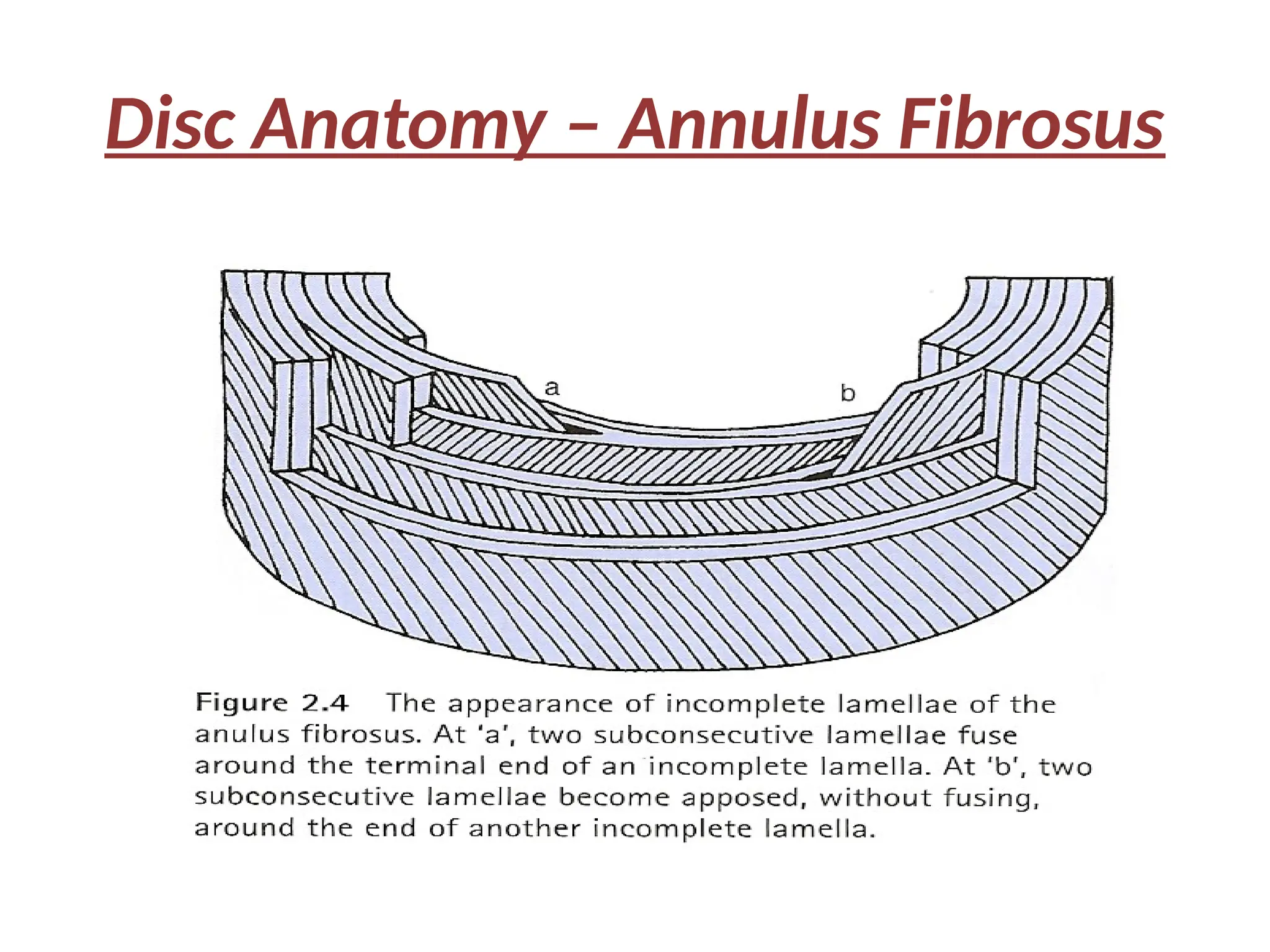

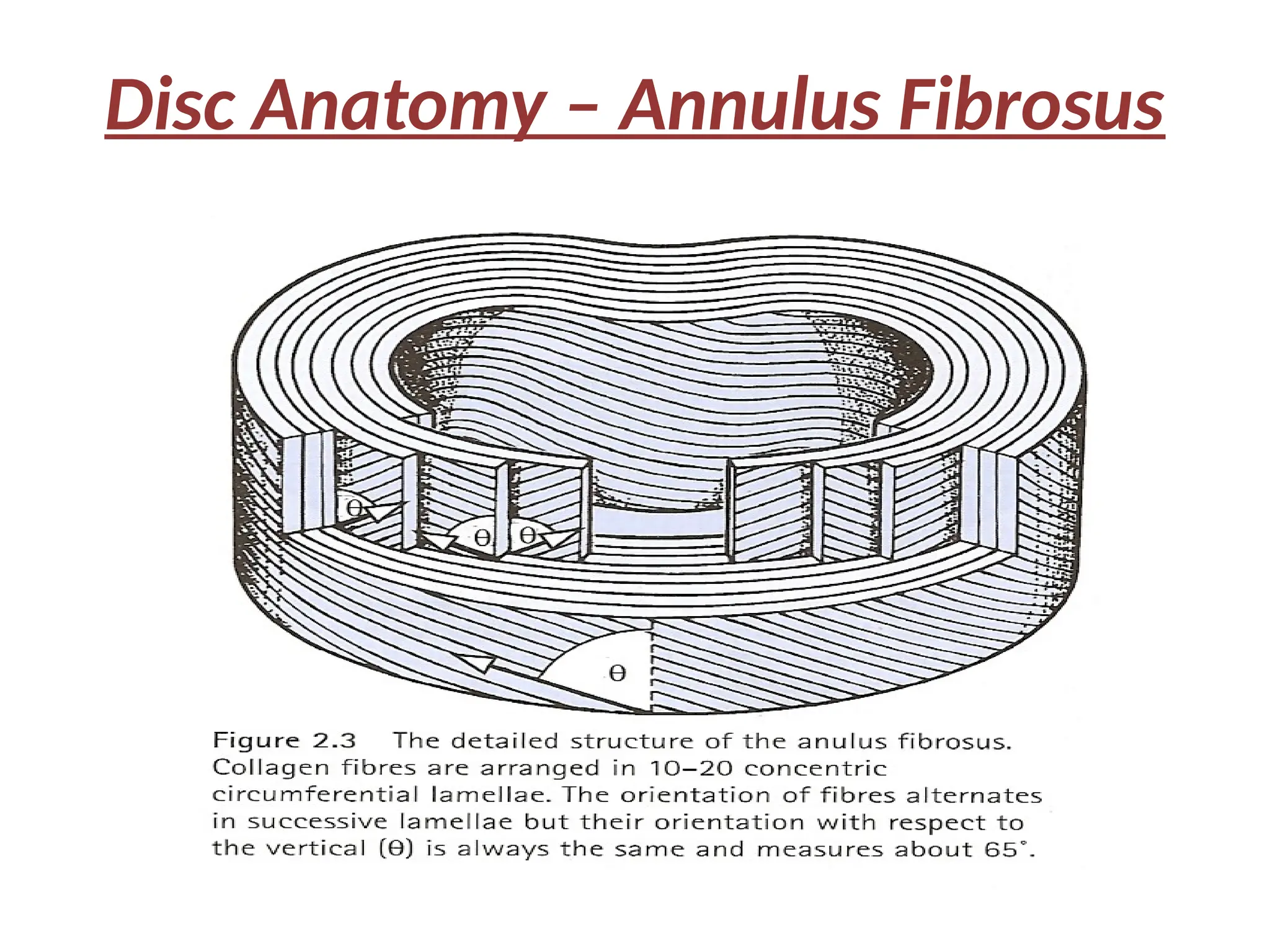

10. Disc Anatomy – Annulus Fibrosus

11. Disc Anatomy – Annulus Fibrosus

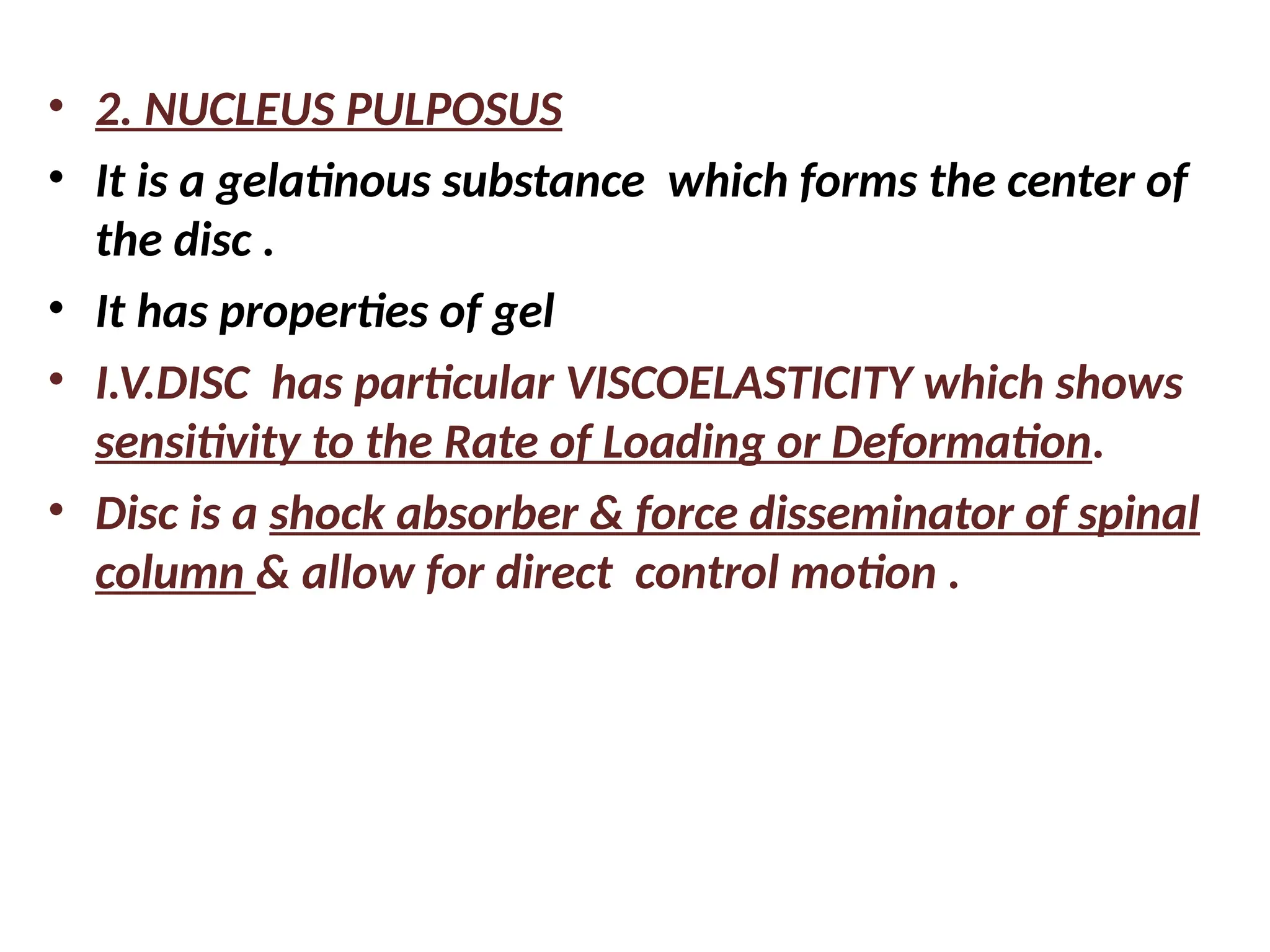

12. • 2. NUCLEUS PULPOSUS
• It is a gelatinous substance which forms the center of
the disc .
• It has properties of gel
• I.V.DISC has particular VISCOELASTICITY which shows
sensitivity to the Rate of Loading or Deformation.
• Disc is a shock absorber & force disseminator of spinal
column & allow for direct control motion .

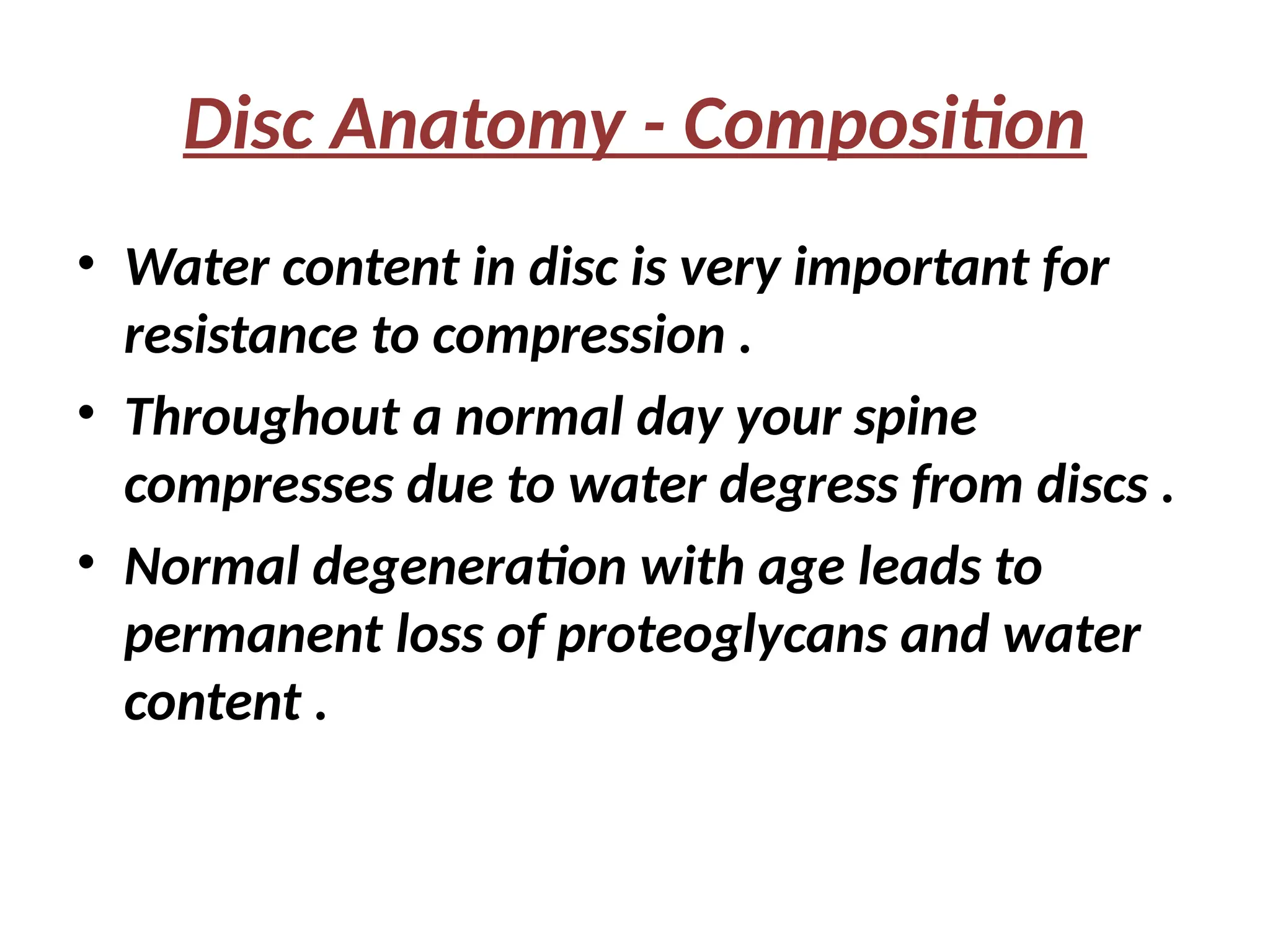

13. Disc Anatomy - Composition
• Water content in disc is very important for
resistance to compression .
• Throughout a normal day your spine
compresses due to water degress from discs .
• Normal degeneration with age leads to
permanent loss of proteoglycans and water
content .

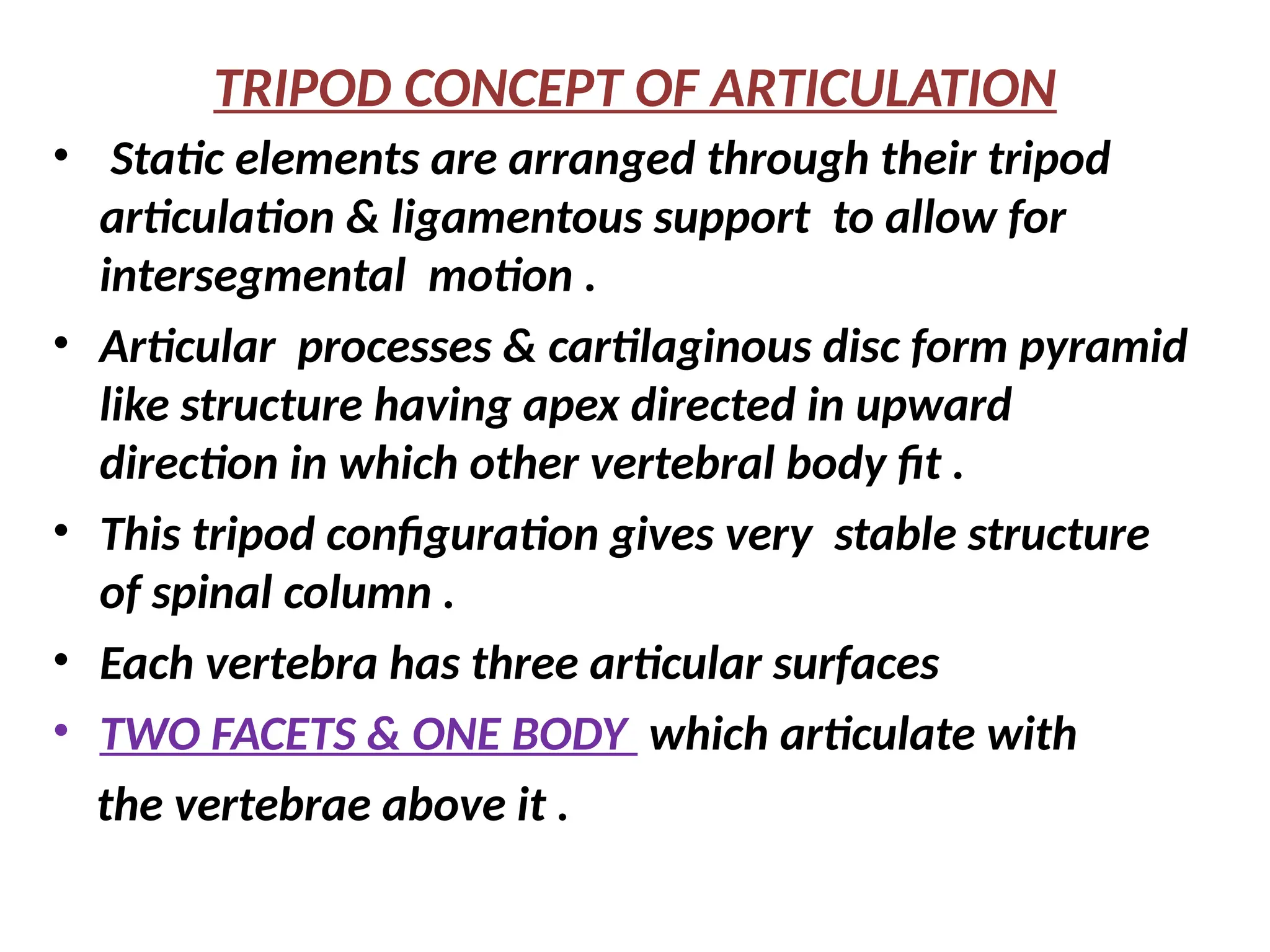

14. TRIPOD CONCEPT OF ARTICULATION
• Static elements are arranged through their tripod
articulation & ligamentous support to allow for
intersegmental motion .
• Articular processes & cartilaginous disc form pyramid
like structure having apex directed in upward
direction in which other vertebral body fit .
• This tripod configuration gives very stable structure
of spinal column .
• Each vertebra has three articular surfaces
• TWO FACETS & ONE BODY which articulate with
the vertebrae above it .

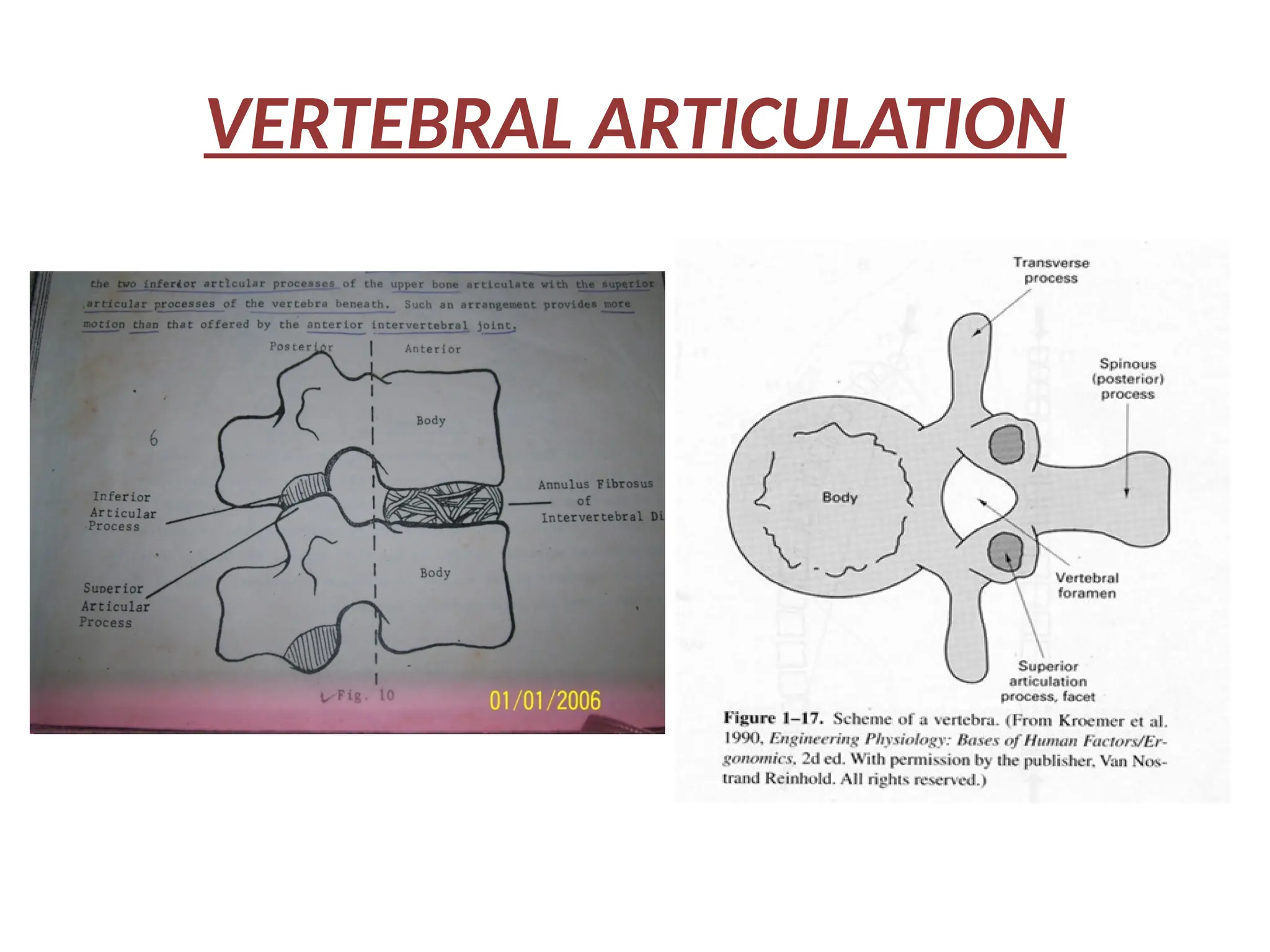

15. VERTEBRAL ARTICULATION

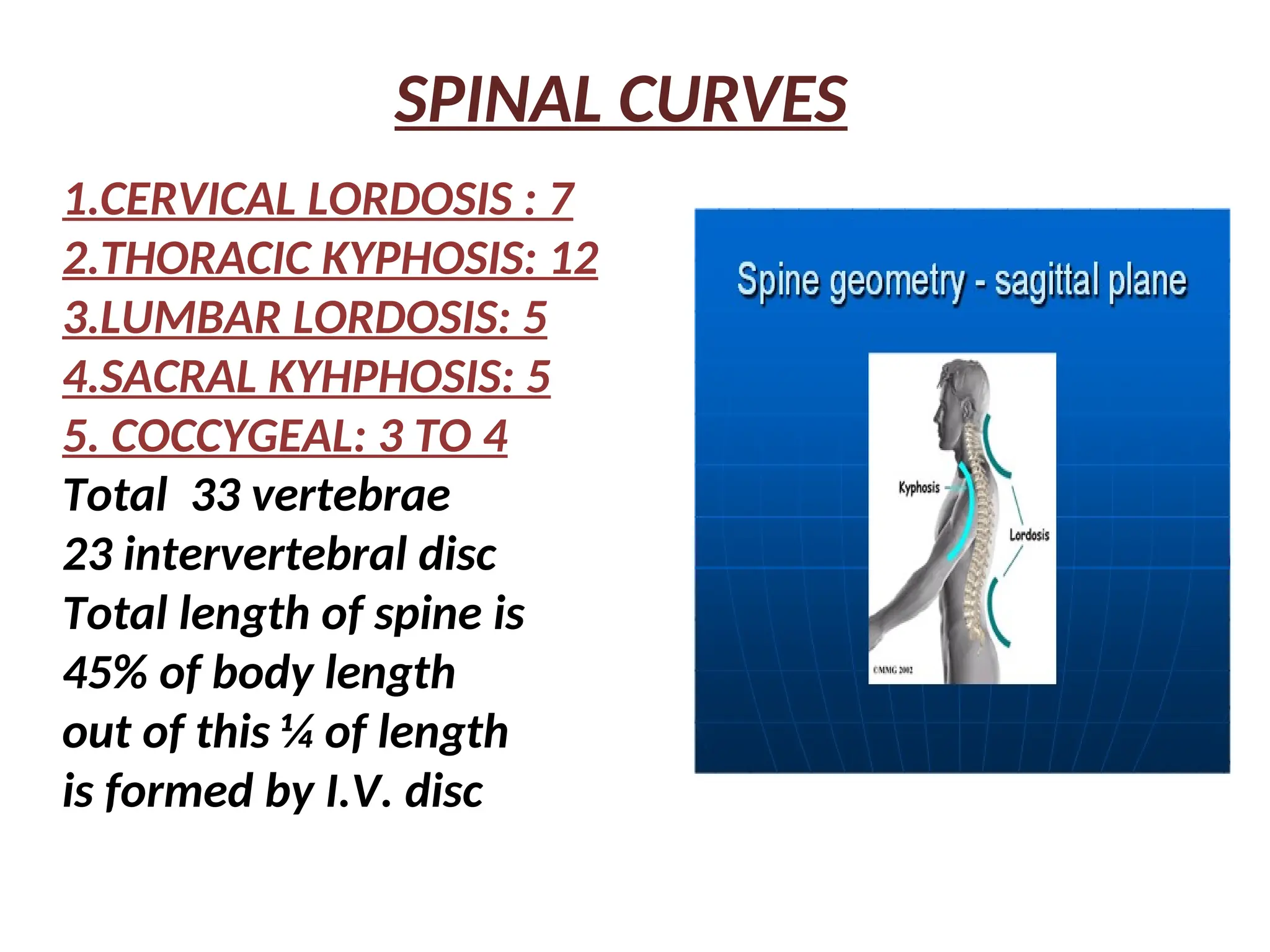

16. SPINAL CURVES
1.CERVICAL LORDOSIS : 7
2.THORACIC KYPHOSIS: 12
3.LUMBAR LORDOSIS: 5
4.SACRAL KYHPHOSIS: 5
5. COCCYGEAL: 3 TO 4
Total 33 vertebrae
23 intervertebral disc
Total length of spine is
45% of body length
out of this ¼ of length
is formed by I.V. disc

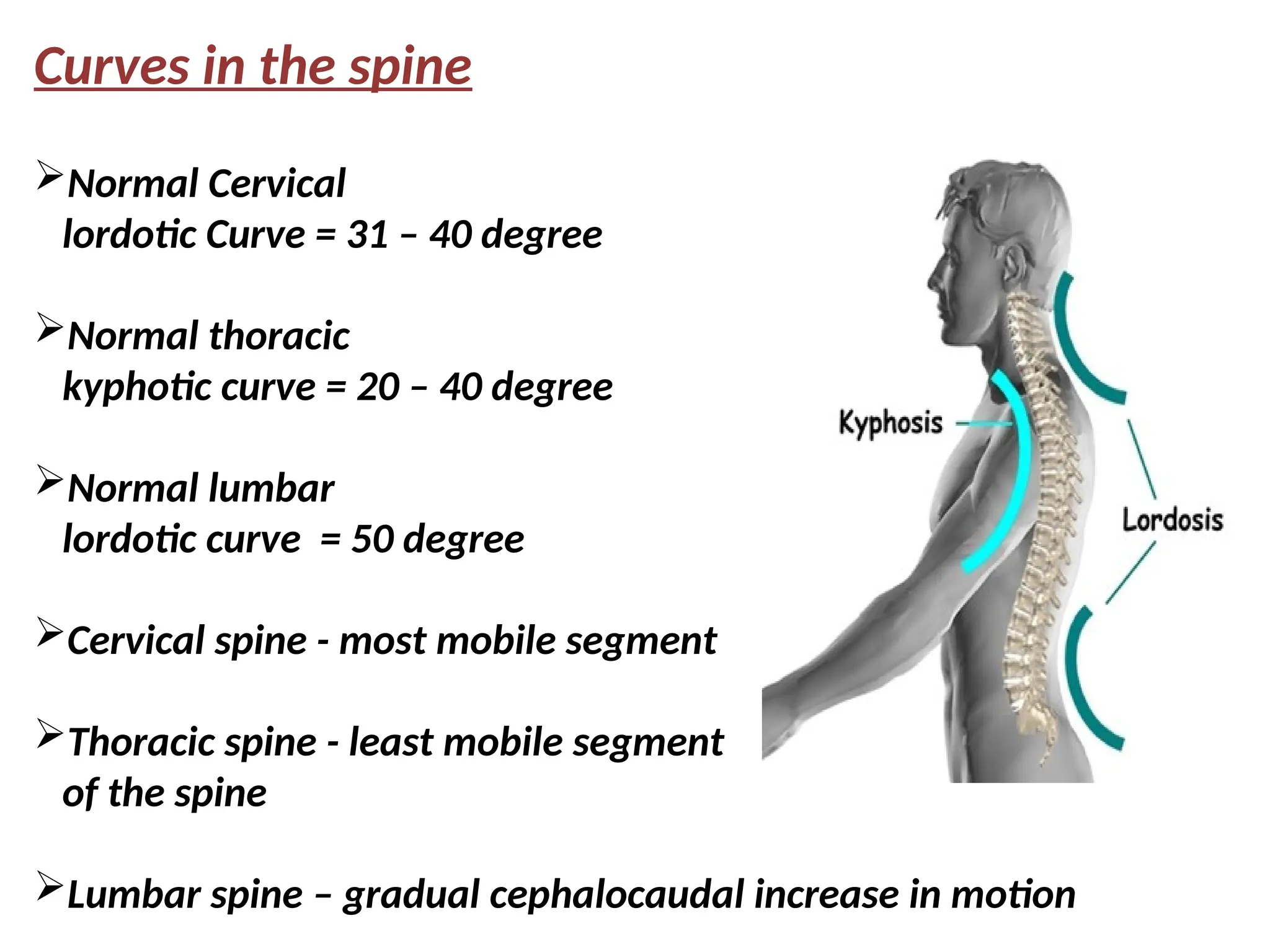

17. Curves in the spine
Normal Cervical
lordotic Curve = 31 – 40 degree
Normal thoracic
kyphotic curve = 20 – 40 degree
Normal lumbar
lordotic curve = 50 degree
Cervical spine - most mobile segment
Thoracic spine - least mobile segment
of the spine
Lumbar spine – gradual cephalocaudal increase in motion

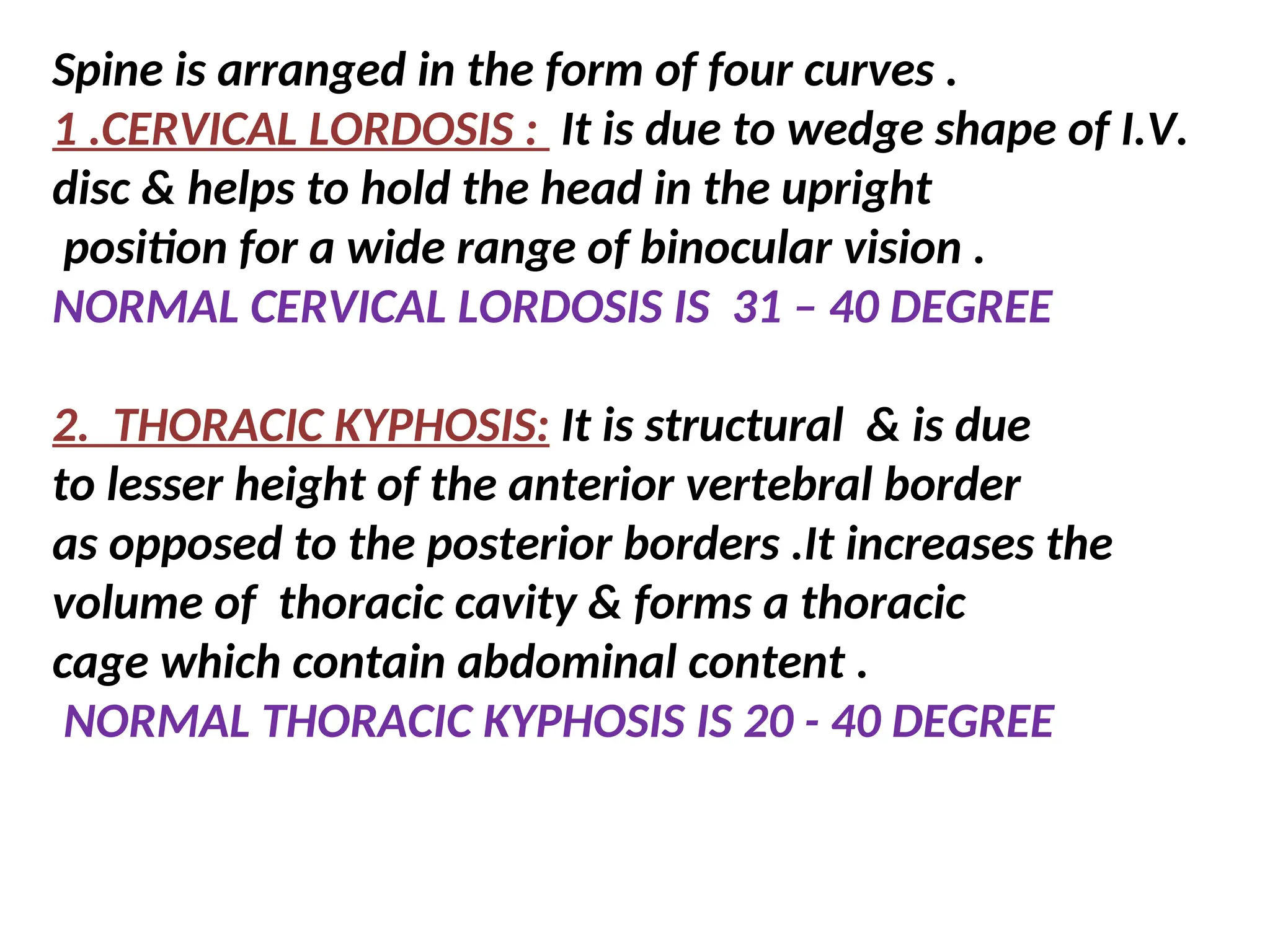

18. Spine is arranged in the form of four curves .
1 .CERVICAL LORDOSIS : It is due to wedge shape of I.V.
disc & helps to hold the head in the upright
position for a wide range of binocular vision .
NORMAL CERVICAL LORDOSIS IS 31 – 40 DEGREE
2. THORACIC KYPHOSIS: It is structural & is due
to lesser height of the anterior vertebral border
as opposed to the posterior borders .It increases the
volume of thoracic cavity & forms a thoracic
cage which contain abdominal content .
NORMAL THORACIC KYPHOSIS IS 20 - 40 DEGREE

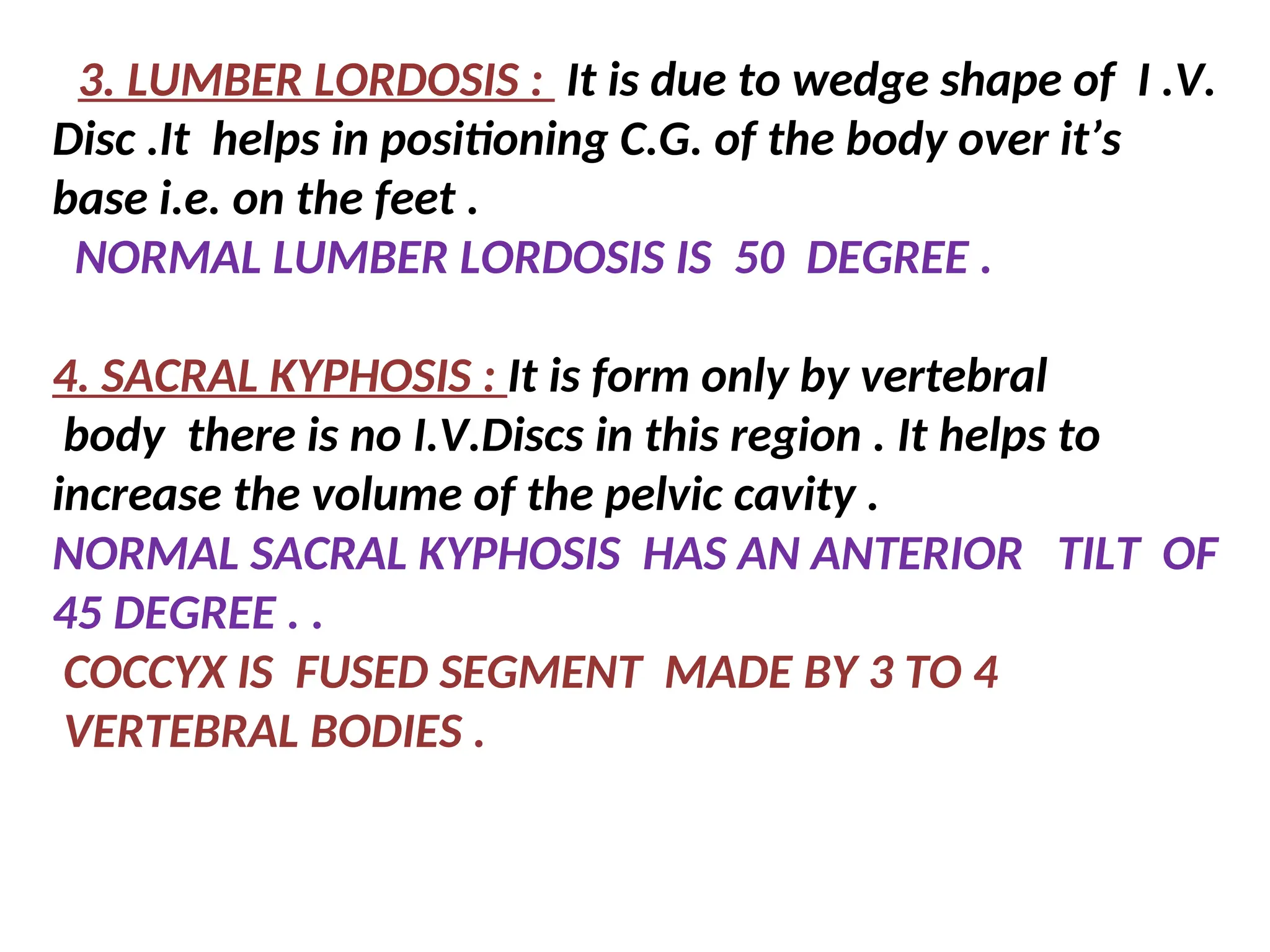

19. 3. LUMBER LORDOSIS : It is due to wedge shape of I .V.
Disc .It helps in positioning C.G. of the body over it’s
base i.e. on the feet .
NORMAL LUMBER LORDOSIS IS 50 DEGREE .
4. SACRAL KYPHOSIS : It is form only by vertebral
body there is no I.V.Discs in this region . It helps to
increase the volume of the pelvic cavity .
NORMAL SACRAL KYPHOSIS HAS AN ANTERIOR TILT OF
45 DEGREE . .
COCCYX IS FUSED SEGMENT MADE BY 3 TO 4
VERTEBRAL BODIES .

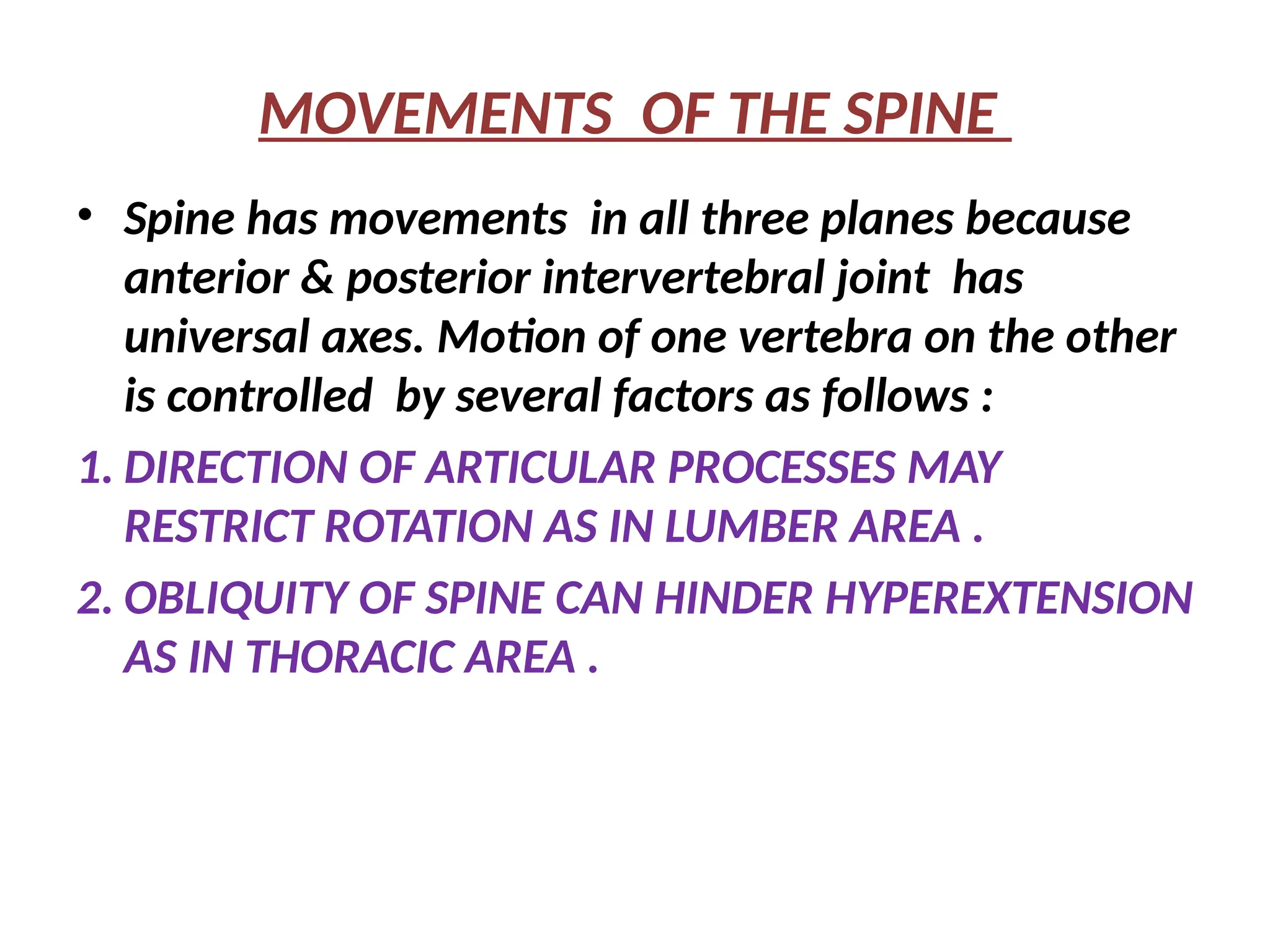

20. MOVEMENTS OF THE SPINE
• Spine has movements in all three planes because
anterior & posterior intervertebral joint has
universal axes. Motion of one vertebra on the other
is controlled by several factors as follows :
1. DIRECTION OF ARTICULAR PROCESSES MAY
RESTRICT ROTATION AS IN LUMBER AREA .
2. OBLIQUITY OF SPINE CAN HINDER HYPEREXTENSION
AS IN THORACIC AREA .

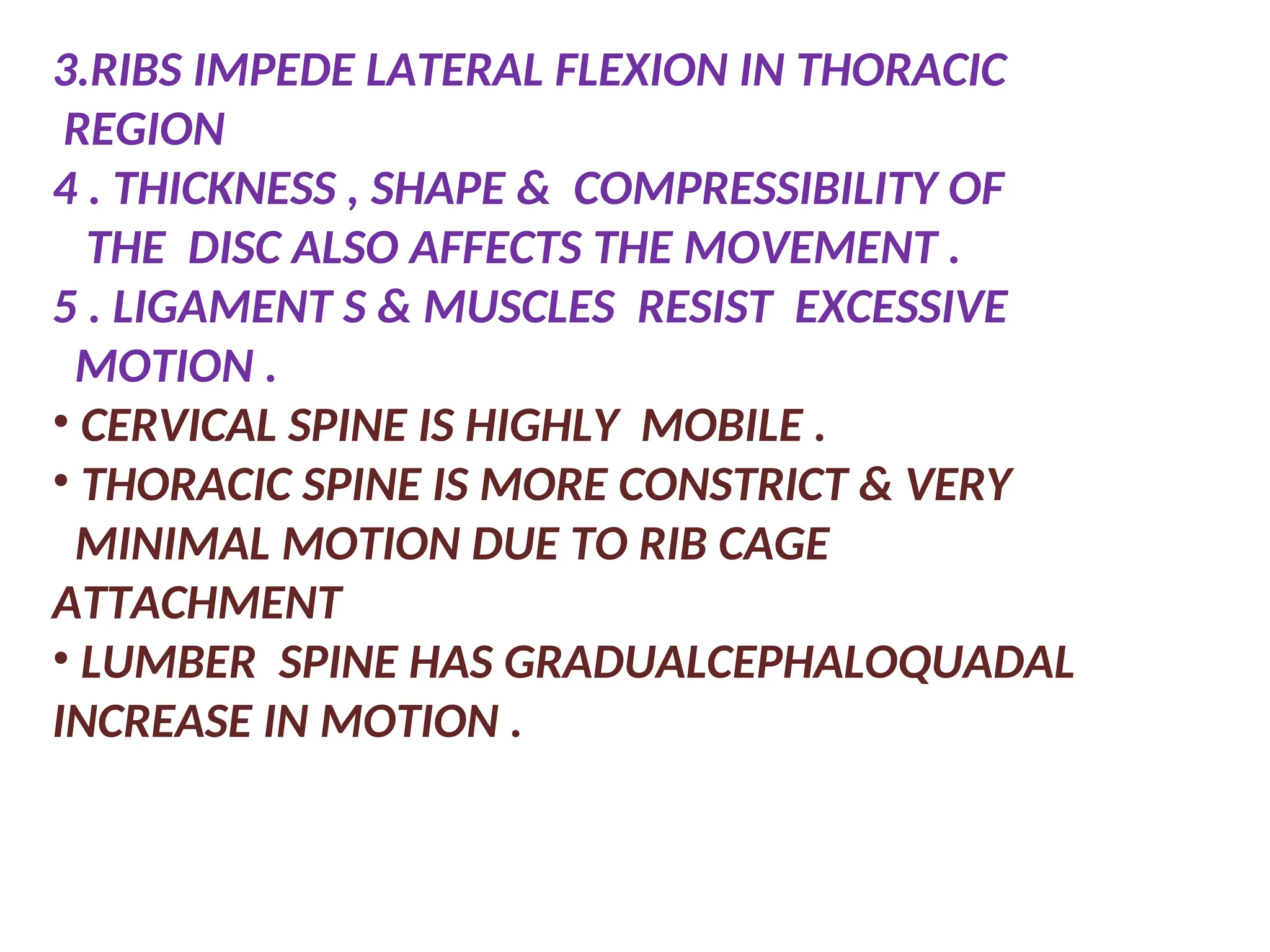

21. 3.RIBS IMPEDE LATERAL FLEXION IN THORACIC
REGION
4 . THICKNESS , SHAPE & COMPRESSIBILITY OF
THE DISC ALSO AFFECTS THE MOVEMENT .
5 . LIGAMENT S & MUSCLES RESIST EXCESSIVE
MOTION .
• CERVICAL SPINE IS HIGHLY MOBILE .
• THORACIC SPINE IS MORE CONSTRICT & VERY
MINIMAL MOTION DUE TO RIB CAGE
ATTACHMENT
• LUMBER SPINE HAS GRADUALCEPHALOQUADAL
INCREASE IN MOTION .

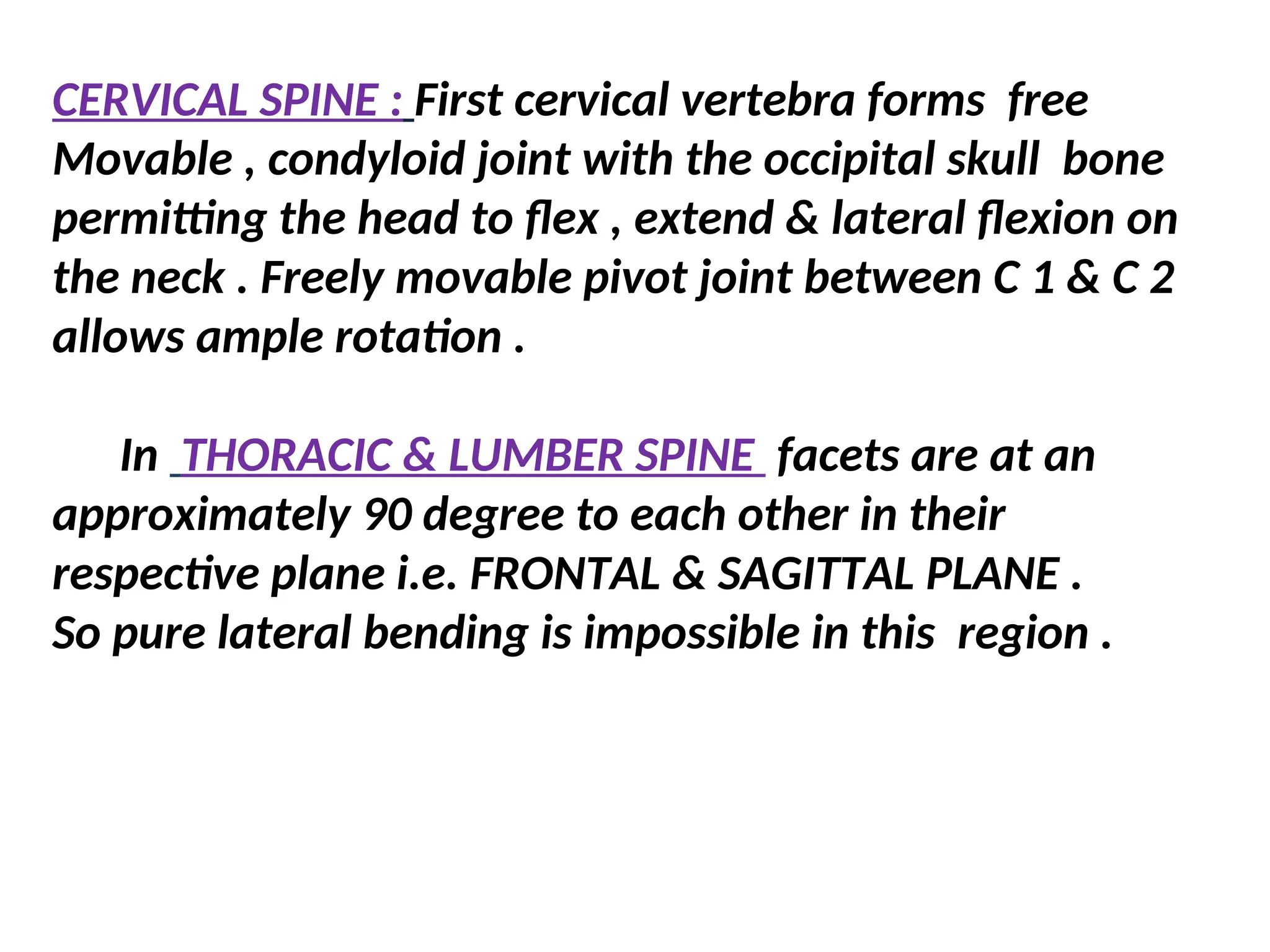

22. CERVICAL SPINE : First cervical vertebra forms free
Movable , condyloid joint with the occipital skull bone
permitting the head to flex , extend & lateral flexion on
the neck . Freely movable pivot joint between C 1 & C 2
allows ample rotation .
In THORACIC & LUMBER SPINE facets are at an
approximately 90 degree to each other in their
respective plane i.e. FRONTAL & SAGITTAL PLANE .
So pure lateral bending is impossible in this region .

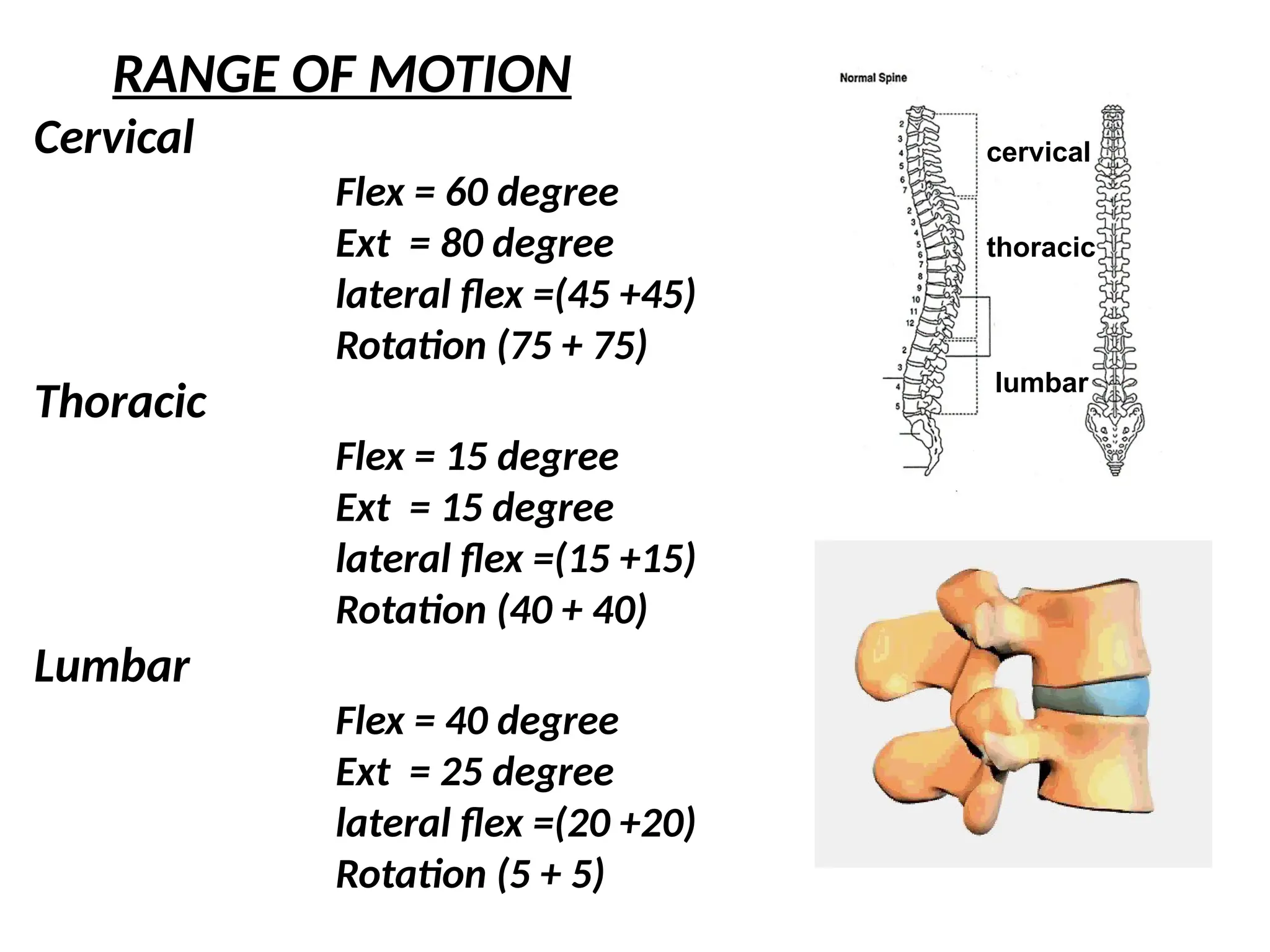

23. RANGE OF MOTION
Cervical
Flex = 60 degree
Ext = 80 degree
lateral flex =(45 +45)
Rotation (75 + 75)
Thoracic
Flex = 15 degree
Ext = 15 degree
lateral flex =(15 +15)
Rotation (40 + 40)
Lumbar
Flex = 40 degree
Ext = 25 degree
lateral flex =(20 +20)
Rotation (5 + 5)
cervical
thoracic
lumbar

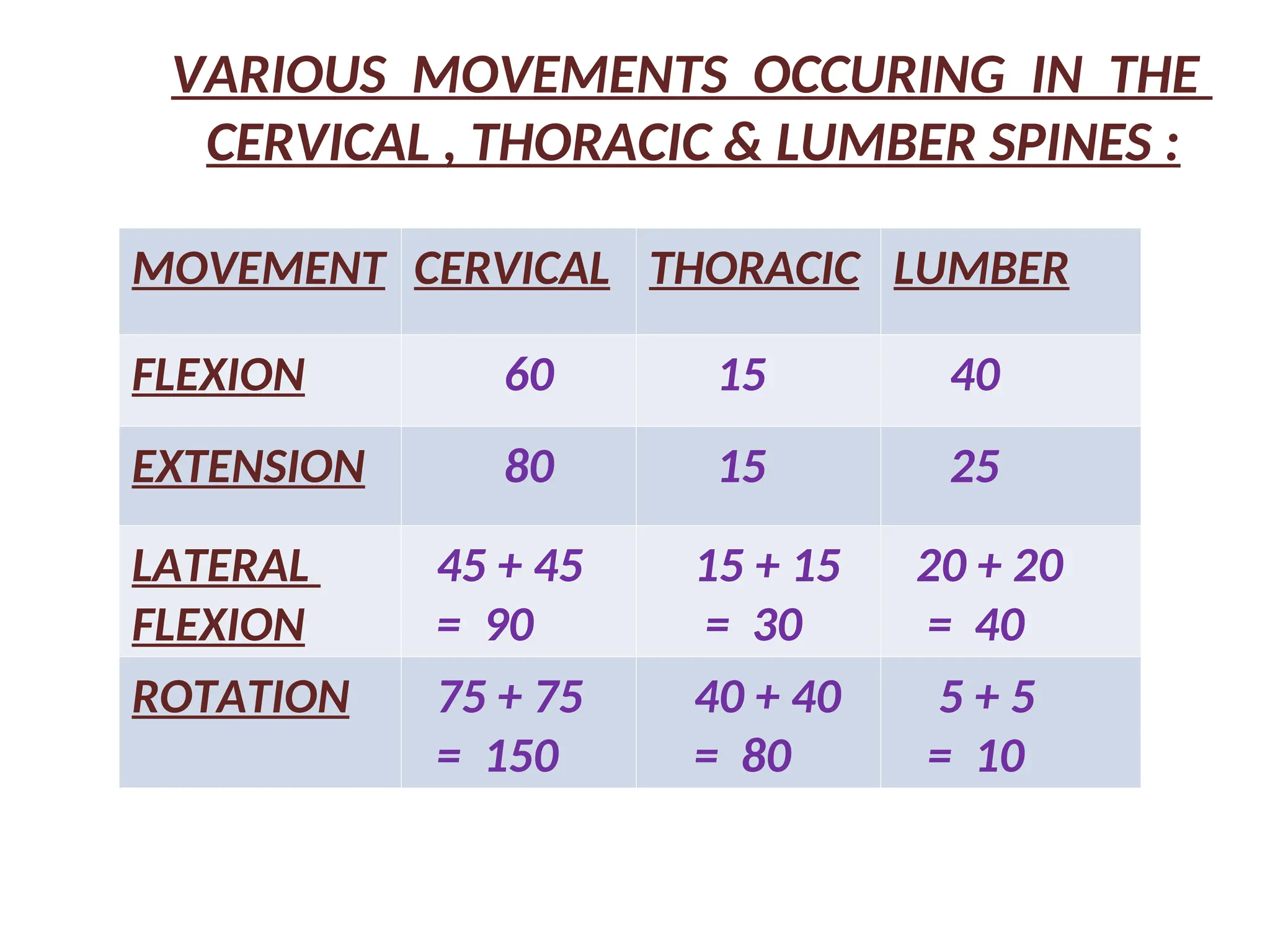

24. MOVEMENT CERVICAL THORACIC LUMBER
FLEXION 60 15 40
EXTENSION 80 15 25
LATERAL
FLEXION
45 + 45
= 90
15 + 15
= 30
20 + 20
= 40
ROTATION 75 + 75
= 150
40 + 40
= 80
5 + 5
= 10
VARIOUS MOVEMENTS OCCURING IN THE
CERVICAL , THORACIC & LUMBER SPINES :

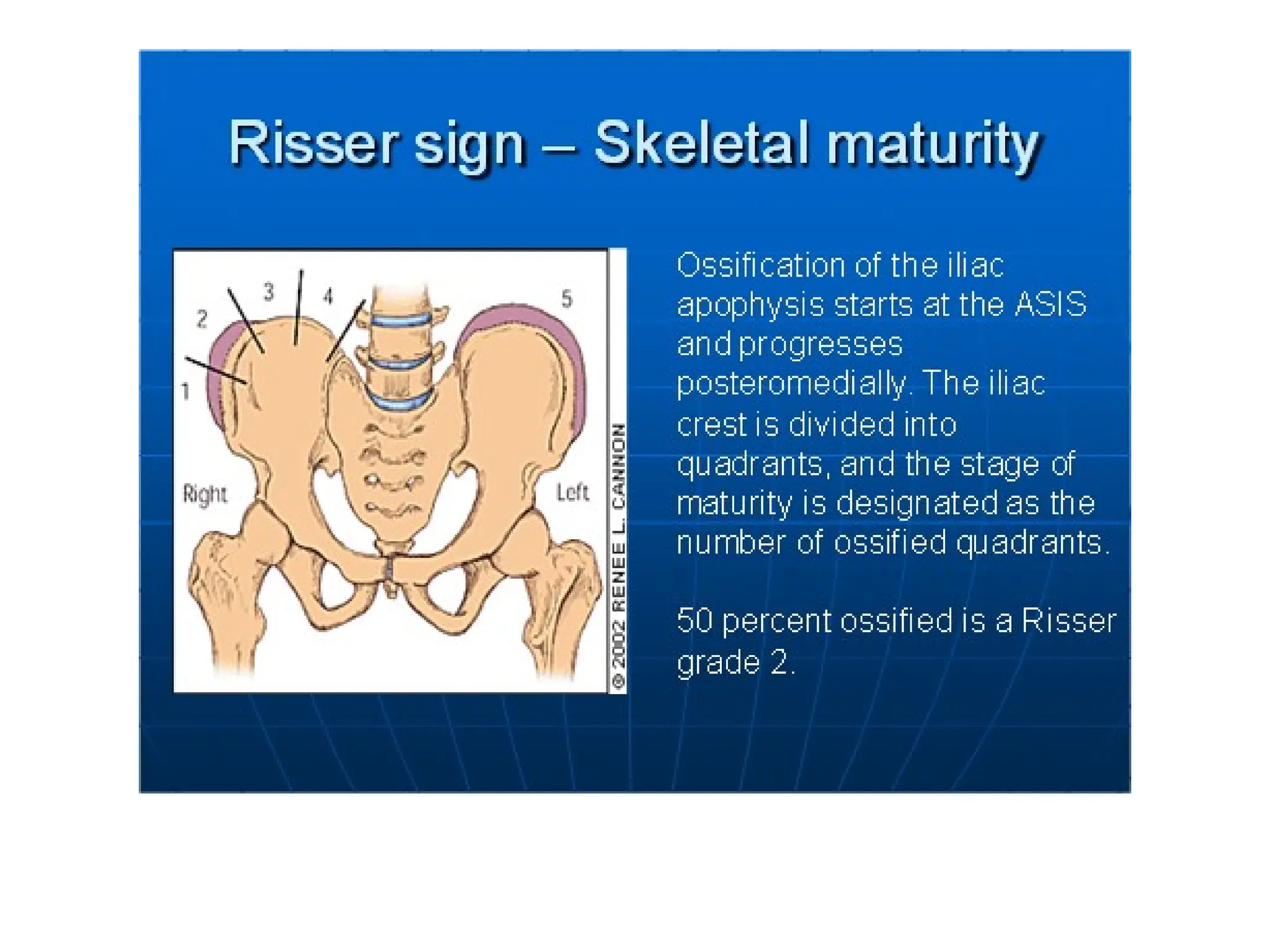

25. VERTEBRAL GROWTH
• Iliac apophysis is an important sign representing the
completion of vertebral growth .Complete
ossification of iliac apophysis coincide with the end
of vertebral growth .
• This is also called as RISSER’S SIGN which helps to
detect the skeletal maturity .
• The ossification process is called as CAPPING .

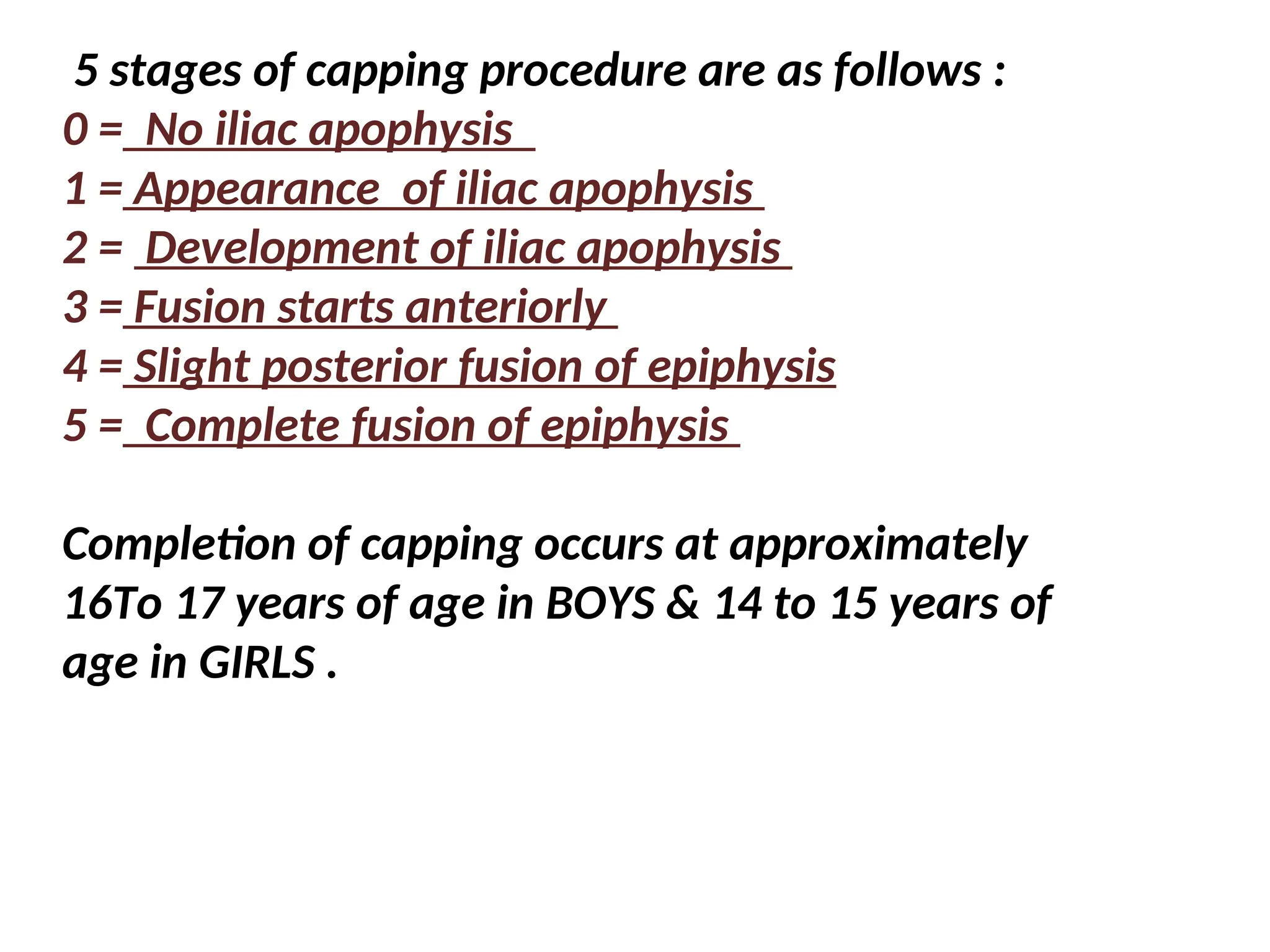

26. 5 stages of capping procedure are as follows :
0 = No iliac apophysis
1 = Appearance of iliac apophysis
2 = Development of iliac apophysis
3 = Fusion starts anteriorly
4 = Slight posterior fusion of epiphysis
5 = Complete fusion of epiphysis
Completion of capping occurs at approximately
16To 17 years of age in BOYS & 14 to 15 years of
age in GIRLS .

28. UNIQUE FEATURES OF NORMAL SPINE
1. SPINE IS NOT A HOMOGENOUS STRUCTURE.
consist of rigid bodies & highly deformable disc
2 . SPINE IS NOT STRAIGHT .
3 . SPINE HAS VARIATION IN SIZE & GEOMETRY OF THE
VERTEBRAE & FACETS WHICH GIVES DEFINITE
RESTRICTION OF MOVEMENT .
4.THERE IS NO SOLID CONNECTION AROUND IT.
5. IT IS A CONNECTION BETWEEN UPPER EXTREMITY &
LOWER EXTREMITY
so 100 % immobilization is not possible .

29. DIFFICULTY IN SPINAL ORTHOTIC MANAGEMENT
1. WE CANNOT REACH THE SPINE .
Only spinous processes can be feel from posterior
aspect , so no direct correcting force can be applied
. All the forces has to be transmitted through
transmitter to the spine
2 . IT IS NOT STRAIGHT so it has to be covered all
around by forming a cage like structure .
3. IT IS A CONNECTION BETWEEN UPPER EXTREMITY
& LOWER EXTREMITY so 100% immobilization is
not possible .

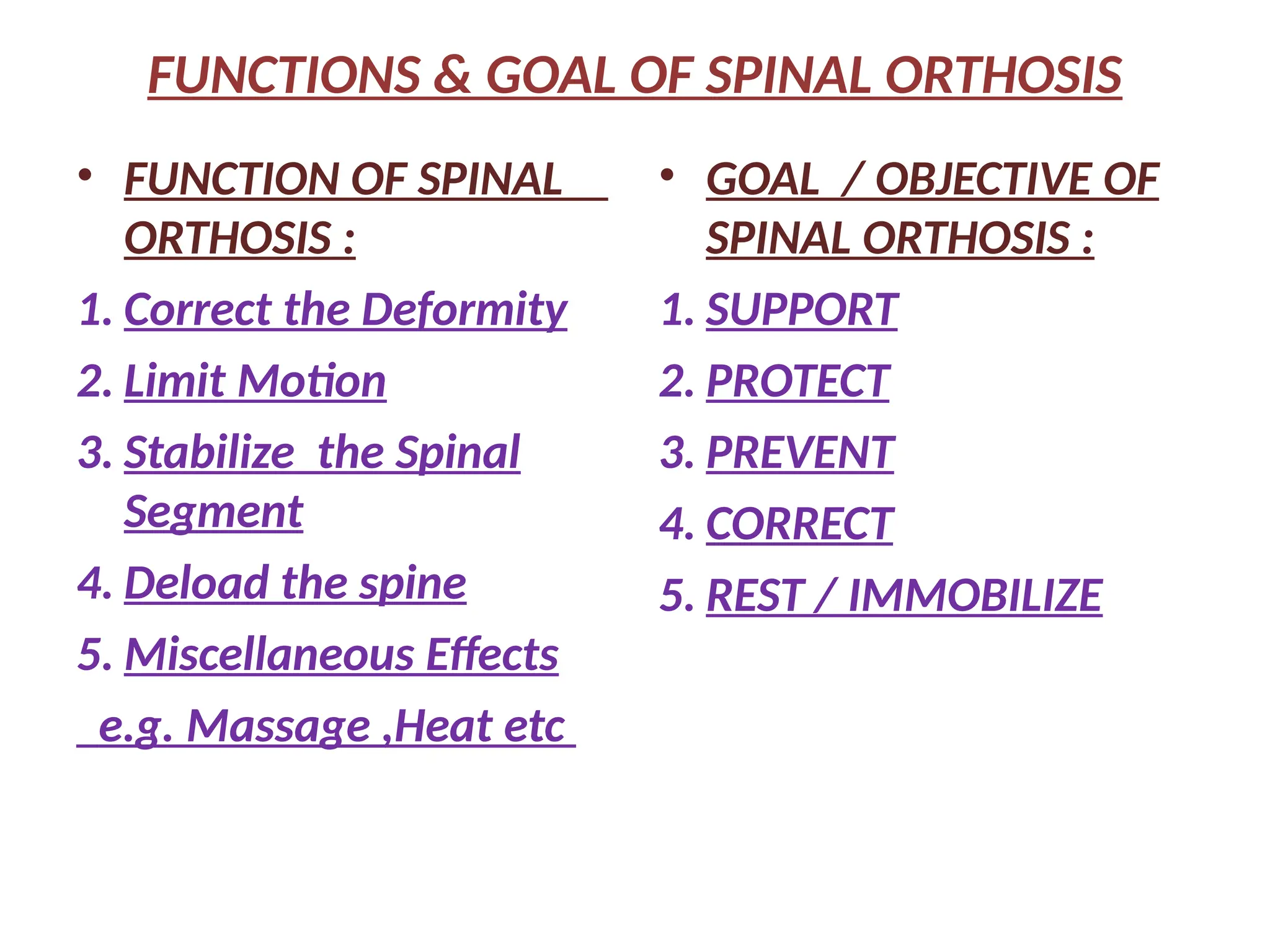

30. FUNCTIONS & GOAL OF SPINAL ORTHOSIS
• FUNCTION OF SPINAL
ORTHOSIS :
1. Correct the Deformity
2. Limit Motion
3. Stabilize the Spinal
Segment
4. Deload the spine
5. Miscellaneous Effects
e.g. Massage ,Heat etc
• GOAL / OBJECTIVE OF
SPINAL ORTHOSIS :
1. SUPPORT
2. PROTECT
3. PREVENT
4. CORRECT
5. REST / IMMOBILIZE

31. MECHANICAL PRINCIPLES OF
SPINAL ORTHOSIS
• BALANCED HORIZONTAL FORCES OR THREE POINT
PRESSURE PRINCIPLE .
• FLUID COMPRESSION
• SLEEVE PRINCIPLE
• AXIAL DISTRACTION
• SKELETAL FIXATION

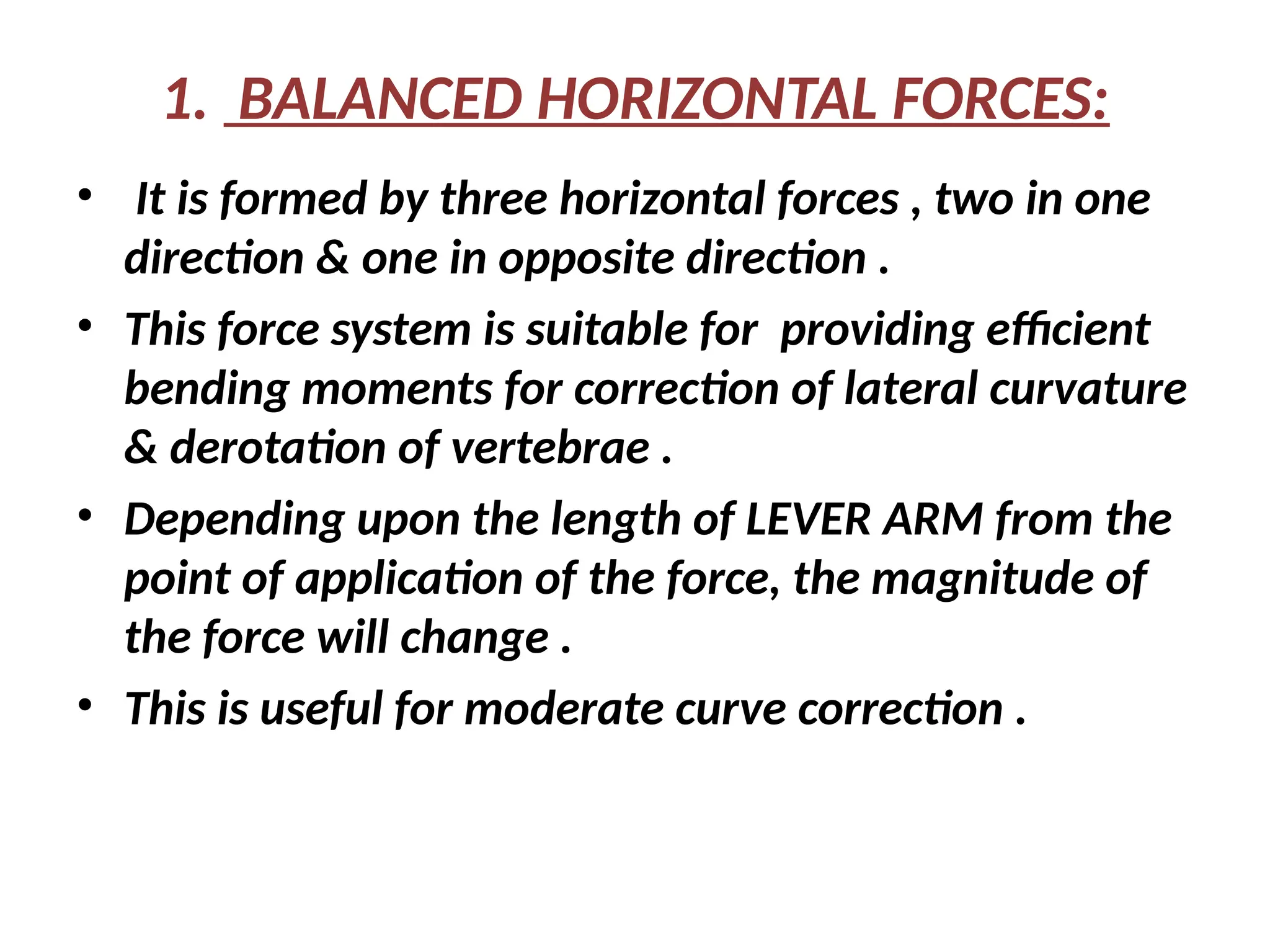

32. 1. BALANCED HORIZONTAL FORCES:
• It is formed by three horizontal forces , two in one
direction & one in opposite direction .
• This force system is suitable for providing efficient
bending moments for correction of lateral curvature
& derotation of vertebrae .
• Depending upon the length of LEVER ARM from the
point of application of the force, the magnitude of
the force will change .
• This is useful for moderate curve correction .

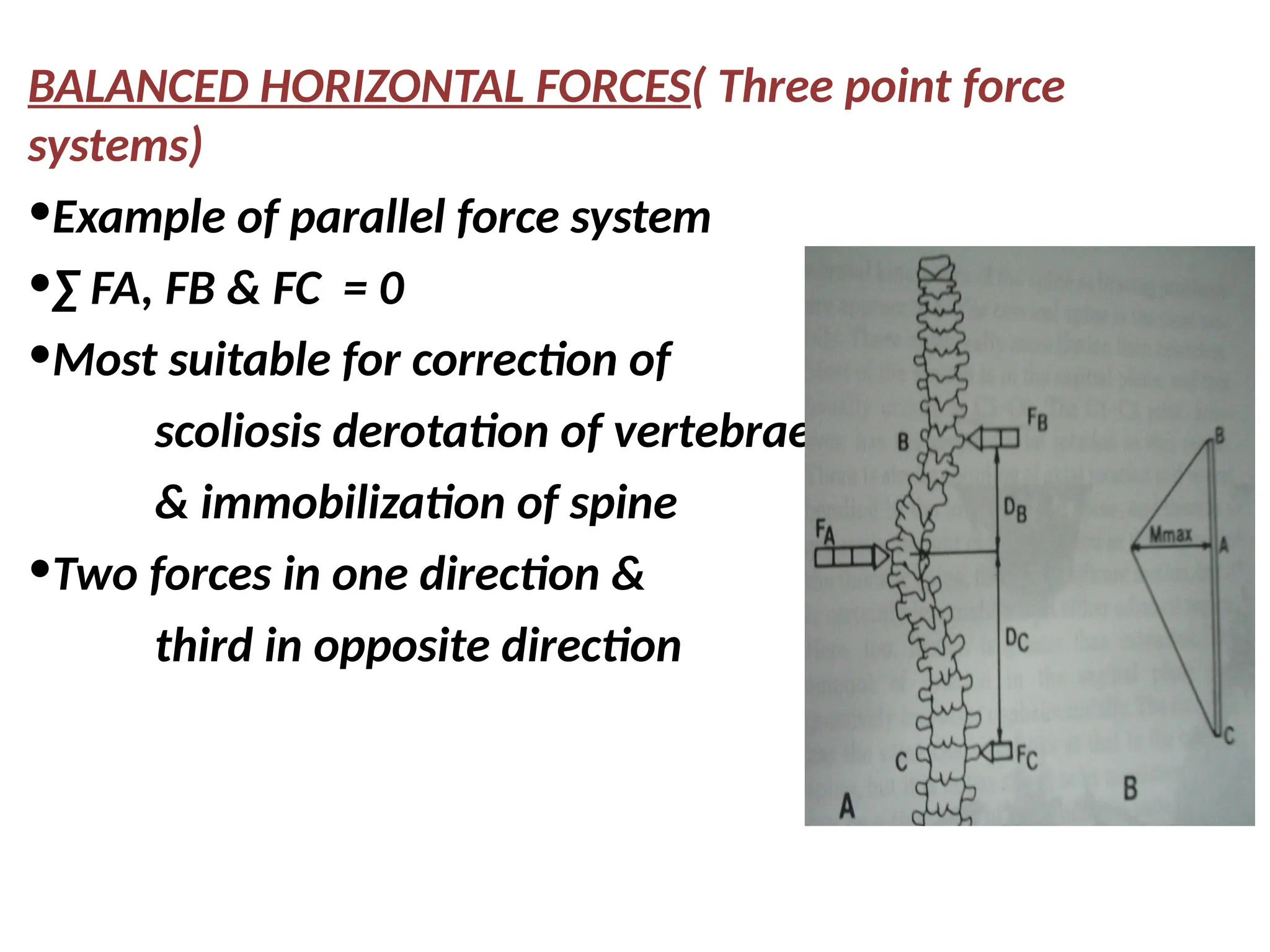

33. BALANCED HORIZONTAL FORCES( Three point force
systems)
•Example of parallel force system
•∑ FA, FB & FC = 0
•Most suitable for correction of
scoliosis derotation of vertebrae
& immobilization of spine
•Two forces in one direction &
third in opposite direction

35. • The magnitude of forces
is inversely proportional
to their perpendicular
distances from reaction
point
• Therefore magnitude of
force at A,B &C must be
3:2:1
• Pad size must be proportional
to the magnitude of force

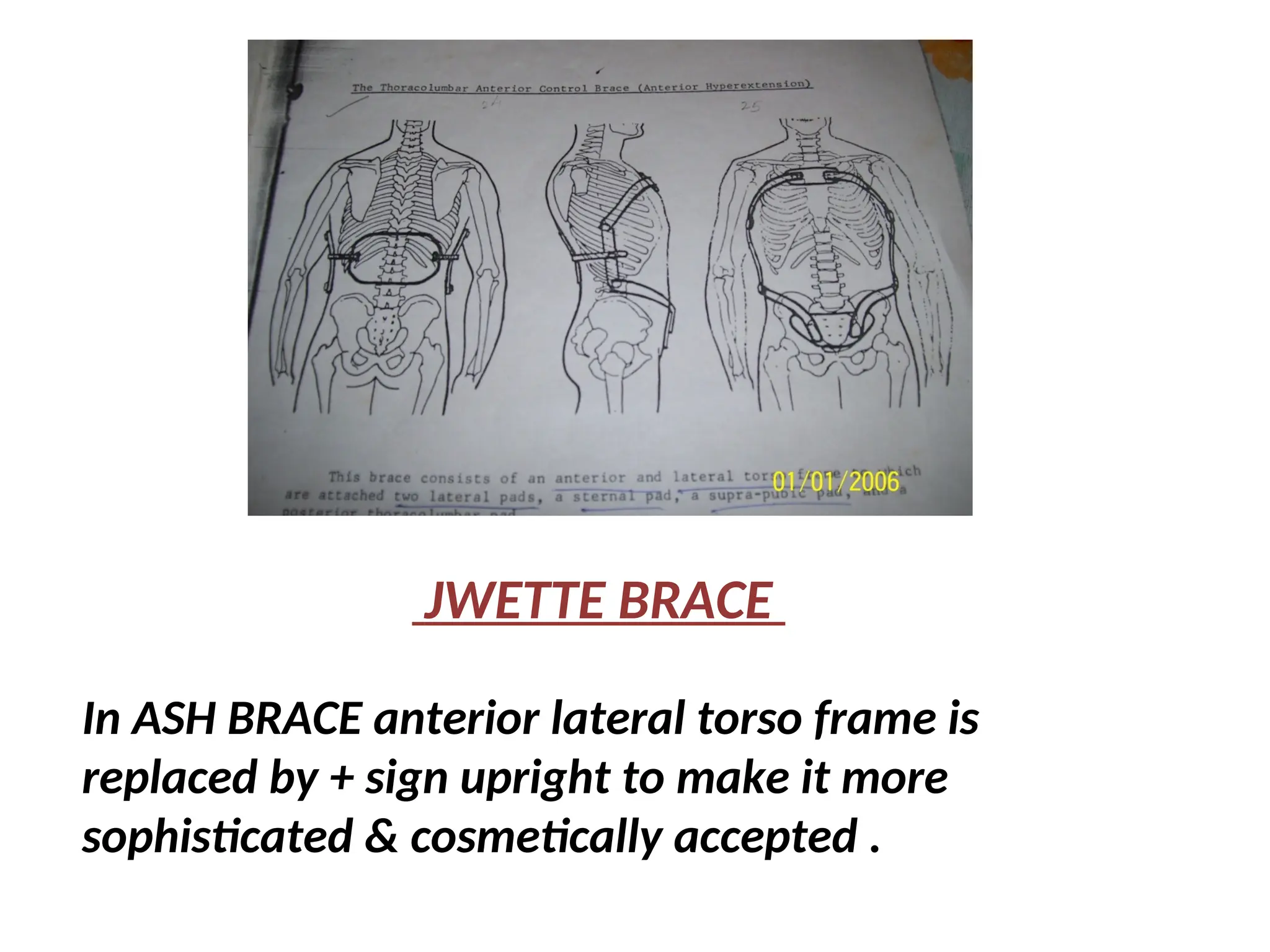

• e.g.. Jewette Brace
A
B
C

36. 2 . FLUID COMPRESSION :
• This can be utilized by compressing lower
abdominal muscles externally with corset or
anterior shell .
• It helps in RESTING & UNLOADING the spine .
• The suspended weight of the abdomen in case of
obese patient is supported by the anterior corset
which reduces the lever arm by shifting muscles
backward & make person erect .
• This helps to unload spine by 30 to 40 %

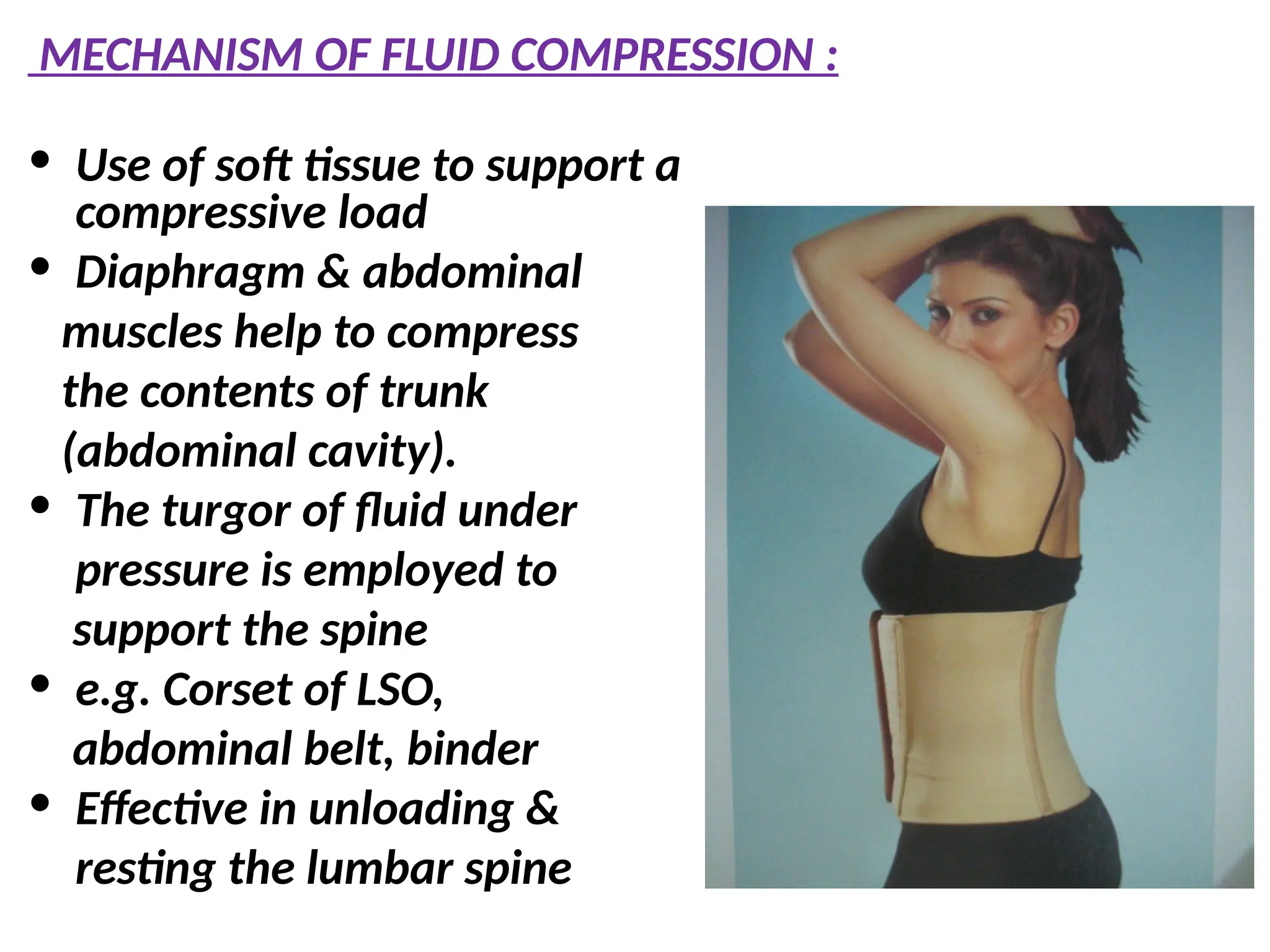

37. MECHANISM OF FLUID COMPRESSION :
• Use of soft tissue to support a
compressive load
• Diaphragm & abdominal
muscles help to compress
the contents of trunk
(abdominal cavity).
• The turgor of fluid under
pressure is employed to
support the spine
• e.g. Corset of LSO,
abdominal belt, binder
• Effective in unloading &
resting the lumbar spine

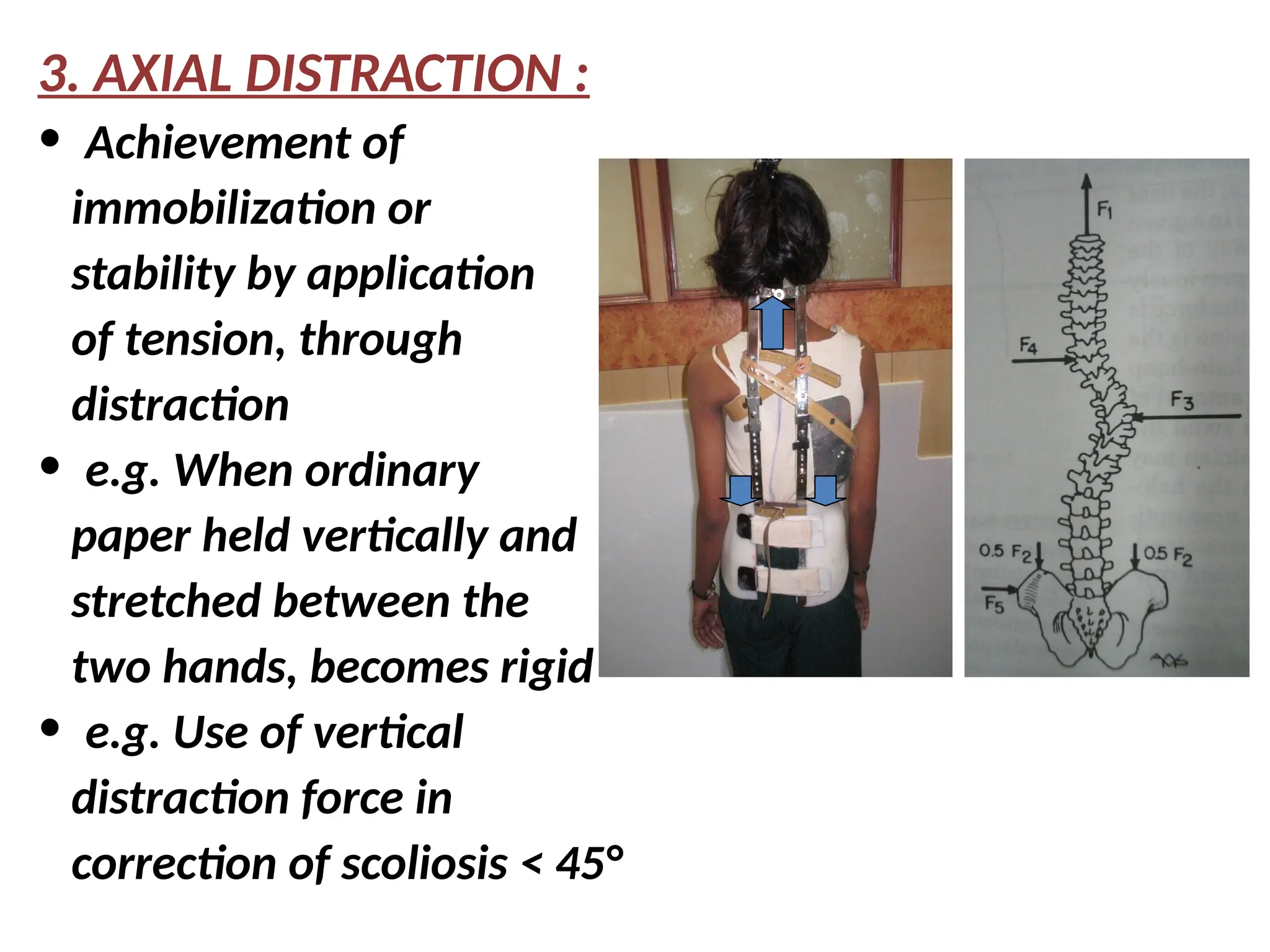

38. 3. AXIAL DISTRACTION :
• Achievement of
immobilization or
stability by application
of tension, through
distraction
• e.g. When ordinary
paper held vertically and
stretched between the
two hands, becomes rigid
• e.g. Use of vertical
distraction force in
correction of scoliosis < 45°

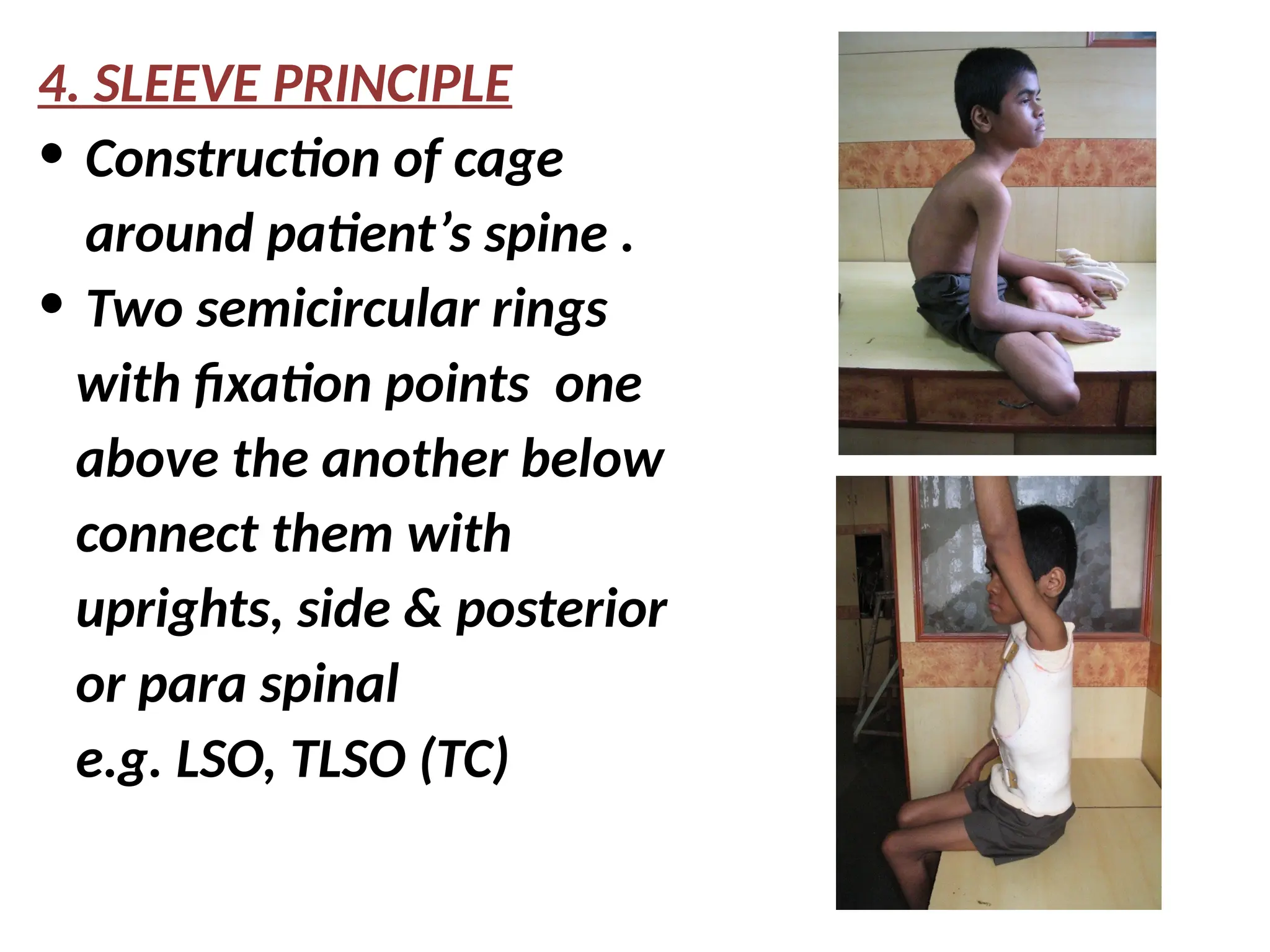

39. 4. SLEEVE PRINCIPLE
• Construction of cage
around patient’s spine .
• Two semicircular rings
with fixation points one
above the another below
connect them with
uprights, side & posterior
or para spinal
e.g. LSO, TLSO (TC)

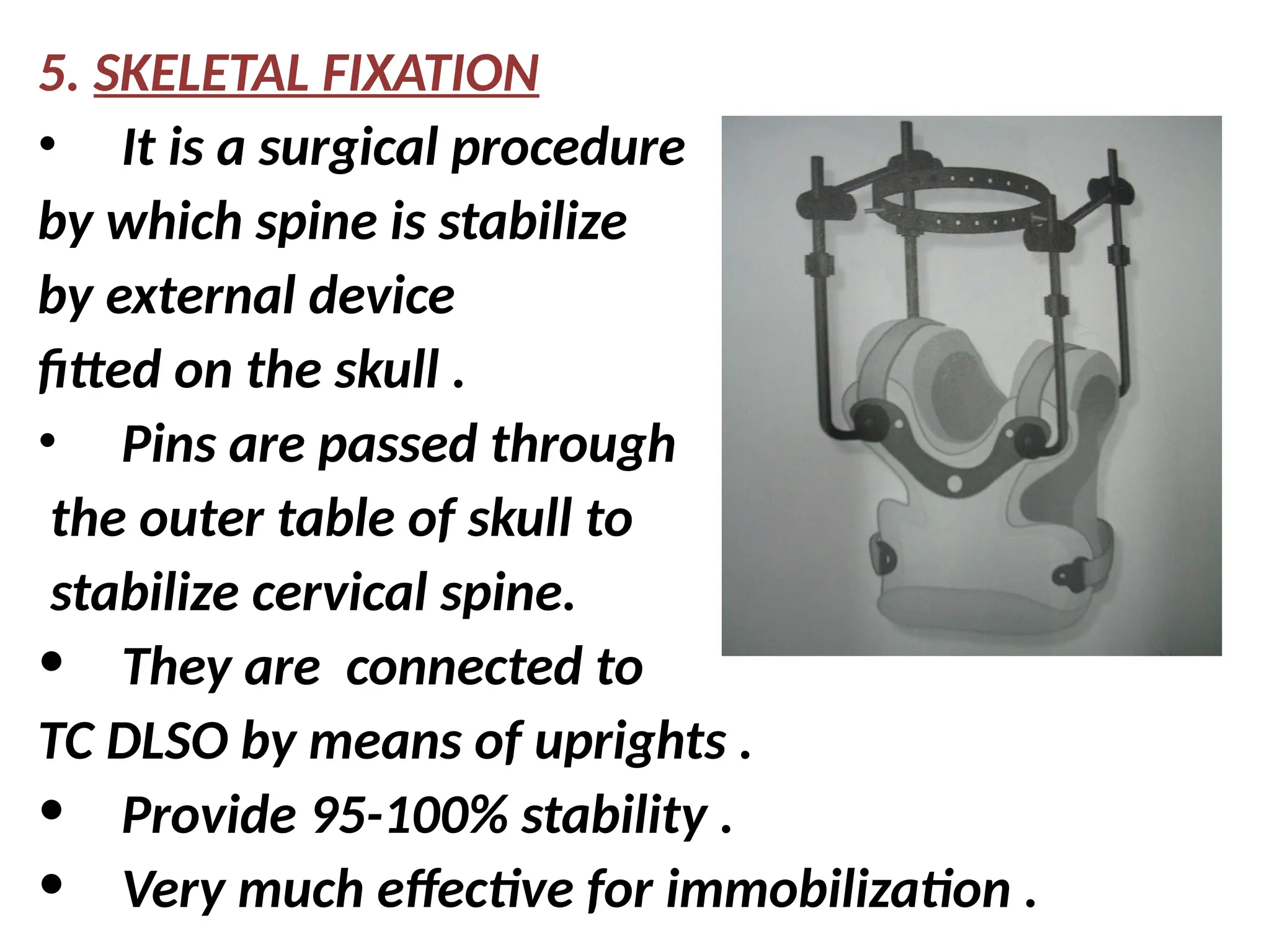

40. 5. SKELETAL FIXATION
• It is a surgical procedure
by which spine is stabilize
by external device
fitted on the skull .
• Pins are passed through
the outer table of skull to
stabilize cervical spine.
• They are connected to
TC DLSO by means of uprights .
• Provide 95-100% stability .
• Very much effective for immobilization .

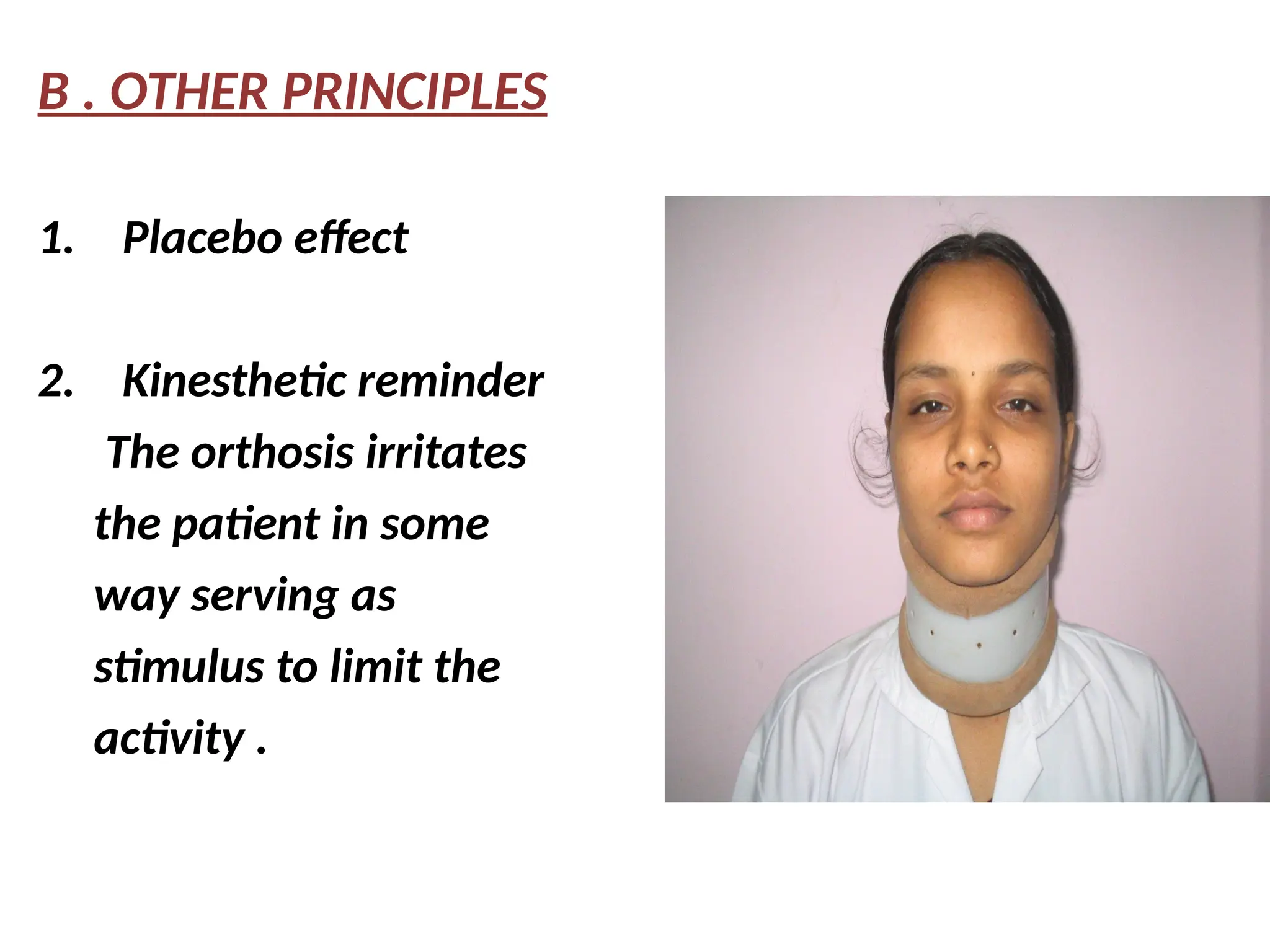

41. B . OTHER PRINCIPLES
1. Placebo effect
2. Kinesthetic reminder
The orthosis irritates
the patient in some
way serving as
stimulus to limit the
activity .

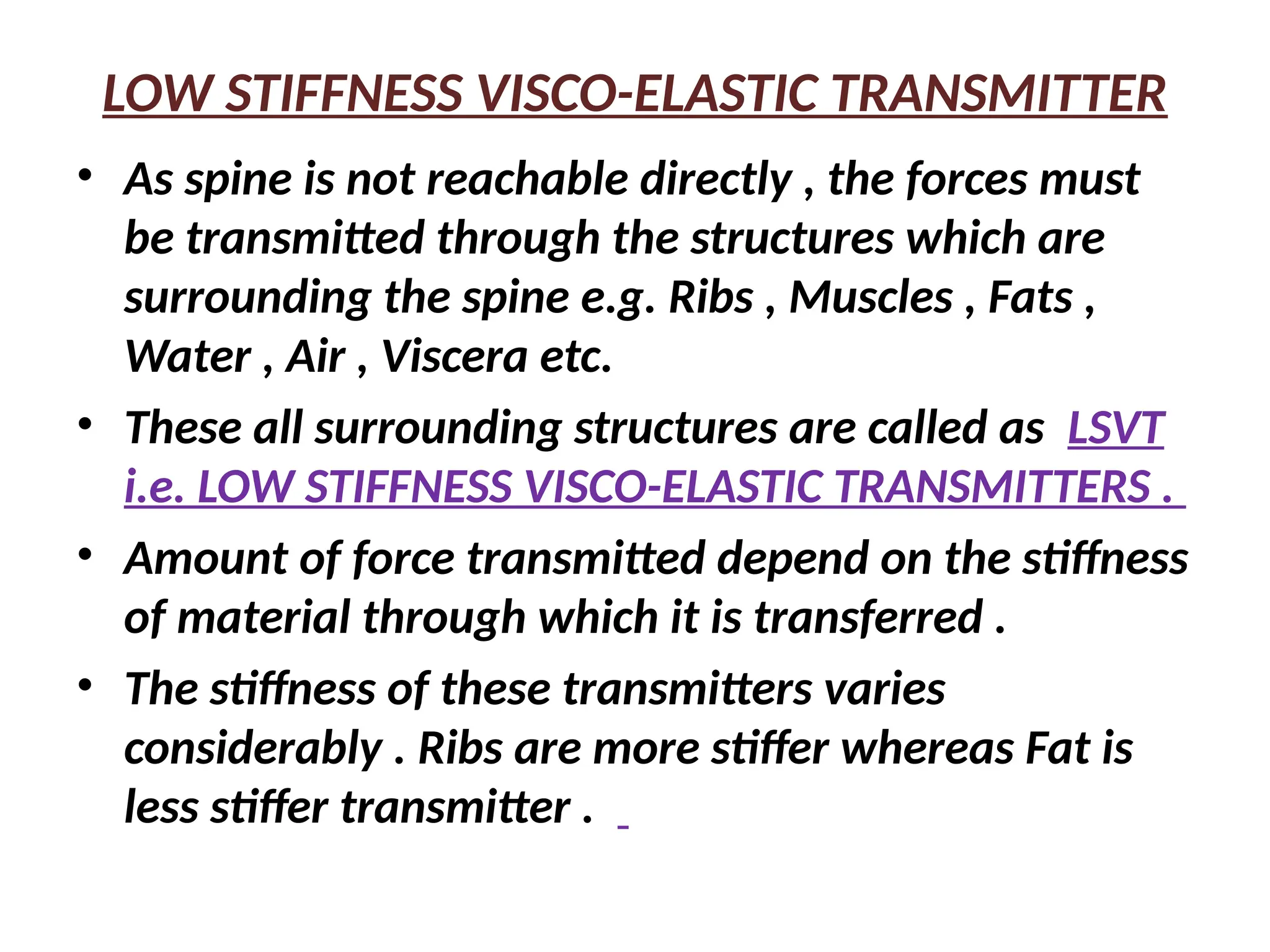

42. LOW STIFFNESS VISCO-ELASTIC TRANSMITTER
• As spine is not reachable directly , the forces must
be transmitted through the structures which are
surrounding the spine e.g. Ribs , Muscles , Fats ,
Water , Air , Viscera etc.
• These all surrounding structures are called as LSVT
i.e. LOW STIFFNESS VISCO-ELASTIC TRANSMITTERS .
• Amount of force transmitted depend on the stiffness
of material through which it is transferred .
• The stiffness of these transmitters varies
considerably . Ribs are more stiffer whereas Fat is
less stiffer transmitter .

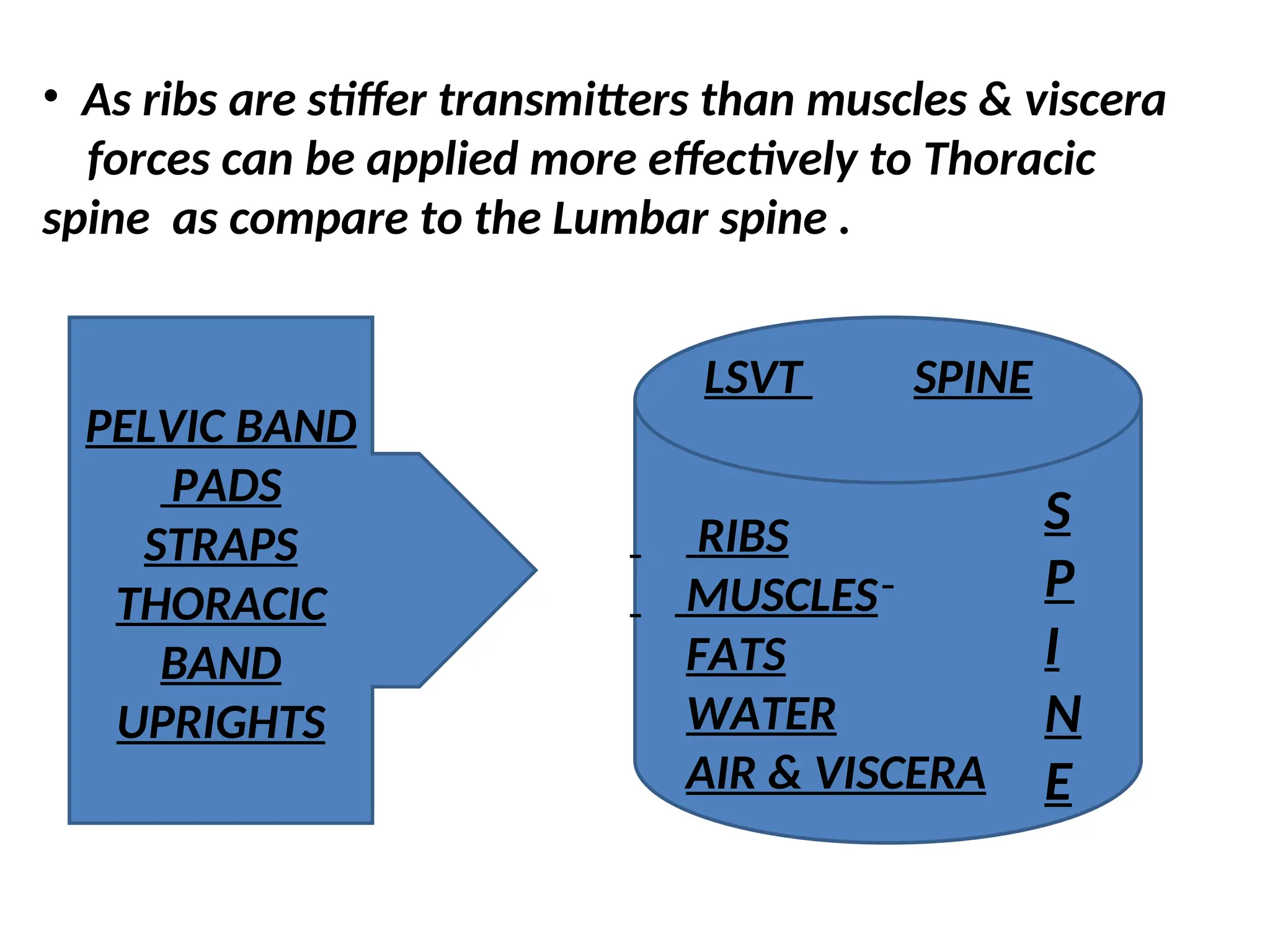

43. • As ribs are stiffer transmitters than muscles & viscera
forces can be applied more effectively to Thoracic
spine as compare to the Lumbar spine .
PELVIC BAND
PADS
STRAPS
THORACIC
BAND
UPRIGHTS
LSVT SPINE
RIBS
MUSCLES
FATS
WATER
AIR & VISCERA
S
P
I
N
E

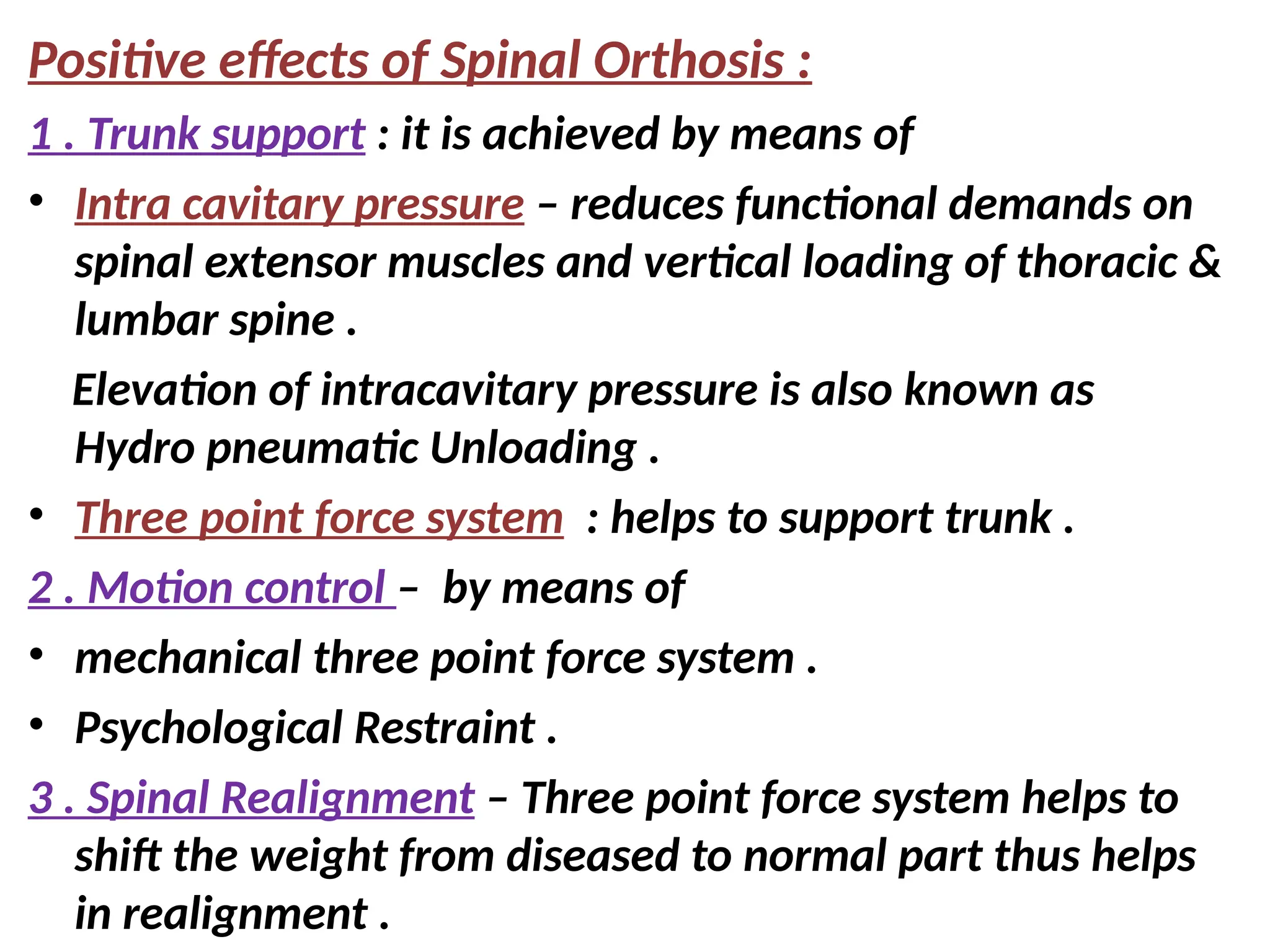

45. Positive effects of Spinal Orthosis :
1 . Trunk support : it is achieved by means of
• Intra cavitary pressure – reduces functional demands on
spinal extensor muscles and vertical loading of thoracic &
lumbar spine .
Elevation of intracavitary pressure is also known as
Hydro pneumatic Unloading .
• Three point force system : helps to support trunk .
2 . Motion control – by means of
• mechanical three point force system .
• Psychological Restraint .
3 . Spinal Realignment – Three point force system helps to
shift the weight from diseased to normal part thus helps
in realignment .

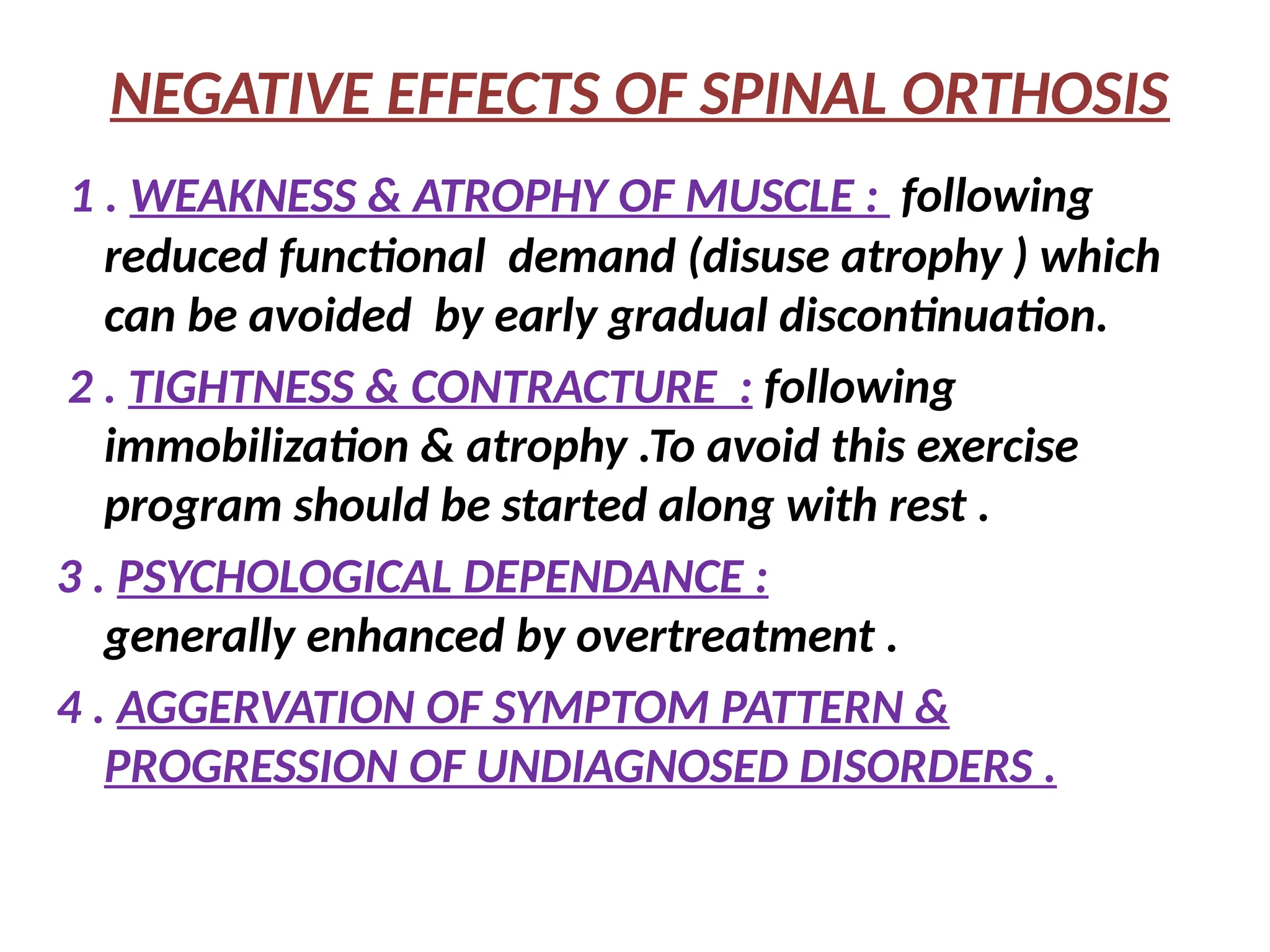

46. NEGATIVE EFFECTS OF SPINAL ORTHOSIS
1 . WEAKNESS & ATROPHY OF MUSCLE : following
reduced functional demand (disuse atrophy ) which
can be avoided by early gradual discontinuation.
2 . TIGHTNESS & CONTRACTURE : following
immobilization & atrophy .To avoid this exercise
program should be started along with rest .
3 . PSYCHOLOGICAL DEPENDANCE :
generally enhanced by overtreatment .
4 . AGGERVATION OF SYMPTOM PATTERN &
PROGRESSION OF UNDIAGNOSED DISORDERS .

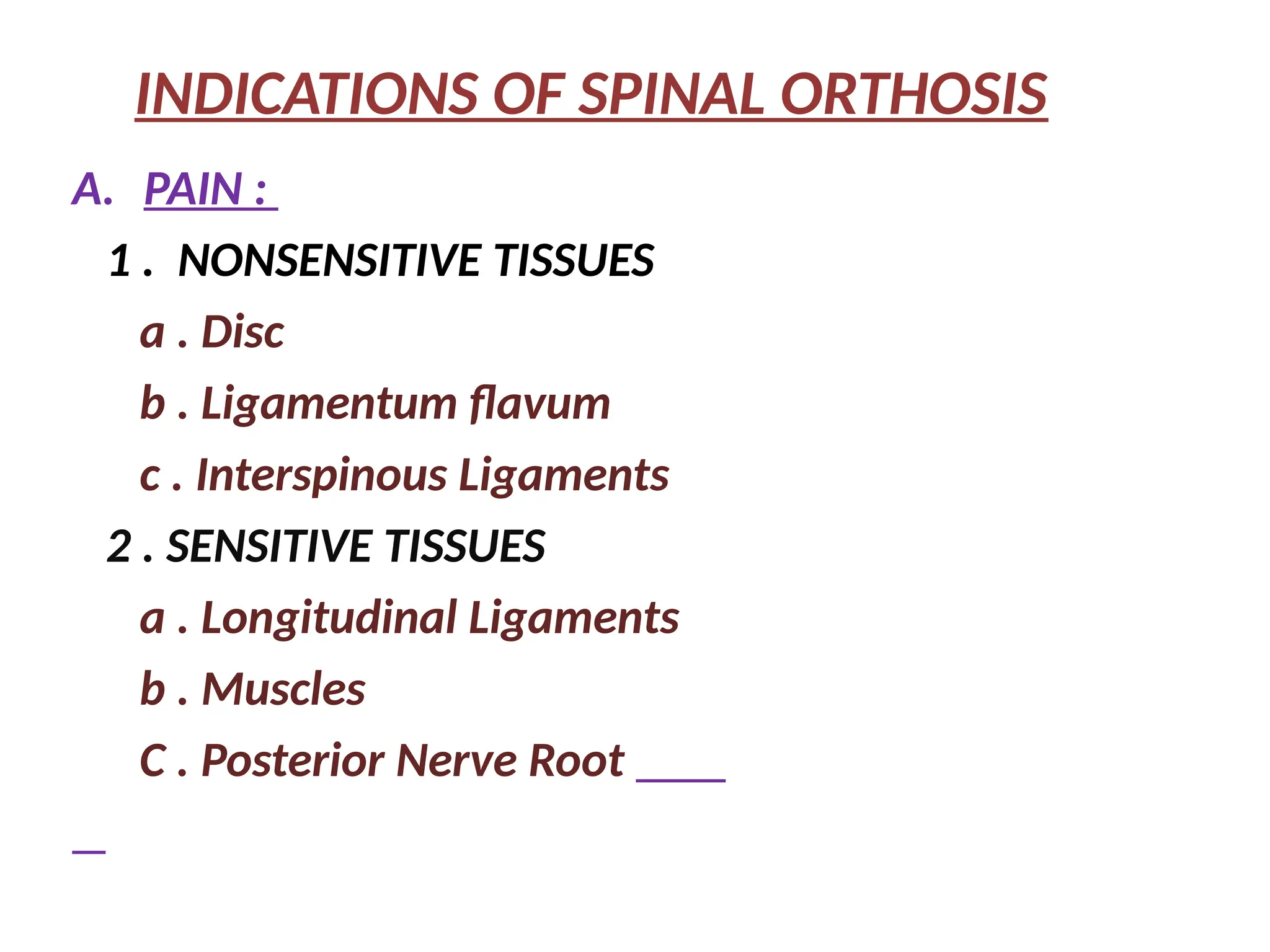

47. INDICATIONS OF SPINAL ORTHOSIS
A. PAIN :
1 . NONSENSITIVE TISSUES
a . Disc
b . Ligamentum flavum
c . Interspinous Ligaments
2 . SENSITIVE TISSUES
a . Longitudinal Ligaments
b . Muscles
C . Posterior Nerve Root

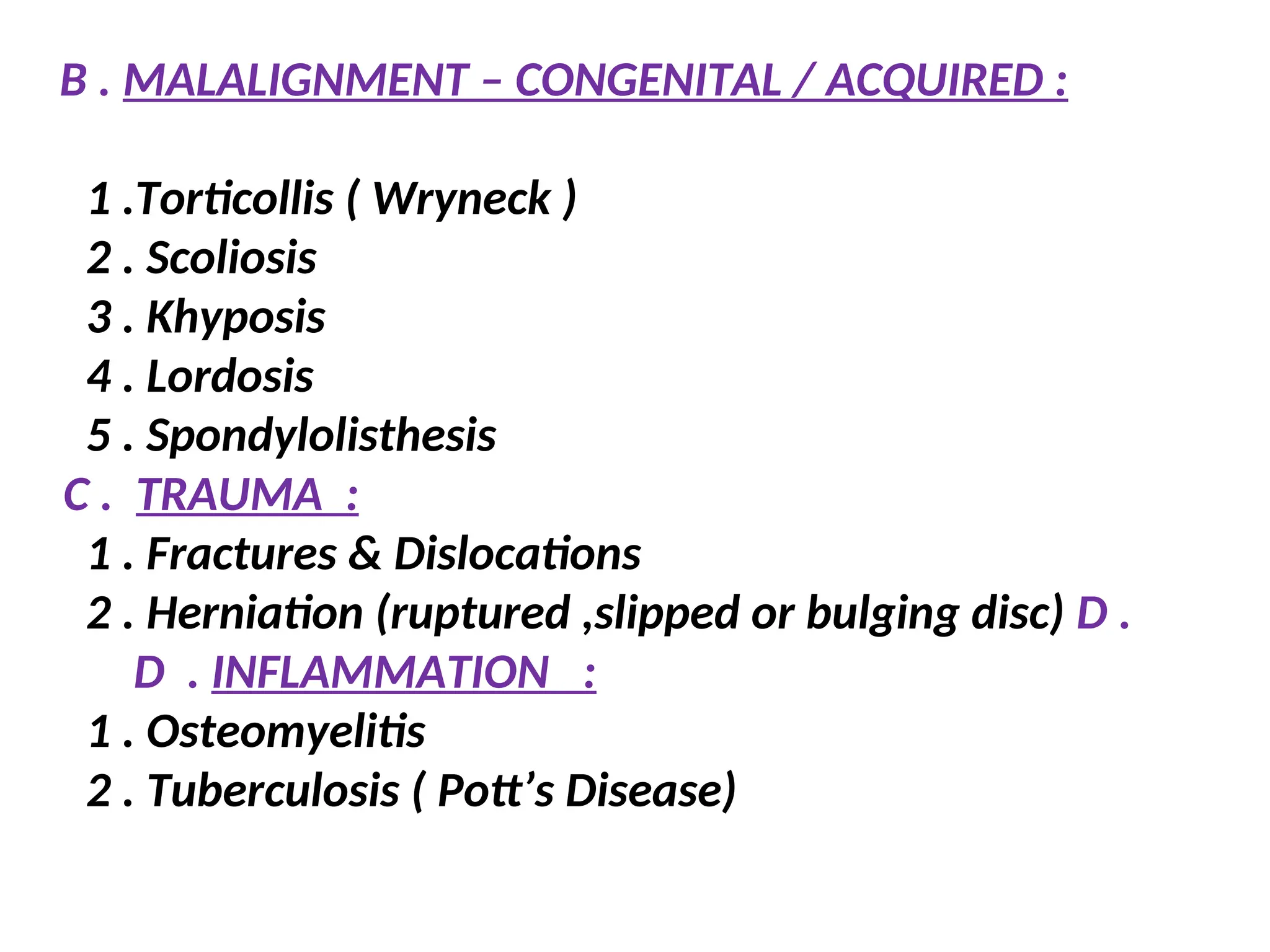

48. B . MALALIGNMENT – CONGENITAL / ACQUIRED :
1 .Torticollis ( Wryneck )
2 . Scoliosis
3 . Khyposis
4 . Lordosis
5 . Spondylolisthesis
C . TRAUMA :
1 . Fractures & Dislocations
2 . Herniation (ruptured ,slipped or bulging disc) D .
D . INFLAMMATION :
1 . Osteomyelitis
2 . Tuberculosis ( Pott’s Disease)

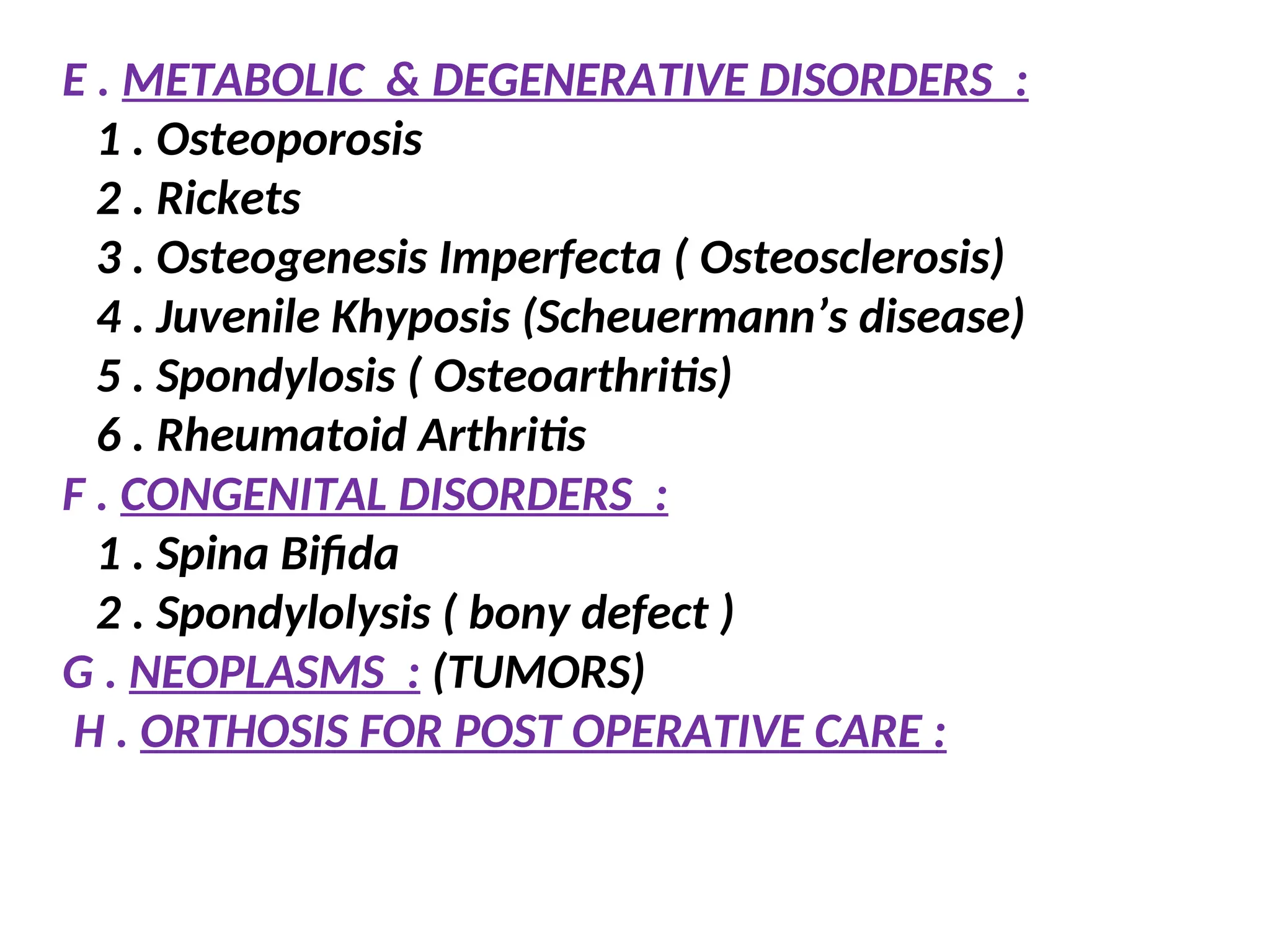

49. E . METABOLIC & DEGENERATIVE DISORDERS :
1 . Osteoporosis
2 . Rickets
3 . Osteogenesis Imperfecta ( Osteosclerosis)
4 . Juvenile Khyposis (Scheuermann’s disease)
5 . Spondylosis ( Osteoarthritis)
6 . Rheumatoid Arthritis
F . CONGENITAL DISORDERS :
1 . Spina Bifida
2 . Spondylolysis ( bony defect )
G . NEOPLASMS : (TUMORS)
H . ORTHOSIS FOR POST OPERATIVE CARE :

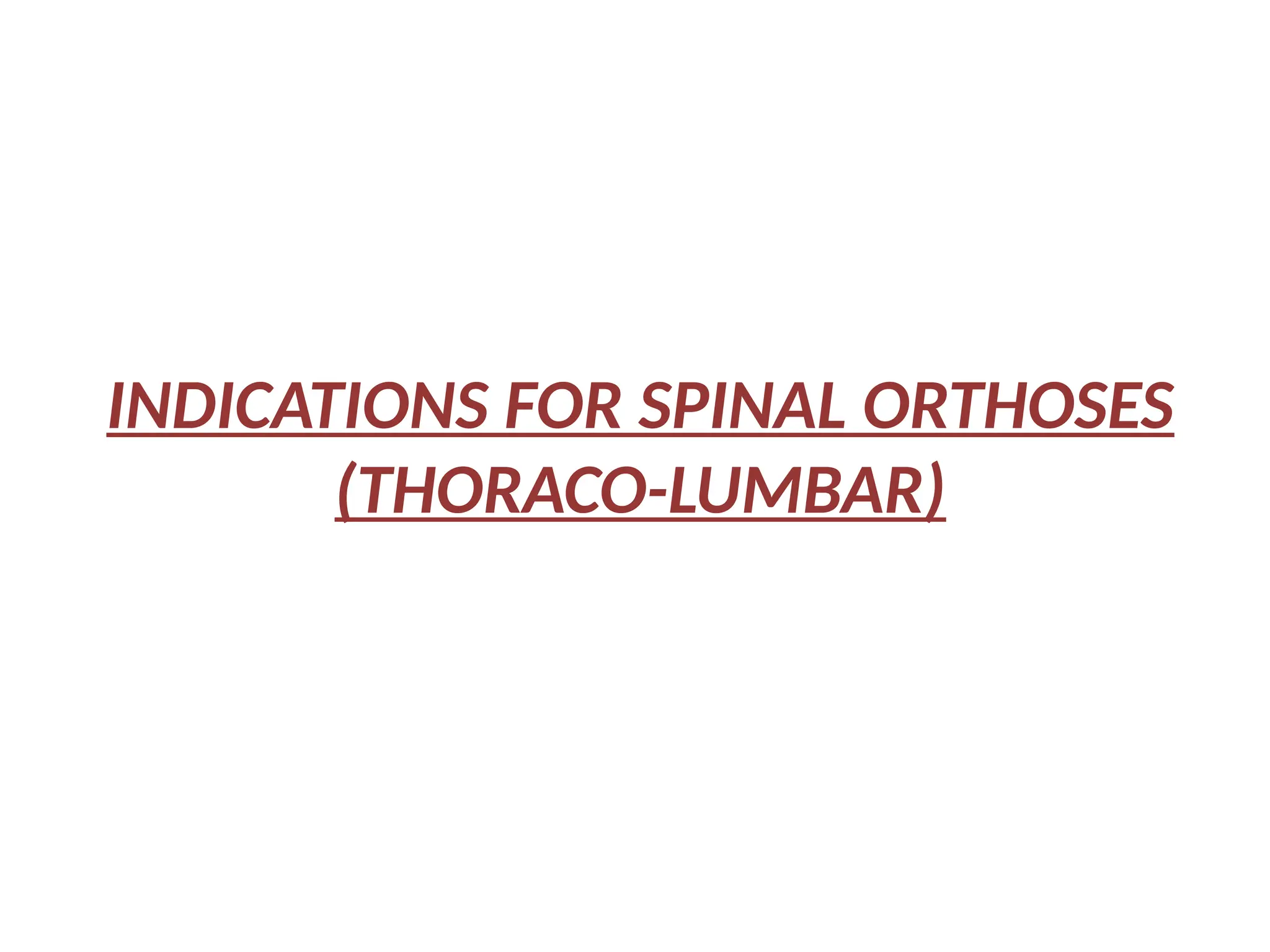

50. INDICATIONS FOR SPINAL ORTHOSES
(THORACO-LUMBAR)

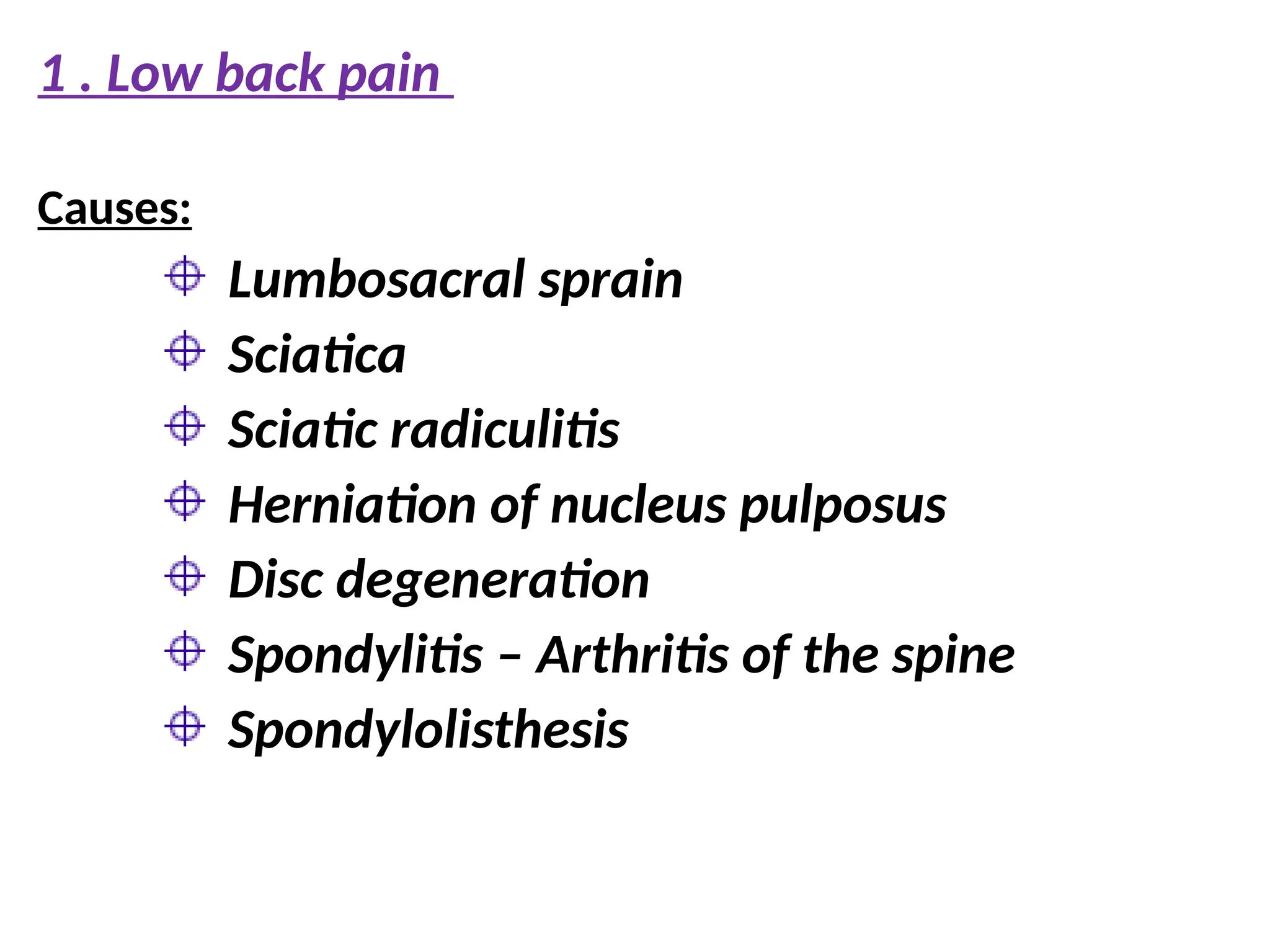

51. 1 . Low back pain
Causes:
Lumbosacral sprain
Sciatica
Sciatic radiculitis
Herniation of nucleus pulposus
Disc degeneration
Spondylitis – Arthritis of the spine
Spondylolisthesis

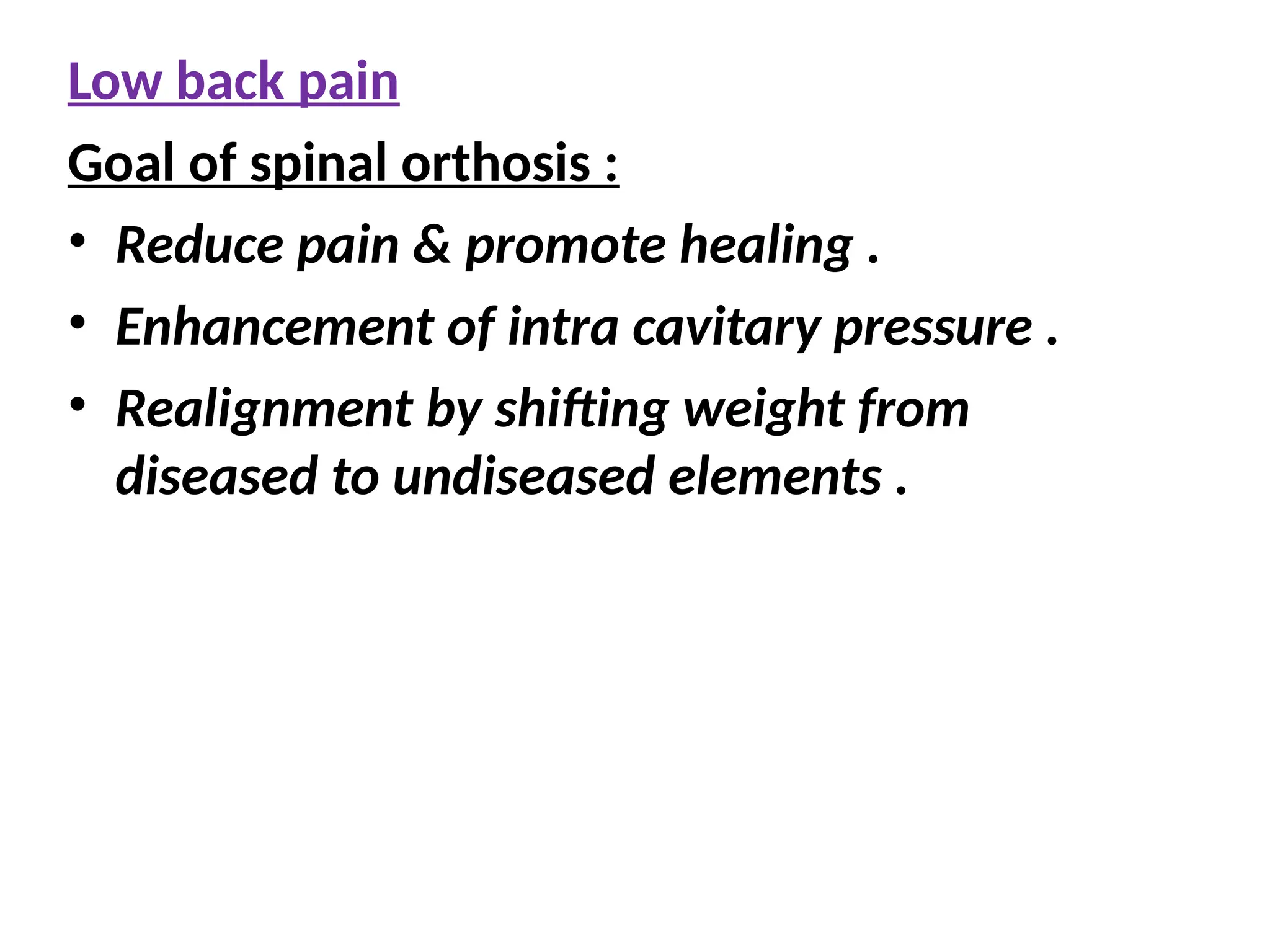

52. Low back pain
Goal of spinal orthosis :
• Reduce pain & promote healing .
• Enhancement of intra cavitary pressure .
• Realignment by shifting weight from
diseased to undiseased elements .

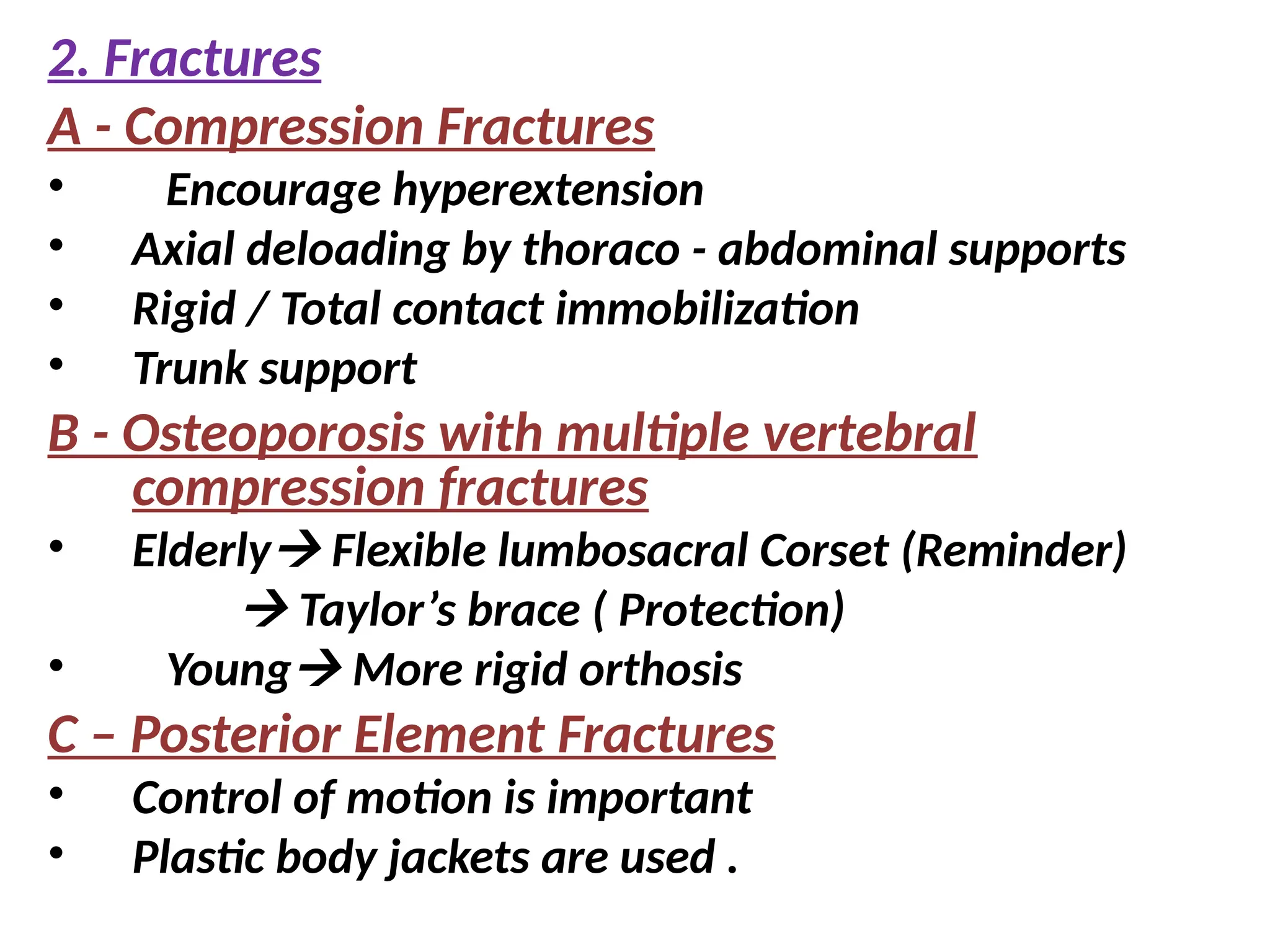

53. 2. Fractures
A - Compression Fractures
• Encourage hyperextension
• Axial deloading by thoraco - abdominal supports
• Rigid / Total contact immobilization
• Trunk support
B - Osteoporosis with multiple vertebral
compression fractures
• Elderly Flexible lumbosacral Corset (Reminder)
 Taylor’s brace ( Protection)
• Young More rigid orthosis
C – Posterior Element Fractures
• Control of motion is important
• Plastic body jackets are used .

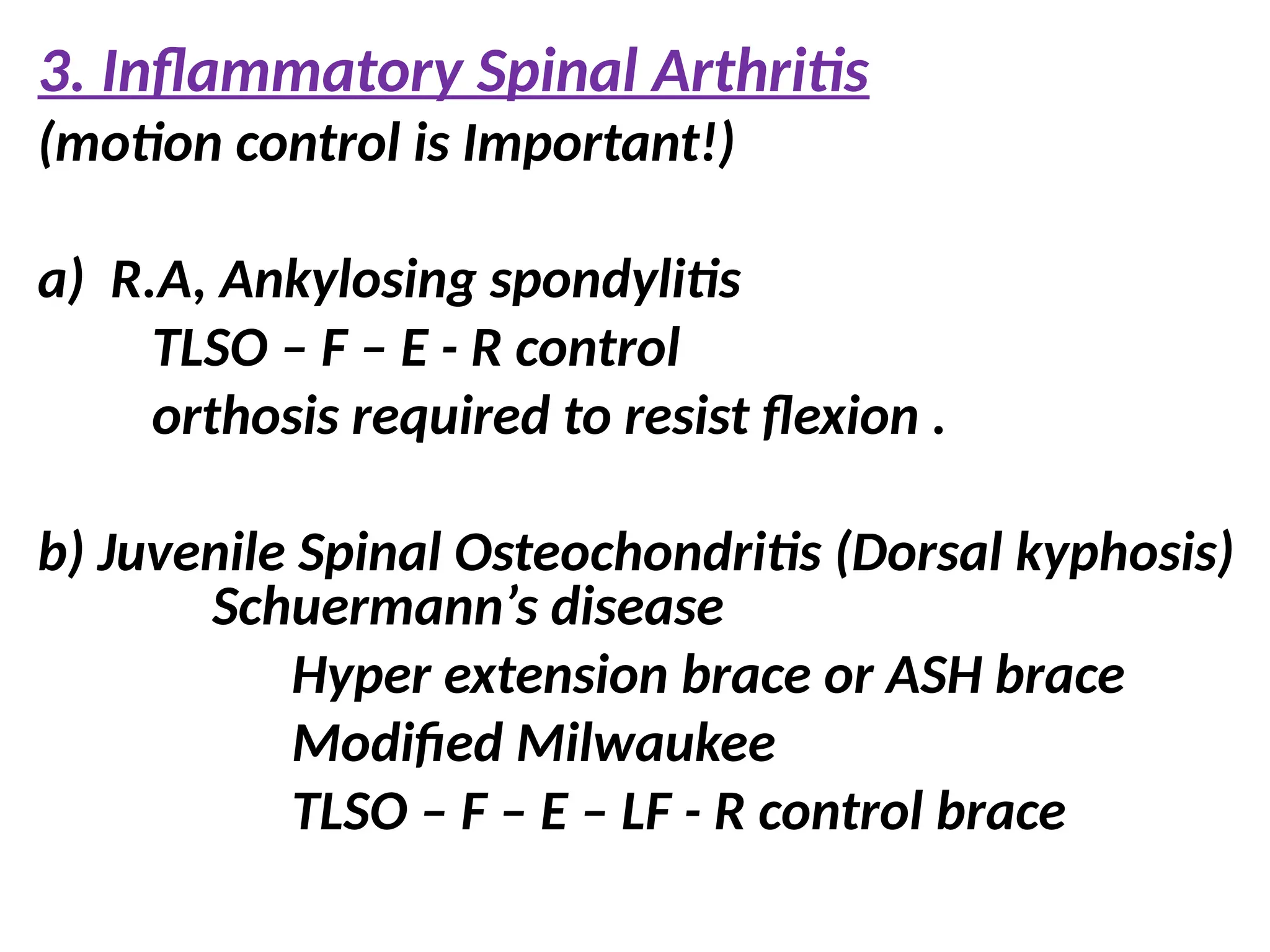

54. 3. Inflammatory Spinal Arthritis
(motion control is Important!)
a) R.A, Ankylosing spondylitis
TLSO – F – E - R control
orthosis required to resist flexion .
b) Juvenile Spinal Osteochondritis (Dorsal kyphosis)
Schuermann’s disease
Hyper extension brace or ASH brace
Modified Milwaukee
TLSO – F – E – LF - R control brace

55. C. Infectious diseases
Osteomyelitis
Tuberculosis
Motion control is the prime objective
Body jackets & TLSO – F – E – L - R control

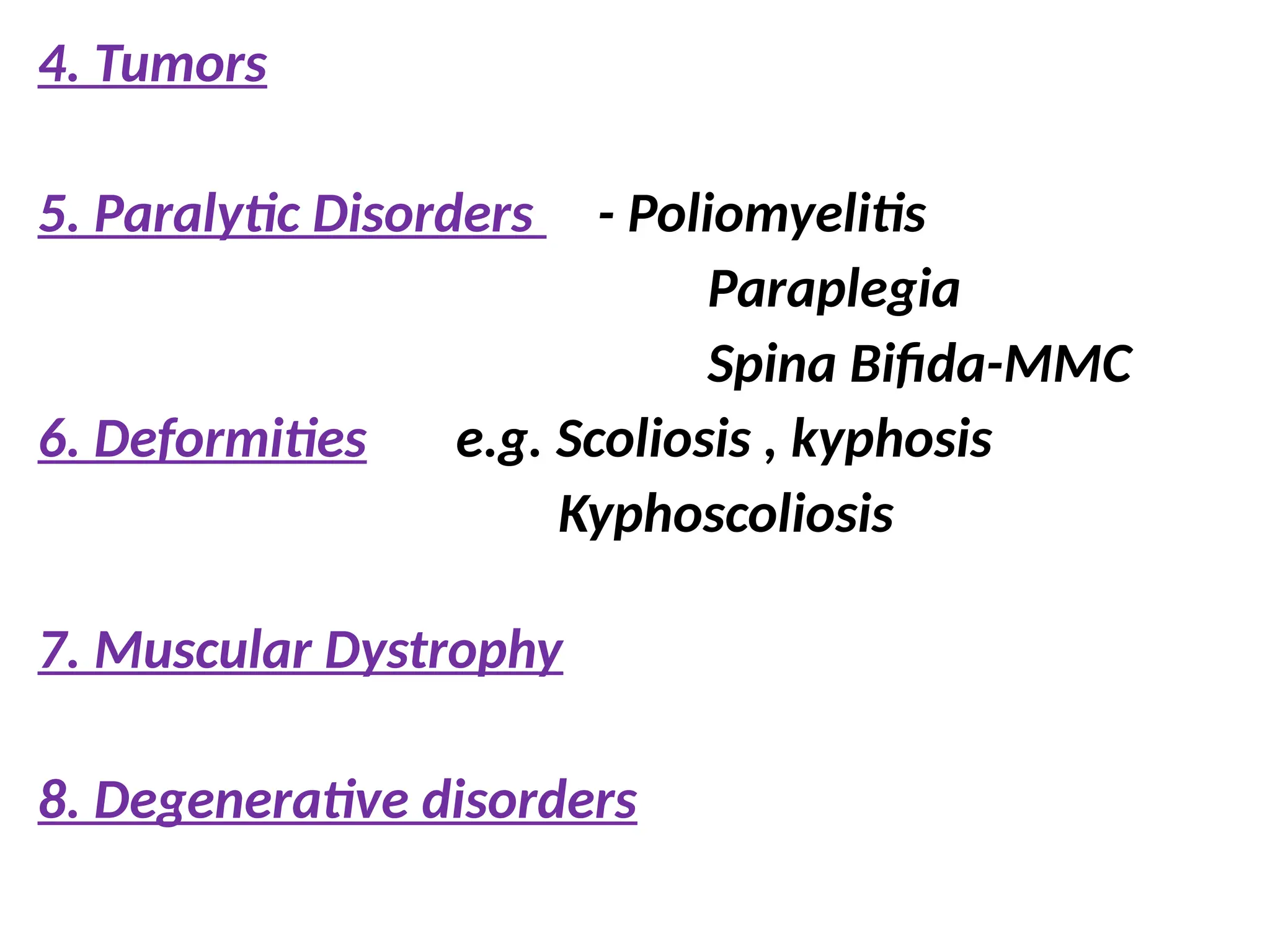

56. 4. Tumors
5. Paralytic Disorders - Poliomyelitis
Paraplegia
Spina Bifida-MMC
6. Deformities e.g. Scoliosis , kyphosis
Kyphoscoliosis
7. Muscular Dystrophy
8. Degenerative disorders

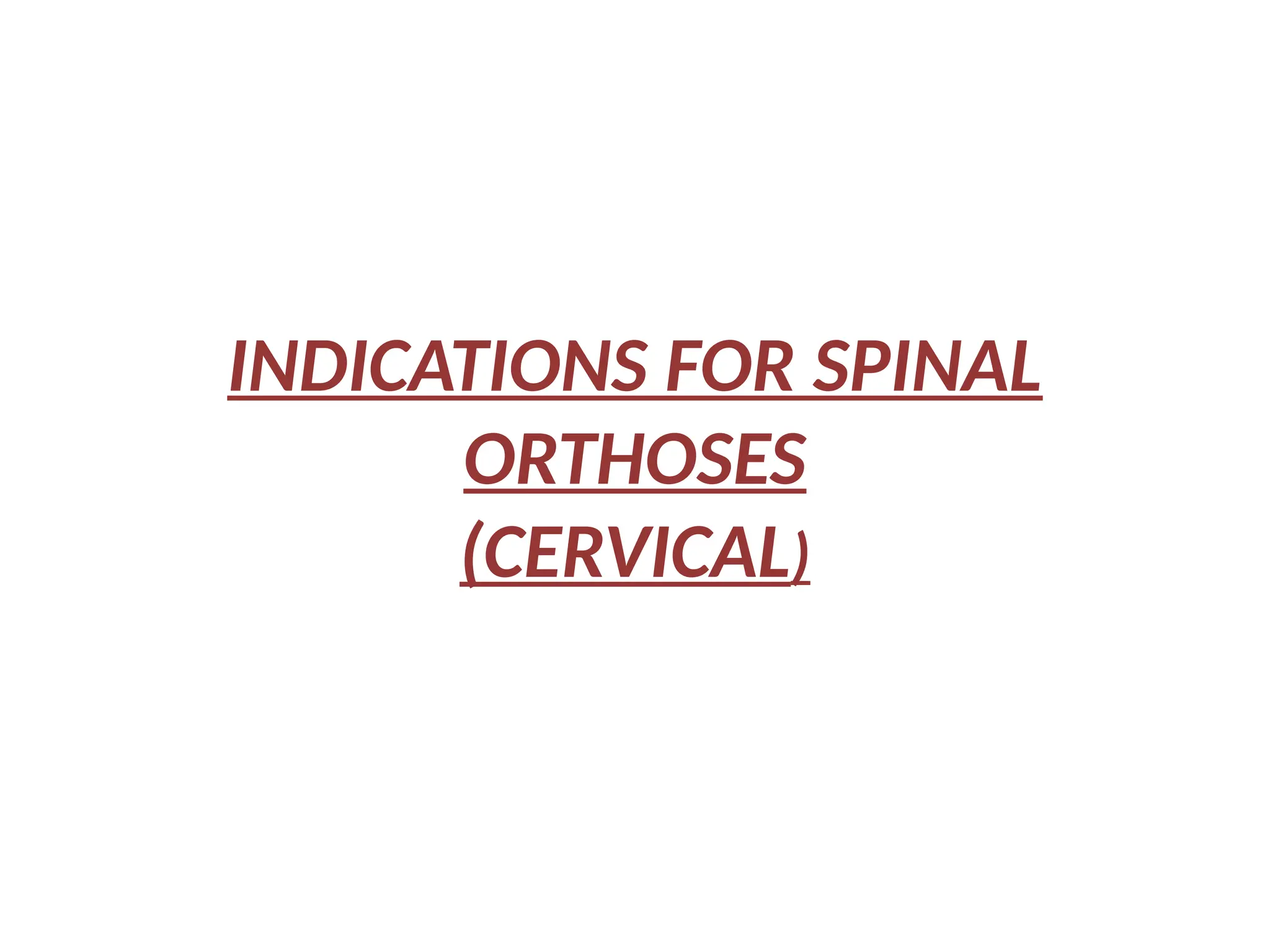

57. INDICATIONS FOR SPINAL
ORTHOSES
(CERVICAL)

58. 1. Sprains of the cervical spine
Mild – Soft cervical collar
Moderate - Soft - night time
Rigid – day time
Severe - Four Poster

59. 2. Torticollis
Neurologic origin – No bracing
Muscular origin - Orthosis followed by
surgical release of SCM
( Four poster collar or
molded collar)

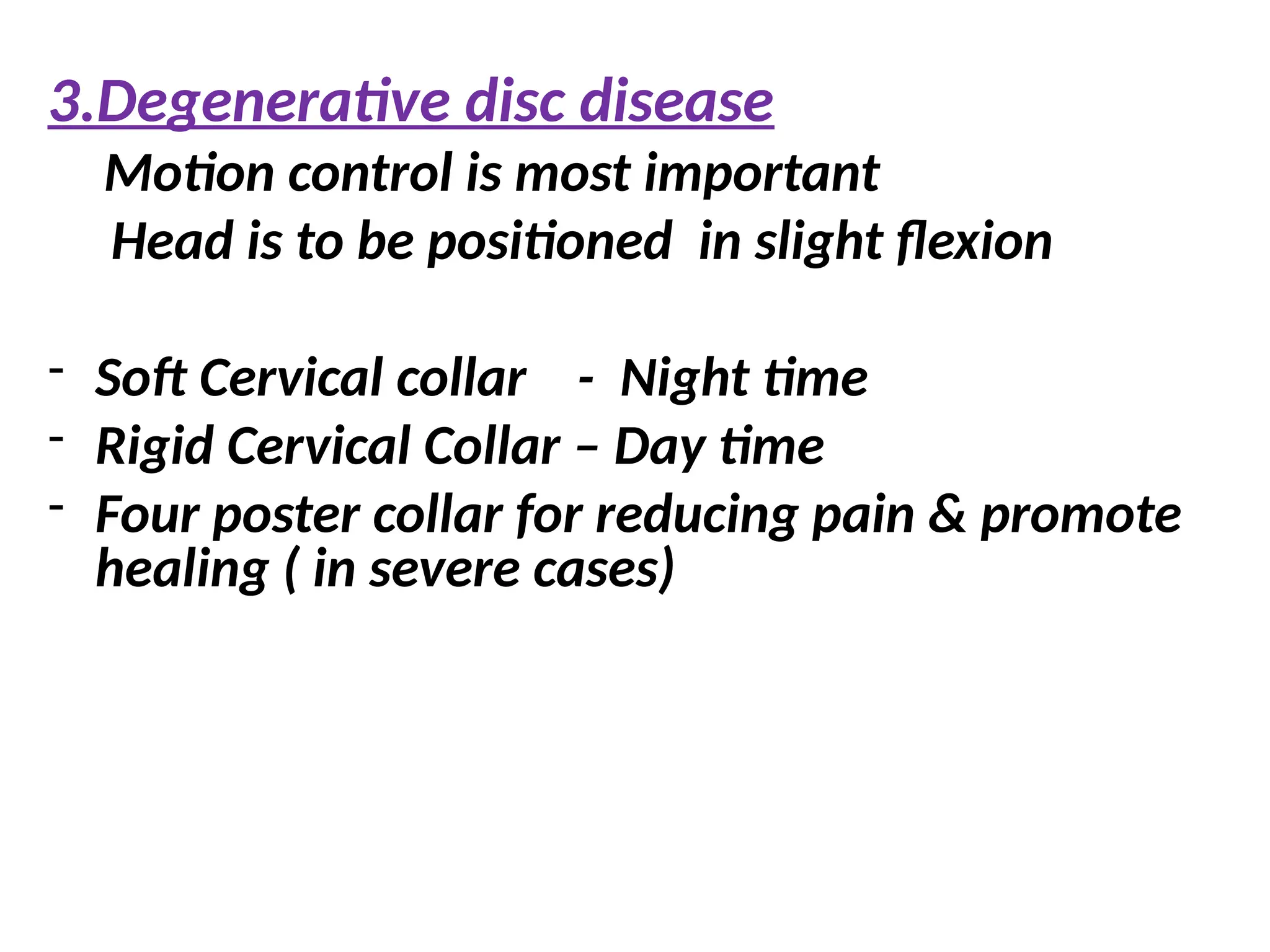

60. 3.Degenerative disc disease
Motion control is most important
Head is to be positioned in slight flexion
- Soft Cervical collar - Night time
- Rigid Cervical Collar – Day time
- Four poster collar for reducing pain & promote
healing ( in severe cases)

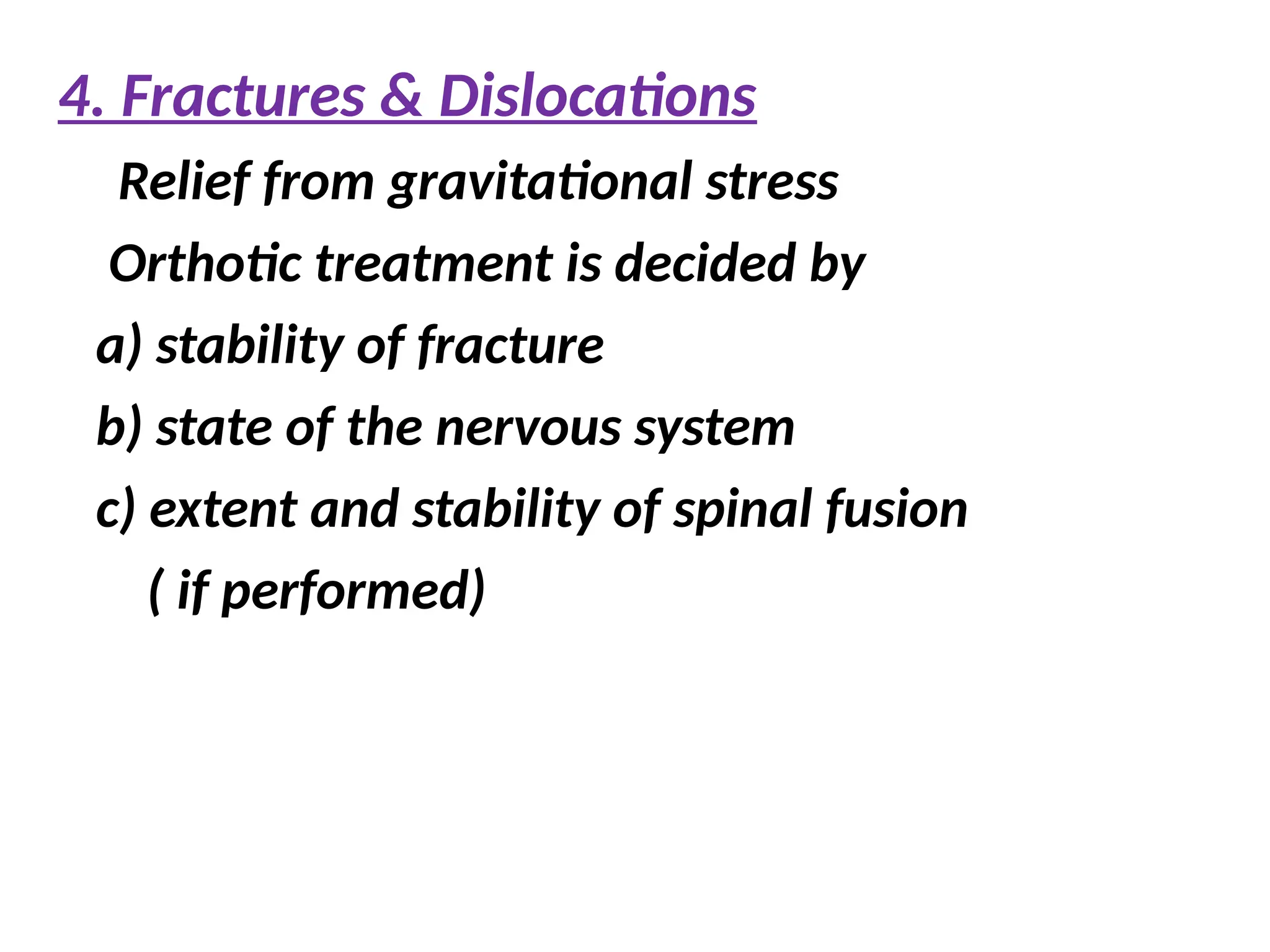

61. 4. Fractures & Dislocations
Relief from gravitational stress
Orthotic treatment is decided by
a) stability of fracture
b) state of the nervous system
c) extent and stability of spinal fusion
( if performed)

62. Stable fractures
- Initial bed rest & traction
- Poster appliances
- Rigid collar with mandibular
& occipital support
FRACTURE
SITE

63. Unstable fractures
- Skeletal Traction
- Molded HCTO
- Halo devices attached
to molded DLSO

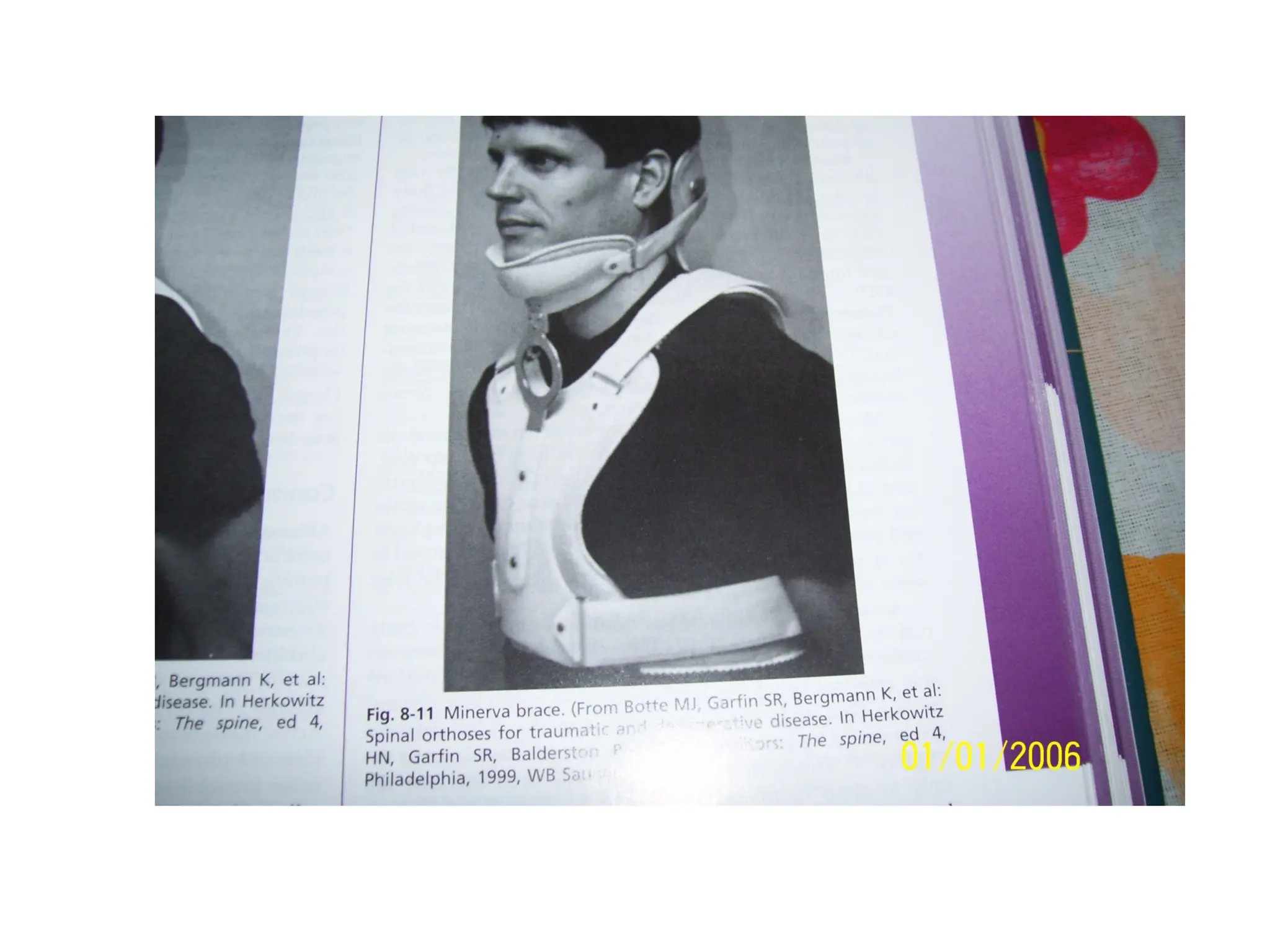

- Minerva jacket
(Post fusion)

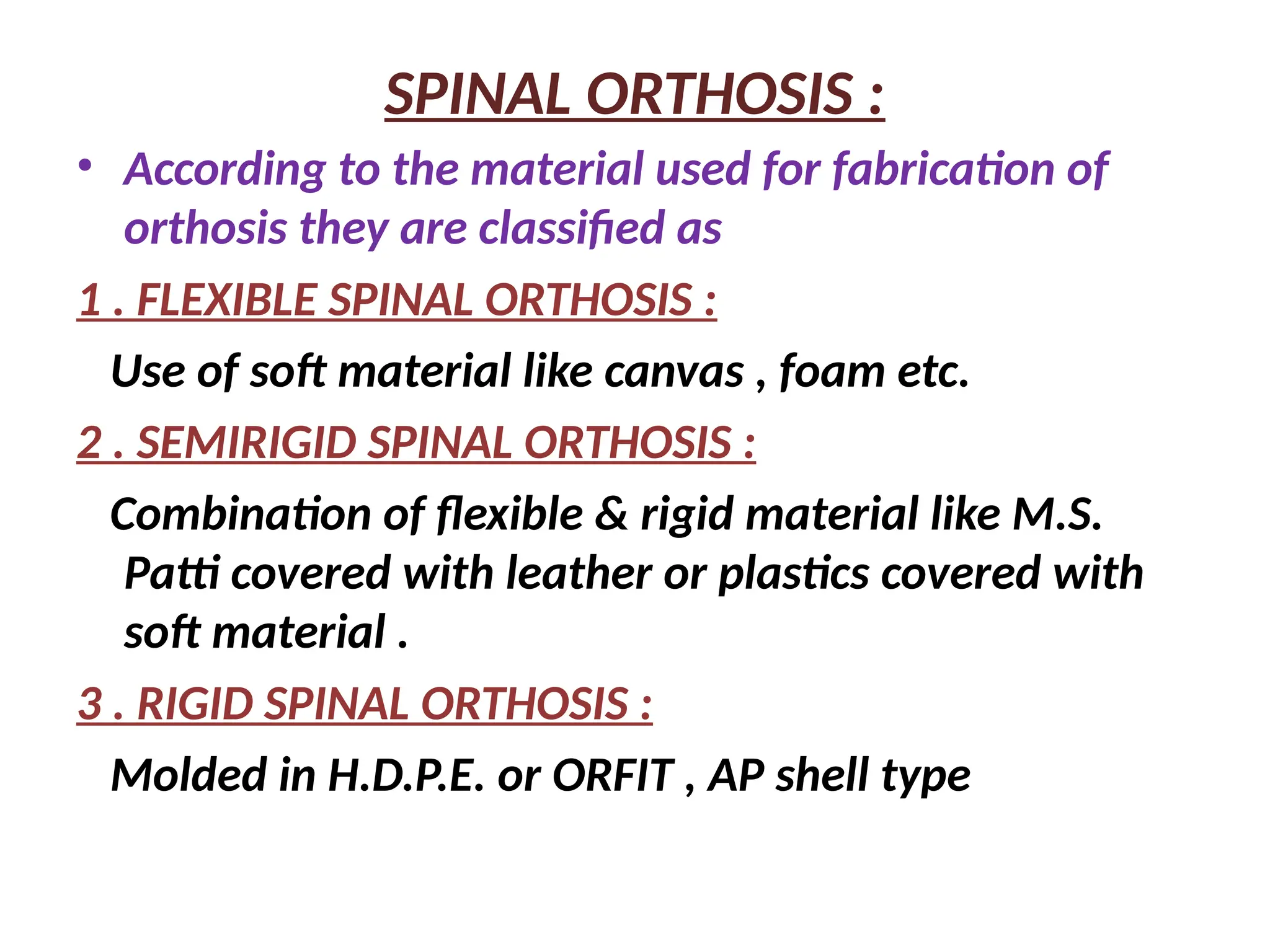

64. SPINAL ORTHOSIS :
• According to the material used for fabrication of
orthosis they are classified as
1 . FLEXIBLE SPINAL ORTHOSIS :
Use of soft material like canvas , foam etc.
2 . SEMIRIGID SPINAL ORTHOSIS :
Combination of flexible & rigid material like M.S.
Patti covered with leather or plastics covered with
soft material .
3 . RIGID SPINAL ORTHOSIS :
Molded in H.D.P.E. or ORFIT , AP shell type

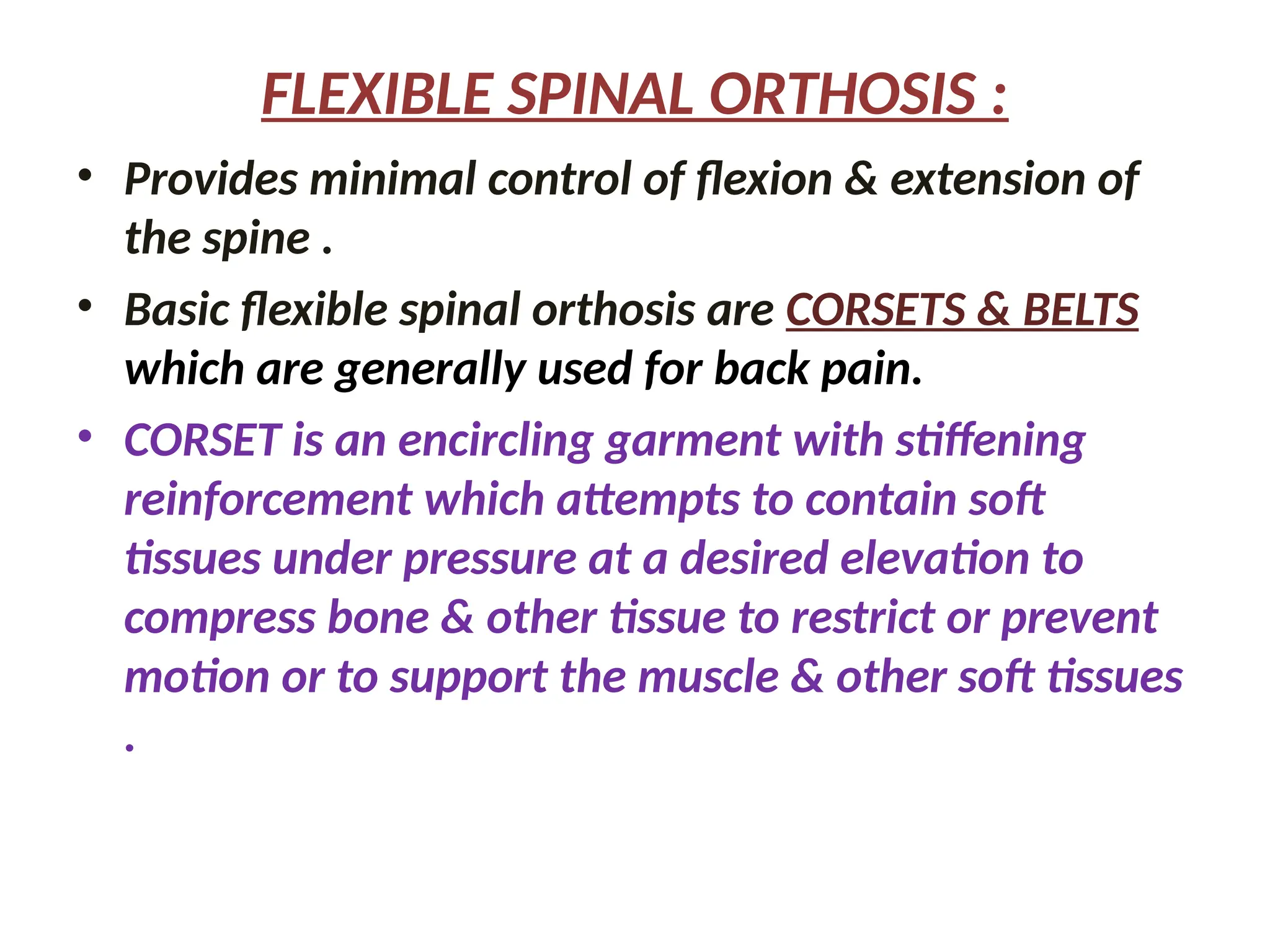

65. FLEXIBLE SPINAL ORTHOSIS :
• Provides minimal control of flexion & extension of
the spine .
• Basic flexible spinal orthosis are CORSETS & BELTS
which are generally used for back pain.
• CORSET is an encircling garment with stiffening
reinforcement which attempts to contain soft
tissues under pressure at a desired elevation to
compress bone & other tissue to restrict or prevent
motion or to support the muscle & other soft tissues
.

66. BELTS are same as corset in the function only it is
Uniform in dimension whereas corset extend down
over the buttocks & upper thighs to provide more
acceptable contour.
VARIOUS TYPE OF BELTS & CORSETS :
1.SACROILIAC BELT :
It is 2-4” wide. Made up of canvas .
Helps to stabilize sacroiliac joints . Mainly used
in post traumatic sacroiliac separation.
2 . SACROILIAC CORSET :
It is 4-6” wide .Useful in elevating intraabdominal
pressure & use for post traumatic stabilization of
pelvic joint .

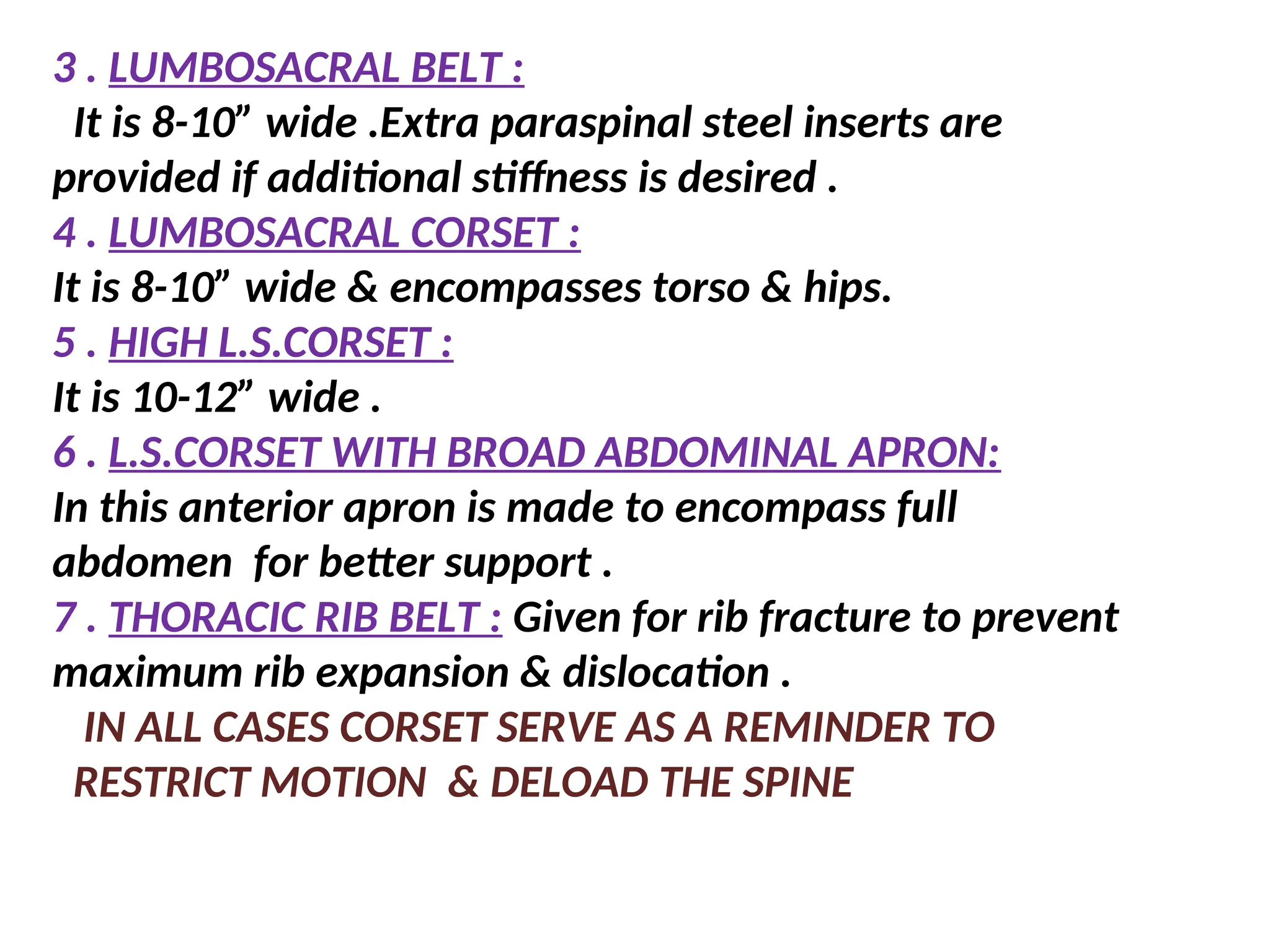

67. 3 . LUMBOSACRAL BELT :
It is 8-10” wide .Extra paraspinal steel inserts are
provided if additional stiffness is desired .
4 . LUMBOSACRAL CORSET :
It is 8-10” wide & encompasses torso & hips.
5 . HIGH L.S.CORSET :
It is 10-12” wide .
6 . L.S.CORSET WITH BROAD ABDOMINAL APRON:
In this anterior apron is made to encompass full
abdomen for better support .
7 . THORACIC RIB BELT : Given for rib fracture to prevent
maximum rib expansion & dislocation .
IN ALL CASES CORSET SERVE AS A REMINDER TO
RESTRICT MOTION & DELOAD THE SPINE

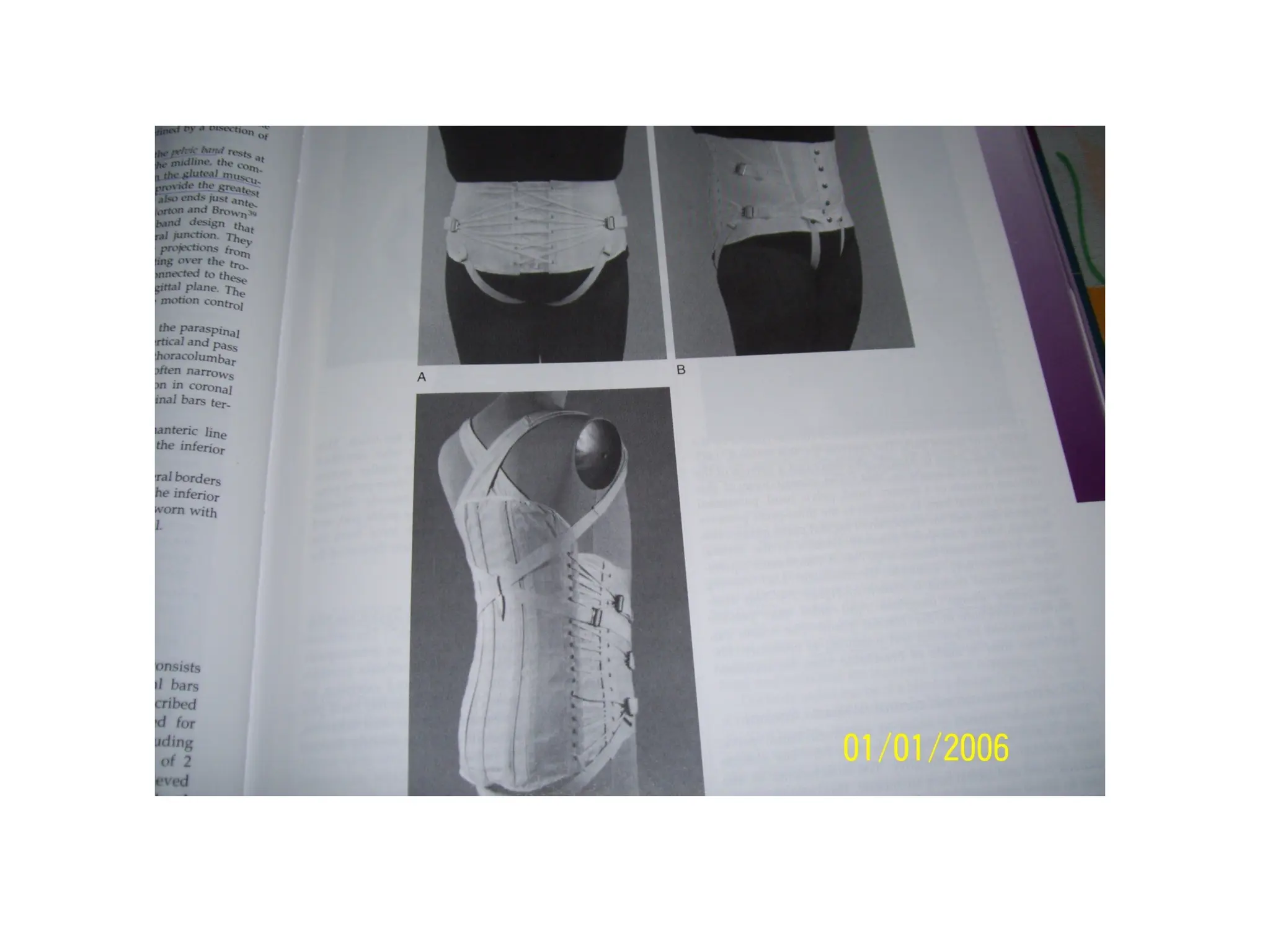

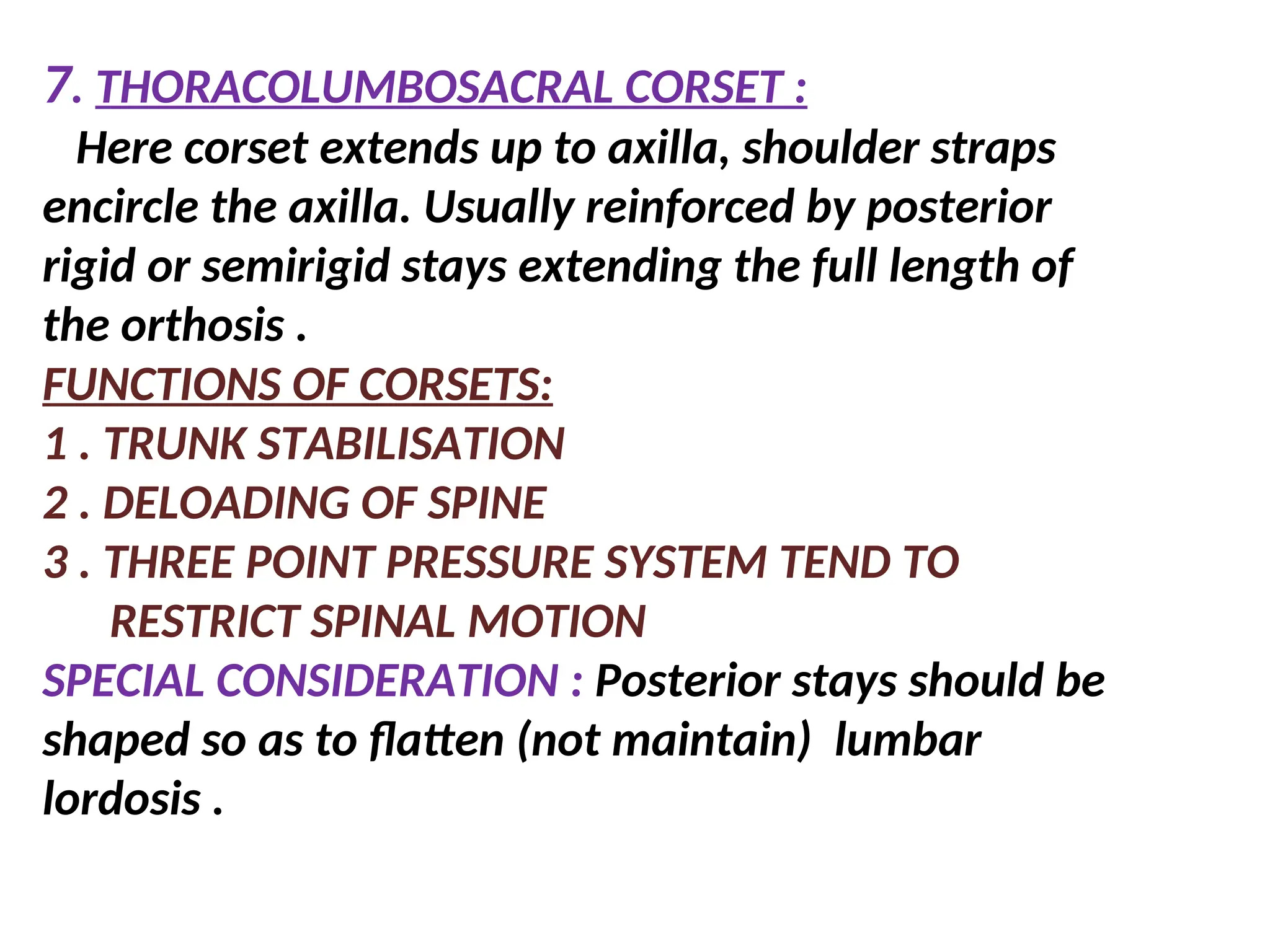

68. 7. THORACOLUMBOSACRAL CORSET :
Here corset extends up to axilla, shoulder straps
encircle the axilla. Usually reinforced by posterior
rigid or semirigid stays extending the full length of
the orthosis .
FUNCTIONS OF CORSETS:
1 . TRUNK STABILISATION
2 . DELOADING OF SPINE
3 . THREE POINT PRESSURE SYSTEM TEND TO
RESTRICT SPINAL MOTION
SPECIAL CONSIDERATION : Posterior stays should be
shaped so as to flatten (not maintain) lumbar
lordosis .

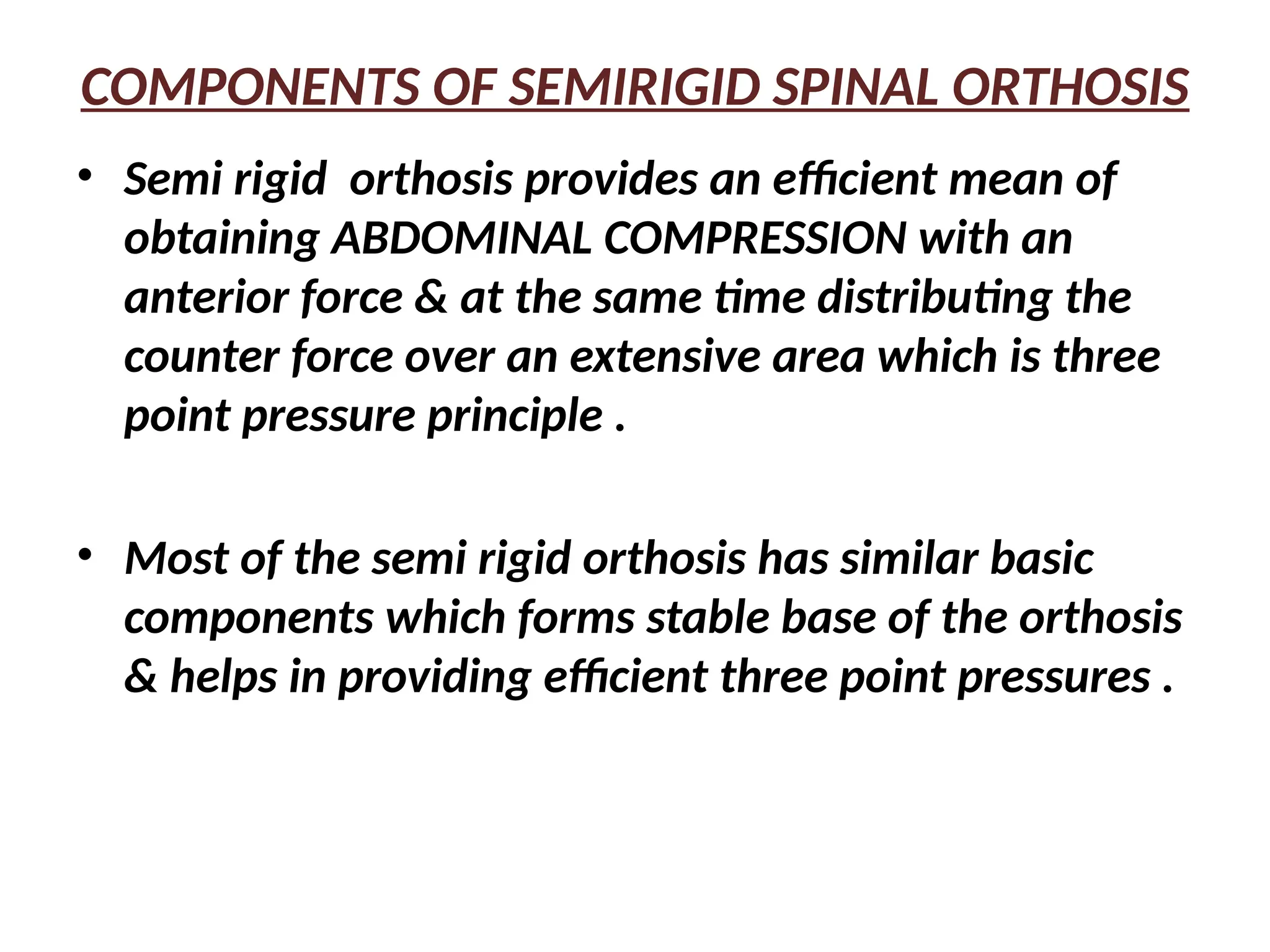

70. COMPONENTS OF SEMIRIGID SPINAL ORTHOSIS
• Semi rigid orthosis provides an efficient mean of
obtaining ABDOMINAL COMPRESSION with an
anterior force & at the same time distributing the
counter force over an extensive area which is three
point pressure principle .
• Most of the semi rigid orthosis has similar basic
components which forms stable base of the orthosis
& helps in providing efficient three point pressures .

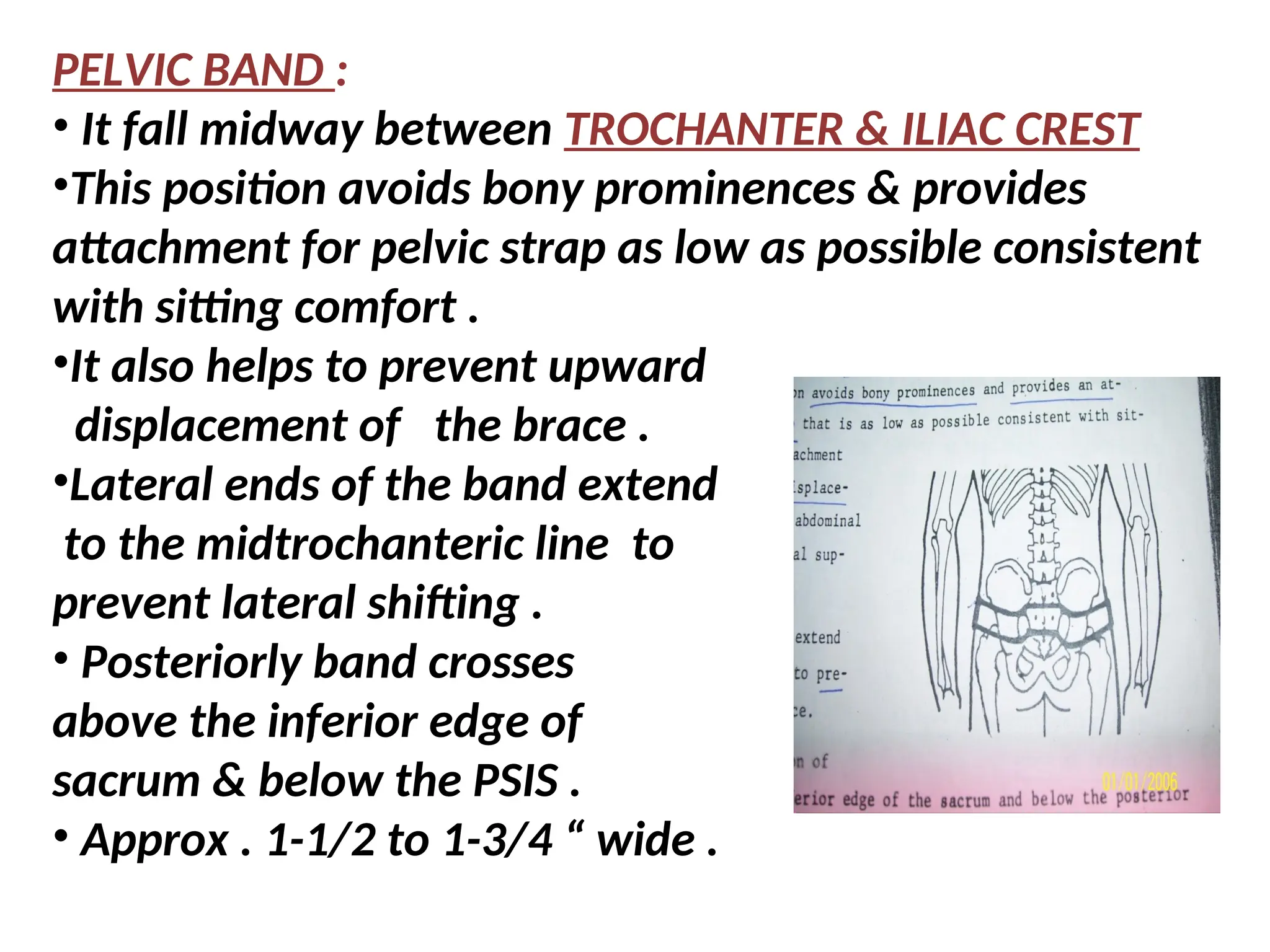

71. PELVIC BAND :
• It fall midway between TROCHANTER & ILIAC CREST
•This position avoids bony prominences & provides
attachment for pelvic strap as low as possible consistent
with sitting comfort .
•It also helps to prevent upward
displacement of the brace .
•Lateral ends of the band extend
to the midtrochanteric line to
prevent lateral shifting .
• Posteriorly band crosses
above the inferior edge of
sacrum & below the PSIS .
• Approx . 1-1/2 to 1-3/4 “ wide .

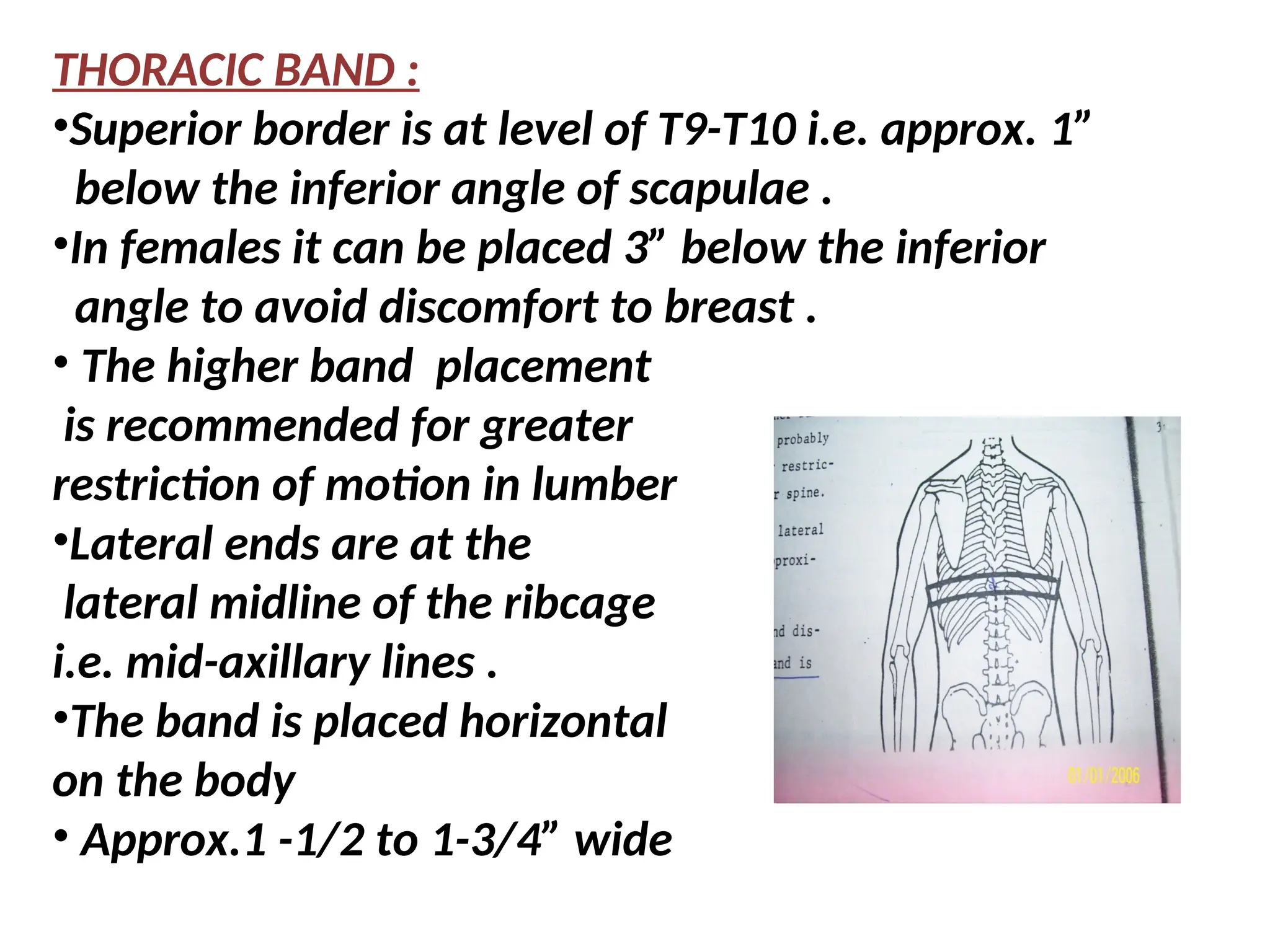

72. THORACIC BAND :
•Superior border is at level of T9-T10 i.e. approx. 1”
below the inferior angle of scapulae .
•In females it can be placed 3” below the inferior
angle to avoid discomfort to breast .
• The higher band placement
is recommended for greater
restriction of motion in lumber
•Lateral ends are at the
lateral midline of the ribcage
i.e. mid-axillary lines .
•The band is placed horizontal
on the body
• Approx.1 -1/2 to 1-3/4” wide

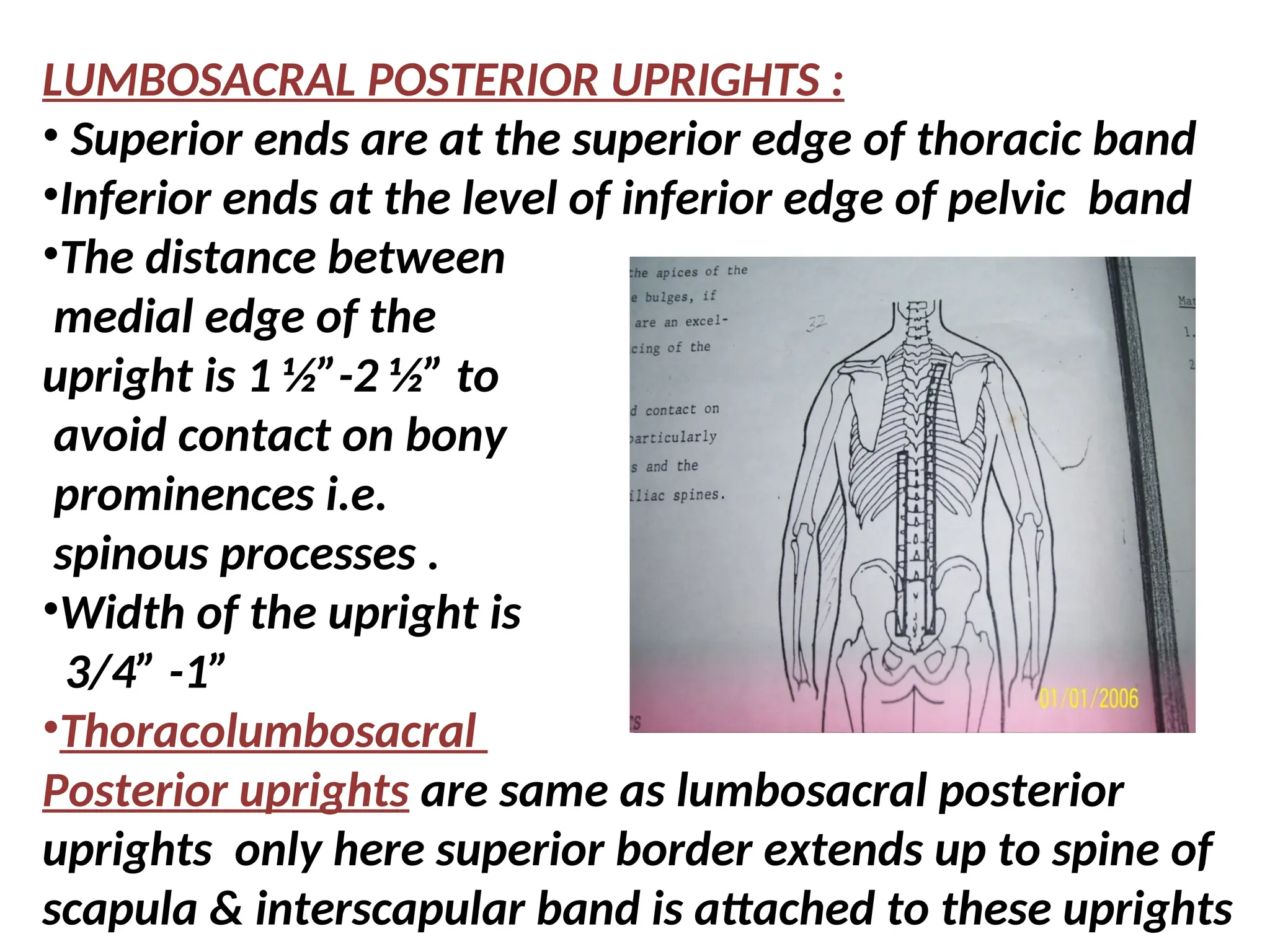

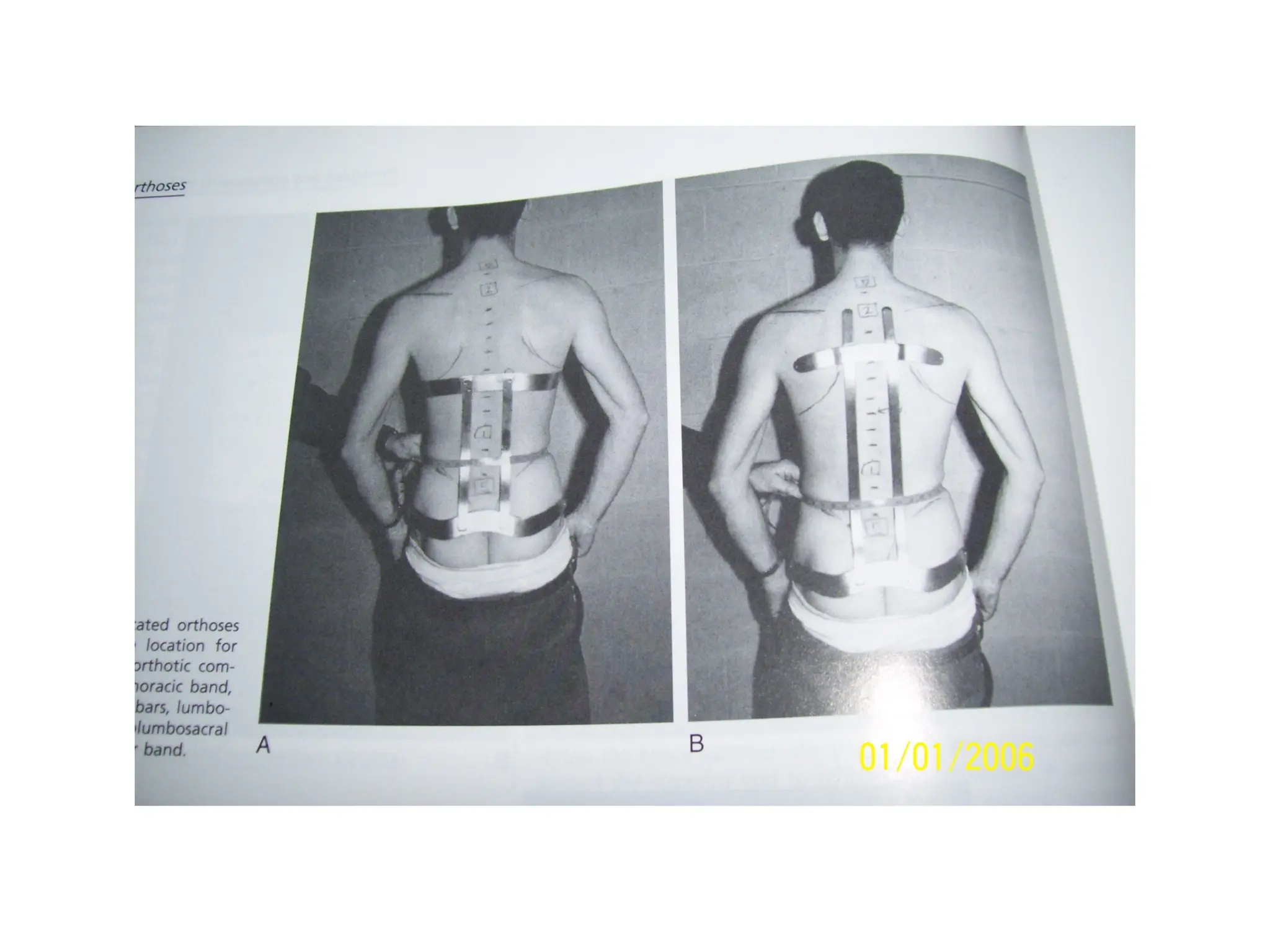

73. LUMBOSACRAL POSTERIOR UPRIGHTS :
• Superior ends are at the superior edge of thoracic band
•Inferior ends at the level of inferior edge of pelvic band
•The distance between
medial edge of the
upright is 1 ½”-2 ½” to
avoid contact on bony
prominences i.e.
spinous processes .
•Width of the upright is
3/4” -1”
•Thoracolumbosacral
Posterior uprights are same as lumbosacral posterior
uprights only here superior border extends up to spine of
scapula & interscapular band is attached to these uprights

75. INTERSCAPULAR BAND :
•Extends from 2” medial to axillary fold horizontally to
the same point on the other side .
• It is placed at the distal 1/3 rd of scapula i.e. approx. 1”
above the inferior angle of scapula .
•This location is designed to place
the axillary strap slightly above
the posterior margin of axillary
fold which helps to prevent
upward displacement of the brace
•It helps in providing 3 point
pressure system .

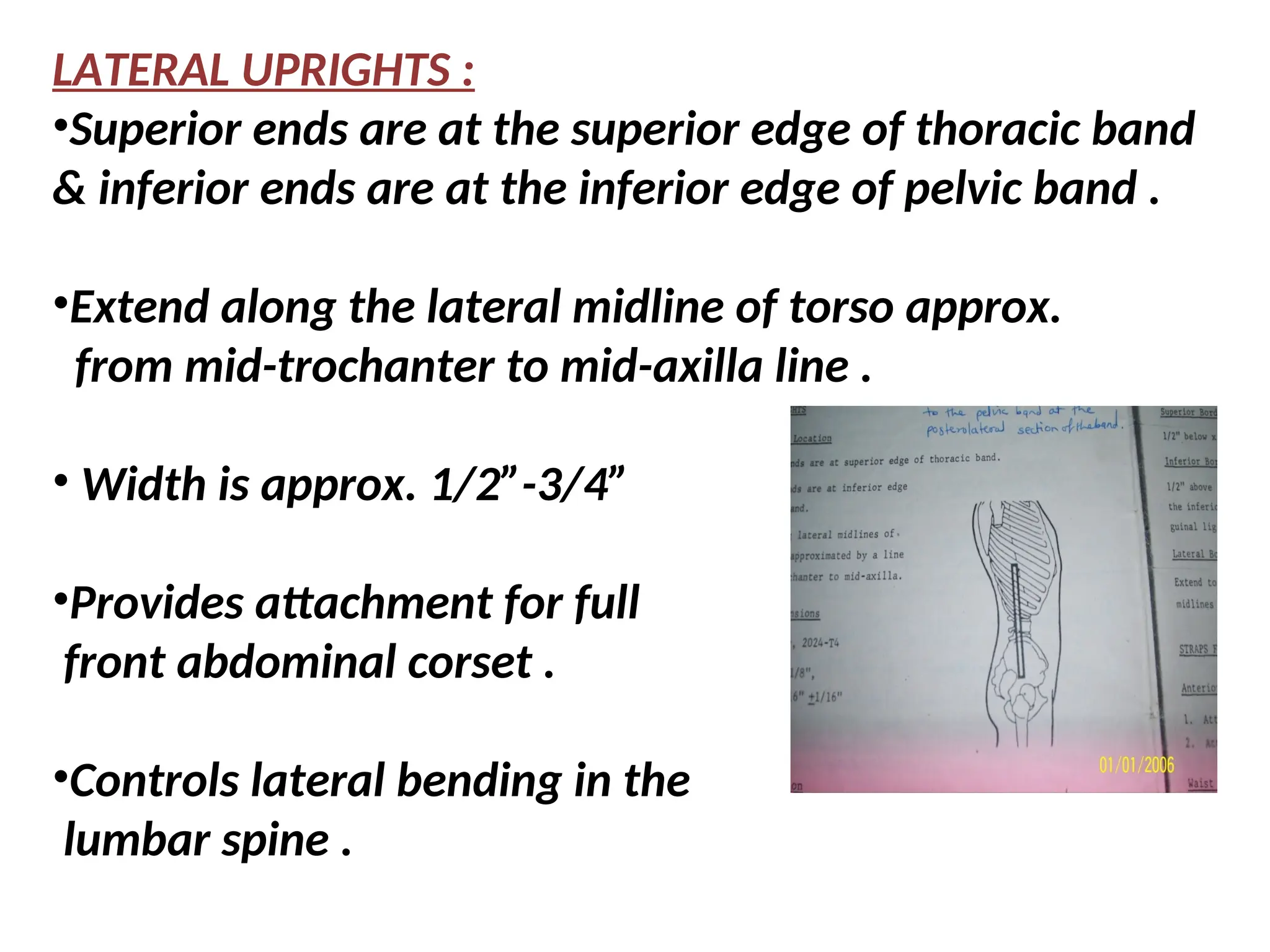

76. LATERAL UPRIGHTS :
•Superior ends are at the superior edge of thoracic band
& inferior ends are at the inferior edge of pelvic band .
•Extend along the lateral midline of torso approx.
from mid-trochanter to mid-axilla line .
• Width is approx. 1/2”-3/4”
•Provides attachment for full
front abdominal corset .
•Controls lateral bending in the
lumbar spine .

77. OBLIQUE LATERAL UPRIGHT :
•Superior ends are pivotably attached to the lateral
upright & approx. 1”below the inferior border of thoracic
band .
•Inferior ends are rigidly attached to the pelvic band at
the postero-lateral section of the band .
•Length of oblique
lateral upright
is 2”more than
lateral upright .

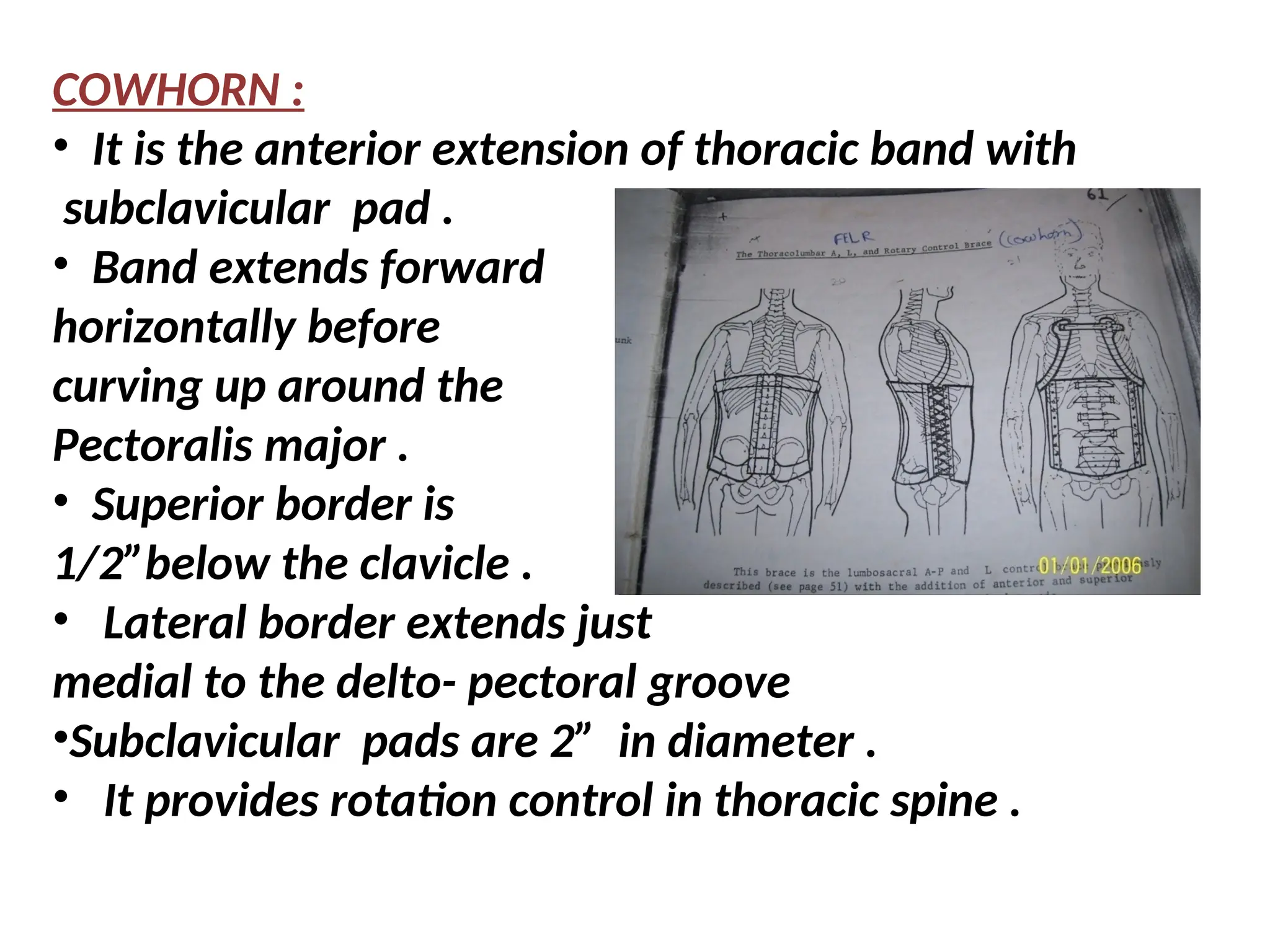

78. COWHORN :
• It is the anterior extension of thoracic band with
subclavicular pad .
• Band extends forward
horizontally before
curving up around the
Pectoralis major .
• Superior border is
1/2”below the clavicle .
• Lateral border extends just
medial to the delto- pectoral groove
•Subclavicular pads are 2” in diameter .
• It provides rotation control in thoracic spine .

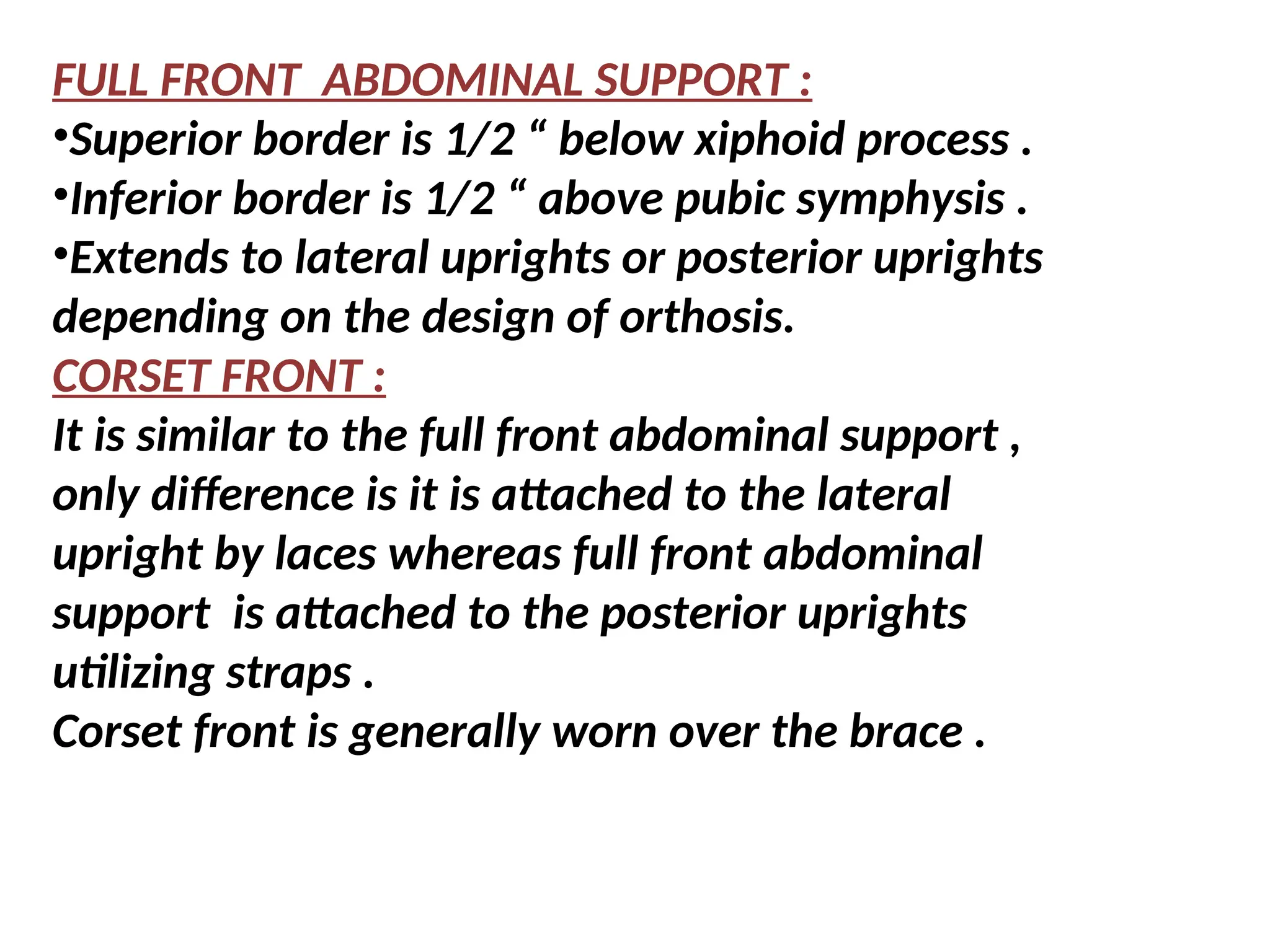

79. FULL FRONT ABDOMINAL SUPPORT :
•Superior border is 1/2 “ below xiphoid process .
•Inferior border is 1/2 “ above pubic symphysis .
•Extends to lateral uprights or posterior uprights
depending on the design of orthosis.
CORSET FRONT :
It is similar to the full front abdominal support ,
only difference is it is attached to the lateral
upright by laces whereas full front abdominal
support is attached to the posterior uprights
utilizing straps .
Corset front is generally worn over the brace .

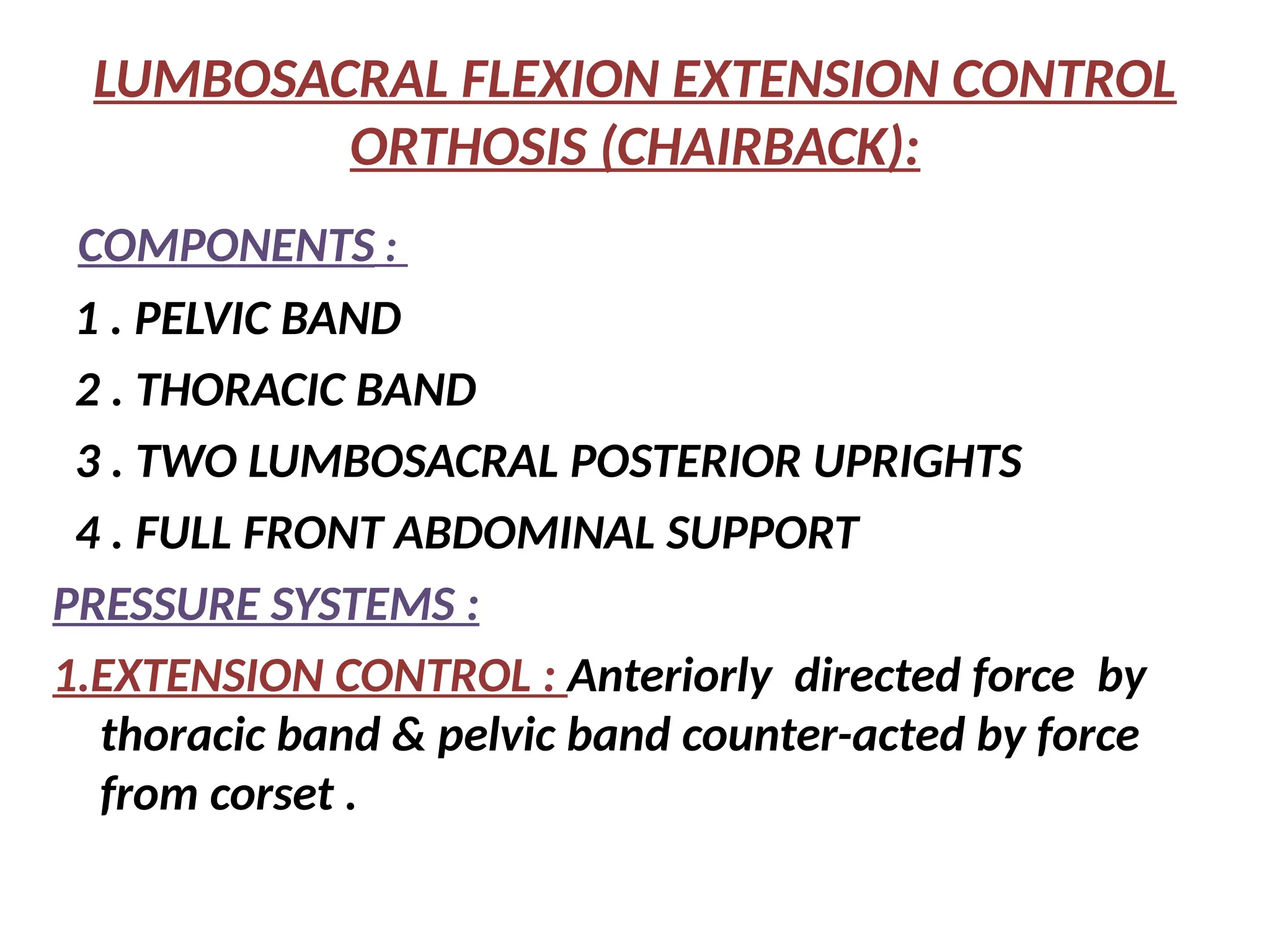

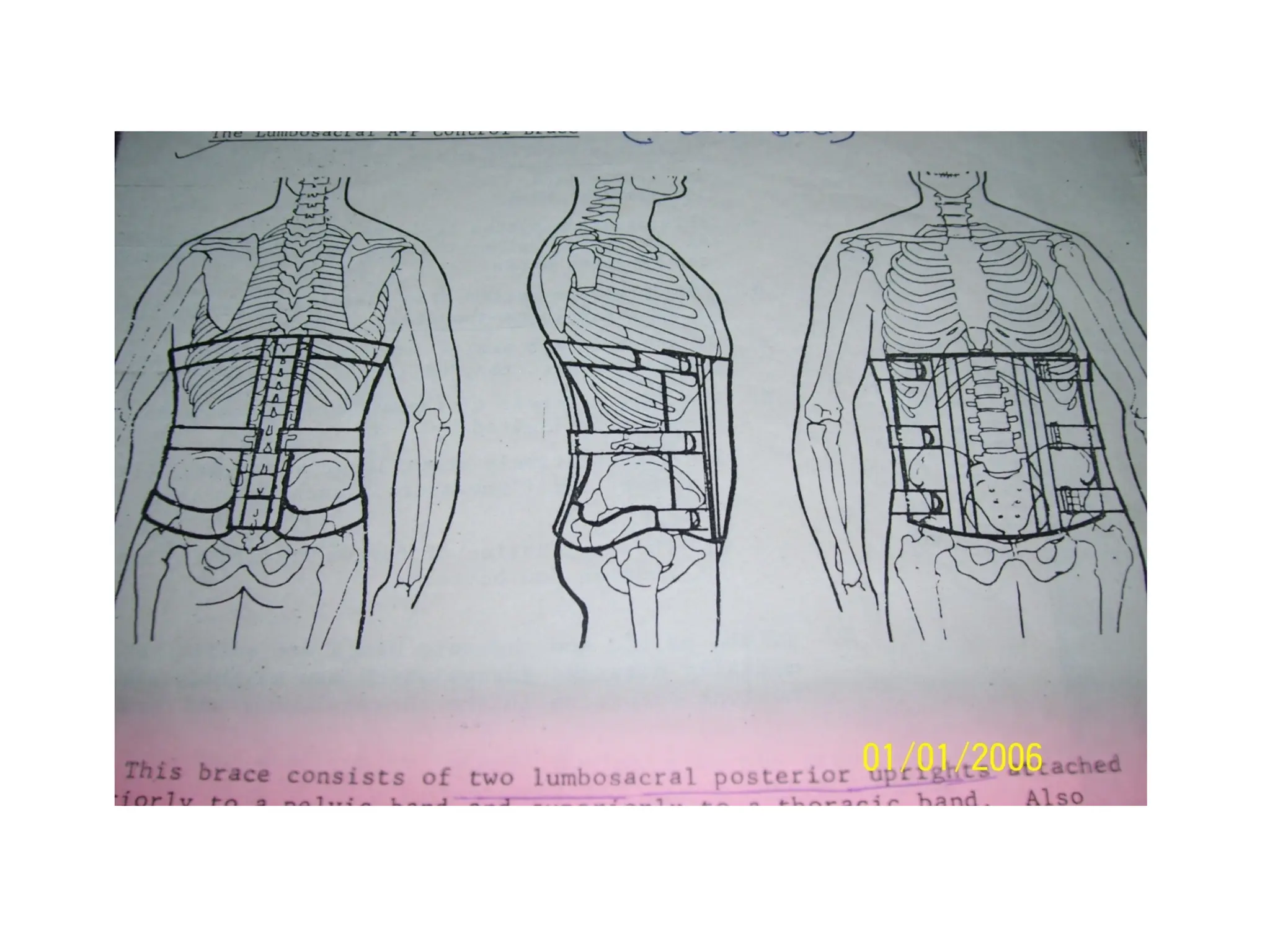

80. LUMBOSACRAL FLEXION EXTENSION CONTROL
ORTHOSIS (CHAIRBACK):
COMPONENTS :
1 . PELVIC BAND
2 . THORACIC BAND
3 . TWO LUMBOSACRAL POSTERIOR UPRIGHTS
4 . FULL FRONT ABDOMINAL SUPPORT
PRESSURE SYSTEMS :
1.EXTENSION CONTROL : Anteriorly directed force by
thoracic band & pelvic band counter-acted by force
from corset .

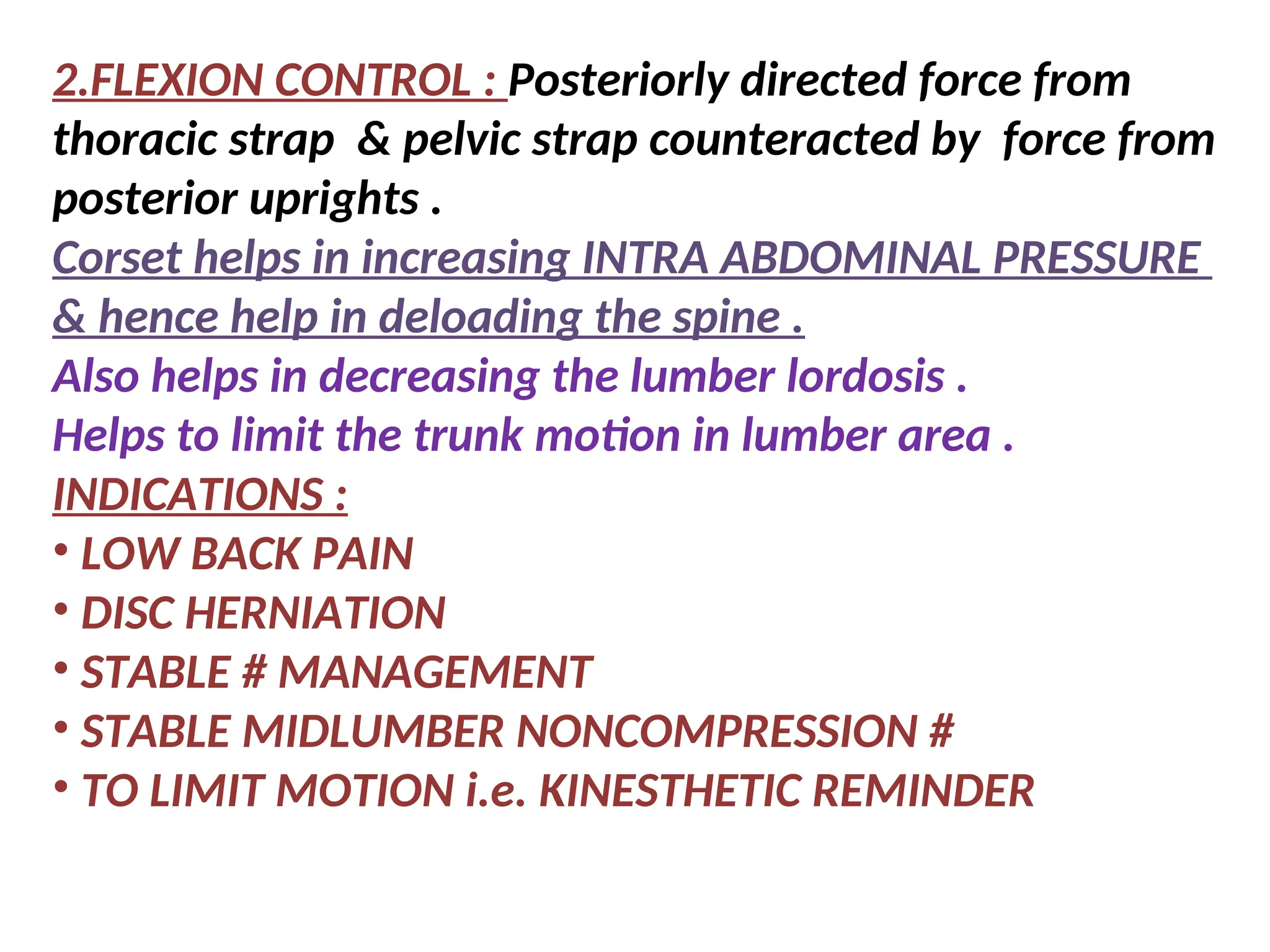

82. 2.FLEXION CONTROL : Posteriorly directed force from
thoracic strap & pelvic strap counteracted by force from
posterior uprights .
Corset helps in increasing INTRA ABDOMINAL PRESSURE
& hence help in deloading the spine .
Also helps in decreasing the lumber lordosis .
Helps to limit the trunk motion in lumber area .
INDICATIONS :
• LOW BACK PAIN
• DISC HERNIATION
• STABLE # MANAGEMENT
• STABLE MIDLUMBER NONCOMPRESSION #
• TO LIMIT MOTION i.e. KINESTHETIC REMINDER

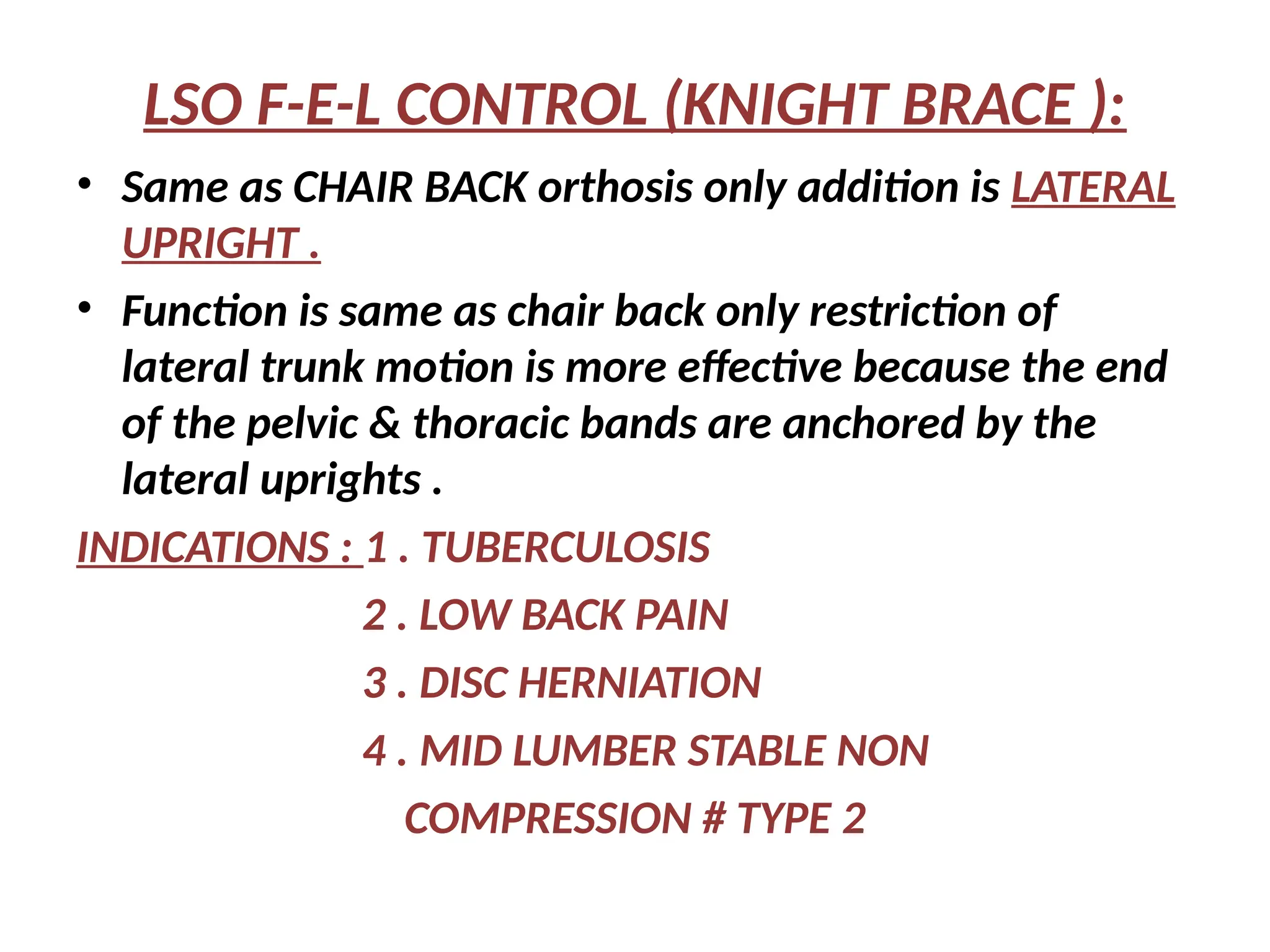

83. LSO F-E-L CONTROL (KNIGHT BRACE ):
• Same as CHAIR BACK orthosis only addition is LATERAL
UPRIGHT .
• Function is same as chair back only restriction of
lateral trunk motion is more effective because the end
of the pelvic & thoracic bands are anchored by the
lateral uprights .
INDICATIONS : 1 . TUBERCULOSIS
2 . LOW BACK PAIN
3 . DISC HERNIATION
4 . MID LUMBER STABLE NON
COMPRESSION # TYPE 2

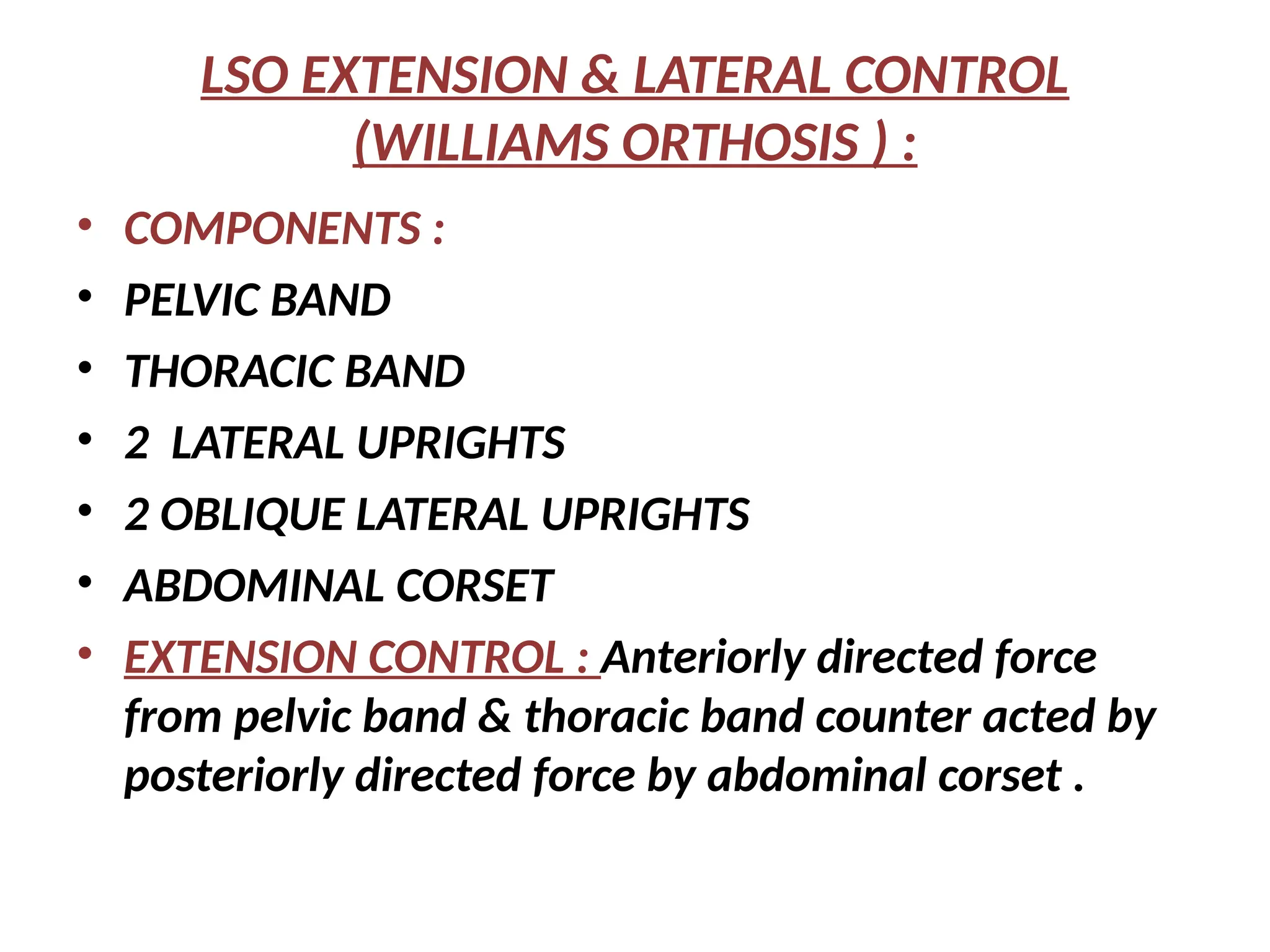

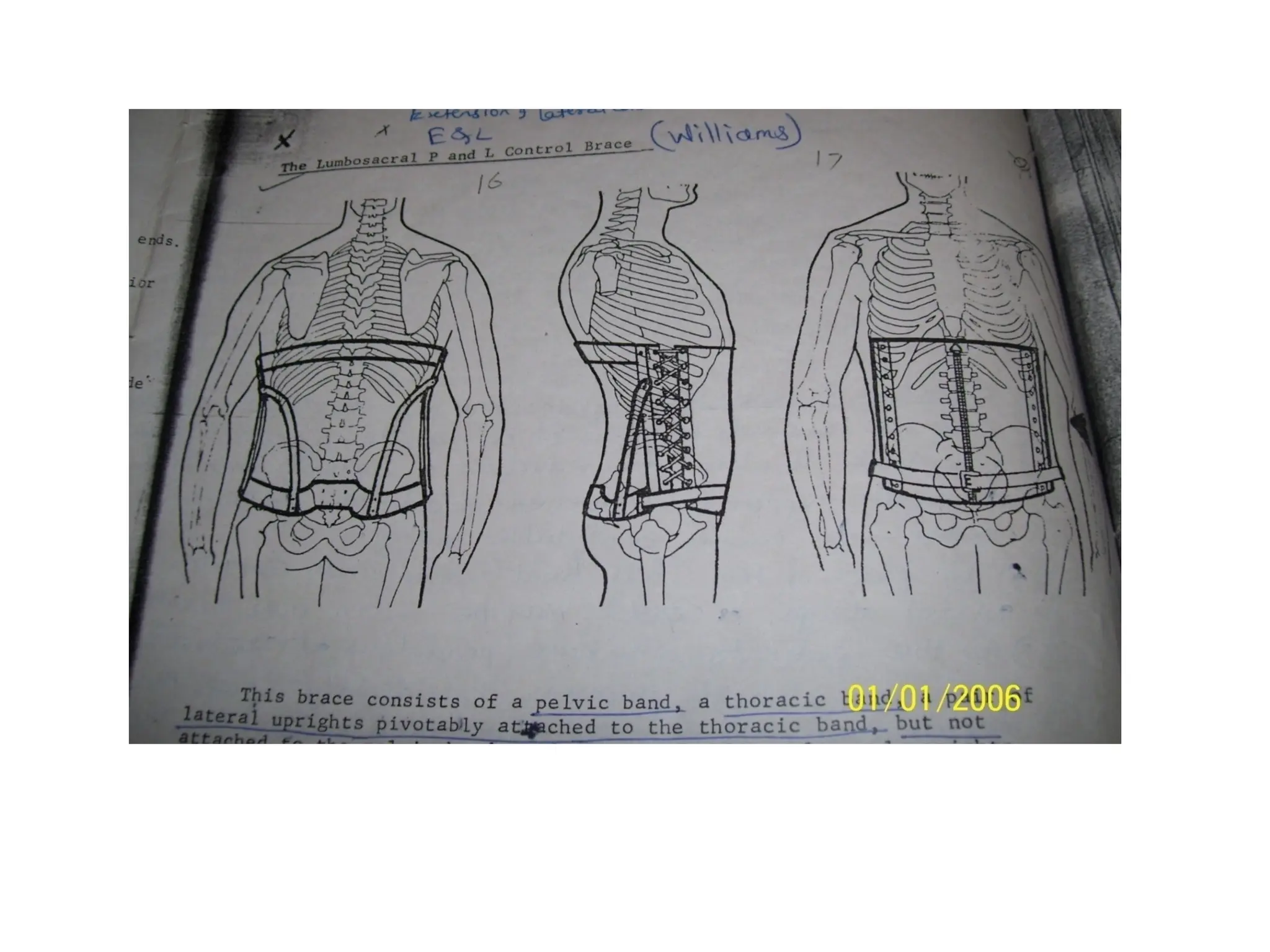

85. LSO EXTENSION & LATERAL CONTROL
(WILLIAMS ORTHOSIS ) :
• COMPONENTS :
• PELVIC BAND
• THORACIC BAND
• 2 LATERAL UPRIGHTS
• 2 OBLIQUE LATERAL UPRIGHTS
• ABDOMINAL CORSET
• EXTENSION CONTROL : Anteriorly directed force
from pelvic band & thoracic band counter acted by
posteriorly directed force by abdominal corset .

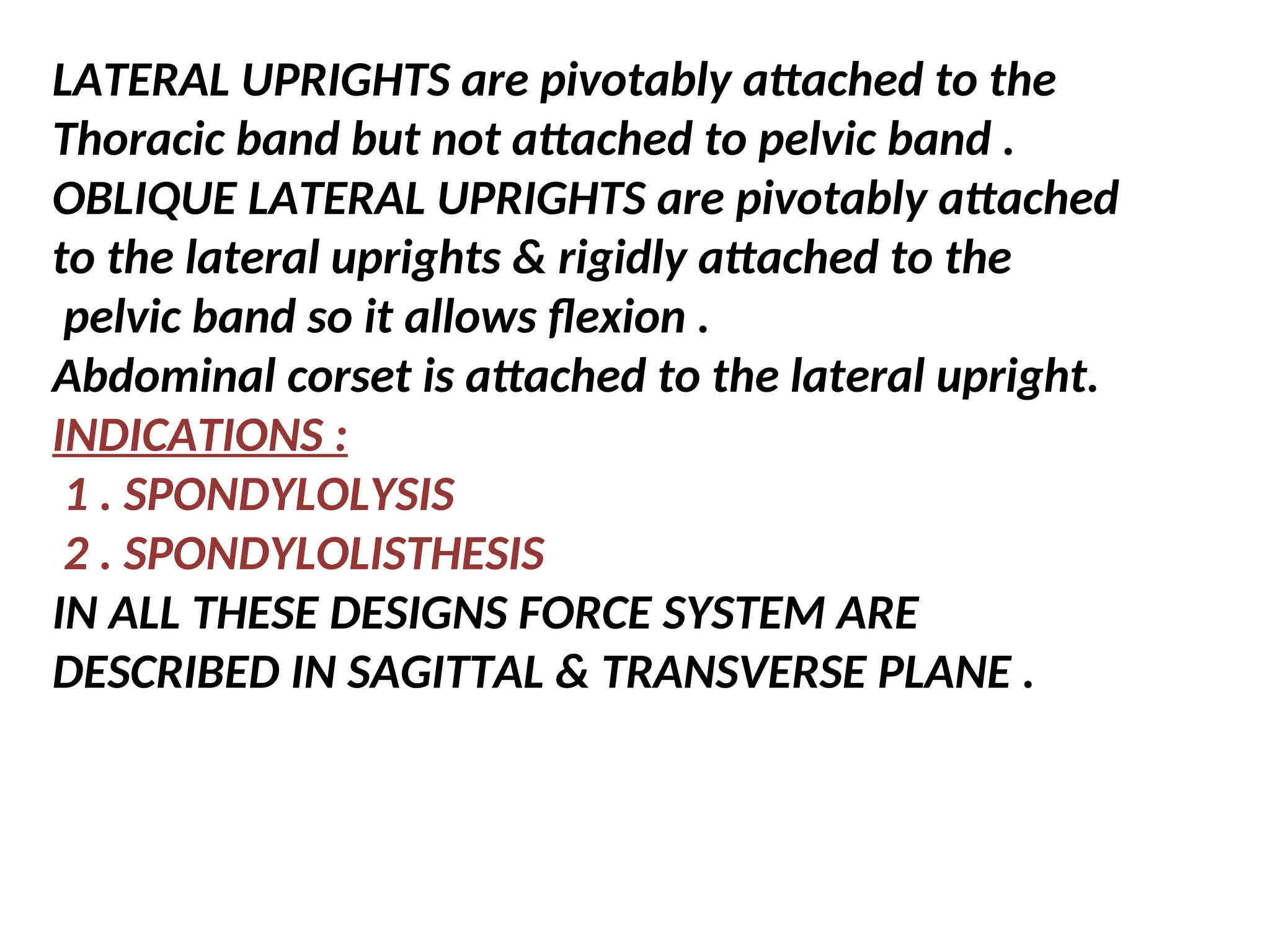

87. LATERAL UPRIGHTS are pivotably attached to the
Thoracic band but not attached to pelvic band .
OBLIQUE LATERAL UPRIGHTS are pivotably attached
to the lateral uprights & rigidly attached to the
pelvic band so it allows flexion .
Abdominal corset is attached to the lateral upright.
INDICATIONS :
1 . SPONDYLOLYSIS
2 . SPONDYLOLISTHESIS
IN ALL THESE DESIGNS FORCE SYSTEM ARE
DESCRIBED IN SAGITTAL & TRANSVERSE PLANE .

89. DESIGN
MOVE
MENTS
F E LF R F E LF R
CHAIR-
BACK
S S S - S - S S S - S -
KNIGHT S S S S - S S S S -
WILLIAM F S S S - F S S S -
CONTROL IN
LUMBER AREA
CONTROL IN LUMBO
SACRAL AREA
COMPARATIVE STUDY OF ORTHOSIS MOTION CONTROL :
F : NO RESTRICTION , S : RESTRICTED MOTION
S- : INTERMEDIATE DEGREE OF MOTION CONTROL

90. THORACO LUMBAR F – E CONTORL ORTHOSIS
(TAYLORS BRACE)
• COMPONENTS :
1. PELVIC BAND
2. TWO THORACOLUMBAR POSTERIOR UPRIGHTS
3. INTERSCAPULAR BAND
4. ABDOMINAL CORSET
5. AXILLARY STRAPS
Thoracolumbar posterior uprights extends up to
the spine of scapula & gives attachment to axillary
straps & interscapular bands .

91. FUNCTIONS :
1 . FLEXION CONTROL FORCE SYSTEM :
Posteriorly directed force from axillary strap &
pelvic strap counteracted by anteriorly directed
force from posterior uprights .
2 . EXTENSION CONROL FORCE SYSTEM :
Posteriorly directed force from abdominal corset
counter acted by anteriorly directed force pelvic band &
interscapular band .
3 . Increases intraabdominal pressure .
4 . If forces are of sufficient magnitude they help
to maintain hyperextension posture .

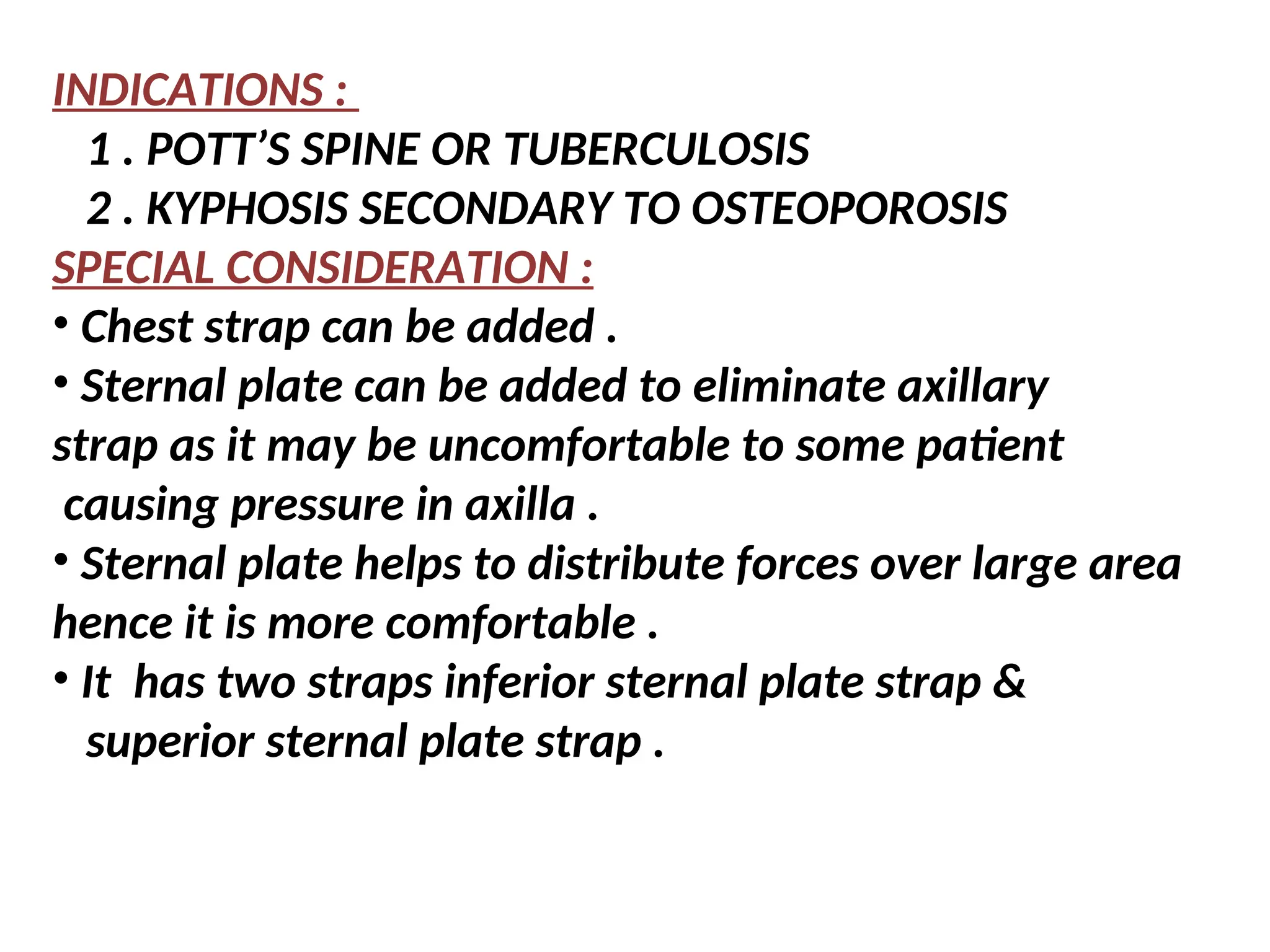

93. INDICATIONS :
1 . POTT’S SPINE OR TUBERCULOSIS
2 . KYPHOSIS SECONDARY TO OSTEOPOROSIS
SPECIAL CONSIDERATION :
• Chest strap can be added .
• Sternal plate can be added to eliminate axillary
strap as it may be uncomfortable to some patient
causing pressure in axilla .
• Sternal plate helps to distribute forces over large area
hence it is more comfortable .
• It has two straps inferior sternal plate strap &
superior sternal plate strap .

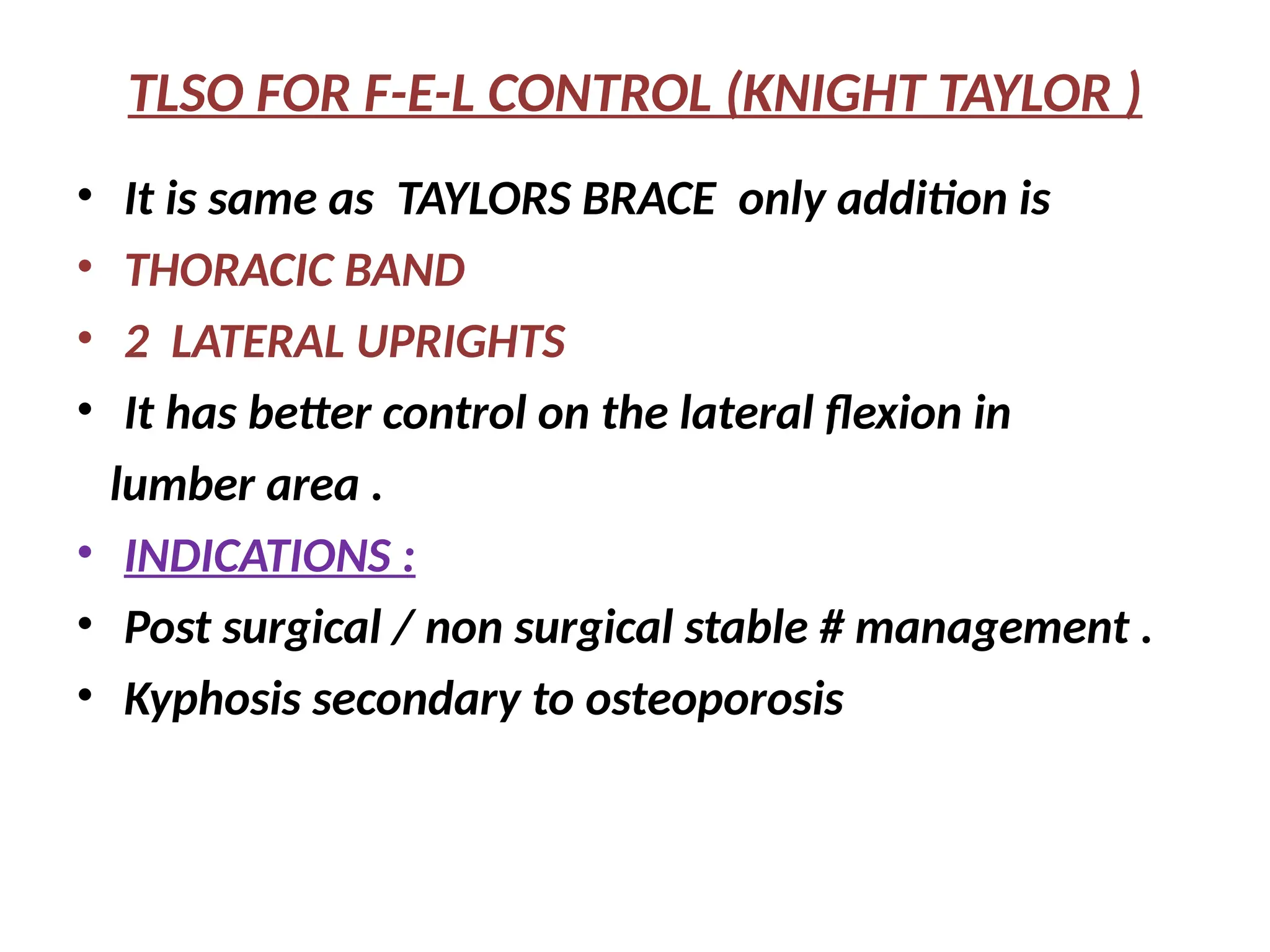

94. TLSO FOR F-E-L CONTROL (KNIGHT TAYLOR )
• It is same as TAYLORS BRACE only addition is
• THORACIC BAND
• 2 LATERAL UPRIGHTS
• It has better control on the lateral flexion in
lumber area .
• INDICATIONS :
• Post surgical / non surgical stable # management .
• Kyphosis secondary to osteoporosis

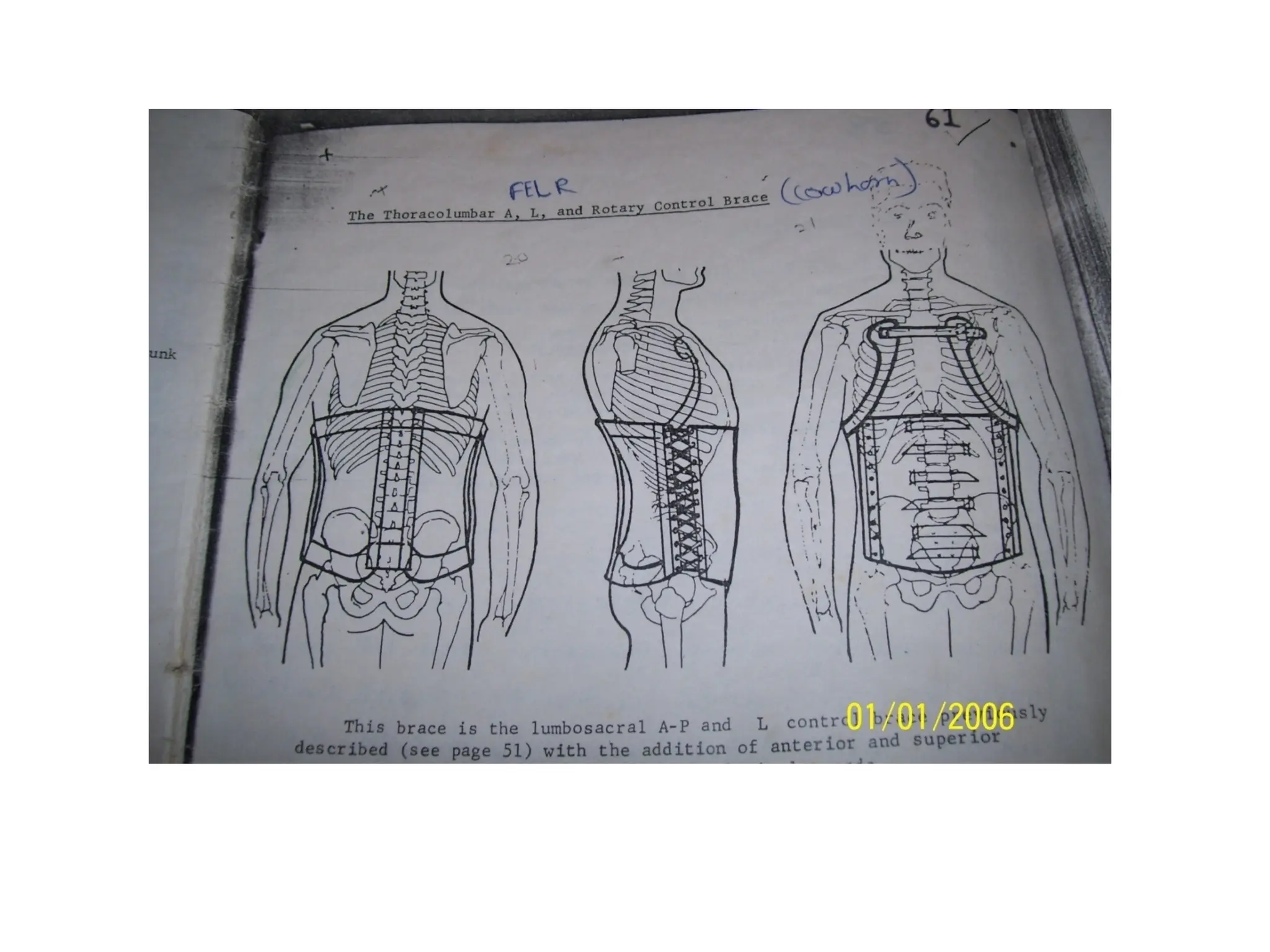

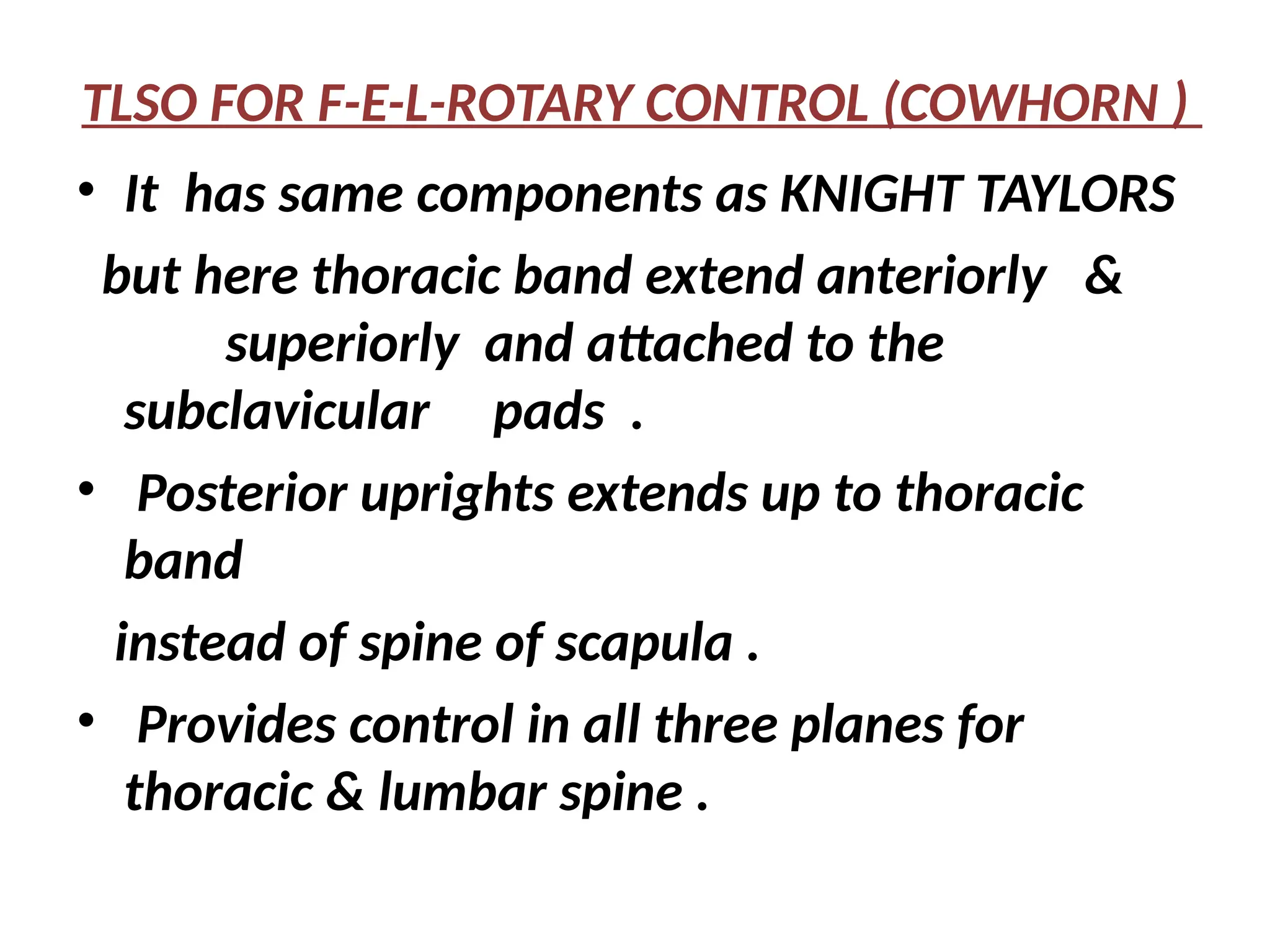

95. TLSO FOR F-E-L-ROTARY CONTROL (COWHORN )
• It has same components as KNIGHT TAYLORS
but here thoracic band extend anteriorly &
superiorly and attached to the
subclavicular pads .
• Posterior uprights extends up to thoracic
band
instead of spine of scapula .
• Provides control in all three planes for
thoracic & lumbar spine .

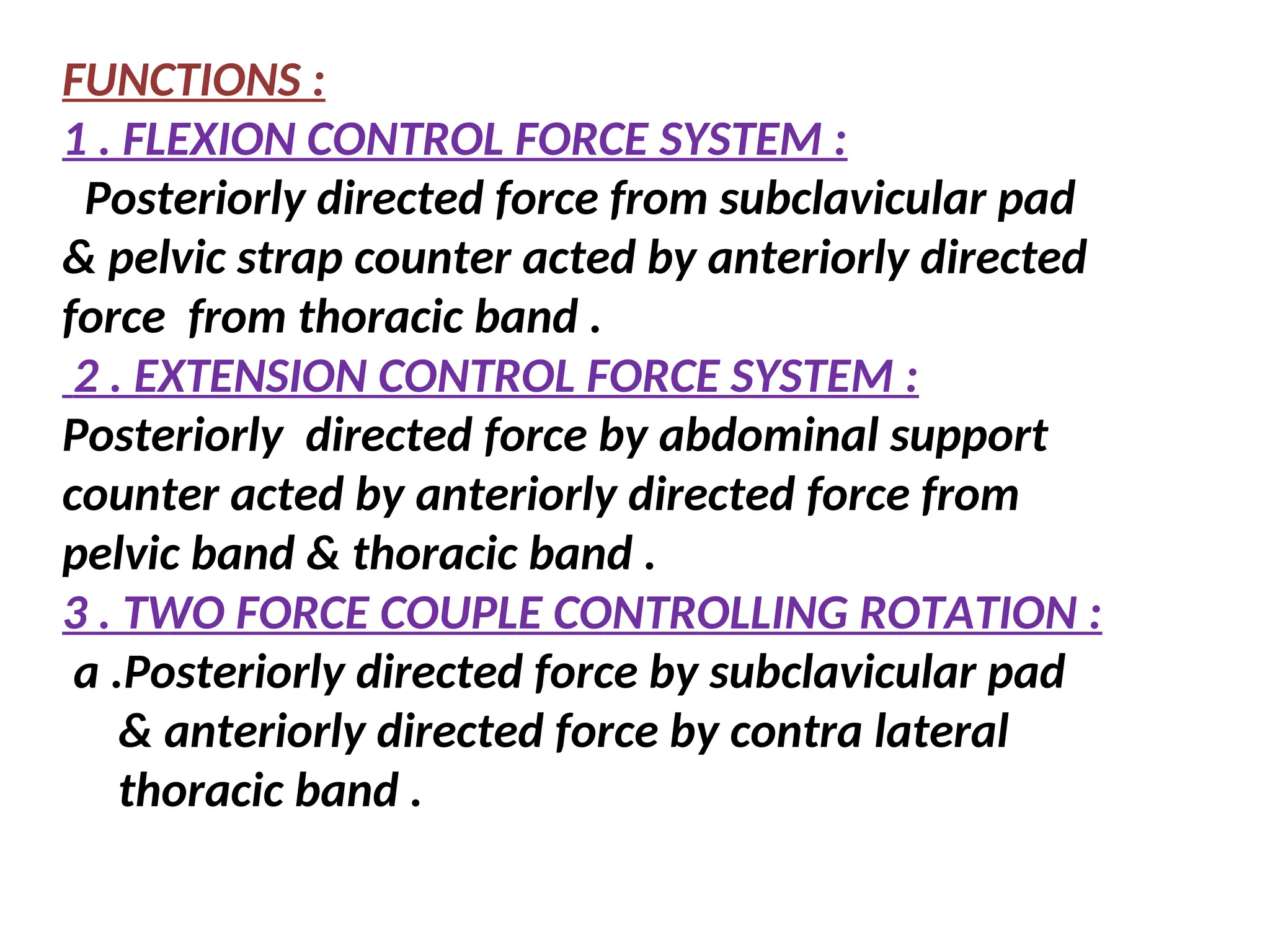

97. FUNCTIONS :
1 . FLEXION CONTROL FORCE SYSTEM :
Posteriorly directed force from subclavicular pad
& pelvic strap counter acted by anteriorly directed
force from thoracic band .
2 . EXTENSION CONTROL FORCE SYSTEM :
Posteriorly directed force by abdominal support
counter acted by anteriorly directed force from
pelvic band & thoracic band .
3 . TWO FORCE COUPLE CONTROLLING ROTATION :
a .Posteriorly directed force by subclavicular pad
& anteriorly directed force by contra lateral
thoracic band .

98. b . Posteriorly directed force by one side of pelvic
strap & opposite side of subclavicular pad &
anteriorly directed force by pelvic band .
c . This pressure system tends to limit axial
rotation occurring in the thoracic & lumbar spine .
d . Lateral uprights provides lateral flexion control
in lumbar spine .
INDICATIONS :
# in low thoracic & lumbar spines .

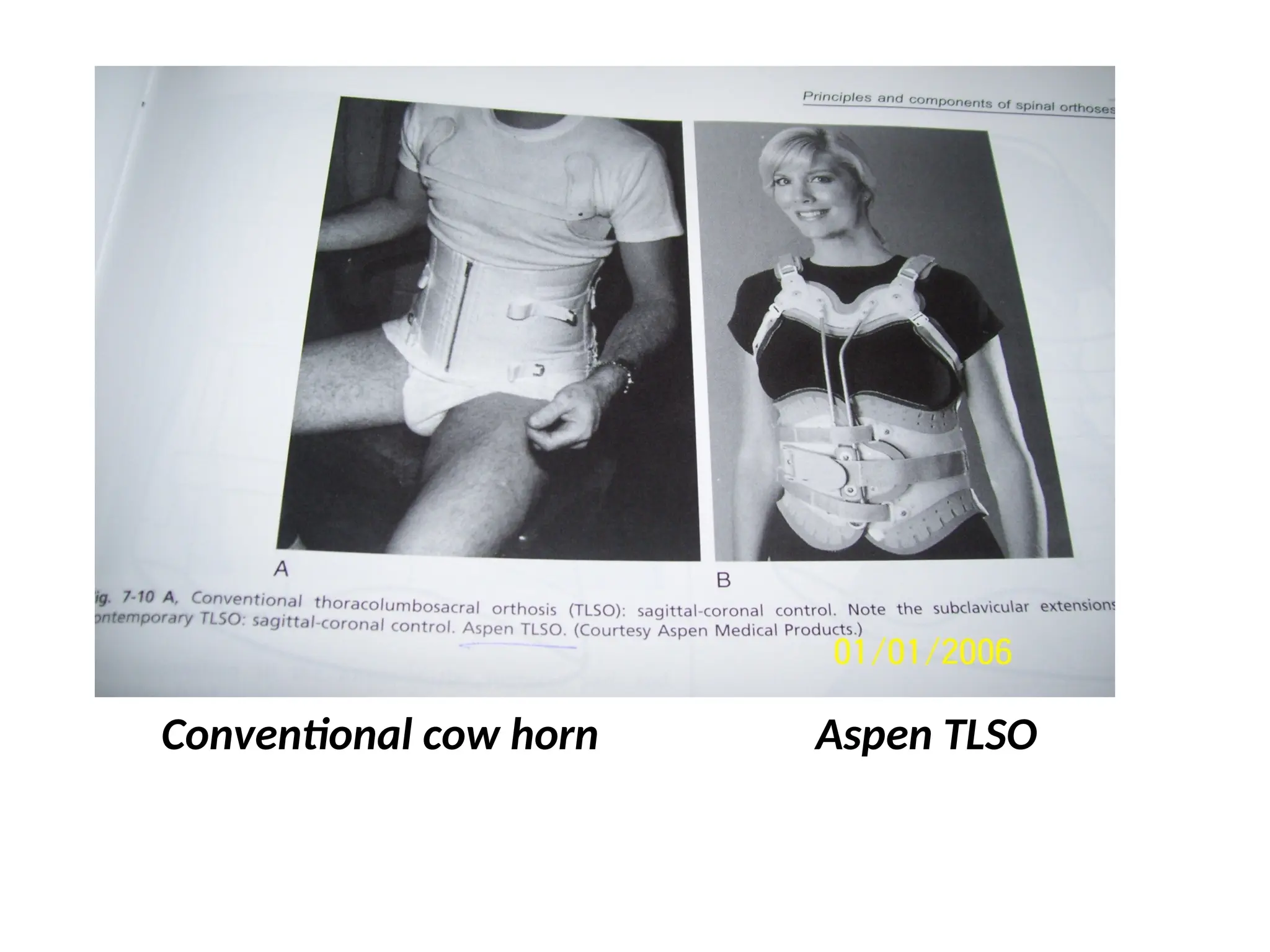

99. Conventional cow horn Aspen TLSO

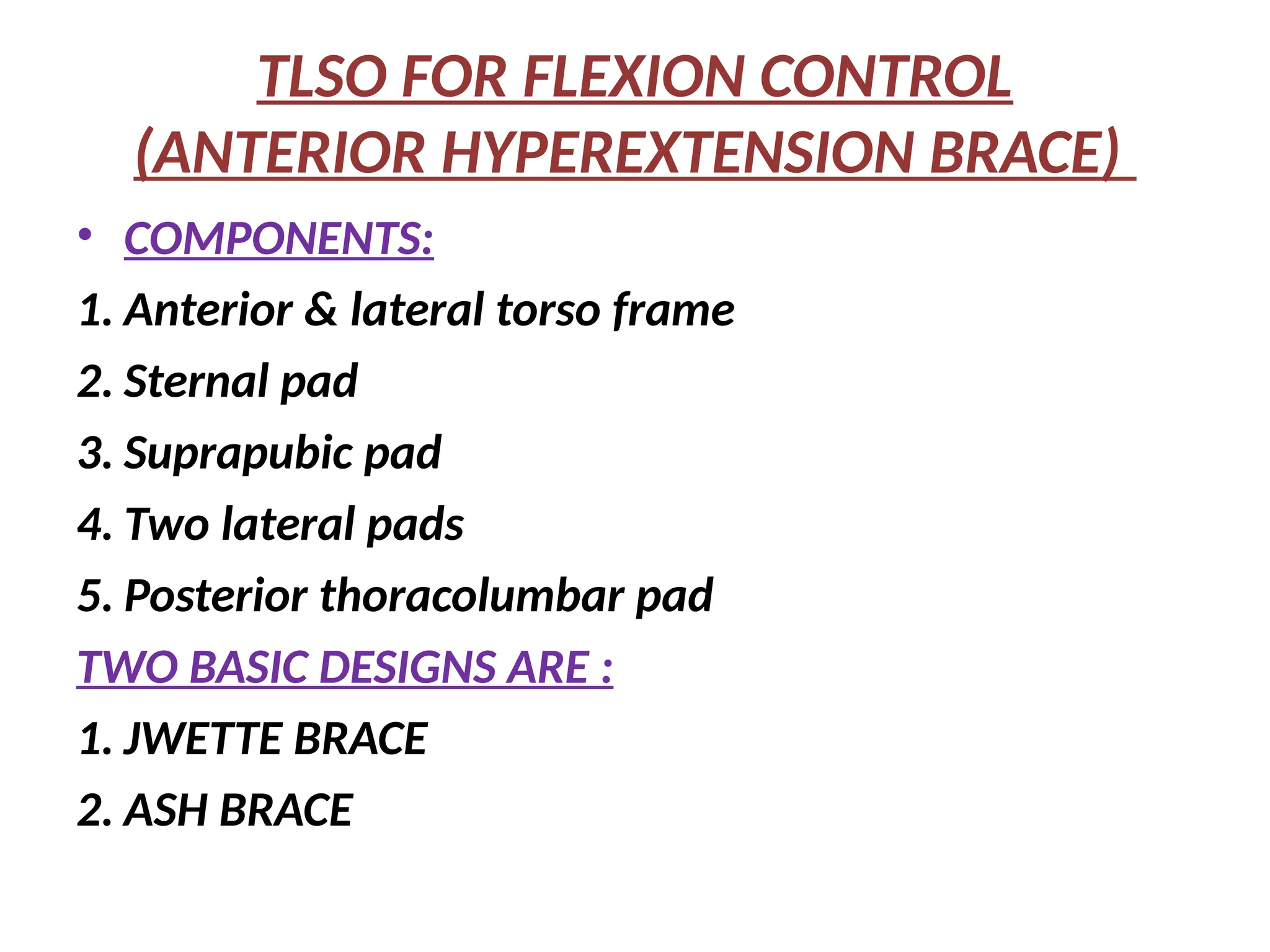

100. TLSO FOR FLEXION CONTROL
(ANTERIOR HYPEREXTENSION BRACE)
• COMPONENTS:
1. Anterior & lateral torso frame
2. Sternal pad
3. Suprapubic pad
4. Two lateral pads
5. Posterior thoracolumbar pad
TWO BASIC DESIGNS ARE :
1. JWETTE BRACE
2. ASH BRACE

101. JWETTE BRACE
In ASH BRACE anterior lateral torso frame is
replaced by + sign upright to make it more
sophisticated & cosmetically accepted .

103. ANATOMICAL POSITION OF COMPONENTS :
1 .STERNAL PAD :
Superior border lies 1/2 “ below sternal notch
with sitting comfort .
2 . SUPRAPUBIC PAD :
Inferior border lies 1/2 “ above the pubic symphysis
Lateral border passes medial to the ASIS
3 . LATERAL PADS :
Lies along the lateral midlines of the body
Starts at iliac crest & cover lower rib cage .
4 . THORACOLUMBER PAD :
Posteriorly covers thoracolumbar area .

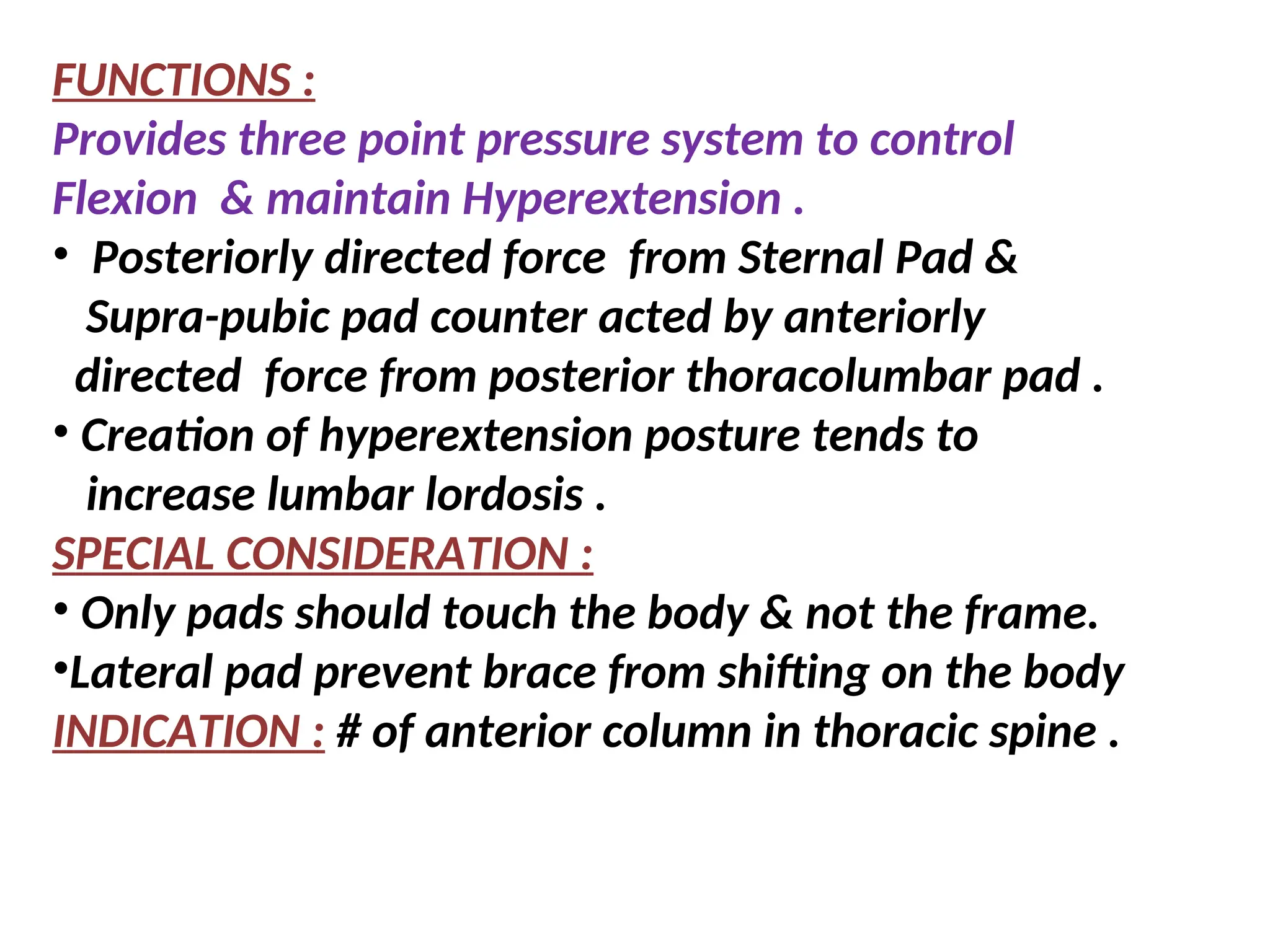

104. FUNCTIONS :
Provides three point pressure system to control
Flexion & maintain Hyperextension .
• Posteriorly directed force from Sternal Pad &
Supra-pubic pad counter acted by anteriorly
directed force from posterior thoracolumbar pad .
• Creation of hyperextension posture tends to
increase lumbar lordosis .
SPECIAL CONSIDERATION :
• Only pads should touch the body & not the frame.
•Lateral pad prevent brace from shifting on the body
INDICATION : # of anterior column in thoracic spine .

105. PLASTIC MOULDED BODY JACKET
• It can be CTLSO , TLSO , LSO
• Effective in maintaining trunk alignment
• Provides total contact expect for bony prominences .
• CTLSO & TLSO gives triplaner control .
• LSO gives sagittal & coronal plane control .
• Anterior & lateral trunk containment elevates intra
cavitary pressure .
• Limits thoracolumbar rotation .

107. THORACIC LUMBER LS
CONTROL F E LF R F E LF R F E LF R
CHAIR BACK - - - - S S S- S- S S S- S-
KNIGHT LSO - - - - S S S S- S S S S-
WILLIAMS - - - - F S S S- F S S S-
TAYLORS S- S- F F S- S- F F CI CI F F
KNIGHT
TAYLORS
S- S- S- F S S S S- CI CI S S-
COWHORN S F S- S S S S S CI S S S
ASH BRACE S F F/
S-
F/S- S F F/
S-
F/
S-
S- F F/
S-
F/
S-
F = NO RESTRICTION OF MOTION
S = CLINICALLY SIGNIFICANT RESRICTED MOTION
S- = INTERMEDIATED DEGREE OF MOTION RESTRICTION
CI = COMPENSATORY INCREASE IN MOTION

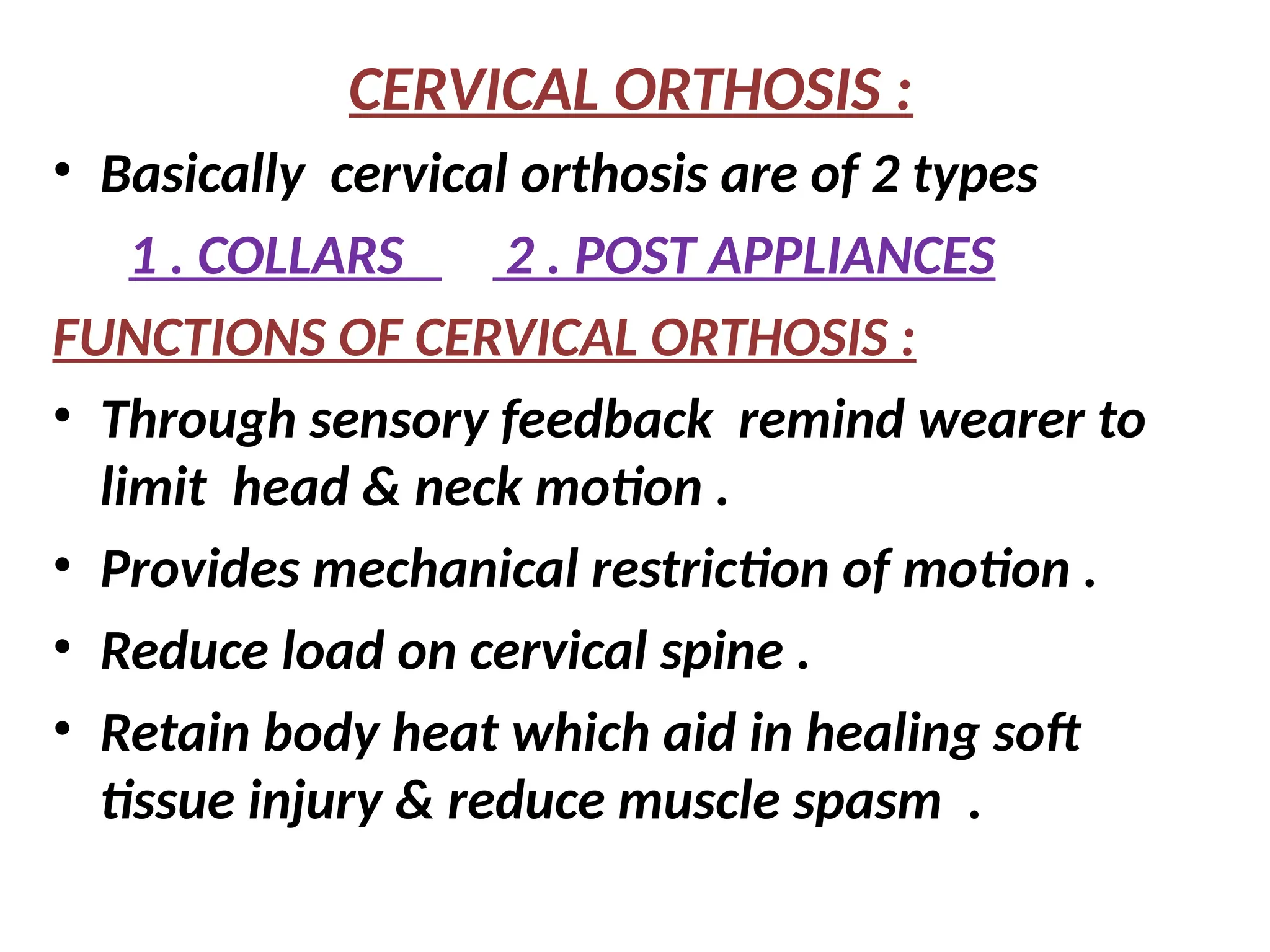

108. CERVICAL ORTHOSIS :
• Basically cervical orthosis are of 2 types
1 . COLLARS 2 . POST APPLIANCES
FUNCTIONS OF CERVICAL ORTHOSIS :
• Through sensory feedback remind wearer to
limit head & neck motion .
• Provides mechanical restriction of motion .
• Reduce load on cervical spine .
• Retain body heat which aid in healing soft
tissue injury & reduce muscle spasm .

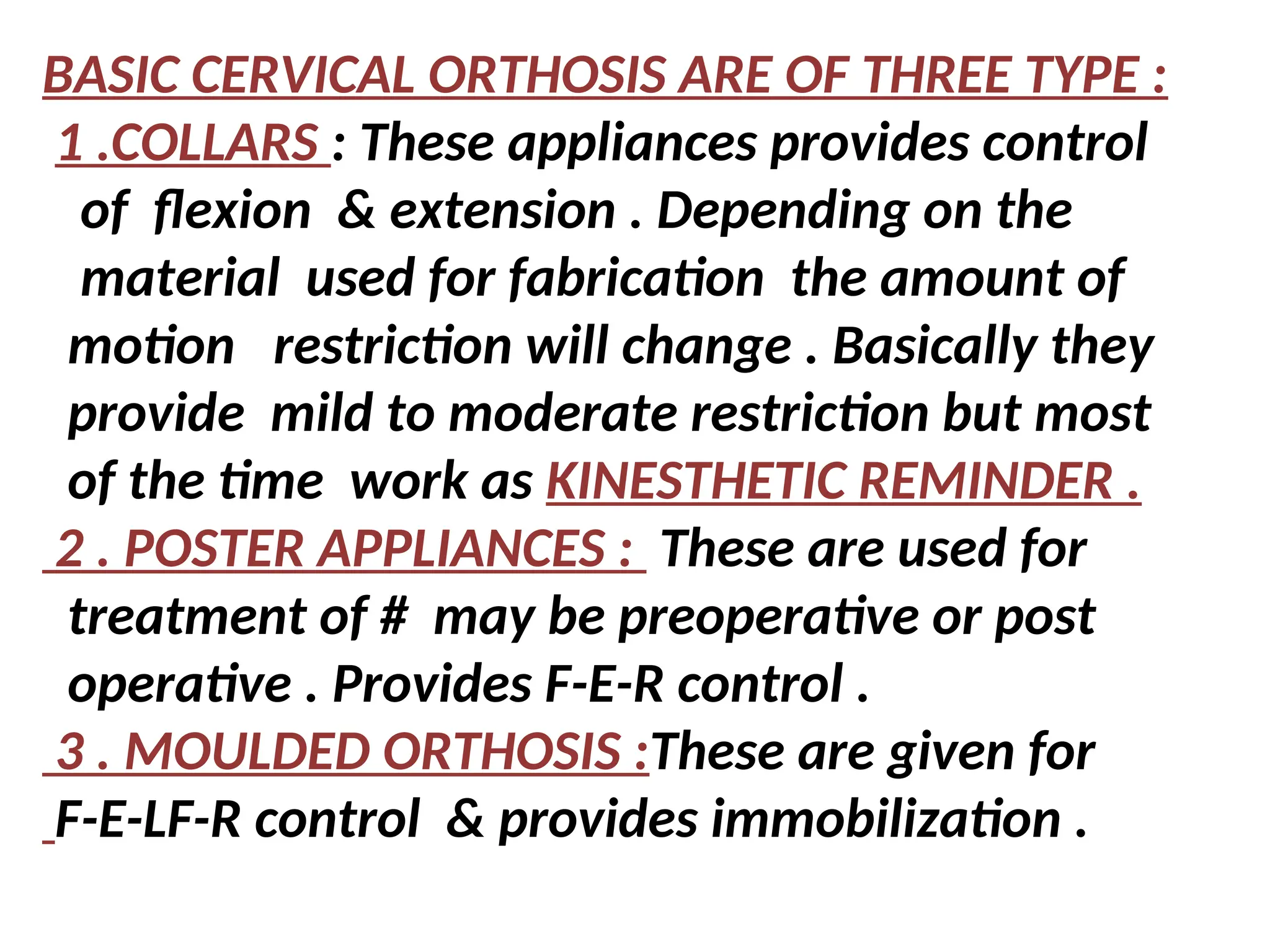

109. BASIC CERVICAL ORTHOSIS ARE OF THREE TYPE :
1 .COLLARS : These appliances provides control
of flexion & extension . Depending on the
material used for fabrication the amount of
motion restriction will change . Basically they
provide mild to moderate restriction but most
of the time work as KINESTHETIC REMINDER .
2 . POSTER APPLIANCES : These are used for
treatment of # may be preoperative or post
operative . Provides F-E-R control .
3 . MOULDED ORTHOSIS :These are given for
F-E-LF-R control & provides immobilization .

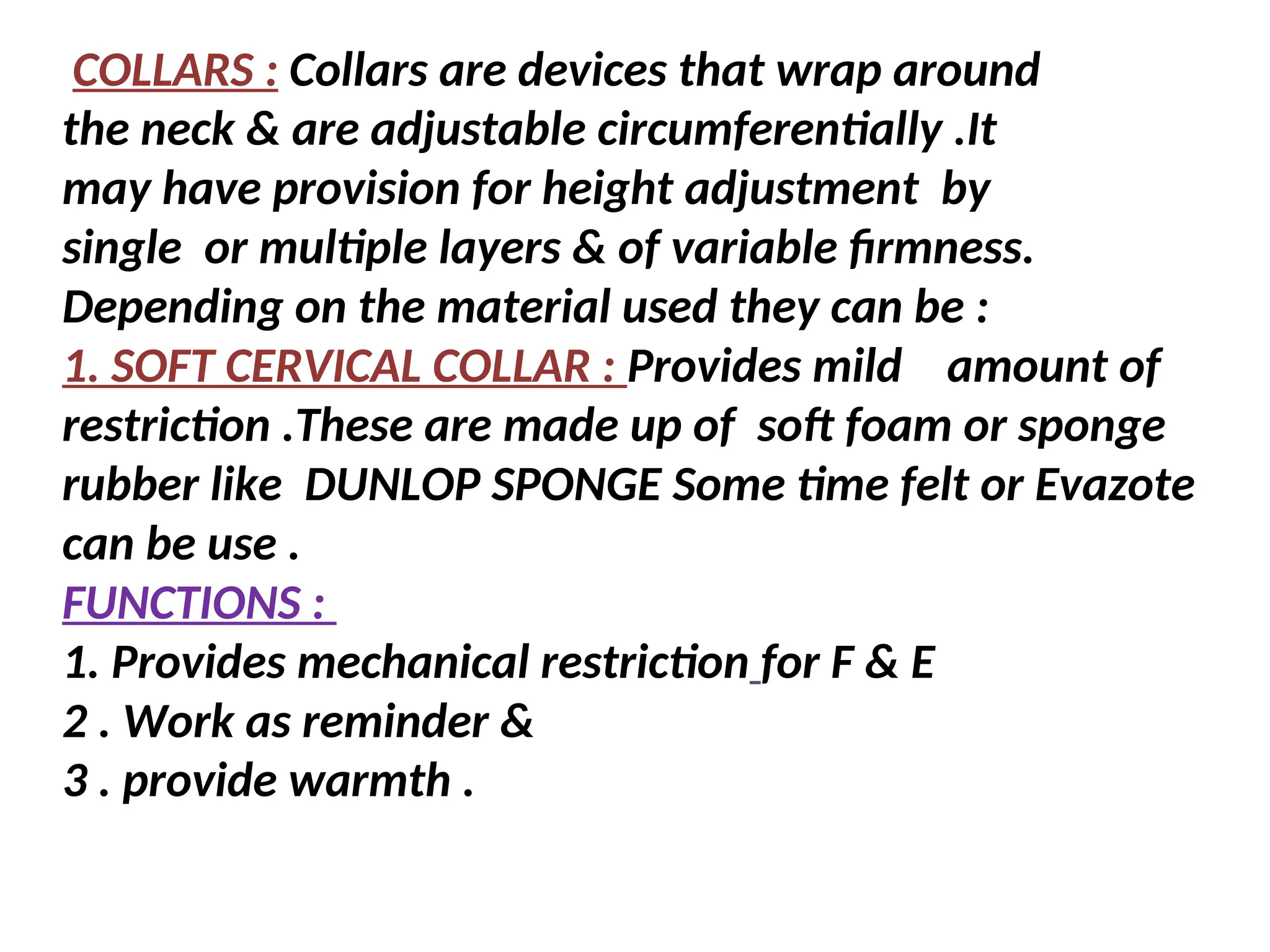

110. COLLARS : Collars are devices that wrap around
the neck & are adjustable circumferentially .It
may have provision for height adjustment by
single or multiple layers & of variable firmness.
Depending on the material used they can be :
1. SOFT CERVICAL COLLAR : Provides mild amount of
restriction .These are made up of soft foam or sponge
rubber like DUNLOP SPONGE Some time felt or Evazote
can be use .
FUNCTIONS :
1. Provides mechanical restriction for F & E
2 . Work as reminder &
3 . provide warmth .

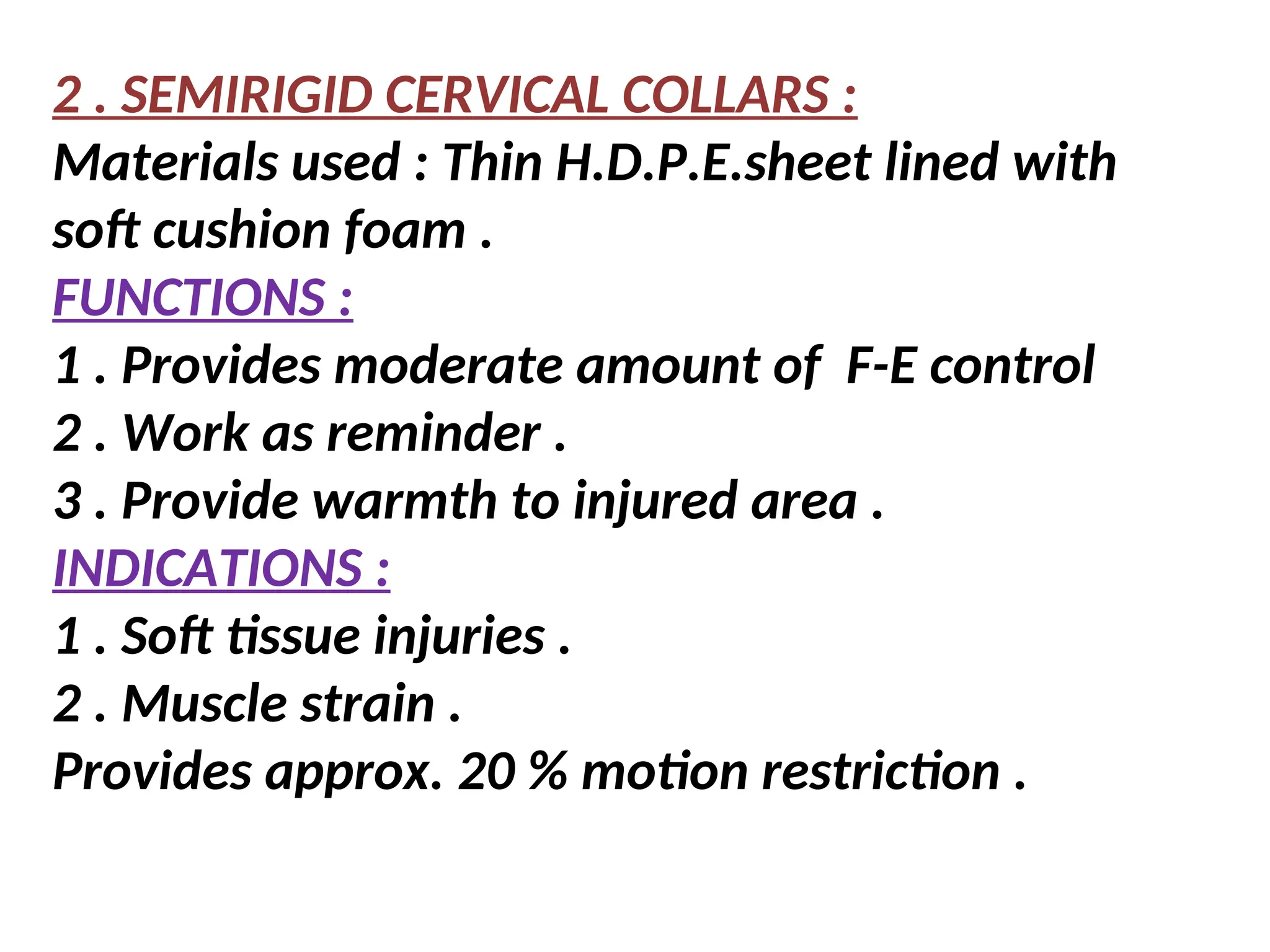

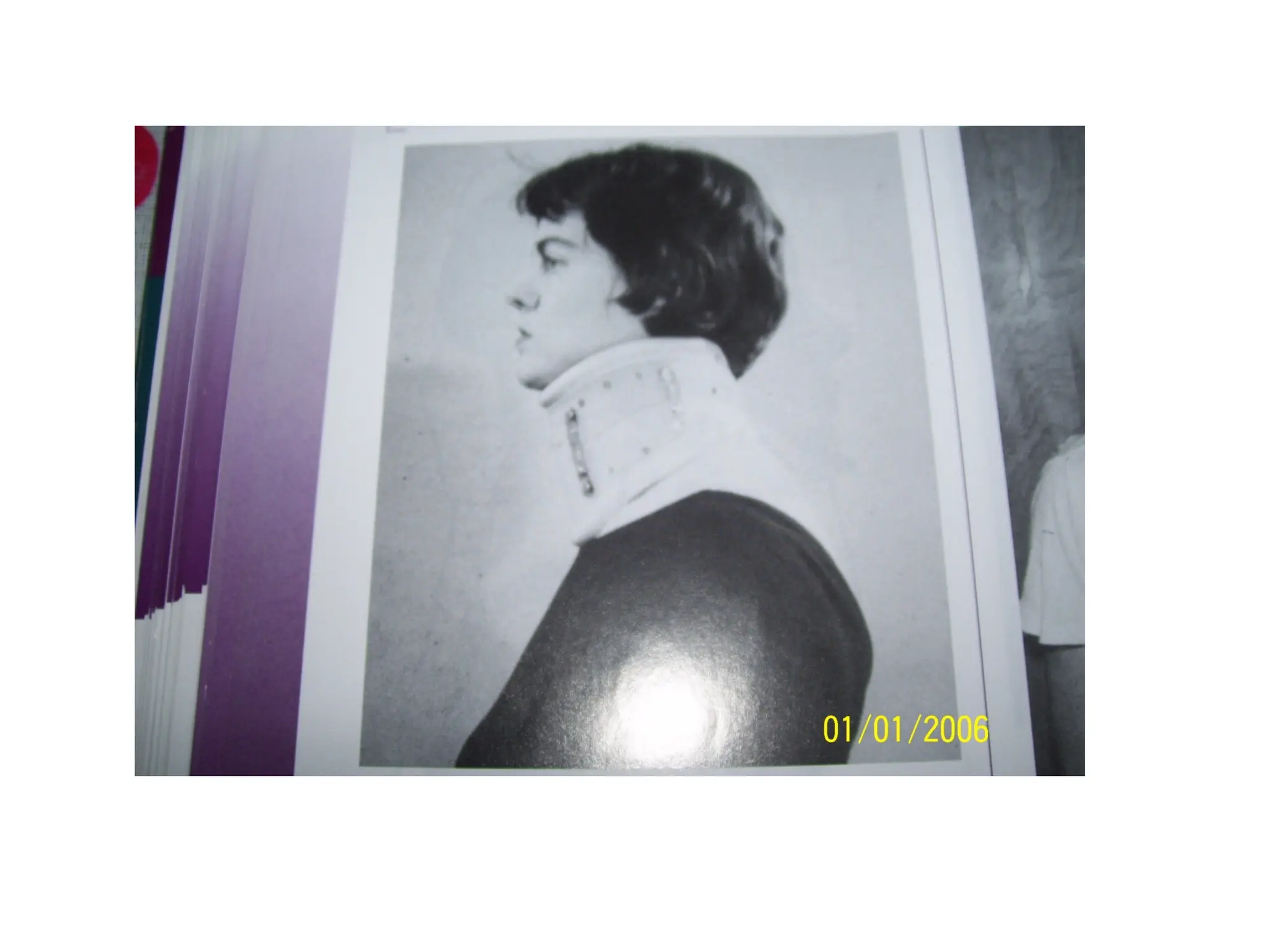

112. 2 . SEMIRIGID CERVICAL COLLARS :
Materials used : Thin H.D.P.E.sheet lined with
soft cushion foam .
FUNCTIONS :
1 . Provides moderate amount of F-E control
2 . Work as reminder .
3 . Provide warmth to injured area .
INDICATIONS :
1 . Soft tissue injuries .
2 . Muscle strain .
Provides approx. 20 % motion restriction .

114. 3 . PHILADELPHIA COLLAR :
• It is made up of polyethylene foam with
rigid anterior & posterior plastic strips .
• Covers more of the head & neck .
• Superiorly extends over the mandible & at the
occipital level & inferiorly covers proximal thorax
INDICATIONS:
1 .Sprain/strain
2 . Stable mid Cervical injury .
3.Stable bony & ligamentous injury .

116. ADVANTAGES :
1 . Bihalved & has velcro adjustment ideal
for bed ridden patients .
2 . Easy donning & doffing .
3 . Restrict gross flexion & extension .
4. Now a days available prefabricated .
DISADVANTAGES :
1 . Less effective in controlling rotation &
lateral flexion .
2 . Discomfort able to cardiovascular &
respiratory dysfunction patient .
3 . Requires skill for fabrication .
4. Cost is more .

117. 4 . FOUR POSTER COLLAR :
• It is a poster appliance which provides
F-E-LF-R control .

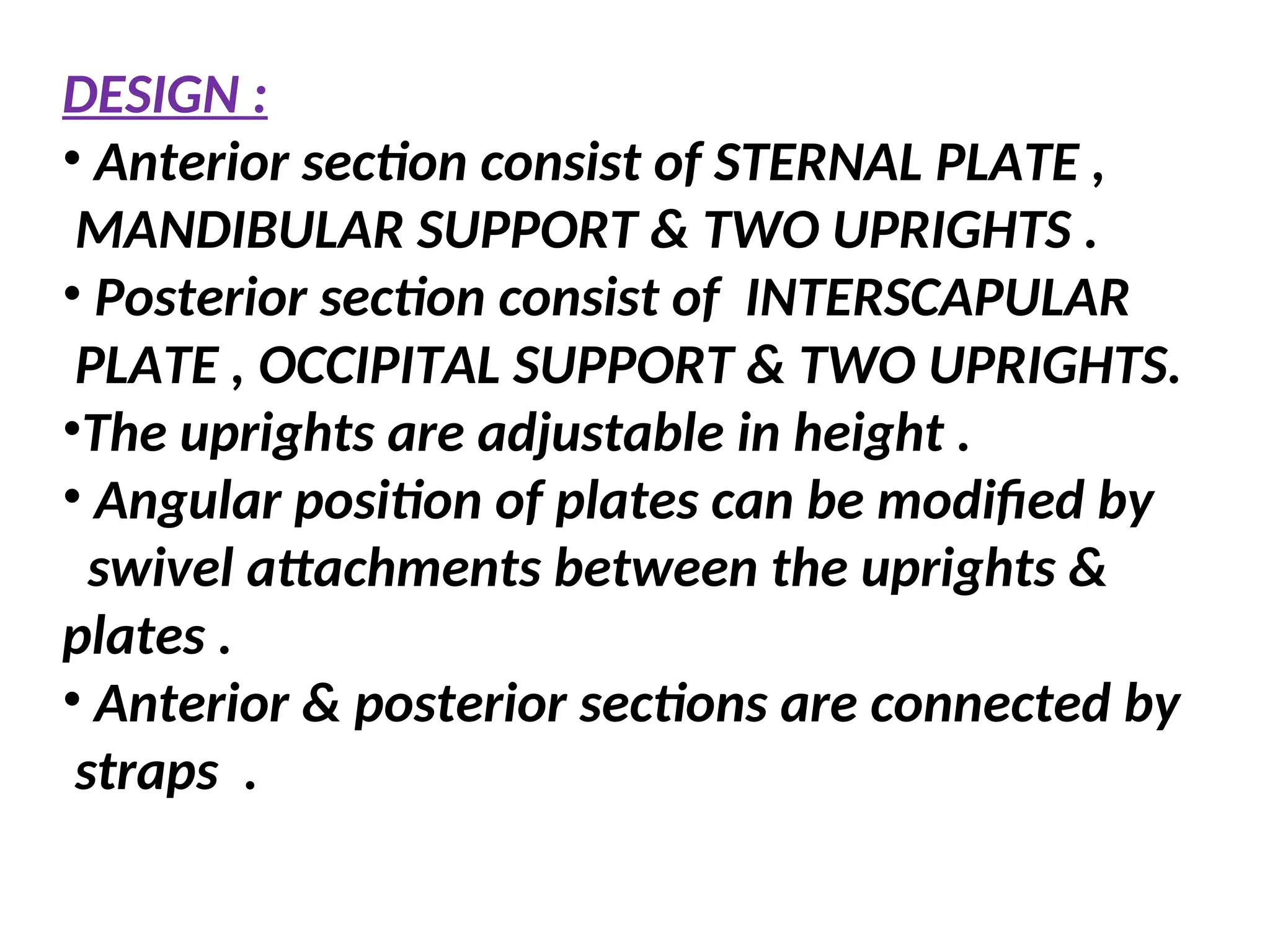

118. DESIGN :
• Anterior section consist of STERNAL PLATE ,
MANDIBULAR SUPPORT & TWO UPRIGHTS .
• Posterior section consist of INTERSCAPULAR
PLATE , OCCIPITAL SUPPORT & TWO UPRIGHTS.
•The uprights are adjustable in height .
• Angular position of plates can be modified by
swivel attachments between the uprights &
plates .
• Anterior & posterior sections are connected by
straps .

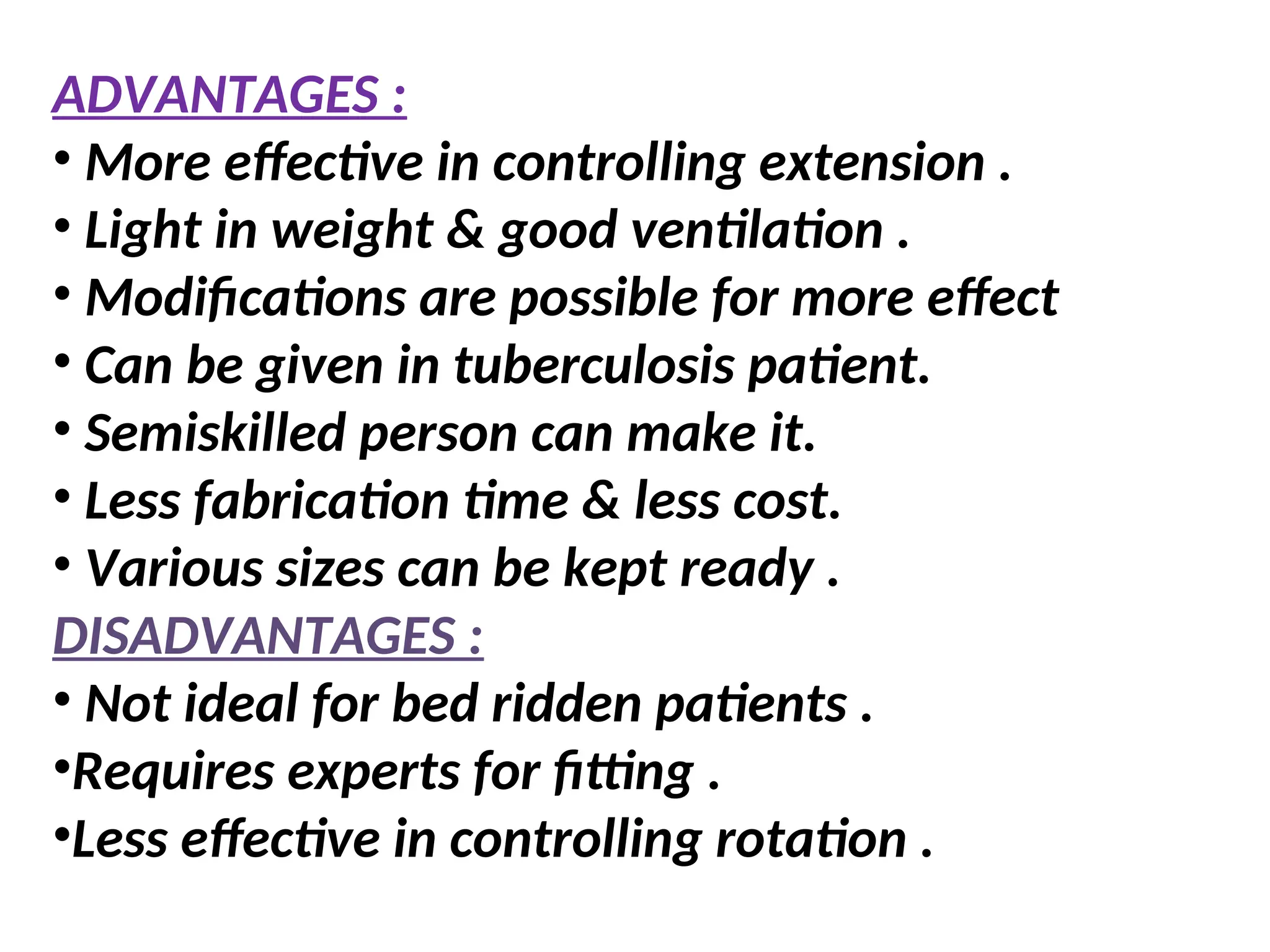

120. ADVANTAGES :
• More effective in controlling extension .
• Light in weight & good ventilation .
• Modifications are possible for more effect
• Can be given in tuberculosis patient.
• Semiskilled person can make it.
• Less fabrication time & less cost.
• Various sizes can be kept ready .
DISADVANTAGES :
• Not ideal for bed ridden patients .
•Requires experts for fitting .
•Less effective in controlling rotation .

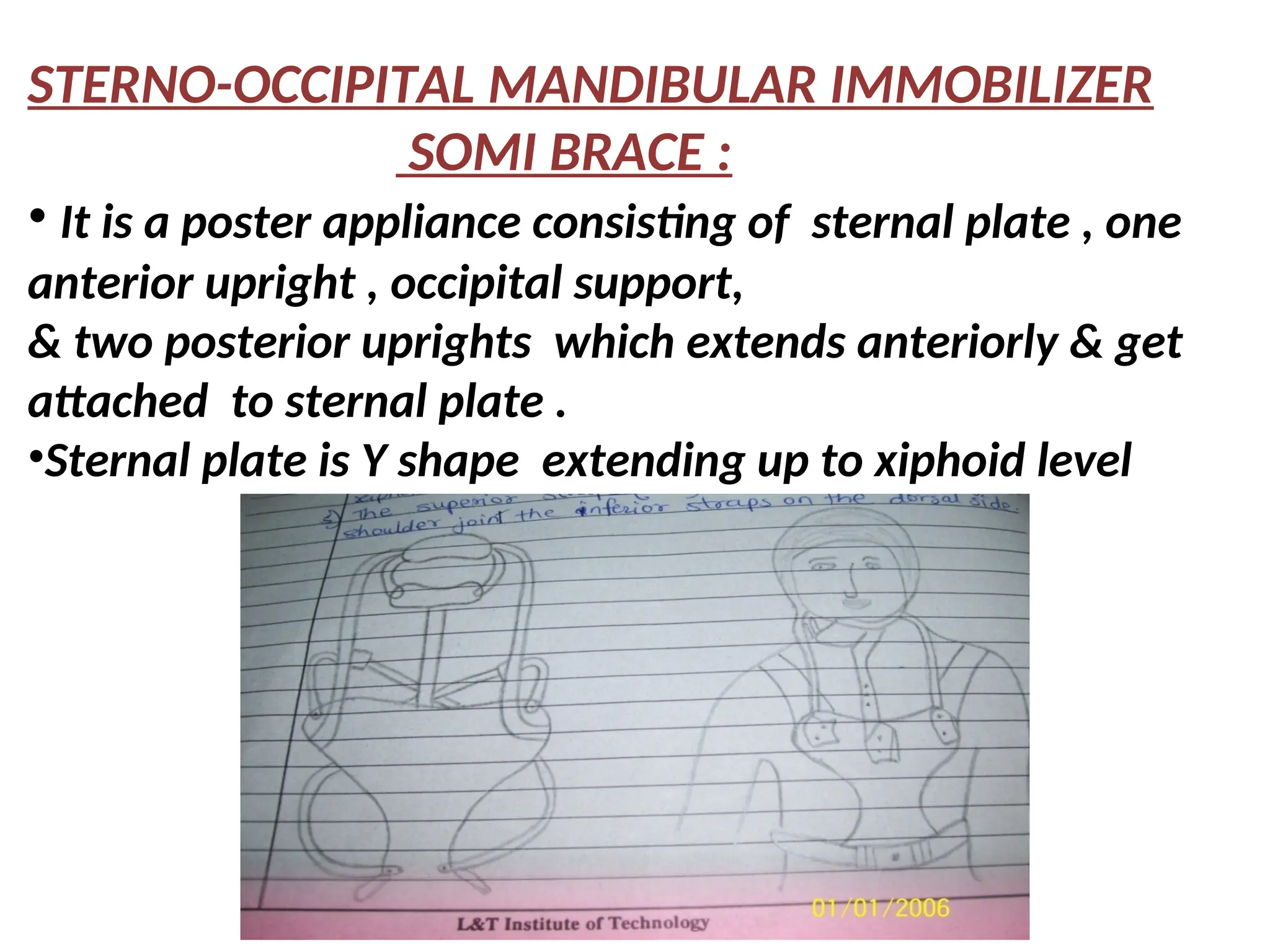

121. STERNO-OCCIPITAL MANDIBULAR IMMOBILIZER
SOMI BRACE :
• It is a poster appliance consisting of sternal plate , one
anterior upright , occipital support,
& two posterior uprights which extends anteriorly & get
attached to sternal plate .
•Sternal plate is Y shape extending up to xiphoid level

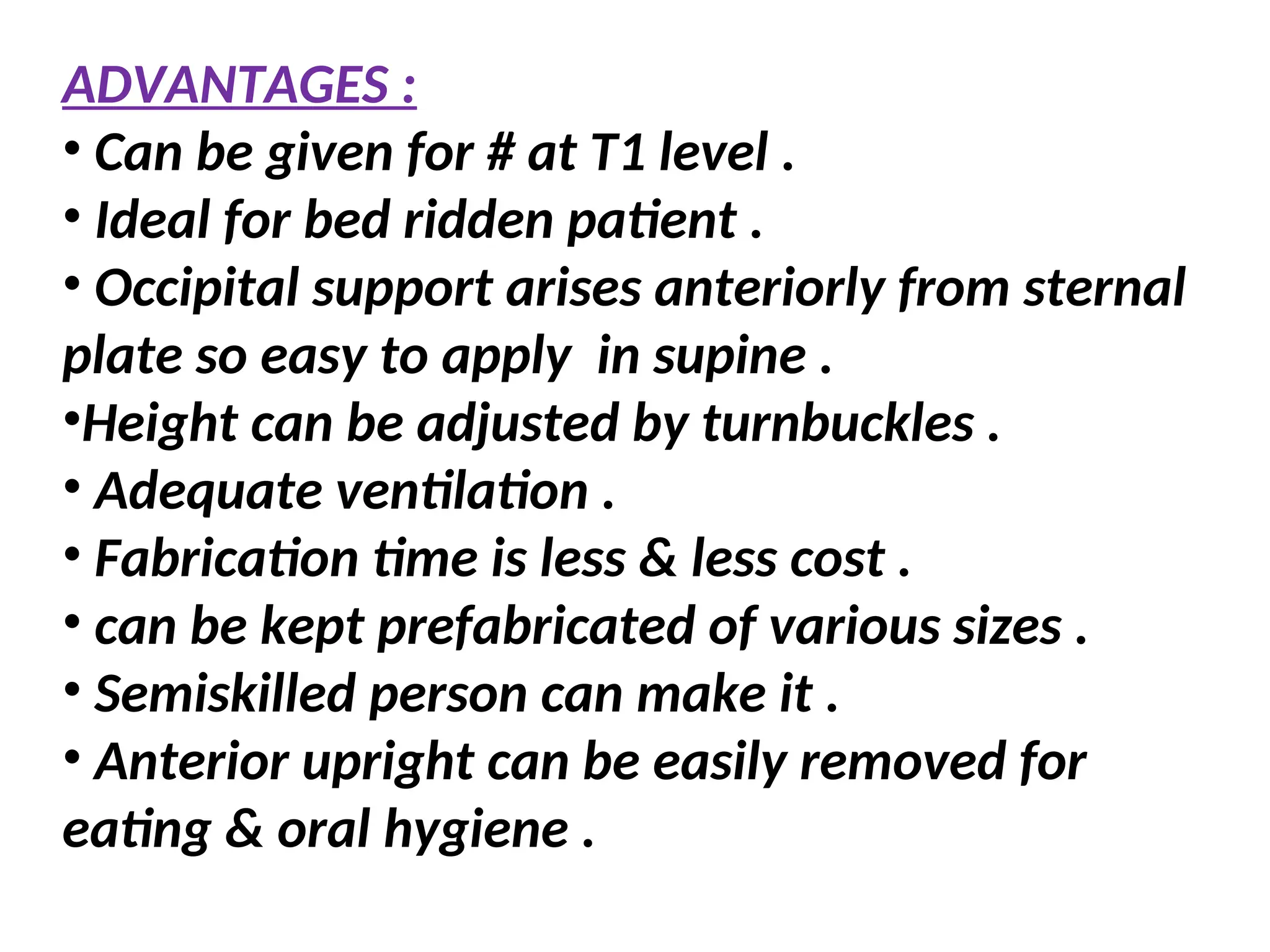

122. ADVANTAGES :
• Can be given for # at T1 level .
• Ideal for bed ridden patient .
• Occipital support arises anteriorly from sternal
plate so easy to apply in supine .
•Height can be adjusted by turnbuckles .
• Adequate ventilation .
• Fabrication time is less & less cost .
• can be kept prefabricated of various sizes .
• Semiskilled person can make it .
• Anterior upright can be easily removed for
eating & oral hygiene .

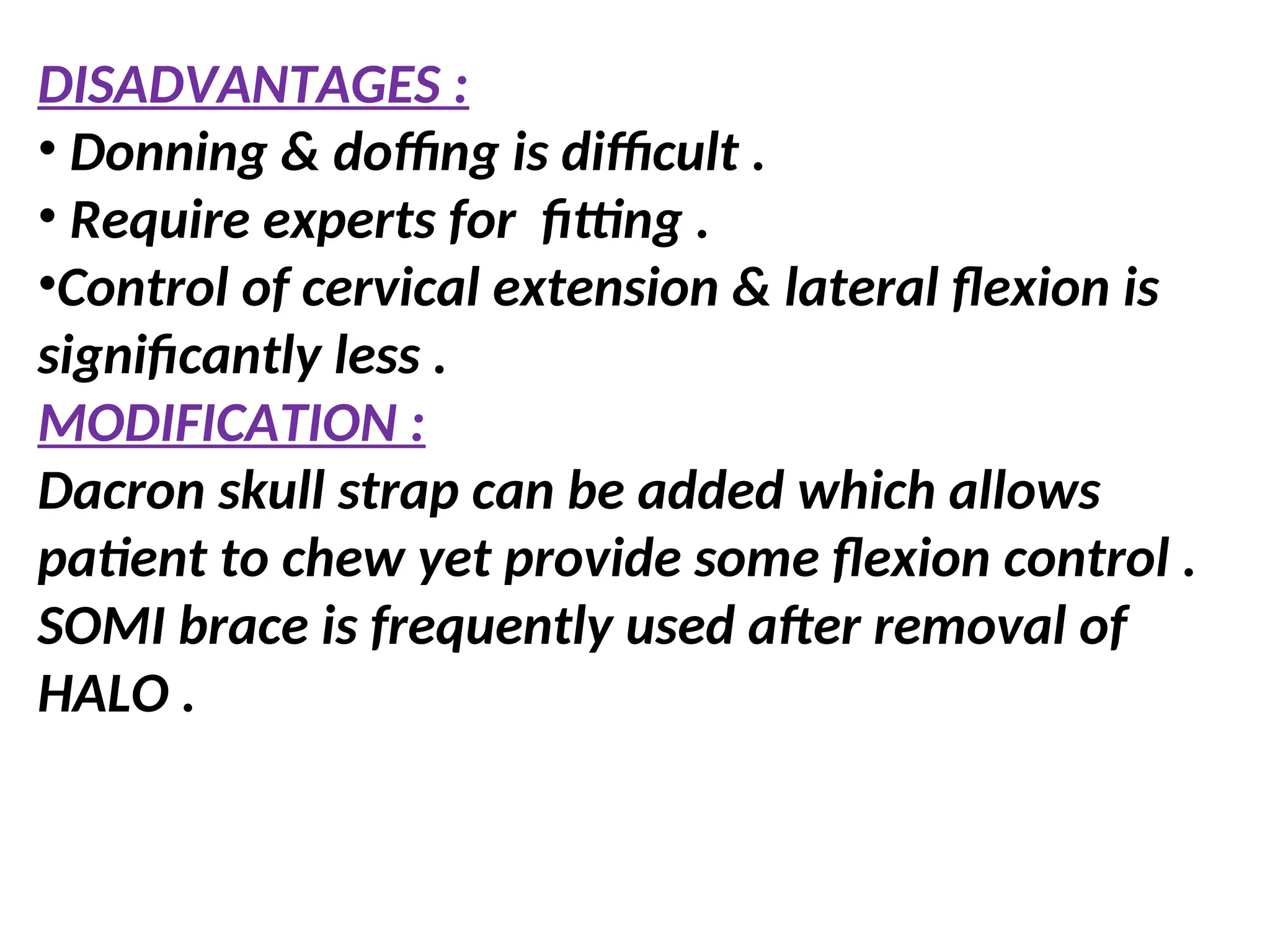

123. DISADVANTAGES :
• Donning & doffing is difficult .
• Require experts for fitting .
•Control of cervical extension & lateral flexion is
significantly less .
MODIFICATION :
Dacron skull strap can be added which allows
patient to chew yet provide some flexion control .
SOMI brace is frequently used after removal of
HALO .

125. CUSTOM MOULDED CERVICAL ORTHOSIS:
• It markedly restrict all neck motions .
• Can also restrict thoracic motion if extended
down on thorax .
• Extension beyond upper thorax are classified
as Cervico-Thoracic Orthosis .
• They are of two types :
1 . CUIRASS TYPE 2 . MINERVA TYPE
• It can be made up of high temperature or
low temperature thermoplastics .

126. 1 . CUIRASS TYPE :
In this type orthosis extends superiorly over the
chin & covers mandible & occiput .
Inferior border extend 1” above the inferior angle
of scapula or inferior costal line depending on the
degrees of control required
2 . MINERVA TYPE :
In this entire posterior skull is enclosed in the
orthosis & band is provided around forehead
Lower border extends up to inferior costal margin
& for greater control may be extended as a pelvic
girdle .

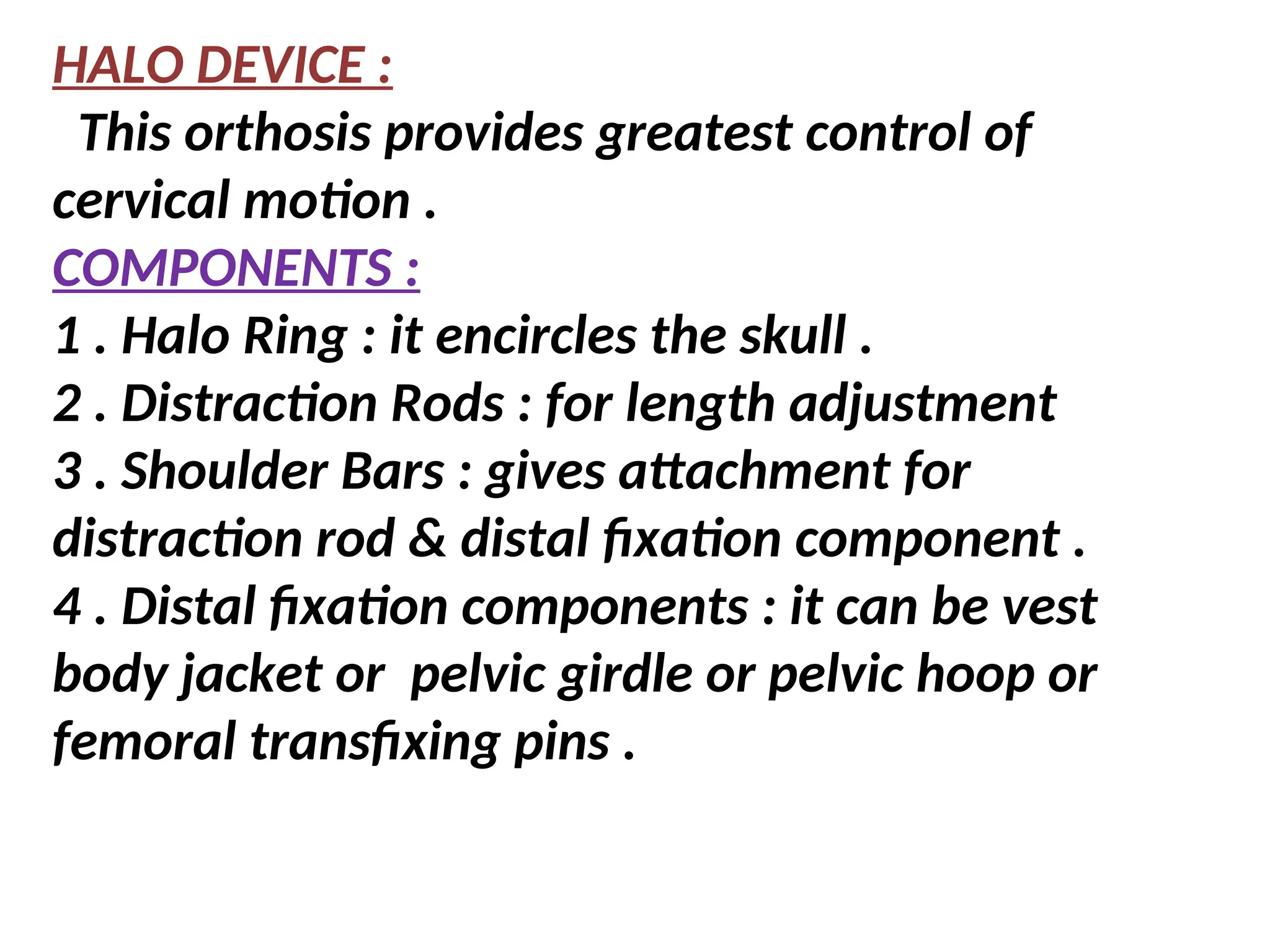

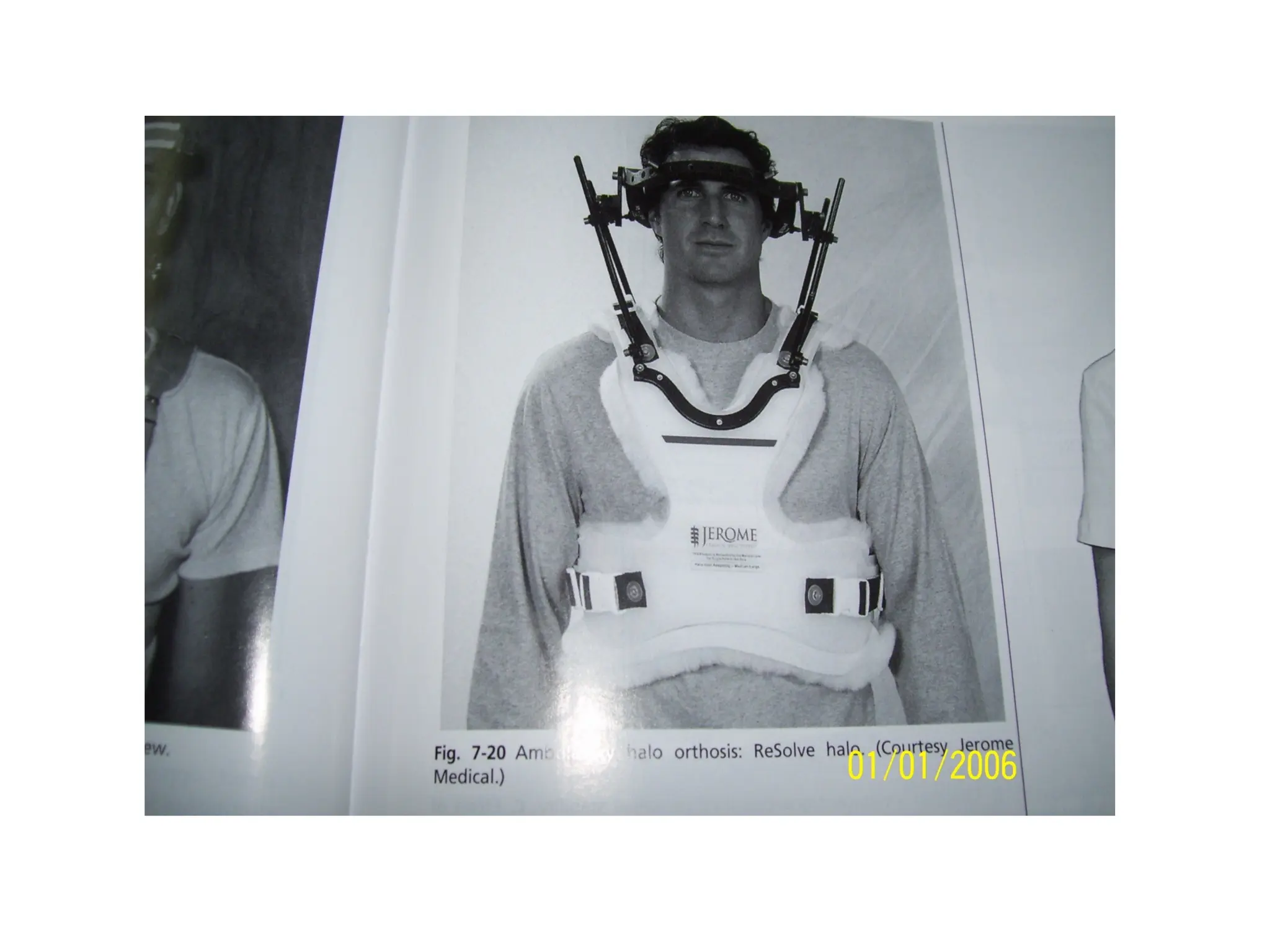

128. HALO DEVICE :
This orthosis provides greatest control of
cervical motion .
COMPONENTS :
1 . Halo Ring : it encircles the skull .
2 . Distraction Rods : for length adjustment
3 . Shoulder Bars : gives attachment for
distraction rod & distal fixation component .
4 . Distal fixation components : it can be vest
body jacket or pelvic girdle or pelvic hoop or
femoral transfixing pins .

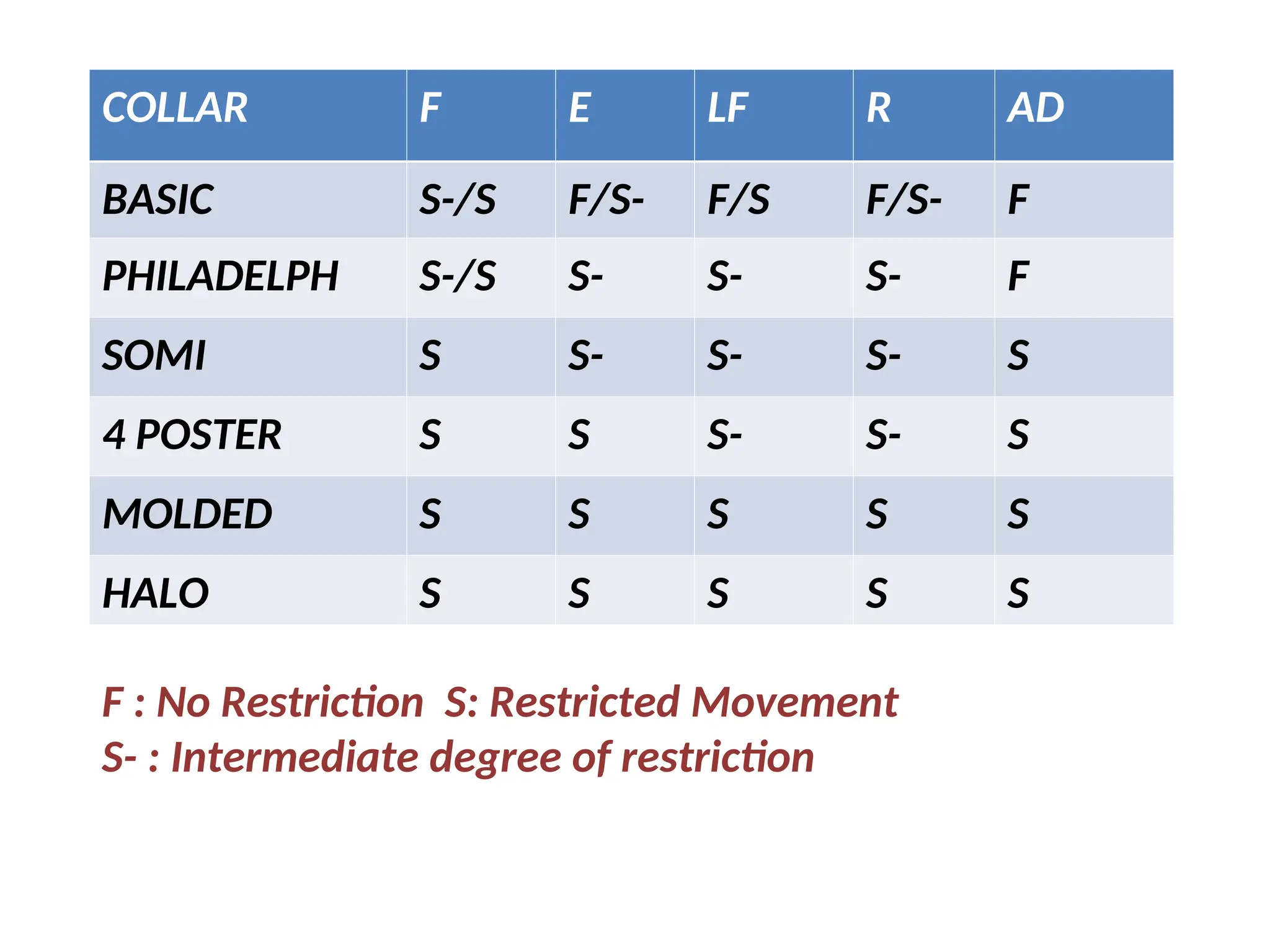

130. COLLAR F E LF R AD
BASIC S-/S F/S- F/S F/S- F
PHILADELPH S-/S S- S- S- F
SOMI S S- S- S- S
4 POSTER S S S- S- S
MOLDED S S S S S
HALO S S S S S
F : No Restriction S: Restricted Movement
S- : Intermediate degree of restriction

131. MODIFIED ORTHOSIS FOR SCOLIOSIS :
VARIOUS DESIGNS OF LOW PROFILE ORTHOSIS:

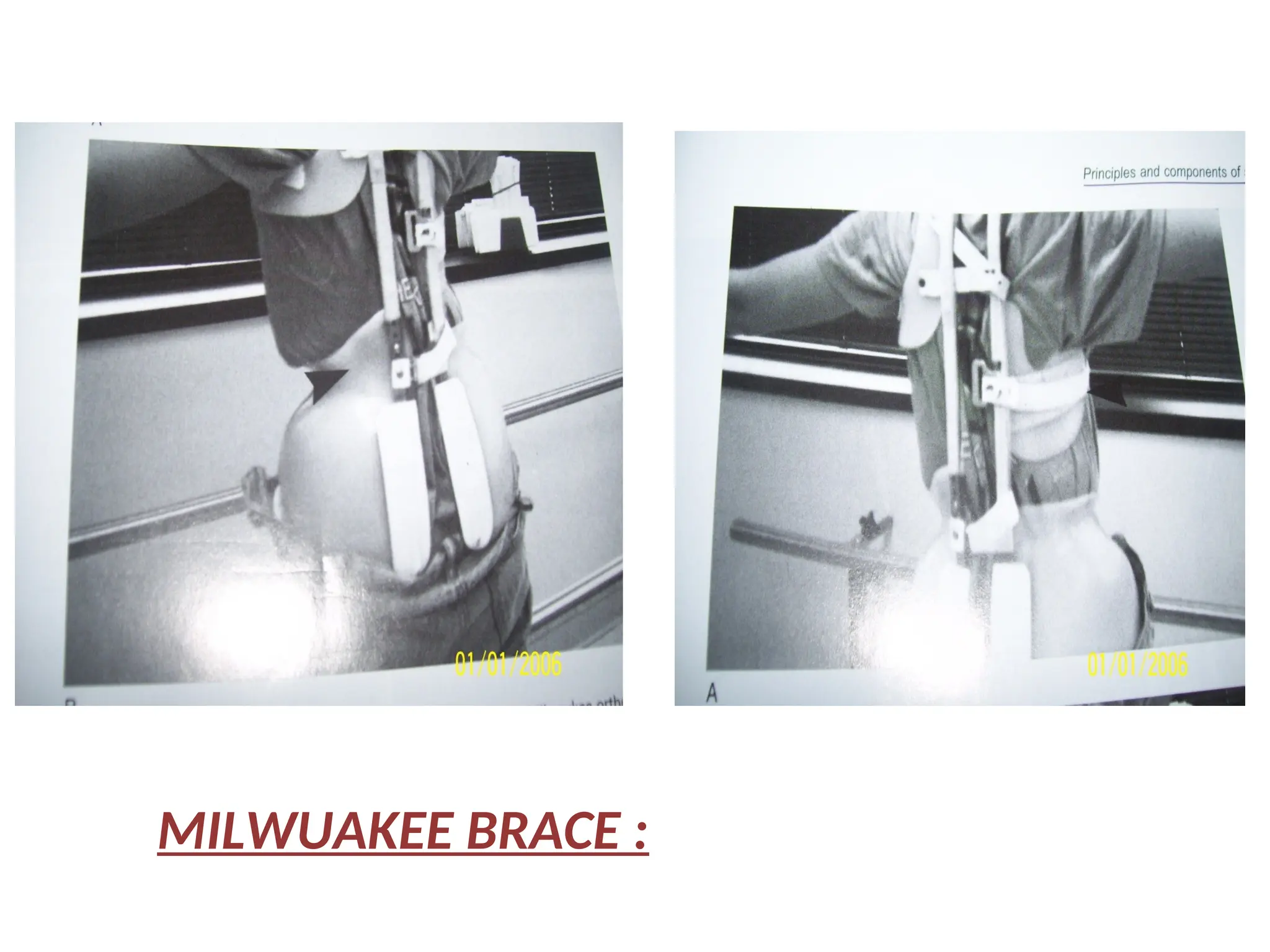

132. MILWUAKEE BRACE :

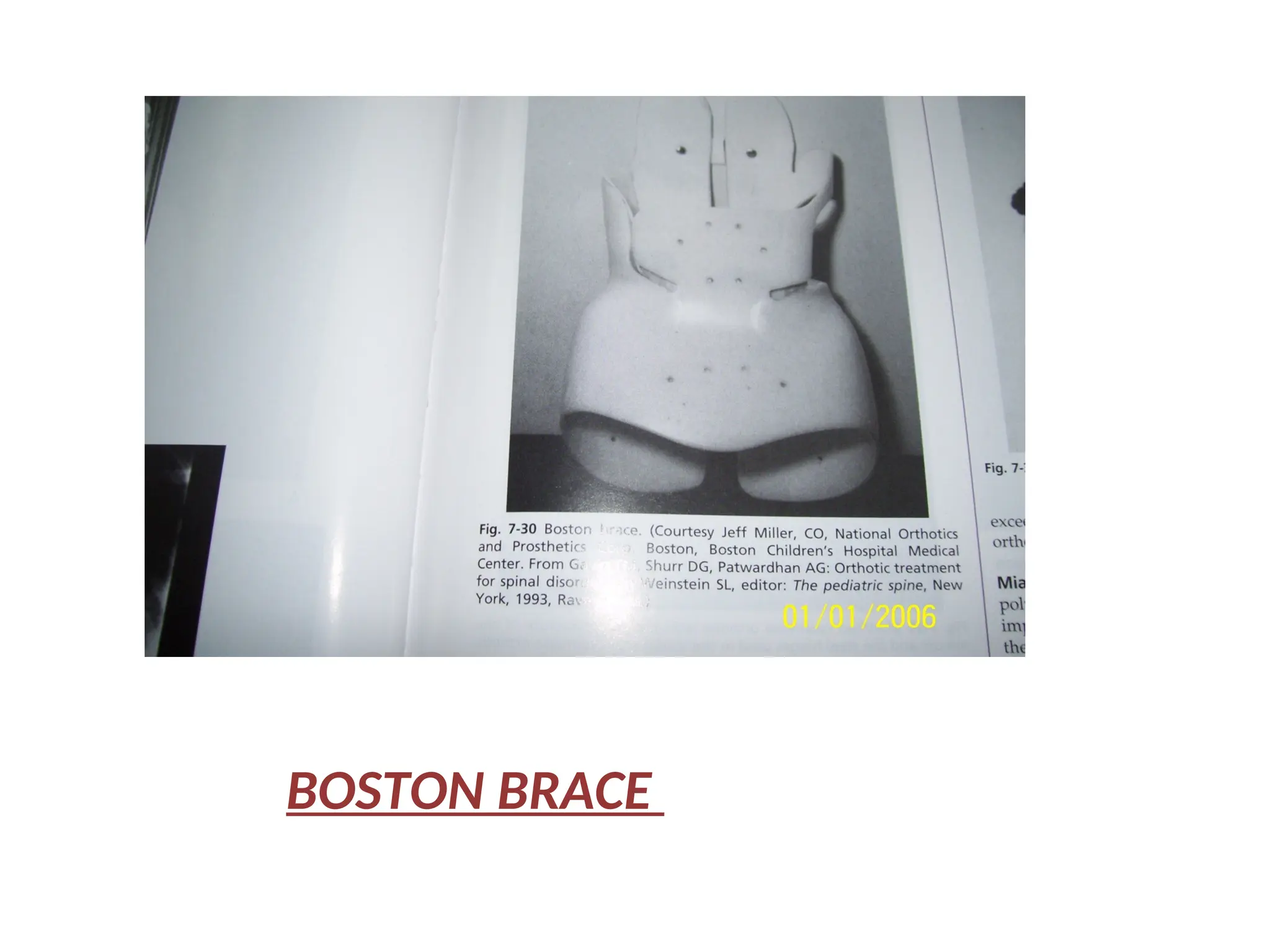

133. BOSTON BRACE

134. CALIBER ORTHOSIS :
Generally given for child below one year of age .

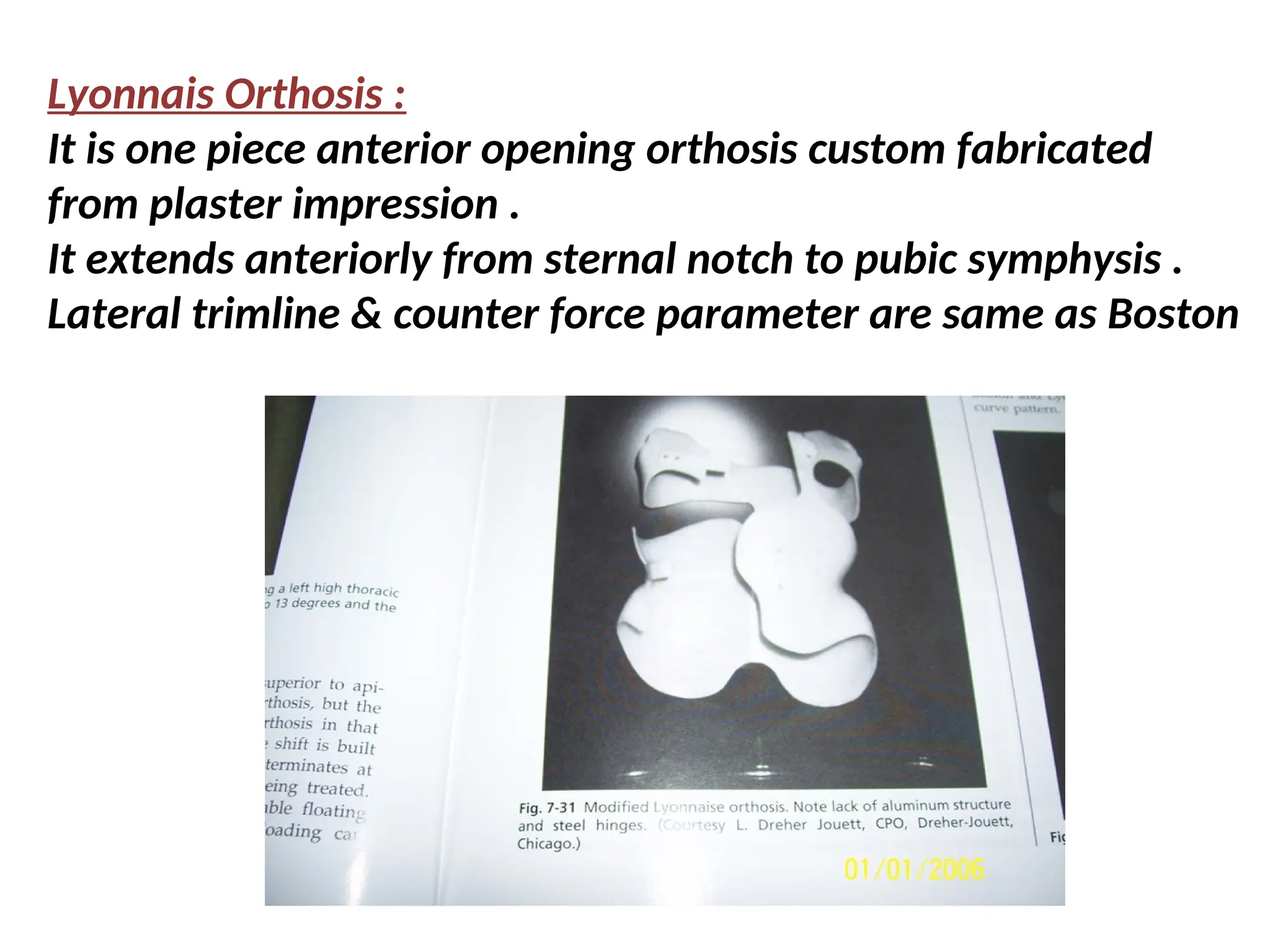

135. Lyonnais Orthosis :
It is one piece anterior opening orthosis custom fabricated
from plaster impression .
It extends anteriorly from sternal notch to pubic symphysis .
Lateral trimline & counter force parameter are same as Boston

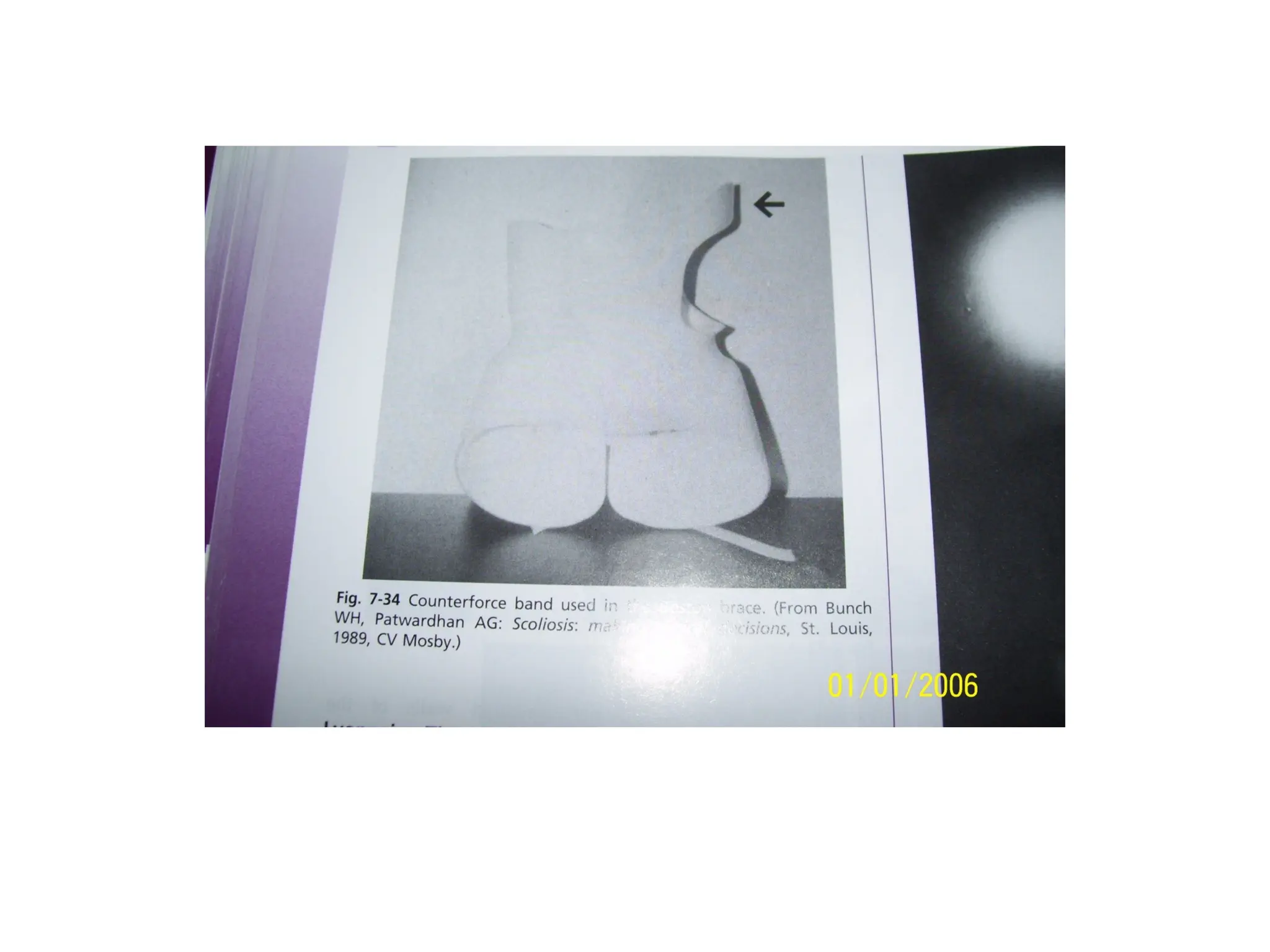

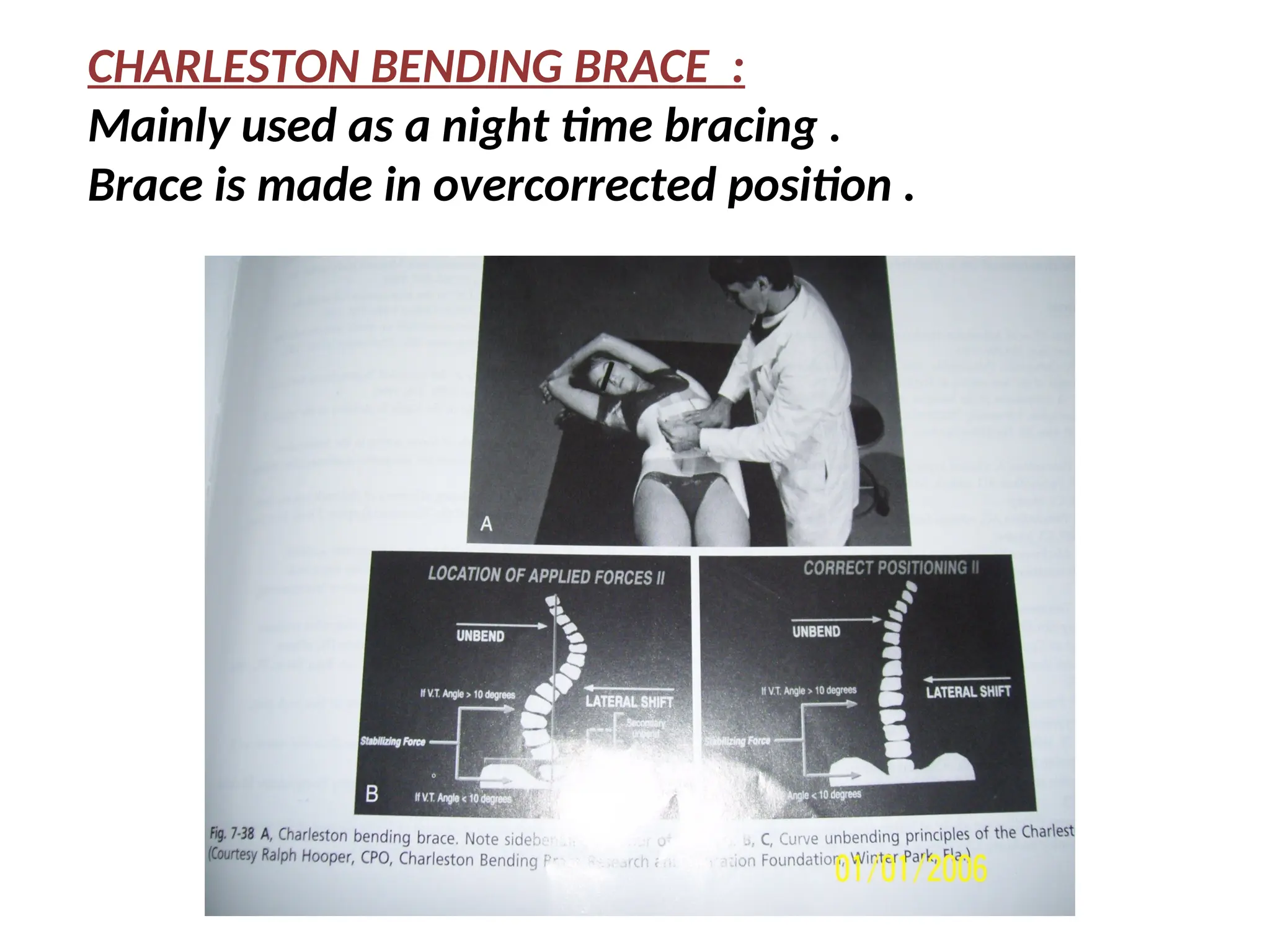

137. CHARLESTON BENDING BRACE :
Mainly used as a night time bracing .
Brace is made in overcorrected position .

138. TLSO FOR PATIENT HAVING RESPIRATORY PROBLEM .

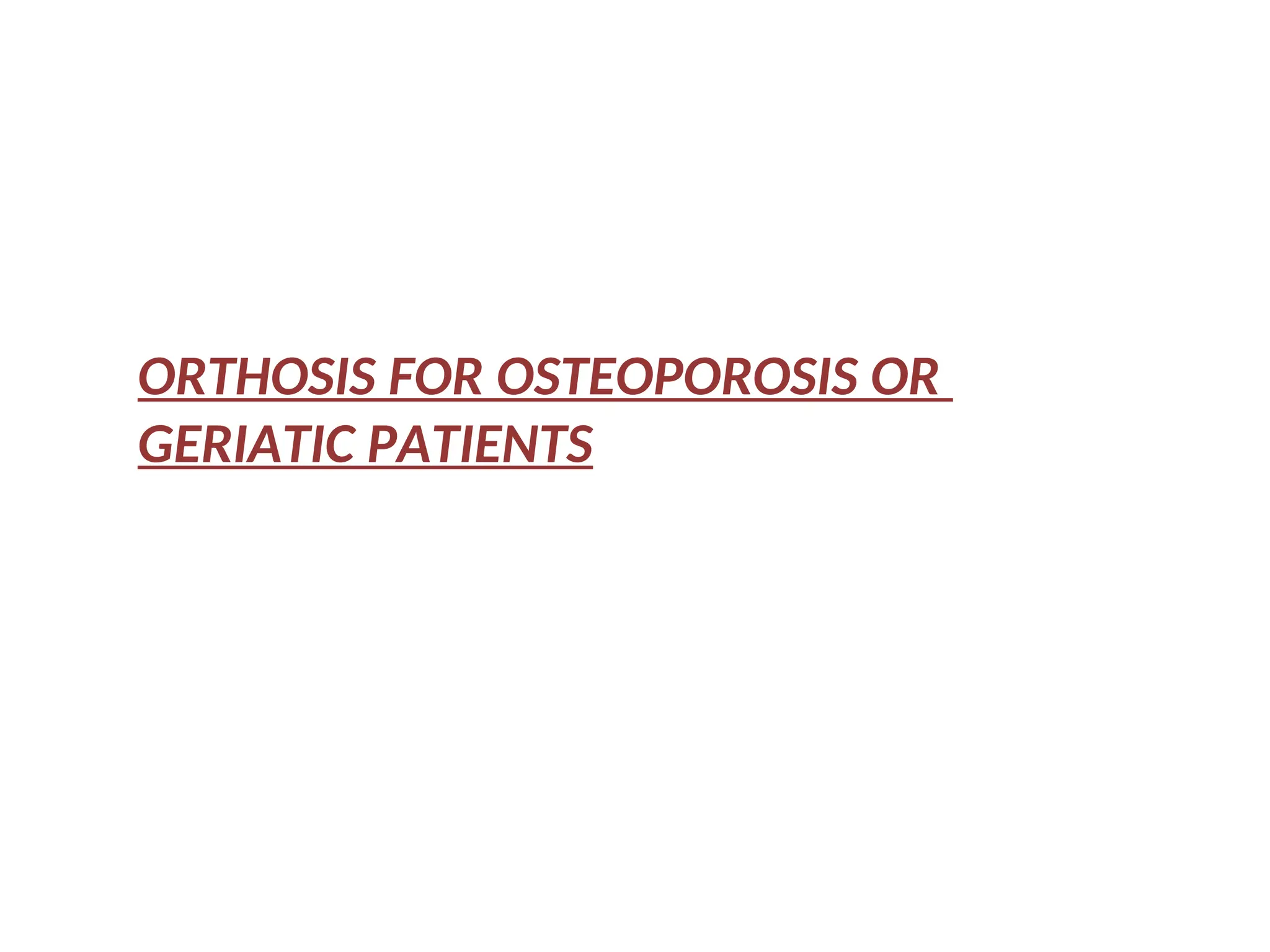

139. ORTHOSIS FOR OSTEOPOROSIS OR
GERIATIC PATIENTS

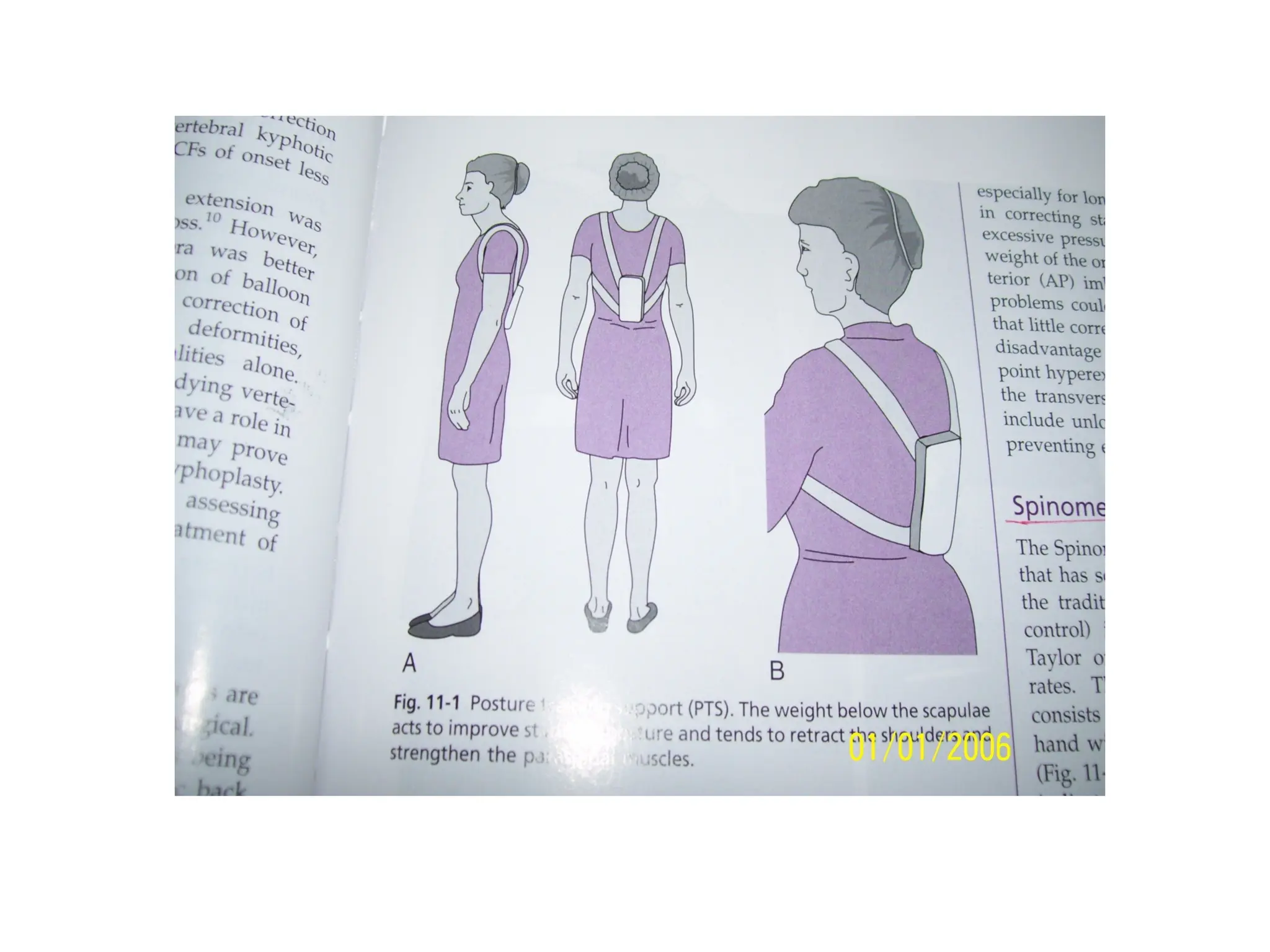

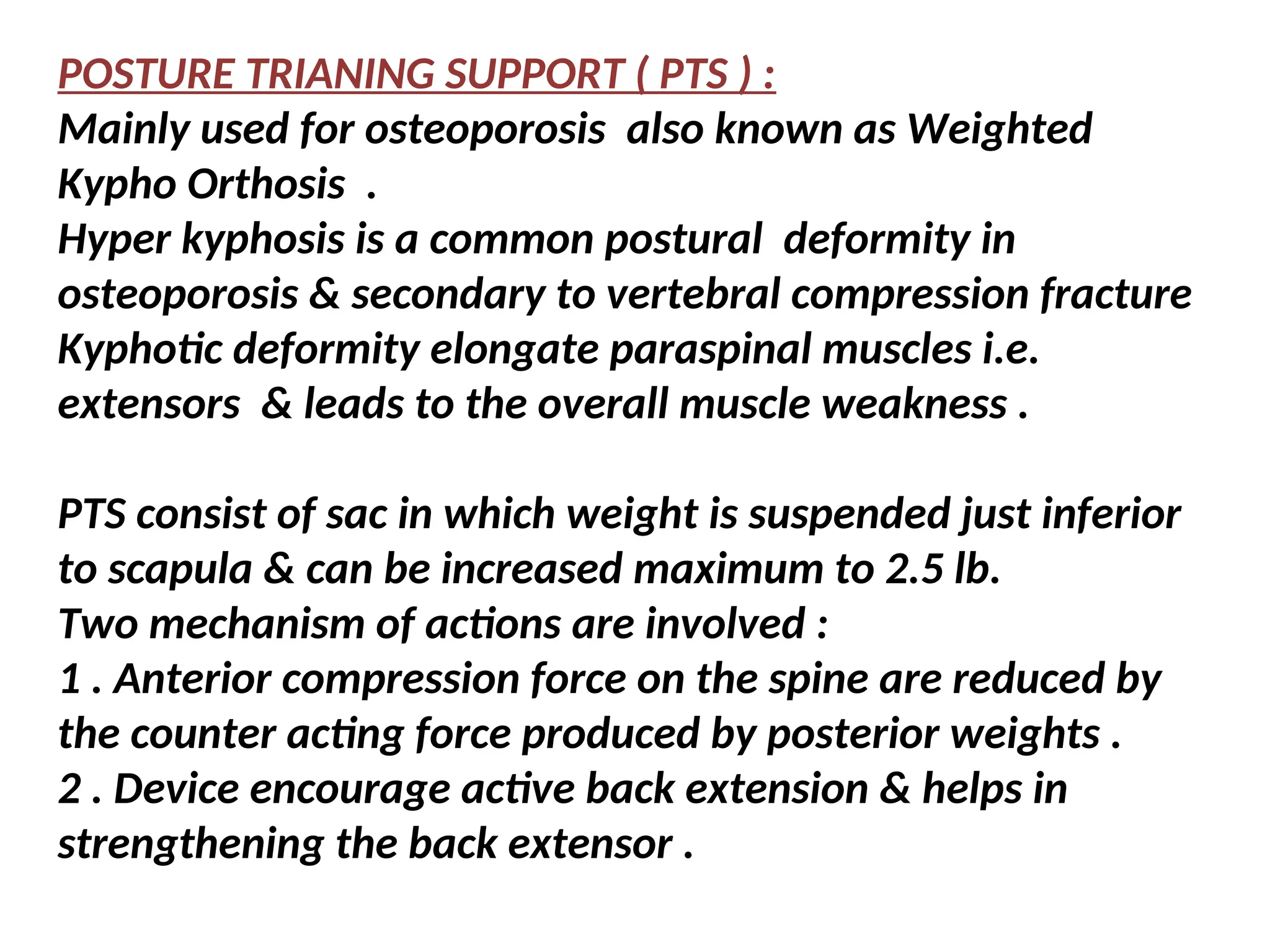

140. POSTURE TRIANING SUPPORT ( PTS ) :
Mainly used for osteoporosis also known as Weighted
Kypho Orthosis .
Hyper kyphosis is a common postural deformity in
osteoporosis & secondary to vertebral compression fracture
Kyphotic deformity elongate paraspinal muscles i.e.
extensors & leads to the overall muscle weakness .
PTS consist of sac in which weight is suspended just inferior
to scapula & can be increased maximum to 2.5 lb.
Two mechanism of actions are involved :
1 . Anterior compression force on the spine are reduced by
the counter acting force produced by posterior weights .
2 . Device encourage active back extension & helps in
strengthening the back extensor .

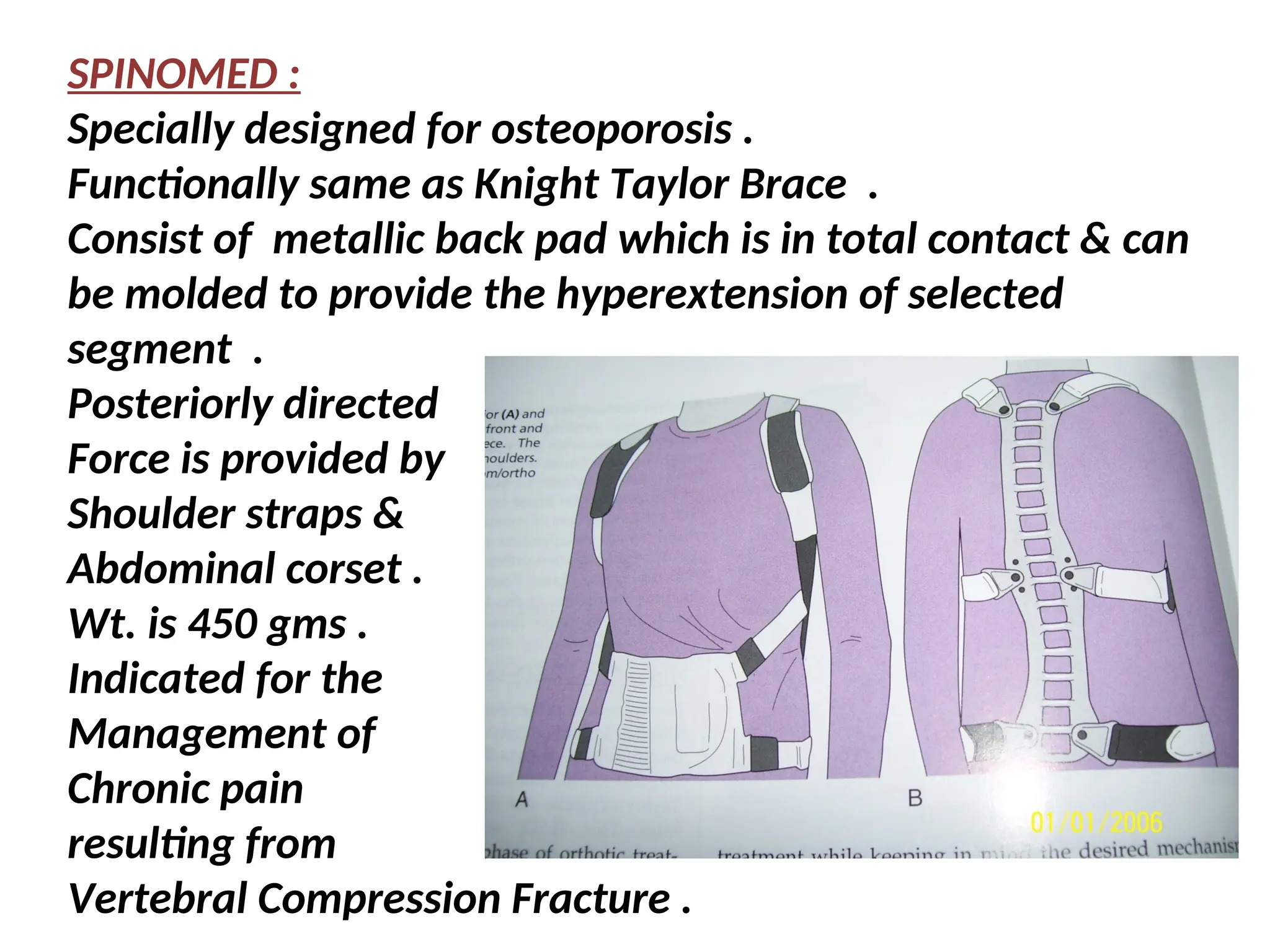

142. SPINOMED :
Specially designed for osteoporosis .
Functionally same as Knight Taylor Brace .
Consist of metallic back pad which is in total contact & can
be molded to provide the hyperextension of selected
segment .
Posteriorly directed
Force is provided by
Shoulder straps &
Abdominal corset .
Wt. is 450 gms .
Indicated for the
Management of
Chronic pain
resulting from
Vertebral Compression Fracture .
