Spinal Column Deformities

Musculoskeletal Disorders Part 5:
Spinal Column Deformities

MARIA CARMELA L. DOMOCMAT, RN, MSN
INSTRUCTOR
SCHOOL OF NURSING
NORTHERN LUZON ADVENTIST COLLEGE
ARTACHO, SISON, PANGASINAN

Overview
2

Part 1: Degenerative & Metabolic bone disorders:
Part 2: Bone infections
Part 3: Muscular disorders
Part 4: Disorders of the hand
Part 5: Spinal column deformities
Scoliosis
Kyphosis
Lordosis
Osteogenesis imperfecta (OI)
Part 6 : Disorders of foot
Part 7: Sports Injuries

Maria Carmela L. Domocmat, RN, MSN 3/5/2012

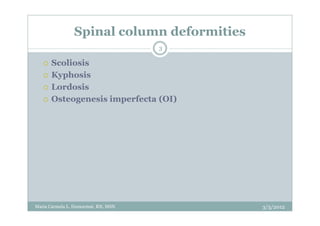

Spinal column deformities
3

Scoliosis
Kyphosis
Lordosis
Osteogenesis imperfecta (OI)


Scoliosis
5

AKA
Spinal curvature
Infantile scoliosis
Juvenile scoliosis


Scoliosis
7

is an abnormal curving of the spine.
But people with scoliosis have a spine that curves too
much. The spine might look like the letter “C” or “S.”


Causes, incidence, and risk factors

idiopathic scoliosis
most common type. It is grouped by age.
In children age 3 and younger--infantile scoliosis.
In kids age 4 - 10--juvenile scoliosis.
In older kids age 11 – 18 --adolescent scoliosis.
most often affects girls.
Curving generally gets worse during a growth spurt.
Congenital scoliosis
This type of scoliosis is present at birth. It occurs when the baby’s
ribs or spine bones do not form properly.
Neuromuscular scoliosis
This type is caused by a nervous system problem that affects your
muscles, such as cerebral palsy, muscular dystrophy, spina bifida,
and polio.

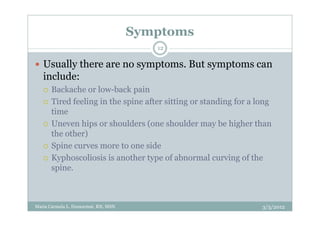

Symptoms
12

Usually there are no symptoms. But symptoms can
include:
Backache or low-back pain
Tired feeling in the spine after sitting or standing for a long
time
Uneven hips or shoulders (one shoulder may be higher than
the other)
Spine curves more to one side
Kyphoscoliosis is another type of abnormal curving of the
spine.


Dx exams
13

PE: One shoulder is higher than the other, pelvis is
tilted
X-rays of the spine
Spinal curve measurement (scoliometer screening)
MRI of the spine


Scoliometer screening
14


Treatment
15

Treatment depends on many things:
The cause of scoliosis
Where the curve is in your spine
How big the curve is
If body is still growing
Most people with idiopathic scoliosis do not need
treatment. However, should be checked by a doctor
about every 6 months.
If still growing --back brace.
A back brace prevents further curving. There are many different
types of braces. Back braces can be adjusted as you grow.
Back braces work best in people over age 10. Braces do not work for
those with congenital or neuromuscular scoliosis.


16

Scoliosis surgery involves correcting the curve as
much as possible.
The spine bones are held in place with one or two metal rods,
which are held down with hooks and screws until the bone
heals together.
Surgery may be done with a cut through the back, belly area, or
beneath the ribs.
After surgery, you may need to wear a brace for a little while to
keep the spine still.
if the spine curve is severe or getting worse very quickly. The
surgeon may want to wait until all your bones stop growing,
but this isn’t always possible.


17

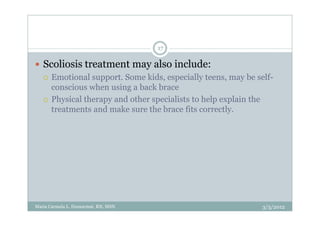

Scoliosis treatment may also include:
Emotional support. Some kids, especially teens, may be self-
conscious when using a back brace
Physical therapy and other specialists to help explain the
treatments and make sure the brace fits correctly.


Expectations (prognosis)
18

depends on the type, cause, and severity of the curve. The more
severe the curving, the more likely it will get worse after stop
growing.
People with mild scoliosis do very well with braces. They usually do
not have long-term problems. However, scoliosis can make more
likely to have back pain when get older.
The outlook for those with neuromuscular or congenital scoliosis
varies.
Patients with neuromuscular scoliosis have another serious disorder
(like cerebral palsy or muscular dystrophy) so their goals are much
different.
Often the goal of surgery is simply to allow a child to be able to sit
upright in a wheelchair.
Congenital scoliosis is difficult to treat and usually requires many
surgeries.


Complications
19

Breathing problems (in severe scoliosis)
Low back pain
Lower self-esteem
Persistent pain if there is wear and tear of the spine
bones
Spinal infection after surgery
Spine or nerve damage from an uncorrected curve or
spinal surgery


Prevention
20

Routine scoliosis screening is now done in middle
and junior high schools.
Screening has helped detect early scoliosis in many
kids.


References
26

http://www.ncbi.nlm.nih.gov/pubmedhealth/PMH0
002221/
Hedequist DJ. Surgical treatment of congenital
scoliosis. Orthop Clin North Am. 2007;38:497-509,
vi. [PubMed]
Lonner BS. Emerging minimally invasive
technologies for the management of scoliosis.
Orthop Clin North Am. 2007;38:431-440. [PubMed]


Kyphosis
27


Kyphosis
28

AKA
Scheuermann's disease;
Roundback;
Hunchback;
Postural kyphosis


Kyphosis
29

is a curving of the spine that causes a bowing or
rounding of the back, which leads to a hunchback or
slouching posture.


Causes, incidence, and risk factors
30

Kyphosis can occur at any age, although it is rare at birth.
Adolescent kyphosis, also known as Scheuermann's
disease, is caused by the wedging together of several
bones of the spine (vertebrae) in a row. The cause of
Scheuermann's disease is unknown.
In adults, kyphosis can be caused by:
Degenerative diseases of the spine (such as arthritis or disk
degeneration)
Fractures caused by osteoporosis (osteoporotic compression
fractures)
Injury (trauma)
Slipping of one vertebra forward on another (spondylolisthesis)


31

Other causes of kyphosis include:
Certain endocrine diseases
Connective tissue disorders
Infection (such as tuberculosis)
Muscular dystrophy
Neurofibromatosis
Paget's disease
Polio
Spina bifida
Tumors


congenital kyphosis
32
Clinical photograph and
MRI scan of a child with
an abrupt congenital
kyphosis in the thoracic
spine. The MRI scan
shows a posteriorly
located hemivertebra
causing impingement on
the spinal cord.
(Courtesy of Texas
Scottish Rite Hospital for
Children)

http://orthoinfo.aaos.org/figures/A00423F02.jpg 3/5/2012

33

Kyphosis can also be seen with scoliosis. Each cause
has its own risk factors.


Symptoms
34

Difficulty breathing (in severe cases)
Fatigue
Mild back pain
Round back appearance
Tenderness and stiffness in the spine


Dx exams
35

Physical examination by a health care provider
confirms the abnormal curve of the spine. The doctor
will also look for any nervous system (neurological)
changes (weakness, paralysis, or changes in
sensation) below the curve.


Dx exams
36

Spine x-ray
Pulmonary function tests (if kyphosis affects
breathing)
MRI (if there may be a tumor, infection, or
neurological symptoms)


Treatment
37

Treatment depends on the cause of the disorder:
Congenital kyphosis requires corrective surgery at an early age.
Scheuermann's disease is treated with a brace and physical
therapy. Occasionally surgery is needed for large (greater than
60 degrees), painful curves.

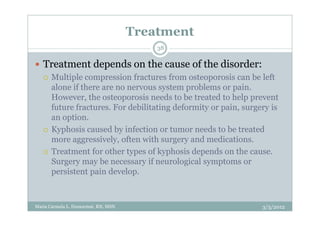

Treatment
38

Treatment depends on the cause of the disorder:
Multiple compression fractures from osteoporosis can be left
alone if there are no nervous system problems or pain.
However, the osteoporosis needs to be treated to help prevent
future fractures. For debilitating deformity or pain, surgery is
an option.
Kyphosis caused by infection or tumor needs to be treated
more aggressively, often with surgery and medications.
Treatment for other types of kyphosis depends on the cause.
Surgery may be necessary if neurological symptoms or
persistent pain develop.


39

Adolescents with Scheuermann's disease tend to do
well even if they need surgery, and the disease stops
once they stop growing.
If the kyphosis is due to degenerative joint disease or
multiple compression fractures, surgery is needed to
correct the defect and improve pain.


Complications
40

Decreased lung capacity
Disabling back pain
Neurological symptoms including leg weakness or
paralysis
Round back deformity


Prevention
41

Treating and preventing osteoporosis can prevent
many cases of kyphosis in the elderly.
Early diagnosis and bracing of Scheuermann's
disease can reduce the need for surgery, but there is
no way to prevent the disease.


References
42

Spiegel DA, Hosalkar HS, Dormans JP. The spine.
In: Kliegman RM, Behrman RE, Jenson HB, Stanton
BF, eds. Nelson Textbook of Pediatrics. 18th ed.
Philadelphia, Pa: Saunders Elsevier; 2007:chap 678.
Freeman BL III. Scoliosis and kyphosis. In: Canale
ST, Beaty JH, eds. Campbell's Operative
Orthopaedics. 11th ed. Philadelphia, Pa: Mosby
Elsevier; 2007:chap 38.
002220/


Lordosis
43


44

Lordosis is an increased curving of the spine.
AKA: Swayback


45

The spine has three types of curves:
Kyphotic curves refer to the outward curve of the thoracic
spine (at the level of the ribs).
Lordotic curves refer to the inward curve of the lumbar spine
(just above the buttocks).
Scoliotic curving is a sideways curvature of the spine and is
always abnormal.


46

A small degree of both kyphotic and lordotic
curvature is normal.
Too much kyphotic curving causes round shoulders
or hunched shoulders (Scheuermann's disease).


47

Too much lordotic curving is called swayback
(lordosis). Lordosis tends to make the buttocks
appear more prominent. Children with significant
lordosis will have a significant space beneath their
lower back when lying on their back on a hard
surface.
If the lordotic curve is flexible (when the child bends
forward the curve reverses itself), it is generally not a
concern. If the curve does not move, medical
evaluation and treatment are needed.


Causes
48

Achondroplasia
Benign juvenile lordosis (not medically significant)
Spondylolisthesis


49

Achondroplasia is a disorder of bone growth that causes the
most common type of dwarfism.
Achondroplasia is one of a group of disorders called
chondrodystrophies or osteochondrodysplasias.
Achondroplasia may be inherited as an autosomal dominant
trait, which means that if a child gets the defective gene from
one parent, the child will have the disorder. If one parent has
achondroplasia, the infant has a 50% chance of inheriting the
disorder. If both parents have the condition, the infant's
chances of being affected increase to 75%.
However, most cases appear as spontaneous mutations. This
means that two parents without achondroplasia may give
birth to a baby with the condition.


50

Spondylolisthesis is a condition in which a bone (vertebra) in the lower part
of the spine slips out of the proper position onto the bone below it.
In children, spondylolisthesis usually occurs between the fifth bone in the
lower back (lumbar vertebra) and the first bone in the sacrum (pelvis) area.
It is often due to a birth defect in that area of the spine or sudden injury
(acute trauma).
In adults, the most common cause is degenerative disease (such as
arthritis). The slip usually occurs between the fourth and fifth lumbar
vertebrae.
Other causes of spondylolisthesis include bone diseases, traumatic
fractures, and stress fractures (commonly seen in gymnasts). Certain sport
activities, such as gymnastics, weight lifting, and football, put a great deal
of stress on the bones in the lower back. They also require that the athlete
constantly overstretch (hyperextend) the spine. This can lead to a stress
fracture on one or both sides of the vertebra. A stress fracture can cause a
spinal bone to become weak and shift out of place.


Home Care
51

If the back is flexible, lordosis is usually not treated
and will not progress or cause problems.


52

Call health care provider if notice that child has an
exaggerated posture or a curve in the back.
The condition should be evaluated to determine if
there is a medical problem.


53

physical exam. The child may be asked to bend
forward, to the side, and to lie flat on a table so that
the spine can be examined in a variety of positions.


54

In some cases, particularly if the curve seems "fixed"
(not bendable), the following or other diagnostic
tests may be recommended:
Lumbosacral spine x-ray
Spine x-ray
Other tests to rule out suspected disorders causing the
condition


Treatment
55

Specific treatment for lordosis will be determined by
child's physician based on:
your child's age, overall health, and medical history
the extent of the condition
child's tolerance for specific medications, procedures, or
therapies
expectations for the course of the condition
Paretn’s opinion or preference

http://www.lpch.org/DiseaseHealthInfo/HealthLibrary/orthopaedics/
lordosis.html


Treatment
56

Observation
physical therapy
bracing.
most severe cases require surgery


Treatment
57

The goal of treatment is to stop the progression of
the curve and prevent deformity.
Management of lordosis will depend upon the cause
of the lordosis.
Simple exercises may be sufficient if lordosis is
associated with poor posture.
However, lordosis occurring as a result of a hip
problem may be treated as a part of the hip problem.

http://www.lpch.org/DiseaseHealthInfo/HealthLibrary/orthopaedics/
lordosis.html


58


References
59

Spiegel DA, Dormans JP. The spine.In: Kliegman
RM,Behrman RE, Jenson HB, Stanton BF,
eds.Nelson Textbook of Pediatrics.19th ed.
Philadelphia, Pa: Saunders Elsevier; 2011:chap 671.

http://www.lpch.org/DiseaseHealthInfo/HealthLibr
ary/orthopaedics/lordosis.html


61

http://www.oif.org/images/content/pagebuilder/94682.jpg

Maria Carmela L. Domocmat, RN, MSN

Osteogenesis62
imperfecta (OI)
• AKA: Brittle bone disease
• rare genetic disorder in which bone are fragile and
fracture easily resulting in bone deformity
• an autosomal dominant disease
• A person with OI has a 50% chance of passing on the gene and the
disease to their children.

• involves errors in synthesis of collagen, a connective
tissue


Types according to Silence classification system
63

o has four types based on inheritance as autosomal
dominant or autosomal recessive and clinical findings of
each type
o Types I and IV – more mild manifestations of disease;
can persist into adulthood
o Types II and III – more severe and can result in fracture
in utero, during the birthing process, or in early
childhood; associated with high mortality rate


Type 1 osteogenesis
64

most common.
People who have type 1 disease generally reach
normal height and have few obvious skeletal
deformities.
typically causes more fractures during childhood
than in adulthood.
Hearing loss is pronounced and begins early in
childhood.


Type 2 osteogenesis imperfecta
65

most rare and the most severe.
produces numerous deformities of the skeleton
often is fatal in infancy.
abnormal collagen formation also profoundly affects
the lungs, causing significant breathing problems.


66

more severe than type 1 but less severe than type 3.
Fractures are most common before puberty.
Hearing loss begins in early childhood and is often
profound


67

produces obvious skeletal deformities. Fractures
before birth are common;
UTZ can detect them in the fetus.
also affects the lungs and muscles.
Hearing loss begins in early childhood and often
becomes complete by adolescence.

http://www.beltina.org/health-dictionary/osteogenesis-imperfecta-types-
treatment.html


s/s
68

All people with OI have weak bones, which makes them
susceptible to fractures.
Persons with OI are usually below average height (short stature).
However, the severity of the disease varies greatly


s/s
69

The classic symptoms include:
osteoporosis
history of multiple fractures
bone deformity
poor skeletal development
soft brownish teeth
hearing loss
Blue tint to the whites of their eyes (blue sclera)
Because type I collagen is also found in ligaments, persons
with OI often have loose joints (hypermobility) and flat feet.


s/s
70

Symptoms of more severe forms of OI may include:
Bowed legs and arms
Kyphosis
Scoliosis (S-curve spine)


bone deformity
71


blue sclerae
72

http://www.thachers.org/images/Osteogenesis_imperfecta_blue_sclera.JPG

http://cnx.org/content/m15020/latest/Cases_40_41_42-pres1-1.jpg


soft brownish teeth; bone deformity
73

http://jorthod.maneyjournals.org/content/vol30/issue4/images/large/Ki

http://www.beltina.org/pics/osteogenesis_imperfecta.j
pg


74

This baby's extremities are positioned oddly because there have been
multiple fractures due to osteogenesis imperfecta (OI). This disease leads
to multiple fractures. The basic problem is a defect in the formation of
type 1 collagen that forms bone matrix. There are several types of OI with
different inheritance patterns. http://medgen.genetics.utah.edu/photographs/diseases/high/peri021.jpg


Dx:
75

serum alkaline phosphatase – increased


Treatment
76

Treatment for fracture - generally conservative
targeting a balance between immobilizing the fracture long enough
for it to heal and allowing normal muscle function as quickly as
possible.
Physical activity
helps strengthen muscles and bone, which in turn minimizes
fractures.
The most numerous fractures occur during childhood
when the bones are growing and thus have lower mineral
content.
The risk for fracture is lifelong, however, and may
increase in women after menopause when bone
density naturally declines.


Treatment
77

o palliative
o steroids
o calcium
o vit C
o sodium fluoride
o PT
o casting
o bracing
o telescoping intramedullary rods – to maintain mobility and
promote ambulation
o research ongoing – Biphophonates


78

How well a person does depends on the type of OI
they have.
Type I, or mild OI, is the most common form.
Persons with this type can live a normal lifespan.
Type II is a severe form that is usually leads to death
in the first year of life.
Type III is also called severe OI. Persons with this type have
many fractures starting very early in life and can have severe
bone deformities. Many become wheelchair bound and usually
have a somewhat shortened life expectancy.


79

Type IV, or moderately severe OI, is similar to type I, although
persons with type IV often need braces or crutches to walk. Life
expectancy is normal or near normal.

There are other types of OI, but they occur very infrequently and
most are considered subtypes of the moderately severe form
(type IV).


Complications
80

Complications are largely based on the type of OI present. They are
often directly related to the problems with weak bones and multiple
fractures.
Hearing loss (common in type I and type III)
Heart failure (type II)
Respiratory problems and pneumonias due to chest
wall deformities
Spinal cord or brain stem problems
Permanent deformity


81

http://jorthod.maneyjournals.org/content/vol30/issue4/images/large/Ki


Resources
82

Ignatavicius and Workman (2006). Medical surgical
nursing [5th ed]. Singapore: Elsevier.
002540/
http://www.beltina.org/health-
dictionary/osteogenesis-imperfecta-types-
treatment.html
http://www.oif.org/site/PageServer
http://www.umm.edu/ency/article/001573.htm


Spinal Column Deformities

More Related Content

What's hot

Similar to Spinal Column Deformities

More from Carmela Domocmat

Recently uploaded

Spinal Column Deformities
