1. Special Purpose Frame
Salal Khan
M.Optom, FAAO (USA), DSM (FIFA)

2. 1. Clip-ons
• Clip-ons are supplementary lenses in a mounting that fastens to the
frame front of a conventional pair of spectacles.
• They fit on the outside of the front and may contain sun lenses, plus
lenses for reading, prisms, or any other prescription desired for
testing or visual training purposes.
• Fit outside of the frame.

4. 2. Monocle
• A monocle is a single lens mounting held in place by being wedged
between the cheek and upper eyebrow area.

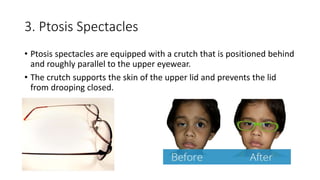

5. 3. Ptosis Spectacles
• Ptosis spectacles are equipped with a crutch that is positioned behind
and roughly parallel to the upper eyewear.
• The crutch supports the skin of the upper lid and prevents the lid
from drooping closed.

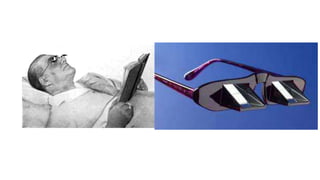

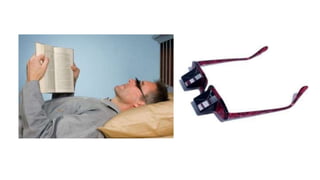

6. 4. Recumbent Spectacles
• Recumbent spectacles are equipped with reflecting prisms that
enable a person lying flat on his or her back to see straight ahead
while looking straight up.
• These can be useful for those wishing to read while being required to
remain on their backs for long periods of time.

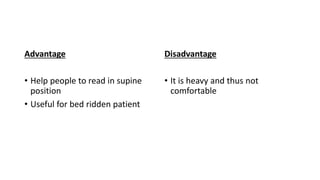

7. Advantage
• Help people to read in supine
position
• Useful for bed ridden patient
Disadvantage
• It is heavy and thus not
comfortable

10. 5. Drop-ins
• Drop-in contains a cell where the lens may be dropped in and added
behind the lenses of a conventional pair of spectacle.
• Cosmetically not well accepted.
• It’s like a trial frame.

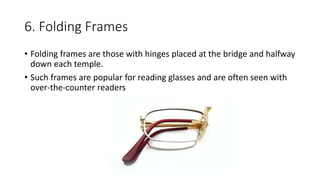

11. 6. Folding Frames
• Folding frames are those with hinges placed at the bridge and halfway
down each temple.
• Such frames are popular for reading glasses and are often seen with
over-the-counter readers

12. 7. Hemianopic Spectacle
• Used as field expanders in low vision patients.
• Has prism on one side with the base of the prism towards the blind
side
• Hemianopic spectacles are used by those with a homonymous
hemianopia, which is a loss of vision on one side of the midline of the
visual field.

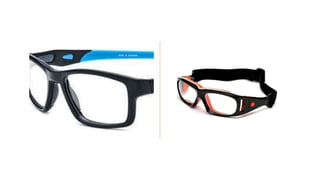

13. 8. Athletic Spectacles
• For sports people
• They have sturdy(Nylon)plastic frames with thick soft silicone padding
around the bridge and temple to protect the wearer when playing
sports
• They come with an elastic headband, fitted with polycarbonate lenses
• Eg. In playing basketball, table tennis etc.

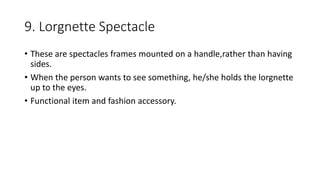

15. 9. Lorgnette Spectacle
• These are spectacles frames mounted on a handle,rather than having
sides.
• When the person wants to see something, he/she holds the lorgnette
up to the eyes.
• Functional item and fashion accessory.

17. 10. Makeup Spectacle
• Makeup spectacle has independent rims that are hinged to the part
of the frame
• Each lens is alone
• Right lens is tipped down or sideways, makeup may be applied to the
right eye while viewing from the left eye and vice versa

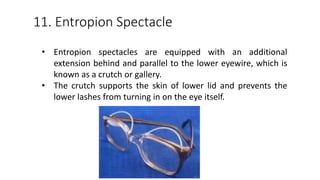

18. 11. Entropion Spectacle
• Entropion spectacles are equipped with an additional
extension behind and parallel to the lower eyewire, which is
known as a crutch or gallery.
• The crutch supports the skin of lower lid and prevents the
lower lashes from turning in on the eye itself.

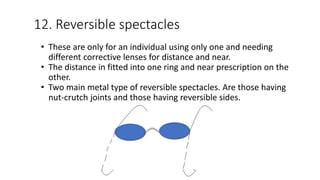

19. 12. Reversible spectacles
• These are only for an individual using only one and needing
different corrective lenses for distance and near.
• The distance in fitted into one ring and near prescription on the
other.
• Two main metal type of reversible spectacles. Are those having
nut-crutch joints and those having reversible sides.

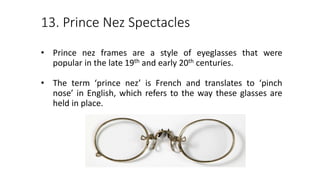

20. 13. Prince Nez Spectacles
• Prince nez frames are a style of eyeglasses that were
popular in the late 19th and early 20th centuries.
• The term ‘prince nez’ is French and translates to ‘pinch
nose’ in English, which refers to the way these glasses are
held in place.

21. THANK YOU!
