Space frames are truss-like, lightweight rigid structures constructed from interlocking struts in a geometric pattern. They can span large areas with few interior supports due to their inherent rigidity from triangles transmitting flexing loads as tension and compression. Common uses of space frames include building entrances, airports, cinema halls, and canopies. Advantages over conventional systems are random column placement, column-free spaces, minimal perimeter support, controlled load distribution, design freedom, and ability to support all types of roofing.

1. BY
HARSHIL NAIR
TWINKLE ROJIWADIA
RIDDHI PATEL
MARGESH PATEL

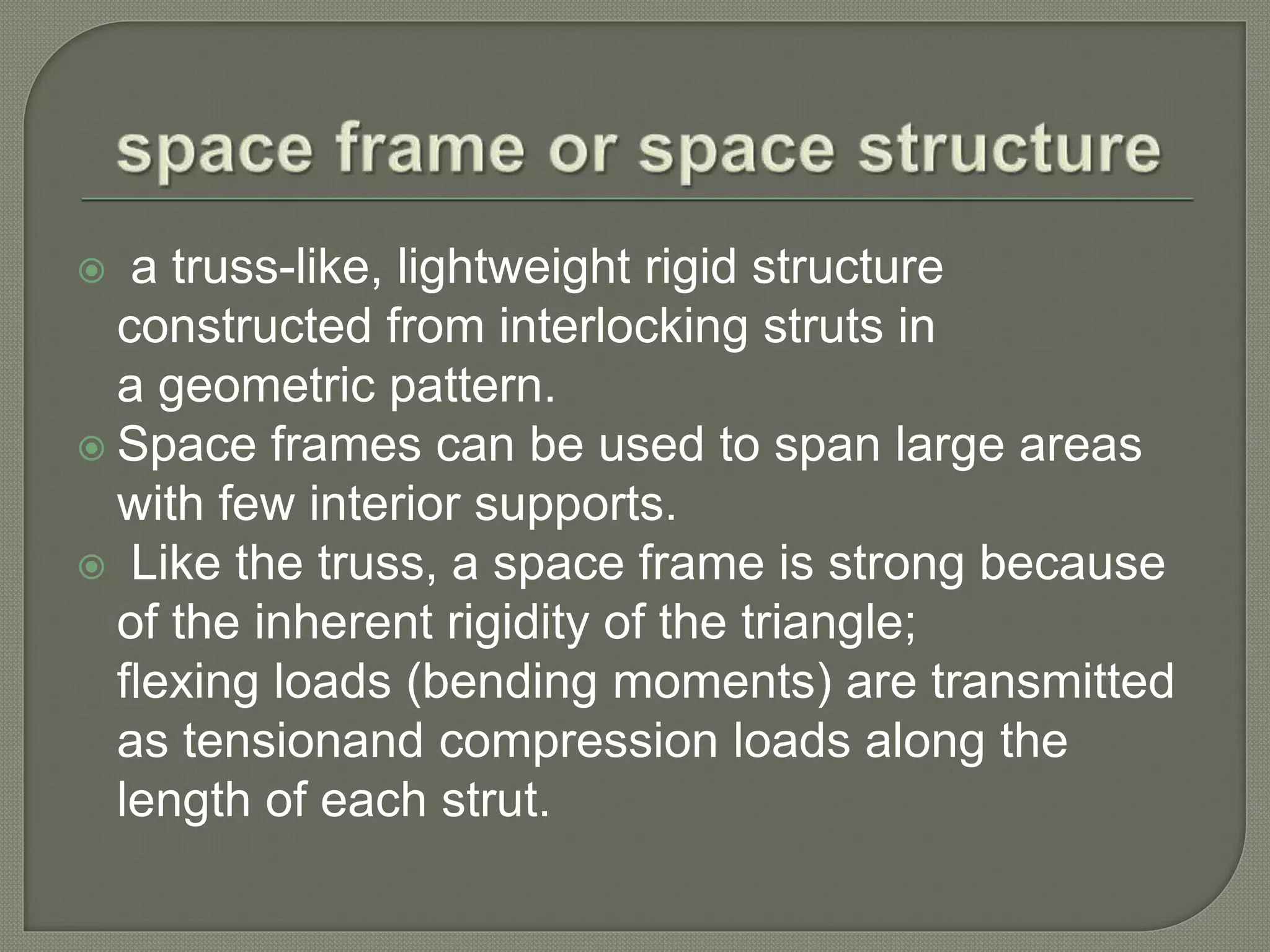

2.  a truss-like, lightweight rigid structure
constructed from interlocking struts in
a geometric pattern.
 Space frames can be used to span large areas
with few interior supports.

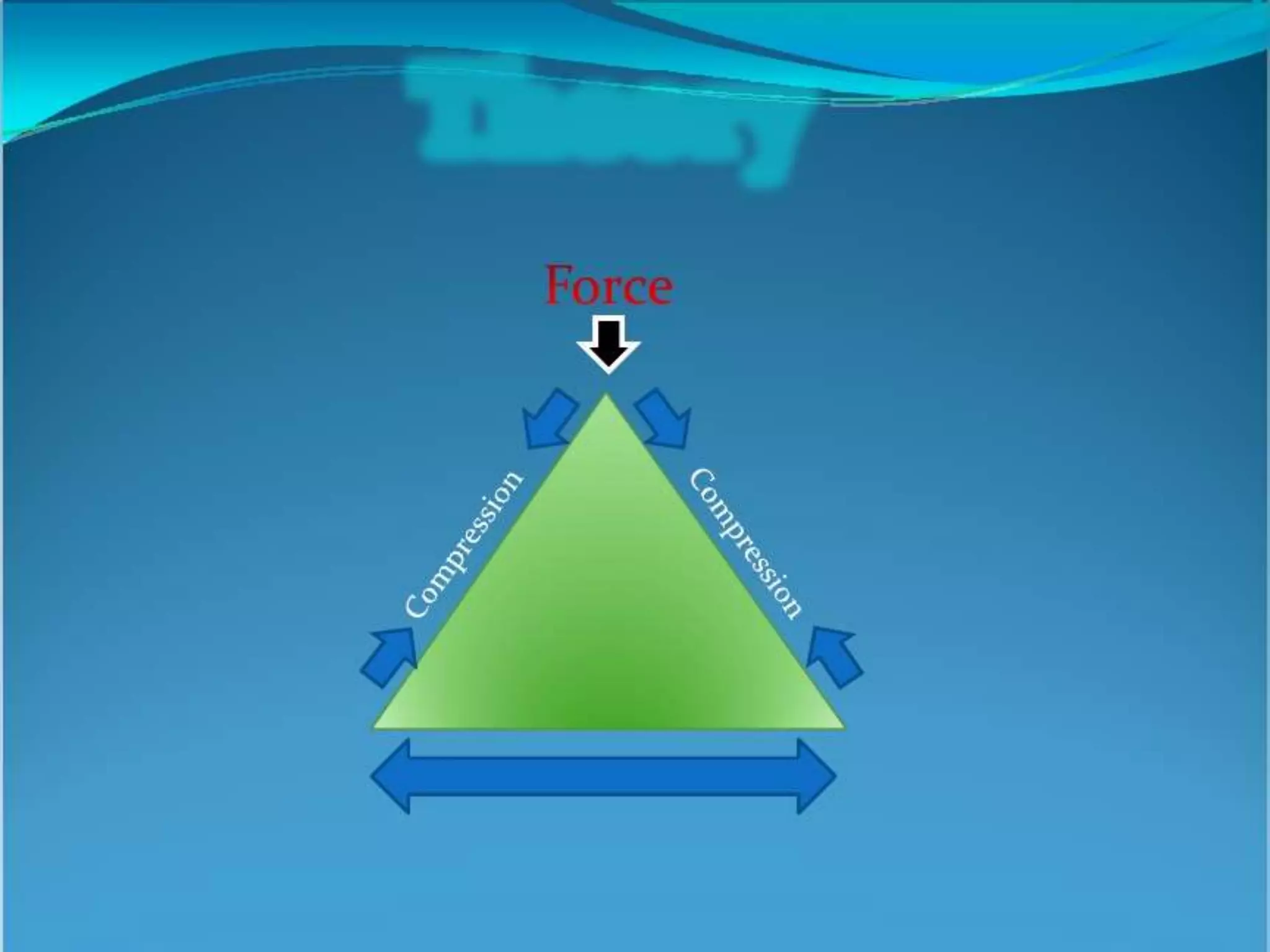

 Like the truss, a space frame is strong because
of the inherent rigidity of the triangle;
flexing loads (bending moments) are transmitted
as tensionand compression loads along the
length of each strut.

4. Hotel/Hospital/commercial building
entrances
Airports
Cinema hall
Canopies

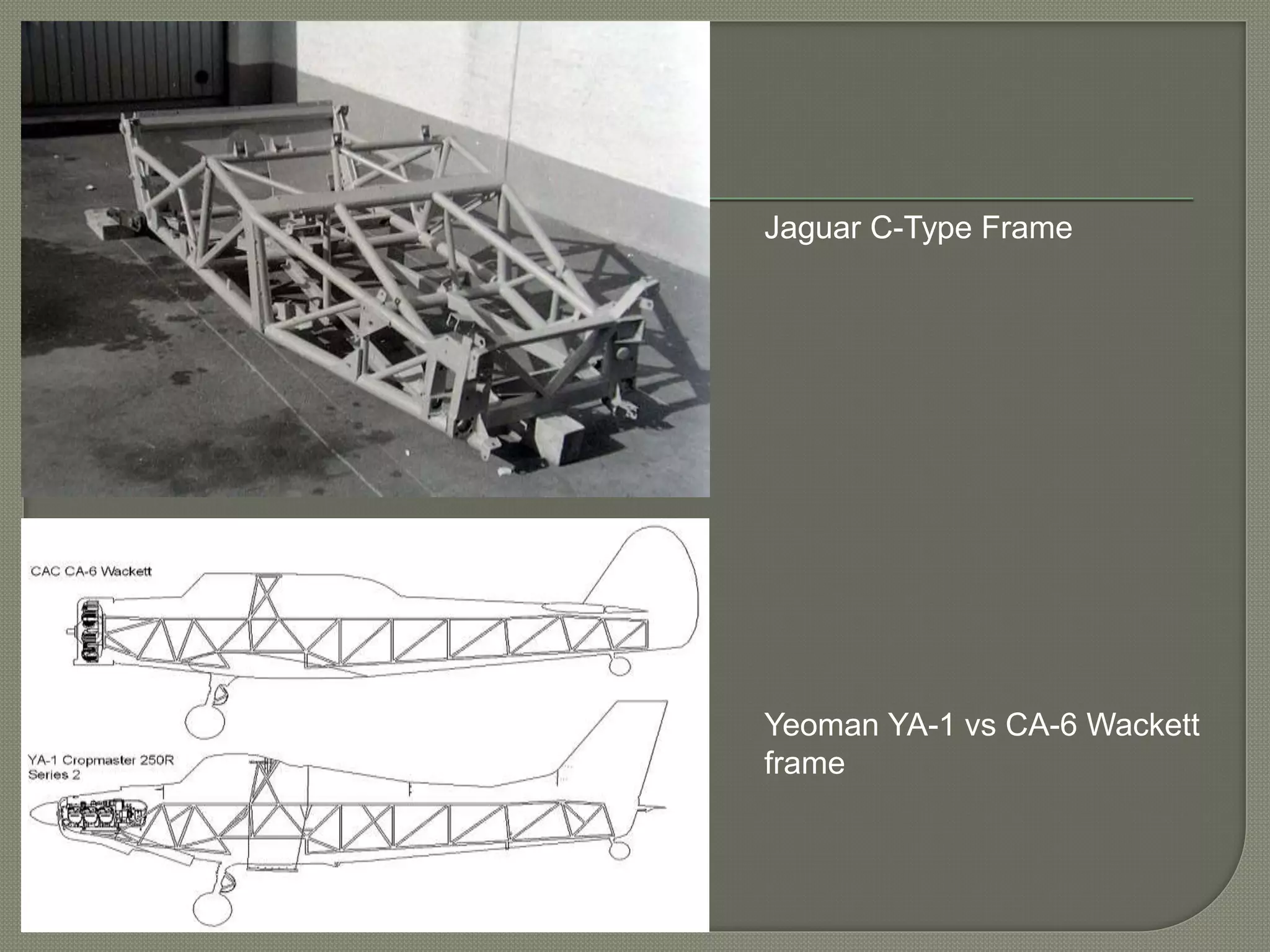

5. Jaguar C-Type Frame
Yeoman YA-1 vs CA-6 Wackett
frame

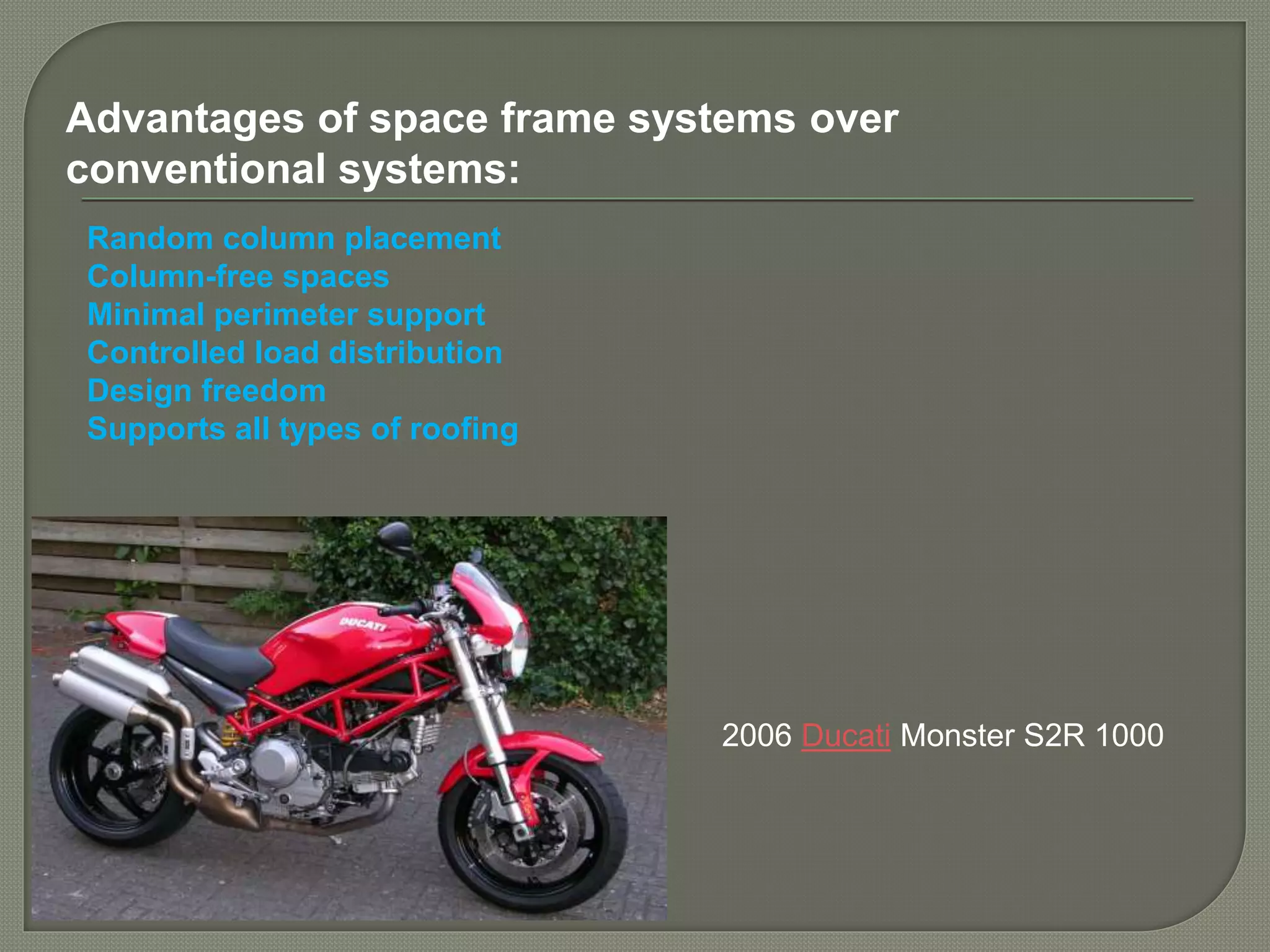

8. 2006 Ducati Monster S2R 1000
Advantages of space frame systems over
conventional systems:
Random column placement
Column-free spaces
Minimal perimeter support
Controlled load distribution
Design freedom
Supports all types of roofing
