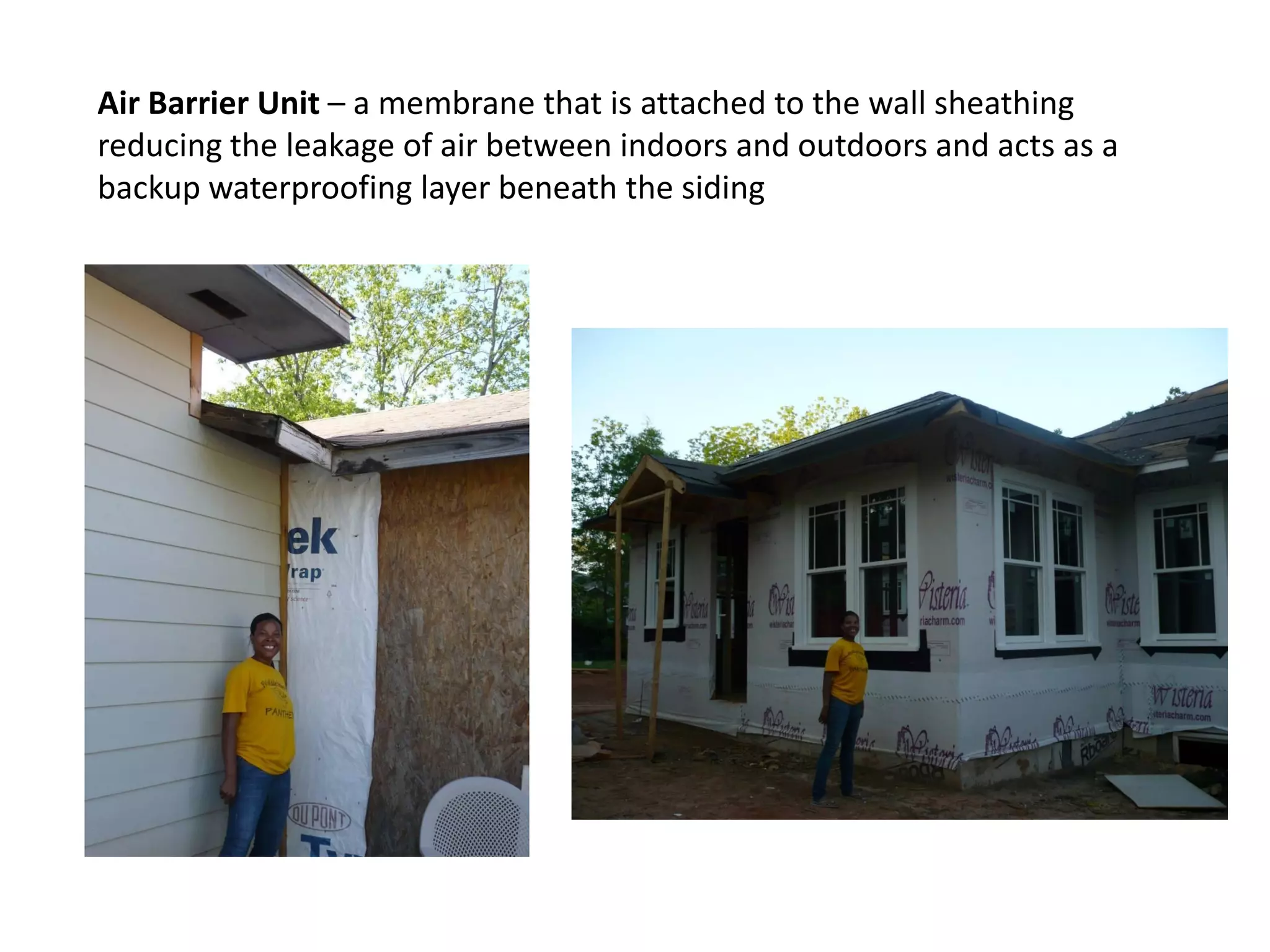

- 1. Air Barrier Unit– a membrane that is attached to the wall sheathing reducing the leakage of air between indoors and outdoors and acts as a backup waterproofing layer beneath the siding
- 2. Attic ventilation –used to lower the temperature and vent the attic Ridge Vent Gable Vent Soffit Vent Roof Turbine

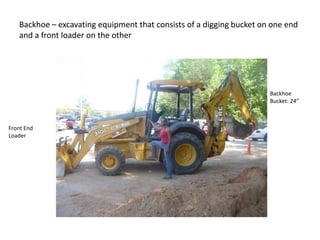

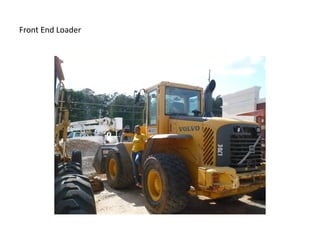

- 3. Backhoe – excavatingequipment that consists of a digging bucket on one end and a front loader on the other Backhoe Bucket: 24” Front End Loader

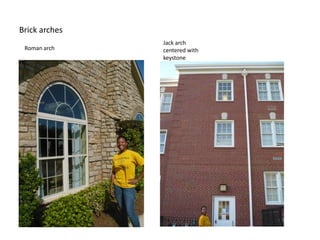

- 4. Brick arches Jack arch Roman arch centered with keystone

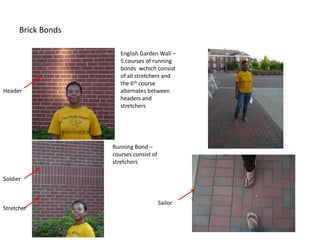

- 5. Brick Bonds English Garden Wall – 5 courses of running bonds wchich consist of all stretchers and the 6th course Header alternates between headers and stretchers Running Bond – courses consist of stretchers Soldier Sailor Stretcher

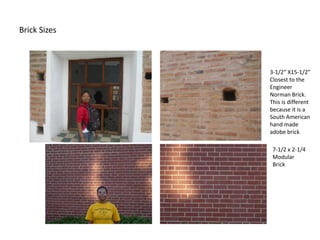

- 6. Brick Sizes 3-1/2” X15-1/2” Closest to the Engineer Norman Brick. This is different because it is a South American hand made adobe brick 7-1/2 x 2-1/4 Modular Brick
- 7. Cladding Wood boards Brick Wood shingle and Stone shake – a nail based sheathing material such as OSB, plywood, or waferboard that function as siding or roofing. Picture: Wood shakes

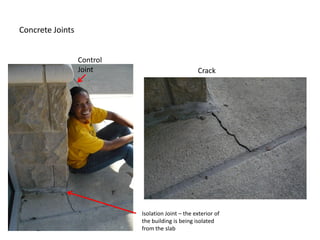

- 8. Concrete Joints Control Joint Crack Isolation Joint – the exterior of the building is being isolated from the slab
- 9. Concrete Masonry Unit(CMU) – large rectangular concrete blocks that are used as structural masonry Standard CMU – 8”

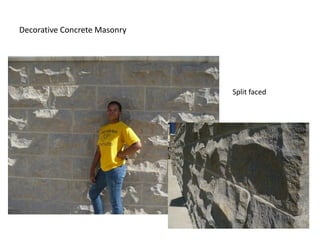

- 10. Decorative Concrete Masonry Split faced

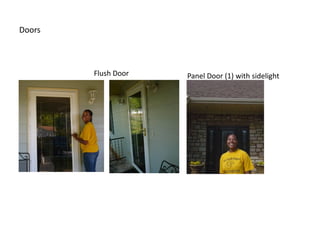

- 11. Doors Flush Door Panel Door (1) with sidelight
- 12. Electrical Components Service head meter Duplex receptacle Service panel

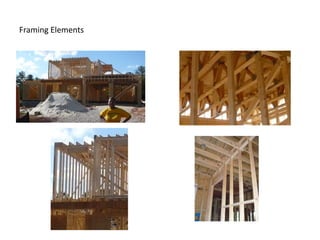

- 13.
- 14.

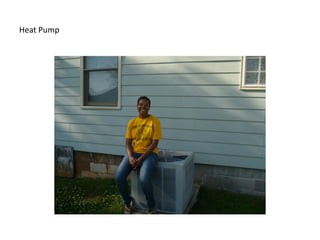

- 15.

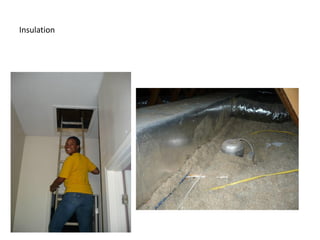

- 16.

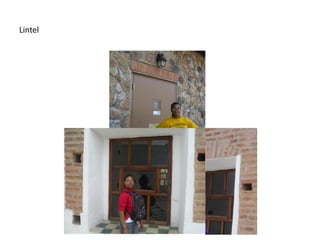

- 17.

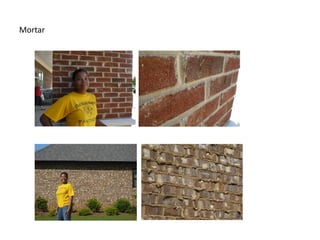

- 18.

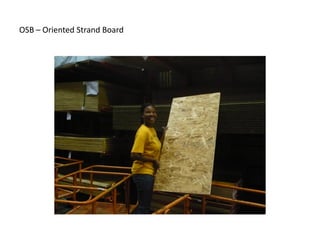

- 19. OSB – OrientedStrand Board
