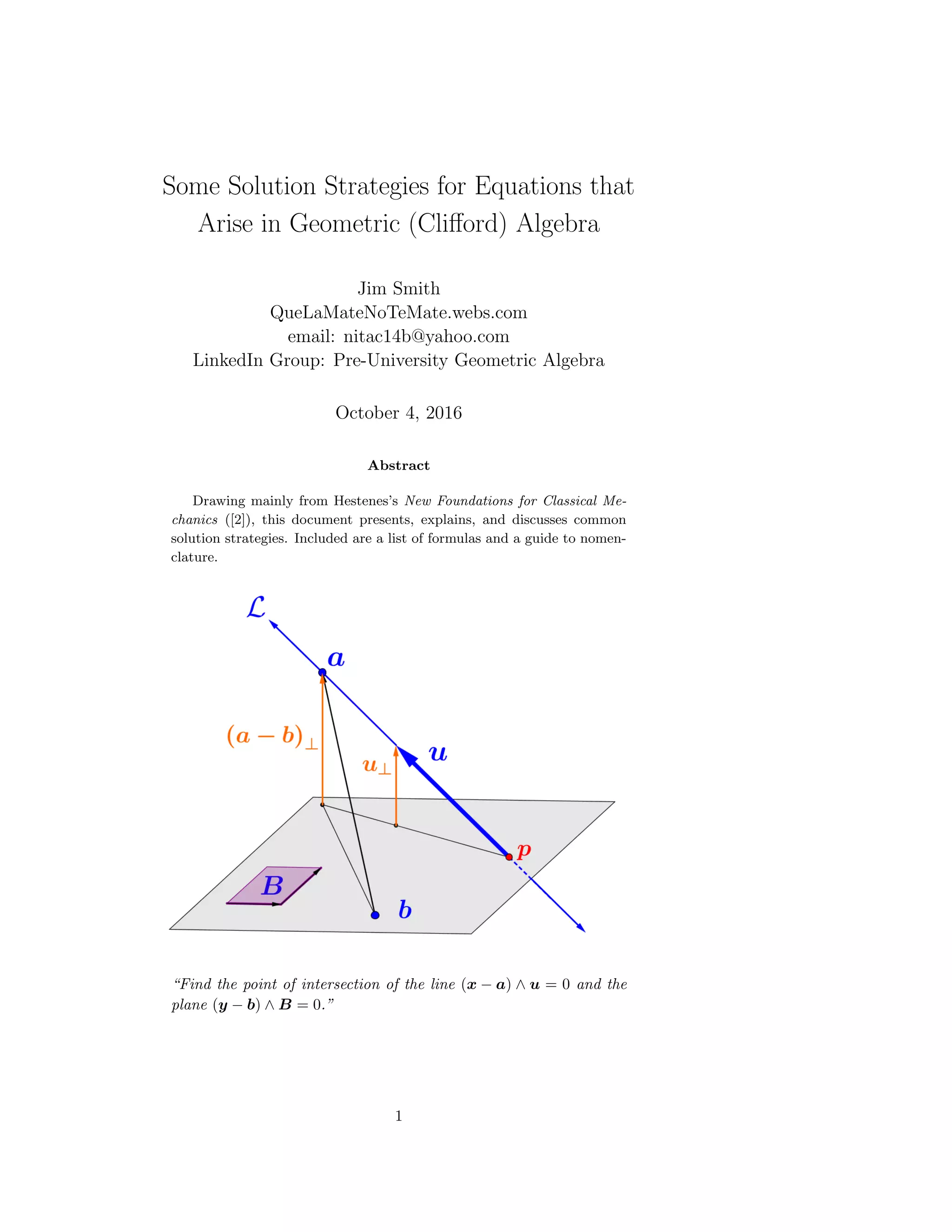

Some Solution Strategies for Equations that
Arise in Geometric (Clifford) Algebra
Jim Smith
QueLaMateNoTeMate.webs.com
email: nitac14b@yahoo.com
LinkedIn Group: Pre-University Geometric Algebra
October 4, 2016
Abstract
Drawing mainly from Hestenes’s New Foundations for Classical Me-
chanics ([2]), this document presents, explains, and discusses common
solution strategies. Included are a list of formulas and a guide to nomen-
clature.
“Find the point of intersection of the line (x − a) ∧ u = 0 and the
plane (y − b) ∧ B = 0.”
1

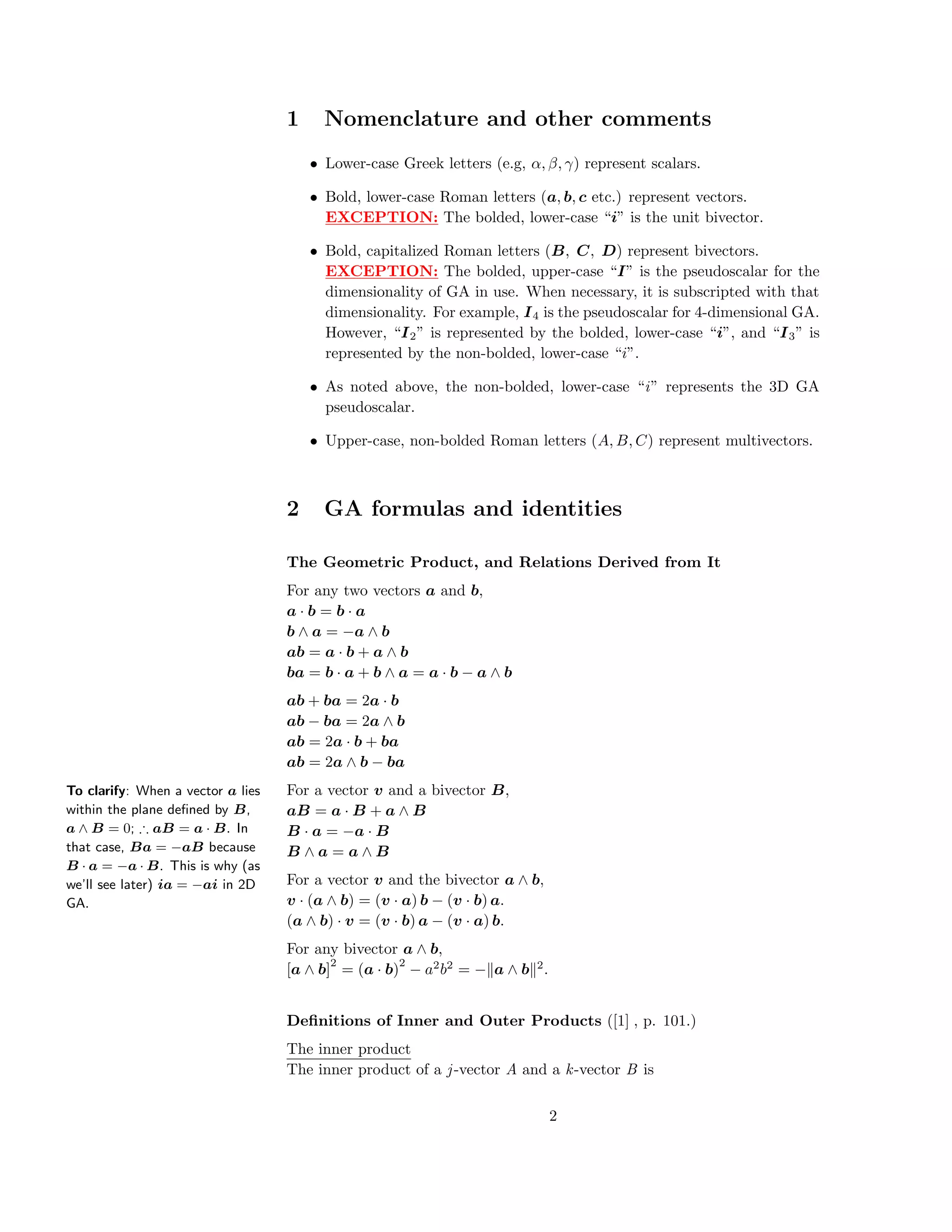

1 Nomenclature and other comments
• Lower-case Greek letters (e.g, α, β, γ) represent scalars.
• Bold, lower-case Roman letters (a, b, c etc.) represent vectors.
EXCEPTION: The bolded, lower-case “i” is the unit bivector.
• Bold, capitalized Roman letters (B, C, D) represent bivectors.
EXCEPTION: The bolded, upper-case “I” is the pseudoscalar for the
dimensionality of GA in use. When necessary, it is subscripted with that
dimensionality. For example, I4 is the pseudoscalar for 4-dimensional GA.
However, “I2” is represented by the bolded, lower-case “i”, and “I3” is
represented by the non-bolded, lower-case “i”.
• As noted above, the non-bolded, lower-case “i” represents the 3D GA
pseudoscalar.
• Upper-case, non-bolded Roman letters (A, B, C) represent multivectors.
2 GA formulas and identities
The Geometric Product, and Relations Derived from It
For any two vectors a and b,
a · b = b · a
b ∧ a = −a ∧ b
ab = a · b + a ∧ b
ba = b · a + b ∧ a = a · b − a ∧ b
ab + ba = 2a · b
ab − ba = 2a ∧ b
ab = 2a · b + ba
ab = 2a ∧ b − ba
To clarify: When a vector a lies
within the plane defined by B,
a ∧ B = 0; ∴ aB = a · B. In
that case, Ba = −aB because
B · a = −a · B. This is why (as
we’ll see later) ia = −ai in 2D
GA.
For a vector v and a bivector B,
aB = a · B + a ∧ B
B · a = −a · B
B ∧ a = a ∧ B
For a vector v and the bivector a ∧ b,
v · (a ∧ b) = (v · a) b − (v · b) a.
(a ∧ b) · v = (v · b) a − (v · a) b.
For any bivector a ∧ b,
[a ∧ b]
2
= (a · b)
2
− a2
b2
= − a ∧ b 2
.
Definitions of Inner and Outer Products ([1] , p. 101.)
The inner product
The inner product of a j-vector A and a k-vector B is
2

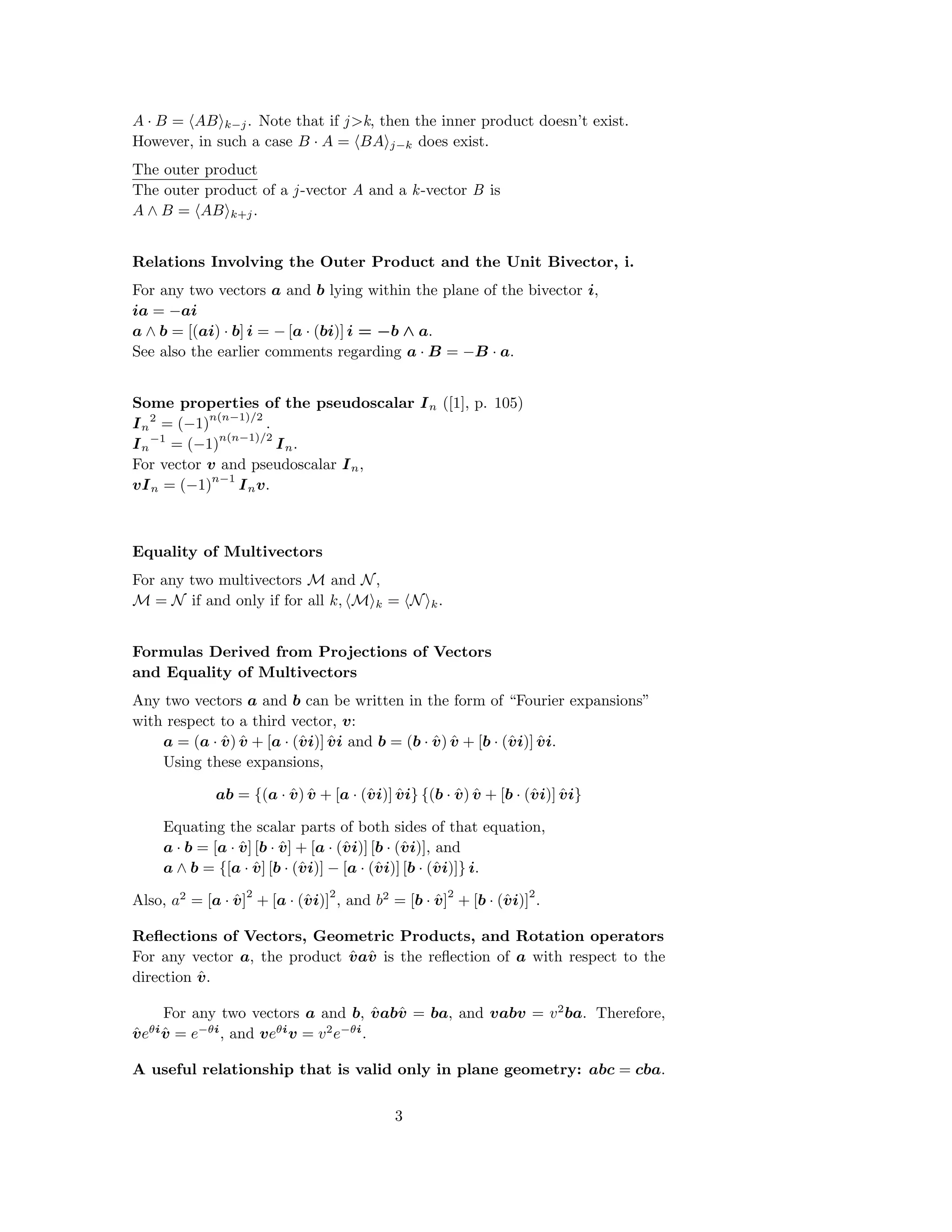

A · B = AB k−j. Note that if j>k, then the inner product doesn’t exist.
However, in such a case B · A = BA j−k does exist.
The outer product
The outer product of a j-vector A and a k-vector B is
A ∧ B = AB k+j.
Relations Involving the Outer Product and the Unit Bivector, i.
For any two vectors a and b lying within the plane of the bivector i,
ia = −ai
a ∧ b = [(ai) · b] i = − [a · (bi)] i = −b ∧ a.
See also the earlier comments regarding a · B = −B · a.
Some properties of the pseudoscalar In ([1], p. 105)
In
2
= (−1)
n(n−1)/2
.
In
−1
= (−1)
n(n−1)/2
In.
For vector v and pseudoscalar In,
vIn = (−1)
n−1
Inv.
Equality of Multivectors
For any two multivectors M and N,
M = N if and only if for all k, M k = N k.
Formulas Derived from Projections of Vectors
and Equality of Multivectors
Any two vectors a and b can be written in the form of “Fourier expansions”
with respect to a third vector, v:
a = (a · ˆv) ˆv + [a · (ˆvi)] ˆvi and b = (b · ˆv) ˆv + [b · (ˆvi)] ˆvi.
Using these expansions,
ab = {(a · ˆv) ˆv + [a · (ˆvi)] ˆvi} {(b · ˆv) ˆv + [b · (ˆvi)] ˆvi}
Equating the scalar parts of both sides of that equation,
a · b = [a · ˆv] [b · ˆv] + [a · (ˆvi)] [b · (ˆvi)], and
a ∧ b = {[a · ˆv] [b · (ˆvi)] − [a · (ˆvi)] [b · (ˆvi)]} i.
Also, a2
= [a · ˆv]
2
+ [a · (ˆvi)]
2
, and b2
= [b · ˆv]
2
+ [b · (ˆvi)]
2
.
Reflections of Vectors, Geometric Products, and Rotation operators
For any vector a, the product ˆvaˆv is the reflection of a with respect to the
direction ˆv.
For any two vectors a and b, ˆvabˆv = ba, and vabv = v2
ba. Therefore,
ˆveθiˆv = e−θi
, and veθi
v = v2
e−θi
.
A useful relationship that is valid only in plane geometry: abc = cba.
3

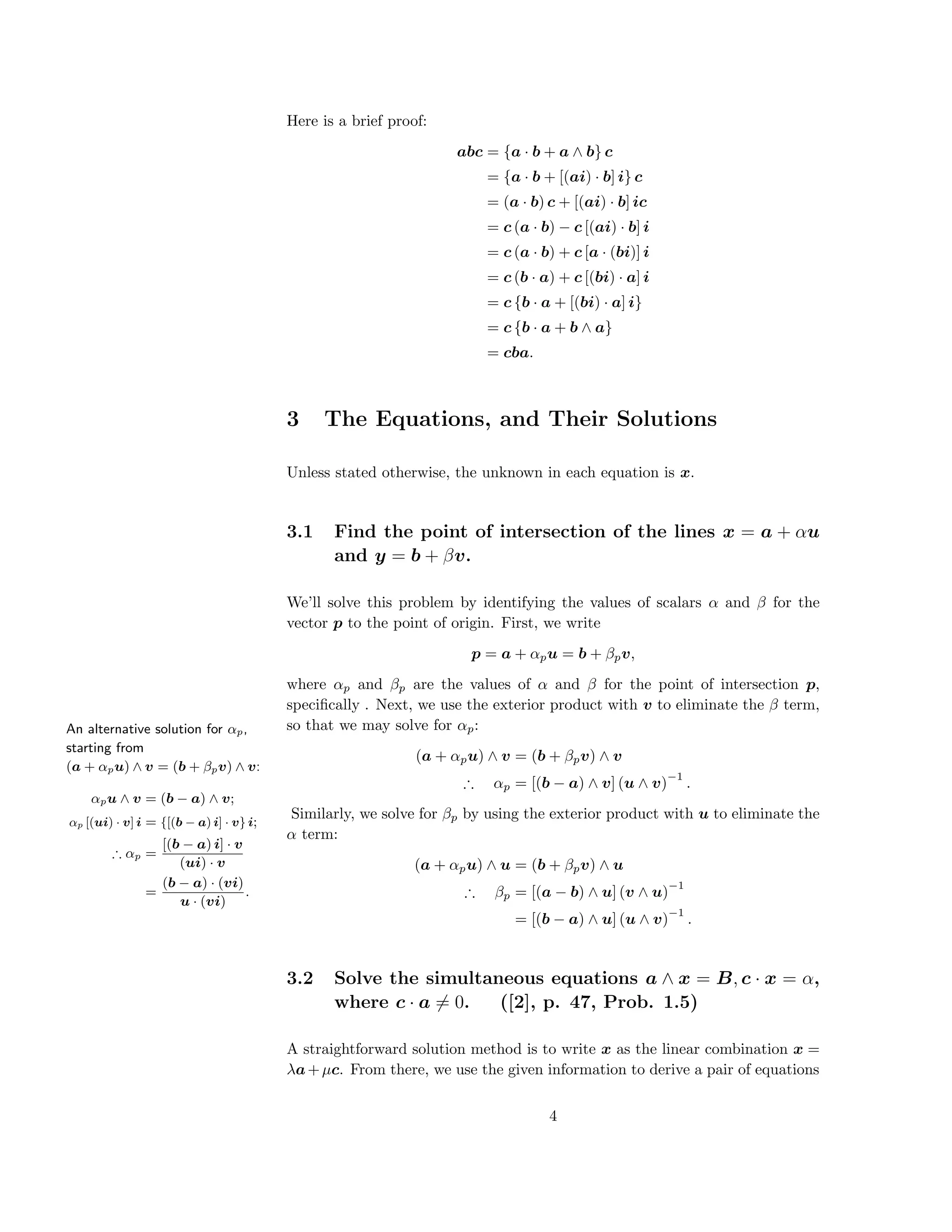

Here is a brief proof:
abc = {a · b + a ∧ b} c
= {a · b + [(ai) · b] i} c
= (a · b) c + [(ai) · b] ic
= c (a · b) − c [(ai) · b] i
= c (a · b) + c [a · (bi)] i
= c (b · a) + c [(bi) · a] i
= c {b · a + [(bi) · a] i}
= c {b · a + b ∧ a}
= cba.
3 The Equations, and Their Solutions
Unless stated otherwise, the unknown in each equation is x.
3.1 Find the point of intersection of the lines x = a + αu
and y = b + βv.
We’ll solve this problem by identifying the values of scalars α and β for the
vector p to the point of origin. First, we write
p = a + αpu = b + βpv,
where αp and βp are the values of α and β for the point of intersection p,
specifically . Next, we use the exterior product with v to eliminate the β term,
so that we may solve for αp:
(a + αpu) ∧ v = (b + βpv) ∧ v
∴ αp = [(b − a) ∧ v] (u ∧ v)
−1
.
An alternative solution for αp,
starting from
(a + αpu) ∧ v = (b + βpv) ∧ v:
αpu ∧ v = (b − a) ∧ v;
αp [(ui) · v] i = {[(b − a) i] · v} i;
∴ αp =
[(b − a) i] · v
(ui) · v
=
(b − a) · (vi)
u · (vi)
.
Similarly, we solve for βp by using the exterior product with u to eliminate the
α term:
(a + αpu) ∧ u = (b + βpv) ∧ u
∴ βp = [(a − b) ∧ u] (v ∧ u)
−1
= [(b − a) ∧ u] (u ∧ v)
−1
.
3.2 Solve the simultaneous equations a ∧ x = B, c · x = α,
where c · a = 0. ([2], p. 47, Prob. 1.5)
A straightforward solution method is to write x as the linear combination x =
λa+µc. From there, we use the given information to derive a pair of equations
4

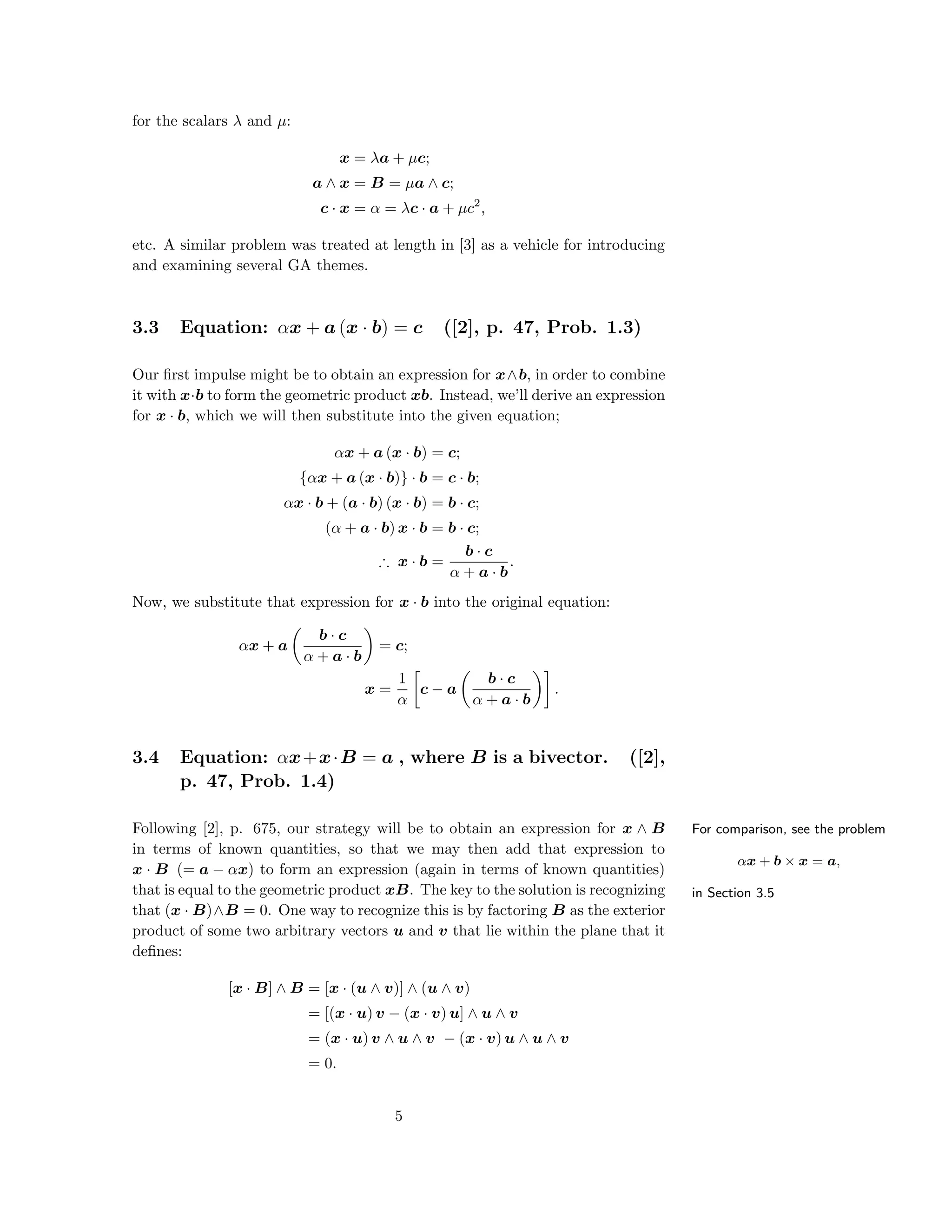

for the scalars λ and µ:
x = λa + µc;
a ∧ x = B = µa ∧ c;
c · x = α = λc · a + µc2
,
etc. A similar problem was treated at length in [3] as a vehicle for introducing
and examining several GA themes.
3.3 Equation: αx + a (x · b) = c ([2], p. 47, Prob. 1.3)
Our first impulse might be to obtain an expression for x∧b, in order to combine
it with x·b to form the geometric product xb. Instead, we’ll derive an expression
for x · b, which we will then substitute into the given equation;
αx + a (x · b) = c;
{αx + a (x · b)} · b = c · b;
αx · b + (a · b) (x · b) = b · c;
(α + a · b) x · b = b · c;
∴ x · b =
b · c
α + a · b
.
Now, we substitute that expression for x · b into the original equation:
αx + a
b · c
α + a · b
= c;
x =
1
α
c − a
b · c
α + a · b
.
3.4 Equation: αx+x·B = a , where B is a bivector. ([2],
p. 47, Prob. 1.4)
For comparison, see the problem
αx + b × x = a,
in Section 3.5
Following [2], p. 675, our strategy will be to obtain an expression for x ∧ B
in terms of known quantities, so that we may then add that expression to
x · B (= a − αx) to form an expression (again in terms of known quantities)
that is equal to the geometric product xB. The key to the solution is recognizing
that (x · B)∧B = 0. One way to recognize this is by factoring B as the exterior
product of some two arbitrary vectors u and v that lie within the plane that it
defines:
[x · B] ∧ B = [x · (u ∧ v)] ∧ (u ∧ v)
= [(x · u) v − (x · v) u] ∧ u ∧ v
= (x · u) v ∧ u ∧ v − (x · v) u ∧ u ∧ v
= 0.
5
Next, we make use of the relation we’ve just found (i.e., (x · B) ∧ B = 0)
by “wedging” both sides of the given equation with B:
αx + x · B = a
(αx + x · B) ∧ B = a ∧ B;
αx ∧ B + 0 = a ∧ B;
∴ x ∧ B =
1
α
(a ∧ B) .
The equation to be solved:
αx + x · B = a.
Now, we’ll return to the equation that we are to solve. By adding x ∧ B to the
left-hand side, we’ll form the term xB.
αx + x · B + x ∧ B = a +
1
α
(a ∧ B)
=x∧B
;
αx + xB = a +
1
α
(a ∧ B) ;
x (α + B) = a +
1
α
(a ∧ B) ;
x (α + B) (α + B)
−1
= a +
1
α
(a ∧ B) (α + B)
−1
;
x =
αa + a ∧ B
α
α − B
α2 + B 2
=(α+B)−1
;
=
α2
a − αaB + αa ∧ B − (a ∧ B) B
α (α2 + B 2)
=
α2
a − αa · B − (a ∧ B) B
α (α2 + B 2)
.
−aB + a ∧ B = −a · B.
Checking that solution by substituting it into the given equation raises
some instructive points. We’ll begin by making the substitution, and some
initial simplifications:
αx + x · B = α
α2
a − αa · B − (a ∧ B) B
α (α2 + B 2)
+
α2
a − αa · B − (a ∧ B) B
α (α2 + B 2)
· B
=
α3
a − α2
a · B − α (a ∧ B) B + α2
a · B − α (a · B) · B − [(a ∧ B) B] · B
α (α2 + B 2)
=
α3
a − α (a ∧ B) B − α (a · B) · B − [(a ∧ B) B] · B
α (α2 + B 2)
. (1)
Here, we see a useful, common
maneuver: (a · B) ∧ B = 0, so
(a · B) · B is in fact (a · B) B.
Similarly, when (a · B) · B = 0,
(a · B) ∧ B is (a · B) B.
Let’s look, now, at some of the terms in the numerator. First, the product
a · B is a vector. The geometric product of a vector v and bivector M is the
sum v·M +v∧M. Therefore, the geometric product of the vector a·B and the
bivector B is (aB) · B = (a · B) · B + (a · B) ∧ B. We’ve already established
that (a · B) ∧ B = 0 . Thus, (a · B) · B = (a · B) B. Making this substitution
6

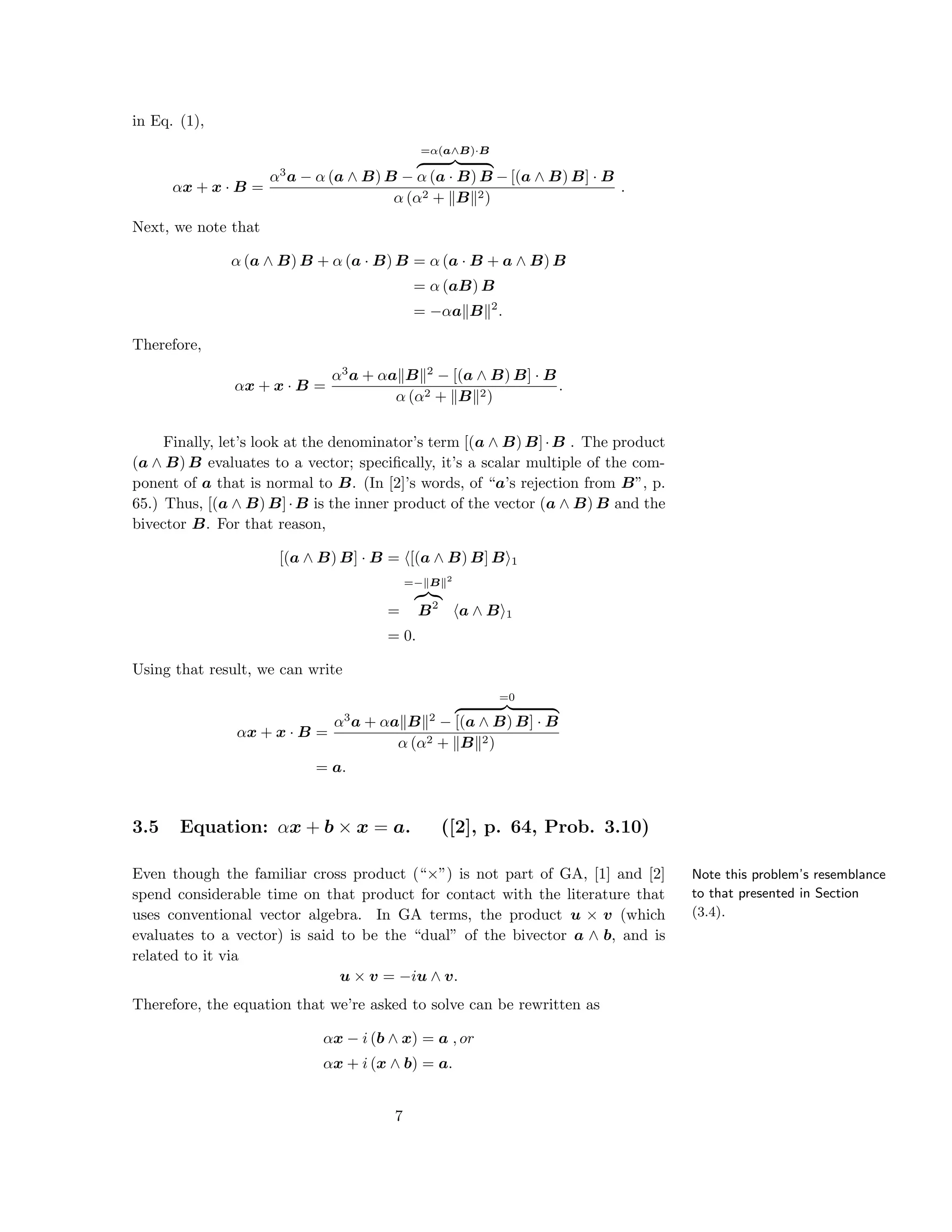

in Eq. (1),
αx + x · B =
α3
a − α (a ∧ B) B −
=α(a∧B)·B
α (a · B) B − [(a ∧ B) B] · B
α (α2 + B 2)
.
Next, we note that
α (a ∧ B) B + α (a · B) B = α (a · B + a ∧ B) B
= α (aB) B
= −αa B 2
.
Therefore,
αx + x · B =
α3
a + αa B 2
− [(a ∧ B) B] · B
α (α2 + B 2)
.
Finally, let’s look at the denominator’s term [(a ∧ B) B]·B . The product
(a ∧ B) B evaluates to a vector; specifically, it’s a scalar multiple of the com-
ponent of a that is normal to B. (In [2]’s words, of “a’s rejection from B”, p.
65.) Thus, [(a ∧ B) B]·B is the inner product of the vector (a ∧ B) B and the
bivector B. For that reason,
[(a ∧ B) B] · B = [(a ∧ B) B] B 1
=
=− B 2
B2
a ∧ B 1
= 0.
Using that result, we can write
αx + x · B =
α3
a + αa B 2
−
=0
[(a ∧ B) B] · B
α (α2 + B 2)
= a.
3.5 Equation: αx + b × x = a. ([2], p. 64, Prob. 3.10)
Note this problem’s resemblance
to that presented in Section
(3.4).
Even though the familiar cross product (“×”) is not part of GA, [1] and [2]
spend considerable time on that product for contact with the literature that
uses conventional vector algebra. In GA terms, the product u × v (which
evaluates to a vector) is said to be the “dual” of the bivector a ∧ b, and is
related to it via
u × v = −iu ∧ v.
Therefore, the equation that we’re asked to solve can be rewritten as
αx − i (b ∧ x) = a , or
αx + i (x ∧ b) = a.
7

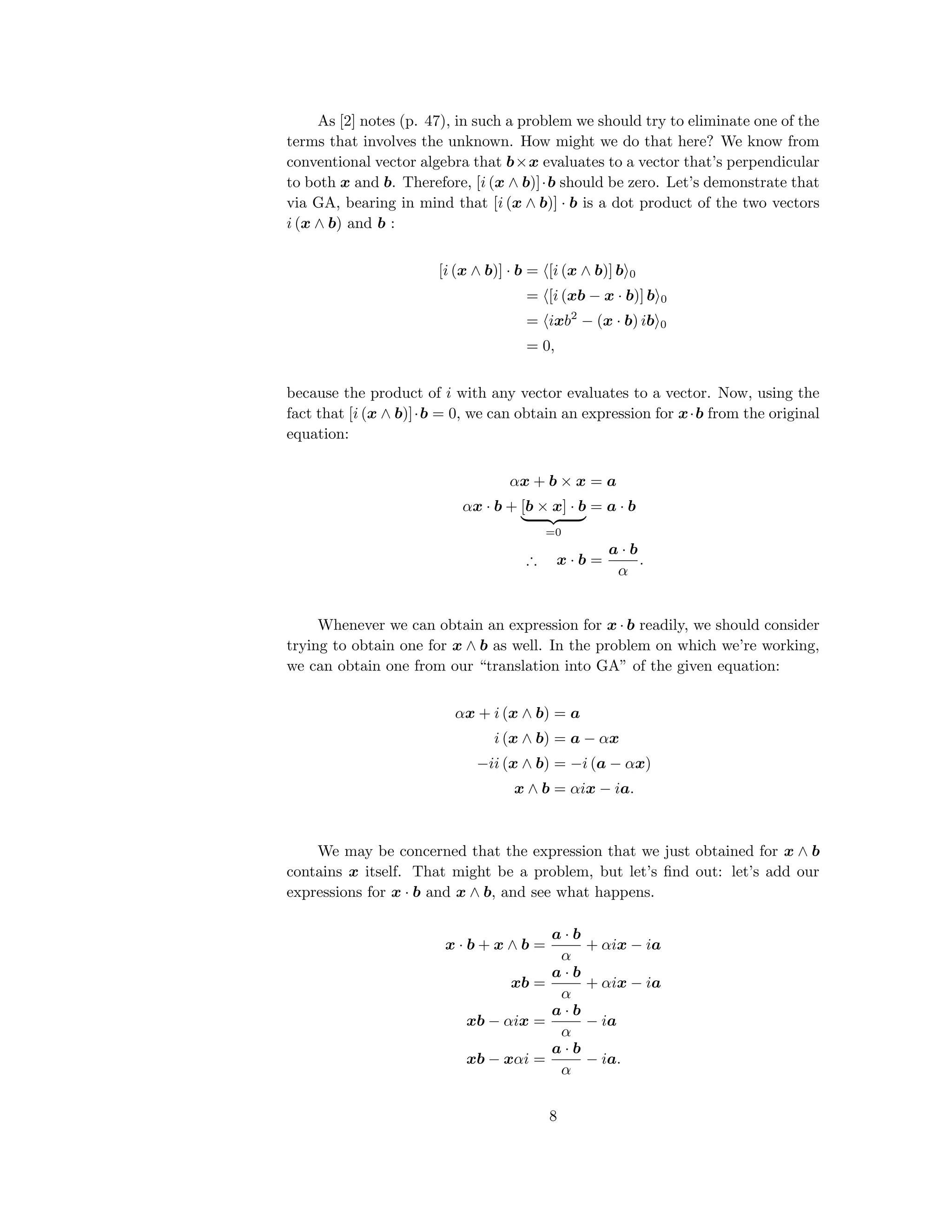

As [2] notes (p. 47), in such a problem we should try to eliminate one of the
terms that involves the unknown. How might we do that here? We know from
conventional vector algebra that b×x evaluates to a vector that’s perpendicular
to both x and b. Therefore, [i (x ∧ b)]·b should be zero. Let’s demonstrate that
via GA, bearing in mind that [i (x ∧ b)] · b is a dot product of the two vectors
i (x ∧ b) and b :
[i (x ∧ b)] · b = [i (x ∧ b)] b 0
= [i (xb − x · b)] b 0
= ixb2
− (x · b) ib 0
= 0,
because the product of i with any vector evaluates to a vector. Now, using the
fact that [i (x ∧ b)]·b = 0, we can obtain an expression for x·b from the original
equation:
αx + b × x = a
αx · b + [b × x] · b
=0
= a · b
∴ x · b =
a · b
α
.
Whenever we can obtain an expression for x · b readily, we should consider
trying to obtain one for x ∧ b as well. In the problem on which we’re working,
we can obtain one from our “translation into GA” of the given equation:
αx + i (x ∧ b) = a
i (x ∧ b) = a − αx
−ii (x ∧ b) = −i (a − αx)
x ∧ b = αix − ia.
We may be concerned that the expression that we just obtained for x ∧ b
contains x itself. That might be a problem, but let’s find out: let’s add our
expressions for x · b and x ∧ b, and see what happens.
x · b + x ∧ b =
a · b
α
+ αix − ia
xb =
a · b
α
+ αix − ia
xb − αix =
a · b
α
− ia
xb − xαi =
a · b
α
− ia.
8

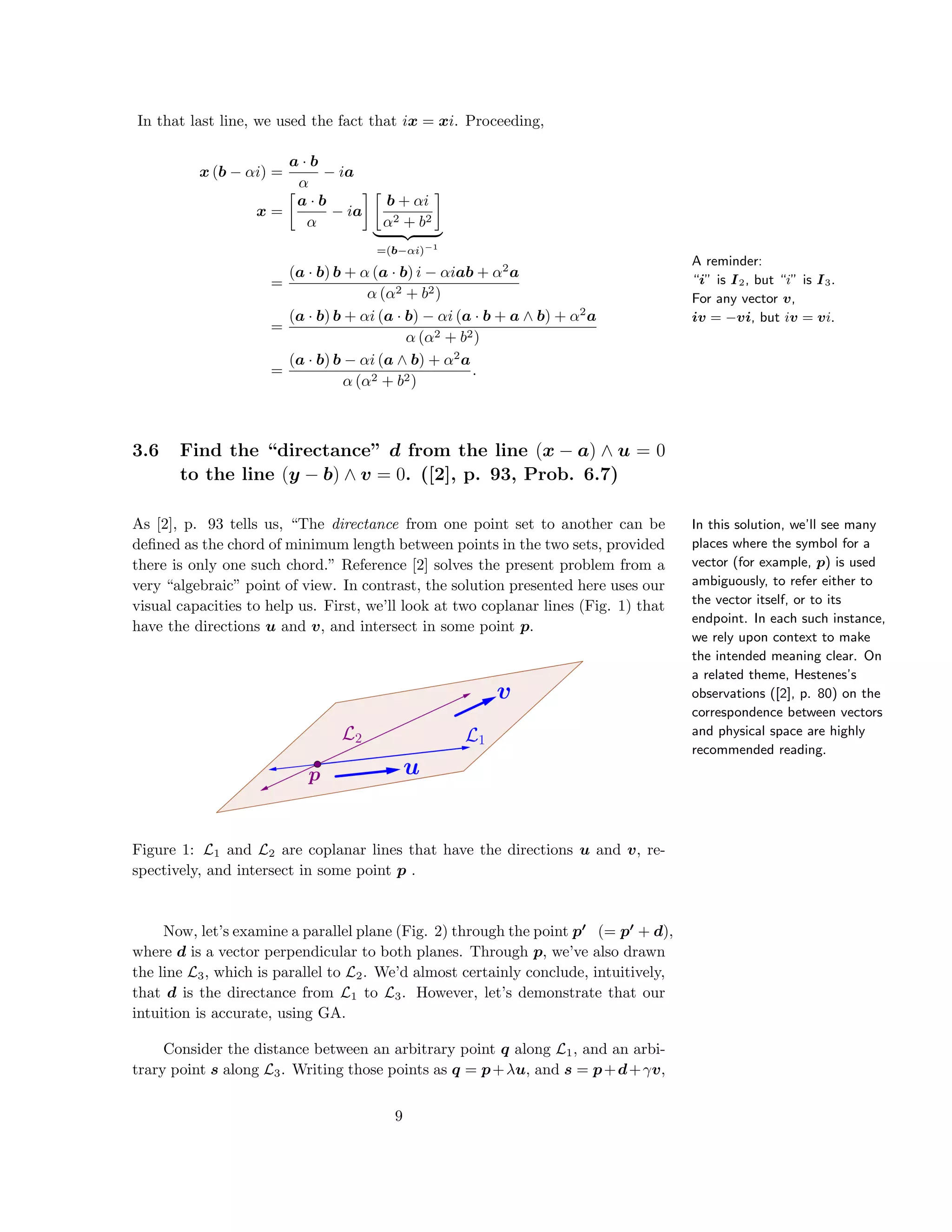

A reminder:
“i” is I2, but “i” is I3.
For any vector v,
iv = −vi, but iv = vi.
In that last line, we used the fact that ix = xi. Proceeding,
x (b − αi) =
a · b
α
− ia
x =
a · b
α
− ia
b + αi
α2 + b2
=(b−αi)−1
=
(a · b) b + α (a · b) i − αiab + α2
a
α (α2 + b2)
=
(a · b) b + αi (a · b) − αi (a · b + a ∧ b) + α2
a
α (α2 + b2)
=
(a · b) b − αi (a ∧ b) + α2
a
α (α2 + b2)
.
3.6 Find the “directance” d from the line (x − a) ∧ u = 0
to the line (y − b) ∧ v = 0. ([2], p. 93, Prob. 6.7)
In this solution, we’ll see many
places where the symbol for a
vector (for example, p) is used
ambiguously, to refer either to
the vector itself, or to its
endpoint. In each such instance,
we rely upon context to make
the intended meaning clear. On
a related theme, Hestenes’s
observations ([2], p. 80) on the
correspondence between vectors
and physical space are highly
recommended reading.
As [2], p. 93 tells us, “The directance from one point set to another can be
defined as the chord of minimum length between points in the two sets, provided
there is only one such chord.” Reference [2] solves the present problem from a
very “algebraic” point of view. In contrast, the solution presented here uses our
visual capacities to help us. First, we’ll look at two coplanar lines (Fig. 1) that
have the directions u and v, and intersect in some point p.
Figure 1: L1 and L2 are coplanar lines that have the directions u and v, re-
spectively, and intersect in some point p .
Now, let’s examine a parallel plane (Fig. 2) through the point p (= p + d),
where d is a vector perpendicular to both planes. Through p, we’ve also drawn
the line L3, which is parallel to L2. We’d almost certainly conclude, intuitively,
that d is the directance from L1 to L3. However, let’s demonstrate that our
intuition is accurate, using GA.
Consider the distance between an arbitrary point q along L1, and an arbi-
trary point s along L3. Writing those points as q = p+λu, and s = p+d+γv,
9

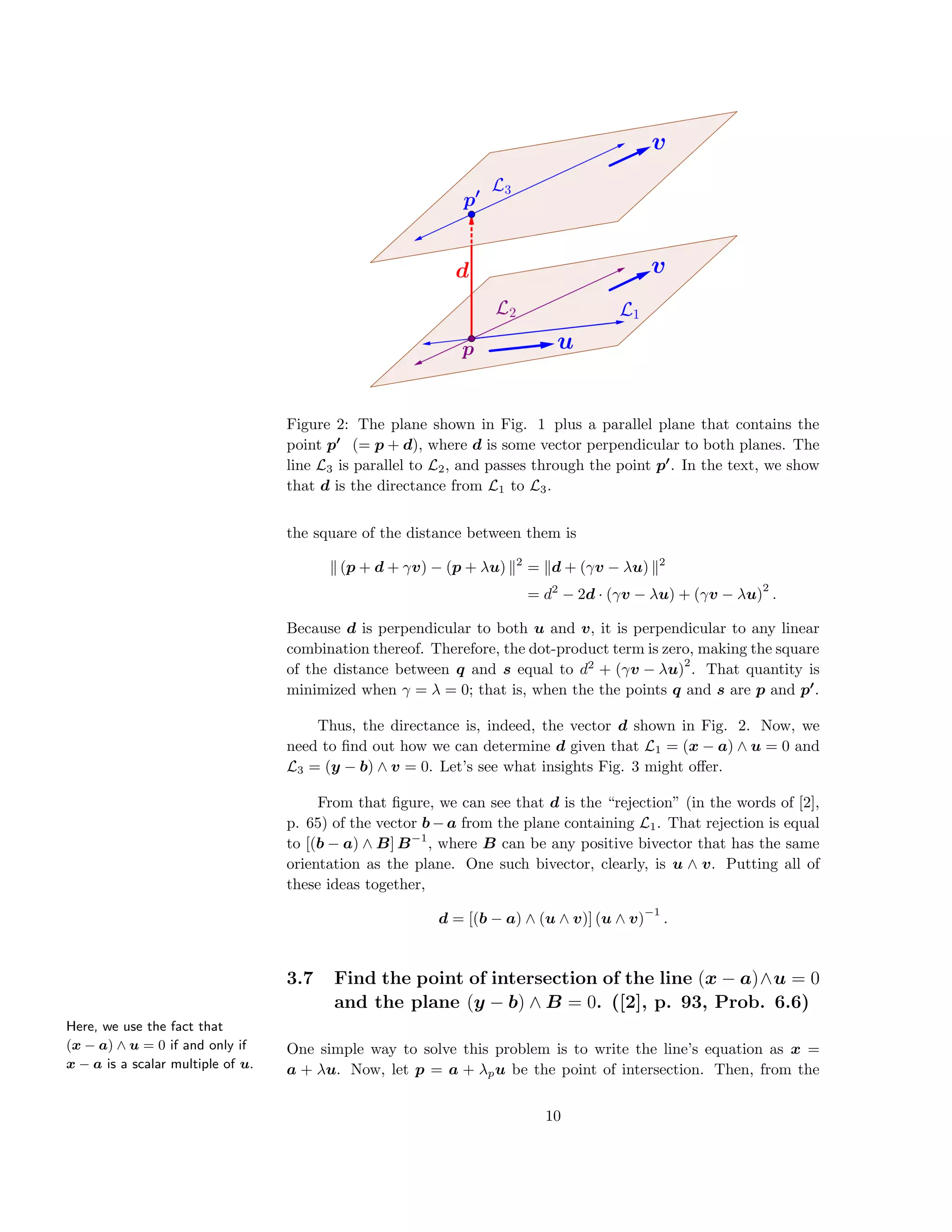

Figure 2: The plane shown in Fig. 1 plus a parallel plane that contains the
point p (= p + d), where d is some vector perpendicular to both planes. The
line L3 is parallel to L2, and passes through the point p . In the text, we show
that d is the directance from L1 to L3.
the square of the distance between them is
(p + d + γv) − (p + λu) 2
= d + (γv − λu) 2
= d2
− 2d · (γv − λu) + (γv − λu)
2
.
Because d is perpendicular to both u and v, it is perpendicular to any linear
combination thereof. Therefore, the dot-product term is zero, making the square
of the distance between q and s equal to d2
+ (γv − λu)
2
. That quantity is
minimized when γ = λ = 0; that is, when the the points q and s are p and p .
Thus, the directance is, indeed, the vector d shown in Fig. 2. Now, we
need to find out how we can determine d given that L1 = (x − a) ∧ u = 0 and
L3 = (y − b) ∧ v = 0. Let’s see what insights Fig. 3 might offer.
From that figure, we can see that d is the “rejection” (in the words of [2],
p. 65) of the vector b − a from the plane containing L1. That rejection is equal
to [(b − a) ∧ B] B−1
, where B can be any positive bivector that has the same
orientation as the plane. One such bivector, clearly, is u ∧ v. Putting all of
these ideas together,
d = [(b − a) ∧ (u ∧ v)] (u ∧ v)
−1
.
3.7 Find the point of intersection of the line (x − a)∧u = 0
and the plane (y − b) ∧ B = 0. ([2], p. 93, Prob. 6.6)
Here, we use the fact that
(x − a) ∧ u = 0 if and only if
x − a is a scalar multiple of u.
One simple way to solve this problem is to write the line’s equation as x =
a + λu. Now, let p = a + λpu be the point of intersection. Then, from the
10

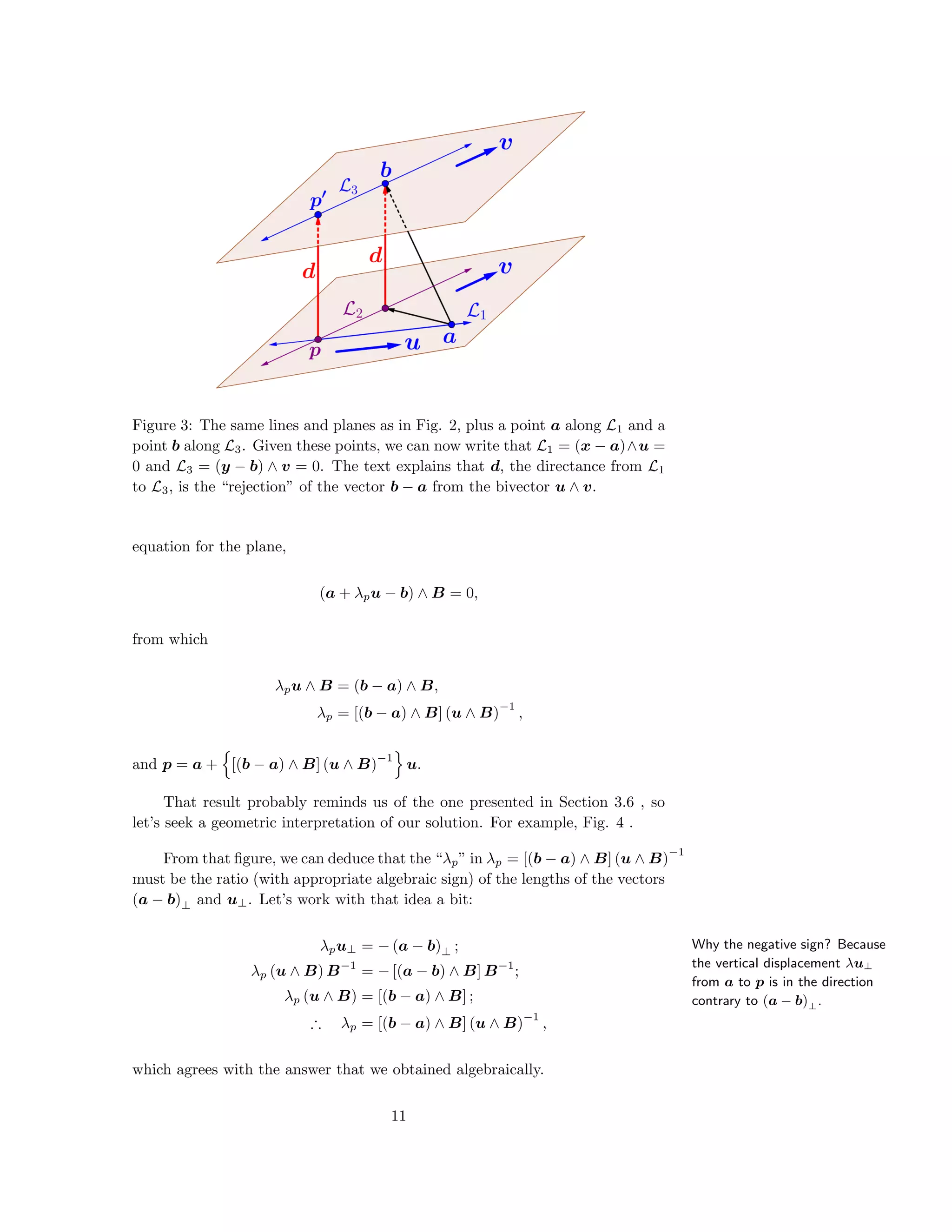

Figure 3: The same lines and planes as in Fig. 2, plus a point a along L1 and a
point b along L3. Given these points, we can now write that L1 = (x − a)∧u =
0 and L3 = (y − b) ∧ v = 0. The text explains that d, the directance from L1
to L3, is the “rejection” of the vector b − a from the bivector u ∧ v.
equation for the plane,
(a + λpu − b) ∧ B = 0,
from which
λpu ∧ B = (b − a) ∧ B,
λp = [(b − a) ∧ B] (u ∧ B)
−1
,
and p = a + [(b − a) ∧ B] (u ∧ B)
−1
u.
That result probably reminds us of the one presented in Section 3.6 , so
let’s seek a geometric interpretation of our solution. For example, Fig. 4 .
Why the negative sign? Because
the vertical displacement λu⊥
from a to p is in the direction
contrary to (a − b)⊥.
From that figure, we can deduce that the “λp” in λp = [(b − a) ∧ B] (u ∧ B)
−1
must be the ratio (with appropriate algebraic sign) of the lengths of the vectors
(a − b)⊥ and u⊥. Let’s work with that idea a bit:
λpu⊥ = − (a − b)⊥ ;
λp (u ∧ B) B−1
= − [(a − b) ∧ B] B−1
;
λp (u ∧ B) = [(b − a) ∧ B] ;
∴ λp = [(b − a) ∧ B] (u ∧ B)
−1
,
which agrees with the answer that we obtained algebraically.
11
Figure 4: Point p is the intersection of the line (x − a) ∧ u = 0 and the plane
(y − b) ∧ B = 0. The vector u⊥ is perpendicular to that plane, and is equal to
(u ∧ B) B−1
. Similarly, (a − b)⊥ is equal to [(a − b) ∧ B] B−1
.
3.8 Solve for x: (a − x)−1
(b − x) = λeθi
= 0. ([2], p. 96,
Prob. 6.22)
Here, the fact that (a − x)
−1
= (a − x) / a − x 2
is unhelpful. Instead, we
proceed as follows:
(a − x)
−1
(b − x) = λeθi
b − x = λ (a − x) eθi
xλeθi
− x = λa − b
x = (λa − b) λeθi
− 1
−1
= (λa − b)
λe−θi
− 1
2 (1 − λ cos θ)
.
3.9 Assuming that we know v0 , but not v0’s direction,
determine t given that g ∧ r = t (g ∧ v0) and r =
1
2
gt2
+
v0t. ([2], p. 133, Prob. 2.1)
See also the problem presented
in 3.10.
This problem is from [2]’s treatment of constant-force problems; specifically,
t is the time of flight of a projectile that will land at point r if fired at velocity
v0.
Because we know v0 , a reasonable first move is to make that quan-
tity appear, somehow, by manipulating the given equations. Perhaps counter-
12

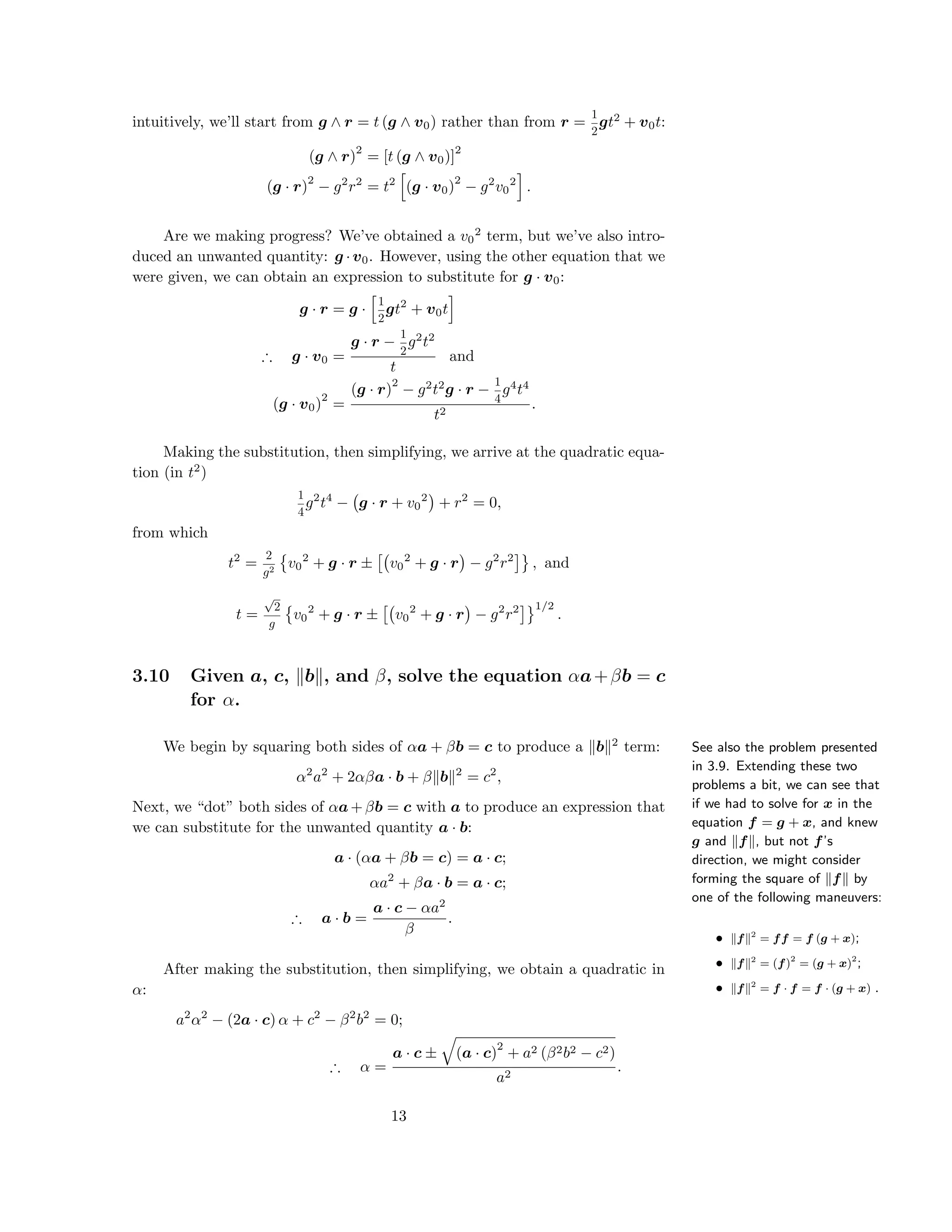

intuitively, we’ll start from g ∧ r = t (g ∧ v0) rather than from r =
1
2
gt2
+ v0t:
(g ∧ r)
2
= [t (g ∧ v0)]
2
(g · r)
2
− g2
r2
= t2
(g · v0)
2
− g2
v0
2
.
Are we making progress? We’ve obtained a v0
2
term, but we’ve also intro-
duced an unwanted quantity: g ·v0. However, using the other equation that we
were given, we can obtain an expression to substitute for g · v0:
g · r = g ·
1
2
gt2
+ v0t
∴ g · v0 =
g · r −
1
2
g2
t2
t
and
(g · v0)
2
=
(g · r)
2
− g2
t2
g · r −
1
4
g4
t4
t2
.
Making the substitution, then simplifying, we arrive at the quadratic equa-
tion (in t2
)
1
4
g2
t4
− g · r + v0
2
+ r2
= 0,
from which
t2
=
2
g2
v0
2
+ g · r ± v0
2
+ g · r − g2
r2
, and
t =
√
2
g
v0
2
+ g · r ± v0
2
+ g · r − g2
r2 1/2
.
3.10 Given a, c, b , and β, solve the equation αa+βb = c
for α.
See also the problem presented
in 3.9. Extending these two
problems a bit, we can see that
if we had to solve for x in the
equation f = g + x, and knew
g and f , but not f’s
direction, we might consider
forming the square of f by
one of the following maneuvers:
• f 2
= ff = f (g + x);
• f 2
= (f)2
= (g + x)2
;
• f 2
= f · f = f · (g + x) .
We begin by squaring both sides of αa + βb = c to produce a b 2
term:
α2
a2
+ 2αβa · b + β b 2
= c2
,
Next, we “dot” both sides of αa+βb = c with a to produce an expression that
we can substitute for the unwanted quantity a · b:
a · (αa + βb = c) = a · c;
αa2
+ βa · b = a · c;
∴ a · b =
a · c − αa2
β
.
After making the substitution, then simplifying, we obtain a quadratic in
α:
a2
α2
− (2a · c) α + c2
− β2
b2
= 0;
∴ α =
a · c ± (a · c)
2
+ a2 (β2b2 − c2)
a2
.
13

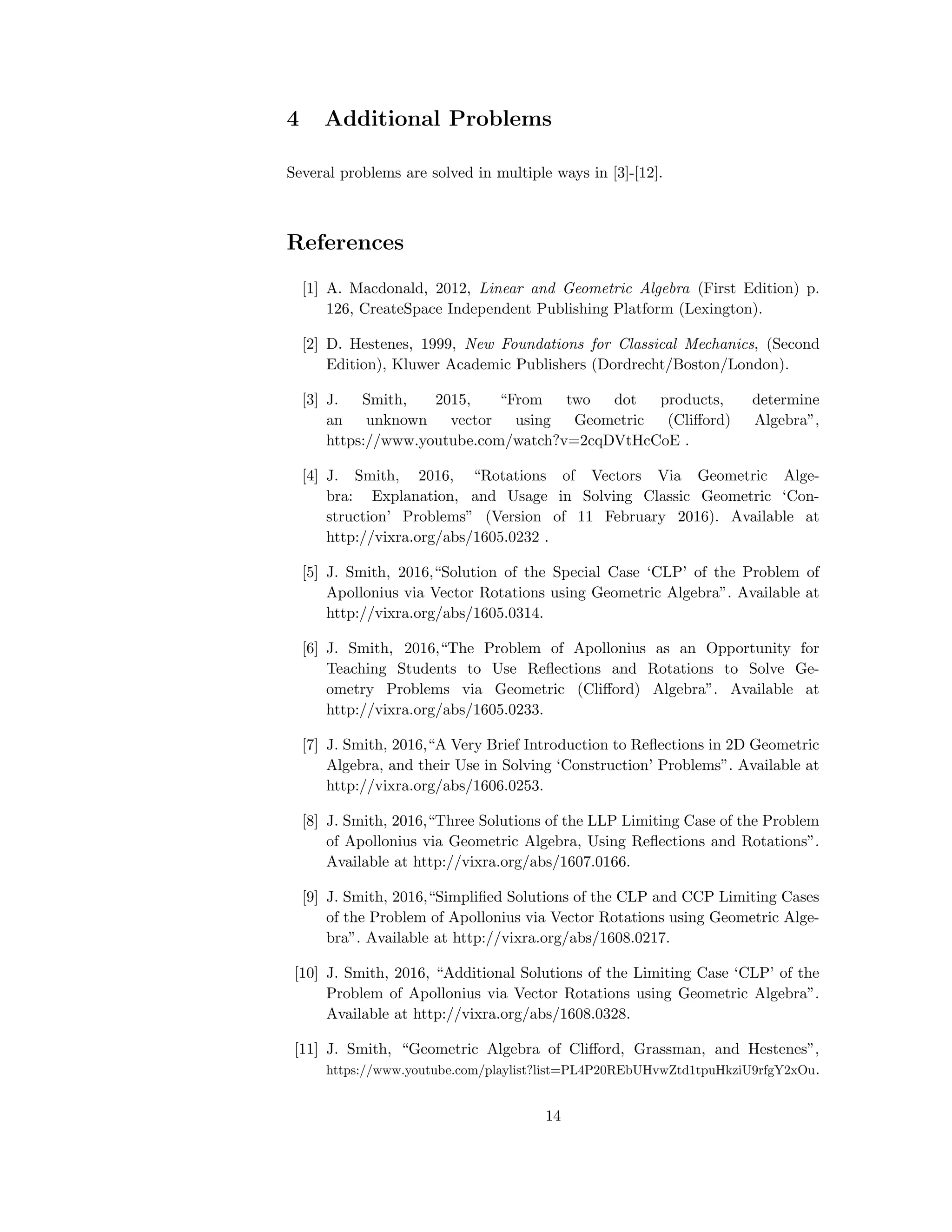

4 Additional Problems
Several problems are solved in multiple ways in [3]-[12].
References
[1] A. Macdonald, 2012, Linear and Geometric Algebra (First Edition) p.
126, CreateSpace Independent Publishing Platform (Lexington).
[2] D. Hestenes, 1999, New Foundations for Classical Mechanics, (Second
Edition), Kluwer Academic Publishers (Dordrecht/Boston/London).
[3] J. Smith, 2015, “From two dot products, determine
an unknown vector using Geometric (Clifford) Algebra”,
https://www.youtube.com/watch?v=2cqDVtHcCoE .
[4] J. Smith, 2016, “Rotations of Vectors Via Geometric Alge-
bra: Explanation, and Usage in Solving Classic Geometric ‘Con-
struction’ Problems” (Version of 11 February 2016). Available at
http://vixra.org/abs/1605.0232 .
[5] J. Smith, 2016,“Solution of the Special Case ‘CLP’ of the Problem of
Apollonius via Vector Rotations using Geometric Algebra”. Available at
http://vixra.org/abs/1605.0314.
[6] J. Smith, 2016,“The Problem of Apollonius as an Opportunity for
Teaching Students to Use Reflections and Rotations to Solve Ge-
ometry Problems via Geometric (Clifford) Algebra”. Available at
http://vixra.org/abs/1605.0233.
[7] J. Smith, 2016,“A Very Brief Introduction to Reflections in 2D Geometric
Algebra, and their Use in Solving ‘Construction’ Problems”. Available at
http://vixra.org/abs/1606.0253.
[8] J. Smith, 2016,“Three Solutions of the LLP Limiting Case of the Problem
of Apollonius via Geometric Algebra, Using Reflections and Rotations”.
Available at http://vixra.org/abs/1607.0166.
[9] J. Smith, 2016,“Simplified Solutions of the CLP and CCP Limiting Cases
of the Problem of Apollonius via Vector Rotations using Geometric Alge-
bra”. Available at http://vixra.org/abs/1608.0217.
[10] J. Smith, 2016, “Additional Solutions of the Limiting Case ‘CLP’ of the
Problem of Apollonius via Vector Rotations using Geometric Algebra”.
Available at http://vixra.org/abs/1608.0328.
[11] J. Smith, “Geometric Algebra of Clifford, Grassman, and Hestenes”,
https://www.youtube.com/playlist?list=PL4P20REbUHvwZtd1tpuHkziU9rfgY2xOu.
14

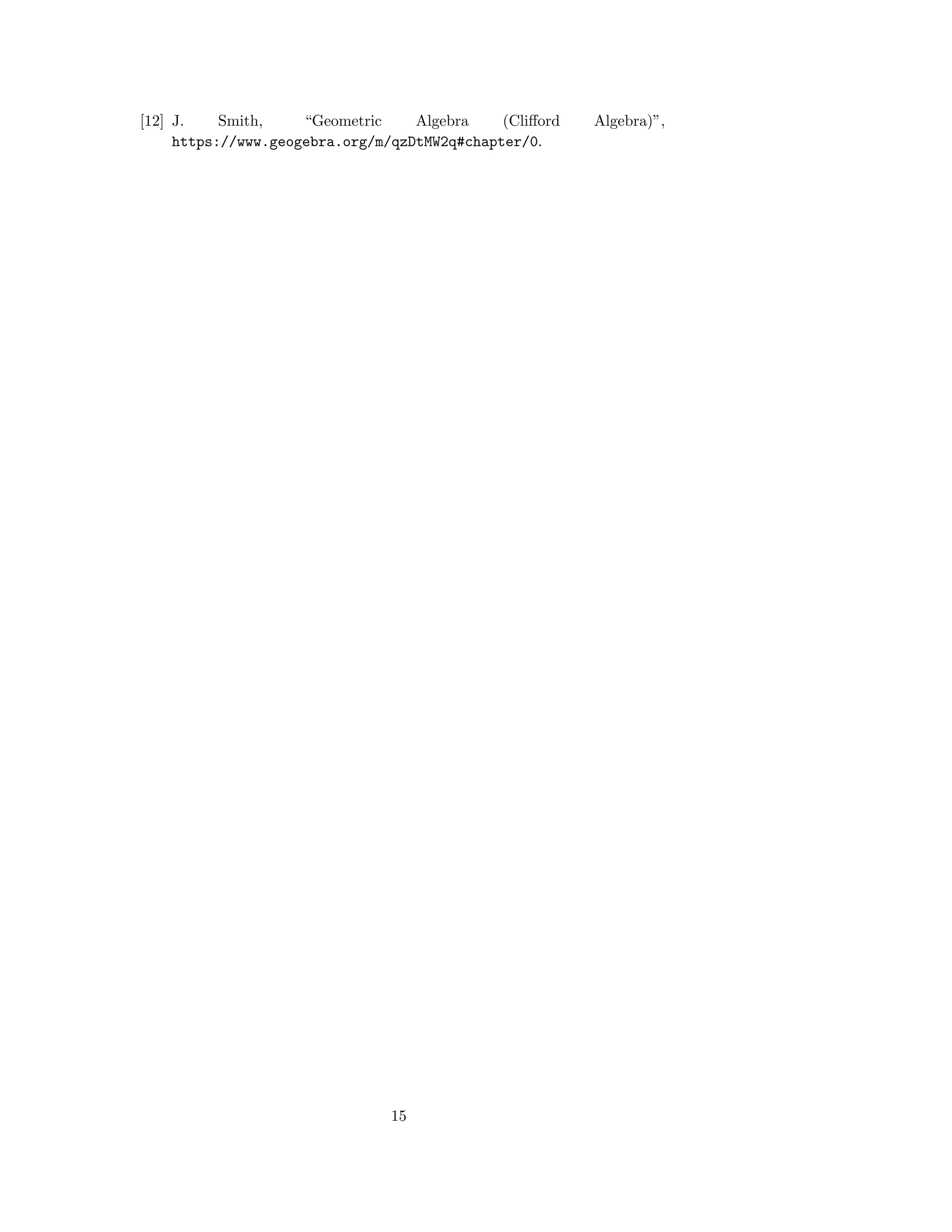

[12] J. Smith, “Geometric Algebra (Clifford Algebra)”,
https://www.geogebra.org/m/qzDtMW2q#chapter/0.
15

More Related Content

What's hot

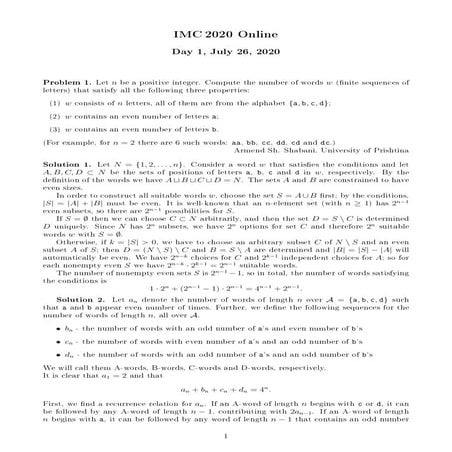

Imc2020 day1&2 problems&solutions
Imc2020 day1&2 problems&solutionsImc2020 day1&2 problems&solutions
Imc2020 day1&2 problems&solutionsChristos Loizos

A Szemeredi-type theorem for subsets of the unit cube
A Szemeredi-type theorem for subsets of the unit cubeA Szemeredi-type theorem for subsets of the unit cube
A Szemeredi-type theorem for subsets of the unit cubeVjekoslavKovac1

Clustering in Hilbert simplex geometry
Clustering in Hilbert simplex geometryClustering in Hilbert simplex geometry
Clustering in Hilbert simplex geometryFrank Nielsen

Clustering in Hilbert geometry for machine learning
Clustering in Hilbert geometry for machine learningClustering in Hilbert geometry for machine learning
Clustering in Hilbert geometry for machine learningFrank Nielsen

Gauss Quadrature Formula
Gauss Quadrature FormulaGauss Quadrature Formula
Gauss Quadrature FormulaMaitree Patel

Patch Matching with Polynomial Exponential Families and Projective Divergences
Patch Matching with Polynomial Exponential Families and Projective DivergencesPatch Matching with Polynomial Exponential Families and Projective Divergences
Patch Matching with Polynomial Exponential Families and Projective DivergencesFrank Nielsen

kunci jawaban grup
kunci jawaban grupkunci jawaban grup
kunci jawaban grupchikarahayu

Typing quantum superpositions and measurement
Typing quantum superpositions and measurementTyping quantum superpositions and measurement
Typing quantum superpositions and measurementAlejandro Díaz-Caro

Graph Edit Distance: Basics & Trends
Graph Edit Distance: Basics & TrendsGraph Edit Distance: Basics & Trends
Graph Edit Distance: Basics & TrendsLuc Brun

Tailored Bregman Ball Trees for Effective Nearest Neighbors
Tailored Bregman Ball Trees for Effective Nearest NeighborsTailored Bregman Ball Trees for Effective Nearest Neighbors
Tailored Bregman Ball Trees for Effective Nearest NeighborsFrank Nielsen

Graph kernels
Graph kernelsGraph kernels
Graph kernelsLuc Brun

Classification with mixtures of curved Mahalanobis metrics
Classification with mixtures of curved Mahalanobis metricsClassification with mixtures of curved Mahalanobis metrics
Classification with mixtures of curved Mahalanobis metricsFrank Nielsen

Solution Manual for Linear Models – Shayle Searle, Marvin Gruber
Solution Manual for Linear Models – Shayle Searle, Marvin GruberSolution Manual for Linear Models – Shayle Searle, Marvin Gruber
Solution Manual for Linear Models – Shayle Searle, Marvin GruberHenningEnoksen

On the treatment of boundary conditions for bond-based peridynamic models
On the treatment of boundary conditions for bond-based peridynamic modelsOn the treatment of boundary conditions for bond-based peridynamic models
On the treatment of boundary conditions for bond-based peridynamic modelsPatrick Diehl


What's hot (19)

Imc2020 day1&2 problems&solutions
Imc2020 day1&2 problems&solutionsImc2020 day1&2 problems&solutions
Imc2020 day1&2 problems&solutions

Cubic BF-Algebra
Cubic BF-AlgebraCubic BF-Algebra
Cubic BF-Algebra

A Szemeredi-type theorem for subsets of the unit cube
A Szemeredi-type theorem for subsets of the unit cubeA Szemeredi-type theorem for subsets of the unit cube
A Szemeredi-type theorem for subsets of the unit cube

Clustering in Hilbert simplex geometry
Clustering in Hilbert simplex geometryClustering in Hilbert simplex geometry
Clustering in Hilbert simplex geometry

Clustering in Hilbert geometry for machine learning
Clustering in Hilbert geometry for machine learningClustering in Hilbert geometry for machine learning
Clustering in Hilbert geometry for machine learning

Thesis 6
Thesis 6Thesis 6
Thesis 6

2 homework
2 homework2 homework
2 homework

Gauss Quadrature Formula
Gauss Quadrature FormulaGauss Quadrature Formula
Gauss Quadrature Formula

Patch Matching with Polynomial Exponential Families and Projective Divergences
Patch Matching with Polynomial Exponential Families and Projective DivergencesPatch Matching with Polynomial Exponential Families and Projective Divergences
Patch Matching with Polynomial Exponential Families and Projective Divergences

kunci jawaban grup
kunci jawaban grupkunci jawaban grup
kunci jawaban grup

Typing quantum superpositions and measurement
Typing quantum superpositions and measurementTyping quantum superpositions and measurement
Typing quantum superpositions and measurement

Graph Edit Distance: Basics & Trends
Graph Edit Distance: Basics & TrendsGraph Edit Distance: Basics & Trends
Graph Edit Distance: Basics & Trends

Tailored Bregman Ball Trees for Effective Nearest Neighbors
Tailored Bregman Ball Trees for Effective Nearest NeighborsTailored Bregman Ball Trees for Effective Nearest Neighbors
Tailored Bregman Ball Trees for Effective Nearest Neighbors

Graph kernels
Graph kernelsGraph kernels
Graph kernels

1543 integration in mathematics b
1543 integration in mathematics b1543 integration in mathematics b
1543 integration in mathematics b

2D Transformation
2D Transformation2D Transformation
2D Transformation

Classification with mixtures of curved Mahalanobis metrics
Classification with mixtures of curved Mahalanobis metricsClassification with mixtures of curved Mahalanobis metrics
Classification with mixtures of curved Mahalanobis metrics

Solution Manual for Linear Models – Shayle Searle, Marvin Gruber
Solution Manual for Linear Models – Shayle Searle, Marvin GruberSolution Manual for Linear Models – Shayle Searle, Marvin Gruber
Solution Manual for Linear Models – Shayle Searle, Marvin Gruber

On the treatment of boundary conditions for bond-based peridynamic models
On the treatment of boundary conditions for bond-based peridynamic modelsOn the treatment of boundary conditions for bond-based peridynamic models
On the treatment of boundary conditions for bond-based peridynamic models


Viewers also liked

Additional Solutions of the Limiting Case "CLP" of the Problem of Apollonius ...
Additional Solutions of the Limiting Case "CLP" of the Problem of Apollonius ...Additional Solutions of the Limiting Case "CLP" of the Problem of Apollonius ...
Additional Solutions of the Limiting Case "CLP" of the Problem of Apollonius ...James Smith

Cómo resolver problemas con "triángulos rectángulos simultáneos"
Cómo resolver problemas  con "triángulos rectángulos simultáneos"Cómo resolver problemas  con "triángulos rectángulos simultáneos"
Cómo resolver problemas con "triángulos rectángulos simultáneos"James Smith

Trampas comunes en los exámenes de se selección sobre matemáticas
Trampas comunes en los exámenes de se selección sobre matemáticasTrampas comunes en los exámenes de se selección sobre matemáticas
Trampas comunes en los exámenes de se selección sobre matemáticasJames Smith

Why Does the Atmosphere Rotate? Trajectory of a desorbed molecule
Why Does the Atmosphere Rotate? Trajectory of a desorbed moleculeWhy Does the Atmosphere Rotate? Trajectory of a desorbed molecule
Why Does the Atmosphere Rotate? Trajectory of a desorbed moleculeJames Smith

El cálculo de superviviencia
El cálculo de supervivienciaEl cálculo de superviviencia
El cálculo de supervivienciaJames Smith

Ejercicios geometría, con respuestas
Ejercicios geometría, con respuestasEjercicios geometría, con respuestas
Ejercicios geometría, con respuestasJames Smith

Cómo sumar fracciones algbráicas
Cómo sumar fracciones algbráicasCómo sumar fracciones algbráicas
Cómo sumar fracciones algbráicasJames Smith

Técnicas para demostraciones, usando triángulos equilateros
Técnicas para demostraciones, usando triángulos equilaterosTécnicas para demostraciones, usando triángulos equilateros
Técnicas para demostraciones, usando triángulos equilaterosJames Smith

A Solution to the Problem of Apollonius Using Vector Dot Products
A Solution to the Problem of Apollonius Using Vector Dot ProductsA Solution to the Problem of Apollonius Using Vector Dot Products
A Solution to the Problem of Apollonius Using Vector Dot ProductsJames Smith

Tú sí, puedes, con las ecuaciones simultáneas lineales
Tú sí, puedes, con las ecuaciones simultáneas linealesTú sí, puedes, con las ecuaciones simultáneas lineales
Tú sí, puedes, con las ecuaciones simultáneas linealesJames Smith

Construcciones para encontrar la raíz cuadrada y resolver ecuaciones cuadráticas
Construcciones para encontrar la raíz cuadrada y resolver ecuaciones cuadráticasConstrucciones para encontrar la raíz cuadrada y resolver ecuaciones cuadráticas
Construcciones para encontrar la raíz cuadrada y resolver ecuaciones cuadráticasJames Smith

An additional brief solution of the CPP limiting case of the Problem of Apoll...
An additional brief solution of the CPP limiting case of the Problem of Apoll...An additional brief solution of the CPP limiting case of the Problem of Apoll...
An additional brief solution of the CPP limiting case of the Problem of Apoll...James Smith

Modelando matemáticamente, el "Slinky'' en caída libre
Modelando matemáticamente, el "Slinky'' en caída libreModelando matemáticamente, el "Slinky'' en caída libre
Modelando matemáticamente, el "Slinky'' en caída libreJames Smith

A Modification of the Lifshitz-Slyozov-Wagner Equation for Predicting Coarsen...
A Modification of the Lifshitz-Slyozov-Wagner Equation for Predicting Coarsen...A Modification of the Lifshitz-Slyozov-Wagner Equation for Predicting Coarsen...
A Modification of the Lifshitz-Slyozov-Wagner Equation for Predicting Coarsen...James Smith

How to Effect a Composite Rotation of a Vector via Geometric (Clifford) Algebra
How to Effect a Composite Rotation of a Vector via Geometric (Clifford) AlgebraHow to Effect a Composite Rotation of a Vector via Geometric (Clifford) Algebra
How to Effect a Composite Rotation of a Vector via Geometric (Clifford) AlgebraJames Smith

Cómo entender el uso de escalas logarítmicas
Cómo entender el uso de escalas logarítmicasCómo entender el uso de escalas logarítmicas
Cómo entender el uso de escalas logarítmicasJames Smith

Modelación matemática de una rueda y eje con momento de incercia variable par...
Modelación matemática de una rueda y eje con momento de incercia variable par...Modelación matemática de una rueda y eje con momento de incercia variable par...
Modelación matemática de una rueda y eje con momento de incercia variable par...James Smith

Calculating Dimensions for Constructing Super Adobe (Earth Bag) Domes
Calculating Dimensions for Constructing Super Adobe (Earth Bag) DomesCalculating Dimensions for Constructing Super Adobe (Earth Bag) Domes
Calculating Dimensions for Constructing Super Adobe (Earth Bag) DomesJames Smith

Simpli fied Solutions of the CLP and CCP Limiting Cases of the Problem of Apo...
Simplified Solutions of the CLP and CCP Limiting Cases of the Problem of Apo...Simplified Solutions of the CLP and CCP Limiting Cases of the Problem of Apo...
Simpli fied Solutions of the CLP and CCP Limiting Cases of the Problem of Apo...James Smith

Proporciones de los radios y distancias en una "cadena de Steiner" de 6 circu...
Proporciones de los radios y distancias en una "cadena de Steiner" de 6 circu...Proporciones de los radios y distancias en una "cadena de Steiner" de 6 circu...
Proporciones de los radios y distancias en una "cadena de Steiner" de 6 circu...James Smith


Viewers also liked (20)

Additional Solutions of the Limiting Case "CLP" of the Problem of Apollonius ...
Additional Solutions of the Limiting Case "CLP" of the Problem of Apollonius ...Additional Solutions of the Limiting Case "CLP" of the Problem of Apollonius ...
Additional Solutions of the Limiting Case "CLP" of the Problem of Apollonius ...

Cómo resolver problemas con "triángulos rectángulos simultáneos"
Cómo resolver problemas  con "triángulos rectángulos simultáneos"Cómo resolver problemas  con "triángulos rectángulos simultáneos"
Cómo resolver problemas con "triángulos rectángulos simultáneos"

Trampas comunes en los exámenes de se selección sobre matemáticas
Trampas comunes en los exámenes de se selección sobre matemáticasTrampas comunes en los exámenes de se selección sobre matemáticas
Trampas comunes en los exámenes de se selección sobre matemáticas

Why Does the Atmosphere Rotate? Trajectory of a desorbed molecule
Why Does the Atmosphere Rotate? Trajectory of a desorbed moleculeWhy Does the Atmosphere Rotate? Trajectory of a desorbed molecule
Why Does the Atmosphere Rotate? Trajectory of a desorbed molecule

El cálculo de superviviencia
El cálculo de supervivienciaEl cálculo de superviviencia
El cálculo de superviviencia

Ejercicios geometría, con respuestas
Ejercicios geometría, con respuestasEjercicios geometría, con respuestas
Ejercicios geometría, con respuestas

Cómo sumar fracciones algbráicas
Cómo sumar fracciones algbráicasCómo sumar fracciones algbráicas
Cómo sumar fracciones algbráicas

Técnicas para demostraciones, usando triángulos equilateros
Técnicas para demostraciones, usando triángulos equilaterosTécnicas para demostraciones, usando triángulos equilateros
Técnicas para demostraciones, usando triángulos equilateros

A Solution to the Problem of Apollonius Using Vector Dot Products
A Solution to the Problem of Apollonius Using Vector Dot ProductsA Solution to the Problem of Apollonius Using Vector Dot Products
A Solution to the Problem of Apollonius Using Vector Dot Products

Tú sí, puedes, con las ecuaciones simultáneas lineales
Tú sí, puedes, con las ecuaciones simultáneas linealesTú sí, puedes, con las ecuaciones simultáneas lineales
Tú sí, puedes, con las ecuaciones simultáneas lineales

Construcciones para encontrar la raíz cuadrada y resolver ecuaciones cuadráticas
Construcciones para encontrar la raíz cuadrada y resolver ecuaciones cuadráticasConstrucciones para encontrar la raíz cuadrada y resolver ecuaciones cuadráticas
Construcciones para encontrar la raíz cuadrada y resolver ecuaciones cuadráticas

An additional brief solution of the CPP limiting case of the Problem of Apoll...
An additional brief solution of the CPP limiting case of the Problem of Apoll...An additional brief solution of the CPP limiting case of the Problem of Apoll...
An additional brief solution of the CPP limiting case of the Problem of Apoll...

Modelando matemáticamente, el "Slinky'' en caída libre
Modelando matemáticamente, el "Slinky'' en caída libreModelando matemáticamente, el "Slinky'' en caída libre
Modelando matemáticamente, el "Slinky'' en caída libre

A Modification of the Lifshitz-Slyozov-Wagner Equation for Predicting Coarsen...
A Modification of the Lifshitz-Slyozov-Wagner Equation for Predicting Coarsen...A Modification of the Lifshitz-Slyozov-Wagner Equation for Predicting Coarsen...
A Modification of the Lifshitz-Slyozov-Wagner Equation for Predicting Coarsen...

How to Effect a Composite Rotation of a Vector via Geometric (Clifford) Algebra
How to Effect a Composite Rotation of a Vector via Geometric (Clifford) AlgebraHow to Effect a Composite Rotation of a Vector via Geometric (Clifford) Algebra
How to Effect a Composite Rotation of a Vector via Geometric (Clifford) Algebra

Cómo entender el uso de escalas logarítmicas
Cómo entender el uso de escalas logarítmicasCómo entender el uso de escalas logarítmicas
Cómo entender el uso de escalas logarítmicas

Modelación matemática de una rueda y eje con momento de incercia variable par...
Modelación matemática de una rueda y eje con momento de incercia variable par...Modelación matemática de una rueda y eje con momento de incercia variable par...
Modelación matemática de una rueda y eje con momento de incercia variable par...

Calculating Dimensions for Constructing Super Adobe (Earth Bag) Domes
Calculating Dimensions for Constructing Super Adobe (Earth Bag) DomesCalculating Dimensions for Constructing Super Adobe (Earth Bag) Domes
Calculating Dimensions for Constructing Super Adobe (Earth Bag) Domes

Simpli fied Solutions of the CLP and CCP Limiting Cases of the Problem of Apo...
Simplified Solutions of the CLP and CCP Limiting Cases of the Problem of Apo...Simplified Solutions of the CLP and CCP Limiting Cases of the Problem of Apo...
Simpli fied Solutions of the CLP and CCP Limiting Cases of the Problem of Apo...

Proporciones de los radios y distancias en una "cadena de Steiner" de 6 circu...
Proporciones de los radios y distancias en una "cadena de Steiner" de 6 circu...Proporciones de los radios y distancias en una "cadena de Steiner" de 6 circu...
Proporciones de los radios y distancias en una "cadena de Steiner" de 6 circu...


Similar to Solution Strategies for Equations that Arise in Geometric (Cliff ord) Algebra

Three Solutions of the LLP Limiting Case of the Problem of Apollonius via Geo...
Three Solutions of the LLP Limiting Case of the Problem of Apollonius via Geo...Three Solutions of the LLP Limiting Case of the Problem of Apollonius via Geo...
Three Solutions of the LLP Limiting Case of the Problem of Apollonius via Geo...James Smith

A Very Brief Introduction to Reflections in 2D Geometric Algebra, and their U...
A Very Brief Introduction to Reflections in 2D Geometric Algebra, and their U...A Very Brief Introduction to Reflections in 2D Geometric Algebra, and their U...
A Very Brief Introduction to Reflections in 2D Geometric Algebra, and their U...James Smith

Vector Algebra One Shot #BounceBack.pdf
Vector Algebra One Shot #BounceBack.pdfVector Algebra One Shot #BounceBack.pdf
Vector Algebra One Shot #BounceBack.pdfvaibahvgoel3620

Mathematics 9 Lesson 1-B: Solving Quadratic Equations using Quadratic Formula
Mathematics 9 Lesson 1-B: Solving Quadratic Equations using Quadratic FormulaMathematics 9 Lesson 1-B: Solving Quadratic Equations using Quadratic Formula
Mathematics 9 Lesson 1-B: Solving Quadratic Equations using Quadratic FormulaJuan Miguel Palero

Chap12_Sec3 - Dot Product.ppt
Chap12_Sec3 - Dot Product.pptChap12_Sec3 - Dot Product.ppt
Chap12_Sec3 - Dot Product.pptMahmudulHaque71

dotcrossproductofvectors-160530033752.pdf
dotcrossproductofvectors-160530033752.pdfdotcrossproductofvectors-160530033752.pdf
dotcrossproductofvectors-160530033752.pdfWaqas Mehmood

Dot & cross product of vectors
Dot & cross product of vectorsDot & cross product of vectors
Dot & cross product of vectorsAshraful Tauhid

Solution of the Special Case "CLP" of the Problem of Apollonius via Vector Ro...
Solution of the Special Case "CLP" of the Problem of Apollonius via Vector Ro...Solution of the Special Case "CLP" of the Problem of Apollonius via Vector Ro...
Solution of the Special Case "CLP" of the Problem of Apollonius via Vector Ro...James Smith

allsheets.pdfnnmmmmmmlklppppppplklkkkkkkkj
allsheets.pdfnnmmmmmmlklppppppplklkkkkkkkjallsheets.pdfnnmmmmmmlklppppppplklkkkkkkkj
allsheets.pdfnnmmmmmmlklppppppplklkkkkkkkjbrendonsithole6

20200911-XI-Maths-Sets-2 of 2-Ppt.pdf
20200911-XI-Maths-Sets-2 of 2-Ppt.pdf20200911-XI-Maths-Sets-2 of 2-Ppt.pdf
20200911-XI-Maths-Sets-2 of 2-Ppt.pdfMridulDhamija


Similar to Solution Strategies for Equations that Arise in Geometric (Cliff ord) Algebra (20)

Three Solutions of the LLP Limiting Case of the Problem of Apollonius via Geo...
Three Solutions of the LLP Limiting Case of the Problem of Apollonius via Geo...Three Solutions of the LLP Limiting Case of the Problem of Apollonius via Geo...
Three Solutions of the LLP Limiting Case of the Problem of Apollonius via Geo...

A Very Brief Introduction to Reflections in 2D Geometric Algebra, and their U...
A Very Brief Introduction to Reflections in 2D Geometric Algebra, and their U...A Very Brief Introduction to Reflections in 2D Geometric Algebra, and their U...
A Very Brief Introduction to Reflections in 2D Geometric Algebra, and their U...

VECTOR ANALYSIS- 2
VECTOR ANALYSIS- 2VECTOR ANALYSIS- 2
VECTOR ANALYSIS- 2

Lecture 4 (27)
Lecture 4 (27)Lecture 4 (27)
Lecture 4 (27)

Chapter 1(4)SCALAR AND VECTOR
Chapter 1(4)SCALAR AND VECTORChapter 1(4)SCALAR AND VECTOR
Chapter 1(4)SCALAR AND VECTOR

Vector Algebra One Shot #BounceBack.pdf
Vector Algebra One Shot #BounceBack.pdfVector Algebra One Shot #BounceBack.pdf
Vector Algebra One Shot #BounceBack.pdf

Scalars and vectors
Scalars and vectorsScalars and vectors
Scalars and vectors

Solving Qe
Solving QeSolving Qe
Solving Qe

Mathematics 9 Lesson 1-B: Solving Quadratic Equations using Quadratic Formula
Mathematics 9 Lesson 1-B: Solving Quadratic Equations using Quadratic FormulaMathematics 9 Lesson 1-B: Solving Quadratic Equations using Quadratic Formula
Mathematics 9 Lesson 1-B: Solving Quadratic Equations using Quadratic Formula

Chap12_Sec3 - Dot Product.ppt
Chap12_Sec3 - Dot Product.pptChap12_Sec3 - Dot Product.ppt
Chap12_Sec3 - Dot Product.ppt

QUADRATIC.pptx
QUADRATIC.pptxQUADRATIC.pptx
QUADRATIC.pptx

Report on set theory
Report on set theoryReport on set theory
Report on set theory

dotcrossproductofvectors-160530033752.pdf
dotcrossproductofvectors-160530033752.pdfdotcrossproductofvectors-160530033752.pdf
dotcrossproductofvectors-160530033752.pdf

Dot & cross product of vectors
Dot & cross product of vectorsDot & cross product of vectors
Dot & cross product of vectors

Solution of the Special Case "CLP" of the Problem of Apollonius via Vector Ro...
Solution of the Special Case "CLP" of the Problem of Apollonius via Vector Ro...Solution of the Special Case "CLP" of the Problem of Apollonius via Vector Ro...
Solution of the Special Case "CLP" of the Problem of Apollonius via Vector Ro...

Hw2
Hw2Hw2
Hw2

allsheets.pdfnnmmmmmmlklppppppplklkkkkkkkj
allsheets.pdfnnmmmmmmlklppppppplklkkkkkkkjallsheets.pdfnnmmmmmmlklppppppplklkkkkkkkj
allsheets.pdfnnmmmmmmlklppppppplklkkkkkkkj

Solution kepler chap 1
Solution kepler chap 1Solution kepler chap 1
Solution kepler chap 1

20200911-XI-Maths-Sets-2 of 2-Ppt.pdf
20200911-XI-Maths-Sets-2 of 2-Ppt.pdf20200911-XI-Maths-Sets-2 of 2-Ppt.pdf
20200911-XI-Maths-Sets-2 of 2-Ppt.pdf

product of vector vectors Araddhana BSC I 2018
 product of vector vectors Araddhana BSC I 2018 product of vector vectors Araddhana BSC I 2018
product of vector vectors Araddhana BSC I 2018


More from James Smith

Using a Common Theme to Find Intersections of Spheres with Lines and Planes v...
Using a Common Theme to Find Intersections of Spheres with Lines and Planes v...Using a Common Theme to Find Intersections of Spheres with Lines and Planes v...
Using a Common Theme to Find Intersections of Spheres with Lines and Planes v...James Smith

Via Geometric Algebra: Direction and Distance between Two Points on a Spheric...
Via Geometric Algebra: Direction and Distance between Two Points on a Spheric...Via Geometric Algebra: Direction and Distance between Two Points on a Spheric...
Via Geometric Algebra: Direction and Distance between Two Points on a Spheric...James Smith

Solution of a Vector-Triangle Problem Via Geometric (Clifford) Algebra
Solution of a Vector-Triangle Problem Via Geometric (Clifford) AlgebraSolution of a Vector-Triangle Problem Via Geometric (Clifford) Algebra
Solution of a Vector-Triangle Problem Via Geometric (Clifford) AlgebraJames Smith

Via Geometric (Clifford) Algebra: Equation for Line of Intersection of Two Pl...
Via Geometric (Clifford) Algebra: Equation for Line of Intersection of Two Pl...Via Geometric (Clifford) Algebra: Equation for Line of Intersection of Two Pl...
Via Geometric (Clifford) Algebra: Equation for Line of Intersection of Two Pl...James Smith

Solution of a Sangaku ``Tangency" Problem via Geometric Algebra
Solution of a Sangaku ``Tangency" Problem via Geometric AlgebraSolution of a Sangaku ``Tangency" Problem via Geometric Algebra
Solution of a Sangaku ``Tangency" Problem via Geometric AlgebraJames Smith

Un acercamiento a los determinantes e inversos de matrices
Un acercamiento a los determinantes e inversos de matricesUn acercamiento a los determinantes e inversos de matrices
Un acercamiento a los determinantes e inversos de matricesJames Smith

Understanding the "Chain Rule" for Derivatives by Deriving Your Own Version
Understanding the "Chain Rule" for Derivatives by Deriving Your Own VersionUnderstanding the "Chain Rule" for Derivatives by Deriving Your Own Version
Understanding the "Chain Rule" for Derivatives by Deriving Your Own VersionJames Smith

Making Sense of Bivector Addition
Making Sense of Bivector AdditionMaking Sense of Bivector Addition
Making Sense of Bivector AdditionJames Smith

Learning Geometric Algebra by Modeling Motions of the Earth and Shadows of Gn...
Learning Geometric Algebra by Modeling Motions of the Earth and Shadows of Gn...Learning Geometric Algebra by Modeling Motions of the Earth and Shadows of Gn...
Learning Geometric Algebra by Modeling Motions of the Earth and Shadows of Gn...James Smith

Solution of a High-School Algebra Problem to Illustrate the Use of Elementary...
Solution of a High-School Algebra Problem to Illustrate the Use of Elementary...Solution of a High-School Algebra Problem to Illustrate the Use of Elementary...
Solution of a High-School Algebra Problem to Illustrate the Use of Elementary...James Smith

Nuevo Manual de la UNESCO para la Enseñanza de Ciencias
Nuevo Manual de la UNESCO para la Enseñanza de CienciasNuevo Manual de la UNESCO para la Enseñanza de Ciencias
Nuevo Manual de la UNESCO para la Enseñanza de CienciasJames Smith

Calculating the Angle between Projections of Vectors via Geometric (Clifford)...
Calculating the Angle between Projections of Vectors via Geometric (Clifford)...Calculating the Angle between Projections of Vectors via Geometric (Clifford)...
Calculating the Angle between Projections of Vectors via Geometric (Clifford)...James Smith

Estimation of the Earth's "Unperturbed" Perihelion from Times of Solstices an...
Estimation of the Earth's "Unperturbed" Perihelion from Times of Solstices an...Estimation of the Earth's "Unperturbed" Perihelion from Times of Solstices an...
Estimation of the Earth's "Unperturbed" Perihelion from Times of Solstices an...James Smith

Projection of a Vector upon a Plane from an Arbitrary Angle, via Geometric (C...
Projection of a Vector upon a Plane from an Arbitrary Angle, via Geometric (C...Projection of a Vector upon a Plane from an Arbitrary Angle, via Geometric (C...
Projection of a Vector upon a Plane from an Arbitrary Angle, via Geometric (C...James Smith

Formulas and Spreadsheets for Simple, Composite, and Complex Rotations of Vec...
Formulas and Spreadsheets for Simple, Composite, and Complex Rotations of Vec...Formulas and Spreadsheets for Simple, Composite, and Complex Rotations of Vec...
Formulas and Spreadsheets for Simple, Composite, and Complex Rotations of Vec...James Smith

"Rotation of a Rotation" via Geometric (Clifford) Algebra
"Rotation of a Rotation" via Geometric (Clifford) Algebra"Rotation of a Rotation" via Geometric (Clifford) Algebra
"Rotation of a Rotation" via Geometric (Clifford) AlgebraJames Smith

Sismos: Recursos acerca de la inspección y refuerzo de edificios dañados por ...
Sismos: Recursos acerca de la inspección y refuerzo de edificios dañados por ...Sismos: Recursos acerca de la inspección y refuerzo de edificios dañados por ...
Sismos: Recursos acerca de la inspección y refuerzo de edificios dañados por ...James Smith

Kepler and Newton vs. Geocentrism, Flat Earth, and the "Vortex"
Kepler and Newton vs. Geocentrism, Flat Earth, and the "Vortex"Kepler and Newton vs. Geocentrism, Flat Earth, and the "Vortex"
Kepler and Newton vs. Geocentrism, Flat Earth, and the "Vortex"James Smith

El desarrollo de ecuaciones lineales
El desarrollo de ecuaciones linealesEl desarrollo de ecuaciones lineales
El desarrollo de ecuaciones linealesJames Smith

Cambios de óptica en el curso de un despeje
Cambios de óptica en el curso de un despejeCambios de óptica en el curso de un despeje
Cambios de óptica en el curso de un despejeJames Smith


More from James Smith (20)

Using a Common Theme to Find Intersections of Spheres with Lines and Planes v...
Using a Common Theme to Find Intersections of Spheres with Lines and Planes v...Using a Common Theme to Find Intersections of Spheres with Lines and Planes v...
Using a Common Theme to Find Intersections of Spheres with Lines and Planes v...

Via Geometric Algebra: Direction and Distance between Two Points on a Spheric...
Via Geometric Algebra: Direction and Distance between Two Points on a Spheric...Via Geometric Algebra: Direction and Distance between Two Points on a Spheric...
Via Geometric Algebra: Direction and Distance between Two Points on a Spheric...

Solution of a Vector-Triangle Problem Via Geometric (Clifford) Algebra
Solution of a Vector-Triangle Problem Via Geometric (Clifford) AlgebraSolution of a Vector-Triangle Problem Via Geometric (Clifford) Algebra
Solution of a Vector-Triangle Problem Via Geometric (Clifford) Algebra

Via Geometric (Clifford) Algebra: Equation for Line of Intersection of Two Pl...
Via Geometric (Clifford) Algebra: Equation for Line of Intersection of Two Pl...Via Geometric (Clifford) Algebra: Equation for Line of Intersection of Two Pl...
Via Geometric (Clifford) Algebra: Equation for Line of Intersection of Two Pl...

Solution of a Sangaku ``Tangency" Problem via Geometric Algebra
Solution of a Sangaku ``Tangency" Problem via Geometric AlgebraSolution of a Sangaku ``Tangency" Problem via Geometric Algebra
Solution of a Sangaku ``Tangency" Problem via Geometric Algebra

Un acercamiento a los determinantes e inversos de matrices
Un acercamiento a los determinantes e inversos de matricesUn acercamiento a los determinantes e inversos de matrices
Un acercamiento a los determinantes e inversos de matrices

Understanding the "Chain Rule" for Derivatives by Deriving Your Own Version
Understanding the "Chain Rule" for Derivatives by Deriving Your Own VersionUnderstanding the "Chain Rule" for Derivatives by Deriving Your Own Version
Understanding the "Chain Rule" for Derivatives by Deriving Your Own Version

Making Sense of Bivector Addition
Making Sense of Bivector AdditionMaking Sense of Bivector Addition
Making Sense of Bivector Addition

Learning Geometric Algebra by Modeling Motions of the Earth and Shadows of Gn...
Learning Geometric Algebra by Modeling Motions of the Earth and Shadows of Gn...Learning Geometric Algebra by Modeling Motions of the Earth and Shadows of Gn...
Learning Geometric Algebra by Modeling Motions of the Earth and Shadows of Gn...

Solution of a High-School Algebra Problem to Illustrate the Use of Elementary...
Solution of a High-School Algebra Problem to Illustrate the Use of Elementary...Solution of a High-School Algebra Problem to Illustrate the Use of Elementary...
Solution of a High-School Algebra Problem to Illustrate the Use of Elementary...

Nuevo Manual de la UNESCO para la Enseñanza de Ciencias
Nuevo Manual de la UNESCO para la Enseñanza de CienciasNuevo Manual de la UNESCO para la Enseñanza de Ciencias
Nuevo Manual de la UNESCO para la Enseñanza de Ciencias

Calculating the Angle between Projections of Vectors via Geometric (Clifford)...
Calculating the Angle between Projections of Vectors via Geometric (Clifford)...Calculating the Angle between Projections of Vectors via Geometric (Clifford)...
Calculating the Angle between Projections of Vectors via Geometric (Clifford)...

Estimation of the Earth's "Unperturbed" Perihelion from Times of Solstices an...
Estimation of the Earth's "Unperturbed" Perihelion from Times of Solstices an...Estimation of the Earth's "Unperturbed" Perihelion from Times of Solstices an...
Estimation of the Earth's "Unperturbed" Perihelion from Times of Solstices an...

Projection of a Vector upon a Plane from an Arbitrary Angle, via Geometric (C...
Projection of a Vector upon a Plane from an Arbitrary Angle, via Geometric (C...Projection of a Vector upon a Plane from an Arbitrary Angle, via Geometric (C...
Projection of a Vector upon a Plane from an Arbitrary Angle, via Geometric (C...

Formulas and Spreadsheets for Simple, Composite, and Complex Rotations of Vec...
Formulas and Spreadsheets for Simple, Composite, and Complex Rotations of Vec...Formulas and Spreadsheets for Simple, Composite, and Complex Rotations of Vec...
Formulas and Spreadsheets for Simple, Composite, and Complex Rotations of Vec...

"Rotation of a Rotation" via Geometric (Clifford) Algebra
"Rotation of a Rotation" via Geometric (Clifford) Algebra"Rotation of a Rotation" via Geometric (Clifford) Algebra
"Rotation of a Rotation" via Geometric (Clifford) Algebra

Sismos: Recursos acerca de la inspección y refuerzo de edificios dañados por ...
Sismos: Recursos acerca de la inspección y refuerzo de edificios dañados por ...Sismos: Recursos acerca de la inspección y refuerzo de edificios dañados por ...
Sismos: Recursos acerca de la inspección y refuerzo de edificios dañados por ...

Kepler and Newton vs. Geocentrism, Flat Earth, and the "Vortex"
Kepler and Newton vs. Geocentrism, Flat Earth, and the "Vortex"Kepler and Newton vs. Geocentrism, Flat Earth, and the "Vortex"
Kepler and Newton vs. Geocentrism, Flat Earth, and the "Vortex"

El desarrollo de ecuaciones lineales
El desarrollo de ecuaciones linealesEl desarrollo de ecuaciones lineales
El desarrollo de ecuaciones lineales

Cambios de óptica en el curso de un despeje
Cambios de óptica en el curso de un despejeCambios de óptica en el curso de un despeje
Cambios de óptica en el curso de un despeje


Recently uploaded

The Art Pastor's Guide to Sabbath | Steve Thomason
The Art Pastor's Guide to Sabbath | Steve ThomasonThe Art Pastor's Guide to Sabbath | Steve Thomason
The Art Pastor's Guide to Sabbath | Steve ThomasonSteve Thomason

Fish and Chips - have they had their chips
Fish and Chips - have they had their chipsFish and Chips - have they had their chips
Fish and Chips - have they had their chipsGeoBlogs

Salient features of Environment protection Act 1986.pptx
Salient features of Environment protection Act 1986.pptxSalient features of Environment protection Act 1986.pptx
Salient features of Environment protection Act 1986.pptxakshayaramakrishnan21

UNIT – IV_PCI Complaints: Complaints and evaluation of complaints, Handling o...
UNIT – IV_PCI Complaints: Complaints and evaluation of complaints, Handling o...UNIT – IV_PCI Complaints: Complaints and evaluation of complaints, Handling o...
UNIT – IV_PCI Complaints: Complaints and evaluation of complaints, Handling o...Sayali Powar

Supporting (UKRI) OA monographs at Salford.pptx
Supporting (UKRI) OA monographs at Salford.pptxSupporting (UKRI) OA monographs at Salford.pptx
Supporting (UKRI) OA monographs at Salford.pptxJisc

plant breeding methods in asexually or clonally propagated crops
plant breeding methods in asexually or clonally propagated cropsplant breeding methods in asexually or clonally propagated crops
plant breeding methods in asexually or clonally propagated cropsparmarsneha2

Students, digital devices and success - Andreas Schleicher - 27 May 2024..pptx
Students, digital devices and success - Andreas Schleicher - 27 May 2024..pptxStudents, digital devices and success - Andreas Schleicher - 27 May 2024..pptx
Students, digital devices and success - Andreas Schleicher - 27 May 2024..pptxEduSkills OECD

INU_CAPSTONEDESIGN_비밀번호486_업로드용 발표자료.pdf
INU_CAPSTONEDESIGN_비밀번호486_업로드용 발표자료.pdfINU_CAPSTONEDESIGN_비밀번호486_업로드용 발표자료.pdf
INU_CAPSTONEDESIGN_비밀번호486_업로드용 발표자료.pdfbu07226

How to Create Map Views in the Odoo 17 ERP
How to Create Map Views in the Odoo 17 ERPHow to Create Map Views in the Odoo 17 ERP
How to Create Map Views in the Odoo 17 ERPCeline George

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaasiemaillard

Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdf
Welcome to TechSoup   New Member Orientation and Q&A (May 2024).pdfWelcome to TechSoup   New Member Orientation and Q&A (May 2024).pdf
Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdfTechSoup

How libraries can support authors with open access requirements for UKRI fund...
How libraries can support authors with open access requirements for UKRI fund...How libraries can support authors with open access requirements for UKRI fund...
How libraries can support authors with open access requirements for UKRI fund...Jisc

1.4 modern child centered education - mahatma gandhi-2.pptx
1.4 modern child centered education - mahatma gandhi-2.pptx1.4 modern child centered education - mahatma gandhi-2.pptx
1.4 modern child centered education - mahatma gandhi-2.pptxJosvitaDsouza2

Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX
Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXXPhrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX
Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXXMIRIAMSALINAS13

Home assignment II on Spectroscopy 2024 Answers.pdf
Home assignment II on Spectroscopy 2024 Answers.pdfHome assignment II on Spectroscopy 2024 Answers.pdf
Home assignment II on Spectroscopy 2024 Answers.pdfTamralipta Mahavidyalaya

Benefits and Challenges of Using Open Educational Resources
Benefits and Challenges of Using Open Educational ResourcesBenefits and Challenges of Using Open Educational Resources
Benefits and Challenges of Using Open Educational Resourcesdimpy50


Recently uploaded (20)

NCERT Solutions Power Sharing Class 10 Notes pdf
NCERT Solutions Power Sharing Class 10 Notes pdfNCERT Solutions Power Sharing Class 10 Notes pdf
NCERT Solutions Power Sharing Class 10 Notes pdf

The Art Pastor's Guide to Sabbath | Steve Thomason
The Art Pastor's Guide to Sabbath | Steve ThomasonThe Art Pastor's Guide to Sabbath | Steve Thomason
The Art Pastor's Guide to Sabbath | Steve Thomason

Fish and Chips - have they had their chips
Fish and Chips - have they had their chipsFish and Chips - have they had their chips
Fish and Chips - have they had their chips

Salient features of Environment protection Act 1986.pptx
Salient features of Environment protection Act 1986.pptxSalient features of Environment protection Act 1986.pptx
Salient features of Environment protection Act 1986.pptx

UNIT – IV_PCI Complaints: Complaints and evaluation of complaints, Handling o...
UNIT – IV_PCI Complaints: Complaints and evaluation of complaints, Handling o...UNIT – IV_PCI Complaints: Complaints and evaluation of complaints, Handling o...
UNIT – IV_PCI Complaints: Complaints and evaluation of complaints, Handling o...

Supporting (UKRI) OA monographs at Salford.pptx
Supporting (UKRI) OA monographs at Salford.pptxSupporting (UKRI) OA monographs at Salford.pptx
Supporting (UKRI) OA monographs at Salford.pptx

plant breeding methods in asexually or clonally propagated crops
plant breeding methods in asexually or clonally propagated cropsplant breeding methods in asexually or clonally propagated crops
plant breeding methods in asexually or clonally propagated crops

Chapter 3 - Islamic Banking Products and Services.pptx
Chapter 3 - Islamic Banking Products and Services.pptxChapter 3 - Islamic Banking Products and Services.pptx
Chapter 3 - Islamic Banking Products and Services.pptx

Students, digital devices and success - Andreas Schleicher - 27 May 2024..pptx
Students, digital devices and success - Andreas Schleicher - 27 May 2024..pptxStudents, digital devices and success - Andreas Schleicher - 27 May 2024..pptx
Students, digital devices and success - Andreas Schleicher - 27 May 2024..pptx

INU_CAPSTONEDESIGN_비밀번호486_업로드용 발표자료.pdf
INU_CAPSTONEDESIGN_비밀번호486_업로드용 발표자료.pdfINU_CAPSTONEDESIGN_비밀번호486_업로드용 발표자료.pdf
INU_CAPSTONEDESIGN_비밀번호486_업로드용 발표자료.pdf

B.ed spl. HI pdusu exam paper-2023-24.pdf
B.ed spl. HI pdusu exam paper-2023-24.pdfB.ed spl. HI pdusu exam paper-2023-24.pdf
B.ed spl. HI pdusu exam paper-2023-24.pdf

How to Create Map Views in the Odoo 17 ERP
How to Create Map Views in the Odoo 17 ERPHow to Create Map Views in the Odoo 17 ERP
How to Create Map Views in the Odoo 17 ERP

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa

Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdf
Welcome to TechSoup   New Member Orientation and Q&A (May 2024).pdfWelcome to TechSoup   New Member Orientation and Q&A (May 2024).pdf
Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdf

How libraries can support authors with open access requirements for UKRI fund...
How libraries can support authors with open access requirements for UKRI fund...How libraries can support authors with open access requirements for UKRI fund...
How libraries can support authors with open access requirements for UKRI fund...

1.4 modern child centered education - mahatma gandhi-2.pptx
1.4 modern child centered education - mahatma gandhi-2.pptx1.4 modern child centered education - mahatma gandhi-2.pptx
1.4 modern child centered education - mahatma gandhi-2.pptx

Introduction to Quality Improvement Essentials
Introduction to Quality Improvement EssentialsIntroduction to Quality Improvement Essentials
Introduction to Quality Improvement Essentials

Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX
Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXXPhrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX
Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX

Home assignment II on Spectroscopy 2024 Answers.pdf
Home assignment II on Spectroscopy 2024 Answers.pdfHome assignment II on Spectroscopy 2024 Answers.pdf
Home assignment II on Spectroscopy 2024 Answers.pdf

Benefits and Challenges of Using Open Educational Resources
Benefits and Challenges of Using Open Educational ResourcesBenefits and Challenges of Using Open Educational Resources
Benefits and Challenges of Using Open Educational Resources


Solution Strategies for Equations that Arise in Geometric (Cliff ord) Algebra

  • 1. Some Solution Strategies for Equations that Arise in Geometric (Clifford) Algebra Jim Smith QueLaMateNoTeMate.webs.com email: nitac14b@yahoo.com LinkedIn Group: Pre-University Geometric Algebra October 4, 2016 Abstract Drawing mainly from Hestenes’s New Foundations for Classical Me- chanics ([2]), this document presents, explains, and discusses common solution strategies. Included are a list of formulas and a guide to nomen- clature. “Find the point of intersection of the line (x − a) ∧ u = 0 and the plane (y − b) ∧ B = 0.” 1
  • 2. 1 Nomenclature and other comments • Lower-case Greek letters (e.g, α, β, γ) represent scalars. • Bold, lower-case Roman letters (a, b, c etc.) represent vectors. EXCEPTION: The bolded, lower-case “i” is the unit bivector. • Bold, capitalized Roman letters (B, C, D) represent bivectors. EXCEPTION: The bolded, upper-case “I” is the pseudoscalar for the dimensionality of GA in use. When necessary, it is subscripted with that dimensionality. For example, I4 is the pseudoscalar for 4-dimensional GA. However, “I2” is represented by the bolded, lower-case “i”, and “I3” is represented by the non-bolded, lower-case “i”. • As noted above, the non-bolded, lower-case “i” represents the 3D GA pseudoscalar. • Upper-case, non-bolded Roman letters (A, B, C) represent multivectors. 2 GA formulas and identities The Geometric Product, and Relations Derived from It For any two vectors a and b, a · b = b · a b ∧ a = −a ∧ b ab = a · b + a ∧ b ba = b · a + b ∧ a = a · b − a ∧ b ab + ba = 2a · b ab − ba = 2a ∧ b ab = 2a · b + ba ab = 2a ∧ b − ba To clarify: When a vector a lies within the plane defined by B, a ∧ B = 0; ∴ aB = a · B. In that case, Ba = −aB because B · a = −a · B. This is why (as we’ll see later) ia = −ai in 2D GA. For a vector v and a bivector B, aB = a · B + a ∧ B B · a = −a · B B ∧ a = a ∧ B For a vector v and the bivector a ∧ b, v · (a ∧ b) = (v · a) b − (v · b) a. (a ∧ b) · v = (v · b) a − (v · a) b. For any bivector a ∧ b, [a ∧ b] 2 = (a · b) 2 − a2 b2 = − a ∧ b 2 . Definitions of Inner and Outer Products ([1] , p. 101.) The inner product The inner product of a j-vector A and a k-vector B is 2
  • 3. A · B = AB k−j. Note that if j>k, then the inner product doesn’t exist. However, in such a case B · A = BA j−k does exist. The outer product The outer product of a j-vector A and a k-vector B is A ∧ B = AB k+j. Relations Involving the Outer Product and the Unit Bivector, i. For any two vectors a and b lying within the plane of the bivector i, ia = −ai a ∧ b = [(ai) · b] i = − [a · (bi)] i = −b ∧ a. See also the earlier comments regarding a · B = −B · a. Some properties of the pseudoscalar In ([1], p. 105) In 2 = (−1) n(n−1)/2 . In −1 = (−1) n(n−1)/2 In. For vector v and pseudoscalar In, vIn = (−1) n−1 Inv. Equality of Multivectors For any two multivectors M and N, M = N if and only if for all k, M k = N k. Formulas Derived from Projections of Vectors and Equality of Multivectors Any two vectors a and b can be written in the form of “Fourier expansions” with respect to a third vector, v: a = (a · ˆv) ˆv + [a · (ˆvi)] ˆvi and b = (b · ˆv) ˆv + [b · (ˆvi)] ˆvi. Using these expansions, ab = {(a · ˆv) ˆv + [a · (ˆvi)] ˆvi} {(b · ˆv) ˆv + [b · (ˆvi)] ˆvi} Equating the scalar parts of both sides of that equation, a · b = [a · ˆv] [b · ˆv] + [a · (ˆvi)] [b · (ˆvi)], and a ∧ b = {[a · ˆv] [b · (ˆvi)] − [a · (ˆvi)] [b · (ˆvi)]} i. Also, a2 = [a · ˆv] 2 + [a · (ˆvi)] 2 , and b2 = [b · ˆv] 2 + [b · (ˆvi)] 2 . Reflections of Vectors, Geometric Products, and Rotation operators For any vector a, the product ˆvaˆv is the reflection of a with respect to the direction ˆv. For any two vectors a and b, ˆvabˆv = ba, and vabv = v2 ba. Therefore, ˆveθiˆv = e−θi , and veθi v = v2 e−θi . A useful relationship that is valid only in plane geometry: abc = cba. 3
  • 4. Here is a brief proof: abc = {a · b + a ∧ b} c = {a · b + [(ai) · b] i} c = (a · b) c + [(ai) · b] ic = c (a · b) − c [(ai) · b] i = c (a · b) + c [a · (bi)] i = c (b · a) + c [(bi) · a] i = c {b · a + [(bi) · a] i} = c {b · a + b ∧ a} = cba. 3 The Equations, and Their Solutions Unless stated otherwise, the unknown in each equation is x. 3.1 Find the point of intersection of the lines x = a + αu and y = b + βv. We’ll solve this problem by identifying the values of scalars α and β for the vector p to the point of origin. First, we write p = a + αpu = b + βpv, where αp and βp are the values of α and β for the point of intersection p, specifically . Next, we use the exterior product with v to eliminate the β term, so that we may solve for αp: (a + αpu) ∧ v = (b + βpv) ∧ v ∴ αp = [(b − a) ∧ v] (u ∧ v) −1 . An alternative solution for αp, starting from (a + αpu) ∧ v = (b + βpv) ∧ v: αpu ∧ v = (b − a) ∧ v; αp [(ui) · v] i = {[(b − a) i] · v} i; ∴ αp = [(b − a) i] · v (ui) · v = (b − a) · (vi) u · (vi) . Similarly, we solve for βp by using the exterior product with u to eliminate the α term: (a + αpu) ∧ u = (b + βpv) ∧ u ∴ βp = [(a − b) ∧ u] (v ∧ u) −1 = [(b − a) ∧ u] (u ∧ v) −1 . 3.2 Solve the simultaneous equations a ∧ x = B, c · x = α, where c · a = 0. ([2], p. 47, Prob. 1.5) A straightforward solution method is to write x as the linear combination x = λa+µc. From there, we use the given information to derive a pair of equations 4
  • 5. for the scalars λ and µ: x = λa + µc; a ∧ x = B = µa ∧ c; c · x = α = λc · a + µc2 , etc. A similar problem was treated at length in [3] as a vehicle for introducing and examining several GA themes. 3.3 Equation: αx + a (x · b) = c ([2], p. 47, Prob. 1.3) Our first impulse might be to obtain an expression for x∧b, in order to combine it with x·b to form the geometric product xb. Instead, we’ll derive an expression for x · b, which we will then substitute into the given equation; αx + a (x · b) = c; {αx + a (x · b)} · b = c · b; αx · b + (a · b) (x · b) = b · c; (α + a · b) x · b = b · c; ∴ x · b = b · c α + a · b . Now, we substitute that expression for x · b into the original equation: αx + a b · c α + a · b = c; x = 1 α c − a b · c α + a · b . 3.4 Equation: αx+x·B = a , where B is a bivector. ([2], p. 47, Prob. 1.4) For comparison, see the problem αx + b × x = a, in Section 3.5 Following [2], p. 675, our strategy will be to obtain an expression for x ∧ B in terms of known quantities, so that we may then add that expression to x · B (= a − αx) to form an expression (again in terms of known quantities) that is equal to the geometric product xB. The key to the solution is recognizing that (x · B)∧B = 0. One way to recognize this is by factoring B as the exterior product of some two arbitrary vectors u and v that lie within the plane that it defines: [x · B] ∧ B = [x · (u ∧ v)] ∧ (u ∧ v) = [(x · u) v − (x · v) u] ∧ u ∧ v = (x · u) v ∧ u ∧ v − (x · v) u ∧ u ∧ v = 0. 5
  • 6. Next, we make use of the relation we’ve just found (i.e., (x · B) ∧ B = 0) by “wedging” both sides of the given equation with B: αx + x · B = a (αx + x · B) ∧ B = a ∧ B; αx ∧ B + 0 = a ∧ B; ∴ x ∧ B = 1 α (a ∧ B) . The equation to be solved: αx + x · B = a. Now, we’ll return to the equation that we are to solve. By adding x ∧ B to the left-hand side, we’ll form the term xB. αx + x · B + x ∧ B = a + 1 α (a ∧ B) =x∧B ; αx + xB = a + 1 α (a ∧ B) ; x (α + B) = a + 1 α (a ∧ B) ; x (α + B) (α + B) −1 = a + 1 α (a ∧ B) (α + B) −1 ; x = αa + a ∧ B α α − B α2 + B 2 =(α+B)−1 ; = α2 a − αaB + αa ∧ B − (a ∧ B) B α (α2 + B 2) = α2 a − αa · B − (a ∧ B) B α (α2 + B 2) . −aB + a ∧ B = −a · B. Checking that solution by substituting it into the given equation raises some instructive points. We’ll begin by making the substitution, and some initial simplifications: αx + x · B = α α2 a − αa · B − (a ∧ B) B α (α2 + B 2) + α2 a − αa · B − (a ∧ B) B α (α2 + B 2) · B = α3 a − α2 a · B − α (a ∧ B) B + α2 a · B − α (a · B) · B − [(a ∧ B) B] · B α (α2 + B 2) = α3 a − α (a ∧ B) B − α (a · B) · B − [(a ∧ B) B] · B α (α2 + B 2) . (1) Here, we see a useful, common maneuver: (a · B) ∧ B = 0, so (a · B) · B is in fact (a · B) B. Similarly, when (a · B) · B = 0, (a · B) ∧ B is (a · B) B. Let’s look, now, at some of the terms in the numerator. First, the product a · B is a vector. The geometric product of a vector v and bivector M is the sum v·M +v∧M. Therefore, the geometric product of the vector a·B and the bivector B is (aB) · B = (a · B) · B + (a · B) ∧ B. We’ve already established that (a · B) ∧ B = 0 . Thus, (a · B) · B = (a · B) B. Making this substitution 6
  • 7. in Eq. (1), αx + x · B = α3 a − α (a ∧ B) B − =α(a∧B)·B α (a · B) B − [(a ∧ B) B] · B α (α2 + B 2) . Next, we note that α (a ∧ B) B + α (a · B) B = α (a · B + a ∧ B) B = α (aB) B = −αa B 2 . Therefore, αx + x · B = α3 a + αa B 2 − [(a ∧ B) B] · B α (α2 + B 2) . Finally, let’s look at the denominator’s term [(a ∧ B) B]·B . The product (a ∧ B) B evaluates to a vector; specifically, it’s a scalar multiple of the com- ponent of a that is normal to B. (In [2]’s words, of “a’s rejection from B”, p. 65.) Thus, [(a ∧ B) B]·B is the inner product of the vector (a ∧ B) B and the bivector B. For that reason, [(a ∧ B) B] · B = [(a ∧ B) B] B 1 = =− B 2 B2 a ∧ B 1 = 0. Using that result, we can write αx + x · B = α3 a + αa B 2 − =0 [(a ∧ B) B] · B α (α2 + B 2) = a. 3.5 Equation: αx + b × x = a. ([2], p. 64, Prob. 3.10) Note this problem’s resemblance to that presented in Section (3.4). Even though the familiar cross product (“×”) is not part of GA, [1] and [2] spend considerable time on that product for contact with the literature that uses conventional vector algebra. In GA terms, the product u × v (which evaluates to a vector) is said to be the “dual” of the bivector a ∧ b, and is related to it via u × v = −iu ∧ v. Therefore, the equation that we’re asked to solve can be rewritten as αx − i (b ∧ x) = a , or αx + i (x ∧ b) = a. 7
  • 8. As [2] notes (p. 47), in such a problem we should try to eliminate one of the terms that involves the unknown. How might we do that here? We know from conventional vector algebra that b×x evaluates to a vector that’s perpendicular to both x and b. Therefore, [i (x ∧ b)]·b should be zero. Let’s demonstrate that via GA, bearing in mind that [i (x ∧ b)] · b is a dot product of the two vectors i (x ∧ b) and b : [i (x ∧ b)] · b = [i (x ∧ b)] b 0 = [i (xb − x · b)] b 0 = ixb2 − (x · b) ib 0 = 0, because the product of i with any vector evaluates to a vector. Now, using the fact that [i (x ∧ b)]·b = 0, we can obtain an expression for x·b from the original equation: αx + b × x = a αx · b + [b × x] · b =0 = a · b ∴ x · b = a · b α . Whenever we can obtain an expression for x · b readily, we should consider trying to obtain one for x ∧ b as well. In the problem on which we’re working, we can obtain one from our “translation into GA” of the given equation: αx + i (x ∧ b) = a i (x ∧ b) = a − αx −ii (x ∧ b) = −i (a − αx) x ∧ b = αix − ia. We may be concerned that the expression that we just obtained for x ∧ b contains x itself. That might be a problem, but let’s find out: let’s add our expressions for x · b and x ∧ b, and see what happens. x · b + x ∧ b = a · b α + αix − ia xb = a · b α + αix − ia xb − αix = a · b α − ia xb − xαi = a · b α − ia. 8
  • 9. A reminder: “i” is I2, but “i” is I3. For any vector v, iv = −vi, but iv = vi. In that last line, we used the fact that ix = xi. Proceeding, x (b − αi) = a · b α − ia x = a · b α − ia b + αi α2 + b2 =(b−αi)−1 = (a · b) b + α (a · b) i − αiab + α2 a α (α2 + b2) = (a · b) b + αi (a · b) − αi (a · b + a ∧ b) + α2 a α (α2 + b2) = (a · b) b − αi (a ∧ b) + α2 a α (α2 + b2) . 3.6 Find the “directance” d from the line (x − a) ∧ u = 0 to the line (y − b) ∧ v = 0. ([2], p. 93, Prob. 6.7) In this solution, we’ll see many places where the symbol for a vector (for example, p) is used ambiguously, to refer either to the vector itself, or to its endpoint. In each such instance, we rely upon context to make the intended meaning clear. On a related theme, Hestenes’s observations ([2], p. 80) on the correspondence between vectors and physical space are highly recommended reading. As [2], p. 93 tells us, “The directance from one point set to another can be defined as the chord of minimum length between points in the two sets, provided there is only one such chord.” Reference [2] solves the present problem from a very “algebraic” point of view. In contrast, the solution presented here uses our visual capacities to help us. First, we’ll look at two coplanar lines (Fig. 1) that have the directions u and v, and intersect in some point p. Figure 1: L1 and L2 are coplanar lines that have the directions u and v, re- spectively, and intersect in some point p . Now, let’s examine a parallel plane (Fig. 2) through the point p (= p + d), where d is a vector perpendicular to both planes. Through p, we’ve also drawn the line L3, which is parallel to L2. We’d almost certainly conclude, intuitively, that d is the directance from L1 to L3. However, let’s demonstrate that our intuition is accurate, using GA. Consider the distance between an arbitrary point q along L1, and an arbi- trary point s along L3. Writing those points as q = p+λu, and s = p+d+γv, 9
  • 10. Figure 2: The plane shown in Fig. 1 plus a parallel plane that contains the point p (= p + d), where d is some vector perpendicular to both planes. The line L3 is parallel to L2, and passes through the point p . In the text, we show that d is the directance from L1 to L3. the square of the distance between them is (p + d + γv) − (p + λu) 2 = d + (γv − λu) 2 = d2 − 2d · (γv − λu) + (γv − λu) 2 . Because d is perpendicular to both u and v, it is perpendicular to any linear combination thereof. Therefore, the dot-product term is zero, making the square of the distance between q and s equal to d2 + (γv − λu) 2 . That quantity is minimized when γ = λ = 0; that is, when the the points q and s are p and p . Thus, the directance is, indeed, the vector d shown in Fig. 2. Now, we need to find out how we can determine d given that L1 = (x − a) ∧ u = 0 and L3 = (y − b) ∧ v = 0. Let’s see what insights Fig. 3 might offer. From that figure, we can see that d is the “rejection” (in the words of [2], p. 65) of the vector b − a from the plane containing L1. That rejection is equal to [(b − a) ∧ B] B−1 , where B can be any positive bivector that has the same orientation as the plane. One such bivector, clearly, is u ∧ v. Putting all of these ideas together, d = [(b − a) ∧ (u ∧ v)] (u ∧ v) −1 . 3.7 Find the point of intersection of the line (x − a)∧u = 0 and the plane (y − b) ∧ B = 0. ([2], p. 93, Prob. 6.6) Here, we use the fact that (x − a) ∧ u = 0 if and only if x − a is a scalar multiple of u. One simple way to solve this problem is to write the line’s equation as x = a + λu. Now, let p = a + λpu be the point of intersection. Then, from the 10
  • 11. Figure 3: The same lines and planes as in Fig. 2, plus a point a along L1 and a point b along L3. Given these points, we can now write that L1 = (x − a)∧u = 0 and L3 = (y − b) ∧ v = 0. The text explains that d, the directance from L1 to L3, is the “rejection” of the vector b − a from the bivector u ∧ v. equation for the plane, (a + λpu − b) ∧ B = 0, from which λpu ∧ B = (b − a) ∧ B, λp = [(b − a) ∧ B] (u ∧ B) −1 , and p = a + [(b − a) ∧ B] (u ∧ B) −1 u. That result probably reminds us of the one presented in Section 3.6 , so let’s seek a geometric interpretation of our solution. For example, Fig. 4 . Why the negative sign? Because the vertical displacement λu⊥ from a to p is in the direction contrary to (a − b)⊥. From that figure, we can deduce that the “λp” in λp = [(b − a) ∧ B] (u ∧ B) −1 must be the ratio (with appropriate algebraic sign) of the lengths of the vectors (a − b)⊥ and u⊥. Let’s work with that idea a bit: λpu⊥ = − (a − b)⊥ ; λp (u ∧ B) B−1 = − [(a − b) ∧ B] B−1 ; λp (u ∧ B) = [(b − a) ∧ B] ; ∴ λp = [(b − a) ∧ B] (u ∧ B) −1 , which agrees with the answer that we obtained algebraically. 11
  • 12. Figure 4: Point p is the intersection of the line (x − a) ∧ u = 0 and the plane (y − b) ∧ B = 0. The vector u⊥ is perpendicular to that plane, and is equal to (u ∧ B) B−1 . Similarly, (a − b)⊥ is equal to [(a − b) ∧ B] B−1 . 3.8 Solve for x: (a − x)−1 (b − x) = λeθi = 0. ([2], p. 96, Prob. 6.22) Here, the fact that (a − x) −1 = (a − x) / a − x 2 is unhelpful. Instead, we proceed as follows: (a − x) −1 (b − x) = λeθi b − x = λ (a − x) eθi xλeθi − x = λa − b x = (λa − b) λeθi − 1 −1 = (λa − b) λe−θi − 1 2 (1 − λ cos θ) . 3.9 Assuming that we know v0 , but not v0’s direction, determine t given that g ∧ r = t (g ∧ v0) and r = 1 2 gt2 + v0t. ([2], p. 133, Prob. 2.1) See also the problem presented in 3.10. This problem is from [2]’s treatment of constant-force problems; specifically, t is the time of flight of a projectile that will land at point r if fired at velocity v0. Because we know v0 , a reasonable first move is to make that quan- tity appear, somehow, by manipulating the given equations. Perhaps counter- 12
  • 13. intuitively, we’ll start from g ∧ r = t (g ∧ v0) rather than from r = 1 2 gt2 + v0t: (g ∧ r) 2 = [t (g ∧ v0)] 2 (g · r) 2 − g2 r2 = t2 (g · v0) 2 − g2 v0 2 . Are we making progress? We’ve obtained a v0 2 term, but we’ve also intro- duced an unwanted quantity: g ·v0. However, using the other equation that we were given, we can obtain an expression to substitute for g · v0: g · r = g · 1 2 gt2 + v0t ∴ g · v0 = g · r − 1 2 g2 t2 t and (g · v0) 2 = (g · r) 2 − g2 t2 g · r − 1 4 g4 t4 t2 . Making the substitution, then simplifying, we arrive at the quadratic equa- tion (in t2 ) 1 4 g2 t4 − g · r + v0 2 + r2 = 0, from which t2 = 2 g2 v0 2 + g · r ± v0 2 + g · r − g2 r2 , and t = √ 2 g v0 2 + g · r ± v0 2 + g · r − g2 r2 1/2 . 3.10 Given a, c, b , and β, solve the equation αa+βb = c for α. See also the problem presented in 3.9. Extending these two problems a bit, we can see that if we had to solve for x in the equation f = g + x, and knew g and f , but not f’s direction, we might consider forming the square of f by one of the following maneuvers: • f 2 = ff = f (g + x); • f 2 = (f)2 = (g + x)2 ; • f 2 = f · f = f · (g + x) . We begin by squaring both sides of αa + βb = c to produce a b 2 term: α2 a2 + 2αβa · b + β b 2 = c2 , Next, we “dot” both sides of αa+βb = c with a to produce an expression that we can substitute for the unwanted quantity a · b: a · (αa + βb = c) = a · c; αa2 + βa · b = a · c; ∴ a · b = a · c − αa2 β . After making the substitution, then simplifying, we obtain a quadratic in α: a2 α2 − (2a · c) α + c2 − β2 b2 = 0; ∴ α = a · c ± (a · c) 2 + a2 (β2b2 − c2) a2 . 13
  • 14. 4 Additional Problems Several problems are solved in multiple ways in [3]-[12]. References [1] A. Macdonald, 2012, Linear and Geometric Algebra (First Edition) p. 126, CreateSpace Independent Publishing Platform (Lexington). [2] D. Hestenes, 1999, New Foundations for Classical Mechanics, (Second Edition), Kluwer Academic Publishers (Dordrecht/Boston/London). [3] J. Smith, 2015, “From two dot products, determine an unknown vector using Geometric (Clifford) Algebra”, https://www.youtube.com/watch?v=2cqDVtHcCoE . [4] J. Smith, 2016, “Rotations of Vectors Via Geometric Alge- bra: Explanation, and Usage in Solving Classic Geometric ‘Con- struction’ Problems” (Version of 11 February 2016). Available at http://vixra.org/abs/1605.0232 . [5] J. Smith, 2016,“Solution of the Special Case ‘CLP’ of the Problem of Apollonius via Vector Rotations using Geometric Algebra”. Available at http://vixra.org/abs/1605.0314. [6] J. Smith, 2016,“The Problem of Apollonius as an Opportunity for Teaching Students to Use Reflections and Rotations to Solve Ge- ometry Problems via Geometric (Clifford) Algebra”. Available at http://vixra.org/abs/1605.0233. [7] J. Smith, 2016,“A Very Brief Introduction to Reflections in 2D Geometric Algebra, and their Use in Solving ‘Construction’ Problems”. Available at http://vixra.org/abs/1606.0253. [8] J. Smith, 2016,“Three Solutions of the LLP Limiting Case of the Problem of Apollonius via Geometric Algebra, Using Reflections and Rotations”. Available at http://vixra.org/abs/1607.0166. [9] J. Smith, 2016,“Simplified Solutions of the CLP and CCP Limiting Cases of the Problem of Apollonius via Vector Rotations using Geometric Alge- bra”. Available at http://vixra.org/abs/1608.0217. [10] J. Smith, 2016, “Additional Solutions of the Limiting Case ‘CLP’ of the Problem of Apollonius via Vector Rotations using Geometric Algebra”. Available at http://vixra.org/abs/1608.0328. [11] J. Smith, “Geometric Algebra of Clifford, Grassman, and Hestenes”, https://www.youtube.com/playlist?list=PL4P20REbUHvwZtd1tpuHkziU9rfgY2xOu. 14
  • 15. [12] J. Smith, “Geometric Algebra (Clifford Algebra)”, https://www.geogebra.org/m/qzDtMW2q#chapter/0. 15
