This document provides an introduction to SOLR, including why search engines are needed, what Lucene and SOLR are, the advantages of SOLR, SOLR architecture, query syntax, working with SOLR to feed and query data, and SOLR installation and configuration. Key topics covered include SOLR's ability to index and search structured and unstructured data in real-time, its sharding and replication capabilities for large datasets, and how SOLR configuration involves defining fields, field types, and dynamic fields in schema.xml.

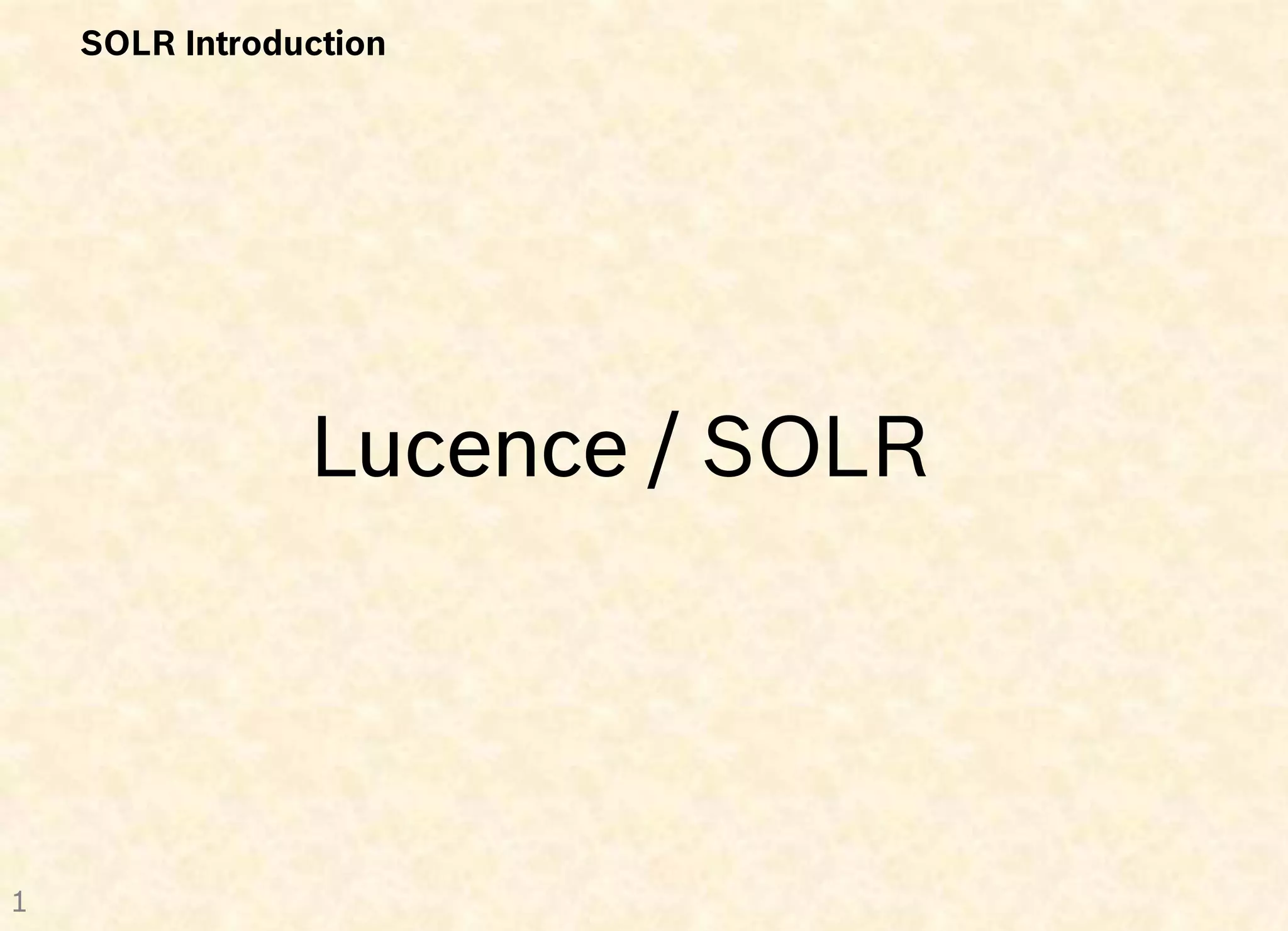

1. SOLR Introduction
Lucence / SOLR
1

2. SOLR Introduction
 Why do we need a Search Engine ?
 What is Lucene/SOLR ?
 Advantages of SOLR
 SOLR Architecture
 Query Syntax
 Working with SOLR: Feed data, query data
 SOLR installation
 SOLR configuration
2

3. Why do we need a Search Engine ?
Google, Bing, Yahoo, … Database
Yes, that’s normal way
Can not access to our data
The problem is response time
Need a Search Engine:
Lucene / SOLR
3

4. What is Lucene/SOLR ?
Lucene
 Apache Lucene is a free/open source information retrieval
software library.
 Lucene is just an indexing and search library
 Lucene supports: Java, Delphi, Perl, C#, C++, Python, Ruby, and
PHP
4

5. What is Lucene/SOLR ?
Solr
 Solr is wrapper of Lucene for Java
 Solr is a web application (WAR) which can be deployed in any
servlet container, e.g. Jetty, Tomcat
 Solr is a REST service
5

6. SOLR Introduction
Advantages of SOLR
 Open source/free
 Administration Interface
 Rich Document Parsing and Indexing (PDF, Word, HTML, etc)
 Full-Text Search
 Faceted Search and Filtering
 Multi Server support
The comparison of Search Engines:
http://blog.sematext.com/2012/08/23/solr-vs-elasticsearch-part-1-
overview/
6

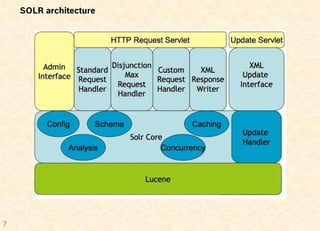

7. SOLR architecture
7

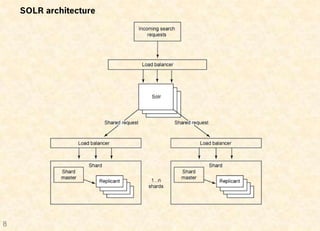

8. SOLR Shard
8

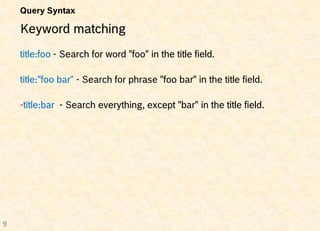

9. Query Syntax
Keyword matching
title:foo - Search for word "foo" in the title field.
title:"foo bar” - Search for phrase "foo bar" in the title field.
-title:bar - Search everything, except "bar" in the title field.
9

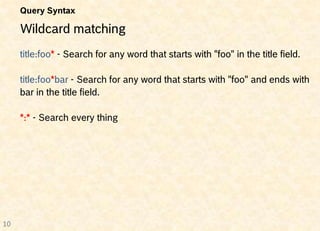

10. Query Syntax
Wildcard matching
title:foo* - Search for any word that starts with "foo" in the title field.
title:foo*bar - Search for any word that starts with "foo" and ends with
bar in the title field.
*:* - Search every thing
10

11. Query Syntax
Proximity matching
"foo bar"~number
Number = 0, exactly match
Number = 1, The result may be “bar foo”
11

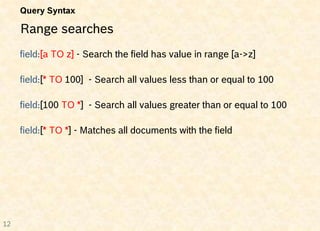

12. Query Syntax
Range searches
field:[a TO z] - Search the field has value in range [a->z]
field:[* TO 100] - Search all values less than or equal to 100
field:[100 TO *] - Search all values greater than or equal to 100
field:[* TO *] - Matches all documents with the field
12

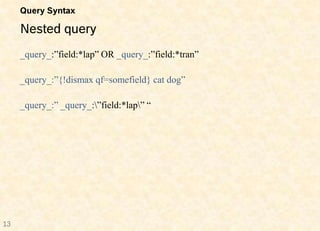

13. Query Syntax
Nested query
_query_:”field:*lap” OR _query_:”field:*tran”
_query_:”{!dismax qf=somefield} cat dog”
13

14. Query Syntax
Join
{!join from=inner-id to=outer-id}zzz:vvv
SQL
SELECT xxx, yyy FROM collection1
WHERE outer-id IN (
SELECT inner-id FROM collection1 where zzz = "vvv")
14

15. Query Syntax
Faceted Search
q=inStock:true&facet=true&facet.field=cat&facet.limit=5
<response>
<responseHeader><status>0</status><QTime>4</QTime></responseHeader>
<result numFound="12" start="0"/>
<lst name="facet_counts">
<lst name="facet_queries"/>
<lst name="facet_fields">
<lst name="cat">
<int name="electronics">10</int>
<int name="memory">3</int>
<int name="drive">2</int>
<int name="hard">2</int>
<int name="monitor">2</int>
</lst>
</lst>
</lst>
</response>
15

16. SolrJ
Feed data
// make a connection to Solr server
SolrServer server = new HttpSolrServer("http://localhost:8080/solr/");
// prepare a doc
final SolrInputDocument doc1 = new SolrInputDocument();
doc1.addField("id", 1);
doc1.addField("firstName", "First Name");
doc1.addField("lastName", "Last Name");
final Collection<SolrInputDocument> docs = new
ArrayList<SolrInputDocument>();
docs.add(doc1);
// add docs to Solr
server.add(docs);
server.commit();
16

17. SolrJ
Query data
final SolrQuery query = new SolrQuery();
query.setQuery("*:*");
query.addSortField("firstName", SolrQuery.ORDER.asc);
final QueryResponse rsp = server.query(query);
final SolrDocumentList solrDocumentList = rsp.getResults();
for (final SolrDocument doc : solrDocumentList) {
final String firstName = (String)
doc.getFieldValue("firstName");
final String id = (String) doc.getFieldValue("id");
}
17

18. SOLR Introduction
SOLR installation
Ref:
http://wiki.apache.org/solr/SolrInstall
http://wiki.apache.org/solr/SolrTomcat
http://lucene.apache.org/solr/4_ 1/tutorial.html
2_
Prerequisite:
Tomcat (7) http://tomcat.apache.org/
JDK 1.6
SOLR 4.2.1 http://lucene.apache.org/solr/
18

19. SOLR Introduction
• Extract solr-4.2.1.zip to (D:Projectsolr_websolr-4.2.1)
• Copy resourcesolr-4.2.1examplessolr to D:Projectsolr_websolr = SOLR_HOME
• Copy resourcesolr-4.2.1distsolr-4.2.1.war to SOLR_HOME and rename to solr.war
• Open the SOLR_HOMEcollection1confsolrconfig.xml and modify the <dataDir>
<dataDir>${solr.data.dir:D:/Project/sorl_web/solr/collection1/data}</dataDir>
• Create a Tomcat Context (solr.xml) file like this:
<?xml version="1.0" encoding="utf-8"?>
<Context docBase="D:/Project/solr_web/solr/solr.war" debug="0“
crossContext="true">
<Environment name="solr/home" type="java.lang.String"
value="D:/Project/solr_web/solr" override="true"/>
</Context>
• Copy this file (solr.xml) to tomcat.7.0.35confCatalinalocalhost
• Start Tomcat
• Open the SOLR dashboard with address: http://localhost:8080/sorl/#/
19

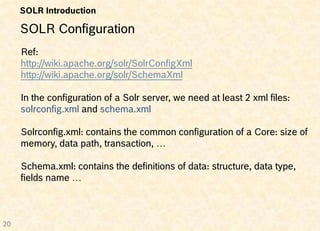

20. SOLR Introduction
SOLR Configuration
Ref:
http://wiki.apache.org/solr/SolrConfigXml
http://wiki.apache.org/solr/SchemaXml
In the configuration of a Solr server, we need at least 2 xml files:
solrconfig.xml and schema.xml
Solrconfig.xml: contains the common configuration of a Core: size of
memory, data path, transaction, …
Schema.xml: contains the definitions of data: structure, data type,
fields name …
20

21. SOLR Introduction
SOLR Configuration
Schema.xml
field : a field will be indexed by solr
<field name="firstName" type="string" indexed="true" stored="true"/>
dynamicField: like a field but the name is not specified yet
<dynamicField name="*_i" type="int" indexed="true"
stored="true"/>
name="*_i" will match any field ending in _i (like myid_i, z_i)
21
