A Practical Introduction to Apache Solr

The document serves as a practical introduction to Apache Solr, outlining its requirements, features, and core concepts. It covers installation instructions, the architecture of Solr, and its capabilities for searching and indexing large volumes of documents. Additionally, it includes examples of queries, relevancy scoring, and demonstrates how to use Solr's various functionalities through command line operations.

Embed presentation

Download as PDF, PPTX
Angel Borroy Software Engineer March 2020 A Practical Introduction to Apache SOLR CODELAB

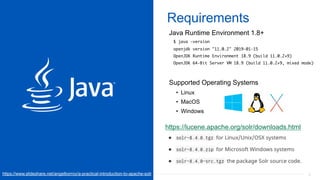

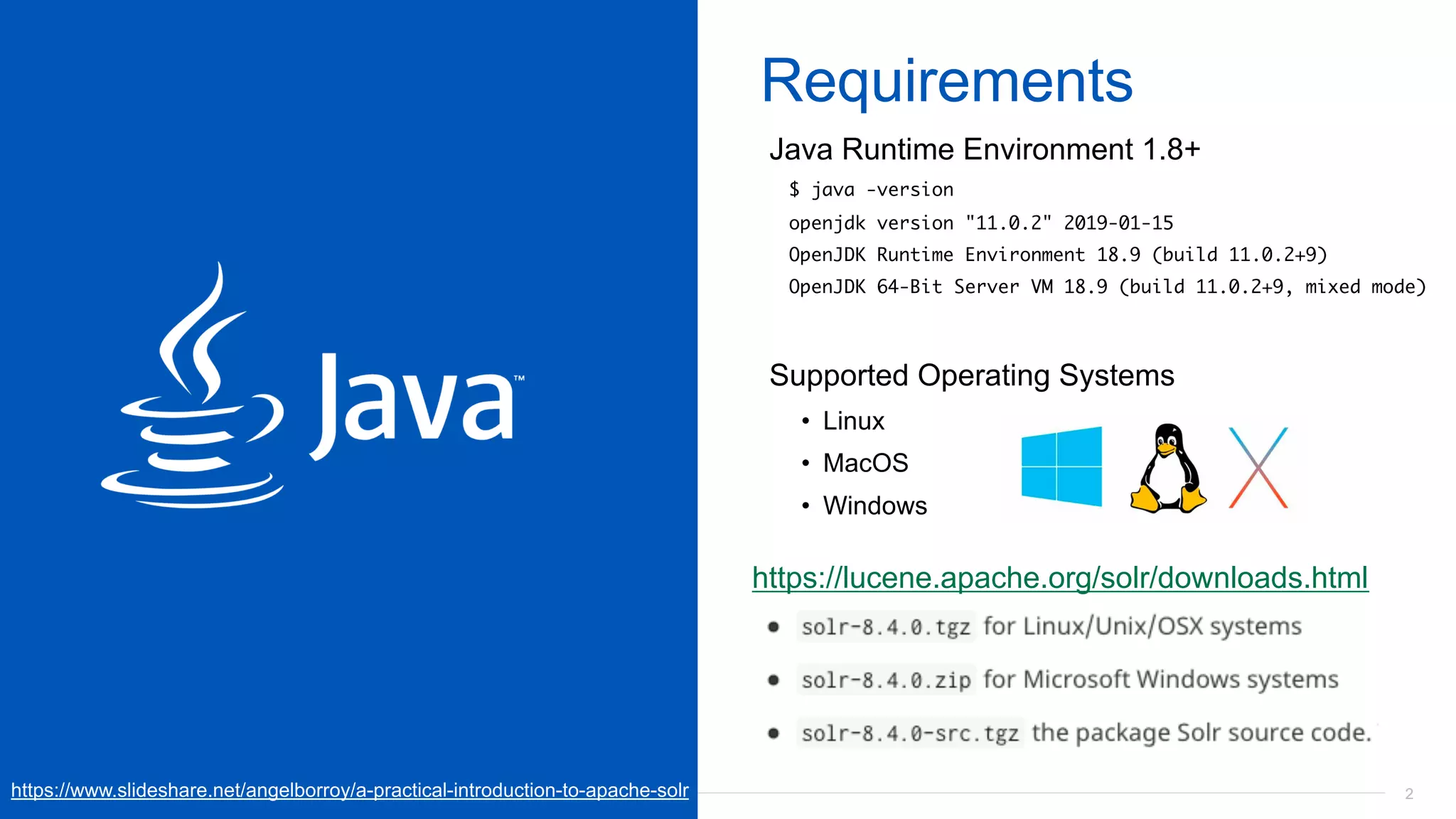

22 Requirements Java Runtime Environment 1.8+ $ java -version openjdk version "11.0.2" 2019-01-15 OpenJDK Runtime Environment 18.9 (build 11.0.2+9) OpenJDK 64-Bit Server VM 18.9 (build 11.0.2+9, mixed mode) Supported Operating Systems • Linux • MacOS • Windows https://lucene.apache.org/solr/downloads.html https://www.slideshare.net/angelborroy/a-practical-introduction-to-apache-solr
33 A Practical Introduction to Apache SOLR • Open Source • What is SOLR • Key SOLR Concepts • SOLR Lab • Quick References NEOCOM 2020
44

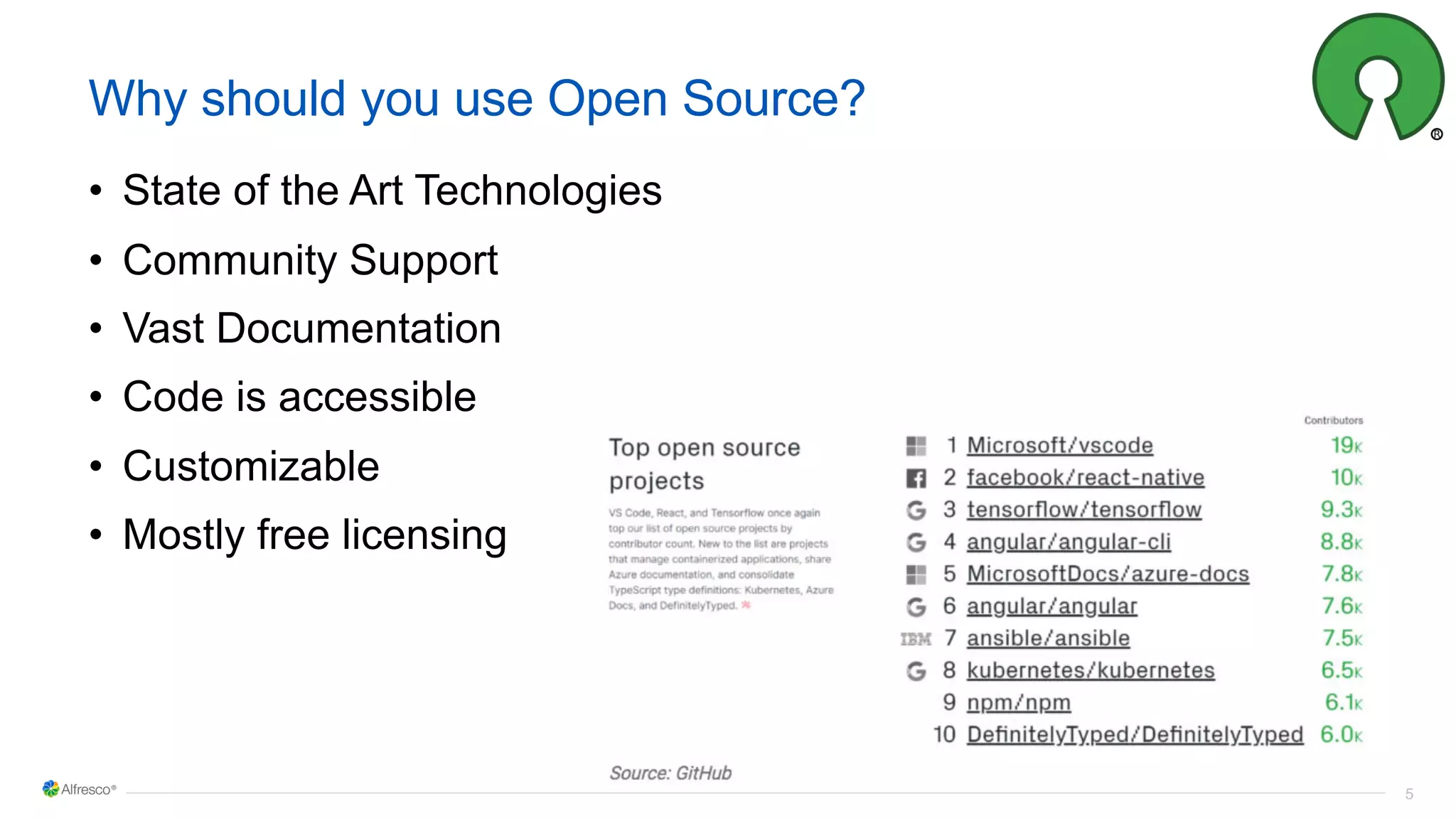

5 Why should you use Open Source? • State of the Art Technologies • Community Support • Vast Documentation • Code is accessible • Customizable • Mostly free licensing

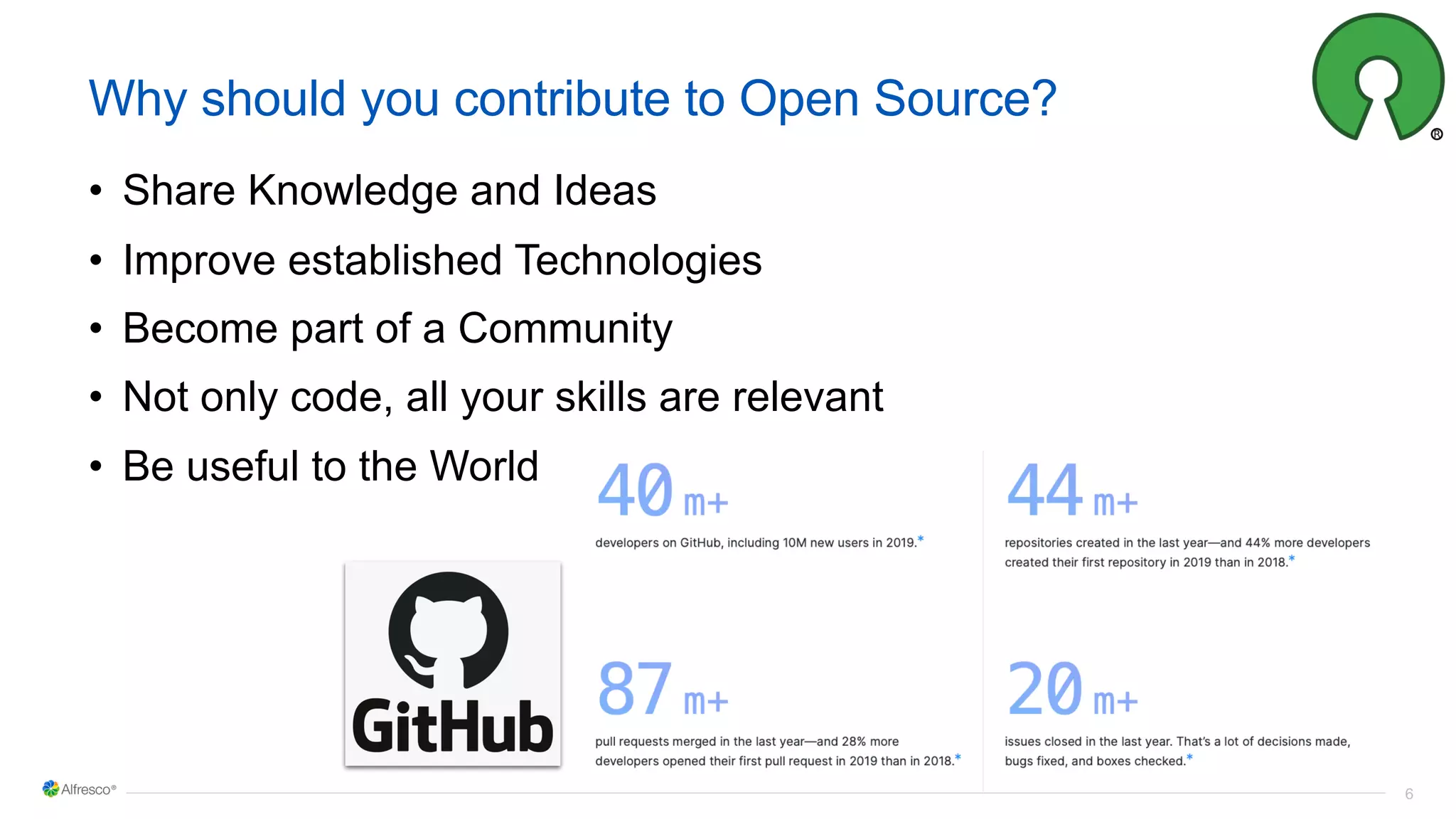

6 Why should you contribute to Open Source? • Share Knowledge and Ideas • Improve established Technologies • Become part of a Community • Not only code, all your skills are relevant • Be useful to the World
77

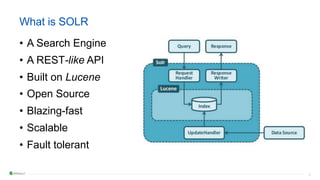

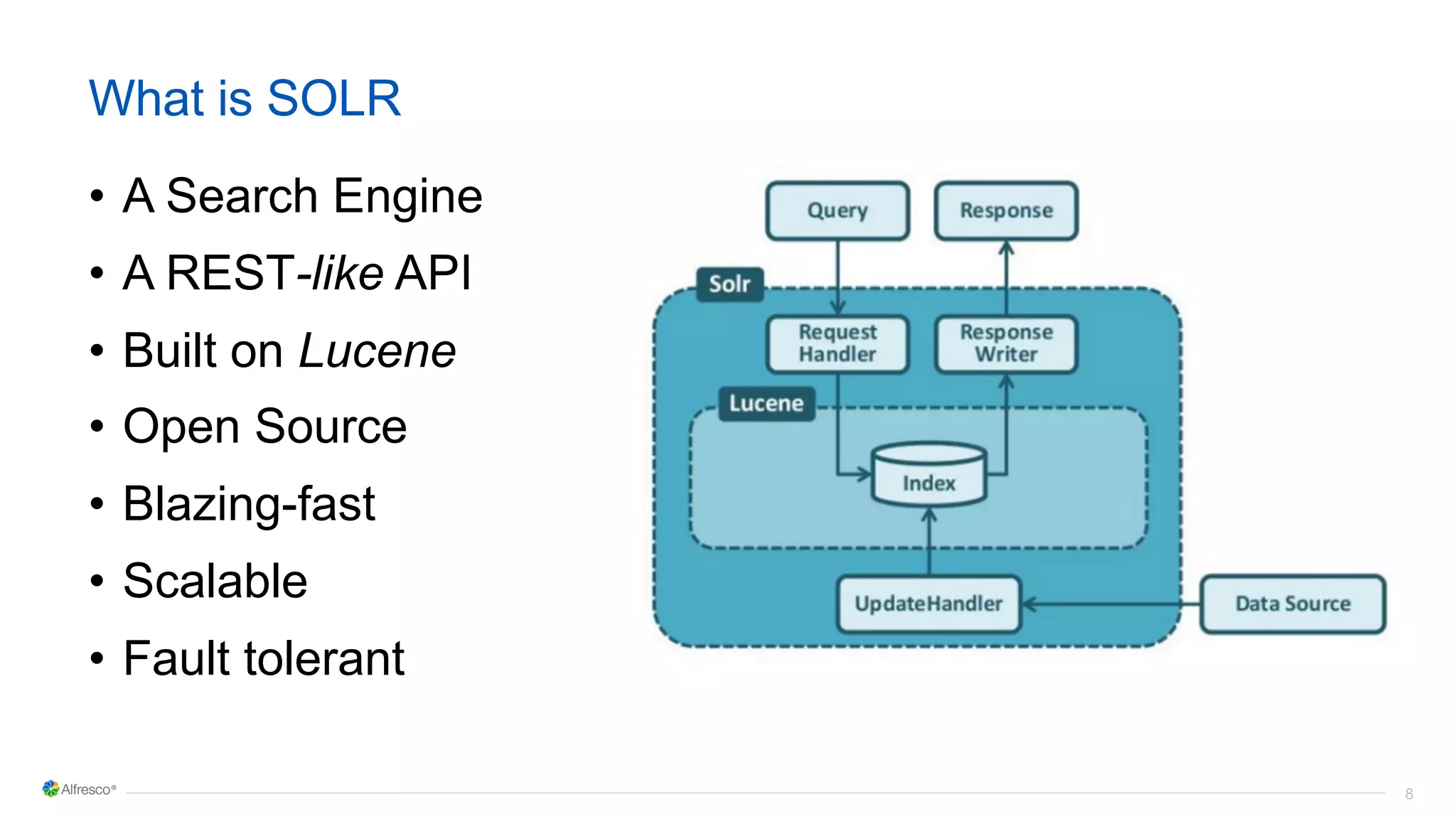

8 What is SOLR • A Search Engine • A REST-like API • Built on Lucene • Open Source • Blazing-fast • Scalable • Fault tolerant

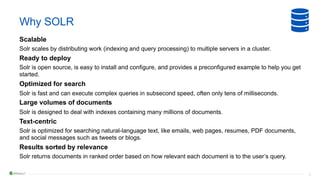

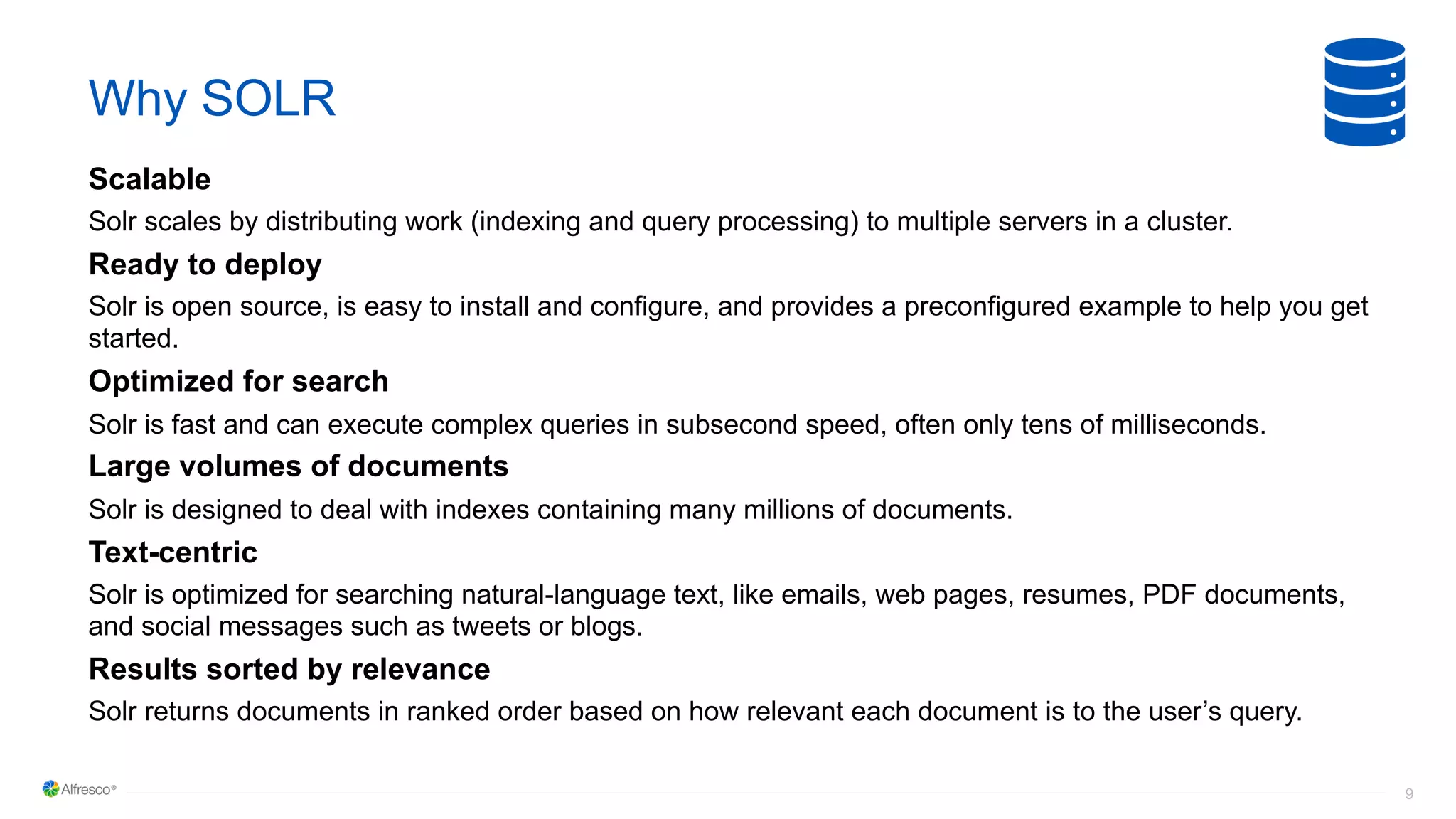

9 Why SOLR Scalable Solr scales by distributing work (indexing and query processing) to multiple servers in a cluster. Ready to deploy Solr is open source, is easy to install and configure, and provides a preconfigured example to help you get started. Optimized for search Solr is fast and can execute complex queries in subsecond speed, often only tens of milliseconds. Large volumes of documents Solr is designed to deal with indexes containing many millions of documents. Text-centric Solr is optimized for searching natural-language text, like emails, web pages, resumes, PDF documents, and social messages such as tweets or blogs. Results sorted by relevance Solr returns documents in ranked order based on how relevant each document is to the user’s query.

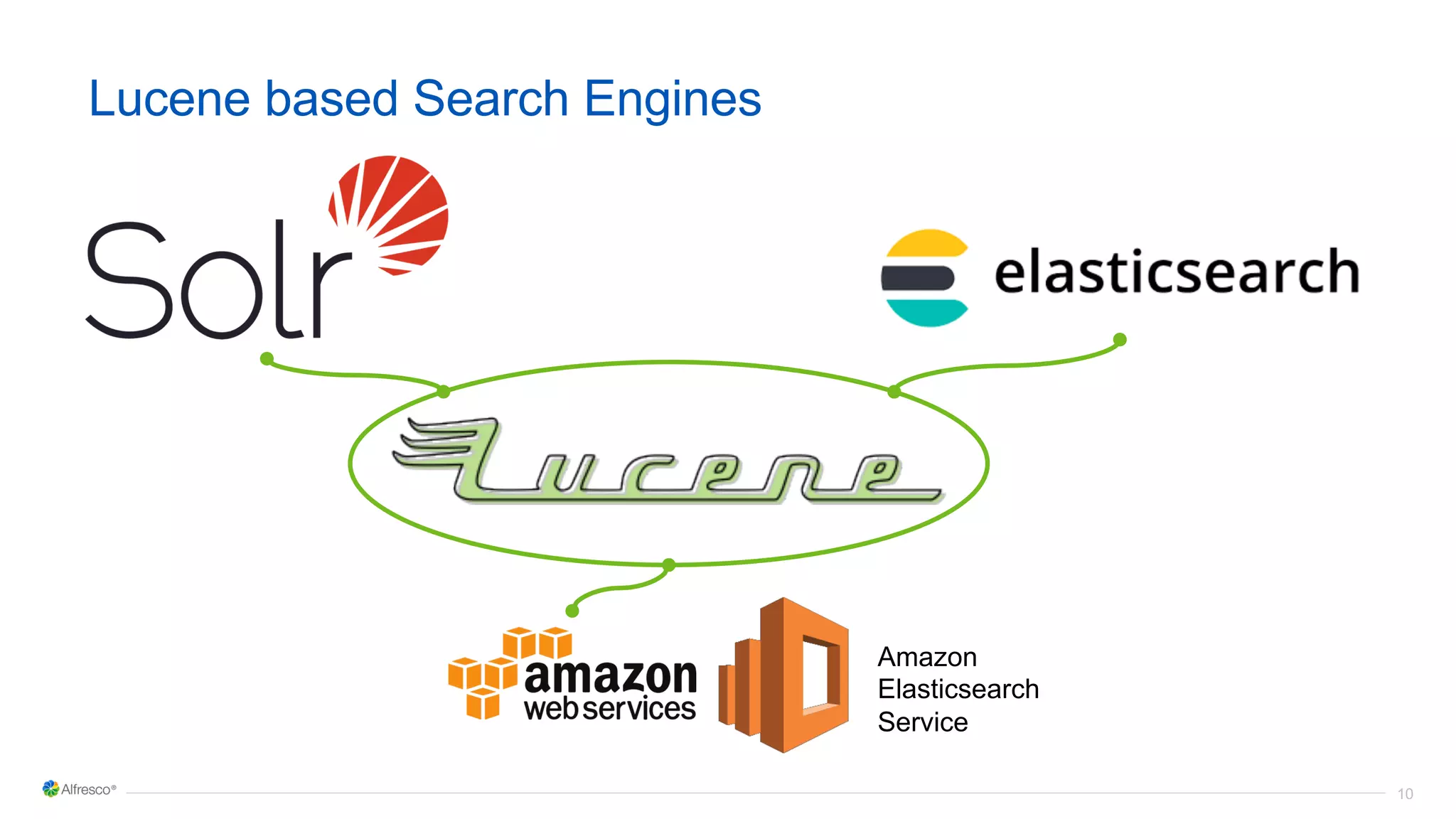

10 Lucene based Search Engines Amazon Elasticsearch Service

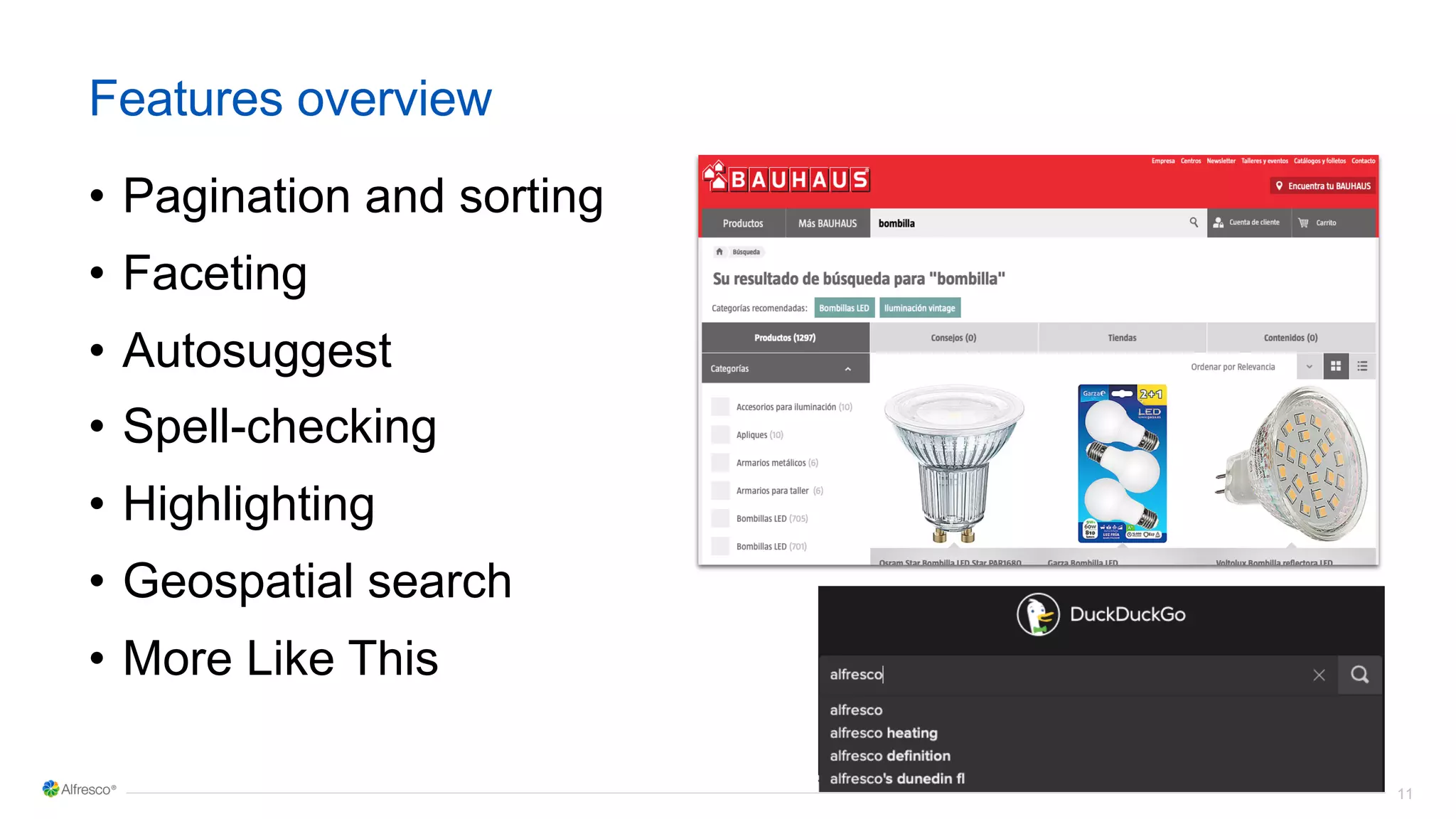

11 Features overview • Pagination and sorting • Faceting • Autosuggest • Spell-checking • Highlighting • Geospatial search • More Like This

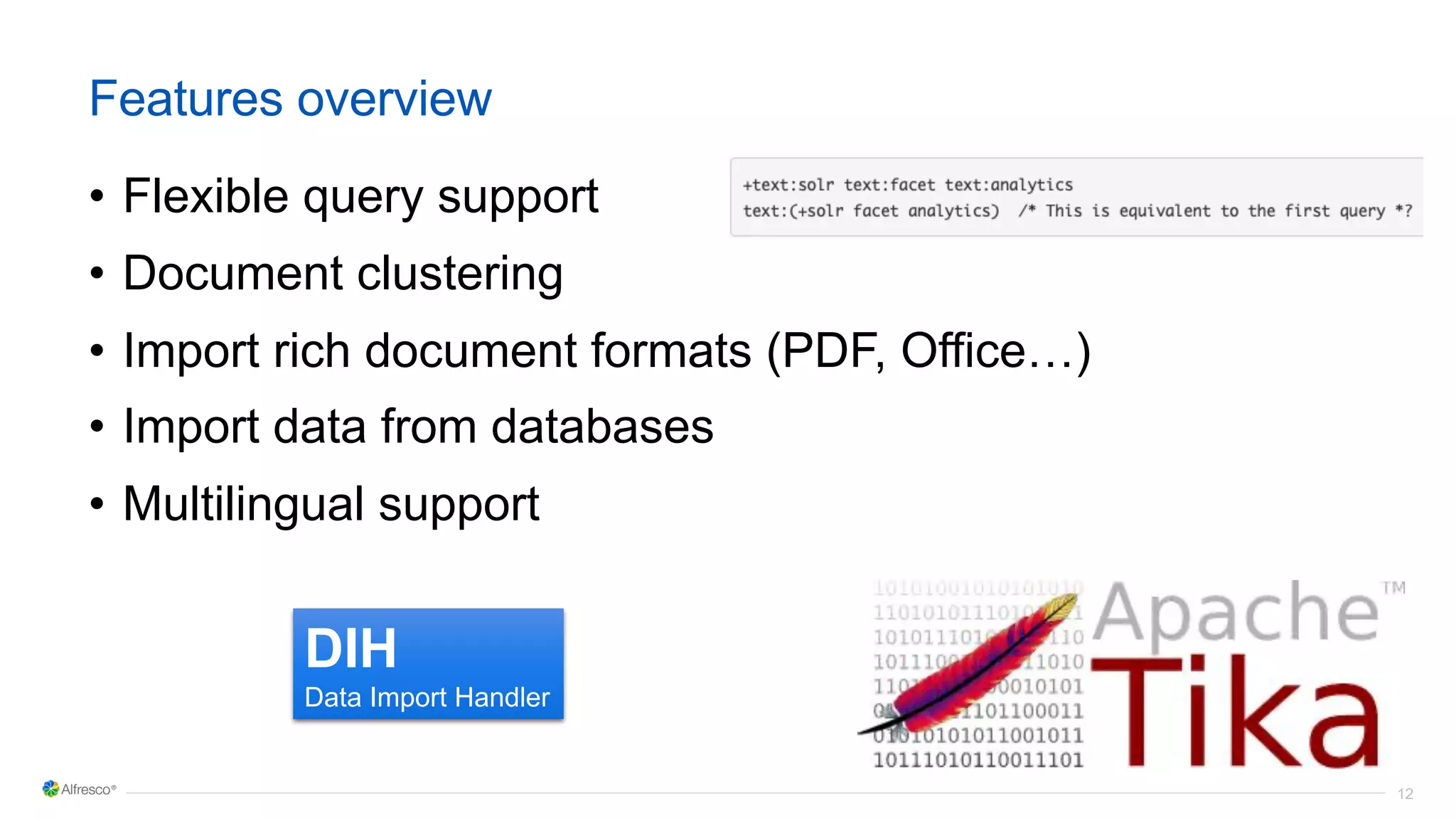

12 Features overview • Flexible query support • Document clustering • Import rich document formats (PDF, Office…) • Import data from databases • Multilingual support DIH Data Import Handler
13 Companies using SOLR
1414 Key SOLR Concepts

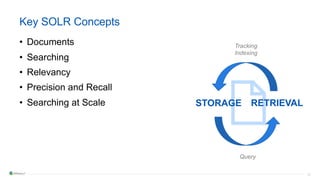

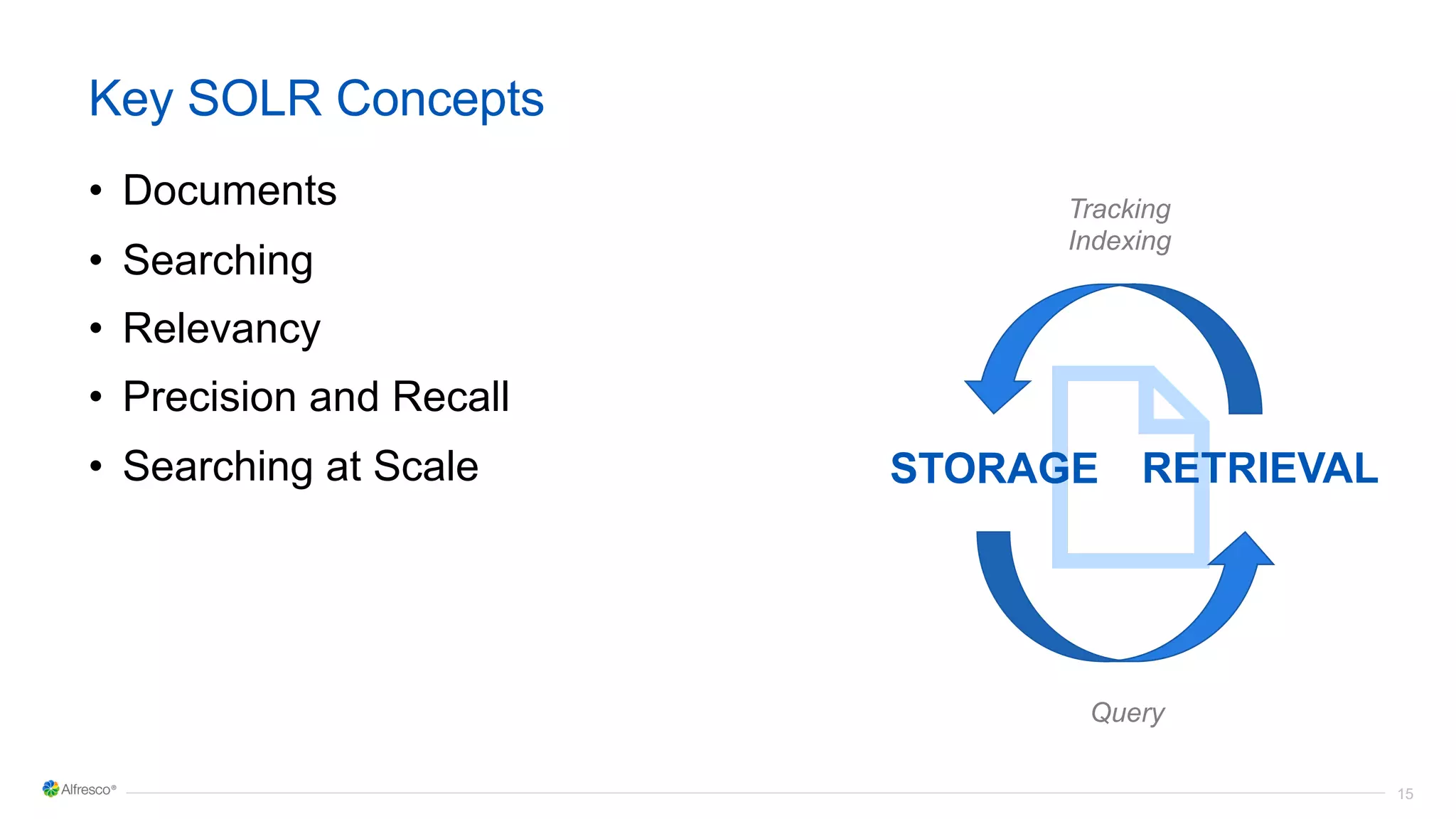

15 Key SOLR Concepts • Documents • Searching • Relevancy • Precision and Recall • Searching at Scale STORAGE RETRIEVAL Tracking Indexing Query

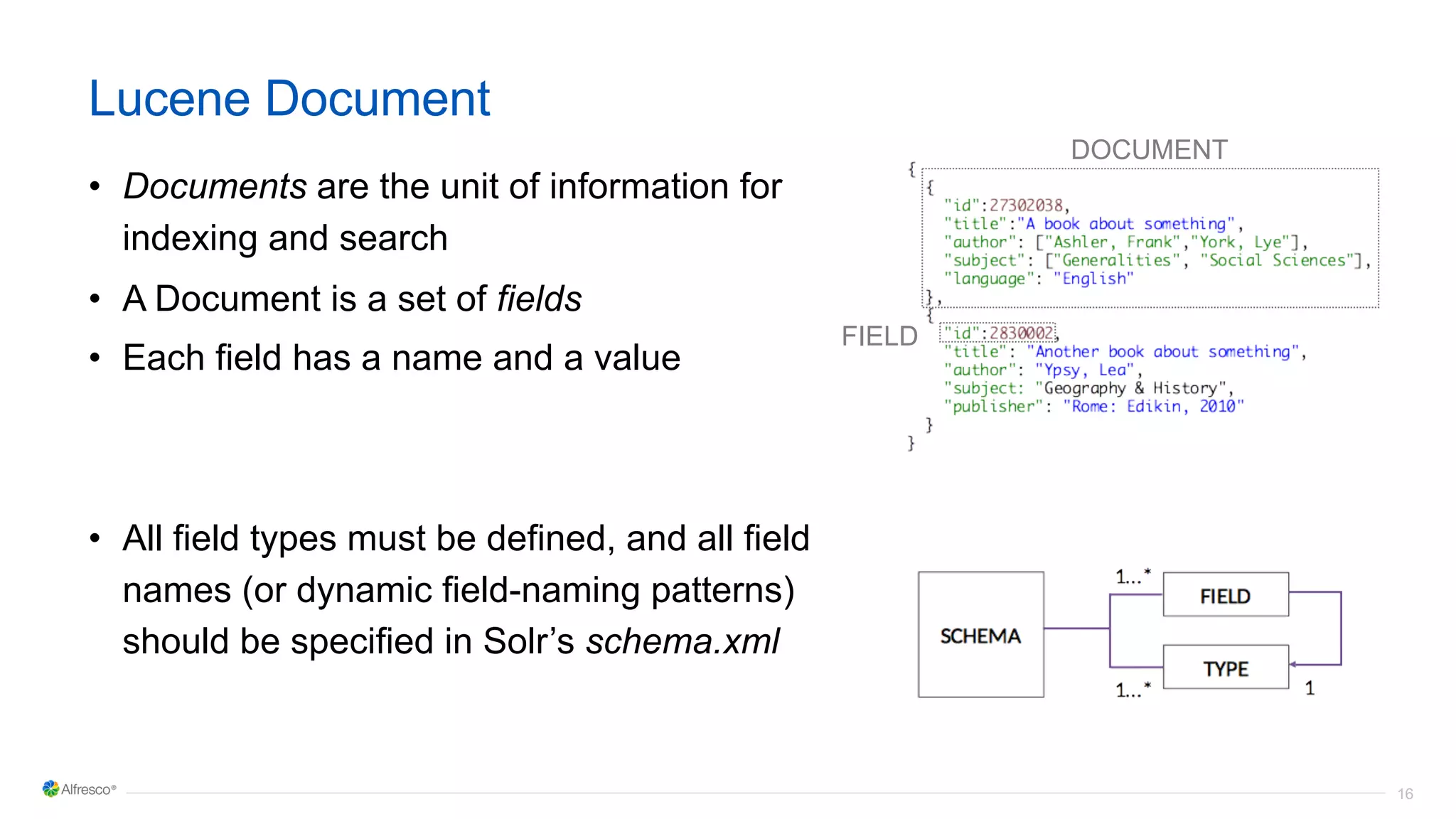

16 Lucene Document • Documents are the unit of information for indexing and search • A Document is a set of fields • Each field has a name and a value • All field types must be defined, and all field names (or dynamic field-naming patterns) should be specified in Solr’s schema.xml Seminars Schema Configuration • Per collection/index • Xml file • Define how the inverted Index will be built • Fields/Field Types definition Seminars Schema Configuration • Per collection/index • Xml file • Define how the inverted Index will be built • Fields/Field Types definition DOCUMENT FIELD

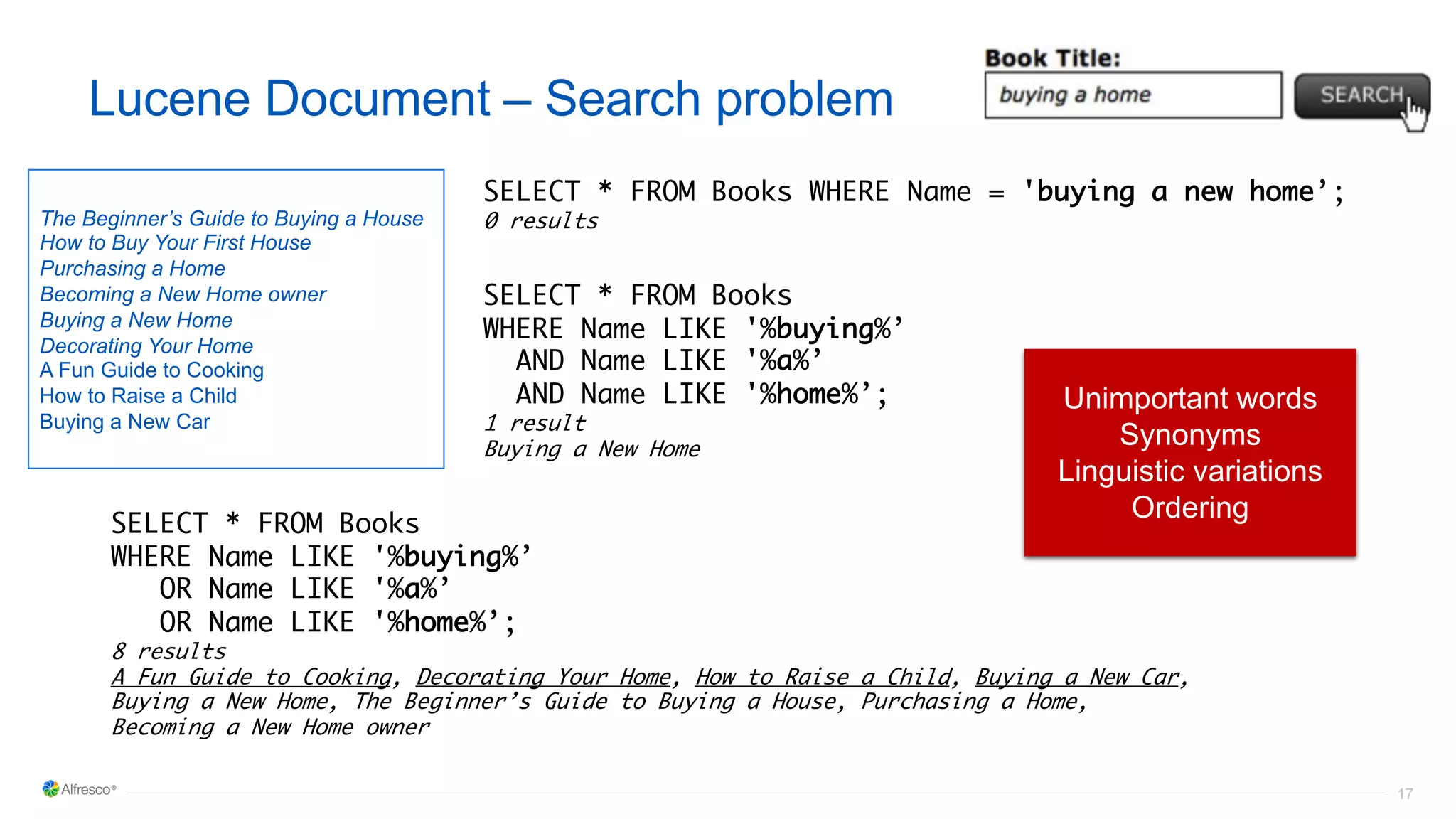

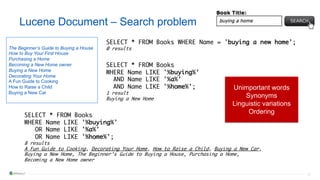

17 Lucene Document – Search problem The Beginner’s Guide to Buying a House How to Buy Your First House Purchasing a Home Becoming a New Home owner Buying a New Home Decorating Your Home A Fun Guide to Cooking How to Raise a Child Buying a New Car SELECT * FROM Books WHERE Name = 'buying a new home’; 0 results SELECT * FROM Books WHERE Name LIKE '%buying%’ AND Name LIKE '%a%’ AND Name LIKE '%home%’; 1 result Buying a New Home SELECT * FROM Books WHERE Name LIKE '%buying%’ OR Name LIKE '%a%’ OR Name LIKE '%home%’; 8 results A Fun Guide to Cooking, Decorating Your Home, How to Raise a Child, Buying a New Car, Buying a New Home, The Beginner’s Guide to Buying a House, Purchasing a Home, Becoming a New Home owner Unimportant words Synonyms Linguistic variations Ordering

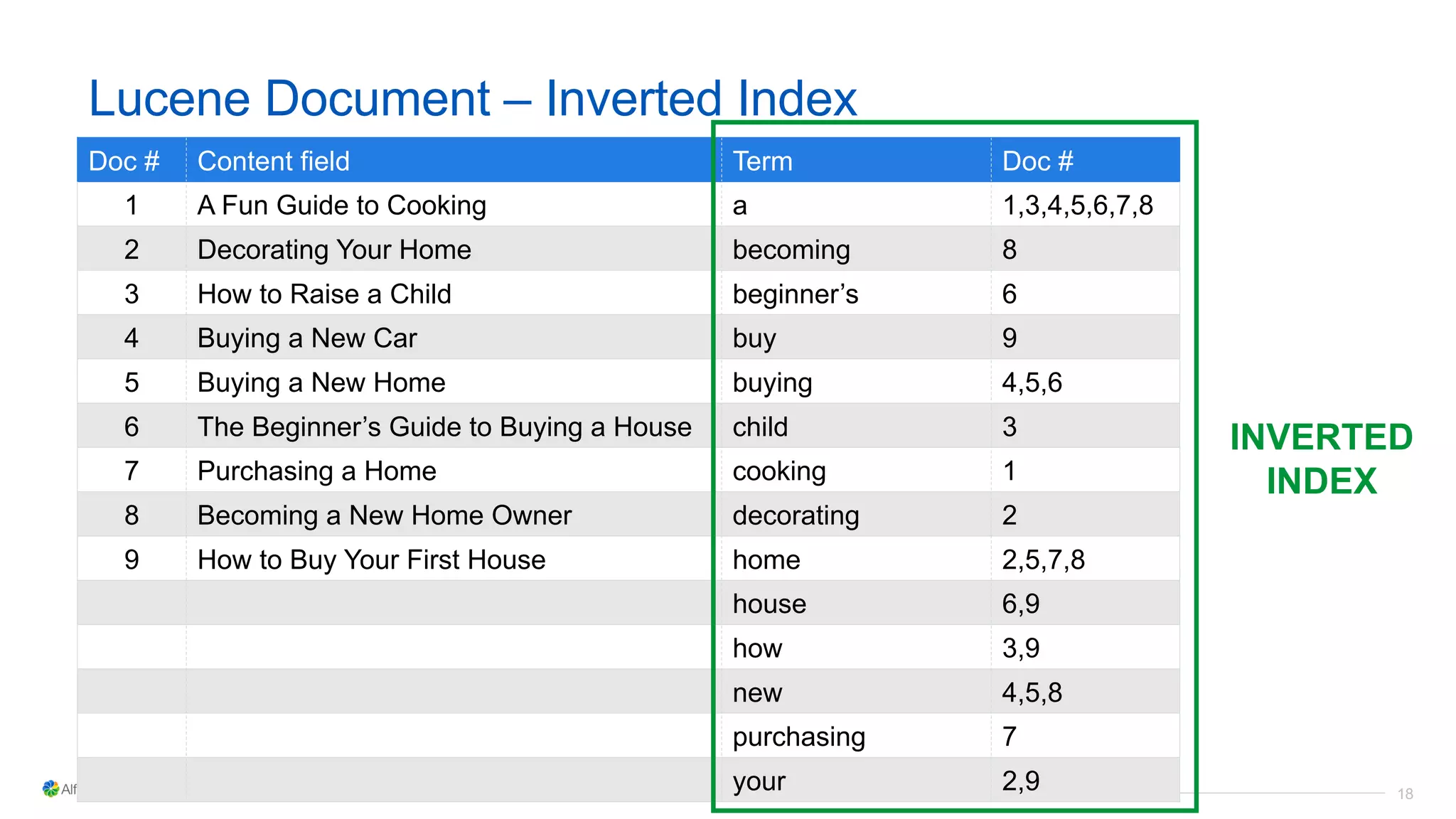

18 Lucene Document – Inverted Index Doc # Content field Term Doc # 1 A Fun Guide to Cooking a 1,3,4,5,6,7,8 2 Decorating Your Home becoming 8 3 How to Raise a Child beginner’s 6 4 Buying a New Car buy 9 5 Buying a New Home buying 4,5,6 6 The Beginner’s Guide to Buying a House child 3 7 Purchasing a Home cooking 1 8 Becoming a New Home Owner decorating 2 9 How to Buy Your First House home 2,5,7,8 house 6,9 how 3,9 new 4,5,8 purchasing 7 your 2,9 INVERTED INDEX

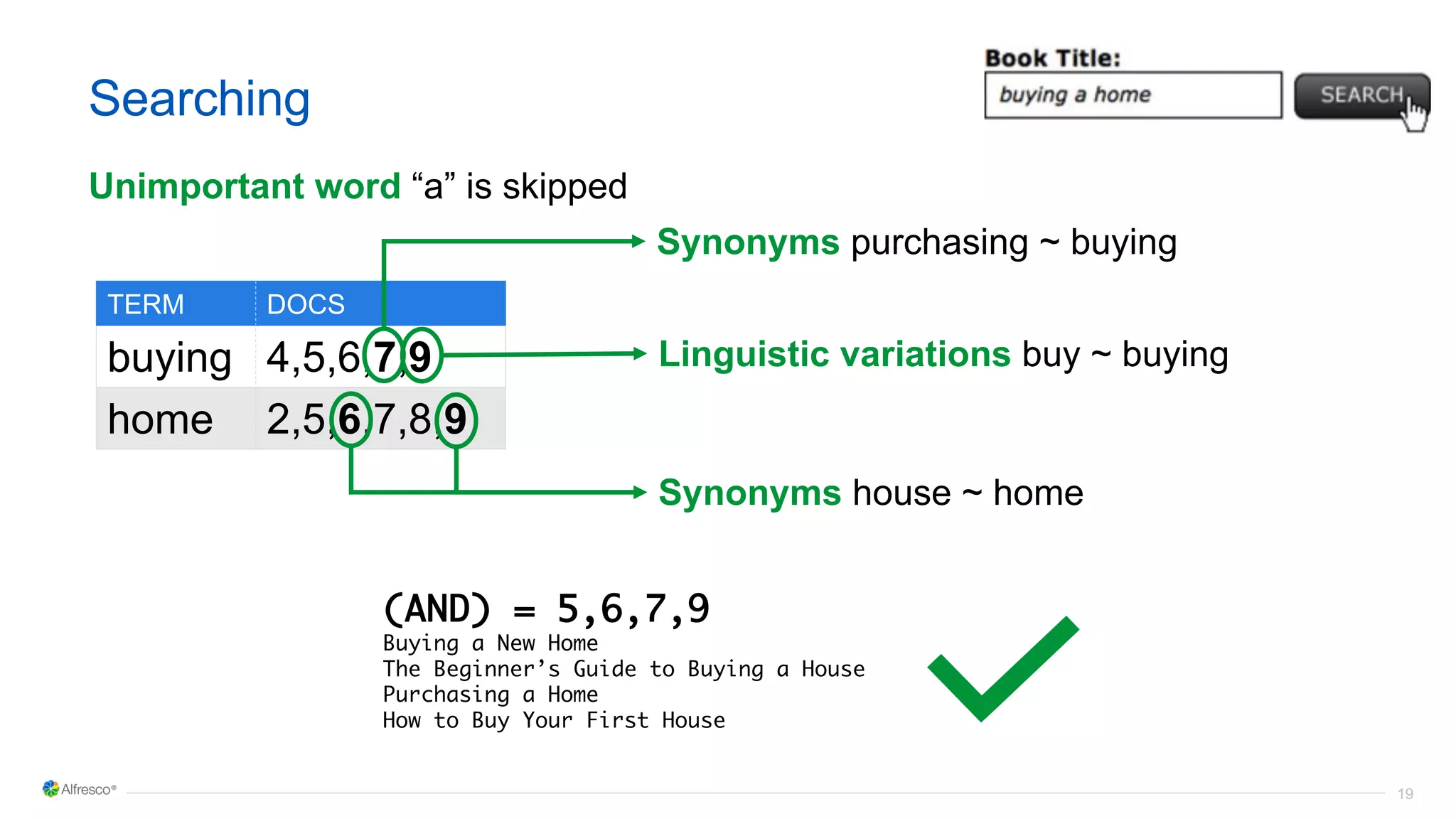

19 Searching TERM DOCS buying 4,5,6,7,9 home 2,5,6,7,8,9 Unimportant word “a” is skipped Synonyms purchasing ~ buying Linguistic variations buy ~ buying Synonyms house ~ home (AND) = 5,6,7,9 Buying a New Home The Beginner’s Guide to Buying a House Purchasing a Home How to Buy Your First House

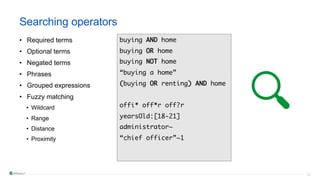

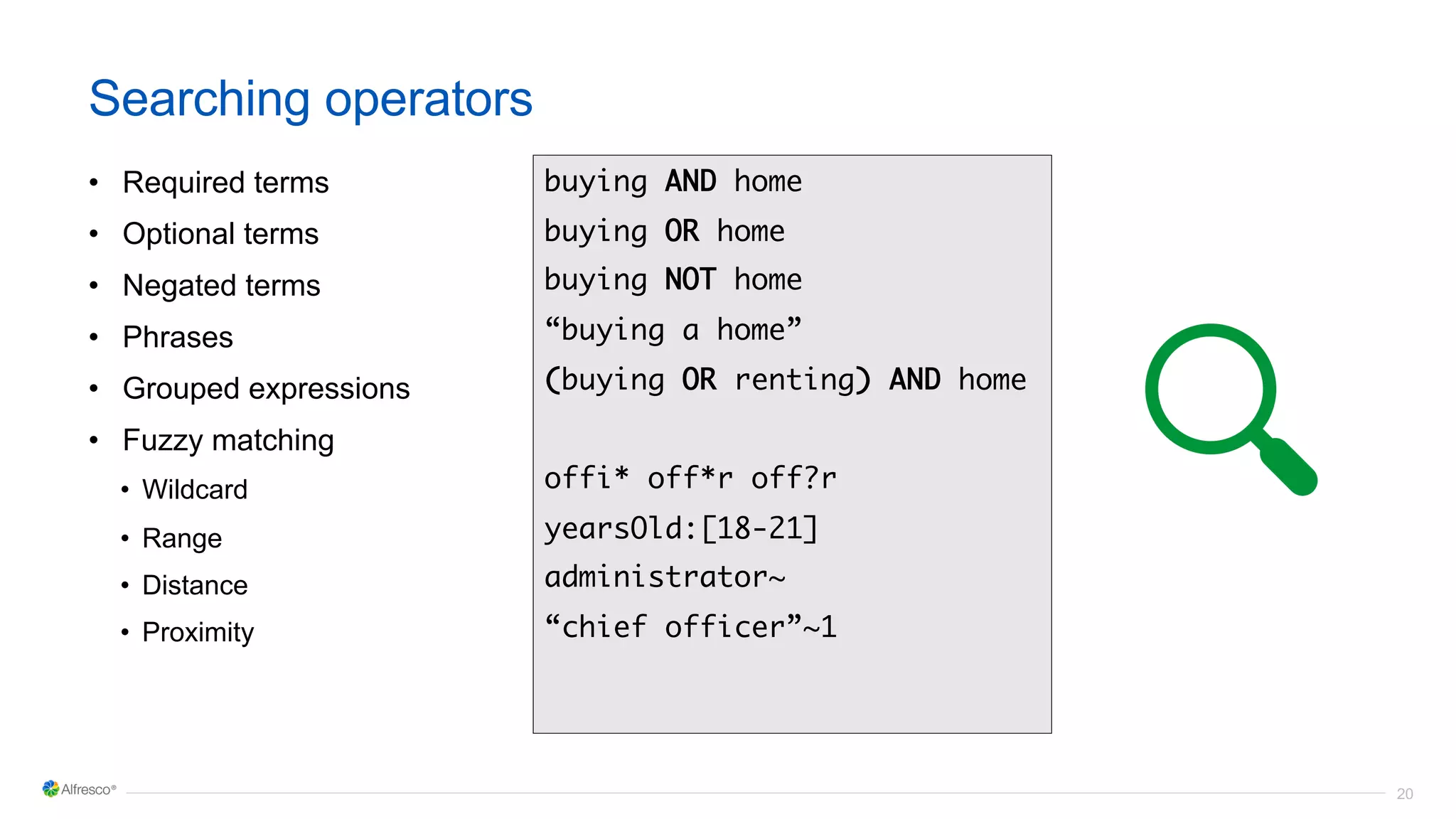

20 Searching operators • Required terms • Optional terms • Negated terms • Phrases • Grouped expressions • Fuzzy matching • Wildcard • Range • Distance • Proximity buying AND home buying OR home buying NOT home “buying a home” (buying OR renting) AND home offi* off*r off?r yearsOld:[18-21] administrator~ “chief officer”~1

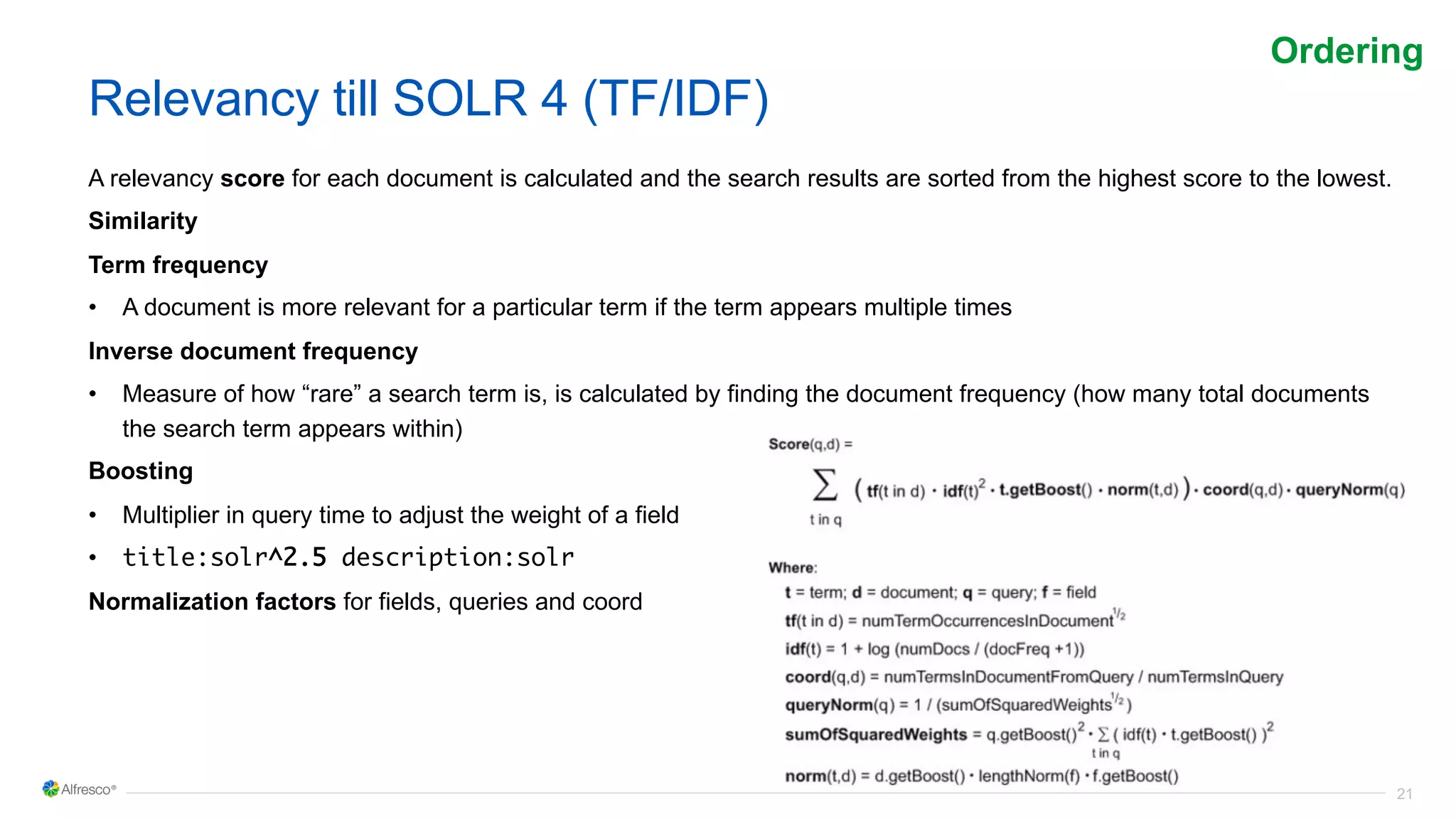

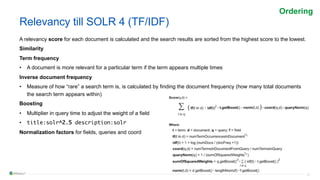

21 Relevancy till SOLR 4 (TF/IDF) A relevancy score for each document is calculated and the search results are sorted from the highest score to the lowest. Similarity Term frequency • A document is more relevant for a particular term if the term appears multiple times Inverse document frequency • Measure of how “rare” a search term is, is calculated by finding the document frequency (how many total documents the search term appears within) Boosting • Multiplier in query time to adjust the weight of a field • title:solr^2.5 description:solr Normalization factors for fields, queries and coord Ordering

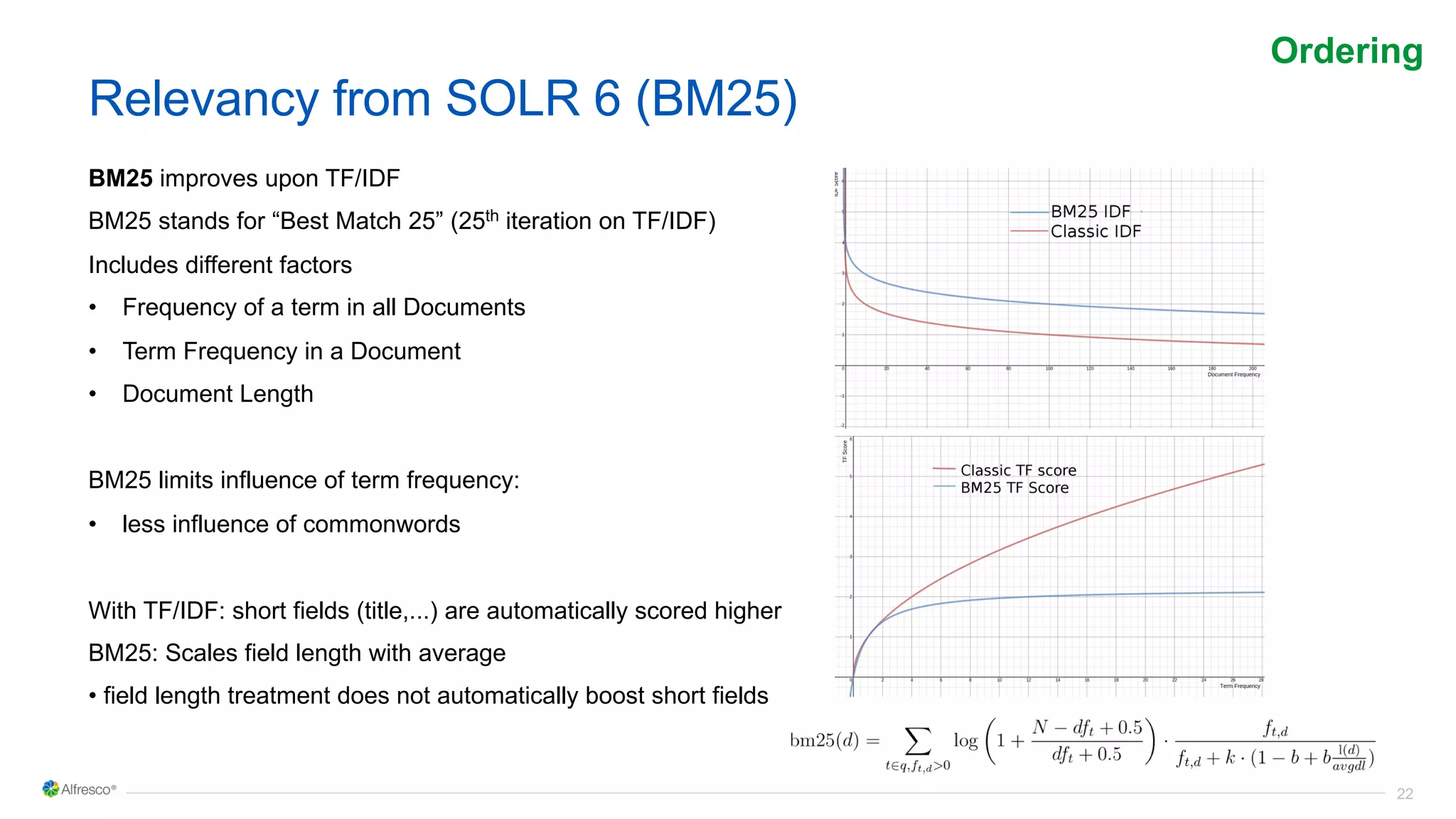

22 Relevancy from SOLR 6 (BM25) BM25 improves upon TF/IDF BM25 stands for “Best Match 25” (25th iteration on TF/IDF) Includes different factors • Frequency of a term in all Documents • Term Frequency in a Document • Document Length BM25 limits influence of term frequency: • less influence of commonwords With TF/IDF: short fields (title,...) are automatically scored higher BM25: Scales field length with average • field length treatment does not automatically boost short fields Ordering

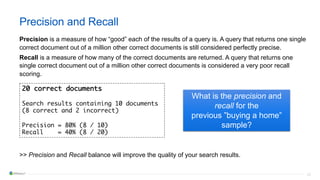

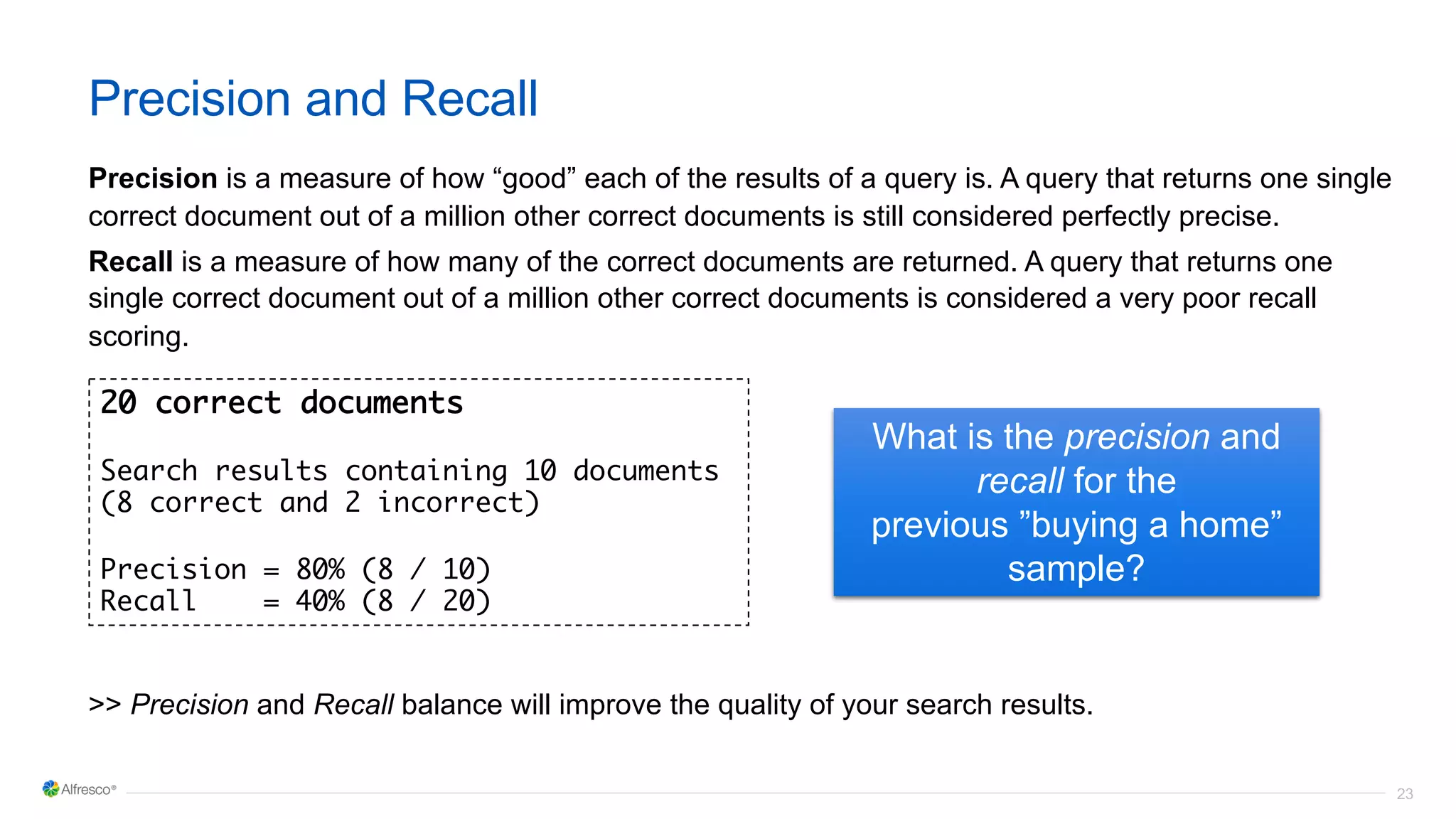

23 Precision and Recall Precision is a measure of how “good” each of the results of a query is. A query that returns one single correct document out of a million other correct documents is still considered perfectly precise. Recall is a measure of how many of the correct documents are returned. A query that returns one single correct document out of a million other correct documents is considered a very poor recall scoring. >> Precision and Recall balance will improve the quality of your search results. 20 correct documents Search results containing 10 documents (8 correct and 2 incorrect) Precision = 80% (8 / 10) Recall = 40% (8 / 20) What is the precision and recall for the previous ”buying a home” sample?

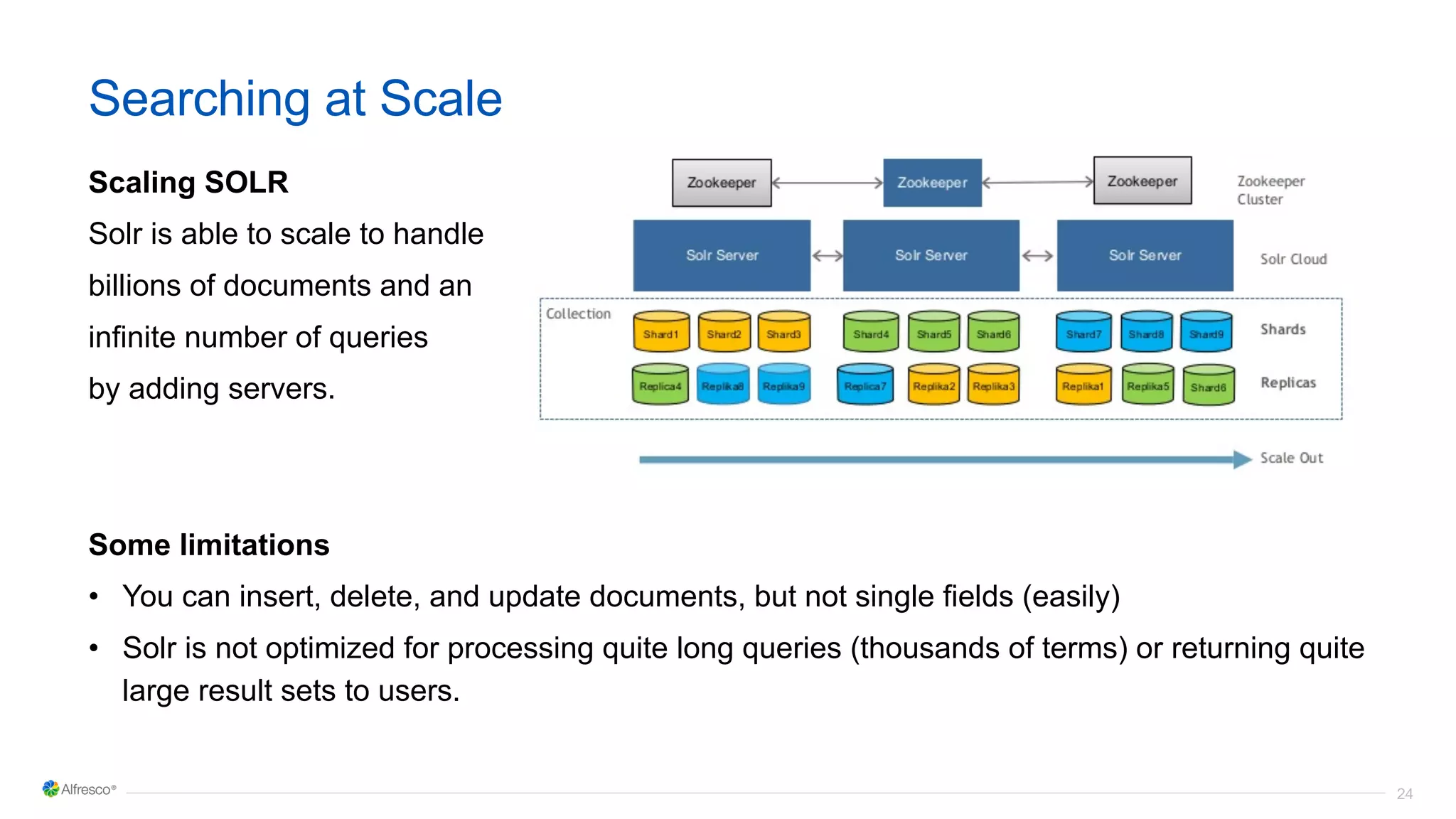

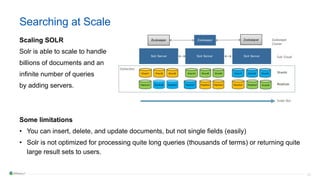

24 Searching at Scale Scaling SOLR Solr is able to scale to handle billions of documents and an infinite number of queries by adding servers. Some limitations • You can insert, delete, and update documents, but not single fields (easily) • Solr is not optimized for processing quite long queries (thousands of terms) or returning quite large result sets to users.
2525 Lab

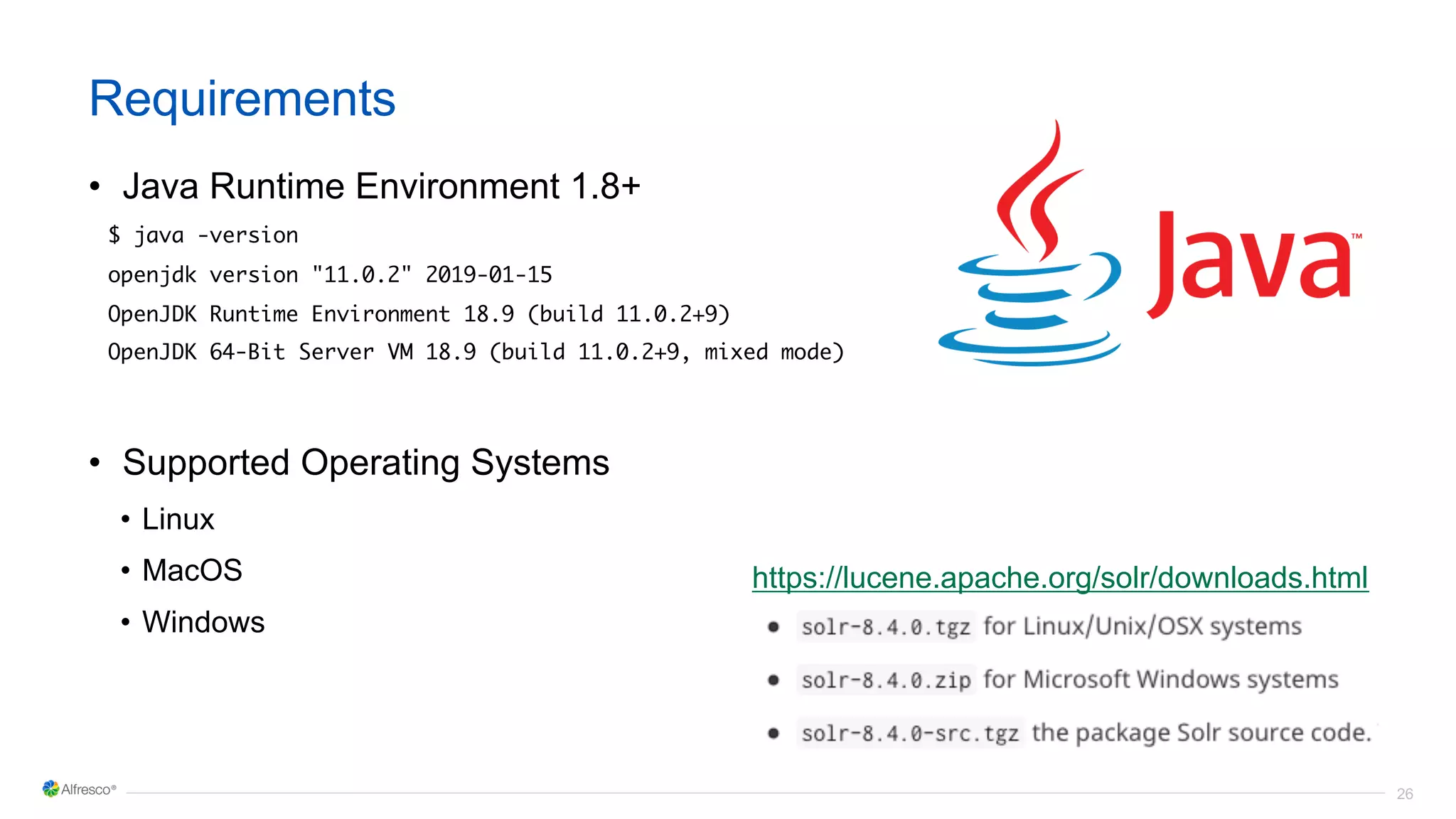

26 Requirements • Java Runtime Environment 1.8+ $ java -version openjdk version "11.0.2" 2019-01-15 OpenJDK Runtime Environment 18.9 (build 11.0.2+9) OpenJDK 64-Bit Server VM 18.9 (build 11.0.2+9, mixed mode) • Supported Operating Systems • Linux • MacOS • Windows https://lucene.apache.org/solr/downloads.html

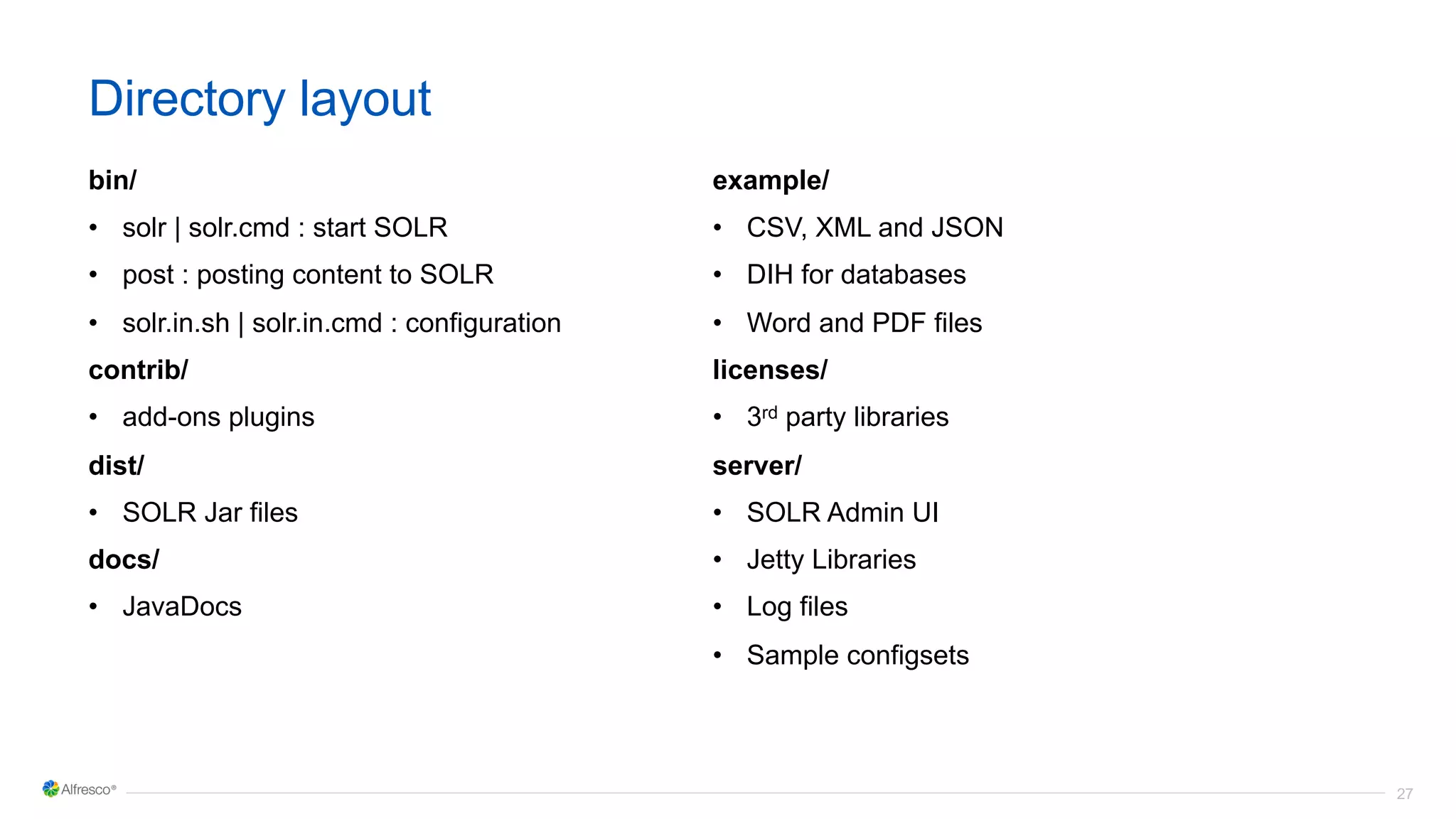

27 Directory layout bin/ • solr | solr.cmd : start SOLR • post : posting content to SOLR • solr.in.sh | solr.in.cmd : configuration contrib/ • add-ons plugins dist/ • SOLR Jar files docs/ • JavaDocs example/ • CSV, XML and JSON • DIH for databases • Word and PDF files licenses/ • 3rd party libraries server/ • SOLR Admin UI • Jetty Libraries • Log files • Sample configsets

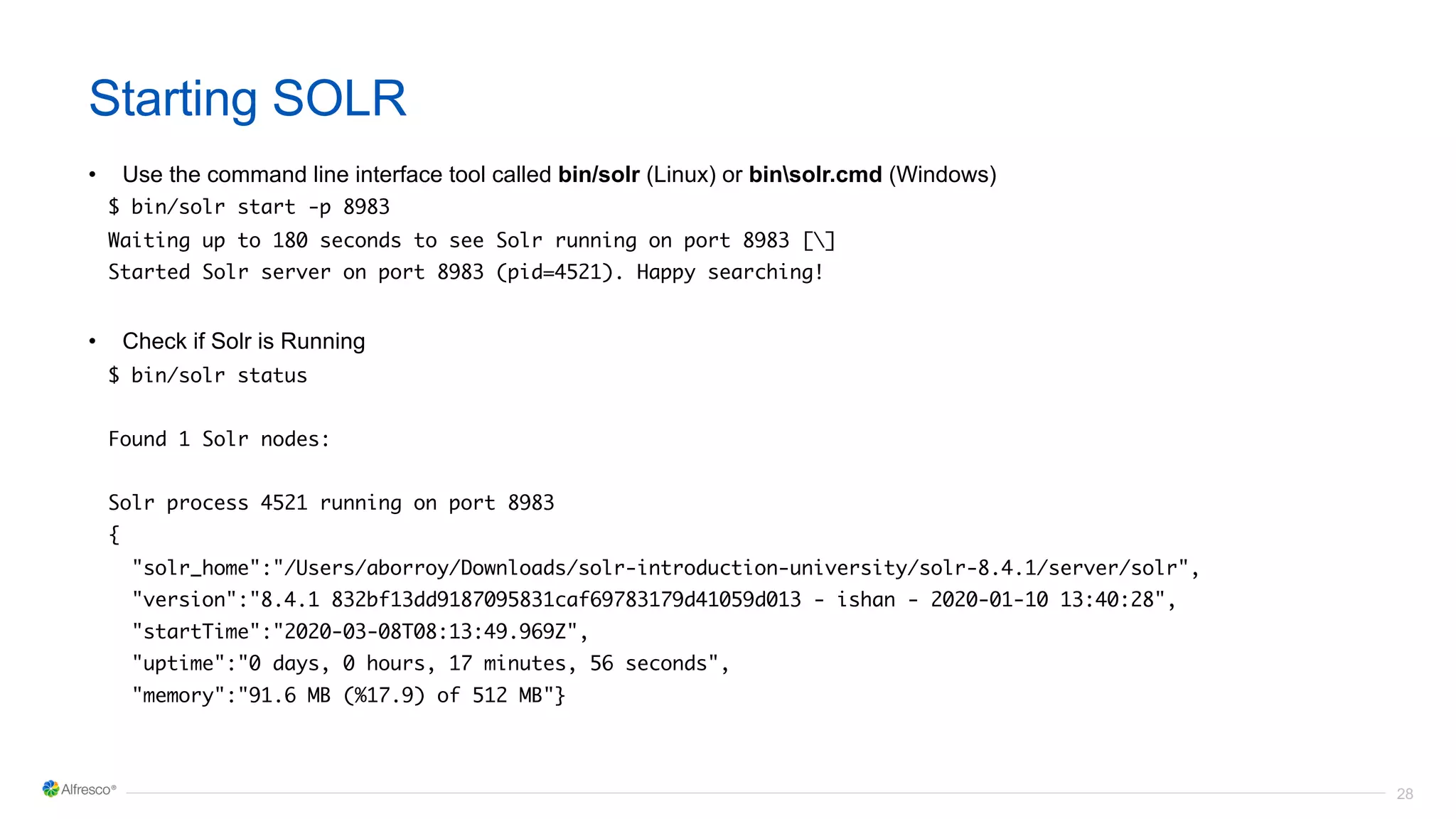

28 Starting SOLR • Use the command line interface tool called bin/solr (Linux) or binsolr.cmd (Windows) $ bin/solr start -p 8983 Waiting up to 180 seconds to see Solr running on port 8983 [] Started Solr server on port 8983 (pid=4521). Happy searching! • Check if Solr is Running $ bin/solr status Found 1 Solr nodes: Solr process 4521 running on port 8983 { "solr_home":"/Users/aborroy/Downloads/solr-introduction-university/solr-8.4.1/server/solr", "version":"8.4.1 832bf13dd9187095831caf69783179d41059d013 - ishan - 2020-01-10 13:40:28", "startTime":"2020-03-08T08:13:49.969Z", "uptime":"0 days, 0 hours, 17 minutes, 56 seconds", "memory":"91.6 MB (%17.9) of 512 MB"}

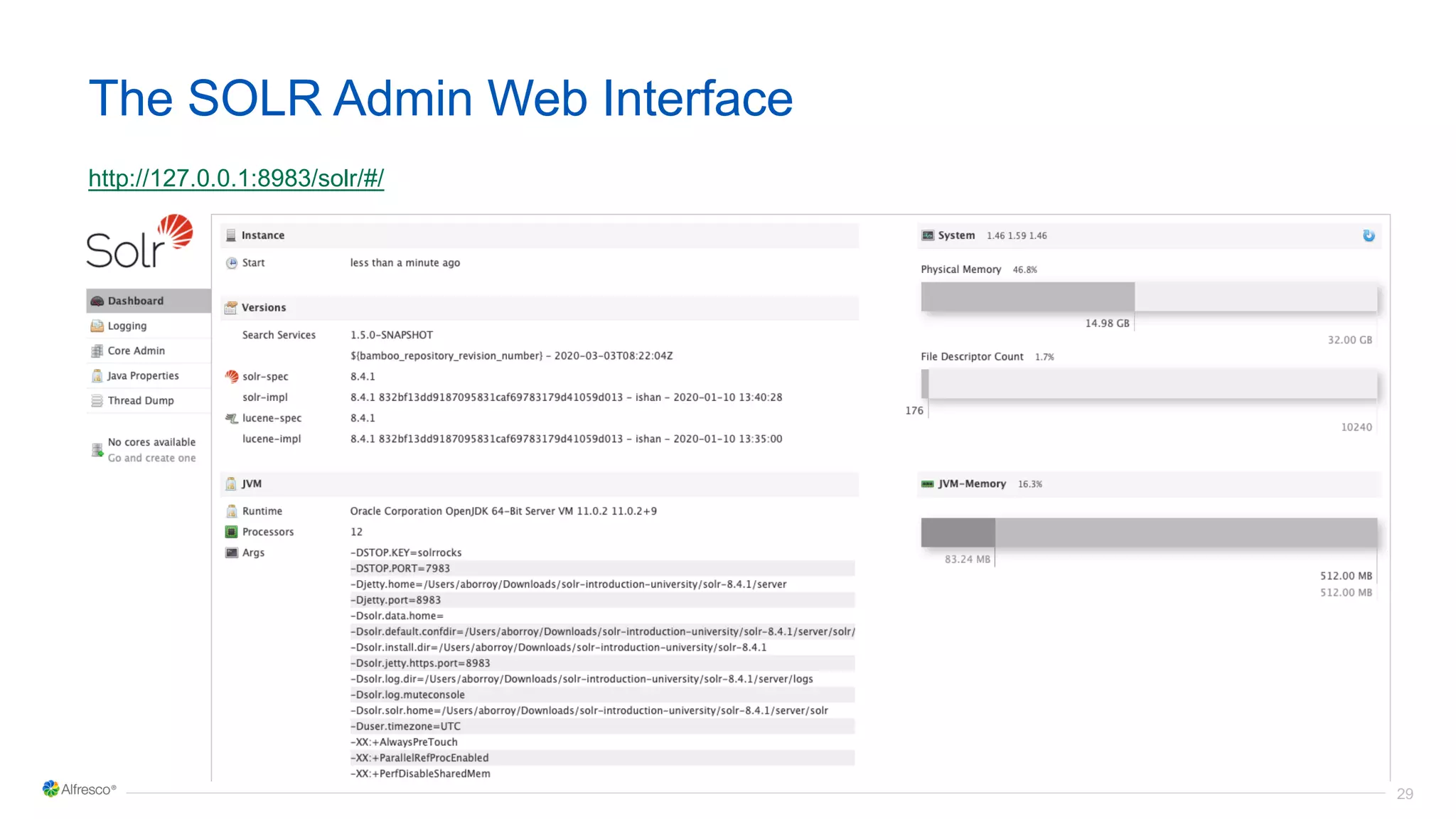

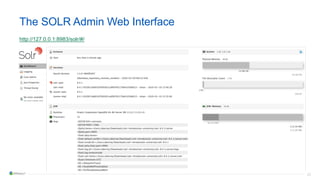

29 The SOLR Admin Web Interface http://127.0.0.1:8983/solr/#/

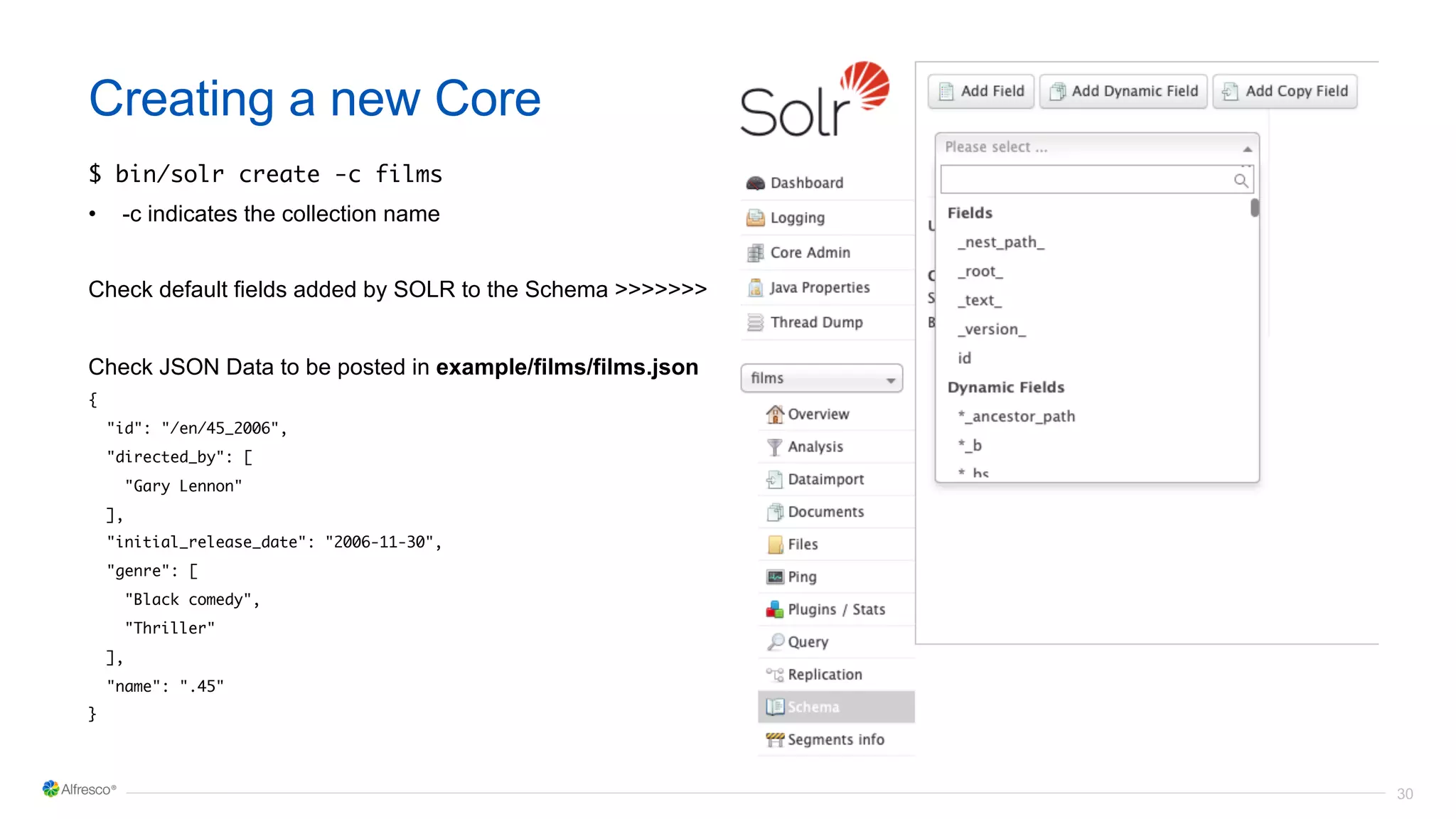

30 Creating a new Core $ bin/solr create -c films • -c indicates the collection name Check default fields added by SOLR to the Schema >>>>>>> Check JSON Data to be posted in example/films/films.json { "id": "/en/45_2006", "directed_by": [ "Gary Lennon" ], "initial_release_date": "2006-11-30", "genre": [ "Black comedy", "Thriller" ], "name": ".45" }

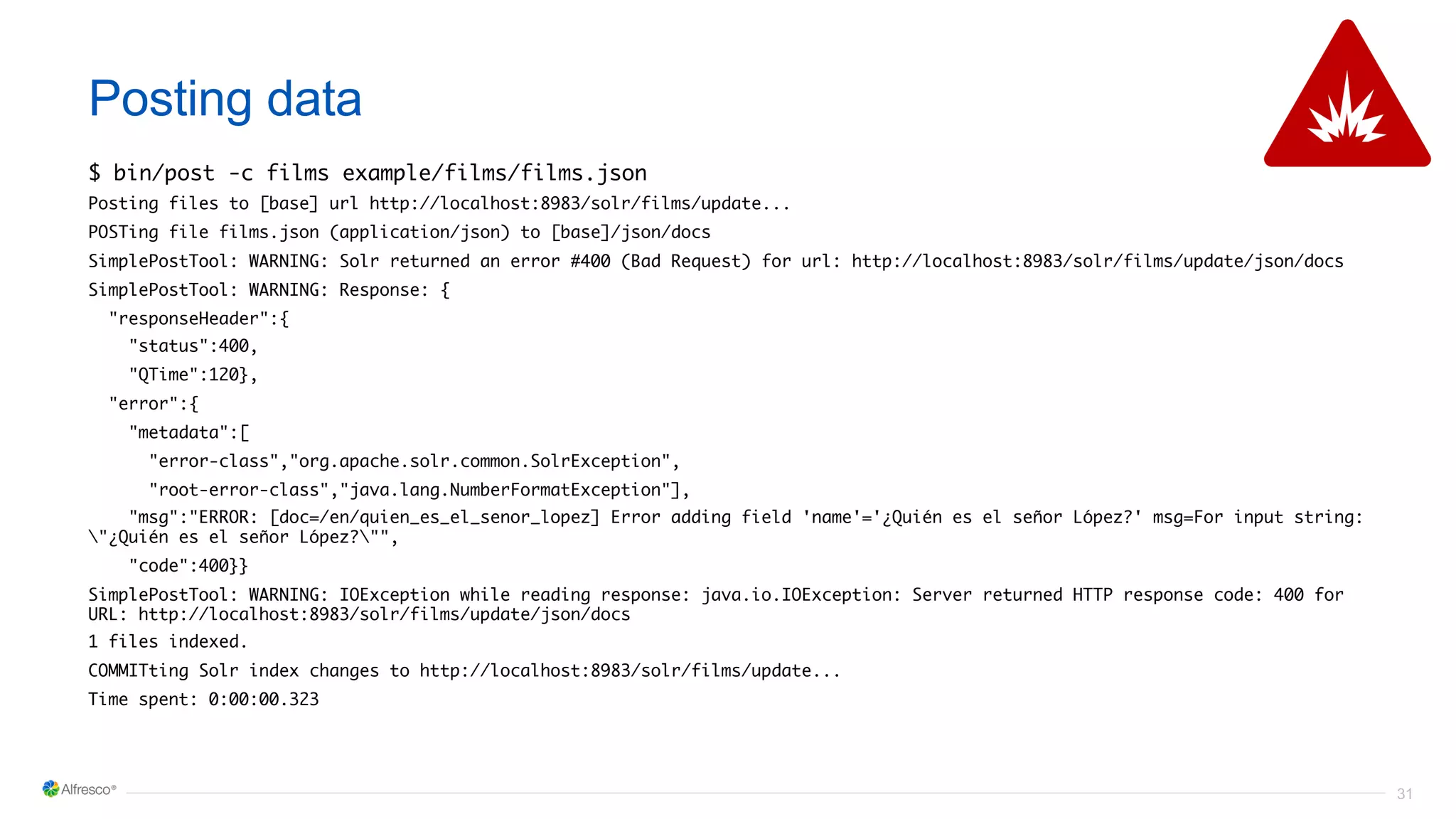

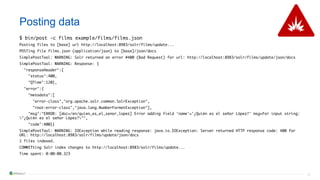

31 Posting data $ bin/post -c films example/films/films.json Posting files to [base] url http://localhost:8983/solr/films/update... POSTing file films.json (application/json) to [base]/json/docs SimplePostTool: WARNING: Solr returned an error #400 (Bad Request) for url: http://localhost:8983/solr/films/update/json/docs SimplePostTool: WARNING: Response: { "responseHeader":{ "status":400, "QTime":120}, "error":{ "metadata":[ "error-class","org.apache.solr.common.SolrException", "root-error-class","java.lang.NumberFormatException"], "msg":"ERROR: [doc=/en/quien_es_el_senor_lopez] Error adding field 'name'='¿Quién es el señor López?' msg=For input string: "¿Quién es el señor López?"", "code":400}} SimplePostTool: WARNING: IOException while reading response: java.io.IOException: Server returned HTTP response code: 400 for URL: http://localhost:8983/solr/films/update/json/docs 1 files indexed. COMMITting Solr index changes to http://localhost:8983/solr/films/update... Time spent: 0:00:00.323

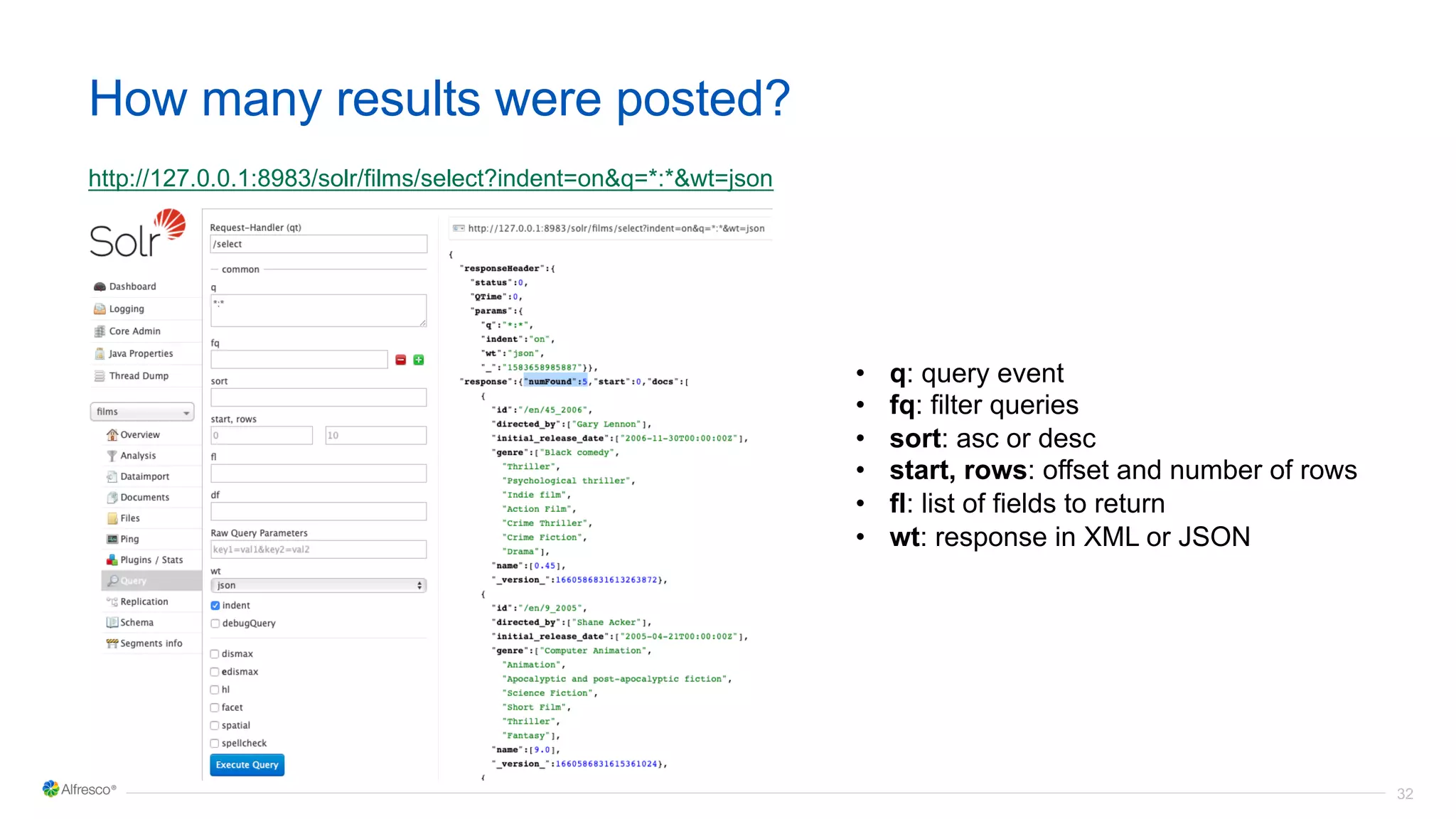

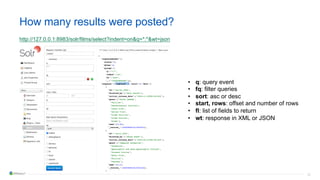

32 How many results were posted? http://127.0.0.1:8983/solr/films/select?indent=on&q=*:*&wt=json • q: query event • fq: filter queries • sort: asc or desc • start, rows: offset and number of rows • fl: list of fields to return • wt: response in XML or JSON

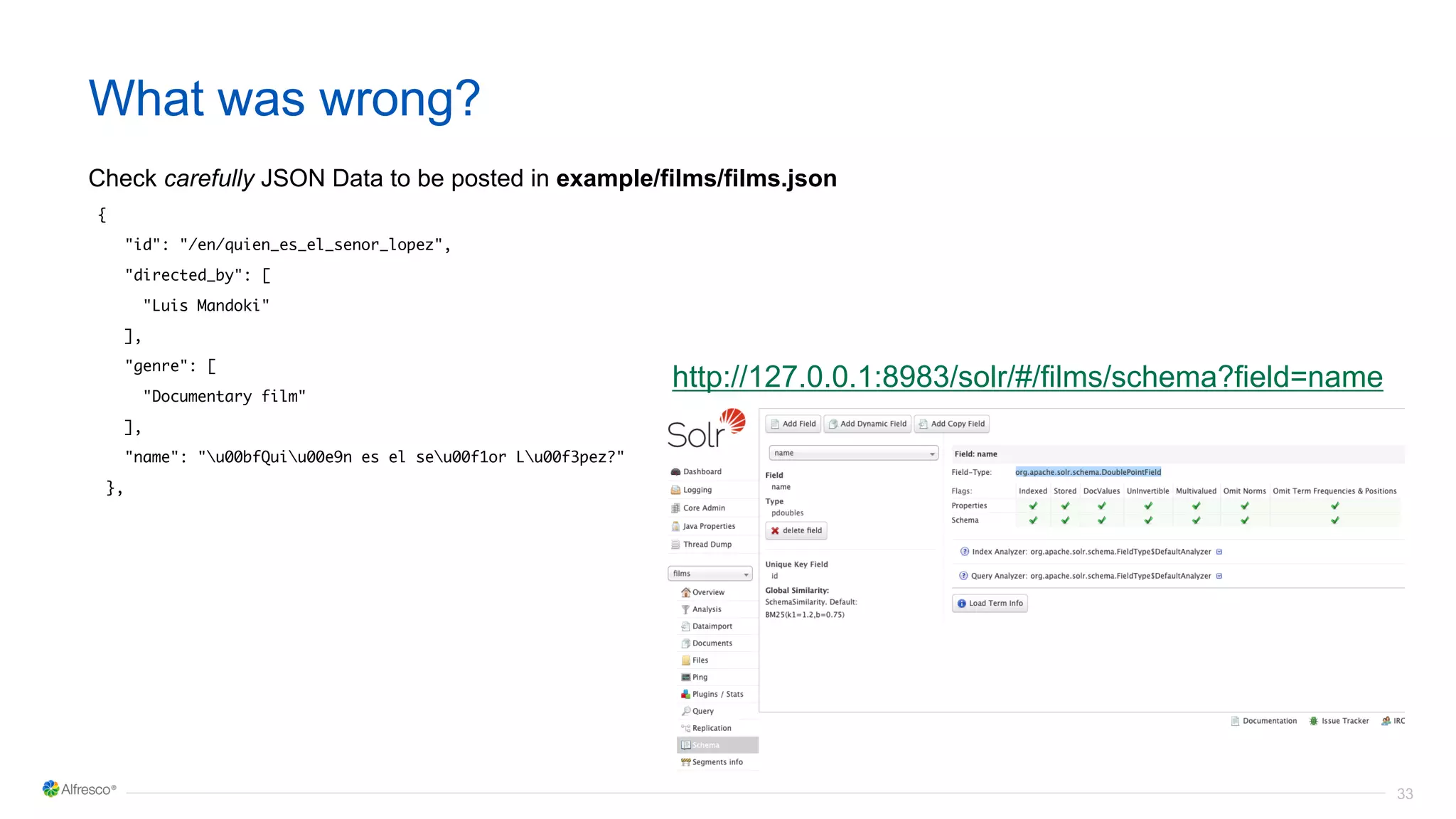

33 What was wrong? Check carefully JSON Data to be posted in example/films/films.json { "id": "/en/quien_es_el_senor_lopez", "directed_by": [ "Luis Mandoki" ], "genre": [ "Documentary film" ], "name": "u00bfQuiu00e9n es el seu00f1or Lu00f3pez?" }, http://127.0.0.1:8983/solr/#/films/schema?field=name

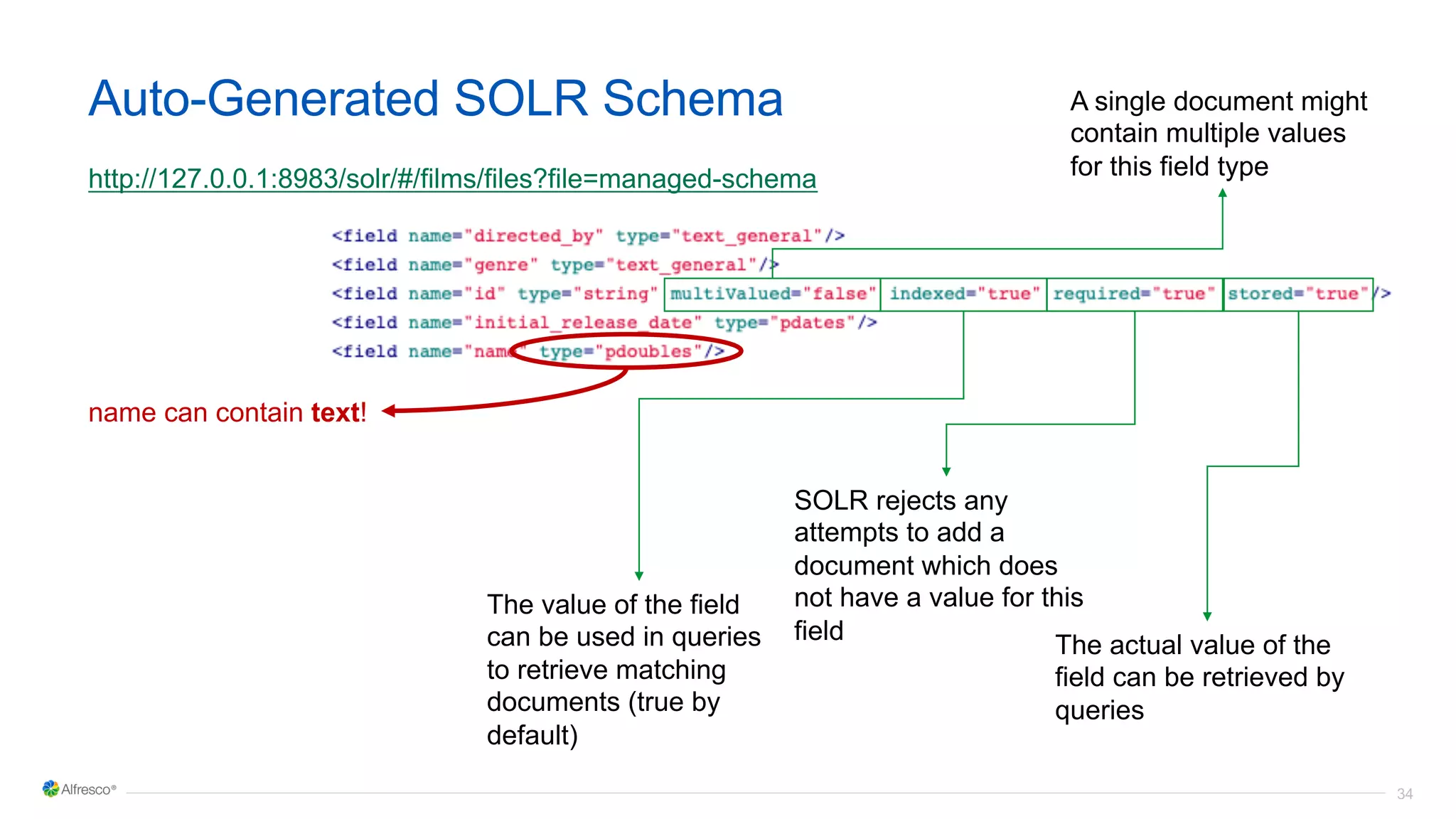

34 Auto-Generated SOLR Schema http://127.0.0.1:8983/solr/#/films/files?file=managed-schema A single document might contain multiple values for this field type The value of the field can be used in queries to retrieve matching documents (true by default) SOLR rejects any attempts to add a document which does not have a value for this field The actual value of the field can be retrieved by queries name can contain text!

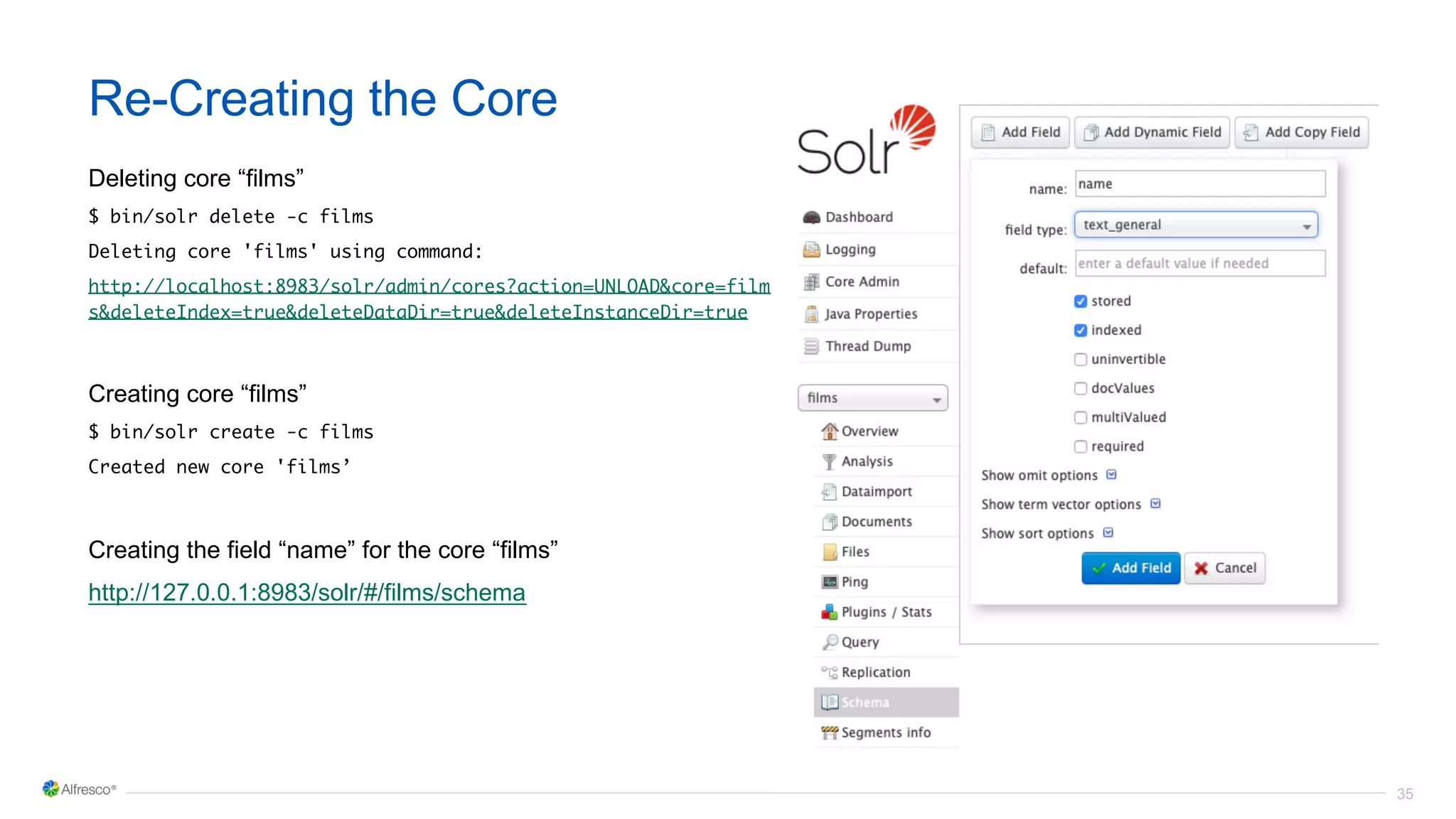

35 Re-Creating the Core Deleting core “films” $ bin/solr delete -c films Deleting core 'films' using command: http://localhost:8983/solr/admin/cores?action=UNLOAD&core=film s&deleteIndex=true&deleteDataDir=true&deleteInstanceDir=true Creating core “films” $ bin/solr create -c films Created new core 'films’ Creating the field “name” for the core “films” http://127.0.0.1:8983/solr/#/films/schema

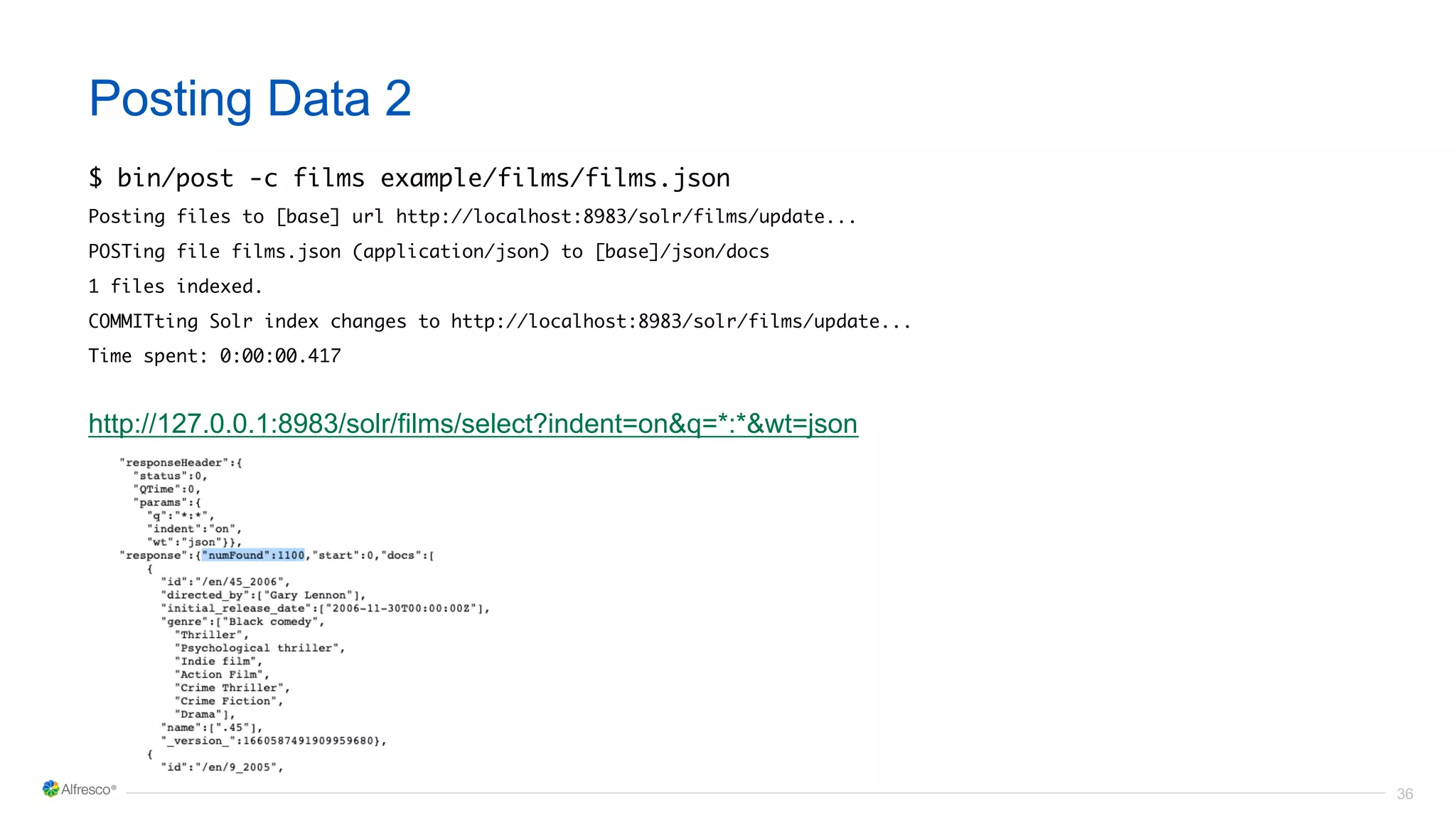

36 Posting Data 2 $ bin/post -c films example/films/films.json Posting files to [base] url http://localhost:8983/solr/films/update... POSTing file films.json (application/json) to [base]/json/docs 1 files indexed. COMMITting Solr index changes to http://localhost:8983/solr/films/update... Time spent: 0:00:00.417 http://127.0.0.1:8983/solr/films/select?indent=on&q=*:*&wt=json

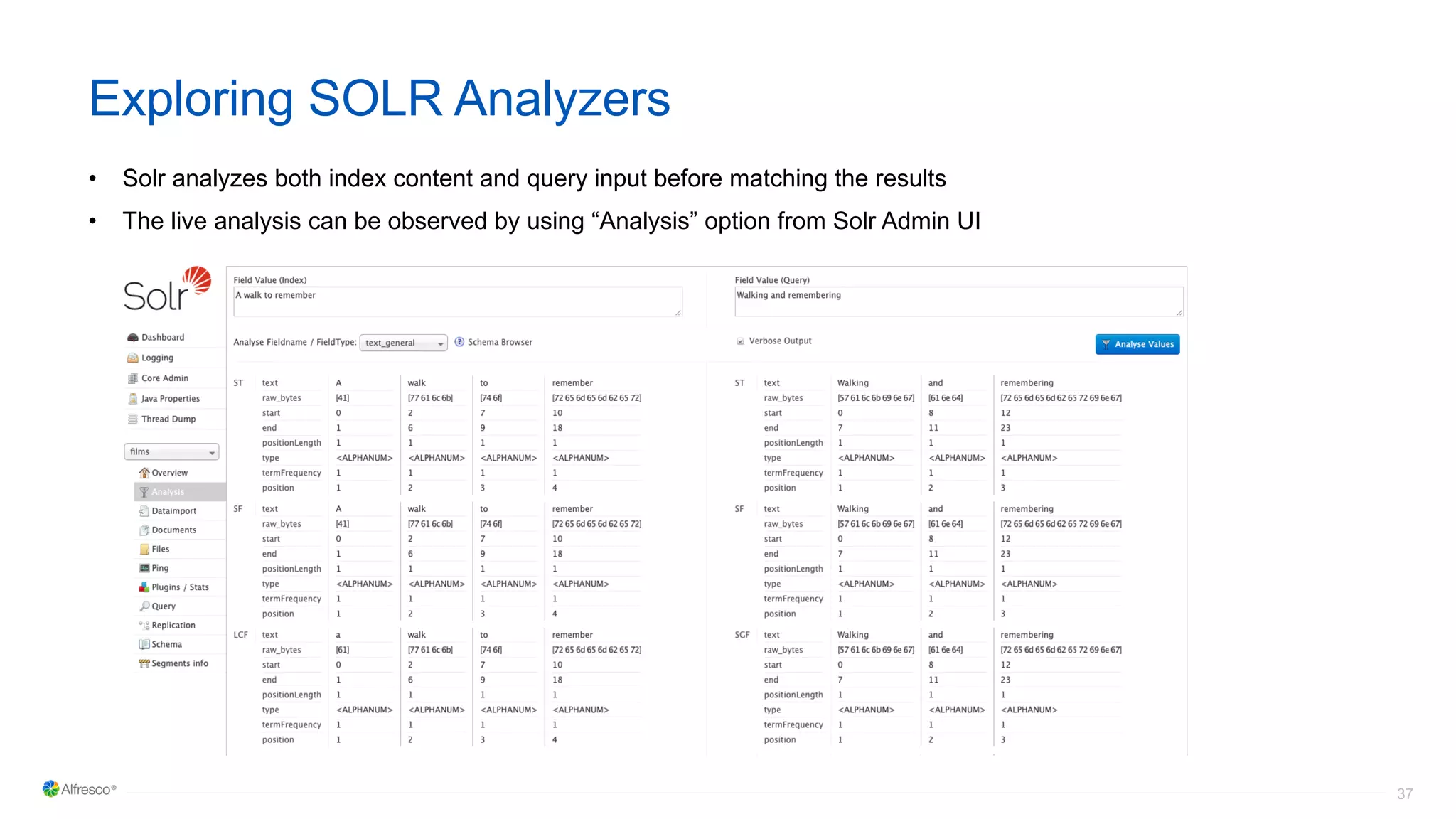

37 Exploring SOLR Analyzers • Solr analyzes both index content and query input before matching the results • The live analysis can be observed by using “Analysis” option from Solr Admin UI

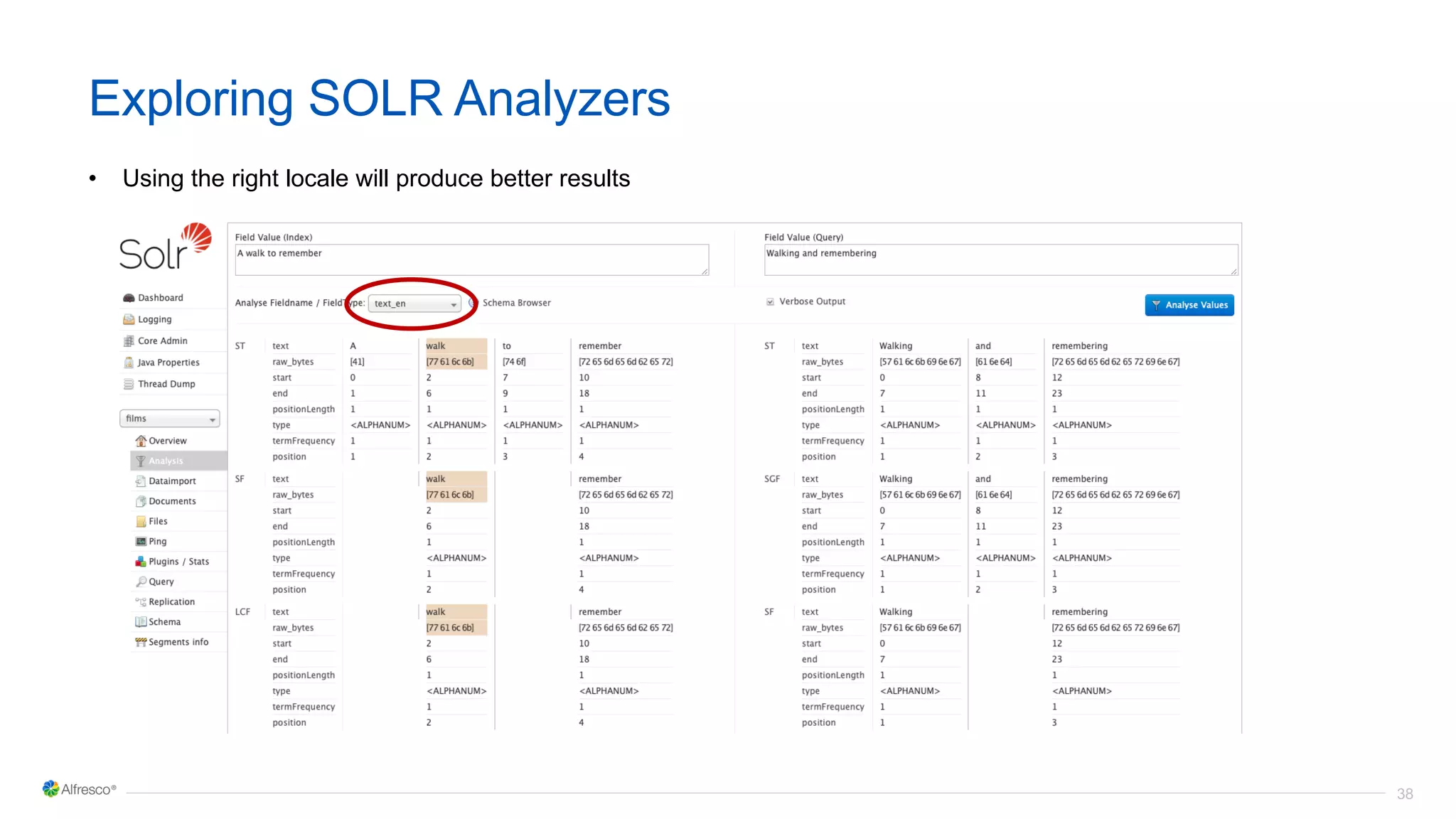

38 Exploring SOLR Analyzers • Using the right locale will produce better results

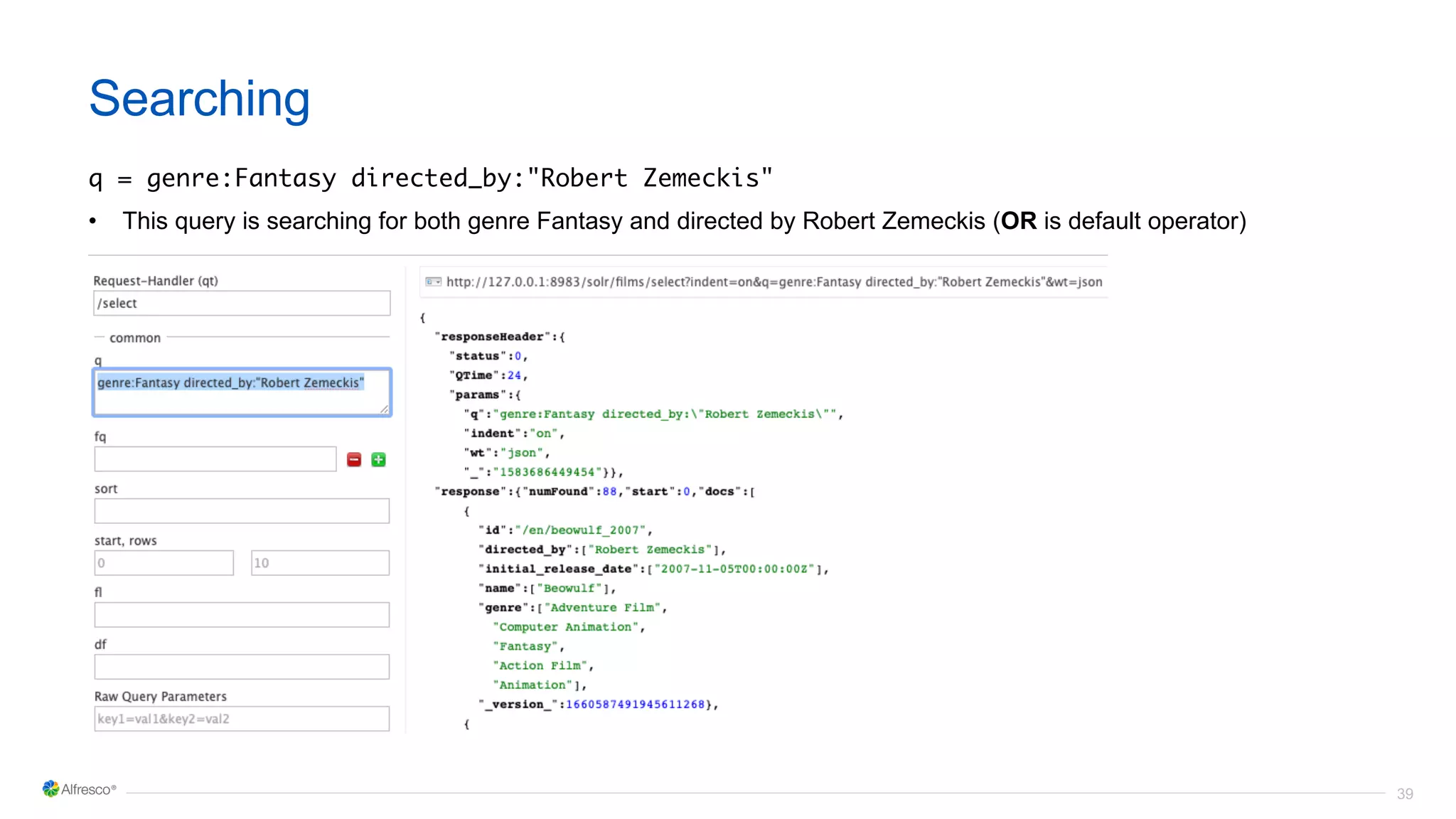

39 Searching q = genre:Fantasy directed_by:"Robert Zemeckis" • This query is searching for both genre Fantasy and directed by Robert Zemeckis (OR is default operator)

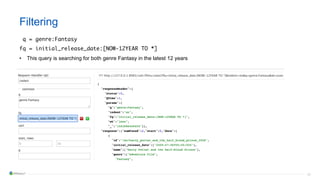

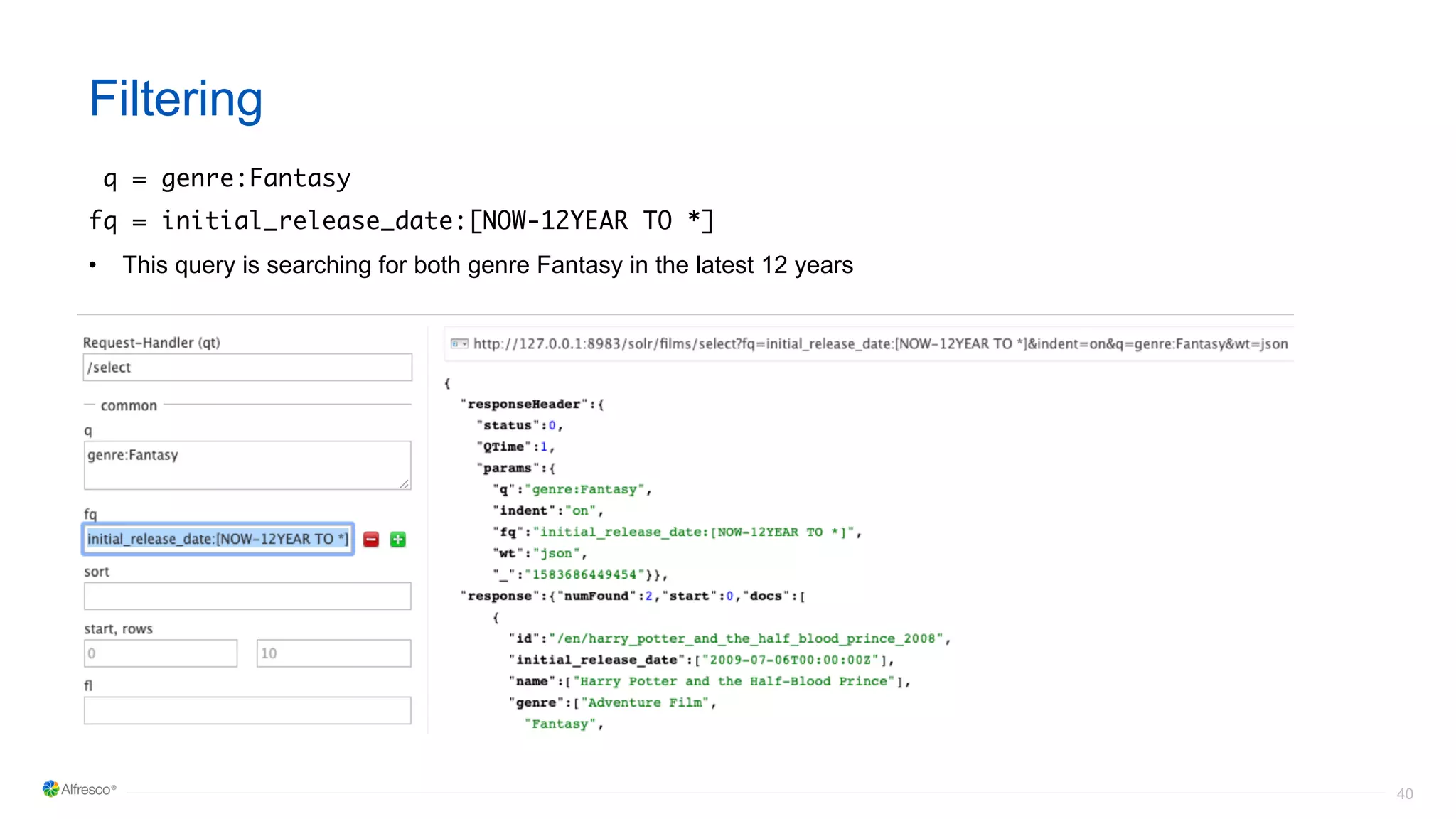

40 Filtering q = genre:Fantasy fq = initial_release_date:[NOW-12YEAR TO *] • This query is searching for both genre Fantasy in the latest 12 years

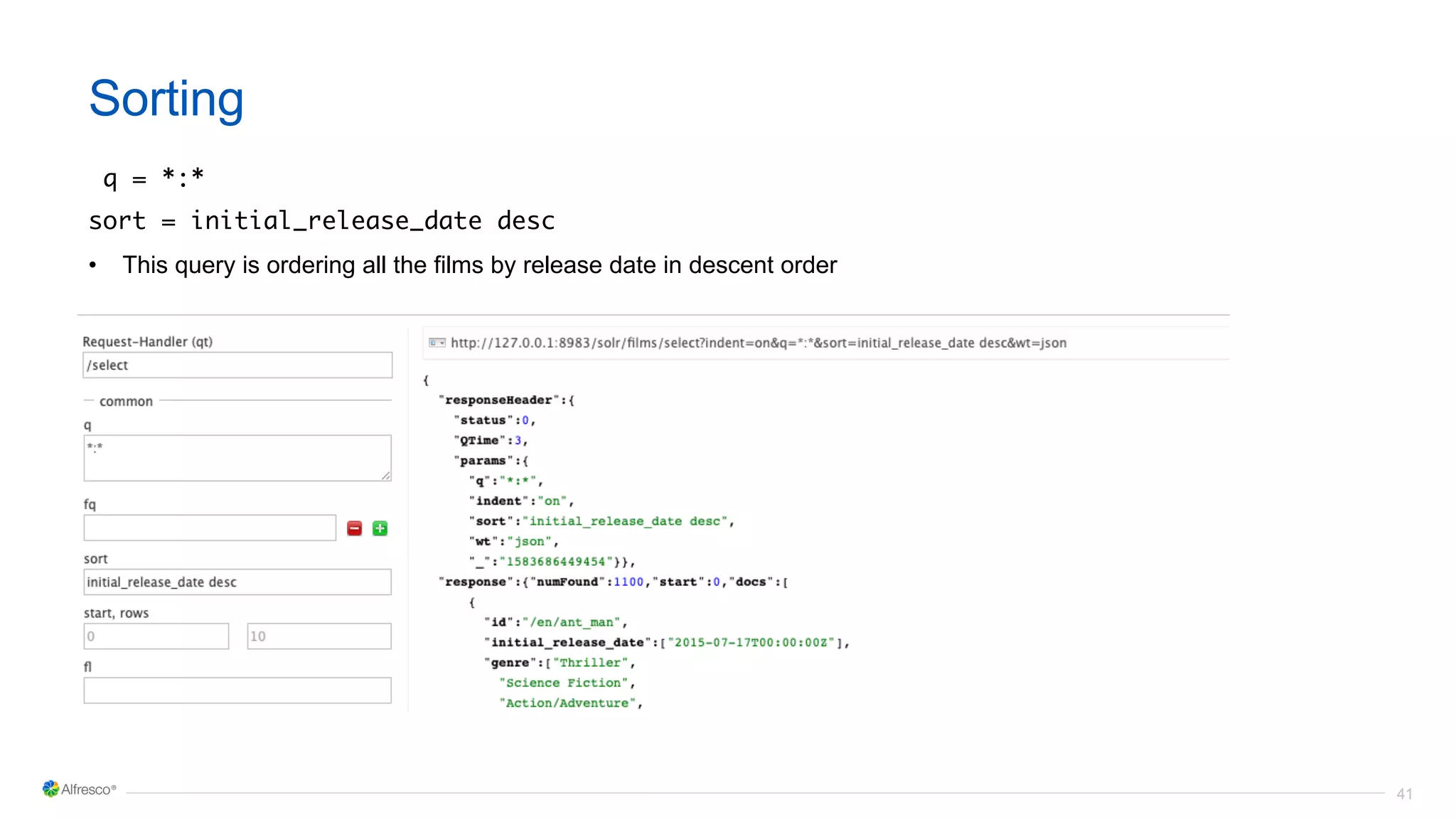

41 Sorting q = *:* sort = initial_release_date desc • This query is ordering all the films by release date in descent order

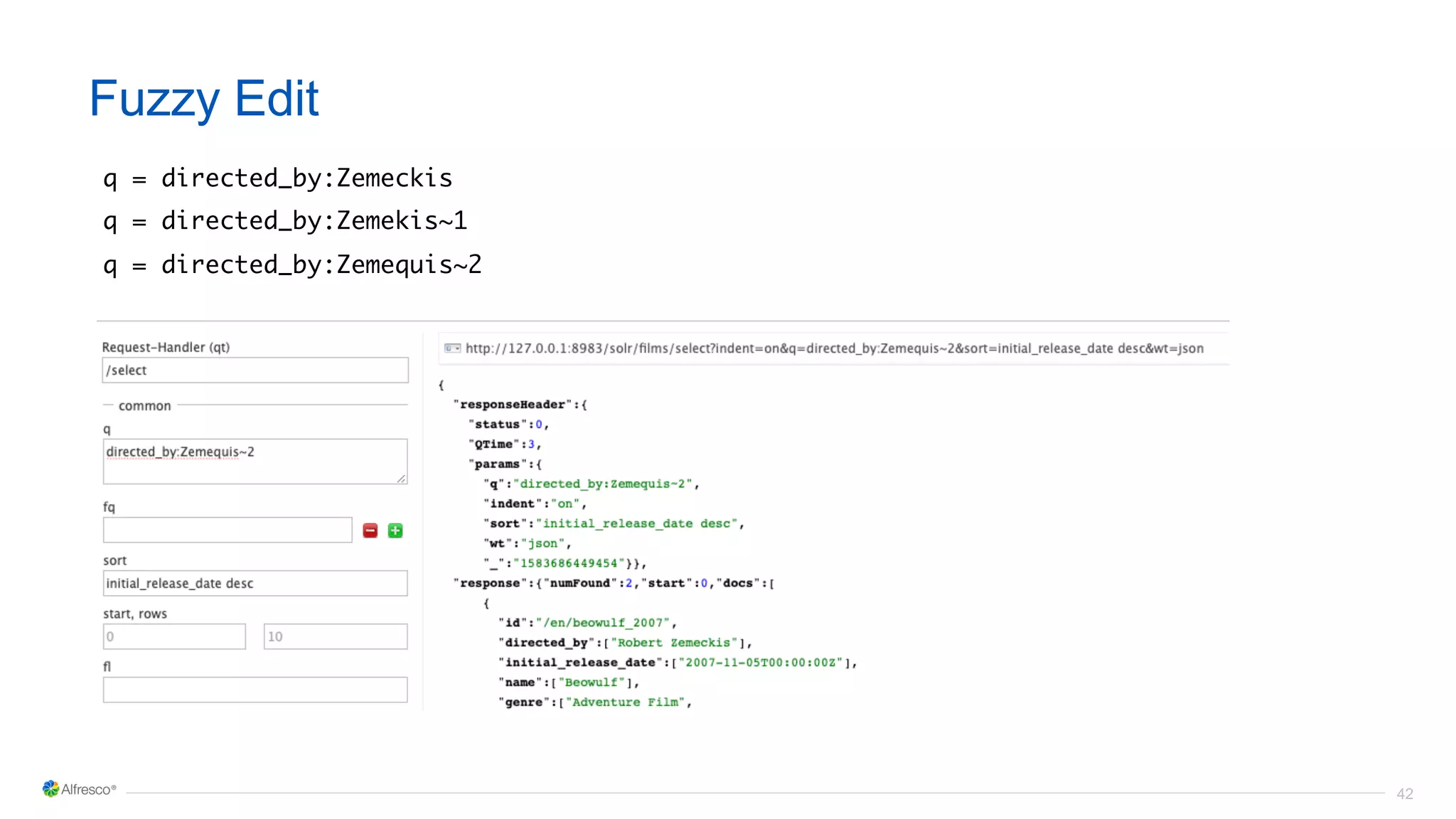

42 Fuzzy Edit q = directed_by:Zemeckis q = directed_by:Zemekis~1 q = directed_by:Zemequis~2

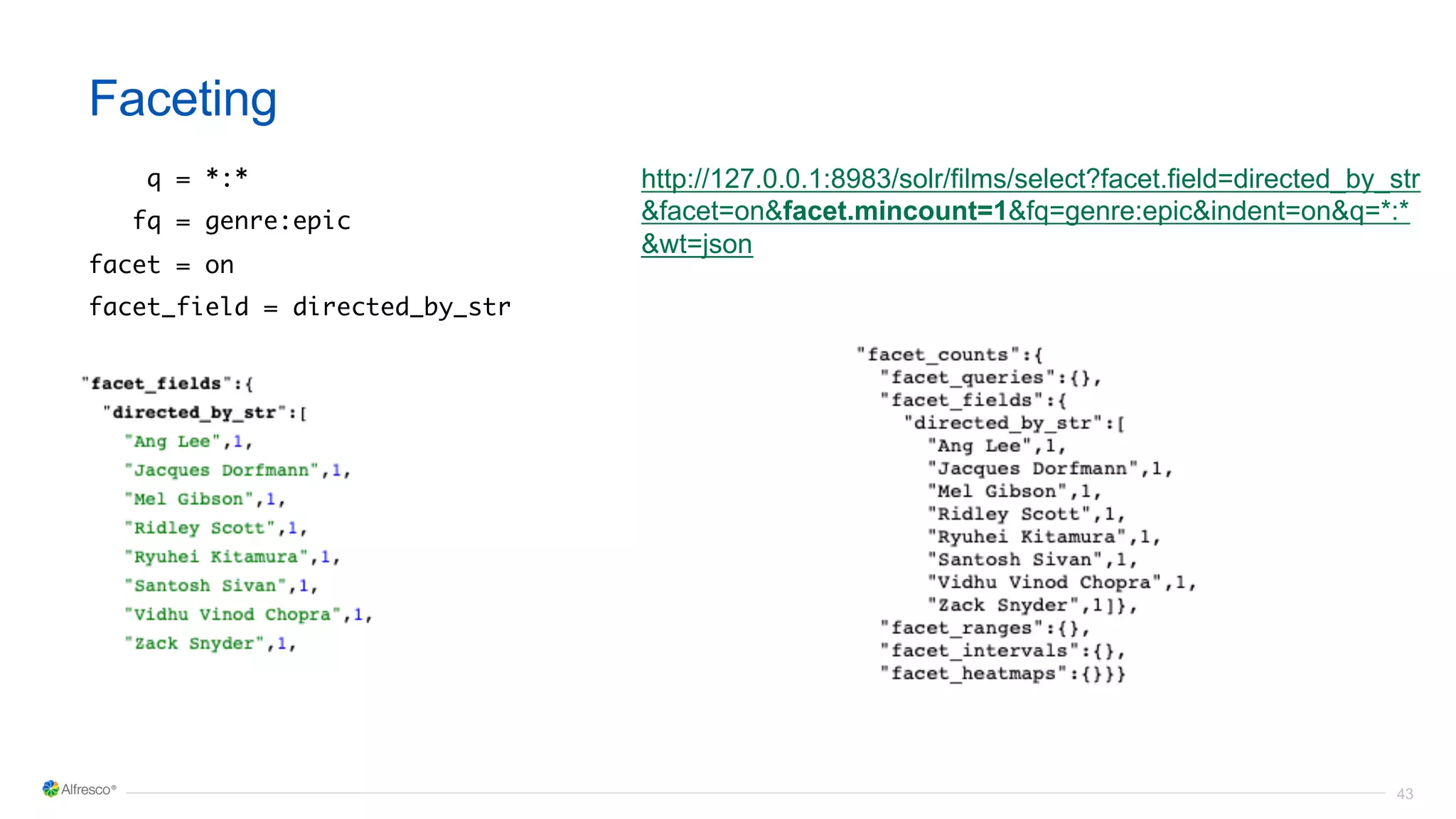

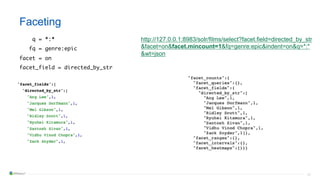

43 Faceting q = *:* fq = genre:epic facet = on facet_field = directed_by_str http://127.0.0.1:8983/solr/films/select?facet.field=directed_by_str &facet=on&facet.mincount=1&fq=genre:epic&indent=on&q=*:* &wt=json

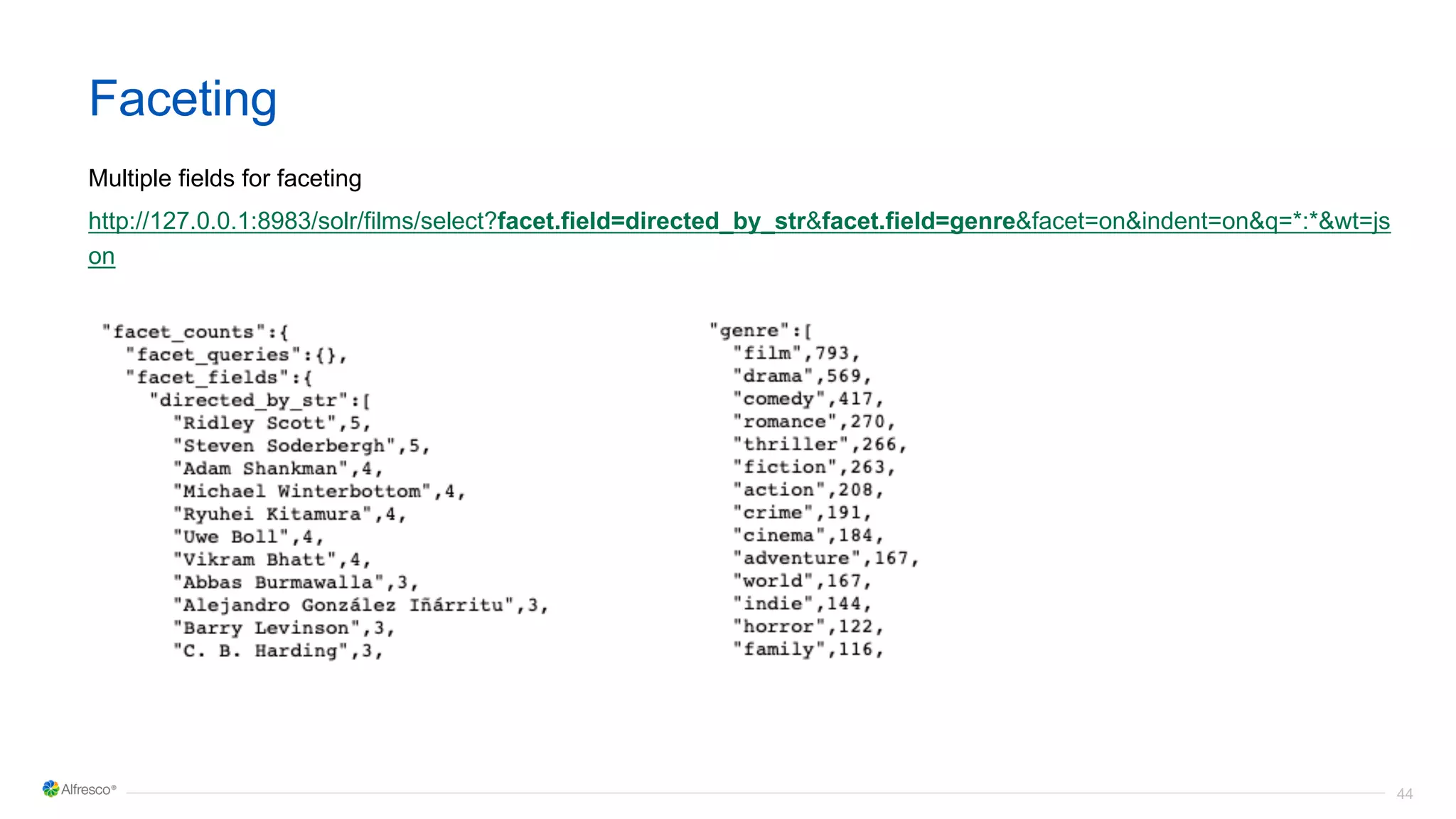

44 Faceting Multiple fields for faceting http://127.0.0.1:8983/solr/films/select?facet.field=directed_by_str&facet.field=genre&facet=on&indent=on&q=*:*&wt=js on

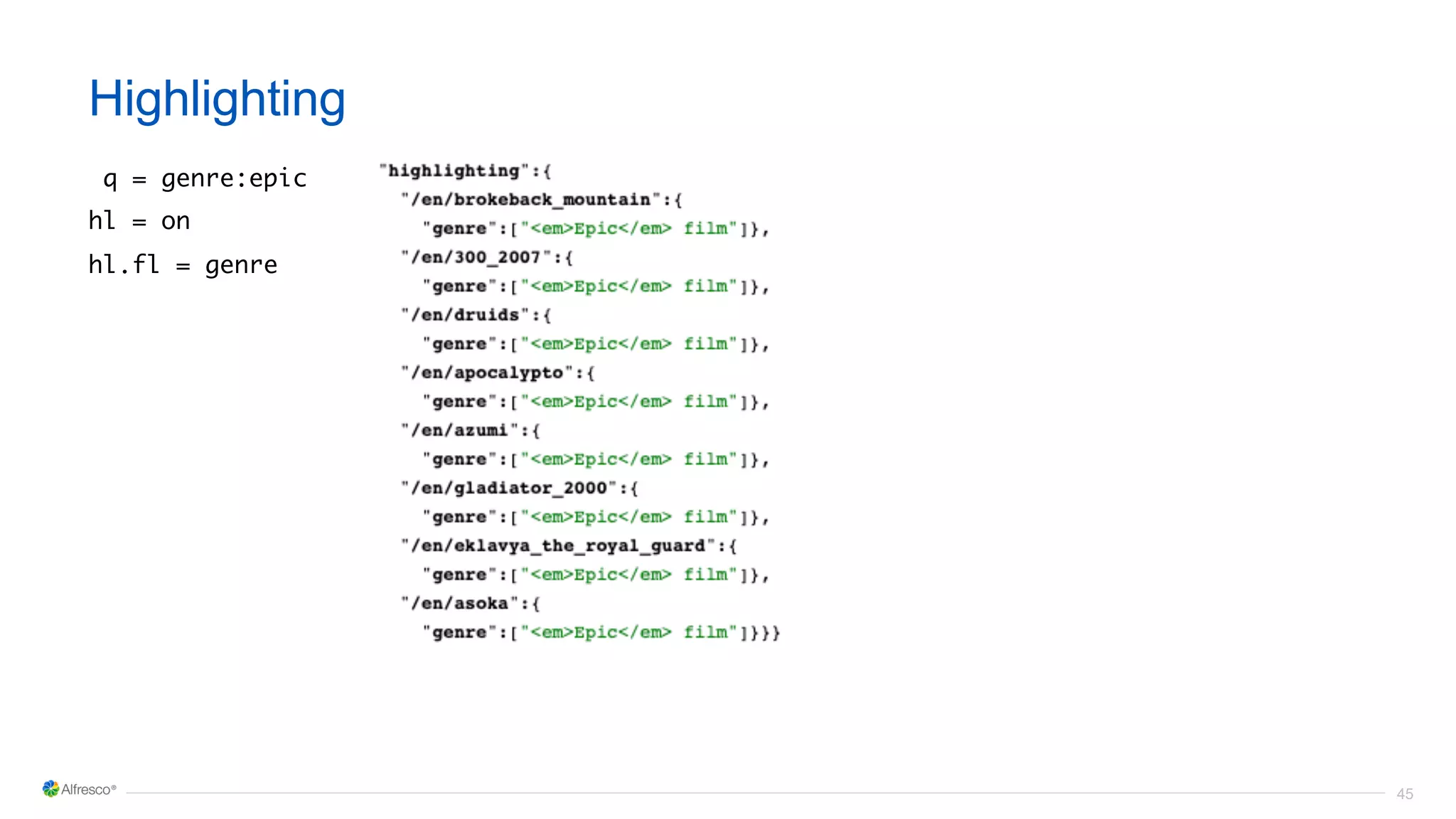

45 Highlighting q = genre:epic hl = on hl.fl = genre

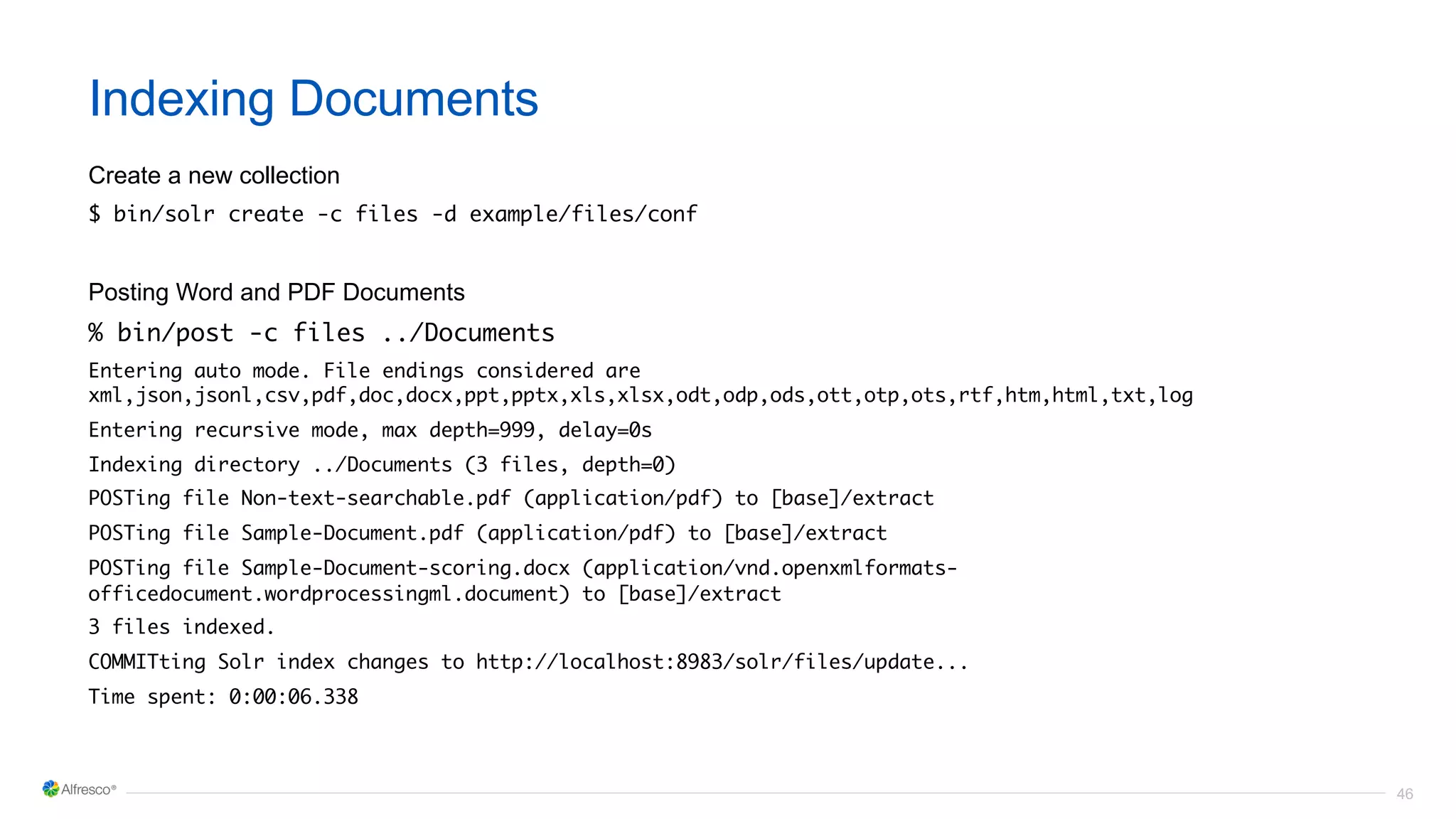

46 Indexing Documents Create a new collection $ bin/solr create -c files -d example/files/conf Posting Word and PDF Documents % bin/post -c files ../Documents Entering auto mode. File endings considered are xml,json,jsonl,csv,pdf,doc,docx,ppt,pptx,xls,xlsx,odt,odp,ods,ott,otp,ots,rtf,htm,html,txt,log Entering recursive mode, max depth=999, delay=0s Indexing directory ../Documents (3 files, depth=0) POSTing file Non-text-searchable.pdf (application/pdf) to [base]/extract POSTing file Sample-Document.pdf (application/pdf) to [base]/extract POSTing file Sample-Document-scoring.docx (application/vnd.openxmlformats- officedocument.wordprocessingml.document) to [base]/extract 3 files indexed. COMMITting Solr index changes to http://localhost:8983/solr/files/update... Time spent: 0:00:06.338

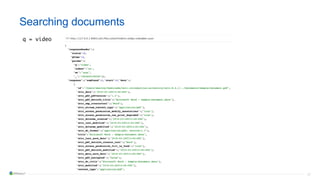

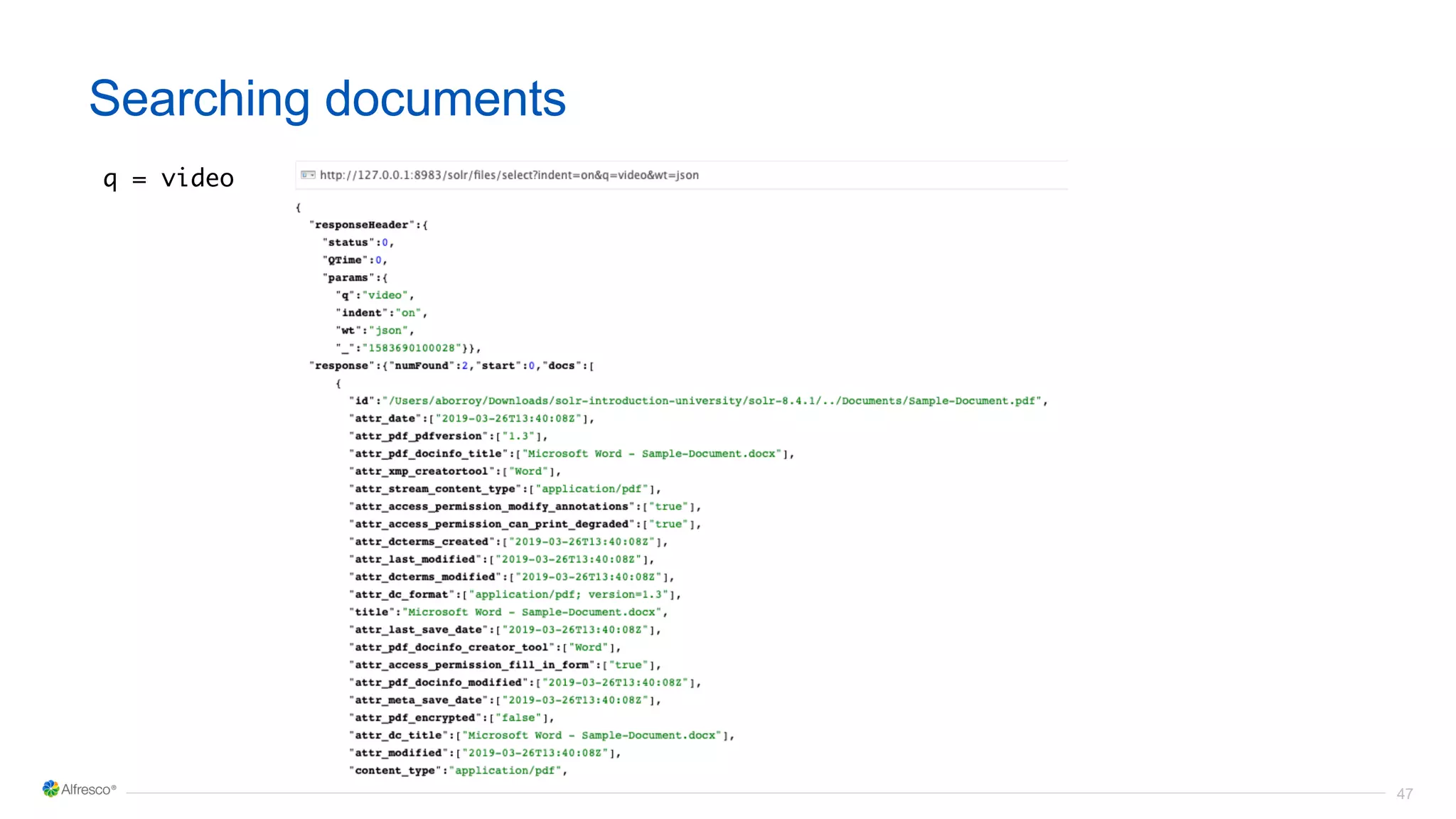

47 Searching documents q = video

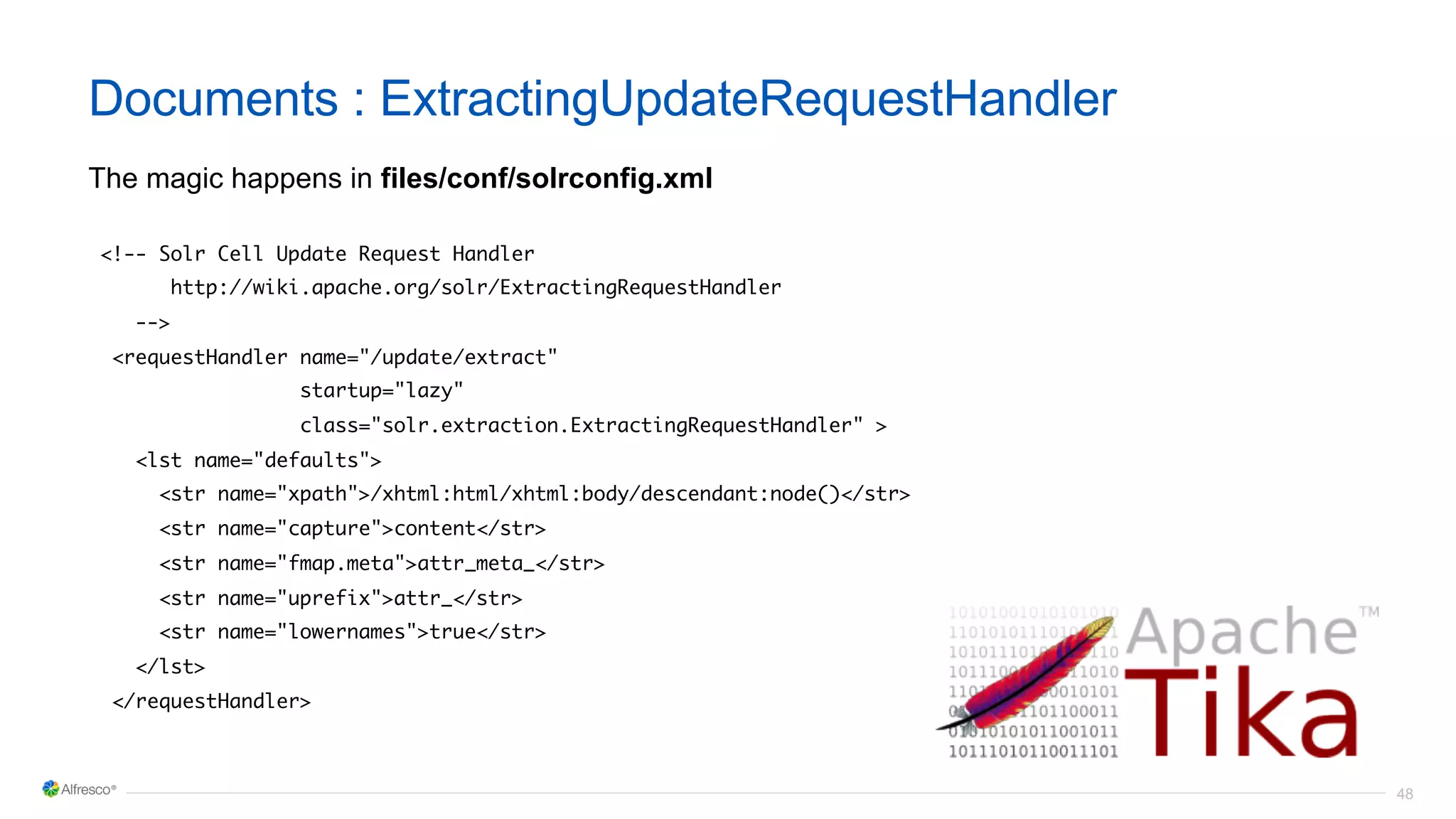

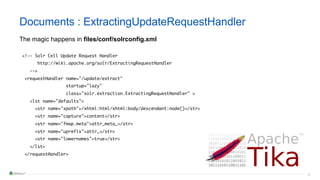

48 Documents : ExtractingUpdateRequestHandler The magic happens in files/conf/solrconfig.xml <!-- Solr Cell Update Request Handler http://wiki.apache.org/solr/ExtractingRequestHandler --> <requestHandler name="/update/extract" startup="lazy" class="solr.extraction.ExtractingRequestHandler" > <lst name="defaults"> <str name="xpath">/xhtml:html/xhtml:body/descendant:node()</str> <str name="capture">content</str> <str name="fmap.meta">attr_meta_</str> <str name="uprefix">attr_</str> <str name="lowernames">true</str> </lst> </requestHandler>
4949 Alfresco using Apache SOLR

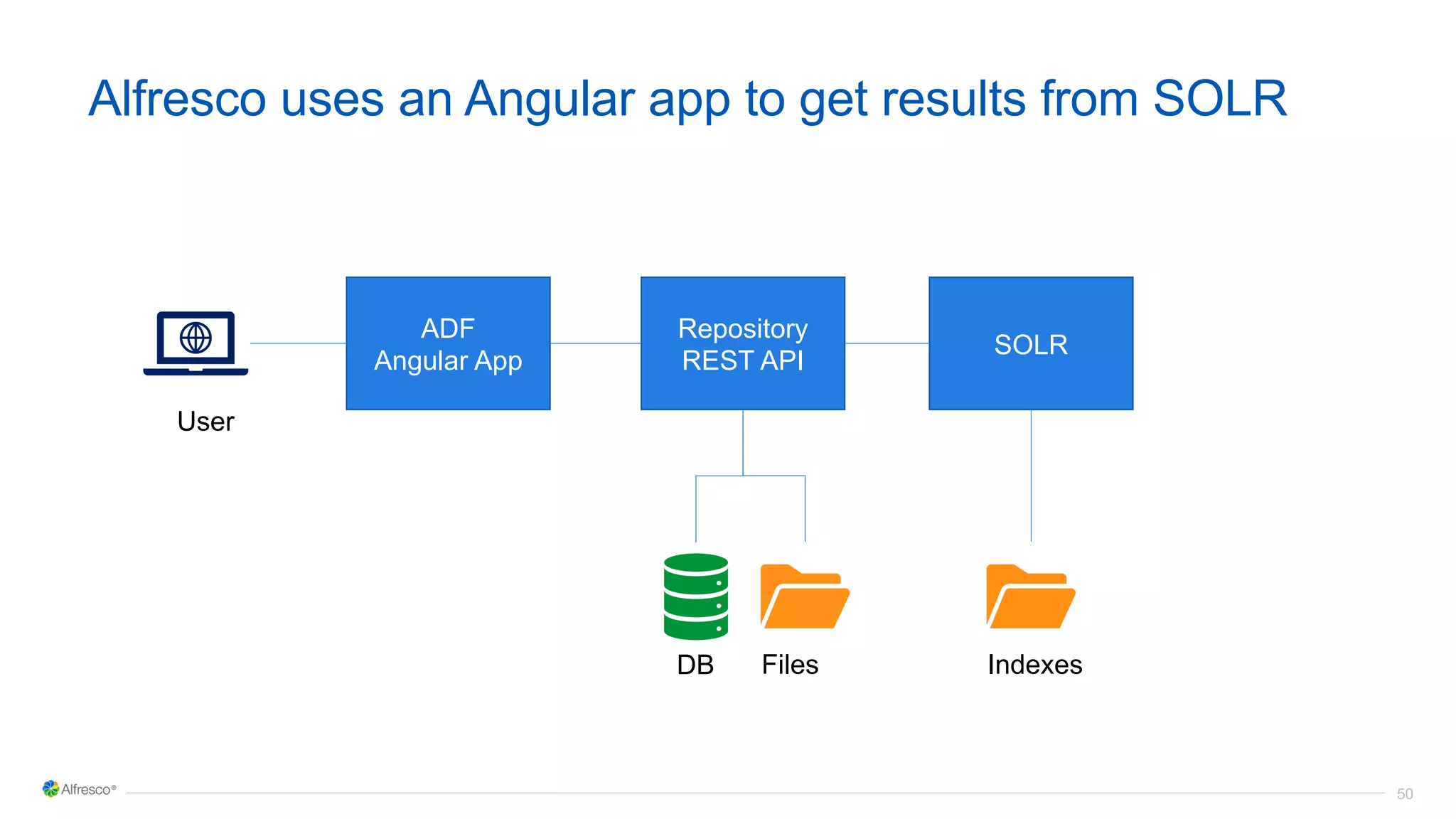

50 Alfresco uses an Angular app to get results from SOLR ADF Angular App Repository REST API SOLR IndexesFilesDB User

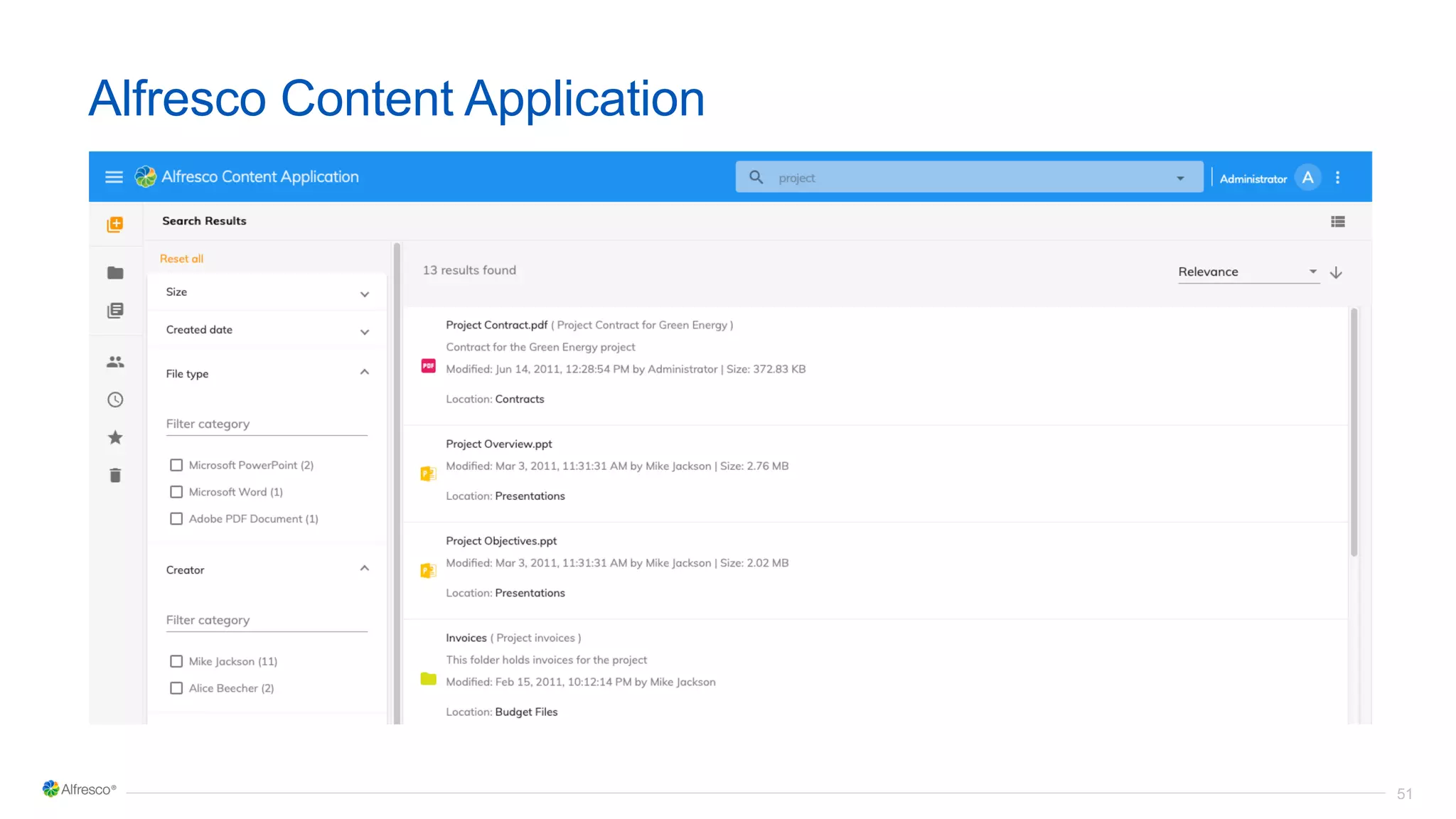

51 Alfresco Content Application
5252 References

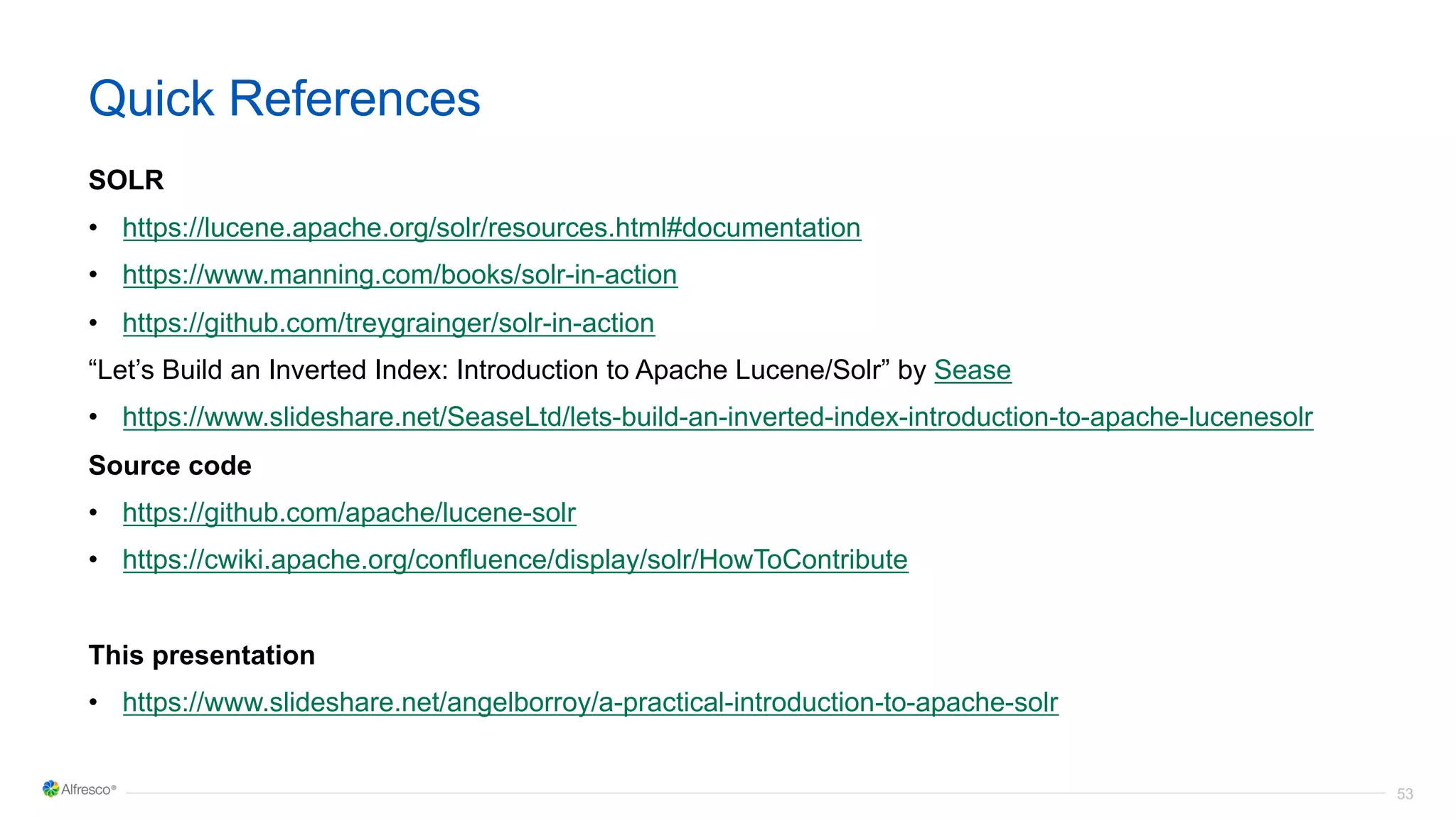

53 Quick References SOLR • https://lucene.apache.org/solr/resources.html#documentation • https://www.manning.com/books/solr-in-action • https://github.com/treygrainger/solr-in-action “Let’s Build an Inverted Index: Introduction to Apache Lucene/Solr” by Sease • https://www.slideshare.net/SeaseLtd/lets-build-an-inverted-index-introduction-to-apache-lucenesolr Source code • https://github.com/apache/lucene-solr • https://cwiki.apache.org/confluence/display/solr/HowToContribute This presentation • https://www.slideshare.net/angelborroy/a-practical-introduction-to-apache-solr
Angel Borroy Software Engineer March 2020 A Practical Introduction to Apache SOLR CODELAB
