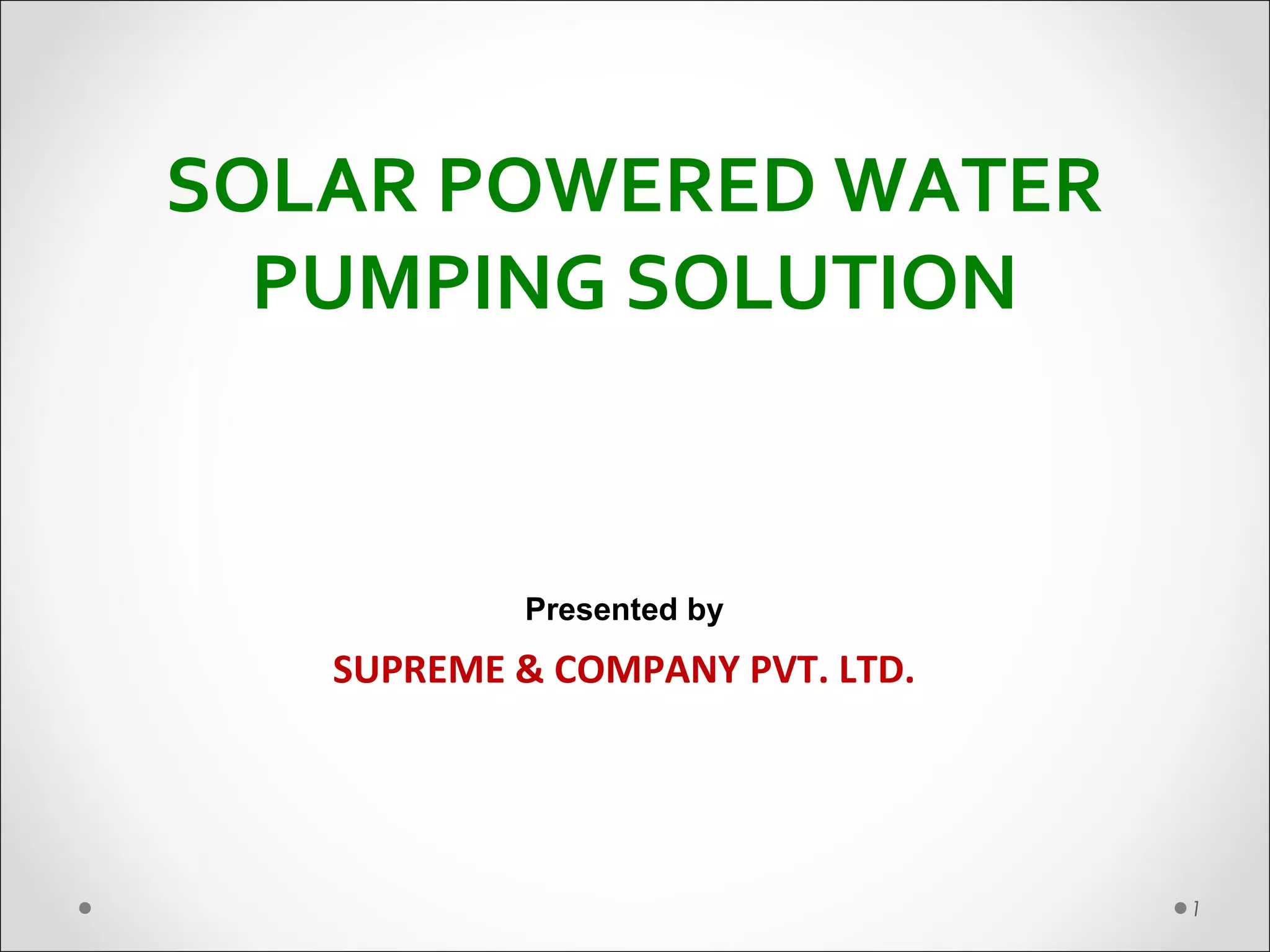

1. SOLAR POWERED WATER
PUMPING SOLUTION
Presented by
SUPREME & COMPANY PVT. LTD.
1

2.  Pumping system receives electricity from the PV Modules
 It uses solar energy to pump the water from deep well, river, lake, ponds,
tube well or bore hole
 It pumps water through a pipe to where its needed
 Solar pumping systems are sized according to the requirement during
sunny and dry seasons
 Batteries charged during sunny time can be used to run the pump at night
 PV water pumping system does not produce any atmospheric pollutant
What is a SOLAR POWERED PUMP?
2

3.  Hassle free logistics
 Rugged construction
 Early pay back period
 Reliable access to water
 Savings due to low maintenance
 Tank storage options enable access to water 24 hours a day
 DC motor connects directly to solar array without any inverter
 Sensors enable system can handle dry run and overflow situation
 Productivity increases in summer, when water requirement is usually greater
 Independent of Grid electricity, makes the system feasible for remote location
 Eco-friendly system eliminates noise, pollutant emissions and fuel spills issues
 Reduces the capital cost by half as by eliminating the need of battery back-up
during day time operation
 Low yielding borehole gets time to refill
 Eliminates expenditure of fossil fuels
 Mobile charging, LED Lamps and certain other Micro Grid application may be
provided “ADD ON ” features
Why does SOLAR POWERED PUMP required?
….to be continued
3

4. COMPARATIVE STUDY of Pumping Systems
FEATURES SOLAR POWERED
PUMP
DIESEL POWERED
PUMP
GRID PUMP
INVESTMENT High Low Low
RUNNING COST Negligible High
(Continuous monitoring of
Diesel consumption is required
for uninterrupted operation)
Medium
MAINTENANCE Medium
(For Panels cleaning not
any skilled labor require)
High
(Minor & major service,
periodic overhauling needs
skilled labor)
Medium
GRID DEPENDENCY No
(If battery storage is used)
No Yes
HAZARDOUSNESS Eco-friendly and safe Fire hazardous and
emit pollutant
Emit pollutant
POSSIBILITY OF
RAMPAGE
Less High
(At the load end to usage of raw
fuel)
Less
4

5.  Solar light availability
 Power Supply (Solar Direct/Battery Storage)
 Water requirement
 Geographical co-ordinates of location
 Water Storage capacity requirement
 Water Temperature
 Water resource quality
 Depth of Well
 Pipe Length for water distribution system
 Total Vertical Head in-between lowest level from the water source to
highest level of storage tank
SELECTION CRITERIA of Pumping System
5

6. Daily water output of a solar pump depends on four factors
 How much solar energy is available?
 What is the capacity of the solar PV system?
 What is the total vertical distance/head for pumping?
 How efficient the system is?
System optimization parameters
 Pump Characteristic
 Solar MPPT Range
 Stall Frequency (RPM)
 Pipe Diameter & Material
 Solar PV Capacity (kW)
How much water does it PUMP?
6

7. BASIC ARCHITECTURE
of Solar Powered Pumping System
….to be continued
7

8. Capacitor Bank
MCCB
Surge
Protecto
r
AC
Pump
VFD
MPPT
Controller
PV
Panel
Architecture of conventional AC PUMPING SYSTEM
RMS
….to be continued
8

9. MCCB
Surge
Protector
MPPT
Pump
Controller
PV Panel
DC
Pump
RMS
Architecture of DC PUMPING SYSTEM
9

10.  PV Panel
 Pump (AC/DC Source)
 MPPT based Solar Pump Controller
 Inverter
 Variable Frequency Drive
 Water Storage Tank and its’ supporting structure
 Pipe ,Valve and its’ fitting accessories
 Earthing & Protection Accessories
 Earth Wire ,Cable and electrical fitting accessories
 Water Level Controlling Sensor
 Barbed Wire to protect tank and PV Panel
 Junction Box and Connector
 Foundation Work (PCC & RCC)
 Battery Storage (Optional)
Components of SOLAR POWERED PUMPING SYSTEM
….to be continued
10

11. INTRO TO MAJOR COMPONENTS
of Solar Powered Pumping
System
….to be continued
11

12.  Solar Modules harness electrical energy from the sunlight in the form
of DC current based on Photovoltaic effect
 The rating is dependent on the specific site requirements and budget.
 Peak power (watts = volts * amps) is the maximum power available
from the PV panel and due to this panels are rated in Wp
 PV cells may be wired in series or parallel depending upon voltage and
current requirement to run the load
Major components - SOLAR MODULES
….to be continued
12

13.  The motors in the pumps come in a range of sizes depending on the
application and volume of water required
 There are two main pump options, the surface & submersible pump
SUBMERSIBLE SOLAR PUMPS
 Suitable for underground water
SURFACE SOLAR PUMPS
 Suitable for shallow wells, ponds, streams or storage tanks application.
 Used for larger heads pumping
Major components - PUMP
….to be continued
13

14. COMPARATIVE STUDY of DC & AC Pump
FEATURES DC PUMP AC PUMP
STANDARD
CAPACITY
1-3 HP 2-15 HP
PROTECTION External protection
required
Soft protection available from
Drive
MOBILITY &
DURABILITY
Hassle free portable
solution and Durable
Modular and Longer Life
INPUT SUPPLY 90 - 150 volts 415 volts,50Hz
APPLICATION  Drinking Water
 House hold works
 Small farm
irrigation
 Village water supply
 Livestock watering
 Water supply to remote
homes / agriculture
 Micro-Irrigation
….to be continued
14

15.  IP52 Protection, Ruggedized Construction for Remote
Outdoor Locations
 MPPT & Variable Frequency Current Booster circuitry
to ensure Maximum Power Output & Efficiency at all
times
 Inbuilt protection against reverse polarity, overloads
 Crossovers between EB supply & Solar to match
individual customer needs
 Optional dry-run prevention and output charging
circuitry for lighting loads such as village roads/houses
 Local and Remote Monitoring & Control via
Wed/SMS/GPRS technologies for control,
maintenance and pump status
 Automatic Start/Shut, Remote Start/Shut from
SMS/Web
 Local Remote operation and information to farmer via
SMS
 Self-Diagnostic, Health-Check mechanisms for easy
maintenance and setup
MPPT based Solar Pump Controller Features
….to be continued
15

16.  Real-time Pump Status Monitoring and
Control via SMS/Web
 Real-time Pump Data available for
farmers and real-time ON/OFF
mechanism
 Real-time Pumping Data for monitoring
and energy saving measurements for
Govt / Regulatory authorities
 User friendly GUI makes data simple
and easy to read, log, co-relate and
gives clear visual view of operation
 Functions like alarm and emergency
signals reduces the down time of the
system and speed up the process of
fault detection and preventive
maintenance
 First step towards integrated water
supply and management for irrigation
and domestic purpose in rural areas
Remote Monitoring & Control Benefits
….to be continued
Acu Solar Pump
Hardware
Acu Solar Pump
Hardware
HTTP,
GPRS, SMS
protocols
16

17. Acu Solar Pump :Acu Solar Pump : Real-Time Web-based Monitoring & ControlReal-Time Web-based Monitoring & Control
….to be continued
17

18. MPPT Range
Voltage
MPPT RADIATION CURVE of AC Pumping System
 MPPT controlled Solar Pump
Solution which keeps on tracking
the max power and available from
the solar panels and drives the
motor to run at max power
available
Fig: MPPT radiation characteristics
….to be continued
18

19.  EARTHING
 It is required to discharge accumulated static electricity to the ground
 Install one or more copper plated ground rod in moist earth
 Salts can be added to the ground to improve surrounding soil conductivity
 An ineffective grounding system will greatly increase the risk of lightning damage
NON-EXTENSIBLE EARTH ROD
COPPER ALLOY CLAMP
EARTHING MAT
SQUARE CLAMP
TAPE CLAMP
COUPLER
DRIVING HEAD EARTH WIREEXTENSIBLE EARTH ROD
….to be continued
Major components - EARTHING & PROTECTION ACCESORIES
19

20.  LIGHTNING PROTECTION
 The controller's input circuitry is more sensitive to surges than its output
 Pump should be placed close to the solar array in order to reduce the risk of lightning
damage
 If lightning occurs at close proximity, a well grounded conductive structure can divert
the surge
Major components - EARTHING & PROTECTION ACCESORIES
….to be continued
20

21. Major components - ANTI CLIMBING FITTINGS
BARBED WIRE
….to be continued
21

22.  TANK HEAD STORAGE
 Energy store as water by pumping it into a tank, while the sun is shining and
distributing it by earth gravitational force whenever required
Major components - ENERGY STORAGE
 BATTERY STORAGE (Optional)
 Required for electrical applications at night, to
store the energy generated during the day
 Specially designed Low maintenance lead acid
(LMLA) and Valve Regulated Lead Acid (VRLA)
batteries
 Battery Ah is selected to suffice the requirement
 Battery must be in cool location for best
longevity
 Protective enclosure is required for ingress
protection and safety
22

23. Solar PoweredSolar Powered DRINKING WATERDRINKING WATER
Pumping SolutionPumping Solution
….to be continued
23

24. SYSTEM DESCRIPTION
 The Pumping solution is designed to offer the
rural areas, water to use for domestic
application
 1 set-up will use 700-800 Wp of Solar power to
run 1 HP of submersible pump at depth of 20-
70 metre
 It will discharge 5000-8000 liter per day. It will
also have automatic on/off mechanism to
avoid water wastage once the tank is filled
 The system is a retrofit solution to the existing
hand pump already installed
 Hence it will be a Dual pumping system where
people can have water through hand pump at
the absence of solar energy
Solar Powered DRINKING WATER Pumping Solution
24

25. Solar Powered DRINKING WATER Pumping Solution
SCHEMATIC VIEW OF SOLAR WATER PUMPING SYSTEM RETROFITTED WITH EXISTING HAND PUMP
….to be continued
25

26. Solar Powered DRINKING WATER Pumping Solution
….to be continuedDUAL WATER PUMPING SYSTEM
26

27. Solar PoweredSolar Powered IRRIGATIONIRRIGATION
Pumping SolutionPumping Solution
….to be continued
27

28. Solar Powered IRRIGATION Pumping Solution
28

29. glimpses of
glimpses of ON SITE
ON SITE
EXECUTION WORK
EXECUTION WORK
 Supreme has reached an experience of more
than 3 years in Solar pumps and monitoring
solutions.
 Multiple number of case studies for different
sites.
 Supreme had installed upto 7.5 HP
Submersible & Surface Solar Pump Controller
in Karnataka, Bihar & West Bengal.
Supreme’s EXPERIENCES
29

30. Pumping SolutionPumping Solution OFFERED BY SUPREMEOFFERED BY SUPREME
 Supreme assist Client to chose right AC or DC pump according to the clients
requirement depending on the Water Head, Discharge Required, Selection
of pump stages and Pipe diameter to get optimized energy efficient solution.
 Drinking water solution for villages ranging from water storage capacity
requirement, Pipeline for supply and distribution
 We assist one selecting the right Solar panels according to the MPPT range
required for the controller.
 Multiple alarming features makes the system troubleshooting very handy
and ease to resolve via field technician.
30

31. Solar Powered Pumping OPPORTUNITY
in India
…… news highlights
….to be continued
31

32. India Plans to Install 26 Million Solar-powered Water Pumps (Source: Times of India 20
Feb 2014 )
 India’s government wants to replace 26 million groundwater pumps for irrigation with more efficient
pumps that run on solar power, in an effort to relieve farmers of high costs of diesel fuel.
 The initiative is expected to require $US 1.6 billion in investment in the next five years just to switch out
the first 200 000 pumps, according to Bloomberg.
 It's also very contentious—Indian farmers are currently drawing more water than is sustainable, removing
about 212 million mega liters from the ground each year to irrigate about 35 million hectares.
 One of the risks of switching to solar pumps, however, is that farmers may use even more water than they
currently do with expensive diesel generators.
 Some state governments in India are subsidizing most of the cost of the systems because it helps eliminate
the billions of dollars in annual farm diesel subsidies that go to farmers.
 Mandates will require 75 percent of rural and 33 percent of urban telecom towers to run on renewables by
2020.
 Solar powered “water ATMs” are also bringing clean water to rural India.
 India has plans for a 4-gigawatt solar PV plant, which would nearly triple the country’s solar capacity and
be the largest in the world.
7,540 solar powered farm pumps to be distributed in state (Source: Times of India 25 Feb
2015 )
 The state cabinet has given a go ahead for distribution of over 7540 solar powered agricultural pumps in
the Maharashtra.
NABARD to help set up 2,000 tubewells on solar energy (Source: Tribune 23 Feb 2015)
 To encourage the use of renewable energy in the state, the National Bank for Agriculture and Rural
Development (NABARD) has decided to set up 2,000 tubewells based on solar energy.
Solar Powered Pumping OPPORTUNITYOPPORTUNITY in India… news highlights
….to be continued
32

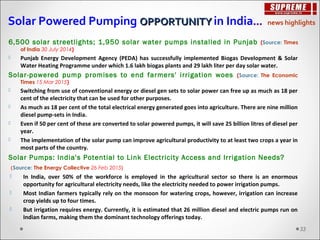

33. 6,500 solar streetlights; 1,950 solar water pumps installed in Punjab (Source: Times
of India 30 July 2014)
 Punjab Energy Development Agency (PEDA) has successfully implemented Biogas Development & Solar
Water Heating Programme under which 1.6 lakh biogas plants and 29 lakh liter per day solar water.
Solar-powered pump promises to end farmers' irrigation woes (Source: The Economic
Times 15 Mar 2015)
 Switching from use of conventional energy or diesel gen sets to solar power can free up as much as 18 per
cent of the electricity that can be used for other purposes.
 As much as 18 per cent of the total electrical energy generated goes into agriculture. There are nine million
diesel pump-sets in India.
 Even if 50 per cent of these are converted to solar powered pumps, it will save 25 billion litres of diesel per
year.
 The implementation of the solar pump can improve agricultural productivity to at least two crops a year in
most parts of the country.
Solar Pumps: India's Potential to Link Electricity Access and Irrigation Needs?
(Source: The Energy Collective 26 Feb 2015)
 In India, over 50% of the workforce is employed in the agricultural sector so there is an enormous
opportunity for agricultural electricity needs, like the electricity needed to power irrigation pumps.
 Most Indian farmers typically rely on the monsoon for watering crops, however, irrigation can increase
crop yields up to four times.
 But irrigation requires energy. Currently, it is estimated that 26 million diesel and electric pumps run on
Indian farms, making them the dominant technology offerings today.
Solar Powered Pumping OPPORTUNITYOPPORTUNITY in India… news highlights
33

34. DODO’S & DONT’S’S & DONT’S for Solar Powered Pump
Do’s
 Ensure the solar PV modules are installed in the shade free sun in a proper direction.
 All sources must be disconnected, when making connection to the controller to prevent shock and arc burn
hazard.
 There must be no loose connection for safe and secure operation.
 Transportation protection cover or caps must be replaced by conduit fittings.
 Ensure the tap/paper is removed from the battery cell vent plug before connecting the battery.
 The solar PV modules are to be cleaned regularly to remove the dust.
 In case the system is not in use, ensure that the battery is regularly charged so that is in full charged condition.
 If the electrolyte level has gone down, ensure that the battery is fully topped up with distilled water.
 The electrolyte level conditions in the battery must be checked in 30 days.
 Ensure that the battery plates are always covered with electrolyte.
 Petroleum jelly (not grease) should be applied on the battery terminals to avoid corrosion of the terminals.
Dont’s
 Do not use grease for applying to battery terminals.
 Do not use acid for topping up the battery.
 Do not clean the solar PV modules with acid/chemicals/detergent etc.
 Don’t temper with settings of Controller or the Solar Inverter.
 Overload protective accessories such as fuse, CB etc are not required in the solar array circuit.
 During solar array wiring avoid loop formation since it will help induced voltages in each size of the circuit to
equalize and cancel each other out.
34

35. THANK YOU
SUPREME & COMPANY PVT. LTD.
P-200 Benaras Road, Howrah –711108
Website – www.supreme.in
Contact – harish@supreme.in
Mb - +9831556538 / 9339225524
35
