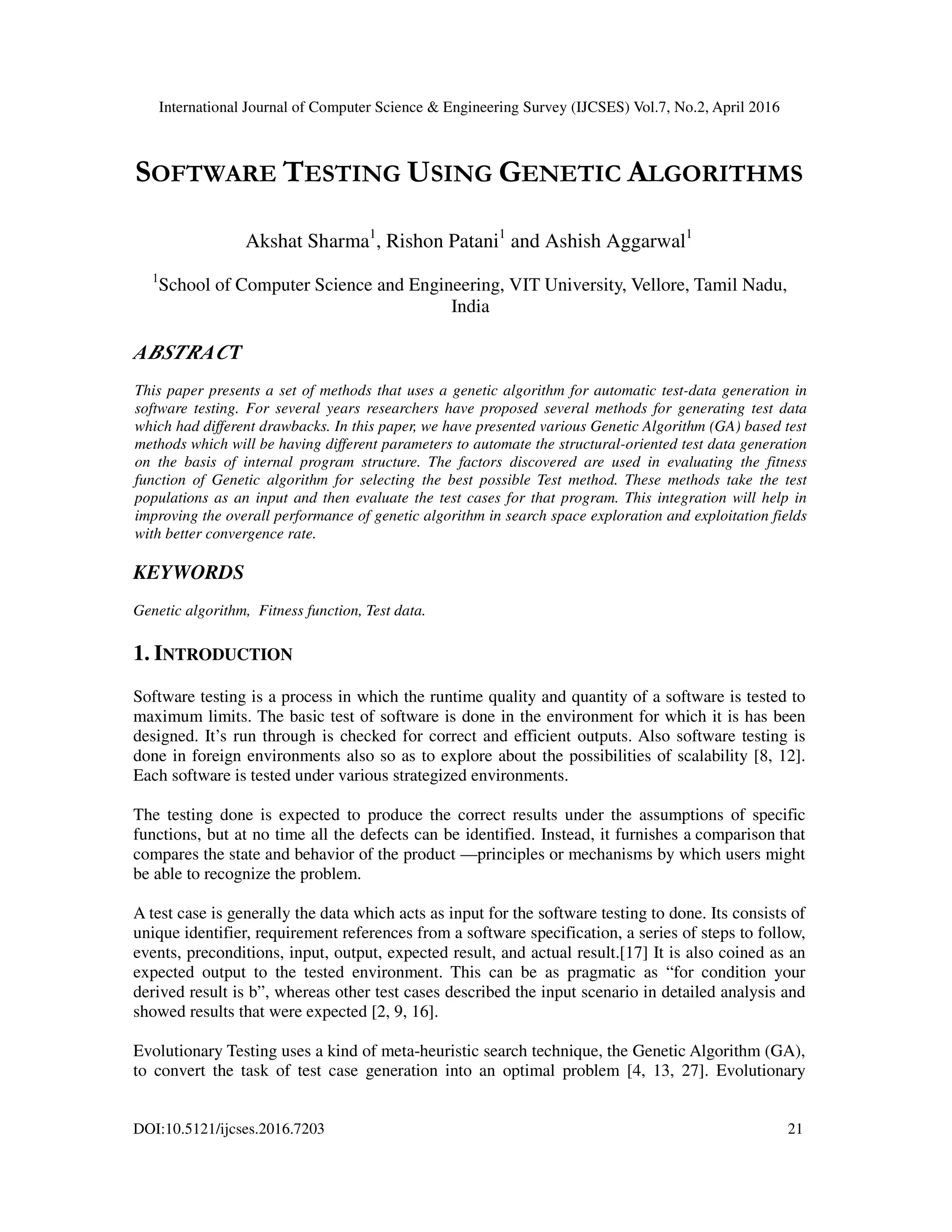

Software Testing Using Genetic Algorithms

International Journal of Computer Science & Engineering Survey (IJCSES) Vol.7, No.2, April 2016
DOI:10.5121/ijcses.2016.7203 21
SOFTWARE TESTING USING GENETIC ALGORITHMS
Akshat Sharma1
, Rishon Patani1
and Ashish Aggarwal1
1
School of Computer Science and Engineering, VIT University, Vellore, Tamil Nadu,
India
ABSTRACT
This paper presents a set of methods that uses a genetic algorithm for automatic test-data generation in
software testing. For several years researchers have proposed several methods for generating test data
which had different drawbacks. In this paper, we have presented various Genetic Algorithm (GA) based test
methods which will be having different parameters to automate the structural-oriented test data generation
on the basis of internal program structure. The factors discovered are used in evaluating the fitness
function of Genetic algorithm for selecting the best possible Test method. These methods take the test
populations as an input and then evaluate the test cases for that program. This integration will help in
improving the overall performance of genetic algorithm in search space exploration and exploitation fields
with better convergence rate.
KEYWORDS
Genetic algorithm, Fitness function, Test data.
1. INTRODUCTION
Software testing is a process in which the runtime quality and quantity of a software is tested to
maximum limits. The basic test of software is done in the environment for which it is has been
designed. It’s run through is checked for correct and efficient outputs. Also software testing is
done in foreign environments also so as to explore about the possibilities of scalability [8, 12].
Each software is tested under various strategized environments.
The testing done is expected to produce the correct results under the assumptions of specific
functions, but at no time all the defects can be identified. Instead, it furnishes a comparison that
compares the state and behavior of the product —principles or mechanisms by which users might
be able to recognize the problem.
A test case is generally the data which acts as input for the software testing to done. Its consists of
unique identifier, requirement references from a software specification, a series of steps to follow,
events, preconditions, input, output, expected result, and actual result.[17] It is also coined as an
expected output to the tested environment. This can be as pragmatic as “for condition your
derived result is b”, whereas other test cases described the input scenario in detailed analysis and
showed results that were expected [2, 9, 16].
Evolutionary Testing uses a kind of meta-heuristic search technique, the Genetic Algorithm (GA),
to convert the task of test case generation into an optimal problem [4, 13, 27]. Evolutionary

22
testing is used to search for optimal test parameter combinations that satisfy a predefined test
criterion. This test criterion is represented by using a “cost function” that measures how well each
of the automatically generated optimization parameters are satisfying the given test criterion [7,
22].
In our paper a study of different types of genetic algorithms is done. Different algorithms have
been run on different tools and analyzed for their performance. All these algorithms follow the
same basis of evolutionary testing but have different cost functions. On running these cost
functions on different tools, observations on how these functions respond are made [1, 3, 5, 11].
2. INTRODUCTION TO GENETIC ALGORITHM
Genetic algorithms are one of the best ways to solve a set of problems for which little information
is given. Genetic algorithms are a very general algorithm and so they will work well in any search
space [1, 25, 30, 33]. All you need to know is what you need the solution to be able to do well,
and a genetic algorithm will be able to create a high quality solution. Genetic algorithms use the
principles of selection and evolution to produce solution for various complex problems.
Genetic algorithms tends to thrive in an environment in which there is a very large set of
candidate solutions and in which the search space is not favorable and has many hills and
valleys[12,15,16]. True, genetic algorithms can do well in any environment, but they might be
greatly outclassed by more situation specific algorithms in the simpler search spaces. Therefore
you must keep in mind that genetic algorithms are not always the best choice in random
scenarios. Sometimes they might take quite a while to run and are therefore not always feasible
for real time use. They are, however, one of the most powerful methods with which high quality
solutions are created quickly to a problem [4,8,21]. There are few basic
methodology/Terminology that will be used while implementing genetic algorithm like:
Individual – Possible solutions
Population - Set of all individuals
Search Space - All possible solutions to the specified problem
Chromosome – Blueprint for an individual
Trait - Possible aspect of an individual entity.
Allele - Possible settings for a trait
Locus - The position of a gene on the chromosome
Genome - Collection of all chromosomes for an individual entity.
3. BACKGROUND
Genetic algorithms use the following three operations on its population.
3.1 Selection:
A selection process is applied to determine a way in which individuals are chosen for mating from
a population based on their fitness. Fitness is defined as a characteristic and capability of an
individual to survive and reproduce in an environment. Selection generates the new population
from the old one, thus starting a new generation. The fitness value of each chromosome in present

23
generation is determined by an appropriate evaluation. Thus, the fitness value is used to select a
set of better chromosomes from the population for the next generation.[5,6].
3.2 Crossover:
After the selection process, the crossover operation is applied to the chromosomes selected from
the population. Crossover involves swapping of sequence of bits or genes in the string between
two individuals [8, 10]. This process of swapping is carried out and repeated each time with
different parent individuals until the next generation has optimum individuals.
Figure 3.2: Uniform Crossover
3.3 Mutation:
After the crossover process, the mutate operation is applied to a randomly select subset of the
population. Mutation leads to an alteration of chromosomes in small new ways to introduce good
traits. The main aim of mutation is to bring diversity in population.[1,5]
Figure 3.3: Mutation (Bit Inversion)
Factors essential in a fitness function are:
• Likelihood.
• Close to Boundary Value.
• Branch Coverage.
It has been proven that GAs required less CPU time in reaching a global solution in software
testing [13].
3.4 Need for Genetic Algorithms in Software Testing:
Drawbacks of manual testing: [7, 12]
Speed of operation is limited as it is carried out by humans.
High investment in terms of cost, time.
Limited availability of resources.

24
Redundancy in test cases.
Inefficient and inaccurate test checking.
Pros of using genetic algorithms in software testing:
Parallelism is a important characteristic of genetic testing [11,19].
Less likely to get stuck in extreme ends of a code during testing since it operates in a search
space.
With the same encoding, only fitness function needs to be changed according to the problem.
Figure 4.1: Test Case Generation in Software Testing Using GA
4. GENETIC ALGORITHM WORKING
The genetic algorithm is an evolutionary approach to computing, which has the ability to
determine appropriate approx. solutions to optimization problems. The basic process adopted by
Genetic algorithms typically involves creating an initial set of random solutions (population) and
evaluating them [2, 5, 9, 12]. Followed by a process of selection, the better solutions are
identified (parents) and are then used to generate new solutions (children). These values can be
used to replace other lesser members of the population. This new population (generation), is then
reevaluated and the process for generating new values continues, reproducing new generations
until either a final solution is determined or some other criterion for determination of result is
reached[18,22,32].
Genetic Algorithm borrows its terms from the biological world. For example, Genetic algorithm
uses different representations for potential solutions which are referred to as a chromosome and
the operators that are used to generate new child solutions are such as crossover and mutation are
derived from nature.
In their generic and most basic form, Genetic Algorithms were used mainly for single objective
search and optimization algorithms. Common to most Genetic algorithms is the use of a
chromosome, genetic operators, a selection mechanism and an evaluation mechanism [23, 27].

25
In our case, all we have to do is determine the parameters we need in order to build an efficient
function and bundle them into a binary string, this will be the definition of our chromosome.
Therefore, each chromosome will fully describe a Function.
A common approach when working with Genetic Algorithm is to start by making a 'population' of
random chromosomes (Test Variables) perhaps a 100. You may remember earlier that we said we
can test each one individuals and score it, or to use the correct terminology, 'evaluate its fitness’
(function).
This calculated Fitness function will help us to evaluate the efficiency of the method used [11, 27,
29].And further to increase the efficiency of the test result we can change the input parameters
and obtain values for different number of population.
5. APPLICATIONS OF GENETIC ALGORITHM
Genetic Algorithm have been used for solving complex problems (such as NPC and NP-hard), for
machine learning and is also used for evolving simple test programs. They are a very effective
way of quickly finding a reasonable solution to a complex problem.
Genetic algorithms are most efficient and effective in a search space for which little is known.
Then again, genetic algorithms can be used to produce solutions to problems working only in the
test environment and deviates once you try to use them in the real world [17, 24].
So when put simply, genetic algorithm can be used to create solutions for problems that are not
very easy to calculate and analyze.

26
Figure 5.0: Flow chart of the workflow of Genetic Algorithm used for Test Case Generation n Software
Testing.
6. IMPLEMENTATION OF GAIN SOFTWARE TESTING
6.1 Test case generation using GA in Ruby
Algorithm:
Start with randomly generated test cases from the population.
Calculate the fitness f(x) of each pair of test cases (chromosome x) in the population.
Repeat the following steps until a n child test cases have been generated.

27
a. Select a pair of parent test cases from the current population where the probability of selection
is an increasing function of fitness. Selection is done “with replacement,” meaning that the same
pair of test case can be selected more than once to become a parent. i.e. (Selection process is
carried out)
b. With the crossover probability Pc, cross over the pair at a randomly chosen point to form two
child cases or off springs. If no crossover takes place, form two test cases that are exact copies of
their respective parent cases.
c. Mutate the two child cases with mutation probability Pm, and place the resulting pair of test
cases in the new population. If n is odd, one new population member can be discarded at random.
Replace the current test cases with the new test cases.
6.1.1
Population size = 50
Number of generations = 500
Crossover rate=0.7
Mutation rate = 0.001
Ruby Implementation with First Case:
Generation Average fitness Max fitness
1 31.88 33
2 32.88 34
3 32.67 34
4 32.75 35
5 32.96 34
10 34.17 38
25 37.29 42
50 41.21 44
100 39.67 47
150 44.33 49
200 46.33 47
250 47.63 49
500 50.23 50
750 51.79 51
1000 52 51
Table 1: Average fitness value with mutation rate = 0.001
6.1.2
Crossover rate=0.7

28
Ruby Implementation with Second Case:
Generation Average Max
1 32.25 32
2 32.13 32
3 33.92 33
4 32.42 33
5 33.79 33
10 34.71 34
25 38.42 36
50 39.08 37
100 37.42 36
150 35.54 40
200 38.79 40
250 41.83 39
500 42.18 43
Table 2: Average fitness value with mutation rate = 0.01
Mutation rate has a great impact on the average on the average fitness of genetic algorithms
during testing. Smaller the rate, better the fitness function value will be.
Below is a graph which represents the average fitness overtime for different mutation rates.

29
6.2 Genetic Algorithm Implementation in C++
Pseudo-code for genetic algorithm:
choose initial_population:
evaluate individual_fitness function
determine population’s_average
fitness_function
Repeat
select best_case individuals to
reproduce;
mate_pairs at random;
apply crossover_operator;
apply mutation_operator;
evaluate Individual fitness;
determine population's average
fitness;
The second step consists for generating data consists of the outer loop, which will generate the
possible test cases remaining. To account for the possibility of unfeasible test requirements, which
includes branches and statement values, the loop will produces iterations until it satisfies the test
results for the given population values. The algorithm will produce values which will be applied
for the crossover and mutation operator. Then the fitness function for individual values are
generated and the population’s individual average fitness functions in calculated.
In the final step, the algorithm will assign the combined values of the test cases and find at least
one individual desired fitness function values until enough test generations have been passed.
6.2.1
Crossover rate=0.7
Table 3: Best fitness value generation
Iteration Best fitness Average fitness Standard Deviation
1 16.77 11.59 5.54
2 20.39 15.09 3.26
3 20.39 15.71 3.27
4 22.99 15.84 3.79
5 22.99 16.03 3.89
10 23.24 17.65 3.46
25 25.12 20.87 3.61

30
50 25.89 21.42 4.32
100 26.27 20.88 5.33
150 26.77 23.28 3.77
200 26.77 20.38 6.91
250 26.78 22.41 4.42
500 26.98 22.68 5.54
Graph: Number of generations (x-axis) vs. average fitness (y-axis)
6.3 Genetic Algorithm Implementation using Matlab
In this work both the genetic algorithm and the random testing method were compared and
detailed analysis of the best fitness has been evaluated. In order to compare Genetic algorithm
and a pure random method, 150 test cases were generated and tested by both methods [22]. From
this we can see that the average response time of test cases created by genetic algorithm is much
efficient than that of the random method.
Case 1 shows the plot of the best and mean score of the population at every generation. The
second plot function is stopping criteria, which plots the percentage of stopping criteria satisfied.
Figure 1

31

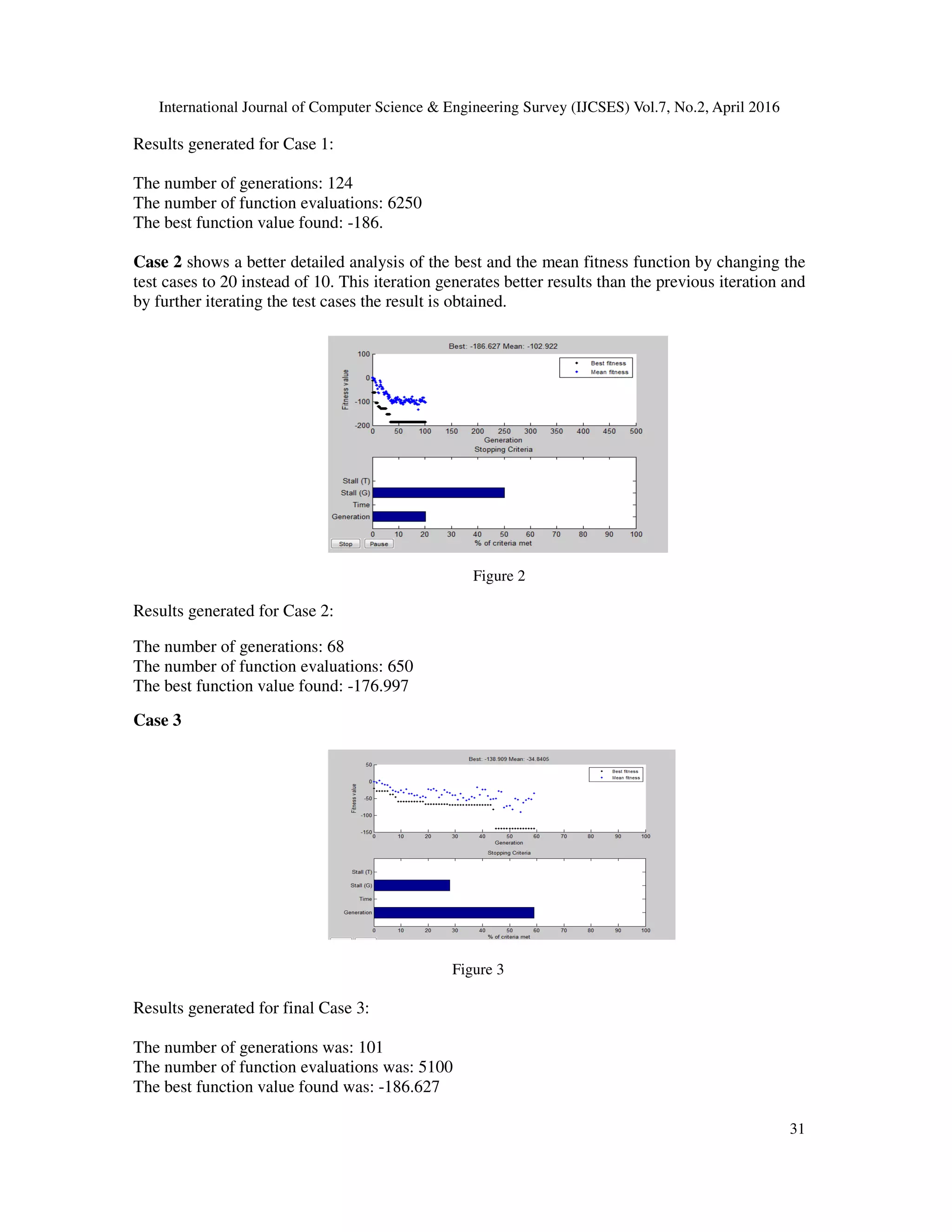

Results generated for Case 1:
The number of generations: 124
The number of function evaluations: 6250
The best function value found: -186.
Case 2 shows a better detailed analysis of the best and the mean fitness function by changing the
test cases to 20 instead of 10. This iteration generates better results than the previous iteration and
by further iterating the test cases the result is obtained.
Figure 2
Results generated for Case 2:
The number of generations: 68
The number of function evaluations: 650
The best function value found: -176.997
Case 3
Figure 3
Results generated for final Case 3:
The number of generations was: 101
The number of function evaluations was: 5100
The best function value found was: -186.627

32
Genetic algorithm for test case generation using Mat lab was implemented. It can be found out
that for a population of 50 and maximum generations 500, the best fitness function is carried out
until maximum generation is reached or until a certain value after which no significant change
occurs. The iterative generation is stopped itself after such a condition hence providing us with a
further optimization and avoid redundant solutions.
7. CONCLUSIONS
In this paper, we analyzed how evolutionary techniques such as GAs helped in software testing.
The results show how software testing using Genetic Algorithms becomes efficient even with
increasing number of test cases. In Random Testing Methods, since data points do not have a
dependence with time, it becomes inefficient as code becomes complex. Thus, to increase the
efficiency and process time of Software testing, Genetic Algorithms are being used and provide
us a means of an automatic test case generator. The evolutionary generation of test cases can be
applied and proves to be efficient and cost effective than Random Testing.
ACKNOWLEDGEMENT
We would like to acknowledge the immense support of our Professor Dr Manjula R without
whom it was not possible to write the paper. Her guidance formed the base of the paper and her
expertise comments greatly enhanced the manuscript. We would also like thank our university
(VIT University, Vellore, Tamil Nadu, India) which has always encouraged the students to go in
the field of research and develop an interest towards exploration and innovation.
REFERENCES
[1] Goldberg, D.E, “Genetic Algorithms: in Search, Optimization & Machine Learning,” Addison Wesley,
MA. 1989.
[2] Horgan, J., London, S., and Lyu, M., “Achieving Software Quality with Testing Coverage Measures”,
IEEE Computer, Vol. 27 No.9 pp. 60-69, 1994.
[3] Berndt, D.J., Fisher, J., Johnson, L., Pinglikar, J., and Watkins, A., “Breeding Software Test Cases
with Genetic Algorithms,” In Proceedings of the Thirty-Sixth Hawaii International Conference on
System Sciences (HICSS-36), Hawaii, January 2003.
[4] Mark Last, Shay Eyal1, and Abraham Kandel, “Effective Black-Box Testing with Genetic
Algorithms,” IBM conference.
[5] Lin, J.C. and Yeh, P.L, “Using Genetic Algorithms for Test Case Generation in Path Testing,” In
Proceedings of the 9th Asian Test Symposium (ATS’00). Taipei, Taiwan, December 4-6, 2000.
[6] André Baresel, Harmen Sthamer and Michael Schmidt, “fitness function design to improve
evolutionary structural testing,” proceedings of the genetic and evolutionary computation conference,
2002.
[7] Christoph C. Michael, Gary E. McGraw, Michael A. Schatz, and Curtis C. Walton, “Genetic
Algorithms for Dynamic Test Data Generation,” Proceedings of the 1997 International Conference on
Automated Software Engineering (ASE'97) (formerly: KBSE) 0-8186-7961-1/97 © 1997 IEEE.
[8] Somerville, I., “Soft ware engineering,” 7th Ed. Addison-Wesley,
[9] Aditya P mathur,”Foundation of Software Testing”, 1st edition Pearson Education 2008.
[10] Alander, J.T., Mantere, T., and Turunen, P, “Genetic Algorithm Based Software Testing,”
http://citeseer.ist.psu.edu/40769.html, 1997.
[11] Nashat Mansour, Miran Salame,” Data Generation for Path Testing”, Software Quality Journal, 12,
121–136, 2004,Kluwer Academic Publishers.

33

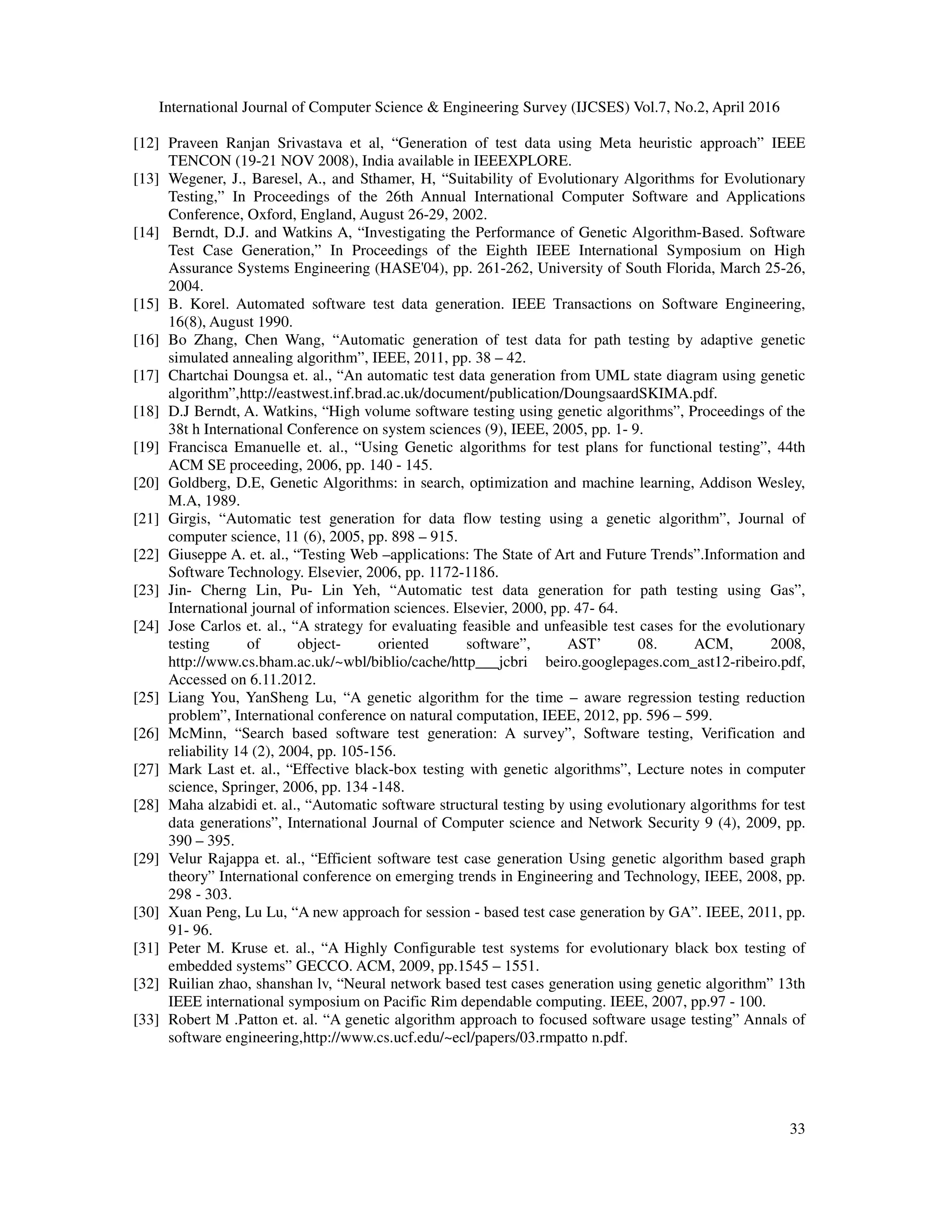

[12] Praveen Ranjan Srivastava et al, “Generation of test data using Meta heuristic approach” IEEE
TENCON (19-21 NOV 2008), India available in IEEEXPLORE.
[13] Wegener, J., Baresel, A., and Sthamer, H, “Suitability of Evolutionary Algorithms for Evolutionary
Testing,” In Proceedings of the 26th Annual International Computer Software and Applications
Conference, Oxford, England, August 26-29, 2002.
[14] Berndt, D.J. and Watkins A, “Investigating the Performance of Genetic Algorithm-Based. Software
Test Case Generation,” In Proceedings of the Eighth IEEE International Symposium on High
Assurance Systems Engineering (HASE'04), pp. 261-262, University of South Florida, March 25-26,
2004.
[15] B. Korel. Automated software test data generation. IEEE Transactions on Software Engineering,
16(8), August 1990.
[16] Bo Zhang, Chen Wang, “Automatic generation of test data for path testing by adaptive genetic
simulated annealing algorithm”, IEEE, 2011, pp. 38 – 42.
[17] Chartchai Doungsa et. al., “An automatic test data generation from UML state diagram using genetic
algorithm”,http://eastwest.inf.brad.ac.uk/document/publication/DoungsaardSKIMA.pdf.
[18] D.J Berndt, A. Watkins, “High volume software testing using genetic algorithms”, Proceedings of the
38t h International Conference on system sciences (9), IEEE, 2005, pp. 1- 9.
[19] Francisca Emanuelle et. al., “Using Genetic algorithms for test plans for functional testing”, 44th
ACM SE proceeding, 2006, pp. 140 - 145.
[20] Goldberg, D.E, Genetic Algorithms: in search, optimization and machine learning, Addison Wesley,
M.A, 1989.
[21] Girgis, “Automatic test generation for data flow testing using a genetic algorithm”, Journal of
computer science, 11 (6), 2005, pp. 898 – 915.
[22] Giuseppe A. et. al., “Testing Web –applications: The State of Art and Future Trends”.Information and
Software Technology. Elsevier, 2006, pp. 1172-1186.
[23] Jin- Cherng Lin, Pu- Lin Yeh, “Automatic test data generation for path testing using Gas”,
International journal of information sciences. Elsevier, 2000, pp. 47- 64.
[24] Jose Carlos et. al., “A strategy for evaluating feasible and unfeasible test cases for the evolutionary
testing of object- oriented software”, AST’ 08. ACM, 2008,
http://www.cs.bham.ac.uk/~wbl/biblio/cache/http___jcbri beiro.googlepages.com_ast12-ribeiro.pdf,
Accessed on 6.11.2012.
[25] Liang You, YanSheng Lu, “A genetic algorithm for the time – aware regression testing reduction
problem”, International conference on natural computation, IEEE, 2012, pp. 596 – 599.
[26] McMinn, “Search based software test generation: A survey”, Software testing, Verification and
reliability 14 (2), 2004, pp. 105-156.
[27] Mark Last et. al., “Effective black-box testing with genetic algorithms”, Lecture notes in computer
science, Springer, 2006, pp. 134 -148.
[28] Maha alzabidi et. al., “Automatic software structural testing by using evolutionary algorithms for test
data generations”, International Journal of Computer science and Network Security 9 (4), 2009, pp.
390 – 395.
[29] Velur Rajappa et. al., “Efficient software test case generation Using genetic algorithm based graph
theory” International conference on emerging trends in Engineering and Technology, IEEE, 2008, pp.
298 - 303.
[30] Xuan Peng, Lu Lu, “A new approach for session - based test case generation by GA”. IEEE, 2011, pp.
91- 96.
[31] Peter M. Kruse et. al., “A Highly Configurable test systems for evolutionary black box testing of
embedded systems” GECCO. ACM, 2009, pp.1545 – 1551.
[32] Ruilian zhao, shanshan lv, “Neural network based test cases generation using genetic algorithm” 13th
IEEE international symposium on Pacific Rim dependable computing. IEEE, 2007, pp.97 - 100.
[33] Robert M .Patton et. al. “A genetic algorithm approach to focused software usage testing” Annals of
software engineering,http://www.cs.ucf.edu/~ecl/papers/03.rmpatto n.pdf.

Software Testing Using Genetic Algorithms

Recommended

Recommended

More Related Content

What's hot

What's hot (19)

Viewers also liked

Viewers also liked (17)

Similar to Software Testing Using Genetic Algorithms

Similar to Software Testing Using Genetic Algorithms (20)

Recently uploaded

Recently uploaded (20)

Software Testing Using Genetic Algorithms
