2. Aim of my ppt is to just give you a brief
idea about the smart card technology
being one of the best steps towards the
advancement of science and technology ,
making our life faster and obviously
easier.

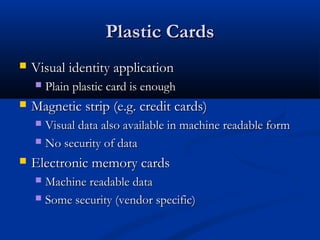

3. Plastic Cards
Plastic Cards
 Visual identity application
Visual identity application
 Plain plastic card is enough
Plain plastic card is enough
 Magnetic strip (e.g. credit cards)
Magnetic strip (e.g. credit cards)
 Visual data also available in machine readable form
Visual data also available in machine readable form
 No security of data
No security of data
 Electronic memory cards
Electronic memory cards
 Machine readable data
Machine readable data
 Some security (vendor specific)
Some security (vendor specific)

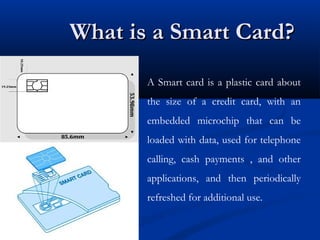

4. What is a Smart Card?
What is a Smart Card?
A Smart card is a plastic card about
the size of a credit card, with an
embedded microchip that can be
loaded with data, used for telephone
calling, cash payments , and other
applications, and then periodically
refreshed for additional use.

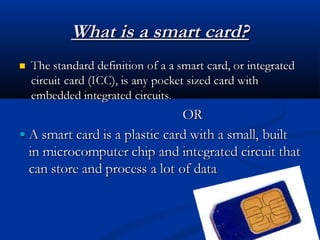

5. What is a smart card?
What is a smart card?

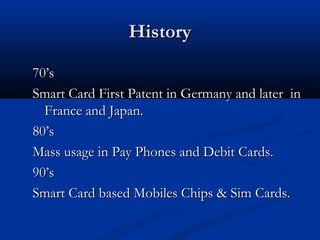

6. History
History
70’s
70’s
Smart Card First Patent in Germany and later in
Smart Card First Patent in Germany and later in
France and Japan.
France and Japan.
80’s
80’s
Mass usage in Pay Phones and Debit Cards.
Mass usage in Pay Phones and Debit Cards.
90’s
90’s
Smart Card based Mobiles Chips & Sim Cards.
Smart Card based Mobiles Chips & Sim Cards.

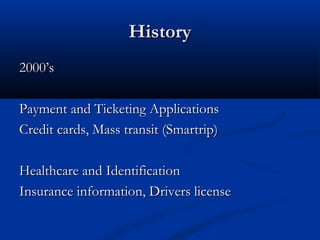

7. History
History
2000’s
2000’s
Payment and Ticketing Applications
Payment and Ticketing Applications
Credit cards, Mass transit (Smartrip)
Credit cards, Mass transit (Smartrip)
Healthcare and Identification
Healthcare and Identification
Insurance information, Drivers license
Insurance information, Drivers license

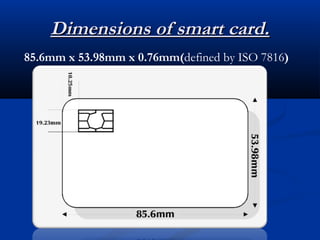

8. Dimensions of smart card.
Dimensions of smart card.
85.6mm x 53.98mm x 0.76mm(defined by ISO 7816)

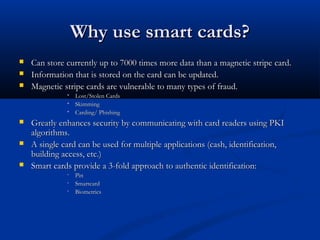

9. Why use smart cards?
Why use smart cards?
 Can store currently up to 7000 times more data than a magnetic stripe card.
Can store currently up to 7000 times more data than a magnetic stripe card.
 Information that is stored on the card can be updated.
Information that is stored on the card can be updated.
 Magnetic stripe cards are vulnerable to many types of fraud.
Magnetic stripe cards are vulnerable to many types of fraud.
 Lost/Stolen Cards
Lost/Stolen Cards
 Skimming
Skimming
 Carding/ Phishing
Carding/ Phishing
 Greatly enhances security by communicating with card readers using PKI
Greatly enhances security by communicating with card readers using PKI
algorithms.
algorithms.
 A single card can be used for multiple applications (cash, identification,
A single card can be used for multiple applications (cash, identification,
building access, etc.)
building access, etc.)
 Smart cards provide a 3-fold approach to authentic identification:
Smart cards provide a 3-fold approach to authentic identification:
• Pin
Pin
• Smartcard
Smartcard
• Biometrics
Biometrics

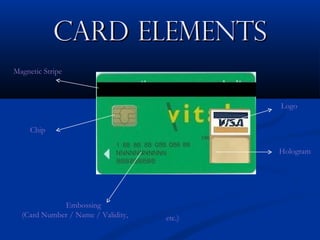

10. Card Elements
Card Elements
Magnetic Stripe
Chip
Embossing
(Card Number / Name / Validity, etc.)
Logo
Hologram

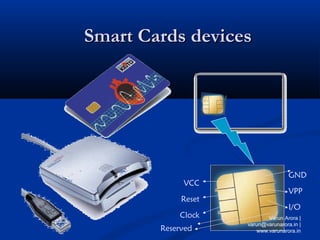

11. Smart Cards devices
Smart Cards devices
VCC
Reset
Clock
GND
VPP
I/O
Reserved
Varun Arora |
varun@varunarora.in |
www.varunarora.in

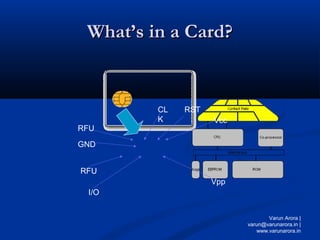

12. What’s in a Card?
What’s in a Card?
Vcc
RST
CL
K
RFU
Vpp
I/O
GND
RFU
Varun Arora |
varun@varunarora.in |
www.varunarora.in

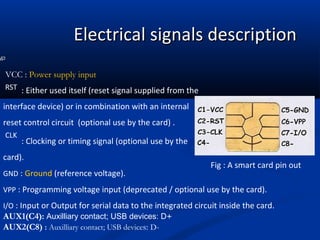

13. Electrical signals description
Electrical signals description
: Clocking or timing signal (optional use by the
card).
GND : Ground (reference voltage).
VPP : Programming voltage input (deprecated / optional use by the card).
I/O : Input or Output for serial data to the integrated circuit inside the card.
AUX1(C4): Auxilliary contact; USB devices: D+
AUX2(C8) : Auxilliary contact; USB devices: D-
VCC : Power supply input
: Either used itself (reset signal supplied from the
interface device) or in combination with an internal
reset control circuit (optional use by the card) .
Fig : A smart card pin out
RST
CLK

14. CARD STRUCTURE
CARD STRUCTURE
Out of the eight contacts only six are used. Vcc is
the supply voltage, Vss is the ground reference
voltage against which the Vcc potential is
measured, Vpp connector is used for the high
voltage signal,chip receives commands &
interchanges data.

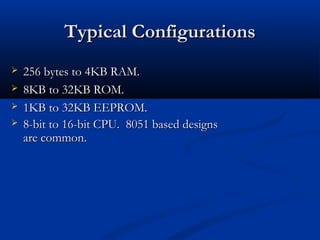

15. Typical Configurations
Typical Configurations
 256 bytes to 4KB RAM.
256 bytes to 4KB RAM.
 8KB to 32KB ROM.
8KB to 32KB ROM.
 1KB to 32KB EEPROM.
1KB to 32KB EEPROM.
 8-bit to 16-bit CPU. 8051 based designs
8-bit to 16-bit CPU. 8051 based designs
are common.
are common.

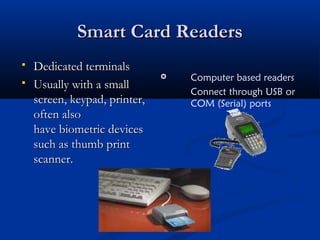

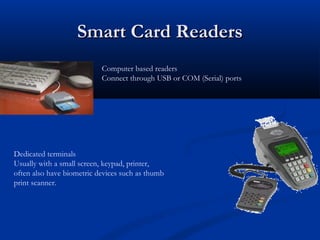

16. Smart Card Readers
Smart Card Readers
Computer based readers
Connect through USB or COM (Serial) ports
Dedicated terminals
Usually with a small screen, keypad, printer,
often also have biometric devices such as thumb
print scanner.

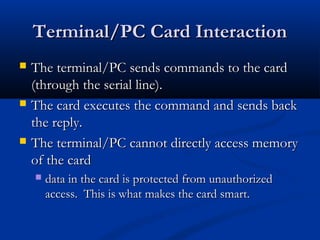

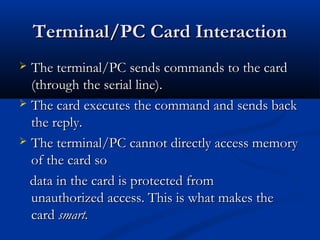

17. Terminal/PC Card Interaction
Terminal/PC Card Interaction
 The terminal/PC sends commands to the card
The terminal/PC sends commands to the card
(through the serial line).
(through the serial line).
 The card executes the command and sends back
The card executes the command and sends back
the reply.
the reply.
 The terminal/PC cannot directly access memory
The terminal/PC cannot directly access memory
of the card so
of the card so
data in the card is protected from
data in the card is protected from
unauthorized access. This is what makes the
unauthorized access. This is what makes the
card
card smart.
smart.

18. Why Smart Cards?
Why Smart Cards?
Security: Data and codes on the card are encrypted by the
chip maker. The Smart Card’s circuit chip almost impossible
to forge.
Trust: Minimal human interaction.
Portability.
Less Paper work: Eco-Friendly

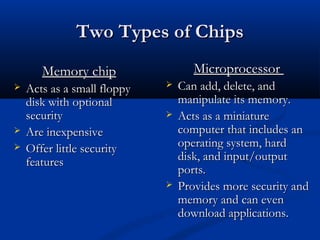

19. Two Types of Chips
Two Types of Chips
Memory chip
Memory chip
 Acts as a small floppy
Acts as a small floppy
disk with optional
disk with optional
security
security
 Are inexpensive
Are inexpensive
 Offer little security
Offer little security
features
features
Microprocessor
Microprocessor
 Can add, delete, and
Can add, delete, and
manipulate its memory.
manipulate its memory.
 Acts as a miniature
Acts as a miniature
computer that includes an
computer that includes an
operating system, hard
operating system, hard
disk, and input/output
disk, and input/output
ports.
ports.
 Provides more security and
Provides more security and
memory and can even
memory and can even
download applications.
download applications.

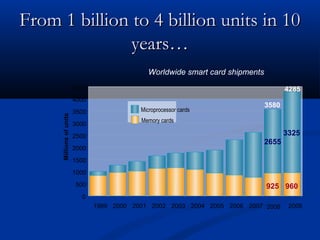

20. From 1 billion to 4 billion units in 10
From 1 billion to 4 billion units in 10
years…
years…
Worldwide smart card shipments
925 960
2655
3325
0
500
1000
1500
2000
2500
3000
3500
4000
4500
Millions
of
units
Microprocessor cards
Memory cards
4285
3580
1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009
925 960

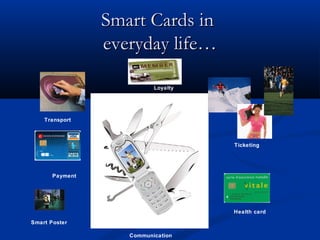

21. Smart Cards in
Smart Cards in
everyday life…
everyday life…
Ticketing
Payment
Loyalty
Transport
Smart Poster
Health card
Communication

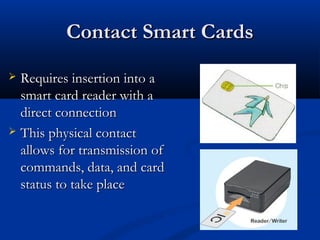

22. Contact Smart Cards
Contact Smart Cards
 Requires insertion into a
Requires insertion into a
smart card reader with a
smart card reader with a
direct connection
direct connection
 This physical contact
This physical contact
allows for transmission of
allows for transmission of
commands, data, and card
commands, data, and card
status to take place
status to take place

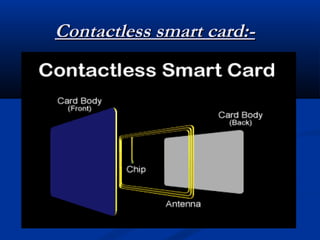

23. Contactless smart card:-
Contactless smart card:-

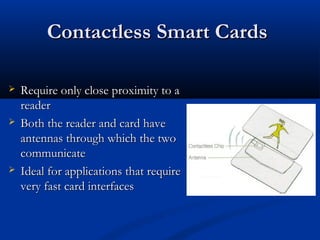

24. Contactless Smart Cards
Contactless Smart Cards
 Require only close proximity to a
Require only close proximity to a
reader
reader
 Both the reader and card have
Both the reader and card have
antennas through which the two
antennas through which the two
communicate
communicate
 Ideal for applications that require
Ideal for applications that require
very fast card interfaces
very fast card interfaces

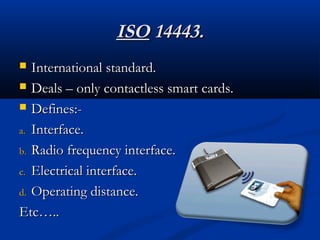

25. ISO
ISO 14443.
14443.
 International standard.
International standard.
 Deals – only contactless smart cards.
Deals – only contactless smart cards.
 Defines:-
Defines:-
a.
a. Interface.
Interface.
b.
b. Radio frequency interface.
Radio frequency interface.
c.
c. Electrical interface.
Electrical interface.
d.
d. Operating distance.
Operating distance.
Etc…..
Etc…..

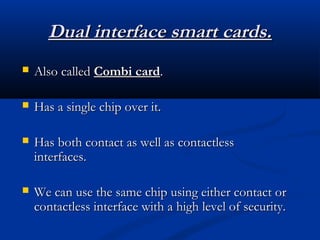

26. Dual interface smart cards.
Dual interface smart cards.
 Also called
Also called Combi card
Combi card.
.
 Has a single chip over it.
Has a single chip over it.
 Has both contact as well as contactless
Has both contact as well as contactless
interfaces.
interfaces.
 We can use the same chip using either contact or
We can use the same chip using either contact or
contactless interface with a high level of security.
contactless interface with a high level of security.

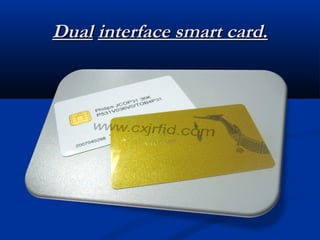

27. Dual
Dual interface smart card
interface smart card.
.

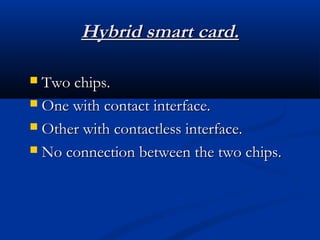

28. Hybrid smart card.
Hybrid smart card.
 Two chips.
Two chips.
 One with contact interface.
One with contact interface.
 Other with contactless interface.
Other with contactless interface.
 No connection between the two chips.
No connection between the two chips.

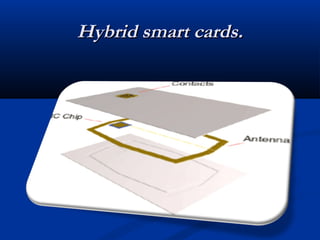

29. Hybrid smart cards.
Hybrid smart cards.

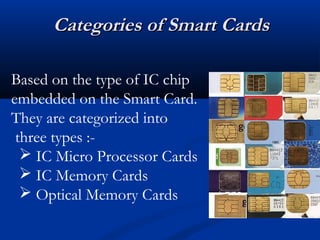

30. Categories of Smart Cards
Categories of Smart Cards
Based on the type of IC chip
embedded on the Smart Card.
They are categorized into
three types :-
 IC Micro Processor Cards
 IC Memory Cards
 Optical Memory Cards

31. Key Attributes
Key Attributes
Security
to make the Digital Life safe and enjoyable
Ease of Use
to enable all of us to access to the Digital World
Privacy
to respect each individual’s freedom and intimacy
SAFE

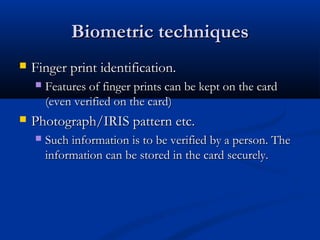

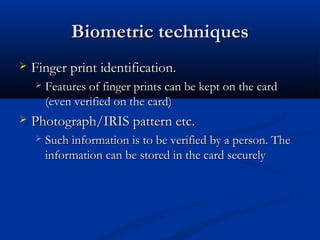

32. Biometric techniques
Biometric techniques
 Finger print identification.
Finger print identification.
 Features of finger prints can be kept on the card
Features of finger prints can be kept on the card
(even verified on the card)
(even verified on the card)
 Photograph/IRIS pattern etc.
Photograph/IRIS pattern etc.
 Such information is to be verified by a person. The
Such information is to be verified by a person. The
information can be stored in the card securely
information can be stored in the card securely

33. Smart Card Readers
Smart Card Readers
 Dedicated terminals
Dedicated terminals
 Usually with a small
Usually with a small
screen, keypad, printer,
screen, keypad, printer,
often also
often also
have biometric devices
have biometric devices
such as thumb print
such as thumb print
scanner.
scanner.
 Computer based readers
Connect through USB or
COM (Serial) ports

34. Terminal/PC Card Interaction
Terminal/PC Card Interaction
 The terminal/PC sends commands to the card
The terminal/PC sends commands to the card
(through the serial line).
(through the serial line).
 The card executes the command and sends back
The card executes the command and sends back
the reply.
the reply.
 The terminal/PC cannot directly access memory
The terminal/PC cannot directly access memory
of the card
of the card
 data in the card is protected from unauthorized
data in the card is protected from unauthorized
access. This is what makes the card smart.
access. This is what makes the card smart.

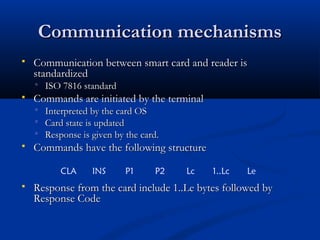

35. Communication mechanisms
Communication mechanisms
 Communication between smart card and reader is
Communication between smart card and reader is
standardized
standardized
 ISO 7816 standard
ISO 7816 standard
 Commands are initiated by the terminal
Commands are initiated by the terminal
 Interpreted by the card OS
Interpreted by the card OS
 Card state is updated
Card state is updated
 Response is given by the card.
Response is given by the card.
 Commands have the following structure
Commands have the following structure
 Response from the card include 1..Le bytes followed by
Response from the card include 1..Le bytes followed by
Response Code
Response Code
CLA INS P1 P2 Lc 1..Lc Le

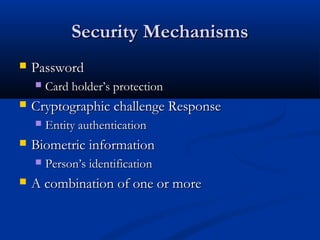

36. Security Mechanisms
Security Mechanisms
 Password
Password
 Card holder’s protection
Card holder’s protection
 Cryptographic challenge Response
Cryptographic challenge Response
 Entity authentication
Entity authentication
 Biometric information
Biometric information
 Person’s identification
Person’s identification
 A combination of one or more
A combination of one or more

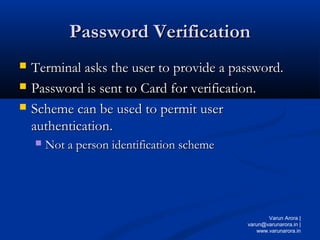

37. Password Verification
Password Verification
 Terminal asks the user to provide a password.
Terminal asks the user to provide a password.
 Password is sent to Card for verification.
Password is sent to Card for verification.
 Scheme can be used to permit user
Scheme can be used to permit user
authentication.
authentication.
 Not a person identification scheme
Not a person identification scheme
Varun Arora |
varun@varunarora.in |
www.varunarora.in

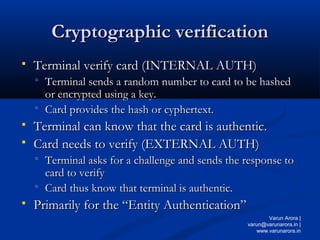

38. Cryptographic verification
Cryptographic verification
 Terminal verify card (INTERNAL AUTH)
Terminal verify card (INTERNAL AUTH)
 Terminal sends a random number to card to be hashed
Terminal sends a random number to card to be hashed
or encrypted using a key.
or encrypted using a key.
 Card provides the hash or cyphertext.
Card provides the hash or cyphertext.
 Terminal can know that the card is authentic.
Terminal can know that the card is authentic.
 Card needs to verify (EXTERNAL AUTH)
Card needs to verify (EXTERNAL AUTH)
 Terminal asks for a challenge and sends the response to
Terminal asks for a challenge and sends the response to
card to verify
card to verify
 Card thus know that terminal is authentic.
Card thus know that terminal is authentic.
 Primarily for the “Entity Authentication”
Primarily for the “Entity Authentication”
Varun Arora |
varun@varunarora.in |
www.varunarora.in

39. Biometric techniques
Biometric techniques
 Finger print identification.
Finger print identification.
 Features of finger prints can be kept on the card
Features of finger prints can be kept on the card
(even verified on the card)
(even verified on the card)
 Photograph/IRIS pattern etc.
Photograph/IRIS pattern etc.
 Such information is to be verified by a person. The
Such information is to be verified by a person. The
information can be stored in the card securely.
information can be stored in the card securely.

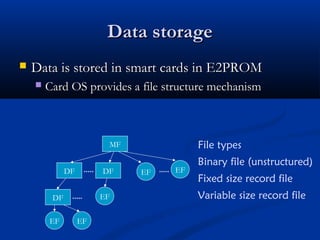

40. Data storage
Data storage
 Data is stored in smart cards in E2PROM
Data is stored in smart cards in E2PROM
 Card OS provides a file structure mechanism
Card OS provides a file structure mechanism
MF
DF DF
DF
EF EF
EF
EF EF
File types
Binary file (unstructured)
Fixed size record file
Variable size record file

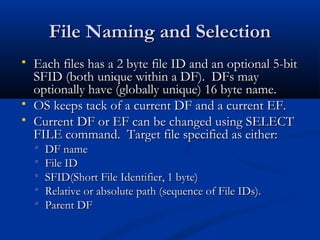

41. File Naming and Selection
File Naming and Selection
 Each files has a 2 byte file ID and an optional 5-bit
Each files has a 2 byte file ID and an optional 5-bit
SFID (both unique within a DF). DFs may
SFID (both unique within a DF). DFs may
optionally have (globally unique) 16 byte name.
optionally have (globally unique) 16 byte name.
 OS keeps tack of a current DF and a current EF.
OS keeps tack of a current DF and a current EF.
 Current DF or EF can be changed using SELECT
Current DF or EF can be changed using SELECT
FILE command. Target file specified as either:
FILE command. Target file specified as either:
 DF name
DF name
 File ID
File ID
 SFID(Short File Identifier, 1 byte)
SFID(Short File Identifier, 1 byte)
 Relative or absolute path (sequence of File IDs).
Relative or absolute path (sequence of File IDs).
 Parent DF
Parent DF

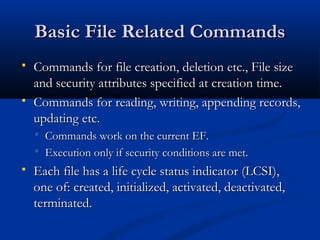

42. Basic File Related Commands
Basic File Related Commands
 Commands for file creation, deletion etc., File size
Commands for file creation, deletion etc., File size
and security attributes specified at creation time.
and security attributes specified at creation time.
 Commands for reading, writing, appending records,
Commands for reading, writing, appending records,
updating etc.
updating etc.
 Commands work on the current EF.
Commands work on the current EF.
 Execution only if security conditions are met.
Execution only if security conditions are met.
 Each file has a life cycle status indicator (LCSI),
Each file has a life cycle status indicator (LCSI),
one of: created, initialized, activated, deactivated,
one of: created, initialized, activated, deactivated,
terminated.
terminated.

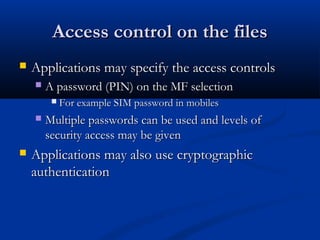

43. Access control on the files
Access control on the files
 Applications may specify the access controls
Applications may specify the access controls
 A password (PIN) on the MF selection
A password (PIN) on the MF selection
 For example SIM password in mobiles
For example SIM password in mobiles
 Multiple passwords can be used and levels of
Multiple passwords can be used and levels of
security access may be given
security access may be given
 Applications may also use cryptographic
Applications may also use cryptographic
authentication
authentication

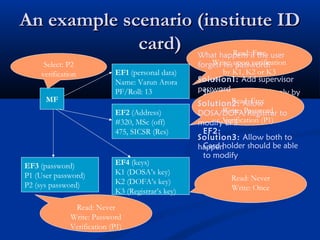

44. An example scenario (institute ID
An example scenario (institute ID
card)
card)
MF
EF1 (personal data)
Name: Varun Arora
PF/Roll: 13
EF3 (password)
P1 (User password)
EF4 (keys)
K1 (DOSA’s key)
K2 (DOFA’s key)
K3 (Registrar’s key)
EF2 (Address)
#320, MSc (off)
475, SICSR (Res)
Security requirements:
EF1:
Should be modified only by
the DOSA/DOFA/Registrar
Readable to all
EF2:
Card holder should be able
to modify
Read: Free
Write: upon verification
by K1, K2 or K3
Read: Free
Write: Password
Verification (P1)
Read: Never
Write: Password
Verification (P1)
Read: Never
Write: Once
What happens if the user
forgets his password?
Solution1: Add supervisor
password
Solution2: Allow
DOSA/DOFA/Registrar to
modify EF3
Solution3: Allow both to
happen
EF3 (password)
P1 (User password)
P2 (sys password)
Select: P2
verification

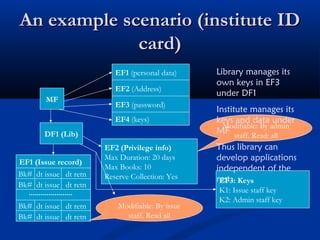

45. An example scenario (institute ID
An example scenario (institute ID
card)
card)
MF
EF1 (personal data)
EF4 (keys)
EF2 (Address)
EF3 (password)
DF1 (Lib)
EF1 (Issue record)
Bk# dt issue dt retn
Bk# dt issue dt retn
Bk# dt issue dt retn
Bk# dt issue dt retn
EF2 (Privilege info)
Max Duration: 20 days
Max Books: 10
Reserve Collection: Yes
Modifiable: By issue
staff. Read all
Modifiable: By admin
staff. Read: all
EF3: Keys
K1: Issue staff key
K2: Admin staff key
Library manages its
own keys in EF3
under DF1
Institute manages its
keys and data under
MF
Thus library can
develop applications
independent of the
rest.

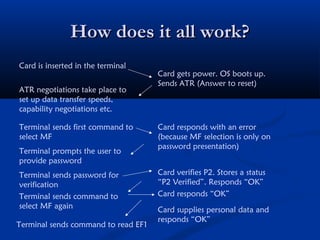

46. How does it all work?
How does it all work?
Card is inserted in the terminal
Card gets power. OS boots up.
Sends ATR (Answer to reset)
ATR negotiations take place to
set up data transfer speeds,
capability negotiations etc.
Terminal sends first command to
select MF
Card responds with an error
(because MF selection is only on
password presentation)
Terminal prompts the user to
provide password
Terminal sends password for
verification
Card verifies P2. Stores a status
“P2 Verified”. Responds “OK”
Terminal sends command to
select MF again
Terminal sends command to read EF1
Card supplies personal data and
responds “OK”
Card responds “OK”

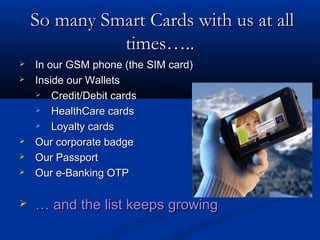

47. So many Smart Cards with us at all
So many Smart Cards with us at all
times…..
times…..
 In our GSM phone (the SIM card)
In our GSM phone (the SIM card)
 Inside our Wallets
Inside our Wallets
 Credit/Debit cards
Credit/Debit cards
 HealthCare cards
HealthCare cards
 Loyalty cards
Loyalty cards
 Our corporate badge
Our corporate badge
 Our Passport
Our Passport
 Our e-Banking OTP
Our e-Banking OTP
 …
… and the list keeps growing
and the list keeps growing

48. Our Industries Is rapidly changing
Our Industries Is rapidly changing
eTicketing
Interactive billboards Transports
Retail
New solutions leveraging
New solutions leveraging
on mobile contactless
on mobile contactless
services
services

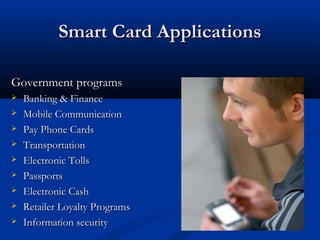

49. Smart Card Applications
Smart Card Applications
Government programs
Government programs
 Banking & Finance
Banking & Finance
 Mobile Communication
Mobile Communication
 Pay Phone Cards
Pay Phone Cards
 Transportation
Transportation
 Electronic Tolls
Electronic Tolls
 Passports
Passports
 Electronic Cash
Electronic Cash
 Retailer Loyalty Programs
Retailer Loyalty Programs
 Information security
Information security

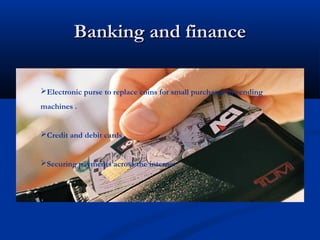

50. Banking and finance
Banking and finance
Electronic purse to replace coins for small purchases in vending
machines .
Credit and debit cards
Securing payments across the internet

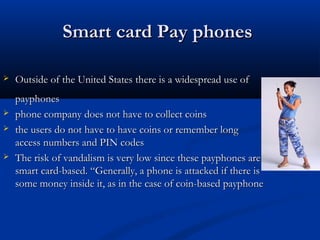

51. Smart card Pay phones
Smart card Pay phones
 Outside of the United States there is a widespread use of
Outside of the United States there is a widespread use of
payphones
payphones
 phone company does not have to collect coins
phone company does not have to collect coins
 the users do not have to have coins or remember long
the users do not have to have coins or remember long
access numbers and PIN codes
access numbers and PIN codes
 The risk of vandalism is very low since these payphones are
The risk of vandalism is very low since these payphones are
smart card-based. “Generally, a phone is attacked if there is
smart card-based. “Generally, a phone is attacked if there is
some money inside it, as in the case of coin-based payphone
some money inside it, as in the case of coin-based payphone

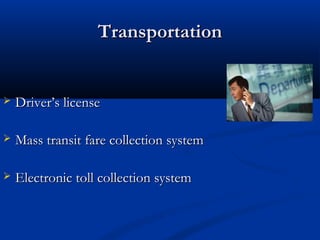

52. Transportation
Transportation
 Driver’s license
Driver’s license
 Mass transit fare collection system
Mass transit fare collection system
 Electronic toll collection system
Electronic toll collection system

53. It’s no longer only «Cards»
It’s no longer only «Cards»
e-Passport: the first Smart Secure Device
e-Passport: the first Smart Secure Device
45 Millions e-Passport in 2009

54. E Governance
E Governance
 As the amount of business and holiday travel
As the amount of business and holiday travel
increases security continues to be a top concern for
increases security continues to be a top concern for
governments worldwide.
governments worldwide.
 When fully implemented smart passport solutions
When fully implemented smart passport solutions
help to reduce fraud and forgery of travel
help to reduce fraud and forgery of travel
documents.
documents.
 Enhanced security for travellers
Enhanced security for travellers
 Philips launched such a project
Philips launched such a project
with the US in 2004.
with the US in 2004.

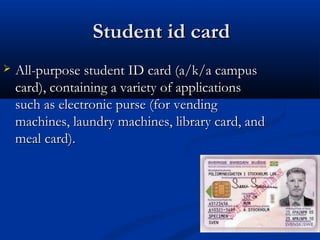

55. Student id card
Student id card
 All-purpose student ID card (a/k/a campus
All-purpose student ID card (a/k/a campus
card), containing a variety of applications
card), containing a variety of applications
such as electronic purse (for vending
such as electronic purse (for vending
machines, laundry machines, library card, and
machines, laundry machines, library card, and
meal card).
meal card).

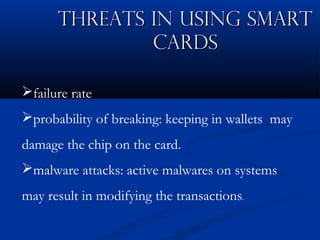

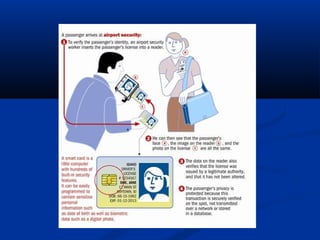

57. Threats in Using Smart
Threats in Using Smart
Cards
Cards
failure rate
probability of breaking: keeping in wallets may
damage the chip on the card.
malware attacks: active malwares on systems
may result in modifying the transactions.

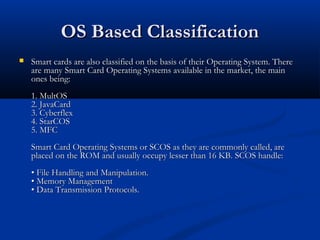

58. OS Based Classification
OS Based Classification
 Smart cards are also classified on the basis of their Operating System. There
Smart cards are also classified on the basis of their Operating System. There
are many Smart Card Operating Systems available in the market, the main
are many Smart Card Operating Systems available in the market, the main
ones being:
ones being:
1. MultOS
1. MultOS
2. JavaCard
2. JavaCard
3. Cyberflex
3. Cyberflex
4. StarCOS
4. StarCOS
5. MFC
5. MFC
Smart Card Operating Systems or SCOS as they are commonly called, are
Smart Card Operating Systems or SCOS as they are commonly called, are
placed on the ROM and usually occupy lesser than 16 KB. SCOS handle:
placed on the ROM and usually occupy lesser than 16 KB. SCOS handle:
• File Handling and Manipulation.
• File Handling and Manipulation.
• Memory Management
• Memory Management
• Data Transmission Protocols.
• Data Transmission Protocols.

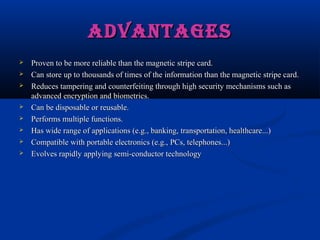

59. ADVANTAGES
ADVANTAGES
 Proven to be more reliable than the magnetic stripe card.
Proven to be more reliable than the magnetic stripe card.
 Can store up to thousands of times of the information than the magnetic stripe card.
Can store up to thousands of times of the information than the magnetic stripe card.
 Reduces tampering and counterfeiting through high security mechanisms such as
Reduces tampering and counterfeiting through high security mechanisms such as
advanced encryption and biometrics.
advanced encryption and biometrics.
 Can be disposable or reusable.
Can be disposable or reusable.
 Performs multiple functions.
Performs multiple functions.
 Has wide range of applications (e.g., banking, transportation, healthcare...)
Has wide range of applications (e.g., banking, transportation, healthcare...)
 Compatible with portable electronics (e.g., PCs, telephones...)
Compatible with portable electronics (e.g., PCs, telephones...)
 Evolves rapidly applying semi-conductor technology
Evolves rapidly applying semi-conductor technology

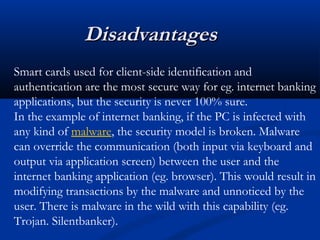

60. Disadvantages
Disadvantages
Smart cards used for client-side identification and
authentication are the most secure way for eg. internet banking
applications, but the security is never 100% sure.
In the example of internet banking, if the PC is infected with
any kind of malware, the security model is broken. Malware
can override the communication (both input via keyboard and
output via application screen) between the user and the
internet banking application (eg. browser). This would result in
modifying transactions by the malware and unnoticed by the
user. There is malware in the wild with this capability (eg.
Trojan. Silentbanker).

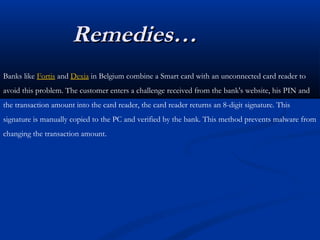

61. Remedies…
Remedies…
Banks like Fortis and Dexia in Belgium combine a Smart card with an unconnected card reader to
avoid this problem. The customer enters a challenge received from the bank's website, his PIN and
the transaction amount into the card reader, the card reader returns an 8-digit signature. This
signature is manually copied to the PC and verified by the bank. This method prevents malware from
changing the transaction amount.

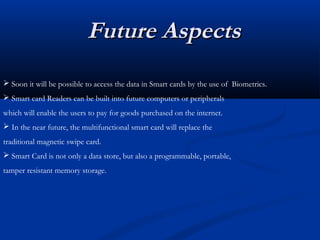

62. Future Aspects
Future Aspects
 Soon it will be possible to access the data in Smart cards by the use of Biometrics.
 Smart card Readers can be built into future computers or peripherals
which will enable the users to pay for goods purchased on the internet.
 In the near future, the multifunctional smart card will replace the
traditional magnetic swipe card.
 Smart Card is not only a data store, but also a programmable, portable,
tamper resistant memory storage.

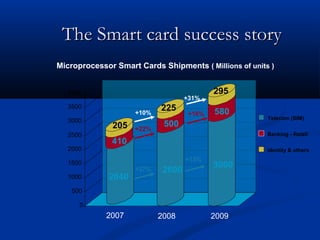

63. The Smart card success story
The Smart card success story
2040
410
205
2600
500
225
3000
580
295
0
500
1000
1500
2000
2500
3000
3500
4000
Identity & others
Banking - Retail
Telecom (SIM)
+15%
+27%
+22%
+16%
+31%
+10%
2007 2008 2009
Microprocessor Smart Cards Shipments ( Millions of units )

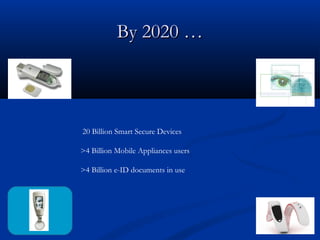

64. By 2020 …
By 2020 …
20 Billion Smart Secure Devices
>4 Billion Mobile Appliances users
>4 Billion e-ID documents in use

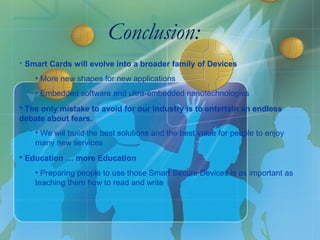

65. Conclusion…
Conclusion…
• Smart Cards will evolve into a broader family of Devices
• More new shapes for new applications
• Our virtual « digital personal attributes »
• Embedded software and ultra-embedded nanotechnologies
• The only mistake to avoid for our Industry is to entertain an endless
debate about fears.
• We will build the best solutions and the best value for people to enjoy many new
services
• Political ownership and communication will be key to success
• Education … more Education
• Preparing people to use those Smart Secure Devices is as important as teaching them
how to read and write
• Smart Cards will evolve into a broader family of Devices
• More new shapes for new applications
• Embedded software and ultra-embedded nanotechnologies
• The only mistake to avoid for our Industry is to entertain an endless
debate about fears.
• We will build the best solutions and the best value for people to enjoy
many new services
• Education … more Education
• Preparing people to use those Smart Secure Devices is as important as
teaching them how to read and write
Conclusion:

66. • Smart Cards will evolve into a broader family of Devices
• More new shapes for new applications
• Our virtual « digital personal attributes »
• Embedded software and ultra-embedded nanotechnologies
• The only mistake to avoid for our Industry is to entertain an
endless debate about fears.
• We will build the best solutions and the best value for people to enjoy many new
services
• Political ownership and communication will be key to success
• Education … more Education
• Preparing people to use those Smart Secure Devices is as important as teaching
them how to read and write
Conclusion:

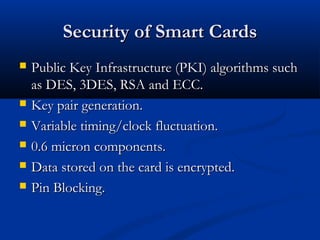

68. Security of Smart Cards
Security of Smart Cards
 Public Key Infrastructure (PKI) algorithms such
Public Key Infrastructure (PKI) algorithms such
as DES, 3DES, RSA and ECC.
as DES, 3DES, RSA and ECC.
 Key pair generation.
Key pair generation.
 Variable timing/clock fluctuation.
Variable timing/clock fluctuation.
 0.6 micron components.
0.6 micron components.
 Data stored on the card is encrypted.
Data stored on the card is encrypted.
 Pin Blocking.
Pin Blocking.

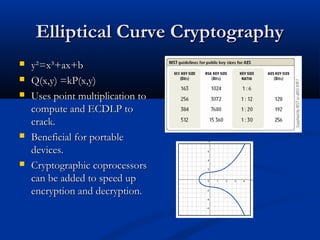

69. Elliptical Curve Cryptography
Elliptical Curve Cryptography
 y²=x³+ax+b
y²=x³+ax+b
 Q(x,y) =kP(x,y)
Q(x,y) =kP(x,y)
 Uses point multiplication to
Uses point multiplication to
compute and ECDLP to
compute and ECDLP to
crack.
crack.
 Beneficial for portable
Beneficial for portable
devices.
devices.
 Cryptographic coprocessors
Cryptographic coprocessors
can be added to speed up
can be added to speed up
encryption and decryption.
encryption and decryption.

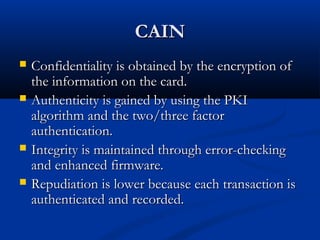

70. CAIN
CAIN
 Confidentiality is obtained by the encryption of
Confidentiality is obtained by the encryption of
the information on the card.
the information on the card.
 Authenticity is gained by using the PKI
Authenticity is gained by using the PKI
algorithm and the two/three factor
algorithm and the two/three factor
authentication.
authentication.
 Integrity is maintained through error-checking
Integrity is maintained through error-checking
and enhanced firmware.
and enhanced firmware.
 Repudiation is lower because each transaction is
Repudiation is lower because each transaction is
authenticated and recorded.
authenticated and recorded.

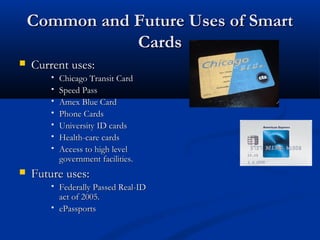

71. Common and Future Uses of Smart
Common and Future Uses of Smart
Cards
Cards
 Current uses:
Current uses:
 Chicago Transit Card
Chicago Transit Card
 Speed Pass
Speed Pass
 Amex Blue Card
Amex Blue Card
 Phone Cards
Phone Cards
 University ID cards
University ID cards
 Health-care cards
Health-care cards
 Access to high level
Access to high level
government facilities.
government facilities.
 Future uses:
Future uses:
 Federally Passed Real-ID
Federally Passed Real-ID
act of 2005.
act of 2005.
 ePassports
ePassports

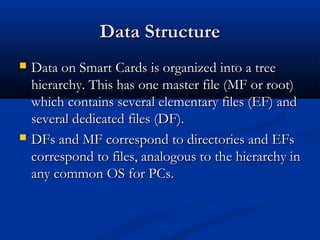

72. Data Structure
Data Structure
 Data on Smart Cards is organized into a tree
Data on Smart Cards is organized into a tree
hierarchy. This has one master file (MF or root)
hierarchy. This has one master file (MF or root)
which contains several elementary files (EF) and
which contains several elementary files (EF) and
several dedicated files (DF).
several dedicated files (DF).
 DFs and MF correspond to directories and EFs
DFs and MF correspond to directories and EFs
correspond to files, analogous to the hierarchy in
correspond to files, analogous to the hierarchy in
any common OS for PCs.
any common OS for PCs.

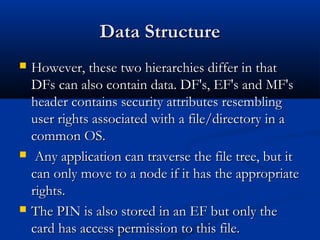

73. Data Structure
Data Structure
 However, these two hierarchies differ in that
However, these two hierarchies differ in that
DFs can also contain data. DF's, EF's and MF's
DFs can also contain data. DF's, EF's and MF's
header contains security attributes resembling
header contains security attributes resembling
user rights associated with a file/directory in a
user rights associated with a file/directory in a
common OS.
common OS.
 Any application can traverse the file tree, but it
Any application can traverse the file tree, but it
can only move to a node if it has the appropriate
can only move to a node if it has the appropriate
rights.
rights.
 The PIN is also stored in an EF but only the
The PIN is also stored in an EF but only the
card has access permission to this file.
card has access permission to this file.
