This document proposes solutions for smart solid waste management in cities. It suggests replacing existing garbage bins with new Wi-Fi enabled sensor bins that can detect fill levels and send signals to collection vehicles. This would optimize collection routes and resources. Data from the smart bins could provide metrics like waste collected over time and bin maintenance needs. The document also discusses applying the 3R methodology of reduce, reuse and recycle to minimize waste. Other proposed solutions include converting waste to energy through waste-to-power plants, using plastic waste to construct roads, and generating biogas from organic waste.

1. Chandramouli P
SME for Geospatial Technologies

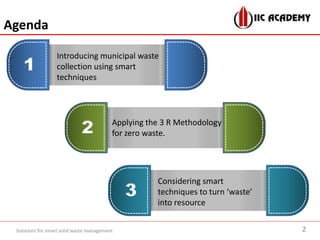

2. Introducing municipal waste
collection using smart
techniques
1
Applying the 3 R Methodology
for zero waste.2
Considering smart
techniques to turn ‘waste’
into resource
3
Agenda
2Solutions for smart solid waste management

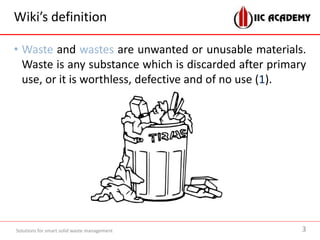

3. Wiki’s definition
• Waste and wastes are unwanted or unusable materials.
Waste is any substance which is discarded after primary
use, or it is worthless, defective and of no use (1).
Solutions for smart solid waste management 3

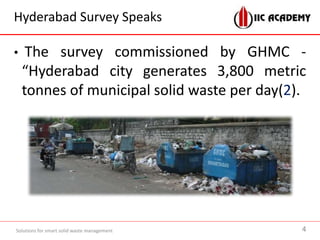

4. Hyderabad Survey Speaks
• The survey commissioned by GHMC -
“Hyderabad city generates 3,800 metric
tonnes of municipal solid waste per day(2).
Solutions for smart solid waste management 4

5. Conventional Collection Criteria
Solutions for smart solid waste management
Note: Garbage
collection van stops at
all garbage bin
location, irrespective of
volume of garbage.
< 50%
filled
5

6. Proposal for smart waste collection
• Placing the sensor based static
Waste collection garbage bins.
(inbuilt crusher)
• Geo-tagging of the bins.
• Create an app with Google
Maps as a background layer.
• Import all the geo-tagged
points into our application.
Solutions for smart solid waste management 6

7. Proposed Structure of Smart Garbage Bin
Solutions for smart solid waste management
Crush
unit
Sensor
Unit
Storage
Unit
Level
Indicator
After 3 successful
crushes sensor will
start emitting the
signal to GIS server
7

8. The old versus new
• Replace existing dustbins with new Wi-Fi enabled
sensor based garbage bins.
Solutions for smart solid waste management 8

9. Smart Garbage Bin - Pros
Easy Collection
Minimal time
Optimizes
resources
Decision Support
Ad Support
Clean Environs
Solutions for smart solid waste management 9

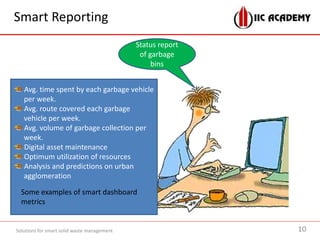

10. Smart Reporting
Solutions for smart solid waste management
Status report
of garbage
bins
Avg. time spent by each garbage vehicle
per week.
Avg. route covered each garbage
vehicle per week.
Avg. volume of garbage collection per
week.
Digital asset maintenance
Optimum utilization of resources
Analysis and predictions on urban
agglomeration
Some examples of smart dashboard
metrics
10

11. Snapshot of a Smart Dashboard
Solutions for smart solid waste management
(3,4)
11

12. Advanced Driver Assistance System (5)
Solutions for smart solid waste management
Bin sends a message to nearest collection vehicle
12

13. Garbage bins - Today
Solutions for smart solid waste management 13

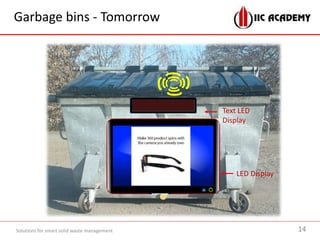

14. Garbage bins - Tomorrow
Solutions for smart solid waste management
LED Display
Text LED
Display
14

15. Technology behind the smart bin
• Internet of things (IoT) is a new generation technology
which allows integration of small device/gadgets with
web based system.
• Mechanism :- The device send signals through sensors
using constraint application protocol (CoAP), message
Queue Telemetry Transport (MQTT), GSM Module etc.
And interact with the web based system using the HTTP
protocol.
Solutions for smart solid waste management 15

16. Initial household collection
Solutions for smart solid waste management
Say No to mixed waste
Plastic waste Food waste Other waste
Say yes to 3 Separate bins
16

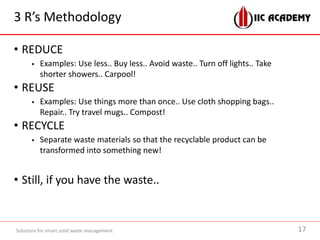

17. 3 R’s Methodology
• REDUCE
 Examples: Use less.. Buy less.. Avoid waste.. Turn off lights.. Take
shorter showers.. Carpool!
• REUSE
 Examples: Use things more than once.. Use cloth shopping bags..
Repair.. Try travel mugs.. Compost!
• RECYCLE
 Separate waste materials so that the recyclable product can be
transformed into something new!
• Still, if you have the waste..
Solutions for smart solid waste management 17

18. Give New life for the Waste
Solutions for smart solid waste management
Use less Waste
Recycle
Reuse
Reduce
Municipal
Waste
18

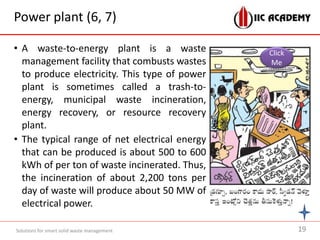

19. Power plant (6, 7)
• A waste-to-energy plant is a waste
management facility that combusts wastes
to produce electricity. This type of power
plant is sometimes called a trash-to-
energy, municipal waste incineration,
energy recovery, or resource recovery
plant.
• The typical range of net electrical energy
that can be produced is about 500 to 600
kWh of per ton of waste incinerated. Thus,
the incineration of about 2,200 tons per
day of waste will produce about 50 MW of
electrical power.
Solutions for smart solid waste management
Click
Me
19

20. Plastic Roads
The following types of waste plastic can be used in the
construction of rural roads:
• Films ( Carry Bags, Cups) thickness up to 60micron (PE,
PP and PS)
• Hard foams (PS) any thickness
• Soft Foams (PE and PP) any thickness.
• Laminated Plastics thickness up to 60 micron
(Aluminum coated also) packing materials used for
biscuits, chocolates, etc.,
• Poly Vinyl Chloride (PVC) sheets or Flux sheets should
not be used in any case(8).
Solutions for smart solid waste management
Click Me
20

21. BIO GAS
• Using bio-methanisation technology all domestic bio
waste including wastewater can be treated hygienically
and biogas, a very good cooking fuel is produced. This
helps to prevent the tendency to throw the waste
materials in roads and public places. Generation of
cooking gas at house hold level helps to overcome fuel
crisis to a great extent(9).
Solutions for smart solid waste management
Click Me
21

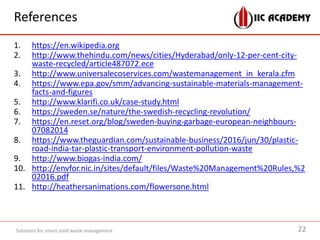

22. References
1. https://en.wikipedia.org
2. http://www.thehindu.com/news/cities/Hyderabad/only-12-per-cent-city-
waste-recycled/article487072.ece
3. http://www.universalecoservices.com/wastemanagement_in_kerala.cfm
4. https://www.epa.gov/smm/advancing-sustainable-materials-management-
facts-and-figures
5. http://www.klarifi.co.uk/case-study.html
6. https://sweden.se/nature/the-swedish-recycling-revolution/
7. https://en.reset.org/blog/sweden-buying-garbage-european-neighbours-
07082014
8. https://www.theguardian.com/sustainable-business/2016/jun/30/plastic-
road-india-tar-plastic-transport-environment-pollution-waste
9. http://www.biogas-india.com/
10. http://envfor.nic.in/sites/default/files/Waste%20Management%20Rules,%2
02016.pdf
11. http://heathersanimations.com/flowersone.html
Solutions for smart solid waste management 22

23. Solutions for smart solid waste management
Thank you
23
