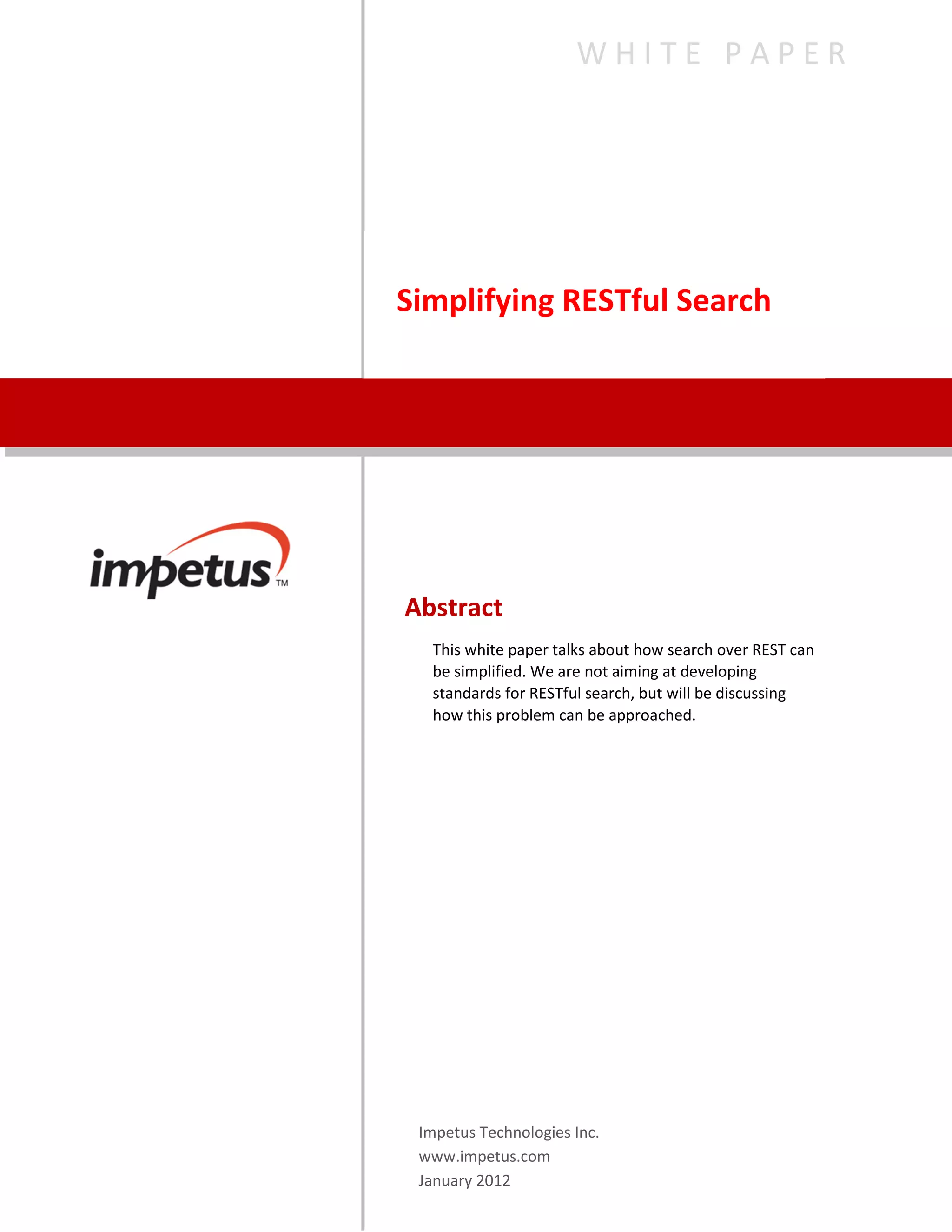

1. WHITE PAPER
Simplifying RESTful Search
Abstract
This white paper talks about how search over REST can
be simplified. We are not aiming at developing
standards for RESTful search, but will be discussing
how this problem can be approached.
Impetus Technologies Inc.
www.impetus.com
January 2012

2. Simplifying RESTful Search
Table of Contents
Introduction ........................................................................................................... 2
Search Requirements ............................................................................................. 3
HTTP Method Selection ......................................................................................... 4
URL Representation ............................................................................................... 4
Query Criteria vs. Embedded Criteria ................................................................ 4
Modeling Filter Criteria ...................................................................................... 5
Feed Item Query Language (FIQL) ..................................................................... 5
Resource Query Language (RQL) ....................................................................... 5
Case study: Apache CXF advance search features ................................................. 6
Summary ................................................................................................................ 7
Introduction
The REST architectural pattern is based around two basic principles:
1. Resources as URLs: A resource is something like an entity or a noun in
modeling language. Anything on the web is identified as a resource and
each unique resource is identified by a unique URL.
2. Operations as HTTP methods: REST leverages existing HTTP methods,
particularly GET, PUT, POST, and DELETE which map to a resource’s
read, create, modify and removal operations, respectively.
Any action performed by a client over HTTP, contains a URL and an HTTP
method. The URL represents the resource and the HTTP method represents the
action which needs to be performed over the resource.
Being a broad architectural style, REST always has different interpretations. The
ambiguity is exacerbated by the fact that there are not nearly enough HTTP
methods to support common operations. One of the most common examples is
the lack of a ‘search’ method. While search is one of the most extensively used
features across different applications, there have been no standards for
implementing this feature. Due to this, people tend to design search in different
ways. Given that REST aims to unify service architecture, any ambiguity must be
seen as weakening the argument for REST.
2

3. Simplifying RESTful Search

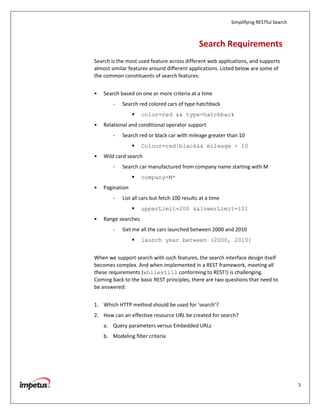

Search Requirements
Search is the most used feature across different web applications, and supports
almost similar features around different applications. Listed below are some of
the common constituents of search features:
• Search based on one or more criteria at a time
- Search red colored cars of type hatchback
color=red && type=hatchback
• Relational and conditional operator support
- Search red or black car with mileage greater than 10
Colour=red|black&& mileage > 10
• Wild card search
- Search car manufactured from company name starting with M
company=M*
• Pagination
- List all cars but fetch 100 results at a time
upperLimit=200 &&lowerLimit=101
• Range searches
- Get me all the cars launched between 2000 and 2010
launch year between (2000, 2010)
When we support search with such features, the search interface design itself
becomes complex. And when implemented in a REST framework, meeting all
these requirements (whilestill conforming to REST!) is challenging.
Coming back to the basic REST principles, there are two questions that need to
be answered:
1. Which HTTP method should be used for ‘search’?
2. How can an effective resource URL be created for search?
a. Query parameters versus Embedded URLs
b. Modeling filter criteria
3

4. Simplifying RESTful Search

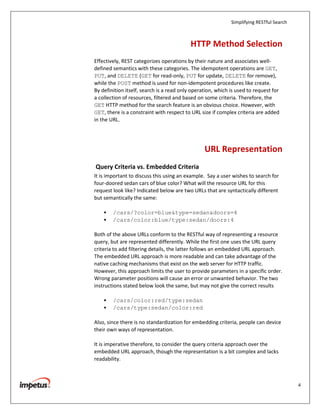

HTTP Method Selection
Effectively, REST categorizes operations by their nature and associates well-
defined semantics with these categories. The idempotent operations are GET,
PUT, and DELETE (GET for read-only, PUT for update, DELETE for remove),
while the POST method is used for non-idempotent procedures like create.
By definition itself, search is a read only operation, which is used to request for
a collection of resources, filtered and based on some criteria. Therefore, the
GET HTTP method for the search feature is an obvious choice. However, with
GET, there is a constraint with respect to URL size if complex criteria are added
in the URL.
URL Representation
Query Criteria vs. Embedded Criteria
It is important to discuss this using an example. Say a user wishes to search for
four-doored sedan cars of blue color? What will the resource URL for this
request look like? Indicated below are two URLs that are syntactically different
but semantically the same:
• /cars/?color=blue&type=sedan&doors=4
• /cars/color:blue/type:sedan/doors:4
Both of the above URLs conform to the RESTful way of representing a resource
query, but are represented differently. While the first one uses the URL query
criteria to add filtering details, the latter follows an embedded URL approach.
The embedded URL approach is more readable and can take advantage of the
native caching mechanisms that exist on the web server for HTTP traffic.
However, this approach limits the user to provide parameters in a specific order.
Wrong parameter positions will cause an error or unwanted behavior. The two
instructions stated below look the same, but may not give the correct results
• /cars/color:red/type:sedan
• /cars/type:sedan/color:red
Also, since there is no standardization for embedding criteria, people can device
their own ways of representation.
It is imperative therefore, to consider the query criteria approach over the
embedded URL approach, though the representation is a bit complex and lacks
readability.
4

5. Simplifying RESTful Search

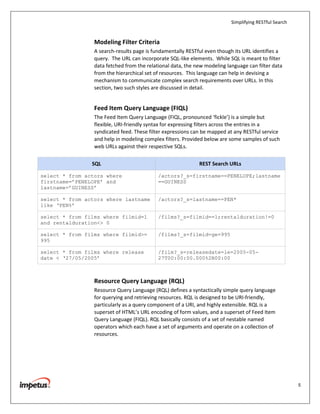

Modeling Filter Criteria
A search-results page is fundamentally RESTful even though its URL identifies a
query. The URL can incorporate SQL-like elements. While SQL is meant to filter
data fetched from the relational data, the new modeling language can filter data
from the hierarchical set of resources. This language can help in devising a
mechanism to communicate complex search requirements over URLs. In this
section, two such styles are discussed in detail.
Feed Item Query Language (FIQL)
The Feed Item Query Language (FIQL, pronounced ‘fickle’) is a simple but
flexible, URI-friendly syntax for expressing filters across the entries in a
syndicated feed. These filter expressions can be mapped at any RESTful service
and help in modeling complex filters. Provided below are some samples of such
web URLs against their respective SQLs.
SQL REST Search URLs
select * from actors where /actors?_s=firstname==PENELOPE;lastname
firstname=’PENELOPE’ and ==GUINESS
lastname=’GUINESS’
select * from actors where lastname /actors?_s=lastname==PEN*
like ‘PEN%’
select * from films where filmid=1 /films?_s=filmid==1;rentalduration!=0
and rentalduration<> 0
select * from films where filmid>= /films?_s=filmid=ge=995
995
select * from films where release /film?_s=releasedate=le=2005-05-
date < ‘27/05/2005’ 27T00:00:00.000%2B00:00
Resource Query Language (RQL)
Resource Query Language (RQL) defines a syntactically simple query language
for querying and retrieving resources. RQL is designed to be URI-friendly,
particularly as a query component of a URI, and highly extensible. RQL is a
superset of HTML’s URL encoding of form values, and a superset of Feed Item
Query Language (FIQL). RQL basically consists of a set of nestable named
operators which each have a set of arguments and operate on a collection of
resources.
5

6. Simplifying RESTful Search

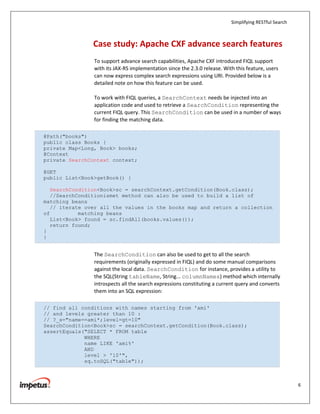

Case study: Apache CXF advance search features
To support advance search capabilities, Apache CXF introduced FIQL support
with its JAX-RS implementation since the 2.3.0 release. With this feature, users
can now express complex search expressions using URI. Provided below is a
detailed note on how this feature can be used.
To work with FIQL queries, a SearchContext needs be injected into an
application code and used to retrieve a SearchCondition representing the
current FIQL query. This SearchCondition can be used in a number of ways
for finding the matching data.
@Path("books")
public class Books {
private Map<Long, Book> books;
@Context
private SearchContext context;
@GET
public List<Book>getBook() {
SearchCondition<Book>sc = searchContext.getCondition(Book.class);
//SearchConditionismet method can also be used to build a list of
matching beans
// iterate over all the values in the books map and return a collection
of matching beans
List<Book> found = sc.findAll(books.values());
return found;
}
}
The SearchCondition can also be used to get to all the search
requirements (originally expressed in FIQL) and do some manual comparisons
against the local data. SearchCondition for instance, provides a utility to
the SQL(String tableName, String... columnNames) method which internally
introspects all the search expressions constituting a current query and converts
them into an SQL expression:
// find all conditions with names starting from 'ami'
// and levels greater than 10 :
// ?_s="name==ami*;level=gt=10"
SearchCondition<Book>sc = searchContext.getCondition(Book.class);
assertEquals("SELECT * FROM table
WHERE
name LIKE 'ami%'
AND
level > '10'",
sq.toSQL("table"));
6

7. Simplifying RESTful Search

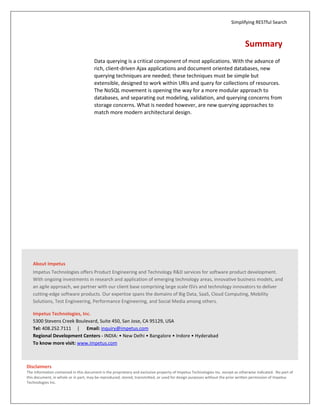

Summary
Data querying is a critical component of most applications. With the advance of
rich, client-driven Ajax applications and document oriented databases, new
querying techniques are needed; these techniques must be simple but
extensible, designed to work within URIs and query for collections of resources.
The NoSQL movement is opening the way for a more modular approach to
databases, and separating out modeling, validation, and querying concerns from
storage concerns. What is needed however, are new querying approaches to
match more modern architectural design.
