An introduction to the Search World with a special eye to E-Commerce by passing Apache Lucene and Solr. Explaining how and why to use a search engine, explaining what are the differences between rdbms and full text search, between the common search and the search applied to the e-commerce world. Also explaining what are the salient differences between Lucene and Solr.

1. E-commerce Search Engine with
Apache Lucene/Solr
A sightseeing with few practical examples
By Vincenzo D’Amore
v.damore@gmail.com
@VincenzoDAmore

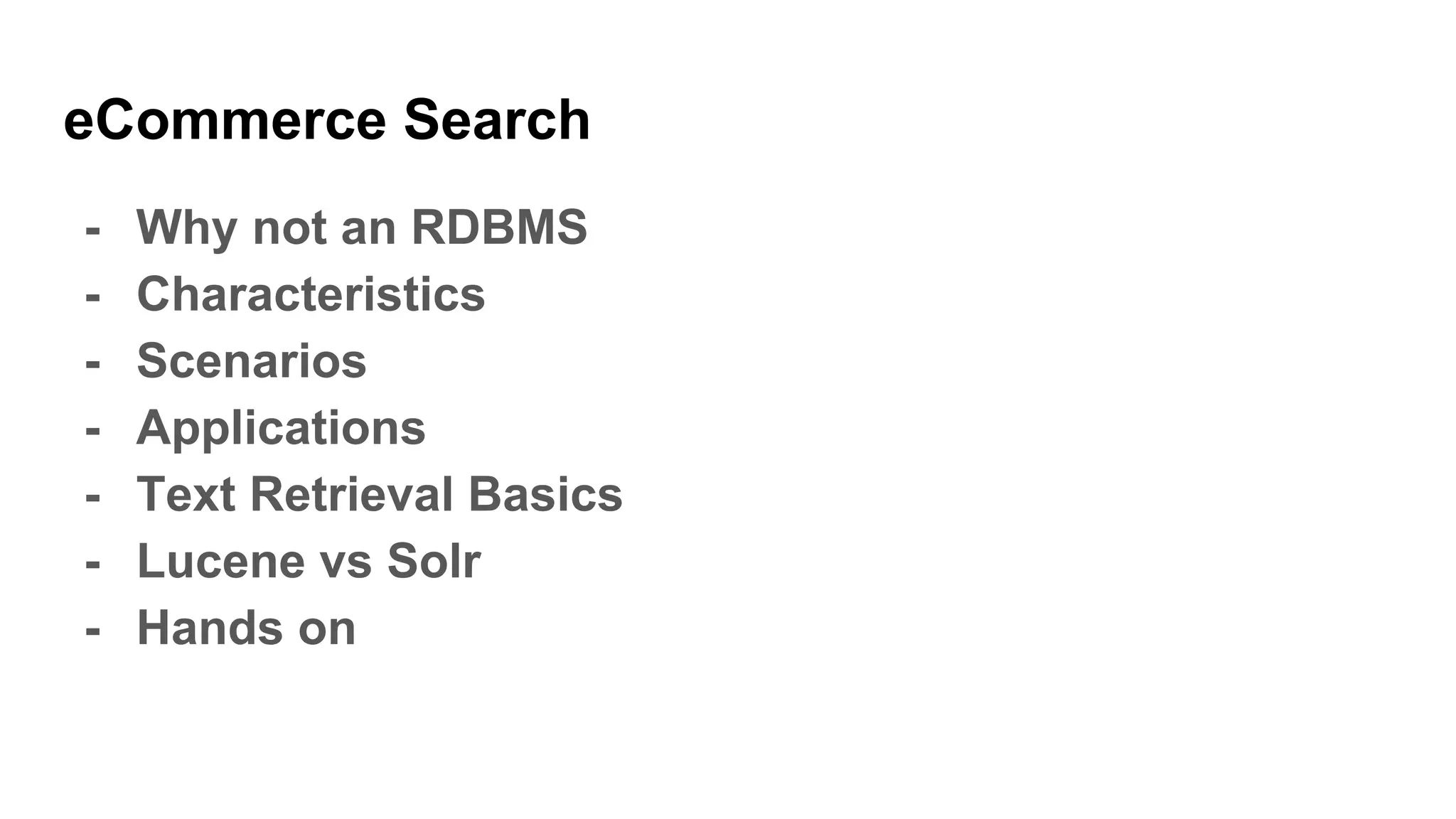

2. eCommerce Search
- Why not an RDBMS
- Characteristics
- Scenarios
- Applications
- Text Retrieval Basics
- Lucene vs Solr
- Hands on

3. Why not an RDBMS
AKA eCommerce and
Search? Start with why

4. Why not an
RDBMS
Use the right tool
for the job.

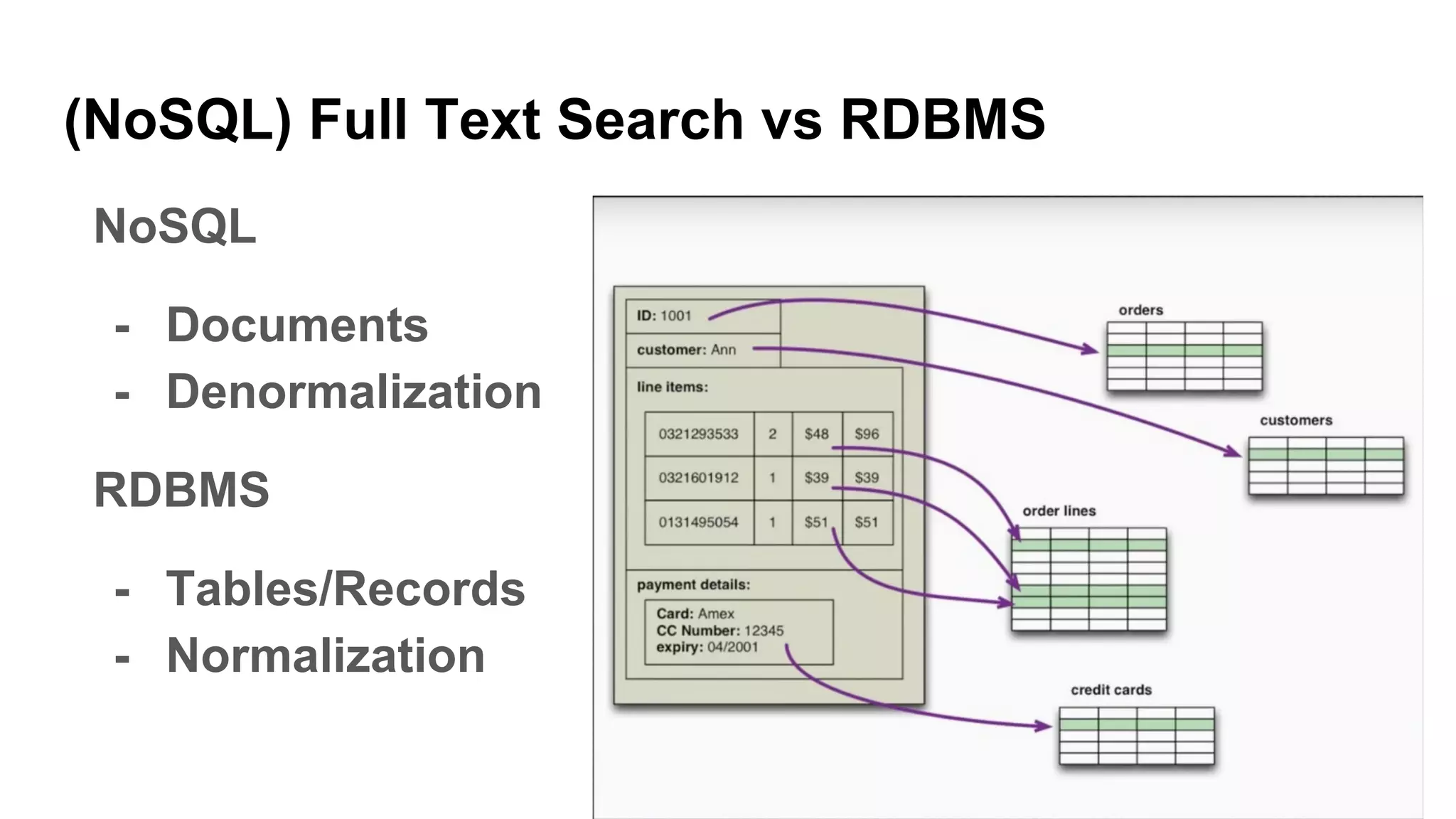

5. (NoSQL) Full Text Search vs RDBMS
NoSQL
- Documents
- Denormalization
RDBMS
- Tables/Records
- Normalization

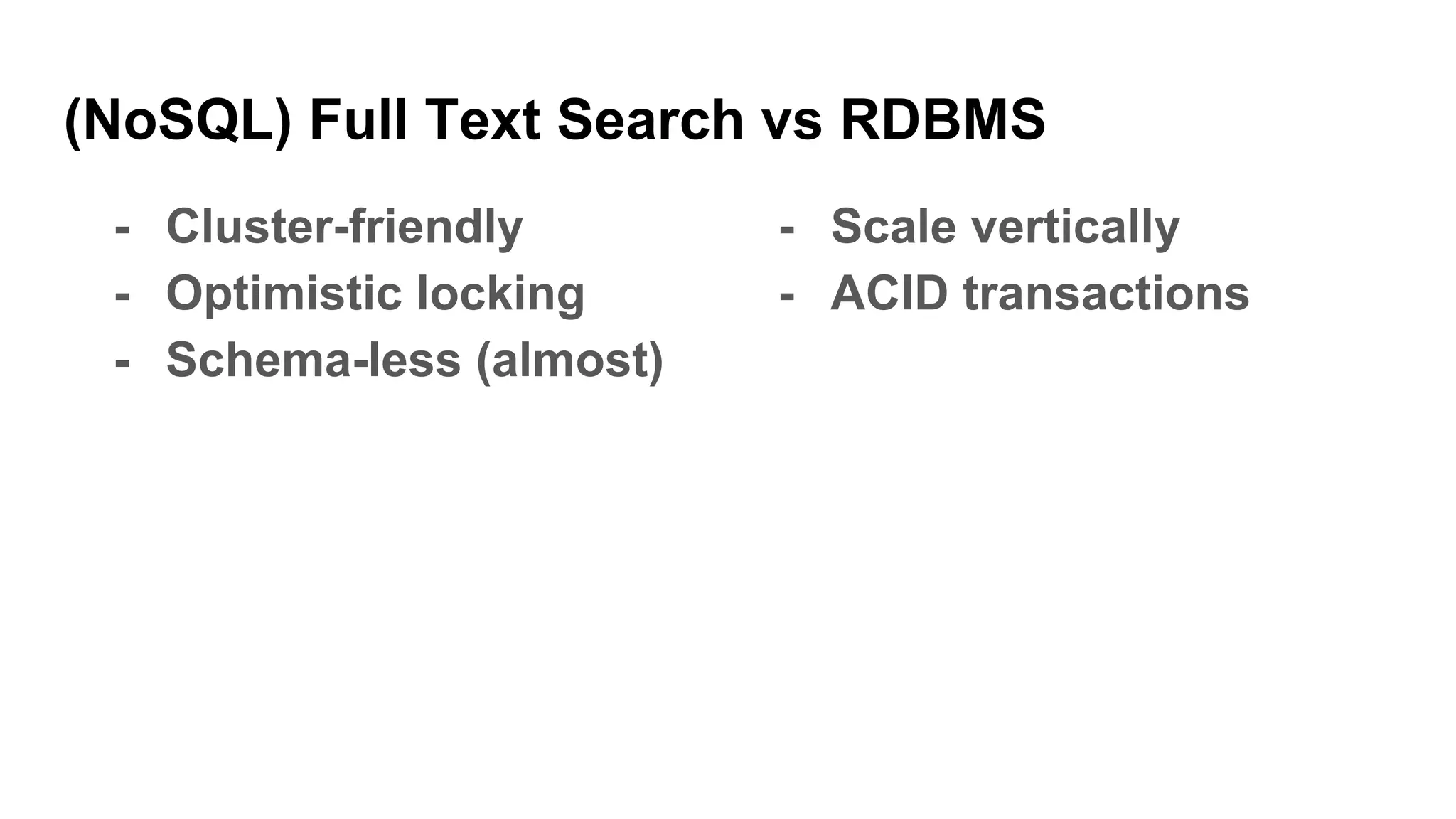

6. (NoSQL) Full Text Search vs RDBMS
- Cluster-friendly
- Optimistic locking
- Schema-less (almost)
- Scale vertically
- ACID transactions

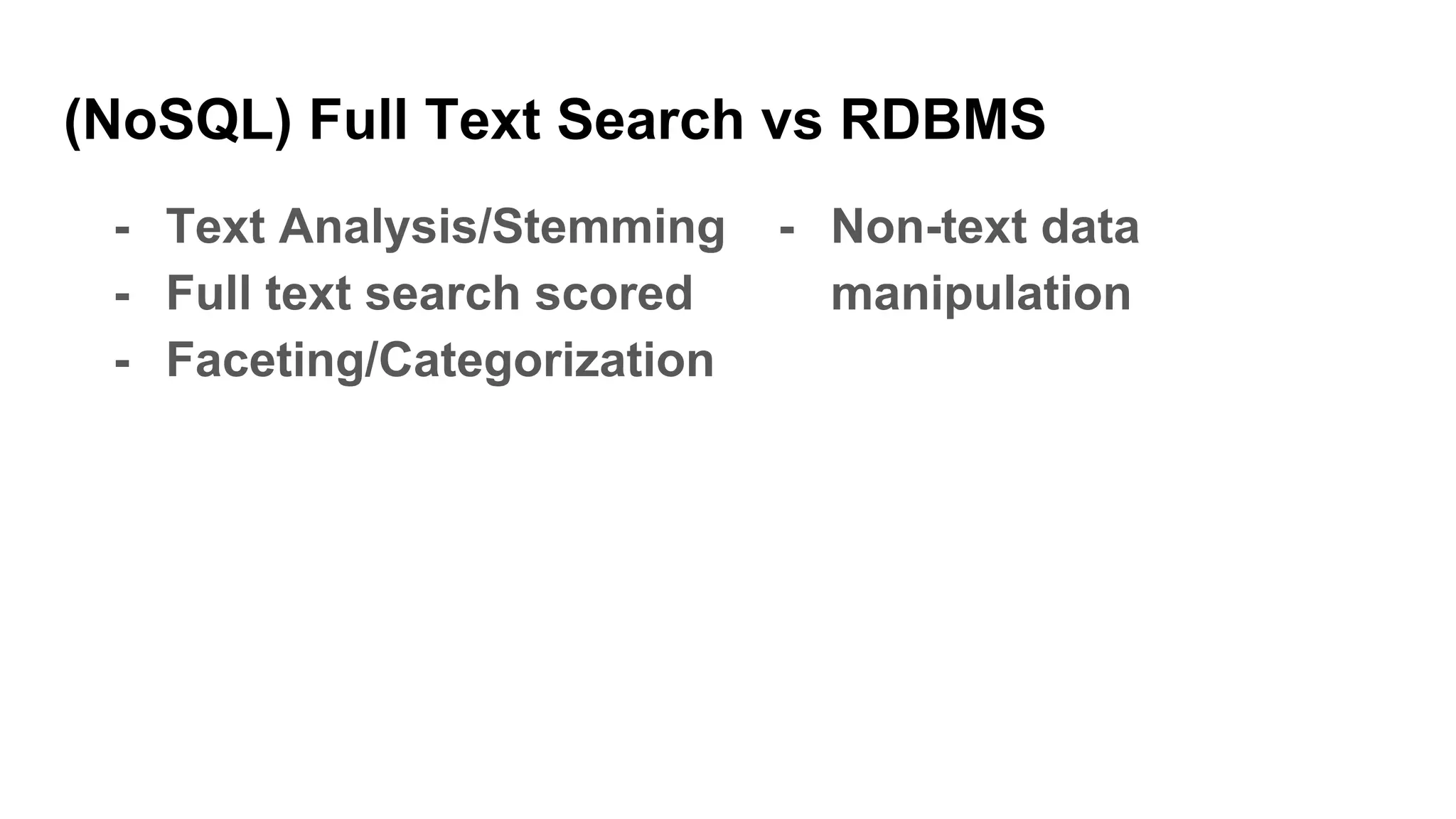

7. (NoSQL) Full Text Search vs RDBMS
- Text Analysis/Stemming
- Full text search scored
- Faceting/Categorization
- Non-text data
manipulation

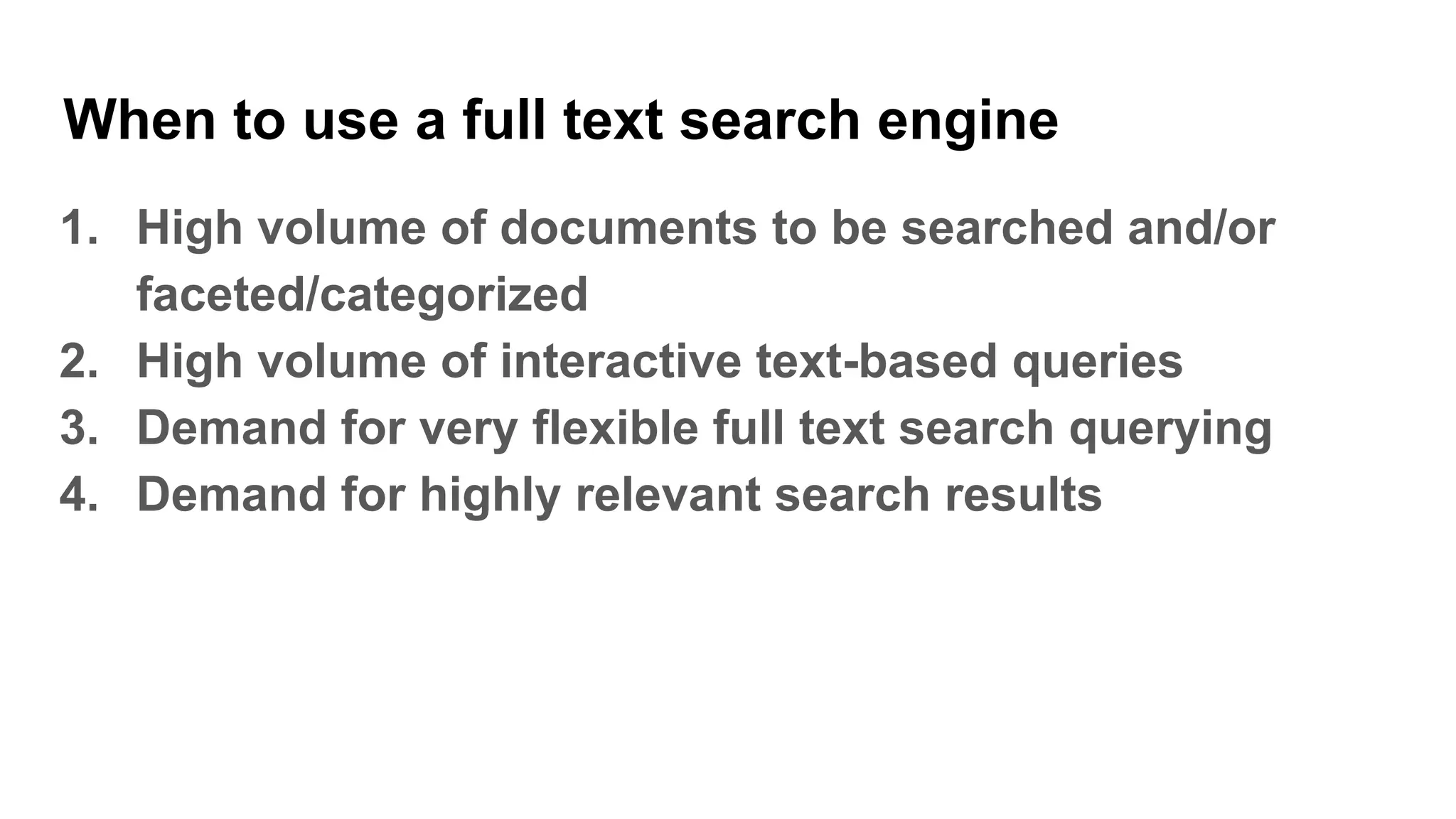

8. When to use a full text search engine
1. High volume of documents to be searched and/or
faceted/categorized
2. High volume of interactive text-based queries
3. Demand for very flexible full text search querying
4. Demand for highly relevant search results

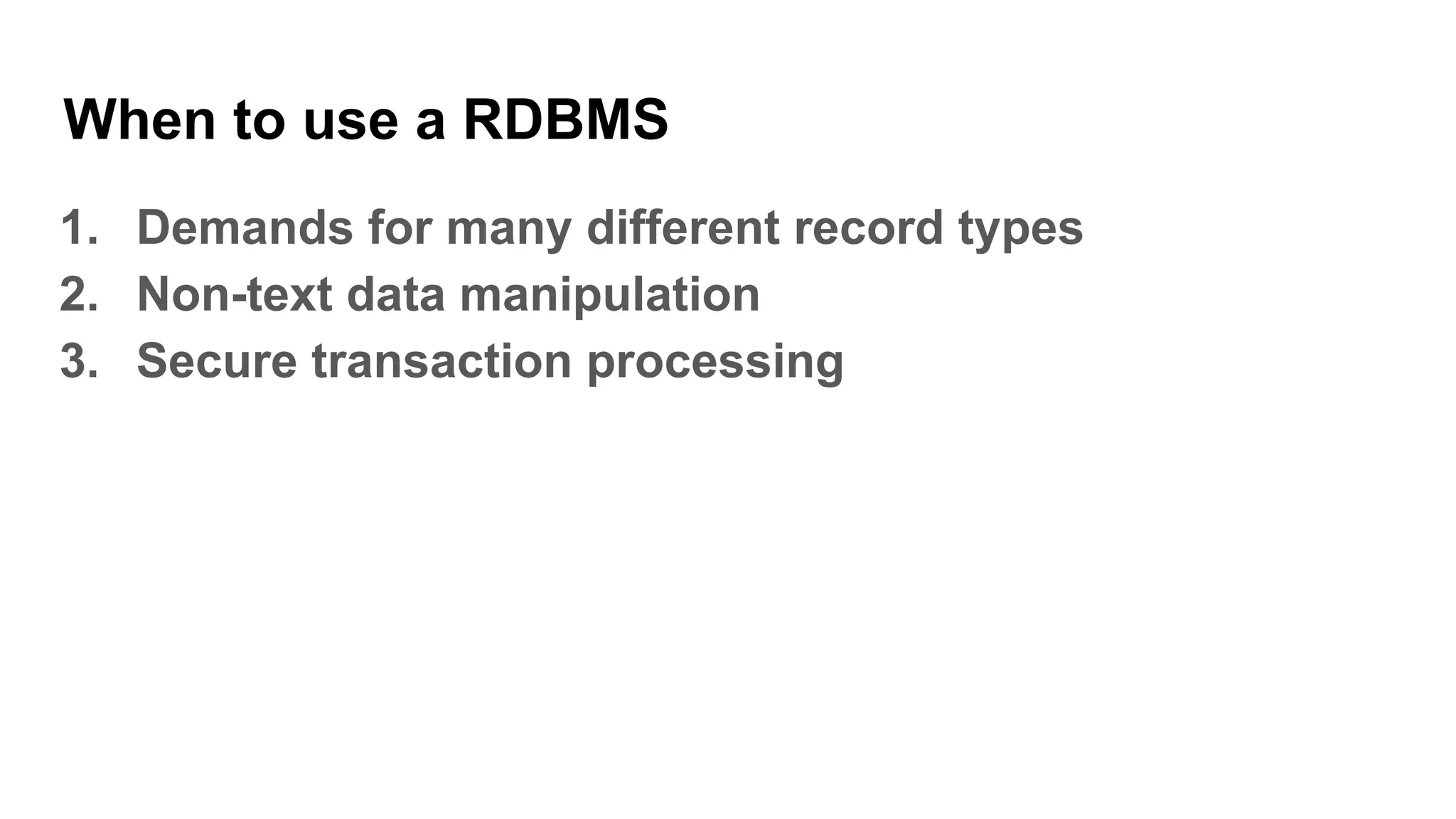

9. When to use a RDBMS
1. Demands for many different record types
2. Non-text data manipulation
3. Secure transaction processing

10. eCommerce Search
characteristics
Scalable and fast to users
requests

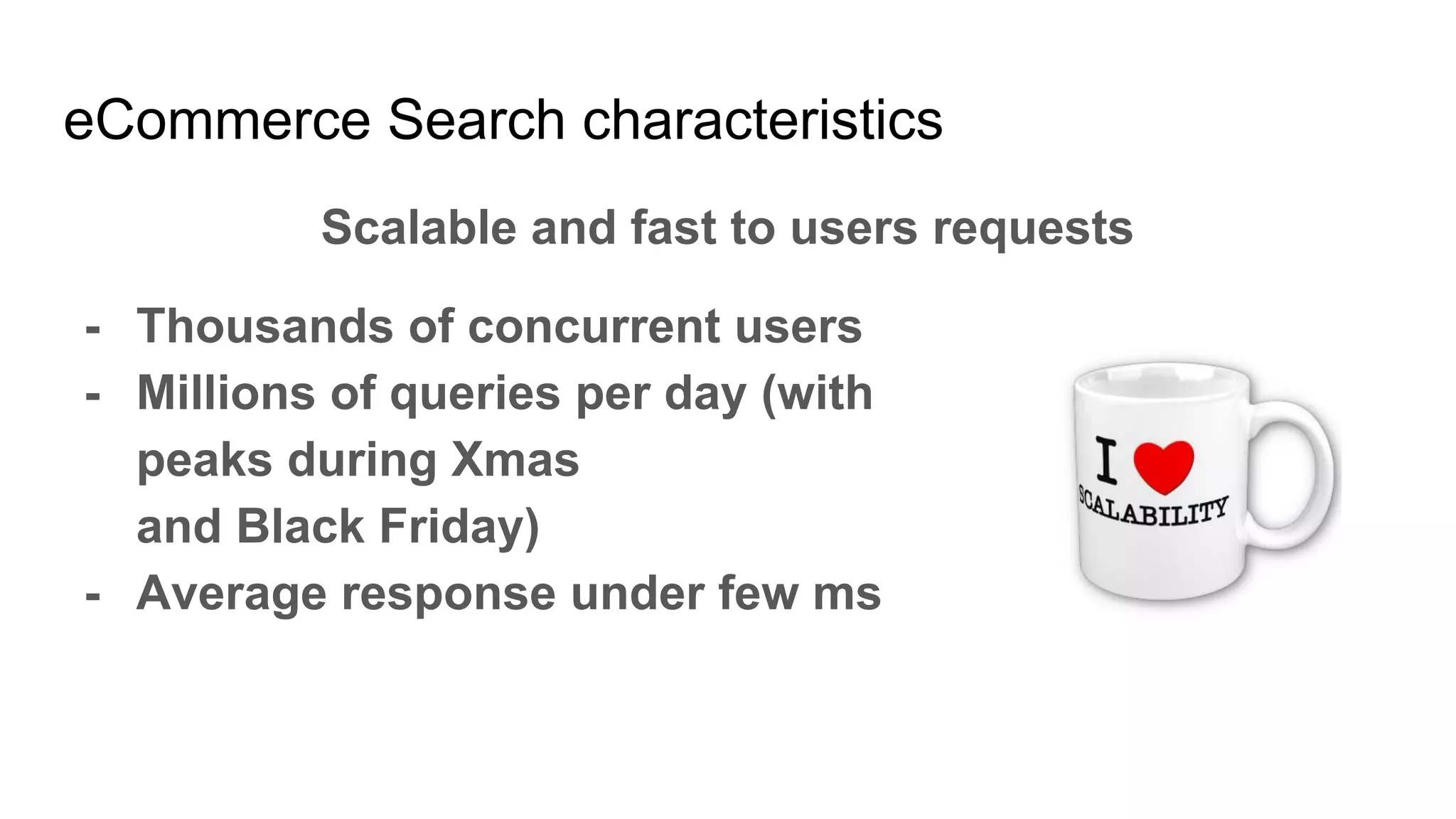

11. eCommerce Search characteristics
Scalable and fast to users requests
- Thousands of concurrent users
- Millions of queries per day (with
peaks during Xmas
and Black Friday)
- Average response under few ms

12. eCommerce Search
characteristics
Flexible marketing
requirements

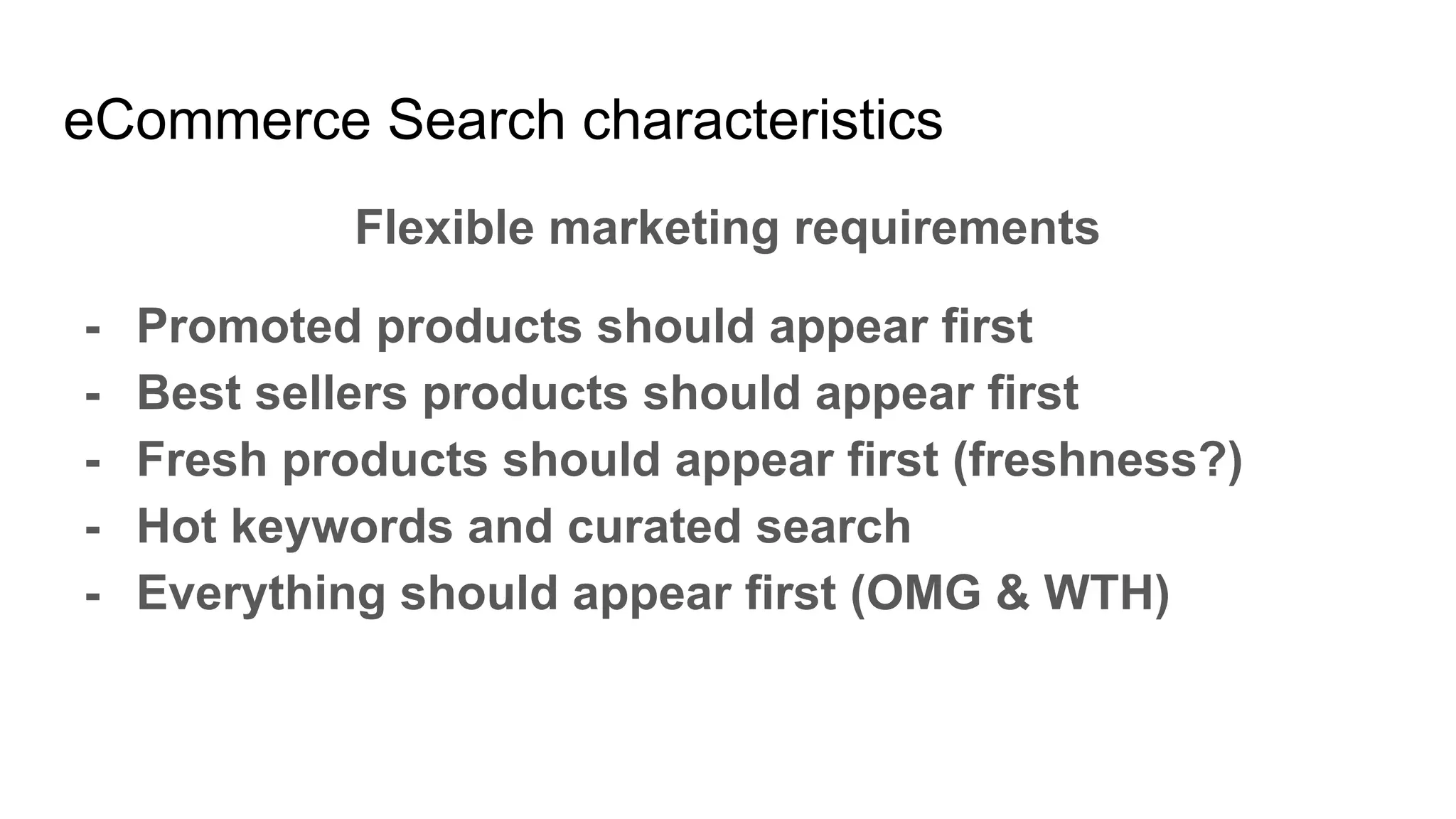

13. eCommerce Search characteristics
Flexible marketing requirements
- Promoted products should appear first
- Best sellers products should appear first
- Fresh products should appear first (freshness?)
- Hot keywords and curated search
- Everything should appear first (OMG & WTH)

14. eCommerce Search
characteristics
Users can't buy if they
can't find it

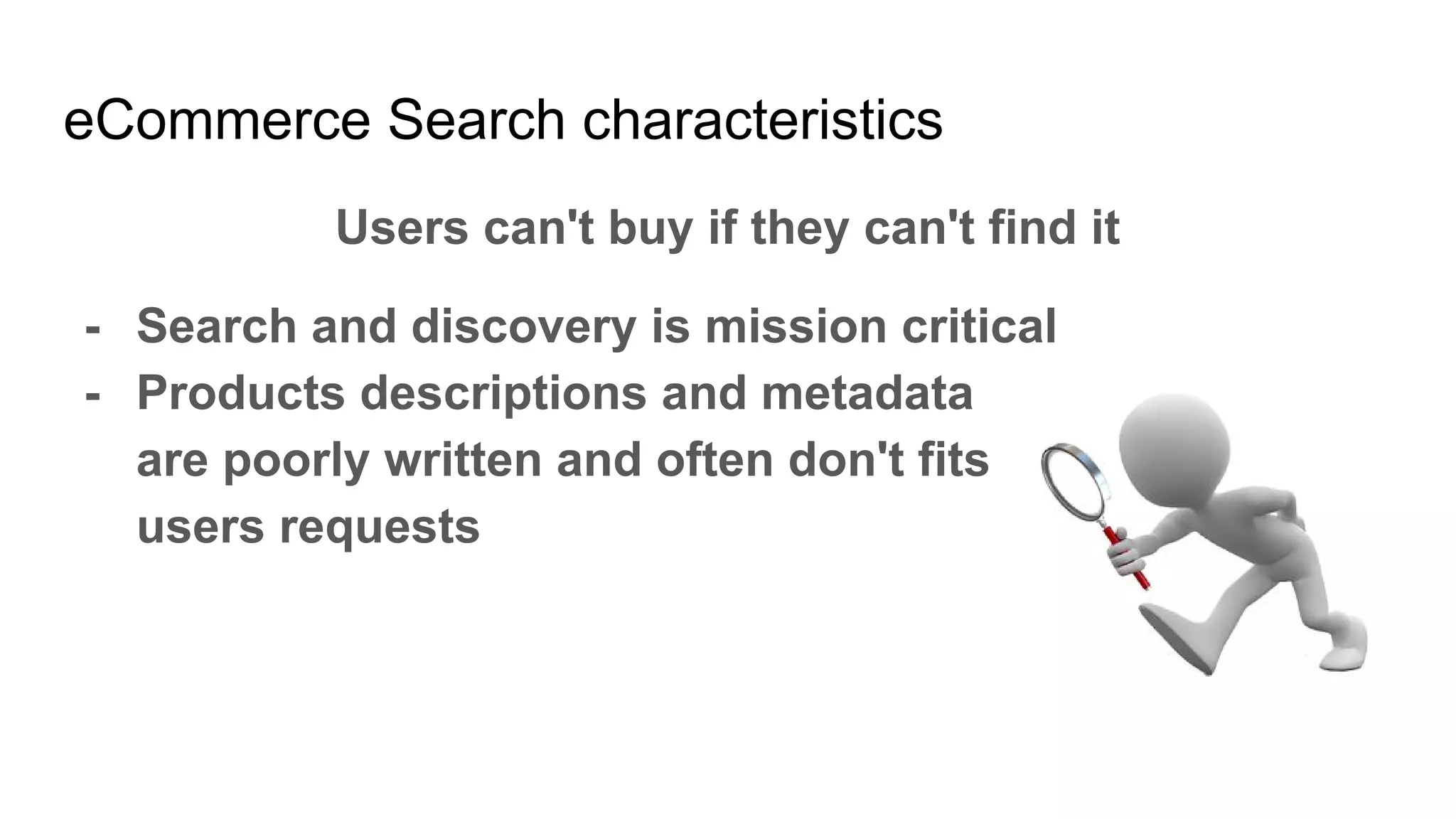

15. eCommerce Search characteristics
Users can't buy if they can't find it
- Search and discovery is mission critical
- Products descriptions and metadata
are poorly written and often don't fits
users requests

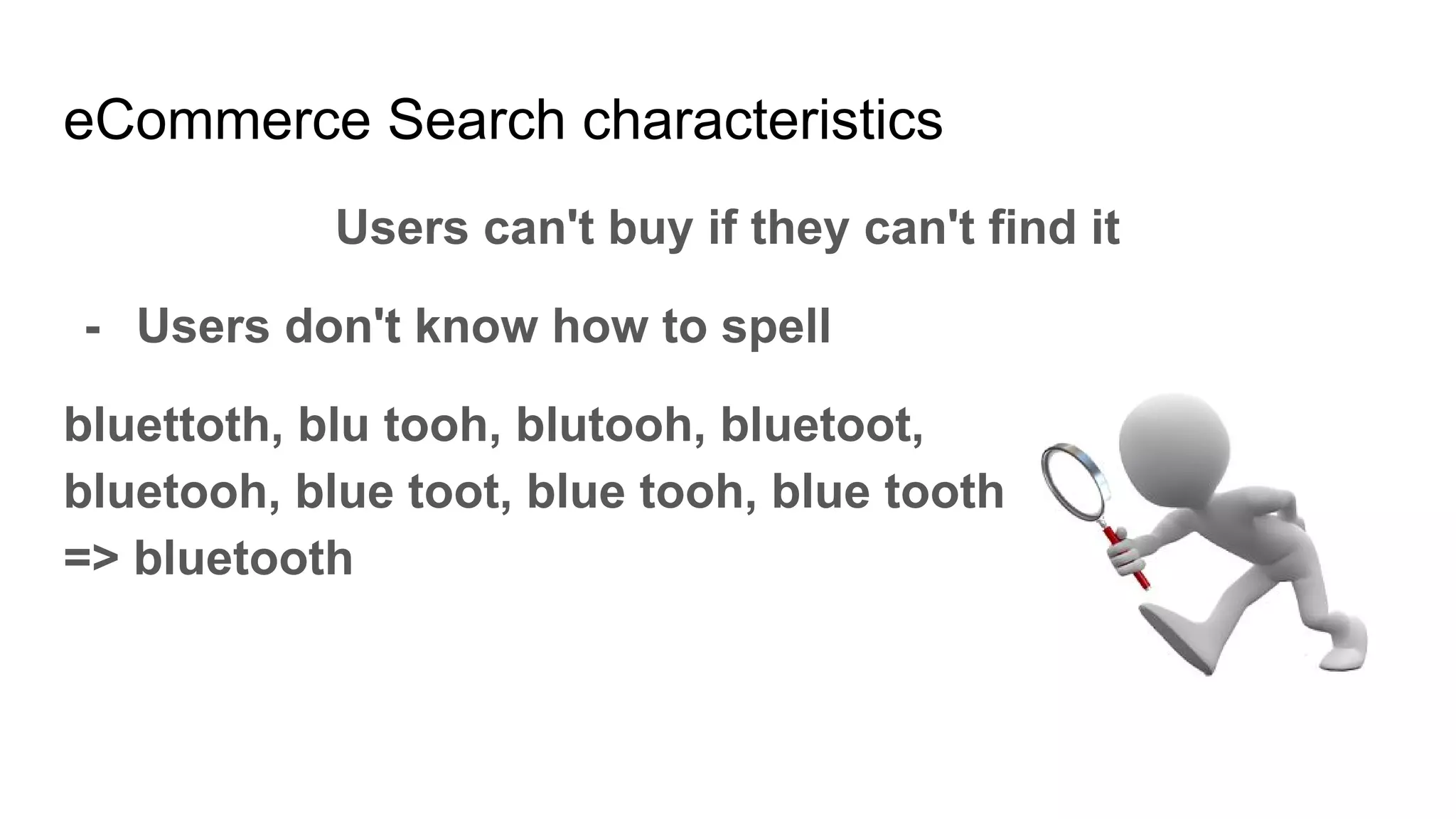

16. eCommerce Search characteristics
Users can't buy if they can't find it
- Users don't know how to spell
bluettoth, blu tooh, blutooh, bluetoot,
bluetooh, blue toot, blue tooh, blue tooth
=> bluetooth

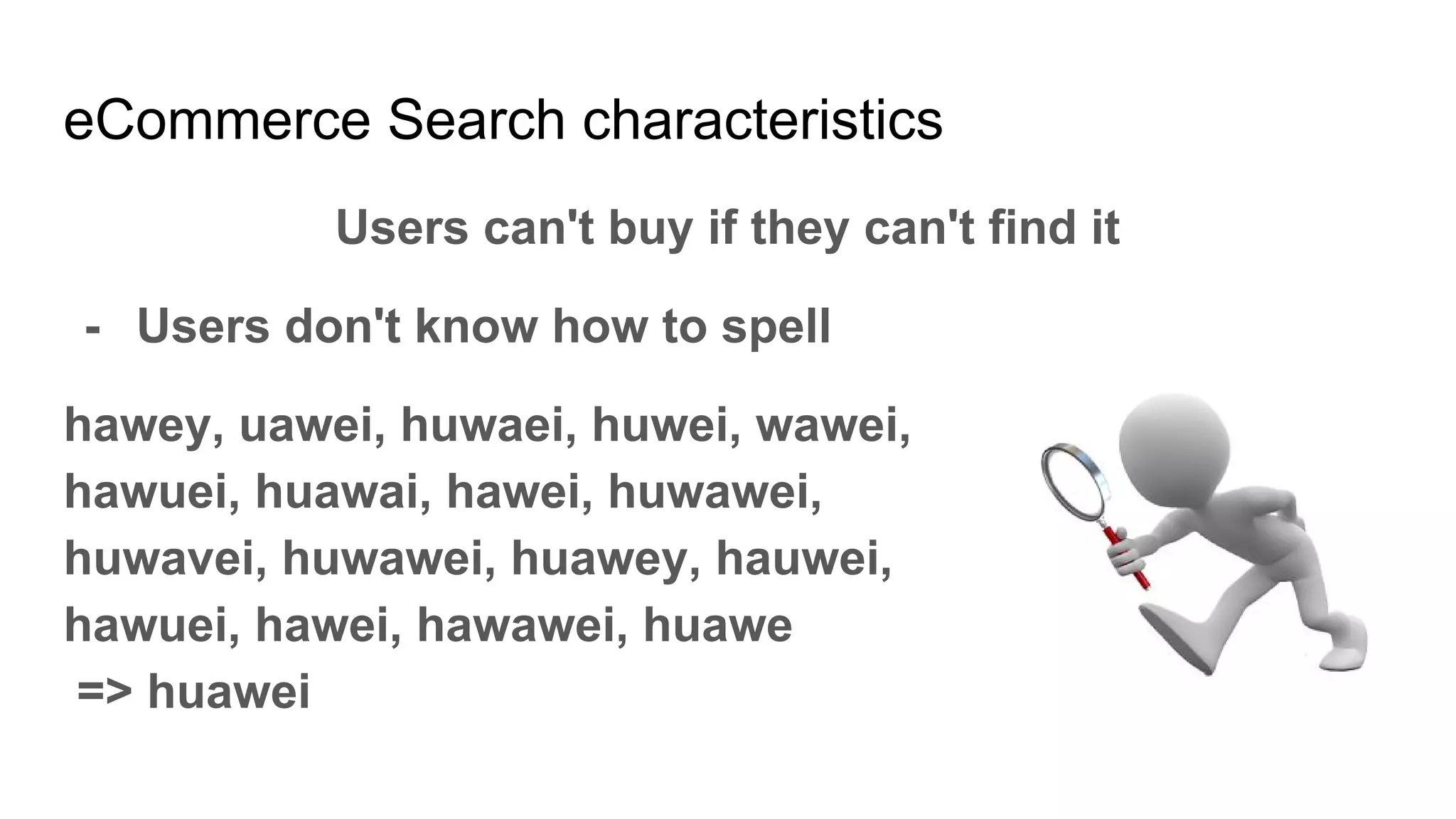

17. eCommerce Search characteristics
Users can't buy if they can't find it
- Users don't know how to spell
hawey, uawei, huwaei, huwei, wawei,
hawuei, huawai, hawei, huwawei,
huwavei, huwawei, huawey, hauwei,
hawuei, hawei, hawawei, huawe
=> huawei

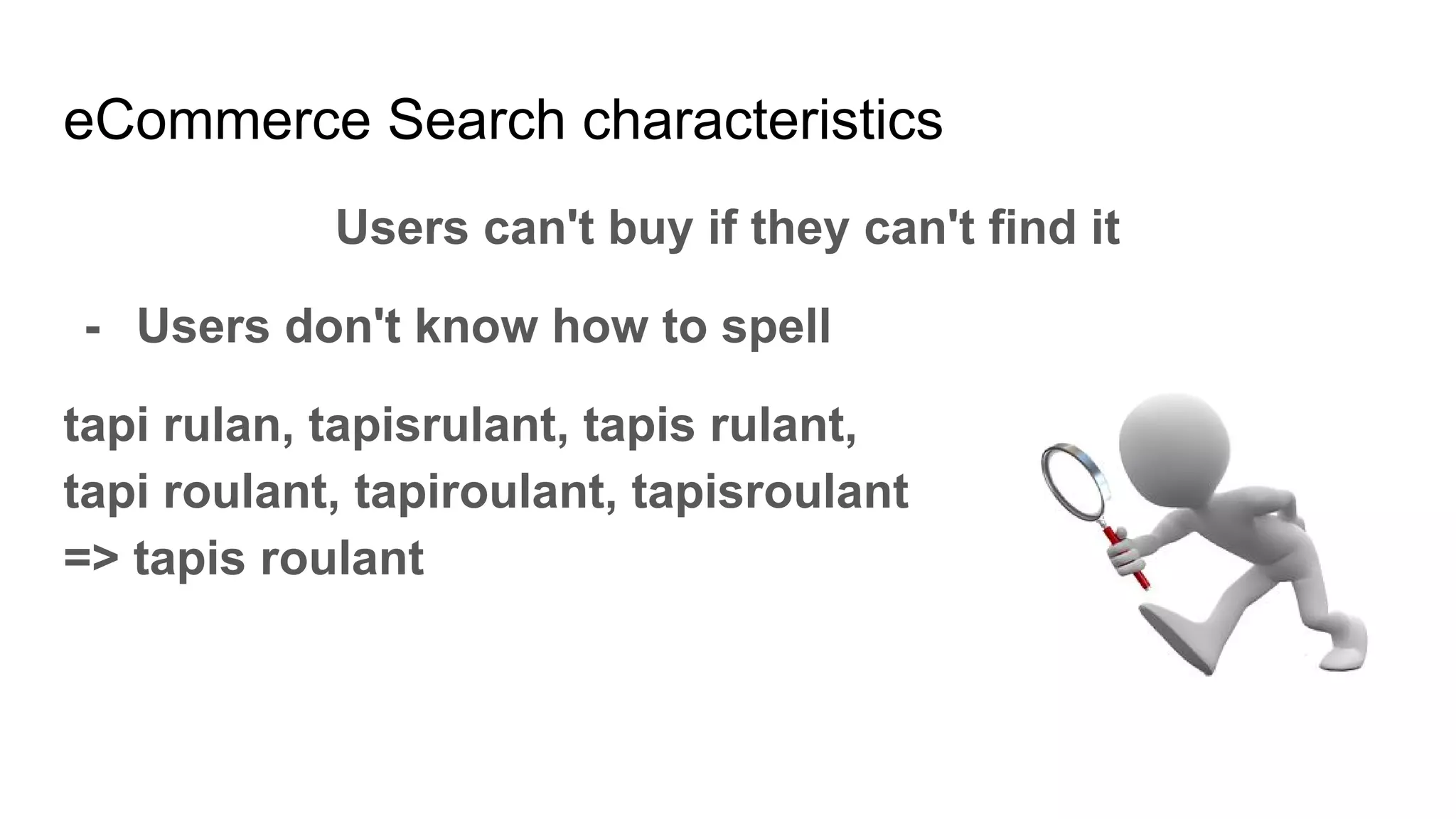

18. eCommerce Search characteristics
Users can't buy if they can't find it
- Users don't know how to spell
tapi rulan, tapisrulant, tapis rulant,
tapi roulant, tapiroulant, tapisroulant
=> tapis roulant

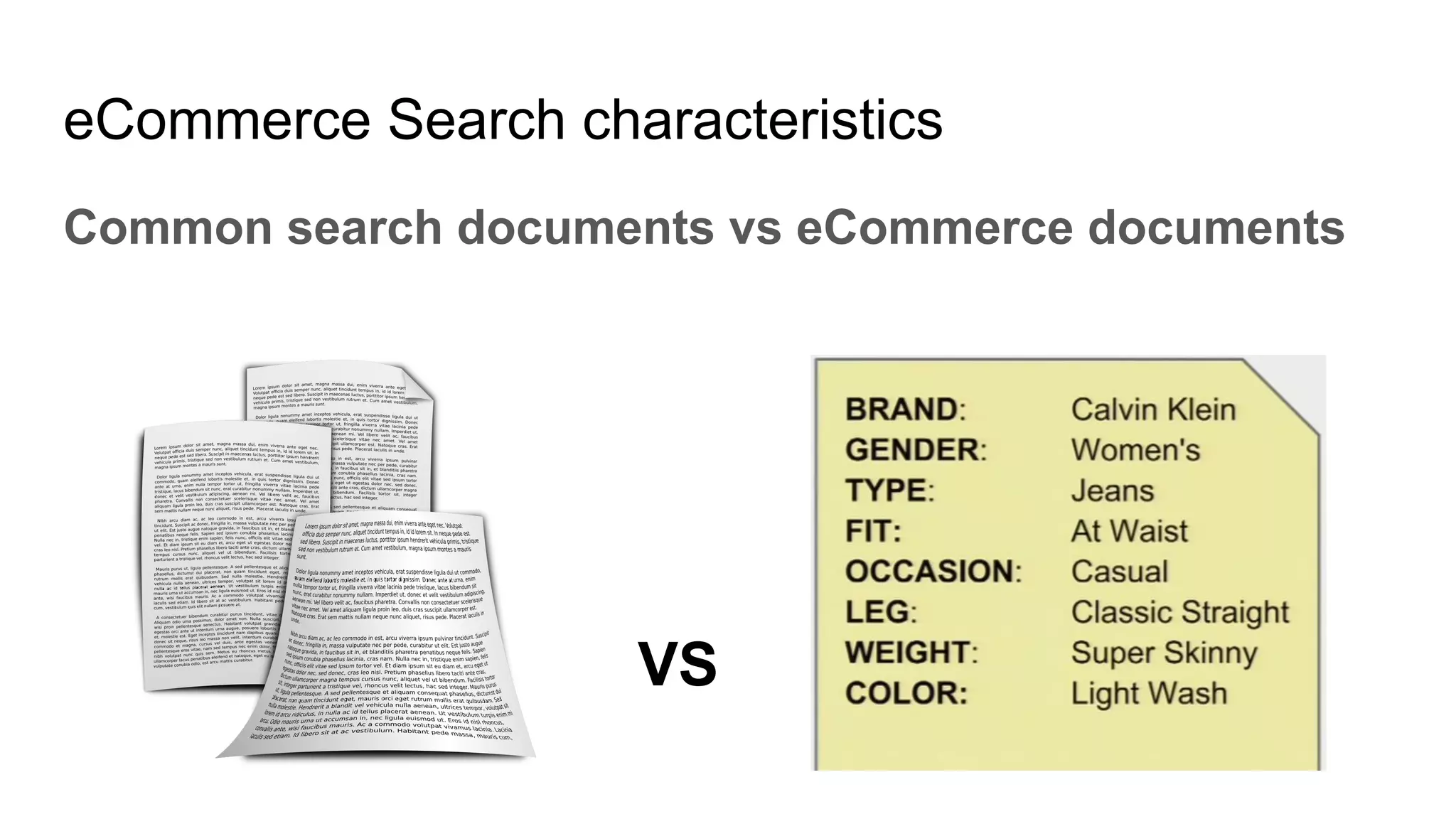

19. eCommerce Search characteristics
Common search documents vs eCommerce documents
VS

20. eCommerce Search
Scenarios
How an online store
typically look like

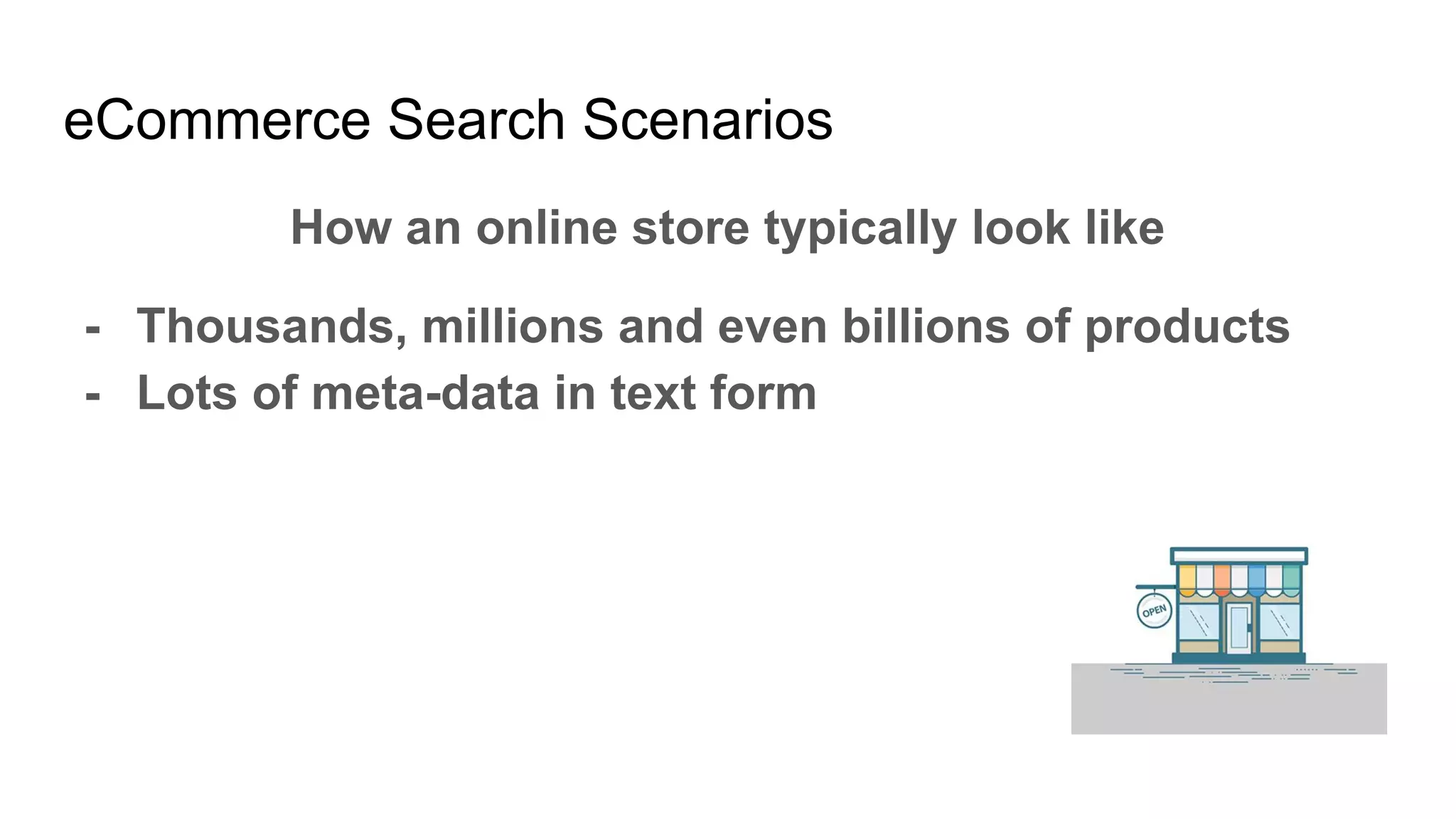

21. eCommerce Search Scenarios
How an online store typically look like
- Thousands, millions and even billions of products
- Lots of meta-data in text form

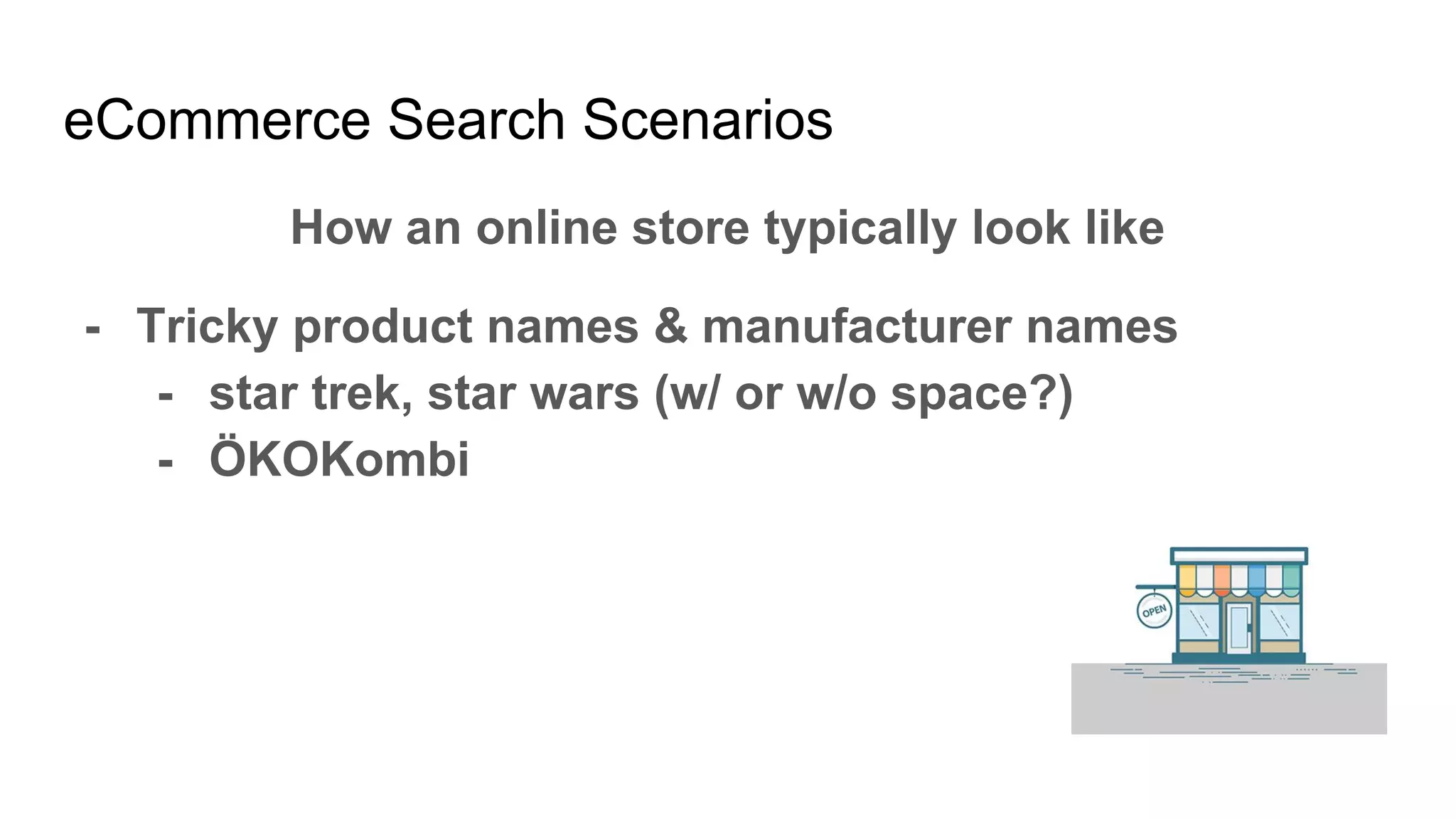

22. eCommerce Search Scenarios
How an online store typically look like
- Tricky product names & manufacturer names
- star trek, star wars (w/ or w/o space?)
- ÖKOKombi

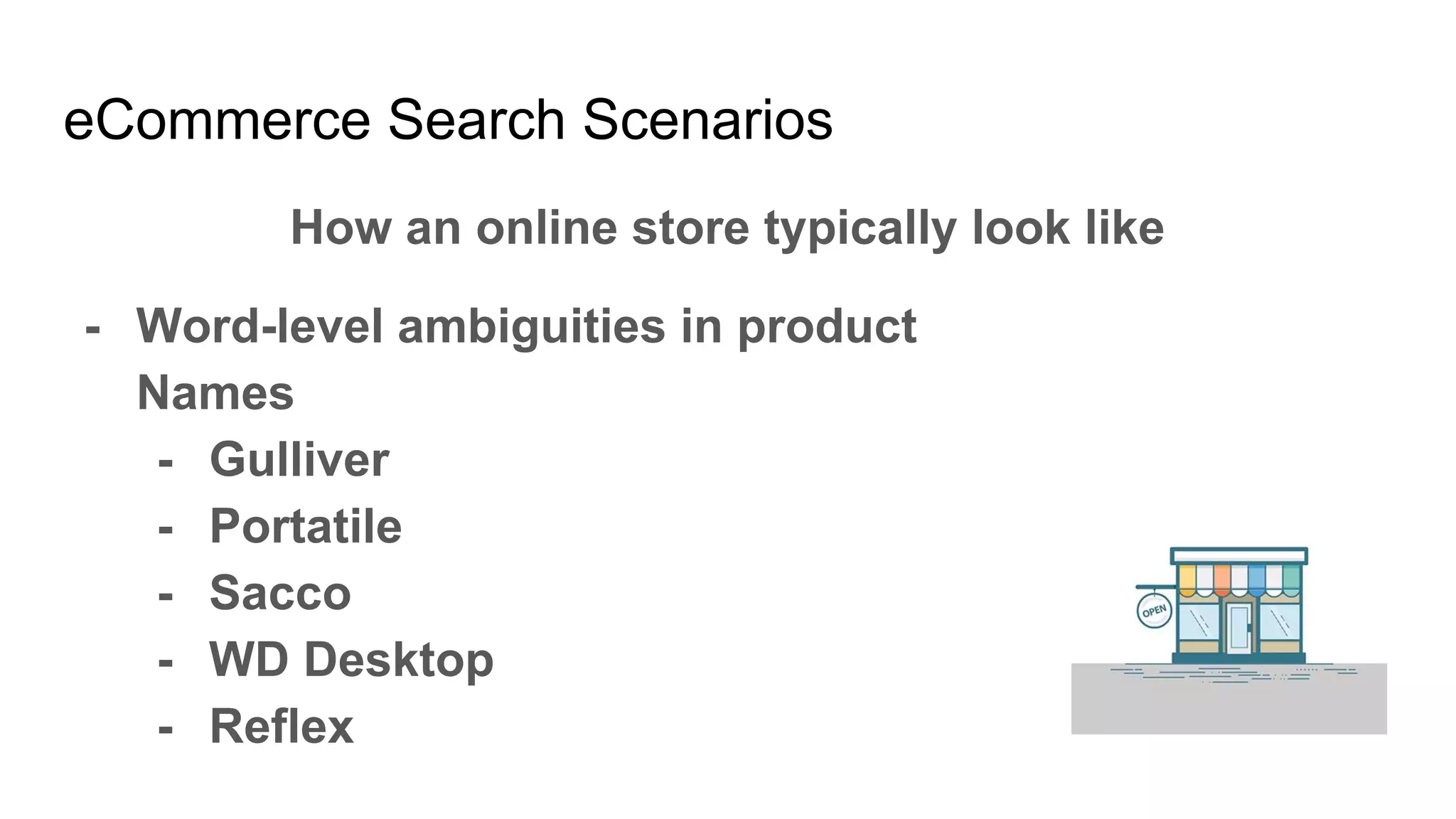

23. eCommerce Search Scenarios
How an online store typically look like
- Word-level ambiguities in product
Names
- Gulliver
- Portatile
- Sacco
- WD Desktop
- Reflex

24. eCommerce
Search
Applications
A list of the most popular
eCommerce Search
Applications

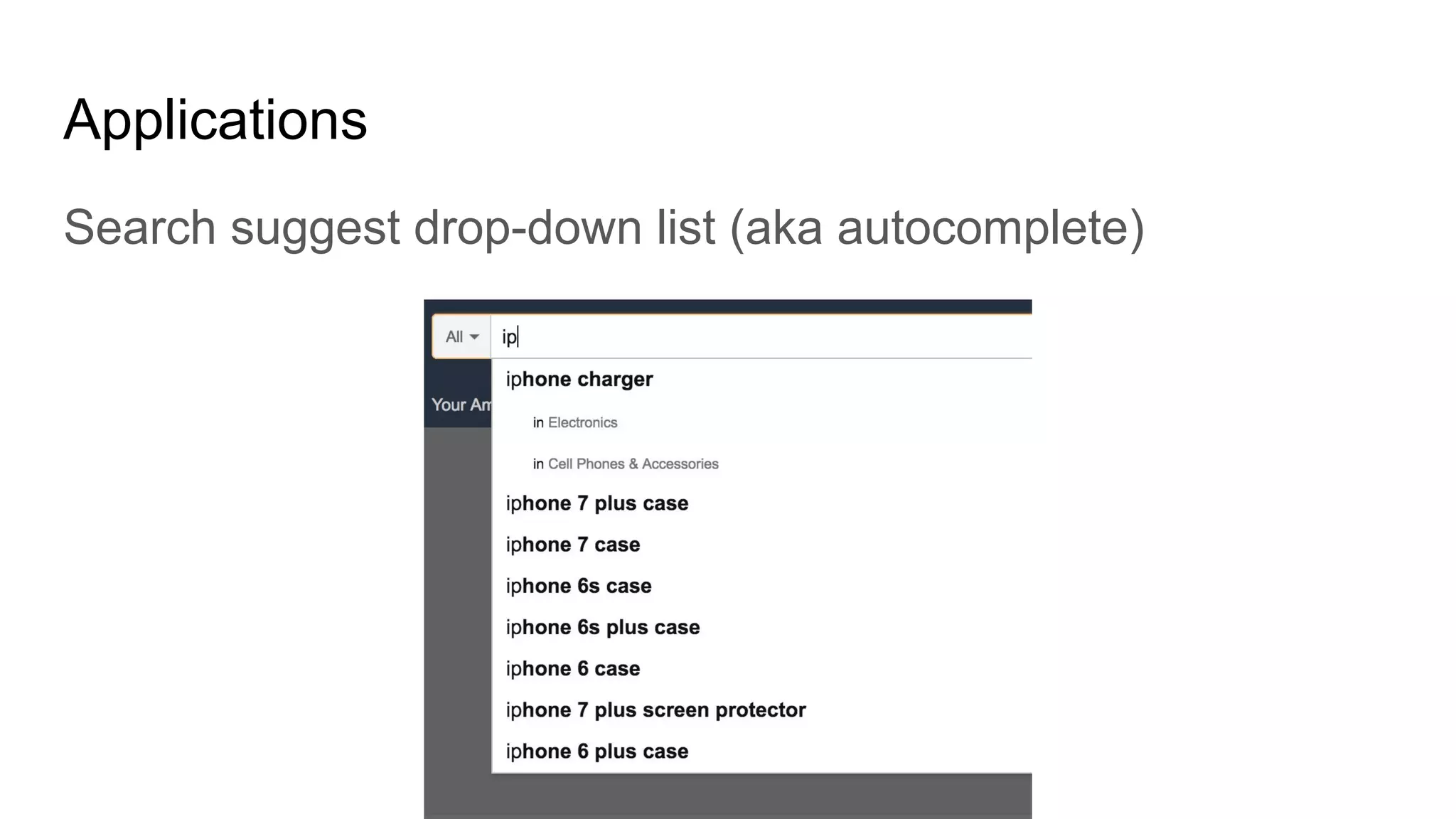

25. Applications
Search suggest drop-down list (aka autocomplete)

26. Applications
Typo tolerance aka Spellchecker aka “forse cercavi”

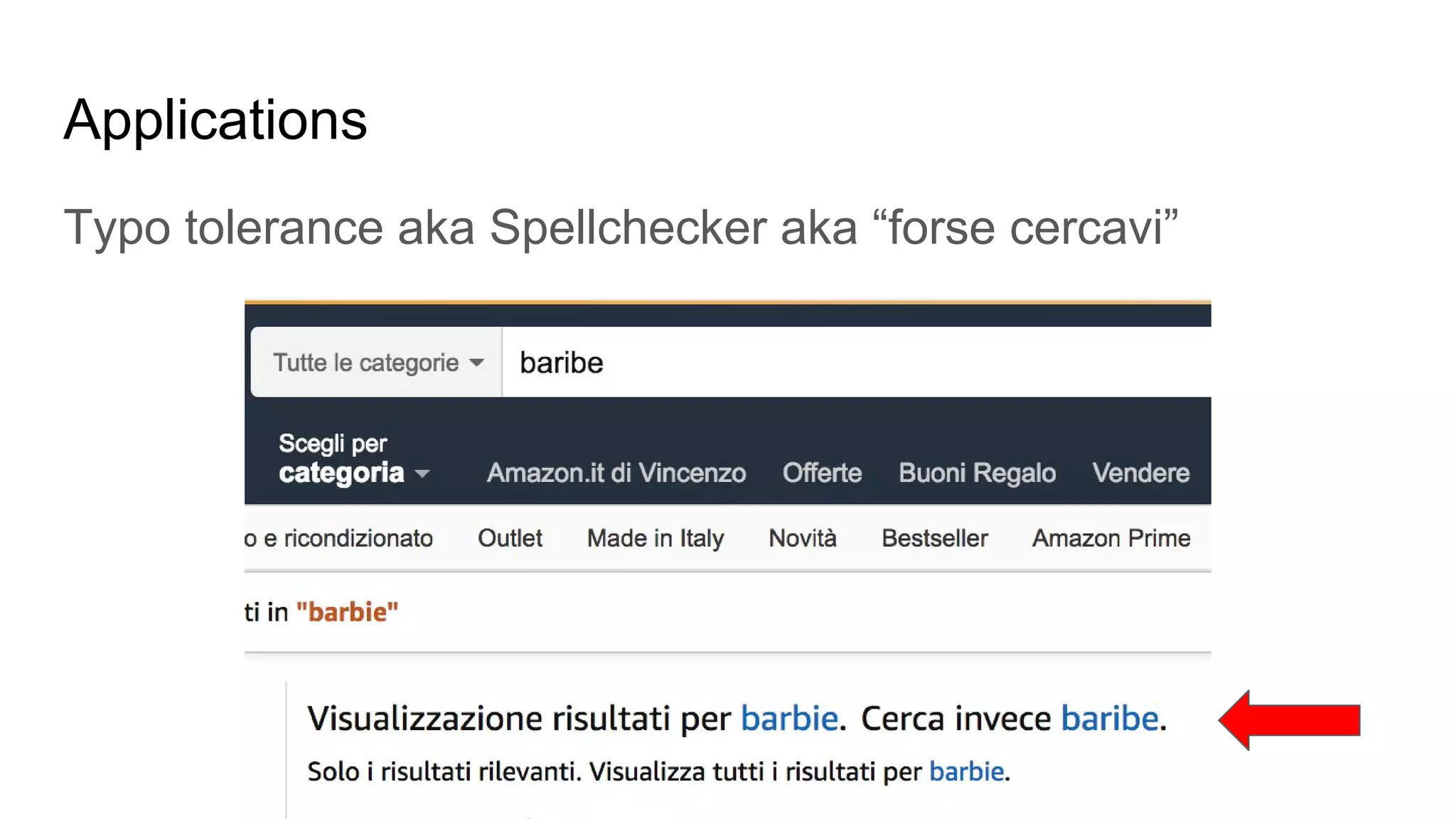

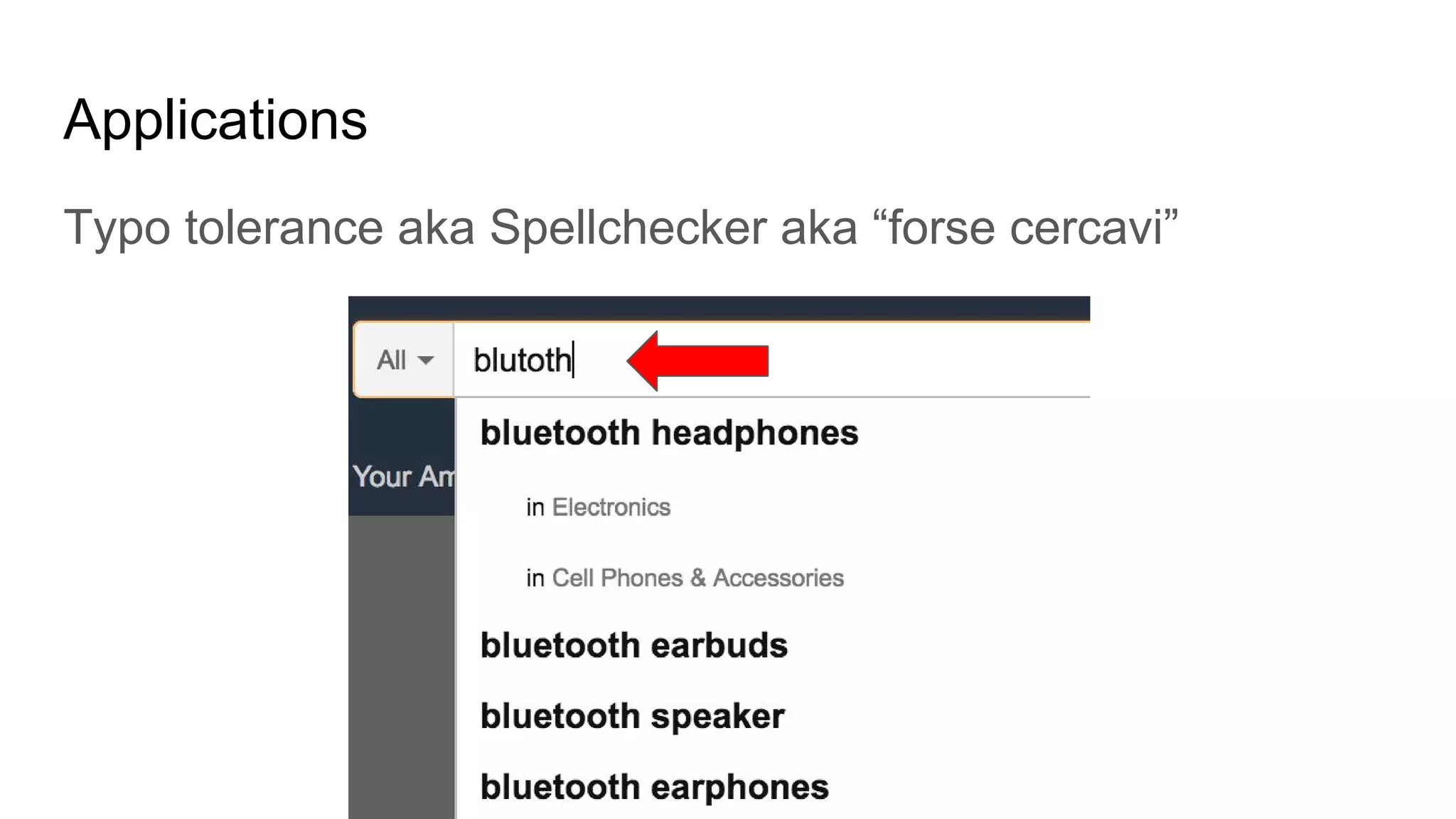

27. Applications
Typo tolerance aka Spellchecker aka “forse cercavi”

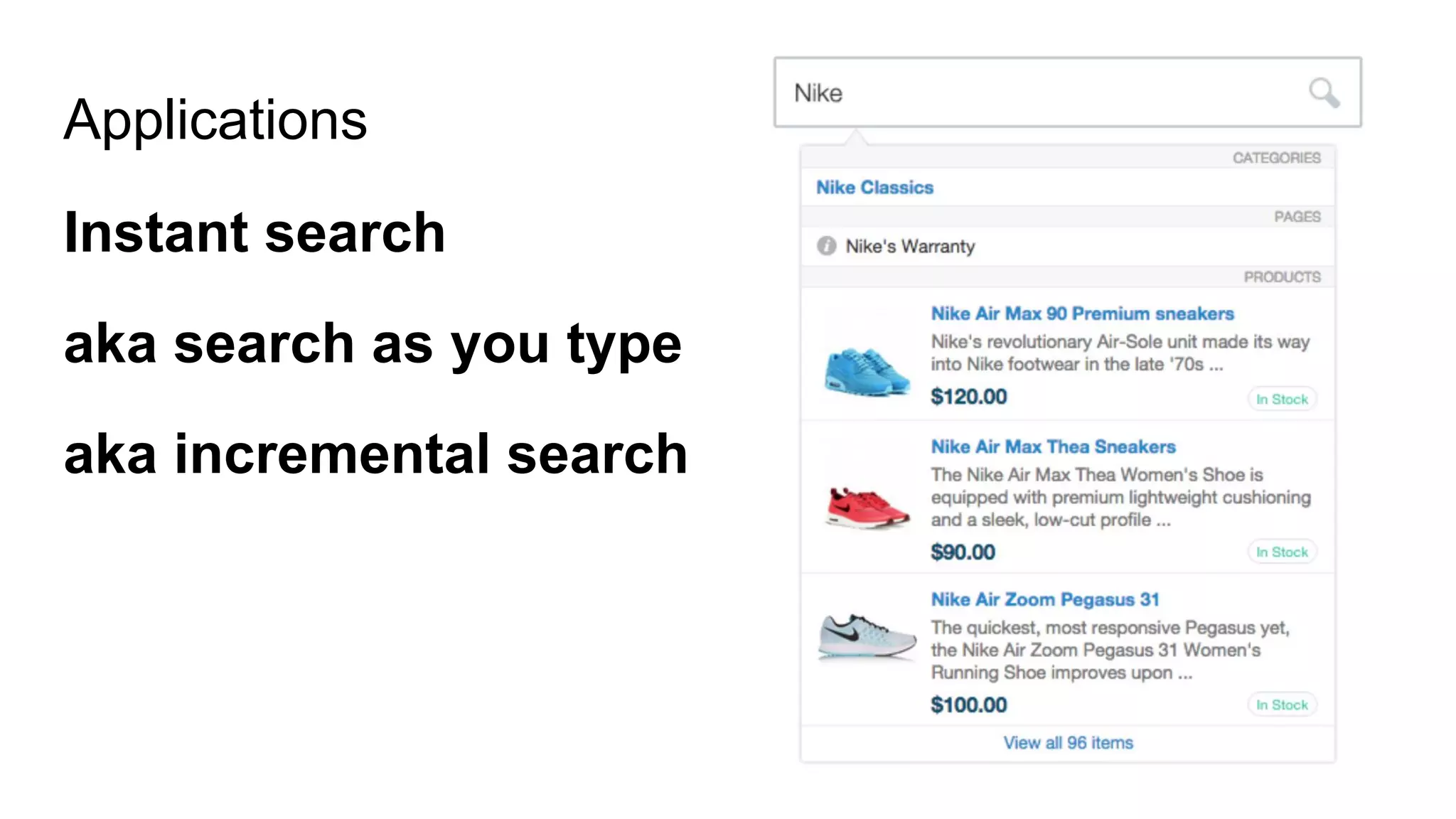

28. Applications
Instant search
aka search as you type
aka incremental search

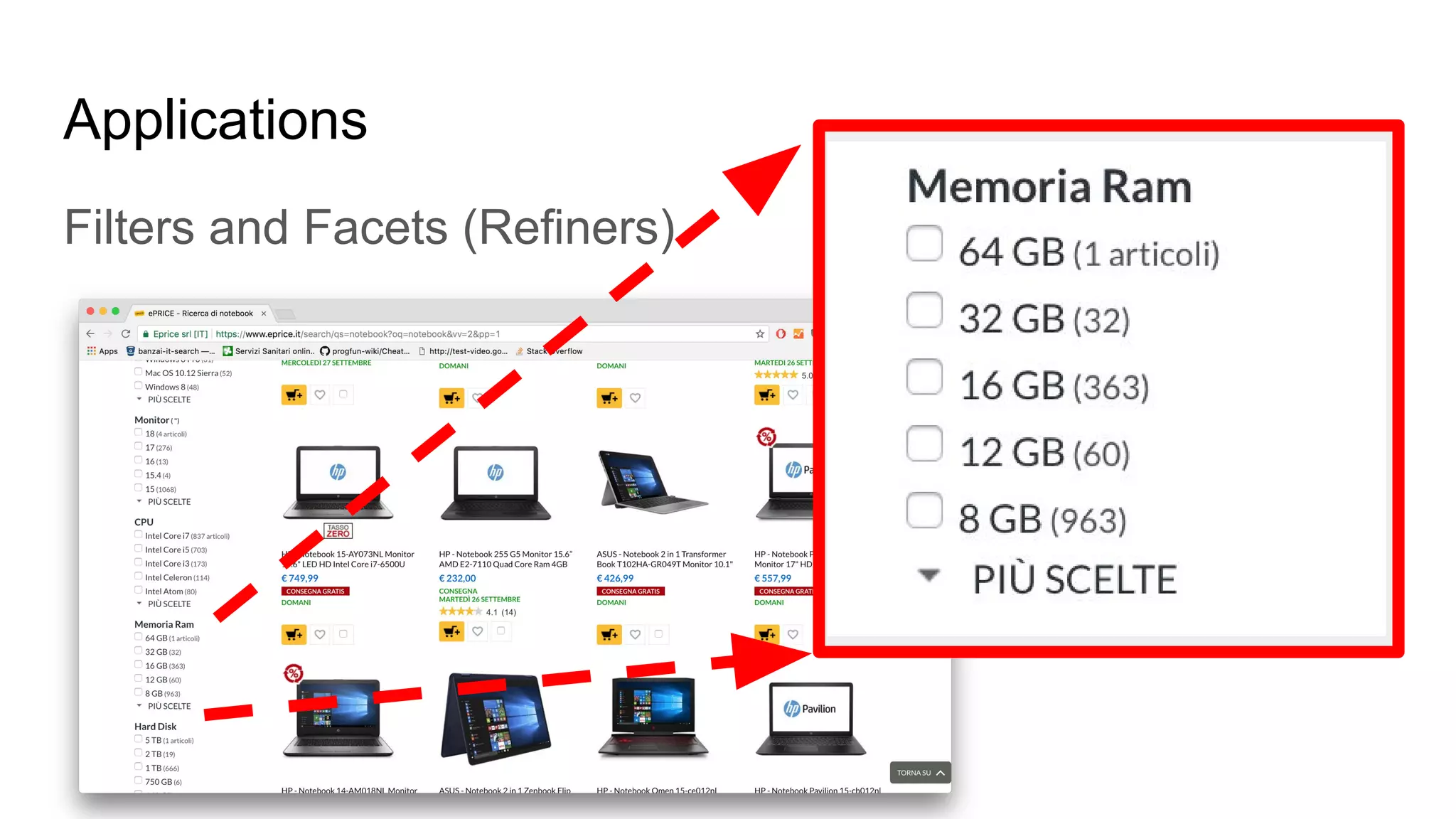

29. Applications
Filters and Facets (Refiners)

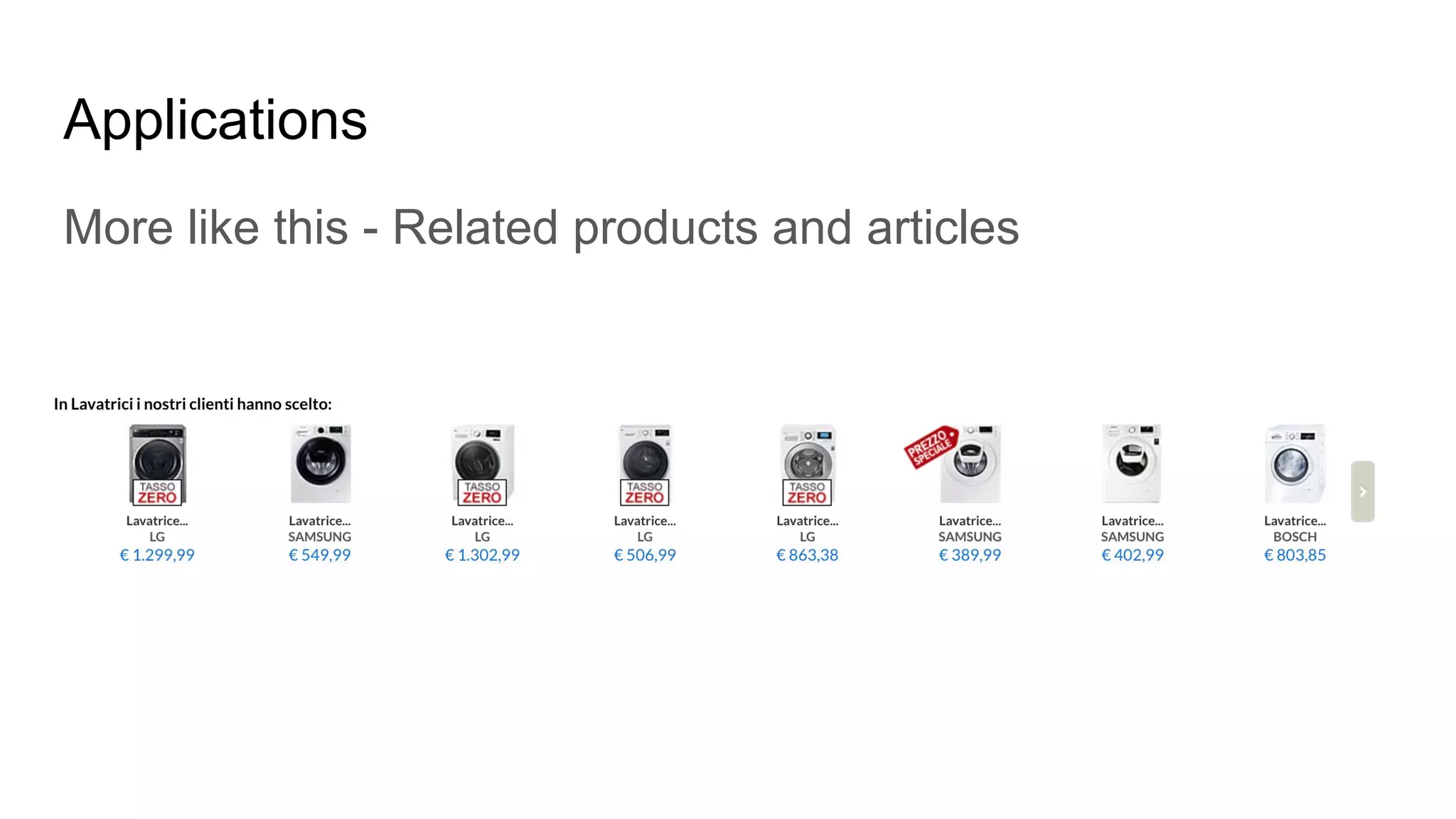

30. Applications
More like this - Related products and articles

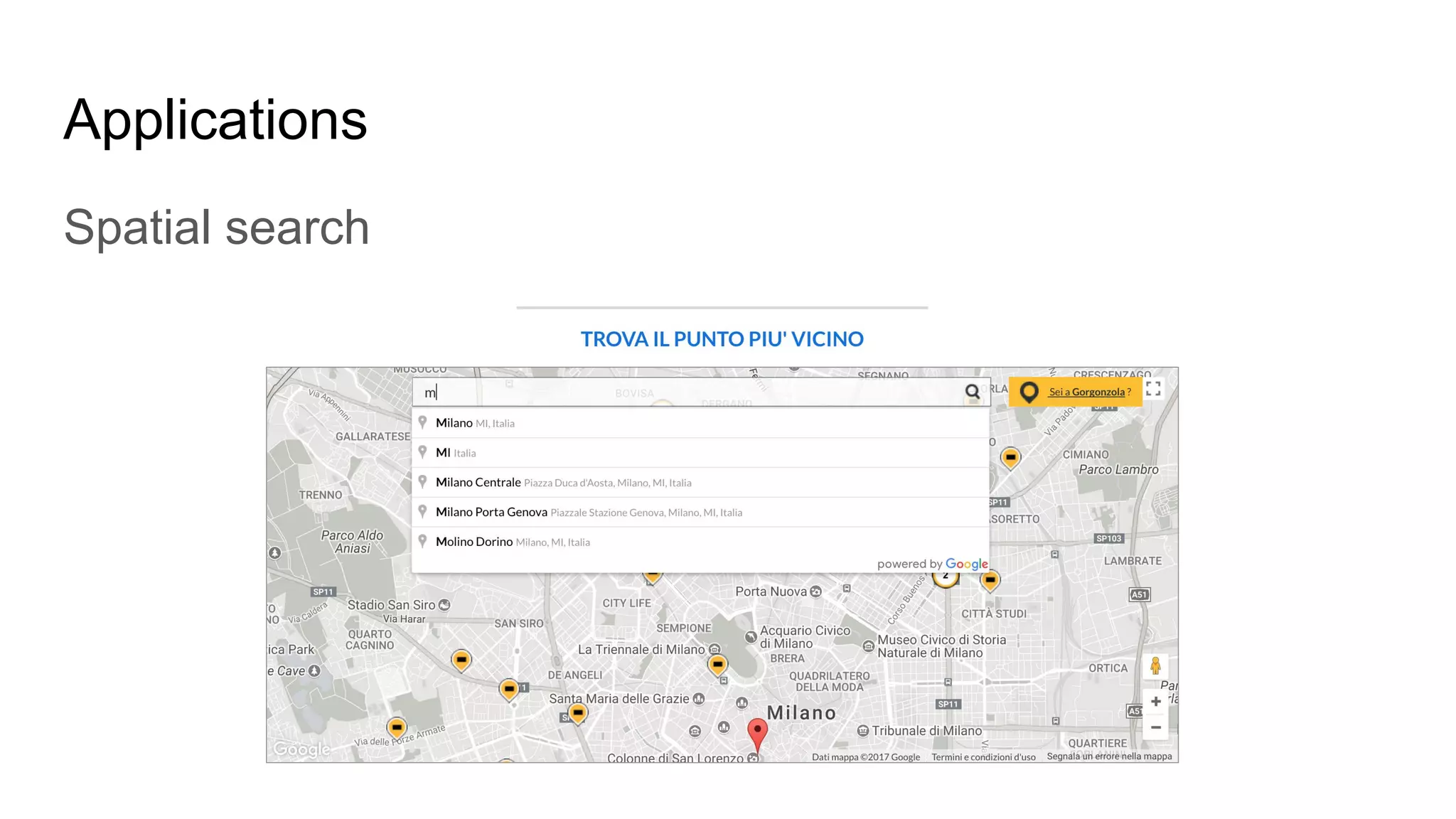

31. Applications
Spatial search

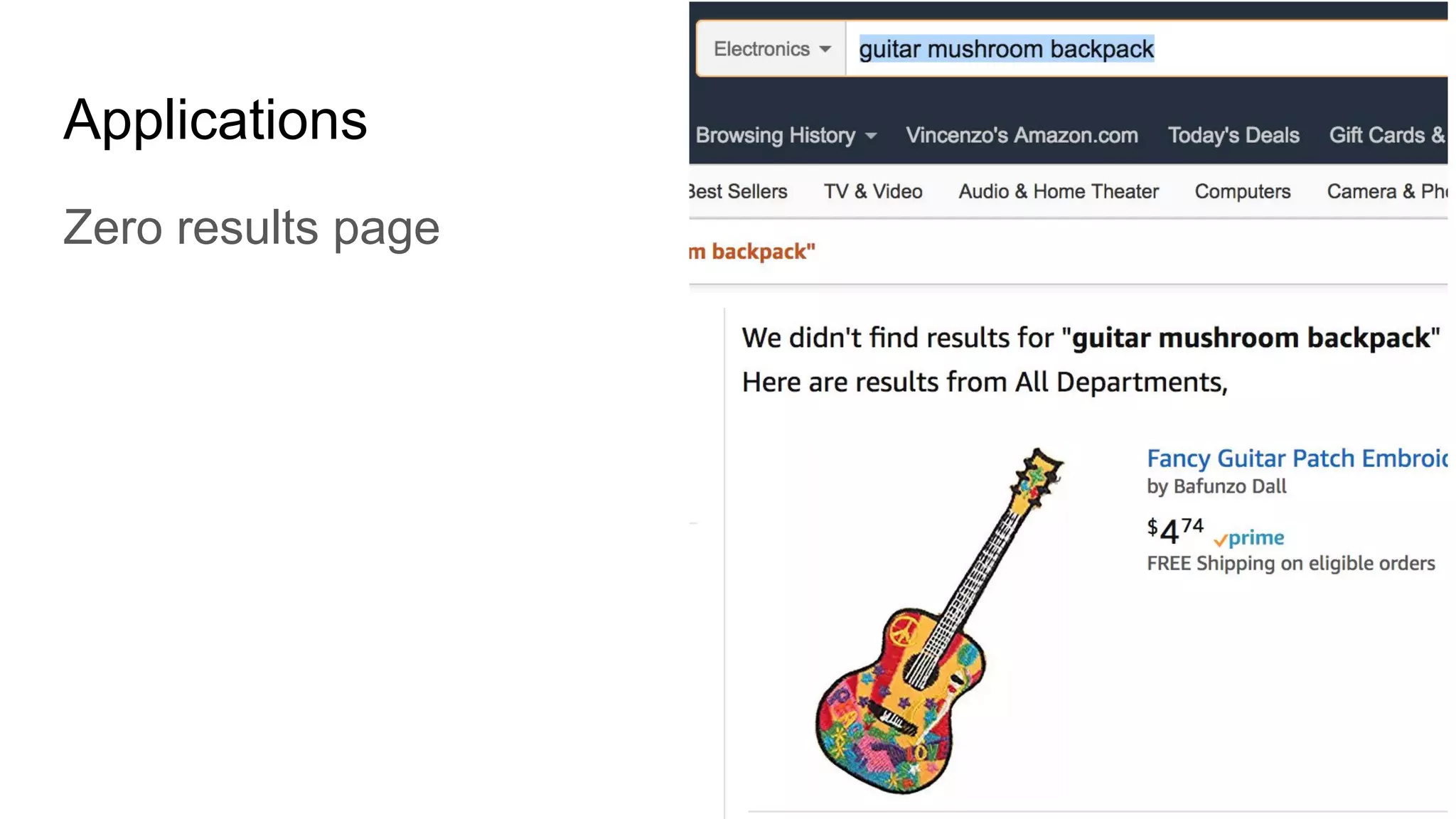

32. Applications
Zero results page

33. Text Retrieval Basics
A list of few basic concepts, principles
of Text Retrieval

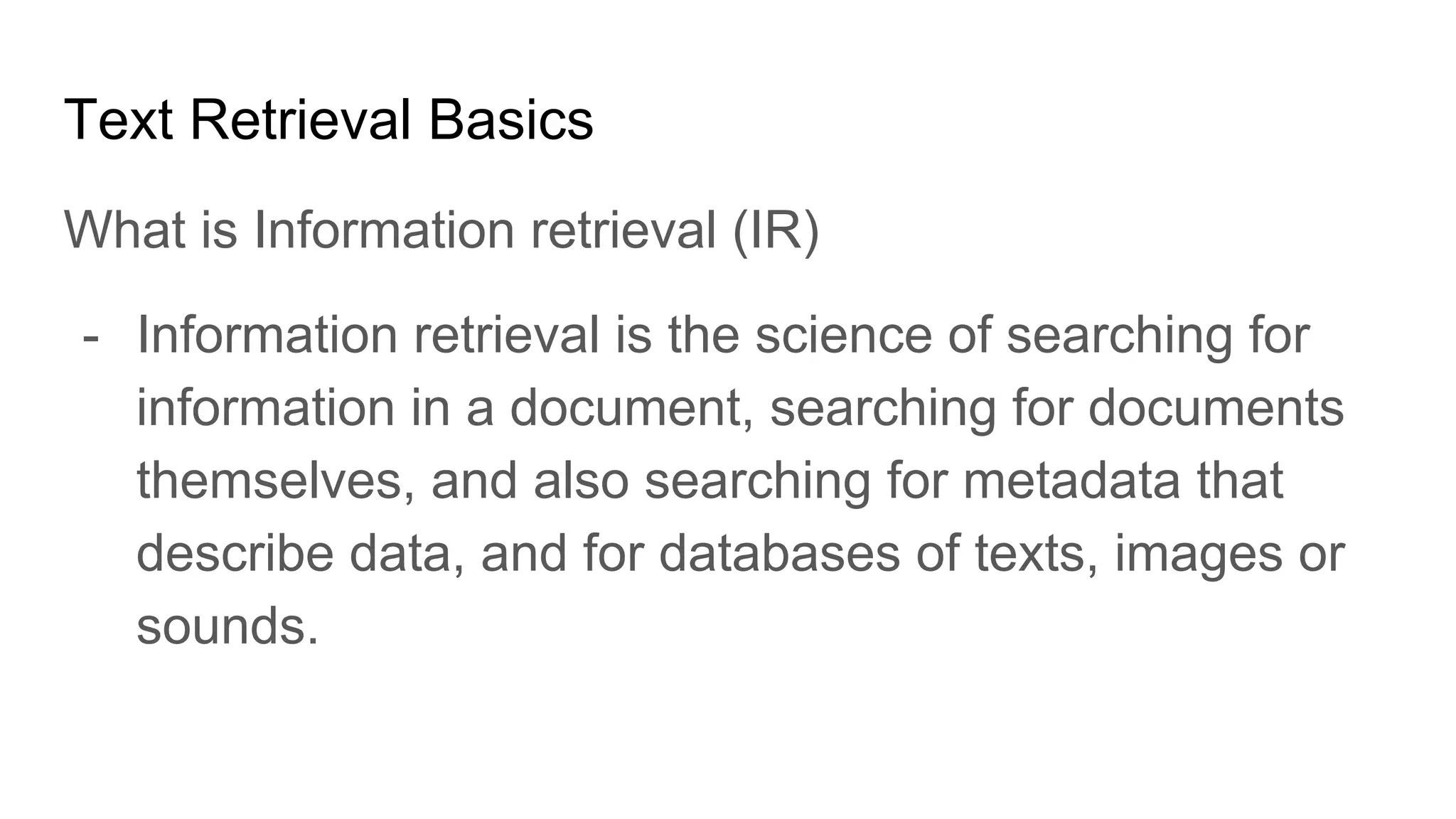

34. Text Retrieval Basics
What is Information retrieval (IR)
- Information retrieval is the science of searching for
information in a document, searching for documents
themselves, and also searching for metadata that
describe data, and for databases of texts, images or
sounds.

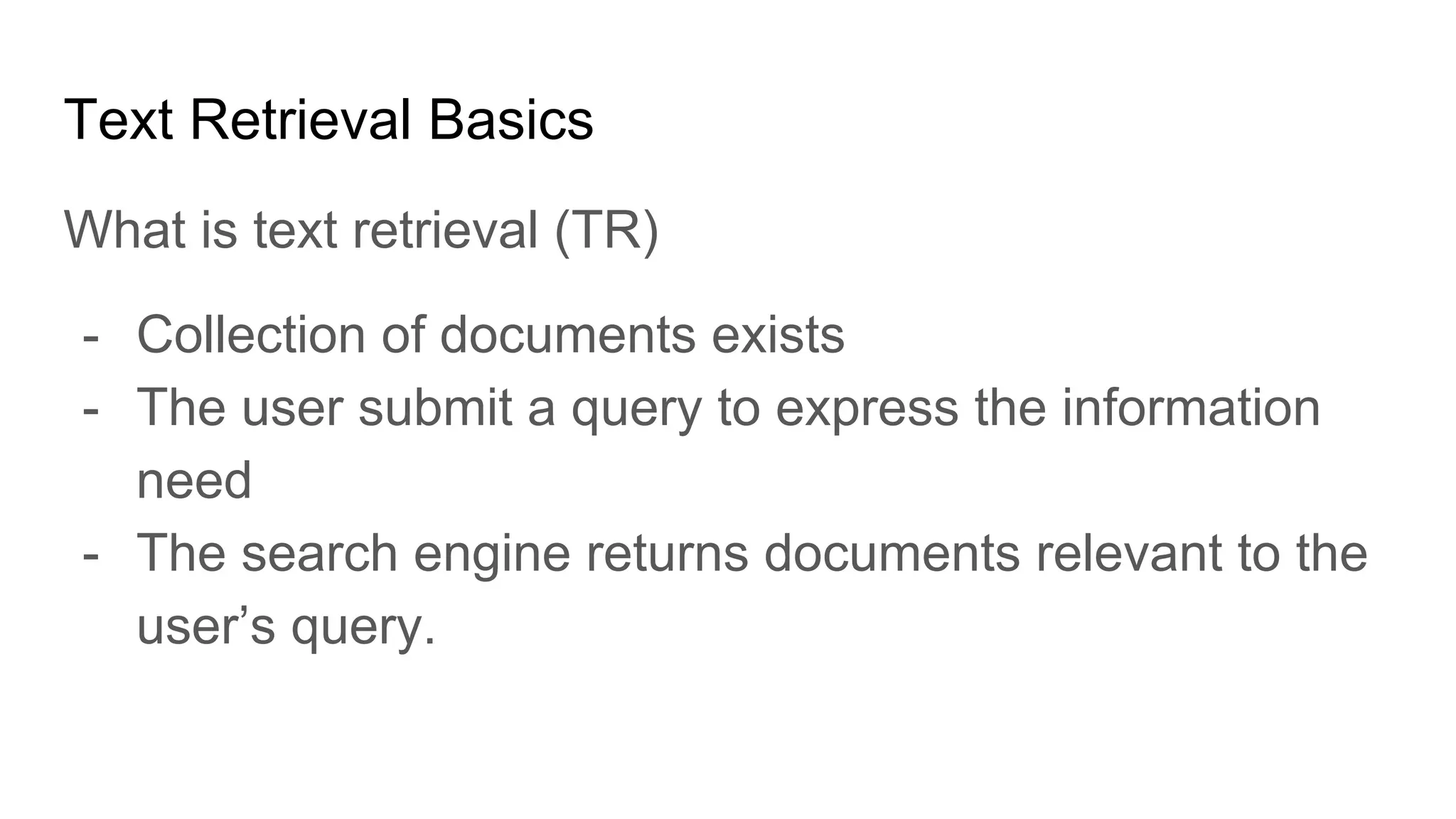

35. Text Retrieval Basics
What is text retrieval (TR)
- Collection of documents exists
- The user submit a query to express the information
need
- The search engine returns documents relevant to the
user’s query.

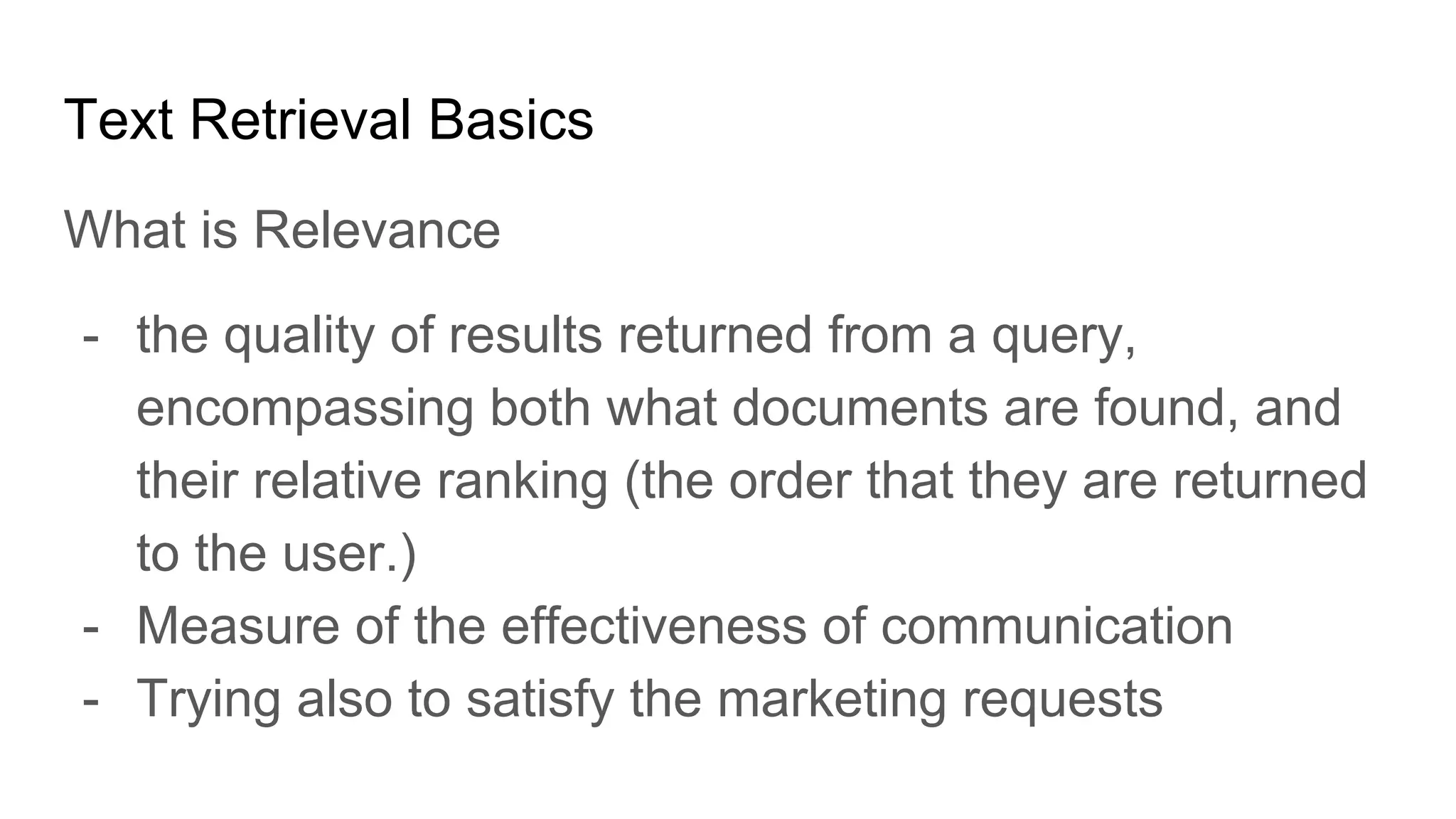

36. Text Retrieval Basics
What is Relevance
- the quality of results returned from a query,
encompassing both what documents are found, and
their relative ranking (the order that they are returned
to the user.)
- Measure of the effectiveness of communication
- Trying also to satisfy the marketing requests

37. Text Retrieval Basics
Access Mode: Push vs Pull

38. Text Retrieval Basics
Pull mode: Querying vs Browsing
Internet
Directory
VS

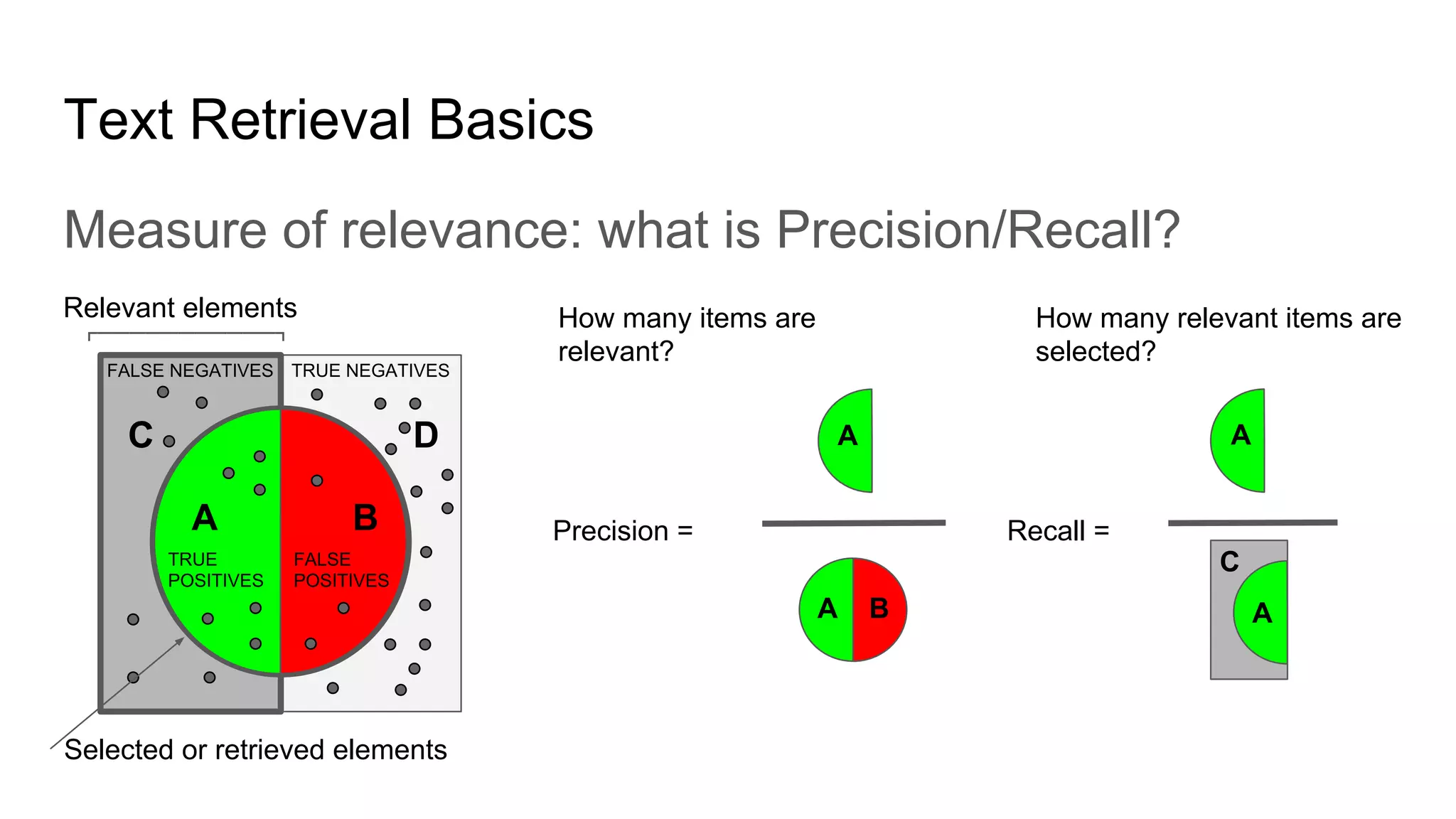

39. Text Retrieval Basics
Measure of relevance: what is Precision/Recall?
TRUE NEGATIVESFALSE NEGATIVES
TRUE
POSITIVES
FALSE
POSITIVES
Precision = Recall =
Selected or retrieved elements
How many items are
relevant?
How many relevant items are
selected?
Relevant elements
┏━━━━━━━━━━━┓
A B
C D A
A B A
C
A

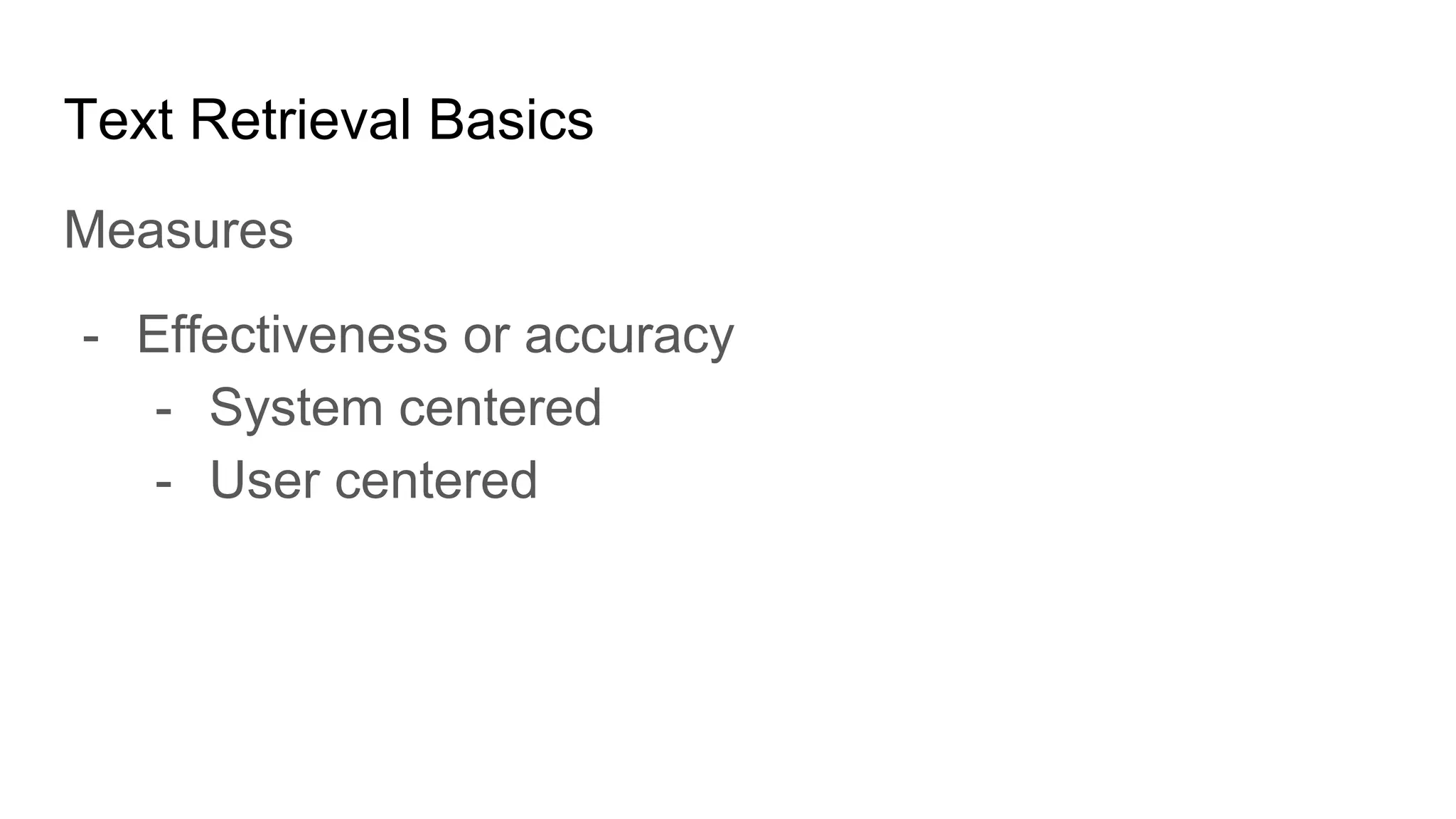

40. Text Retrieval Basics
Measures
- Effectiveness or accuracy
- System centered
- User centered

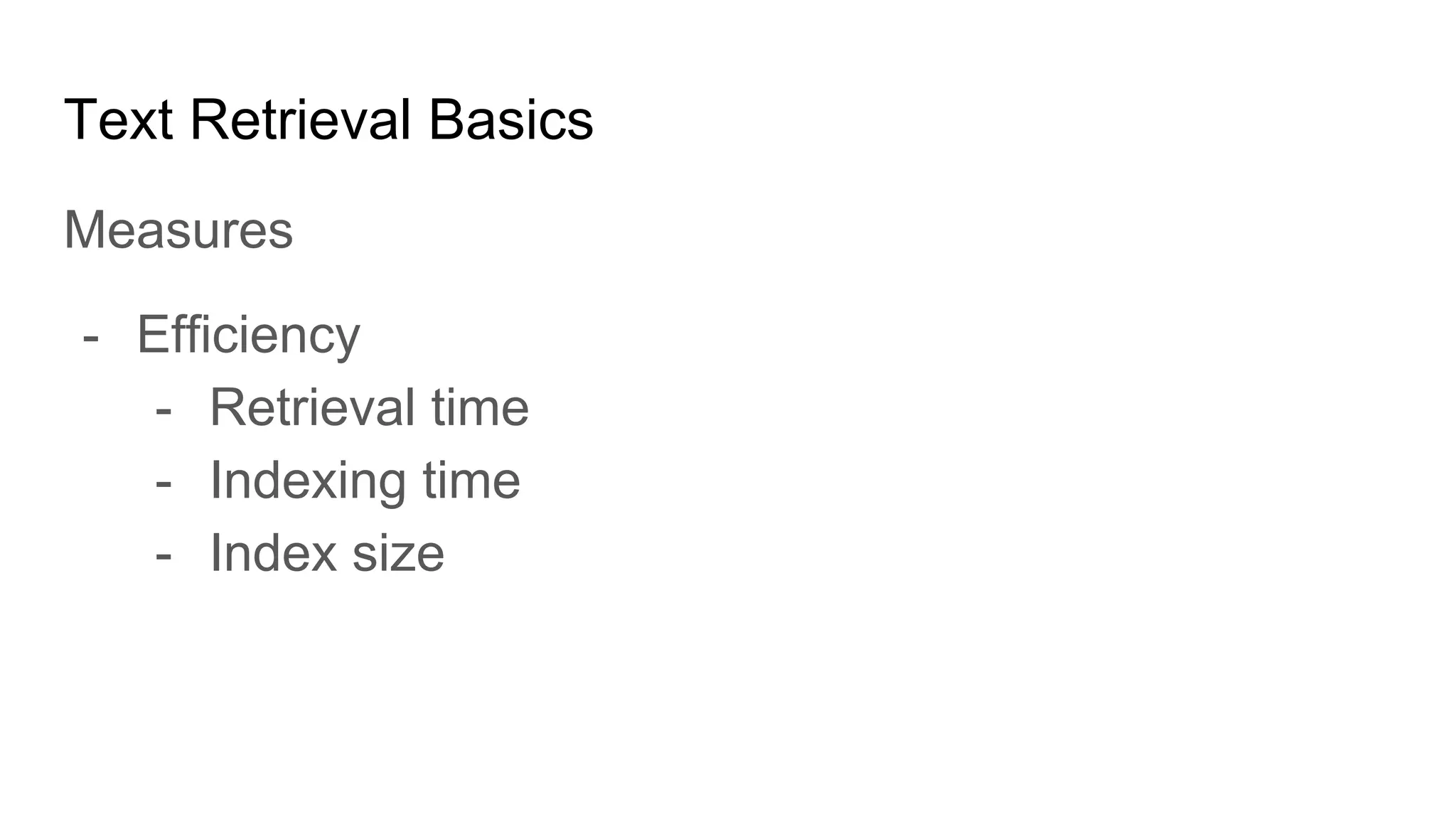

41. Text Retrieval Basics
Measures
- Efficiency
- Retrieval time
- Indexing time
- Index size

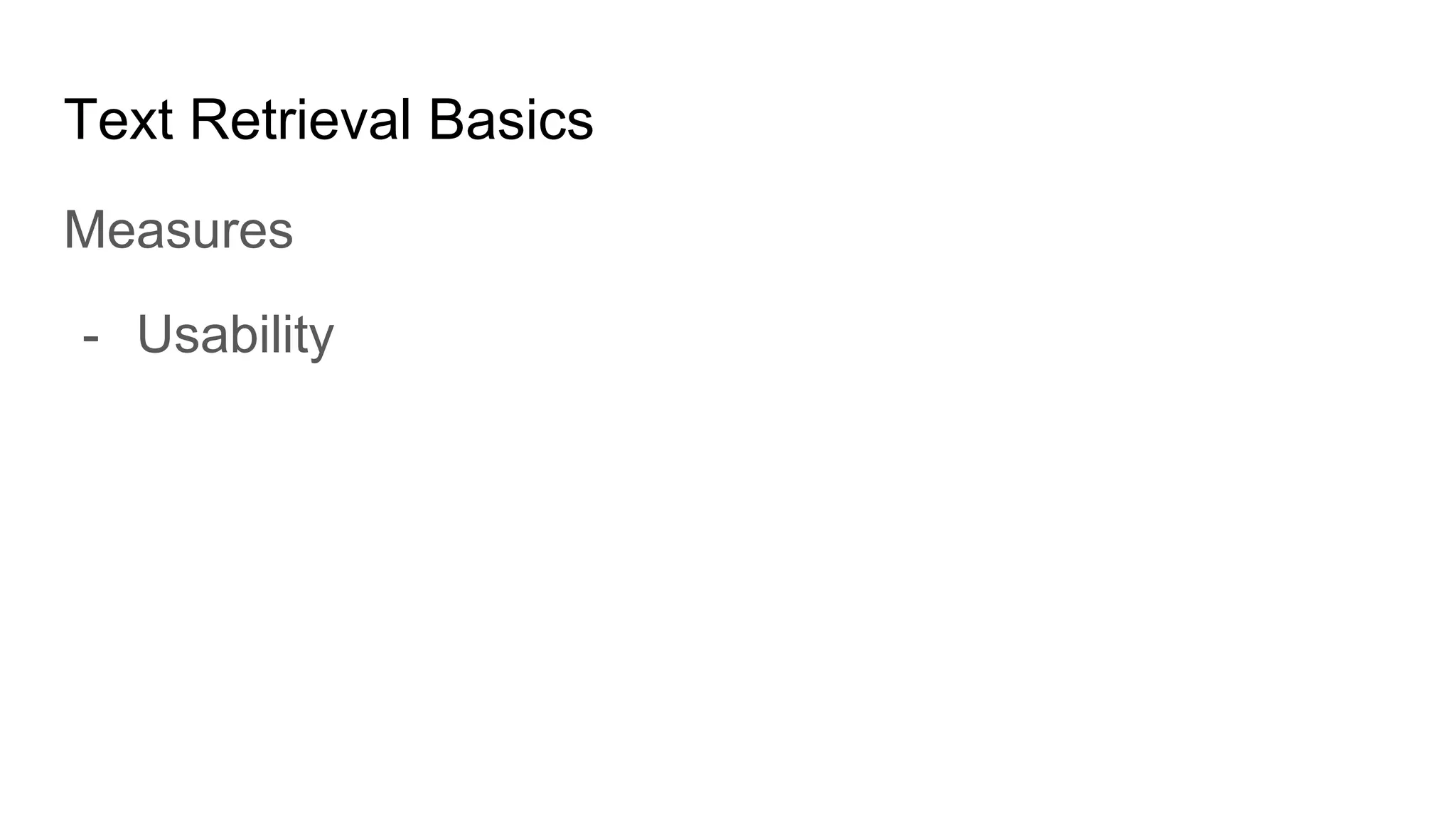

42. Text Retrieval Basics
Measures
- Usability

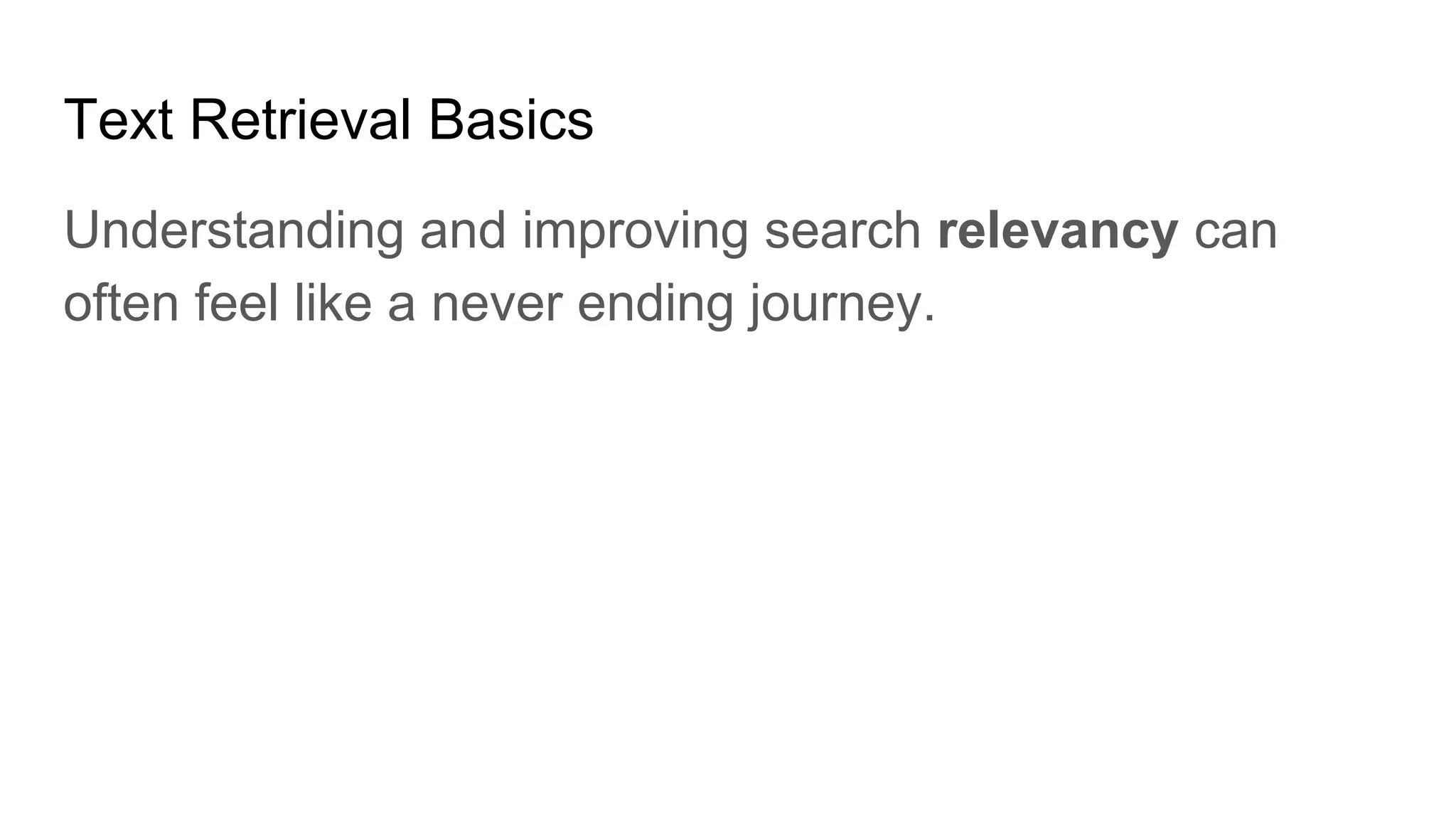

43. Text Retrieval Basics
Understanding and improving search relevancy can
often feel like a never ending journey.

44. Lucene vs Solr
Apache Lucene and Solr

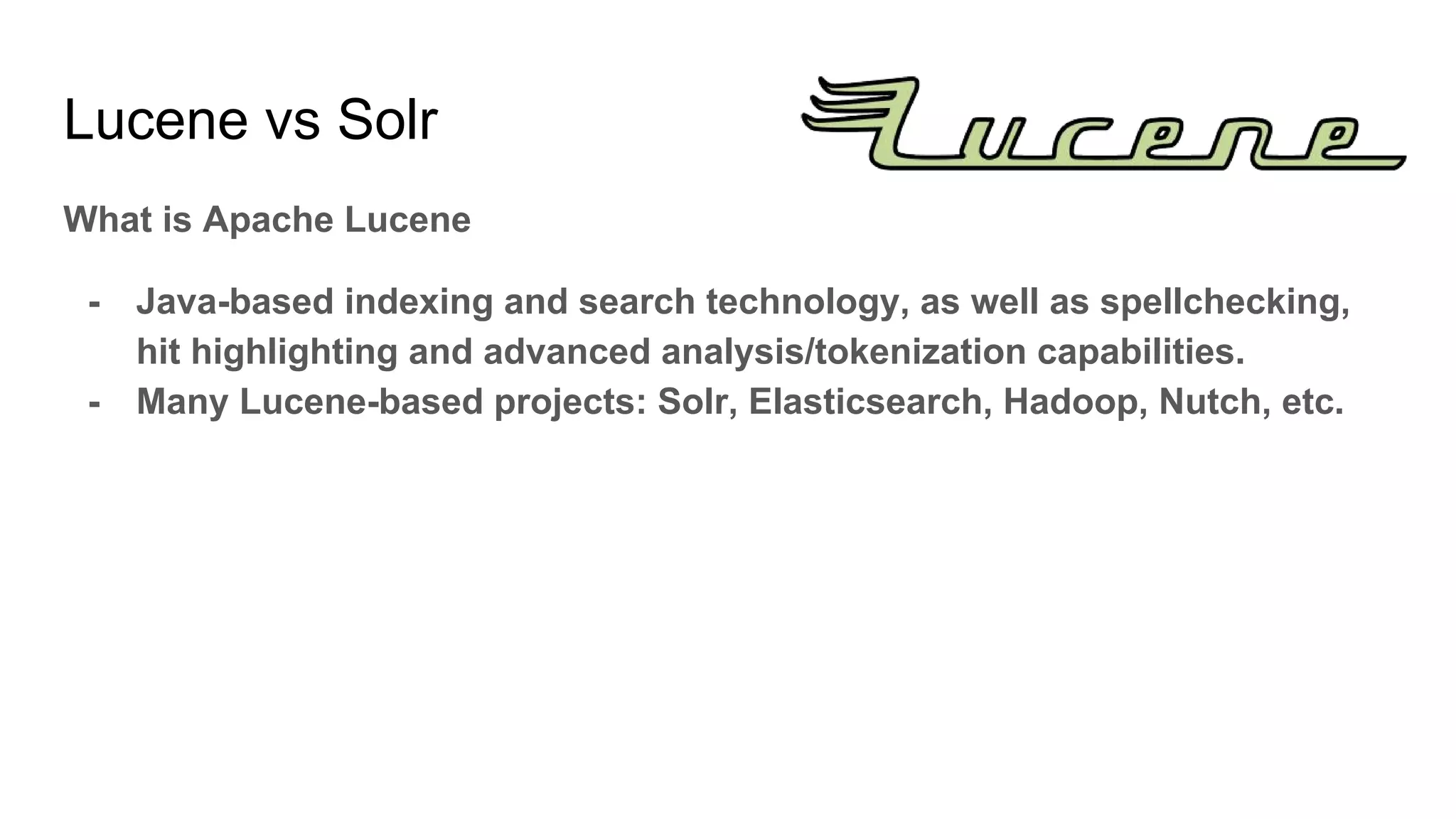

45. What is Apache Lucene
- Java-based indexing and search technology, as well as spellchecking,
hit highlighting and advanced analysis/tokenization capabilities.
- Many Lucene-based projects: Solr, Elasticsearch, Hadoop, Nutch, etc.
Lucene vs Solr

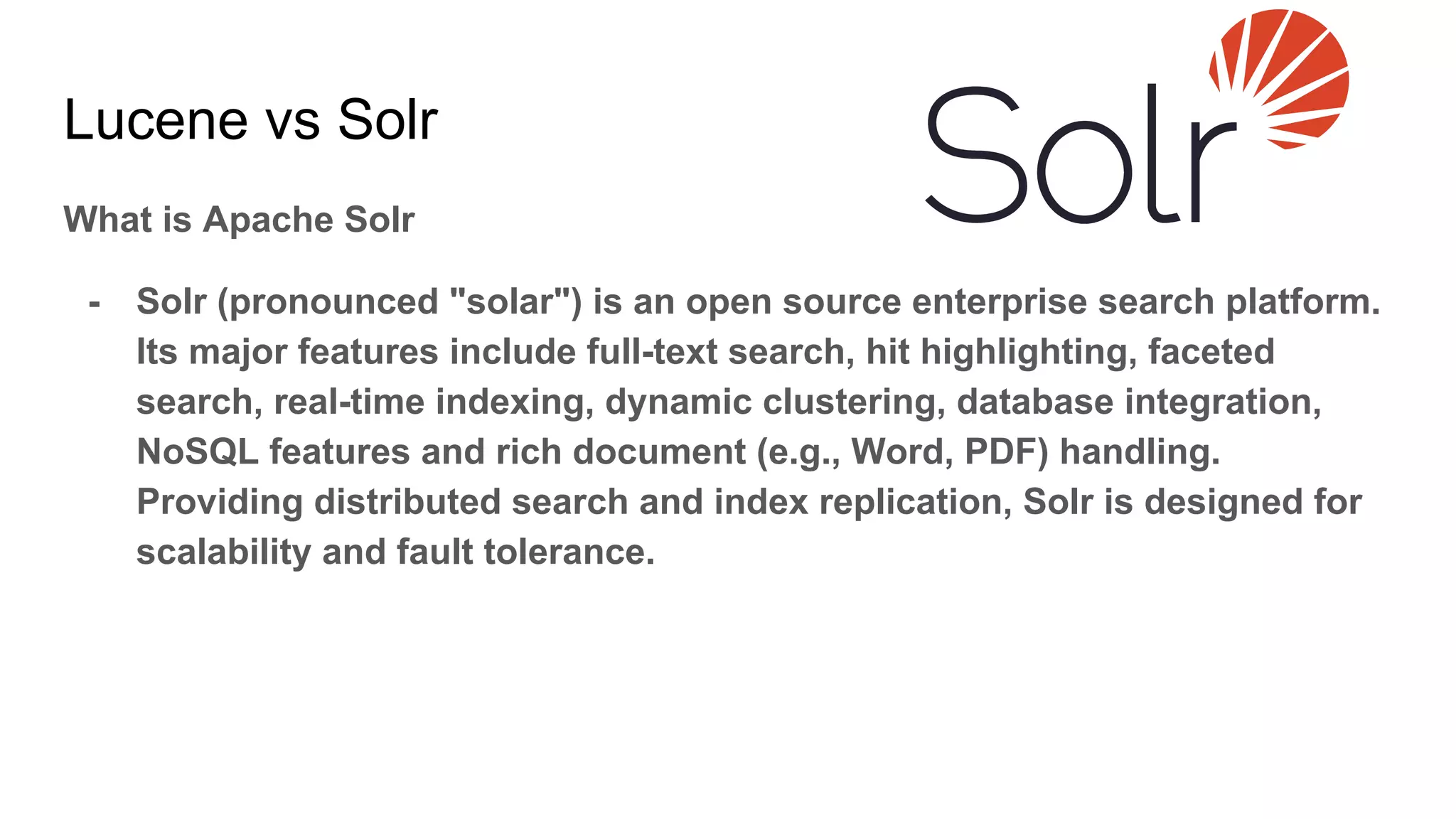

46. What is Apache Solr
- Solr (pronounced "solar") is an open source enterprise search platform.
Its major features include full-text search, hit highlighting, faceted
search, real-time indexing, dynamic clustering, database integration,
NoSQL features and rich document (e.g., Word, PDF) handling.
Providing distributed search and index replication, Solr is designed for
scalability and fault tolerance.
Lucene vs Solr

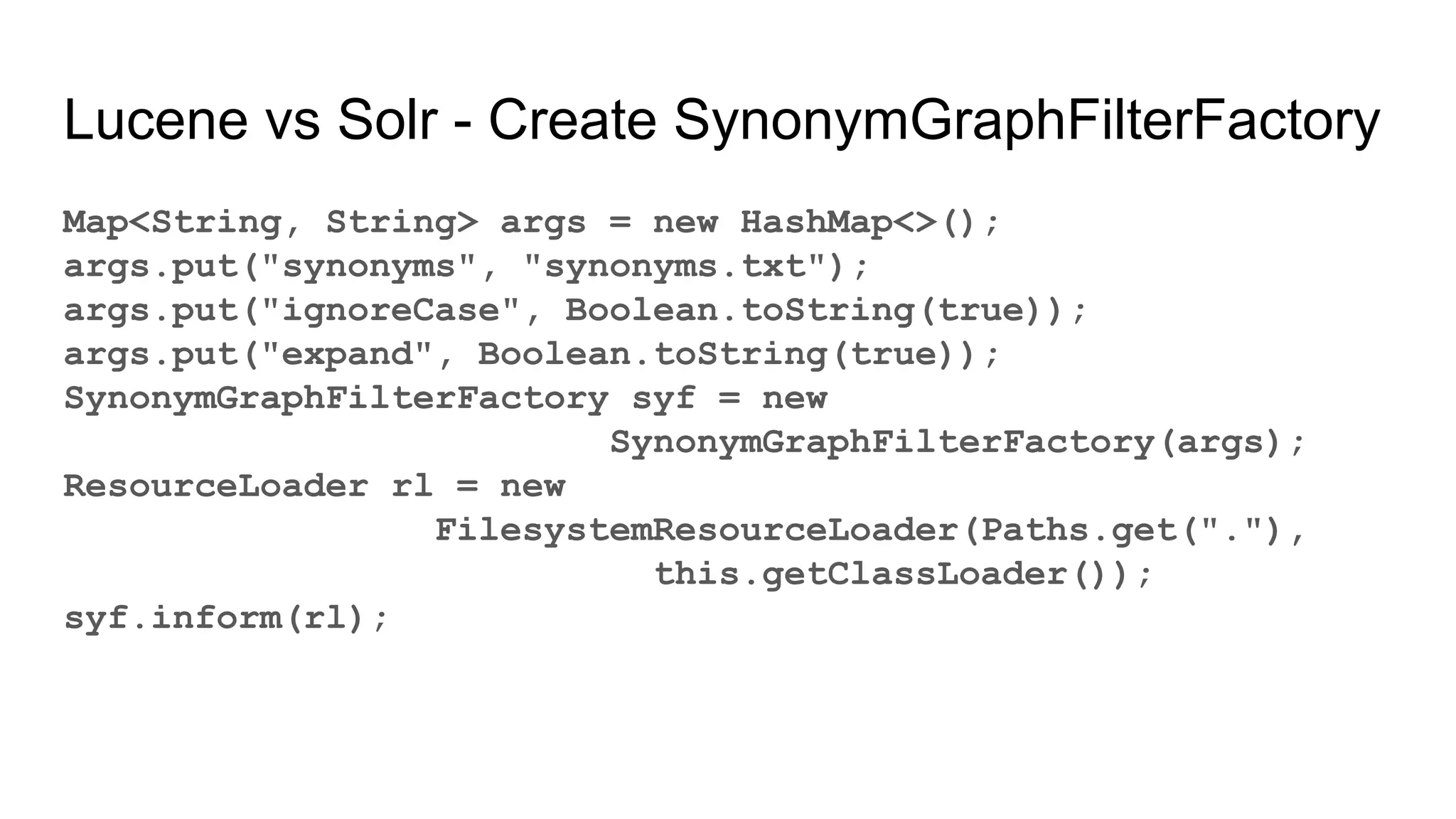

47. Lucene vs Solr - Create SynonymGraphFilterFactory
Map<String, String> args = new HashMap<>();
args.put("synonyms", "synonyms.txt");
args.put("ignoreCase", Boolean.toString(true));
args.put("expand", Boolean.toString(true));
SynonymGraphFilterFactory syf = new
SynonymGraphFilterFactory(args);
ResourceLoader rl = new
FilesystemResourceLoader(Paths.get("."),
this.getClassLoader());
syf.inform(rl);

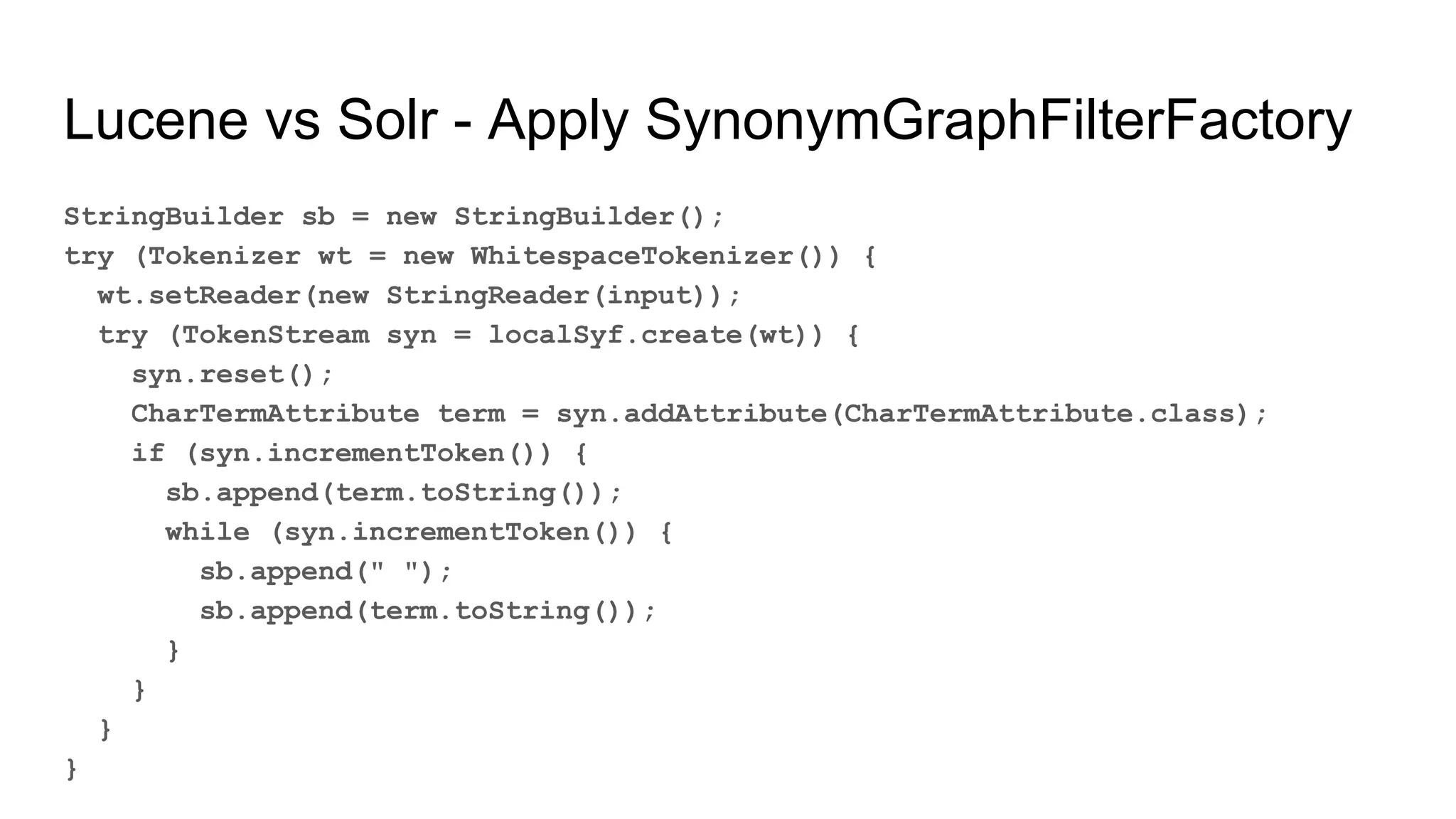

48. Lucene vs Solr - Apply SynonymGraphFilterFactory
StringBuilder sb = new StringBuilder();
try (Tokenizer wt = new WhitespaceTokenizer()) {
wt.setReader(new StringReader(input));
try (TokenStream syn = localSyf.create(wt)) {
syn.reset();
CharTermAttribute term = syn.addAttribute(CharTermAttribute.class);
if (syn.incrementToken()) {
sb.append(term.toString());
while (syn.incrementToken()) {
sb.append(" ");
sb.append(term.toString());
}
}
}
}

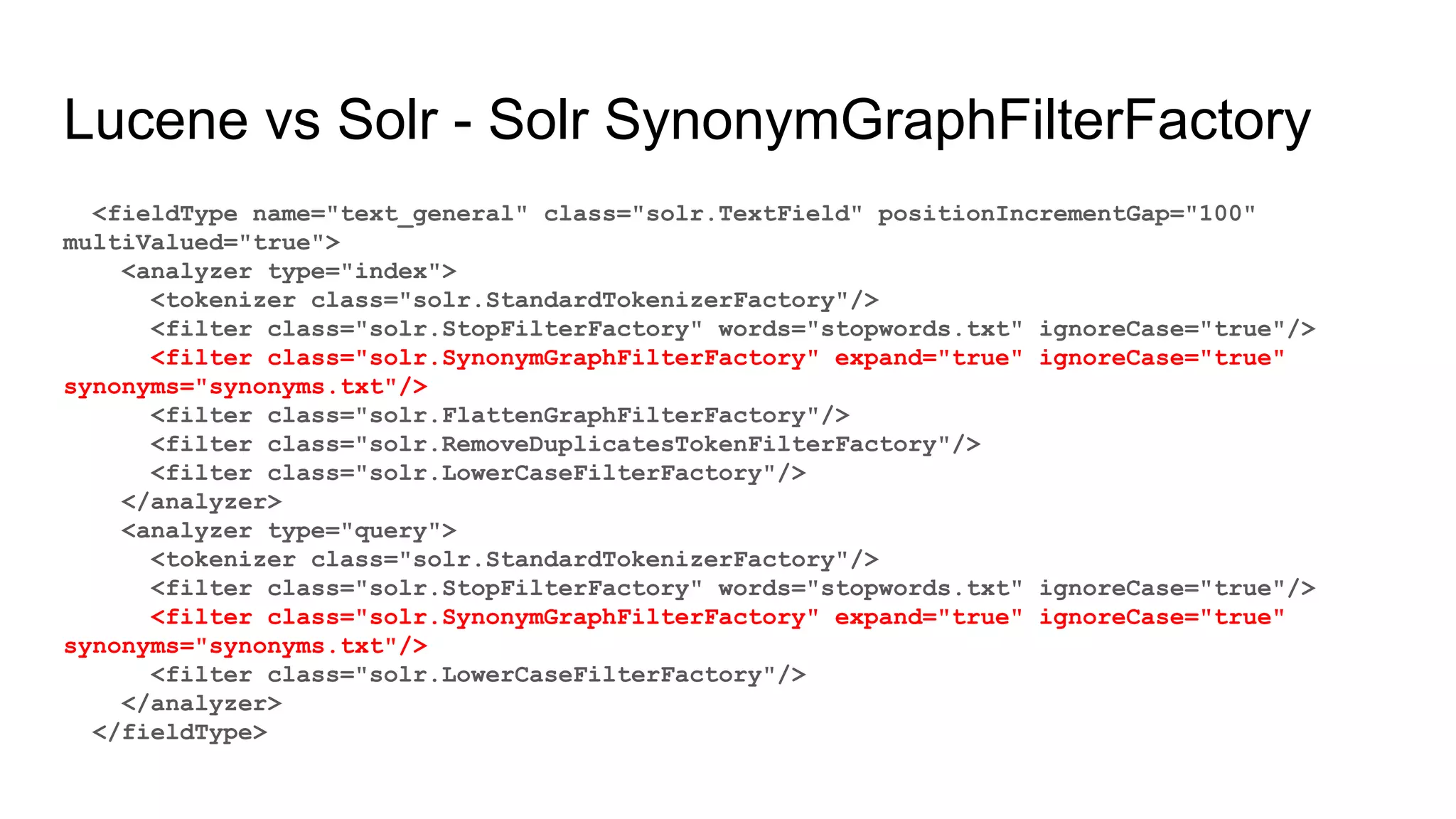

49. Lucene vs Solr - Solr SynonymGraphFilterFactory
<fieldType name="text_general" class="solr.TextField" positionIncrementGap="100"
multiValued="true">
<analyzer type="index">
<tokenizer class="solr.StandardTokenizerFactory"/>
<filter class="solr.StopFilterFactory" words="stopwords.txt" ignoreCase="true"/>
<filter class="solr.SynonymGraphFilterFactory" expand="true" ignoreCase="true"
synonyms="synonyms.txt"/>
<filter class="solr.FlattenGraphFilterFactory"/>
<filter class="solr.RemoveDuplicatesTokenFilterFactory"/>
<filter class="solr.LowerCaseFilterFactory"/>
</analyzer>
<analyzer type="query">
<tokenizer class="solr.StandardTokenizerFactory"/>
<filter class="solr.StopFilterFactory" words="stopwords.txt" ignoreCase="true"/>
<filter class="solr.SynonymGraphFilterFactory" expand="true" ignoreCase="true"
synonyms="synonyms.txt"/>
<filter class="solr.LowerCaseFilterFactory"/>
</analyzer>
</fieldType>

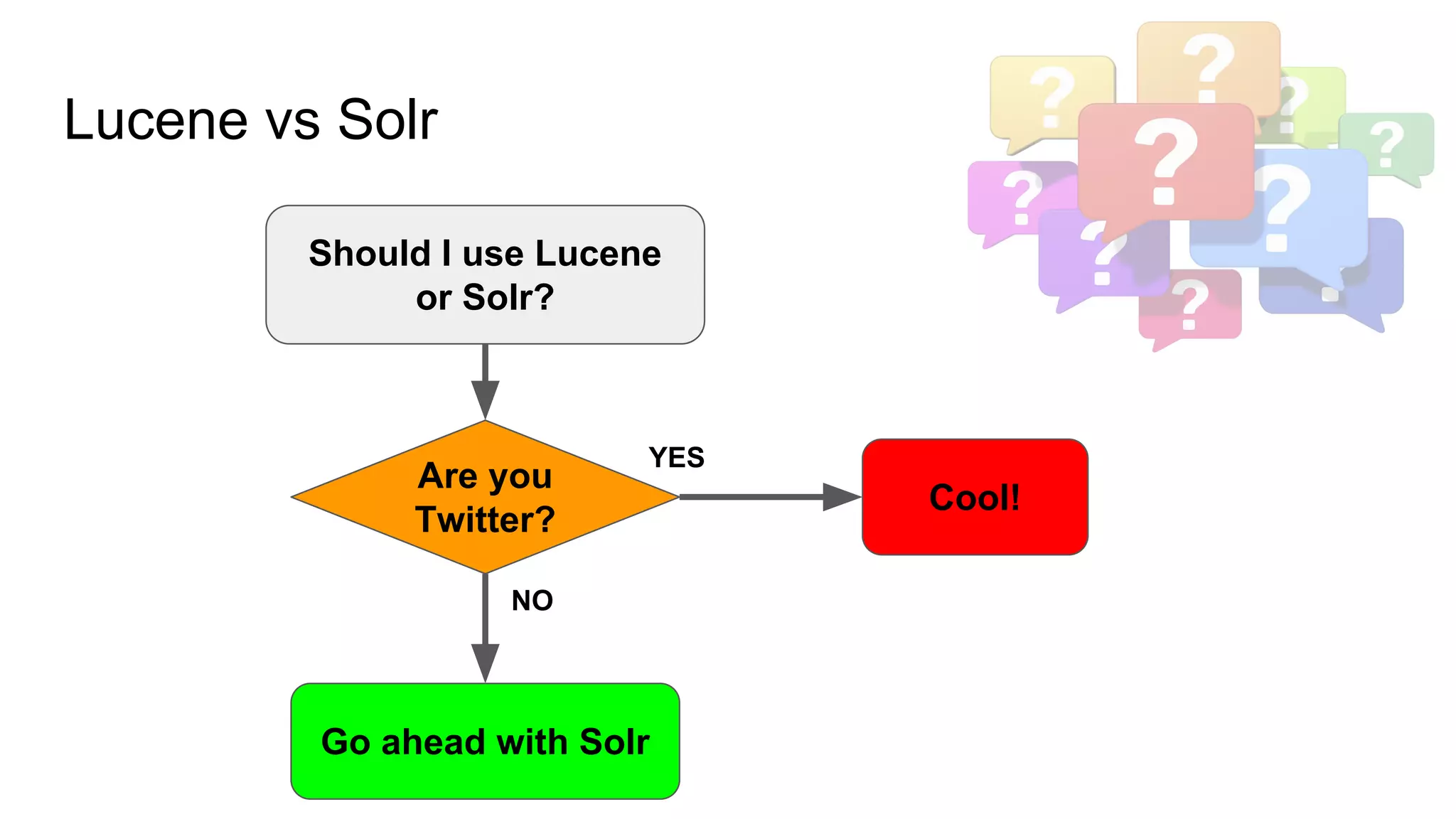

50. Lucene vs Solr
Go ahead with Solr
Should I use Lucene
or Solr?
Cool!
Are you
Twitter?
YES
NO

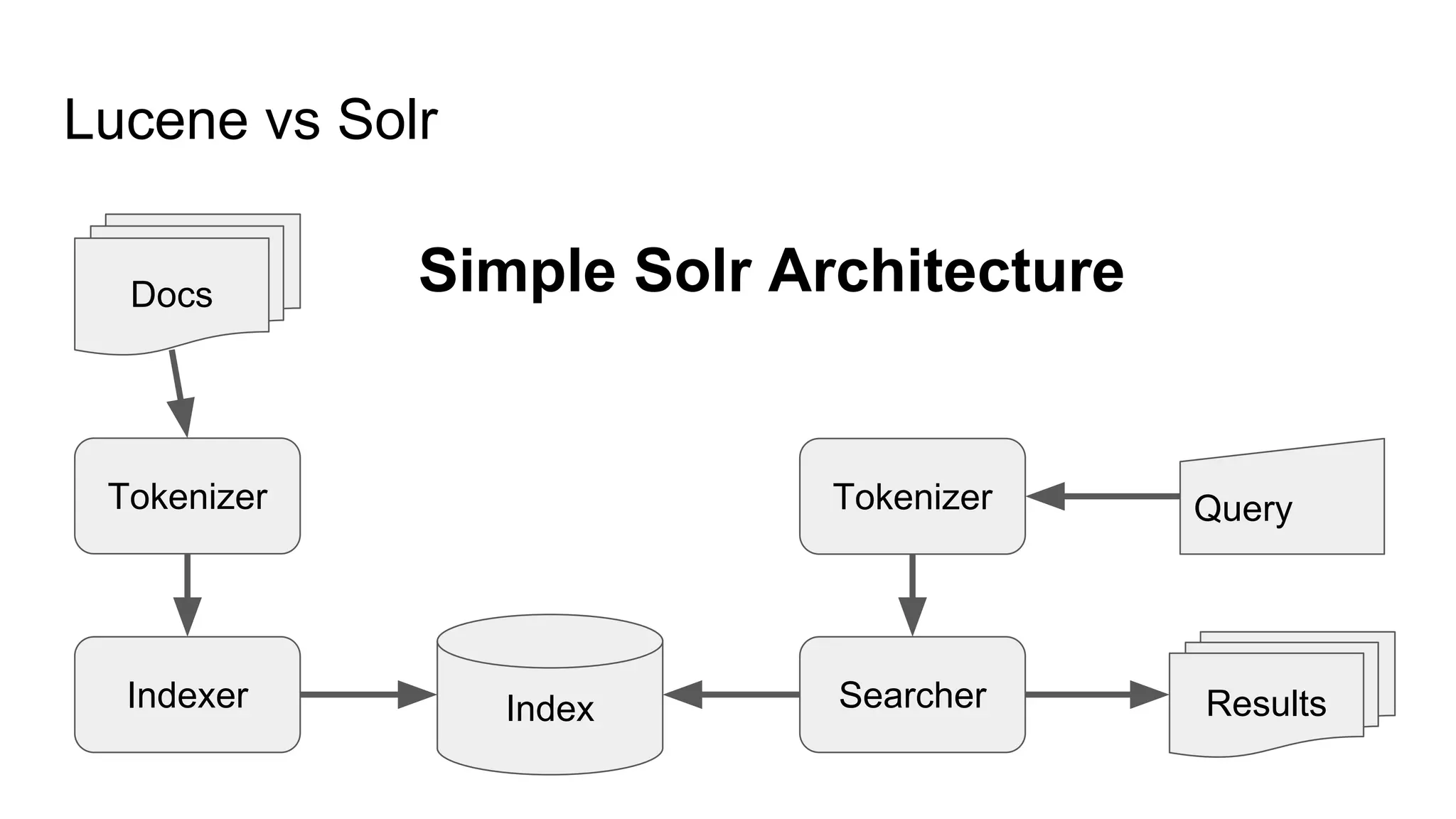

51. Lucene vs Solr
IndexIndexer Searcher Results
Tokenizer Tokenizer
Docs
Query
Simple Solr Architecture

52. Hands on Lucene &
Solr
A practical example of what Lucene & Solr
is

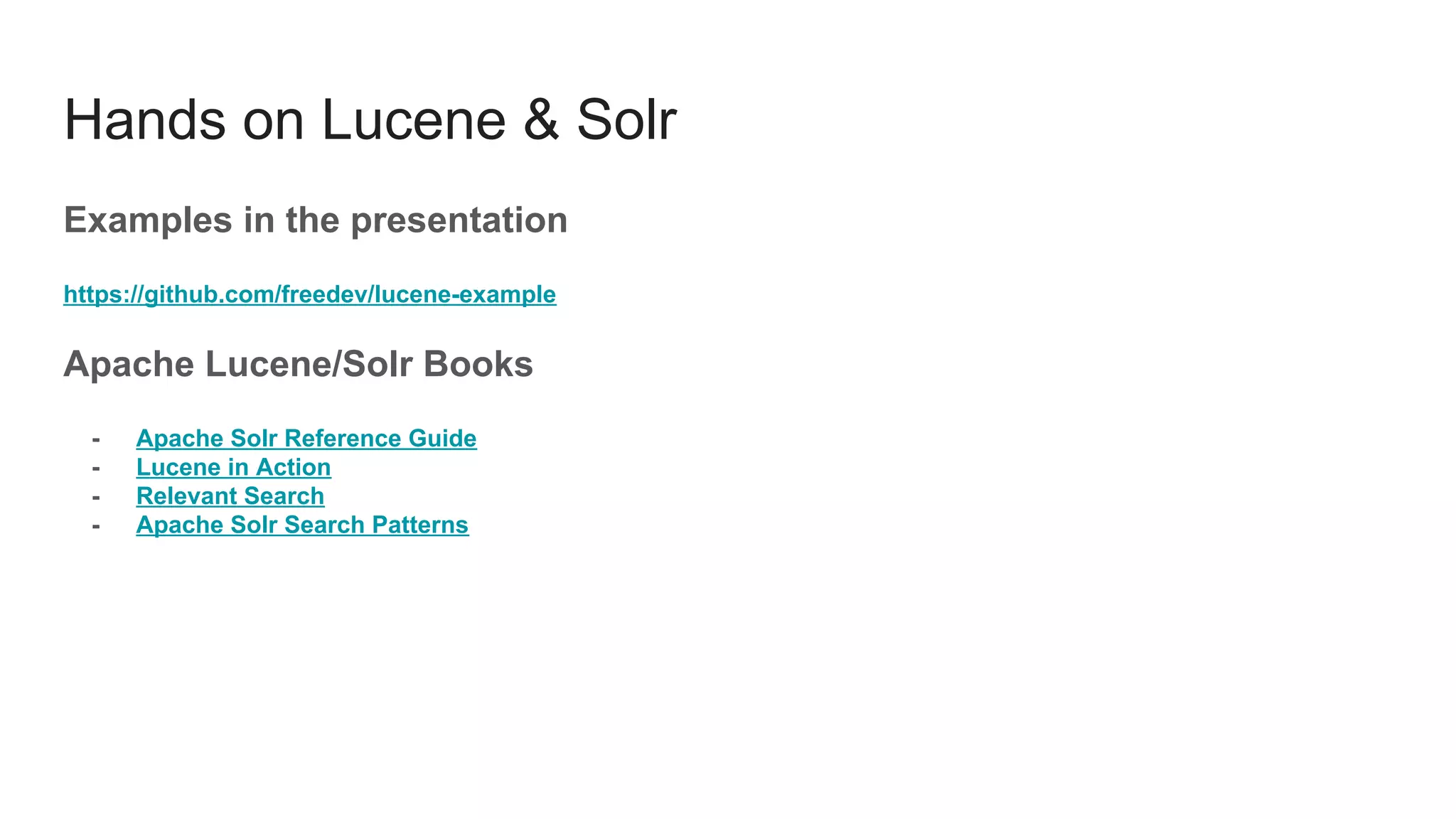

53. Hands on Lucene & Solr
Examples in the presentation
https://github.com/freedev/lucene-example
Apache Lucene/Solr Books
- Apache Solr Reference Guide
- Lucene in Action
- Relevant Search
- Apache Solr Search Patterns
