This document discusses architecting an enterprise storage platform using object stores. It summarizes MagFS, a file system designed for the cloud that is layered on top of object storage. Key points include: - MagFS provides a consistent, elastic, secure and mobile-enabled file system experience while leveraging low-cost object storage. - The client architecture pushes intelligence to edges for heavy lifting like encryption, deduplication, and caching while coordinating with metadata servers. - Metadata servers enforce strong consistency, authentication, and garbage collection while optimizing performance through virtualization and lease-based caching. - Security is ensured through server-driven request signing and scrubbing writes to object storage after client acknowledgment

1. Architecting an Enterprise Storage
Platform Using Object Stores
© mekuria getinet / www.mekuriageti.net
Niraj Tolia
Chief Architect, Maginatics
@nirajtolia

2. A Whirlwind Tour

3. Awesome Questions == AwesomeT-shirts

4. 80%YoY Growth in
Unstructured Data
41% Growth in IaaS
Systems through 2016
Sources:
Gartner, IT Marketing Clock for Storage, Sep 2011
Gartner, Forecast Overview: Public Cloud Services, Worldwide, 2011-2016, Feb 2013

5. MagFS –The File System for the Cloud
Consistent, Elastic, Secure, Mobile-Enabled
Layered on Object Stores
“Software-Defined”

6. No (Initial) Legacy
Support (NFS/CIFS)
Native Clients: Push
Intelligence to Edges
Strong Consistency w/
Full-Spectrum Caching

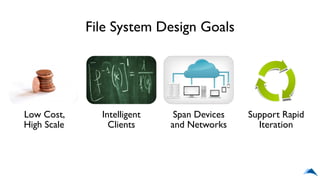

7. File System Design Goals
Low Cost,
High Scale
Intelligent
Clients
Span Devices
and Networks
Support Rapid
Iteration

8. In-Cloud
File System
NAS Replacement
and Consolidation
Enterprise File
Sharing
Use Cases

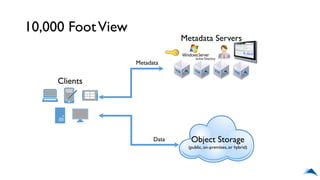

9. Object Storage
(public, on-premises,or hybrid)
Data
Metadata
Metadata Servers
Clients
10,000 FootView

10. Koukouvaya / flickr.com/photos/jackoughton/6535137981/
Heavy (Data) Lifting via Clients
Encryption
Inline Deduplication
Compression
Persistent Data Caching
Bulk DataTransfers

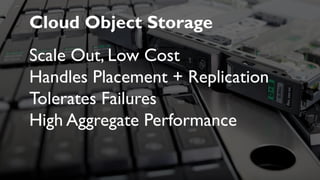

11. Cloud Object Storage
Scale Out, Low Cost
Handles Placement + Replication
Tolerates Failures
High Aggregate Performance

12. Virtualized Metadata Servers
Enforce Strong Consistency
Enforce Authentication and Integrity
Runtime Performance Optimization
Share-level Deduplication
Data Scrubbing & Garbage Collection

13. Architecture

14. Client
Architecture

15. Client Architecture
Application
Redirector
(e.g., FUSE)
File System
OS Glue
Data Manager
MetadataTransport
Layer
Local Remote
Userspace
Kernel
Deduplication Encryption Compression
Locking Leases

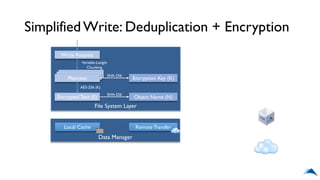

16. Data Manager
File System Layer
SimplifiedWrite: Deduplication + Encryption
Write Request
Plaintext
Variable-Length
Chunking
Encrypted Text (E)
AES-256 (K)
Object Name (N)
SHA-256
Local Cache Remote Transfer
Encryption Key (K)
SHA-256

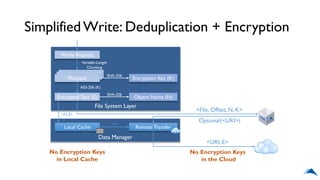

17. Data Manager
File System Layer
SimplifiedWrite: Deduplication + Encryption
Write Request
Plaintext
Variable-Length
Chunking
Encrypted Text (E)
AES-256 (K)
Object Name (N)
SHA-256
<File, Offset, N, K>
Optional(<URI>)
Local Cache Remote Transfer
<N, E>
<URI, E>
No Encryption Keys
in the Cloud
No Encryption Keys
in Local Cache
Encryption Key (K)
SHA-256
<E>

18. Data Manager
File System Layer
Simplified Read: Deduplication + Encryption
Read Request
<File, Offset, Range>
Local Cache Remote Transfer
<N, URI>
Encryption Key (K)
<N, K, URI>
Encrypted Text (E)
<E>
<URI>
<E>
<URI>
<E>
Plaintext
AES-256 (K)

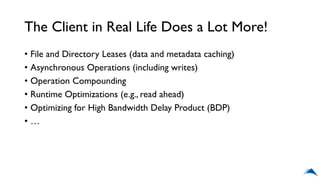

19. The Client in Real Life Does a Lot More!
• File and Directory Leases (data and metadata caching)
• Asynchronous Operations (including writes)
• Operation Compounding
• Runtime Optimizations (e.g., read ahead)
• Optimizing for High Bandwidth Delay Product (BDP)
• …

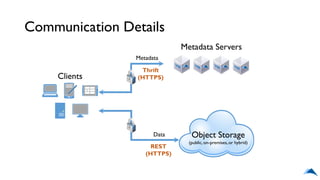

20. Object Storage
(public, on-premises,or hybrid)
Data
Metadata
Metadata Servers
Clients
Communication Details
Thrift
(HTTPS)
REST
(HTTPS)

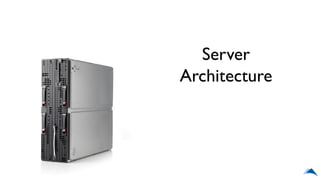

21. Server
Architecture

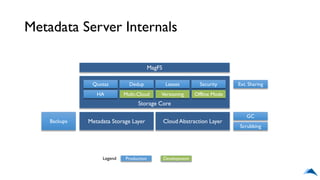

22. Metadata Server Internals
Metadata Storage Layer
Storage Core
Backups
Production Development
GC
Scrubbing
Quotas Dedup Leases Security
HA
MagFS
Ext. Sharing
Multi-Cloud Versioning Offline Mode
Cloud Abstraction Layer
Legend

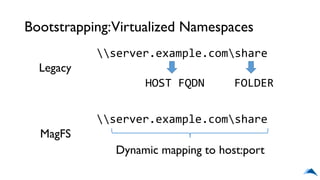

23. Bootstrapping:Virtualized Namespaces
server.example.comshare
HOST FQDN FOLDER
Legacy
server.example.comshare
MagFS
Dynamic mapping to host:port

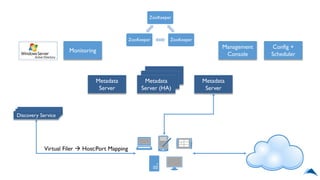

24. Discovery Service
Metadata
Server
Metadata
Server (HA)
Metadata
Server
ZooKeeper
ZooKeeperZooKeeper
Monitoring
Management
Console
Config +
Scheduler
Virtual Filer  Host:Port Mapping

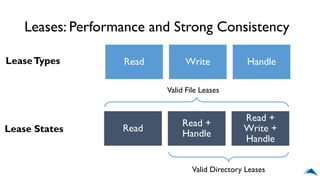

26. Leases: Performance and Strong Consistency
Read Write HandleLeaseTypes
Read
Read +
Handle
Read +
Write +
Handle
Lease States
Valid File Leases
Valid Directory Leases

27. Cloud Storage
Interaction

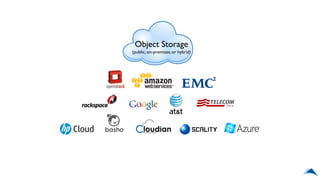

28. Object Storage
(public, on-premises,or hybrid)

29. Object Storage systems
are like snowflakes!

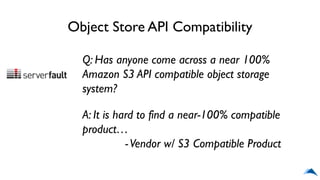

30. Object Store API Compatibility
Q: Has anyone come across a near 100%
Amazon S3 API compatible object storage
system?
A: It is hard to find a near-100% compatible
product…
-Vendor w/ S3 Compatible Product

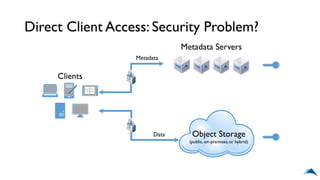

31. Object Storage
(public, on-premises,or hybrid)
Data
Metadata
Metadata Servers
Clients
Direct Client Access: Security Problem?

32. Request Signing

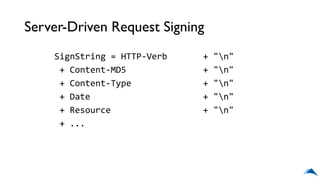

33. Server-Driven Request Signing
SignString = HTTP-Verb + "n"
+ Content-MD5 + "n"
+ Content-Type + "n"
+ Date + "n"
+ Resource + "n"
+ ...

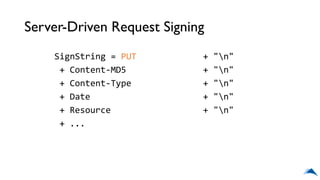

34. Server-Driven Request Signing
SignString = PUT + "n"
+ Content-MD5 + "n"
+ Content-Type + "n"
+ Date + "n"
+ Resource + "n"
+ ...

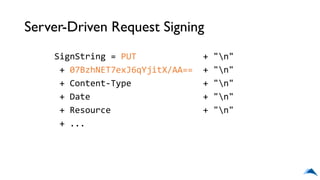

35. Server-Driven Request Signing
SignString = PUT + "n"
+ 07BzhNET7exJ6qYjitX/AA== + "n"
+ Content-Type + "n"
+ Date + "n"
+ Resource + "n"
+ ...

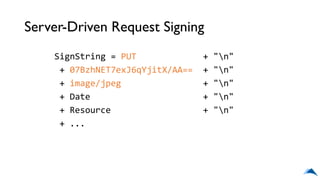

36. Server-Driven Request Signing
SignString = PUT + "n"
+ 07BzhNET7exJ6qYjitX/AA== + "n"
+ image/jpeg + "n"
+ Date + "n"
+ Resource + "n"
+ ...

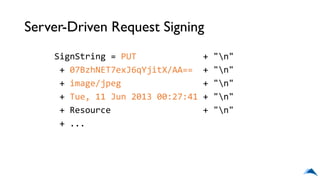

37. Server-Driven Request Signing
SignString = PUT + "n"
+ 07BzhNET7exJ6qYjitX/AA== + "n"
+ image/jpeg + "n"
+ Tue, 11 Jun 2013 00:27:41 + "n"
+ Resource + "n"
+ ...

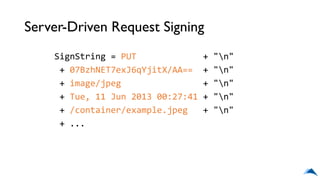

38. Server-Driven Request Signing
SignString = PUT + "n"
+ 07BzhNET7exJ6qYjitX/AA== + "n"
+ image/jpeg + "n"
+ Tue, 11 Jun 2013 00:27:41 + "n"
+ /container/example.jpeg + "n"
+ ...

39. Server-Driven Request Signing
SignString = PUT + "n"
+ 07BzhNET7exJ6qYjitX/AA== + "n"
+ image/jpeg + "n"
+ Tue, 11 Jun 2013 00:27:41 + "n"
+ /container/example.jpeg + "n"
+ ...
HMAC-SHA1( , SignString)

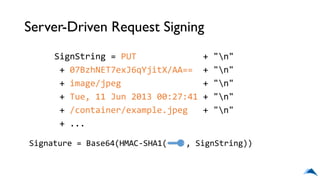

40. Server-Driven Request Signing
SignString = PUT + "n"
+ 07BzhNET7exJ6qYjitX/AA== + "n"
+ image/jpeg + "n"
+ Tue, 11 Jun 2013 00:27:41 + "n"
+ /container/example.jpeg + "n"
+ ...
Signature = Base64(HMAC-SHA1( , SignString))

41. Object Storage
(public, on-premises,or hybrid)
Data
Metadata
Metadata Servers
Clients
Safe Direct Client Access via Request Signing
1. Read/Write Request
3. HTTP Request +
Signature +
Encrypted Data
2. HTTP Request + Signature

42. Dealing with Lost Client Writes
• Clients can lose connectivity or, in the worst case, be malicious
• Naïvely trusting client writes can “corrupt” w/ global dedup
• MagFS server scrubs all writes:
• Client acknowledges write
• Server verifies object existence (object store performed MD5 at PUT)
• Server can also read and verify object data (stronger SHA-256 check)
• The object will be available for deduplication only after scrubbing

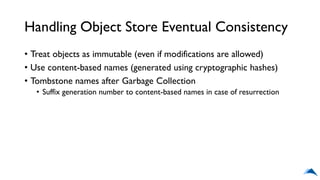

43. Handling Object Store Eventual Consistency
• Treat objects as immutable (even if modifications are allowed)
• Use content-based names (generated using cryptographic hashes)
• Tombstone names after Garbage Collection
• Suffix generation number to content-based names in case of resurrection

44. Security
Architecture

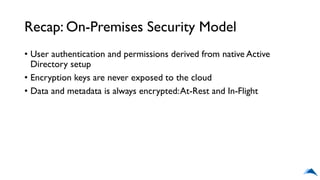

45. Recap: On-Premises Security Model
• User authentication and permissions derived from native Active
Directory setup
• Encryption keys are never exposed to the cloud
• Data and metadata is always encrypted:At-Rest and In-Flight

46. Slides (with speaker notes) at http://tolia.org
Try MagFS at http://maginatics.com
