1. ADC

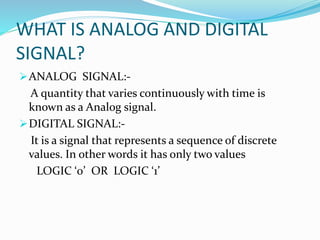

3. WHAT IS ANALOG AND DIGITAL
SIGNAL?
ANALOG SIGNAL:-
A quantity that varies continuously with time is
known as a Analog signal.
DIGITAL SIGNAL:-
It is a signal that represents a sequence of discrete
values. In other words it has only two values
LOGIC ‘0’ OR LOGIC ‘1’

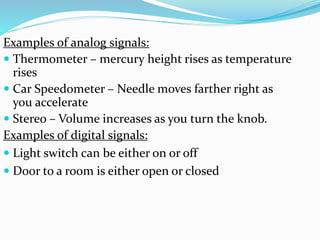

4. Examples of analog signals:
 Thermometer – mercury height rises as temperature
rises
 Car Speedometer – Needle moves farther right as
you accelerate
 Stereo – Volume increases as you turn the knob.
Examples of digital signals:
 Light switch can be either on or off
 Door to a room is either open or closed

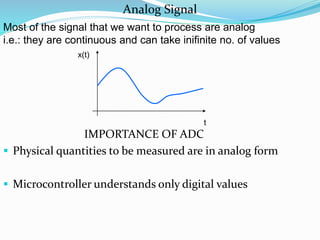

5. Most of the signal that we want to process are analog
i.e.: they are continuous and can take inifinite no. of values
x(t)
t
Analog Signal
IMPORTANCE OF ADC
 Physical quantities to be measured are in analog form
 Microcontroller understands only digital values

6. Digital systems require discrete digital data
ADC converts an analog information into a
digital information
Digital System?Analog Digital
Why ADC ?

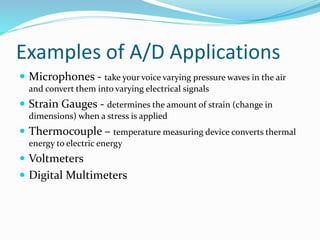

7. Examples of A/D Applications
 Microphones - take your voice varying pressure waves in the air
and convert them into varying electrical signals
 Strain Gauges - determines the amount of strain (change in
dimensions) when a stress is applied
 Thermocouple – temperature measuring device converts thermal
energy to electric energy
 Voltmeters
 Digital Multimeters

8. CHOOSING A PERFECT ADC
Parameters to be considered while choosing a ADC
 SPEED
 RESOLUTION
 ACCURACY
 STABILITY

9. t
Ts
Q
xq(t)
Accuracy
t
Ts
xq(t) Higher Sampling rate
t
Q
xq(t)
Higher Resolution

10. Accuracy of A/D Conversion
There are two ways to best improve accuracy of A/D
conversion:
 increasing the resolution which improves the
accuracy in measuring the amplitude of the analog
signal.
 increasing the sampling rate which increases the
maximum frequency that can be measured.

11. Types of ADCs
•Flash ADC
•Sigma-delta ADC
•Dual slope converter
•Successive approximation converter
•Parallel Comparator ADC

12. ADC Resolution Comparison
0 5 10 15 20 25
Sigma-Delta
Successive Approx
Flash
Dual Slope
Resolution (Bits)
Type Speed (relative) Cost (relative)
Dual Slope Slow Med
Flash Very Fast High
Successive Appox Medium – Fast Low
Sigma-Delta Slow Low
ADC Types Comparison

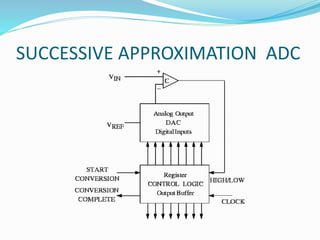

13. SUCCESSIVE APPROXIMATION ADC

14. Successive Approximation ADC
 A Successive Approximation Register (SAR) is added to
the circuit
 Instead of counting up in binary sequence, this
register counts by trying all values of bits starting with
the MSB and finishing at the LSB.
 The register monitors the comparators output to see if
the binary count is greater or less than the analog
signal input and adjusts the bits accordingly

15.  Sets MSB
 Converts MSB to
analog using DAC
 Compares guess to
input
 Set bit
 Test next bit
SAR DAC
Out
VIN
-
+
Successive Approximation
1000 0000
Is Vin > ½ ADC range?
0100 0000
If no, then test next bit

16. Successive Approximation
Advantages
 Capable of high speed and
reliable
 Medium accuracy compared
to other ADC types
 Good tradeoff between speed
and cost
 Capable of outputting the
binary number in serial (one
bit at a time) format.
Disadvantages
 Higher resolution successive
approximation ADC’s will be
slower
 Speed limited to ~5Msps

18. INSTRUCTIONS FOR ADC
 Init_Adc();
 Int Analog_Read(A0);

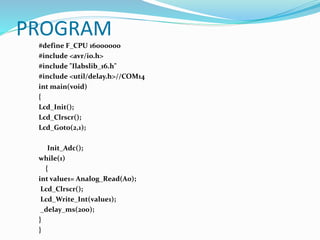

19. PROGRAM
#define F_CPU 16000000
#include <avr/io.h>
#include "Ilabslib_16.h"
#include <util/delay.h>//COM14
int main(void)
{
Lcd_Init();
Lcd_Clrscr();
Lcd_Goto(2,1);
Init_Adc();
while(1)
{
int value1= Analog_Read(A0);
Lcd_Clrscr();
Lcd_Write_Int(value1);
_delay_ms(200);
}
}

20. #define F_CPU 16000000
#include <avr/io.h>
#include "Ilabslib_16.h"
#include <util/delay.h>//COM14
int main(void)
{
Lcd_Init();
Lcd_Clrscr();
Lcd_Goto(2,1);
Init_Adc();
while(1)
{

21. {
int value1= Analog_Read(A0);
Lcd_Clrscr();
Lcd_Write_Int(value1);
_delay_ms(200);
Serial_Write_Int(value1);
Serial_Write_String("t");
}
}
