The document discusses different types of parallel computer architectures, including shared-memory multiprocessors. It describes taxonomy of parallel computers including SISD, SIMD, MISD, and MIMD models. For shared-memory multiprocessors, it outlines consistency models including strict, sequential, processor, weak and release consistency. It also discusses UMA and NUMA architectures, cache coherence protocols like MESI, and examples of multiprocessors using crossbar switches or multistage networks.

1. Scuola Politecnica
Dipartimento di Ingegneria Chimica,
Gestionale, Informatica, Meccanica
Parallel Computer Architectures
Shared-Memory Multiprocessors
Architetture Avanzate dei Calcolatori
Salvatore La Bua

2. S. La Bua - DICGIM/UniPA Architetture Avanzate dei Calcolatori
2
Shared Memory Multiprocessors
Multiprocessors Multicomputers

3. S. La Bua - DICGIM/UniPA Architetture Avanzate dei Calcolatori
3
Taxonomy of Parallel Computers
● SISD
– Single Instruction, Single Data
● Von Neumann architecture
● SIMD
– Single Instruction, Multiple Data
● Vector and Array processor architectures
● MISD
– Multiple Instruction, Single Data
● MIMD
– Multiple Instruction, Multiple Data
● Multiprocessor architectures: UMA, NUMA, COMA
● Multicomputer architectures: MPP, COW

4. S. La Bua - DICGIM/UniPA Architetture Avanzate dei Calcolatori
4

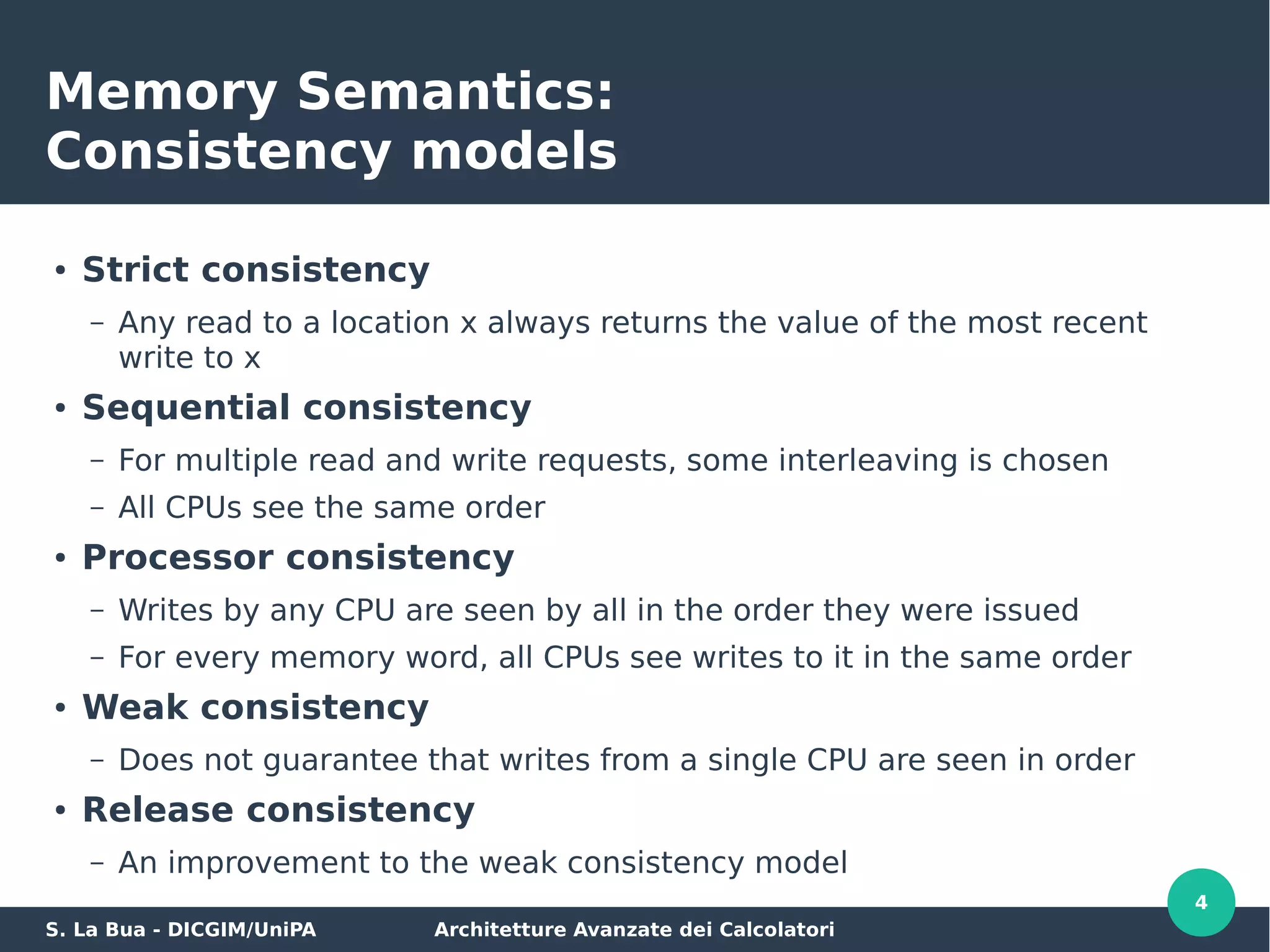

Memory Semantics:
Consistency models
● Strict consistency
– Any read to a location x always returns the value of the most recent
write to x
● Sequential consistency
– For multiple read and write requests, some interleaving is chosen
– All CPUs see the same order
● Processor consistency
– Writes by any CPU are seen by all in the order they were issued
– For every memory word, all CPUs see writes to it in the same order
● Weak consistency
– Does not guarantee that writes from a single CPU are seen in order
● Release consistency
– An improvement to the weak consistency model

5. S. La Bua - DICGIM/UniPA Architetture Avanzate dei Calcolatori
5
UMA Symmetric
Multiprocessor Architectures
● Uniform Memory Access
● Snooping Caches
● Coherence protocols
– Write-through
– Write-allocate
– Write-back

6. S. La Bua - DICGIM/UniPA Architetture Avanzate dei Calcolatori
6
MESI Cache Coherence
Protocol
● MESI: Modified-Exclusive-Shared-Invalid
– A write-back protocol
● Four statuses each cache entry can be in:
– Invalid
● The cache entry does not contain valid data
– Shared
● Multiple caches may hold the line
● Memory is up to date
– Exclusive
● No other cache holds the line
● Memory is up to date
– Modified
● The entry is valid
● Memory is invalid
● No copies exist

7. S. La Bua - DICGIM/UniPA Architetture Avanzate dei Calcolatori
7
UMA Multiprocessors
Using Crossbar
Switches
Using Multistage
Switching Networks

8. S. La Bua - DICGIM/UniPA Architetture Avanzate dei Calcolatori
8
NUMA Multiprocessors
●
Non-Uniform Memory Access
– Single address space visible to all CPUs
– Access to remote memory done using LOAD and STORE instructions
– Access to remote memory is slower than access to local memory
●
NC-NUMA
– Non Cache coherent NUMA
● CC-NUMA
– Cache Coherent NUMA

9. S. La Bua - DICGIM/UniPA Architetture Avanzate dei Calcolatori
9
Sun Fire E25K NUMA
Multiprocessor
● An example of a shared-memory
NUMA multiprocessor

10. S. La Bua - DICGIM/UniPA Architetture Avanzate dei Calcolatori
10
COMA Multiprocessors
● Cache Only Memory Access
– Use each CPU’s main memory as a cache
– Physical address space split into cache lines
● Problems:
– How are cache lines located?
● Main memory or actual cache
– When a line is purged, what happens if it is the last copy?
● Last copy cannot be thrown out
