Git is a distributed version control system that allows local operations and branching. It uses a staging area to track file changes between unmodified, modified, and staged states before committing snapshots. Common commands include clone, add, commit, pull, push, branch, merge, and status. Typical workflows involve cloning a repository, making changes, staging and committing locally, pulling updates, and pushing commits. Branches allow parallel work, while tags mark project milestones. Merging combines branches, and conflicts may occur.

1. Lets talk about GIT
Stupid, fast, distributed content tracker
Roni Saha
Sr. Software Engineer
Rightbrain Solution Limited & Emicrograph Business Solution

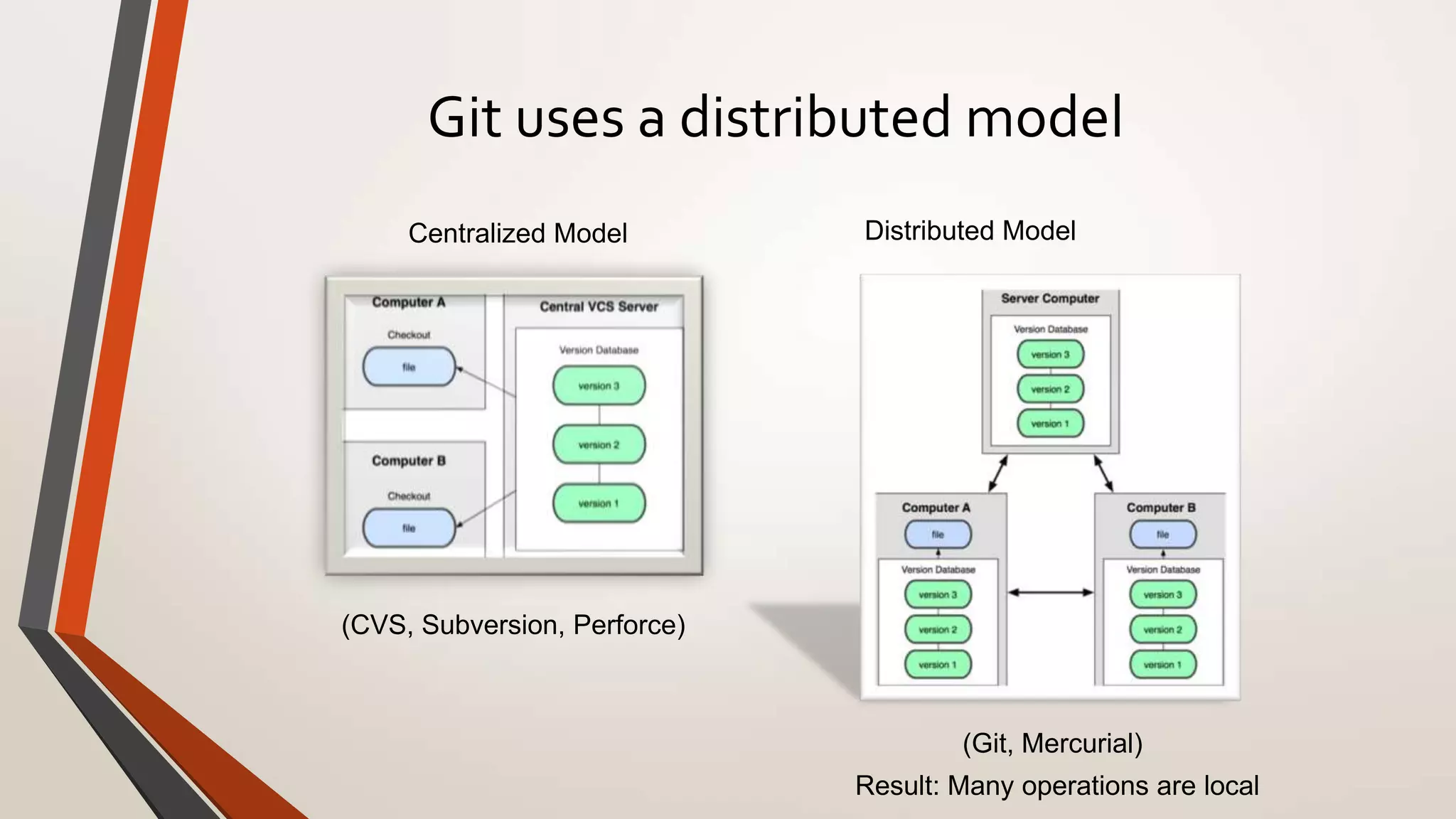

2. Git uses a distributed model
Centralized Model Distributed Model
(CVS, Subversion, Perforce)
(Git, Mercurial)
Result: Many operations are local

3. Git local file lifecycle
untracked unmodified modified staged
edit the file
add the file
stage the file
remove the file
commit

4. Overview of Git Workflow/Commands

5. Git commands
command description
git clone url [dir] copy a git repository so you can add to it
git add files adds file contents to the staging area
git commit records a snapshot of the staging area
git status view the status of your files in the
working directory and staging area
git diff shows diff of what is staged and what is
modified but un-staged
git pull fetch from a remote repo and try to
merge into the current branch
git push push your new branches and data to a
remote repository
others: init, reset, branch, checkout, merge, log, tag

6. Typical Development Workflow
Get the code
git clone some-repo git pull
Modify Code
Cerate Delete/Edit
Save the changes
git add git commit -m "message"
Sync with remote
git pull git push

7. Branch VS Tag
Branch Tags
• A branch is just a line of • Milestone in the life of
development project
• “Branch head” mean a • Read Only, i.e. reference
reference to the most to a fixed commit id
recent commit on a branch

8. Merge, The Blessing!!
Some merge Strategies
Resolve This can only resolve two heads
Recursive Default strategy when pulling or merging one branch
Octopus More than two branches
Ours/Theirs Just mark as merged
No-commit Do not create a new commit automatically

9. Conflict, The Devil!!

10. Resolve Conflict
Resolve
• Decide not to actions!
merge
• $ git merge --abort
• Resolve the
• Edit the files into
conflicts
shape then commit
Conflict

11. Client is always right!!
Git allows you to use git locally and use SVN as a remote repository
Create Git clone of Subversion repo
• $ git svn clone -s svn://example.com/repo
Update from SVN
• $ git svn rebase
Commit to SVN
• $ git svn dcommit

12. Case Studies

13. Merge Commands
 Merge branches fixes and enhancement to the current branch, making an octopus merge:
$ git merge fixes enhancements
 Merge branch obsolete into the current branch, using ours merge strategy:
$ git merge -s ours obsolete
 Merge branch partial into the current branch, but do not make a new commit automatically:
$ git merge --no-commit partial
 Cancel a merge:
$ git merge --abort

14. Cancel/Fix a commit
 From latest to some point
$ git reset –<hard/soft> <where>
…..
Edit
…….
$ git add ....
$ git commit -c ORIG_HEAD
 Some commit in the past
$ git revert <commit>
 Fix latest commit
$ git commit --amend

15. Partial commit
 You made several unrelated changes to the same file
$ git add -p
<Opens up an interactive session>
<Choose which hunk of each patch to add to the index>

16. Pulling into a dirty tree
• git stash save, git pull, git stash pop

17. Suspend work for a fix
• git stash save, do the fix, commit, git stash pop

18. Moving work to a branch

19. Moving work to a branch
Switch to (Create) the “v1.12"
branch
• git checkout v1.12[git merge master]
• Or git checkout -b v1.12
Forcibly move master back to
early stage
• git branch -f master HEAD^^^

20. Any More… Case Studies/Question?

21. Thank You
