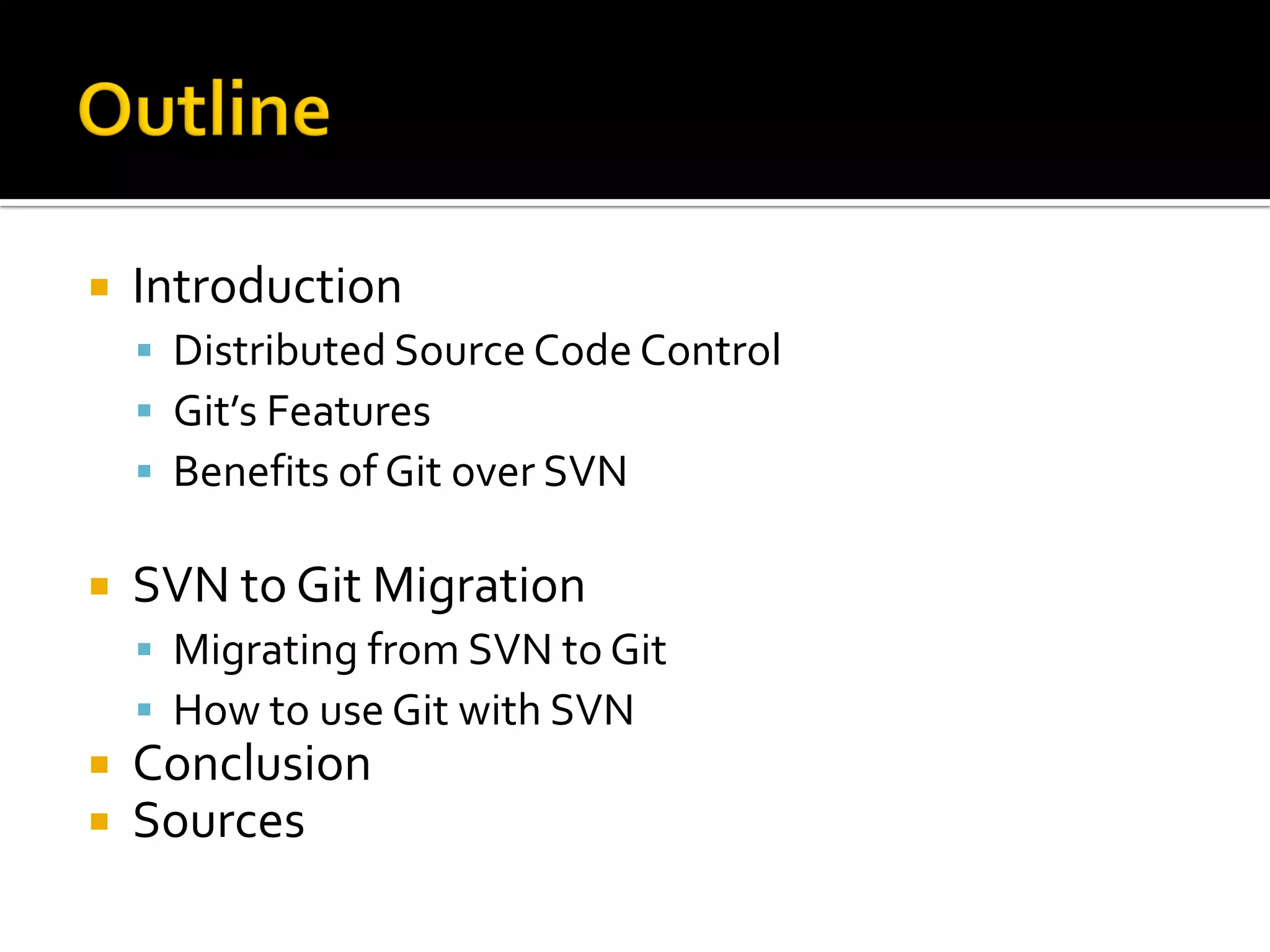

Case Study:
   Introduction

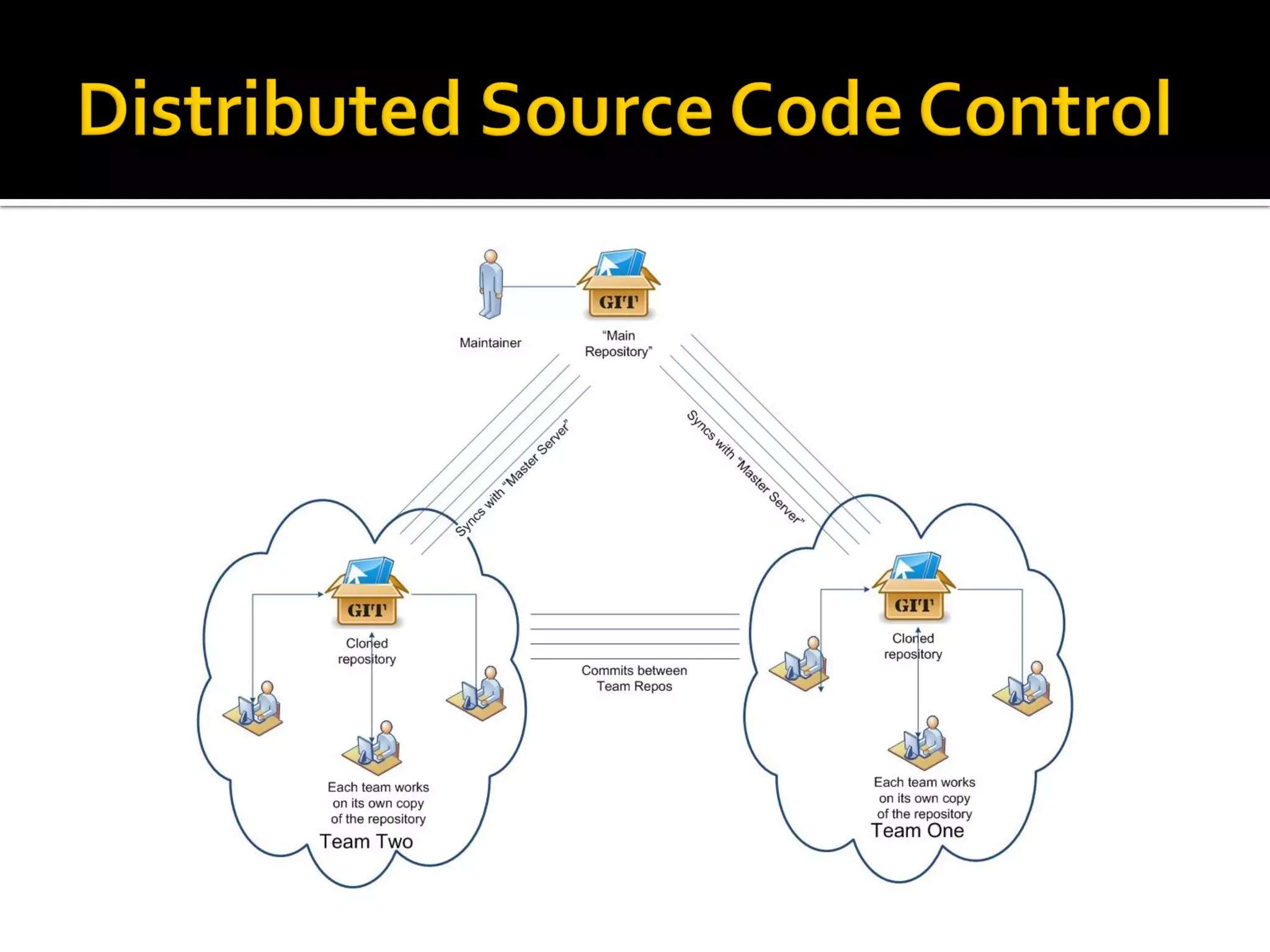

     Distributed Source Code Control
     Git’s Features
     Benefits of Git over SVN

   SVN to Git Migration
     Migrating from SVN to Git
     How to use Git with SVN
   Conclusion
   Sources
Section I

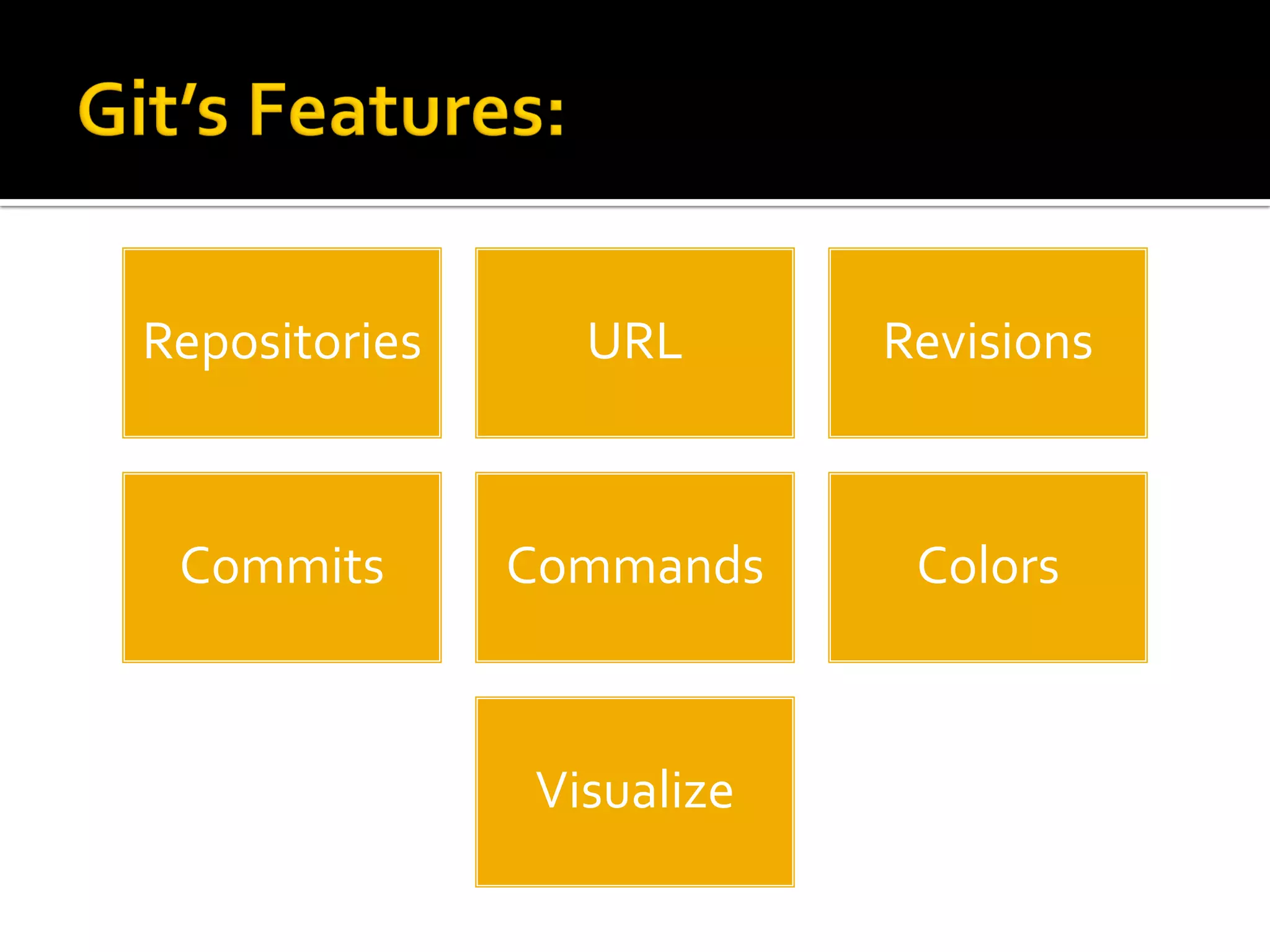

Repositories     URL       Revisions



 Commits       Commands     Colors



               Visualize

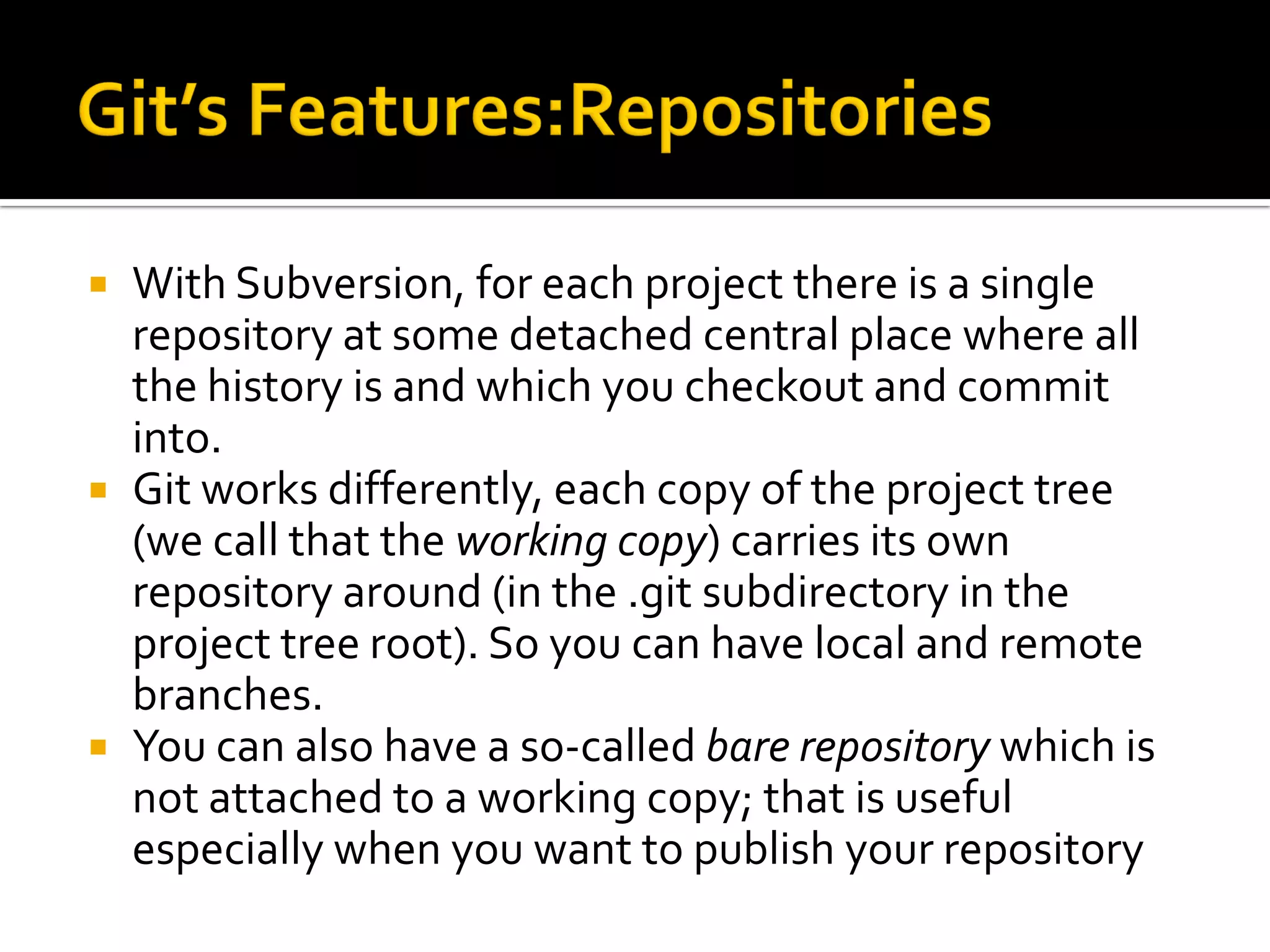

 With Subversion, for each project there is a single
  repository at some detached central place where all
  the history is and which you checkout and commit
  into.
 Git works differently, each copy of the project tree
  (we call that the working copy) carries its own
  repository around (in the .git subdirectory in the
  project tree root). So you can have local and remote
  branches.
 You can also have a so-called bare repository which is
  not attached to a working copy; that is useful
  especially when you want to publish your repository

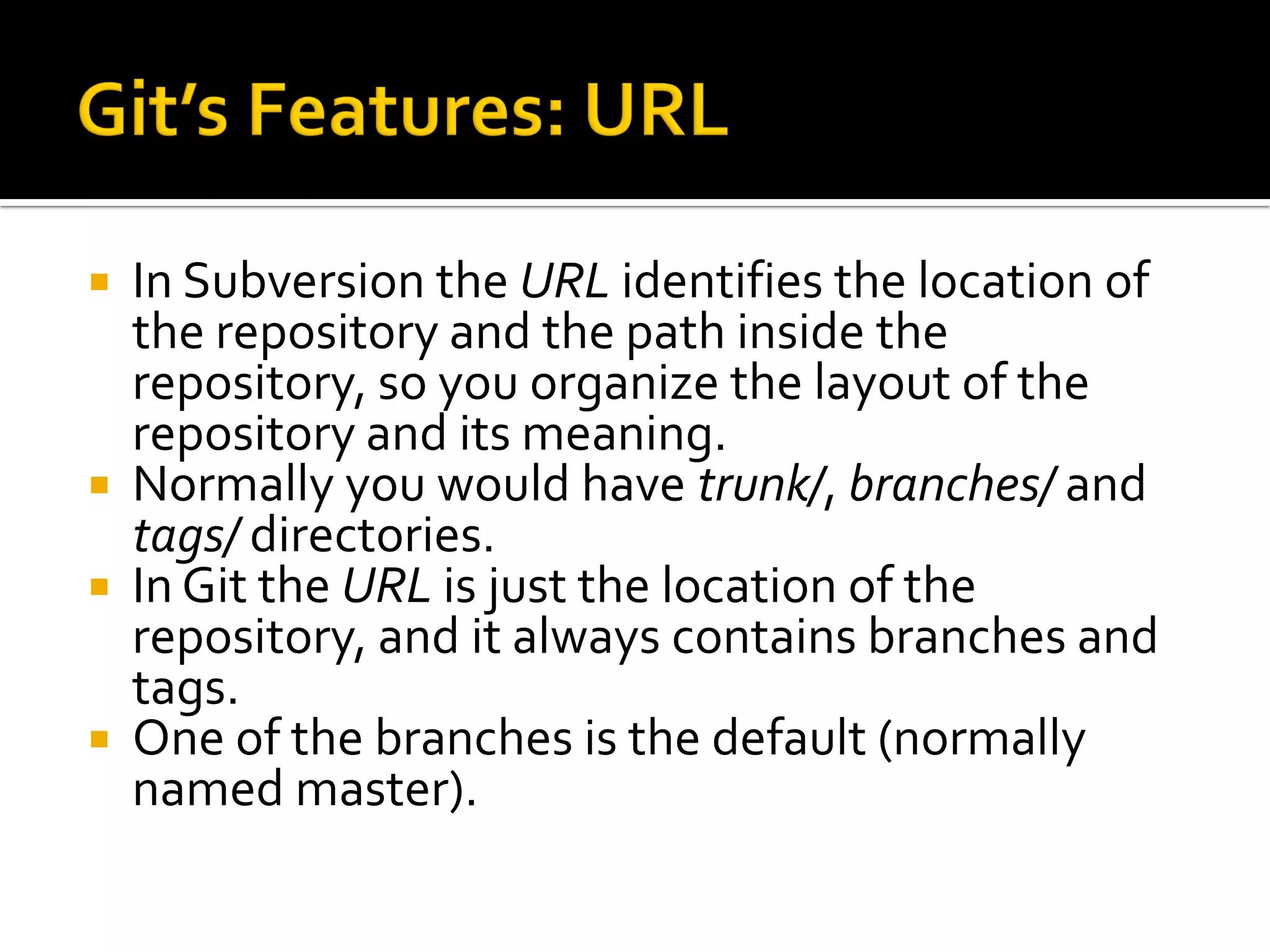

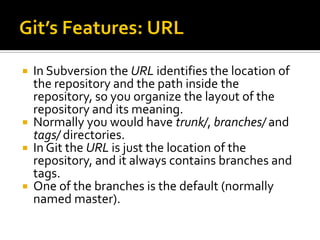

 In Subversion the URL identifies the location of
  the repository and the path inside the
  repository, so you organize the layout of the
  repository and its meaning.
 Normally you would have trunk/, branches/ and
  tags/ directories.
 In Git the URL is just the location of the
  repository, and it always contains branches and
  tags.
 One of the branches is the default (normally
  named master).

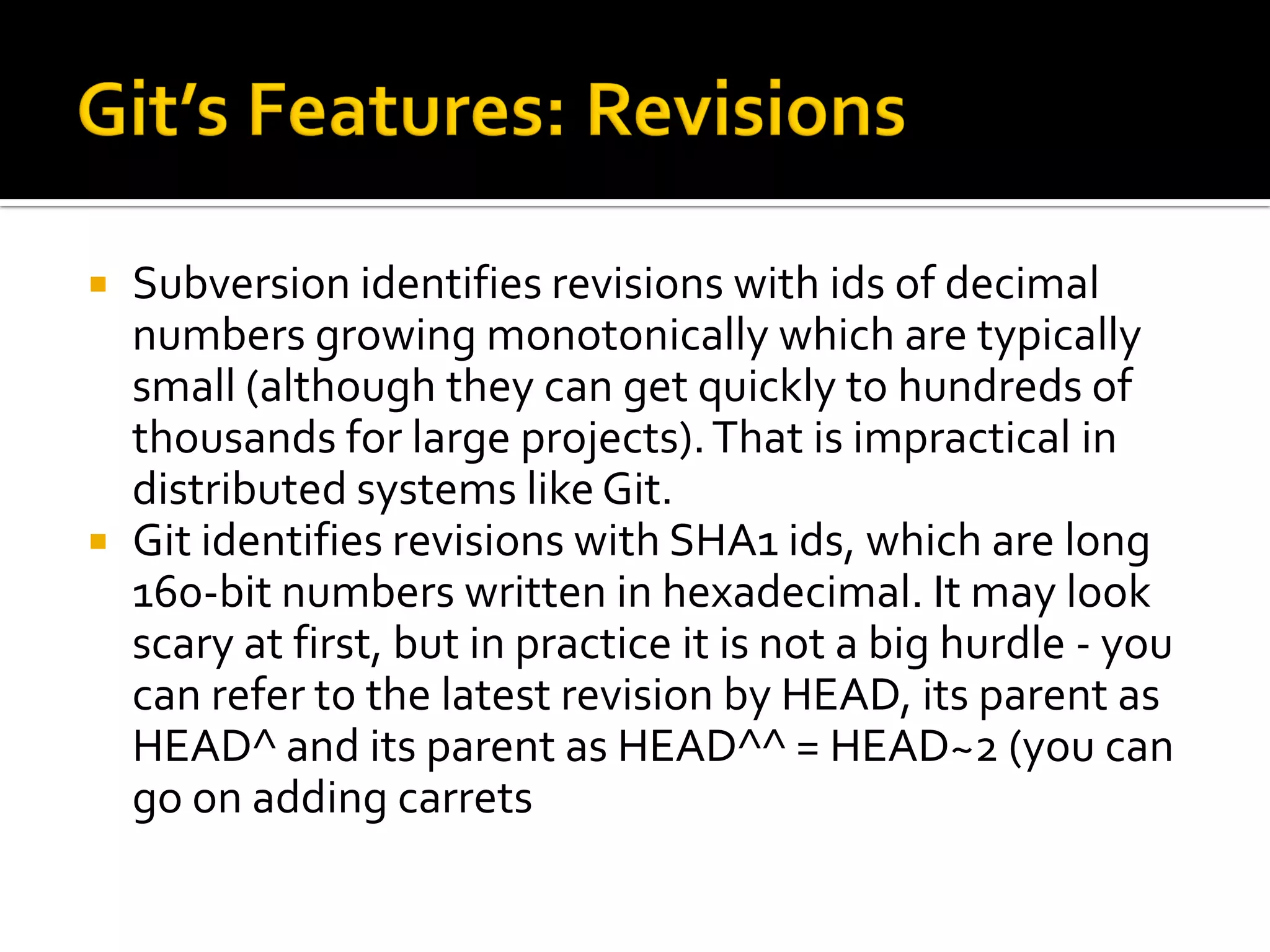

 Subversion identifies revisions with ids of decimal
  numbers growing monotonically which are typically
  small (although they can get quickly to hundreds of
  thousands for large projects). That is impractical in
  distributed systems like Git.
 Git identifies revisions with SHA1 ids, which are long
  160-bit numbers written in hexadecimal. It may look
  scary at first, but in practice it is not a big hurdle - you
  can refer to the latest revision by HEAD, its parent as
  HEAD^ and its parent as HEAD^^ = HEAD~2 (you can
  go on adding carrets

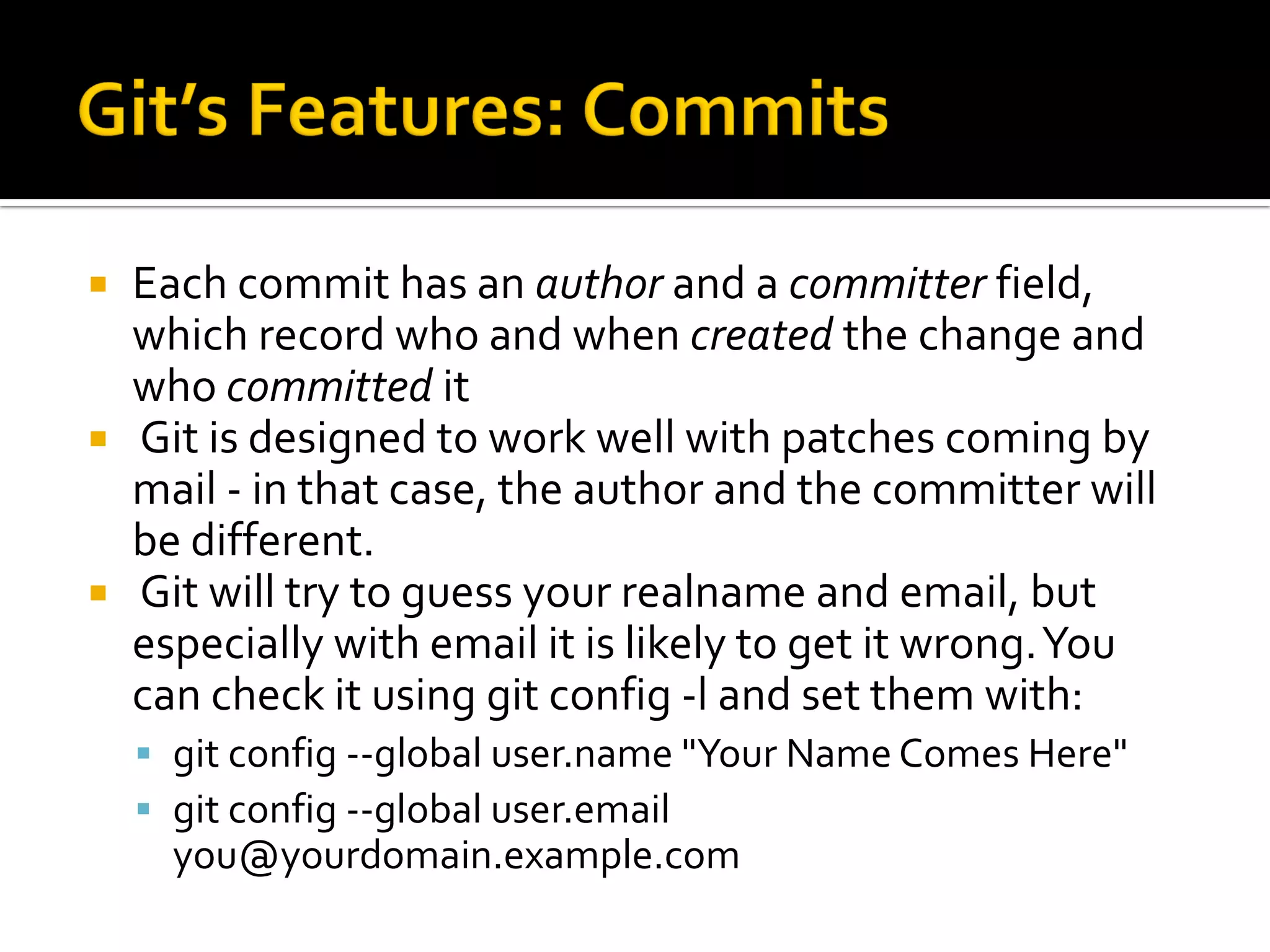

 Each commit has an author and a committer field,
  which record who and when created the change and
  who committed it
 Git is designed to work well with patches coming by
  mail - in that case, the author and the committer will
  be different.
 Git will try to guess your realname and email, but
  especially with email it is likely to get it wrong. You
  can check it using git config -l and set them with:
     git config --global user.name "Your Name Comes Here"
     git config --global user.email
      you@yourdomain.example.com

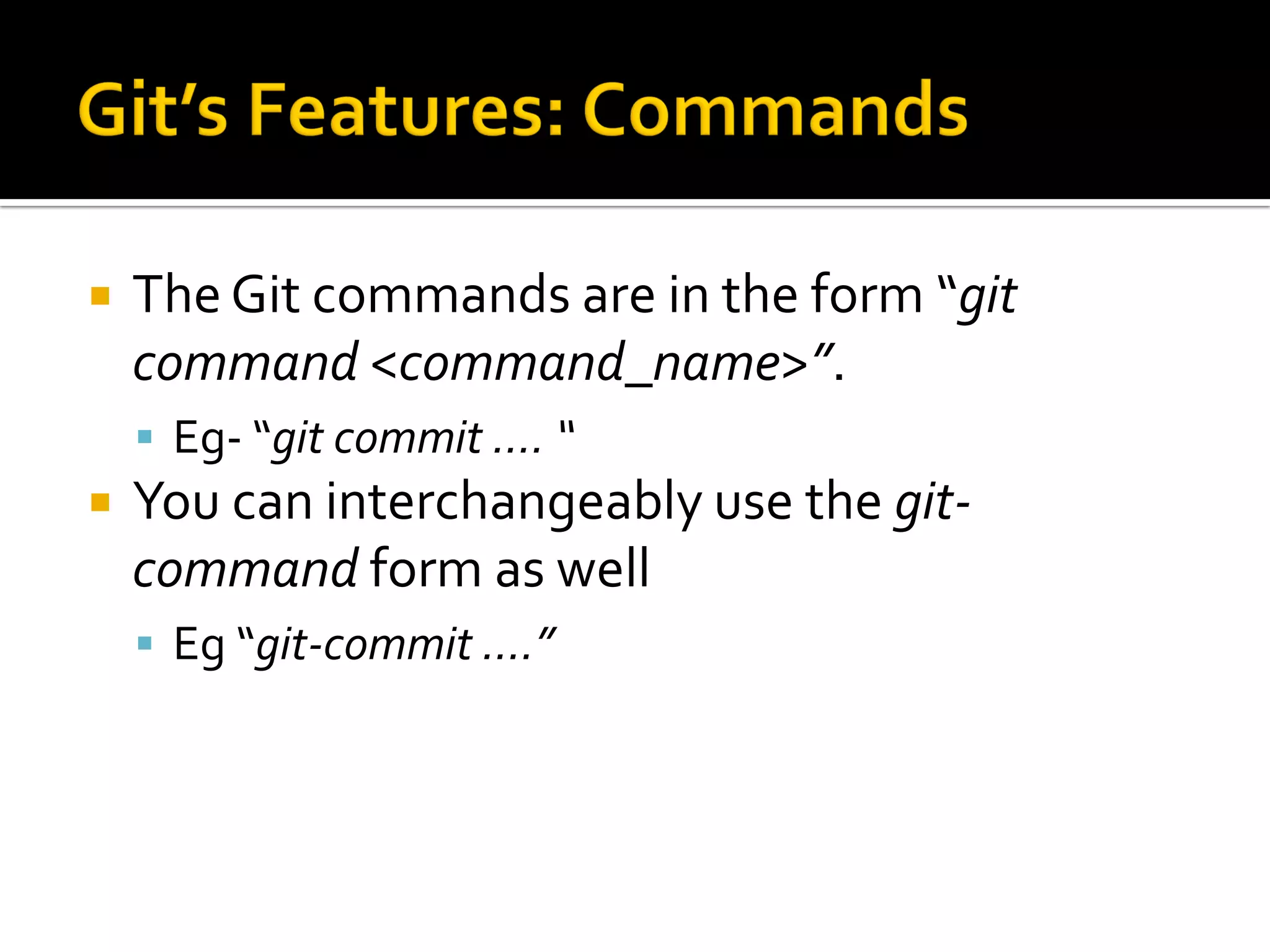

   The Git commands are in the form “git
    command <command_name>”.
     Eg- “git commit …. “
   You can interchangeably use the git-
    command form as well
     Eg “git-commit ….”

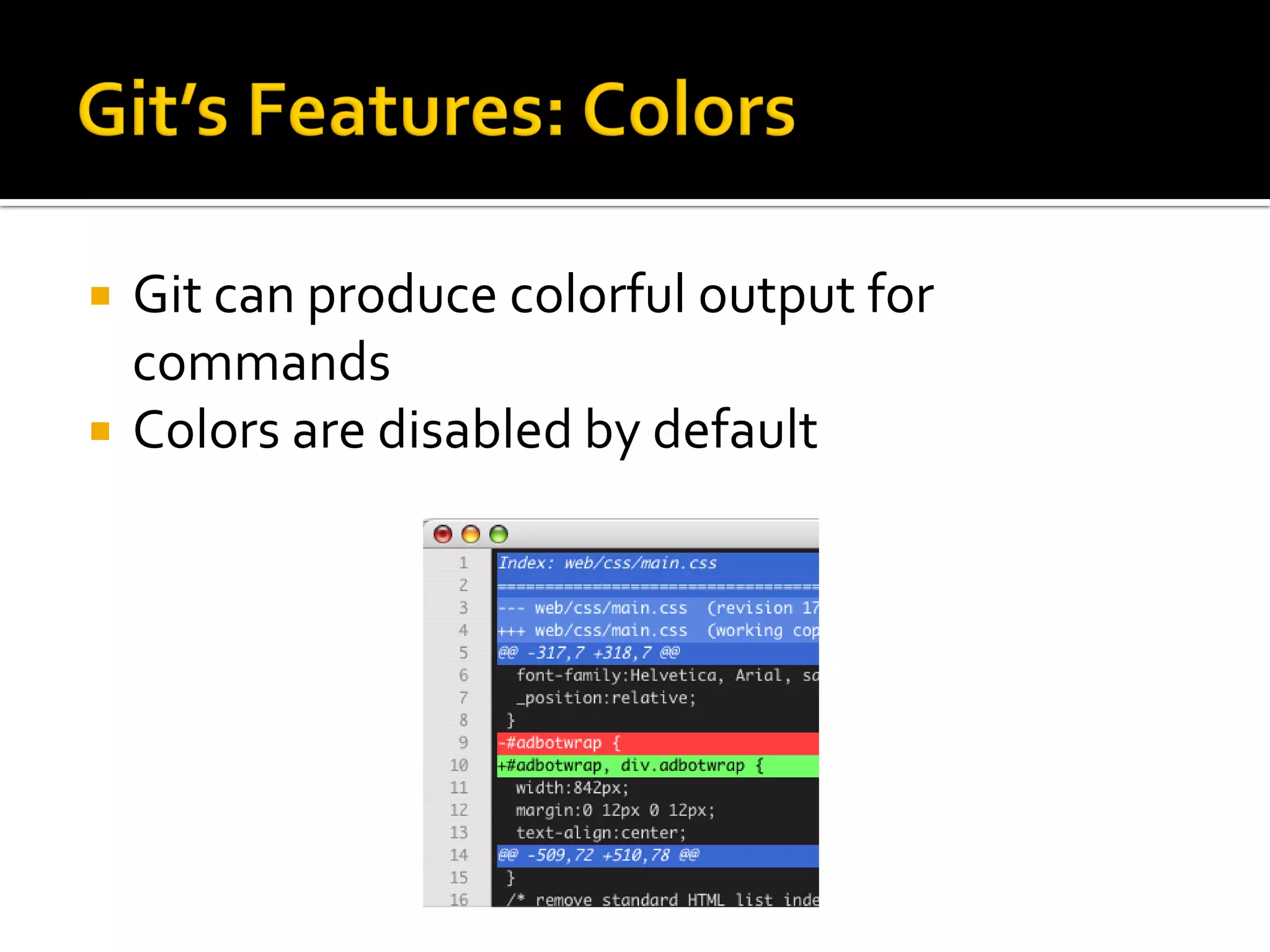

   Git can produce colorful output for
    commands
   Colors are disabled by default

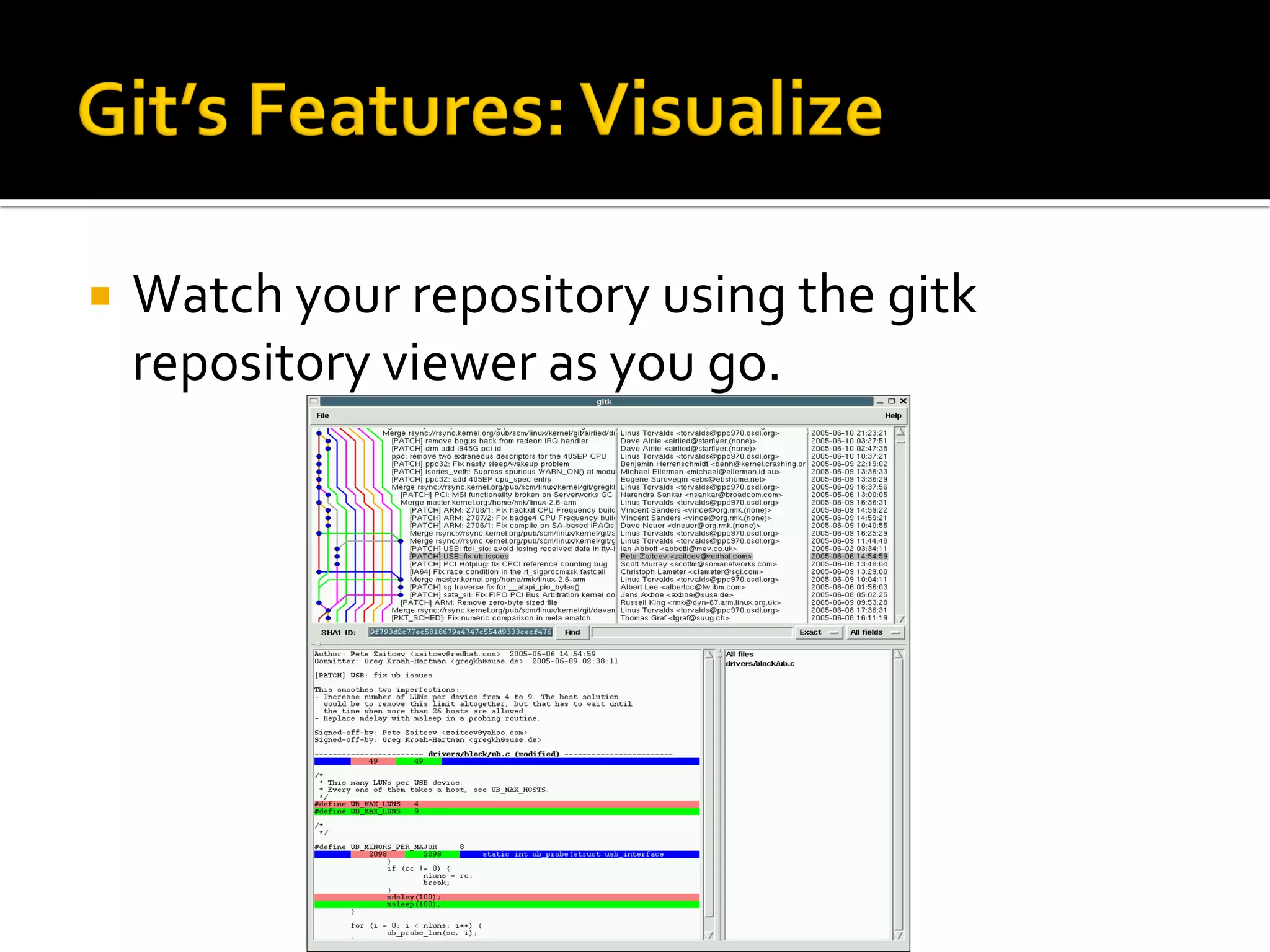

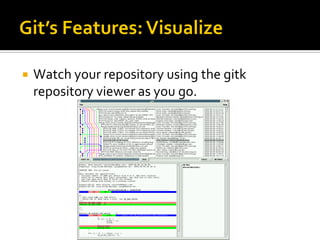

   Watch your repository using the gitk
    repository viewer as you go.

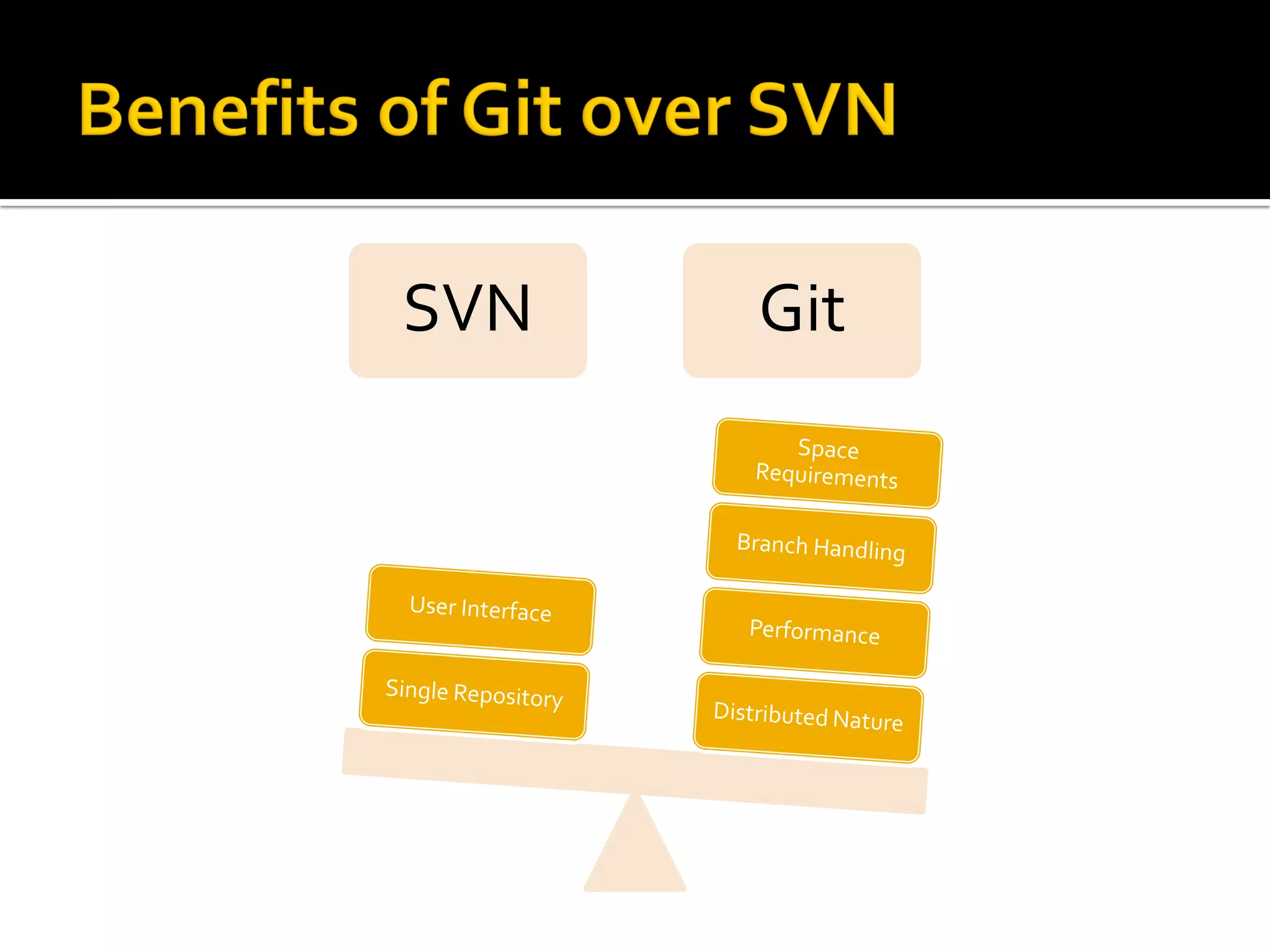

SVN   Git
Section II

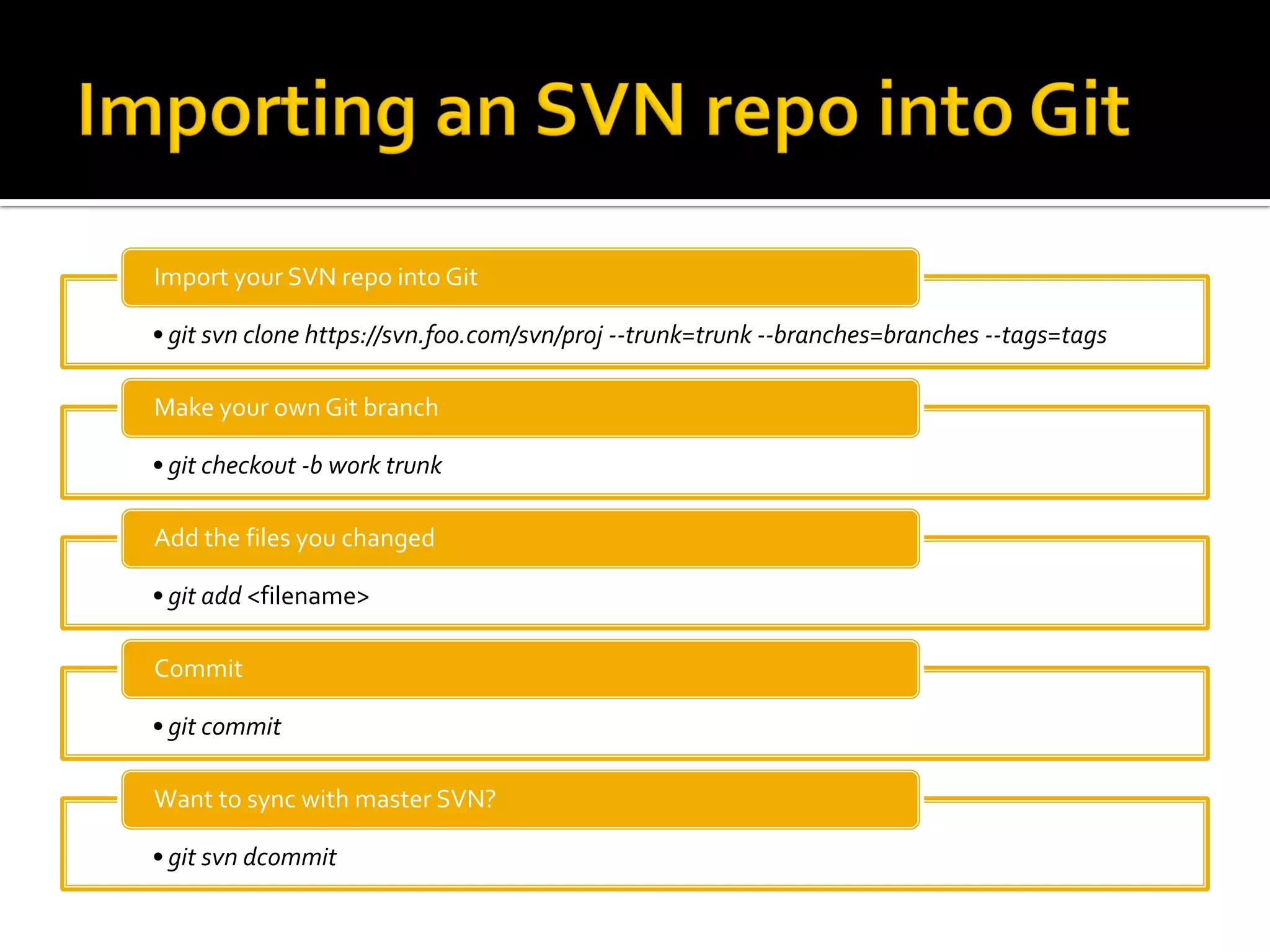

Import your SVN repo into Git

• git svn clone https://svn.foo.com/svn/proj --trunk=trunk --branches=branches --tags=tags

Make your own Git branch

• git checkout -b work trunk

Add the files you changed

• git add <filename>

Commit

• git commit

Want to sync with master SVN?

• git svn dcommit

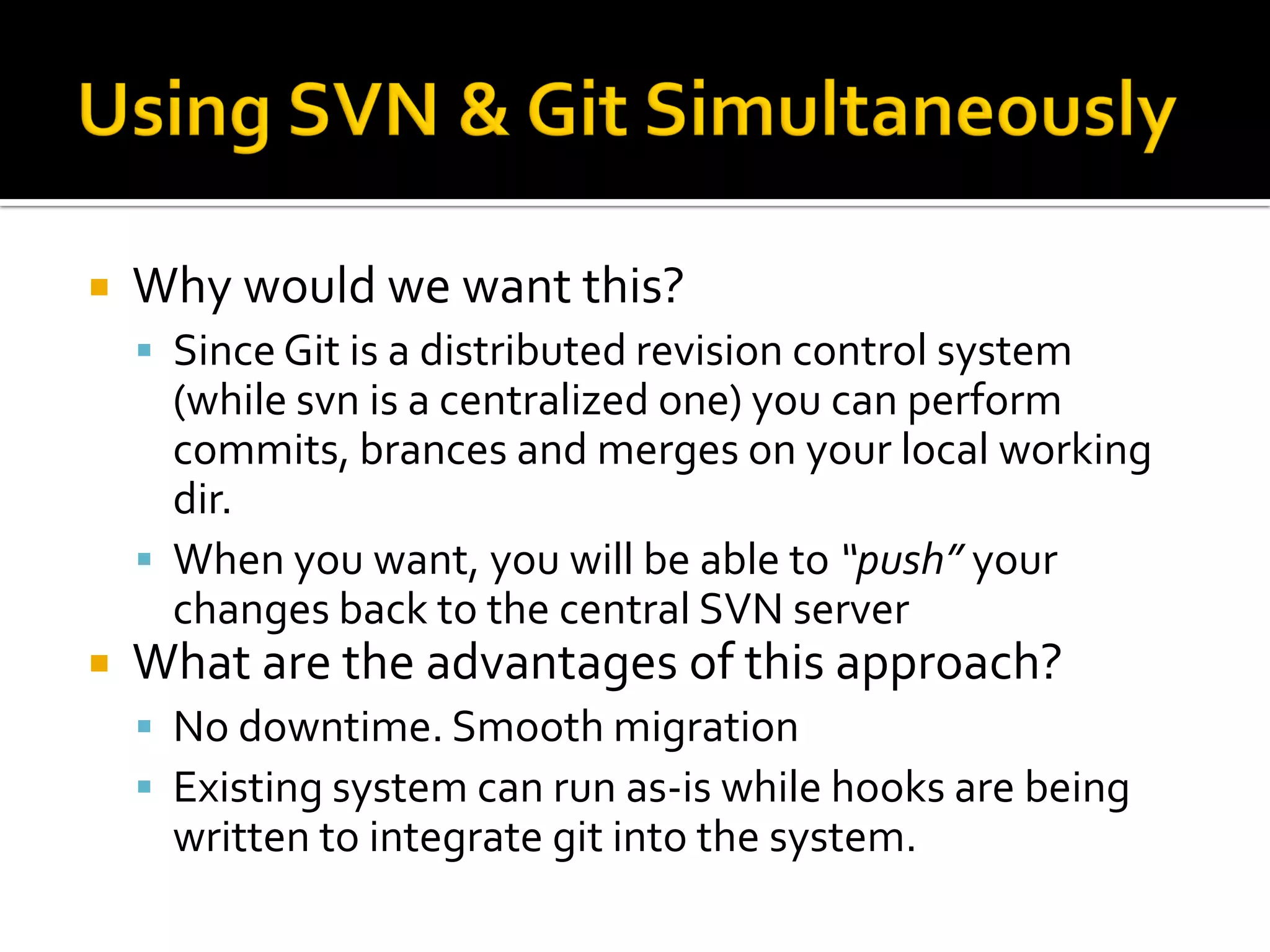

   Why would we want this?
     Since Git is a distributed revision control system
      (while svn is a centralized one) you can perform
      commits, brances and merges on your local working
      dir.
     When you want, you will be able to “push” your
      changes back to the central SVN server
   What are the advantages of this approach?
     No downtime. Smooth migration
     Existing system can run as-is while hooks are being
      written to integrate git into the system.

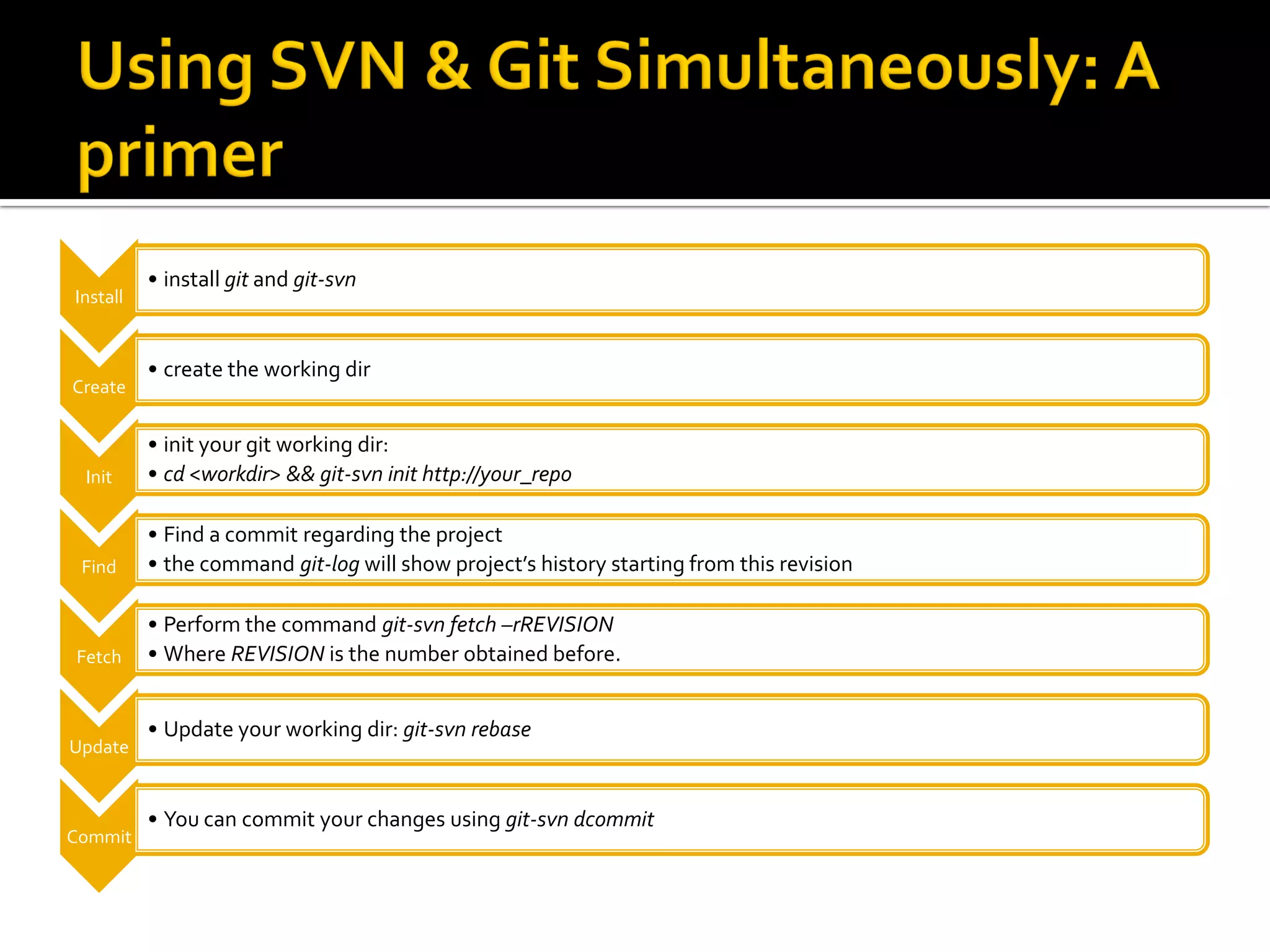

• install git and git-svn
Install


          • create the working dir
Create


          • init your git working dir:
 Init     • cd <workdir> && git-svn init http://your_repo

          • Find a commit regarding the project
 Find     • the command git-log will show project’s history starting from this revision

          • Perform the command git-svn fetch –rREVISION
Fetch     • Where REVISION is the number obtained before.


          • Update your working dir: git-svn rebase
Update


          • You can commit your changes using git-svn dcommit
Commit

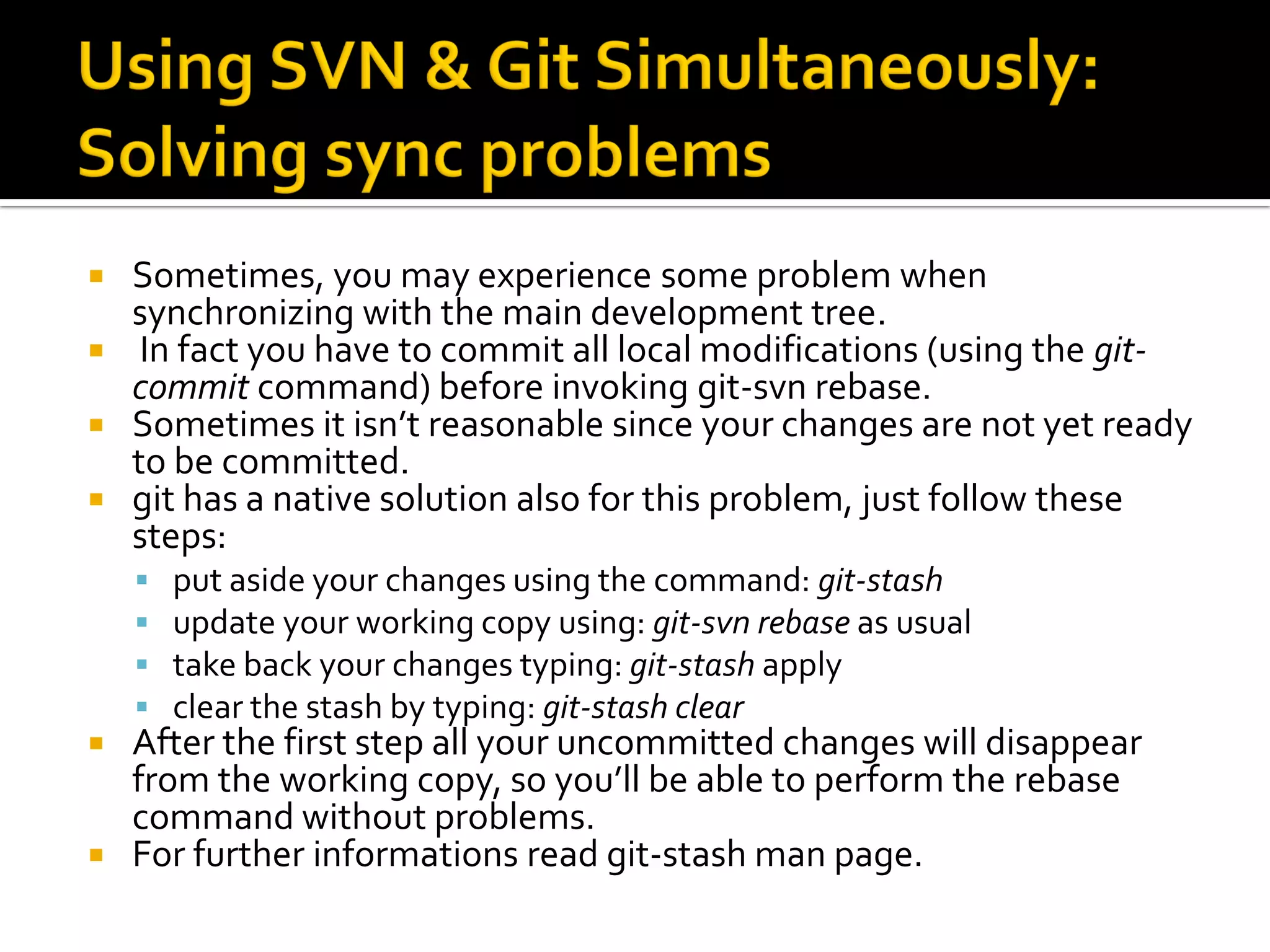

 Sometimes, you may experience some problem when
  synchronizing with the main development tree.
 In fact you have to commit all local modifications (using the git-
  commit command) before invoking git-svn rebase.
 Sometimes it isn’t reasonable since your changes are not yet ready
  to be committed.
 git has a native solution also for this problem, just follow these
  steps:
       put aside your changes using the command: git-stash
       update your working copy using: git-svn rebase as usual
       take back your changes typing: git-stash apply
       clear the stash by typing: git-stash clear
 After the first step all your uncommitted changes will disappear
  from the working copy, so you’ll be able to perform the rebase
  command without problems.
 For further informations read git-stash man page.

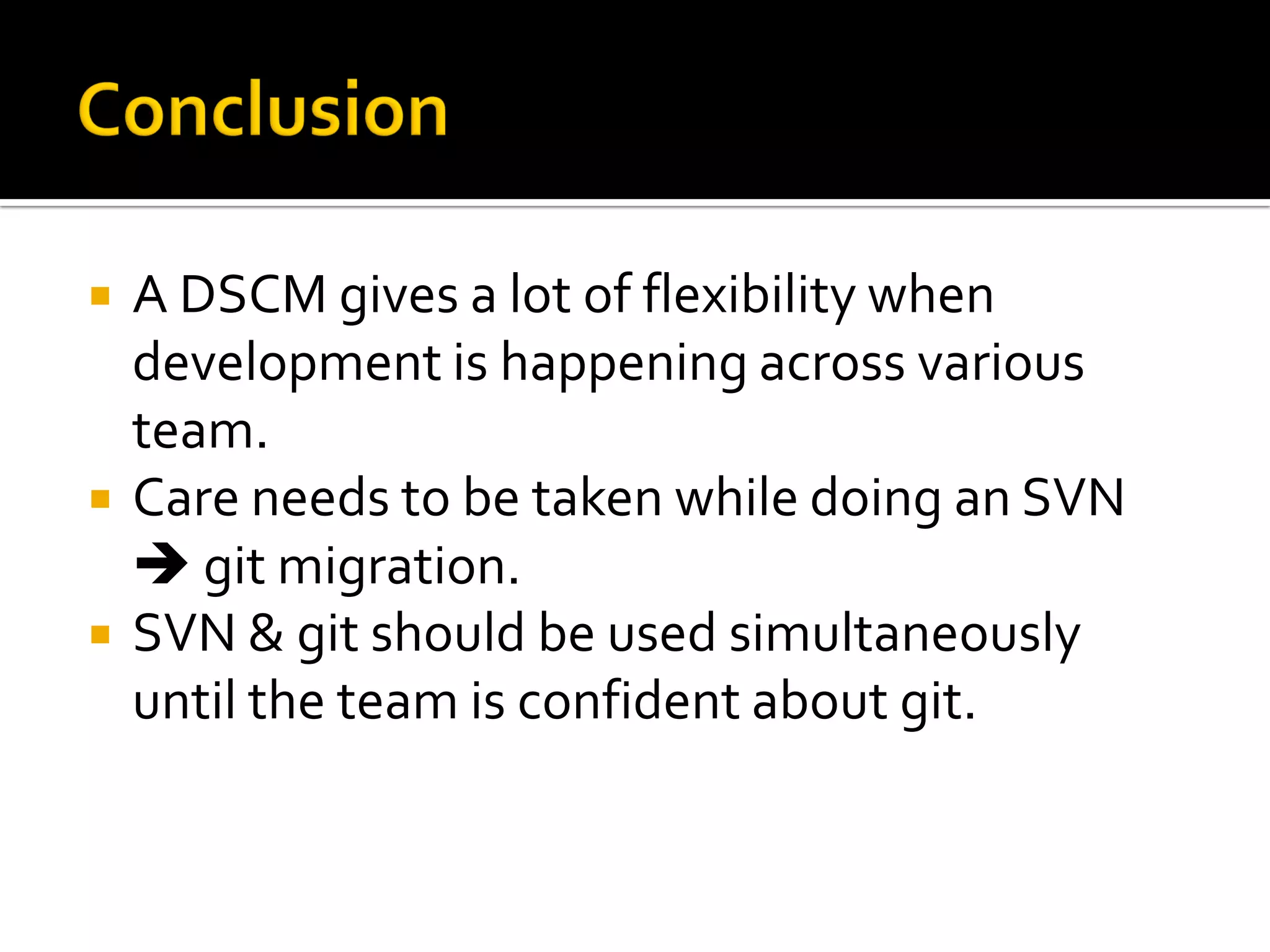

   A DSCM gives a lot of flexibility when
    development is happening across various
    team.
   Care needs to be taken while doing an SVN
     git migration.
   SVN & git should be used simultaneously
    until the team is confident about git.
