Server Add-ons for Front-end Developers

The State of Server
KESHAV PUTTASWAMY | HEAD OF PRODUCT MANAGEMENT, SERVER | ATLASSIAN

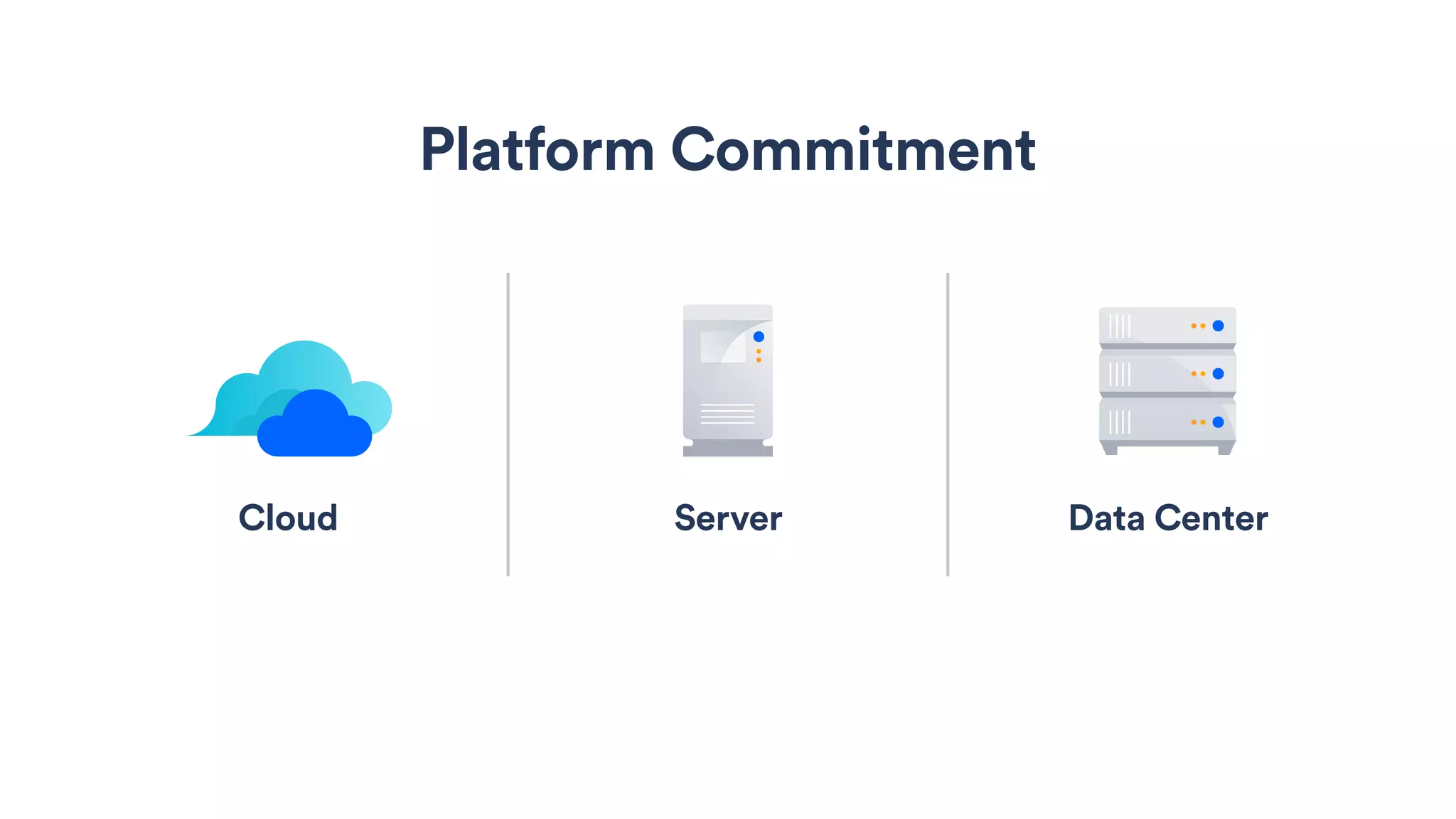

Server
Platform Commitment
Data CenterCloud

Increased
Server focus
on
ecosystem

30%
Server add-on units growth

Business Apps
• JIRA, Confluence: Vertical
apps targeting finance, HR,
legal, etc.
Opportunities
ITSM
• Service Desk: Integrations
with incident
management, knowledge
management, self-service
automation, etc.
DevOps
• Bitbucket: Rich workflows
for compliance, code
quality.
• Bamboo: Deployment
integrations to platforms
such as AWS, Azure, GCP.

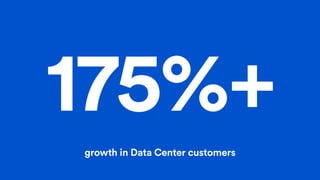

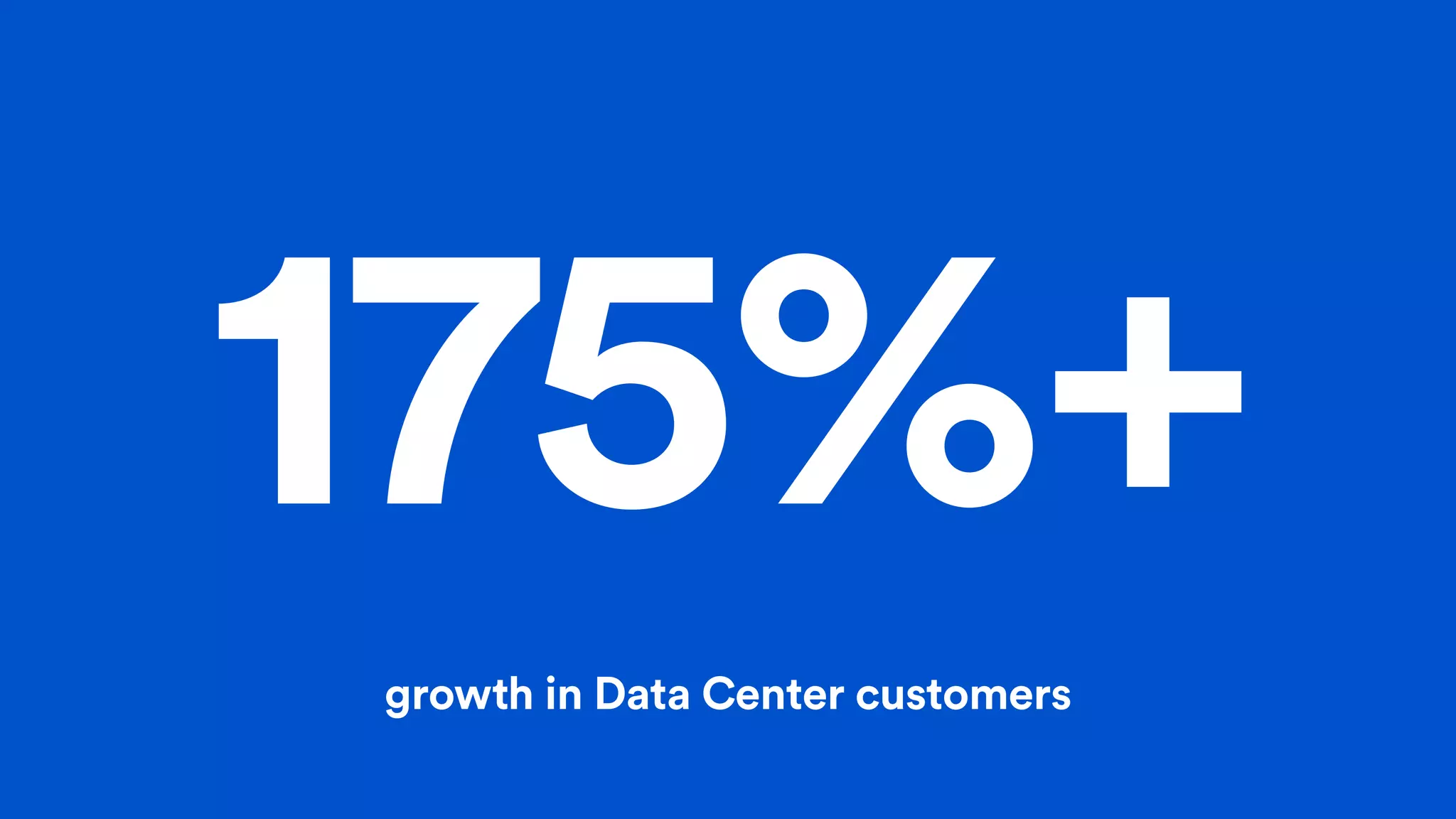

175%+
growth in Data Center customers

If (there were) no plugins the
upgrades would probably be
one click, but plugins are
always the problem.
JIRA ADMIN

12% of our support tickets for
DC are related to add-ons.
ATLASSIAN SERVICES ENABLEMENT ENGINEER

We believe behind every great human achievement, there is a team.
Our mission is to unleash the potential in every team.
OUR MISSION

Server add-ons for
front-end developers
CHRIS “DAZ” DARROCH | SENIOR DEVELOPER | ATLASSIAN

How long have you
been writing  
front-end code?

When did you
write your first
Atlassian add-on?

Learning how to
build a Server
add-on can be
intimidating.
THE DILEMMA

We want to use empowering
technologies, not just the ones
browsers understand.
THE FRONT-ENDER’S DILEMMA

We want to develop our add-ons in
the way we want to work, not how
Server add-ons expect us to.
THE FRONT-ENDER’S SERVER ADD-ON DILEMMA

Teams were feeling
the pain of a slow
development loop.
THE DILEMMA

So, they decided
to change how
they built for the
front-end.
THE DILEMMA

We believe behind every great
human achievement, there is a team.  
Our mission is to unleash the
potential in every team.
OUR MISSION

If we learn how
it works, we
can work with
it better.
SERVER ADD-ONS FOR FRONT-ENDERS

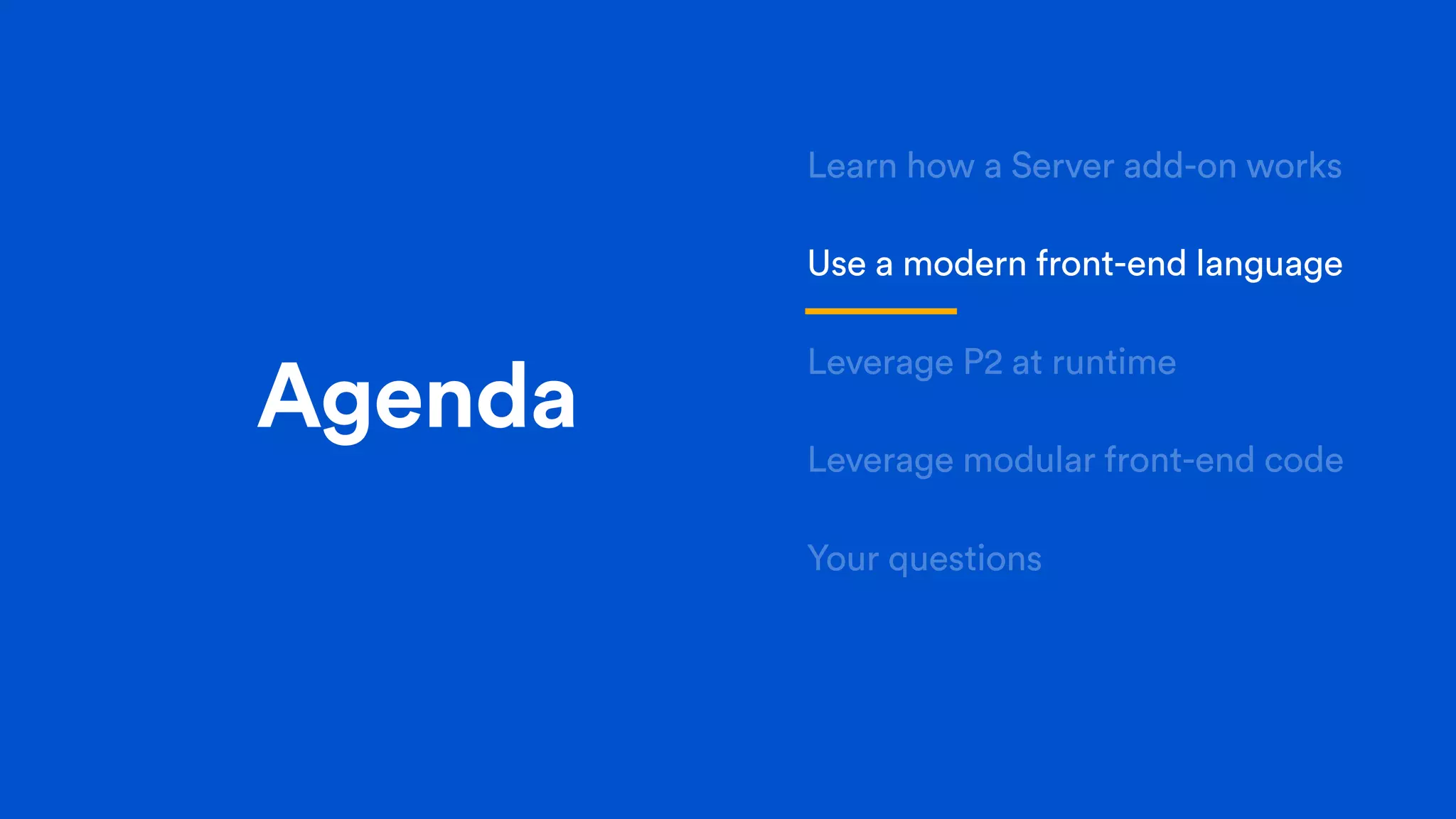

Agenda
Learn how a Server add-on works
Use a modern front-end language
Leverage P2 at runtime
Leverage modular front-end code
Your questions

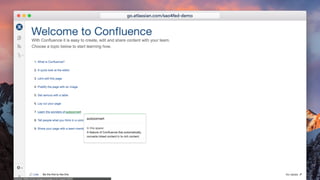

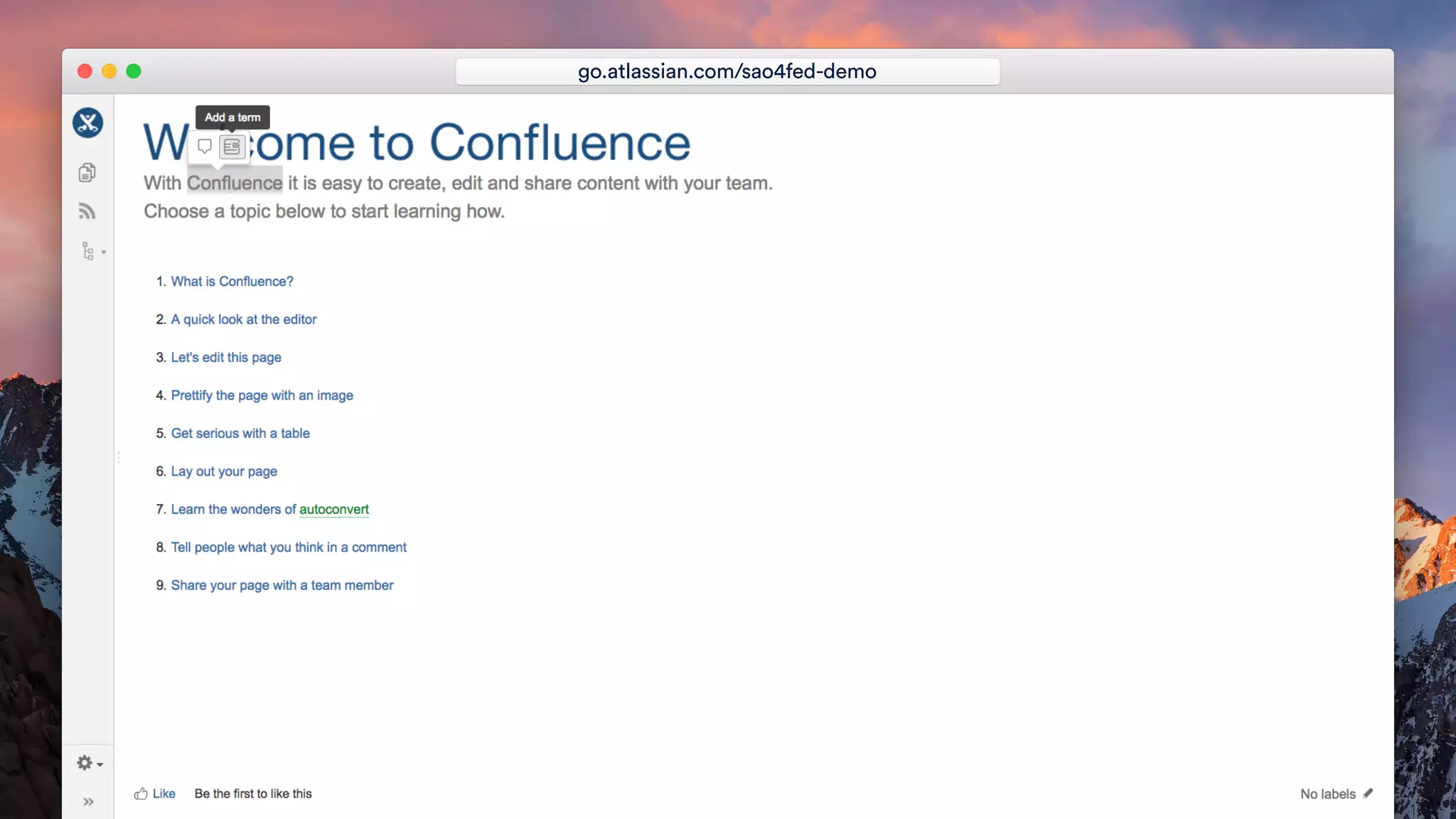

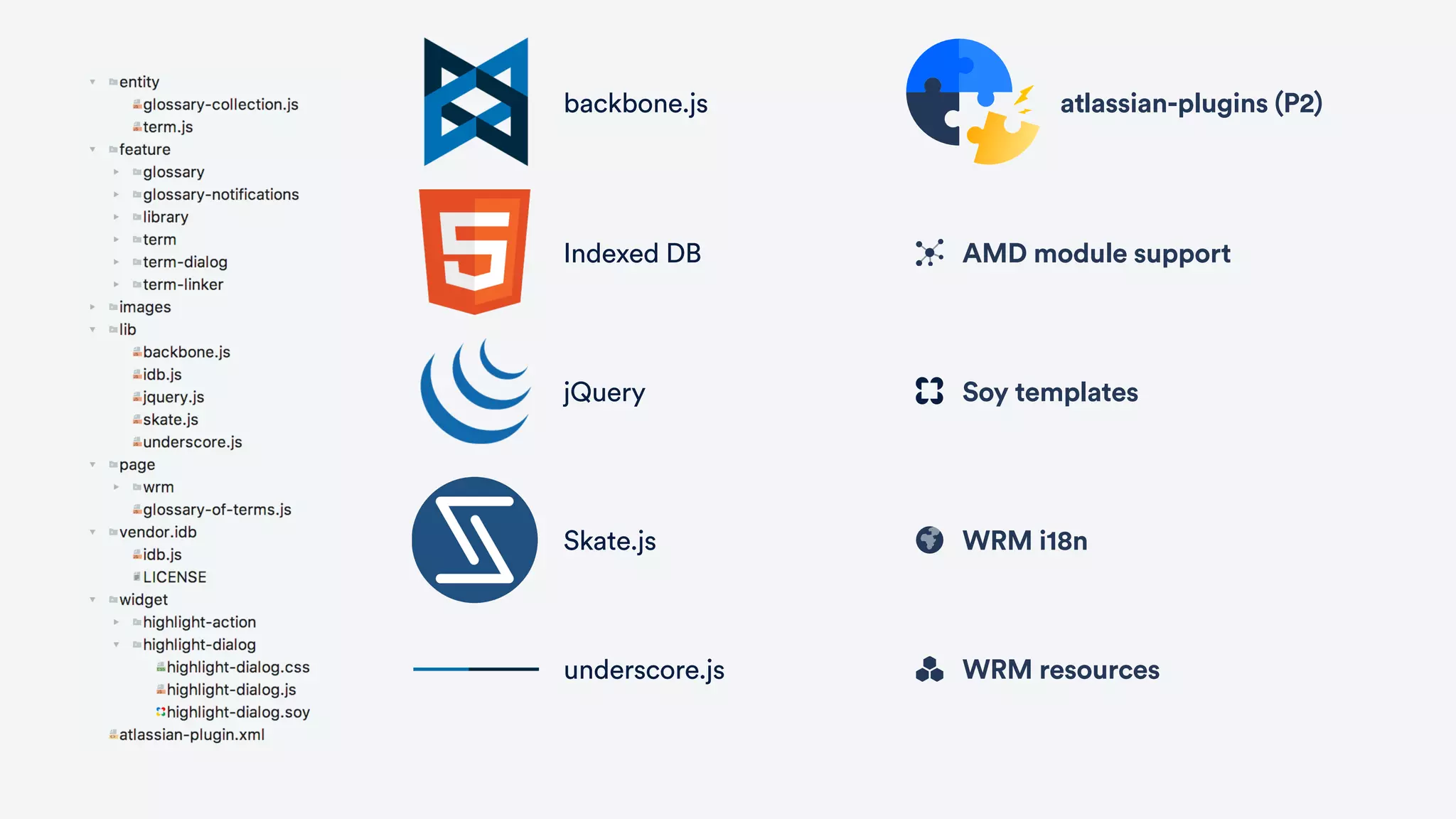

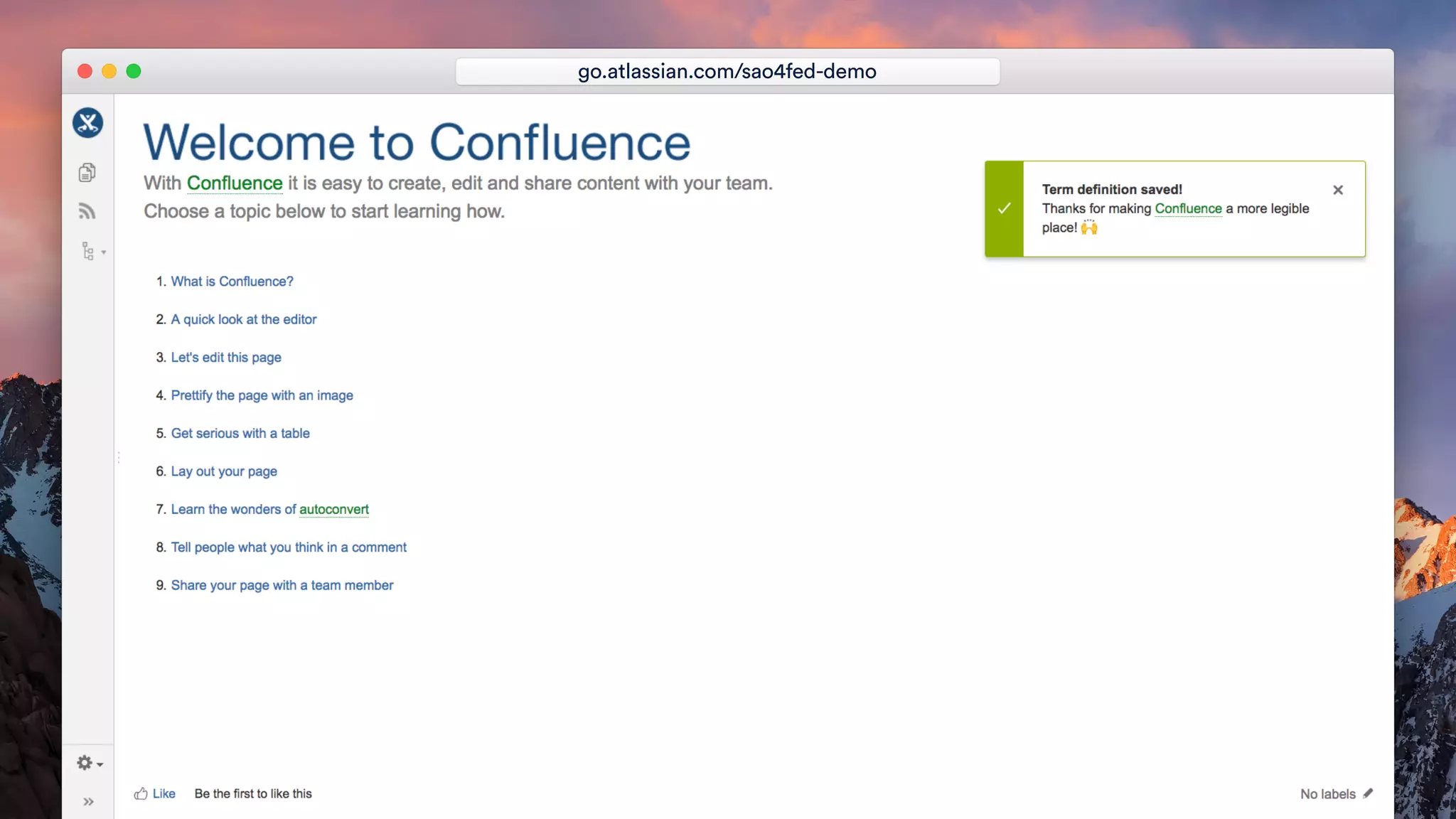

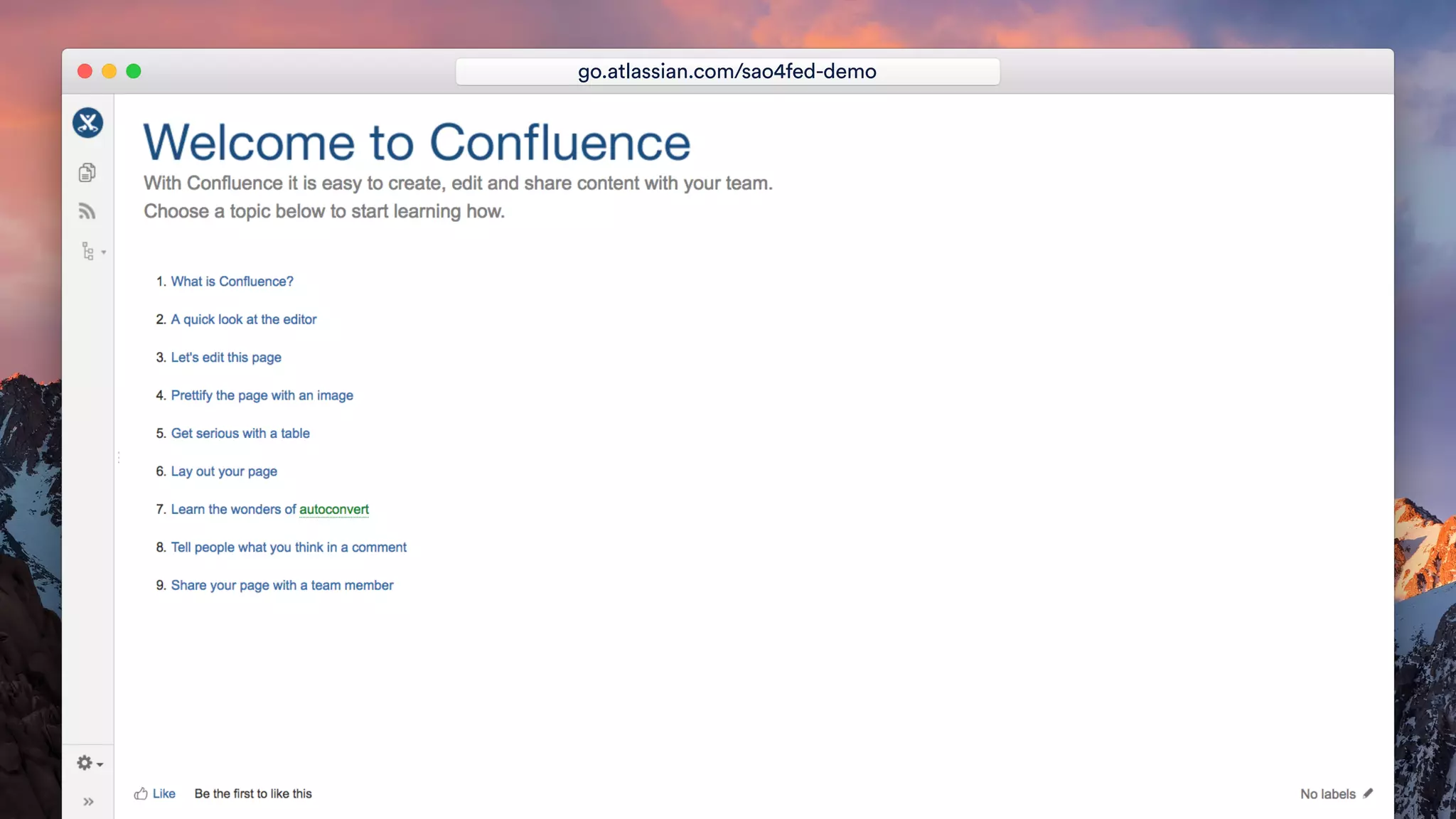

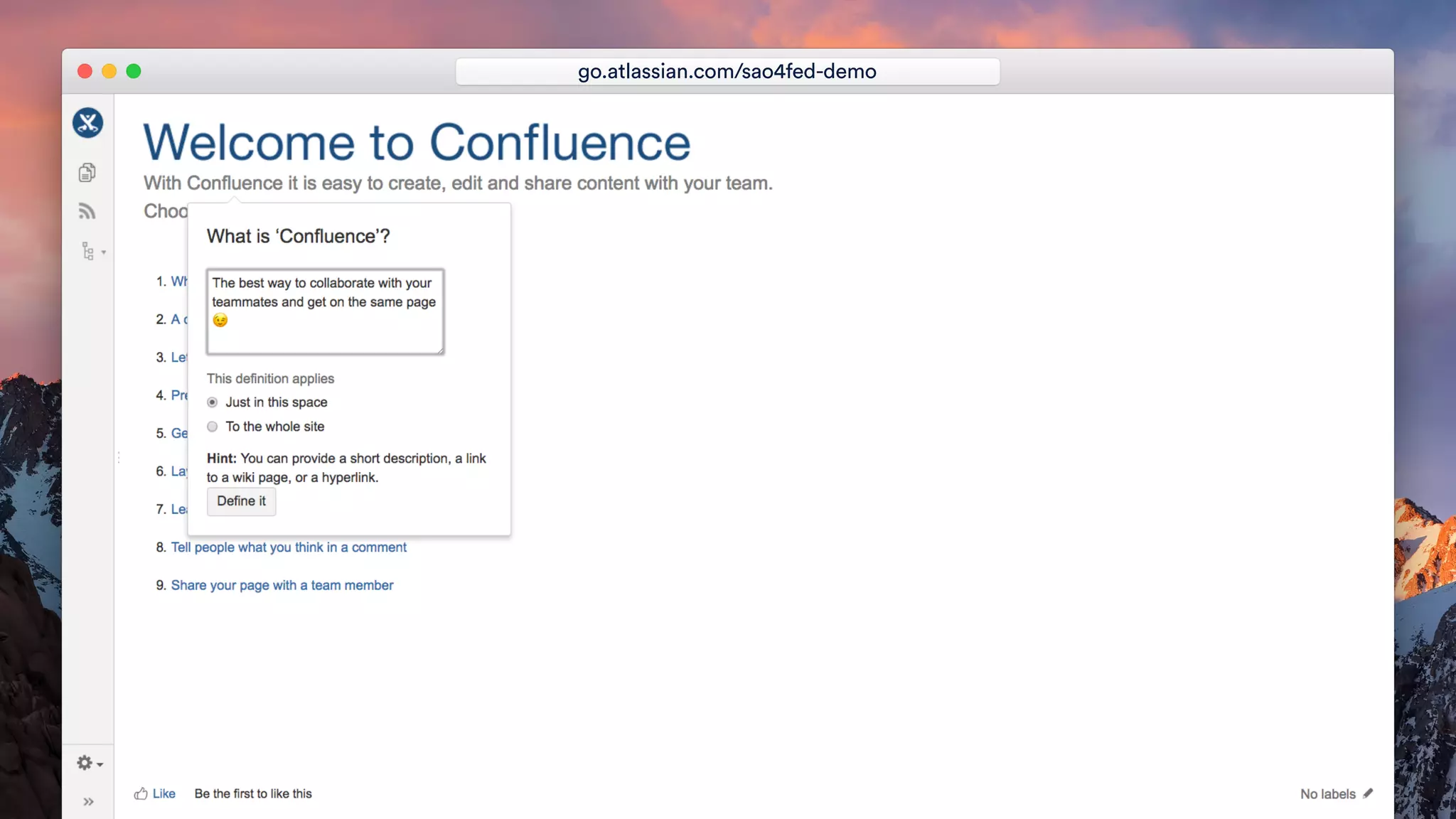

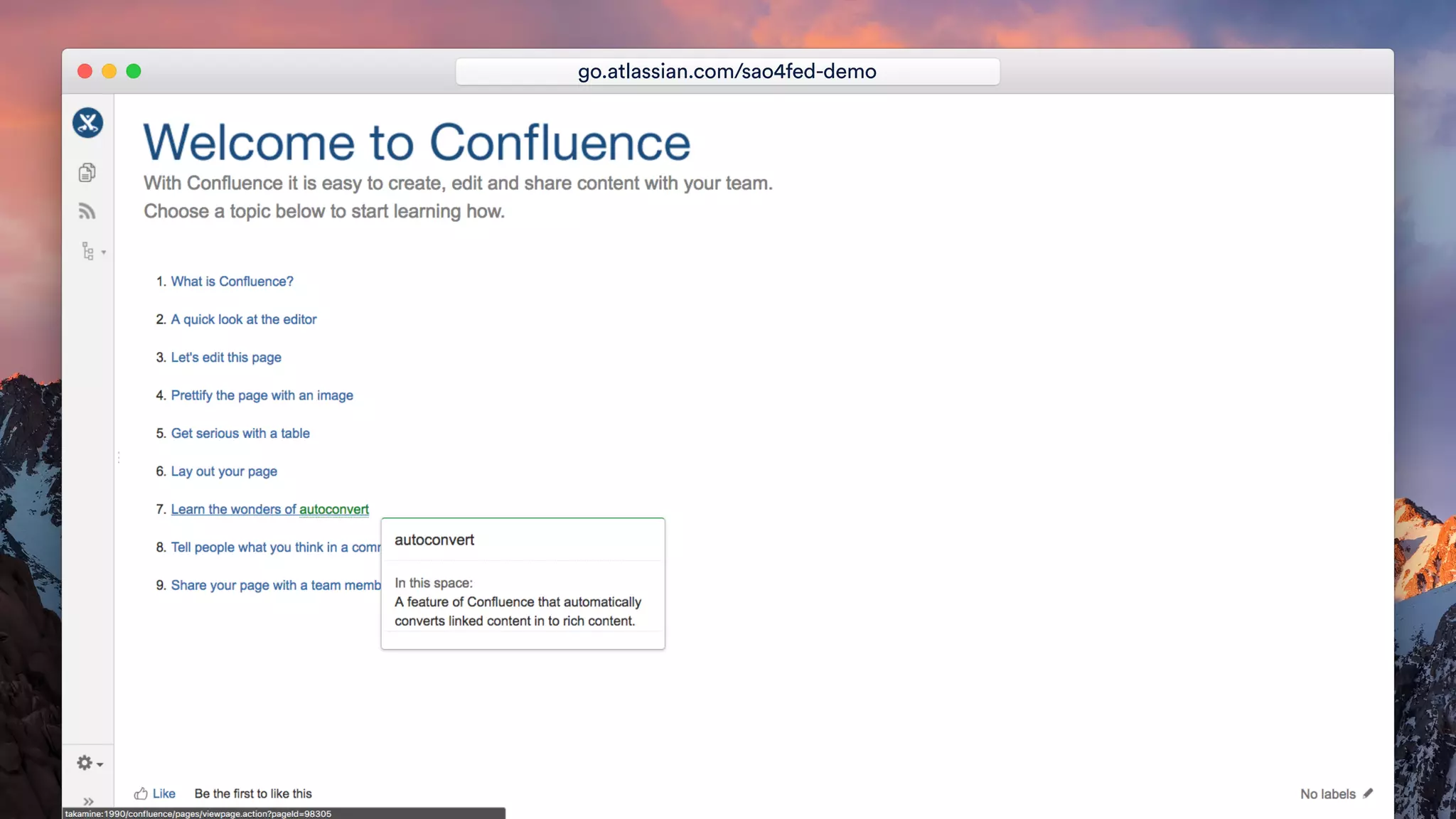

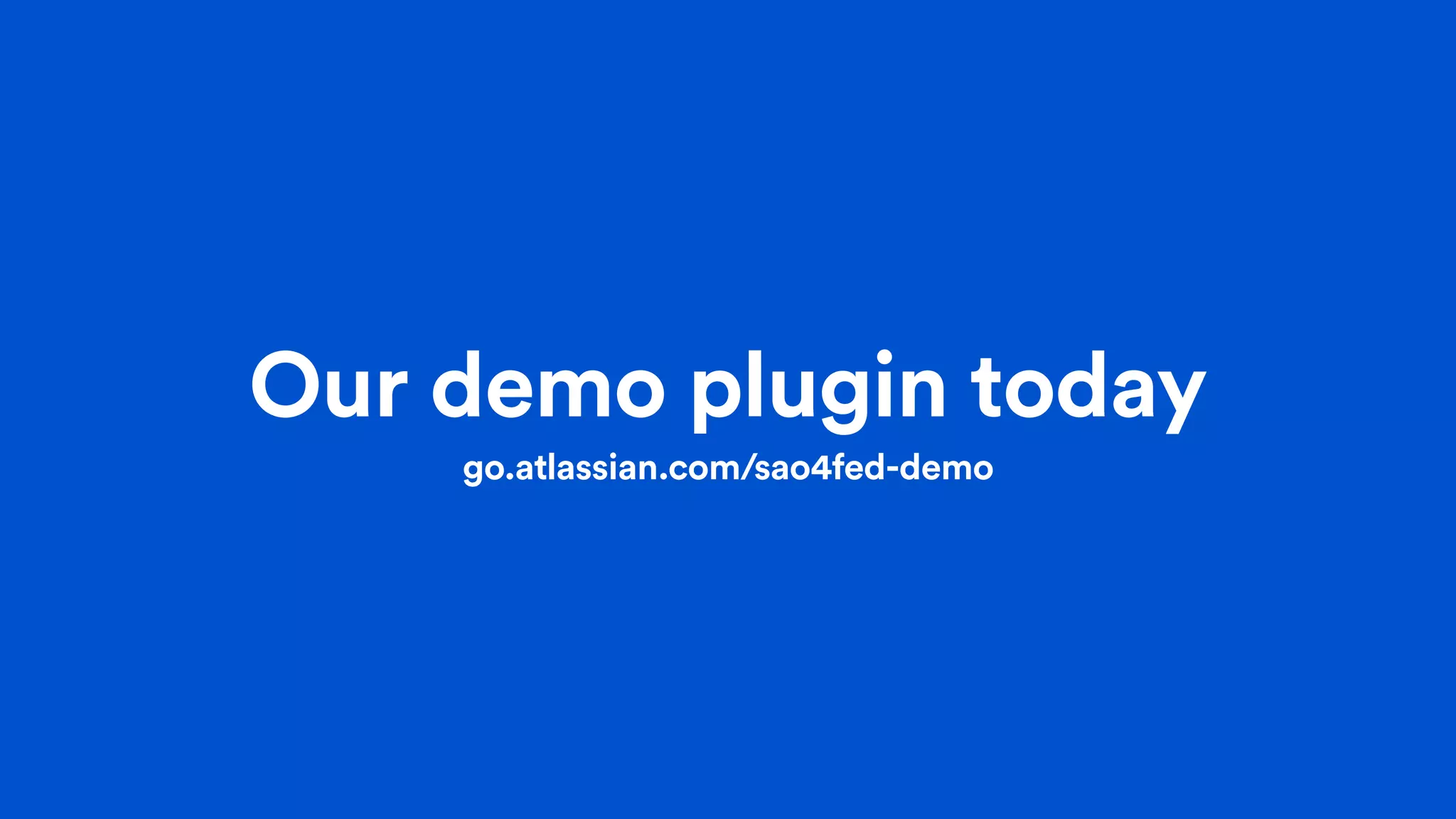

Our demo plugin today
go.atlassian.com/sao4fed-demo

backbone.js
Indexed DB
jQuery
Skate.js
underscore.js
atlassian-plugins (P2)
AMD module support

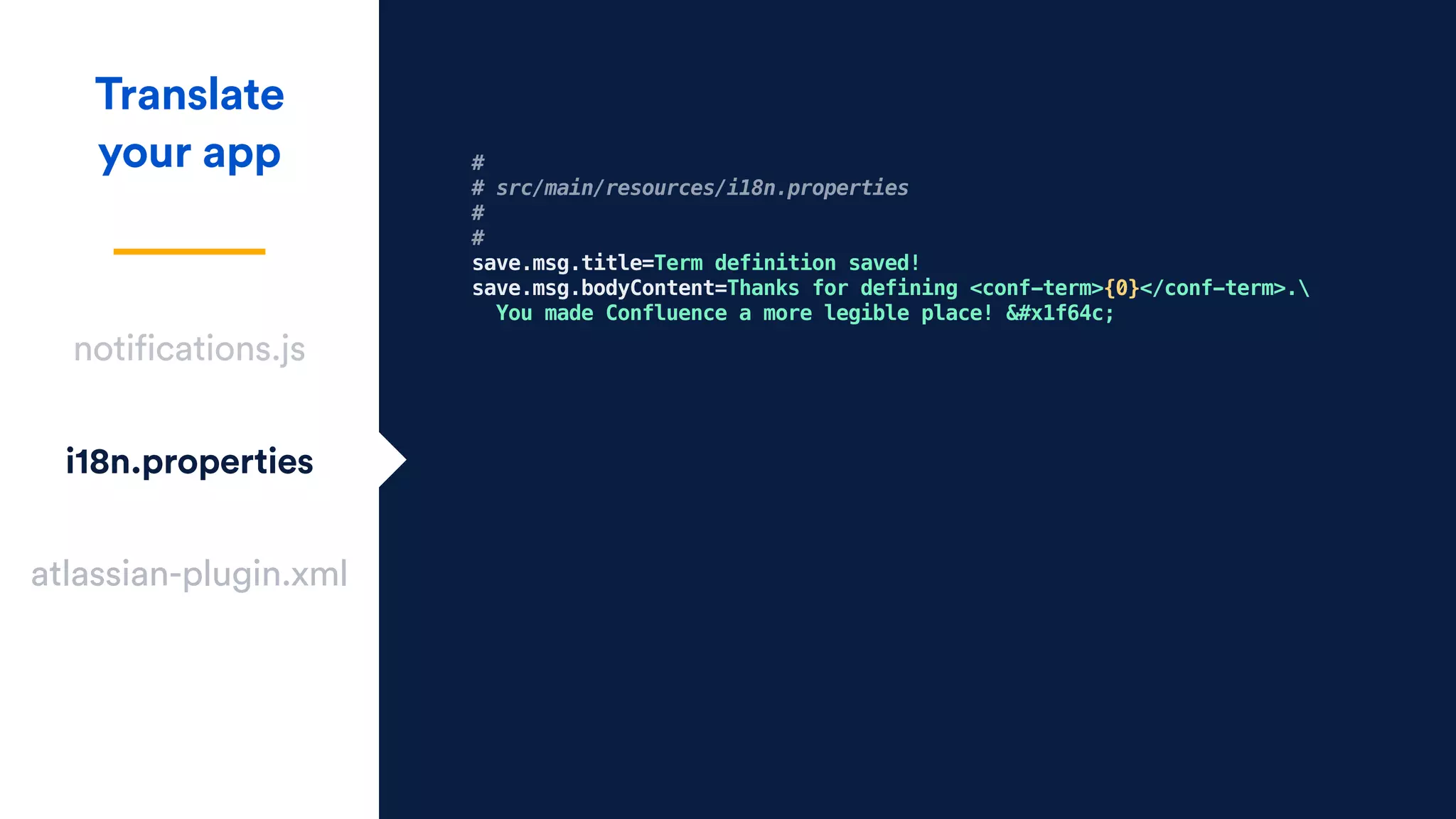

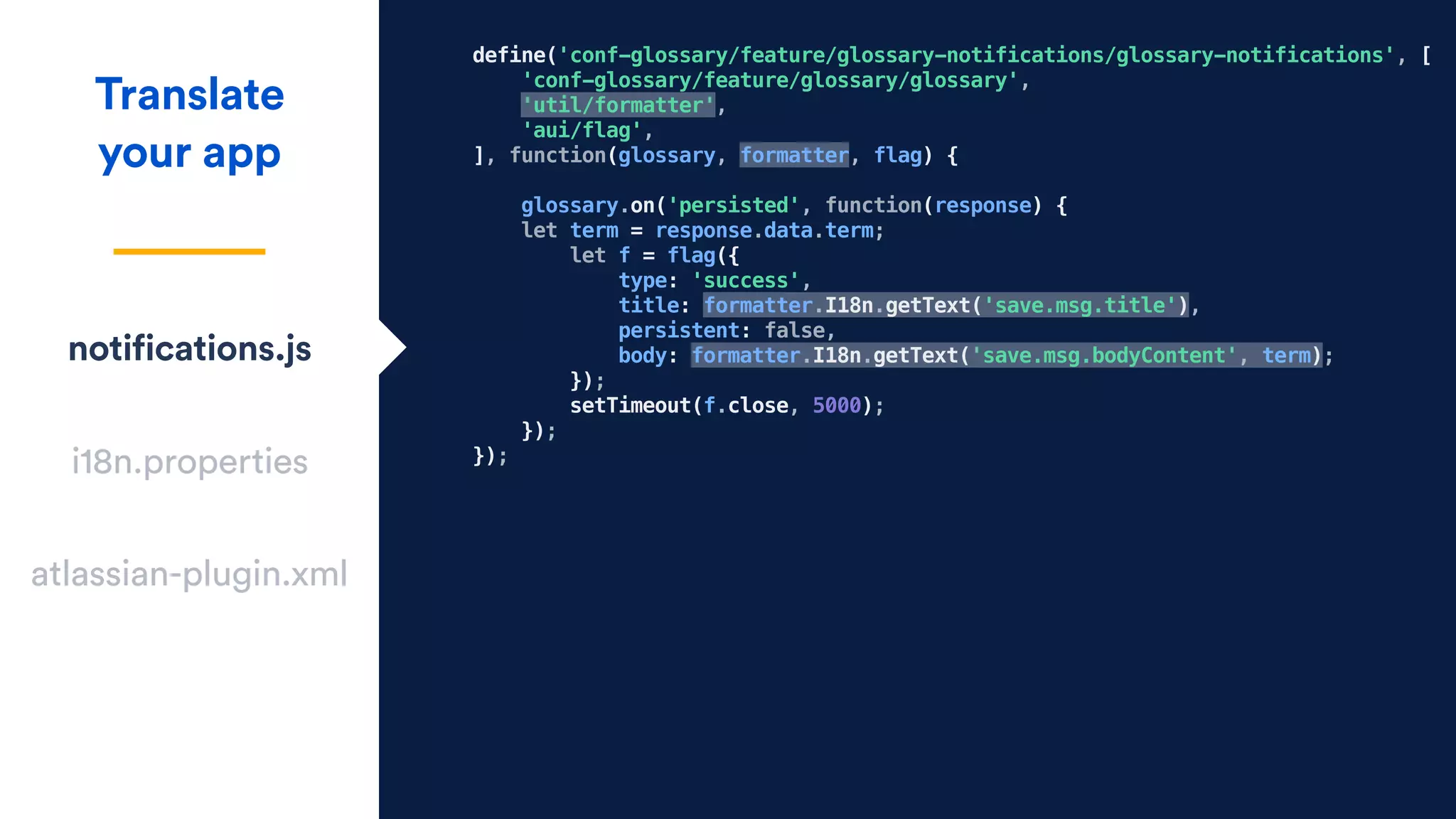

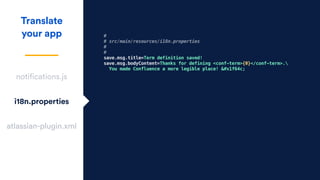

WRM i18n
WRM resources
Soy templates

We know our front-end tech.
but…
PROBLEM #1

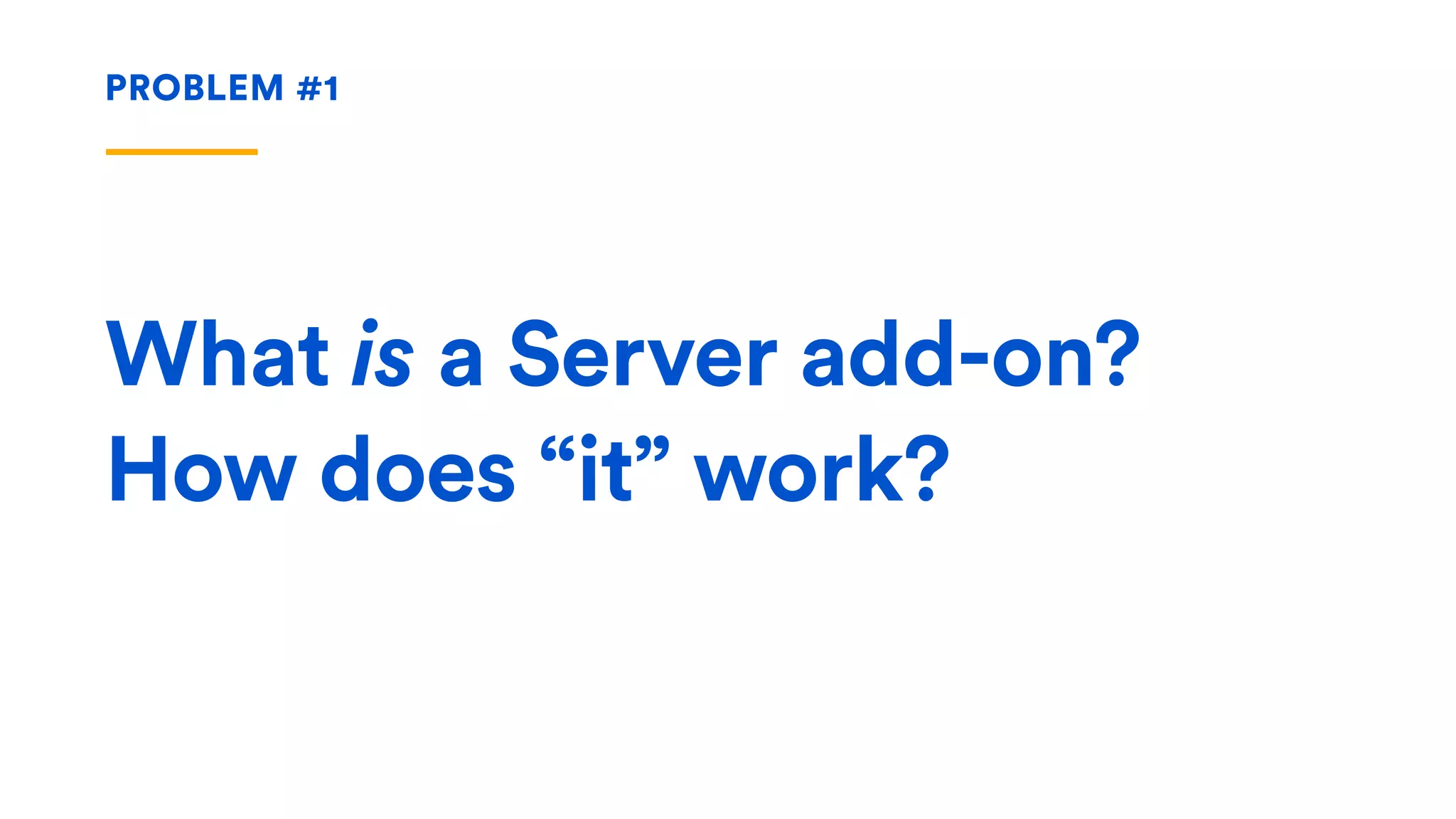

What is a Server add-on?
How does “it” work?
PROBLEM #1

How a Server add-on works
…well, just the front-end-y bits.
go.atlassian.com/sao4fed-how-it-works

Nothing in life is to be feared, it is
only to be understood. Now is the
time to understand more, so that
we may fear less.
MARIE CURIE

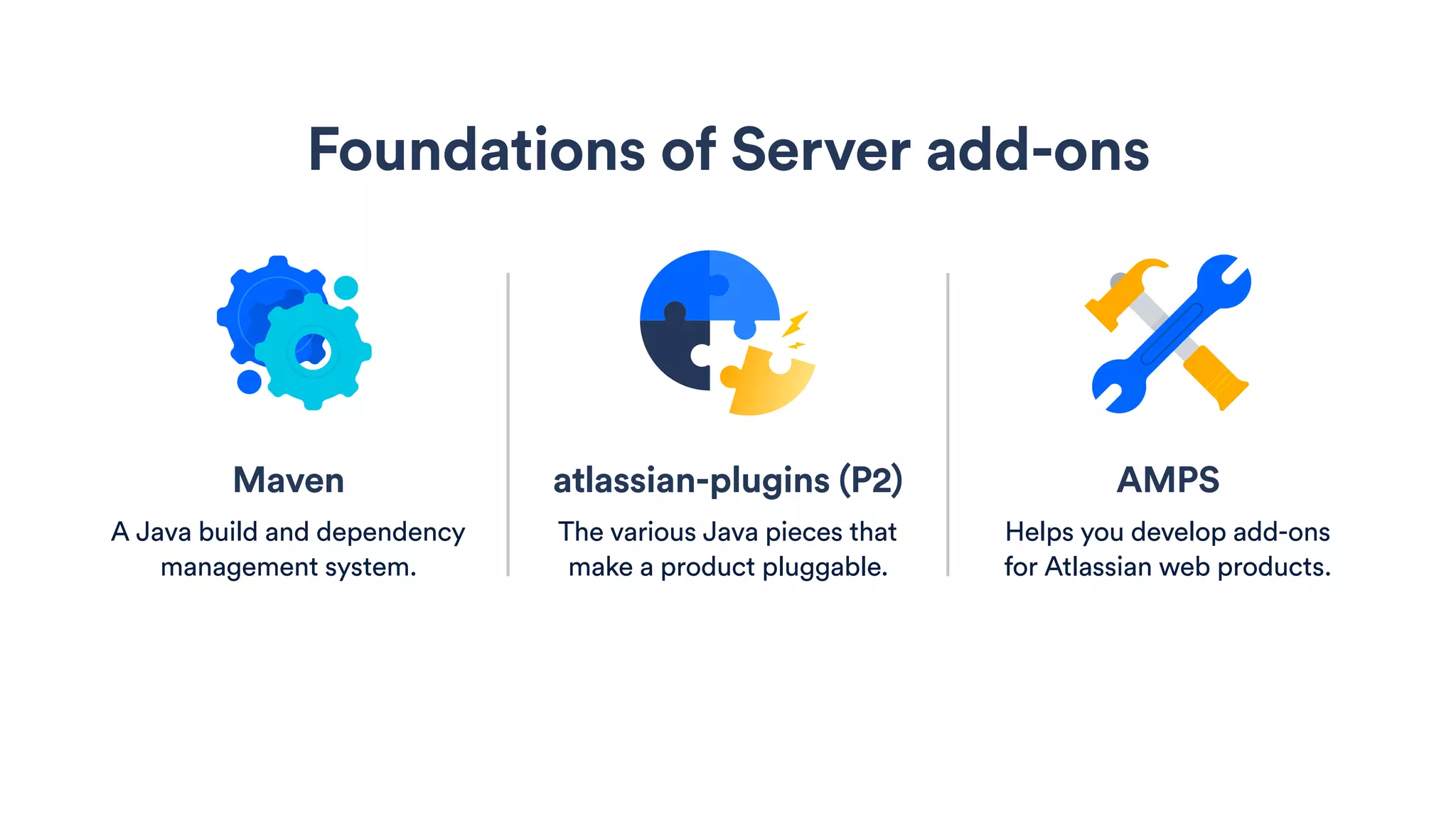

The various Java pieces that
make a product pluggable.

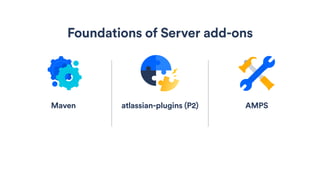

Foundations of Server add-ons
AMPS
Helps you develop add-ons
for Atlassian web products.
Maven
A Java build and dependency
management system.

Foundations
of server
add-ons

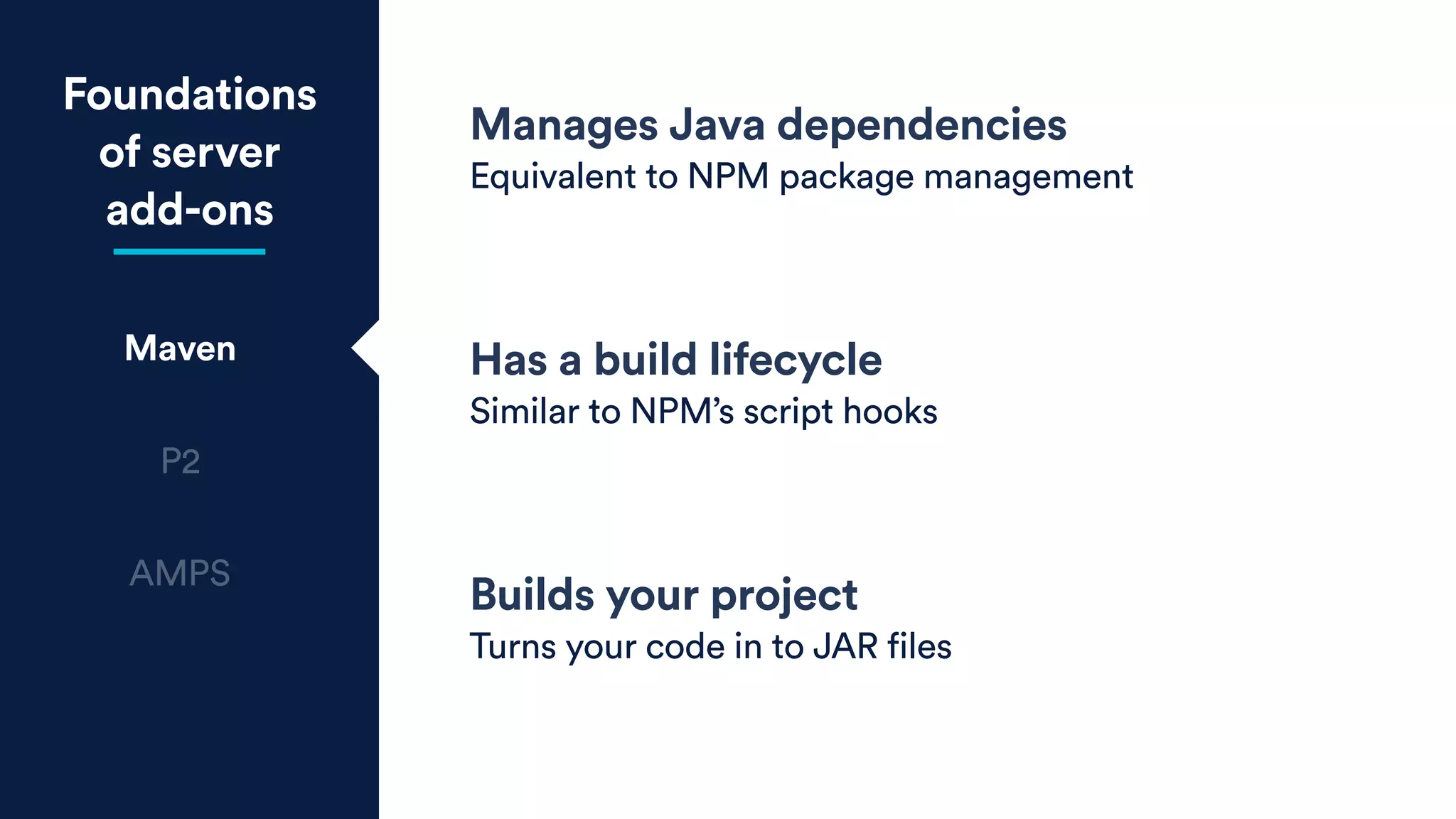

Maven
P2
AMPS
Manages Java dependencies
Equivalent to NPM package management
Has a build lifecycle
Similar to NPM’s script hooks
Builds your project
Turns your code in to JAR files
(ZIP)

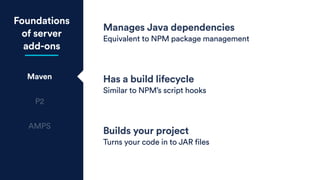

Foundations
of server
add-ons
Maven
P2
AMPS

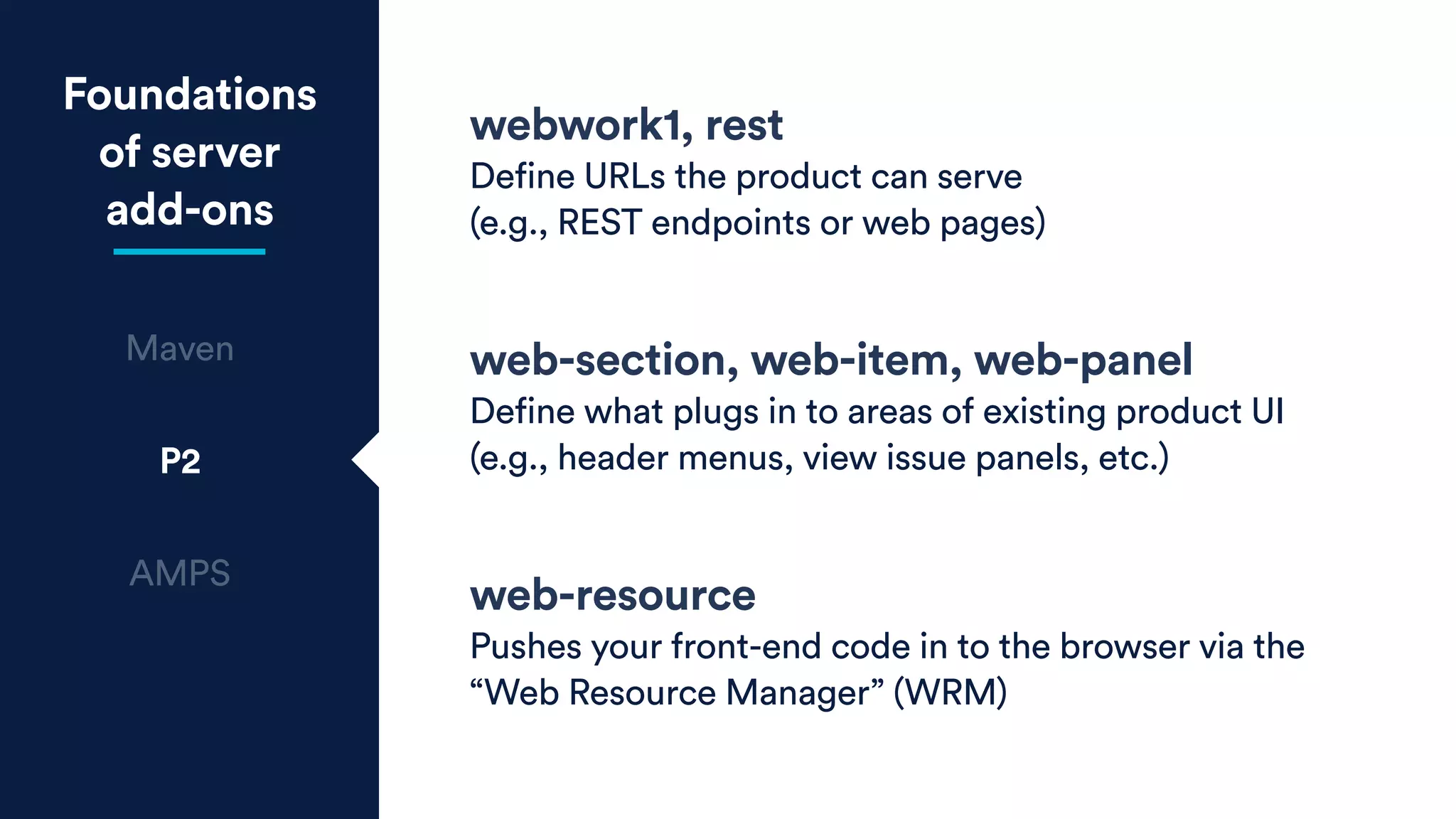

webwork1, rest
Define URLs the product can serve
(e.g., REST endpoints or web pages)
web-section, web-item, web-panel
Define what plugs in to areas of existing product UI
(e.g., header menus, view issue panels, etc.)

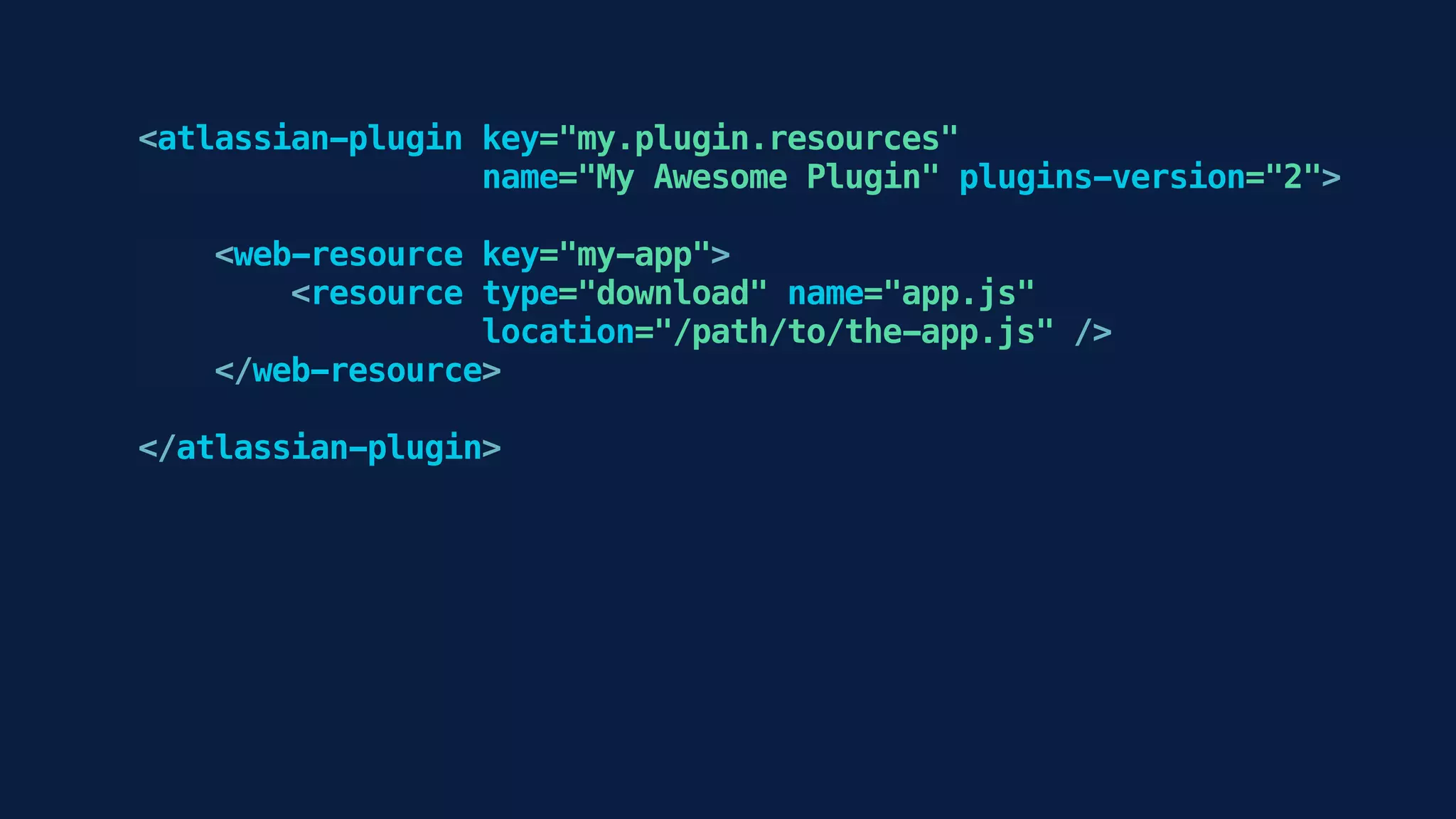

web-resource
Pushes your front-end code in to the browser via the
“Web Resource Manager” (WRM)

Foundations
of server
add-ons
Maven
P2
AMPS
Atlassian Maven Plugin Suite
It’s a Maven plugin that makes making P2 plugins
possible :)
Builds your add-ons
And helps run them inside the various Atlassian
products
Ships with front-end utilities
Some source code minifiers, transformers, and dev-
time conveniences

Check out Mel's talk!
Creating your own server add-on

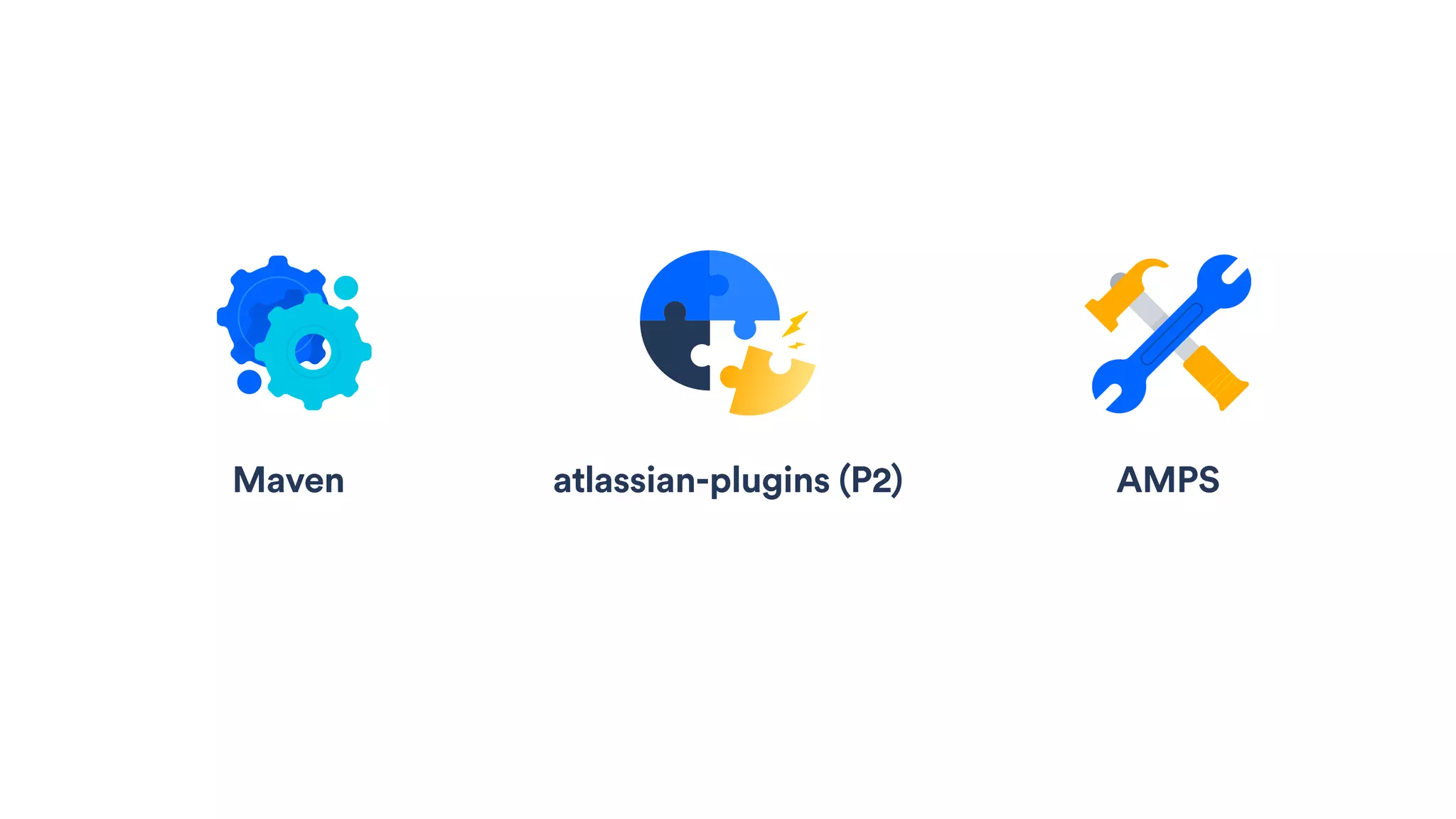

Foundations of Server add-ons
AMPSMaven

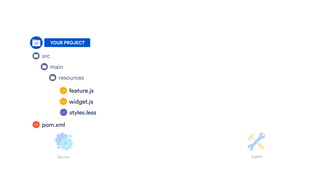

atlassian-plugins (P2) AMPSMaven

atlassian-plugins (P2) AMPSMaven

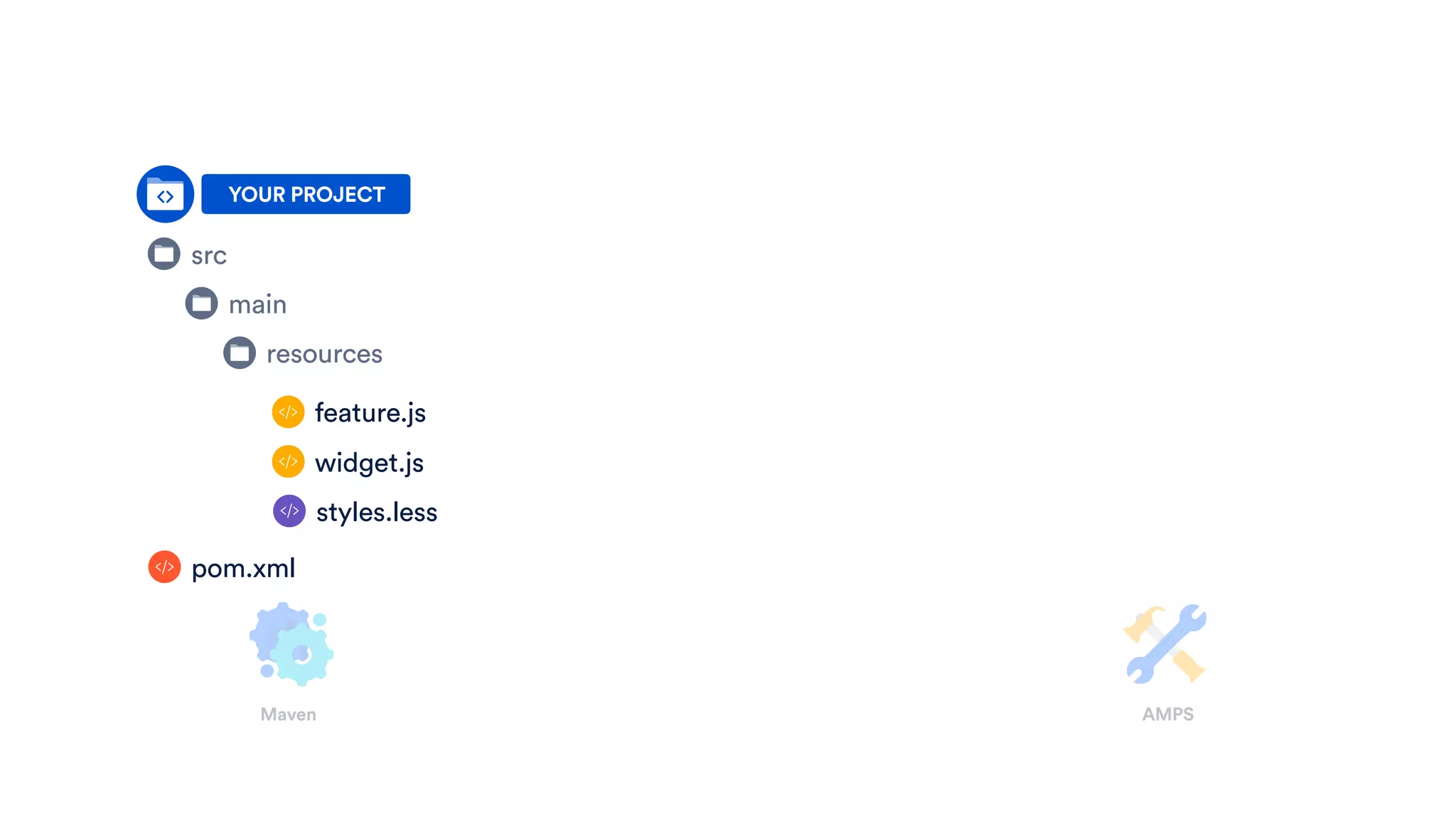

YOUR PROJECT
main
src
resources
feature.js
widget.js
styles.less
pom.xml

AMPSMaven
main
src
resources
feature.js
widget.js
styles.less
classes
target
COMPILED PROJECT
feature-min.js
widget-min.js
styles-min.css
process-resources
pom.xml

AMPSMaven
main
src
resources
feature.js
widget.js
styles.less
classes
target
COMPILED PROJECT
feature-min.js
widget-min.js
styles-min.css
my-plugin.jar
package
pom.xml

classes

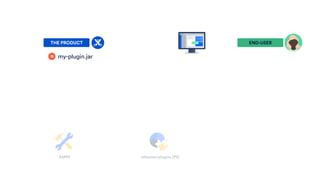

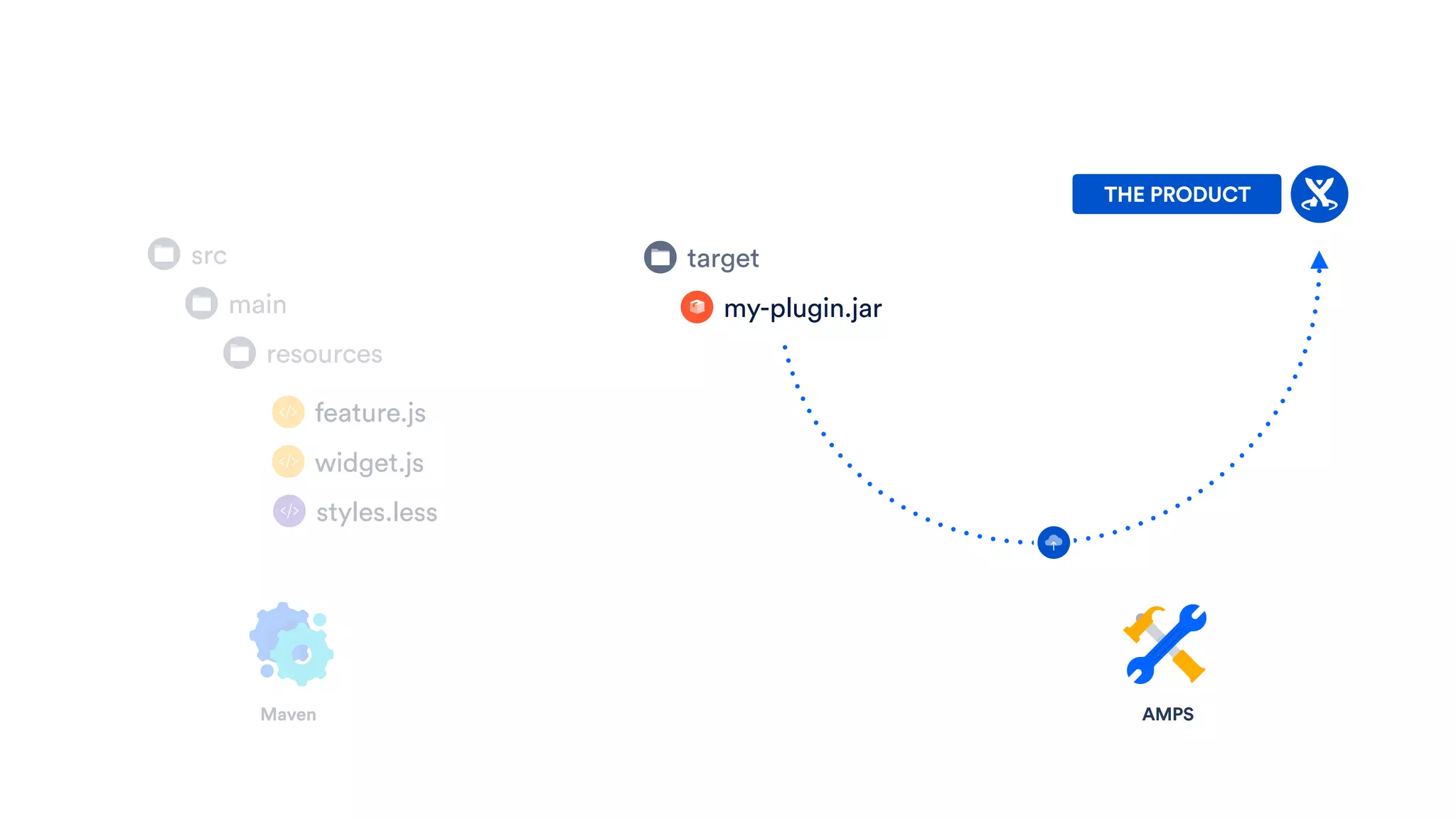

AMPSMaven
my-plugin.jar
THE PRODUCT
main
src
resources
feature.js
widget.js
styles.less
target
pom.xml

AMPSMaven
THE PRODUCT
classes
target
feature-min.js
widget-min.js
styles-min.css
my-plugin.jar
YOUR PROJECT
main
src
resources
feature.js
widget.js
styles.less
COMPILED PROJECT
1
3
2
pom.xml

We know how a Server
add-on gets built now.
PROBLEM #1

We want to use modern
front-end technologies,
like ES6.
PROBLEM #2

How do we convince P2 to
use a compiled front-end?
CHALLENGE #2

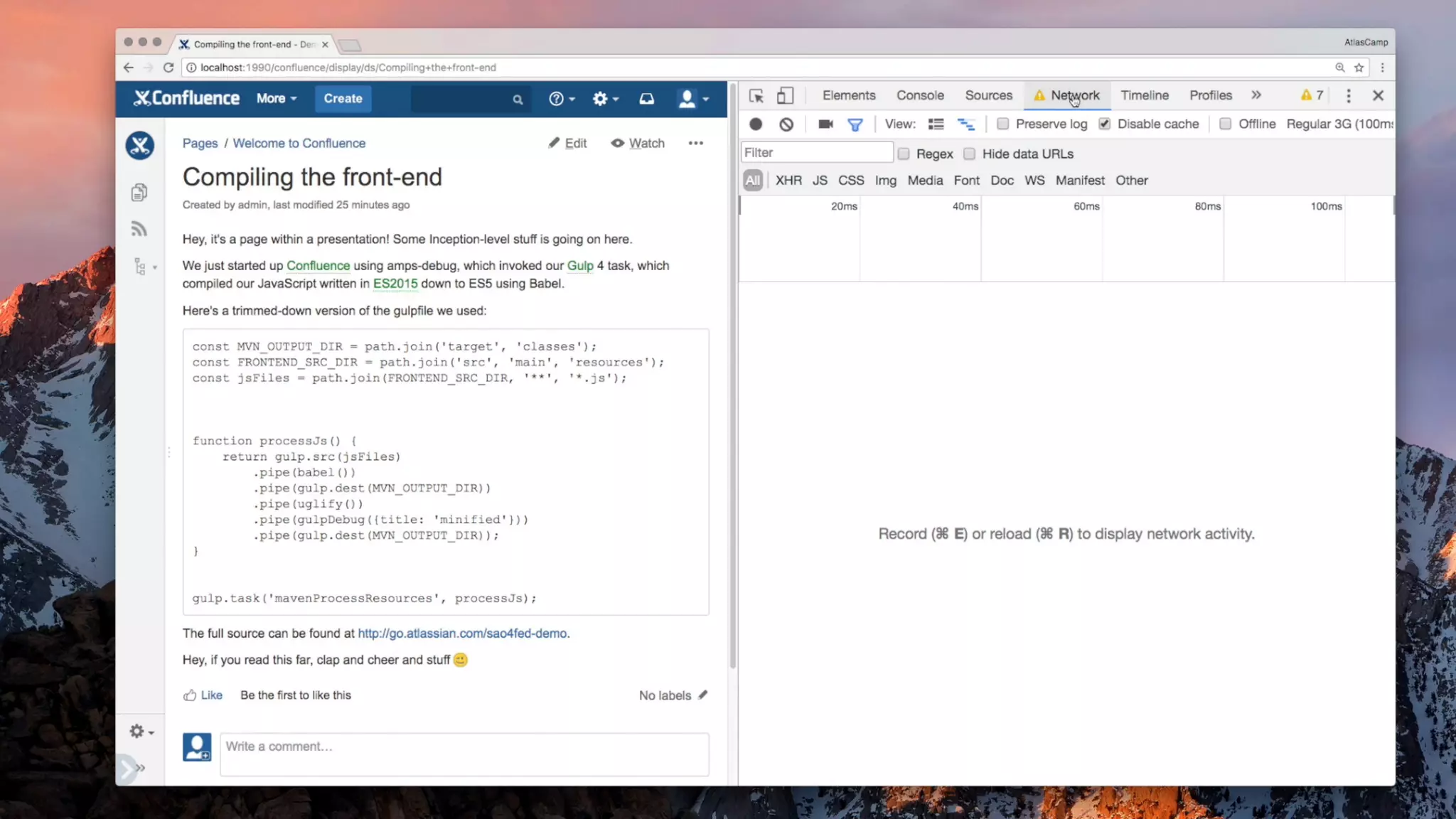

Compiling our front-end
go.atlassian.com/sao4fed-compile-the-ui

We have two main
integration points between
Maven and Node…
CHALLENGE #2

The process-resources
Maven phase
Copy and process the resources
into the destination directory,
ready for packaging.
A Gulp build task
To compile our source in to
browser-ready production code.

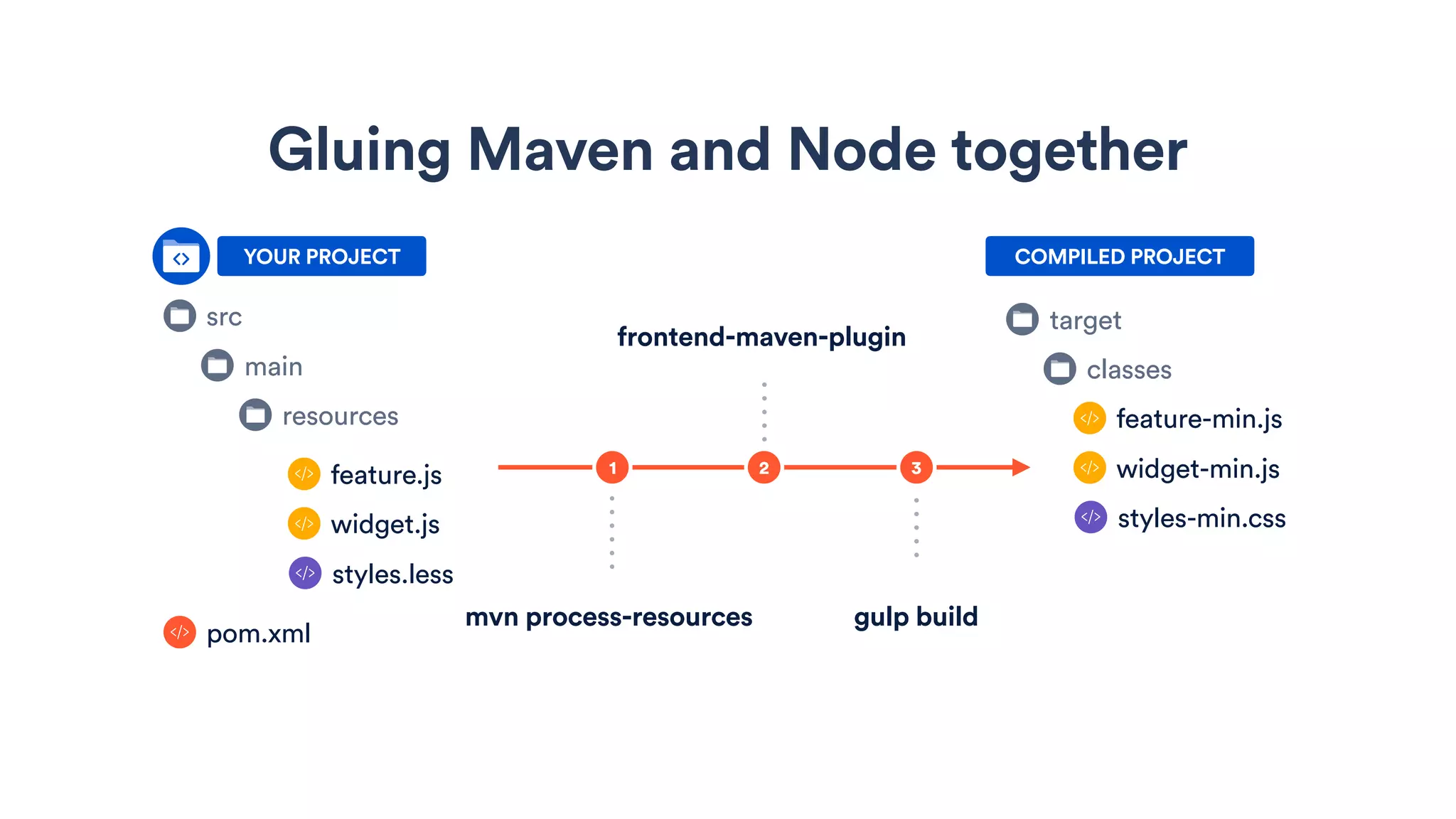

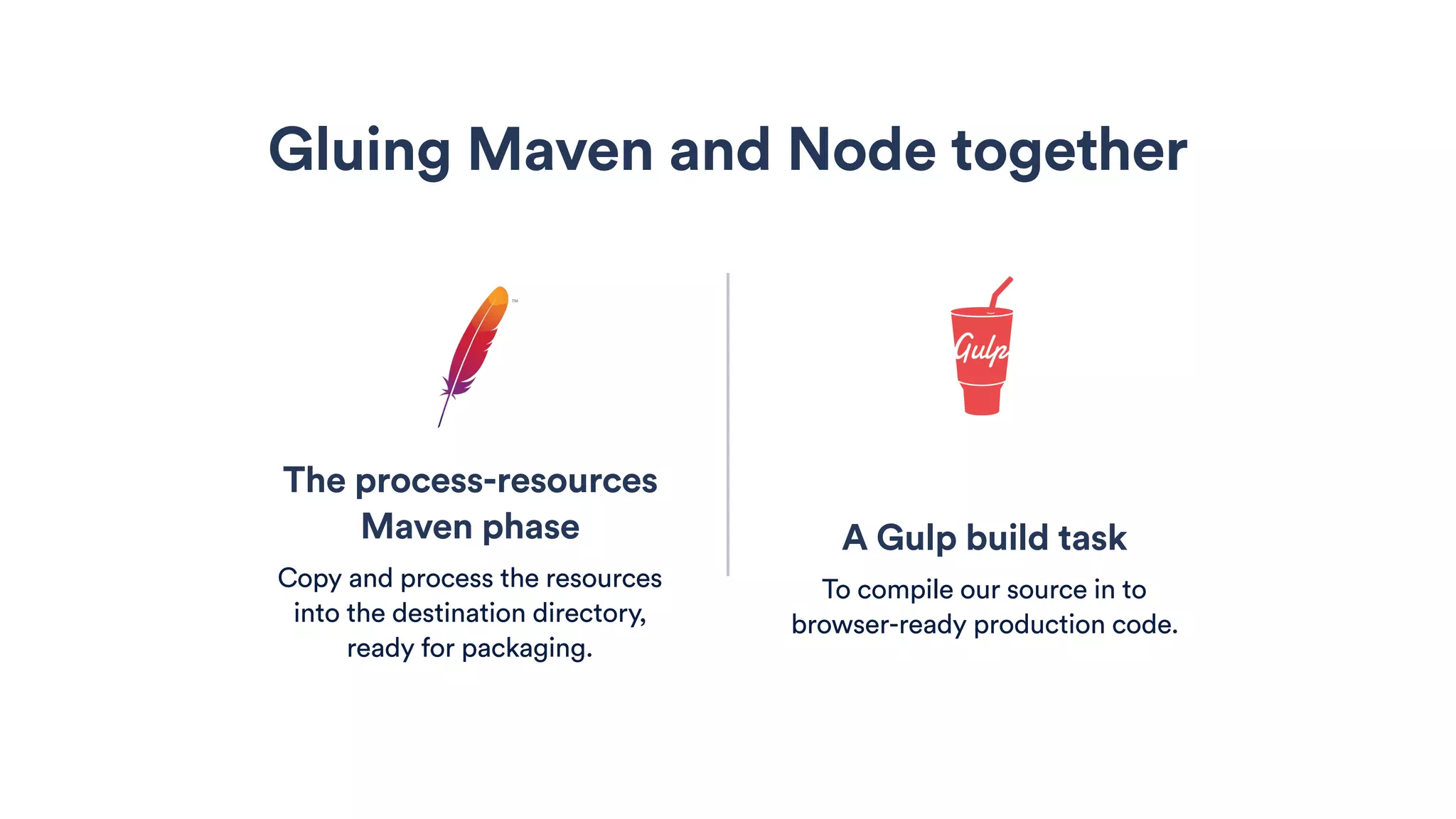

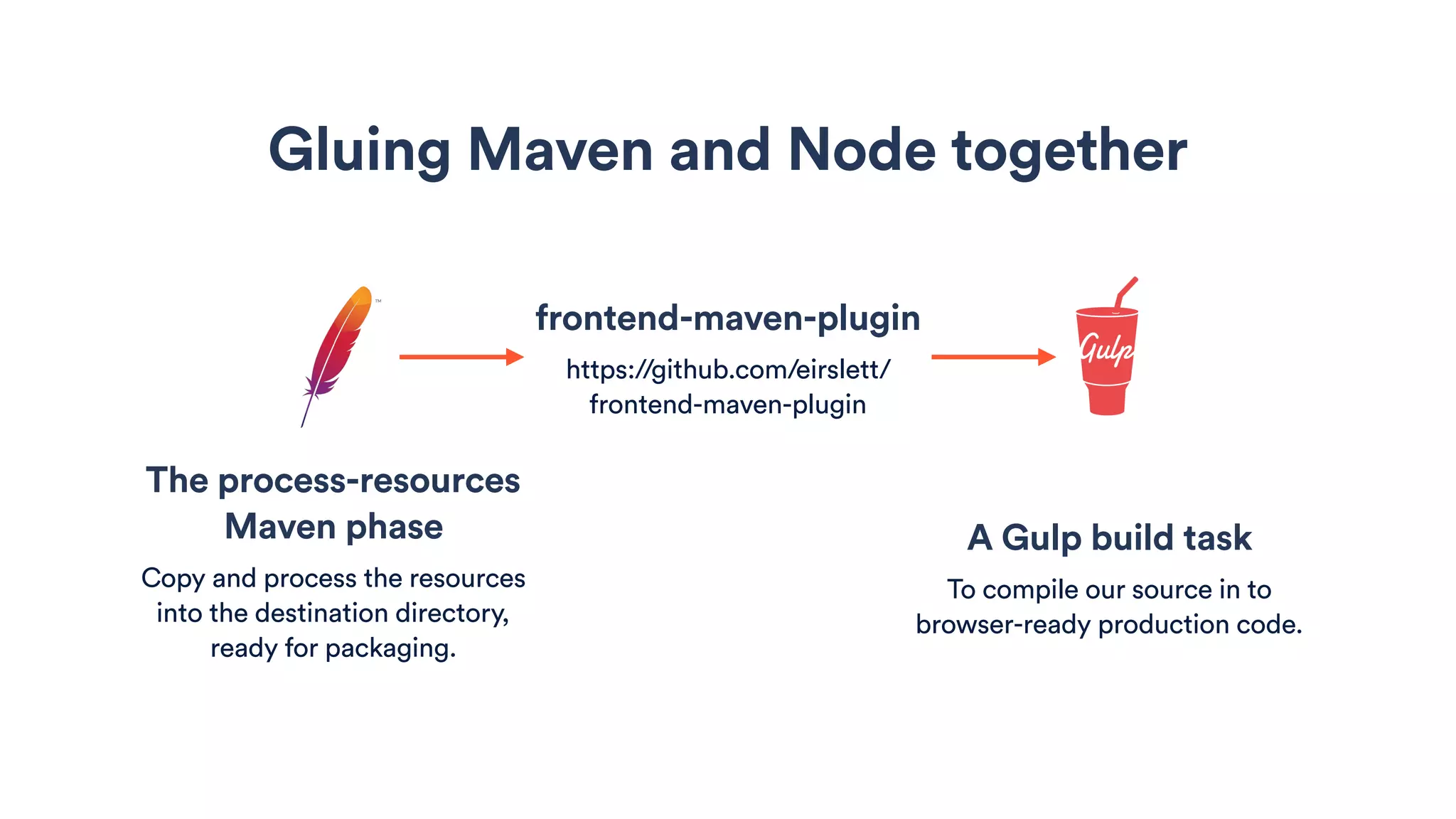

Gluing Maven and Node together

The process-resources
Maven phase
Copy and process the resources
into the destination directory,
ready for packaging.
A Gulp build task
To compile our source in to
browser-ready production code.
frontend-maven-plugin
https://github.com/eirslett/

classes
target
feature-min.js
widget-min.js
styles-min.css
YOUR PROJECT
main
src
resources
feature.js
widget.js
styles.less
COMPILED PROJECT
1
mvn process-resources
2
3
gulp build
pom.xml

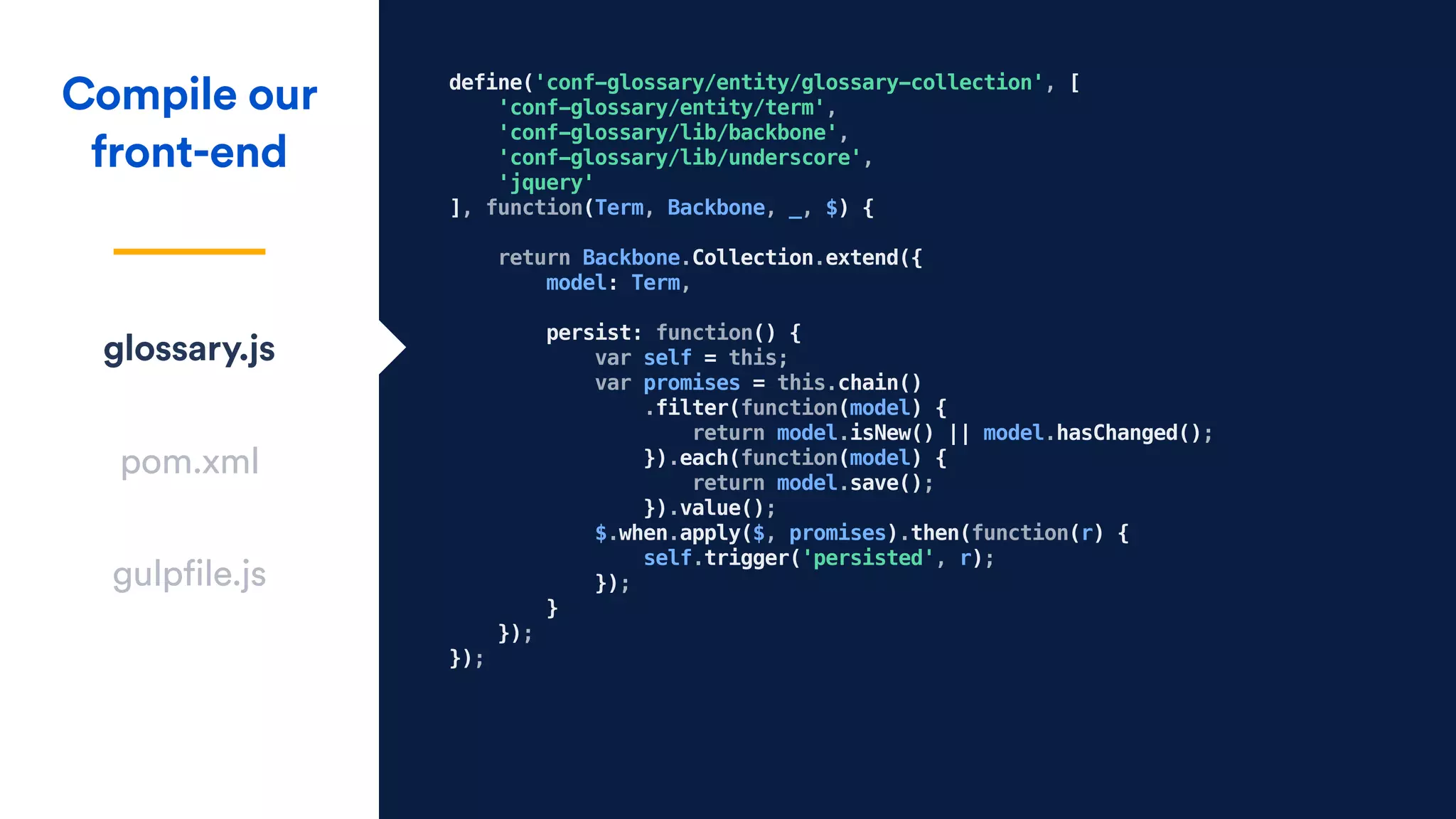

define('conf-glossary/entity/glossary-collection', [ 
'conf-glossary/entity/term', 
'conf-glossary/lib/backbone', 
'conf-glossary/lib/underscore', 
'jquery' 
], function(Term, Backbone, _, $) { 
 
return Backbone.Collection.extend({ 
model: Term, 
 
persist: function() { 
var self = this; 
var promises = this.chain() 
.filter(function(model) { 
return model.isNew() || model.hasChanged(); 
}).each(function(model) { 
return model.save(); 
}).value(); 
$.when.apply($, promises).then(function(r) { 
self.trigger('persisted', r); 
}); 
} 
}); 
});
Compile our
front-end
glossary.js
pom.xml
gulpfile.js

define('conf-glossary/entity/glossary-collection', [ 
'conf-glossary/entity/term', 
'conf-glossary/lib/backbone', 
'conf-glossary/lib/underscore', 
'jquery' 
], function(Term, Backbone, _, $) { 
 
return Backbone.Collection.extend({ 
model: Term, 
 
persist() { 
const promises = this.chain() 
.filter(model => model.isNew() || model.hasChanged()) 
.each(model => model.save()) 
.value(); 
$.when.apply($, promises).then(r => { 
this.trigger('persisted', r); 
}); 
} 
}); 
});
Compile our
front-end
glossary.js
pom.xml
gulpfile.js

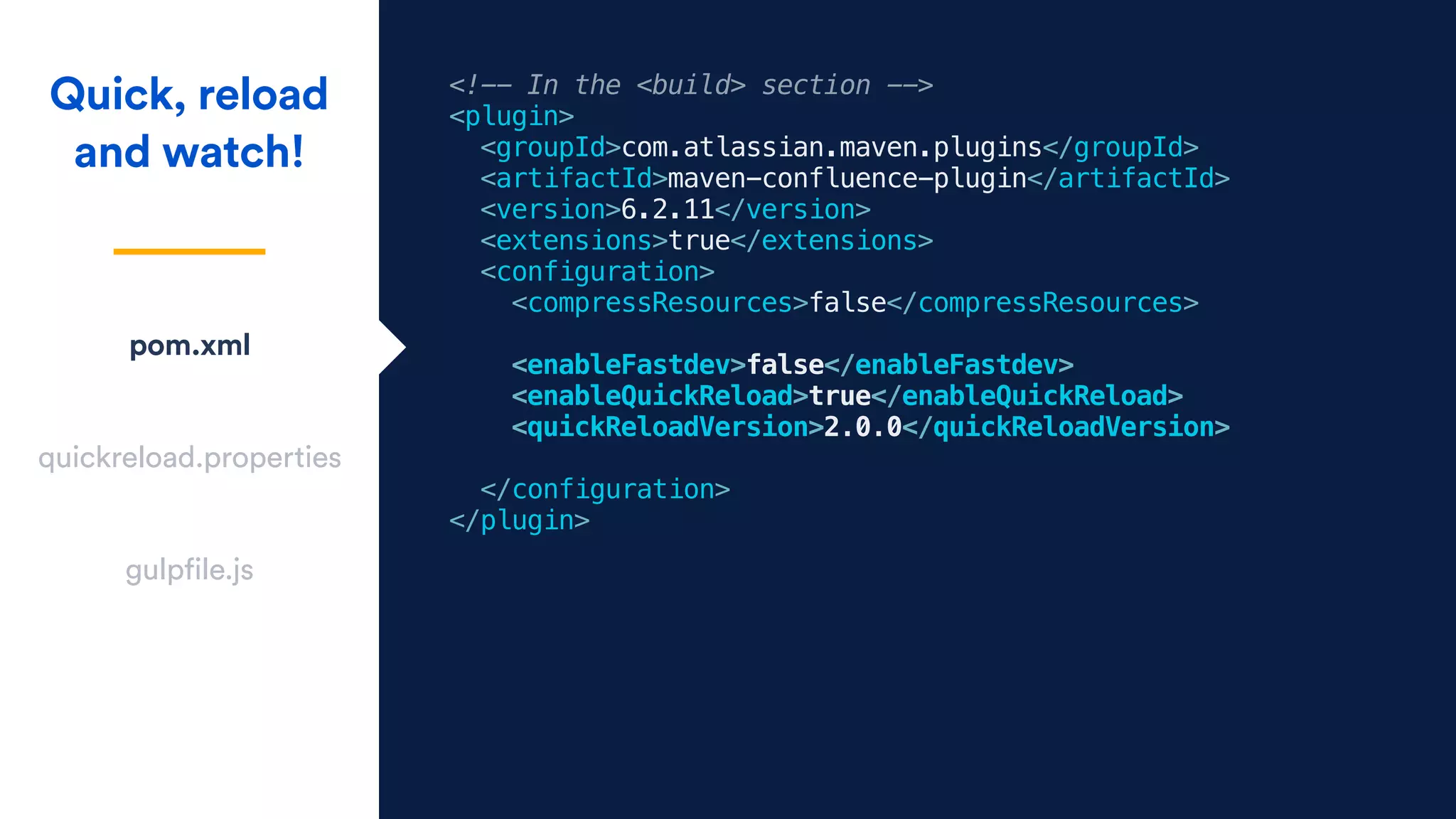

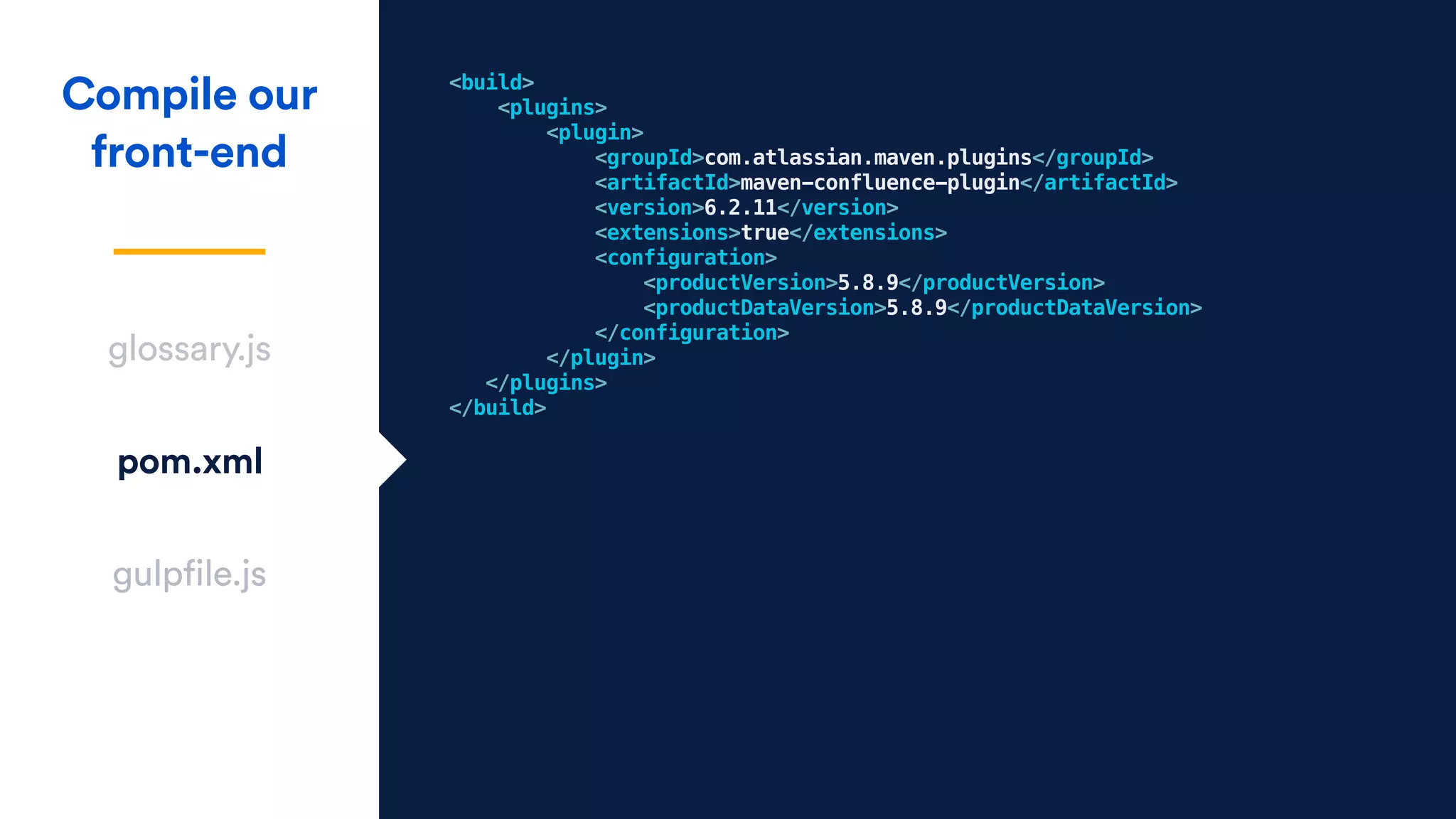

<build> 
<plugins> 
<plugin> 
<groupId>com.atlassian.maven.plugins</groupId> 
<artifactId>maven-confluence-plugin</artifactId> 
<version>6.2.11</version> 
<extensions>true</extensions> 
<configuration> 
<productVersion>5.8.9</productVersion> 
<productDataVersion>5.8.9</productDataVersion> 
</configuration> 
</plugin> 
</plugins> 
</build>
Compile our
front-end
glossary.js
pom.xml
gulpfile.js

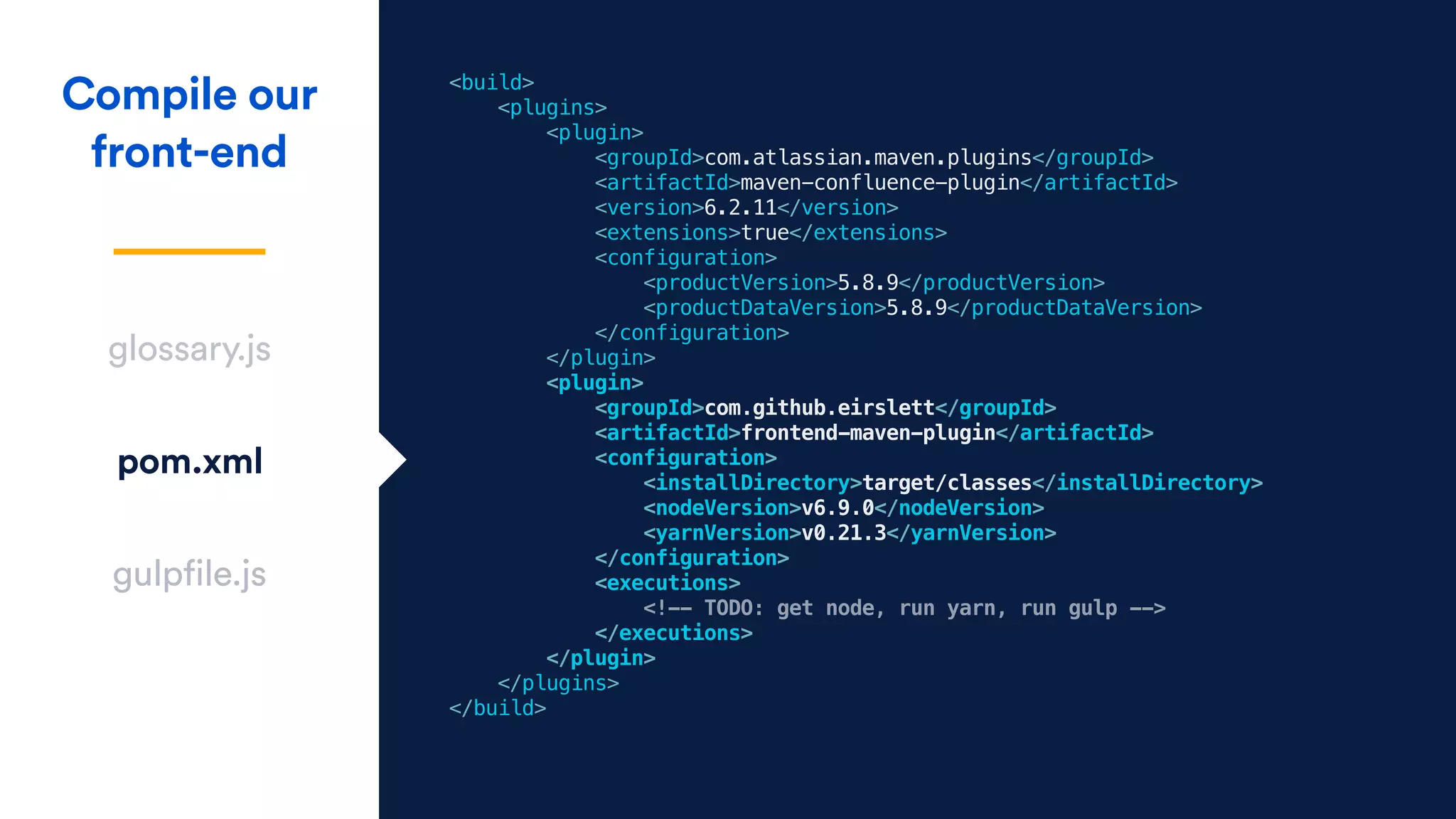

<build> 
<plugins> 
<plugin> 
<configuration> 
<productVersion>5.8.9</productVersion> 
<productDataVersion>5.8.9</productDataVersion> 
</configuration> 
</plugin> 
<plugin> 
<groupId>com.github.eirslett</groupId> 
<artifactId>frontend-maven-plugin</artifactId> 
<configuration> 
<installDirectory>target/classes</installDirectory> 
<nodeVersion>v6.9.0</nodeVersion> 
<yarnVersion>v0.21.3</yarnVersion> 
</configuration> 
<executions> 

</executions> 
</plugin> 
</plugins> 
</build>
Compile our
front-end
glossary.js
pom.xml
gulpfile.js

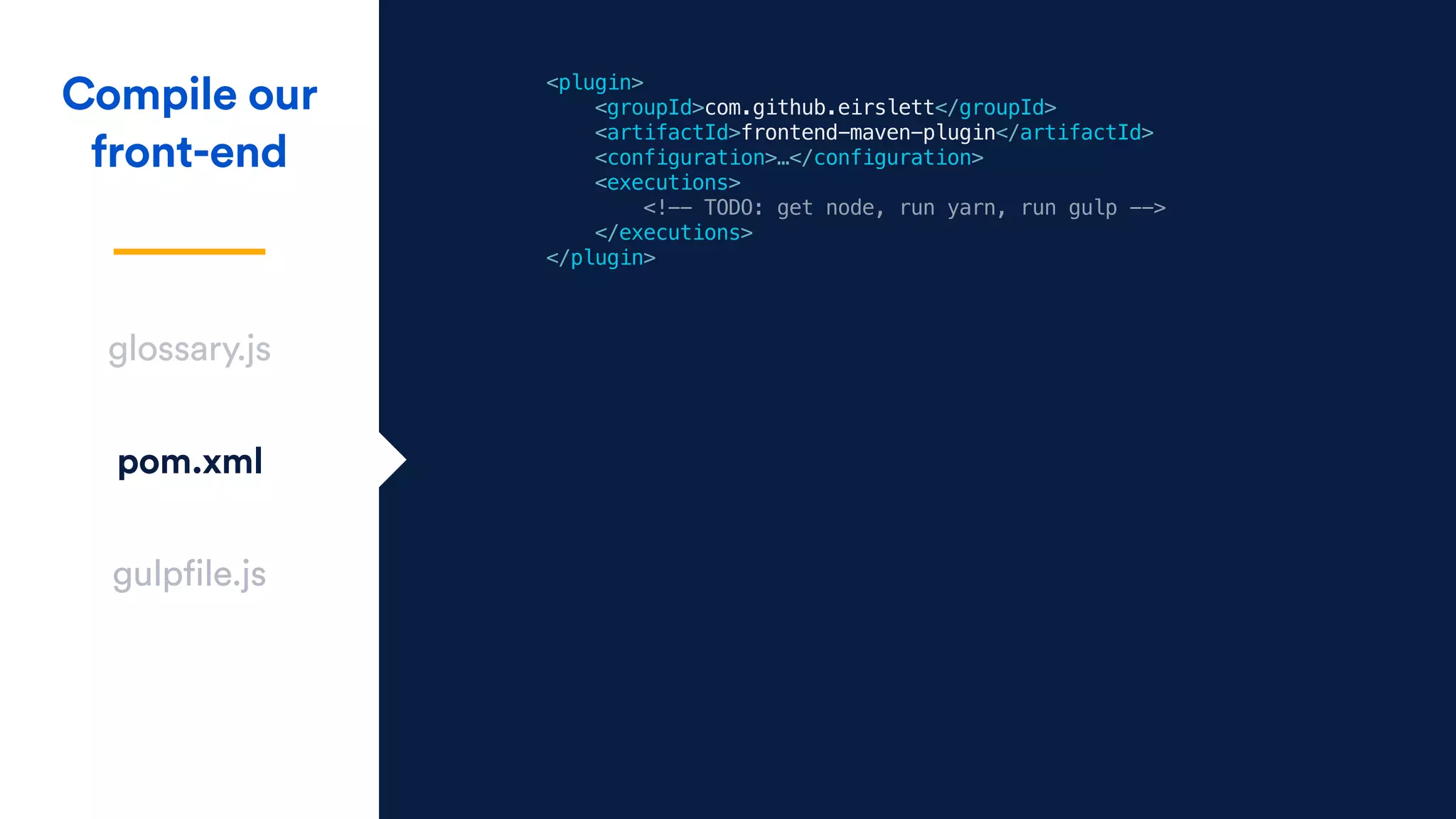

<plugin> 
<configuration>…</configuration> 
<executions> 

</executions> 
</plugin>
Compile our
front-end
glossary.js
pom.xml
gulpfile.js

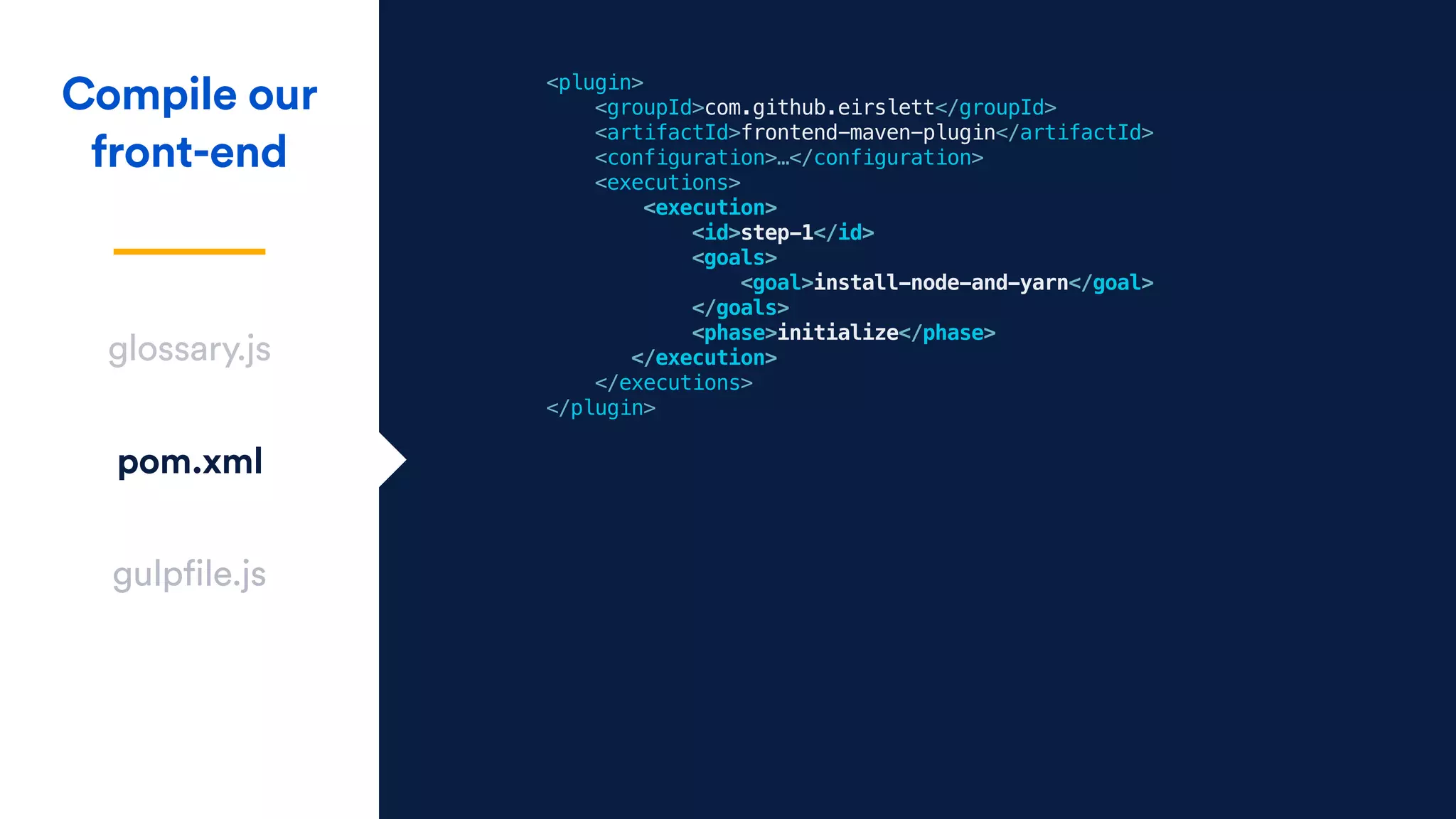

<plugin> 
<configuration>…</configuration>
<executions> 
<execution> 
<id>step-1</id> 
<goals> 
<goal>install-node-and-yarn</goal> 
</goals> 
<phase>initialize</phase> 
</execution> 
</executions> 
</plugin> 
Compile our
front-end
glossary.js
pom.xml
gulpfile.js

<plugin> 
<executions>
<execution>…</execution>
<execution> 
<id>2-yarn-install</id> 
<goals> 
<goal>yarn</goal> 
</goals> 
<configuration> 
<arguments>install</arguments> 
</configuration> 
<phase>initialize</phase> 
</execution> 
</executions> 
</plugin>
Compile our
front-end
glossary.js
pom.xml
gulpfile.js

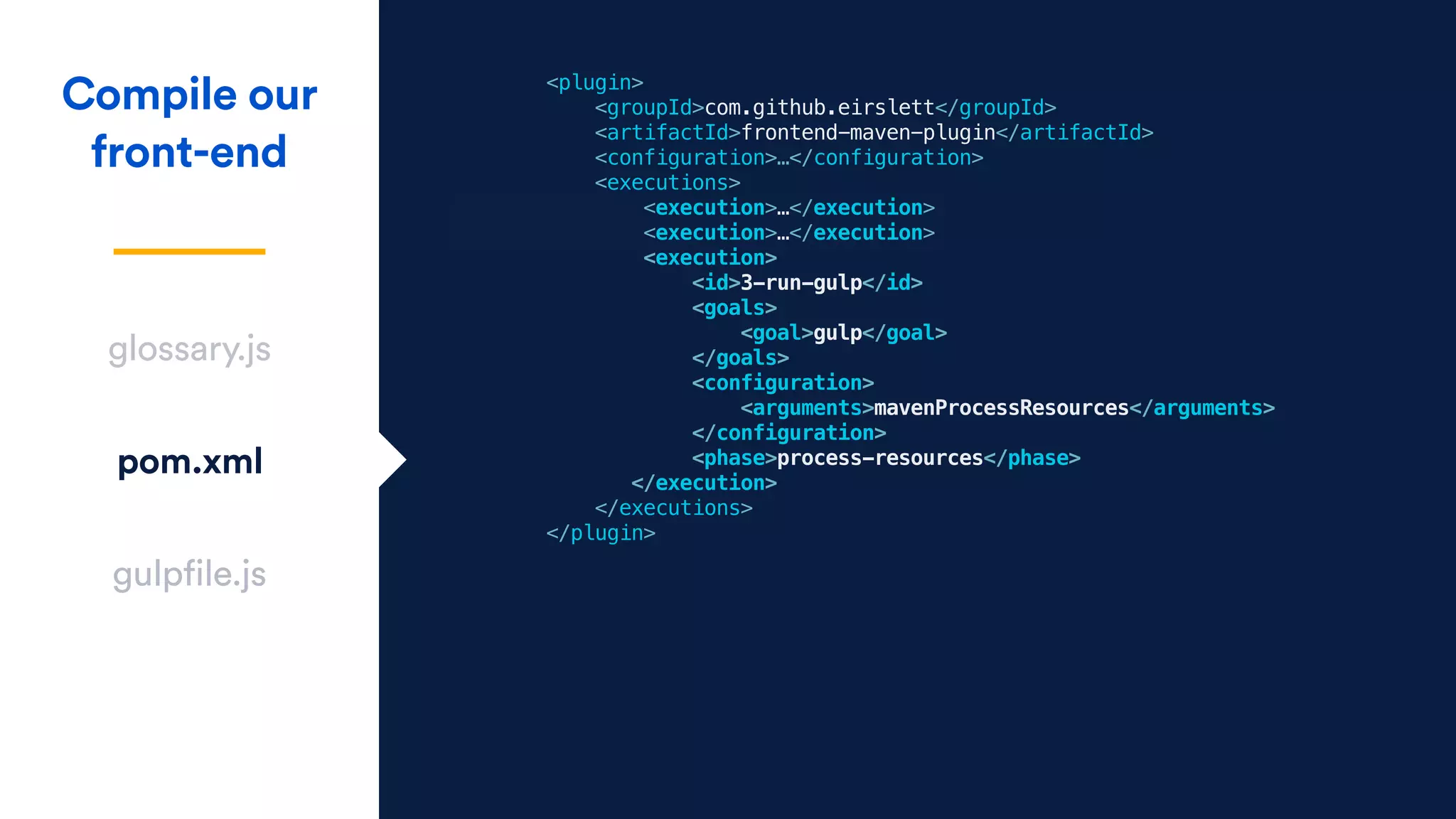

<plugin> 
<executions>
<execution> 
<id>3-run-gulp</id> 
<goals> 
<goal>gulp</goal> 
</goals> 
<configuration> 
<arguments>mavenProcessResources</arguments> 
</configuration> 
<phase>process-resources</phase>
</execution> 
</executions> 
</plugin>
Compile our
front-end
glossary.js
pom.xml
gulpfile.js

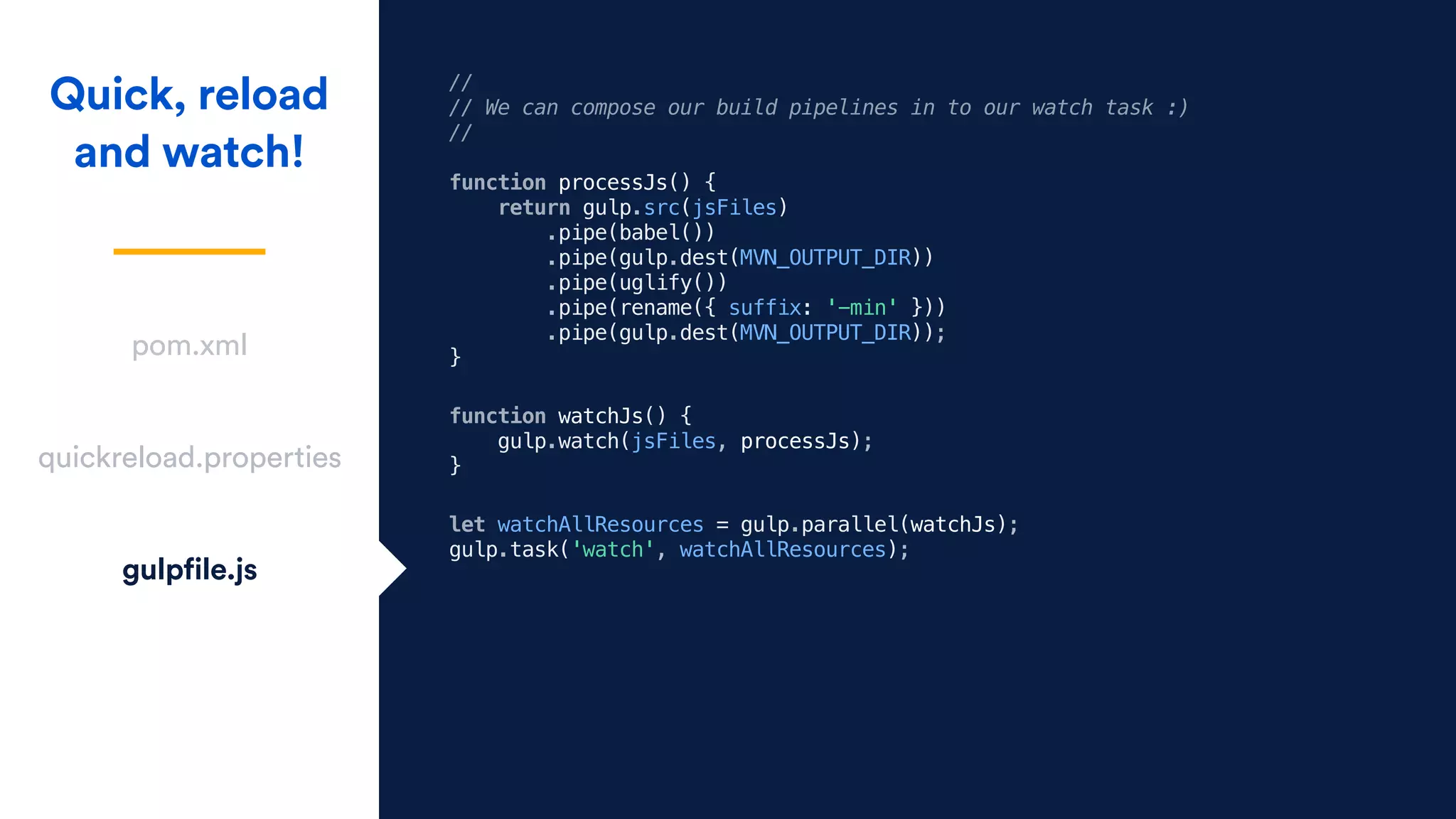

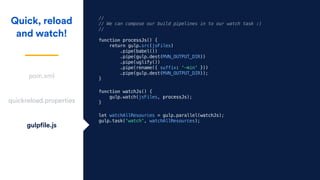

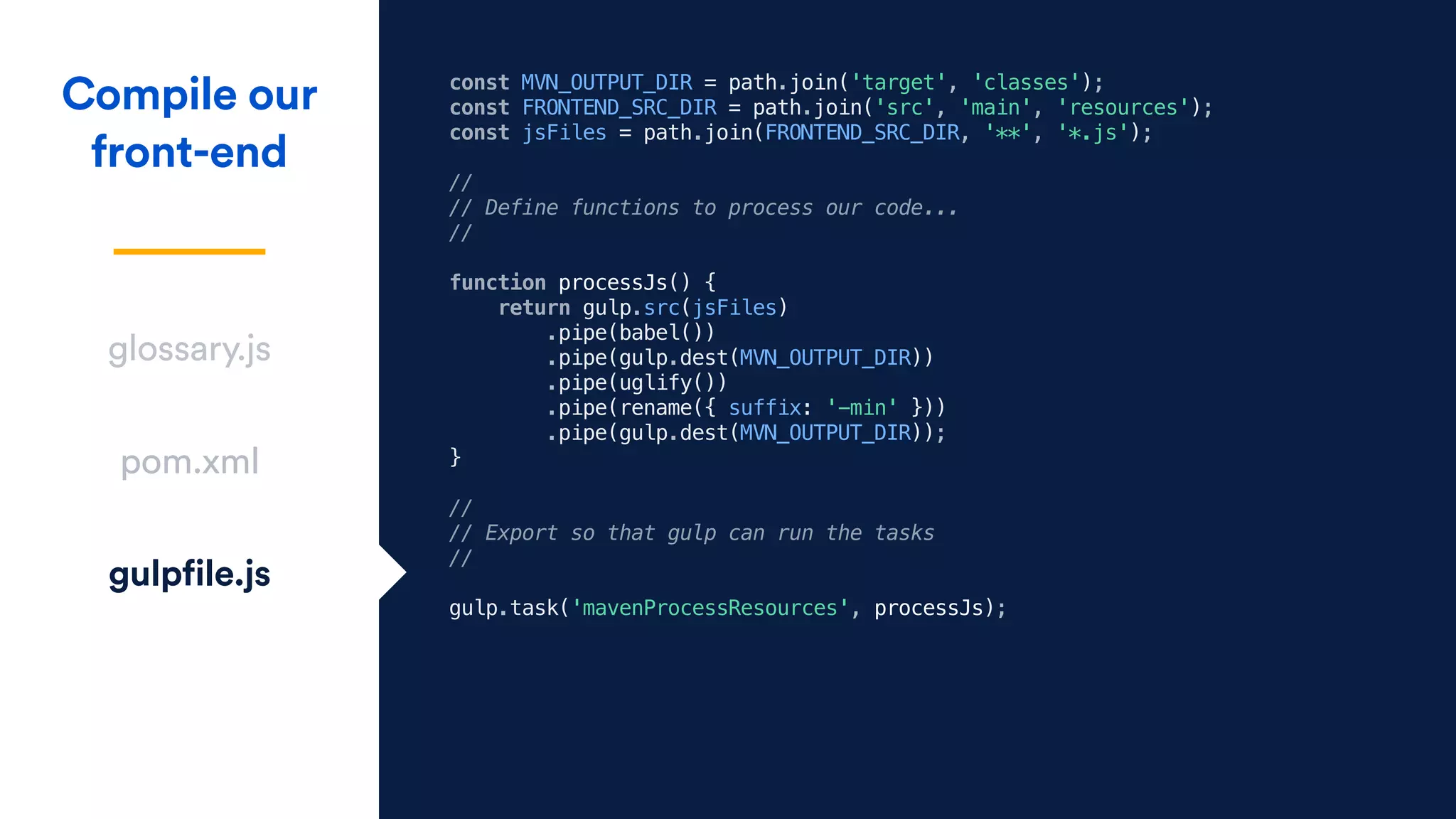

const MVN_OUTPUT_DIR = path.join('target', 'classes'); 
const FRONTEND_SRC_DIR = path.join('src', 'main', 'resources'); 
const jsFiles = path.join(FRONTEND_SRC_DIR, '**', '*.js'); 
// 
// Define functions to process our code... 
//
 
function processJs() { 
return gulp.src(jsFiles) 
.pipe(babel()) 
.pipe(gulp.dest(MVN_OUTPUT_DIR)) 
.pipe(uglify()) 
.pipe(rename({ suffix: '-min' })) 
.pipe(gulp.dest(MVN_OUTPUT_DIR)); 
}
Compile our
front-end
glossary.js
pom.xml
gulpfile.js

const MVN_OUTPUT_DIR = path.join('target', 'classes'); 
const FRONTEND_SRC_DIR = path.join('src', 'main', 'resources'); 
const jsFiles = path.join(FRONTEND_SRC_DIR, '**', '*.js'); 
// 
// Define functions to process our code... 
//
 
.pipe(babel()) 
.pipe(uglify()) 
}
 
// 
// Export so that gulp can run the tasks 
// 
gulp.task('mavenProcessResources', processJs);
Compile our
front-end
glossary.js
pom.xml
gulpfile.js

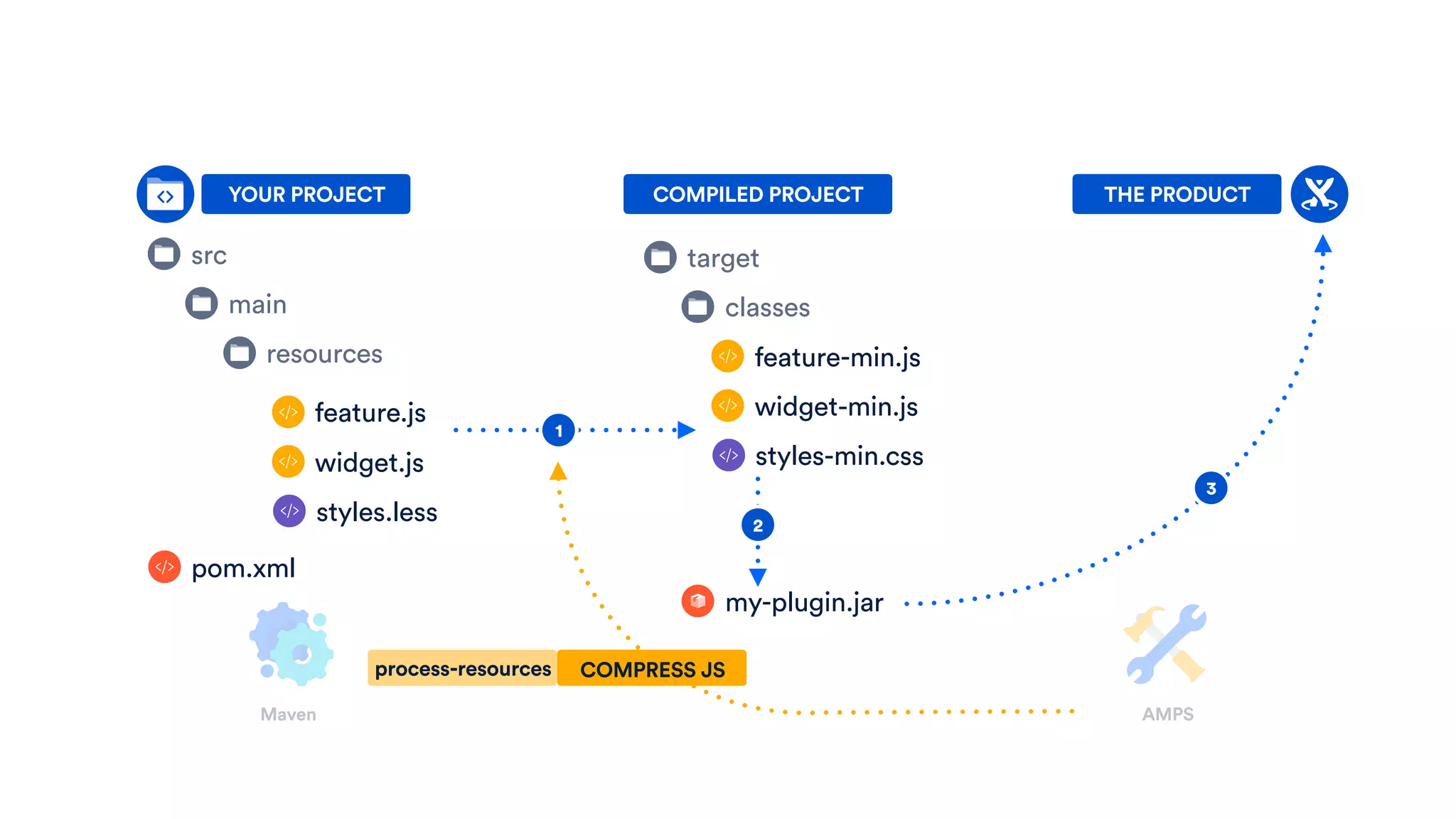

What just happened?
CHALLENGE #2

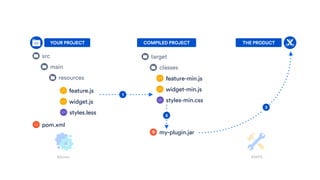

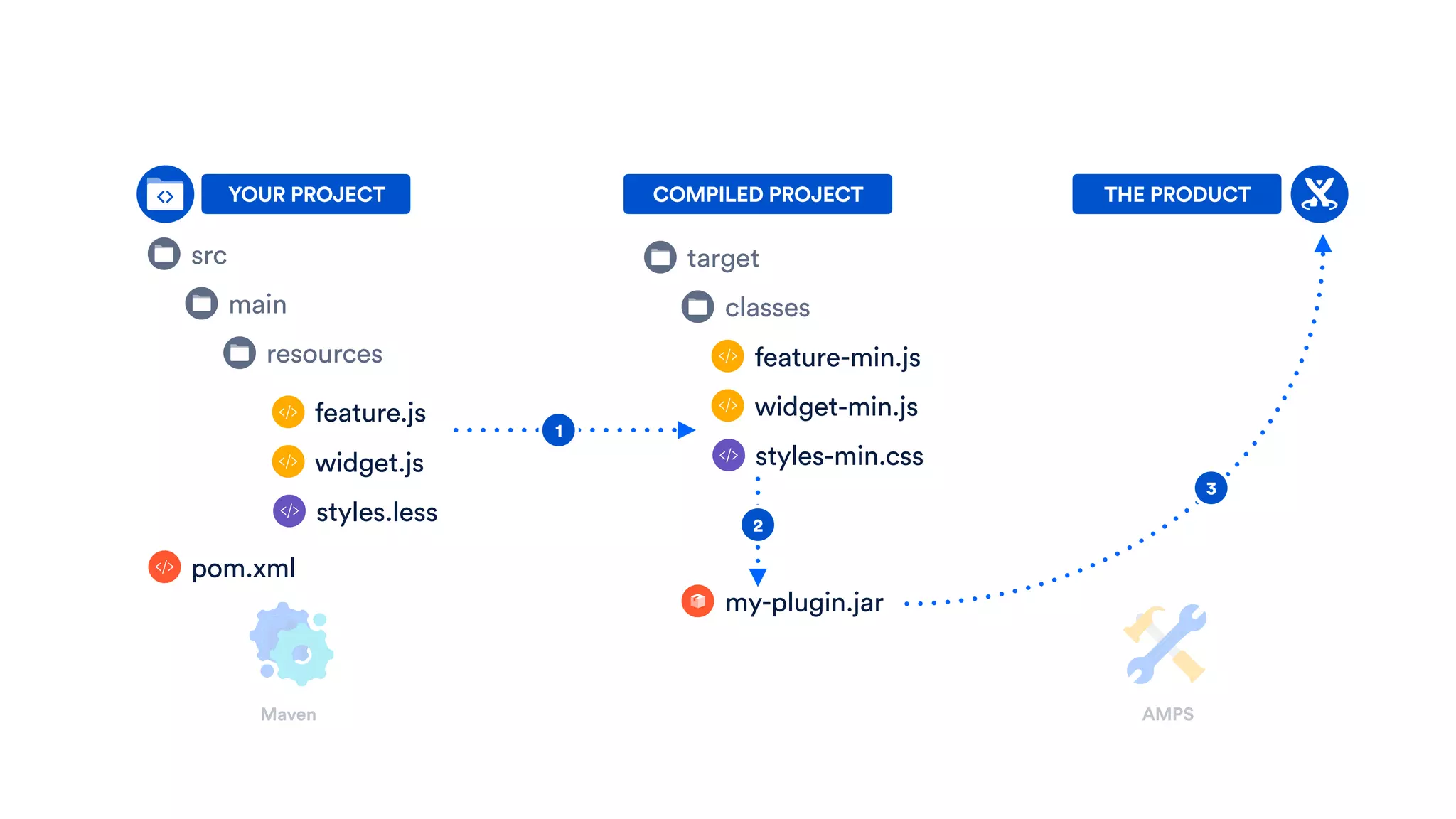

AMPSMaven
THE PRODUCT
classes
target
feature-min.js
widget-min.js
styles-min.css
my-plugin.jar
YOUR PROJECT
main
src
resources
feature.js
widget.js
styles.less
COMPILED PROJECT
1
3
2
COMPRESS JS
pom.xml
process-resources

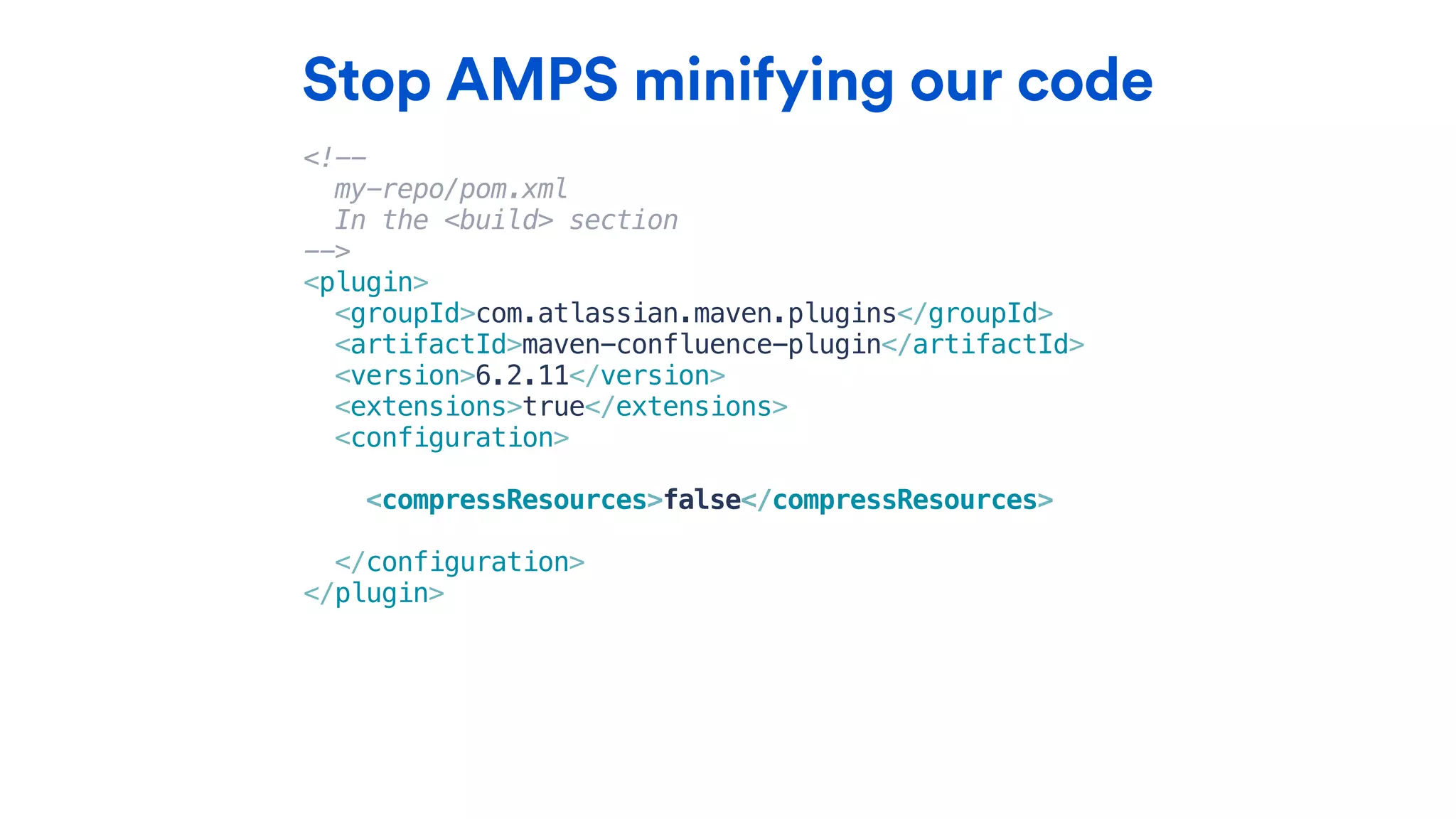

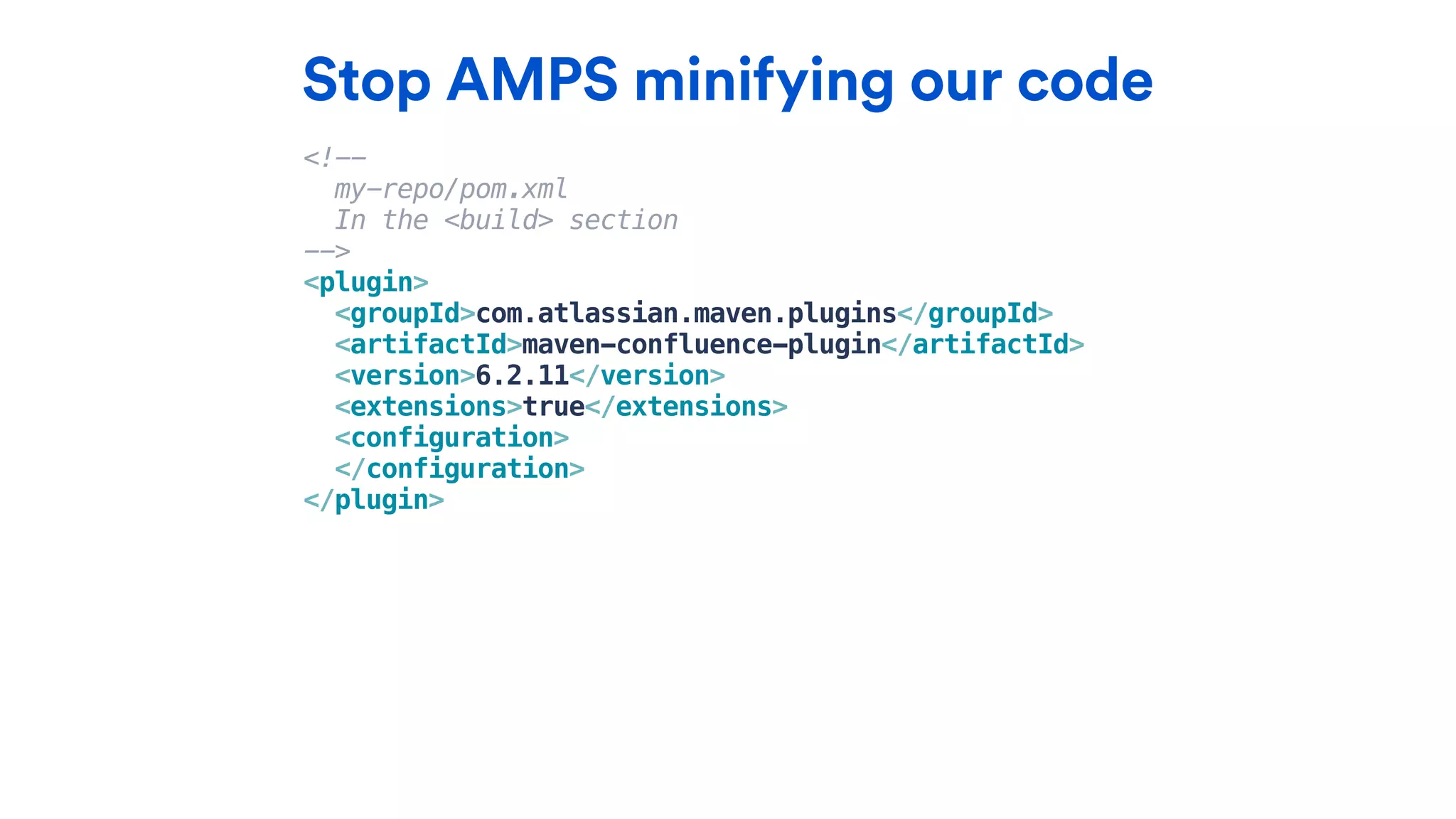

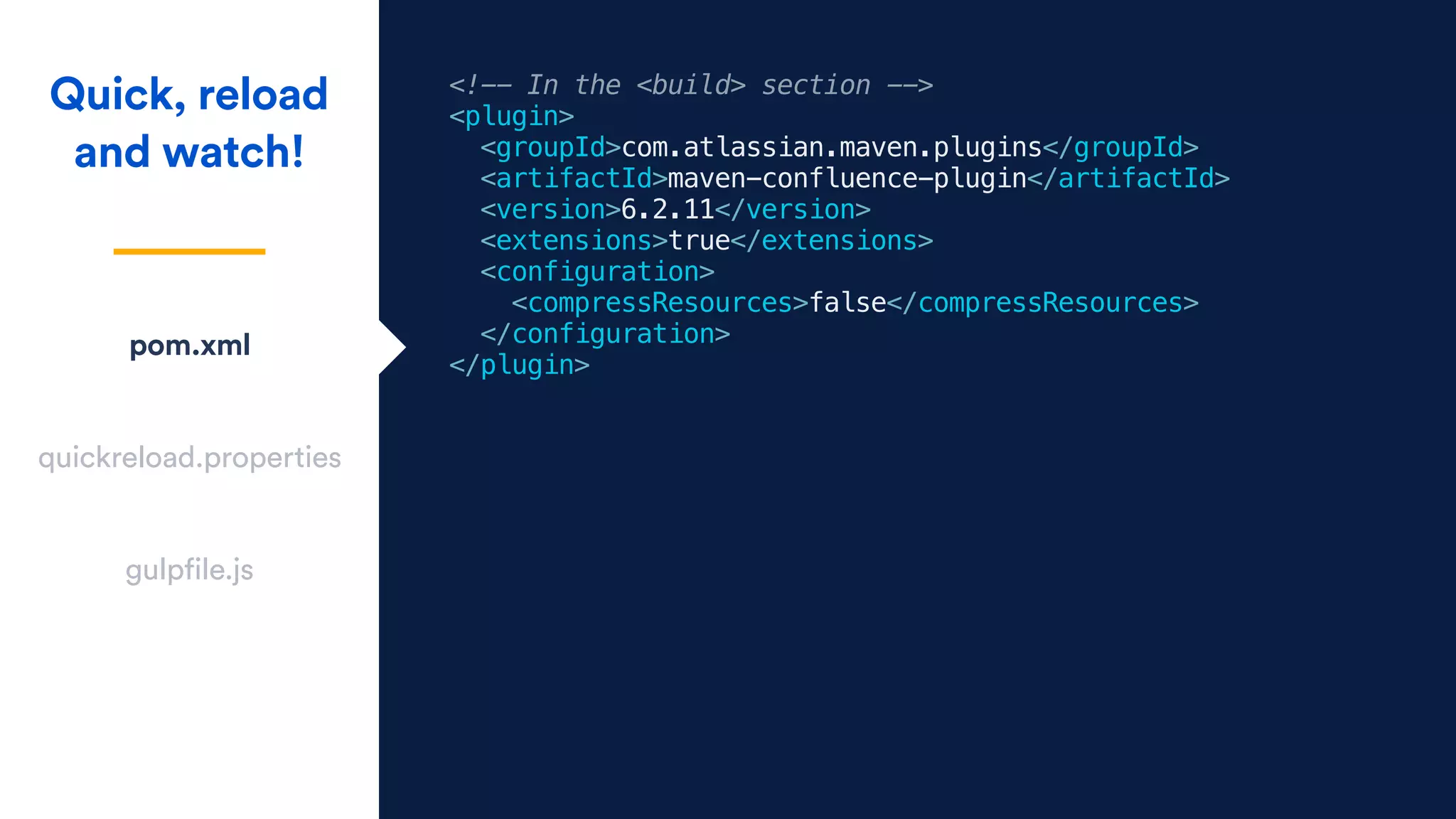

Stop AMPS minifying our code

<plugin> 
<configuration>
</configuration> 
</plugin>

Stop AMPS minifying our code

<plugin> 
<configuration>
<compressResources>false</compressResources> 
</configuration> 
</plugin>

We can compile our
front-end now!
CHALLENGE #2

CHALLENGE #3
Will it blend
save-and-reload
at runtime?

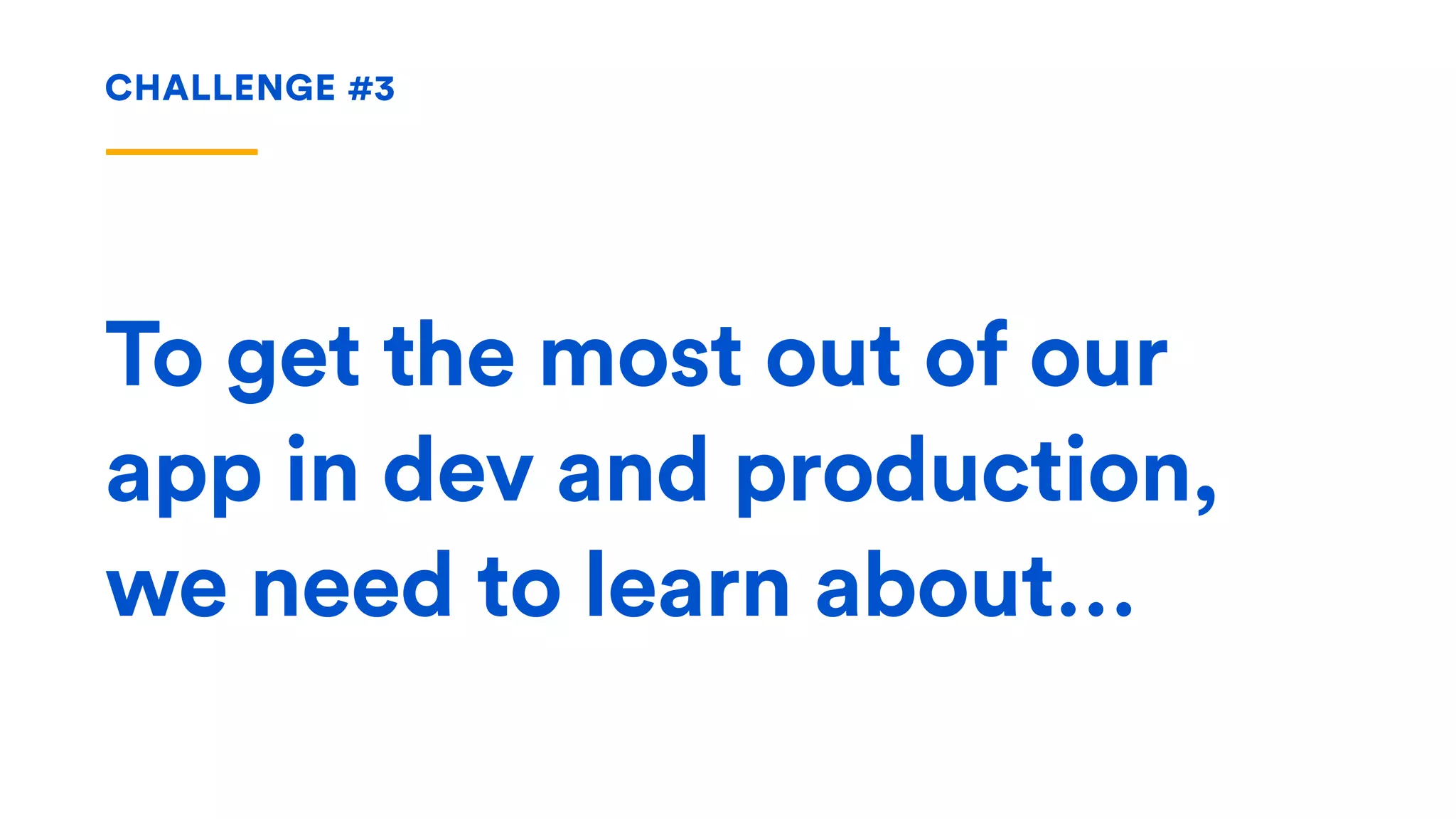

To get the most out of our
app in dev and production,
we need to learn about…
CHALLENGE #3

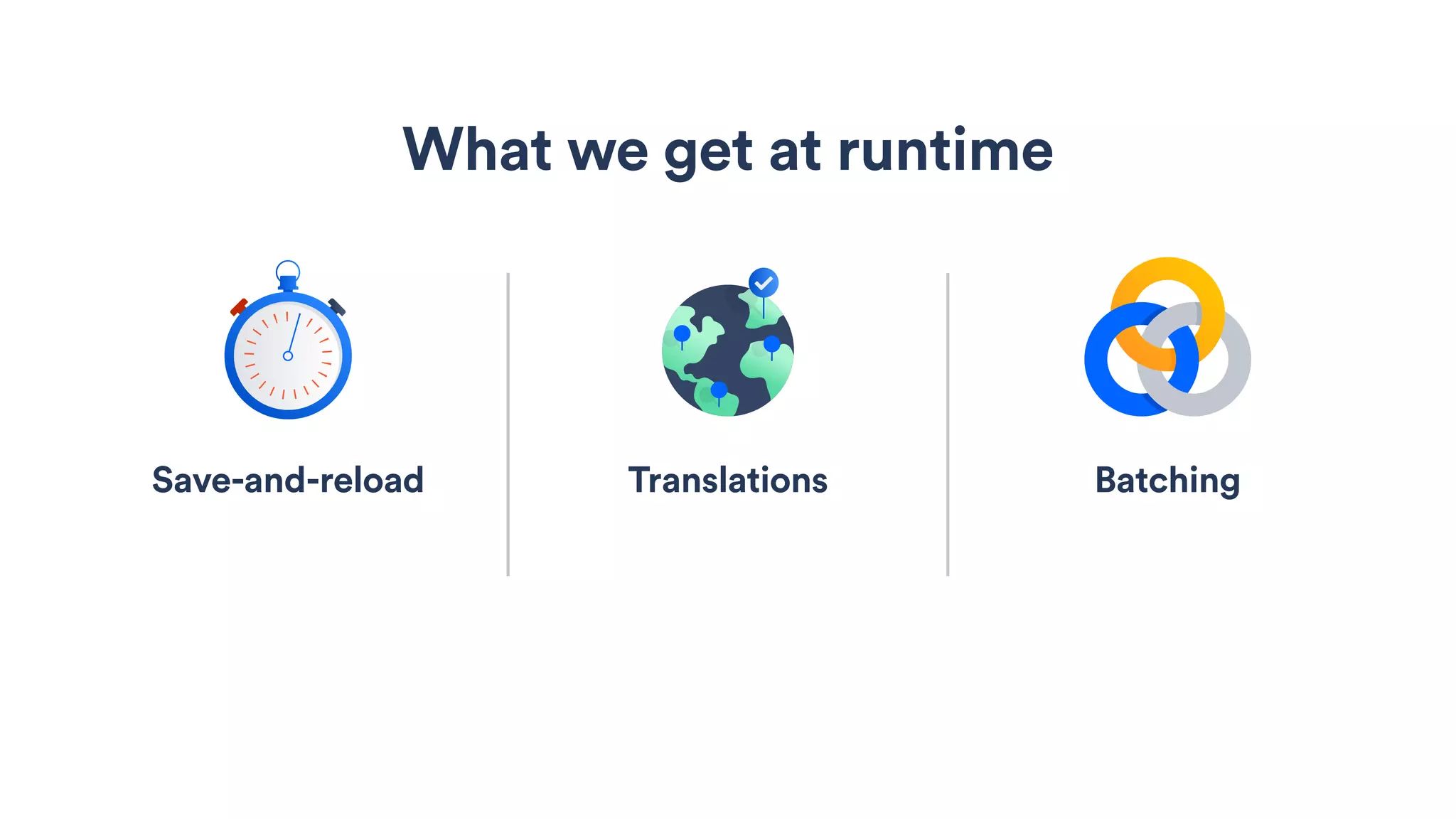

The Web Resource Manager
What’s the WRM ever done for us?!
Monty Python’s Life of Brian (1979)

The WRM
gave us…
https://www.hyperlingo.com/blog/cat-tools-the-definitive-guide/
Loading resources
Lazy loading resources
Translation injection
Seed data injection
Aqueducts?
go.atlassian.com/sao4fed-wrm-gave-us

What is a “resource” in a
Server Add-on?
WAIT A MINUTE…

app.js
my.plugin.resources my-app

<atlassian-plugin key="my.plugin.resources" 
name="My Awesome Plugin" plugins-version="2"> 
 
<web-resource key="my-app"> 
<resource type="download" name="app.js" 
location="/path/to/the-app.js" /> 
</web-resource> 
 
</atlassian-plugin>

<atlassian-plugin key="my.plugin.resources" 
name="My Awesome Plugin" plugins-version="2"> 
 
<web-resource key="my-app"> 
<dependency>my.plugin.resources:feature-a</dependency> 
<dependency>my.plugin.resources:feature-b</dependency> 
 
<resource type="download" name="app.js" 
location="/path/to/the-app.js" /> 
</web-resource> 
 
</atlassian-plugin>

The WRM
gave us…
Loading resources
Seed data injection
https://www.theodysseyonline.com/20-signs-youre-absolute-laziest
Sanitation?

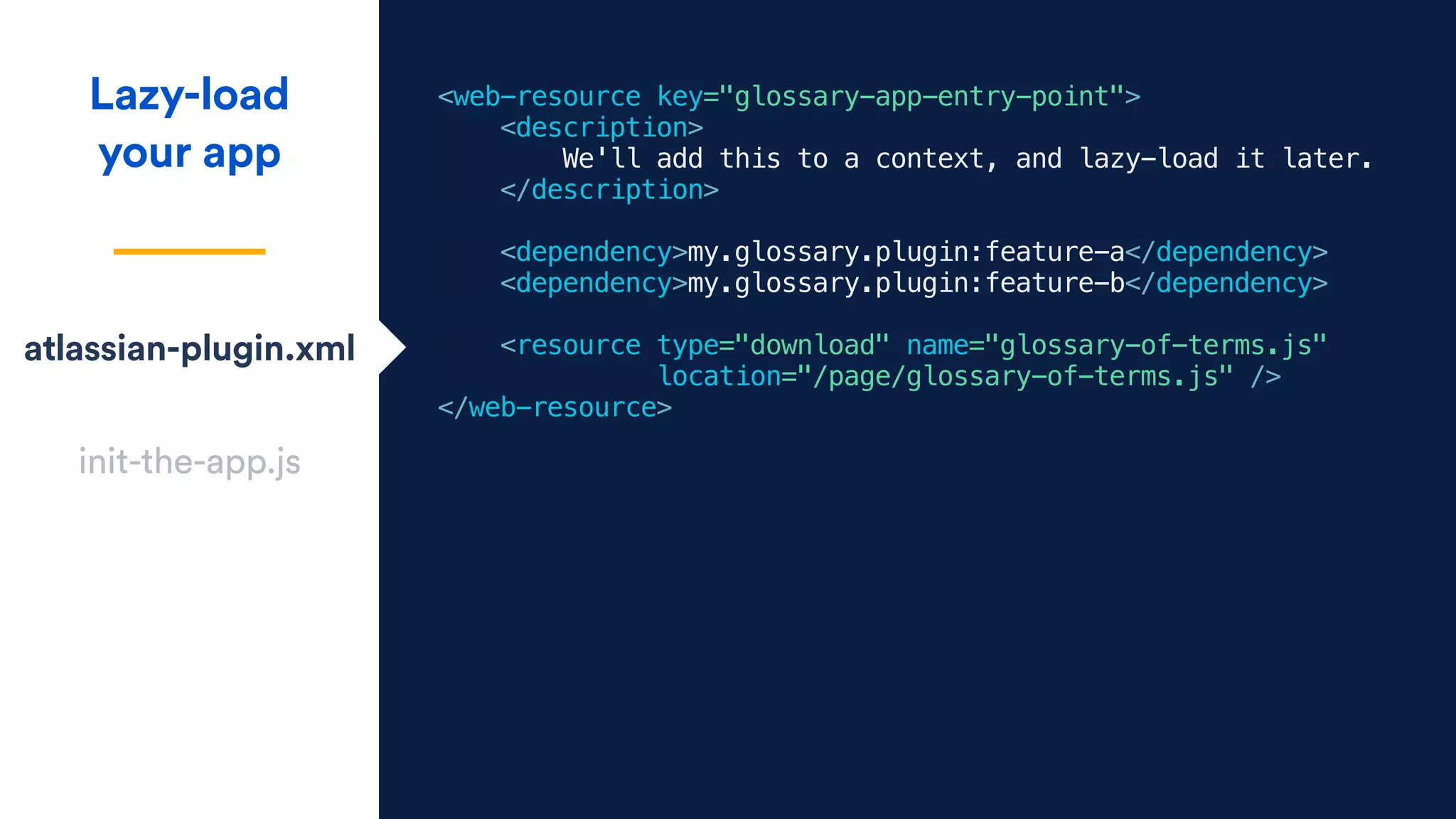

Lazy-load
your app

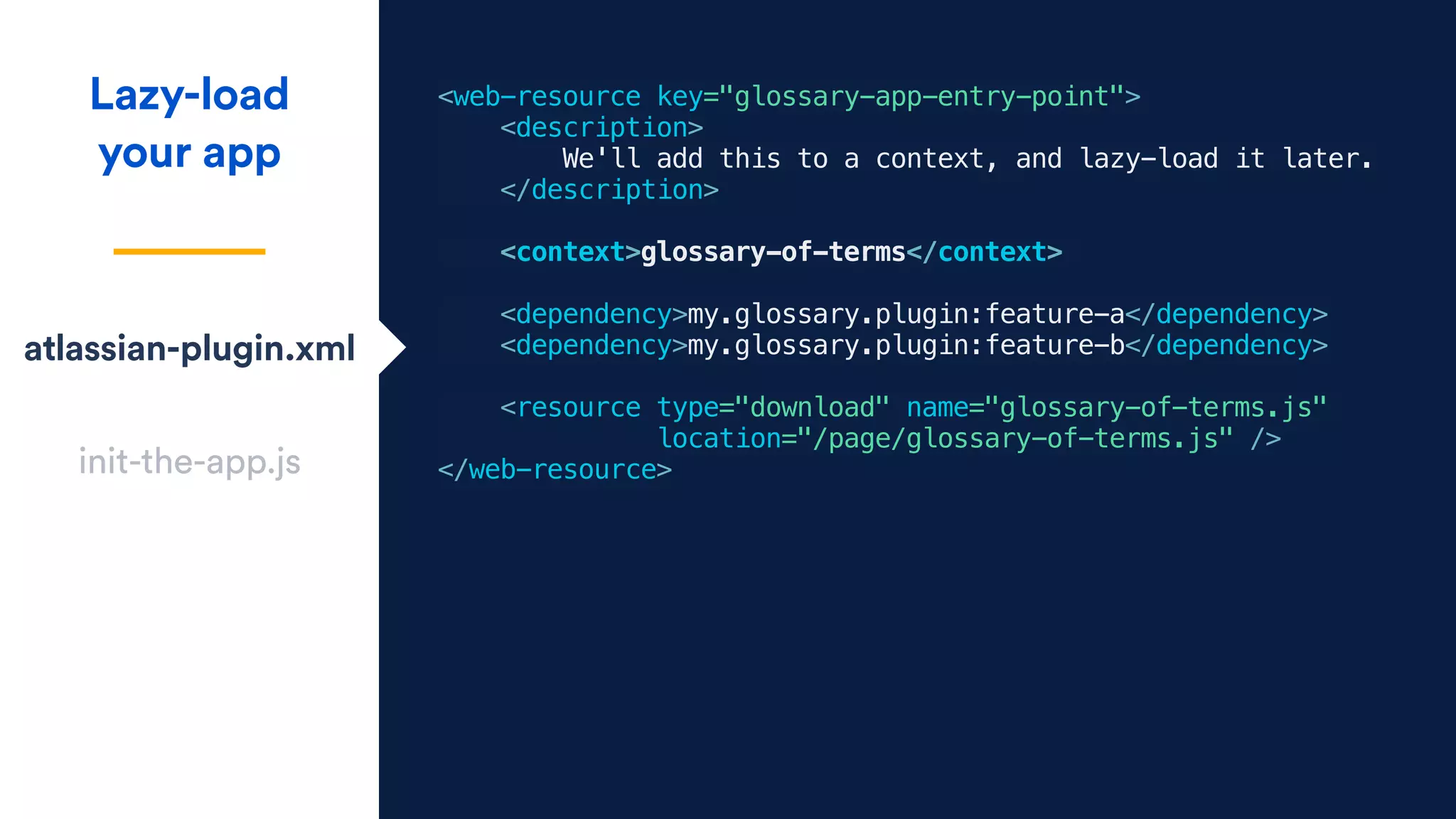

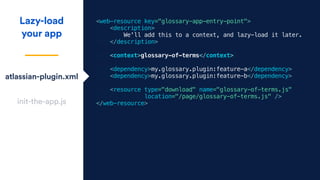

atlassian-plugin.xml
init-the-app.js
<web-resource key="glossary-app-entry-point"> 
<description> 
We'll add this to a context, and lazy-load it later. 
</description> 
 
<dependency>my.glossary.plugin:feature-a</dependency> 
<dependency>my.glossary.plugin:feature-b</dependency> 
 
<resource type="download" name="glossary-of-terms.js"  
location="/page/glossary-of-terms.js" /> 
</web-resource>

Lazy-load
your app
init-the-app.js
<web-resource key="glossary-app-entry-point"> 
<description> 
We'll add this to a context, and lazy-load it later. 
</description> 
<context>glossary-of-terms</context>
 
</web-resource>

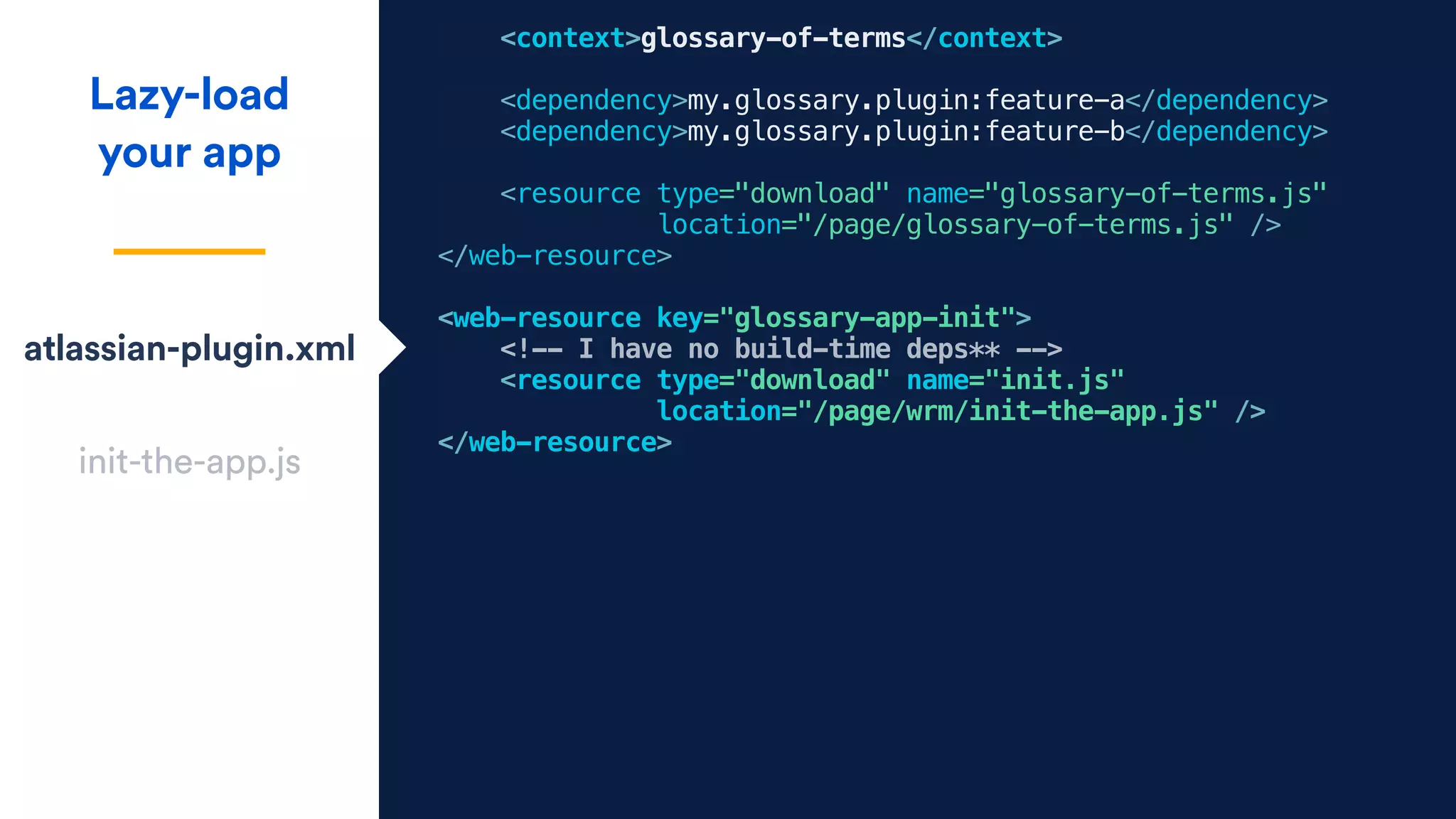

Lazy-load
your app
init-the-app.js
<context>glossary-of-terms</context>
 
</web-resource>
<web-resource key="glossary-app-init"> 
 
<resource type="download" name="init.js" 
location="/page/wrm/init-the-app.js" /> 
</web-resource>

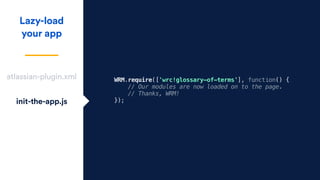

Lazy-load
your app
init-the-app.js
WRM.require(['wrc!glossary-of-terms'], function() { 
// Our modules are now loaded on to the page. 
// Thanks, WRM! 
});

The WRM
gave us…
mrrtist21; Deviantart (http://www.deviantart.com/art/Babel-Fish-Poster-Color-507759058)
Loading resources
Seed data injection
The roads?

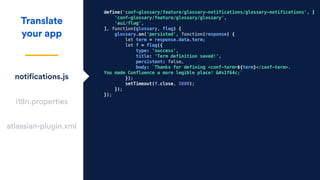

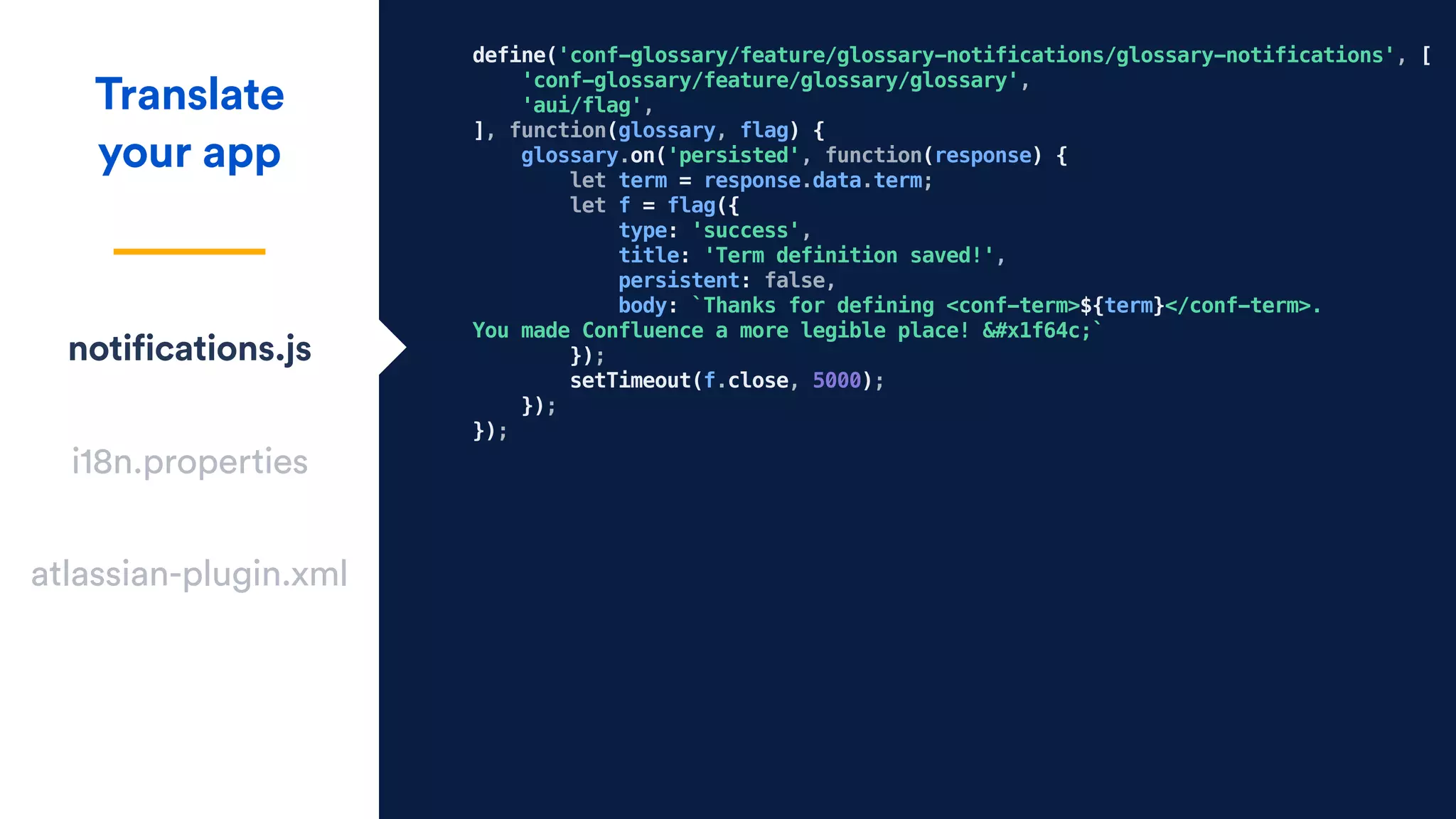

Translate
your app
notifications.js
i18n.properties
define('conf-glossary/feature/glossary-notifications/glossary-notifications', [ 
'conf-glossary/feature/glossary/glossary', 
'aui/flag', 
], function(glossary, flag) { 
glossary.on('persisted', function(response) { 
let term = response.data.term; 
let f = flag({ 
type: 'success', 
title: 'Term definition saved!', 
persistent: false, 
body: `Thanks for defining <conf-term>${term}</conf-term>.  
You made Confluence a more legible place! 🙌` 
}); 
setTimeout(f.close, 5000); 
}); 
});

Translate
your app
notifications.js
i18n.properties
define('conf-glossary/feature/glossary-notifications/glossary-notifications', [ 
'util/formatter', 
'aui/flag', 
], function(glossary, formatter, flag) { 
 
glossary.on('persisted', function(response) { 
let term = response.data.term; 
let f = flag({ 
type: 'success', 
title: formatter.I18n.getText('save.msg.title'), 
persistent: false, 
body: formatter.I18n.getText('save.msg.bodyContent', term); 
}); 
setTimeout(f.close, 5000); 
}); 
});

Translate
your app
notifications.js
i18n.properties
#
# src/main/resources/i18n.properties
#
#
save.msg.title=Term definition saved!
save.msg.bodyContent=Thanks for defining <conf-term>{0}</conf-term>.
You made Confluence a more legible place! 🙌

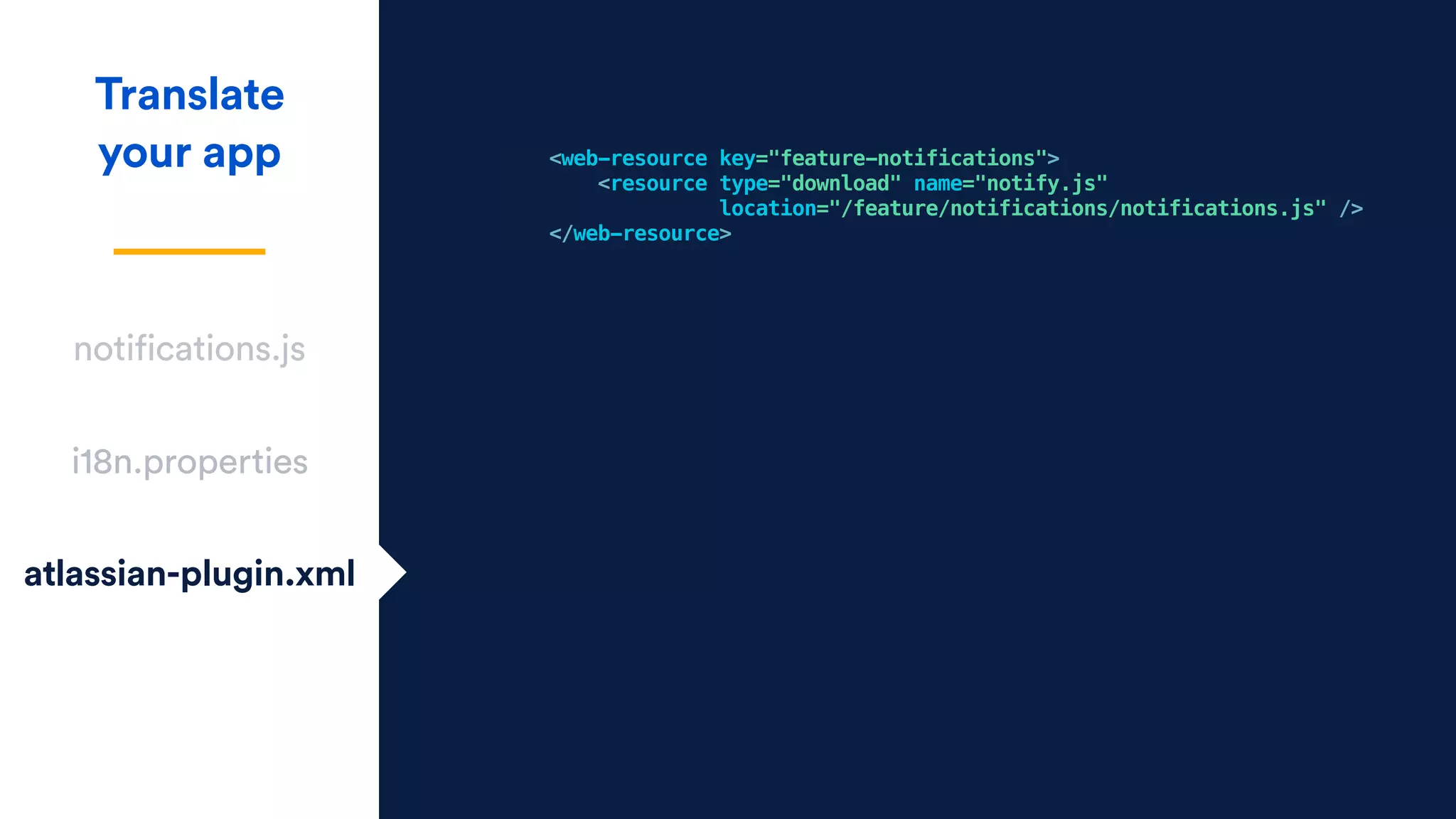

Translate
your app
notifications.js
i18n.properties
<web-resource key="feature-notifications"> 
<resource type="download" name="notify.js" 
location="/feature/notifications/notifications.js" /> 
</web-resource>

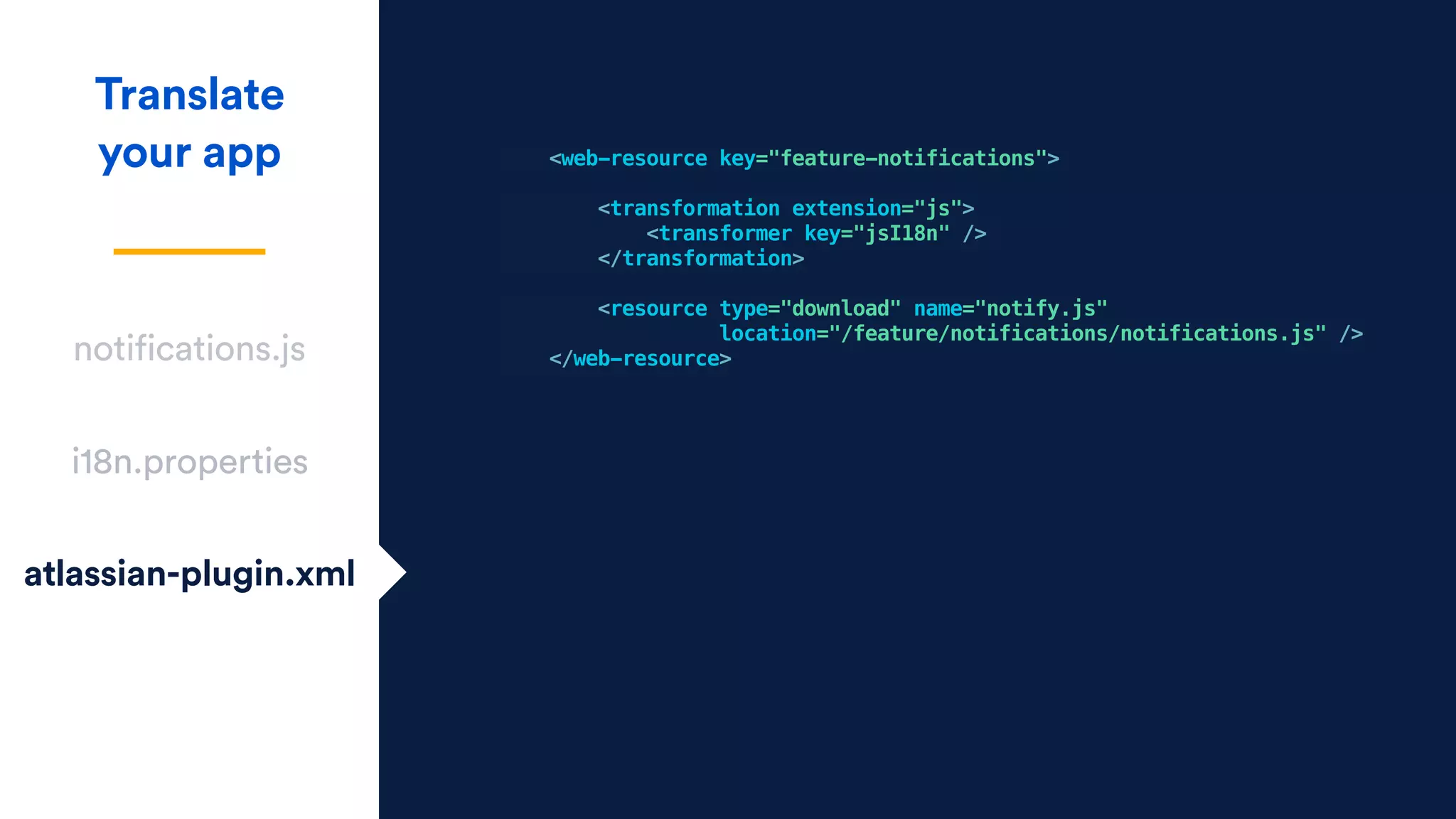

Translate
your app
notifications.js
i18n.properties
<web-resource key="feature-notifications"> 
<transformation extension="js">
<transformer key="jsI18n" />
</transformation> 
<resource type="download" name="notify.js" 
location="/feature/notifications/notifications.js" /> 
</web-resource>

The WRM
gave us…
Loading resources
Seed data injection
Georgina Smith, Neil Palmer; Crop Trust (https://www.croptrust.org/our-work/svalbard-global-seed-vault/)
Brought peace?

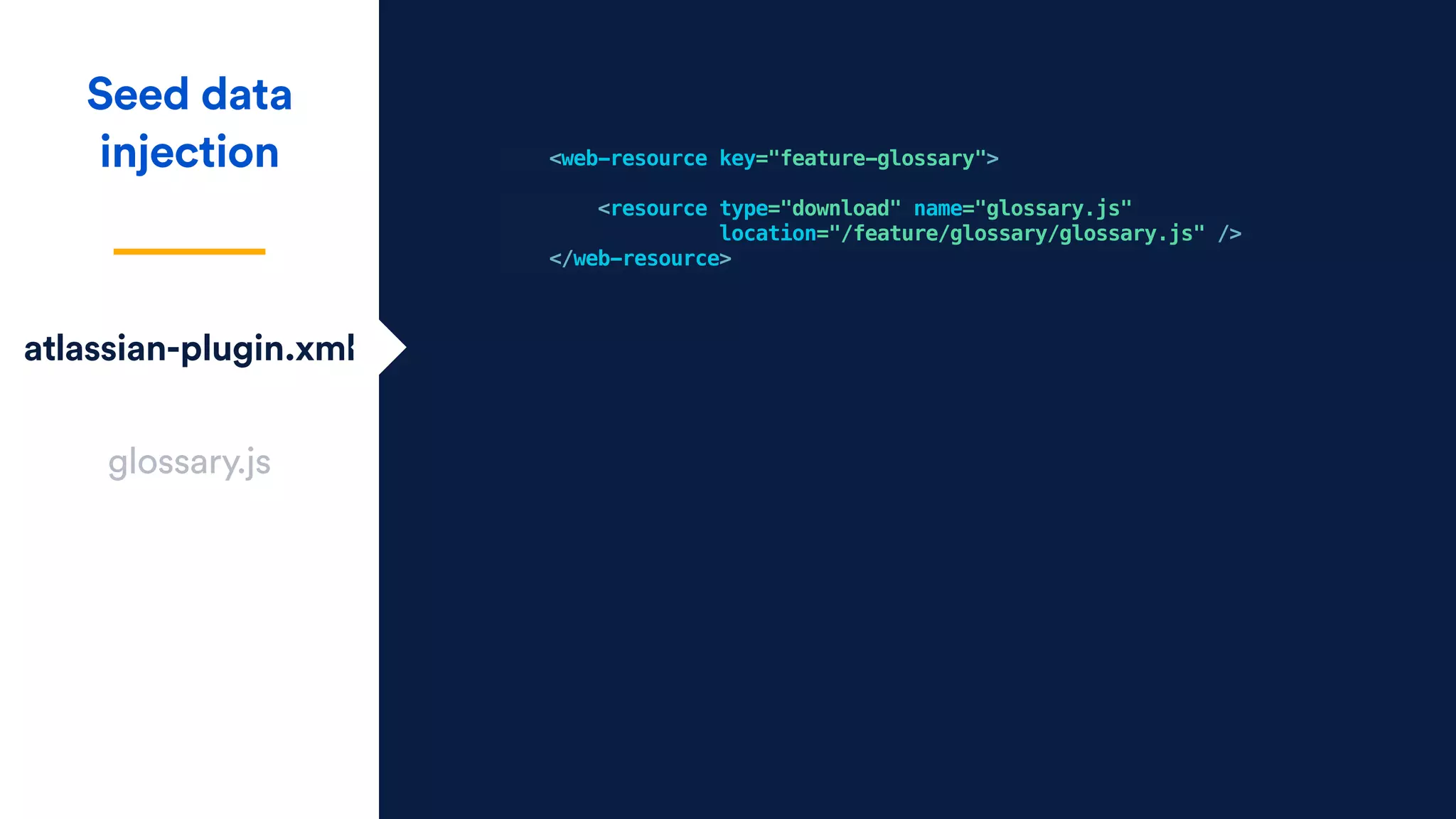

Seed data
injection
glossary.js
<web-resource key="feature-glossary">
<resource type="download" name="glossary.js" 
location="/feature/glossary/glossary.js" /> 
</web-resource>

Seed data
injection
glossary.js
<web-resource key="feature-glossary">
<resource type="download" name="glossary.js" 
location="/feature/glossary/glossary.js" /> 
<data key="terms-data"
class="my.glossary.plugin.java.package.MyDataProvider" /> 
</web-resource>

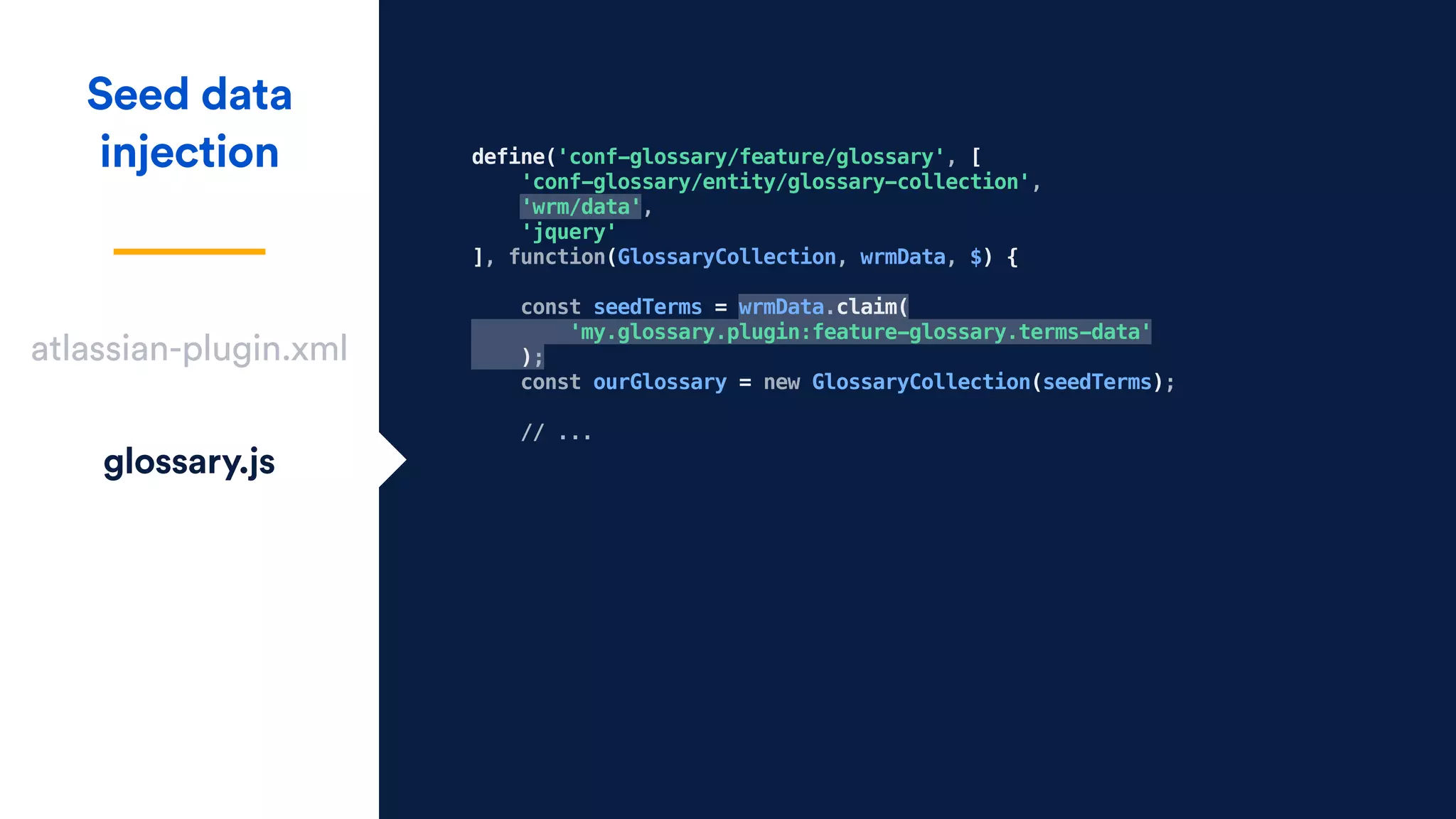

Seed data
injection
glossary.js
define('conf-glossary/feature/glossary', [ 
'conf-glossary/entity/glossary-collection', 
'wrm/data', 
'jquery' 
], function(GlossaryCollection, wrmData, $) { 
const seedTerms = wrmData.claim(
'my.glossary.plugin:feature-glossary.terms-data'
); 
const ourGlossary = new GlossaryCollection(seedTerms); 
// ...

Monty Python’s Life of Brian (1979)

We want save-and-reload
for our compiled code.
CHALLENGE #3

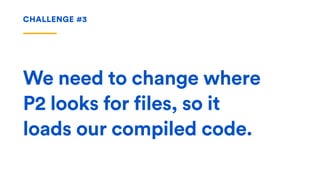

We need to change where
P2 looks for files, so it
loads our compiled code.
CHALLENGE #3

Runtime save and reload
For our compiled front-end code
go.atlassian.com/sao4fed-save-reload

AMPSMaven
my-plugin.jar
THE PRODUCT
main
src
resources
feature.js
widget.js
styles.less
target

AMPS
my-plugin.jar
THE PRODUCT
END-USER

feature-min.js
widget-min.js
styles-min.css
AMPS
my-plugin.jar
THE PRODUCT
END-USER
batch.js
batch.css
The WRM

classes
target
feature-min.js
widget-min.js
styles-min.css
my-plugin.jar
YOUR PROJECT
main
src
resources
feature.js
widget.js
styles.less
COMPILED PROJECT
1
2
3
feature-min.js
widget-min.js
styles-min.css
my-plugin.jar
THE PRODUCT END-USER
batch.js
batch.css
pom.xml

We need to tell the
running app where our
compiled code lives.
CHALLENGE #3

The QuickReload plugin
https://bitbucket.org/atlassianlabs/quickreload

<plugin> 
<configuration> 
</configuration> 
</plugin>

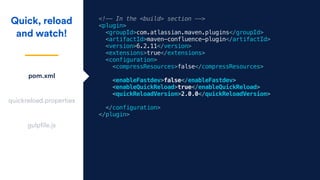

Quick, reload
and watch!
pom.xml
quickreload.properties
gulpfile.js

<plugin> 
<configuration> 
<enableFastdev>false</enableFastdev> 
<enableQuickReload>true</enableQuickReload> 
<quickReloadVersion>2.0.0</quickReloadVersion> 
</configuration> 
</plugin>
Quick, reload
and watch!
pom.xml
gulpfile.js

#
#

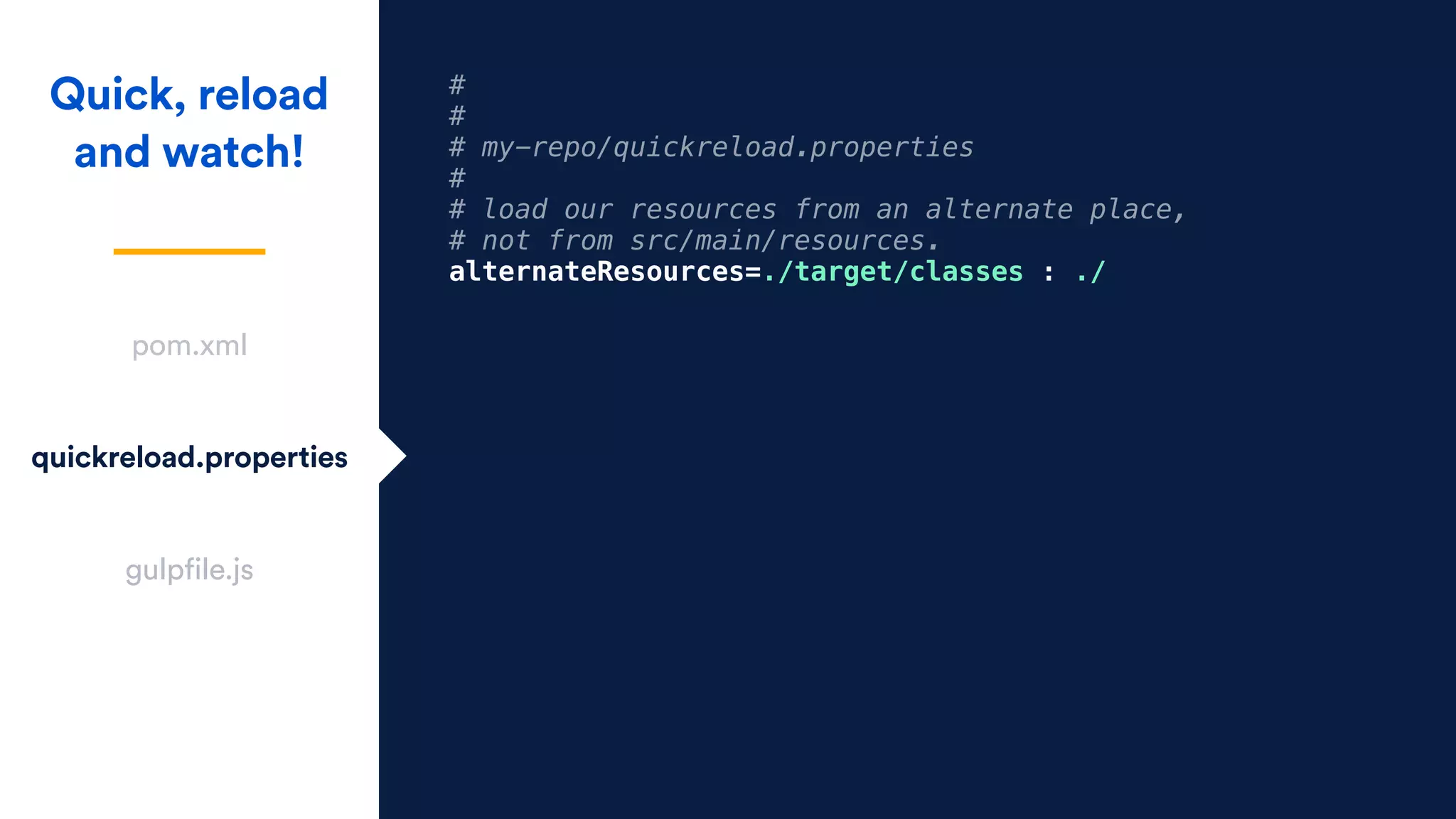

# my-repo/quickreload.properties
#
# load our resources from an alternate place,
# not from src/main/resources.
alternateResources=./target/classes : ./
Quick, reload
and watch!
pom.xml
gulpfile.js

We need to watch our
source and re-compile
when it changes.
CHALLENGE #3

// 
// We can compose our build pipelines in to our watch task :) 
// 
 
.pipe(babel()) 
.pipe(uglify()) 
}
Quick, reload
and watch!
pom.xml
gulpfile.js
function watchJs() { 
gulp.watch(jsFiles, processJs); 
}
let watchAllResources = gulp.parallel(watchJs); 
gulp.task('watch', watchAllResources);

How can we quickly test
our production code?
CHALLENGE #3

#
#

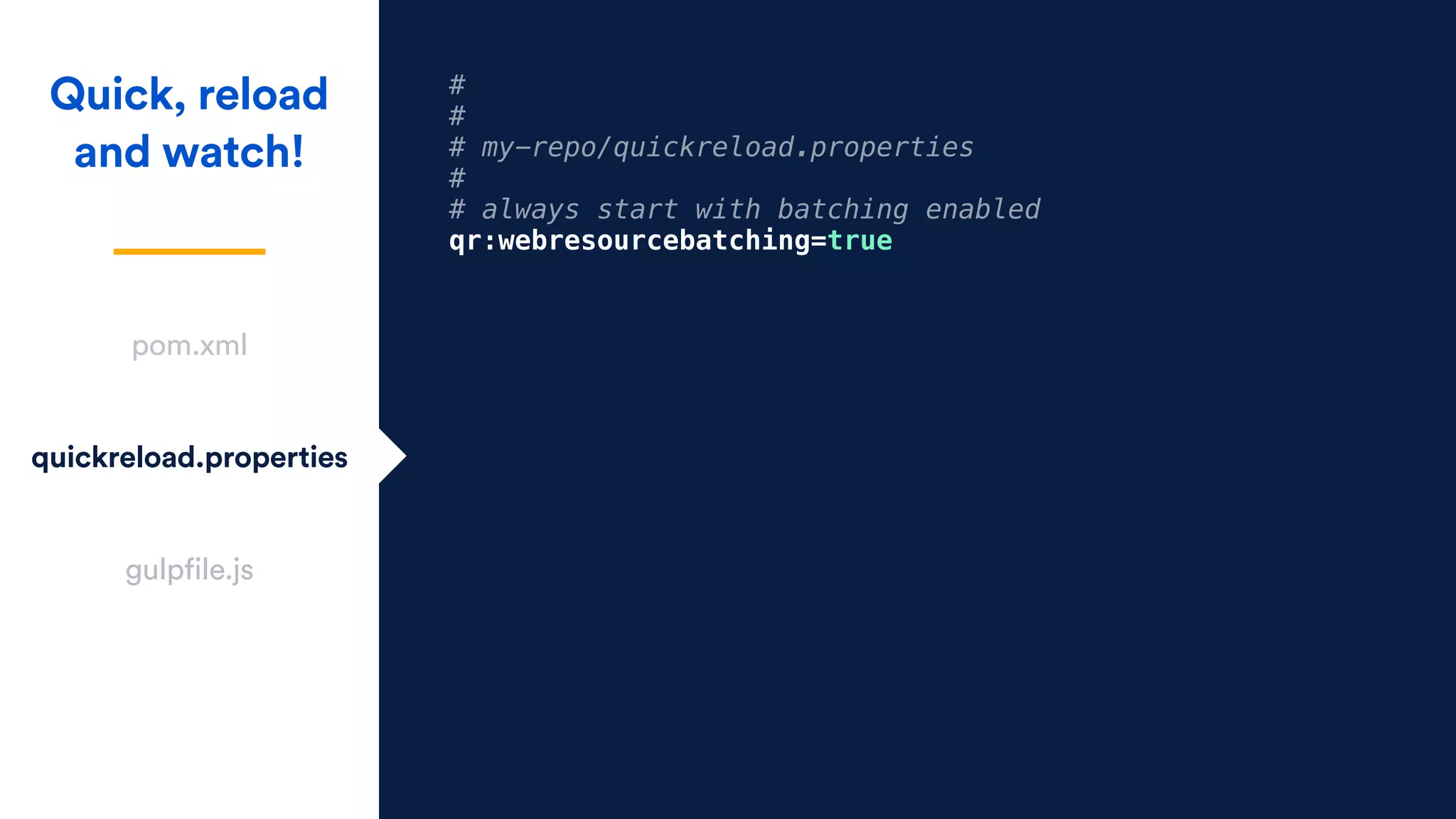

# my-repo/quickreload.properties
#
# always start with batching enabled
qr:webresourcebatching=true
Quick, reload
and watch!
pom.xml
gulpfile.js

Translations
What we get at runtime
BatchingSave-and-reload

We need to run the watch
task ourselves.
Non-compiled things won’t
save-and-reload unless we
push them in to
/target/classes ourselves.
We need to be careful that
nothing clobbers our
compiled code.
What tradeoffs we made

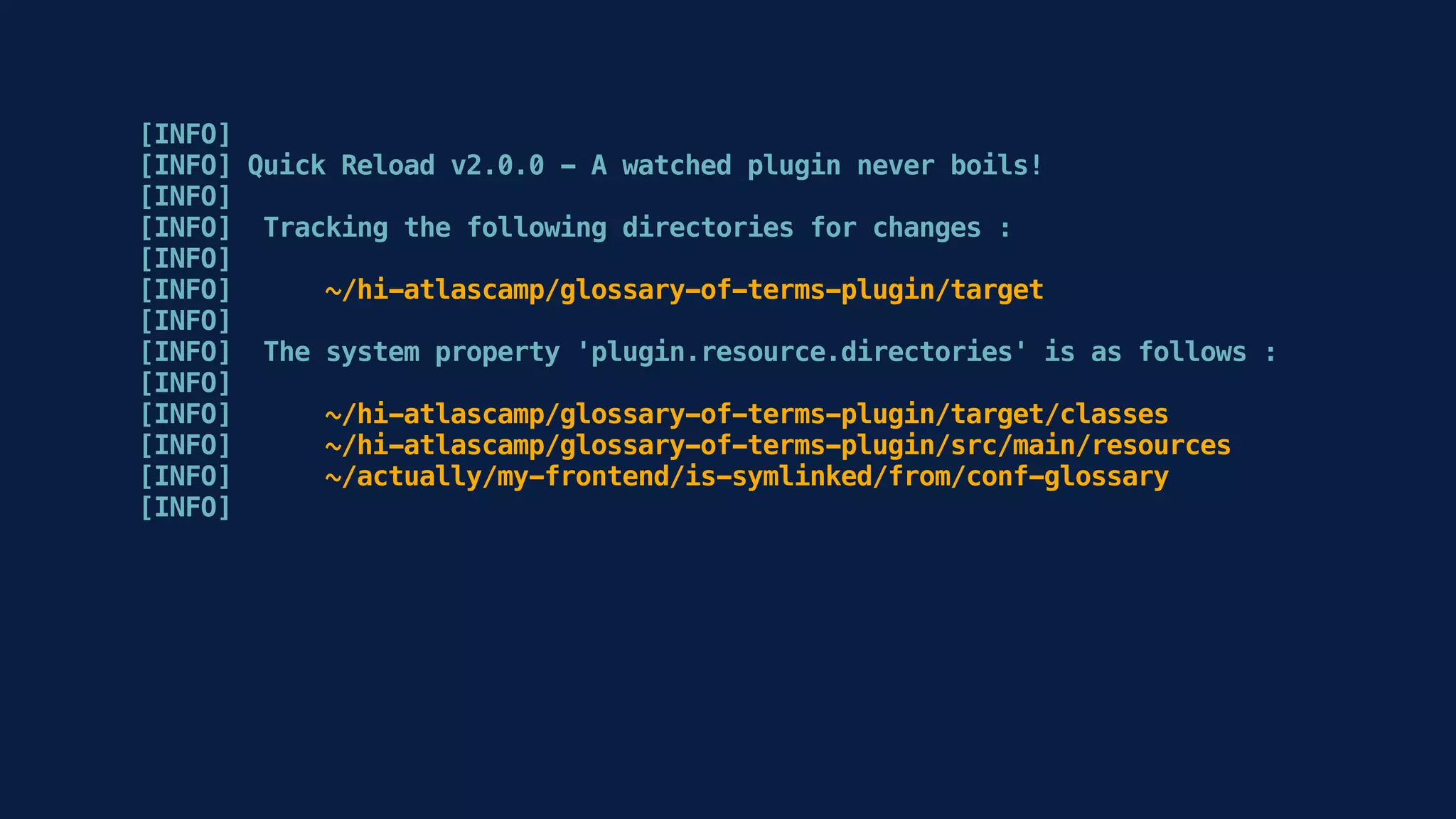

[INFO]
[INFO] Quick Reload v2.0.0 - A watched plugin never boils!
[INFO]
[INFO] Tracking the following directories for changes :
[INFO]
[INFO] ~/hi-atlascamp/glossary-of-terms-plugin/target
[INFO]
[INFO] The system property 'plugin.resource.directories' is as follows :
[INFO]
[INFO] ~/hi-atlascamp/glossary-of-terms-plugin/target/classes
[INFO] ~/hi-atlascamp/glossary-of-terms-plugin/src/main/resources
[INFO] ~/actually/my-frontend/is-symlinked/from/conf-glossary
[INFO]

We’ve achieved  
save-and-reload  
for our compiled code!
CHALLENGE #3

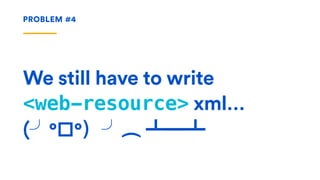

We still have to write
<web-resource> xml…
(╯°□°）╯︵ ┻━┻
PROBLEM #4

</web-resource> 
 
<web-resource key="feature-term-linker" name="Feature - Term Linker"> 
<dependency>com.atlassian.plugins.jquery:jquery</dependency> 
<dependency>com.atlassian.confluence.plugins.glossary-of-terms:feature-glossary</dependency> 
<resource type="download" name="term-element.js" location="/feature/term-linker/term-linker.js"/> 
</web-resource> 
 
<web-resource key="contextual-glossary-of-terms" name="Page - Glossary of Terms"> 
<context>glossary-of-terms</context> 
<dependency>com.atlassian.confluence.plugins.glossary-of-terms:widget-highlight-dialog</dependency> 
<dependency>com.atlassian.confluence.plugins.glossary-of-terms:widget-highlight-action</dependency> 
<dependency>com.atlassian.confluence.plugins.glossary-of-terms:feature-term-element</dependency> 
<dependency>com.atlassian.confluence.plugins.glossary-of-terms:feature-term-linker</dependency> 
<dependency>com.atlassian.confluence.plugins.glossary-of-terms:feature-glossary-notifications</dependency> 
<resource type="download" name="glossary-of-terms.js" location="/page/glossary-of-terms.js"/> 
</web-resource> 
 
<web-resource key="page-glossary-of-terms"> 
<dependency>com.atlassian.plugins.atlassian-plugins-webresource-rest:web-resource-manager</dependency> 
<context>page</context> 
<context>blogpost</context> 
<resource type="download" name="glossary-of-terms.js" location="/page/wrm/glossary-of-terms.js" /> 
</web-resource>

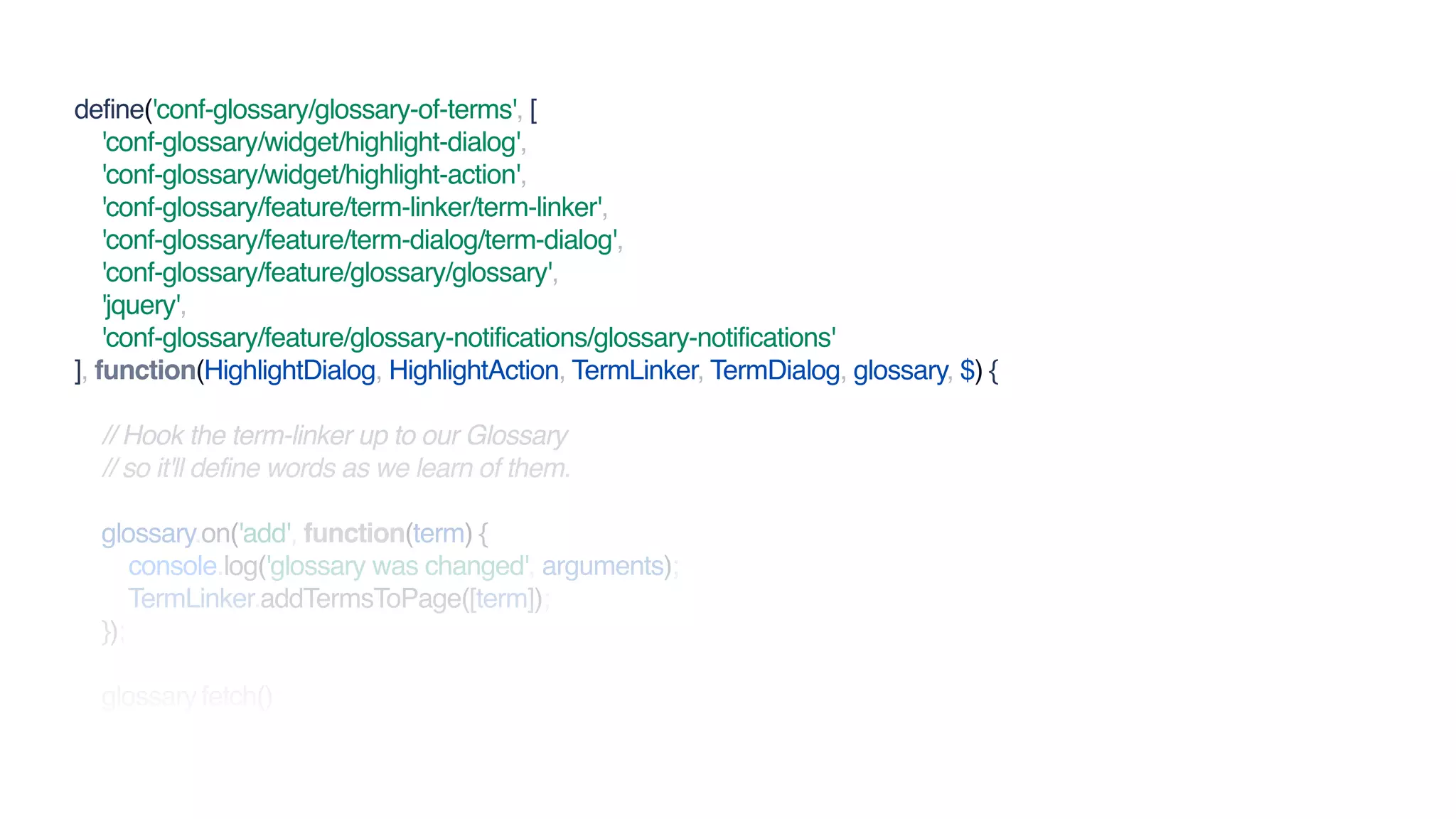

define('conf-glossary/glossary-of-terms', [ 
'conf-glossary/widget/highlight-dialog', 
'conf-glossary/widget/highlight-action', 
'conf-glossary/feature/term-linker/term-linker', 
'conf-glossary/feature/term-dialog/term-dialog', 
'jquery', 
'conf-glossary/feature/glossary-notifications/glossary-notifications' 
], function(HighlightDialog, HighlightAction, TermLinker, TermDialog, glossary, $) { 
 
// Hook the term-linker up to our Glossary 
// so it'll define words as we learn of them. 
 
glossary.on('add', function(term) { 
console.log('glossary was changed', arguments); 
TermLinker.addTermsToPage([term]); 
}); 
 
glossary.fetch(); 
// Initialise when DOM Content Loaded has happened. 
// This could also be fired on other events, like when

Bundle the front-end
go.atlassian.com/sao4fed-bundle-the-ui

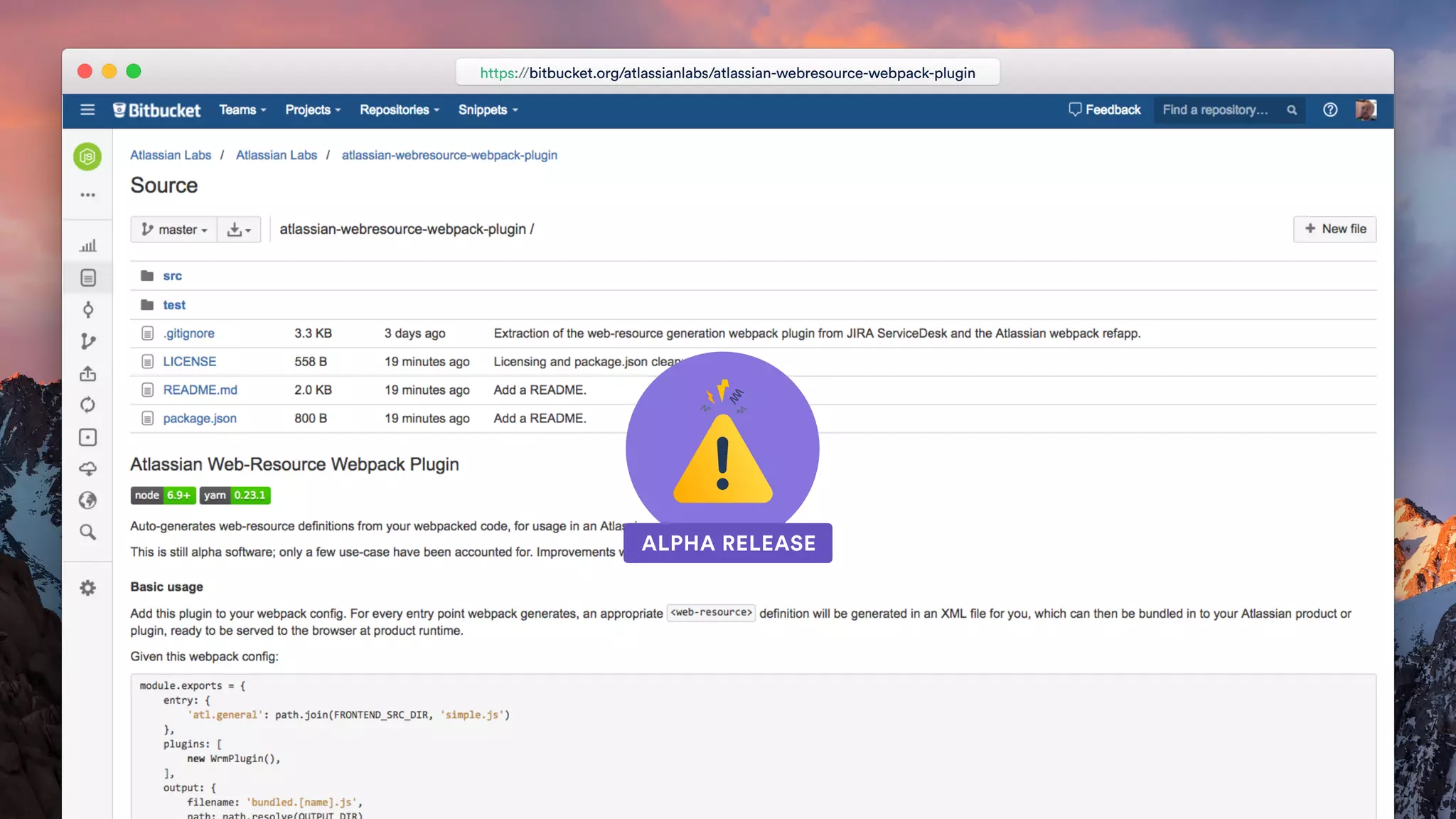

ALPHA RELEASE
https://bitbucket.org/atlassianlabs/atlassian-webresource-webpack-plugin

Time-saver
Writes your <web-resource>
blocks for you.
ATLASSIAN WEB-RESOURCE WEBPACK PLUGIN
More modern
Works with Webpack 2, AMD,
and ES2015 modules.
Alpha release
More capabilities coming soon!

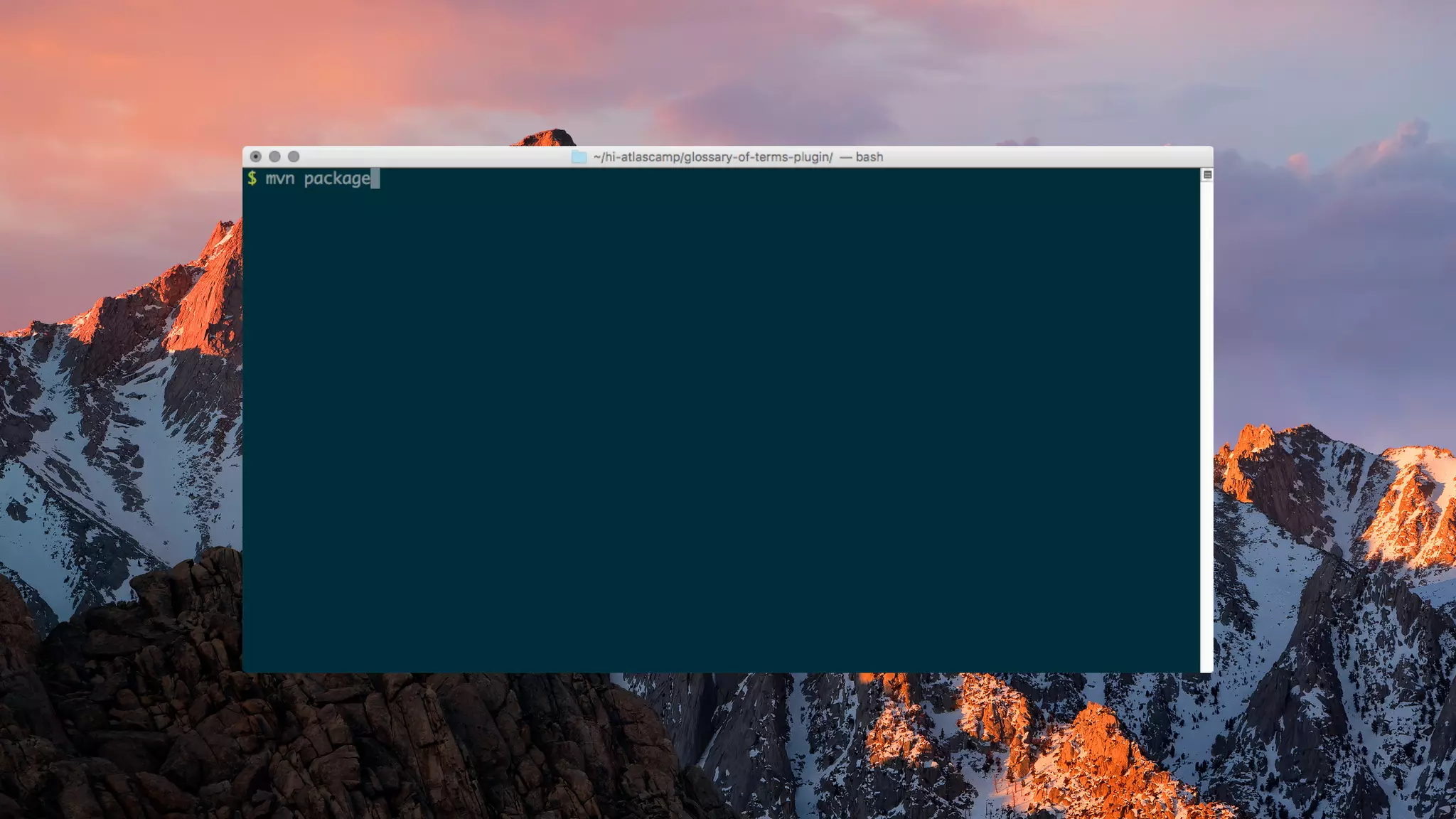

Demo time!
ATLASSIAN WEB-RESOURCE WEBPACK PLUGIN

Developer Docs
https://
developer.atlassian.com
Community Forums
https://
developer.atlassian.com/
community
More Learning Resources

Q&A
What makes front-end development hard?
What would make it better?

Thank You
CHRIS “DAZ” DARROCH | BUILDING FRONT-END IS FUN | HEY, WE MADE IT!

Server Add-ons for Front-end Developers

More Related Content

What's hot

Viewers also liked

Similar to Server Add-ons for Front-end Developers

More from Atlassian

Recently uploaded

Server Add-ons for Front-end Developers
