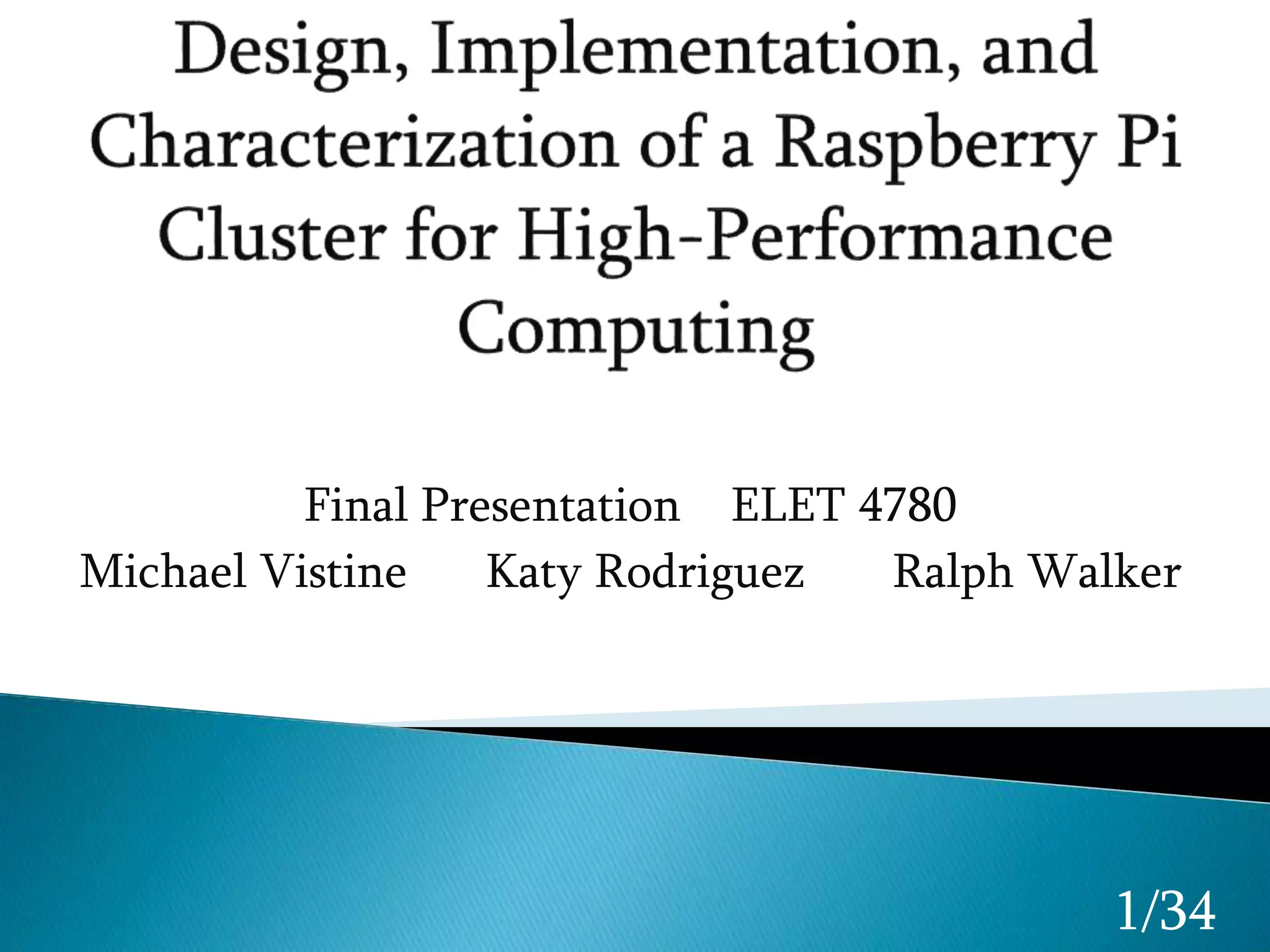

Design, Implementation, and Characterization of a Raspberry Pi Cluster for High-Performance Computing

1. Final Presentation ELET 4780
Michael Vistine Katy Rodriguez Ralph Walker
1/34

2. Michael Vistine
Engineer
2/34
Katy Rodriguez
Engineer
Ralph Walker
Engineer

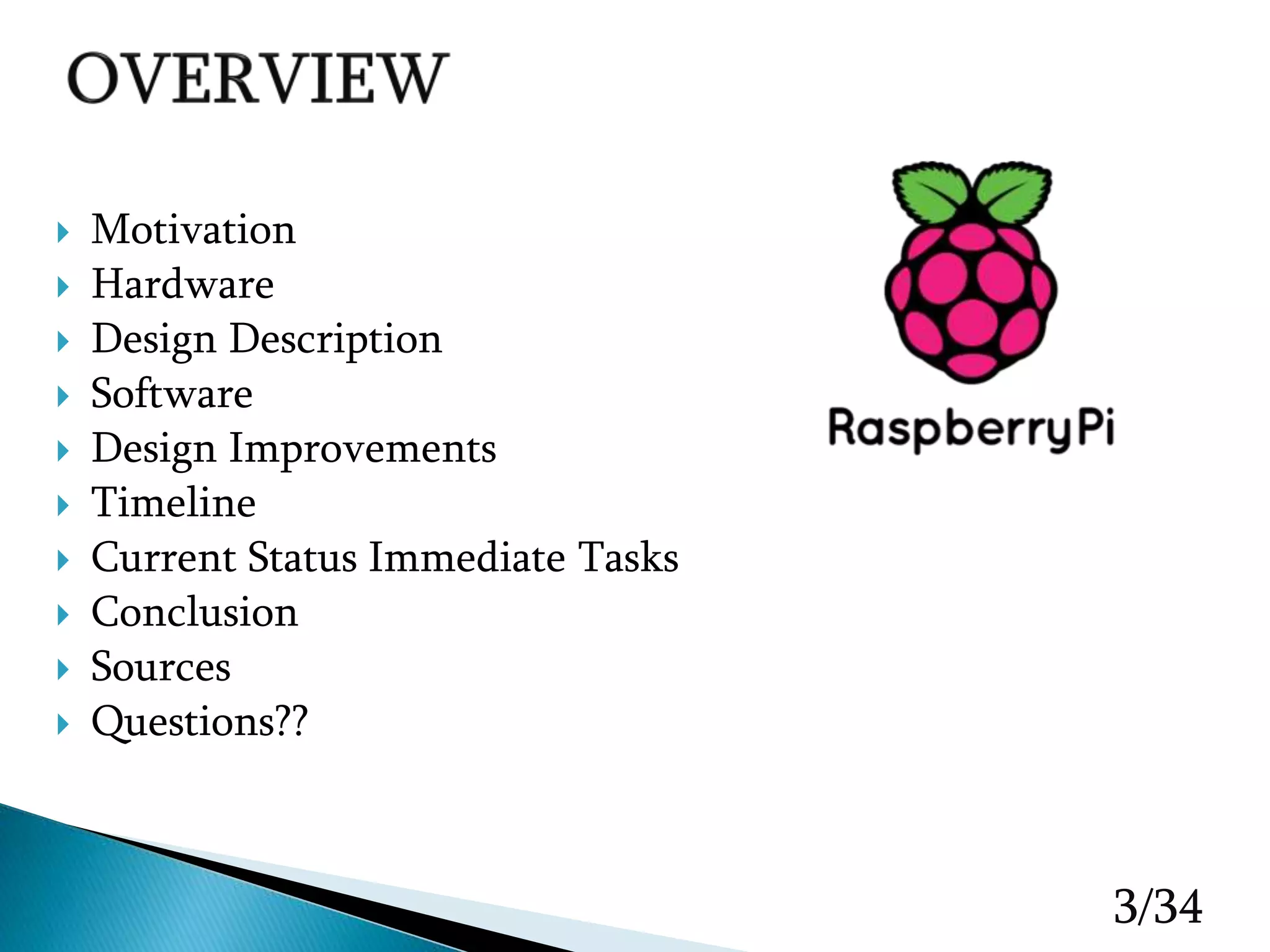

3.  Motivation
 Hardware
 Design Description
 Software
 Design Improvements
 Timeline
 Current Status Immediate Tasks
 Conclusion
 Sources
 Questions??
3/34

4. 4/34

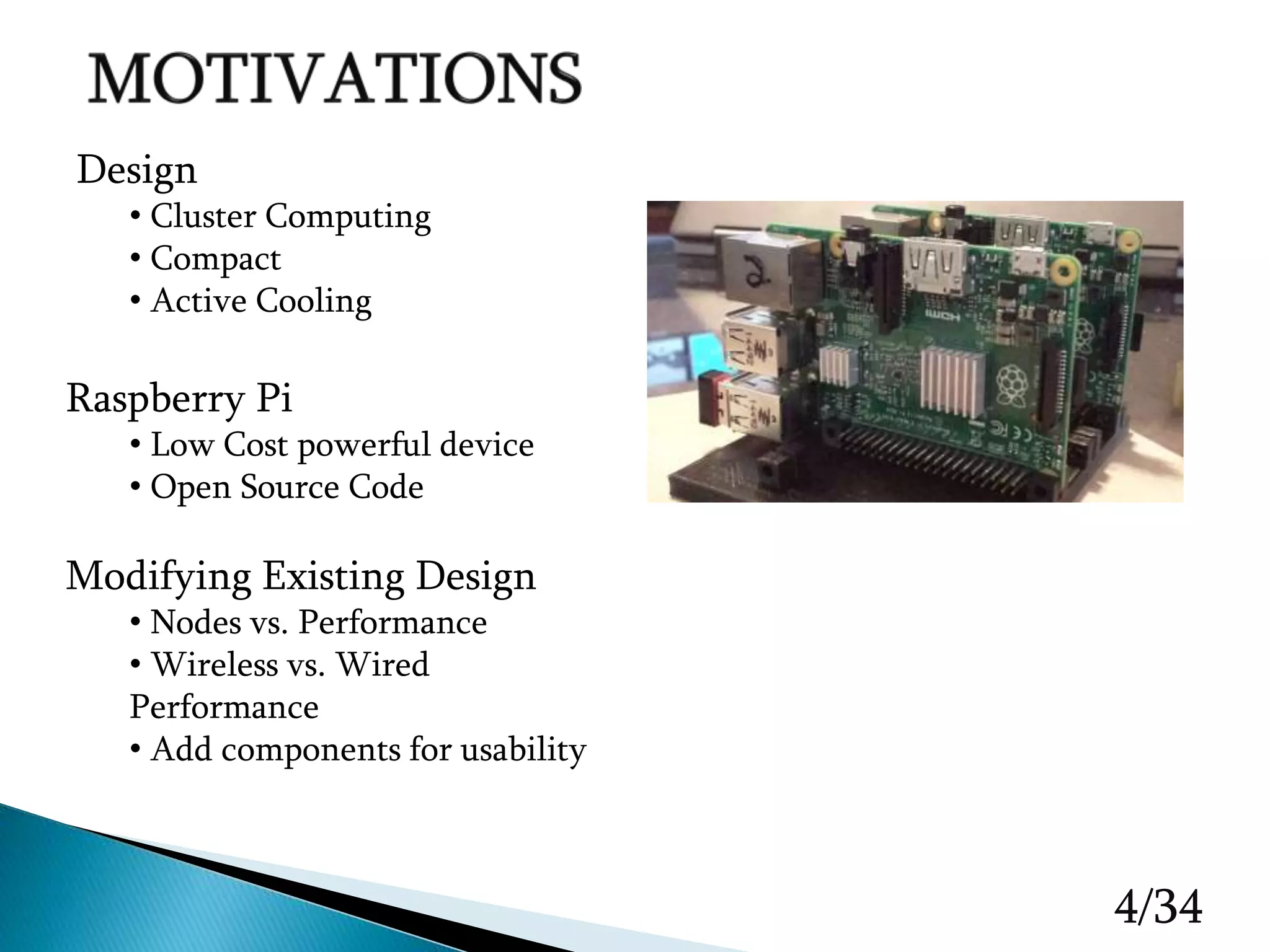

Design
• Cluster Computing
• Compact
• Active Cooling
Raspberry Pi
• Low Cost powerful device
• Open Source Code
Modifying Existing Design
• Nodes vs. Performance
• Wireless vs. Wired
Performance
• Add components for usability

5. 5/34

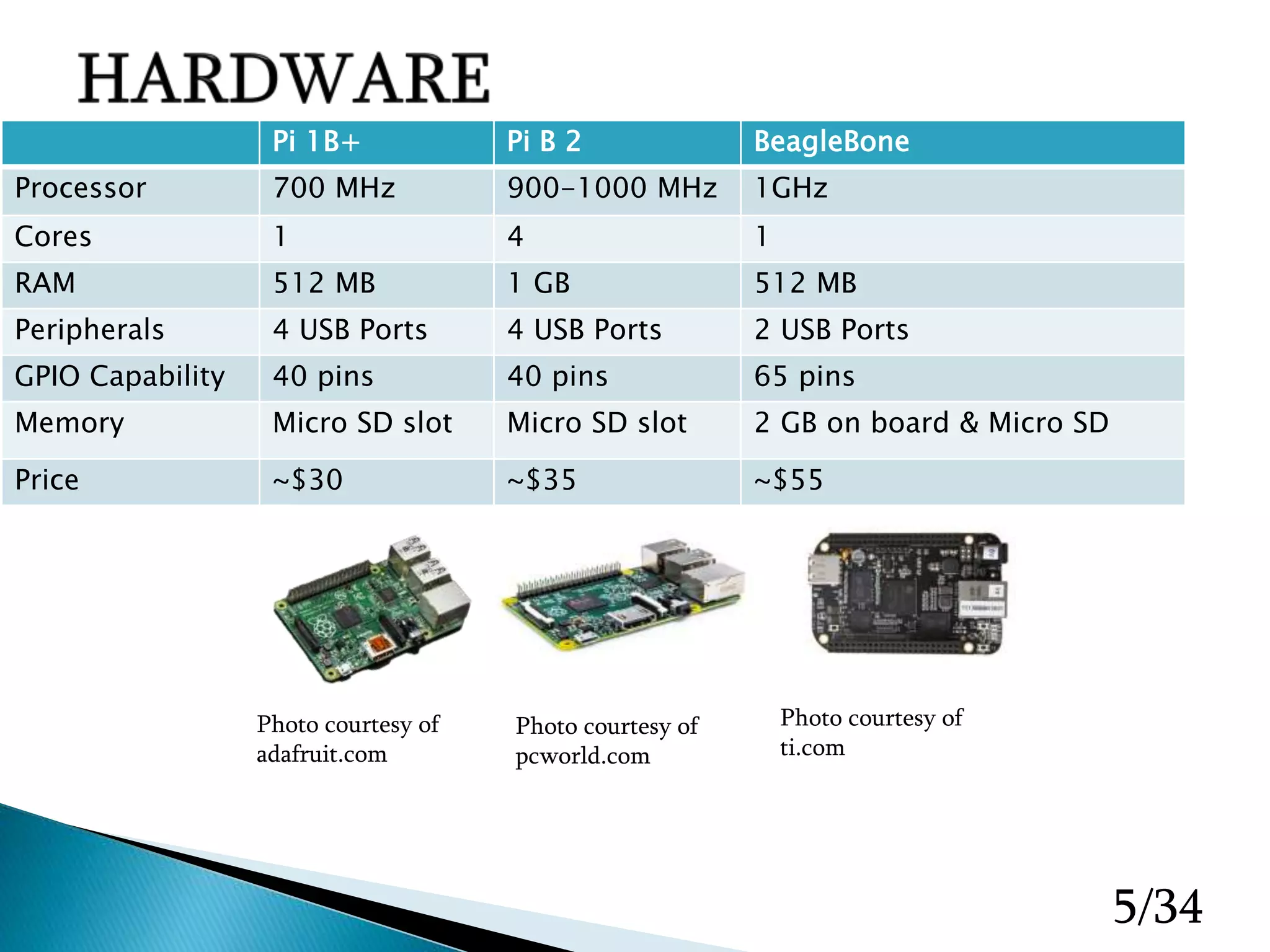

Photo courtesy of
pcworld.com
Pi 1B+ Pi B 2 BeagleBone
Processor 700 MHz 900-1000 MHz 1GHz
Cores 1 4 1
RAM 512 MB 1 GB 512 MB
Peripherals 4 USB Ports 4 USB Ports 2 USB Ports
GPIO Capability 40 pins 40 pins 65 pins
Memory Micro SD slot Micro SD slot 2 GB on board & Micro SD
Price ~$30 ~$35 ~$55
Photo courtesy of
ti.com
Photo courtesy of
adafruit.com

6. 6/34

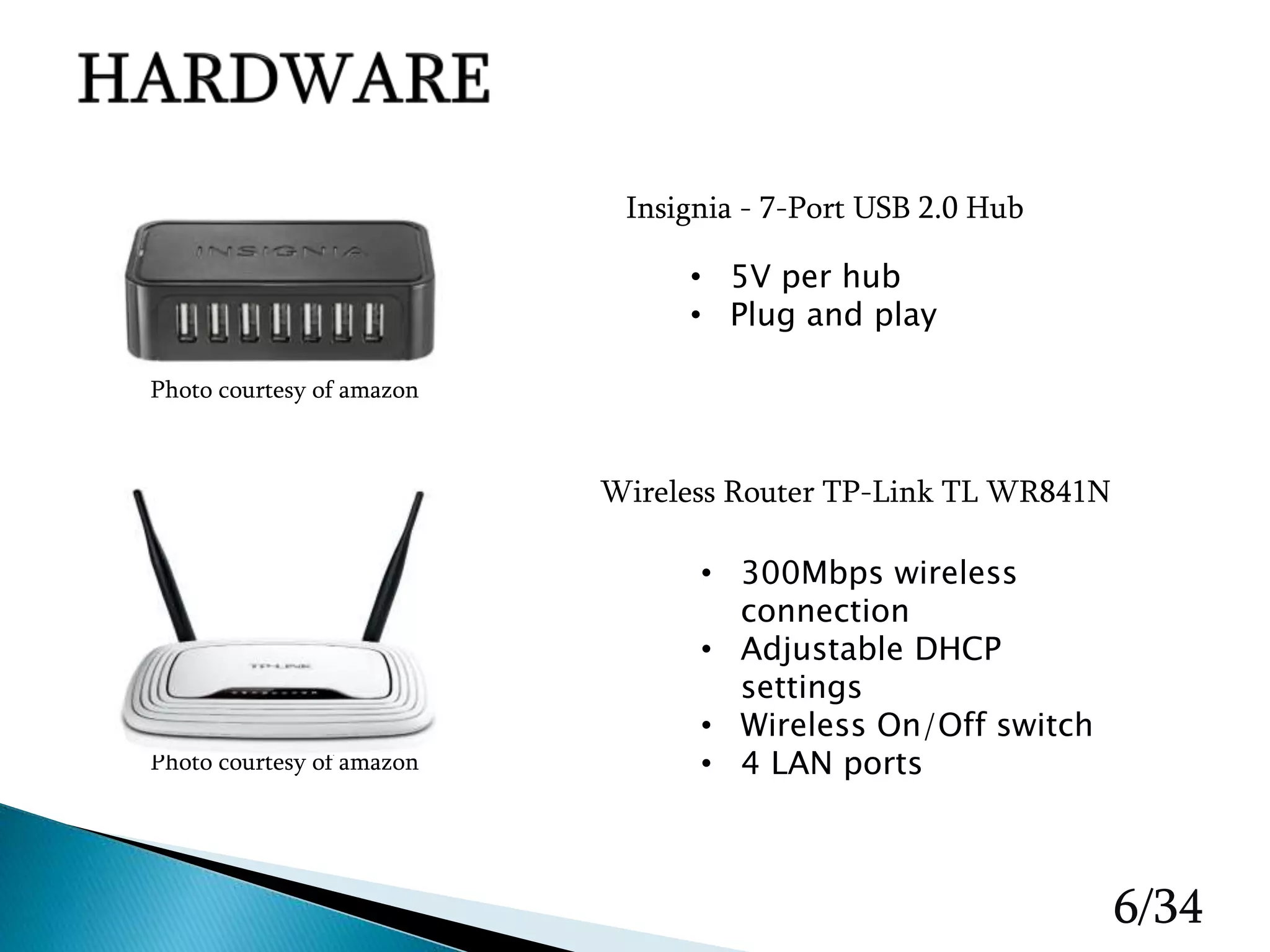

Photo courtesy of amazon
• 5V per hub
• Plug and play
Insignia - 7-Port USB 2.0 Hub
Photo courtesy of amazon
Wireless Router TP-Link TL WR841N
• 300Mbps wireless
connection
• Adjustable DHCP
settings
• Wireless On/Off switch
• 4 LAN ports

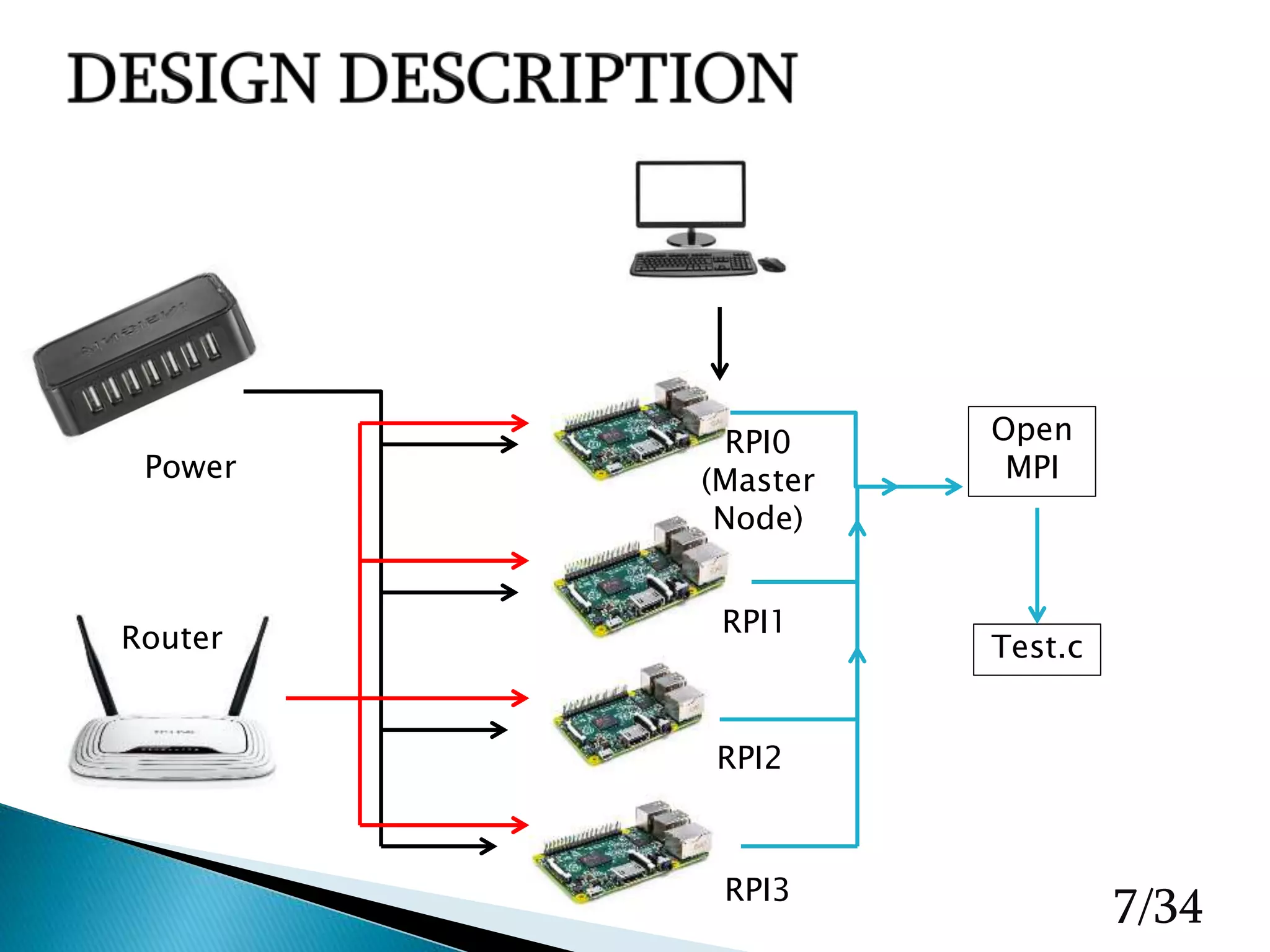

7. RPI1
7/34
Power
RPI0
(Master
Node)
RPI2
RPI3
Open
MPI
Test.cRouter

8. 8/34

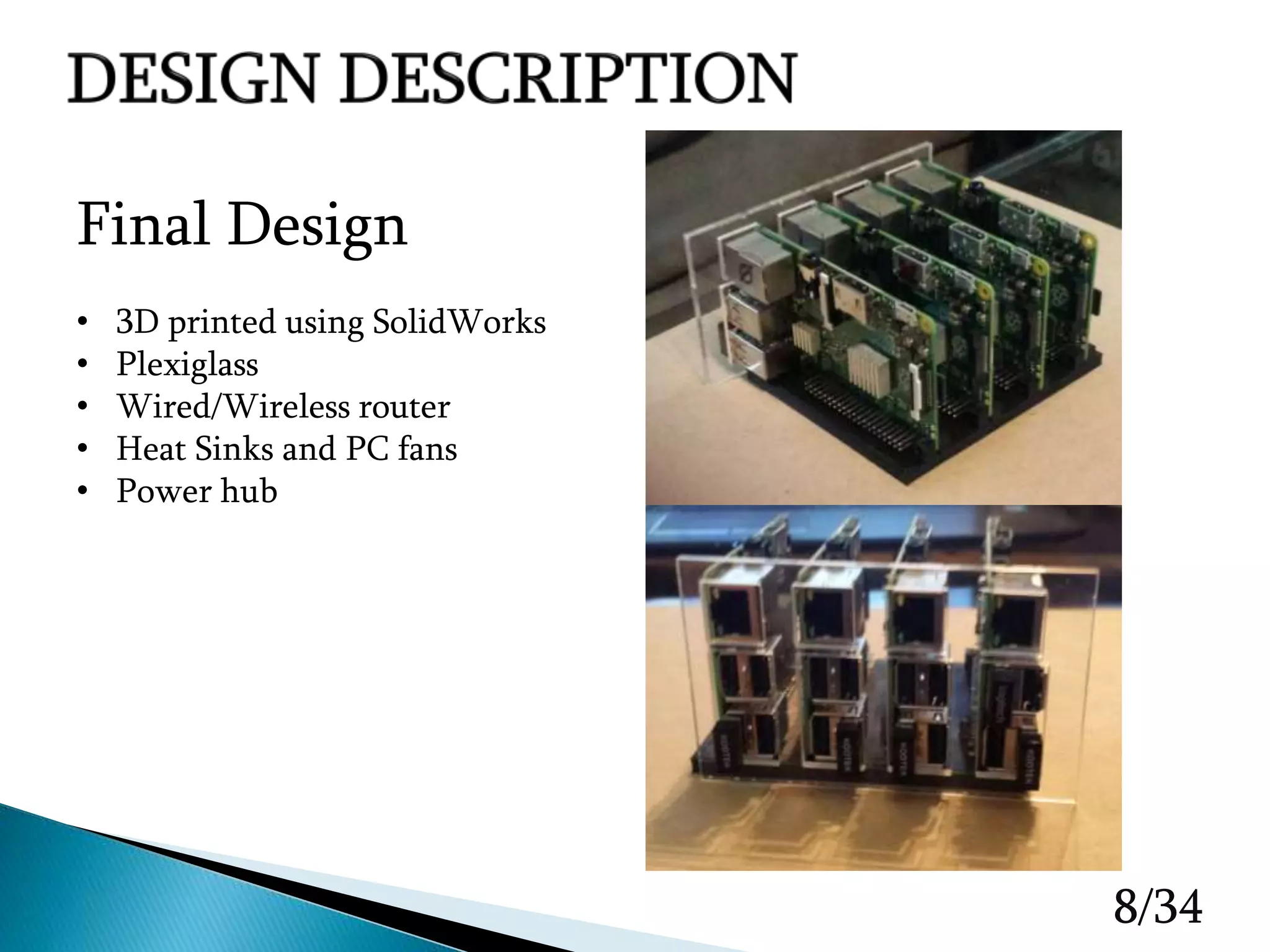

Final Design
• 3D printed using SolidWorks
• Plexiglass
• Wired/Wireless router
• Heat Sinks and PC fans
• Power hub

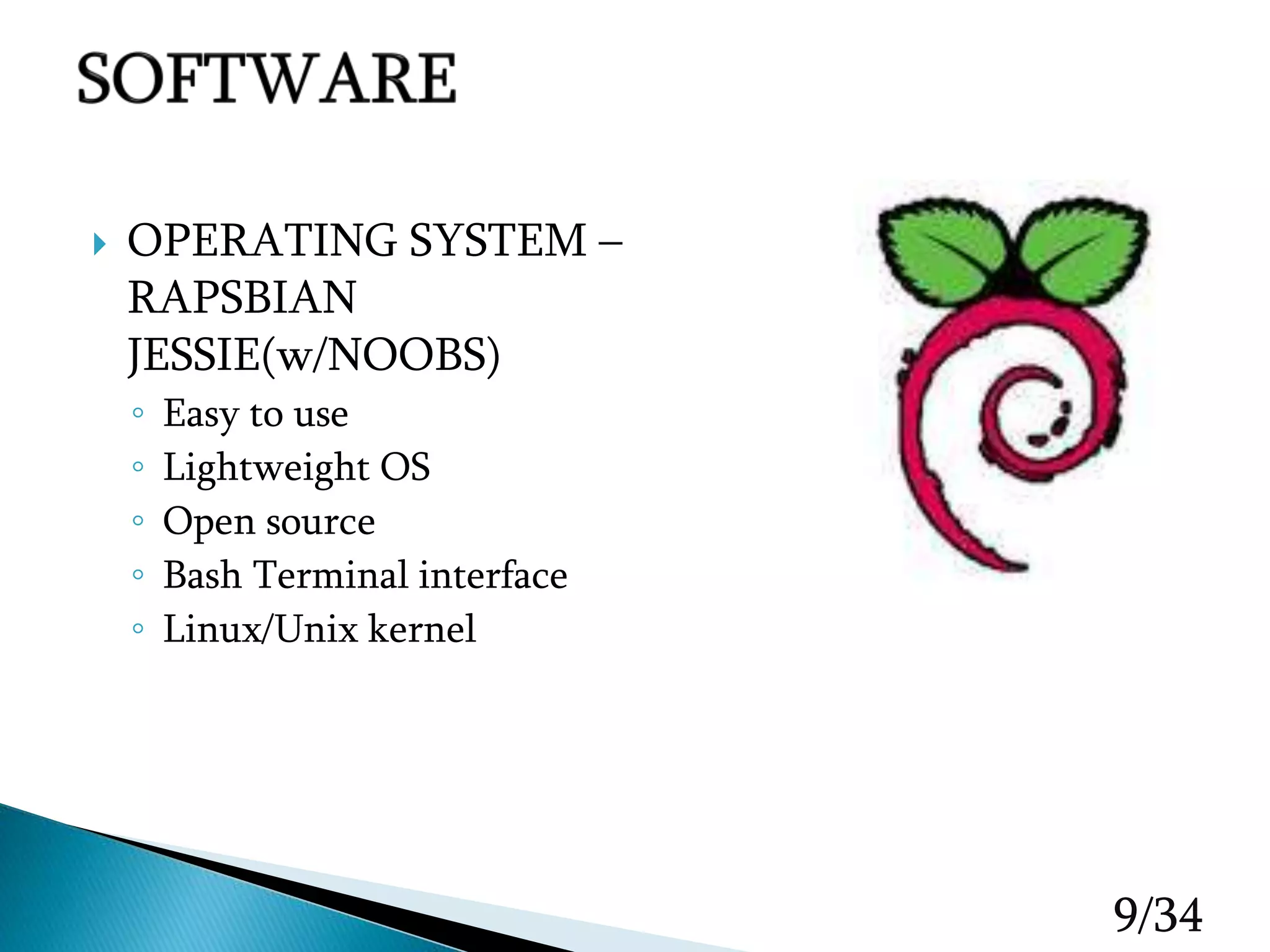

9.  OPERATING SYSTEM –
RAPSBIAN
JESSIE(w/NOOBS)
◦ Easy to use
◦ Lightweight OS
◦ Open source
◦ Bash Terminal interface
◦ Linux/Unix kernel
9/34

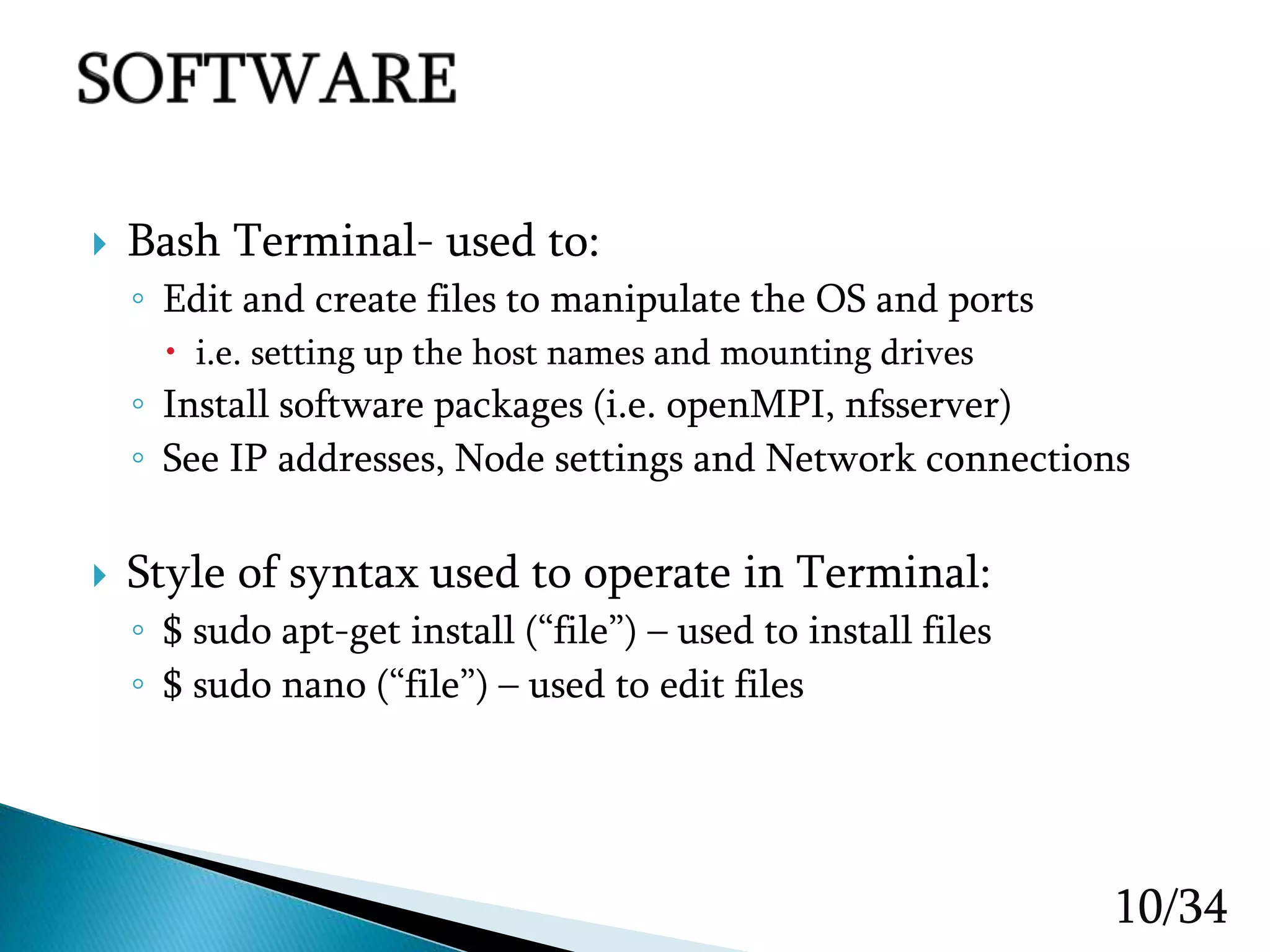

10.  Bash Terminal- used to:
◦ Edit and create files to manipulate the OS and ports
 i.e. setting up the host names and mounting drives
◦ Install software packages (i.e. openMPI, nfsserver)
◦ See IP addresses, Node settings and Network connections
 Style of syntax used to operate in Terminal:
◦ $ sudo apt-get install (“file”) – used to install files
◦ $ sudo nano (“file”) – used to edit files
10/34

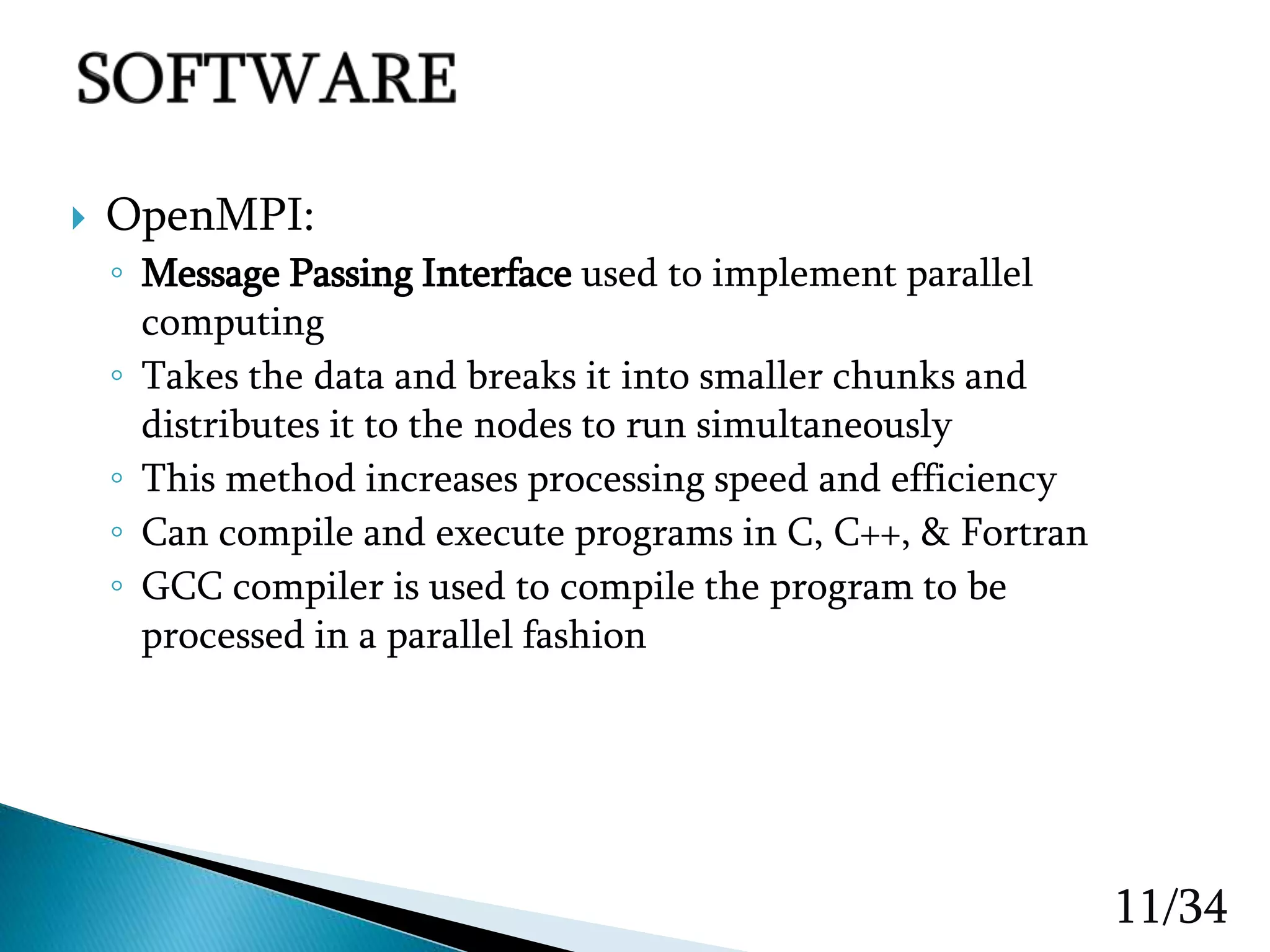

11.  OpenMPI:
◦ Message Passing Interface used to implement parallel
computing
◦ Takes the data and breaks it into smaller chunks and
distributes it to the nodes to run simultaneously
◦ This method increases processing speed and efficiency
◦ Can compile and execute programs in C, C++, & Fortran
◦ GCC compiler is used to compile the program to be
processed in a parallel fashion
11/34

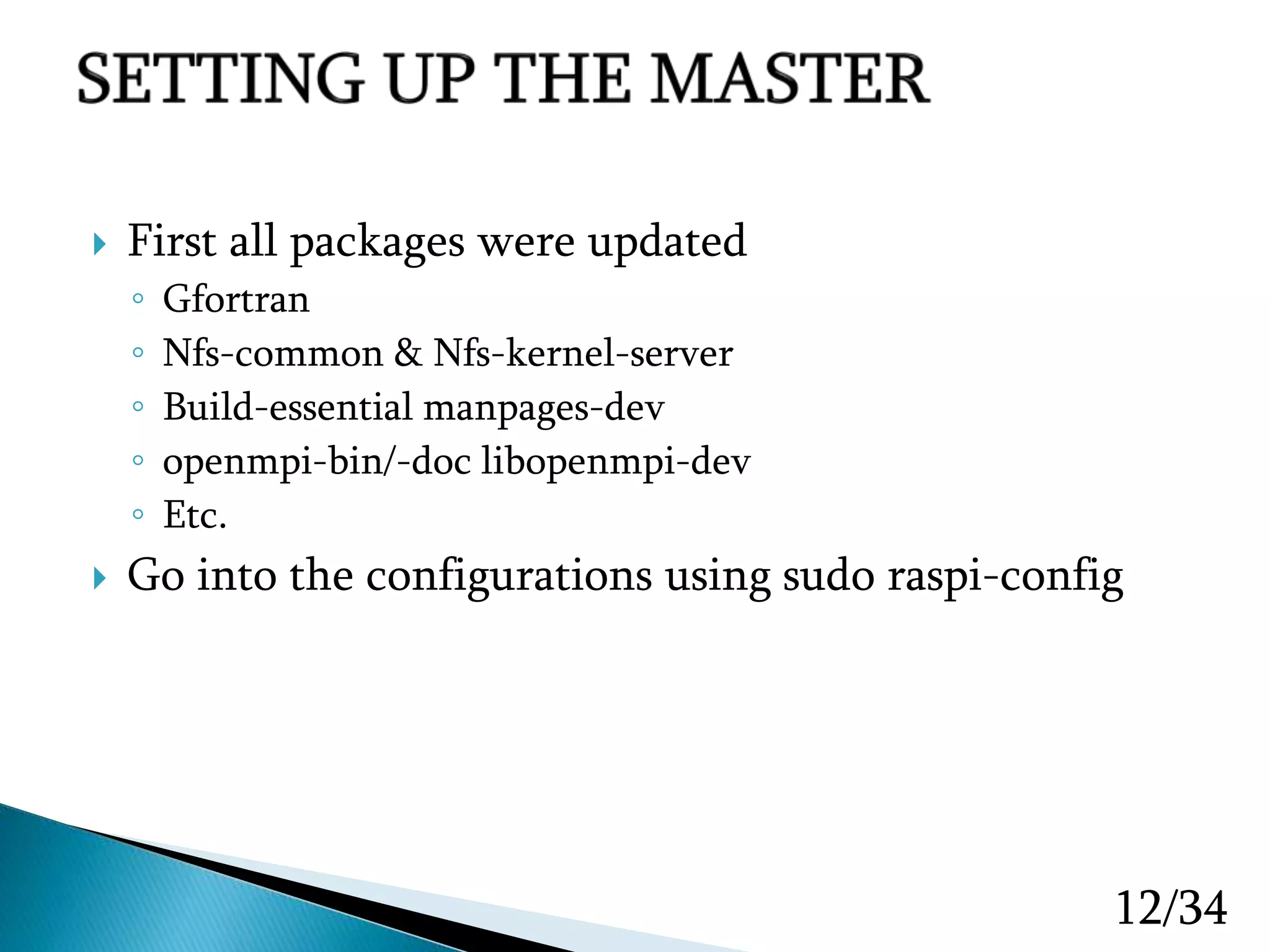

12.  First all packages were updated
◦ Gfortran
◦ Nfs-common & Nfs-kernel-server
◦ Build-essential manpages-dev
◦ openmpi-bin/-doc libopenmpi-dev
◦ Etc.
 Go into the configurations using sudo raspi-config
12/34

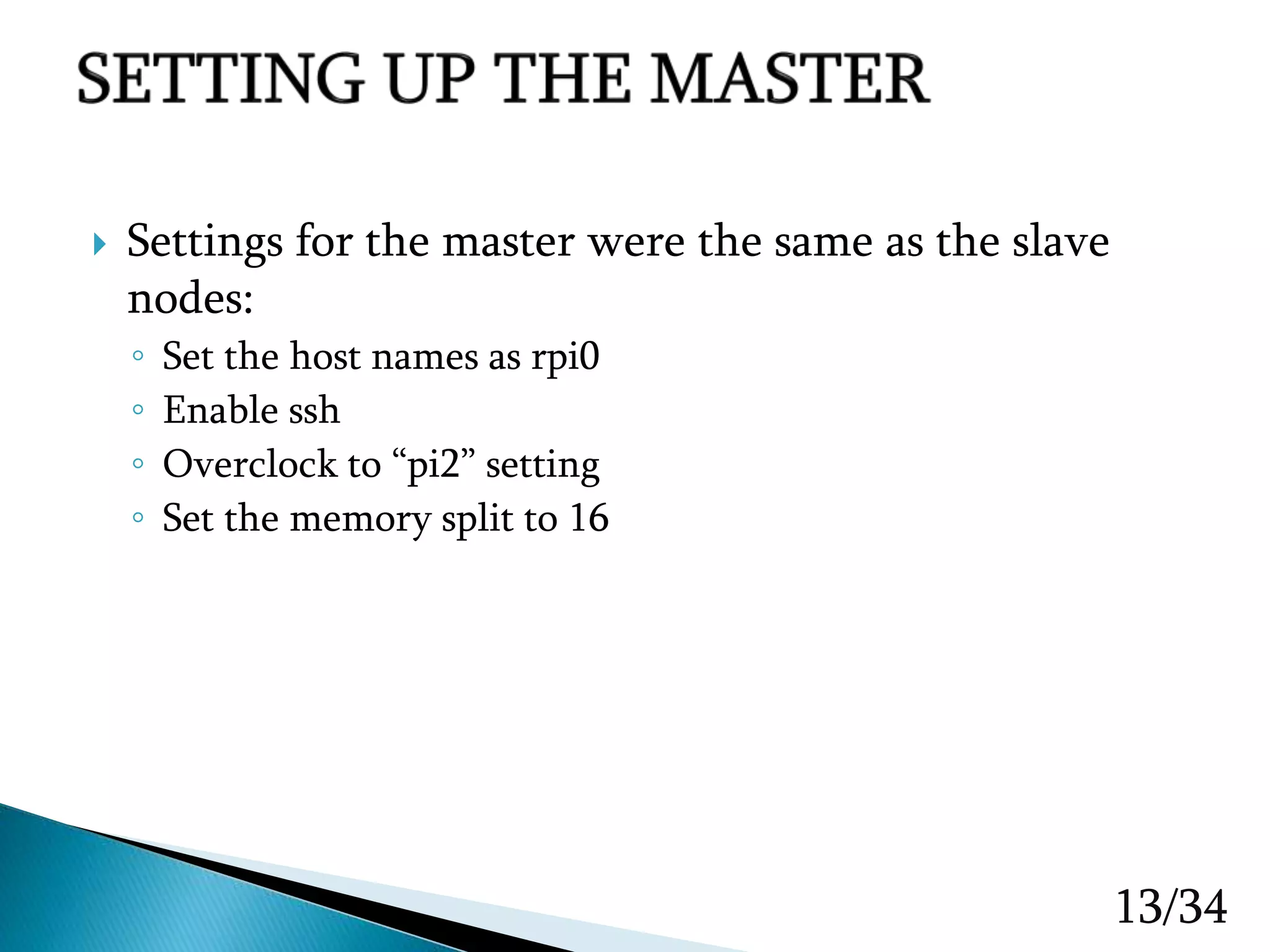

13.  Settings for the master were the same as the slave
nodes:
◦ Set the host names as rpi0
◦ Enable ssh
◦ Overclock to “pi2” setting
◦ Set the memory split to 16
13/34

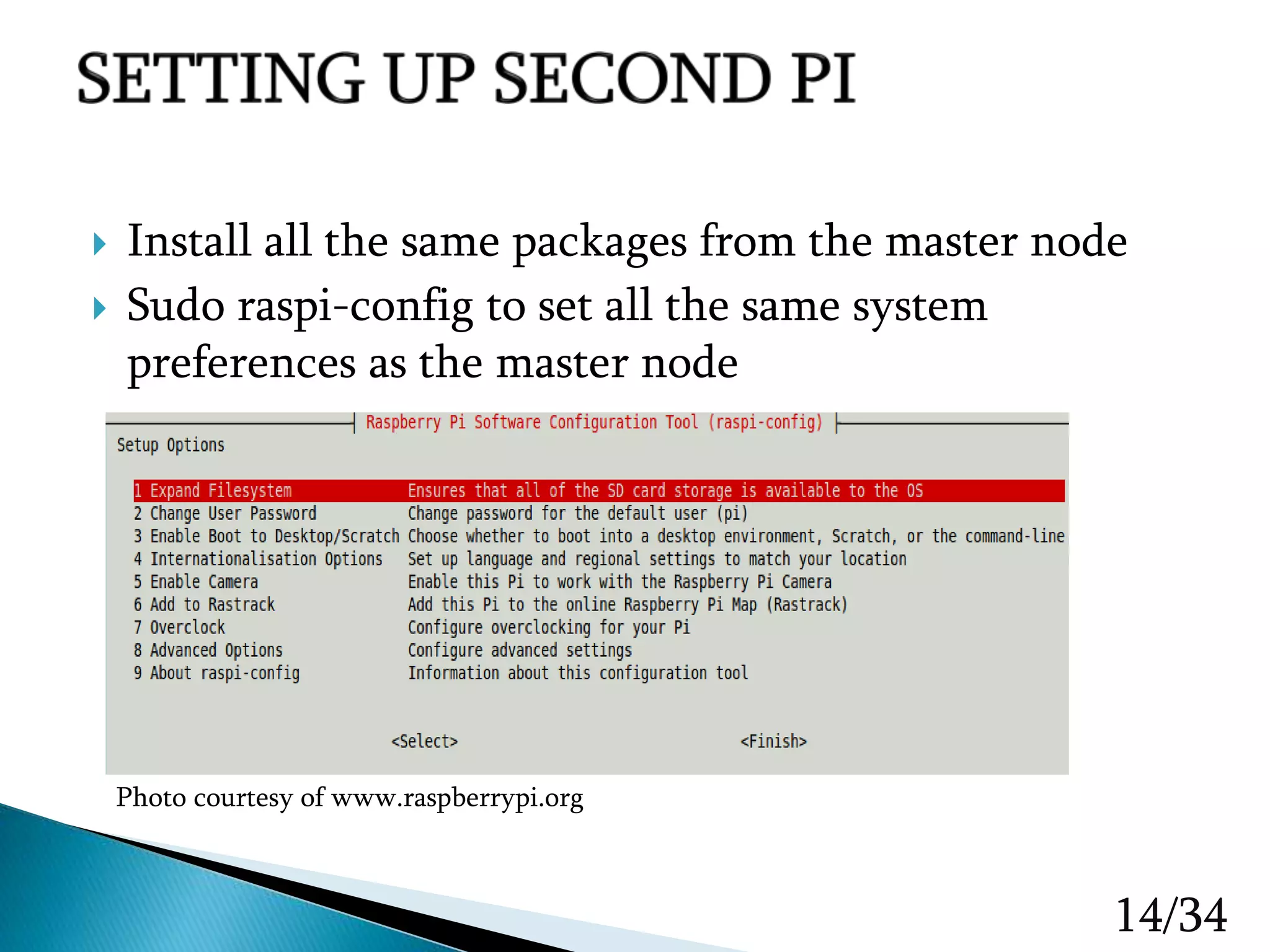

14.  Install all the same packages from the master node
 Sudo raspi-config to set all the same system
preferences as the master node
14/34
Photo courtesy of www.raspberrypi.org

15. 15/34

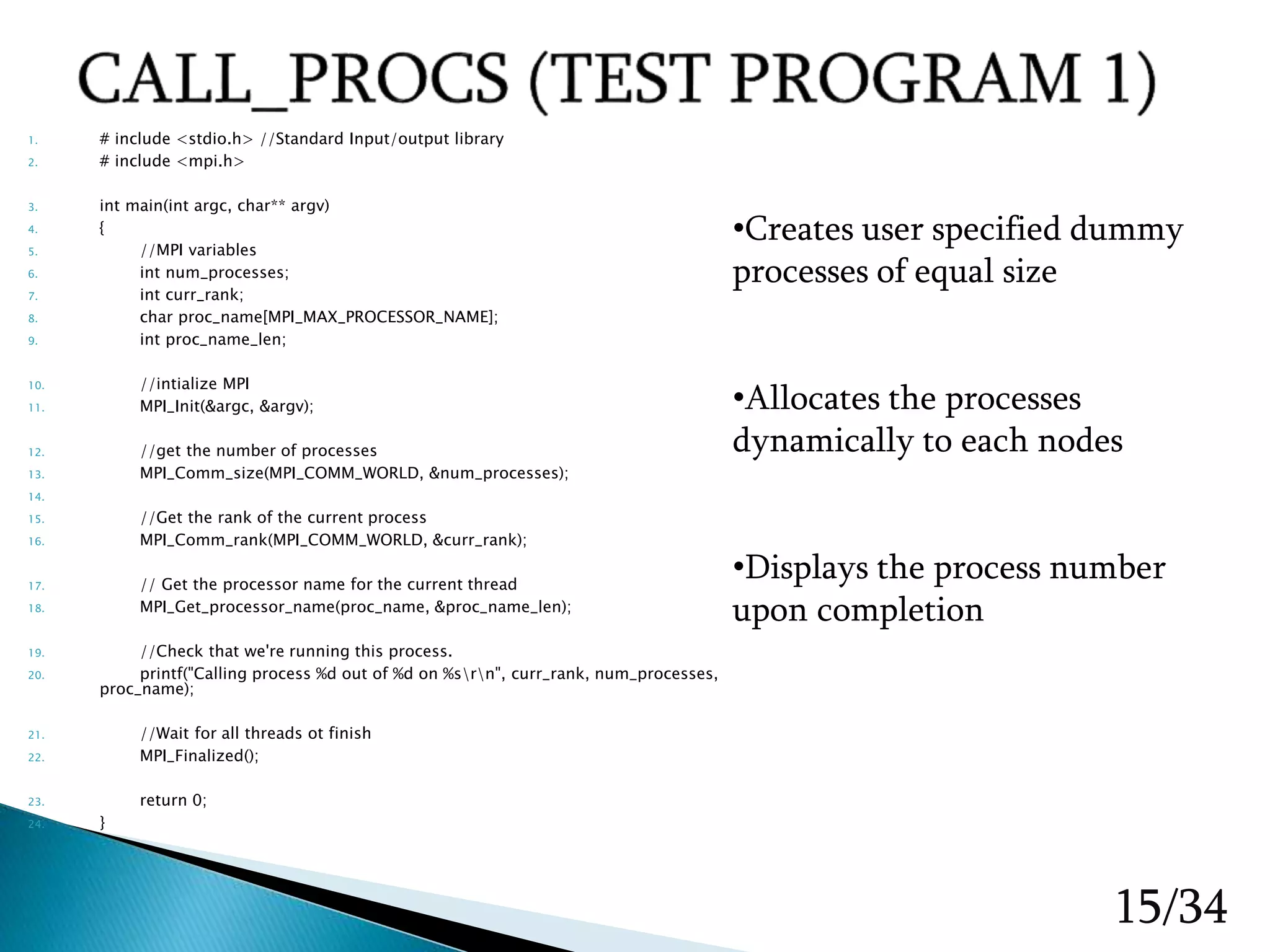

1. # include <stdio.h> //Standard Input/output library
2. # include <mpi.h>
3. int main(int argc, char** argv)
4. {
5. //MPI variables
6. int num_processes;
7. int curr_rank;
8. char proc_name[MPI_MAX_PROCESSOR_NAME];
9. int proc_name_len;
10. //intialize MPI
11. MPI_Init(&argc, &argv);
12. //get the number of processes
13. MPI_Comm_size(MPI_COMM_WORLD, &num_processes);
14.
15. //Get the rank of the current process
16. MPI_Comm_rank(MPI_COMM_WORLD, &curr_rank);
17. // Get the processor name for the current thread
18. MPI_Get_processor_name(proc_name, &proc_name_len);
19. //Check that we're running this process.
20. printf("Calling process %d out of %d on %srn", curr_rank, num_processes,
proc_name);
21. //Wait for all threads ot finish
22. MPI_Finalized();
23. return 0;
24. }
•Creates user specified dummy
processes of equal size
•Allocates the processes
dynamically to each nodes
•Displays the process number
upon completion

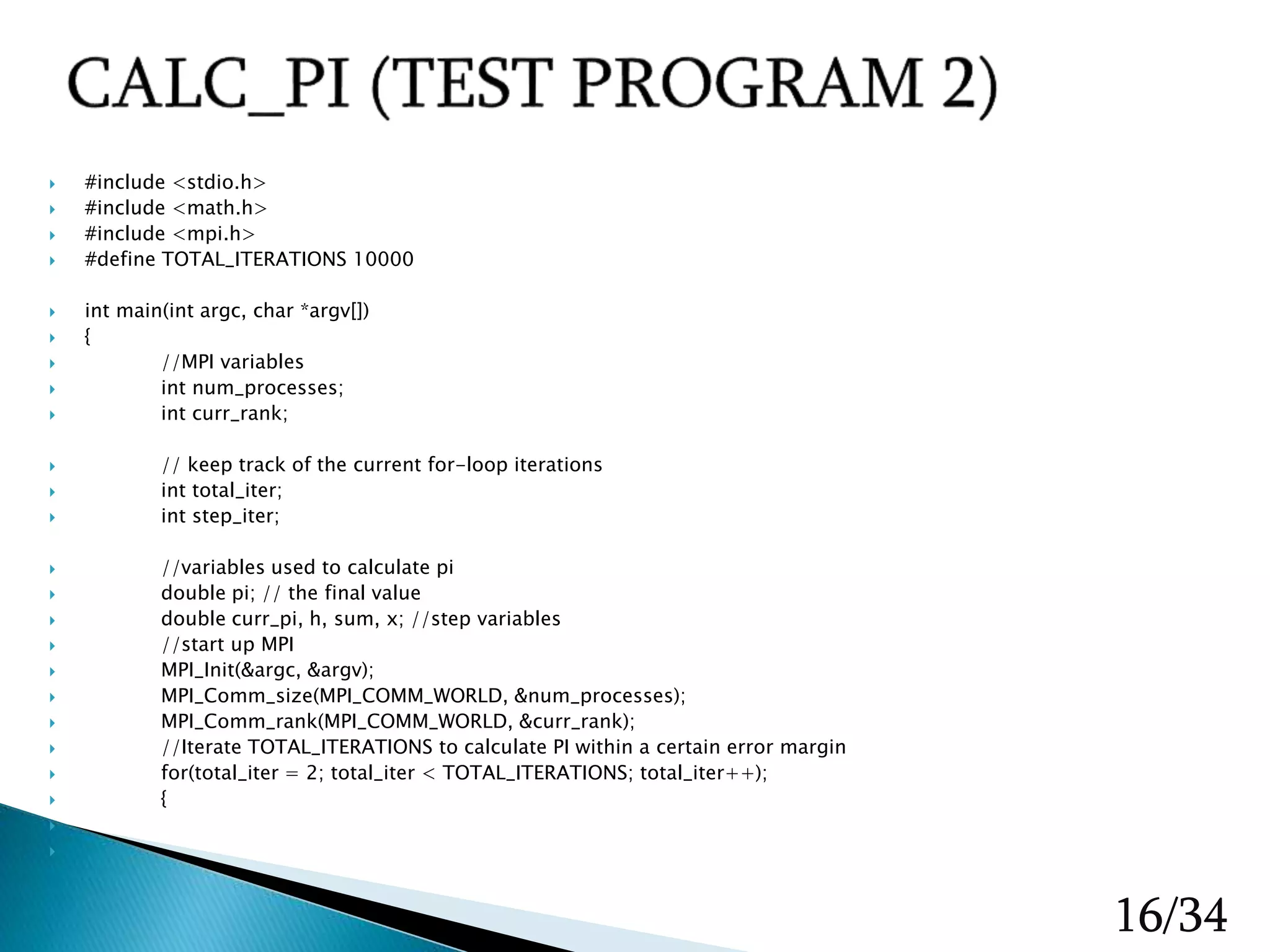

16.  #include <stdio.h>
 #include <math.h>
 #include <mpi.h>
 #define TOTAL_ITERATIONS 10000
 int main(int argc, char *argv[])
 {
 //MPI variables
 int num_processes;
 int curr_rank;
 // keep track of the current for-loop iterations
 int total_iter;
 int step_iter;
 //variables used to calculate pi
 double pi; // the final value
 double curr_pi, h, sum, x; //step variables
 //start up MPI
 MPI_Init(&argc, &argv);
 MPI_Comm_size(MPI_COMM_WORLD, &num_processes);
 MPI_Comm_rank(MPI_COMM_WORLD, &curr_rank);
 //Iterate TOTAL_ITERATIONS to calculate PI within a certain error margin
 for(total_iter = 2; total_iter < TOTAL_ITERATIONS; total_iter++);
 {


16/34

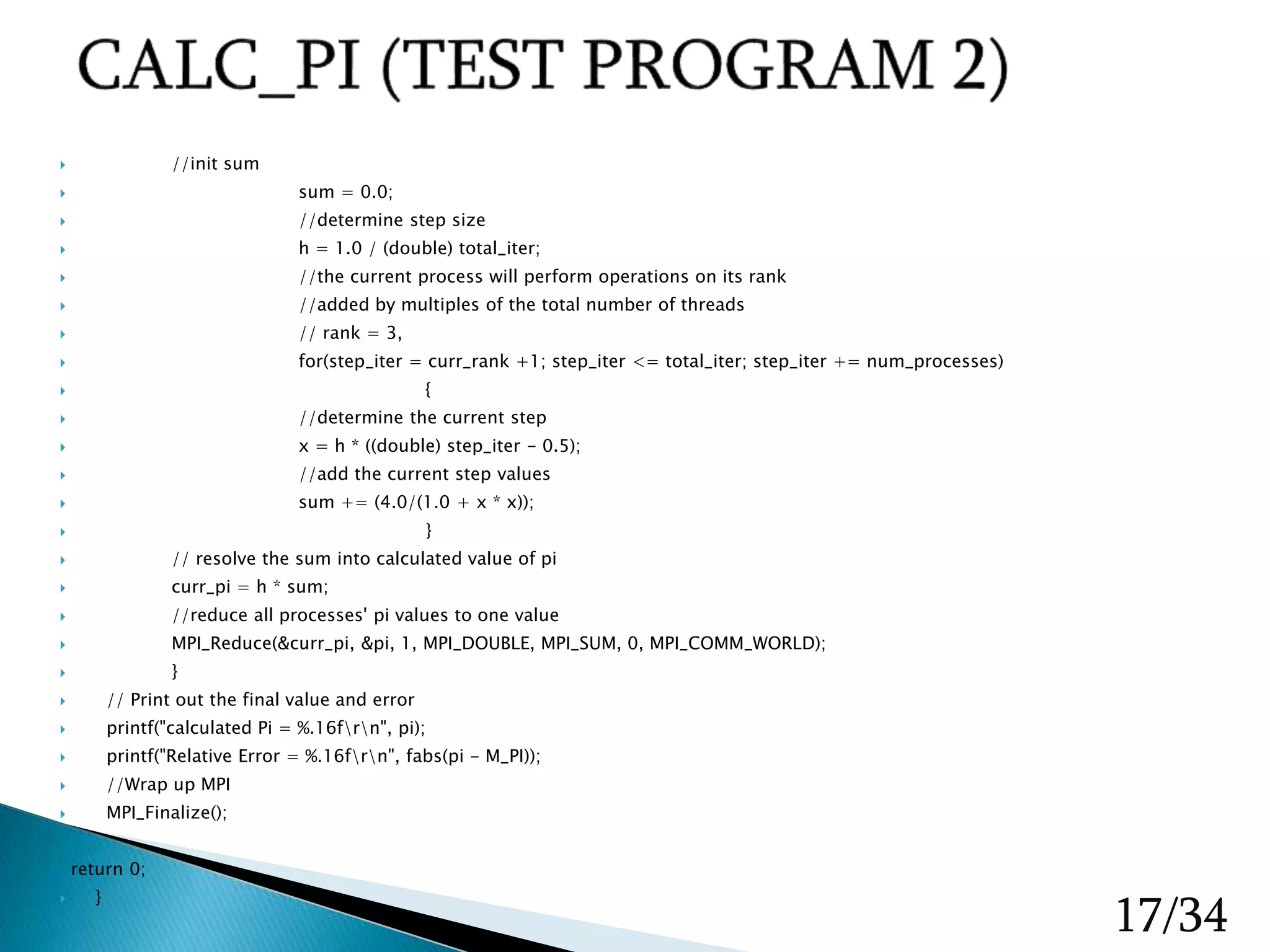

17.  //init sum
 sum = 0.0;
 //determine step size
 h = 1.0 / (double) total_iter;
 //the current process will perform operations on its rank
 //added by multiples of the total number of threads
 // rank = 3,
 for(step_iter = curr_rank +1; step_iter <= total_iter; step_iter += num_processes)
 {
 //determine the current step
 x = h * ((double) step_iter - 0.5);
 //add the current step values
 sum += (4.0/(1.0 + x * x));
 }
 // resolve the sum into calculated value of pi
 curr_pi = h * sum;
 //reduce all processes' pi values to one value
 MPI_Reduce(&curr_pi, &pi, 1, MPI_DOUBLE, MPI_SUM, 0, MPI_COMM_WORLD);
 }
 // Print out the final value and error
 printf("calculated Pi = %.16frn", pi);
 printf("Relative Error = %.16frn", fabs(pi - M_PI));
 //Wrap up MPI
 MPI_Finalize();
return 0;
 }
17/34

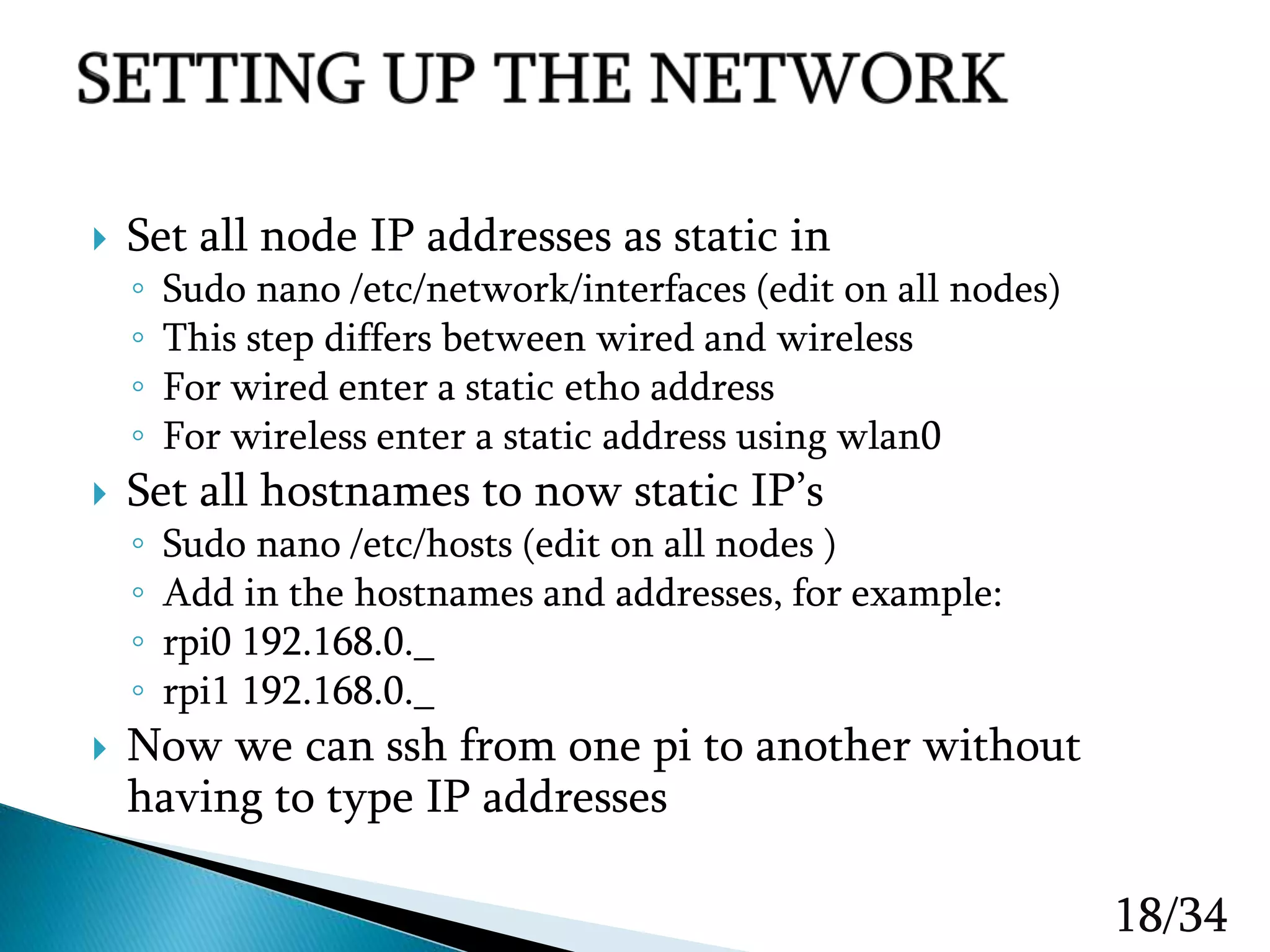

18.  Set all node IP addresses as static in
◦ Sudo nano /etc/network/interfaces (edit on all nodes)
◦ This step differs between wired and wireless
◦ For wired enter a static etho address
◦ For wireless enter a static address using wlan0
 Set all hostnames to now static IP’s
◦ Sudo nano /etc/hosts (edit on all nodes )
◦ Add in the hostnames and addresses, for example:
◦ rpi0 192.168.0._
◦ rpi1 192.168.0._
 Now we can ssh from one pi to another without
having to type IP addresses
18/34

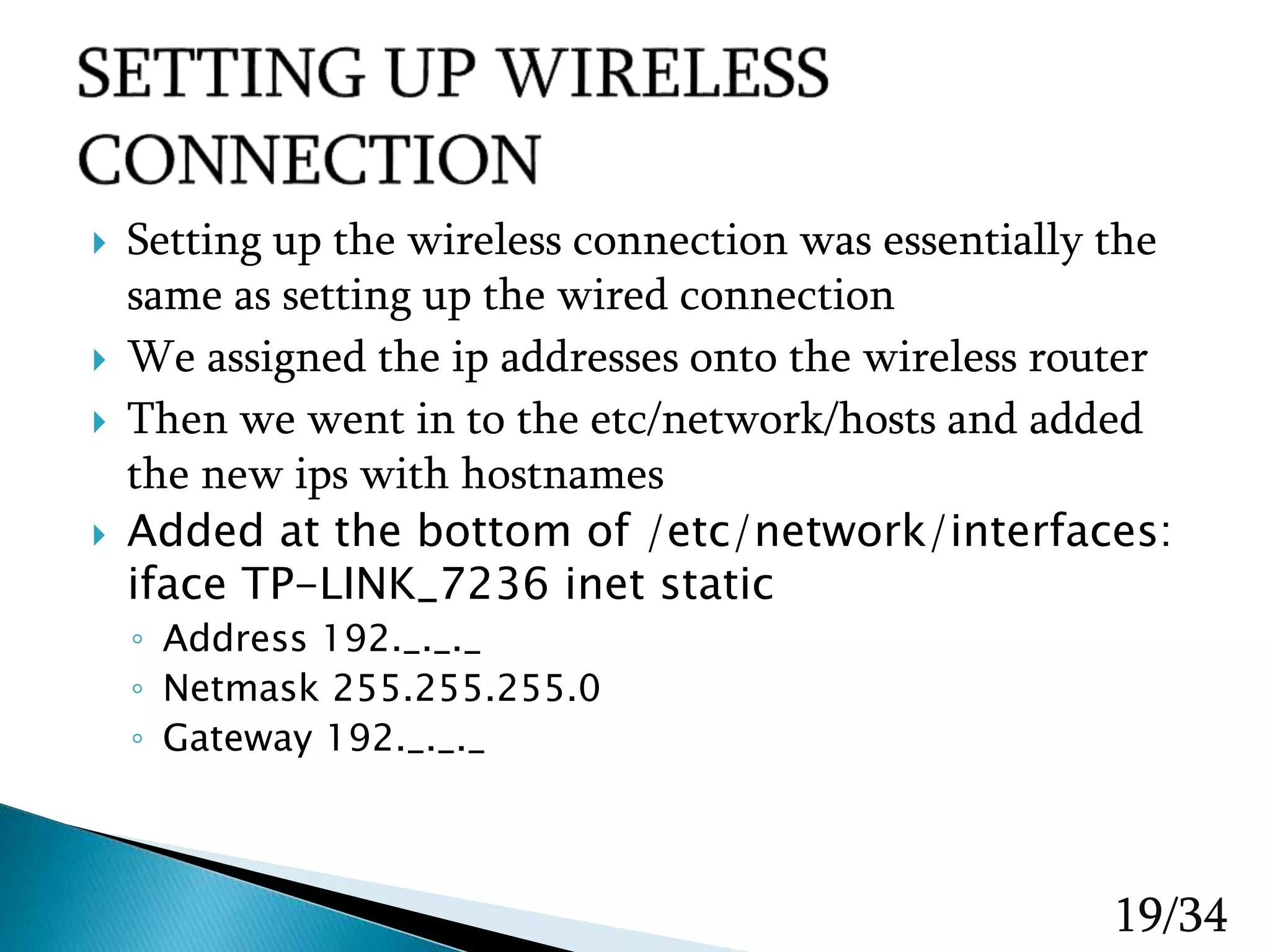

19.  Setting up the wireless connection was essentially the
same as setting up the wired connection
 We assigned the ip addresses onto the wireless router
 Then we went in to the etc/network/hosts and added
the new ips with hostnames
 Added at the bottom of /etc/network/interfaces:
iface TP-LINK_7236 inet static
◦ Address 192._._._
◦ Netmask 255.255.255.0
◦ Gateway 192._._._
19/34

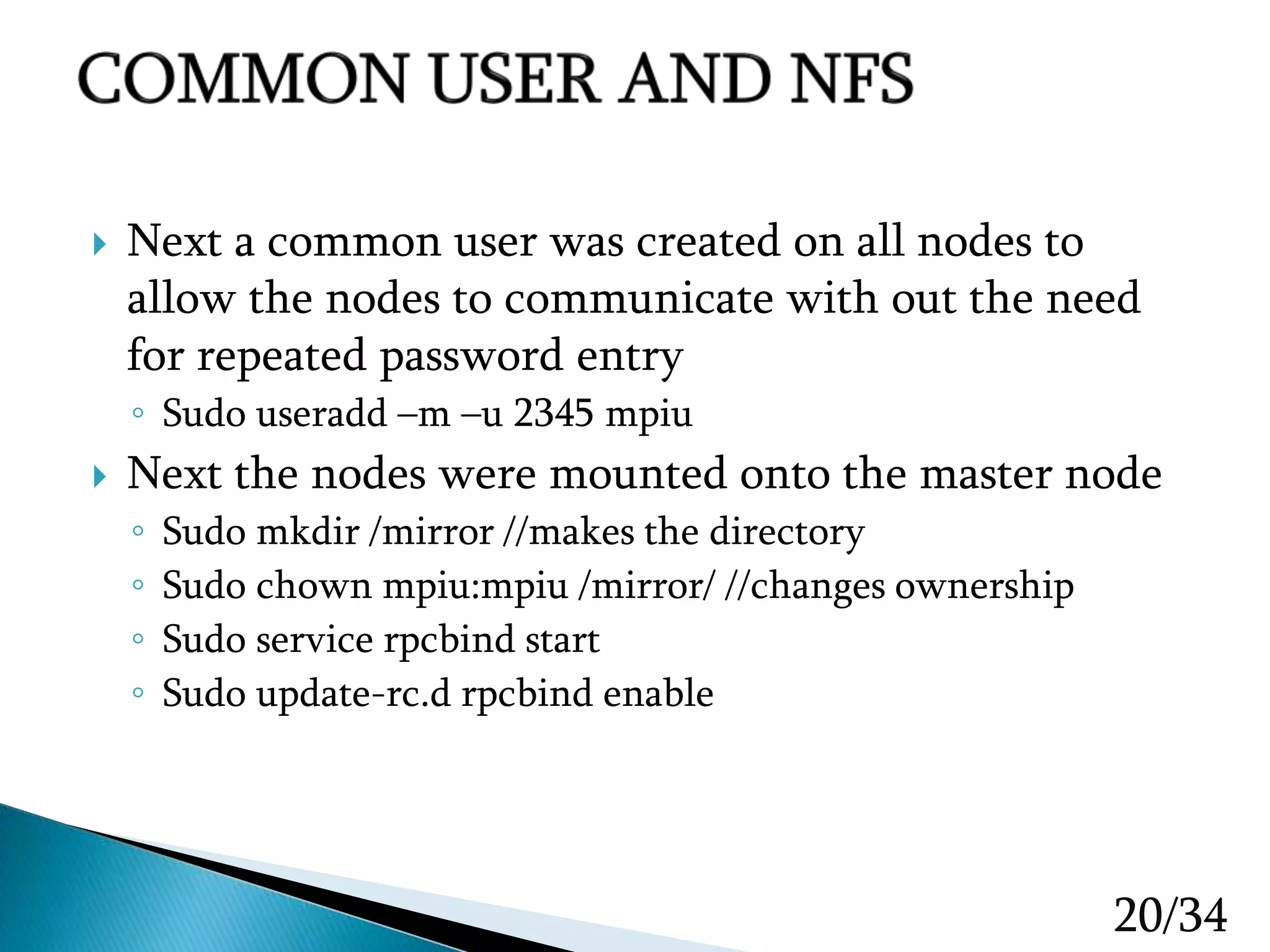

20.  Next a common user was created on all nodes to
allow the nodes to communicate with out the need
for repeated password entry
◦ Sudo useradd –m –u 2345 mpiu
 Next the nodes were mounted onto the master node
◦ Sudo mkdir /mirror //makes the directory
◦ Sudo chown mpiu:mpiu /mirror/ //changes ownership
◦ Sudo service rpcbind start
◦ Sudo update-rc.d rpcbind enable
20/34

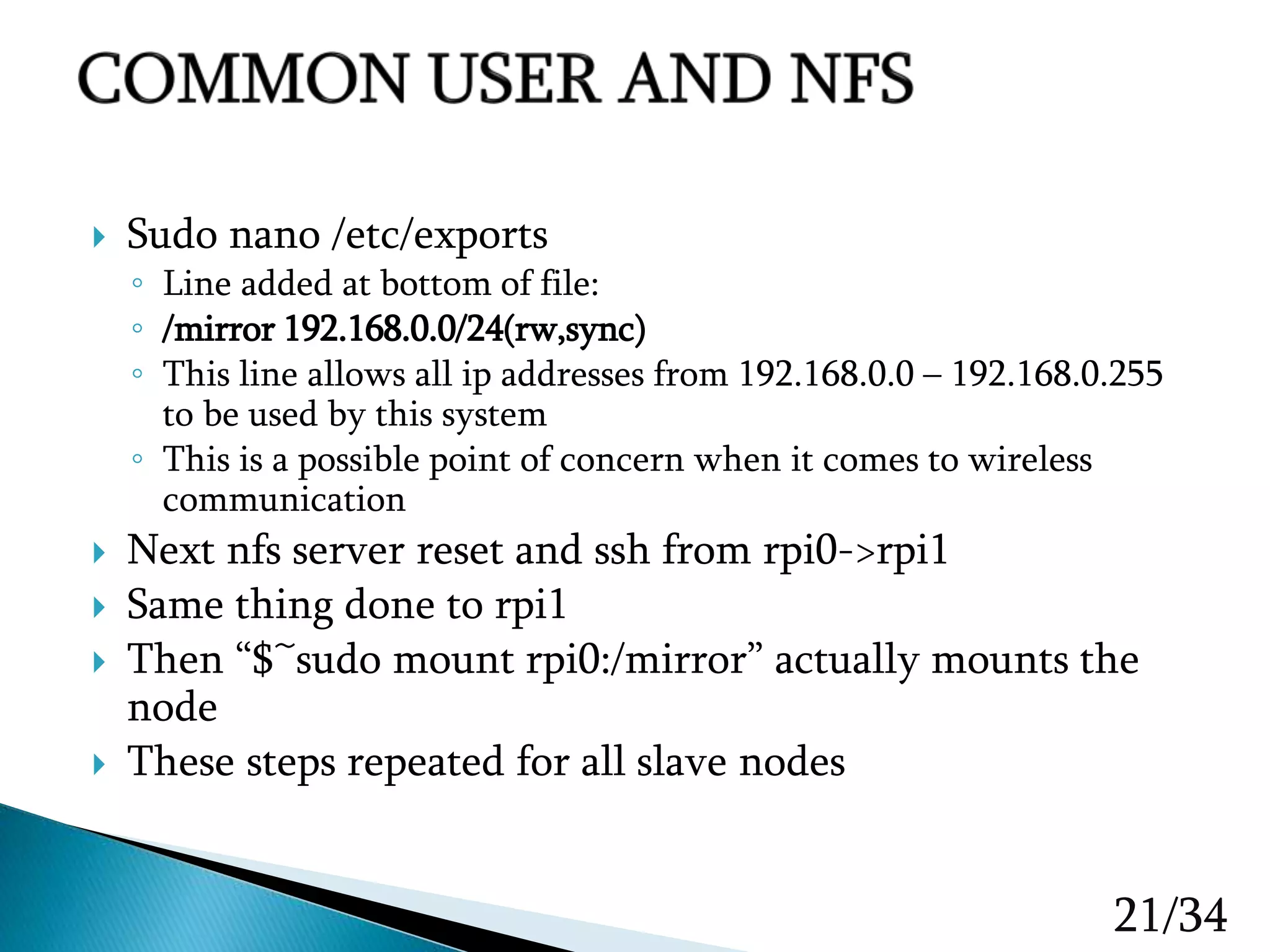

21.  Sudo nano /etc/exports
◦ Line added at bottom of file:
◦ /mirror 192.168.0.0/24(rw,sync)
◦ This line allows all ip addresses from 192.168.0.0 – 192.168.0.255
to be used by this system
◦ This is a possible point of concern when it comes to wireless
communication
 Next nfs server reset and ssh from rpi0->rpi1
 Same thing done to rpi1
 Then “$~sudo mount rpi0:/mirror” actually mounts the
node
 These steps repeated for all slave nodes
21/34

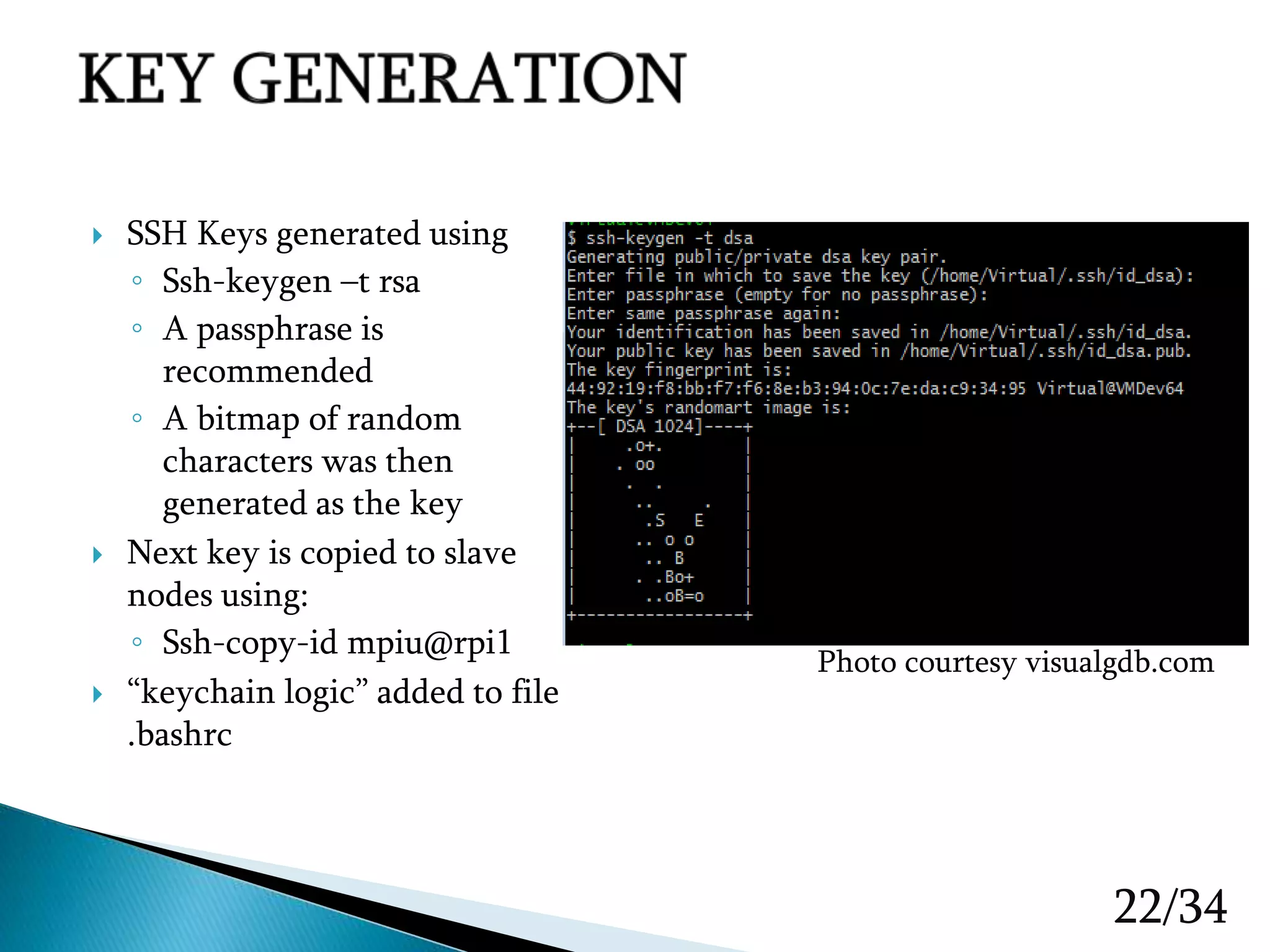

22.  SSH Keys generated using
◦ Ssh-keygen –t rsa
◦ A passphrase is
recommended
◦ A bitmap of random
characters was then
generated as the key
 Next key is copied to slave
nodes using:
◦ Ssh-copy-id mpiu@rpi1
 “keychain logic” added to file
.bashrc
22/34
Photo courtesy visualgdb.com

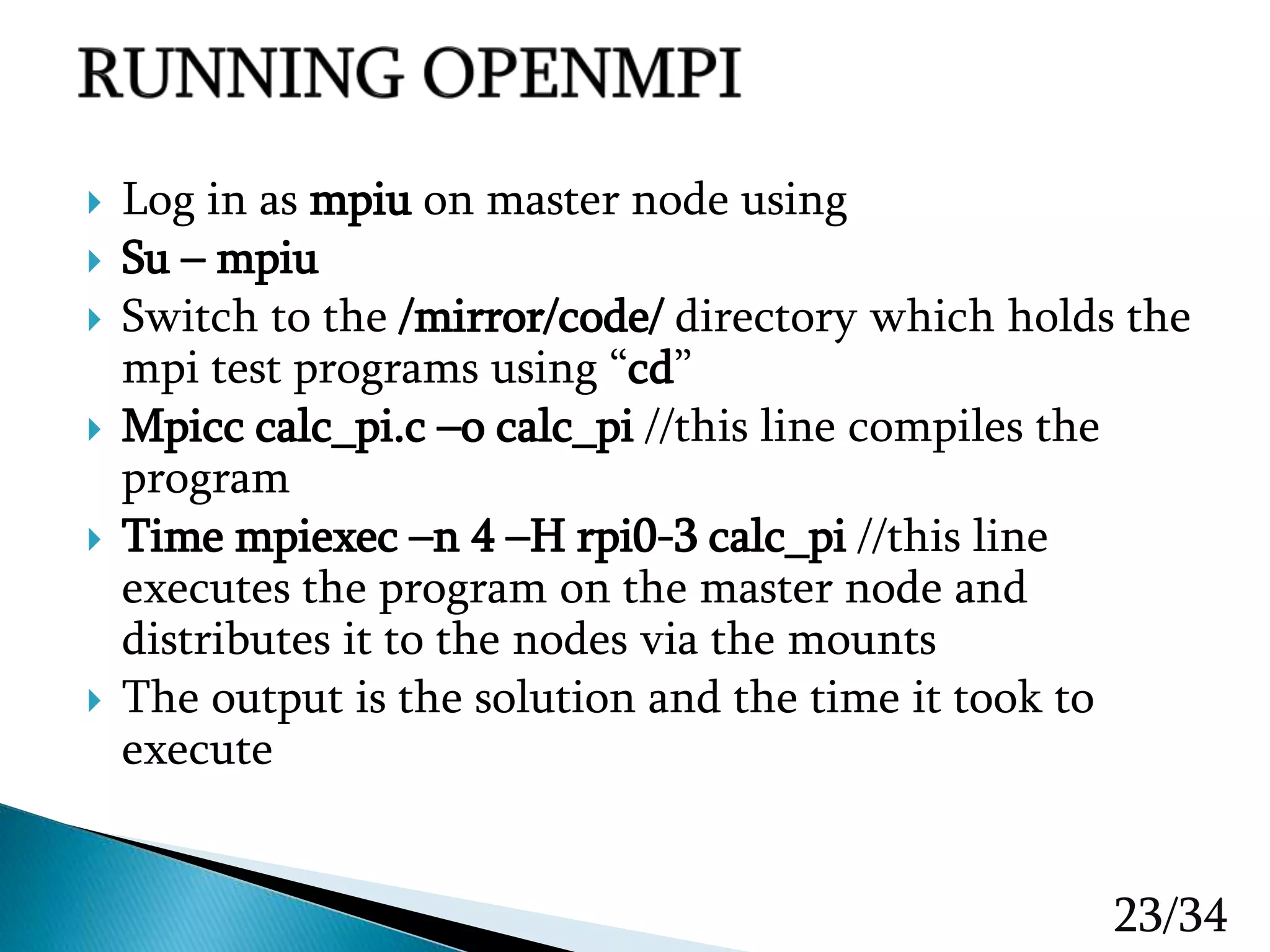

23.  Log in as mpiu on master node using
 Su – mpiu
 Switch to the /mirror/code/ directory which holds the
mpi test programs using “cd”
 Mpicc calc_pi.c –o calc_pi //this line compiles the
program
 Time mpiexec –n 4 –H rpi0-3 calc_pi //this line
executes the program on the master node and
distributes it to the nodes via the mounts
 The output is the solution and the time it took to
execute
23/34

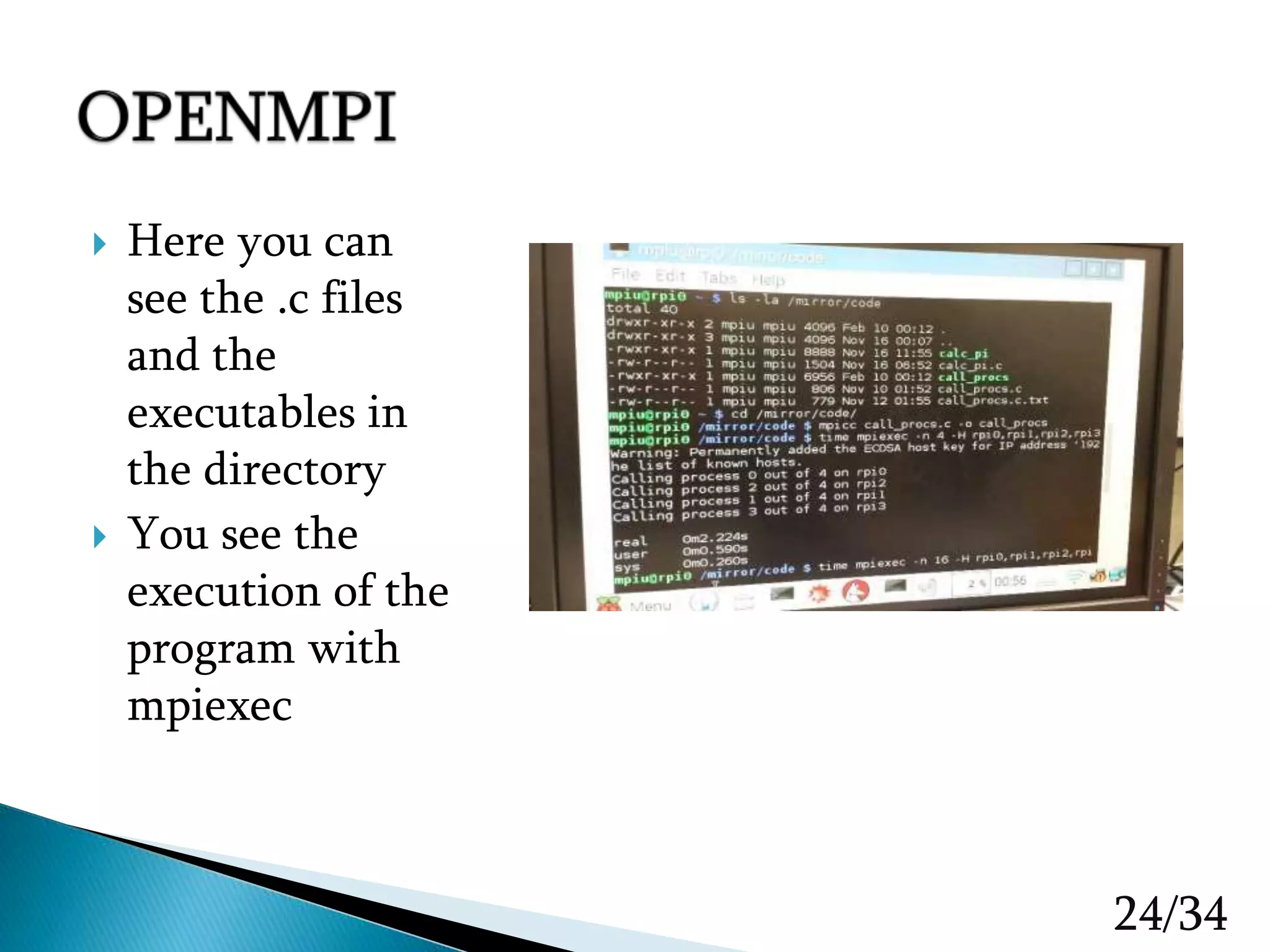

24.  Here you can
see the .c files
and the
executables in
the directory
 You see the
execution of the
program with
mpiexec
24/34

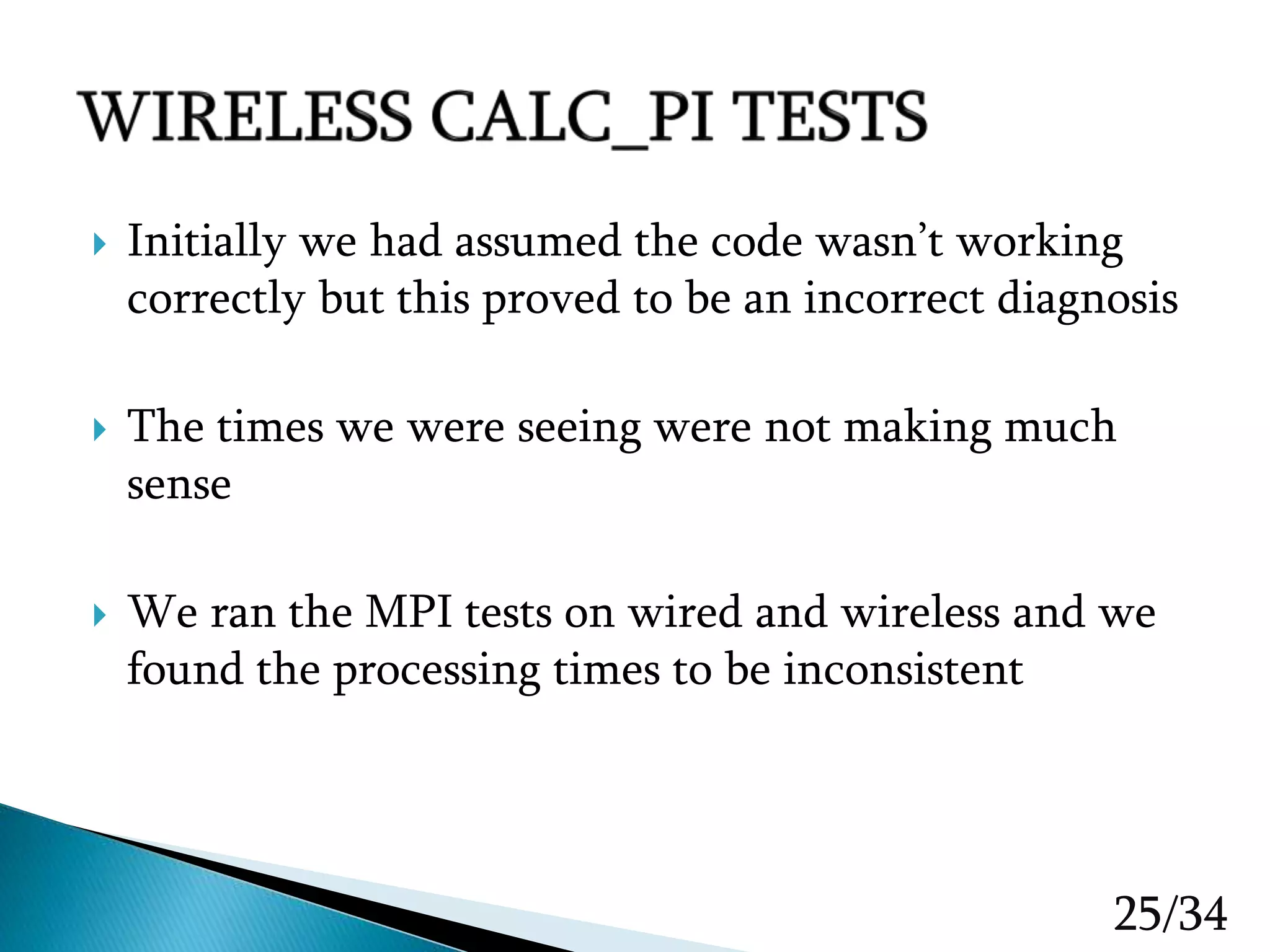

25.  Initially we had assumed the code wasn’t working
correctly but this proved to be an incorrect diagnosis
 The times we were seeing were not making much
sense
 We ran the MPI tests on wired and wireless and we
found the processing times to be inconsistent
25/34

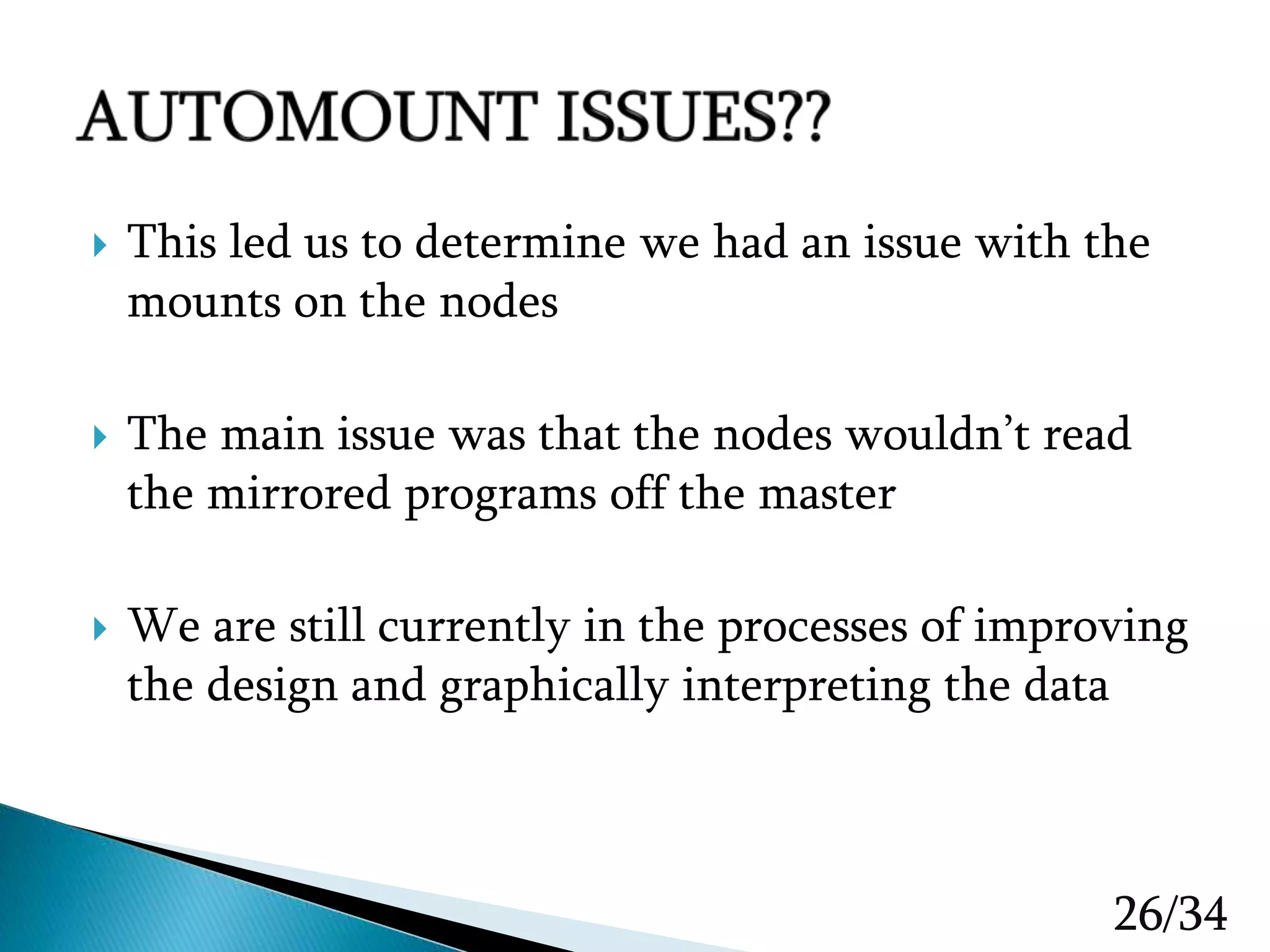

26.  This led us to determine we had an issue with the
mounts on the nodes
 The main issue was that the nodes wouldn’t read
the mirrored programs off the master
 We are still currently in the processes of improving
the design and graphically interpreting the data
26/34

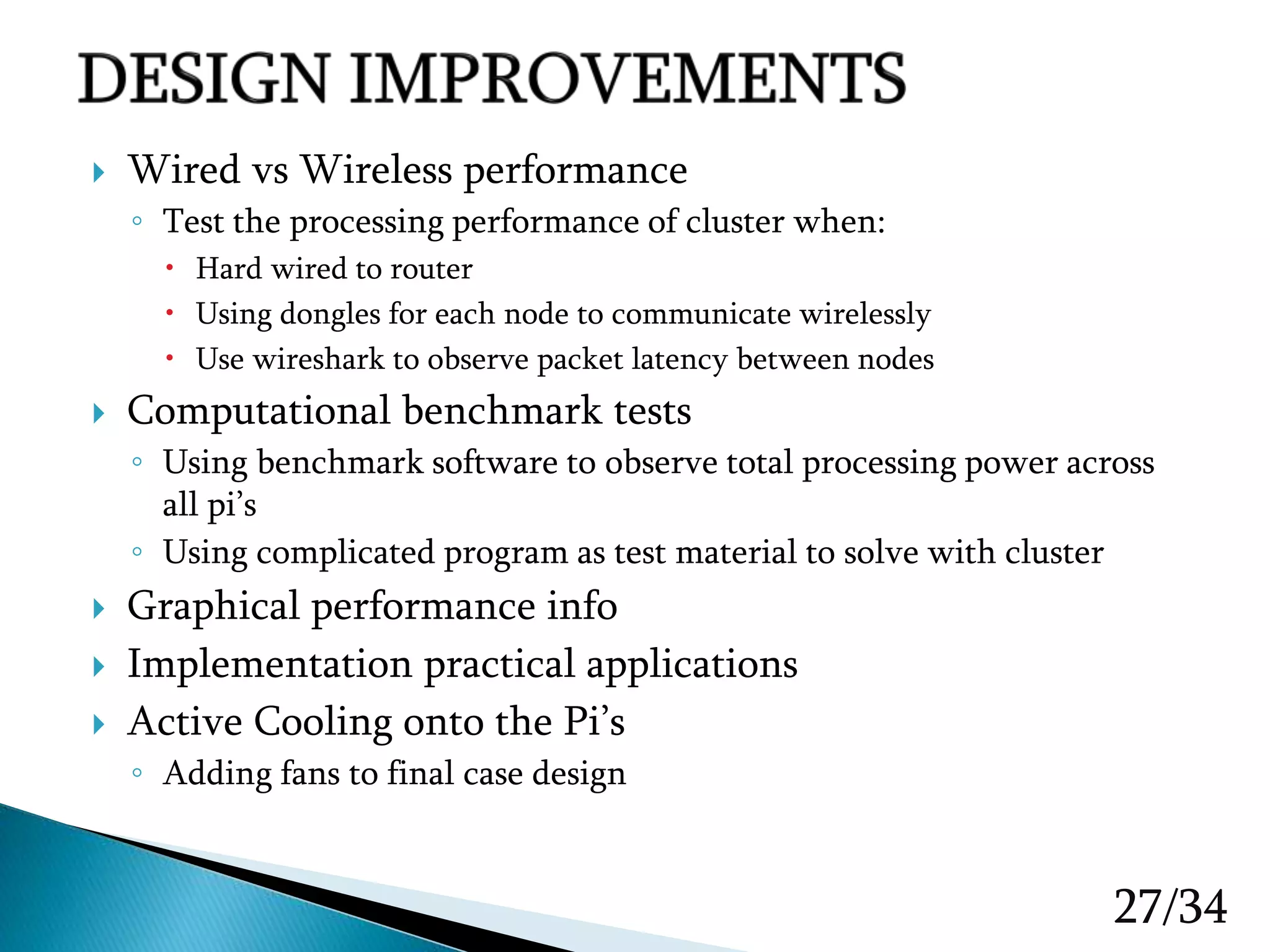

27.  Wired vs Wireless performance
◦ Test the processing performance of cluster when:
 Hard wired to router
 Using dongles for each node to communicate wirelessly
 Use wireshark to observe packet latency between nodes
 Computational benchmark tests
◦ Using benchmark software to observe total processing power across
all pi’s
◦ Using complicated program as test material to solve with cluster
 Graphical performance info
 Implementation practical applications
 Active Cooling onto the Pi’s
◦ Adding fans to final case design
27/34

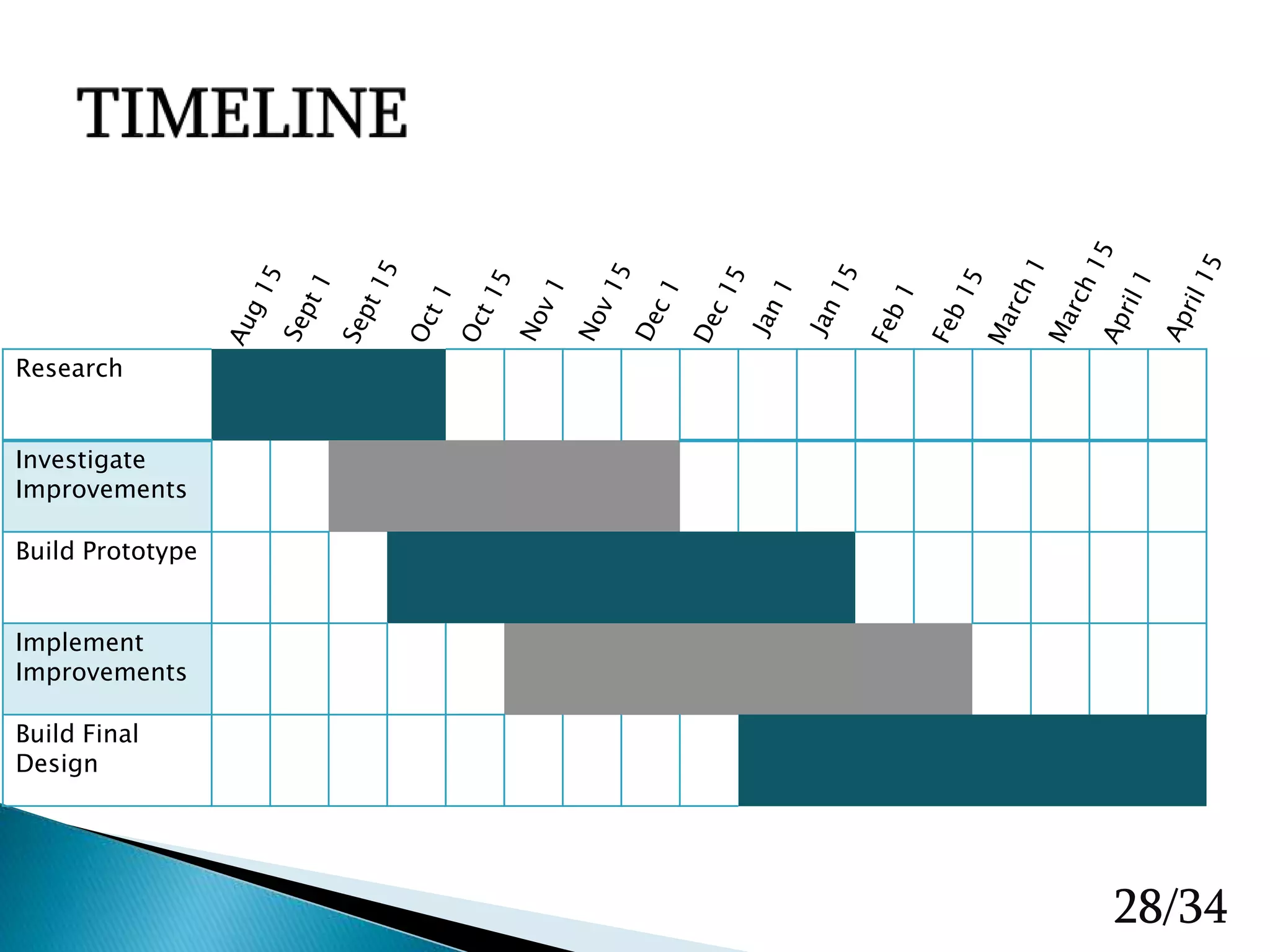

28. Research
Investigate
Improvements
Build Prototype
Implement
Improvements
Build Final
Design
28/34

29. 29/34

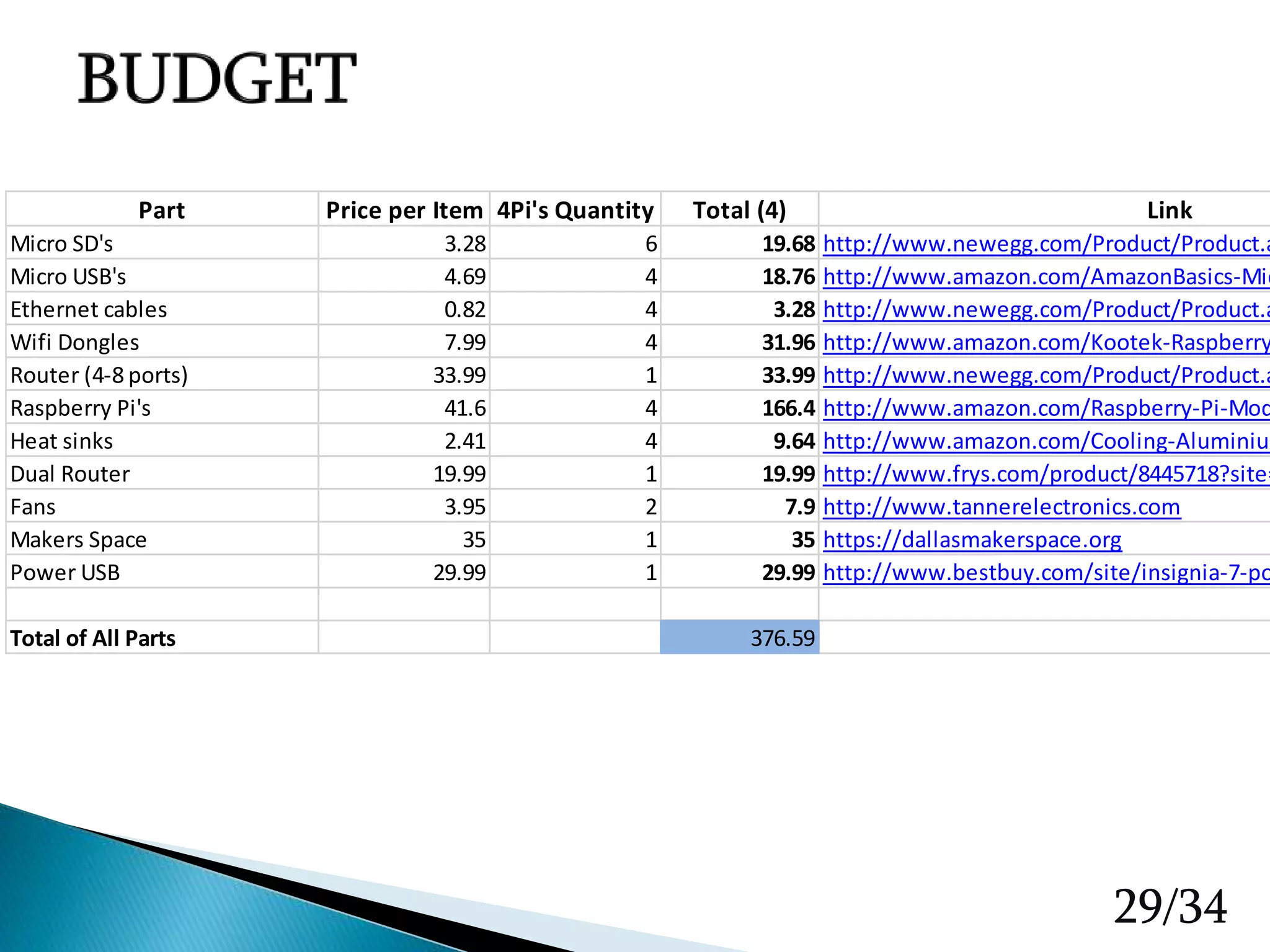

Part Price per Item 4Pi's Quantity Total (4) Link
Micro SD's 3.28 6 19.68 http://www.newegg.com/Product/Product.a
Micro USB's 4.69 4 18.76 http://www.amazon.com/AmazonBasics-Mic
Ethernet cables 0.82 4 3.28 http://www.newegg.com/Product/Product.a
Wifi Dongles 7.99 4 31.96 http://www.amazon.com/Kootek-Raspberry
Router (4-8 ports) 33.99 1 33.99 http://www.newegg.com/Product/Product.a
Raspberry Pi's 41.6 4 166.4 http://www.amazon.com/Raspberry-Pi-Mod
Heat sinks 2.41 4 9.64 http://www.amazon.com/Cooling-Aluminium
Dual Router 19.99 1 19.99 http://www.frys.com/product/8445718?site=
Fans 3.95 2 7.9 http://www.tannerelectronics.com
Makers Space 35 1 35 https://dallasmakerspace.org
Power USB 29.99 1 29.99 http://www.bestbuy.com/site/insignia-7-po
Total of All Parts 376.59

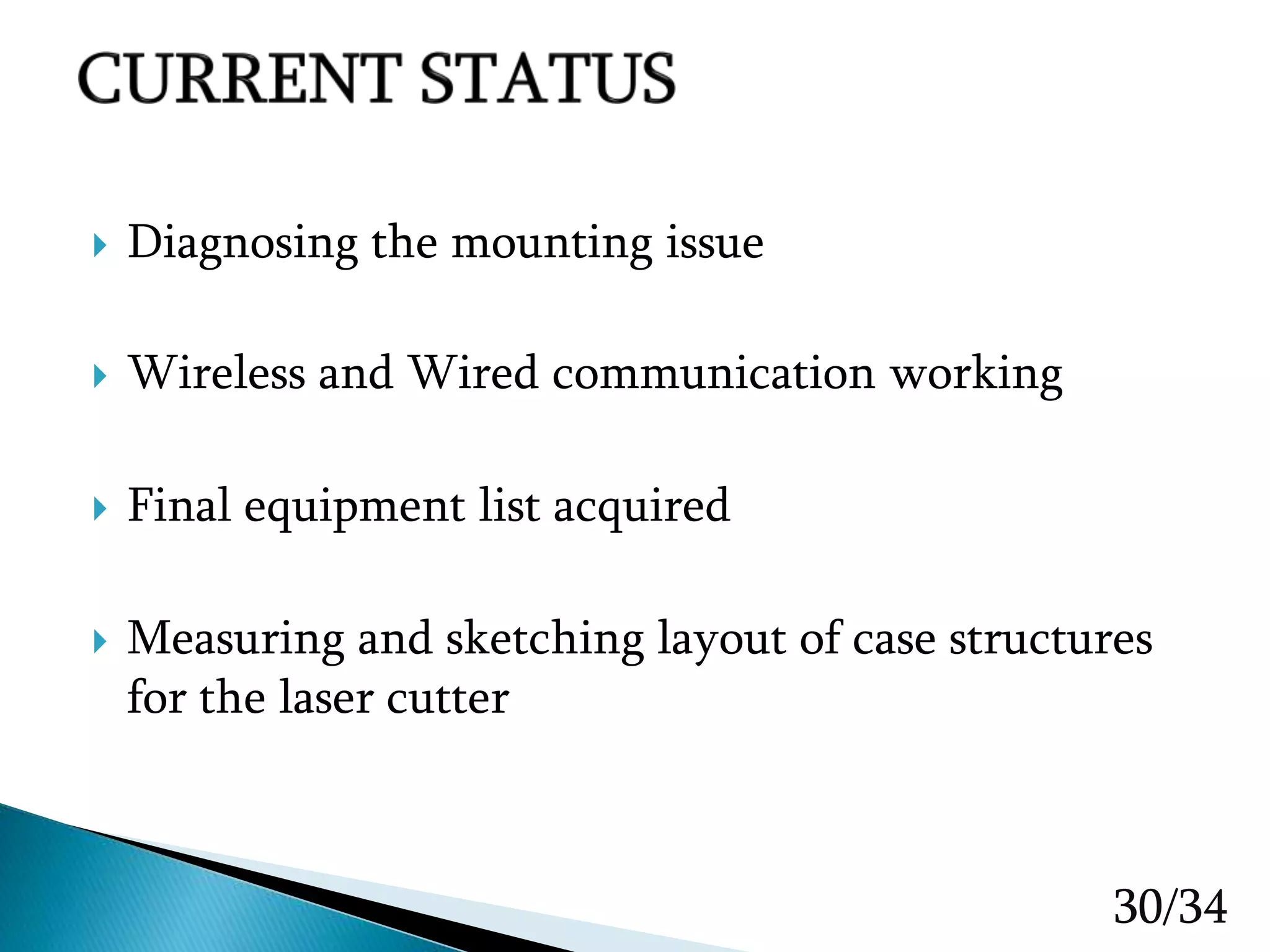

30.  Diagnosing the mounting issue
 Wireless and Wired communication working
 Final equipment list acquired
 Measuring and sketching layout of case structures
for the laser cutter
30/34

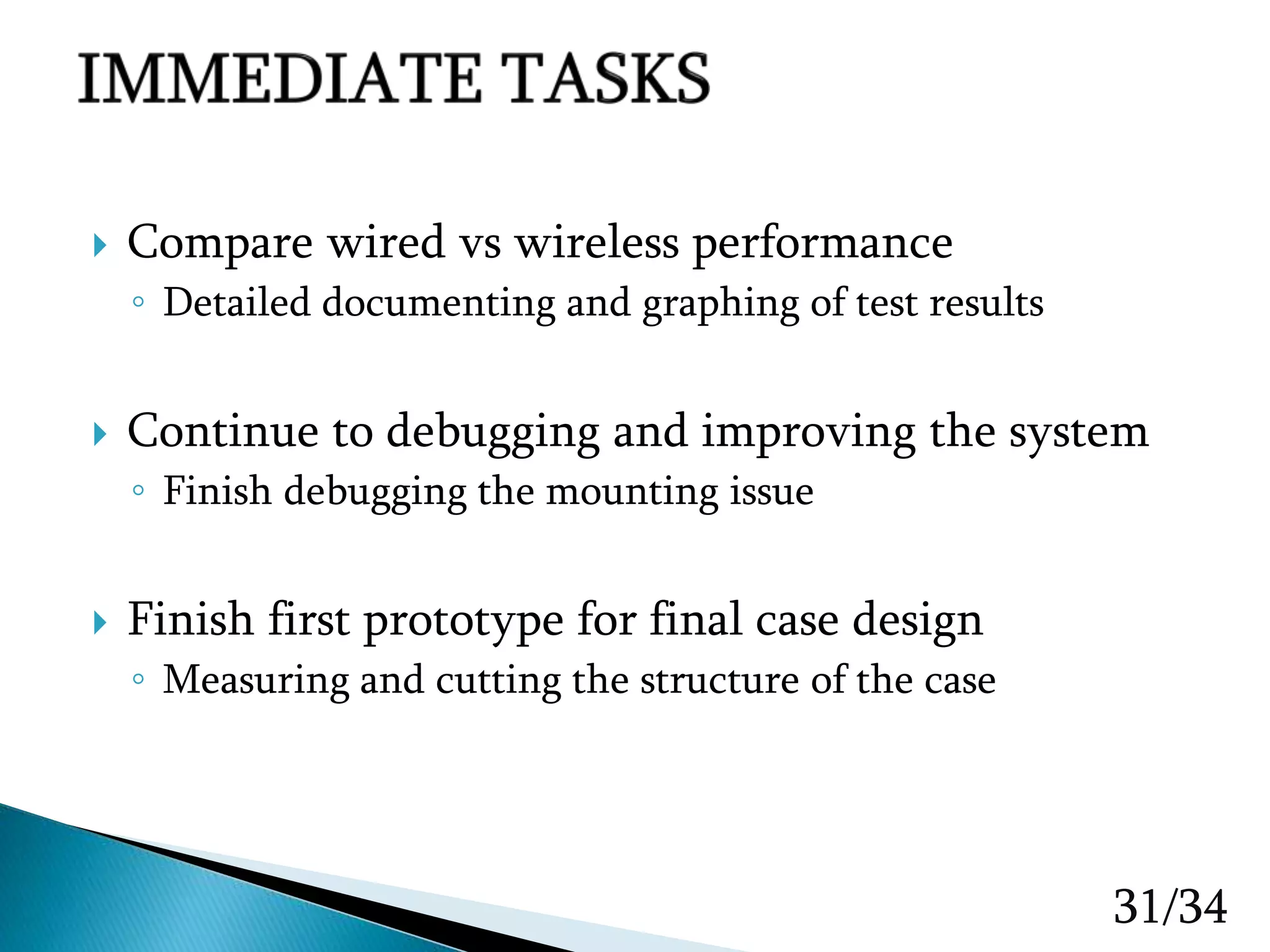

31.  Compare wired vs wireless performance
◦ Detailed documenting and graphing of test results
 Continue to debugging and improving the system
◦ Finish debugging the mounting issue
 Finish first prototype for final case design
◦ Measuring and cutting the structure of the case
31/34

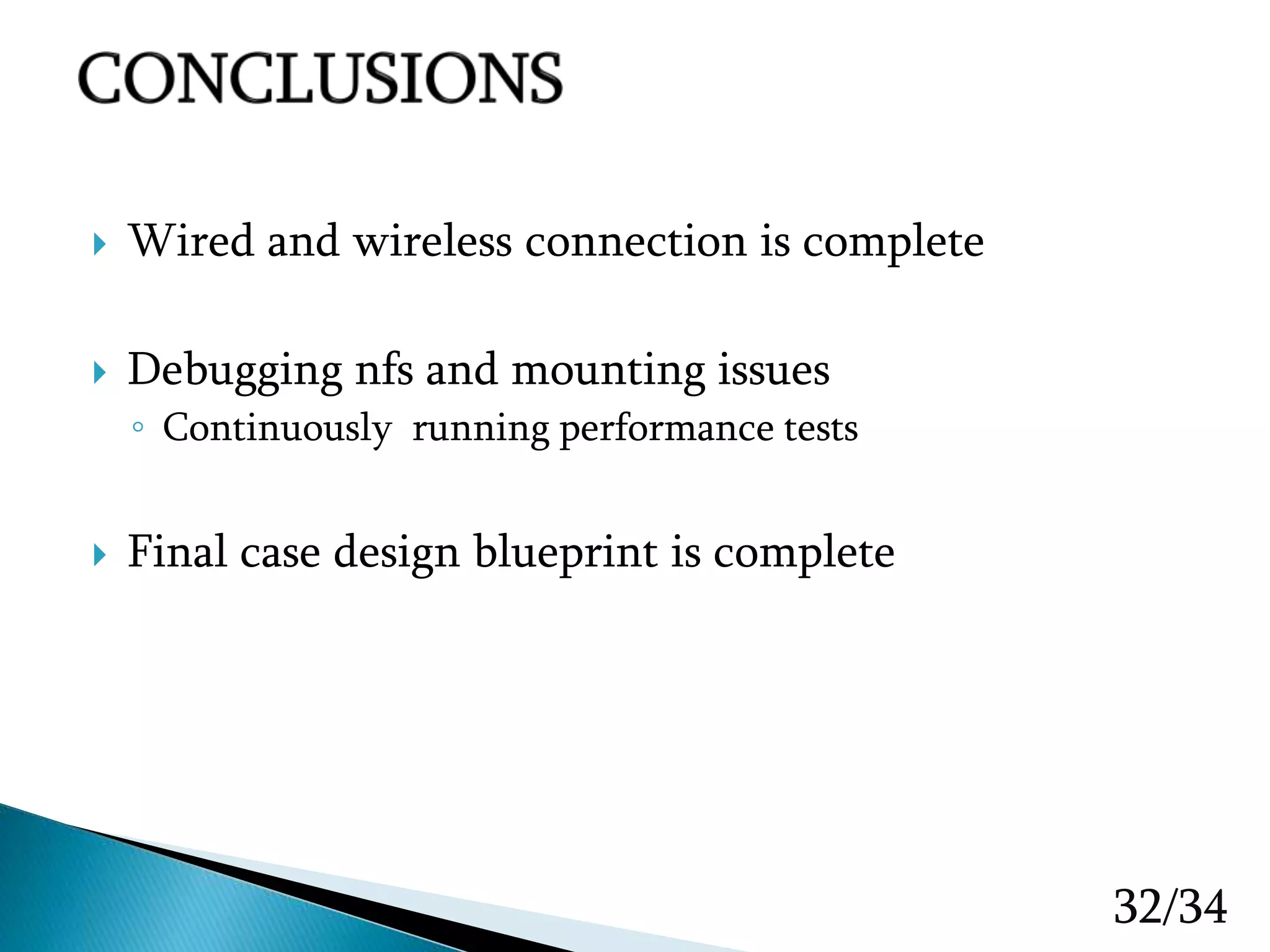

32.  Wired and wireless connection is complete
 Debugging nfs and mounting issues
◦ Continuously running performance tests
 Final case design blueprint is complete
32/34

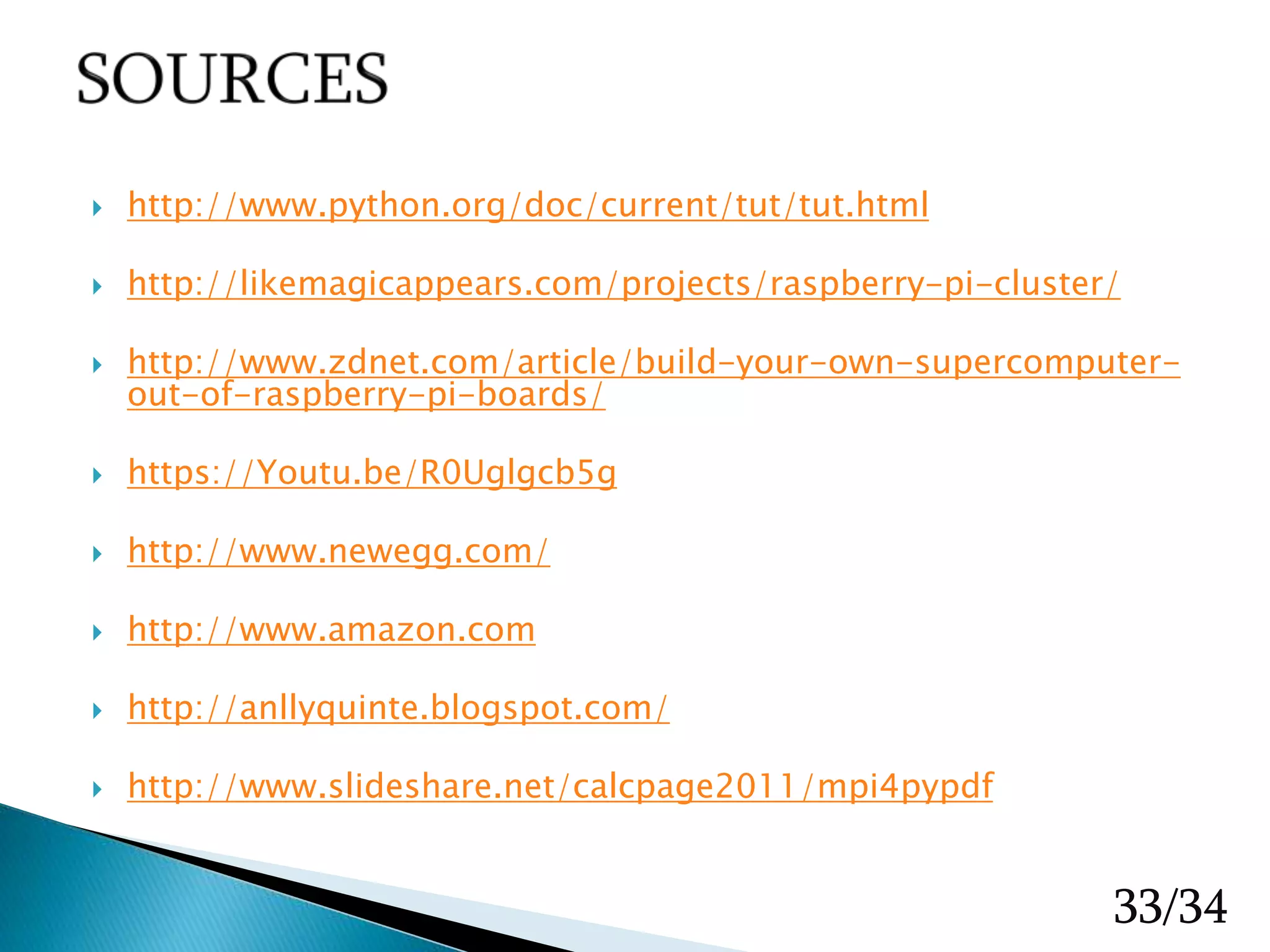

33.  http://www.python.org/doc/current/tut/tut.html
 http://likemagicappears.com/projects/raspberry-pi-cluster/
 http://www.zdnet.com/article/build-your-own-supercomputer-
out-of-raspberry-pi-boards/
 https://Youtu.be/R0Uglgcb5g
 http://www.newegg.com/
 http://www.amazon.com
 http://anllyquinte.blogspot.com/
 http://www.slideshare.net/calcpage2011/mpi4pypdf
33/34

34. 34/34
