1. Writing Cartridges for OpenShift
Jhon Honce
Pr Software Engineer, Red Hat Inc
OpenShift Origin Community Day (Boston)
June 13, 2013
http://openshift.github.io

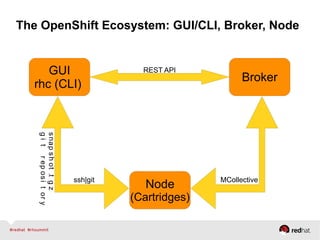

2. The OpenShift Ecosystem: GUI/CLI, Broker, Node
GUI
rhc (CLI)
Broker
Node
(Cartridges)
REST API
ssh|git MCollective
snapshot.tgz
gitrepository

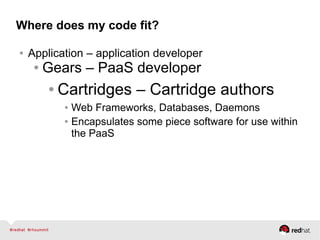

3. Where does my code fit?
● Application – application developer
● Gears – PaaS developer
● Cartridges – Cartridge authors
● Web Frameworks, Databases, Daemons
● Encapsulates some piece software for use within
the PaaS

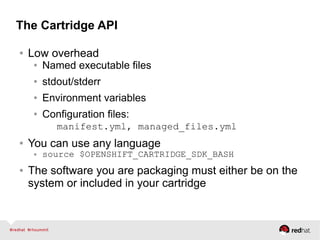

4. The Cartridge API
● Low overhead
● Named executable files
● stdout/stderr
● Environment variables
● Configuration files:
manifest.yml, managed_files.yml
● You can use any language
● source $OPENSHIFT_CARTRIDGE_SDK_BASH
● The software you are packaging must either be on the
system or included in your cartridge

5. Minimal Cartridge – identify cartridge
+- bin
| +- setup
| +- control
+- env
+- metadata
| +- manifest.yml
● Assumes packaged software
already installed on system
● Most cartridges will have
more files
● manifest.yml
Name: dog
Cartridge-Short-Name: DOG
.
:
Version: ‘1.0’
Cartridge-Version: 0.0.1
Cartridge-Vendor: honce

6. Minimal Cartridge – required files
+- bin
| +- setup
| +- control
+- env
+- metadata
| +- manifest.yml
● Assumes packaged software
already installed on system
● Most cartridges will have
more files
● manifest.yml
Name: dog
Cartridge-Short-Name: DOG
.
:
Version: ‘1.0’
Cartridge-Version: 0.0.1
Cartridge-Vendor: honce

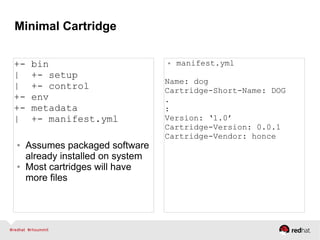

7. Minimal Cartridge
+- bin
| +- setup
| +- control
+- env
+- metadata
| +- manifest.yml
● Assumes packaged software
already installed on system
● Most cartridges will have
more files
● manifest.yml
Name: dog
Cartridge-Short-Name: DOG
.
:
Version: ‘1.0’
Cartridge-Version: 0.0.1
Cartridge-Vendor: honce

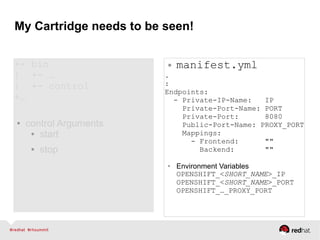

8. My Cartridge needs to be seen!
+- bin
| +- …
| +- control
+…
● control Arguments
● start
● stop
● manifest.yml
.
:
Endpoints:
- Private-IP-Name: IP
Private-Port-Name: PORT
Private-Port: 8080
Public-Port-Name: PROXY_PORT
Mappings:
- Frontend: ""
Backend: ""
● Environment Variables
OPENSHIFT_<SHORT_NAME>_IP
OPENSHIFT_<SHORT_NAME>_PORT
OPENSHIFT_…_PROXY_PORT

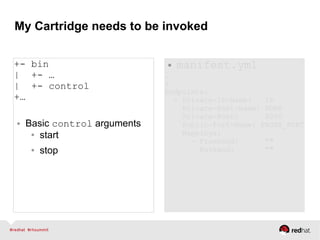

9. My Cartridge needs to be invoked
+- bin
| +- …
| +- control
+…
● Basic control arguments
● start
● stop
● manifest.yml
.
:
Endpoints:
- Private-IP-Name: IP
Private-Port-Name: PORT
Private-Port: 8080
Public-Port-Name: PROXY_PORT
Mappings:
- Frontend: ""
Backend: ""

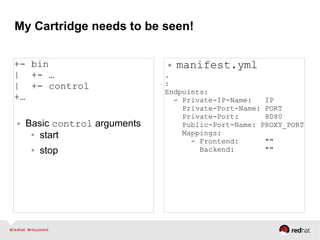

10. My Cartridge needs to be seen!
+- bin
| +- …
| +- control
+…
● Basic control arguments
● start
● stop
● manifest.yml
.
:
Endpoints:
- Private-IP-Name: IP
Private-Port-Name: PORT
Private-Port: 8080
Public-Port-Name: PROXY_PORT
Mappings:
- Frontend: ""
Backend: ""

11. Tip: control script can be trivial
.
:
case “$1” in
start)
/usr/sbin/httpd -C
"Include $OPENSHIFT_DOG_CONF_DIR/*.conf"
-f $HTTPD_CFG_FILE -k start ;;
stop)
… -k stop ;;
restart)
… -k restart ;;
esac

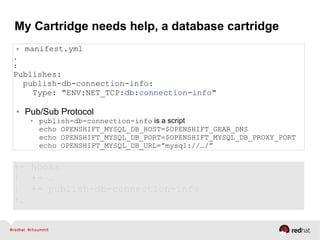

12. My Cartridge needs help, a database cartridge
+- hooks
| +- …
| +- publish-db-connection-info
+…
● manifest.yml
.
:
Publishes:
publish-db-connection-info:
Type: "ENV:NET_TCP:db:connection-info"
● Pub/Sub Protocol
● publish-db-connection-info is a script
echo OPENSHIFT_MYSQL_DB_HOST=$OPENSHIFT_GEAR_DNS
echo OPENSHIFT_MYSQL_DB_PORT=$OPENSHIFT_MYSQL_DB_PROXY_PORT
echo OPENSHIFT_MYSQL_DB_URL=”mysql://…/”

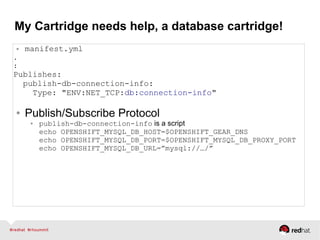

13. My Cartridge needs help, a database cartridge!
● manifest.yml
.
:
Publishes:
publish-db-connection-info:
Type: "ENV:NET_TCP:db:connection-info"
● Publish/Subscribe Protocol
● publish-db-connection-info is a script
echo OPENSHIFT_MYSQL_DB_HOST=$OPENSHIFT_GEAR_DNS
echo OPENSHIFT_MYSQL_DB_PORT=$OPENSHIFT_MYSQL_DB_PROXY_PORT
echo OPENSHIFT_MYSQL_DB_URL=”mysql://…/”

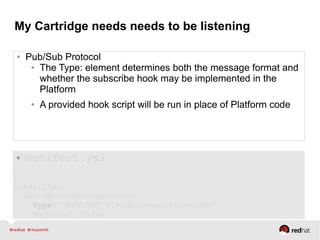

14. My Cartridge needs needs to be listening
● Pub/Sub Protocol
● The Type: element determines both the message format and
whether the subscribe hook may be implemented in the
Platform
● A provided hook script will be run in place of Platform code
● manifest.yml
.
:
Subscribes:
set-db-connection-info:
Type: “ENV:NET_TCP:db:connection-info”
Required: false

15. Let the Platform the cartridge can use a database
● Pub/Sub Protocol
● The Type: element determines both the message format and
whether the subscribe hook may be implemented in the
Platform
● A provided hook script will be run in place of Platform code
● manifest.yml
.
:
Subscribes:
set-db-connection-info:
Type: “ENV:NET_TCP:db:connection-info”
Required: false

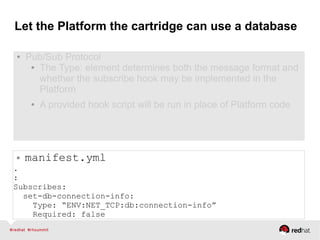

16. Let the Platform the cartridge can use a database
● Pub/Sub Protocol
● The Type: element determines both the message format and
whether the subscribe hook may be implemented in the
Platform
● A provided hook script will be run in place of Platform code
● manifest.yml
.
:
Subscribes:
set-db-connection-info:
Type: “ENV:NET_TCP:db:connection-info”
Required: false

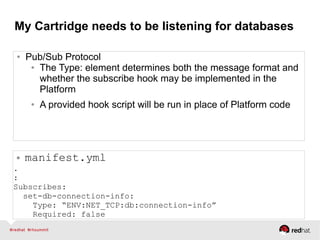

17. My Cartridge needs to be listening for databases
● Pub/Sub Protocol
● The Type: element determines both the message format and
whether the subscribe hook may be implemented in the
Platform
● A provided hook script will be run in place of Platform code
● manifest.yml
.
:
Subscribes:
set-db-connection-info:
Type: “ENV:NET_TCP:db:connection-info”
Required: false

18. My Cartridge needs to be listening for databases
● Pub/Sub Protocol
● The Type: element determines both the message format and
whether the subscribe hook may be implemented in the
Platform
● A provided hook script will be run in place of Platform code
● manifest.yml
.
:
Subscribes:
set-db-connection-info:
Type: “ENV:NET_TCP:db:connection-info”
Required: false

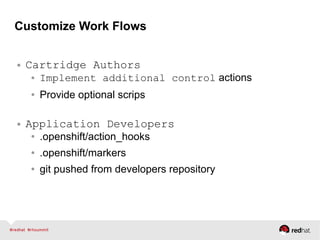

19. Customize Work Flows
● Cartridge Authors
● Implement additional control actions
● Provide optional scrips
● Application Developers
● .openshift/action_hooks
● .openshift/markers
● git pushed from developers repository

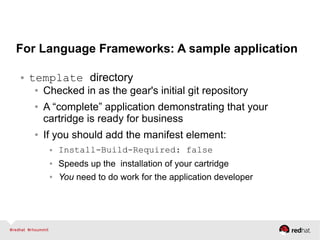

20. For Language Frameworks: A sample application
● template directory
● Checked in as the gear's initial git repository
● A “complete” application demonstrating that your
cartridge is ready for business
● If you should add the manifest element:
● Install-Build-Required: false
● Speeds up the installation of your cartridge
● You need to do work for the application developer

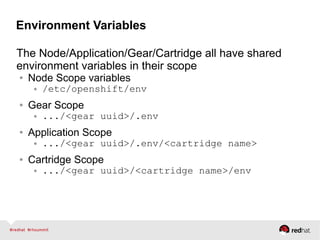

21. Environment Variables
The Node/Application/Gear/Cartridge all have shared
environment variables in their scope
● Node Scope variables
● /etc/openshift/env
● Gear Scope
● .../<gear uuid>/.env
● Application Scope
● .../<gear uuid>/.env/<cartridge name>
● Cartridge Scope
● .../<gear uuid>/<cartridge name>/env

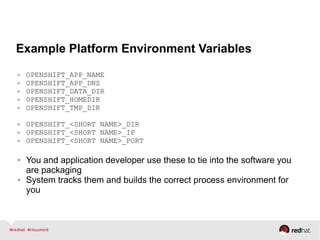

22. Example Platform Environment Variables
● OPENSHIFT_APP_NAME
● OPENSHIFT_APP_DNS
● OPENSHIFT_DATA_DIR
● OPENSHIFT_HOMEDIR
● OPENSHIFT_TMP_DIR
● OPENSHIFT_<SHORT NAME>_DIR
● OPENSHIFT_<SHORT NAME>_IP
● OPENSHIFT_<SHORT NAME>_PORT
● You and application developer use these to tie into the software you
are packaging
● System tracks them and builds the correct process environment for
you

23. Creating An Application With Your Cartridge
● rhc create-app dog001 http://…/metadata/manifest.yml
● Tip: use raw URL from github
● manifest.yml contains Source-Url element
● Source-Url addresses root of your cartridge
● Tip: use download zip file from github repository

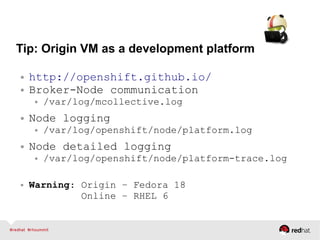

24. Tip: Origin VM as a development platform
● http://openshift.github.io/
● Broker-Node communication
● /var/log/mcollective.log
● Node logging
● /var/log/openshift/node/platform.log
● Node detailed logging
● /var/log/openshift/node/platform-trace.log
● Warning: Origin – Fedora 18
Online – RHEL 6

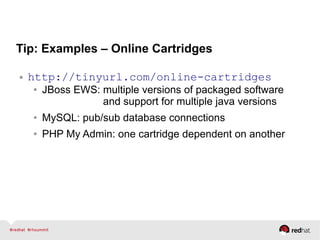

25. Tip: Examples – Online Cartridges
● http://tinyurl.com/online-cartridges
● JBoss EWS: multiple versions of packaged software
and support for multiple java versions
● MySQL: pub/sub database connections
● PHP My Admin: one cartridge dependent on another

26. Tip: Using bash for scripts
● -e and -u options are your friends
● -e exit on error
● -u using unset variable is an error
● -x for debugging
● Bash “SDK” (Library of functions)
● source $OPENSHIFT_CARTRIDGE_SDK_BASH

27. ERB File Rendering
● Unified method of doing value substitutions in
configuration files
● httpd.conf, php.ini, etc
● metadata/managed_files.yml
● processed_templates:
- '**/*.erb'
● All environment variables available
● No code can be executed

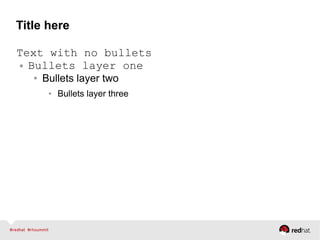

28. Title here
Text with no bullets
● Bullets layer one
● Bullets layer two
● Bullets layer three

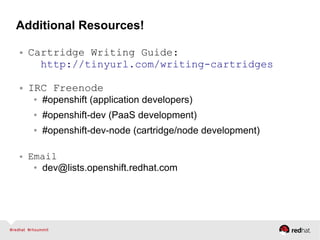

29. Additional Resources!
● Cartridge Writing Guide:
http://tinyurl.com/writing-cartridges
● IRC Freenode
● #openshift (application developers)
● #openshift-dev (PaaS development)
● #openshift-dev-node (cartridge/node development)
● Email
● dev@lists.openshift.redhat.com

30. For more information:
http://openshift.github.io
Follow us on twitter:
@openshift
Join us on irc (freenode):
openshift
