1. ~ p4alu ~
Arithmetic Logic Unit in P4
Kentaro Ebisawa | Ponto Networks, Inc.
ebiken@pontonetworks.com
Twitter: @ebiken
p4alu ... Arithmetic Logic Unit in P4 | Software Router BoF @ IW2017 Japan | 2017/11/29 1

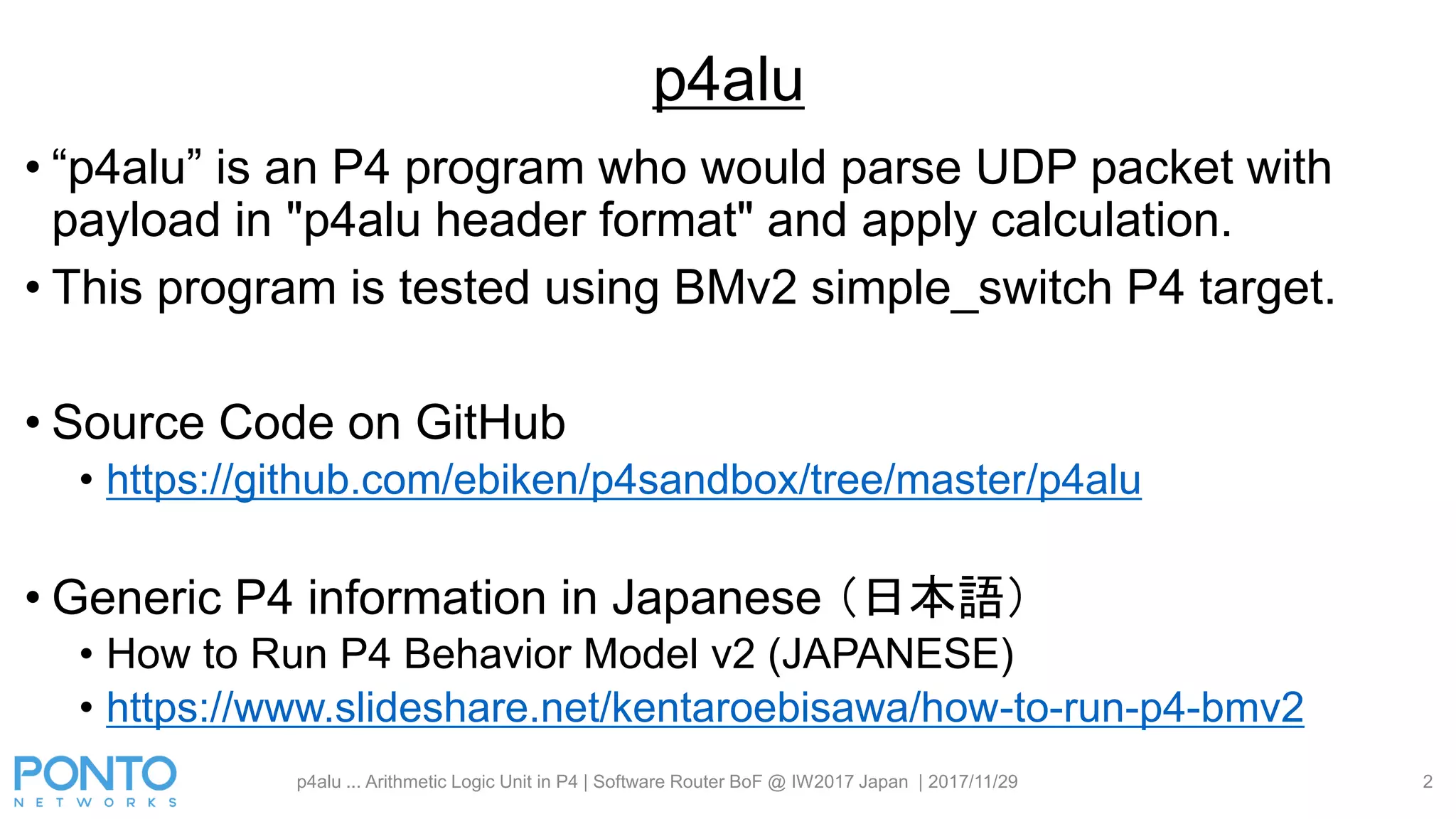

2. • “p4alu” is an P4 program who would parse UDP packet with
payload in "p4alu header format" and apply calculation.
• This program is tested using BMv2 simple_switch P4 target.
• Source Code on GitHub
• https://github.com/ebiken/p4sandbox/tree/master/p4alu
• Generic P4 information in Japanese （日本語）
• How to Run P4 Behavior Model v2 (JAPANESE)
• https://www.slideshare.net/kentaroebisawa/how-to-run-p4-bmv2
p4alu ... Arithmetic Logic Unit in P4 | Software Router BoF @ IW2017 Japan | 2017/11/29 2
p4alu

3. p4alu ... Arithmetic Logic Unit in P4 | Software Router BoF @ IW2017 Japan | 2017/11/29 3

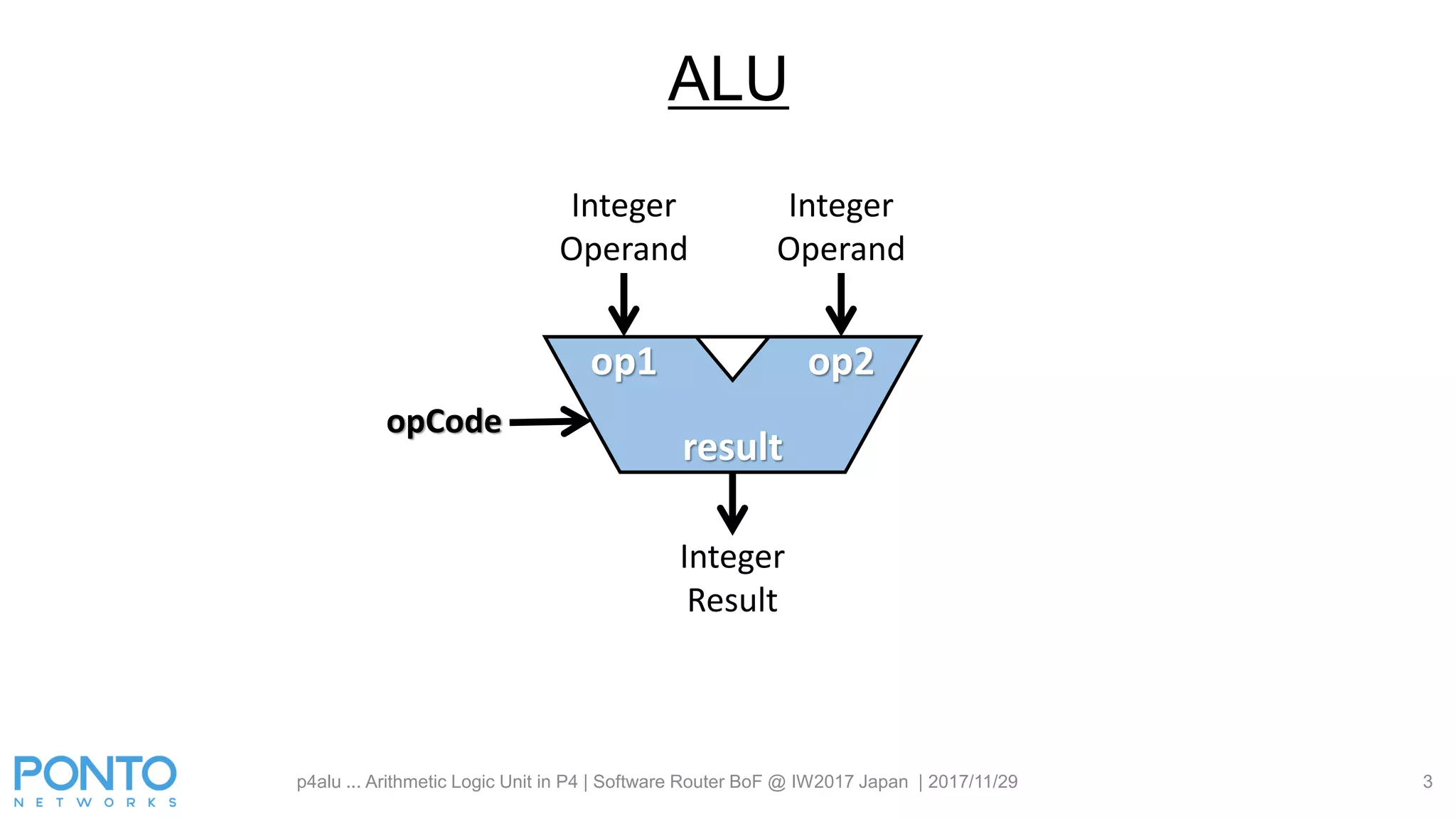

ALU
Integer
Operand
Integer
Operand
Integer
Result
opCode
op1 op2
result

4. p4alu ... Arithmetic Logic Unit in P4 | Software Router BoF @ IW2017 Japan | 2017/11/29 4

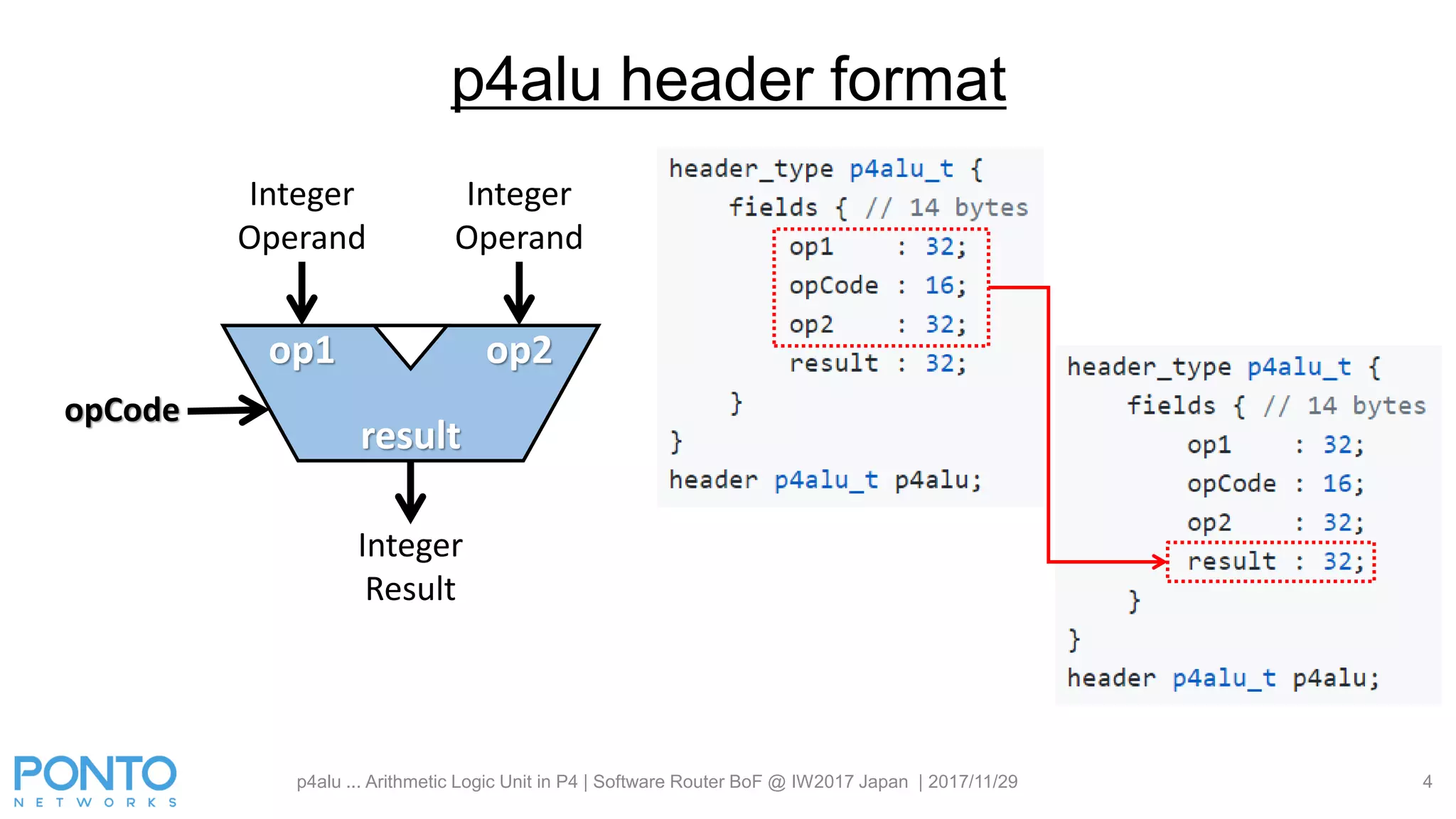

p4alu header format
Integer
Operand
Integer
Operand
Integer
Result
opCode
op1 op2
result

5. p4alu ... Arithmetic Logic Unit in P4 | Software Router BoF @ IW2017 Japan | 2017/11/29 5

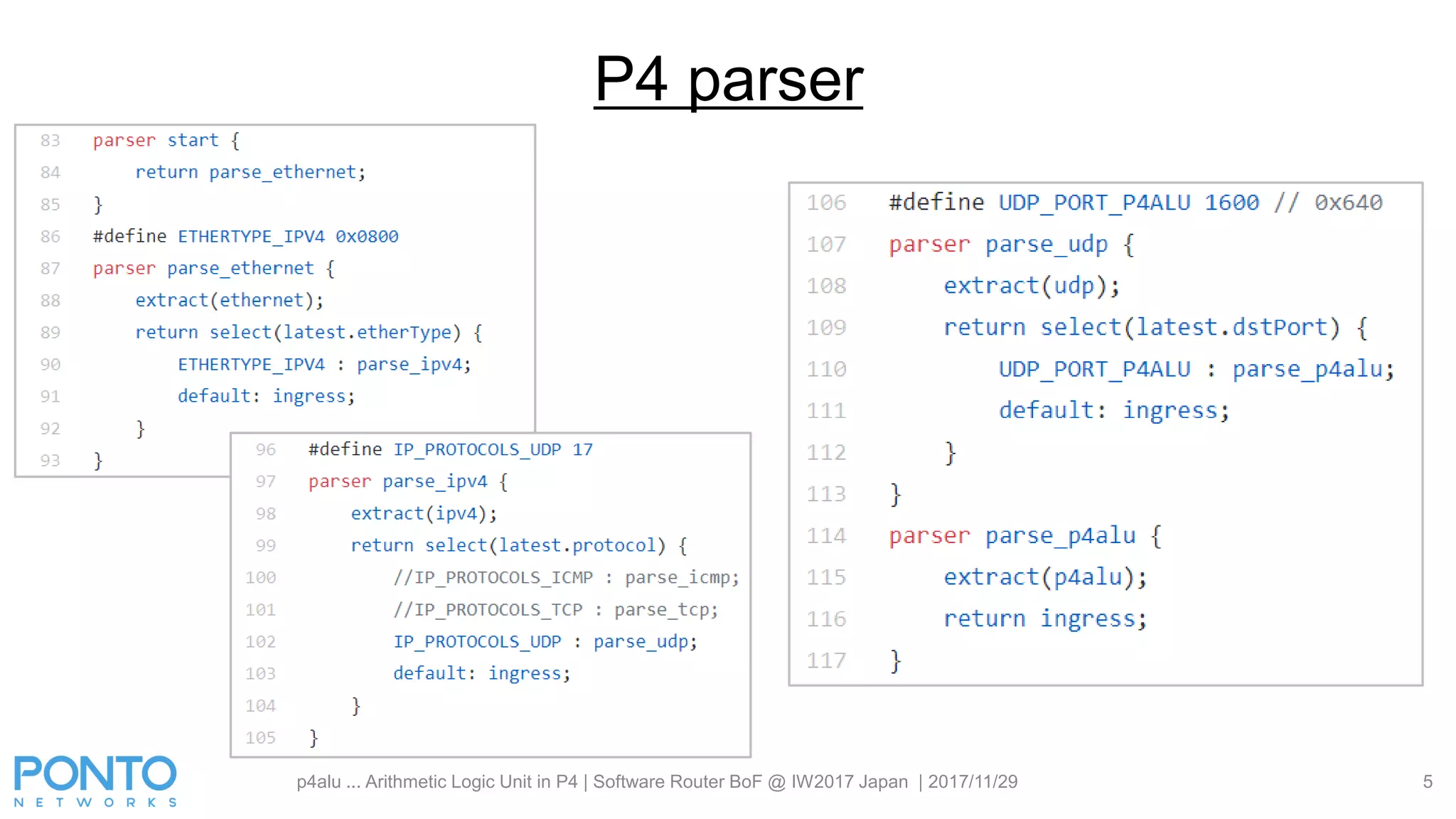

P4 parser

6. p4alu ... Arithmetic Logic Unit in P4 | Software Router BoF @ IW2017 Japan | 2017/11/29 6

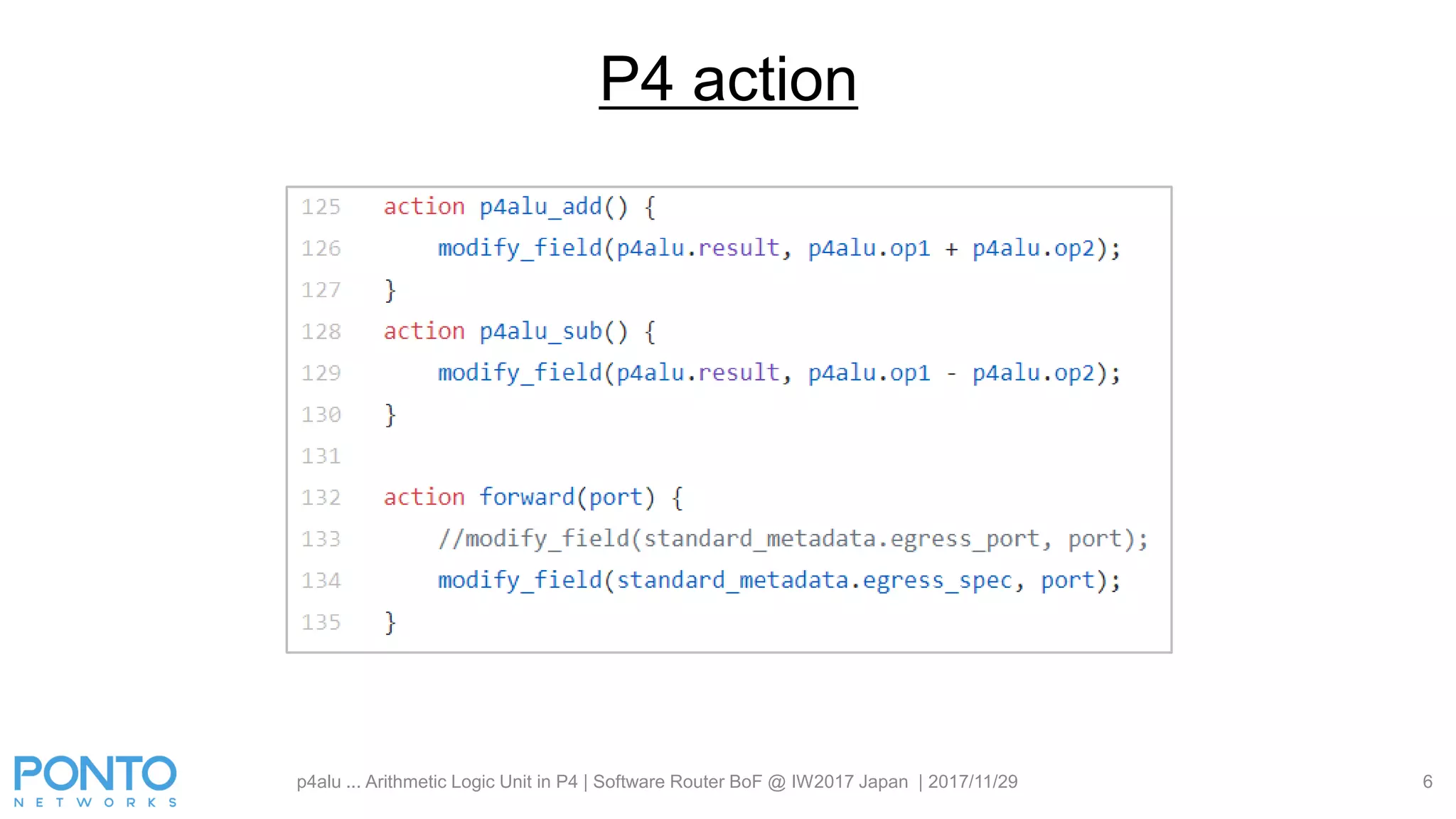

P4 action

7. p4alu ... Arithmetic Logic Unit in P4 | Software Router BoF @ IW2017 Japan | 2017/11/29 7

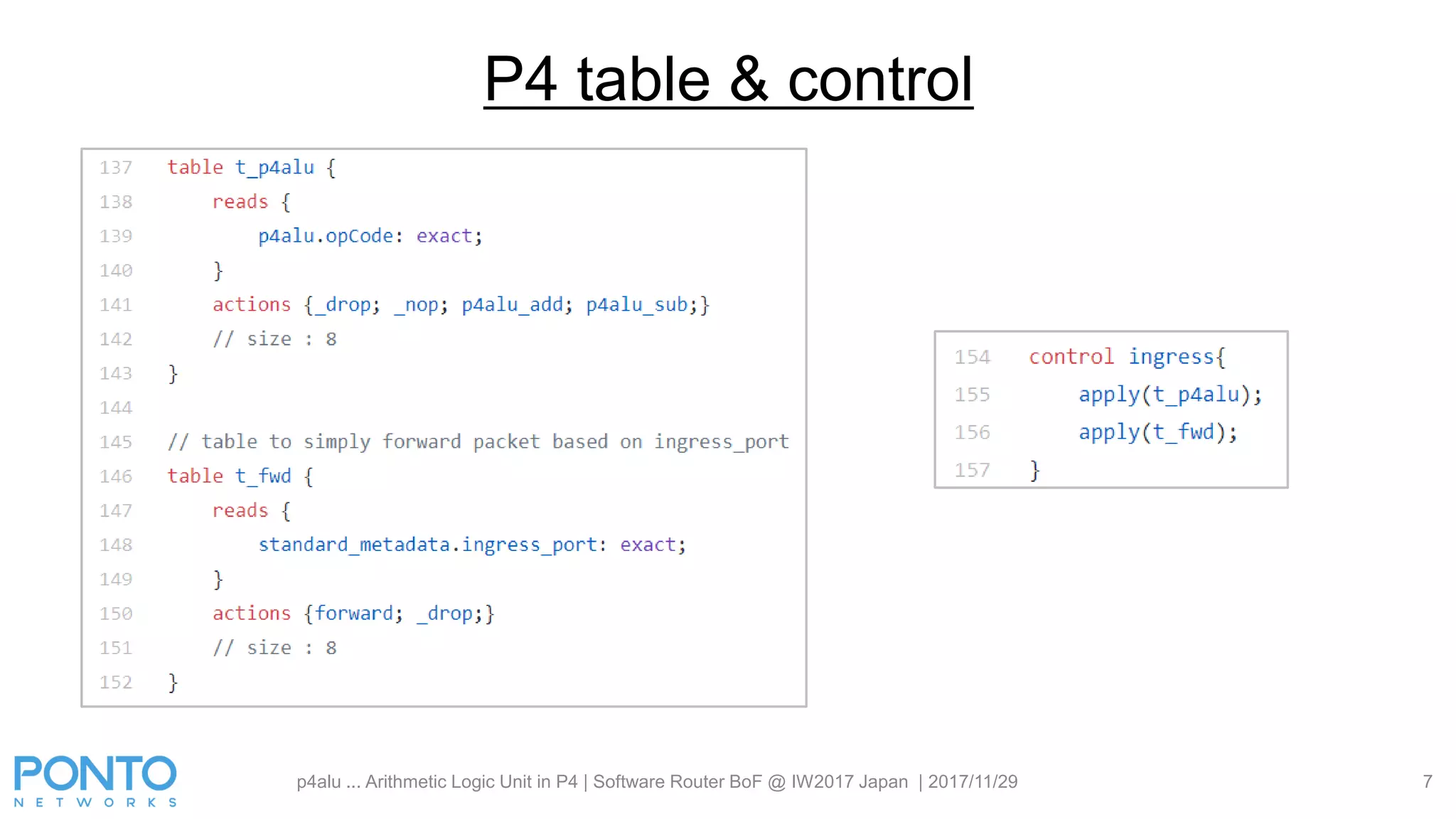

P4 table & control

8. p4alu ... Arithmetic Logic Unit in P4 | Software Router BoF @ IW2017 Japan | 2017/11/29 8

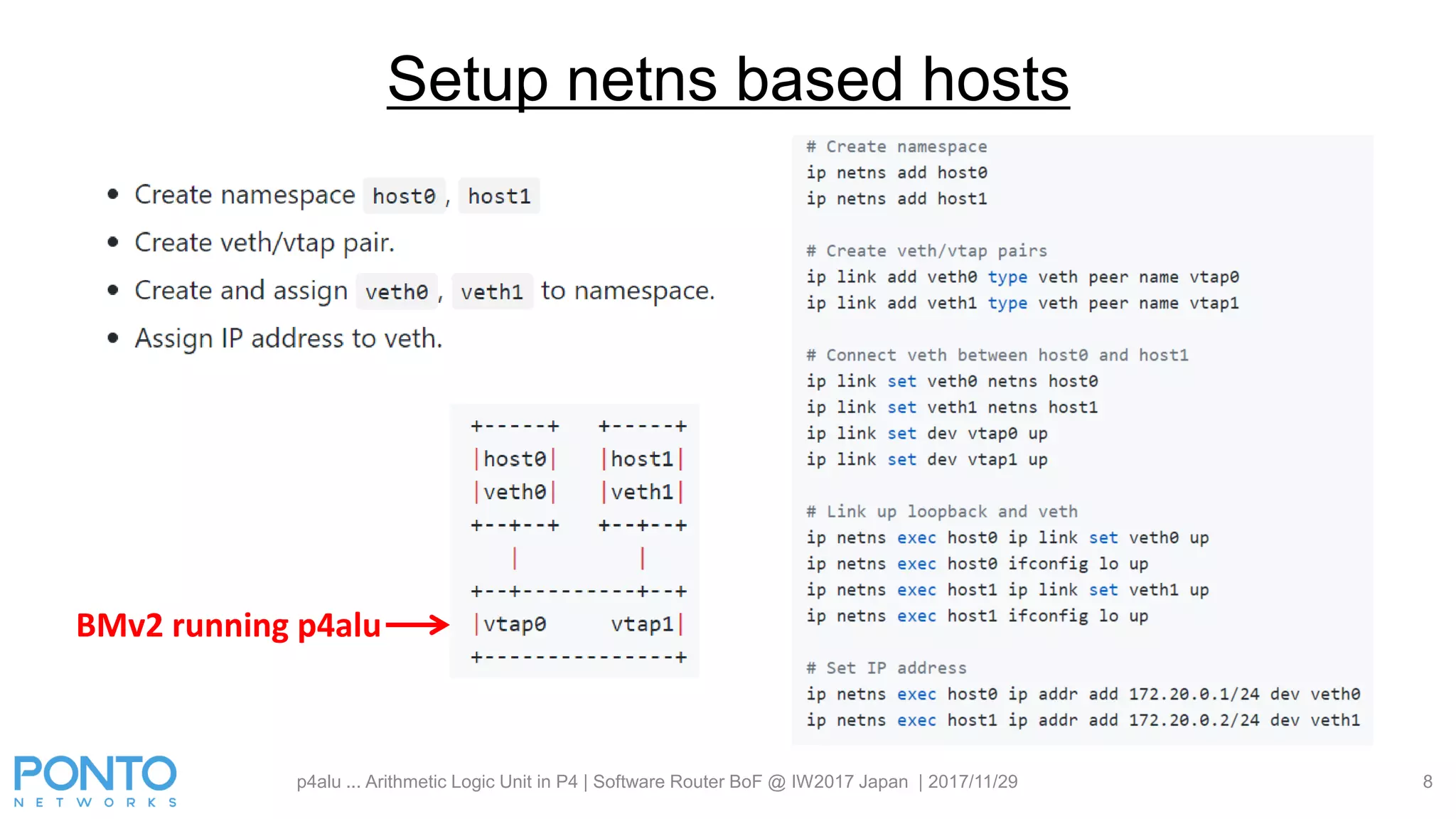

Setup netns based hosts
BMv2 running p4alu

9. p4alu ... Arithmetic Logic Unit in P4 | Software Router BoF @ IW2017 Japan | 2017/11/29 9

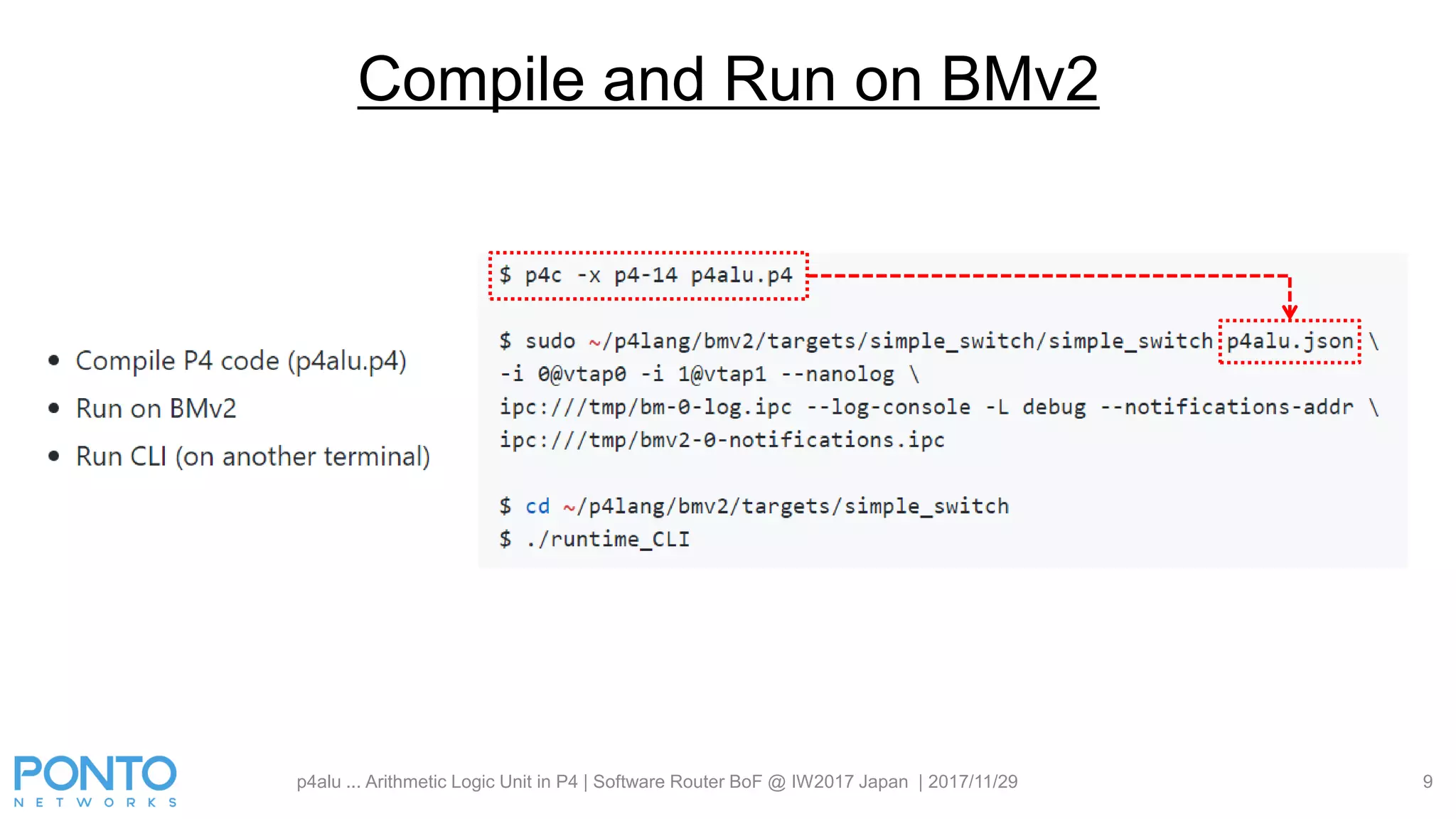

Compile and Run on BMv2

10. p4alu ... Arithmetic Logic Unit in P4 | Software Router BoF @ IW2017 Japan | 2017/11/29 10

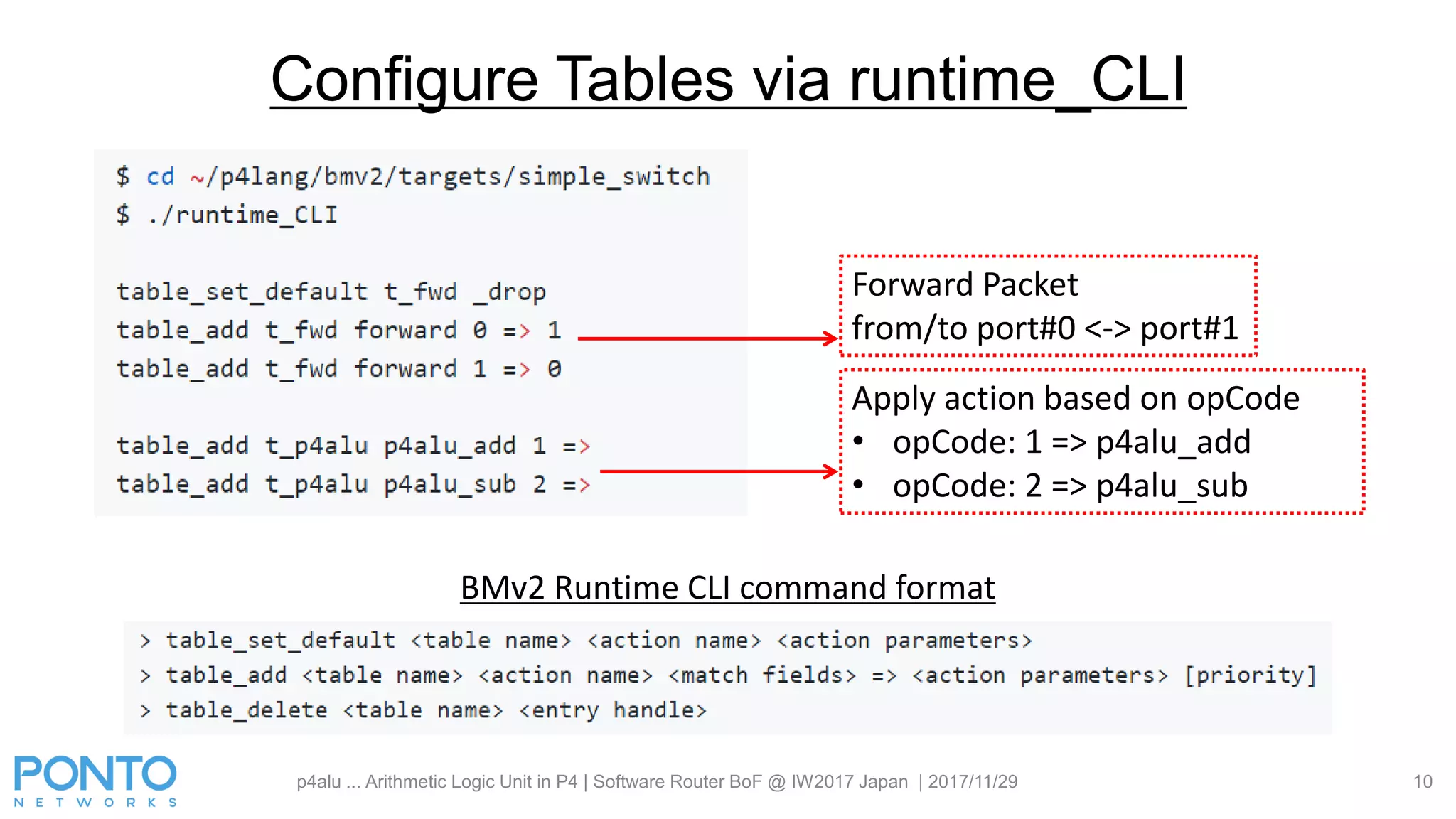

Configure Tables via runtime_CLI
Forward Packet
from/to port#0 <-> port#1
Apply action based on opCode
• opCode: 1 => p4alu_add
• opCode: 2 => p4alu_sub
BMv2 Runtime CLI command format

11. p4alu ... Arithmetic Logic Unit in P4 | Software Router BoF @ IW2017 Japan | 2017/11/29 11

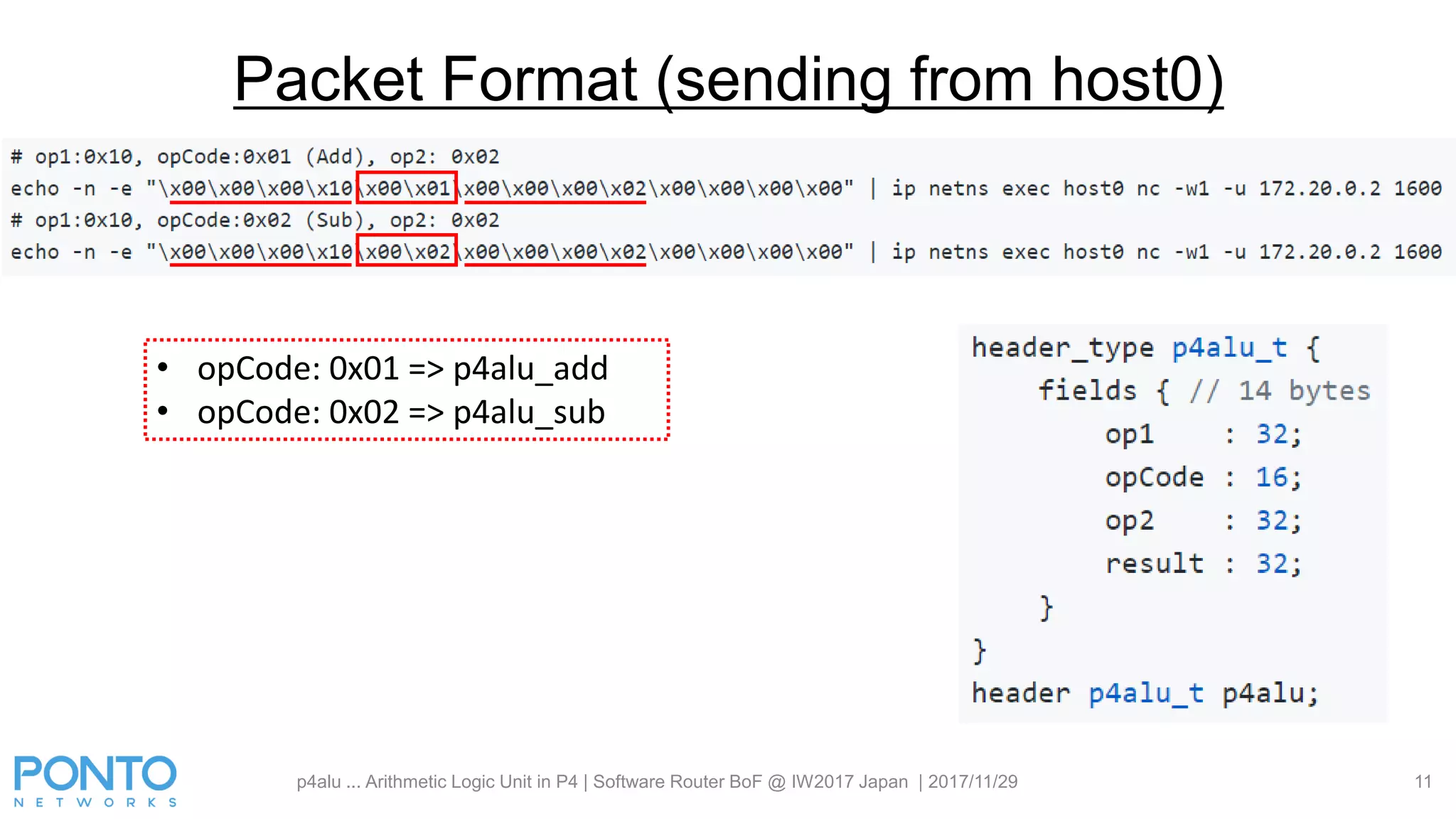

Packet Format (sending from host0)
• opCode: 0x01 => p4alu_add
• opCode: 0x02 => p4alu_sub

12. CuiShark by @slankdev | https://github.com/slankdev/cuishark
p4alu ... Arithmetic Logic Unit in P4 | Software Router BoF @ IW2017 Japan | 2017/11/29 12

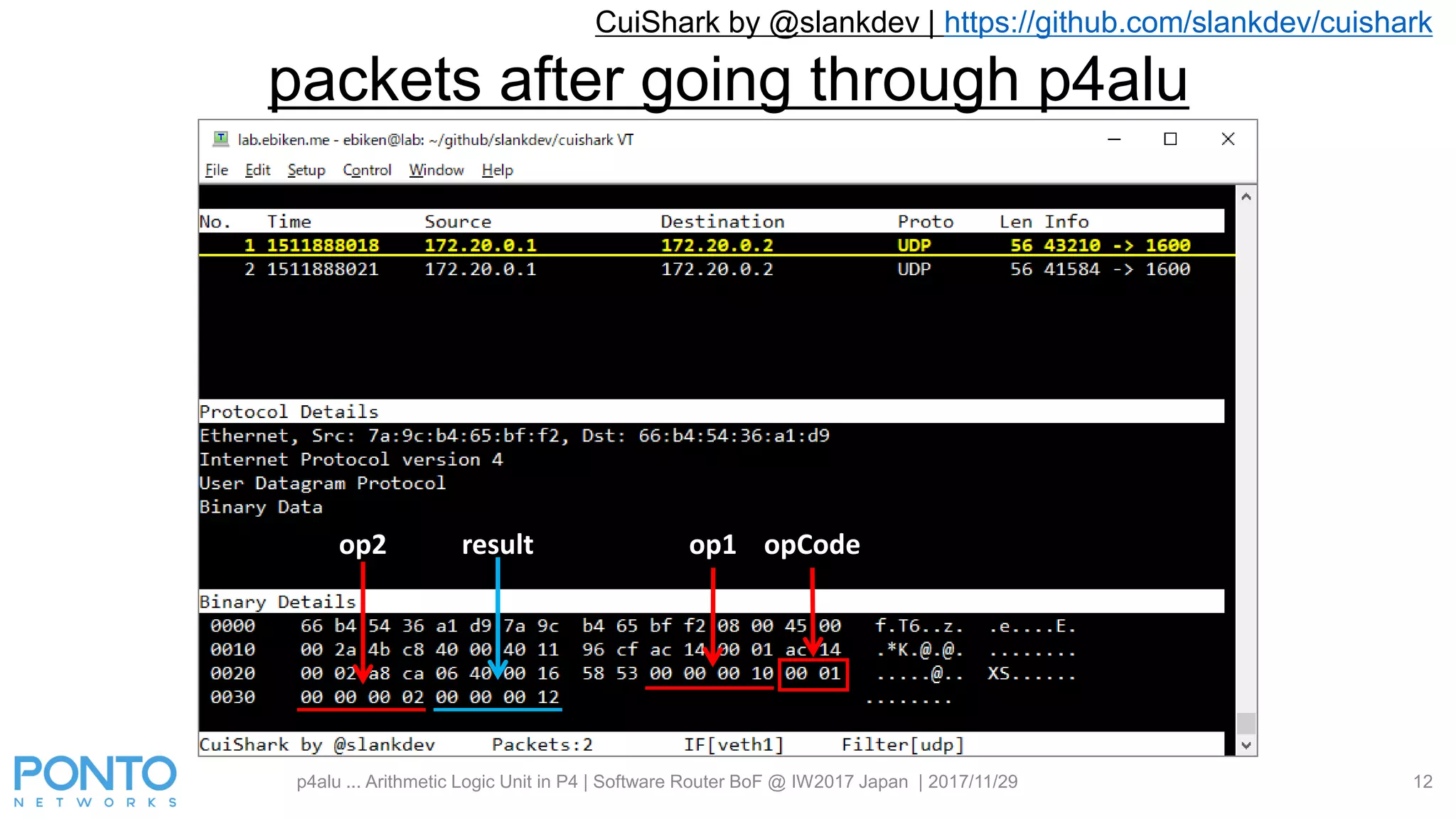

packets after going through p4alu
op1 opCodeop2 result

13. CuiShark by @slankdev | https://github.com/slankdev/cuishark
p4alu ... Arithmetic Logic Unit in P4 | Software Router BoF @ IW2017 Japan | 2017/11/29 13

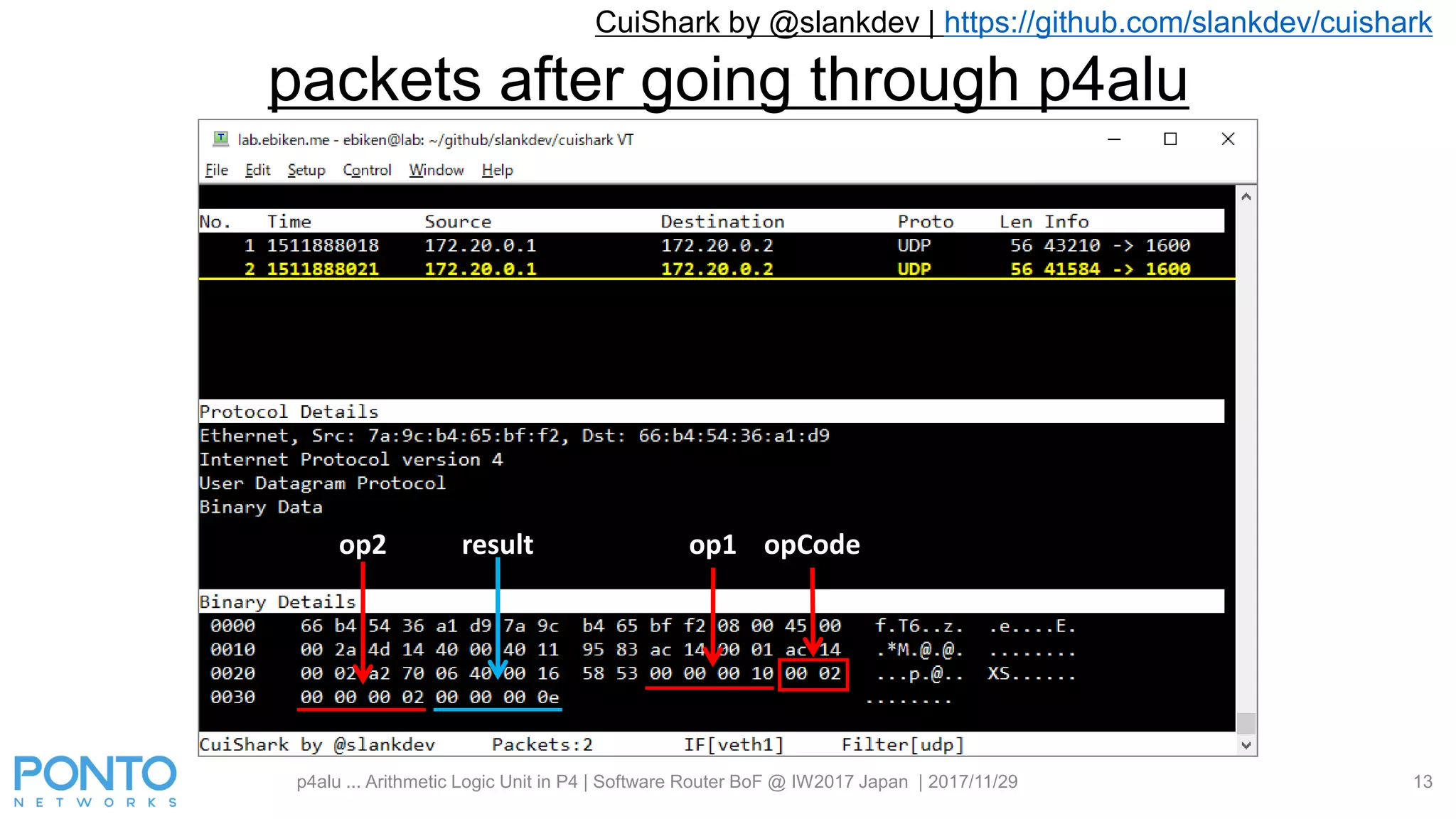

packets after going through p4alu
op1 opCodeop2 result
