1. BPF
All your Packets belong to Me
@_xhr_
xhr@giessen.ccc.de

2. xhr GPN 2014 2
BPF ?

3. xhr GPN 2014 3
tcpdump ?

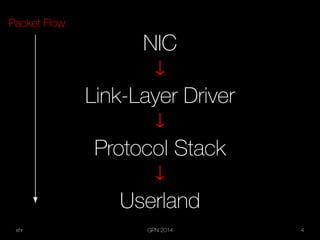

4. xhr GPN 2014 4

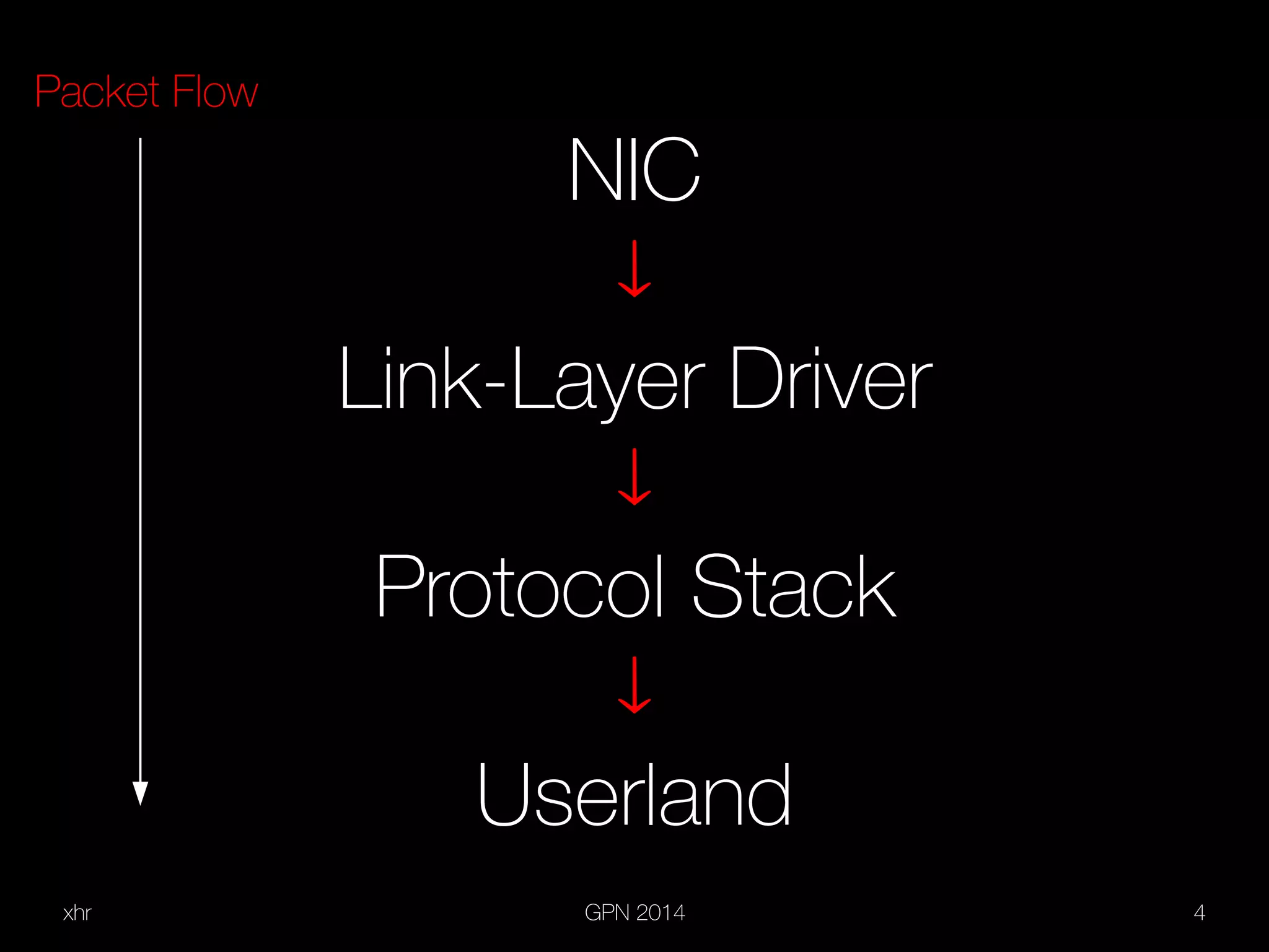

NIC
¯
Link-Layer Driver
¯
Protocol Stack
¯
Userland
Packet Flow

5. xhr GPN 2014 5
Smart Idea

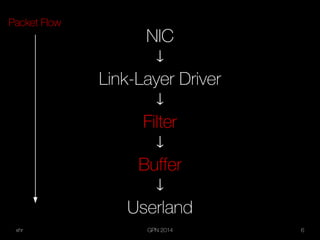

6. xhr GPN 2014 6

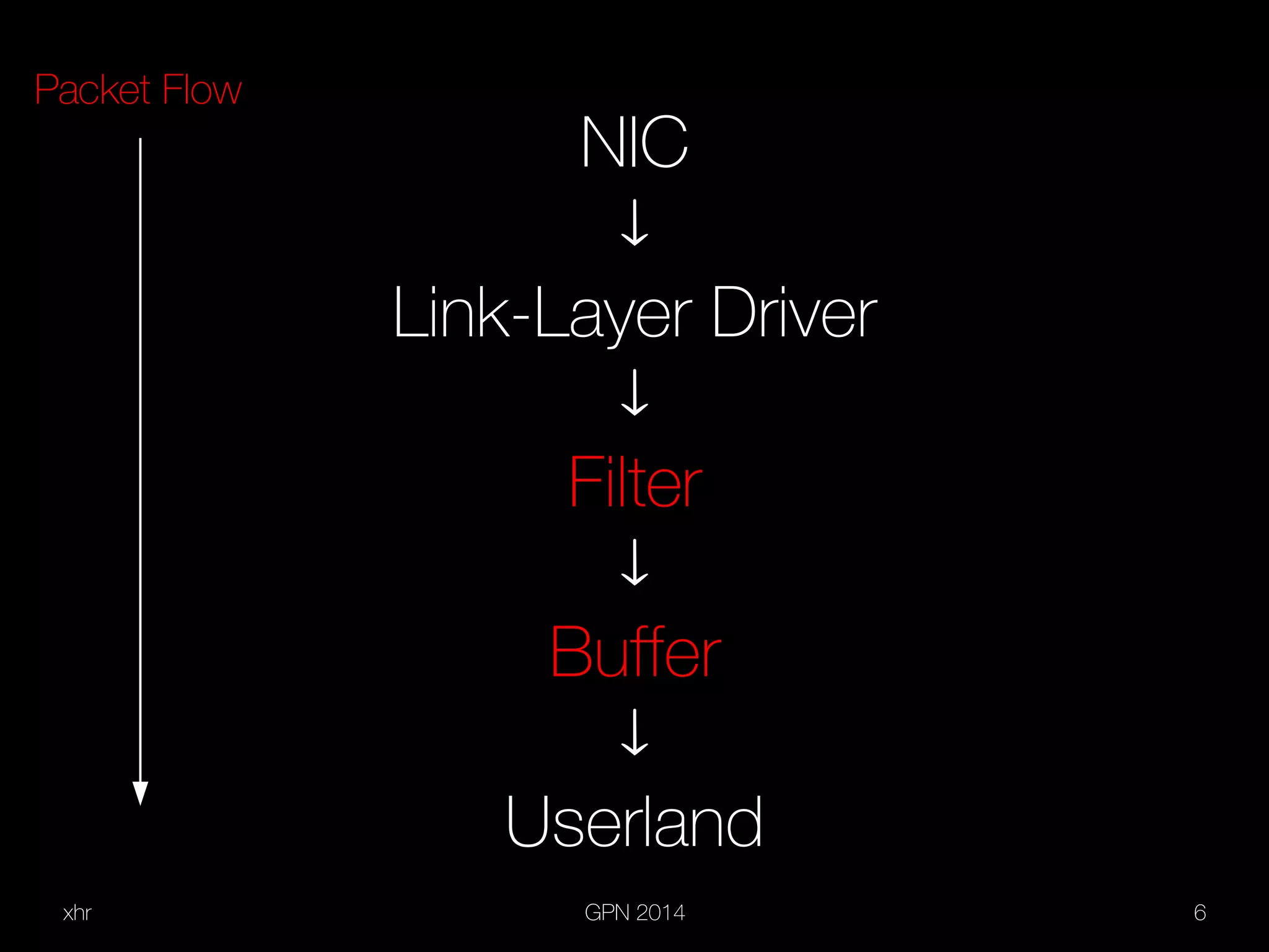

NIC
¯
Link-Layer Driver
¯
Filter
¯
Buffer
¯
Userland
Packet Flow

7. xhr GPN 2014 7
BPF is rather old...
McCanne. Jacobson.The BSD Packet Filter:
A New Architecture for User-level Packet
Capture. in USENIX. 1993.

8. xhr GPN 2014 8
Have you met ...

9. xhr GPN 2014 9

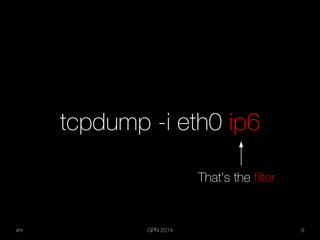

tcpdump -i eth0 ip6
That's the filter

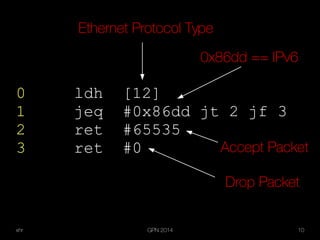

10. xhr GPN 2014 10

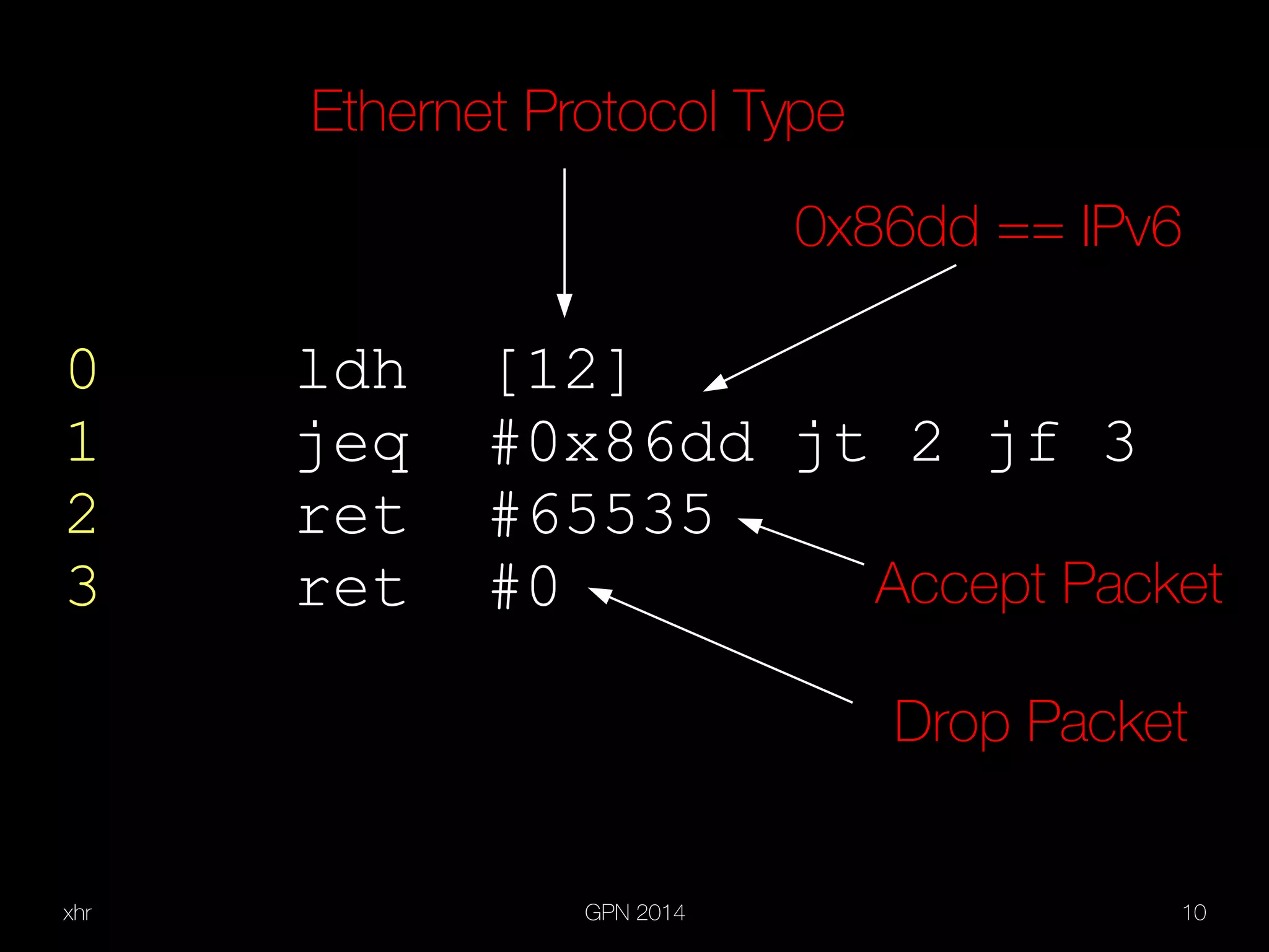

0 ldh [12]
1 jeq #0x86dd jt 2 jf 3
2 ret #65535
3 ret #0
Ethernet Protocol Type
0x86dd == IPv6
Accept Packet
Drop Packet

11. xhr GPN 2014 11
Linux got a BPF JIT in 2011
Check net/core/filter.c

12. xhr GPN 2014 12
Packet Filter only for
Packets?

13. xhr GPN 2014 13

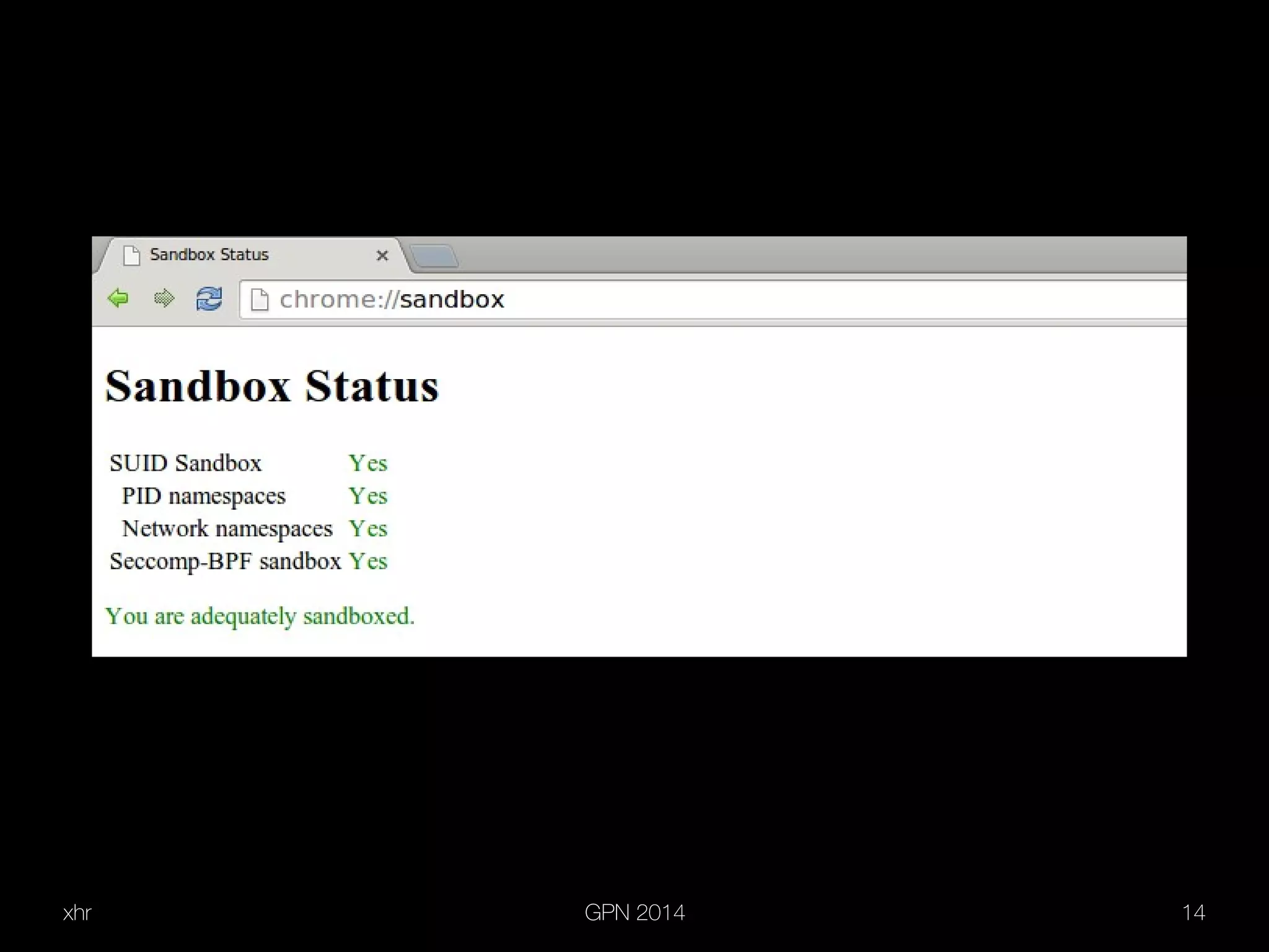

seccomp?

14. xhr GPN 2014 14

15. xhr GPN 2014 15
So, how does this work?

16. xhr GPN 2014 16
Attach a filter to a socket

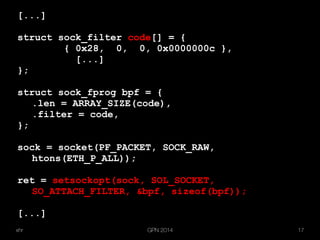

17. xhr GPN 2014 17
[...]

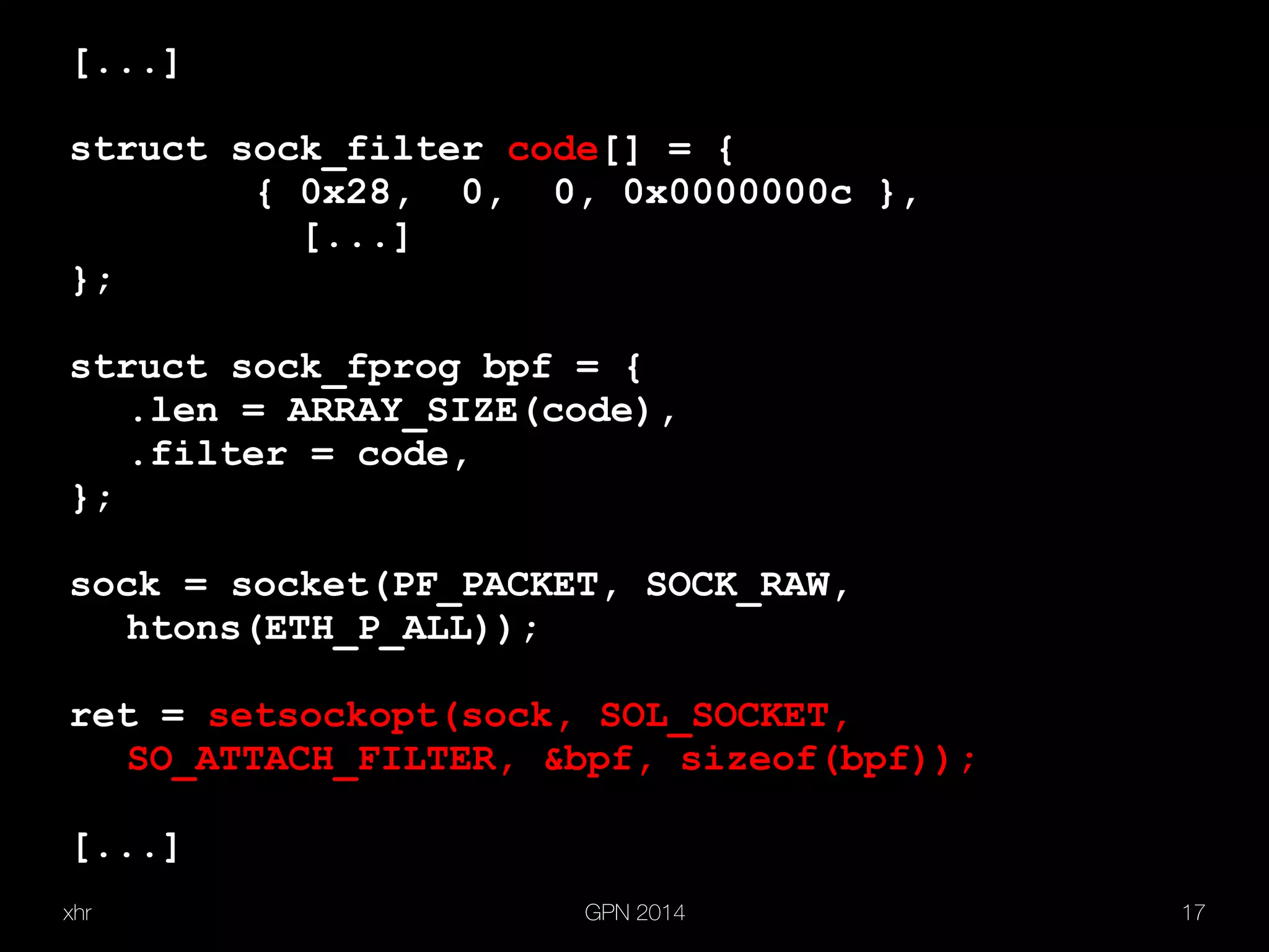

struct sock_filter code[] = {
{ 0x28, 0, 0, 0x0000000c },
[...]
};
struct sock_fprog bpf = {
.len = ARRAY_SIZE(code),
.filter = code,
};
sock = socket(PF_PACKET, SOCK_RAW,
htons(ETH_P_ALL));
ret = setsockopt(sock, SOL_SOCKET,
SO_ATTACH_FILTER, &bpf, sizeof(bpf));
[...]

18. xhr GPN 2014 18
So, how can I use this?

19. xhr GPN 2014 19
Need for Space

20. xhr GPN 2014 20

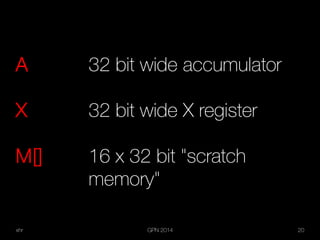

A 32 bit wide accumulator
X 32 bit wide X register
M[] 16 x 32 bit "scratch
memory"

21. xhr GPN 2014 21
Some Instructions

22. xhr GPN 2014 22

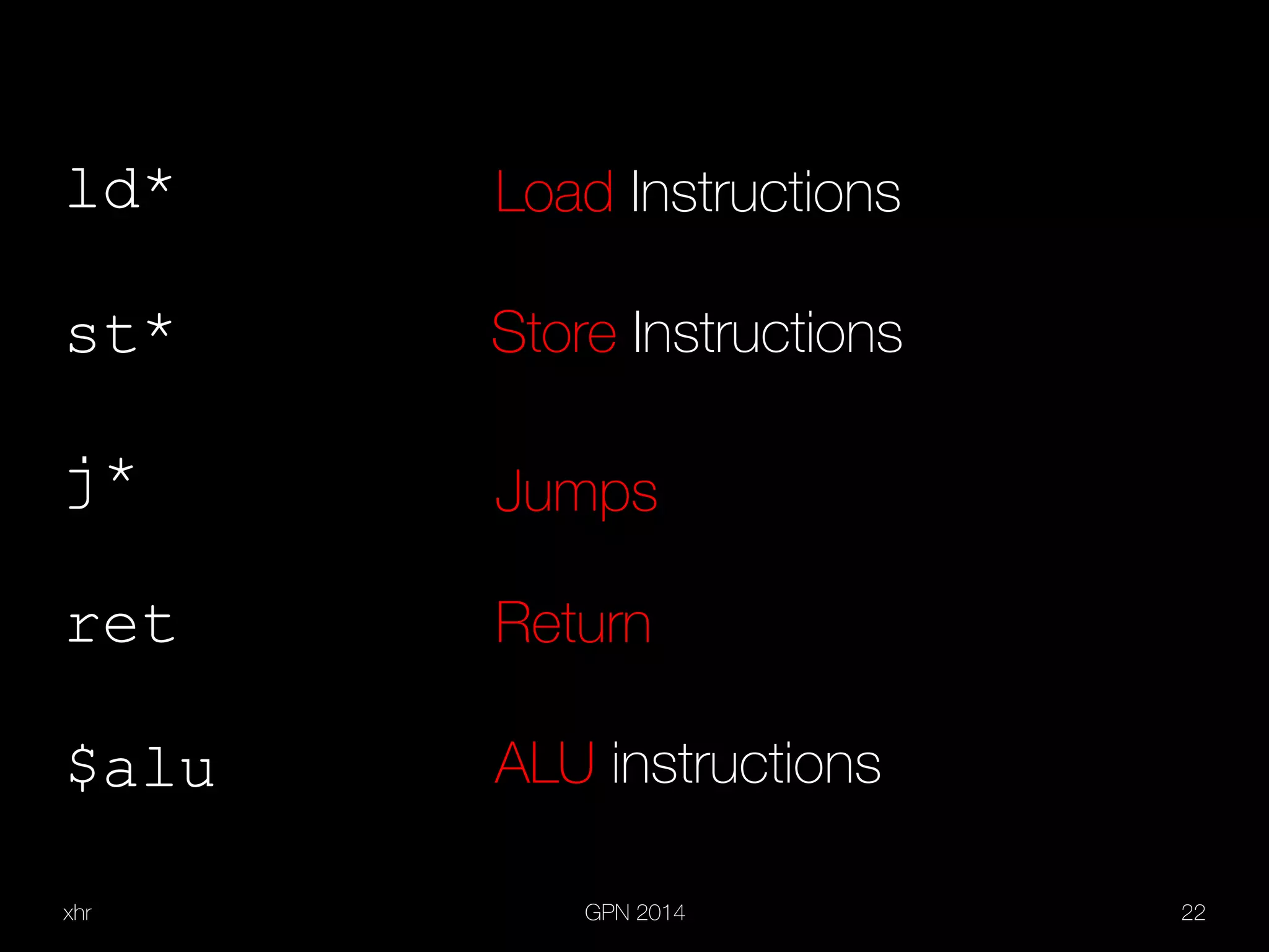

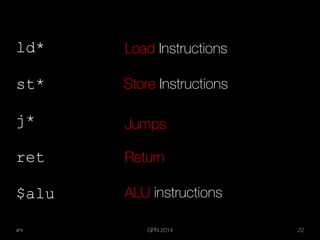

ld*
st*
j*
ret
$alu
Load Instructions
Store Instructions
Jumps
Return
ALU instructions

23. xhr GPN 2014 23
Hmm … k. IDE anyone?

24. xhr GPN 2014 24

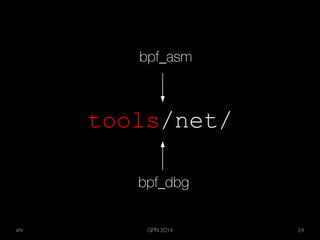

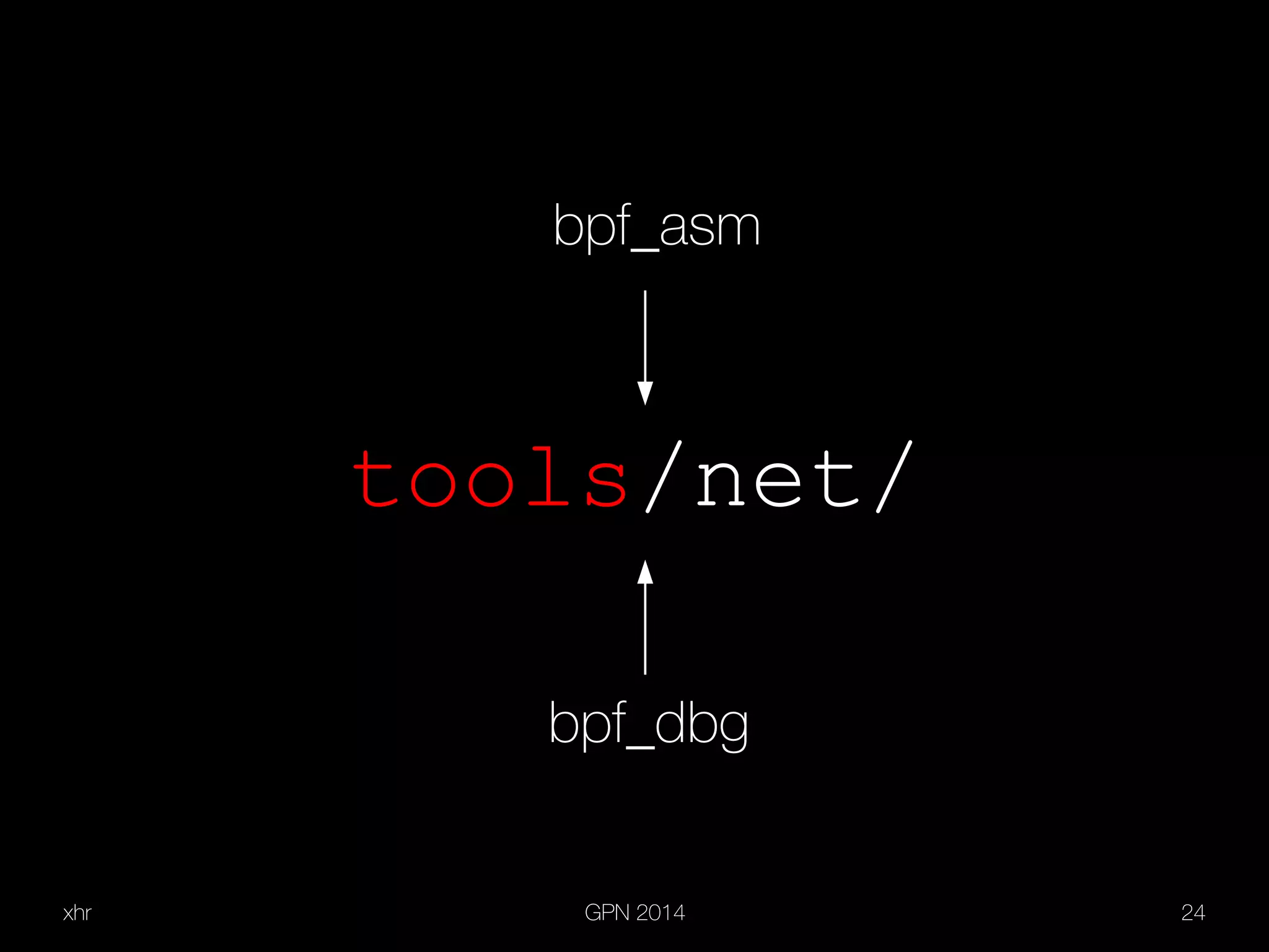

tools/net/
bpf_asm
bpf_dbg

25. xhr GPN 2014 25
Demo

26. xhr GPN 2014 28
What now?

27. xhr GPN 2014 29
Packet Filtering

28. xhr GPN 2014 30
Can I haz xt_bpf, plz?

29. xhr GPN 2014 31

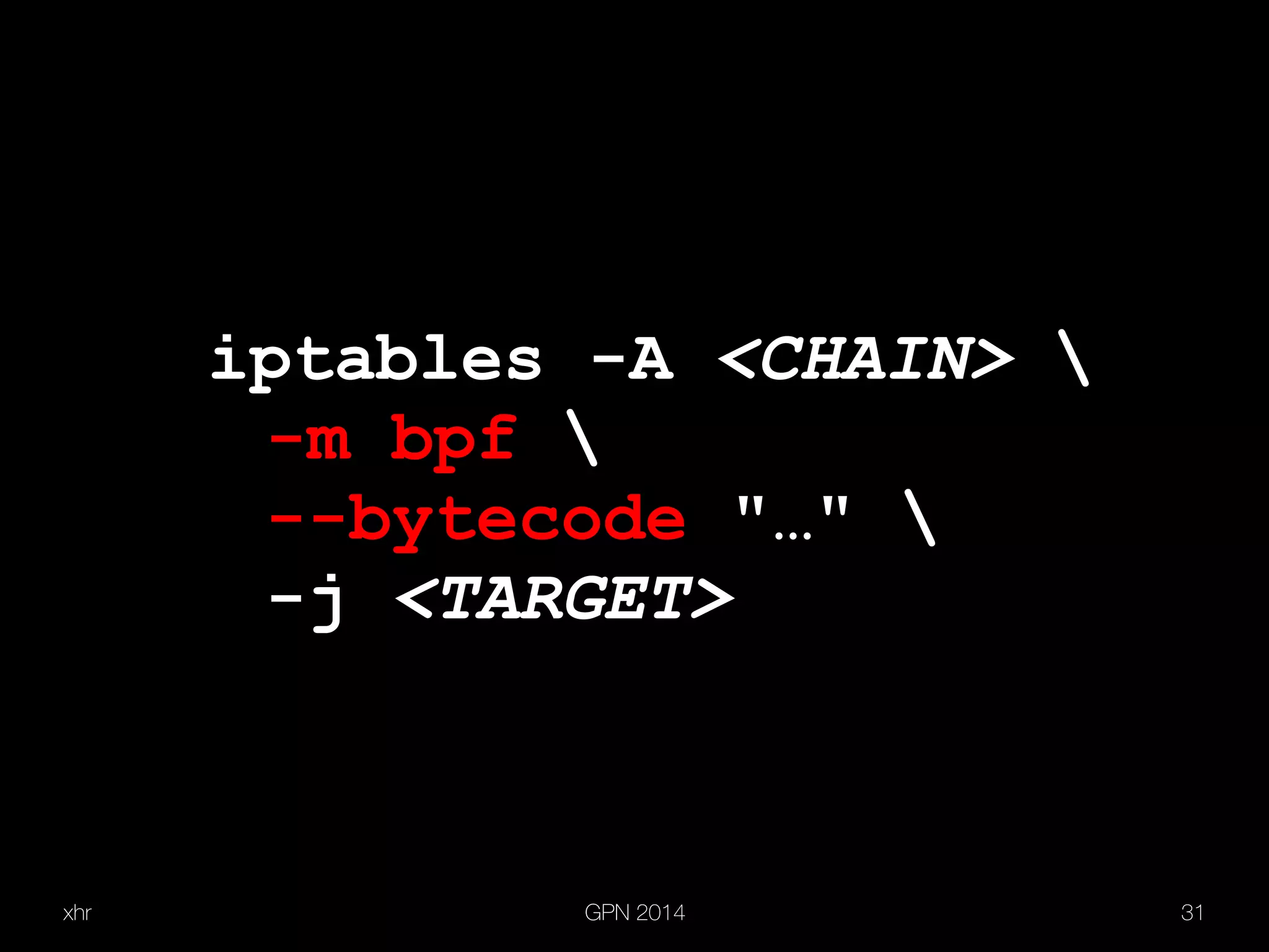

iptables -A <CHAIN>
-m bpf
--bytecode "…"
-j <TARGET>

30. xhr GPN 2014 32
And Why?
Because we can!!1
Full packet control
Fine grained filters

31. xhr GPN 2014 33
Q & A
xhr
xhr@giessen.ccc.de
@_xhr_
