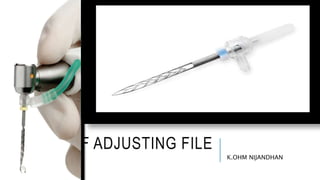

SELF ADJUSTING FILE K.OHM NIJANDHAN
SYNOPSIS INTRODUCTION NICKEL - TITANIUM ROTARY INSTRUMENTS SELF ADJUSTING FILE DESIGN AND OPERATION MECHANICAL ANALYSIS OF SAF CHALLENGES: CURVED AND NON – ROUND CANALS BACTERIOLOGIC CONSIDERATIONS REMOVAL OF SMEAR LAYER IN THE APICAL PART OF THE CANAL HISTOLOGIC CONSIDERATIONS ROOT CANAL OBTURATION OF SAF PREPARED ROOT CANALS CONCLUSION
INTRODUCTION The cleaning and shaping of the root canal system is an important objective of root canal treatment. - Baugh et al 2005 - Bartha et al 2006  Original root canal path should be maintained and the root canal wall dentin should be cut circumferentially so that prepared root canal wall outline reflects the original outline. - Baugh et al 2005  The goal of instrumentation is to provide a continuously tapered preparation that maintains original root canal anatomy, keeping the foramen without any ledge and transportation from the original canal curvature. - Carvalho et al 1999 - Matwychuk et al 2007
Variety of instruments are available for the root canal instrumentation. For many years, hand files are the most commonly used for endodontic instruments. - Walton et al 1996 Traditionally, this group of instruments has been manufactured from stainless steel and comprises two basic designs, the k-type instruments (k- files and k-reamers) and the hedstrom file . - walton et al 1996 - Wein et al 1996 Although almost all these instruments were designed between many years ago, important changes have introduced in recent years with regard to their quality, efficacy, and standardization . - Leif et al 2003  Nickel-titanium instruments for manuel and rotary use have been developed during the last decade - Yoshmine et al 2005
However, the cleaning, shaping, and disinfection of canals that are flat and oval-shaped in cross-section, as well as curved canals, represent a significant clinical challenge to endodontic treatment. These canal configurations represent about 25%- 50% of root canal systems. - wu M-K et al 2003 Many enhancements have resulted in better cleaning and shaping, but investigations using digital subtraction micro-CT and microbiologic assessments have shown our ineffectiveness to adapt to the true cross- sectional shape of all but the most round root canals, leaving almost half of the canal walls untouched by endodontic instruments. - peters et al 2011 Until the recent introduction of “adaptive” cleaning/shaping instrument technology, the basic tenets of endodontic treatment have been unattainable.

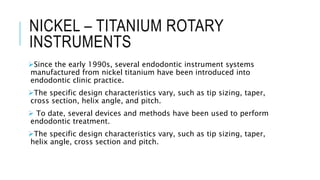

NICKEL – TITANIUM ROTARY INSTRUMENTS Since the early 1990s, several endodontic instrument systems manufactured from nickel titanium have been introduced into endodontic clinic practice. The specific design characteristics vary, such as tip sizing, taper, cross section, helix angle, and pitch.  To date, several devices and methods have been used to perform endodontic treatment. The specific design characteristics vary, such as tip sizing, taper, helix angle, cross section and pitch.
In flat oval root canals ,rotary file system may be difficult to instrument the entire wall of oval canals and often fail to adequately clean and shape the canal. The self adjusting files which a new concept in cleaning and shaping was developed to overcome the inherent remaining problems of the nickel titanium instruments.
SELF ADJUSTING FILE DESIGN AND OPERATION Self adjusting file which is a hollow file designed is a novel system among the nickel titanium files operating in a different manner. It adapts itself to the canal original anatomy and shape ,longitudinally to a curved canal as will all rotary nickel titanium files especially adapts itself to the cross section of the canal providing a 3D adaptation . SAF is a hollow file designed as a compressible ,thin walled pointed cylinder either 1.5 or 2.0 mm in diameter composed of 120 micro meter thick nickel titanium lattice composed of a thin derivate of nickel titanium lattice with high torsional and fatigue resistance.
The 1.5 mm and 2.0 mm files may easily be compressed to the extent of being inserted into canal previously prepared or negotiated with a #20 k-file and #30 k file. The lattice surface is slightly abrasive and it allows removing dentin with back and forth grinding motion The file attempts to regain its original form and it continues to apply aperpetual delicate pressure on the root canals. Its operated with vertical vibrating handpieces with 3000 – 5000 vibrations/min with 0.4 mm amplitude .

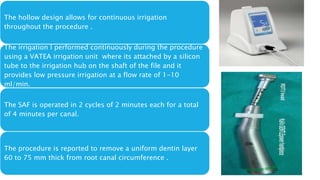

The hollow design allows for continuous irrigation throughout the procedure . The irrigation I performed continuously during the procedure using a VATEA irrigation unit where its attached by a silicon tube to the irrigation hub on the shaft of the file and it provides low pressure irrigation at a flow rate of 1-10 ml/min. The SAF is operated in 2 cycles of 2 minutes each for a total of 4 minutes per canal. The procedure is reported to remove a uniform dentin layer 60 to 75 mm thick from root canal circumference .

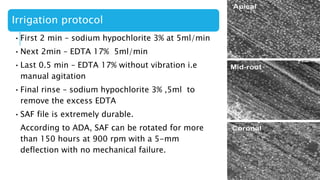

Irrigation protocol •First 2 min – sodium hypochlorite 3% at 5ml/min •Next 2min – EDTA 17% 5ml/min •Last 0.5 min – EDTA 17% without vibration i.e manual agitation •Final rinse – sodium hypochlorite 3% ,5ml to remove the excess EDTA •SAF file is extremely durable. According to ADA, SAF can be rotated for more than 150 hours at 900 rpm with a 5-mm deflection with no mechanical failure.

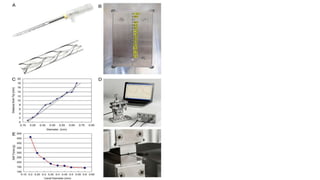

MECHANICAL ANALYSIS OF SAF Compressibility of the SAF force applied as a •result of compression, •surface roughness, •abrasivity test, •durability (torque test, •ADA cyclic fatigue test, •free buckling fatigue test, •functional fatigue-to failuretest),

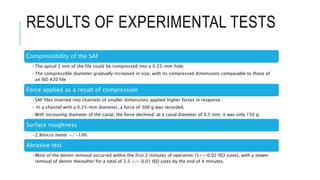

RESULTS OF EXPERIMENTAL TESTS Compressibility of the SAF •The apical 2 mm of the file could be compressed into a 0.25-mm hole. •The compressible diameter gradually increased in size, with its compressed dimensions comparable to those of an ISO #20 file Force applied as a result of compression •SAF files inserted into channels of smaller dimensions applied higher forces in response . • In a channel with a 0.25-mm diameter, a force of 300 g was recorded. •With increasing diameter of the canal, the force declined; at a canal diameter of 0.5 mm, it was only 150 g. Surface roughness •2.8micro meter +/ -10%. Abrasive test •Most of the dentin removal occurred within the first 2 minutes of operation (3+/-0.02 ISO sizes), with a slower removal of dentin thereafter for a total of 3.5 +/- 0.01 ISO sizes by the end of 4 minutes.

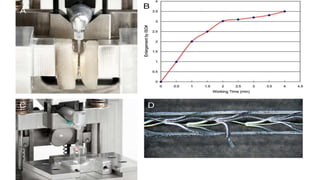

Durability •Torque test: •the SAF could be turned 7 x 360deg before separation. •The SAF’s torque durability was 29.7 +/- 3.2 g/cm. •Free buckling fatigue test: •The SAF files endured 600,500 (+/- 15,800) buckling cycles before •the first sign of mechanical failure appeared. •This is equivalent to approx. 120 minutes of operation at 5,000 vibrations per minute. •Functional fatigue to failure test •When tested in standardized conditions, the first mechanical fatigue failure was detected after 29.1 (+/- 1.2) minutes . •A typical failure was detachment of one of the arches at one of its connection points to the longitudinal beams . • Rarely did a strut or a longitudinal beam detachment occur. • In no case was there a full separation of the SAF file. SAF degradation as a function of W/T •Prolonged use gives less efficiency •No extrusion of irrigants seen.

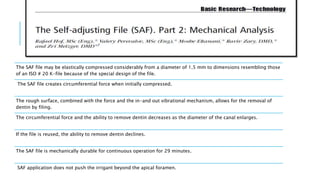

The SAF file may be elastically compressed considerably from a diameter of 1.5 mm to dimensions resembling those of an ISO # 20 K-file because of the special design of the file. The SAF file creates circumferential force when initially compressed. The rough surface, combined with the force and the in-and out vibrational mechanism, allows for the removal of dentin by filing. The circumferential force and the ability to remove dentin decreases as the diameter of the canal enlarges. If the file is reused, the ability to remove dentin declines. The SAF file is mechanically durable for continuous operation for 29 minutes. SAF application does not push the irrigant beyond the apical foramen.

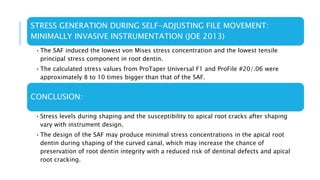

STRESS GENERATION DURING SELF-ADJUSTING FILE MOVEMENT: MINIMALLY INVASIVE INSTRUMENTATION (JOE 2013) •The SAF induced the lowest von Mises stress concentration and the lowest tensile principal stress component in root dentin. •The calculated stress values from ProTaper Universal F1 and ProFile #20/.06 were approximately 8 to 10 times bigger than that of the SAF. CONCLUSION: •Stress levels during shaping and the susceptibility to apical root cracks after shaping vary with instrument design. •The design of the SAF may produce minimal stress concentrations in the apical root dentin during shaping of the curved canal, which may increase the chance of preservation of root dentin integrity with a reduced risk of dentinal defects and apical root cracking.

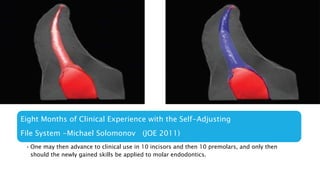

Eight Months of Clinical Experience with the Self-Adjusting File System -Michael Solomonov (JOE 2011) • One may then advance to clinical use in 10 incisors and then 10 premolars, and only then should the newly gained skills be applied to molar endodontics.

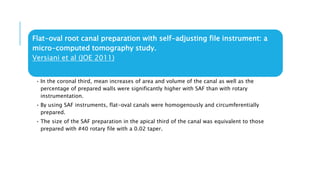

Flat-oval root canal preparation with self-adjusting file instrument: a micro-computed tomography study. Versiani et al (JOE 2011) • In the coronal third, mean increases of area and volume of the canal as well as the percentage of prepared walls were significantly higher with SAF than with rotary instrumentation. • By using SAF instruments, flat-oval canals were homogenously and circumferentially prepared. • The size of the SAF preparation in the apical third of the canal was equivalent to those prepared with #40 rotary file with a 0.02 taper.

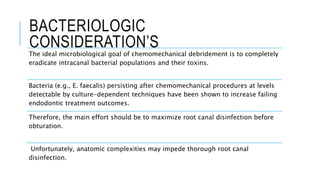

BACTERIOLOGIC CONSIDERATION’S The ideal microbiological goal of chemomechanical debridement is to completely eradicate intracanal bacterial populations and their toxins. Bacteria (e.g., E. faecalis) persisting after chemomechanical procedures at levels detectable by culture-dependent techniques have been shown to increase failing endodontic treatment outcomes. Therefore, the main effort should be to maximize root canal disinfection before obturation. Unfortunately, anatomic complexities may impede thorough root canal disinfection.

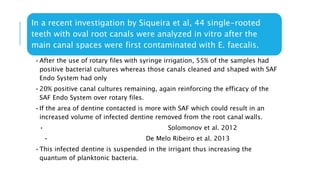

In a recent investigation by Siqueira et al, 44 single-rooted teeth with oval root canals were analyzed in vitro after the main canal spaces were first contaminated with E. faecalis. •After the use of rotary files with syringe irrigation, 55% of the samples had positive bacterial cultures whereas those canals cleaned and shaped with SAF Endo System had only •20% positive canal cultures remaining, again reinforcing the efficacy of the SAF Endo System over rotary files. •If the area of dentine contacted is more with SAF which could result in an increased volume of infected dentine removed from the root canal walls. • Solomonov et al. 2012 • De Melo Ribeiro et al. 2013 •This infected dentine is suspended in the irrigant thus increasing the quantum of planktonic bacteria.

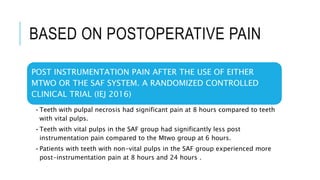

BASED ON POSTOPERATIVE PAIN POST INSTRUMENTATION PAIN AFTER THE USE OF EITHER MTWO OR THE SAF SYSTEM. A RANDOMIZED CONTROLLED CLINICAL TRIAL (IEJ 2016) •Teeth with pulpal necrosis had significant pain at 8 hours compared to teeth with vital pulps. •Teeth with vital pulps in the SAF group had significantly less post instrumentation pain compared to the Mtwo group at 6 hours. •Patients with teeth with non-vital pulps in the SAF group experienced more post-instrumentation pain at 8 hours and 24 hours .

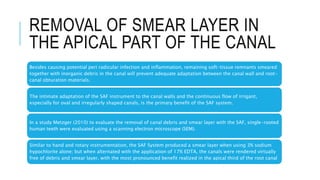

REMOVAL OF SMEAR LAYER IN THE APICAL PART OF THE CANAL Besides causing potential peri radicular infection and inflammation, remaining soft-tissue remnants smeared together with inorganic debris in the canal will prevent adequate adaptation between the canal wall and root- canal obturation materials. The intimate adaptation of the SAF instrument to the canal walls and the continuous flow of irrigant, especially for oval and irregularly shaped canals, is the primary benefit of the SAF system. In a study Metzger (2010) to evaluate the removal of canal debris and smear layer with the SAF, single-rooted human teeth were evaluated using a scanning electron microscope (SEM). Similar to hand and rotary instrumentation, the SAF System produced a smear layer when using 3% sodium hypochlorite alone; but when alternated with the application of 17% EDTA, the canals were rendered virtually free of debris and smear layer, with the most pronounced benefit realized in the apical third of the root canal

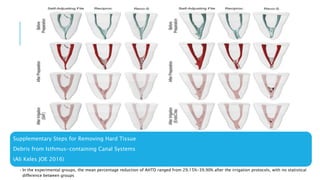

Supplementary Steps for Removing Hard Tissue Debris from Isthmus-containing Canal Systems (Ali Keles JOE 2016) •In the experimental groups, the mean percentage reduction of AHTD ranged from 29.15%-39.90% after the irrigation protocols, with no statistical difference between groups

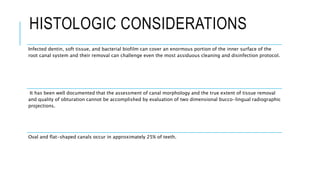

HISTOLOGIC CONSIDERATIONS Infected dentin, soft tissue, and bacterial biofilm can cover an enormous portion of the inner surface of the root canal system and their removal can challenge even the most assiduous cleaning and disinfection protocol. It has been well documented that the assessment of canal morphology and the true extent of tissue removal and quality of obturation cannot be accomplished by evaluation of two dimensional bucco-lingual radiographic projections. Oval and flat-shaped canals occur in approximately 25% of teeth.

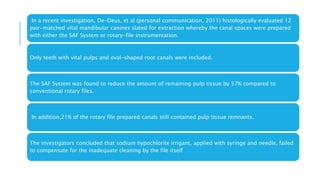

In a recent investigation, De-Deus, et al (personal communication, 2011) histologically evaluated 12 pair-matched vital mandibular canines slated for extraction whereby the canal spaces were prepared with either the SAF System or rotary-file instrumentation. Only teeth with vital pulps and oval-shaped root canals were included. The SAF System was found to reduce the amount of remaining pulp tissue by 57% compared to conventional rotary files. In addition,21% of the rotary file prepared canals still contained pulp tissue remnants. The investigators concluded that sodium hypochlorite irrigant, applied with syringe and needle, failed to compensate for the inadequate cleaning by the file itself

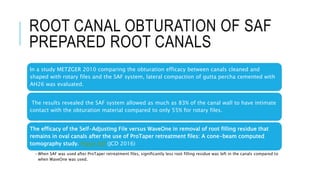

ROOT CANAL OBTURATION OF SAF PREPARED ROOT CANALS In a study METZGER 2010 comparing the obturation efficacy between canals cleaned and shaped with rotary files and the SAF system, lateral compaction of gutta percha cemented with AH26 was evaluated. The results revealed the SAF system allowed as much as 83% of the canal wall to have intimate contact with the obturation material compared to only 55% for rotary files. The efficacy of the Self-Adjusting File versus WaveOne in removal of root filling residue that remains in oval canals after the use of ProTaper retreatment files: A cone-beam computed tomography study. Pawar AM (JCD 2016) •When SAF was used after ProTaper retreatment files, significantly less root filling residue was left in the canals compared to when WaveOne was used.

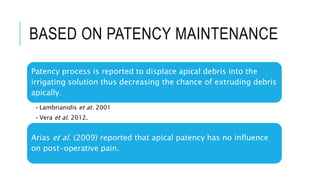

BASED ON PATENCY MAINTENANCE Patency process is reported to displace apical debris into the irrigating solution thus decreasing the chance of extruding debris apically. •Lambrianidis et at. 2001 •Vera et al. 2012. Arias et al. (2009) reported that apical patency has no influence on post-operative pain.

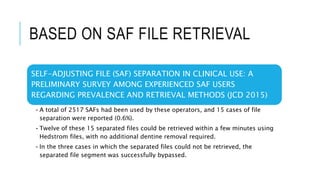

BASED ON SAF FILE RETRIEVAL SELF-ADJUSTING FILE (SAF) SEPARATION IN CLINICAL USE: A PRELIMINARY SURVEY AMONG EXPERIENCED SAF USERS REGARDING PREVALENCE AND RETRIEVAL METHODS (JCD 2015) •A total of 2517 SAFs had been used by these operators, and 15 cases of file separation were reported (0.6%). •Twelve of these 15 separated files could be retrieved within a few minutes using Hedstrom files, with no additional dentine removal required. •In the three cases in which the separated files could not be retrieved, the separated file segment was successfully bypassed.

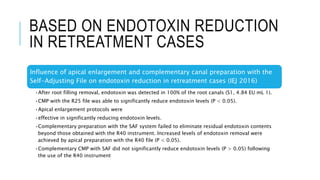

BASED ON ENDOTOXIN REDUCTION IN RETREATMENT CASES Influence of apical enlargement and complementary canal preparation with the Self-Adjusting File on endotoxin reduction in retreatment cases (IEJ 2016) •After root filling removal, endotoxin was detected in 100% of the root canals (S1, 4.84 EU mL 1). •CMP with the R25 file was able to significantly reduce endotoxin levels (P < 0.05). •Apical enlargement protocols were •effective in significantly reducing endotoxin levels. •Complementary preparation with the SAF system failed to eliminate residual endotoxin contents beyond those obtained with the R40 instrument. Increased levels of endotoxin removal were achieved by apical preparation with the R40 file (P < 0.05). •Complementary CMP with SAF did not significantly reduce endotoxin levels (P > 0.05) following the use of the R40 instrument

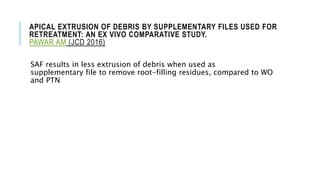

APICAL EXTRUSION OF DEBRIS BY SUPPLEMENTARY FILES USED FOR RETREATMENT: AN EX VIVO COMPARATIVE STUDY. PAWAR AM (JCD 2016) SAF results in less extrusion of debris when used as supplementary file to remove root-filling residues, compared to WO and PTN

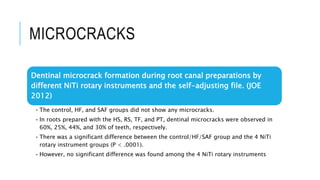

MICROCRACKS Dentinal microcrack formation during root canal preparations by different NiTi rotary instruments and the self-adjusting file. (JOE 2012) • The control, HF, and SAF groups did not show any microcracks. • In roots prepared with the HS, RS, TF, and PT, dentinal microcracks were observed in 60%, 25%, 44%, and 30% of teeth, respectively. • There was a significant difference between the control/HF/SAF group and the 4 NiTi rotary instrument groups (P < .0001). • However, no significant difference was found among the 4 NiTi rotary instruments

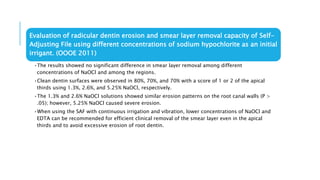

Evaluation of radicular dentin erosion and smear layer removal capacity of Self- Adjusting File using different concentrations of sodium hypochlorite as an initial irrigant. (OOOE 2011) •The results showed no significant difference in smear layer removal among different concentrations of NaOCl and among the regions. •Clean dentin surfaces were observed in 80%, 70%, and 70% with a score of 1 or 2 of the apical thirds using 1.3%, 2.6%, and 5.25% NaOCl, respectively. •The 1.3% and 2.6% NaOCl solutions showed similar erosion patterns on the root canal walls (P > .05); however, 5.25% NaOCl caused severe erosion. •When using the SAF with continuous irrigation and vibration, lower concentrations of NaOCl and EDTA can be recommended for efficient clinical removal of the smear layer even in the apical thirds and to avoid excessive erosion of root dentin.

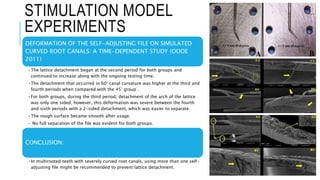

STIMULATION MODEL EXPERIMENTS DEFORMATION OF THE SELF-ADJUSTING FILE ON SIMULATED CURVED ROOT CANALS: A TIME-DEPENDENT STUDY (OOOE 2011) •The lattice detachment began at the second period for both groups and continued to increase along with the ongoing testing time. •The detachment that occurred in 60° canal curvature was higher at the third and fourth periods when compared with the 45° group . •For both groups, during the third period, detachment of the arch of the lattice was only one sided; however, this deformation was severe between the fourth and sixth periods with a 2-sided detachment, which was easier to separate. •The rough surface became smooth after usage. • No full separation of the file was evident for both groups. CONCLUSION: •In multirooted teeth with severely curved root canals, using more than one self- adjusting file might be recommended to prevent lattice detachment.

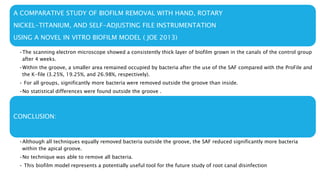

A COMPARATIVE STUDY OF BIOFILM REMOVAL WITH HAND, ROTARY NICKEL-TITANIUM, AND SELF-ADJUSTING FILE INSTRUMENTATION USING A NOVEL IN VITRO BIOFILM MODEL ( JOE 2013) •The scanning electron microscope showed a consistently thick layer of biofilm grown in the canals of the control group after 4 weeks. •Within the groove, a smaller area remained occupied by bacteria after the use of the SAF compared with the ProFile and the K-file (3.25%, 19.25%, and 26.98%, respectively). • For all groups, significantly more bacteria were removed outside the groove than inside. •No statistical differences were found outside the groove . CONCLUSION: •Although all techniques equally removed bacteria outside the groove, the SAF reduced significantly more bacteria within the apical groove. •No technique was able to remove all bacteria. • This biofilm model represents a potentially useful tool for the future study of root canal disinfection

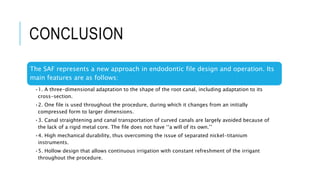

CONCLUSION The SAF represents a new approach in endodontic file design and operation. Its main features are as follows: •1. A three-dimensional adaptation to the shape of the root canal, including adaptation to its cross-section. •2. One file is used throughout the procedure, during which it changes from an initially compressed form to larger dimensions. •3. Canal straightening and canal transportation of curved canals are largely avoided because of the lack of a rigid metal core. The file does not have ‘‘a will of its own.’’ •4. High mechanical durability, thus overcoming the issue of separated nickel-titanium instruments. •5. Hollow design that allows continuous irrigation with constant refreshment of the irrigant throughout the procedure.

More Related Content

PPTX
Custom made post & Core in endodontics
byDr. Arpit Viradiya

PPTX
Anatomy of root apex and its significance new
byDilu Davis

PPTX
rotary instruments in endodontics
byGurmeen Kaur

PPTX
Ultrasonics in endodontics
byDeepesh Mehta

PPTX
Minimal Invasive Endodontics
byREVATHY M NAIR

PPTX
Cast post - Restoration of endodontically treated teeth
byYogha Padhma Asokan

PPTX
Ultrasonics in endodontics
byDr. Arpit Viradiya

PPTX
Canal curvatures and determination method final
byPeople's Dental Academy and Research Center

Custom made post & Core in endodontics
byDr. Arpit Viradiya

Anatomy of root apex and its significance new
byDilu Davis

rotary instruments in endodontics
byGurmeen Kaur

Ultrasonics in endodontics
byDeepesh Mehta

Minimal Invasive Endodontics
byREVATHY M NAIR

Cast post - Restoration of endodontically treated teeth
byYogha Padhma Asokan

Ultrasonics in endodontics
byDr. Arpit Viradiya

Canal curvatures and determination method final
byPeople's Dental Academy and Research Center


What's hot

PPTX
Root canal sealers
byibrahimaziz15

PPTX
Apex and its significance in endodontics
byRockyJohn6

PDF
Open apex & its Management
byDr.Sachin Sunny Otta

PPTX
Pulpal response to various dental procedures restorative materials
byDr Nagarajan

PPTX
Pain control in endodontics
byvipul arora

PPT
Management of open apex
byMrinaliniDr

PPTX
Irrigation in endodontics
byAshish Choudhary

PPTX
Rotary Endodontic Instruments
byDr. Sahana Umesh

PDF
Impression techniques
byDr. Meenal Atharkar

PPTX
Endodontic irrigants
byPraveena Veena

PPTX
Minimally invasive endodontics
byNivedha Tina

PPTX
Single visit endodontics
byHIMANI THAWALE

PPTX
LASERS IN ENDODONTICS
byRITIKAMUNDHRA4

PPTX
bioceramic sealers in restorative dentistry
byAjuAnto

PPTX
Cbct in endodontics ppt
byDr kausar banu

PPTX
gingival tissue management
byDr. Saurav Paul

PPTX
Indirect composite restorations
byDr ATHUL CHANDRA.M

PPTX
Endodontic microbiology
byPeople's Dental Academy and Research Center

PPTX
PARTIAL BONDED RESTORATIONS AND IT’S ADHESION.pptx
byPranitaGandhi2

PPT
Endodontic irrigation
byMohammed Alazrag

Root canal sealers
byibrahimaziz15

Apex and its significance in endodontics
byRockyJohn6

Open apex & its Management
byDr.Sachin Sunny Otta

Pulpal response to various dental procedures restorative materials
byDr Nagarajan

Pain control in endodontics
byvipul arora

Management of open apex
byMrinaliniDr

Irrigation in endodontics
byAshish Choudhary

Rotary Endodontic Instruments
byDr. Sahana Umesh

Impression techniques
byDr. Meenal Atharkar

Endodontic irrigants
byPraveena Veena

Minimally invasive endodontics
byNivedha Tina

Single visit endodontics
byHIMANI THAWALE

LASERS IN ENDODONTICS
byRITIKAMUNDHRA4

bioceramic sealers in restorative dentistry
byAjuAnto

Cbct in endodontics ppt
byDr kausar banu

gingival tissue management
byDr. Saurav Paul

Indirect composite restorations
byDr ATHUL CHANDRA.M

Endodontic microbiology
byPeople's Dental Academy and Research Center

PARTIAL BONDED RESTORATIONS AND IT’S ADHESION.pptx
byPranitaGandhi2

Endodontic irrigation
byMohammed Alazrag


Viewers also liked

PDF
Flat-oval root canal preparation with Self-Adjusting File instrument: a micro...
byProf Dr. Marco Versiani

PPT
Self-Adjusting File: SAF
byProf Dr. Marco Versiani

PPTX
Ozone therapy in dentistry
byDr.Rahul Tiwari

PPTX
Dr. Ragi Endodontic Emergencies and Management
byRagi Al-emam

PPT
Endodontic Emergencies
byshabeel pn

PPTX
Endodontic emergencies
byDr. Arpit Viradiya

PPTX
Self adjusting file
byAhmed Al-obaidi

Flat-oval root canal preparation with Self-Adjusting File instrument: a micro...
byProf Dr. Marco Versiani

Self-Adjusting File: SAF
byProf Dr. Marco Versiani

Ozone therapy in dentistry
byDr.Rahul Tiwari

Dr. Ragi Endodontic Emergencies and Management
byRagi Al-emam

Endodontic Emergencies
byshabeel pn

Endodontic emergencies
byDr. Arpit Viradiya

Self adjusting file
byAhmed Al-obaidi


Similar to Self adjusting file

PPTX
Introduction of saf system
byozairerfan

PPTX
journal club -article
byDr ATHUL CHANDRA.M

PPT
Saf overview
byshvecht

PPTX
Rotary Instruments in Pediatric Endodontics.pptx
by4ffz689ppt

PPTX
RotaryDiastema closurefgfdrffygff 1.pptx
byAbdullmalikAlhamati

PPTX
RotaryDefining relative clausegsv 1.pptx
byAbdullmalikAlhamati

PPT
Rotary endodontic system, protaper feachers and techniques
byRizgar Saeed

PPTX
Instrumentation techniques
byHamza Tahir

PPTX
Rotary Endodontics in Primary and Permanent Teeth
byDr. Mukesh Kumar Dey

PPTX
CLEANING & SHAPING Rabin cons.pptx
byRabin Panthee

PPTX
BIO MECHANICAL PREPARATION IN ROOT CANAL TREATMENT.pptx
byArchanaPai6

PDF
Rotary Nickel-Titanium-2. Instruments for Endodontics treatment
byqhsh9nx9yj

PPTX
HyFlex rotary files in endodontics. .pptx
byVinamraArora1

PPTX
The self adjusting file system / Dr.sarah alkhateeb
byDr.Sarah Al-khateeb

PPTX
cleaning and shaping of root canal space.pptx
bybev1727

PDF
Lec-6-2021.pdf. ,,,,,dentistry endodontic.
byAboAmjed1

PPTX
cleaning and shaping.pptx important for dental students
bydrprachichaturvedi

PDF
Rotary Universal ProTaper File
byDepartment of Conservative Dentistry, College of Dentistry, Mustansiriyah University

PPTX
Manual_vs_Rotary_Instrumentation_Primary_Teeth 8th seminar.pptx
byThoiSingh1

PPTX
Rotary endodontics.pptxRotary endodontics
byjames365641

Introduction of saf system
byozairerfan

journal club -article
byDr ATHUL CHANDRA.M

Saf overview
byshvecht

Rotary Instruments in Pediatric Endodontics.pptx
by4ffz689ppt

RotaryDiastema closurefgfdrffygff 1.pptx
byAbdullmalikAlhamati

RotaryDefining relative clausegsv 1.pptx
byAbdullmalikAlhamati

Rotary endodontic system, protaper feachers and techniques
byRizgar Saeed

Instrumentation techniques
byHamza Tahir

Rotary Endodontics in Primary and Permanent Teeth
byDr. Mukesh Kumar Dey

CLEANING & SHAPING Rabin cons.pptx
byRabin Panthee

BIO MECHANICAL PREPARATION IN ROOT CANAL TREATMENT.pptx
byArchanaPai6

Rotary Nickel-Titanium-2. Instruments for Endodontics treatment
byqhsh9nx9yj

HyFlex rotary files in endodontics. .pptx
byVinamraArora1

The self adjusting file system / Dr.sarah alkhateeb
byDr.Sarah Al-khateeb

cleaning and shaping of root canal space.pptx
bybev1727

Lec-6-2021.pdf. ,,,,,dentistry endodontic.
byAboAmjed1

cleaning and shaping.pptx important for dental students
bydrprachichaturvedi

Rotary Universal ProTaper File
byDepartment of Conservative Dentistry, College of Dentistry, Mustansiriyah University

Manual_vs_Rotary_Instrumentation_Primary_Teeth 8th seminar.pptx
byThoiSingh1

Rotary endodontics.pptxRotary endodontics
byjames365641


Recently uploaded

PPTX
BILIARY TREE RADIOLOGY ADVANCE IMAGING (USG, CT SCAN, MRI AND ERCP) OF ITS AN...
byjuryshira

PDF
Key Steps to Success With CDK4/6 Inhibition in Early Through Metastatic Breas...
byPVI, PeerView Institute for Medical Education

PPTX
Nervous System: Organization & Functions
byBALAJI SOMA

PDF
From Classification to Collaboration: Applying the International Classificati...
byOlaf Kraus de Camargo

PPTX
Malignant focal liver lesions: A Radiologist's Perspective
byDr. Aryan (Anish Dhakal)

PPTX
anatomy and physiology of brain and its parts
byAsian Institute of medical and management science

PPTX
Chemistry of Hemoglobin (Types, Derivatives and Disorders)
byDr. Santhosh Kumar. N

PPTX
Amyloidosis - MBBS (Pathology)
byReenaz Shaik

PPTX
Biotransformation and Excretion
byBadrinathSelvakumar

PPTX
Methods of analysis for beer and vinegar.pptx
byRutvik Parikh

PPTX
Lumbar Facet Joint Pain – A Pain Generator Based Diagnostic & Treatment Approach
byDaradia: The Pain Clinic

PPTX
Evaluation of Back Pain: Clinical Identification of Pain Generators (Disc, Fa...
byDaradia: The Pain Clinic

PDF
Neuro and Radiant oncology and anaesthesia considerations
bycatlist1

PPTX
FREE RADICALS CHAIN REACTIONS OF ALKANE poc pharm d
byroussosps

PDF
4_5857478915135641976.pdf physiology of menstruation
bykdabhdhkryat94

PPTX
Vitamin Deficiency- Vitamin A, C, D (MBBS)
byReenaz Shaik

PPTX
Lungs & Respiratory System (RIT): Mechanics of Breathing and Gas Exchange Exp...
byBALAJI SOMA

PPTX
Sacroiliac Joint Pain: Clinical Diagnosis, Provocation Tests, and SI Joint Bl...
byDaradia: The Pain Clinic

PPTX
MEDIATORS OF INFLAMMATION - MBBS
byReenaz Shaik

PDF
KNEE JOINT -Prof.Dr.N.Mugunthan, KMMC Medical College & Hospitals.pdf
byKanyakumari Medical Mission Research Center, Muttom

BILIARY TREE RADIOLOGY ADVANCE IMAGING (USG, CT SCAN, MRI AND ERCP) OF ITS AN...
byjuryshira

Key Steps to Success With CDK4/6 Inhibition in Early Through Metastatic Breas...
byPVI, PeerView Institute for Medical Education

Nervous System: Organization & Functions
byBALAJI SOMA

From Classification to Collaboration: Applying the International Classificati...
byOlaf Kraus de Camargo

Malignant focal liver lesions: A Radiologist's Perspective
byDr. Aryan (Anish Dhakal)

anatomy and physiology of brain and its parts
byAsian Institute of medical and management science

Chemistry of Hemoglobin (Types, Derivatives and Disorders)
byDr. Santhosh Kumar. N

Amyloidosis - MBBS (Pathology)
byReenaz Shaik

Biotransformation and Excretion
byBadrinathSelvakumar

Methods of analysis for beer and vinegar.pptx
byRutvik Parikh

Lumbar Facet Joint Pain – A Pain Generator Based Diagnostic & Treatment Approach
byDaradia: The Pain Clinic

Evaluation of Back Pain: Clinical Identification of Pain Generators (Disc, Fa...
byDaradia: The Pain Clinic

Neuro and Radiant oncology and anaesthesia considerations
bycatlist1

FREE RADICALS CHAIN REACTIONS OF ALKANE poc pharm d
byroussosps

4_5857478915135641976.pdf physiology of menstruation
bykdabhdhkryat94

Vitamin Deficiency- Vitamin A, C, D (MBBS)
byReenaz Shaik

Lungs & Respiratory System (RIT): Mechanics of Breathing and Gas Exchange Exp...
byBALAJI SOMA

Sacroiliac Joint Pain: Clinical Diagnosis, Provocation Tests, and SI Joint Bl...
byDaradia: The Pain Clinic

MEDIATORS OF INFLAMMATION - MBBS
byReenaz Shaik

KNEE JOINT -Prof.Dr.N.Mugunthan, KMMC Medical College & Hospitals.pdf
byKanyakumari Medical Mission Research Center, Muttom


Self adjusting file

  • 1.
  • 2.
    SYNOPSIS INTRODUCTION NICKEL - TITANIUMROTARY INSTRUMENTS SELF ADJUSTING FILE DESIGN AND OPERATION MECHANICAL ANALYSIS OF SAF CHALLENGES: CURVED AND NON – ROUND CANALS BACTERIOLOGIC CONSIDERATIONS REMOVAL OF SMEAR LAYER IN THE APICAL PART OF THE CANAL HISTOLOGIC CONSIDERATIONS ROOT CANAL OBTURATION OF SAF PREPARED ROOT CANALS CONCLUSION
  • 3.
    INTRODUCTION The cleaning andshaping of the root canal system is an important objective of root canal treatment. - Baugh et al 2005 - Bartha et al 2006  Original root canal path should be maintained and the root canal wall dentin should be cut circumferentially so that prepared root canal wall outline reflects the original outline. - Baugh et al 2005  The goal of instrumentation is to provide a continuously tapered preparation that maintains original root canal anatomy, keeping the foramen without any ledge and transportation from the original canal curvature. - Carvalho et al 1999 - Matwychuk et al 2007
  • 4.
    Variety of instrumentsare available for the root canal instrumentation. For many years, hand files are the most commonly used for endodontic instruments. - Walton et al 1996 Traditionally, this group of instruments has been manufactured from stainless steel and comprises two basic designs, the k-type instruments (k- files and k-reamers) and the hedstrom file . - walton et al 1996 - Wein et al 1996 Although almost all these instruments were designed between many years ago, important changes have introduced in recent years with regard to their quality, efficacy, and standardization . - Leif et al 2003  Nickel-titanium instruments for manuel and rotary use have been developed during the last decade - Yoshmine et al 2005
  • 5.
    However, the cleaning,shaping, and disinfection of canals that are flat and oval-shaped in cross-section, as well as curved canals, represent a significant clinical challenge to endodontic treatment. These canal configurations represent about 25%- 50% of root canal systems. - wu M-K et al 2003 Many enhancements have resulted in better cleaning and shaping, but investigations using digital subtraction micro-CT and microbiologic assessments have shown our ineffectiveness to adapt to the true cross- sectional shape of all but the most round root canals, leaving almost half of the canal walls untouched by endodontic instruments. - peters et al 2011 Until the recent introduction of “adaptive” cleaning/shaping instrument technology, the basic tenets of endodontic treatment have been unattainable.
  • 6.
    NICKEL – TITANIUMROTARY INSTRUMENTS Since the early 1990s, several endodontic instrument systems manufactured from nickel titanium have been introduced into endodontic clinic practice. The specific design characteristics vary, such as tip sizing, taper, cross section, helix angle, and pitch.  To date, several devices and methods have been used to perform endodontic treatment. The specific design characteristics vary, such as tip sizing, taper, helix angle, cross section and pitch.
  • 7.
    In flat ovalroot canals ,rotary file system may be difficult to instrument the entire wall of oval canals and often fail to adequately clean and shape the canal. The self adjusting files which a new concept in cleaning and shaping was developed to overcome the inherent remaining problems of the nickel titanium instruments.
  • 8.
    SELF ADJUSTING FILEDESIGN AND OPERATION Self adjusting file which is a hollow file designed is a novel system among the nickel titanium files operating in a different manner. It adapts itself to the canal original anatomy and shape ,longitudinally to a curved canal as will all rotary nickel titanium files especially adapts itself to the cross section of the canal providing a 3D adaptation . SAF is a hollow file designed as a compressible ,thin walled pointed cylinder either 1.5 or 2.0 mm in diameter composed of 120 micro meter thick nickel titanium lattice composed of a thin derivate of nickel titanium lattice with high torsional and fatigue resistance.
  • 9.
    The 1.5 mmand 2.0 mm files may easily be compressed to the extent of being inserted into canal previously prepared or negotiated with a #20 k-file and #30 k file. The lattice surface is slightly abrasive and it allows removing dentin with back and forth grinding motion The file attempts to regain its original form and it continues to apply aperpetual delicate pressure on the root canals. Its operated with vertical vibrating handpieces with 3000 – 5000 vibrations/min with 0.4 mm amplitude .
  • 10.
    The hollow designallows for continuous irrigation throughout the procedure . The irrigation I performed continuously during the procedure using a VATEA irrigation unit where its attached by a silicon tube to the irrigation hub on the shaft of the file and it provides low pressure irrigation at a flow rate of 1-10 ml/min. The SAF is operated in 2 cycles of 2 minutes each for a total of 4 minutes per canal. The procedure is reported to remove a uniform dentin layer 60 to 75 mm thick from root canal circumference .
  • 11.
    Irrigation protocol •First 2min – sodium hypochlorite 3% at 5ml/min •Next 2min – EDTA 17% 5ml/min •Last 0.5 min – EDTA 17% without vibration i.e manual agitation •Final rinse – sodium hypochlorite 3% ,5ml to remove the excess EDTA •SAF file is extremely durable. According to ADA, SAF can be rotated for more than 150 hours at 900 rpm with a 5-mm deflection with no mechanical failure.
  • 12.
    MECHANICAL ANALYSIS OFSAF Compressibility of the SAF force applied as a •result of compression, •surface roughness, •abrasivity test, •durability (torque test, •ADA cyclic fatigue test, •free buckling fatigue test, •functional fatigue-to failuretest),
  • 15.
    RESULTS OF EXPERIMENTALTESTS Compressibility of the SAF •The apical 2 mm of the file could be compressed into a 0.25-mm hole. •The compressible diameter gradually increased in size, with its compressed dimensions comparable to those of an ISO #20 file Force applied as a result of compression •SAF files inserted into channels of smaller dimensions applied higher forces in response . • In a channel with a 0.25-mm diameter, a force of 300 g was recorded. •With increasing diameter of the canal, the force declined; at a canal diameter of 0.5 mm, it was only 150 g. Surface roughness •2.8micro meter +/ -10%. Abrasive test •Most of the dentin removal occurred within the first 2 minutes of operation (3+/-0.02 ISO sizes), with a slower removal of dentin thereafter for a total of 3.5 +/- 0.01 ISO sizes by the end of 4 minutes.
  • 16.
    Durability •Torque test: •the SAFcould be turned 7 x 360deg before separation. •The SAF’s torque durability was 29.7 +/- 3.2 g/cm. •Free buckling fatigue test: •The SAF files endured 600,500 (+/- 15,800) buckling cycles before •the first sign of mechanical failure appeared. •This is equivalent to approx. 120 minutes of operation at 5,000 vibrations per minute. •Functional fatigue to failure test •When tested in standardized conditions, the first mechanical fatigue failure was detected after 29.1 (+/- 1.2) minutes . •A typical failure was detachment of one of the arches at one of its connection points to the longitudinal beams . • Rarely did a strut or a longitudinal beam detachment occur. • In no case was there a full separation of the SAF file. SAF degradation as a function of W/T •Prolonged use gives less efficiency •No extrusion of irrigants seen.
  • 17.
    The SAF filemay be elastically compressed considerably from a diameter of 1.5 mm to dimensions resembling those of an ISO # 20 K-file because of the special design of the file. The SAF file creates circumferential force when initially compressed. The rough surface, combined with the force and the in-and out vibrational mechanism, allows for the removal of dentin by filing. The circumferential force and the ability to remove dentin decreases as the diameter of the canal enlarges. If the file is reused, the ability to remove dentin declines. The SAF file is mechanically durable for continuous operation for 29 minutes. SAF application does not push the irrigant beyond the apical foramen.
  • 18.
    STRESS GENERATION DURINGSELF-ADJUSTING FILE MOVEMENT: MINIMALLY INVASIVE INSTRUMENTATION (JOE 2013) •The SAF induced the lowest von Mises stress concentration and the lowest tensile principal stress component in root dentin. •The calculated stress values from ProTaper Universal F1 and ProFile #20/.06 were approximately 8 to 10 times bigger than that of the SAF. CONCLUSION: •Stress levels during shaping and the susceptibility to apical root cracks after shaping vary with instrument design. •The design of the SAF may produce minimal stress concentrations in the apical root dentin during shaping of the curved canal, which may increase the chance of preservation of root dentin integrity with a reduced risk of dentinal defects and apical root cracking.
  • 21.
    Eight Months ofClinical Experience with the Self-Adjusting File System -Michael Solomonov (JOE 2011) • One may then advance to clinical use in 10 incisors and then 10 premolars, and only then should the newly gained skills be applied to molar endodontics.
  • 22.
    Flat-oval root canalpreparation with self-adjusting file instrument: a micro-computed tomography study. Versiani et al (JOE 2011) • In the coronal third, mean increases of area and volume of the canal as well as the percentage of prepared walls were significantly higher with SAF than with rotary instrumentation. • By using SAF instruments, flat-oval canals were homogenously and circumferentially prepared. • The size of the SAF preparation in the apical third of the canal was equivalent to those prepared with #40 rotary file with a 0.02 taper.
  • 23.
    BACTERIOLOGIC CONSIDERATION’S The ideal microbiologicalgoal of chemomechanical debridement is to completely eradicate intracanal bacterial populations and their toxins. Bacteria (e.g., E. faecalis) persisting after chemomechanical procedures at levels detectable by culture-dependent techniques have been shown to increase failing endodontic treatment outcomes. Therefore, the main effort should be to maximize root canal disinfection before obturation. Unfortunately, anatomic complexities may impede thorough root canal disinfection.
  • 24.
    In a recentinvestigation by Siqueira et al, 44 single-rooted teeth with oval root canals were analyzed in vitro after the main canal spaces were first contaminated with E. faecalis. •After the use of rotary files with syringe irrigation, 55% of the samples had positive bacterial cultures whereas those canals cleaned and shaped with SAF Endo System had only •20% positive canal cultures remaining, again reinforcing the efficacy of the SAF Endo System over rotary files. •If the area of dentine contacted is more with SAF which could result in an increased volume of infected dentine removed from the root canal walls. • Solomonov et al. 2012 • De Melo Ribeiro et al. 2013 •This infected dentine is suspended in the irrigant thus increasing the quantum of planktonic bacteria.
  • 25.
    BASED ON POSTOPERATIVEPAIN POST INSTRUMENTATION PAIN AFTER THE USE OF EITHER MTWO OR THE SAF SYSTEM. A RANDOMIZED CONTROLLED CLINICAL TRIAL (IEJ 2016) •Teeth with pulpal necrosis had significant pain at 8 hours compared to teeth with vital pulps. •Teeth with vital pulps in the SAF group had significantly less post instrumentation pain compared to the Mtwo group at 6 hours. •Patients with teeth with non-vital pulps in the SAF group experienced more post-instrumentation pain at 8 hours and 24 hours .
  • 26.
    REMOVAL OF SMEARLAYER IN THE APICAL PART OF THE CANAL Besides causing potential peri radicular infection and inflammation, remaining soft-tissue remnants smeared together with inorganic debris in the canal will prevent adequate adaptation between the canal wall and root- canal obturation materials. The intimate adaptation of the SAF instrument to the canal walls and the continuous flow of irrigant, especially for oval and irregularly shaped canals, is the primary benefit of the SAF system. In a study Metzger (2010) to evaluate the removal of canal debris and smear layer with the SAF, single-rooted human teeth were evaluated using a scanning electron microscope (SEM). Similar to hand and rotary instrumentation, the SAF System produced a smear layer when using 3% sodium hypochlorite alone; but when alternated with the application of 17% EDTA, the canals were rendered virtually free of debris and smear layer, with the most pronounced benefit realized in the apical third of the root canal
  • 27.
    Supplementary Steps forRemoving Hard Tissue Debris from Isthmus-containing Canal Systems (Ali Keles JOE 2016) •In the experimental groups, the mean percentage reduction of AHTD ranged from 29.15%-39.90% after the irrigation protocols, with no statistical difference between groups
  • 28.
    HISTOLOGIC CONSIDERATIONS Infected dentin,soft tissue, and bacterial biofilm can cover an enormous portion of the inner surface of the root canal system and their removal can challenge even the most assiduous cleaning and disinfection protocol. It has been well documented that the assessment of canal morphology and the true extent of tissue removal and quality of obturation cannot be accomplished by evaluation of two dimensional bucco-lingual radiographic projections. Oval and flat-shaped canals occur in approximately 25% of teeth.
  • 29.
    In a recentinvestigation, De-Deus, et al (personal communication, 2011) histologically evaluated 12 pair-matched vital mandibular canines slated for extraction whereby the canal spaces were prepared with either the SAF System or rotary-file instrumentation. Only teeth with vital pulps and oval-shaped root canals were included. The SAF System was found to reduce the amount of remaining pulp tissue by 57% compared to conventional rotary files. In addition,21% of the rotary file prepared canals still contained pulp tissue remnants. The investigators concluded that sodium hypochlorite irrigant, applied with syringe and needle, failed to compensate for the inadequate cleaning by the file itself
  • 30.

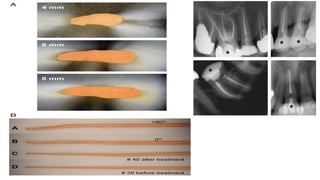

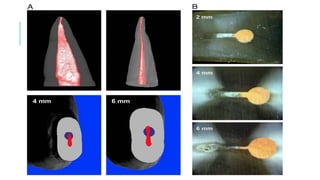

    ROOT CANAL OBTURATIONOF SAF PREPARED ROOT CANALS In a study METZGER 2010 comparing the obturation efficacy between canals cleaned and shaped with rotary files and the SAF system, lateral compaction of gutta percha cemented with AH26 was evaluated. The results revealed the SAF system allowed as much as 83% of the canal wall to have intimate contact with the obturation material compared to only 55% for rotary files. The efficacy of the Self-Adjusting File versus WaveOne in removal of root filling residue that remains in oval canals after the use of ProTaper retreatment files: A cone-beam computed tomography study. Pawar AM (JCD 2016) •When SAF was used after ProTaper retreatment files, significantly less root filling residue was left in the canals compared to when WaveOne was used.
  • 33.
    BASED ON PATENCYMAINTENANCE Patency process is reported to displace apical debris into the irrigating solution thus decreasing the chance of extruding debris apically. •Lambrianidis et at. 2001 •Vera et al. 2012. Arias et al. (2009) reported that apical patency has no influence on post-operative pain.
  • 34.
    BASED ON SAFFILE RETRIEVAL SELF-ADJUSTING FILE (SAF) SEPARATION IN CLINICAL USE: A PRELIMINARY SURVEY AMONG EXPERIENCED SAF USERS REGARDING PREVALENCE AND RETRIEVAL METHODS (JCD 2015) •A total of 2517 SAFs had been used by these operators, and 15 cases of file separation were reported (0.6%). •Twelve of these 15 separated files could be retrieved within a few minutes using Hedstrom files, with no additional dentine removal required. •In the three cases in which the separated files could not be retrieved, the separated file segment was successfully bypassed.
  • 35.
    BASED ON ENDOTOXINREDUCTION IN RETREATMENT CASES Influence of apical enlargement and complementary canal preparation with the Self-Adjusting File on endotoxin reduction in retreatment cases (IEJ 2016) •After root filling removal, endotoxin was detected in 100% of the root canals (S1, 4.84 EU mL 1). •CMP with the R25 file was able to significantly reduce endotoxin levels (P < 0.05). •Apical enlargement protocols were •effective in significantly reducing endotoxin levels. •Complementary preparation with the SAF system failed to eliminate residual endotoxin contents beyond those obtained with the R40 instrument. Increased levels of endotoxin removal were achieved by apical preparation with the R40 file (P < 0.05). •Complementary CMP with SAF did not significantly reduce endotoxin levels (P > 0.05) following the use of the R40 instrument
  • 36.
    APICAL EXTRUSION OFDEBRIS BY SUPPLEMENTARY FILES USED FOR RETREATMENT: AN EX VIVO COMPARATIVE STUDY. PAWAR AM (JCD 2016) SAF results in less extrusion of debris when used as supplementary file to remove root-filling residues, compared to WO and PTN
  • 37.
    MICROCRACKS Dentinal microcrack formationduring root canal preparations by different NiTi rotary instruments and the self-adjusting file. (JOE 2012) • The control, HF, and SAF groups did not show any microcracks. • In roots prepared with the HS, RS, TF, and PT, dentinal microcracks were observed in 60%, 25%, 44%, and 30% of teeth, respectively. • There was a significant difference between the control/HF/SAF group and the 4 NiTi rotary instrument groups (P < .0001). • However, no significant difference was found among the 4 NiTi rotary instruments
  • 38.
    Evaluation of radiculardentin erosion and smear layer removal capacity of Self- Adjusting File using different concentrations of sodium hypochlorite as an initial irrigant. (OOOE 2011) •The results showed no significant difference in smear layer removal among different concentrations of NaOCl and among the regions. •Clean dentin surfaces were observed in 80%, 70%, and 70% with a score of 1 or 2 of the apical thirds using 1.3%, 2.6%, and 5.25% NaOCl, respectively. •The 1.3% and 2.6% NaOCl solutions showed similar erosion patterns on the root canal walls (P > .05); however, 5.25% NaOCl caused severe erosion. •When using the SAF with continuous irrigation and vibration, lower concentrations of NaOCl and EDTA can be recommended for efficient clinical removal of the smear layer even in the apical thirds and to avoid excessive erosion of root dentin.
  • 39.
    STIMULATION MODEL EXPERIMENTS DEFORMATION OFTHE SELF-ADJUSTING FILE ON SIMULATED CURVED ROOT CANALS: A TIME-DEPENDENT STUDY (OOOE 2011) •The lattice detachment began at the second period for both groups and continued to increase along with the ongoing testing time. •The detachment that occurred in 60° canal curvature was higher at the third and fourth periods when compared with the 45° group . •For both groups, during the third period, detachment of the arch of the lattice was only one sided; however, this deformation was severe between the fourth and sixth periods with a 2-sided detachment, which was easier to separate. •The rough surface became smooth after usage. • No full separation of the file was evident for both groups. CONCLUSION: •In multirooted teeth with severely curved root canals, using more than one self- adjusting file might be recommended to prevent lattice detachment.
  • 40.
    A COMPARATIVE STUDYOF BIOFILM REMOVAL WITH HAND, ROTARY NICKEL-TITANIUM, AND SELF-ADJUSTING FILE INSTRUMENTATION USING A NOVEL IN VITRO BIOFILM MODEL ( JOE 2013) •The scanning electron microscope showed a consistently thick layer of biofilm grown in the canals of the control group after 4 weeks. •Within the groove, a smaller area remained occupied by bacteria after the use of the SAF compared with the ProFile and the K-file (3.25%, 19.25%, and 26.98%, respectively). • For all groups, significantly more bacteria were removed outside the groove than inside. •No statistical differences were found outside the groove . CONCLUSION: •Although all techniques equally removed bacteria outside the groove, the SAF reduced significantly more bacteria within the apical groove. •No technique was able to remove all bacteria. • This biofilm model represents a potentially useful tool for the future study of root canal disinfection
  • 42.
    CONCLUSION The SAF representsa new approach in endodontic file design and operation. Its main features are as follows: •1. A three-dimensional adaptation to the shape of the root canal, including adaptation to its cross-section. •2. One file is used throughout the procedure, during which it changes from an initially compressed form to larger dimensions. •3. Canal straightening and canal transportation of curved canals are largely avoided because of the lack of a rigid metal core. The file does not have ‘‘a will of its own.’’ •4. High mechanical durability, thus overcoming the issue of separated nickel-titanium instruments. •5. Hollow design that allows continuous irrigation with constant refreshment of the irrigant throughout the procedure.
