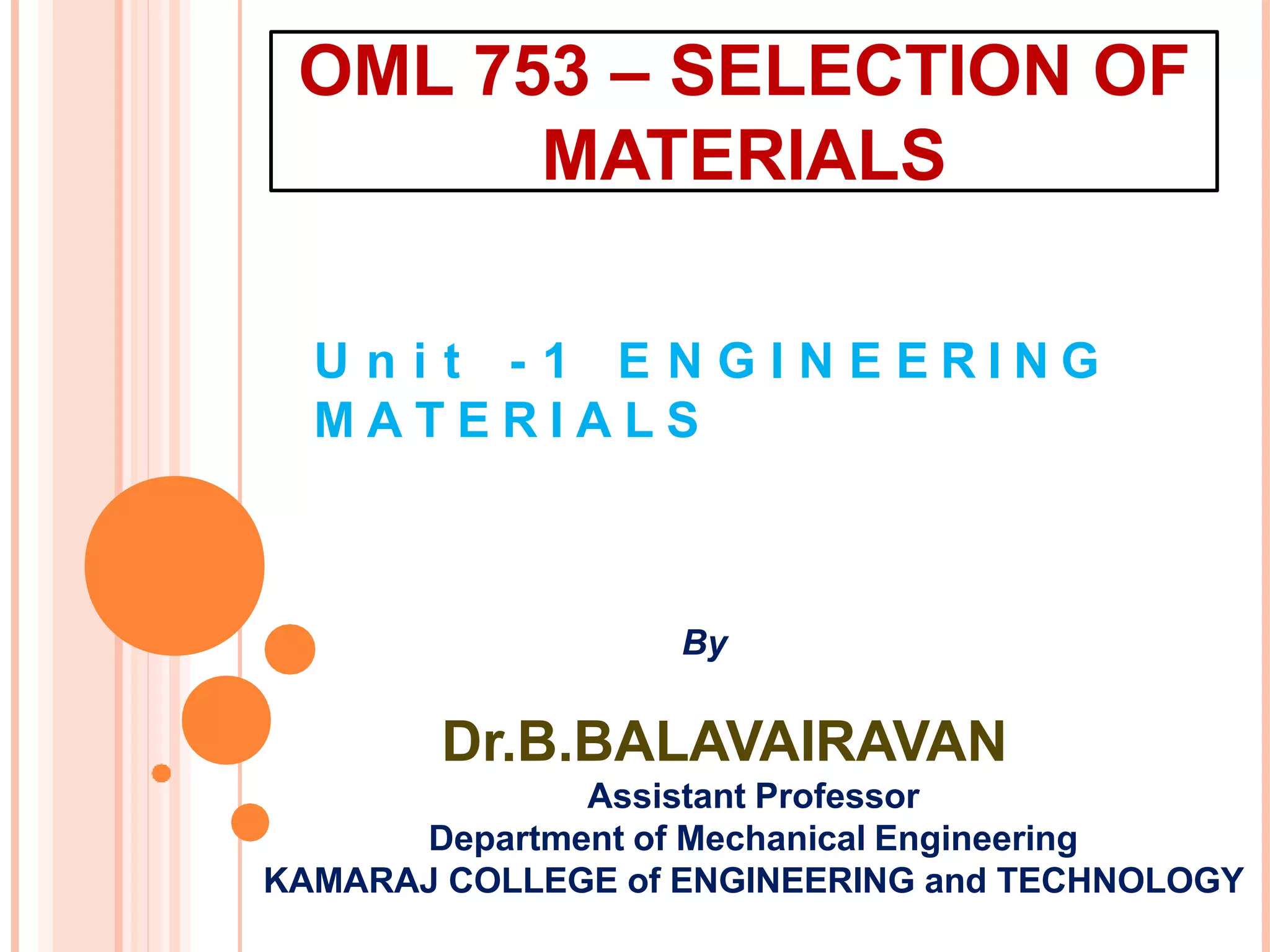

U n i t - 1 E N G I N E E R I N G
M A T E R I A L S
By
Dr.B.BALAVAIRAVAN
Assistant Professor
Department of Mechanical Engineering
KAMARAJ COLLEGE of ENGINEERING and TECHNOLOGY
OML 753 – SELECTION OF
MATERIALS

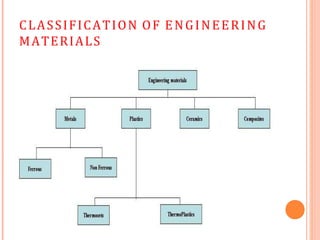

CLASSIFICATION OF ENGINEERING
MATERIALS
METALS AND NON-FERROUS METALS
❖ Common engineering materials are normally classified as
metals and nonmetals.
❖ Metals may conveniently be divided into ferrous and non-
ferrous metals. Important ferrous metals for the present
purpose are:
(i)cast iron
(ii) wrought iron
(iii)steel.
❖ Some of the important non-ferrous metals used in engineering
design are:
(a)Light metal group such as aluminum and its
alloys, magnesium and manganese alloys.
(b) Copper based alloys .
(c)White metal group such as nickel, silver,
bearing metals.
white
F E R R O U S MATERIALS
Cast iron-
It is an alloy of iron, carbon and silicon and it is hard
and brittle. Carbon content may be within 1.7% to 3%
and carbon may be present as free carbon (graphite) or
iron carbide Fe3C.
In general the types of cast iron are
(a)Grey cast iron
(b)White cast iron
(c)Malleable cast iron
(d)Spheroidal or nodular cast iron
(e)Austenitic cast iron
(f)Abrasion resistant cast iron.

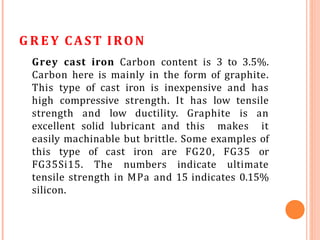

G R E Y CAST IRON
Grey cast iron Carbon content is 3 to 3.5%.
Carbon here is mainly in the form of graphite.
This type of cast iron is inexpensive and has
high compressive strength. It has low tensile
strength and low ductility. Graphite is an
excellent solid lubricant and this makes it
easily machinable but brittle. Some examples of
this type of cast iron are FG20, FG35 or
FG35Si15. The numbers indicate ultimate
tensile strength in MPa and 15 indicates 0.15%
silicon.
G R E Y CAST IRON
Applications:
Due to lubricating action
it is very suitable for
parts where sliding
action is desired. They
are machine tool bodies,
automotive cylinder
blocks, heads, housings,
fly-wheels, pipes and
pipe fittings and
agricultural implements.

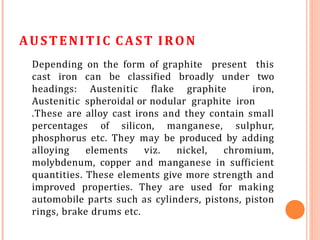

AUSTENITIC CAST IRON
Depending on the form of graphite present this
cast iron can be classified broadly under two
headings: Austenitic flake graphite iron,
Austenitic spheroidal or nodular graphite iron
.These are alloy cast irons and they contain small
percentages of silicon, manganese, sulphur,
phosphorus etc. They may be produced by adding
alloying elements viz. nickel, chromium,
molybdenum, copper and manganese in sufficient
quantities. These elements give more strength and
improved properties. They are used for making
automobile parts such as cylinders, pistons, piston
rings, brake drums etc.

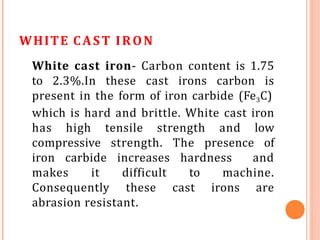

WHITE CAST IRON
White cast iron- Carbon content is 1.75
to 2.3%.In these cast irons carbon is
present in the form of iron carbide (Fe3C)
which is hard and brittle. White cast iron
has high tensile strength and low
compressive strength. The presence of
iron carbide increases hardness and
makes it difficult to machine.
Consequently these cast irons are
abrasion resistant.
WHITE CAST IRON
Applications:
Due to wear resisting
characteristics it is used
for car wheels, rolls for
crushing grains and jaw
crusher plates.

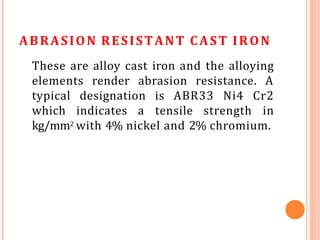

ABRASION RESISTANT CAST IRON
These are alloy cast iron and the alloying
elements render abrasion resistance. A
typical designation is ABR33 Ni4 Cr2
which indicates a tensile strength in
kg/mm2 with 4% nickel and 2% chromium.

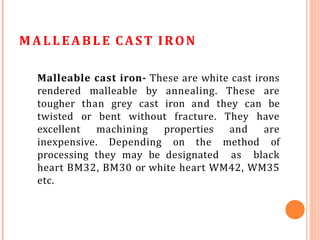

MALLEABLE CAST IRON
Malleable cast iron- These are white cast irons
rendered malleable by annealing. These are
tougher than grey cast iron and they can be
twisted or bent without fracture. They have
excellent machining properties and are
inexpensive. Depending on the method of
processing they may be designated as black
heart BM32, BM30 or white heart WM42, WM35
etc.

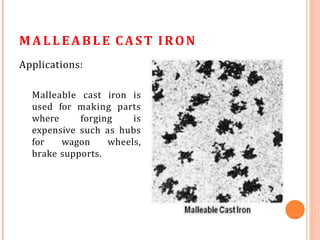

MALLEABLE CAST IRON
Applications:
Malleable cast iron is
used for making parts
where forging is
expensive such as hubs
for wagon wheels,
brake supports.

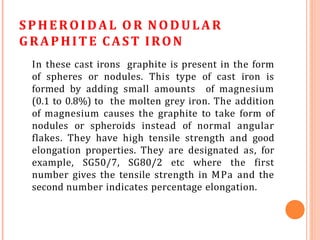

SPHEROIDAL OR NODULAR
GRAPHITE CAST IRON
In these cast irons graphite is present in the form
of spheres or nodules. This type of cast iron is
formed by adding small amounts of magnesium
(0.1 to 0.8%) to the molten grey iron. The addition
of magnesium causes the graphite to take form of
nodules or spheroids instead of normal angular
flakes. They have high tensile strength and good
elongation properties. They are designated as, for
example, SG50/7, SG80/2 etc where the first
number gives the tensile strength in MPa and the
second number indicates percentage elongation.
SPHEROIDAL OR NODULAR
GRAPHITE CAST IRON
Applications:
Nodular cast iron is
generally used for
casting requires shock
and impact resistance
along with good
machinability, such as
hydraulic cylinders,
cylinder heads rolls for
rolling mills and
cast
centrifugally
products.

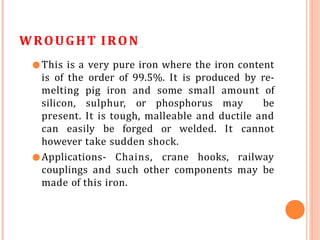

WROUGHT IRON
●This is a very pure iron where the iron content
is of the order of 99.5%. It is produced by re-
melting pig iron and some small amount of
silicon, sulphur, or phosphorus may be
present. It is tough, malleable and ductile and
can easily be forged or welded. It cannot
however take sudden shock.
●Applications- Chains, crane hooks, railway
couplings and such other components may be
made of this iron.
STEE L
This is by far the most important engineering
material and there is an enormous variety of
steel to meet the wide variety of engineering
requirements. Steel is basically an alloy of iron
and carbon in which the carbon content can be
less than 1.7% and carbon is present in the form
of iron carbide to impart hardness and strength.
Two main categories of steel are
(a)Plain carbon steel
(b)Alloy steel.

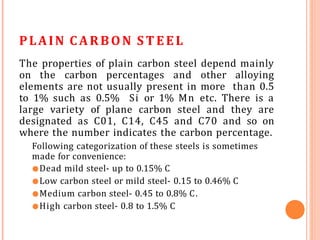

PLAIN CARBON ST EEL
The properties of plain carbon steel depend mainly
on the carbon percentages and other alloying
elements are not usually present in more than 0.5
to 1% such as 0.5% Si or 1% Mn etc. There is a
large variety of plane carbon steel and they are
designated as C01, C14, C45 and C70 and so on
where the number indicates the carbon percentage.
Following categorization of these steels is sometimes
made for convenience:
●Dead mild steel- up to 0.15% C
●Low carbon steel or mild steel- 0.15 to 0.46% C
●Medium carbon steel- 0.45 to 0.8% C.
●High carbon steel- 0.8 to 1.5% C

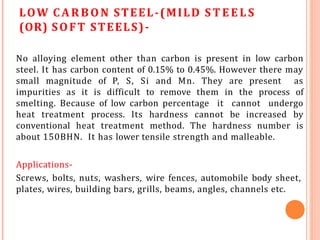

LOW CARBON STEEL-(MILD ST EELS
(OR) SOFT STEELS)-
No alloying element other than carbon is present in low carbon
steel. It has carbon content of 0.15% to 0.45%. However there may
small magnitude of P, S, Si and Mn. They are present as
impurities as it is difficult to remove them in the process of
smelting. Because of low carbon percentage it cannot undergo
heat treatment process. Its hardness cannot be increased by
conventional heat treatment method. The hardness number is
about 150BHN. It has lower tensile strength and malleable.
Applications-
Screws, bolts, nuts, washers, wire fences, automobile body sheet,
plates, wires, building bars, grills, beams, angles, channels etc.

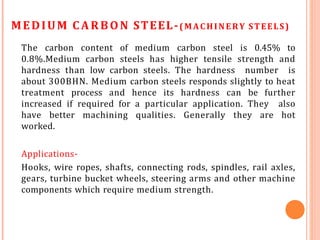

MEDIUM CARBON STEEL-(MACHINERY STEELS)
The carbon content of medium carbon steel is 0.45% to
0.8%.Medium carbon steels has higher tensile strength and
hardness than low carbon steels. The hardness number is
about 300BHN. Medium carbon steels responds slightly to heat
treatment process and hence its hardness can be further
increased if required for a particular application. They also
have better machining qualities. Generally they are hot
worked.
Applications-
Hooks, wire ropes, shafts, connecting rods, spindles, rail axles,
gears, turbine bucket wheels, steering arms and other machine
components which require medium strength.

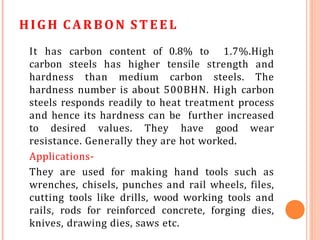

HIGH CARBON ST EEL
It has carbon content of 0.8% to 1.7%.High
carbon steels has higher tensile strength and
hardness than medium carbon steels. The
hardness number is about 500BHN. High carbon
steels responds readily to heat treatment process
and hence its hardness can be further increased
to desired values. They have good wear
resistance. Generally they are hot worked.
Applications-
They are used for making hand tools such as
wrenches, chisels, punches and rail wheels, files,
cutting tools like drills, wood working tools and
rails, rods for reinforced concrete, forging dies,
knives, drawing dies, saws etc.

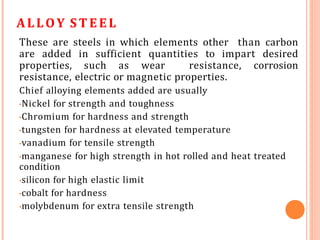

ALLOY ST EEL
These are steels in which elements other than carbon
are added in sufficient quantities to impart desired
properties, such as wear resistance, corrosion
resistance, electric or magnetic properties.
Chief alloying elements added are usually
•Nickel for strength and toughness
•Chromium for hardness and strength
•tungsten for hardness at elevated temperature
•vanadium for tensile strength
•manganese for high strength in hot rolled and heat treated
condition
•silicon for high elastic limit
•cobalt for hardness
•molybdenum for extra tensile strength
Stainless steel
is one such alloy steel that gives good corrosion
resistance. One important type of stainless steel is often
described as 18/8 steel where chromium and nickel
percentages are 18 and 8 respectively. A typical
designation of a stainless steel is 15Si2Mn2Cr18Ni8
where carbon percentage is 0.15.
High speed steel:
This steel contains 18% tungsten, 4% chromium and 1%
vanadium. It is considered as one of best of all purpose
tool steels. It is used widely for drills, lathe, planer and
shaper tools, milling cutters, reamers, broaches,
threading dies, punches etc.

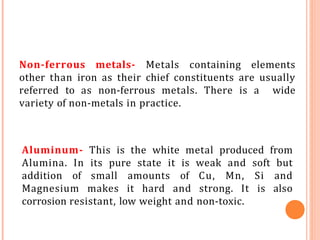

Non-ferrous metals- Metals containing elements
other than iron as their chief constituents are usually
referred to as non-ferrous metals. There is a wide
variety of non-metals in practice.
Aluminum- This is the white metal produced from
Alumina. In its pure state it is weak and soft but
addition of small amounts of Cu, Mn, Si and
Magnesium makes it hard and strong. It is also
corrosion resistant, low weight and non-toxic.

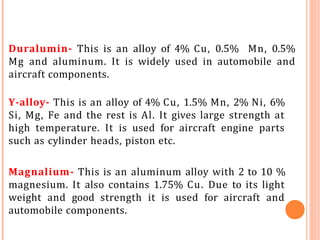

Duralumin- This is an alloy of 4% Cu, 0.5% Mn, 0.5%
Mg and aluminum. It is widely used in automobile and
aircraft components.
Y-alloy- This is an alloy of 4% Cu, 1.5% Mn, 2% Ni, 6%
Si, Mg, Fe and the rest is Al. It gives large strength at
high temperature. It is used for aircraft engine parts
such as cylinder heads, piston etc.
Magnalium- This is an aluminum alloy with 2 to 10 %
magnesium. It also contains 1.75% Cu. Due to its light
weight and good strength it is used for aircraft and
automobile components.

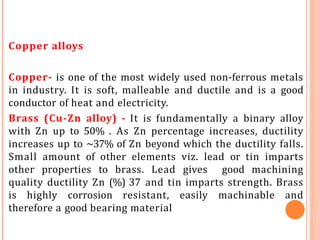

Copper alloys
Copper- is one of the most widely used non-ferrous metals
in industry. It is soft, malleable and ductile and is a good
conductor of heat and electricity.
Brass (Cu-Zn alloy) - It is fundamentally a binary alloy
with Zn up to 50% . As Zn percentage increases, ductility
increases up to ~37% of Zn beyond which the ductility falls.
Small amount of other elements viz. lead or tin imparts
other properties to brass. Lead gives good machining
quality ductility Zn (%) 37 and tin imparts strength. Brass
is highly corrosion resistant, easily machinable and
therefore a good bearing material

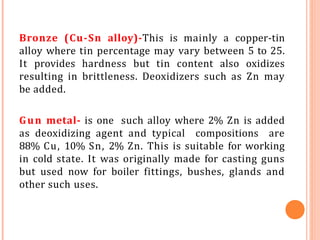

Bronze (Cu-Sn alloy)-This is mainly a copper-tin
alloy where tin percentage may vary between 5 to 25.
It provides hardness but tin content also oxidizes
resulting in brittleness. Deoxidizers such as Zn may
be added.
Gun metal- is one such alloy where 2% Zn is added
as deoxidizing agent and typical compositions are
88% Cu, 10% Sn, 2% Zn. This is suitable for working
in cold state. It was originally made for casting guns
but used now for boiler fittings, bushes, glands and
other such uses.
Non-metals- Non-metallic materials are also used in
engineering practice due to principally their low cost, flexibility
and resistance to heat and electricity. Though there are many
suitable non-metals, the following are important few from design
point of view:
Timber- This is a relatively low cost material and a bad
conductor of heat and electricity. It has also good elastic and
frictional properties and is widely used in foundry patterns and
as water lubricated bearings.
Leather- This is widely used in engineering for its flexibility
and wear resistance. It is widely used for belt drives, washers
and such other applications.
Rubber- It has high bulk modulus and is used for drive
elements, sealing, vibration isolation and similar applications.
Plastics are synthetic materials which can be moulded into
desired shapes under pressure with or without application of
heat. These are now extensively used in various industrial
applications for their corrosion resistance, dimensional stability
and relatively low cost.

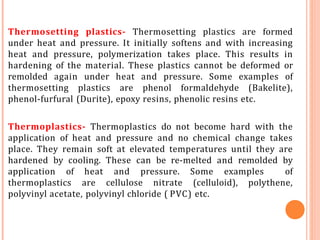

Thermosetting plastics- Thermosetting plastics are formed
under heat and pressure. It initially softens and with increasing
heat and pressure, polymerization takes place. This results in
hardening of the material. These plastics cannot be deformed or
remolded again under heat and pressure. Some examples of
thermosetting plastics are phenol formaldehyde (Bakelite),
phenol-furfural (Durite), epoxy resins, phenolic resins etc.
Thermoplastics- Thermoplastics do not become hard with the
application of heat and pressure and no chemical change takes
place. They remain soft at elevated temperatures until they are
hardened by cooling. These can be re-melted and remolded by
application of heat and pressure. Some examples of
thermoplastics are cellulose nitrate (celluloid), polythene,
polyvinyl acetate, polyvinyl chloride ( PVC) etc.

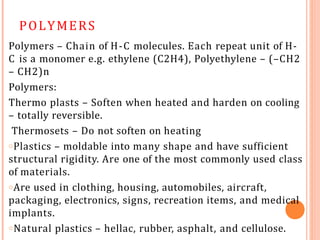

POLYMERS
Polymers – Chain of H-C molecules. Each repeat unit of H-
C is a monomer e.g. ethylene (C2H4), Polyethylene – (–CH2
– CH2)n
Polymers:
Thermo plasts – Soften when heated and harden on cooling
– totally reversible.
Thermosets – Do not soften on heating
oPlastics – moldable into many shape and have sufficient
structural rigidity. Are one of the most commonly used class
of materials.
oAre used in clothing, housing, automobiles, aircraft,
packaging, electronics, signs, recreation items, and medical
implants.
oNatural plastics – hellac, rubber, asphalt, and cellulose.

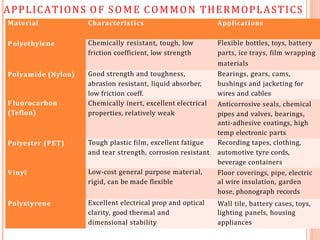

APPLICATIONS OF SOME COMMON THERMOPLASTICS
Material Characteristics Applications
Polyethylene Chemically resistant, tough, low Flexible bottles, toys, battery
friction coefficient, low strength parts, ice trays, film wrapping
materials
Polyamide (Nylon) Good strength and toughness,
abrasion resistant, liquid absorber,
low friction coeff.
Bearings, gears, cams,
bushings and jacketing for
wires and cables
F luorocarbon
(Teflon)
Chemically inert, excellent electrical
properties, relatively weak
Anticorrosive seals, chemical
pipes and valves, bearings,
anti-adhesive coatings, high
temp electronic parts
Polyester (PET) Tough plastic film, excellent fatigue
and tear strength, corrosion resistant
Recording tapes, clothing,
automotive tyre cords,
beverage containers
Vinyl Low-cost general purpose material,
rigid, can be made flexible
Floor coverings, pipe, electric
al wire insulation, garden
hose, phonograph records
Polystyrene Excellent electrical prop and optical
clarity, good thermal and
dimensional stability
Wall tile, battery cases, toys,
lighting panels, housing
appliances

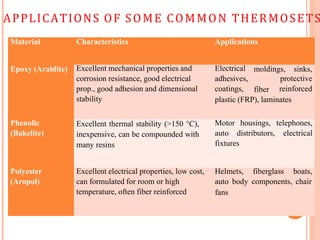

APPLICATIONS OF SOME COMMON THERMOSETS
Material Characteristics Applications
Epoxy (Araldite) Excellent mechanical properties and
corrosion resistance, good electrical
prop., good adhesion and dimensional
stability
moldings, sinks,
Electrical
adhesives,
coatings, fiber
protective
reinforced
plastic (FRP), laminates
Phenolic
(Bakelite)
Excellent thermal stability (>150 C),
inexpensive, can be compounded with
many resins
Motor housings, telephones,
auto distributors, electrical
fixtures
Polyester
(Aropol)
Excellent electrical properties, low cost,
can formulated for room or high
temperature, often fiber reinforced
Helmets, fiberglass boats,
auto body components, chair
fans
CERAM ICS
Ceramics Materials
•Refractory Materials
•Advanced Ceramics
• Abrasives
•Glass Ceramics

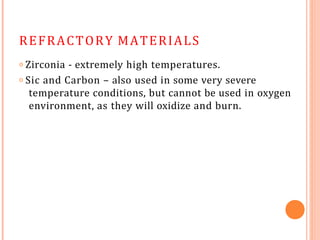

REFRACTORY MATERIALS
𝗈 Zirconia - extremely high temperatures.
𝗈 Sic and Carbon – also used in some very severe
temperature conditions, but cannot be used in oxygen
environment, as they will oxidize and burn.

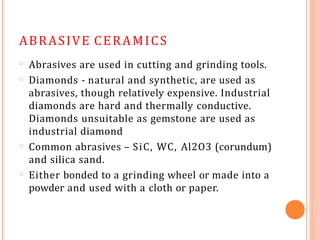

ABRASIVE CERAMICS
o
o
Abrasives are used in cutting and grinding tools.
Diamonds - natural and synthetic, are used as
abrasives, though relatively expensive. Industrial
diamonds are hard and thermally conductive.
Diamonds unsuitable as gemstone are used as
industrial diamond
Common abrasives – SiC, WC, Al2O3 (corundum)
and silica sand.
Either bonded to a grinding wheel or made into a
powder and used with a cloth or paper.
o
o

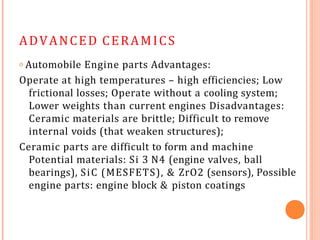

ADVANCED CERAMICS
𝗈 Automobile Engine parts Advantages:
Operate at high temperatures – high efficiencies; Low
frictional losses; Operate without a cooling system;
Lower weights than current engines Disadvantages:
Ceramic materials are brittle; Difficult to remove
internal voids (that weaken structures);
Ceramic parts are difficult to form and machine
Potential materials: Si 3 N4 (engine valves, ball
bearings), SiC (MESFETS), & ZrO2 (sensors), Possible
engine parts: engine block & piston coatings

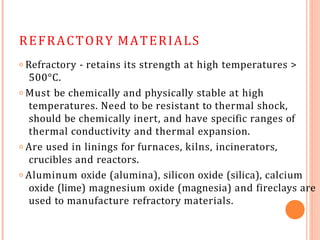

REFRACTORY MATERIALS
𝗈 Refractory - retains its strength at high temperatures >
500°C.
𝗈 Must be chemically and physically stable at high
temperatures. Need to be resistant to thermal shock,
should be chemically inert, and have specific ranges of
thermal conductivity and thermal expansion.
𝗈 Are used in linings for furnaces, kilns, incinerators,
crucibles and reactors.
𝗈 Aluminum oxide (alumina), silicon oxide (silica), calcium
oxide (lime) magnesium oxide (magnesia) and fireclays are
used to manufacture refractory materials.
COMPOSITES
A materials system composed of two or more
physically distinct phases whose combination
produces aggregate properties that are different from
those of its constituents
𝗈Examples:
● Cemented carbides (WC with Co binder)
● Plastic molding compounds containing fillers
● Rubber mixed with carbon black
● Wood (a natural composite as distinguished from a
synthesized composite)

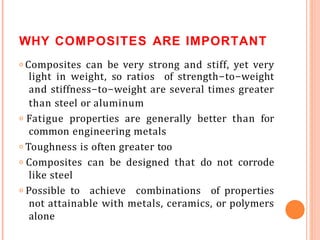

WHY COMPOSITES ARE IMPORTANT
𝗈 Composites can be very strong and stiff, yet very
light in weight, so ratios of strength-to-weight
and stiffness-to-weight are several times greater
than steel or aluminum
𝗈 Fatigue properties are generally better than for
common engineering metals
𝗈 Toughness is often greater too
𝗈 Composites can be designed that do not corrode
like steel
𝗈 Possible to achieve combinations of properties
not attainable with metals, ceramics, or polymers
alone

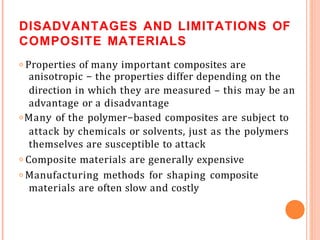

DISADVANTAGES AND LIMITATIONS OF
COMPOSITE MATERIALS
𝗈 Properties of many important composites are
anisotropic - the properties differ depending on the
direction in which they are measured – this may be an
advantage or a disadvantage
𝗈 Many of the polymer-based composites are subject to
attack by chemicals or solvents, just as the polymers
themselves are susceptible to attack
𝗈 Composite materials are generally expensive
𝗈 Manufacturing methods for shaping composite
materials are often slow and costly

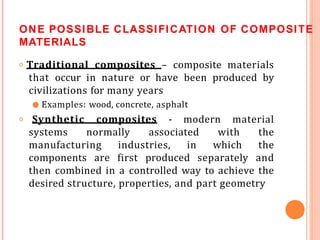

ONE POSSIBLE CLASSIFICATION OF COMPOSITE
MATERIALS
𝗈 Traditional composites – composite materials
that occur in nature or have been produced by
civilizations for many years
● Examples: wood, concrete, asphalt
𝗈 Synthetic composites - modern material
systems normally associated with the
manufacturing industries, in which the
components are first produced separately and
then combined in a controlled way to achieve the
desired structure, properties, and part geometry

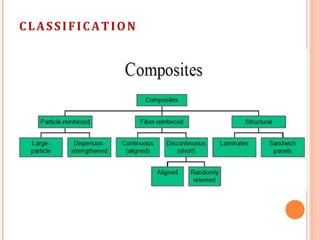

CLASSIFICATION

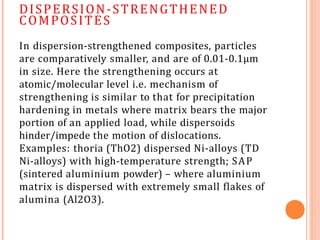

DISPERSION-STRENGTHENED
COMPOSITES
In dispersion-strengthened composites, particles
are comparatively smaller, and are of 0.01-0.1μm
in size. Here the strengthening occurs at
atomic/molecular level i.e. mechanism of
strengthening is similar to that for precipitation
hardening in metals where matrix bears the major
portion of an applied load, while dispersoids
hinder/impede the motion of dislocations.
Examples: thoria (ThO2) dispersed Ni-alloys (TD
Ni-alloys) with high-temperature strength; SAP
(sintered aluminium powder) – where aluminium
matrix is dispersed with extremely small flakes of
alumina (Al2O3).

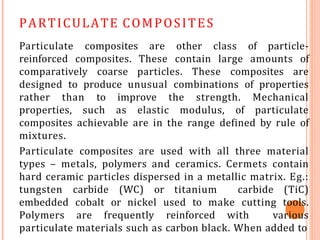

PARTICULATE COMPOSITES
Particulate composites are other class of particle-
reinforced composites. These contain large amounts of
comparatively coarse particles. These composites are
designed to produce unusual combinations of properties
rather than to improve the strength. Mechanical
properties, such as elastic modulus, of particulate
composites achievable are in the range defined by rule of
mixtures.
Particulate composites are used with all three material
types – metals, polymers and ceramics. Cermets contain
hard ceramic particles dispersed in a metallic matrix. Eg.:
tungsten carbide (WC) or titanium carbide (TiC)
embedded cobalt or nickel used to make cutting tools.
Polymers are frequently reinforced with various
particulate materials such as carbon black. When added to

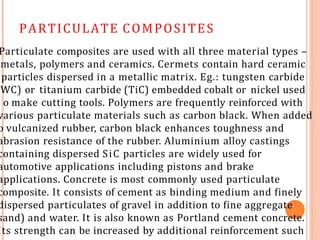

PARTICULATE COMPOSITES
Particulate composites are used with all three material types –
metals, polymers and ceramics. Cermets contain hard ceramic
particles dispersed in a metallic matrix. Eg.: tungsten carbide
WC) or titanium carbide (TiC) embedded cobalt or nickel used
o make cutting tools. Polymers are frequently reinforced with
various particulate materials such as carbon black. When added
o vulcanized rubber, carbon black enhances toughness and
abrasion resistance of the rubber. Aluminium alloy castings
containing dispersed SiC particles are widely used for
automotive applications including pistons and brake
applications. Concrete is most commonly used particulate
composite. It consists of cement as binding medium and finely
dispersed particulates of gravel in addition to fine aggregate
sand) and water. It is also known as Portland cement concrete.
Its strength can be increased by additional reinforcement such

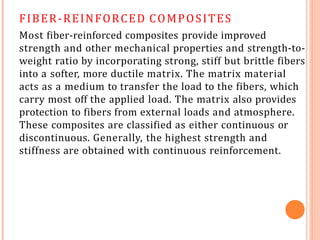

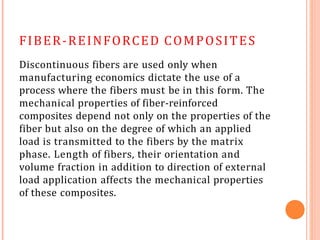

FIBER-REINFORCED COMPOSITES
Most fiber-reinforced composites provide improved
strength and other mechanical properties and strength-to-
weight ratio by incorporating strong, stiff but brittle fibers
into a softer, more ductile matrix. The matrix material
acts as a medium to transfer the load to the fibers, which
carry most off the applied load. The matrix also provides
protection to fibers from external loads and atmosphere.
These composites are classified as either continuous or
discontinuous. Generally, the highest strength and
stiffness are obtained with continuous reinforcement.
FIBER-REINFORCED COMPOSITES
Discontinuous fibers are used only when
manufacturing economics dictate the use of a
process where the fibers must be in this form. The
mechanical properties of fiber-reinforced
composites depend not only on the properties of the
fiber but also on the degree of which an applied
load is transmitted to the fibers by the matrix
phase. Length of fibers, their orientation and
volume fraction in addition to direction of external
load application affects the mechanical properties
of these composites.
Effect of fiber orientation and concentration: with
respect to orientation, two extremes possibilities
are – parallel alignment and random alignment.
Continuous fibers are normally aligned, whereas
discontinuous fibers are randomly or partially
orientated. Two instants of loading are:
longitudinal loading and transverse loading.

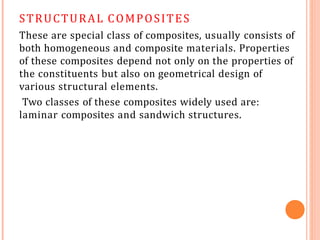

STRUCTURAL COMPOSITES
These are special class of composites, usually consists of
both homogeneous and composite materials. Properties
of these composites depend not only on the properties of
the constituents but also on geometrical design of
various structural elements.
Two classes of these composites widely used are:
laminar composites and sandwich structures.

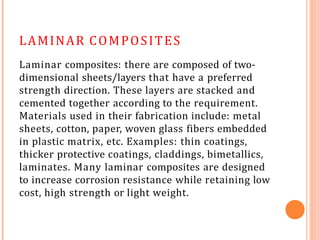

LAMINAR COMPOSITES
Laminar composites: there are composed of two-
dimensional sheets/layers that have a preferred
strength direction. These layers are stacked and
cemented together according to the requirement.
Materials used in their fabrication include: metal
sheets, cotton, paper, woven glass fibers embedded
in plastic matrix, etc. Examples: thin coatings,
thicker protective coatings, claddings, bimetallics,
laminates. Many laminar composites are designed
to increase corrosion resistance while retaining low
cost, high strength or light weight.
SANDWICH STRUCTURES
these consist of thin layers of a facing material joined to a
light weight filler material. Neither the filler material nor
the facing material is strong or rigid, but the composite
possesses both properties. Example: corrugated cardboard.
The faces bear most of the in-plane loading and also any
transverse bending stresses. Typical face materials
include Al-alloys, fiber-reinforced plastics, titanium, steel
and plywood. The core serves two functions – it separates
the faces and resists deformations perpendicular to the
face plane; provides a certain degree of shear rigidity
along planes that are perpendicular to the faces. Typical
materials for core are: foamed polymers, synthetic
rubbers, inorganic cements, balsa wood. Sandwich
structures are found in many applications like roofs,
floors, walls of buildings, and in aircraft for wings,
Selection of Materials  Engineering Materials.pptx

More Related Content

What's hot

Engineering materials
Engineering materialsEngineering materials
Engineering materials
Nishant Khatod

Arc welding types( carbon,TIG &MIG )
Arc welding types( carbon,TIG &MIG )Arc welding types( carbon,TIG &MIG )
Arc welding types( carbon,TIG &MIG )
Pravinkumar

gas welding
gas weldinggas welding
gas welding
mohit Navriya

Silicon carbide
Silicon carbideSilicon carbide
Silicon carbide
sai anjaneya

Metal Matrix composites
Metal Matrix composites Metal Matrix composites
Metal Matrix composites
Ashok Kumar

alloys and their properties
 alloys and their properties alloys and their properties
alloys and their properties
Afzal Zubair

Dual phase steels (1)
Dual phase steels (1)Dual phase steels (1)
Dual phase steels (1)Evan Sanders

Powder metallurgy
Powder metallurgyPowder metallurgy
Powder metallurgy
Yuga Aravind Kumar

Metallic glasses
Metallic glassesMetallic glasses
Metallic glasses
Akshaya Sai Venkataramanan

Magnesium and-its-alloys, structures, properties, effects of alloying, applic...
Magnesium and-its-alloys, structures, properties, effects of alloying, applic...Magnesium and-its-alloys, structures, properties, effects of alloying, applic...
Magnesium and-its-alloys, structures, properties, effects of alloying, applic...
SAAD ARIF

Engineering materials & recent advances
Engineering materials & recent advancesEngineering materials & recent advances
Engineering materials & recent advances
Aman Raj

Metal matrix composites (mmc)
Metal matrix composites (mmc)Metal matrix composites (mmc)
Metal matrix composites (mmc)
Nikhil Dixit

Welding of ci
Welding of ciWelding of ci
Welding of ci
Som Ashutosh

Engineering materials & structure property
Engineering materials & structure propertyEngineering materials & structure property
Engineering materials & structure property
Vatsal Patel

Welding of copper alloys
Welding of copper alloysWelding of copper alloys
Welding of copper alloys
JMB

Dr.R.Narayanasamy - Power Point on Powder Compaction
Dr.R.Narayanasamy - Power Point on Powder CompactionDr.R.Narayanasamy - Power Point on Powder Compaction
Dr.R.Narayanasamy - Power Point on Powder Compaction
Dr.Ramaswamy Narayanasamy

Chapter 1 Mechanical Engineering Materials( 22343)
Chapter 1 Mechanical Engineering Materials( 22343) Chapter 1 Mechanical Engineering Materials( 22343)
Chapter 1 Mechanical Engineering Materials( 22343)
Sandip Polytechnic,Nashik

Classification of Steel
Classification of SteelClassification of Steel
Classification of Steel
Gaurav Karnawat


What's hot (20)

Mg alloys
Mg alloysMg alloys
Mg alloys

Engineering materials
Engineering materialsEngineering materials
Engineering materials

Arc welding types( carbon,TIG &MIG )
Arc welding types( carbon,TIG &MIG )Arc welding types( carbon,TIG &MIG )
Arc welding types( carbon,TIG &MIG )

gas welding
gas weldinggas welding
gas welding

Silicon carbide
Silicon carbideSilicon carbide
Silicon carbide

Sintering
SinteringSintering
Sintering

Metal Matrix composites
Metal Matrix composites Metal Matrix composites
Metal Matrix composites

alloys and their properties
 alloys and their properties alloys and their properties
alloys and their properties

Dual phase steels (1)
Dual phase steels (1)Dual phase steels (1)
Dual phase steels (1)

Powder metallurgy
Powder metallurgyPowder metallurgy
Powder metallurgy

Metallic glasses
Metallic glassesMetallic glasses
Metallic glasses

Magnesium and-its-alloys, structures, properties, effects of alloying, applic...
Magnesium and-its-alloys, structures, properties, effects of alloying, applic...Magnesium and-its-alloys, structures, properties, effects of alloying, applic...
Magnesium and-its-alloys, structures, properties, effects of alloying, applic...

Engineering materials & recent advances
Engineering materials & recent advancesEngineering materials & recent advances
Engineering materials & recent advances

Metal matrix composites (mmc)
Metal matrix composites (mmc)Metal matrix composites (mmc)
Metal matrix composites (mmc)

Welding of ci
Welding of ciWelding of ci
Welding of ci

Engineering materials & structure property
Engineering materials & structure propertyEngineering materials & structure property
Engineering materials & structure property

Welding of copper alloys
Welding of copper alloysWelding of copper alloys
Welding of copper alloys

Dr.R.Narayanasamy - Power Point on Powder Compaction
Dr.R.Narayanasamy - Power Point on Powder CompactionDr.R.Narayanasamy - Power Point on Powder Compaction
Dr.R.Narayanasamy - Power Point on Powder Compaction

Chapter 1 Mechanical Engineering Materials( 22343)
Chapter 1 Mechanical Engineering Materials( 22343) Chapter 1 Mechanical Engineering Materials( 22343)
Chapter 1 Mechanical Engineering Materials( 22343)

Classification of Steel
Classification of SteelClassification of Steel
Classification of Steel


Similar to Selection of Materials Engineering Materials.pptx

materials-160930145157.pdf
materials-160930145157.pdfmaterials-160930145157.pdf
materials-160930145157.pdf
ssuser96912f1

Engineering Materials
Engineering MaterialsEngineering Materials
Engineering Materials
sushma chinta

Engineering materials for students lecture
Engineering materials for students lectureEngineering materials for students lecture
Engineering materials for students lecture
cdvalentin

Module 1 lesson-2
Module 1 lesson-2Module 1 lesson-2
Module 1 lesson-2
Mudassar Akhtar

Module-1_Lesson-2.pdf
Module-1_Lesson-2.pdfModule-1_Lesson-2.pdf
Module-1_Lesson-2.pdf
AskiRg

STEEL.docx
STEEL.docxSTEEL.docx
STEEL.docx
VasanthA84

Steel Material
Steel MaterialSteel Material
Steel Material
Rutvij Kanani

Types of steels used in API & Chemical Manufacturing Industries
Types of steels used in API & Chemical Manufacturing IndustriesTypes of steels used in API & Chemical Manufacturing Industries
Types of steels used in API & Chemical Manufacturing Industries
harish pandey

عرض تقديمي من Microsoft PowerPoint جديد (2).pptx
عرض تقديمي من Microsoft PowerPoint جديد (2).pptxعرض تقديمي من Microsoft PowerPoint جديد (2).pptx
عرض تقديمي من Microsoft PowerPoint جديد (2).pptx
ssuser26e605

ferro alloys & non-ferrous alloys, its properties
ferro alloys & non-ferrous alloys, its propertiesferro alloys & non-ferrous alloys, its properties
ferro alloys & non-ferrous alloys, its properties
jeevanprasad8

ENGG MATERIALpptx
ENGG MATERIALpptxENGG MATERIALpptx
ENGG MATERIALpptx
manpreetsingh862234

Cast iron 5 (i)
Cast iron 5 (i)Cast iron 5 (i)
Iron & steel
Iron & steelIron & steel
Iron & steel
NabeelBhutta1

13. engg materials
13. engg materials13. engg materials
13. engg materials
rajajha17

Uses of various steel in civil engineering
Uses of various steel in civil engineeringUses of various steel in civil engineering
Uses of various steel in civil engineering
Sameer Nawab

Various types of engineering cast iron
Various types of engineering  cast  ironVarious types of engineering  cast  iron
Various types of engineering cast iron
Sayan Das

Alloy steel
Alloy steelAlloy steel
Alloy steel
Arathi Krishna

Metal and Alloys
Metal and AlloysMetal and Alloys
Metal and Alloys
Umesh Yadav

Non-Ferrous Alloy
Non-Ferrous AlloyNon-Ferrous Alloy
Non-Ferrous Alloy
Akash Patel


Similar to Selection of Materials Engineering Materials.pptx (20)

materials-160930145157.pdf
materials-160930145157.pdfmaterials-160930145157.pdf
materials-160930145157.pdf

Engineering Materials
Engineering MaterialsEngineering Materials
Engineering Materials

Engineering materials for students lecture
Engineering materials for students lectureEngineering materials for students lecture
Engineering materials for students lecture

Module 1 lesson-2
Module 1 lesson-2Module 1 lesson-2
Module 1 lesson-2

Module-1_Lesson-2.pdf
Module-1_Lesson-2.pdfModule-1_Lesson-2.pdf
Module-1_Lesson-2.pdf

STEEL.docx
STEEL.docxSTEEL.docx
STEEL.docx

Steel Material
Steel MaterialSteel Material
Steel Material

Types of steels used in API & Chemical Manufacturing Industries
Types of steels used in API & Chemical Manufacturing IndustriesTypes of steels used in API & Chemical Manufacturing Industries
Types of steels used in API & Chemical Manufacturing Industries

عرض تقديمي من Microsoft PowerPoint جديد (2).pptx
عرض تقديمي من Microsoft PowerPoint جديد (2).pptxعرض تقديمي من Microsoft PowerPoint جديد (2).pptx
عرض تقديمي من Microsoft PowerPoint جديد (2).pptx

ferro alloys & non-ferrous alloys, its properties
ferro alloys & non-ferrous alloys, its propertiesferro alloys & non-ferrous alloys, its properties
ferro alloys & non-ferrous alloys, its properties

Alloy Steel
Alloy SteelAlloy Steel
Alloy Steel

ENGG MATERIALpptx
ENGG MATERIALpptxENGG MATERIALpptx
ENGG MATERIALpptx

Cast iron 5 (i)
Cast iron 5 (i)Cast iron 5 (i)
Cast iron 5 (i)

Iron & steel
Iron & steelIron & steel
Iron & steel

13. engg materials
13. engg materials13. engg materials
13. engg materials

Uses of various steel in civil engineering
Uses of various steel in civil engineeringUses of various steel in civil engineering
Uses of various steel in civil engineering

Various types of engineering cast iron
Various types of engineering  cast  ironVarious types of engineering  cast  iron
Various types of engineering cast iron

Alloy steel
Alloy steelAlloy steel
Alloy steel

Metal and Alloys
Metal and AlloysMetal and Alloys
Metal and Alloys

Non-Ferrous Alloy
Non-Ferrous AlloyNon-Ferrous Alloy
Non-Ferrous Alloy


More from KAMARAJ COLLEGE OF ENGINEERING AND TECHNOLOGY

Design of block brakes
Design of block brakesDesign of block brakes
Design and solved problems for rolling contant bearing
Design and solved problems for rolling contant bearingDesign and solved problems for rolling contant bearing
Design and solved problems for rolling contant bearing
KAMARAJ COLLEGE OF ENGINEERING AND TECHNOLOGY

Revised ppt for Design of energy storing elements and engine componentsxx
Revised ppt for Design of energy storing elements and engine componentsxxRevised ppt for Design of energy storing elements and engine componentsxx
Revised ppt for Design of energy storing elements and engine componentsxx
KAMARAJ COLLEGE OF ENGINEERING AND TECHNOLOGY

Design procedure for dts (revised)
Design procedure for dts (revised)Design procedure for dts (revised)
Design procedure for dts (revised)
KAMARAJ COLLEGE OF ENGINEERING AND TECHNOLOGY

12 speed gear box
12 speed gear box12 speed gear box
9 speed gear box
9 speed gear box9 speed gear box
5. wire rope and sample problem
5. wire rope and sample problem5. wire rope and sample problem
5. wire rope and sample problem
KAMARAJ COLLEGE OF ENGINEERING AND TECHNOLOGY

3. v belt and sample problem
3. v belt and sample problem3. v belt and sample problem
3. v belt and sample problem
KAMARAJ COLLEGE OF ENGINEERING AND TECHNOLOGY

Design of energy storing elements and engine components
Design of energy storing elements and engine componentsDesign of energy storing elements and engine components
Design of energy storing elements and engine components
KAMARAJ COLLEGE OF ENGINEERING AND TECHNOLOGY

2.flat belts & sample problem
2.flat belts & sample problem2.flat belts & sample problem
2.flat belts & sample problem
KAMARAJ COLLEGE OF ENGINEERING AND TECHNOLOGY

1.introduction to flexible drives & belts
1.introduction to flexible drives & belts1.introduction to flexible drives & belts
1.introduction to flexible drives & belts
KAMARAJ COLLEGE OF ENGINEERING AND TECHNOLOGY


More from KAMARAJ COLLEGE OF ENGINEERING AND TECHNOLOGY (11)

Design of block brakes
Design of block brakesDesign of block brakes
Design of block brakes

Design and solved problems for rolling contant bearing
Design and solved problems for rolling contant bearingDesign and solved problems for rolling contant bearing
Design and solved problems for rolling contant bearing

Revised ppt for Design of energy storing elements and engine componentsxx
Revised ppt for Design of energy storing elements and engine componentsxxRevised ppt for Design of energy storing elements and engine componentsxx
Revised ppt for Design of energy storing elements and engine componentsxx

Design procedure for dts (revised)
Design procedure for dts (revised)Design procedure for dts (revised)
Design procedure for dts (revised)

12 speed gear box
12 speed gear box12 speed gear box
12 speed gear box

9 speed gear box
9 speed gear box9 speed gear box
9 speed gear box

5. wire rope and sample problem
5. wire rope and sample problem5. wire rope and sample problem
5. wire rope and sample problem

3. v belt and sample problem
3. v belt and sample problem3. v belt and sample problem
3. v belt and sample problem

Design of energy storing elements and engine components
Design of energy storing elements and engine componentsDesign of energy storing elements and engine components
Design of energy storing elements and engine components

2.flat belts & sample problem
2.flat belts & sample problem2.flat belts & sample problem
2.flat belts & sample problem

1.introduction to flexible drives & belts
1.introduction to flexible drives & belts1.introduction to flexible drives & belts
1.introduction to flexible drives & belts


Recently uploaded

Railway Signalling Principles Edition 3.pdf
Railway Signalling Principles Edition 3.pdfRailway Signalling Principles Edition 3.pdf
Railway Signalling Principles Edition 3.pdf
TeeVichai

The Role of Electrical and Electronics Engineers in IOT Technology.pdf
The Role of Electrical and Electronics Engineers in IOT Technology.pdfThe Role of Electrical and Electronics Engineers in IOT Technology.pdf
The Role of Electrical and Electronics Engineers in IOT Technology.pdf
Nettur Technical Training Foundation

Planning Of Procurement o different goods and services
Planning Of Procurement o different goods and servicesPlanning Of Procurement o different goods and services
Planning Of Procurement o different goods and services
JoytuBarua2

在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样
在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样
在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样
obonagu

Building Electrical System Design & Installation
Building Electrical System Design & InstallationBuilding Electrical System Design & Installation
Building Electrical System Design & Installation
symbo111

Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdf
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdfHybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdf
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdf
fxintegritypublishin

NUMERICAL SIMULATIONS OF HEAT AND MASS TRANSFER IN CONDENSING HEAT EXCHANGERS...
NUMERICAL SIMULATIONS OF HEAT AND MASS TRANSFER IN CONDENSING HEAT EXCHANGERS...NUMERICAL SIMULATIONS OF HEAT AND MASS TRANSFER IN CONDENSING HEAT EXCHANGERS...
NUMERICAL SIMULATIONS OF HEAT AND MASS TRANSFER IN CONDENSING HEAT EXCHANGERS...
ssuser7dcef0

Governing Equations for Fundamental Aerodynamics_Anderson2010.pdf
Governing Equations for Fundamental Aerodynamics_Anderson2010.pdfGoverning Equations for Fundamental Aerodynamics_Anderson2010.pdf
Governing Equations for Fundamental Aerodynamics_Anderson2010.pdf
WENKENLI1

Fundamentals of Induction Motor Drives.pptx
Fundamentals of Induction Motor Drives.pptxFundamentals of Induction Motor Drives.pptx
Fundamentals of Induction Motor Drives.pptx
manasideore6

Basic Industrial Engineering terms for apparel
Basic Industrial Engineering terms for apparelBasic Industrial Engineering terms for apparel
Basic Industrial Engineering terms for apparel
top1002

Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Dr.Costas Sachpazis

DfMAy 2024 - key insights and contributions
DfMAy 2024 - key insights and contributionsDfMAy 2024 - key insights and contributions
DfMAy 2024 - key insights and contributions
gestioneergodomus

一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理
一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理
一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理
bakpo1

Tutorial for 16S rRNA Gene Analysis with QIIME2.pdf
Tutorial for 16S rRNA Gene Analysis with QIIME2.pdfTutorial for 16S rRNA Gene Analysis with QIIME2.pdf
Tutorial for 16S rRNA Gene Analysis with QIIME2.pdf
aqil azizi

Forklift Classes Overview by Intella Parts
Forklift Classes Overview by Intella PartsForklift Classes Overview by Intella Parts
Forklift Classes Overview by Intella Parts
Intella Parts

Technical Drawings introduction to drawing of prisms
Technical Drawings introduction to drawing of prismsTechnical Drawings introduction to drawing of prisms
Technical Drawings introduction to drawing of prisms
heavyhaig

Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&BDesign and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Sreedhar Chowdam

14 Template Contractual Notice - EOT Application
14 Template Contractual Notice - EOT Application14 Template Contractual Notice - EOT Application
14 Template Contractual Notice - EOT Application
SyedAbiiAzazi1

weather web application report.pdf
weather web application report.pdfweather web application report.pdf
weather web application report.pdf
Pratik Pawar

RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
thanhdowork


Recently uploaded (20)

Railway Signalling Principles Edition 3.pdf
Railway Signalling Principles Edition 3.pdfRailway Signalling Principles Edition 3.pdf
Railway Signalling Principles Edition 3.pdf

The Role of Electrical and Electronics Engineers in IOT Technology.pdf
The Role of Electrical and Electronics Engineers in IOT Technology.pdfThe Role of Electrical and Electronics Engineers in IOT Technology.pdf
The Role of Electrical and Electronics Engineers in IOT Technology.pdf

Planning Of Procurement o different goods and services
Planning Of Procurement o different goods and servicesPlanning Of Procurement o different goods and services
Planning Of Procurement o different goods and services

在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样
在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样
在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样

Building Electrical System Design & Installation
Building Electrical System Design & InstallationBuilding Electrical System Design & Installation
Building Electrical System Design & Installation

Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdf
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdfHybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdf
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdf

NUMERICAL SIMULATIONS OF HEAT AND MASS TRANSFER IN CONDENSING HEAT EXCHANGERS...
NUMERICAL SIMULATIONS OF HEAT AND MASS TRANSFER IN CONDENSING HEAT EXCHANGERS...NUMERICAL SIMULATIONS OF HEAT AND MASS TRANSFER IN CONDENSING HEAT EXCHANGERS...
NUMERICAL SIMULATIONS OF HEAT AND MASS TRANSFER IN CONDENSING HEAT EXCHANGERS...

Governing Equations for Fundamental Aerodynamics_Anderson2010.pdf
Governing Equations for Fundamental Aerodynamics_Anderson2010.pdfGoverning Equations for Fundamental Aerodynamics_Anderson2010.pdf
Governing Equations for Fundamental Aerodynamics_Anderson2010.pdf

Fundamentals of Induction Motor Drives.pptx
Fundamentals of Induction Motor Drives.pptxFundamentals of Induction Motor Drives.pptx
Fundamentals of Induction Motor Drives.pptx

Basic Industrial Engineering terms for apparel
Basic Industrial Engineering terms for apparelBasic Industrial Engineering terms for apparel
Basic Industrial Engineering terms for apparel

Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...

DfMAy 2024 - key insights and contributions
DfMAy 2024 - key insights and contributionsDfMAy 2024 - key insights and contributions
DfMAy 2024 - key insights and contributions

一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理
一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理
一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理

Tutorial for 16S rRNA Gene Analysis with QIIME2.pdf
Tutorial for 16S rRNA Gene Analysis with QIIME2.pdfTutorial for 16S rRNA Gene Analysis with QIIME2.pdf
Tutorial for 16S rRNA Gene Analysis with QIIME2.pdf

Forklift Classes Overview by Intella Parts
Forklift Classes Overview by Intella PartsForklift Classes Overview by Intella Parts
Forklift Classes Overview by Intella Parts

Technical Drawings introduction to drawing of prisms
Technical Drawings introduction to drawing of prismsTechnical Drawings introduction to drawing of prisms
Technical Drawings introduction to drawing of prisms

Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&BDesign and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&B

14 Template Contractual Notice - EOT Application
14 Template Contractual Notice - EOT Application14 Template Contractual Notice - EOT Application
14 Template Contractual Notice - EOT Application

weather web application report.pdf
weather web application report.pdfweather web application report.pdf
weather web application report.pdf

RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...


Selection of Materials Engineering Materials.pptx

  • 1. U n i t - 1 E N G I N E E R I N G M A T E R I A L S By Dr.B.BALAVAIRAVAN Assistant Professor Department of Mechanical Engineering KAMARAJ COLLEGE of ENGINEERING and TECHNOLOGY OML 753 – SELECTION OF MATERIALS
  • 3. METALS AND NON-FERROUS METALS ❖ Common engineering materials are normally classified as metals and nonmetals. ❖ Metals may conveniently be divided into ferrous and non- ferrous metals. Important ferrous metals for the present purpose are: (i)cast iron (ii) wrought iron (iii)steel. ❖ Some of the important non-ferrous metals used in engineering design are: (a)Light metal group such as aluminum and its alloys, magnesium and manganese alloys. (b) Copper based alloys . (c)White metal group such as nickel, silver, bearing metals. white
  • 4. F E R R O U S MATERIALS Cast iron- It is an alloy of iron, carbon and silicon and it is hard and brittle. Carbon content may be within 1.7% to 3% and carbon may be present as free carbon (graphite) or iron carbide Fe3C. In general the types of cast iron are (a)Grey cast iron (b)White cast iron (c)Malleable cast iron (d)Spheroidal or nodular cast iron (e)Austenitic cast iron (f)Abrasion resistant cast iron.
  • 5. G R E Y CAST IRON Grey cast iron Carbon content is 3 to 3.5%. Carbon here is mainly in the form of graphite. This type of cast iron is inexpensive and has high compressive strength. It has low tensile strength and low ductility. Graphite is an excellent solid lubricant and this makes it easily machinable but brittle. Some examples of this type of cast iron are FG20, FG35 or FG35Si15. The numbers indicate ultimate tensile strength in MPa and 15 indicates 0.15% silicon.
  • 6. G R E Y CAST IRON Applications: Due to lubricating action it is very suitable for parts where sliding action is desired. They are machine tool bodies, automotive cylinder blocks, heads, housings, fly-wheels, pipes and pipe fittings and agricultural implements.
  • 7. AUSTENITIC CAST IRON Depending on the form of graphite present this cast iron can be classified broadly under two headings: Austenitic flake graphite iron, Austenitic spheroidal or nodular graphite iron .These are alloy cast irons and they contain small percentages of silicon, manganese, sulphur, phosphorus etc. They may be produced by adding alloying elements viz. nickel, chromium, molybdenum, copper and manganese in sufficient quantities. These elements give more strength and improved properties. They are used for making automobile parts such as cylinders, pistons, piston rings, brake drums etc.
  • 8. WHITE CAST IRON White cast iron- Carbon content is 1.75 to 2.3%.In these cast irons carbon is present in the form of iron carbide (Fe3C) which is hard and brittle. White cast iron has high tensile strength and low compressive strength. The presence of iron carbide increases hardness and makes it difficult to machine. Consequently these cast irons are abrasion resistant.
  • 9. WHITE CAST IRON Applications: Due to wear resisting characteristics it is used for car wheels, rolls for crushing grains and jaw crusher plates.
  • 10. ABRASION RESISTANT CAST IRON These are alloy cast iron and the alloying elements render abrasion resistance. A typical designation is ABR33 Ni4 Cr2 which indicates a tensile strength in kg/mm2 with 4% nickel and 2% chromium.
  • 11. MALLEABLE CAST IRON Malleable cast iron- These are white cast irons rendered malleable by annealing. These are tougher than grey cast iron and they can be twisted or bent without fracture. They have excellent machining properties and are inexpensive. Depending on the method of processing they may be designated as black heart BM32, BM30 or white heart WM42, WM35 etc.
  • 12. MALLEABLE CAST IRON Applications: Malleable cast iron is used for making parts where forging is expensive such as hubs for wagon wheels, brake supports.
  • 13. SPHEROIDAL OR NODULAR GRAPHITE CAST IRON In these cast irons graphite is present in the form of spheres or nodules. This type of cast iron is formed by adding small amounts of magnesium (0.1 to 0.8%) to the molten grey iron. The addition of magnesium causes the graphite to take form of nodules or spheroids instead of normal angular flakes. They have high tensile strength and good elongation properties. They are designated as, for example, SG50/7, SG80/2 etc where the first number gives the tensile strength in MPa and the second number indicates percentage elongation.
  • 14. SPHEROIDAL OR NODULAR GRAPHITE CAST IRON Applications: Nodular cast iron is generally used for casting requires shock and impact resistance along with good machinability, such as hydraulic cylinders, cylinder heads rolls for rolling mills and cast centrifugally products.
  • 15. WROUGHT IRON ●This is a very pure iron where the iron content is of the order of 99.5%. It is produced by re- melting pig iron and some small amount of silicon, sulphur, or phosphorus may be present. It is tough, malleable and ductile and can easily be forged or welded. It cannot however take sudden shock. ●Applications- Chains, crane hooks, railway couplings and such other components may be made of this iron.
  • 16. STEE L This is by far the most important engineering material and there is an enormous variety of steel to meet the wide variety of engineering requirements. Steel is basically an alloy of iron and carbon in which the carbon content can be less than 1.7% and carbon is present in the form of iron carbide to impart hardness and strength. Two main categories of steel are (a)Plain carbon steel (b)Alloy steel.
  • 17. PLAIN CARBON ST EEL The properties of plain carbon steel depend mainly on the carbon percentages and other alloying elements are not usually present in more than 0.5 to 1% such as 0.5% Si or 1% Mn etc. There is a large variety of plane carbon steel and they are designated as C01, C14, C45 and C70 and so on where the number indicates the carbon percentage. Following categorization of these steels is sometimes made for convenience: ●Dead mild steel- up to 0.15% C ●Low carbon steel or mild steel- 0.15 to 0.46% C ●Medium carbon steel- 0.45 to 0.8% C. ●High carbon steel- 0.8 to 1.5% C
  • 18. LOW CARBON STEEL-(MILD ST EELS (OR) SOFT STEELS)- No alloying element other than carbon is present in low carbon steel. It has carbon content of 0.15% to 0.45%. However there may small magnitude of P, S, Si and Mn. They are present as impurities as it is difficult to remove them in the process of smelting. Because of low carbon percentage it cannot undergo heat treatment process. Its hardness cannot be increased by conventional heat treatment method. The hardness number is about 150BHN. It has lower tensile strength and malleable. Applications- Screws, bolts, nuts, washers, wire fences, automobile body sheet, plates, wires, building bars, grills, beams, angles, channels etc.
  • 19. MEDIUM CARBON STEEL-(MACHINERY STEELS) The carbon content of medium carbon steel is 0.45% to 0.8%.Medium carbon steels has higher tensile strength and hardness than low carbon steels. The hardness number is about 300BHN. Medium carbon steels responds slightly to heat treatment process and hence its hardness can be further increased if required for a particular application. They also have better machining qualities. Generally they are hot worked. Applications- Hooks, wire ropes, shafts, connecting rods, spindles, rail axles, gears, turbine bucket wheels, steering arms and other machine components which require medium strength.
  • 20. HIGH CARBON ST EEL It has carbon content of 0.8% to 1.7%.High carbon steels has higher tensile strength and hardness than medium carbon steels. The hardness number is about 500BHN. High carbon steels responds readily to heat treatment process and hence its hardness can be further increased to desired values. They have good wear resistance. Generally they are hot worked. Applications- They are used for making hand tools such as wrenches, chisels, punches and rail wheels, files, cutting tools like drills, wood working tools and rails, rods for reinforced concrete, forging dies, knives, drawing dies, saws etc.
  • 21. ALLOY ST EEL These are steels in which elements other than carbon are added in sufficient quantities to impart desired properties, such as wear resistance, corrosion resistance, electric or magnetic properties. Chief alloying elements added are usually •Nickel for strength and toughness •Chromium for hardness and strength •tungsten for hardness at elevated temperature •vanadium for tensile strength •manganese for high strength in hot rolled and heat treated condition •silicon for high elastic limit •cobalt for hardness •molybdenum for extra tensile strength
  • 22. Stainless steel is one such alloy steel that gives good corrosion resistance. One important type of stainless steel is often described as 18/8 steel where chromium and nickel percentages are 18 and 8 respectively. A typical designation of a stainless steel is 15Si2Mn2Cr18Ni8 where carbon percentage is 0.15. High speed steel: This steel contains 18% tungsten, 4% chromium and 1% vanadium. It is considered as one of best of all purpose tool steels. It is used widely for drills, lathe, planer and shaper tools, milling cutters, reamers, broaches, threading dies, punches etc.
  • 23. Non-ferrous metals- Metals containing elements other than iron as their chief constituents are usually referred to as non-ferrous metals. There is a wide variety of non-metals in practice. Aluminum- This is the white metal produced from Alumina. In its pure state it is weak and soft but addition of small amounts of Cu, Mn, Si and Magnesium makes it hard and strong. It is also corrosion resistant, low weight and non-toxic.
  • 24. Duralumin- This is an alloy of 4% Cu, 0.5% Mn, 0.5% Mg and aluminum. It is widely used in automobile and aircraft components. Y-alloy- This is an alloy of 4% Cu, 1.5% Mn, 2% Ni, 6% Si, Mg, Fe and the rest is Al. It gives large strength at high temperature. It is used for aircraft engine parts such as cylinder heads, piston etc. Magnalium- This is an aluminum alloy with 2 to 10 % magnesium. It also contains 1.75% Cu. Due to its light weight and good strength it is used for aircraft and automobile components.
  • 25. Copper alloys Copper- is one of the most widely used non-ferrous metals in industry. It is soft, malleable and ductile and is a good conductor of heat and electricity. Brass (Cu-Zn alloy) - It is fundamentally a binary alloy with Zn up to 50% . As Zn percentage increases, ductility increases up to ~37% of Zn beyond which the ductility falls. Small amount of other elements viz. lead or tin imparts other properties to brass. Lead gives good machining quality ductility Zn (%) 37 and tin imparts strength. Brass is highly corrosion resistant, easily machinable and therefore a good bearing material
  • 26. Bronze (Cu-Sn alloy)-This is mainly a copper-tin alloy where tin percentage may vary between 5 to 25. It provides hardness but tin content also oxidizes resulting in brittleness. Deoxidizers such as Zn may be added. Gun metal- is one such alloy where 2% Zn is added as deoxidizing agent and typical compositions are 88% Cu, 10% Sn, 2% Zn. This is suitable for working in cold state. It was originally made for casting guns but used now for boiler fittings, bushes, glands and other such uses.
  • 27. Non-metals- Non-metallic materials are also used in engineering practice due to principally their low cost, flexibility and resistance to heat and electricity. Though there are many suitable non-metals, the following are important few from design point of view: Timber- This is a relatively low cost material and a bad conductor of heat and electricity. It has also good elastic and frictional properties and is widely used in foundry patterns and as water lubricated bearings. Leather- This is widely used in engineering for its flexibility and wear resistance. It is widely used for belt drives, washers and such other applications. Rubber- It has high bulk modulus and is used for drive elements, sealing, vibration isolation and similar applications. Plastics are synthetic materials which can be moulded into desired shapes under pressure with or without application of heat. These are now extensively used in various industrial applications for their corrosion resistance, dimensional stability and relatively low cost.
  • 28. Thermosetting plastics- Thermosetting plastics are formed under heat and pressure. It initially softens and with increasing heat and pressure, polymerization takes place. This results in hardening of the material. These plastics cannot be deformed or remolded again under heat and pressure. Some examples of thermosetting plastics are phenol formaldehyde (Bakelite), phenol-furfural (Durite), epoxy resins, phenolic resins etc. Thermoplastics- Thermoplastics do not become hard with the application of heat and pressure and no chemical change takes place. They remain soft at elevated temperatures until they are hardened by cooling. These can be re-melted and remolded by application of heat and pressure. Some examples of thermoplastics are cellulose nitrate (celluloid), polythene, polyvinyl acetate, polyvinyl chloride ( PVC) etc.
  • 29. POLYMERS Polymers – Chain of H-C molecules. Each repeat unit of H- C is a monomer e.g. ethylene (C2H4), Polyethylene – (–CH2 – CH2)n Polymers: Thermo plasts – Soften when heated and harden on cooling – totally reversible. Thermosets – Do not soften on heating oPlastics – moldable into many shape and have sufficient structural rigidity. Are one of the most commonly used class of materials. oAre used in clothing, housing, automobiles, aircraft, packaging, electronics, signs, recreation items, and medical implants. oNatural plastics – hellac, rubber, asphalt, and cellulose.
  • 30. APPLICATIONS OF SOME COMMON THERMOPLASTICS Material Characteristics Applications Polyethylene Chemically resistant, tough, low Flexible bottles, toys, battery friction coefficient, low strength parts, ice trays, film wrapping materials Polyamide (Nylon) Good strength and toughness, abrasion resistant, liquid absorber, low friction coeff. Bearings, gears, cams, bushings and jacketing for wires and cables F luorocarbon (Teflon) Chemically inert, excellent electrical properties, relatively weak Anticorrosive seals, chemical pipes and valves, bearings, anti-adhesive coatings, high temp electronic parts Polyester (PET) Tough plastic film, excellent fatigue and tear strength, corrosion resistant Recording tapes, clothing, automotive tyre cords, beverage containers Vinyl Low-cost general purpose material, rigid, can be made flexible Floor coverings, pipe, electric al wire insulation, garden hose, phonograph records Polystyrene Excellent electrical prop and optical clarity, good thermal and dimensional stability Wall tile, battery cases, toys, lighting panels, housing appliances
  • 31. APPLICATIONS OF SOME COMMON THERMOSETS Material Characteristics Applications Epoxy (Araldite) Excellent mechanical properties and corrosion resistance, good electrical prop., good adhesion and dimensional stability moldings, sinks, Electrical adhesives, coatings, fiber protective reinforced plastic (FRP), laminates Phenolic (Bakelite) Excellent thermal stability (>150 C), inexpensive, can be compounded with many resins Motor housings, telephones, auto distributors, electrical fixtures Polyester (Aropol) Excellent electrical properties, low cost, can formulated for room or high temperature, often fiber reinforced Helmets, fiberglass boats, auto body components, chair fans
  • 32. CERAM ICS Ceramics Materials •Refractory Materials •Advanced Ceramics • Abrasives •Glass Ceramics
  • 33. REFRACTORY MATERIALS 𝗈 Zirconia - extremely high temperatures. 𝗈 Sic and Carbon – also used in some very severe temperature conditions, but cannot be used in oxygen environment, as they will oxidize and burn.
  • 34. ABRASIVE CERAMICS o o Abrasives are used in cutting and grinding tools. Diamonds - natural and synthetic, are used as abrasives, though relatively expensive. Industrial diamonds are hard and thermally conductive. Diamonds unsuitable as gemstone are used as industrial diamond Common abrasives – SiC, WC, Al2O3 (corundum) and silica sand. Either bonded to a grinding wheel or made into a powder and used with a cloth or paper. o o
  • 35. ADVANCED CERAMICS 𝗈 Automobile Engine parts Advantages: Operate at high temperatures – high efficiencies; Low frictional losses; Operate without a cooling system; Lower weights than current engines Disadvantages: Ceramic materials are brittle; Difficult to remove internal voids (that weaken structures); Ceramic parts are difficult to form and machine Potential materials: Si 3 N4 (engine valves, ball bearings), SiC (MESFETS), & ZrO2 (sensors), Possible engine parts: engine block & piston coatings
  • 36. REFRACTORY MATERIALS 𝗈 Refractory - retains its strength at high temperatures > 500°C. 𝗈 Must be chemically and physically stable at high temperatures. Need to be resistant to thermal shock, should be chemically inert, and have specific ranges of thermal conductivity and thermal expansion. 𝗈 Are used in linings for furnaces, kilns, incinerators, crucibles and reactors. 𝗈 Aluminum oxide (alumina), silicon oxide (silica), calcium oxide (lime) magnesium oxide (magnesia) and fireclays are used to manufacture refractory materials.
  • 37. COMPOSITES A materials system composed of two or more physically distinct phases whose combination produces aggregate properties that are different from those of its constituents 𝗈Examples: ● Cemented carbides (WC with Co binder) ● Plastic molding compounds containing fillers ● Rubber mixed with carbon black ● Wood (a natural composite as distinguished from a synthesized composite)
  • 38. WHY COMPOSITES ARE IMPORTANT 𝗈 Composites can be very strong and stiff, yet very light in weight, so ratios of strength-to-weight and stiffness-to-weight are several times greater than steel or aluminum 𝗈 Fatigue properties are generally better than for common engineering metals 𝗈 Toughness is often greater too 𝗈 Composites can be designed that do not corrode like steel 𝗈 Possible to achieve combinations of properties not attainable with metals, ceramics, or polymers alone
  • 39. DISADVANTAGES AND LIMITATIONS OF COMPOSITE MATERIALS 𝗈 Properties of many important composites are anisotropic - the properties differ depending on the direction in which they are measured – this may be an advantage or a disadvantage 𝗈 Many of the polymer-based composites are subject to attack by chemicals or solvents, just as the polymers themselves are susceptible to attack 𝗈 Composite materials are generally expensive 𝗈 Manufacturing methods for shaping composite materials are often slow and costly
  • 40. ONE POSSIBLE CLASSIFICATION OF COMPOSITE MATERIALS 𝗈 Traditional composites – composite materials that occur in nature or have been produced by civilizations for many years ● Examples: wood, concrete, asphalt 𝗈 Synthetic composites - modern material systems normally associated with the manufacturing industries, in which the components are first produced separately and then combined in a controlled way to achieve the desired structure, properties, and part geometry
  • 42. DISPERSION-STRENGTHENED COMPOSITES In dispersion-strengthened composites, particles are comparatively smaller, and are of 0.01-0.1μm in size. Here the strengthening occurs at atomic/molecular level i.e. mechanism of strengthening is similar to that for precipitation hardening in metals where matrix bears the major portion of an applied load, while dispersoids hinder/impede the motion of dislocations. Examples: thoria (ThO2) dispersed Ni-alloys (TD Ni-alloys) with high-temperature strength; SAP (sintered aluminium powder) – where aluminium matrix is dispersed with extremely small flakes of alumina (Al2O3).
  • 43. PARTICULATE COMPOSITES Particulate composites are other class of particle- reinforced composites. These contain large amounts of comparatively coarse particles. These composites are designed to produce unusual combinations of properties rather than to improve the strength. Mechanical properties, such as elastic modulus, of particulate composites achievable are in the range defined by rule of mixtures. Particulate composites are used with all three material types – metals, polymers and ceramics. Cermets contain hard ceramic particles dispersed in a metallic matrix. Eg.: tungsten carbide (WC) or titanium carbide (TiC) embedded cobalt or nickel used to make cutting tools. Polymers are frequently reinforced with various particulate materials such as carbon black. When added to
  • 44. PARTICULATE COMPOSITES Particulate composites are used with all three material types – metals, polymers and ceramics. Cermets contain hard ceramic particles dispersed in a metallic matrix. Eg.: tungsten carbide WC) or titanium carbide (TiC) embedded cobalt or nickel used o make cutting tools. Polymers are frequently reinforced with various particulate materials such as carbon black. When added o vulcanized rubber, carbon black enhances toughness and abrasion resistance of the rubber. Aluminium alloy castings containing dispersed SiC particles are widely used for automotive applications including pistons and brake applications. Concrete is most commonly used particulate composite. It consists of cement as binding medium and finely dispersed particulates of gravel in addition to fine aggregate sand) and water. It is also known as Portland cement concrete. Its strength can be increased by additional reinforcement such
  • 45. FIBER-REINFORCED COMPOSITES Most fiber-reinforced composites provide improved strength and other mechanical properties and strength-to- weight ratio by incorporating strong, stiff but brittle fibers into a softer, more ductile matrix. The matrix material acts as a medium to transfer the load to the fibers, which carry most off the applied load. The matrix also provides protection to fibers from external loads and atmosphere. These composites are classified as either continuous or discontinuous. Generally, the highest strength and stiffness are obtained with continuous reinforcement.
  • 46. FIBER-REINFORCED COMPOSITES Discontinuous fibers are used only when manufacturing economics dictate the use of a process where the fibers must be in this form. The mechanical properties of fiber-reinforced composites depend not only on the properties of the fiber but also on the degree of which an applied load is transmitted to the fibers by the matrix phase. Length of fibers, their orientation and volume fraction in addition to direction of external load application affects the mechanical properties of these composites.
  • 47. Effect of fiber orientation and concentration: with respect to orientation, two extremes possibilities are – parallel alignment and random alignment. Continuous fibers are normally aligned, whereas discontinuous fibers are randomly or partially orientated. Two instants of loading are: longitudinal loading and transverse loading.
  • 48. STRUCTURAL COMPOSITES These are special class of composites, usually consists of both homogeneous and composite materials. Properties of these composites depend not only on the properties of the constituents but also on geometrical design of various structural elements. Two classes of these composites widely used are: laminar composites and sandwich structures.
  • 49. LAMINAR COMPOSITES Laminar composites: there are composed of two- dimensional sheets/layers that have a preferred strength direction. These layers are stacked and cemented together according to the requirement. Materials used in their fabrication include: metal sheets, cotton, paper, woven glass fibers embedded in plastic matrix, etc. Examples: thin coatings, thicker protective coatings, claddings, bimetallics, laminates. Many laminar composites are designed to increase corrosion resistance while retaining low cost, high strength or light weight.
  • 50. SANDWICH STRUCTURES these consist of thin layers of a facing material joined to a light weight filler material. Neither the filler material nor the facing material is strong or rigid, but the composite possesses both properties. Example: corrugated cardboard. The faces bear most of the in-plane loading and also any transverse bending stresses. Typical face materials include Al-alloys, fiber-reinforced plastics, titanium, steel and plywood. The core serves two functions – it separates the faces and resists deformations perpendicular to the face plane; provides a certain degree of shear rigidity along planes that are perpendicular to the faces. Typical materials for core are: foamed polymers, synthetic rubbers, inorganic cements, balsa wood. Sandwich structures are found in many applications like roofs, floors, walls of buildings, and in aircraft for wings,
