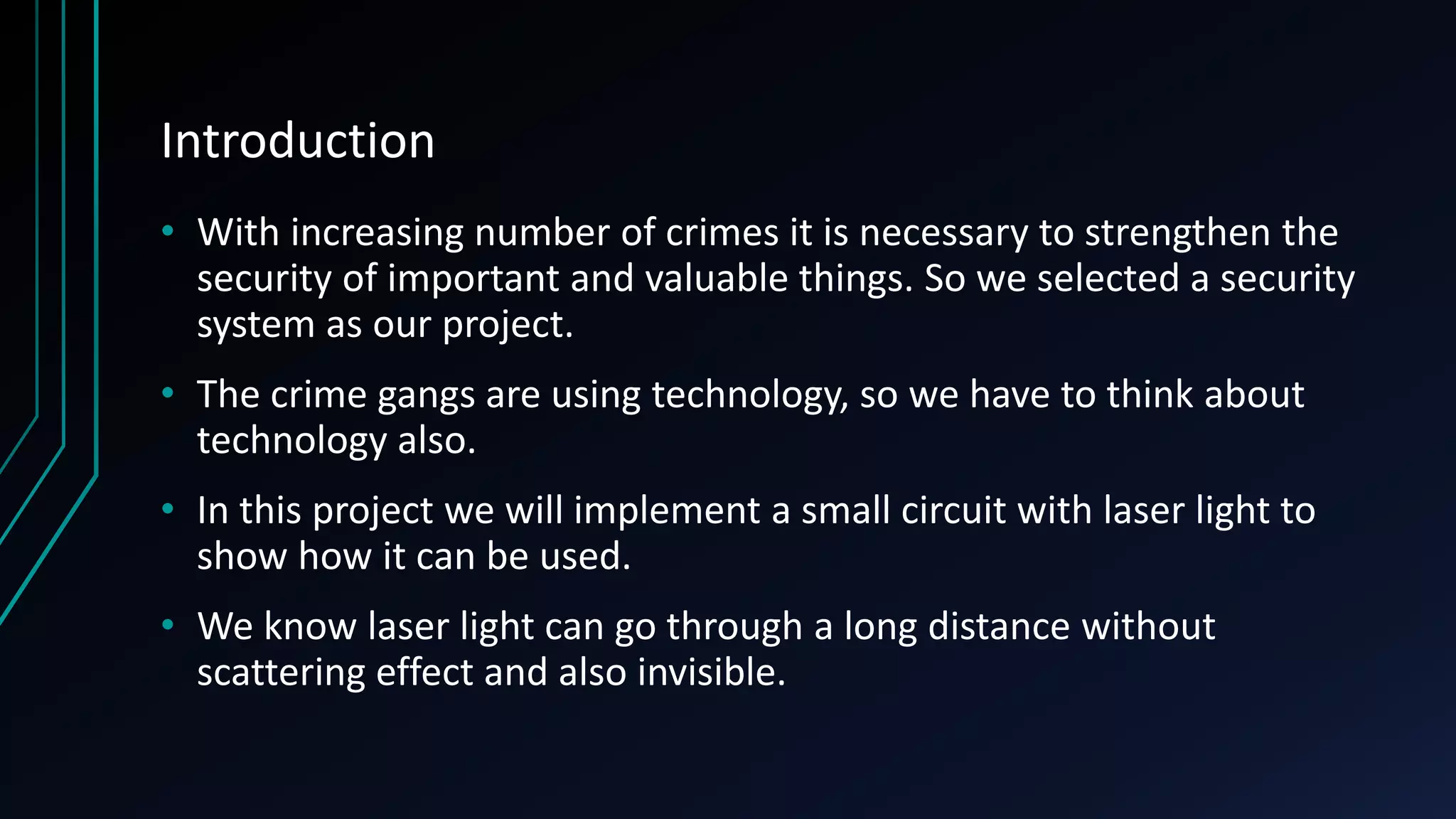

2. Introduction
• With increasing number of crimes it is necessary to strengthen the
security of important and valuable things. So we selected a security
system as our project.
• The crime gangs are using technology, so we have to think about
technology also.
• In this project we will implement a small circuit with laser light to
show how it can be used.
• We know laser light can go through a long distance without
scattering effect and also invisible.
3. Introduction cont.
• These two properties will help us to build a modern system against
modern crimes.
• We will make a boundary by laser light if anyone come between the
laser and the sensor the alarm or led will on.
5. Used components in the circuit:
• LDR(Light dependent resistor) – It works with the change of lights. If the amount
of light on it is high this resistance will become huge , so there will
be on current flow through it.
• Transistor(BC 548 npn) – When a selected amount of current flow
through this it starts working. Mainly it works as a switch of the
circuit.
• LED – It used for the alarm purpose only. It can be replaced with
buzzer.
• Battery – A 9v battery is used as a power.
• Resistors(100ohm) – 4 resistors.
7. Some details…
• It mainly works on the ohm’s law(V=IR).
When 9v dc supply is given as source it flows thorough the LDR. As
the resistance of the LDR dependent on light if the light amount is
high on LDR it becomes highly resistive and becomes a barrier
between source and the whole circuit . So minimum voltage for
turning on the transistor is not flowed and the rest of circuit stay off.
If light amount is less or zero LDR become short or resistance of it
become zero then the whole circuit become on.
8. Cost Analysis:
• For making this small circuit the cost is very low.
• We used 2 transistors, 1 Led, 1 LDR, 1 9v battery and a breadboard.
• Total cost of these is under 100 tk only.
• If we want a implement it in bigger places we just needed some
mirrors. So the total cost will increase as the mirror costs.
• As this circuit is very easy to implement , Anyone with a basic
knowledge of circuits can implement it . So here is no
implementation charge.
9. Applications
• Office security – Restricted areas in office can be secured by laser
security
• Home security – As the costs are not why this set up can be used
for home also
• Valuable things protection – With some extra works in setting up
the security system , this can be used in any place.
• In shops it can be also used.
10. Future Work
• The implemented circuit is a basic circuit. It can be improved in
many ways.
• It can be improved by adding various features.
• A network device can be added with this which will transmit data to
a selected mobile phone. Any unauthorized entry can be stopped
by this device.
• By perfect mirror positioning this little circuit can be security guard
for a huge area.
• Motion sensors can be added to improve security.
11. Conclusion
• This whole security system is easy to construct.
• Consume less power
• Economical and light weight
Not only these but also thieves and crime gangs can be caught easily
by this technology based security. This thing is better than many other
security system found in the market. For being invisible it is like a trap.
It can be set anywhere for its light weight .
