The document presents a search-driven approach to solving string constraints for vulnerability detection. State-of-the-art solvers like Z3-str2 have limitations in supporting complex string operations. The proposed approach decomposes constraints and leverages an automata-based solver to reduce the search space, before using a search-based solver to find satisfying assignments. An evaluation on 43 programs shows the approach significantly improves vulnerability detection effectiveness over baseline solvers, with affordable time costs. The automata-based solver plays a key role in the effectiveness of the search-based procedure.

1. .lusoftware verification & validation
VVS

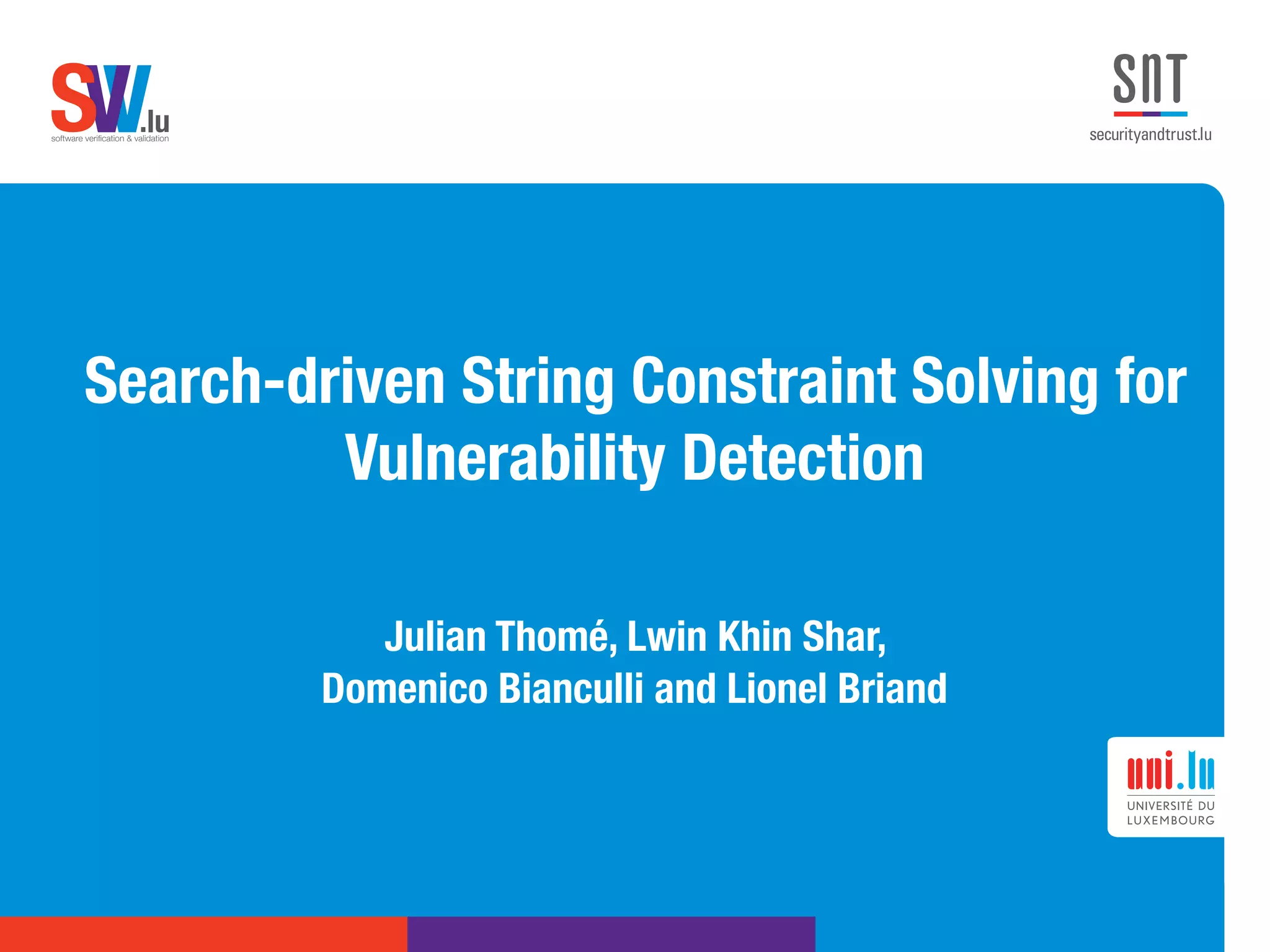

Julian Thomé, Lwin Khin Shar,
Domenico Bianculli and Lionel Briand
Search-driven String Constraint Solving for
Vulnerability Detection

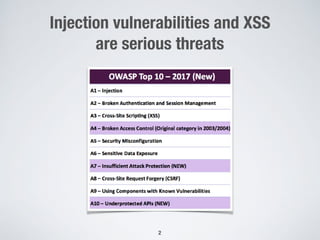

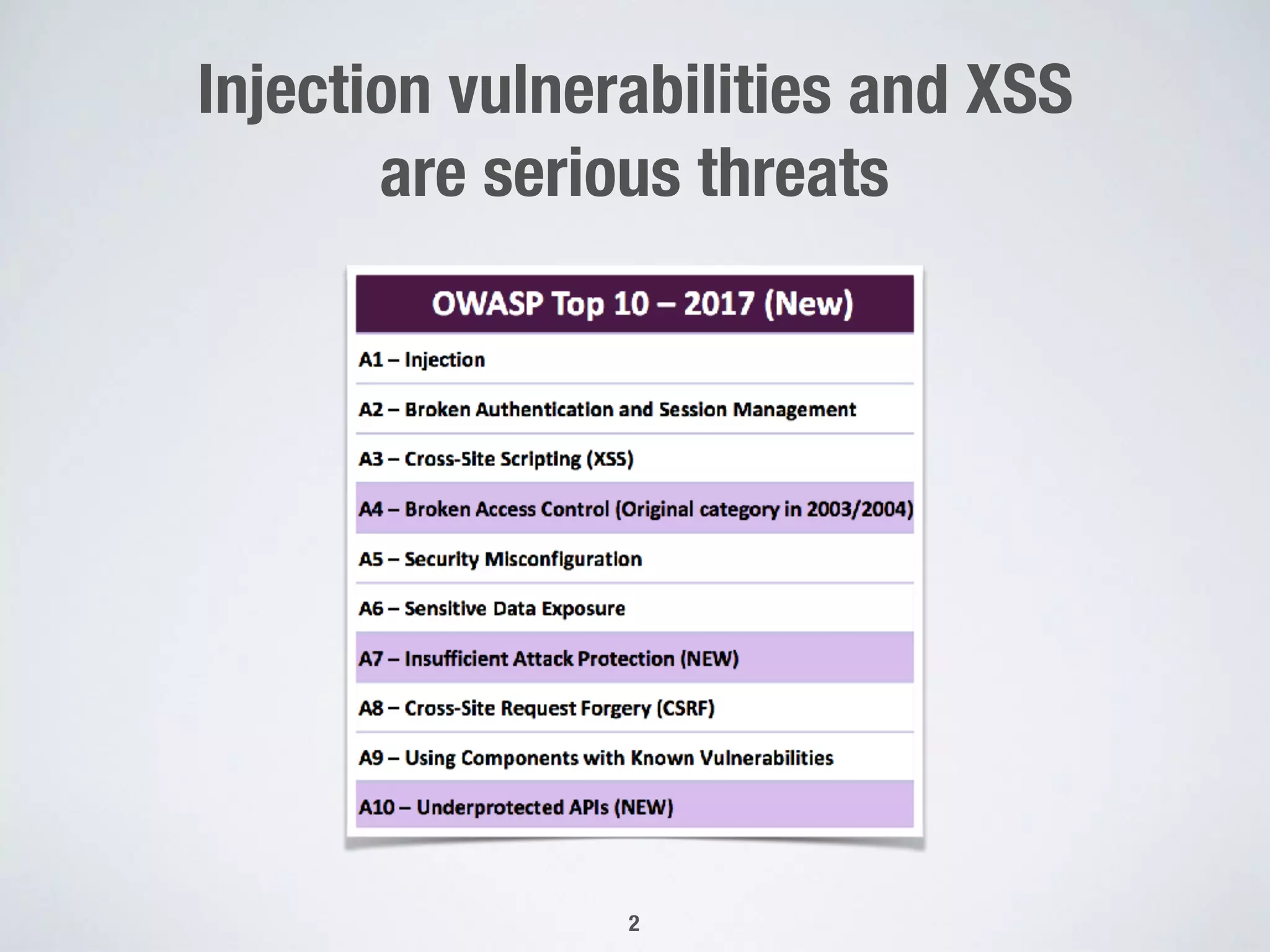

2. Injection vulnerabilities and XSS
are serious threats
2

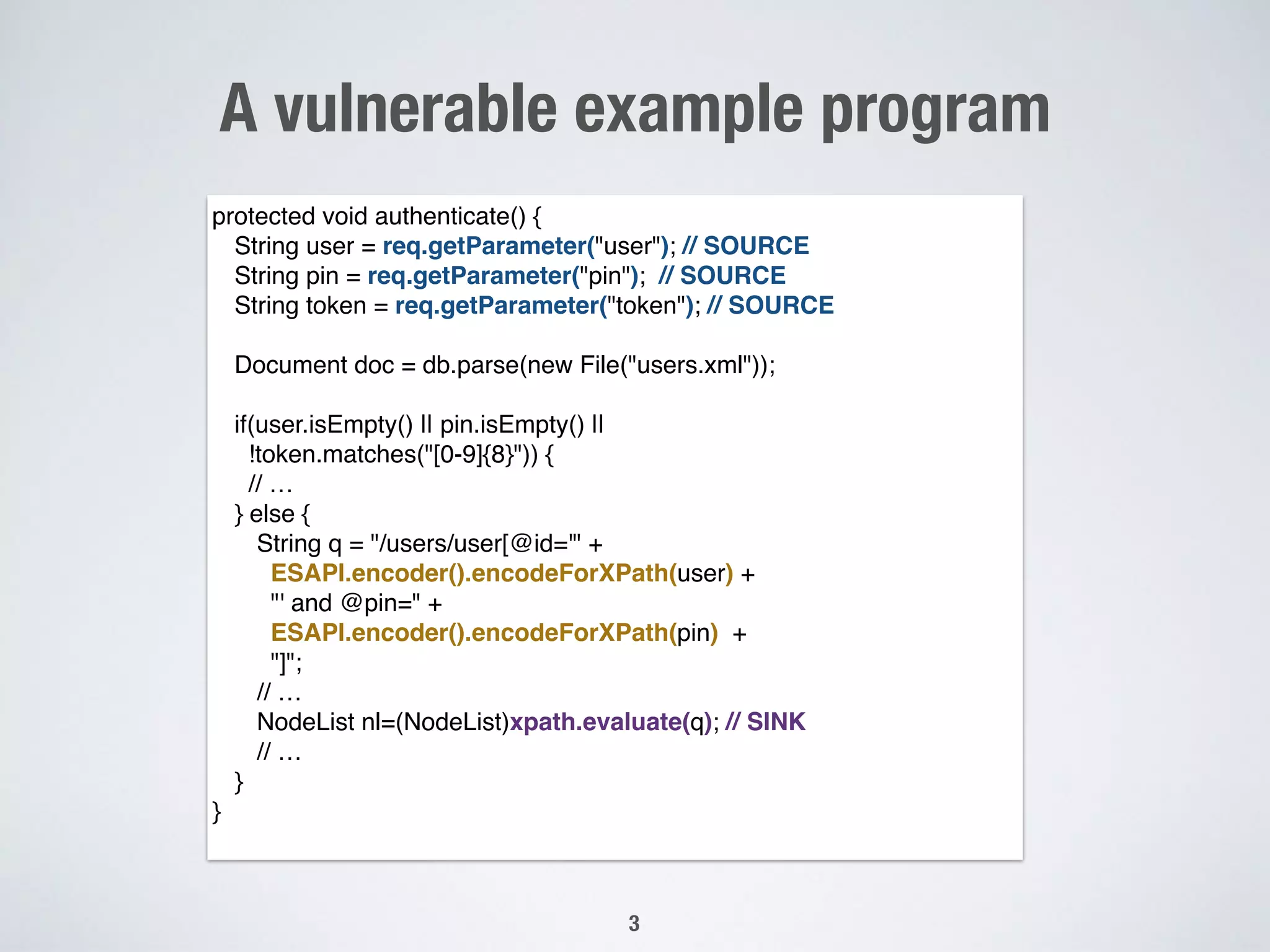

3. protected void authenticate() {
String user = req.getParameter("user"); // SOURCE
String pin = req.getParameter("pin"); // SOURCE
String token = req.getParameter("token"); // SOURCE
Document doc = db.parse(new File("users.xml"));
if(user.isEmpty() || pin.isEmpty() ||
!token.matches("[0-9]{8}")) {
// …
} else {
String q = "/users/user[@id='" +
ESAPI.encoder().encodeForXPath(user) +
"' and @pin=" +
ESAPI.encoder().encodeForXPath(pin) +
"]";
// …
NodeList nl=(NodeList)xpath.evaluate(q); // SINK
// …
}
}
3

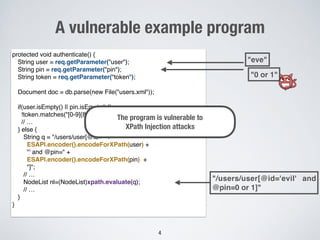

A vulnerable example program

4. protected void authenticate() {
String user = req.getParameter("user");
String pin = req.getParameter("pin");
String token = req.getParameter("token");
Document doc = db.parse(new File("users.xml"));
if(user.isEmpty() || pin.isEmpty() ||
!token.matches("[0-9]{8}")) {
// …
} else {
String q = "/users/user[@id='" +
ESAPI.encoder().encodeForXPath(user) +
"' and @pin=" +
ESAPI.encoder().encodeForXPath(pin) +
"]";
// …
NodeList nl=(NodeList)xpath.evaluate(q);
// …
}
}
4

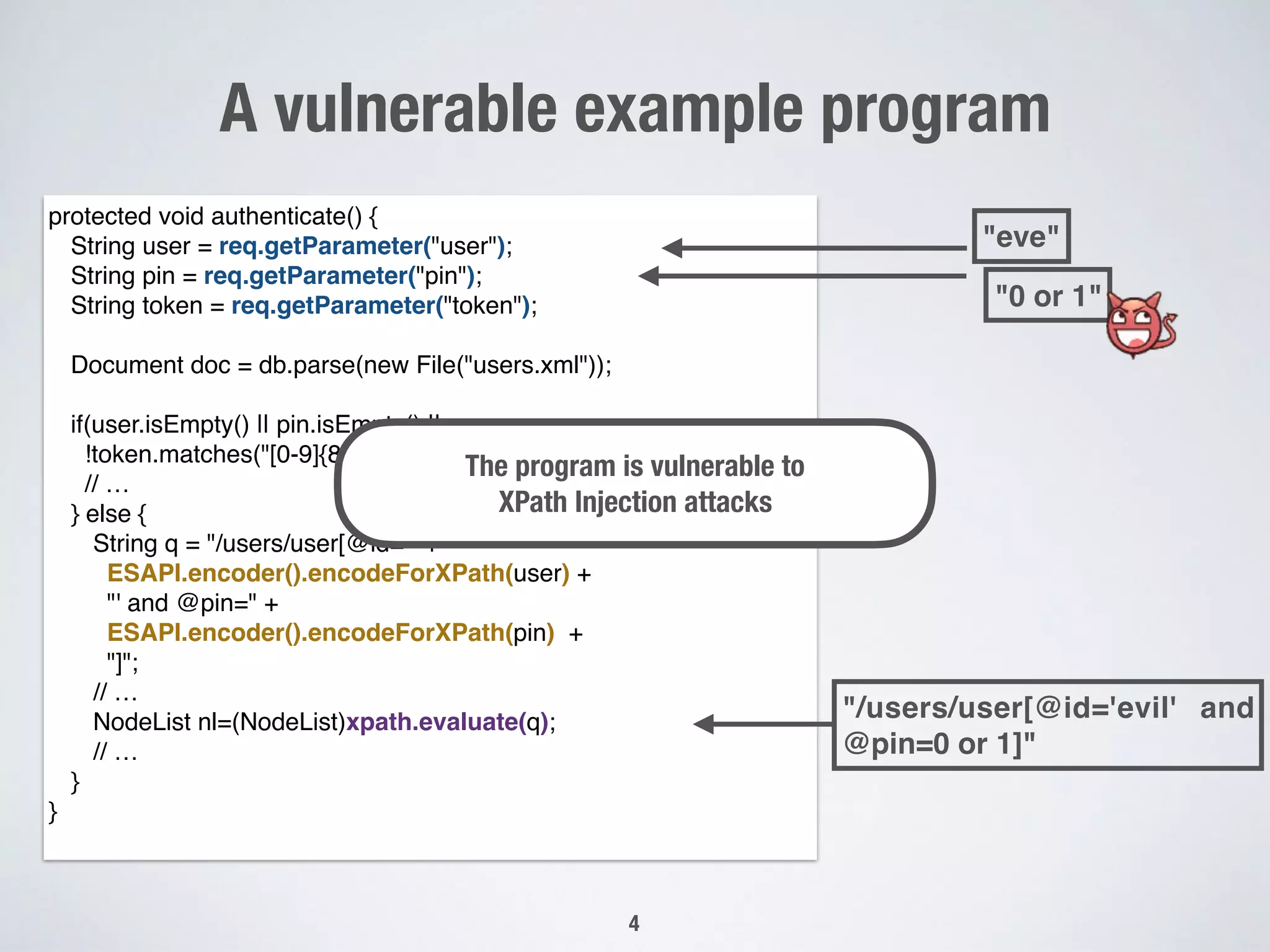

A vulnerable example program
"0 or 1"
"eve"
The program is vulnerable to
XPath Injection attacks
"/users/user[@id='evil' and
@pin=0 or 1]"

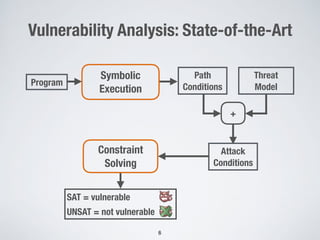

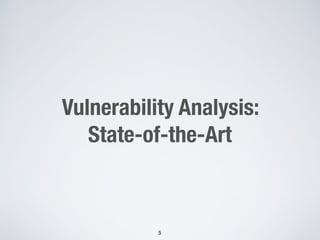

5. Vulnerability Analysis:
State-of-the-Art
5

6. Vulnerability Analysis: State-of-the-Art
Program
Path
Conditions
Threat
Model
+
Attack
Conditions
Symbolic
Execution
SAT = vulnerable
UNSAT = not vulnerable
Constraint
Solving
6

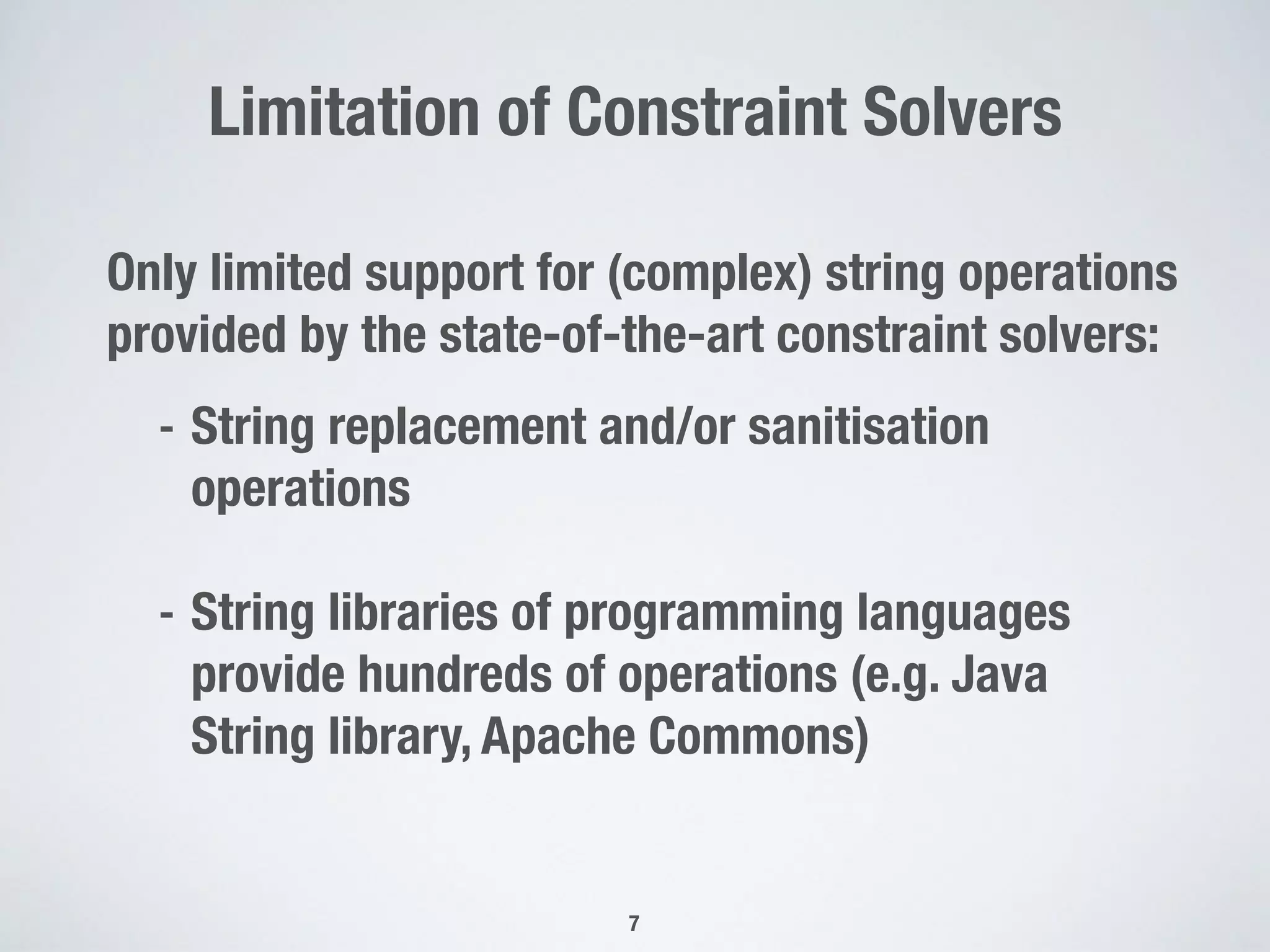

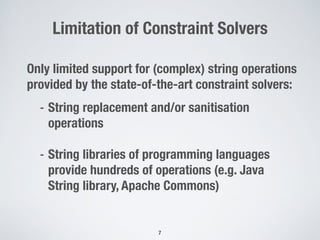

7. Limitation of Constraint Solvers
Only limited support for (complex) string operations
provided by the state-of-the-art constraint solvers:
7
- String replacement and/or sanitisation
operations
- String libraries of programming languages
provide hundreds of operations (e.g. Java
String library, Apache Commons)

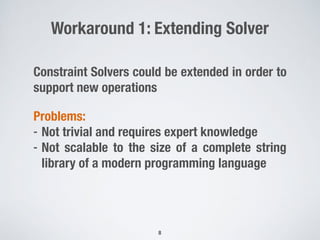

8. Workaround 1: Extending Solver
Constraint Solvers could be extended in order to
support new operations
8
Problems:
- Not trivial and requires expert knowledge
- Not scalable to the size of a complete string
library of a modern programming language

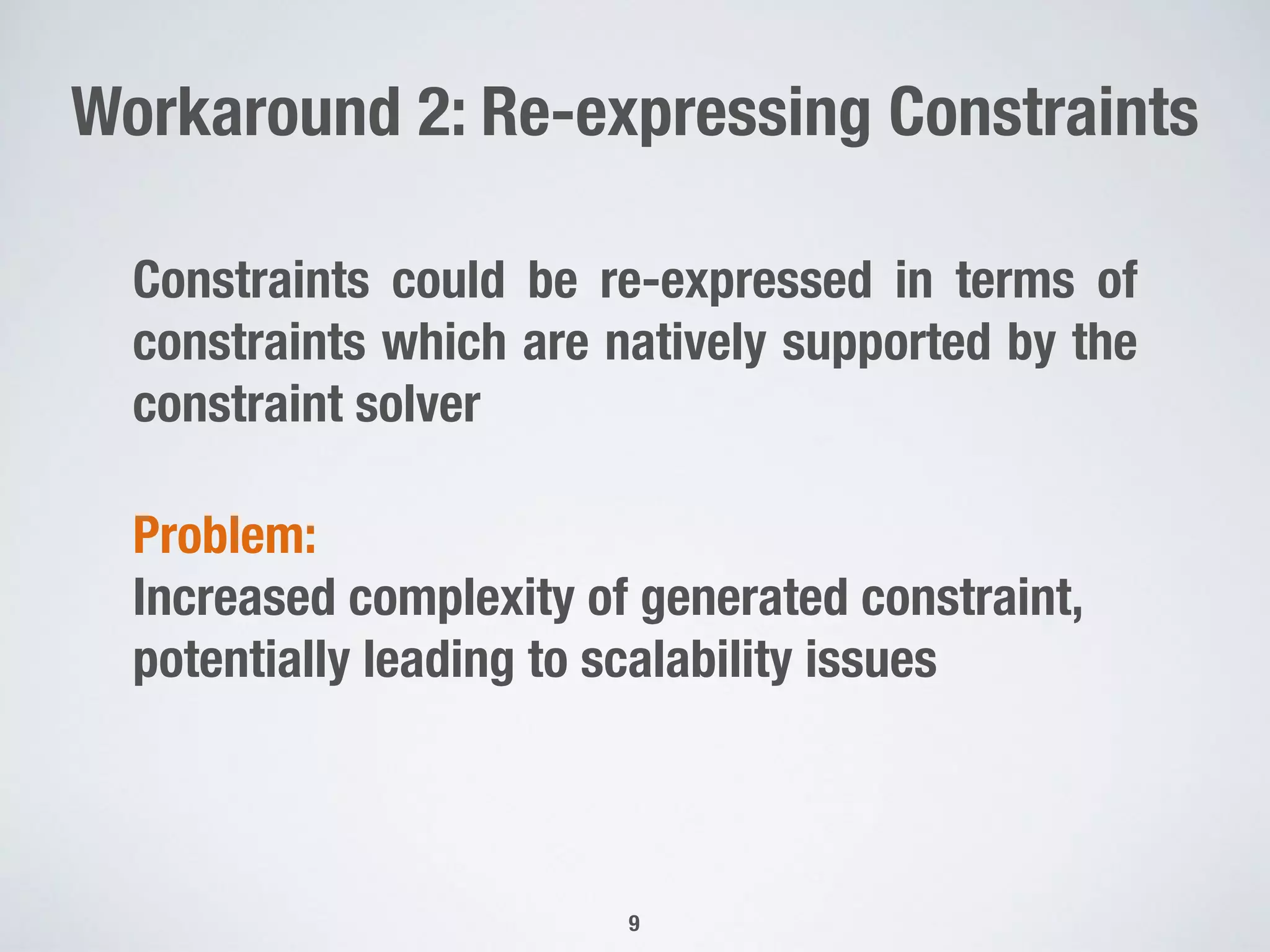

9. Workaround 2: Re-expressing Constraints
Constraints could be re-expressed in terms of
constraints which are natively supported by the
constraint solver
9
Problem:
Increased complexity of generated constraint,
potentially leading to scalability issues

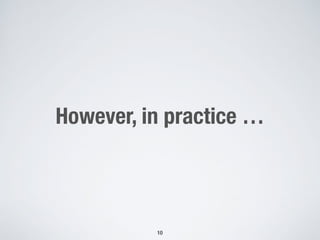

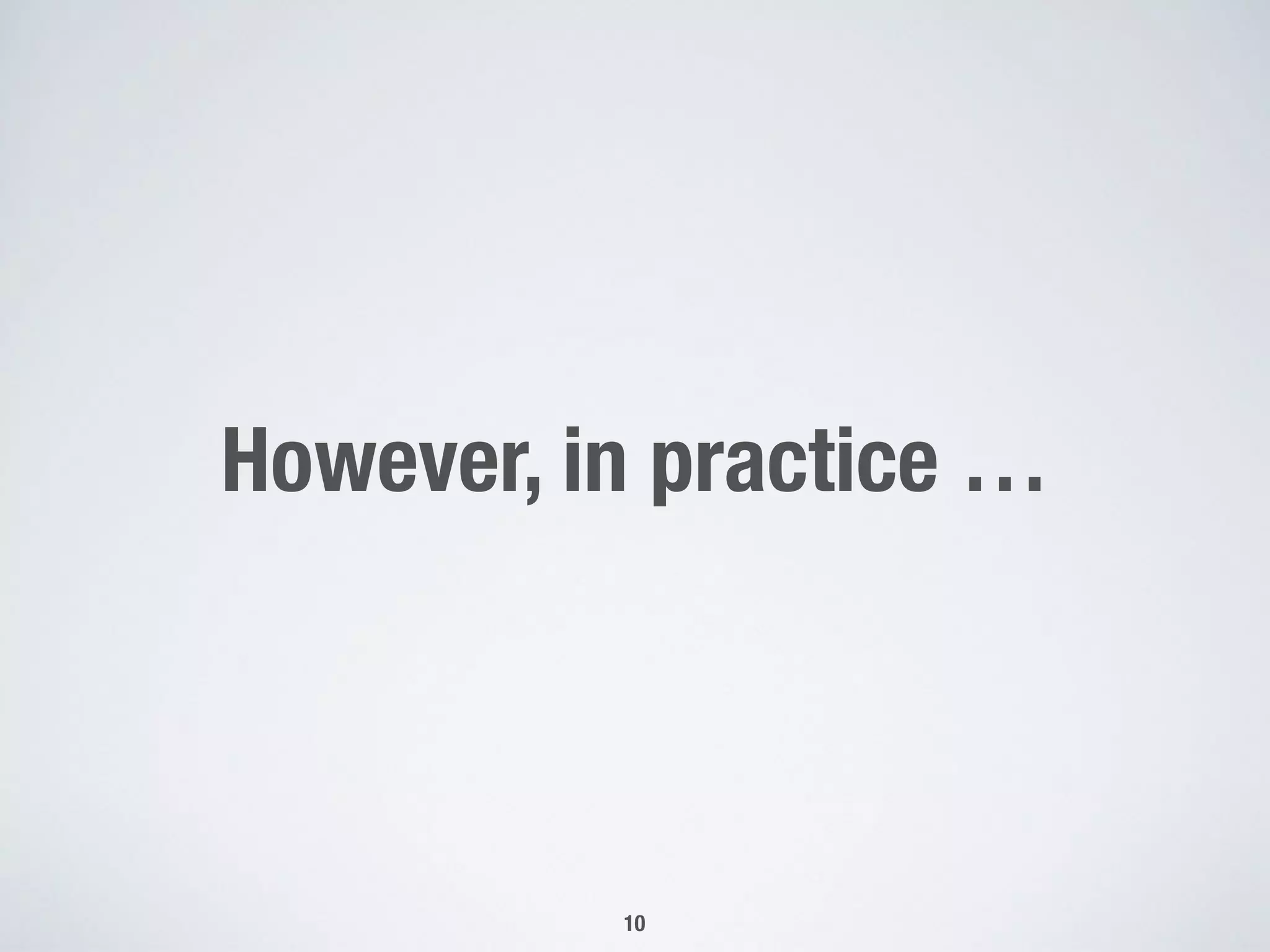

10. However, in practice …
10

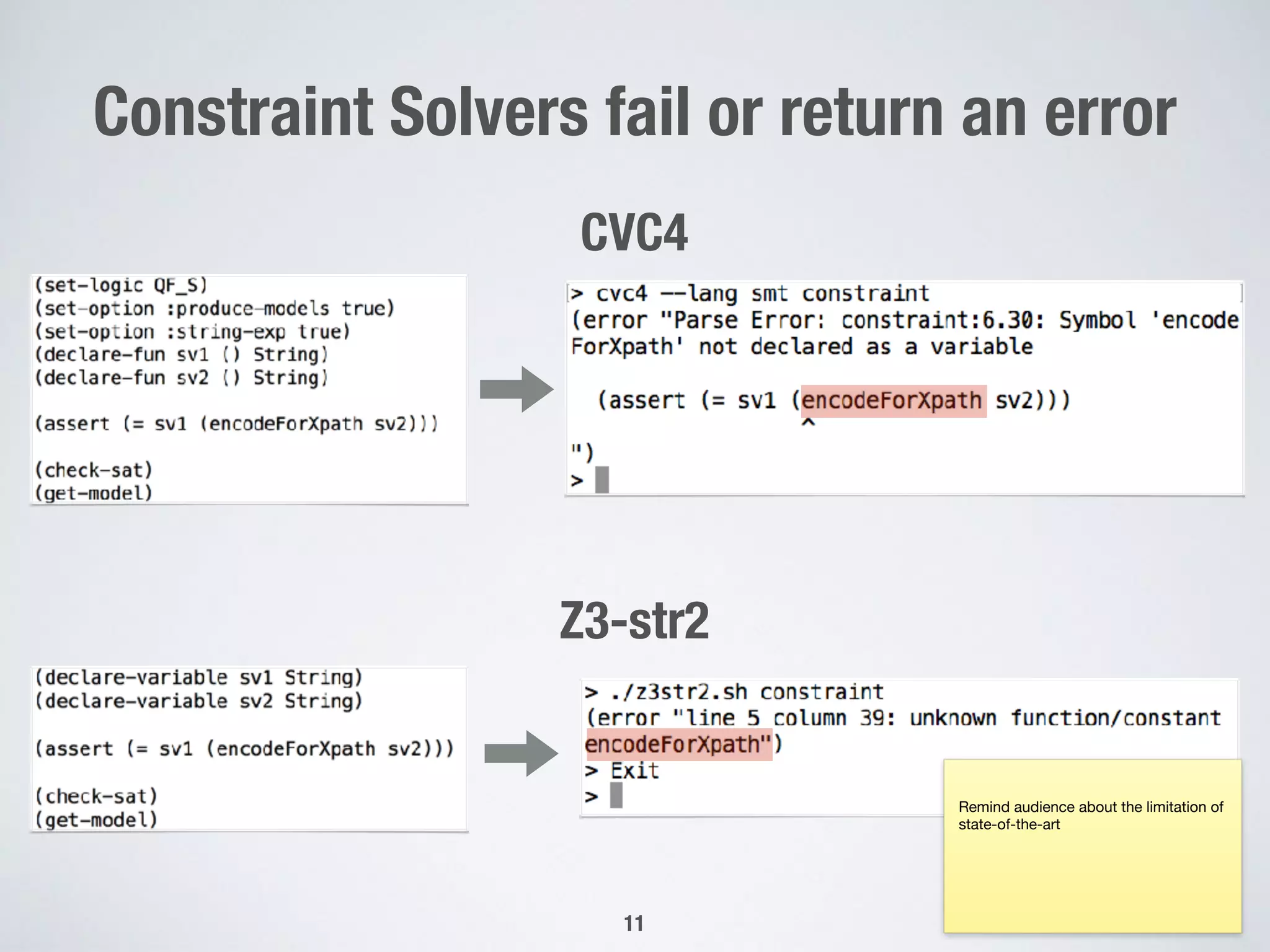

11. 11

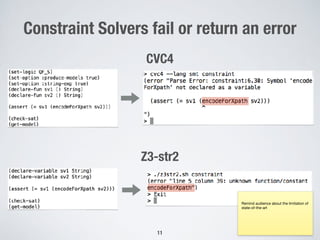

Constraint Solvers fail or return an error
CVC4
Z3-str2
Remind audience about the limitation of
state-of-the-art

12. Our Approach:
Search-driven
String Constraint Solving
12

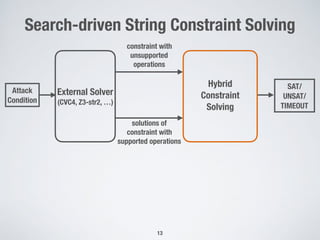

13. Search-driven String Constraint Solving
External Solver
(CVC4, Z3-str2, …)
Attack
Condition
constraint with
unsupported
operations
solutions of
constraint with
supported operations
SAT/
UNSAT/
TIMEOUT
Hybrid
Constraint
Solving
13

14. 14

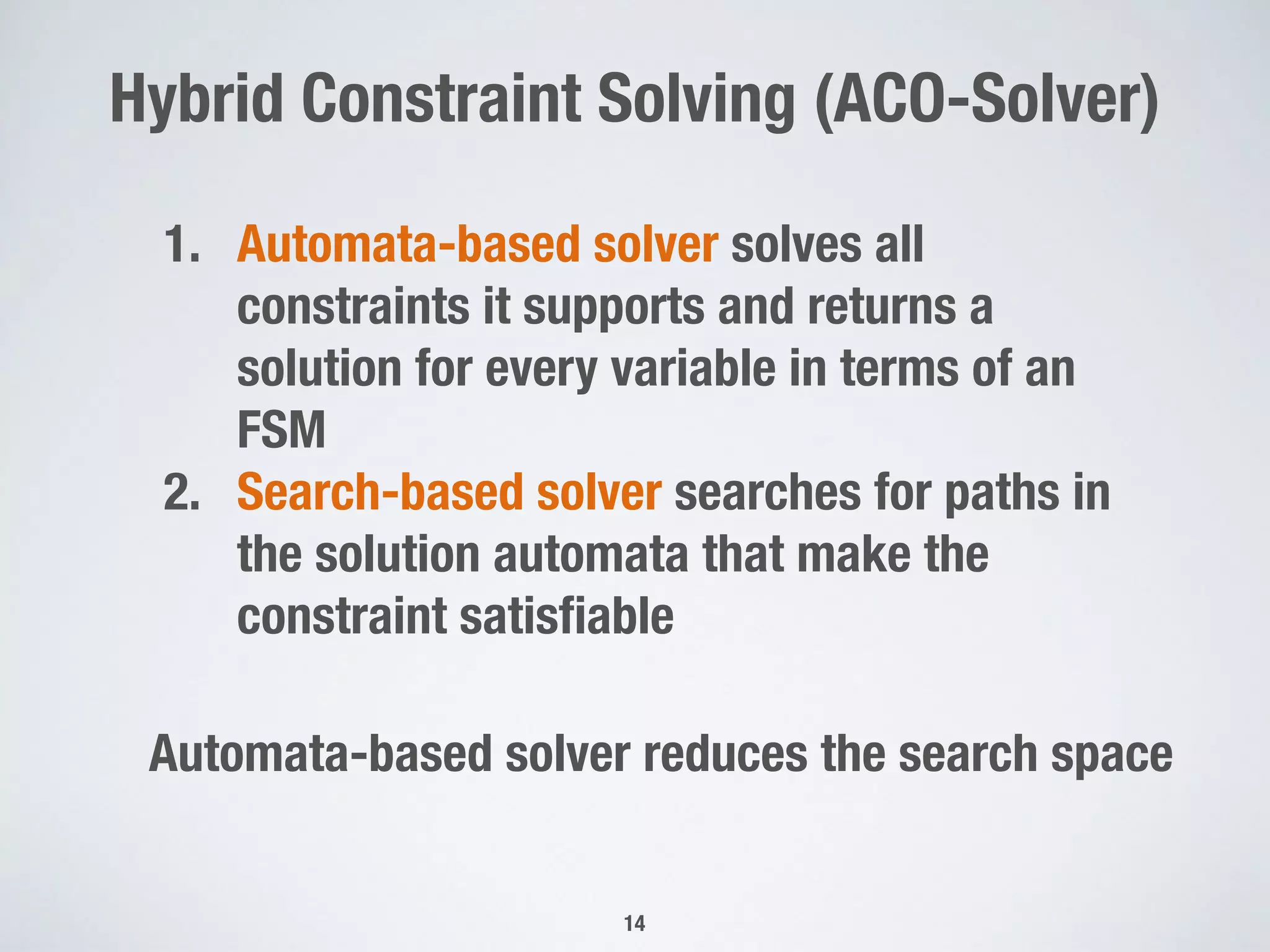

Hybrid Constraint Solving (ACO-Solver)
1. Automata-based solver solves all
constraints it supports and returns a
solution for every variable in terms of an
FSM
2. Search-based solver searches for paths in
the solution automata that make the
constraint satisfiable
Automata-based solver reduces the search space

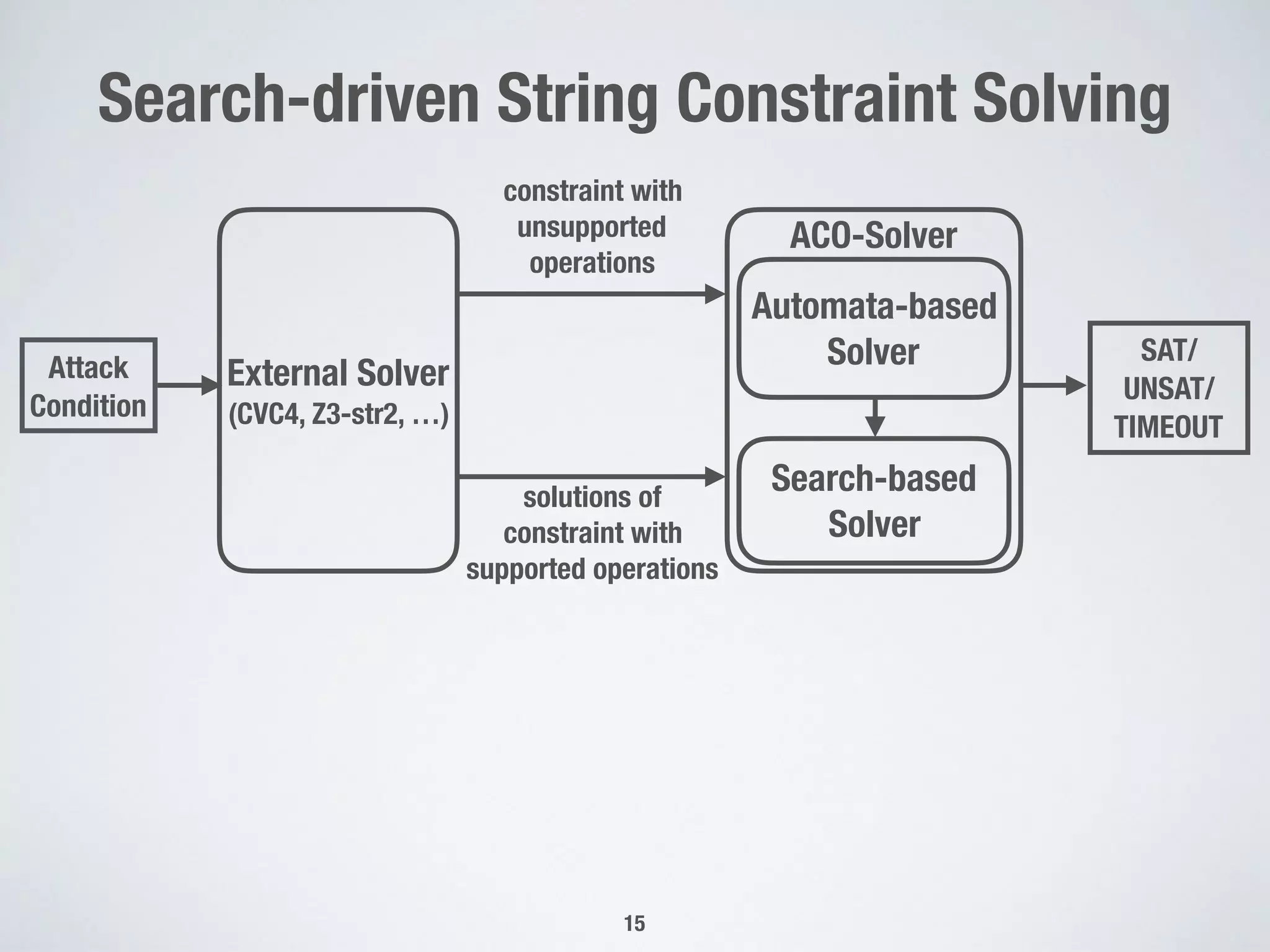

15. Search-driven String Constraint Solving
External Solver
(CVC4, Z3-str2, …)
Attack
Condition
constraint with
unsupported
operations
solutions of
constraint with
supported operations
SAT/
UNSAT/
TIMEOUT
Automata-based
Solver
Search-based
Solver
ACO-Solver
15

16. len(v0user
) > 0
len(v0pin
) > 0
v1user
= encodeForXPath(v0user
)
v0q
= concat("/users/user[@id='", v1user
)
v1q
= concat(v0q
, "' and @pin=")
v1pin
= encodeForXPath(v0pin
)
v2q
= concat(v1q
, v1pin
)
v3q
= concat(v2q
, "]")
matches(v1pin
, "[0-9]+ [Oo][Rr] 1=1")
matches(v0token
, "[0-9]{8}")

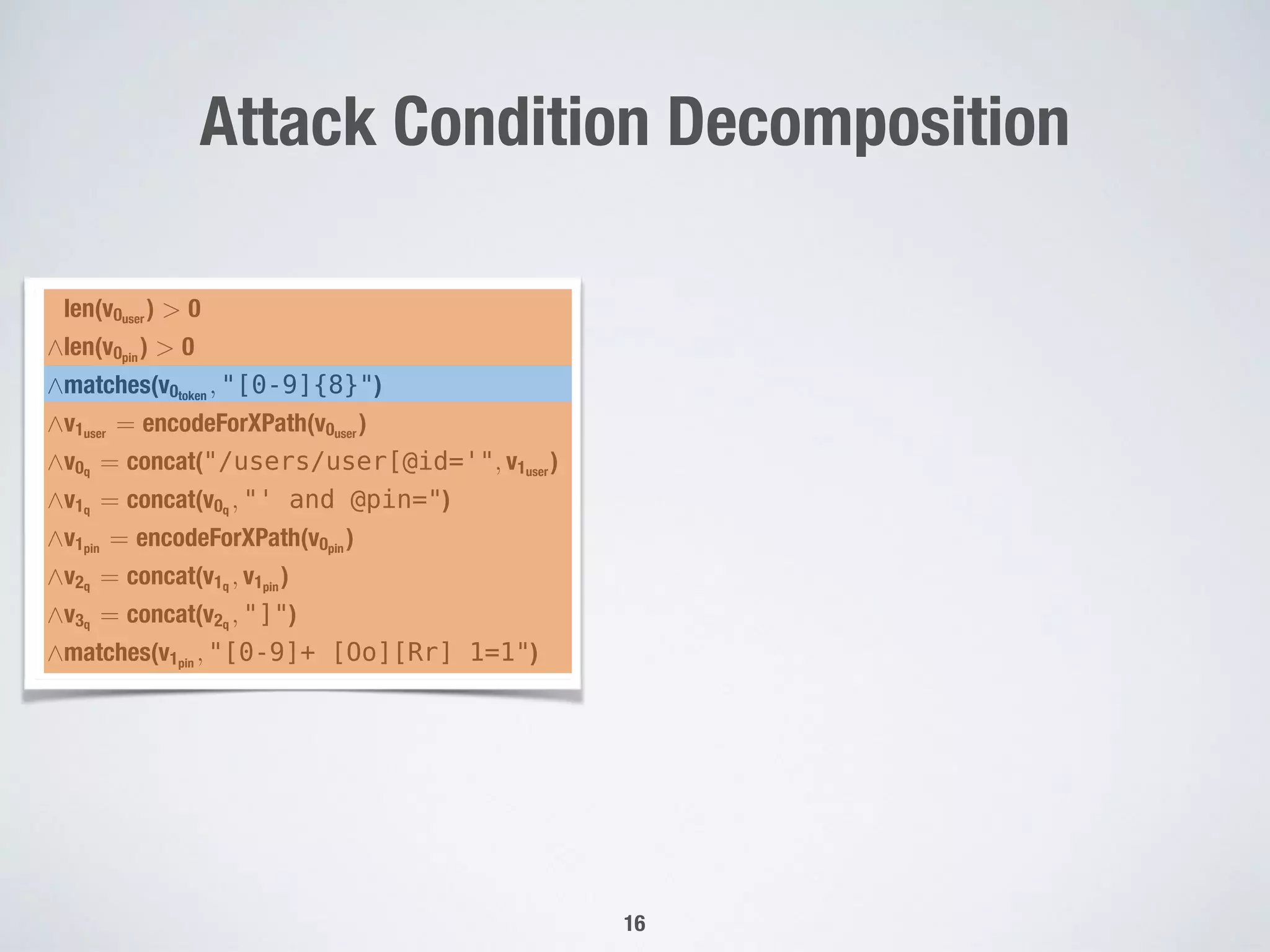

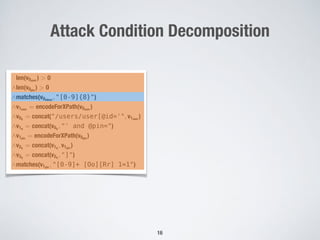

Attack Condition Decomposition
16
len(v0user
) > 0
len(v0pin
) > 0
matches(v0token
, "[0-9]{8}")
v1user
= encodeForXPath(v0user
)
v0q
= concat("/users/user[@id='", v1user
)
v1q
= concat(v0q
, "' and @pin=")
v1pin
= encodeForXPath(v0pin
)
v2q
= concat(v1q
, v1pin
)
v3q
= concat(v2q
, "]")
matches(v1pin
, "[0-9]+ [Oo][Rr] 1=1")

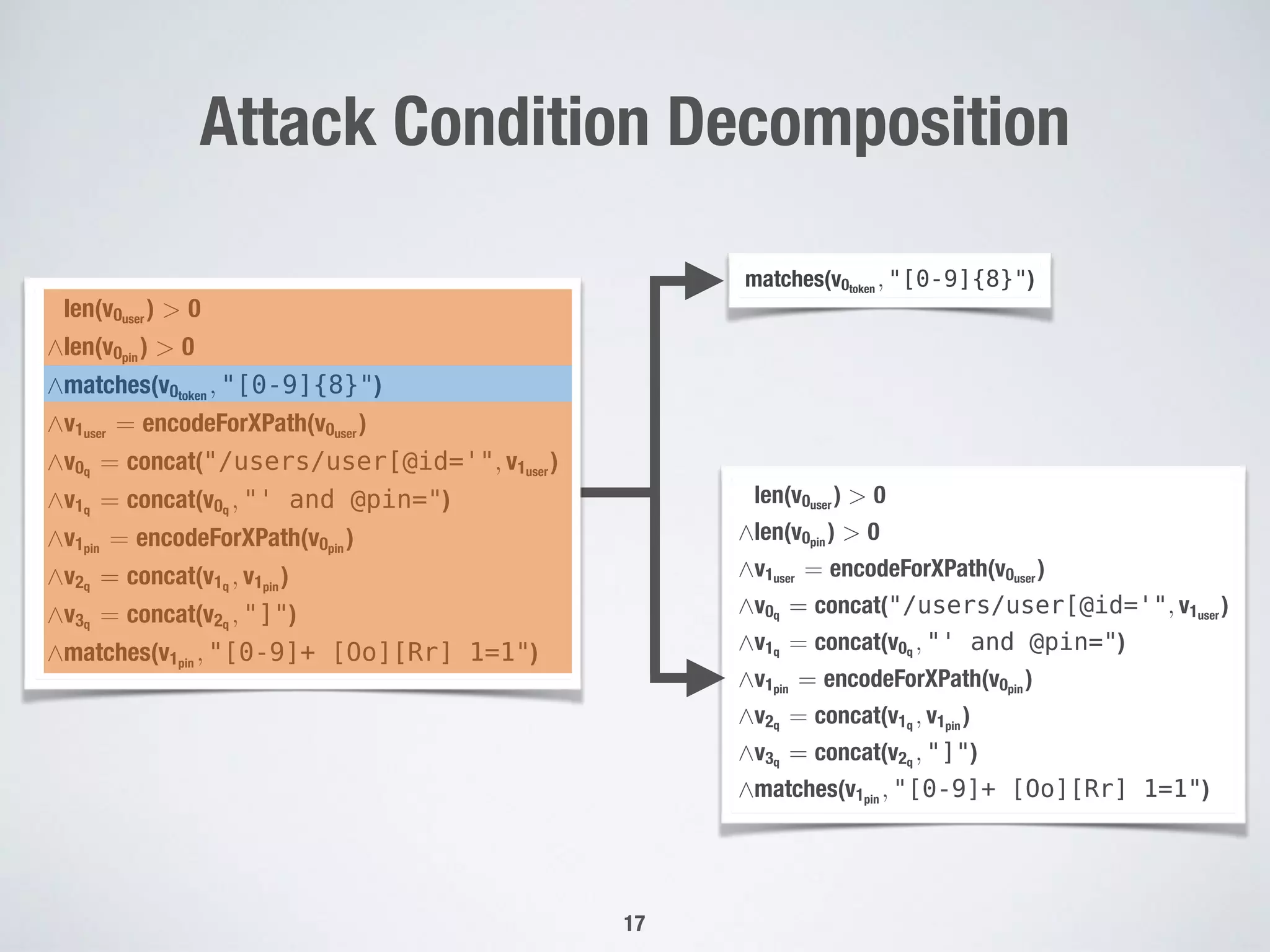

17. Attack Condition Decomposition
17
len(v0user
) > 0
len(v0pin
) > 0
v1user
= encodeForXPath(v0user
)
v0q
= concat("/users/user[@id='", v1user
)
v1q
= concat(v0q
, "' and @pin=")
v1pin
= encodeForXPath(v0pin
)
v2q
= concat(v1q
, v1pin
)
v3q
= concat(v2q
, "]")
matches(v1pin
, "[0-9]+ [Oo][Rr] 1=1")
len(v0user
) > 0
len(v0pin
) > 0
matches(v0token
, "[0-9]{8}")
v1user
= encodeForXPath(v0user
)
v0q
= concat("/users/user[@id='", v1user
)
v1q
= concat(v0q
, "' and @pin=")
v1pin
= encodeForXPath(v0pin
)
v2q
= concat(v1q
, v1pin
)
v3q
= concat(v2q
, "]")
matches(v1pin
, "[0-9]+ [Oo][Rr] 1=1")
matches(v0token
, "[0-9]{8}")

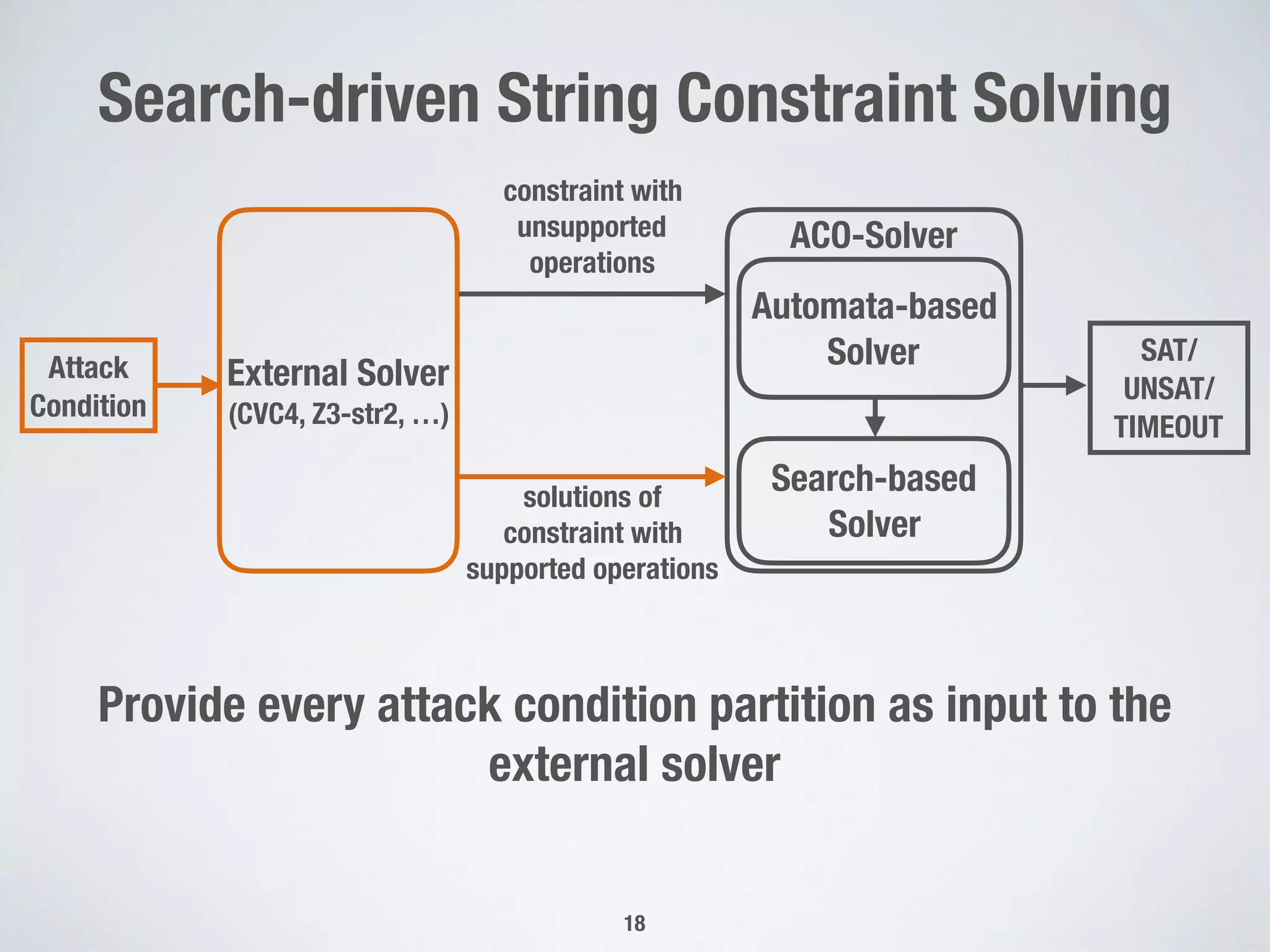

18. Provide every attack condition partition as input to the
external solver
Search-driven String Constraint Solving
18
External Solver
(CVC4, Z3-str2, …)
Attack
Condition
constraint with
unsupported
operations
solutions of
constraint with
supported operations
SAT/
UNSAT/
TIMEOUT
Automata-based
Solver
Search-based
Solver
ACO-Solver

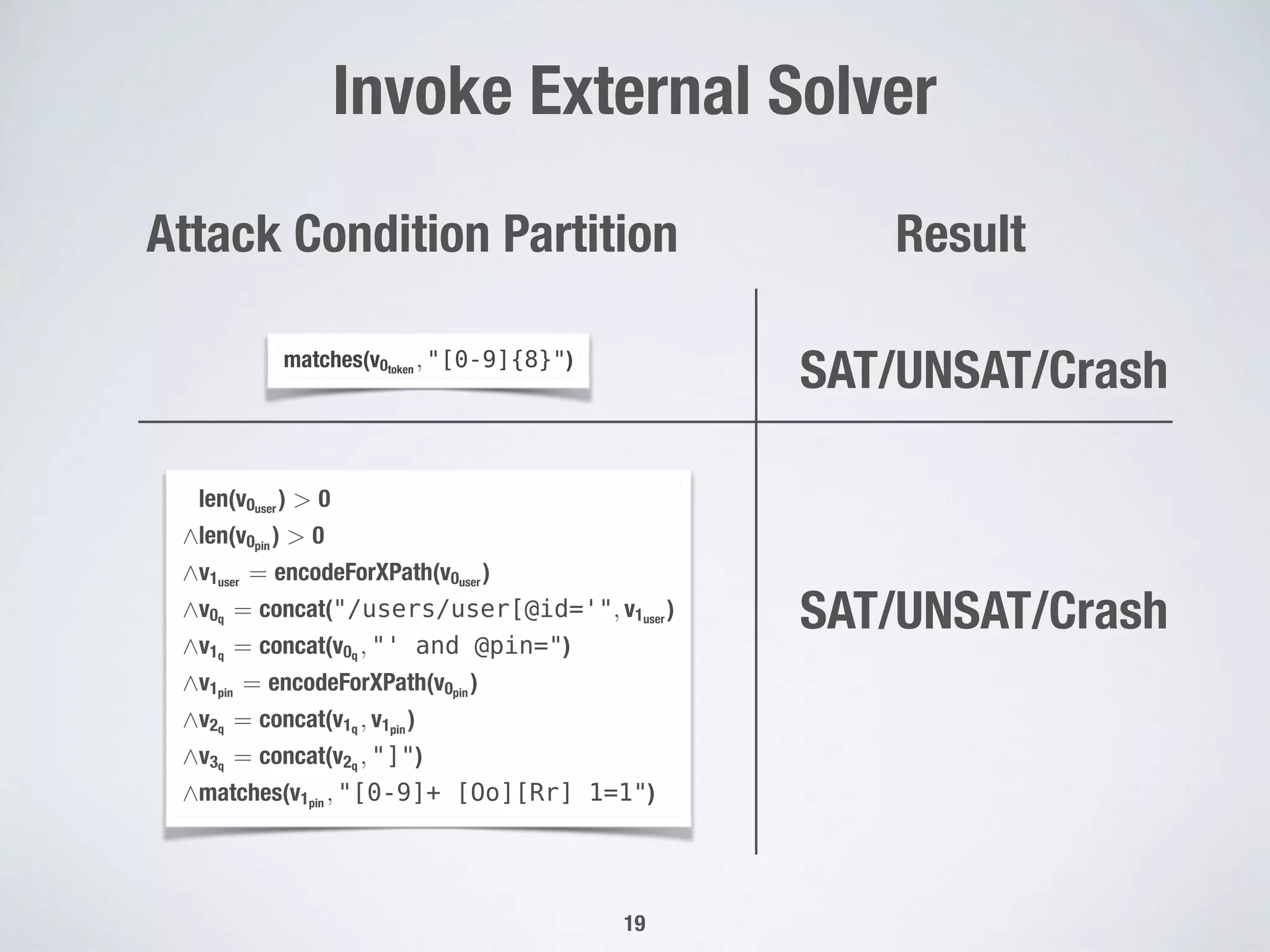

19. 19
len(v0user
) > 0
len(v0pin
) > 0
v1user
= encodeForXPath(v0user
)
v0q
= concat("/users/user[@id='", v1user
)
v1q
= concat(v0q
, "' and @pin=")
v1pin
= encodeForXPath(v0pin
)
v2q
= concat(v1q
, v1pin
)
v3q
= concat(v2q
, "]")
matches(v1pin
, "[0-9]+ [Oo][Rr] 1=1")
matches(v0token
, "[0-9]{8}")
SAT/UNSAT/Crash
Attack Condition Partition
SAT/UNSAT/Crash
Invoke External Solver
Result

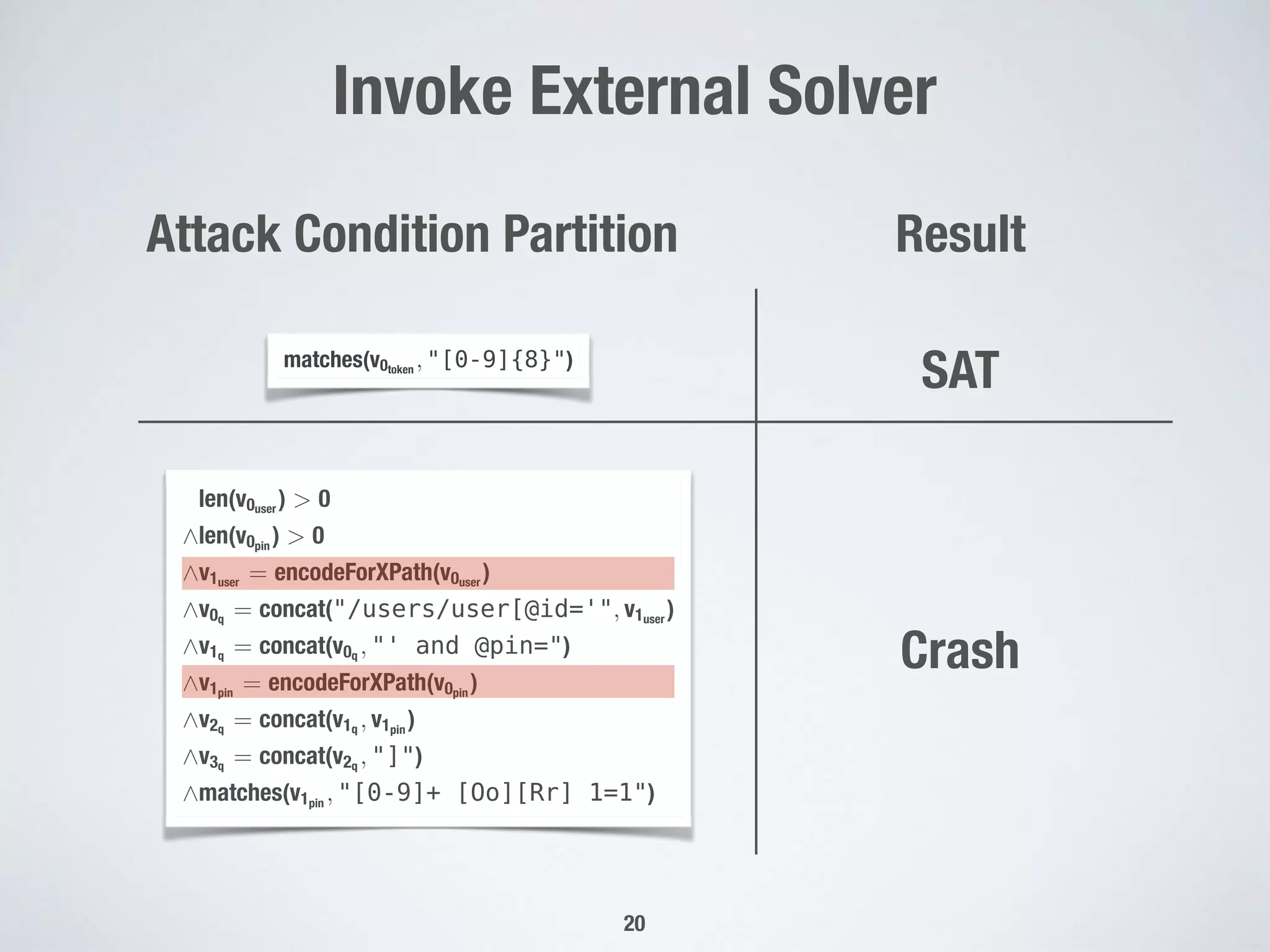

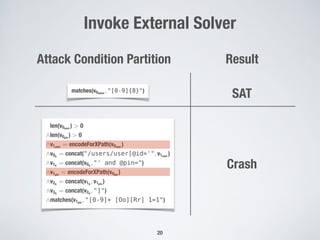

20. Invoke External Solver
20
matches(v0token
, "[0-9]{8}")
SAT
ResultAttack Condition Partition
Crash
len(v0user
) > 0
len(v0pin
) > 0
v1user
= encodeForXPath(v0user
)
v0q
= concat("/users/user[@id='", v1user
)
v1q
= concat(v0q
, "' and @pin=")
v1pin
= encodeForXPath(v0pin
)
v2q
= concat(v1q
, v1pin
)
v3q
= concat(v2q
, "]")
matches(v1pin
, "[0-9]+ [Oo][Rr] 1=1")

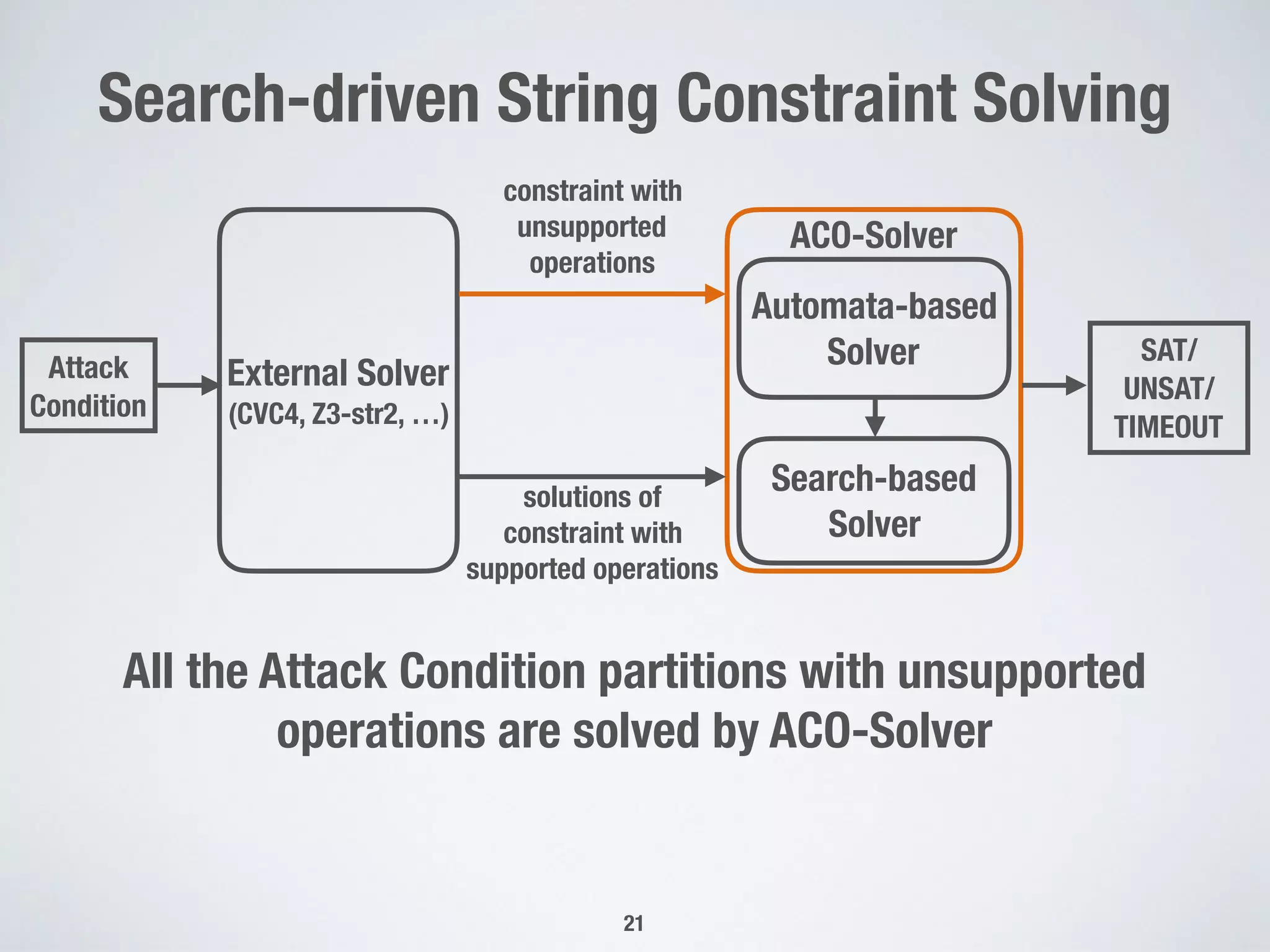

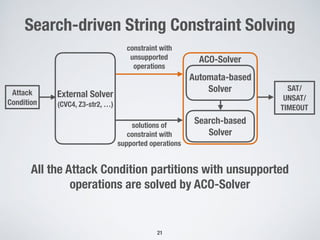

21. All the Attack Condition partitions with unsupported
operations are solved by ACO-Solver
Search-driven String Constraint Solving
21
External Solver
(CVC4, Z3-str2, …)
Attack
Condition
constraint with
unsupported
operations
solutions of
constraint with
supported operations
SAT/
UNSAT/
TIMEOUT
Automata-based
Solver
Search-based
Solver
ACO-Solver

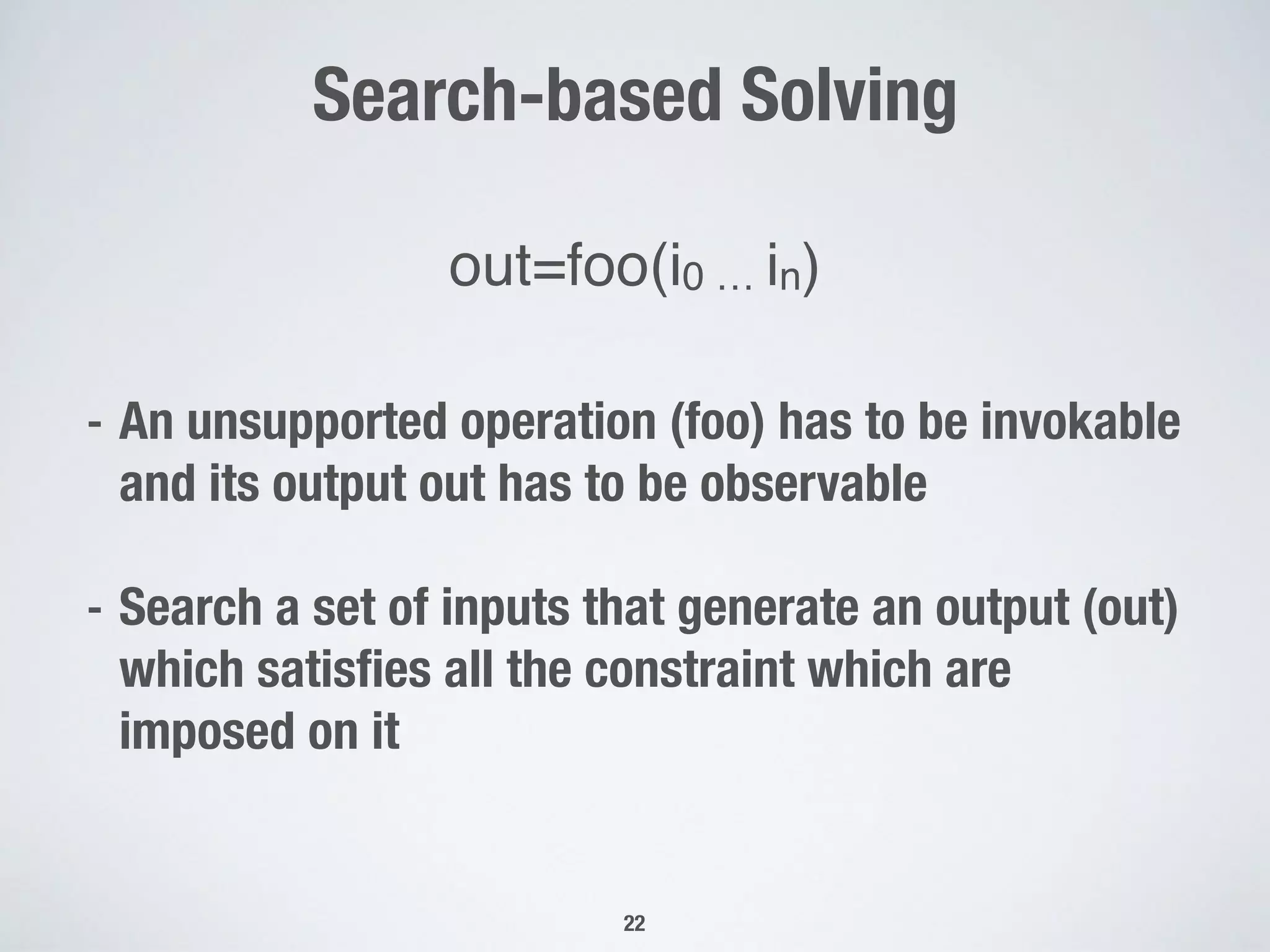

22. - An unsupported operation (foo) has to be invokable
and its output out has to be observable
- Search a set of inputs that generate an output (out)
which satisfies all the constraint which are
imposed on it

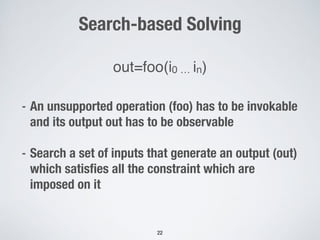

Search-based Solving
22
out=foo(i0 … in)

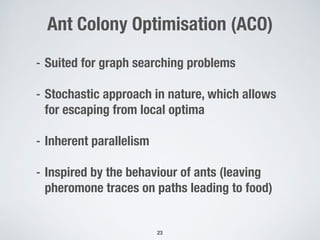

23. Ant Colony Optimisation (ACO)
- Suited for graph searching problems
- Stochastic approach in nature, which allows
for escaping from local optima
- Inherent parallelism
- Inspired by the behaviour of ants (leaving
pheromone traces on paths leading to food)
23

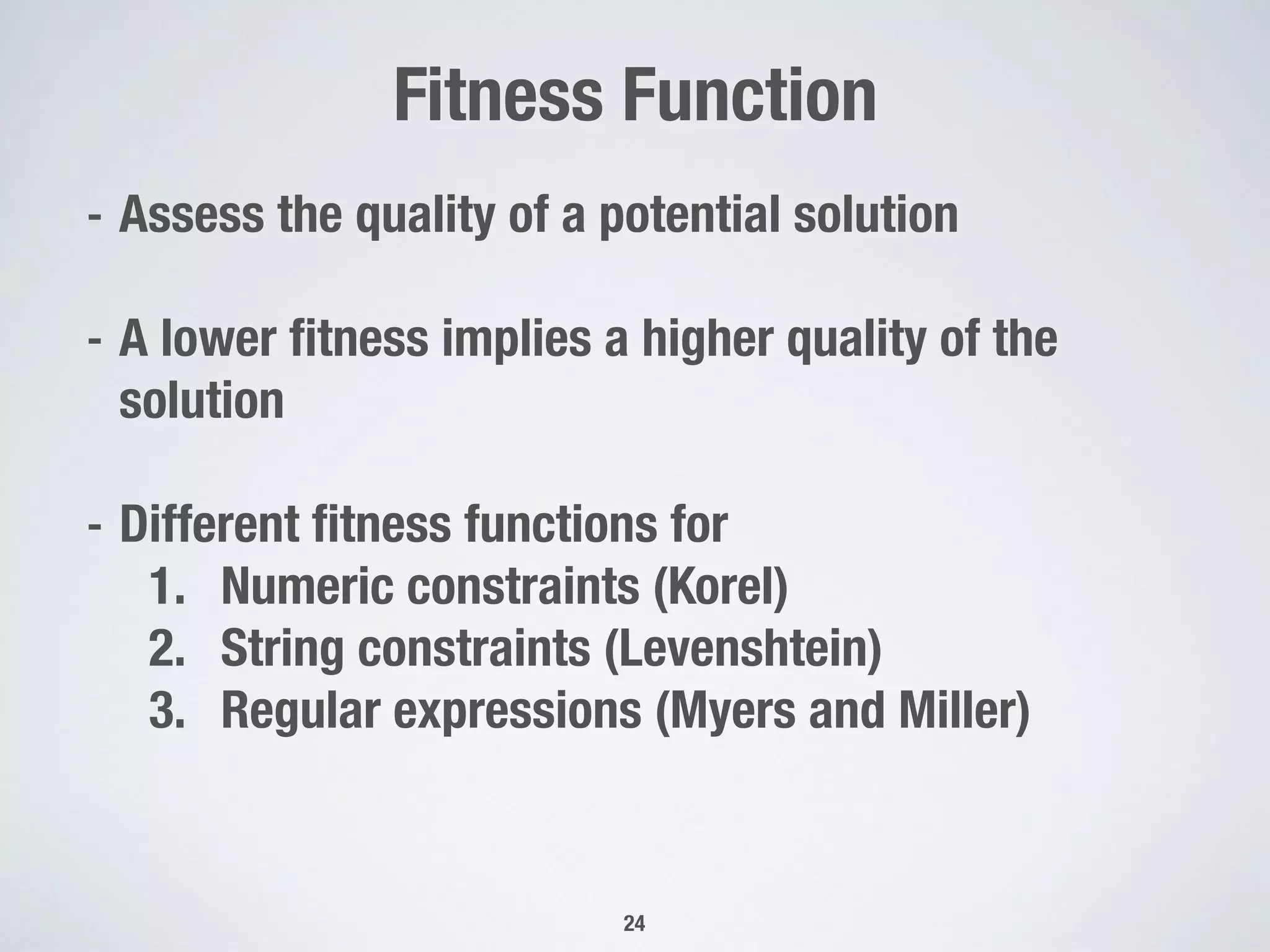

24. Fitness Function
24
- Assess the quality of a potential solution
- A lower fitness implies a higher quality of the
solution
- Different fitness functions for
1. Numeric constraints (Korel)
2. String constraints (Levenshtein)
3. Regular expressions (Myers and Miller)

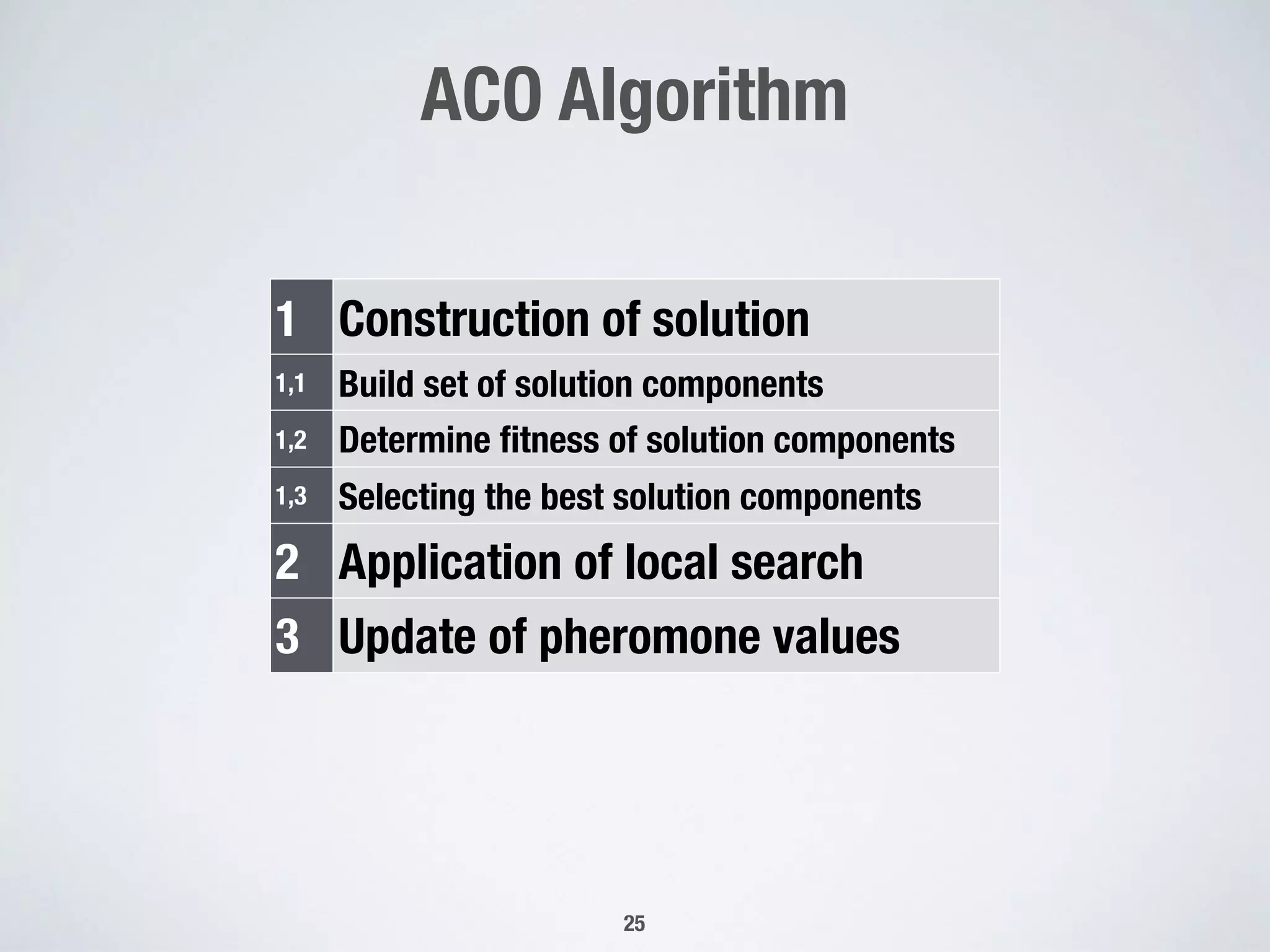

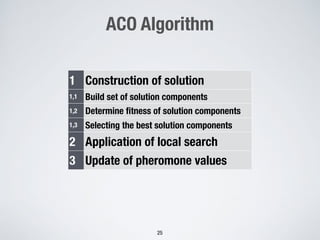

25. ACO Algorithm
1 Construction of solution
1,1 Build set of solution components
1,2 Determine fitness of solution components
1,3 Selecting the best solution components
2 Application of local search
3 Update of pheromone values
25

26. Evaluation
26

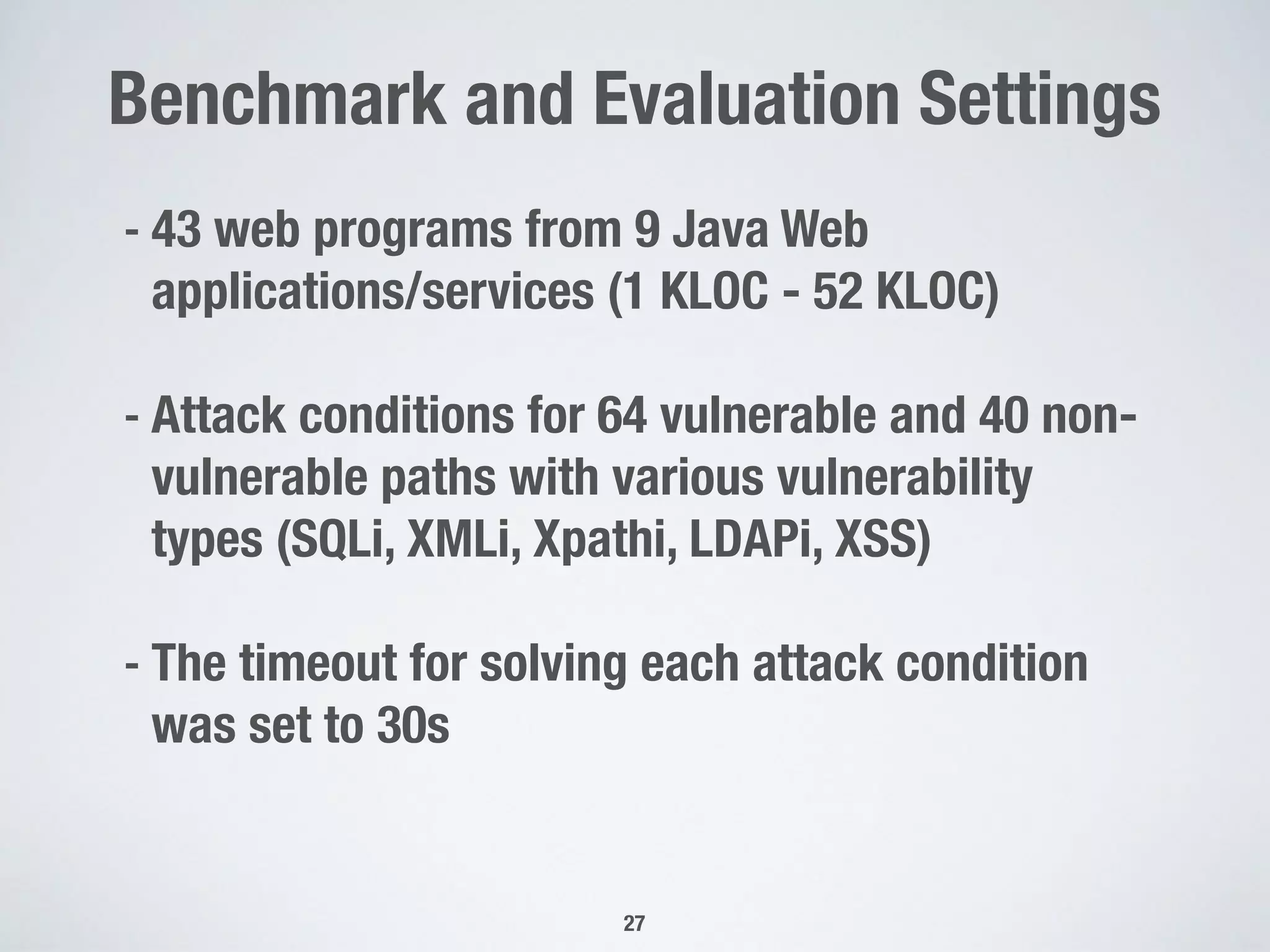

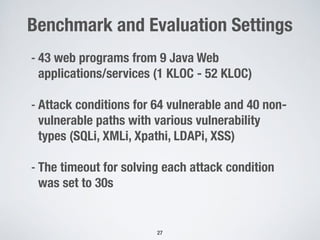

27. Benchmark and Evaluation Settings
27
- 43 web programs from 9 Java Web
applications/services (1 KLOC - 52 KLOC)
- Attack conditions for 64 vulnerable and 40 non-
vulnerable paths with various vulnerability
types (SQLi, XMLi, Xpathi, LDAPi, XSS)
- The timeout for solving each attack condition
was set to 30s

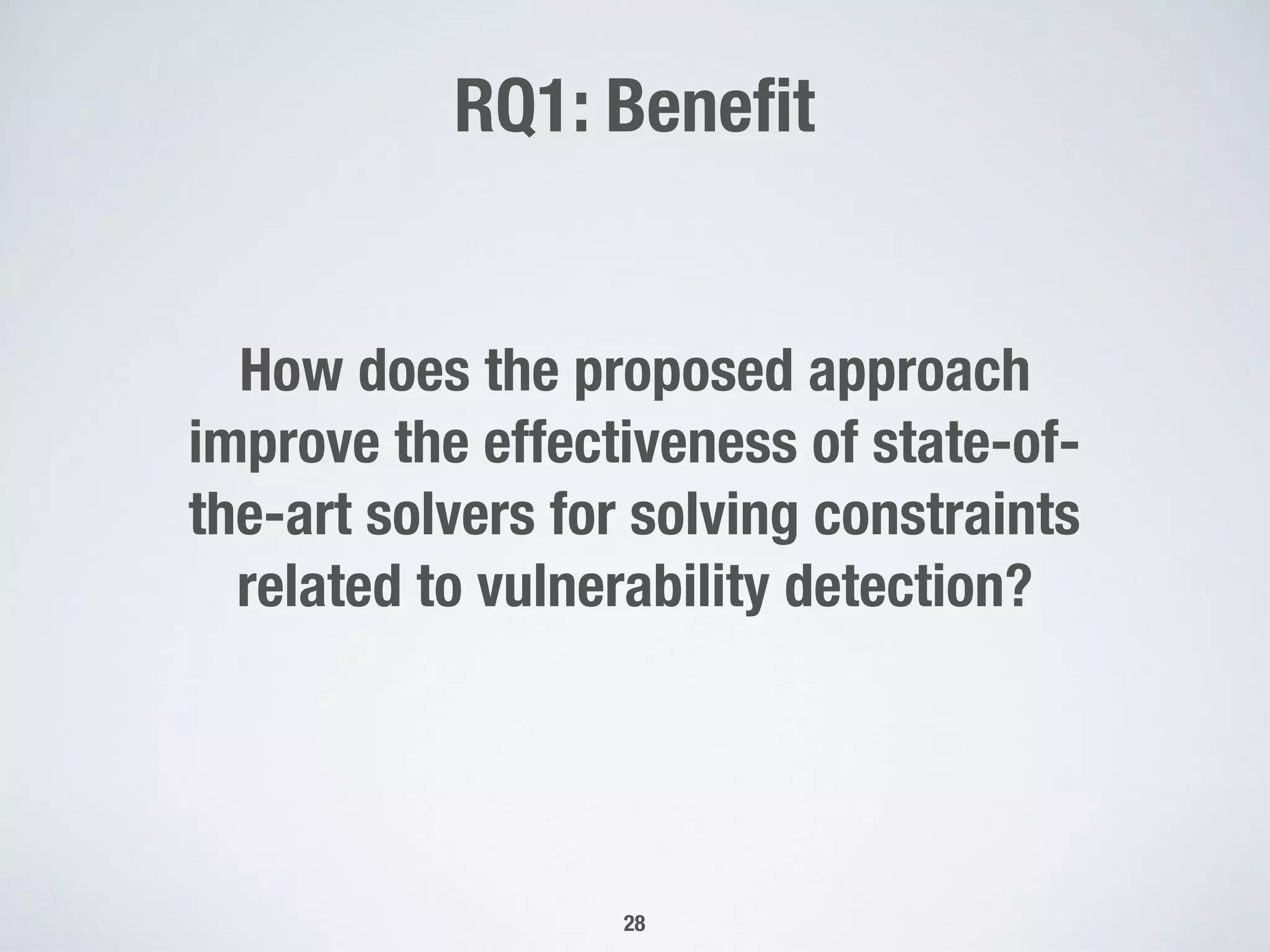

28. RQ1: Benefit
How does the proposed approach
improve the effectiveness of state-of-
the-art solvers for solving constraints
related to vulnerability detection?
28

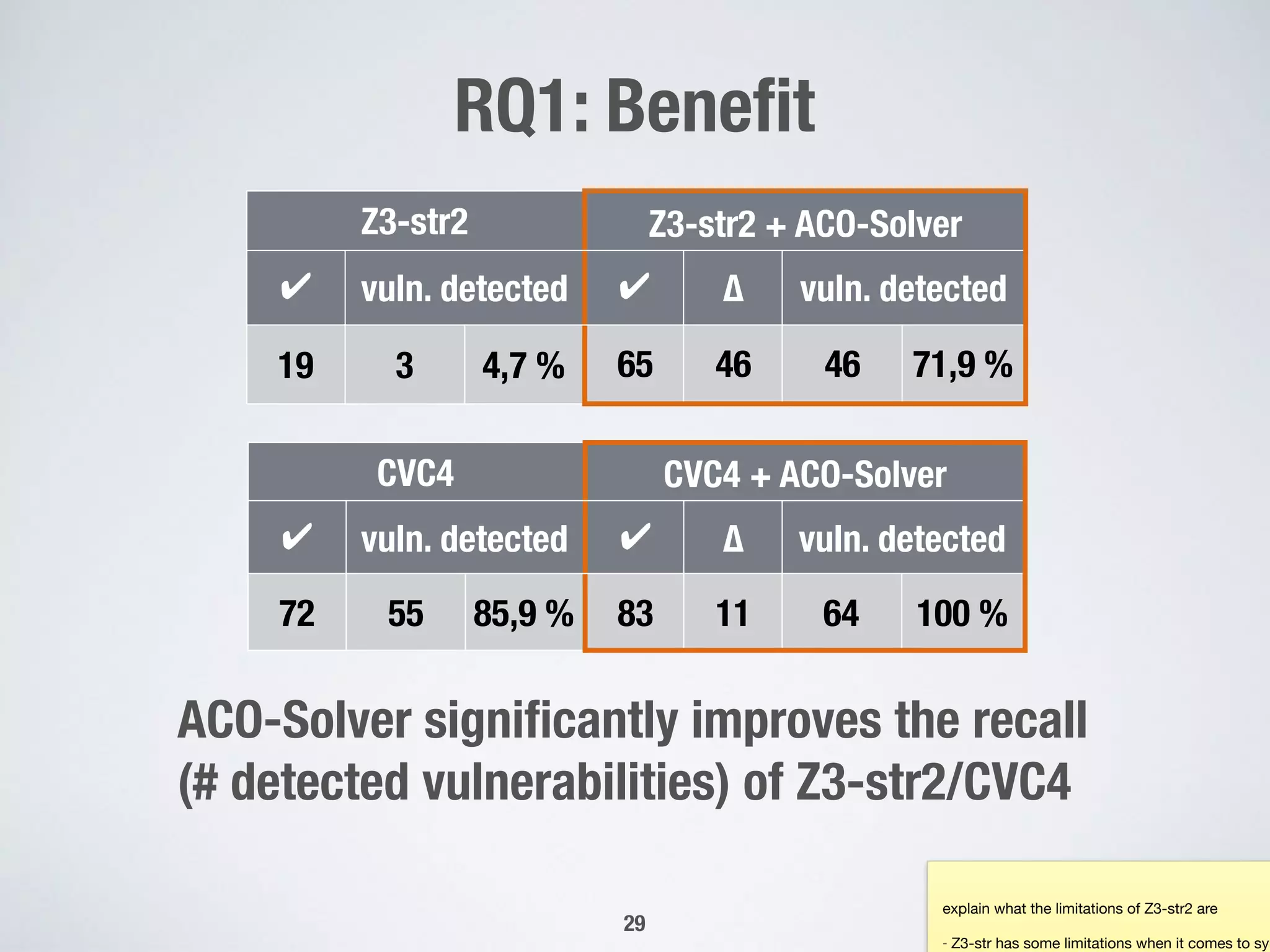

29. Z3-str2 Z3-str2 + ACO-Solver
✔ vuln. detected ✔ ∆ vuln. detected
19 3 4,7 % 65 46 46 71,9 %
ACO-Solver significantly improves the recall
(# detected vulnerabilities) of Z3-str2/CVC4
RQ1: Benefit
CVC4 CVC4 + ACO-Solver
✔ vuln. detected ✔ ∆ vuln. detected
72 55 85,9 % 83 11 64 100 %
29
explain what the limitations of Z3-str2 are
- Z3-str has some limitations when it comes to sym

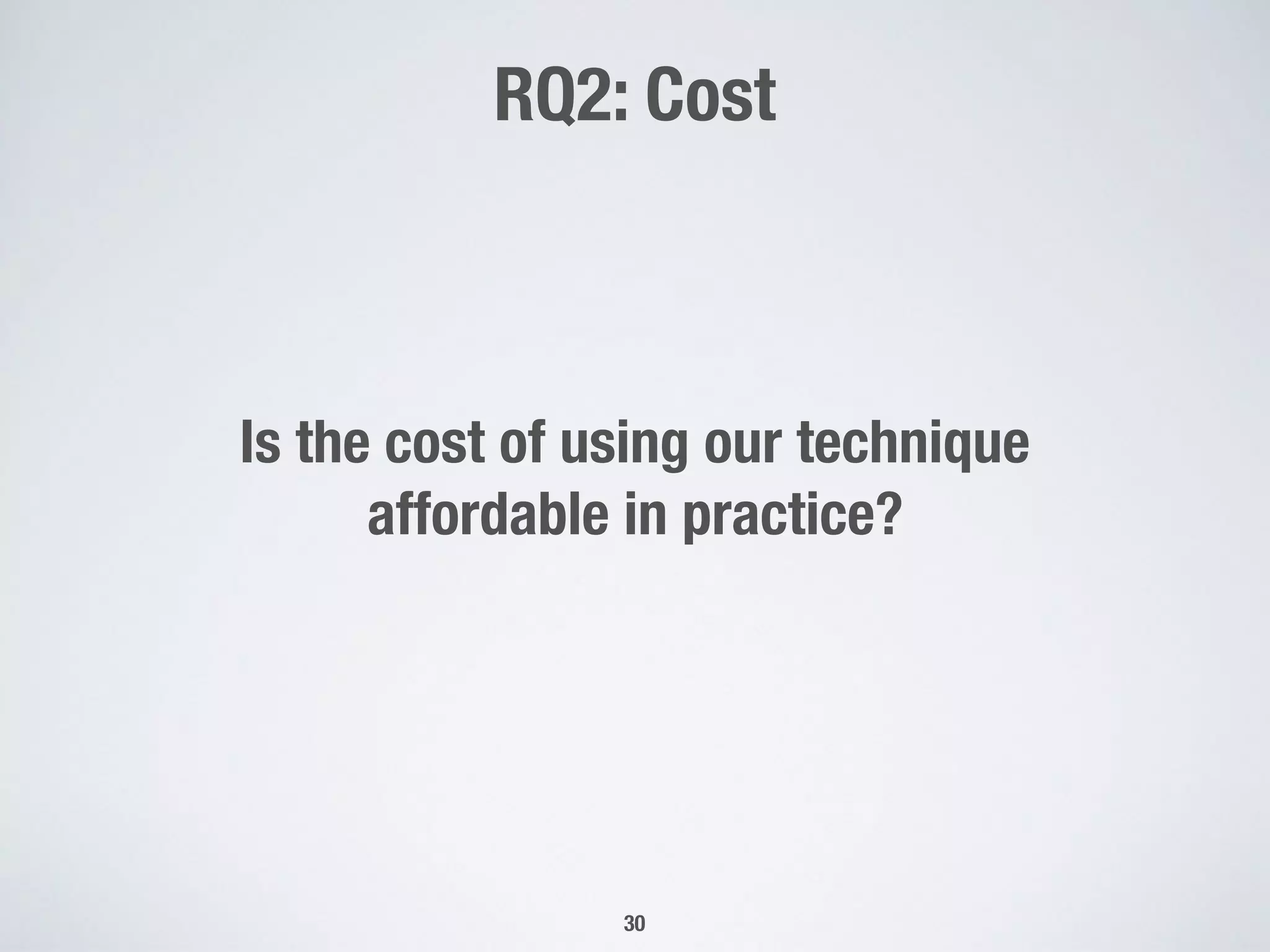

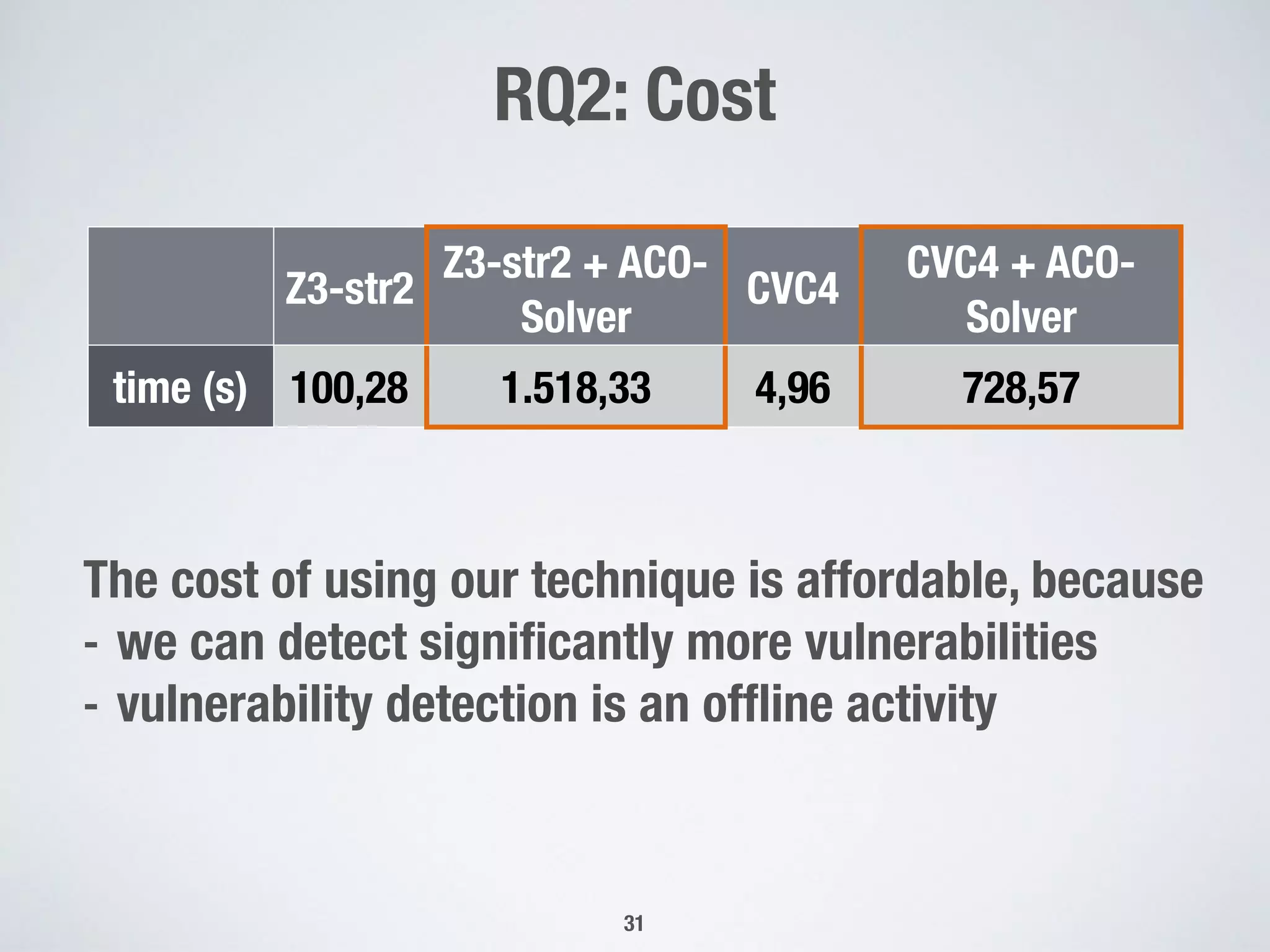

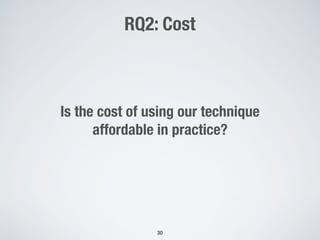

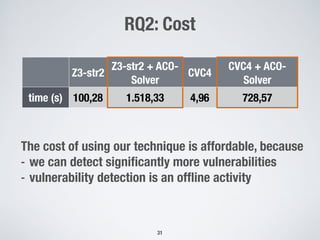

30. RQ2: Cost
Is the cost of using our technique
affordable in practice?
30

31. 31
The cost of using our technique is affordable, because
- we can detect significantly more vulnerabilities
- vulnerability detection is an offline activity
Z3-str2
Z3-str2 + ACO-
Solver
CVC4
CVC4 + ACO-
Solver
time (s) 100,28 1.518,33 4,96 728,57
RQ2: Cost

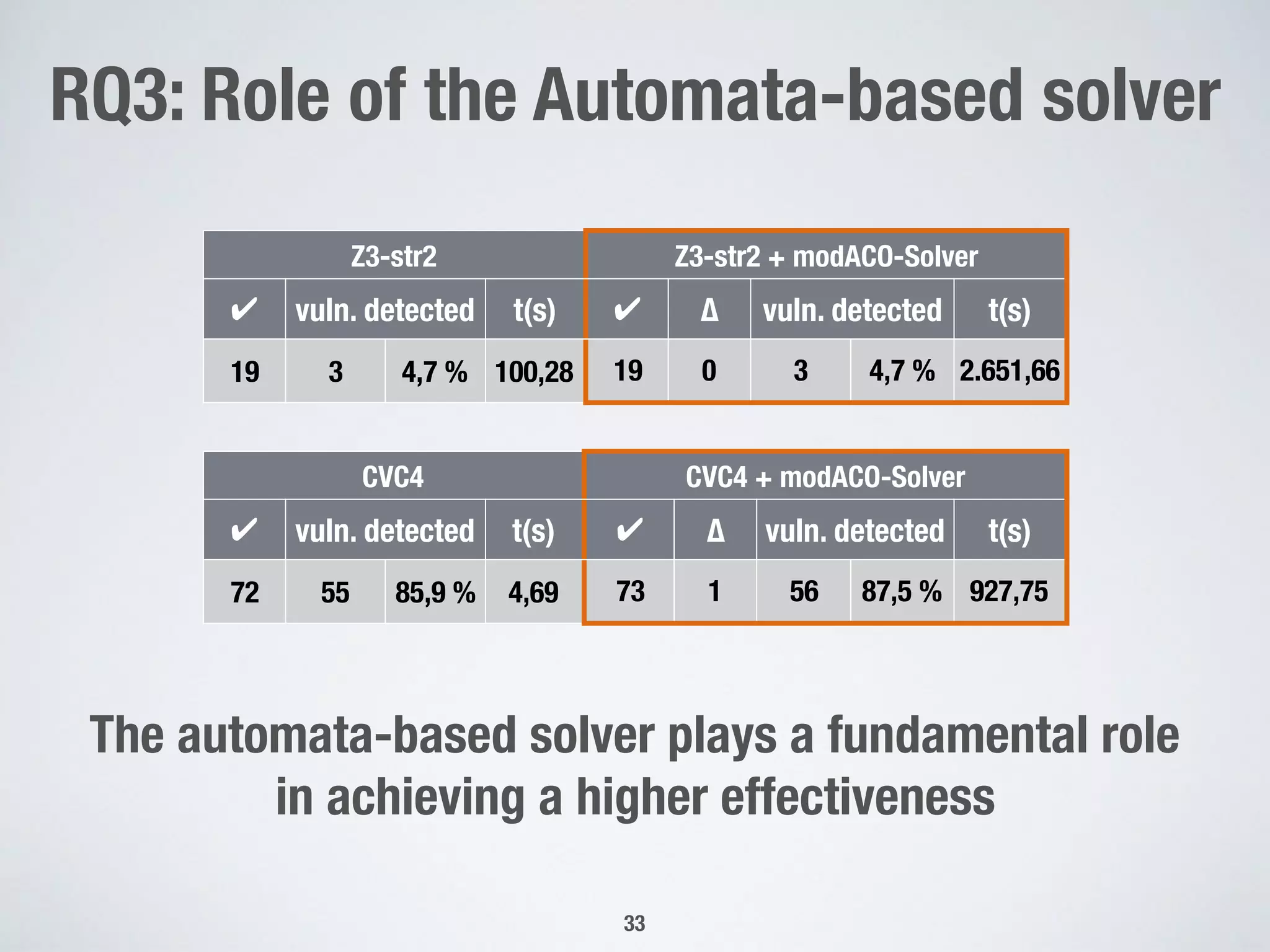

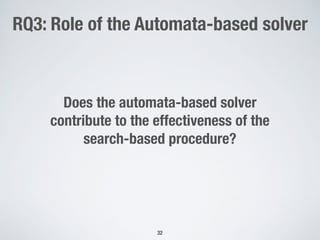

32. RQ3: Role of the Automata-based solver
Does the automata-based solver
contribute to the effectiveness of the
search-based procedure?
32

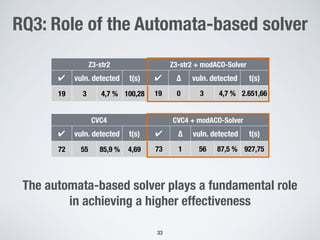

33. 33
The automata-based solver plays a fundamental role
in achieving a higher effectiveness
RQ3: Role of the Automata-based solver
Z3-str2 Z3-str2 + modACO-Solver
✔ vuln. detected t(s) ✔ ∆ vuln. detected t(s)
19 3 4,7 % 100,28 19 0 3 4,7 % 2.651,66
CVC4 CVC4 + modACO-Solver
✔ vuln. detected t(s) ✔ ∆ vuln. detected t(s)
72 55 85,9 % 4,69 73 1 56 87,5 % 927,75

34. 34

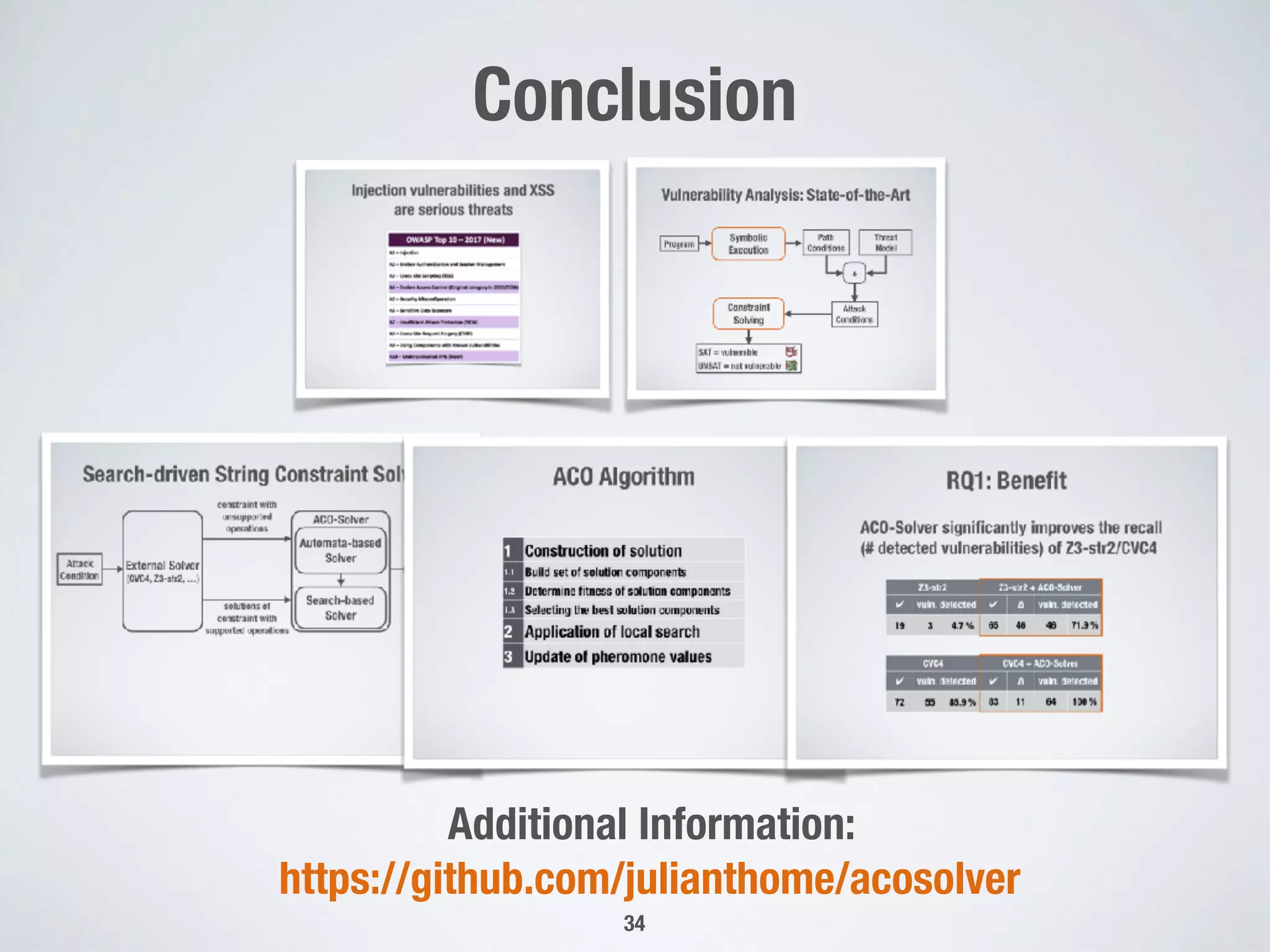

Conclusion
Additional Information:
https://github.com/julianthome/acosolver

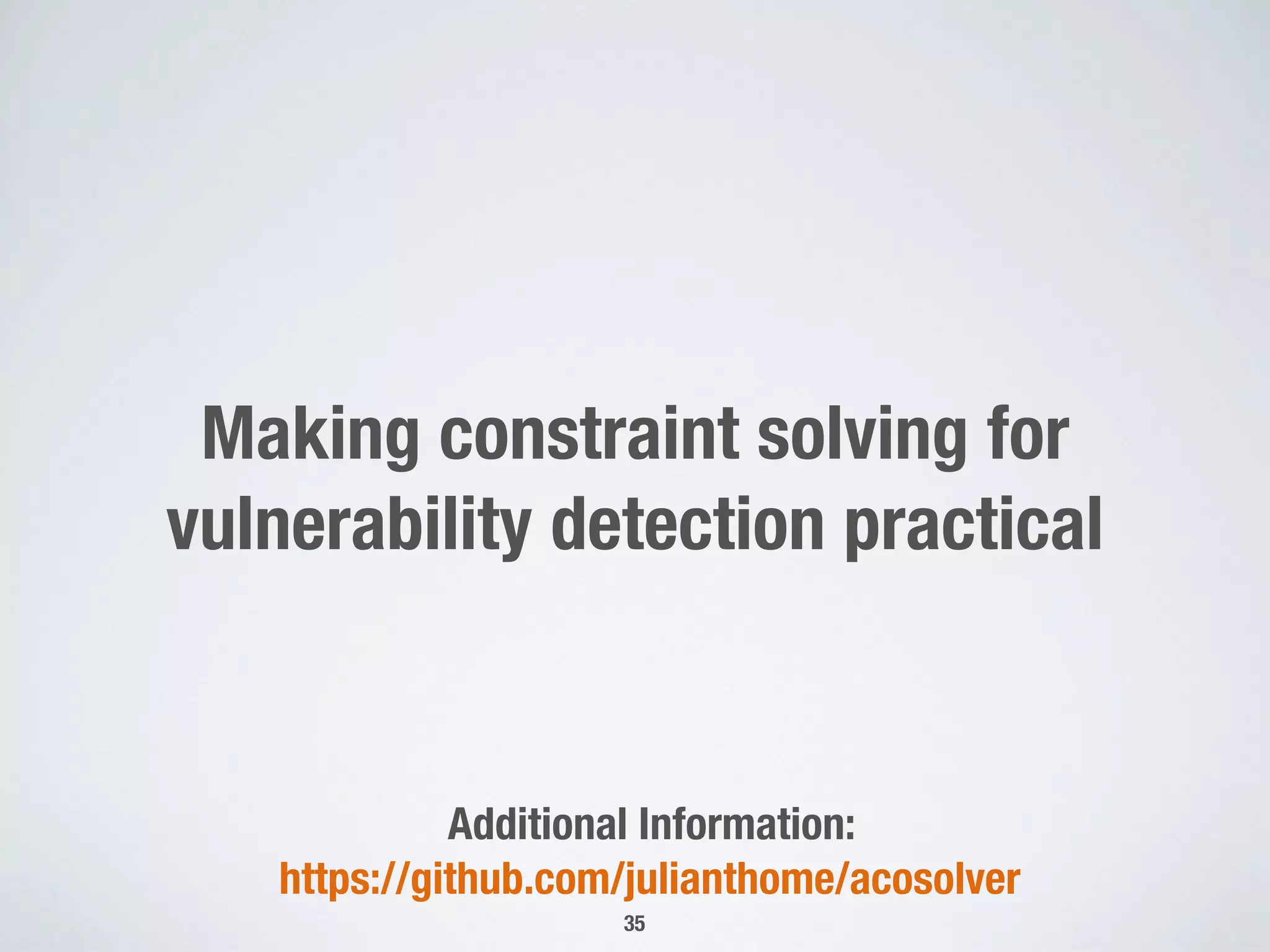

35. Making constraint solving for
vulnerability detection practical
35
Additional Information:
