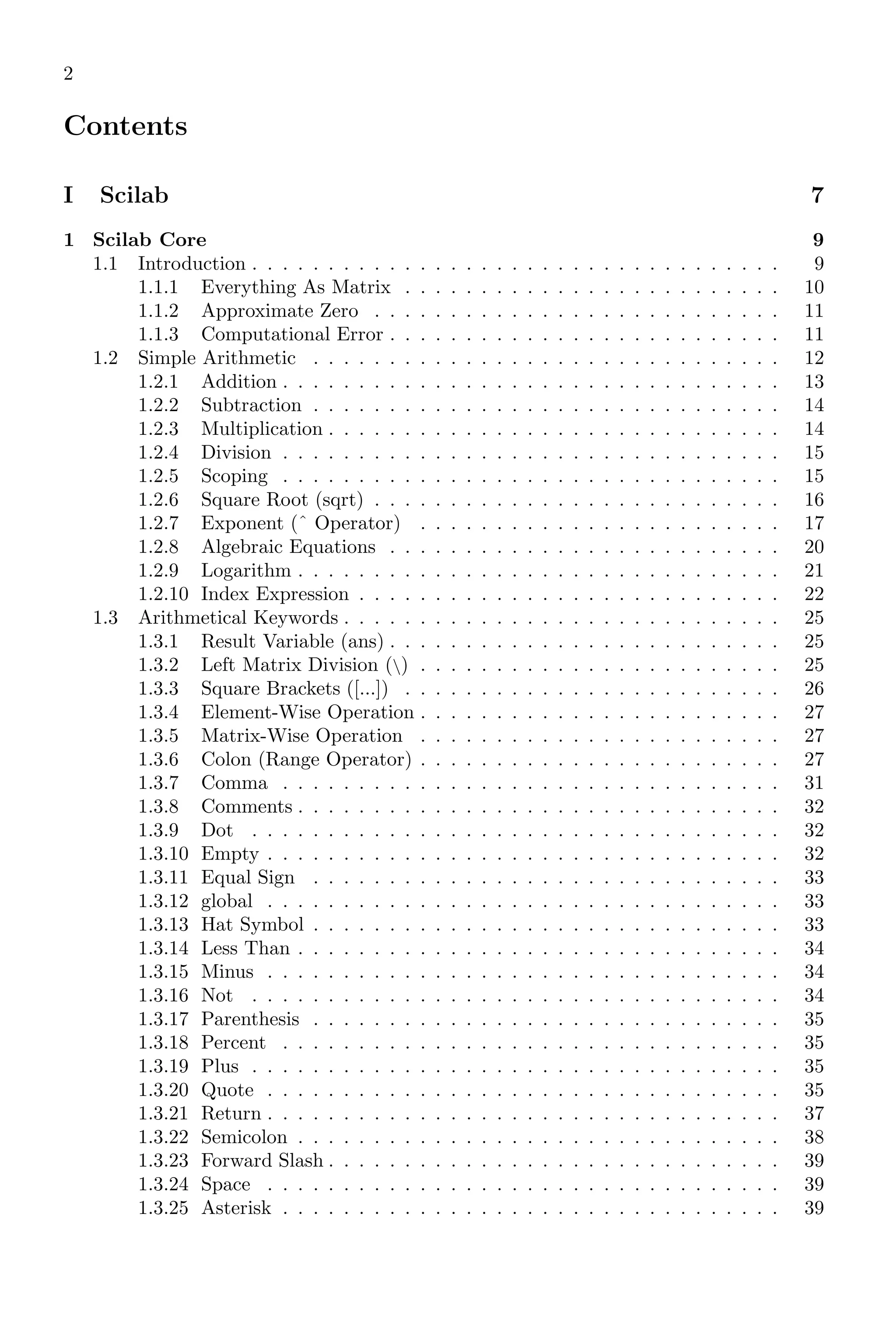

Contents
I Scilab 7
1 Scilab Core 9
1.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.1.1 Everything As Matrix . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.1.2 Approximate Zero . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.1.3 Computational Error . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.2 Simple Arithmetic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.2.1 Addition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.2.2 Subtraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.2.3 Multiplication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.2.4 Division . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
1.2.5 Scoping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
1.2.6 Square Root (sqrt) . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
1.2.7 Exponent (ˆ Operator) . . . . . . . . . . . . . . . . . . . . . . . . 17
1.2.8 Algebraic Equations . . . . . . . . . . . . . . . . . . . . . . . . . . 20
1.2.9 Logarithm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
1.2.10 Index Expression . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
1.3 Arithmetical Keywords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
1.3.1 Result Variable (ans) . . . . . . . . . . . . . . . . . . . . . . . . . . 25
1.3.2 Left Matrix Division () . . . . . . . . . . . . . . . . . . . . . . . . 25
1.3.3 Square Brackets ([...]) . . . . . . . . . . . . . . . . . . . . . . . . . 26
1.3.4 Element-Wise Operation . . . . . . . . . . . . . . . . . . . . . . . . 27
1.3.5 Matrix-Wise Operation . . . . . . . . . . . . . . . . . . . . . . . . 27
1.3.6 Colon (Range Operator) . . . . . . . . . . . . . . . . . . . . . . . . 27
1.3.7 Comma . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
1.3.8 Comments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
1.3.9 Dot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
1.3.10 Empty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
1.3.11 Equal Sign . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
1.3.12 global . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
1.3.13 Hat Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
1.3.14 Less Than . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
1.3.15 Minus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
1.3.16 Not . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
1.3.17 Parenthesis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
1.3.18 Percent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
1.3.19 Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
1.3.20 Quote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
1.3.21 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
1.3.22 Semicolon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
1.3.23 Forward Slash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
1.3.24 Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
1.3.25 Asterisk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-2-320.jpg)
![18 Scilab Core
2. Write no more than one simple statement per line.
3. Break compound statements over multiple lines.
Following example uses two integers 2, 3 & ‘;’ and prints their result at output window.
✞
--> a=2; // Without pre -identification of
2 --> // variable and terminated by ’;’
--> b=3; // Without pre -identification of
4 --> // variable and terminated by ’;’
--> a+b // Sum of two variables is called
6 --> // and line does not terminated by ’;’
✌
✆
✞
ans =
5.
✌
✆
If result of an operation is not assigned to a variable, then result is automatically assigned
to ‘ans’ variable.
1.1.1 Everything As Matrix
Numerical programming by Scilab is vector or matrix based computation, therefore each
variable has a vector or matrix values. Each element of a variable is identified by its
indices. For example,
✞
--> a = 2 // one dimensional vector
2 --> a = [1,2]
--> a(1) // first element of vector
✌
✆
✞
ans =
1
✌
✆
The indices parameters inside the parentheses of variable ‘a’ may be one dimensional, two
dimensional or three dimensional.
✞
--> a(1) // One dimensional
2 --> a(1, 2) // Two dimensional
--> a(1, 2, 1)// Three dimensional
✌
✆
In the first line of above codes, first element of vector a is returned. In second line of
above codes, element at 1st
row (x) and 2nd
column (y) is returned. In the third line of
above codes, elements at 1st
row (x), 2nd
column (y) and 1st
layer (z) is returned.
✞
1 --> a = [1,2,3;5,8,4]
--> a(2,2)
3 --> b = 56;
--> b(1) // First element
5 --> b(2) // Second element . Error!!!
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-18-320.jpg)
![1.2. SIMPLE ARITHMETIC 25
✞
-- sqrt (2)
✌
✆
✞
ans =
1.414
✌
✆
If argument is a vector, then square root of the vector is a vector of square root of its
elements. If argument is a matrix then square root of the matrix is a matrix of square
roots of its elements.
✞
-- a=[1 ,2;3 ,4];
2 -- sqrt (a)
✌
✆
✞
ans =
1. 1.4142136
1.7320508 2.
✌
✆
The algorithm used in computation of the square root of a real value, x, is
√
x = e
ln(x)
2
1.2.7 Exponent (ˆ Operator)
ˆ is called exponent operator. If n is an index or a degree, or power of base x then
exponents is represented by xn
. If |n| ≥ 1, then exponent means “base is multiplied by
itself n times”, and if |n| 1, then it is called nth
root of base x. To find the kth
root of
base number x, we use ˆ operator as xk
.
✞
1 -- 2^(0.33)
✌
✆
✞
ans =
1.2570134
✌
✆
The output of exponents depends on the values of base and exponent. For example,
if either base x or exponent n is less than one, then result is convergent, i.e. result is
approaching towards zero. Similarly, if both base x and exponent n are greater than one
then result is divergent. If n is one, then result is always base x itself. If base x is one
and n is whatever value, then result is always one. If exponent is a complex then it is
solved by using logarithm with natural base (e). For example, y = 2i
is simplified as
log y = log 2i
It gives
log y = i log 2 ⇒ y = ei log 2
Now, we can simplify right side using relation eiθ
= cos θ + i sin θ as
y = cos(log 2) + i sin(log 2)](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-43-320.jpg)
![26 Scilab Core
Note that, ˆ acts like both, scalar and vector operator with vectors and matrices. If it is
used like ‘.ˆ’ then it acts as elementwise operator and if it is used without dot, then it
acts as vector operator.
✞
-- a=[1 ,2;3 ,4];
2 -- a^(0.33) // vector operator
✌
✆
✞
ans =
0.6956785 + 0.4728372 i 0.4784401 - 0.2162886 i
0.7176602 - 0.3244328 i 1.4133387 + 0.1484044 i
✌
✆
✞
1 -- a=[1 ,2;3 ,4];
-- a.^(0.33) // scalar operator
✌
✆
✞
ans =
1. 1.2570134
1.4369777 1.5800826
✌
✆
The algorithm used for computation of exponent is explained here. Assume a matrix of
order 2 × 2
A =
1 2
3 4
Now its eigenvalues are given by |A − λI| = 0 i.e.](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-44-320.jpg)
![28 Scilab Core
1.2.8 Algebraic Equations
Algebraic equations are those equations in which an unknown variable is in linear addition
or in linear subtraction in different degrees. Numerical coefficients are multiplied with
each terms to give a suitable relation for the unknown variable. To form a linear equation,
first define the variable.
✞
1 -- x=poly (0,’x’);
-- f=2*x^2+2
✌
✆
f =
2 + 2x2
This algebraic equation is in symbolic form. All the algebraic function may be applicable
to this equation. In the following example, function roots() is used to algebraic equation
f to gets its all roots.
✞
-- x=poly (0,’x’);
2 -- f=2*x ^2+2;
-- roots(f)
✌
✆
✞
ans =
i
- i
✌
✆
Division of polynomials by a number or by a symbol can also be performed. Note that it
returns only quotient of the division.
✞
1 -- x=poly (0,’x’);// returns only degree 1 polynomial
-- f=2*x ^2+2;
3 -- pdiv (f,x),
✌
✆
✞
ans =
2x
✌
✆
LCM (Least Common Multiplier) and HCF (Highest Common Factor) of two algebraic
functions can also applicable with the algebraic equations.
✞
-- x=poly (0,’x’);
2 -- f=2*x ^2+2;
-- lcm([f,x])
✌
✆
✞
ans =
3
2x + 2x
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-62-320.jpg)
![1.2. SIMPLE ARITHMETIC 29
In Scilab, HCF is named as GCD (Greatest Common Divisor).
✞
1 -- x=poly (0,’x’);
-- f=2*x ^2+2;
3 -- gcd([f,x])
✌
✆
✞
ans =
1
✌
✆
1.2.9 Logarithm
The natural logarithm of number 2 is obtained when this number is supplied as argument
to the log function.
✞
-- log (2)
✌
✆
✞
ans =
0.6931472
✌
✆
Exponential to a number (n) is represented mathematically as en
. In Scilab, it is given
as
✞
-- exp (2)
✌
✆
✞
ans =
7.3890561
✌
✆
We may use different bases for logarithms, i.e. base ‘10’, base ‘2’ or natural base ‘e’.
Logarithm of a number about base ‘10’ is computed as
✞
-- log10 (2)
✌
✆
✞
ans =
0.30103
✌
✆
Solved Problem 1.1 Write Scilab code for finding of natural and base ten logarithm of
number 2.05 and find their difference.
Solution The Scilab codes for the given problem is given below:
✞
-- log (2.05) -log10 (2.05)
✌
✆
✞
ans =
0.4060859
✌
✆
This is output of the given problem.](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-63-320.jpg)
![30 Scilab Core
1.2.10 Index Expression
An index expression allows to scale, select or replace an element from a vector or matrix.
Indices may be scalars, vectors, ranges, or the special operator ‘:’, which may be used to
select entire rows or columns. Row and column indices, i.e. two parameters, are separated
by comma.
✞
-- A(row indices , column indices )
✌
✆
When only one parameter is passed to matrix variable to extract the sub matrix, then at
first, matrix is arranged in vector form in sequence of column vectors. For example,
✞
1 -- A = [2 3 1 4; 5 3 1 8; 8 6 7 2; 4 5 1 3]
-- A(:)
✌
✆
✞
A =
2 3 1 4
5 3 1 8
8 6 7 2
4 5 1 3
ans =
2
5
8
4
3
3
6
5
1
1
7
1
4
8
2
3
✌
✆
Now, only one parameter is supplied to vector variable, it is treated as indices for elements
and it returns a vector of elements present at that indice. Note that, here index counting
started from 1 rather than 0.
✞
-- A = [2 3 1 4; 5 3 1 8; 8 6 7 2; 4 5 1 3]
2 -- A(2) // element at index 2
✌
✆
✞
A =
2 3 1 4
5 3 1 8
8 6 7 2
4 5 1 3](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-64-320.jpg)
![1.2. SIMPLE ARITHMETIC 31
ans =
5
✌
✆
Similarly, a range of indices can be given to matrix variable to extract a vector of elements
present at that index. In the following example, sub vectors are returned by constructing
elements present at indices from index 1 to index 2. There are two different way to pass
same indices.
✞
1 -- A = [2 3 1 4; 5 3 1 8; 8 6 7 2; 4 5 1 3]
-- A(1:2) // 1st index to 2nd index
3 -- A([1;2]) // 1st index and 2nd index
✌
✆
✞
A =
2 3 1 4
5 3 1 8
8 6 7 2
4 5 1 3
ans =
2
5
ans =
2
5
✌
✆
When both parameters are passed to matrix variable, then first parameter is indices for
rows and second parameter is for columns. Rows or columns may be discrete indices or
range of indices but should not beyond the dimension of the matrix. In this case, matrix
is not arranged in sequeces of elements of column vectors. See the below example.
✞
1 -- A = [2 3 1 4; 5 3 1 8; 8 6 7 2; 4 5 1 3]
-- A(2:4 ,3:4) // Row index from 2nd row to 4th row
3 // col index from 3rd col to 4th col
✌
✆
✞
A =
2 3 1 4
5 3 1 8
8 6 7 2
4 5 1 3
ans =
1 8
7 2
1 3
✌
✆
If both parameters are discrete indices, then row index are recursive for all column indices.
See the following example, in which elements at second and third column of first row, and
elements at second and third column of fourth row forms a sub matrix.
✞
1 -- A = [2 3 1 4; 5 3 1 8; 8 6 7 2; 4 5 1 3]
-- A([1,4], [2 ,3])// 1st row - 2nd 3rd columns
3 // 4th row - 2nd 3rd columns
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-65-320.jpg)
![32 Scilab Core
✞
A =
2 3 1 4
5 3 1 8
8 6 7 2
4 5 1 3
ans =
3 1
5 1
✌
✆
If same index number is used twice or more in row parameter, i.e. as [1,1], then output
sub matrix has two rows as part of row index ‘1’ of the given matrix.
✞
-- A = [2 3 1 4; 5 3 1 8; 8 6 7 2; 4 5 1 3]
2 -- A([1,1], [2 ,3])// 1st row - 2nd 3rd columns
// 1th row - 2nd 3rd columns
✌
✆
✞
A =
2 3 1 4
5 3 1 8
8 6 7 2
4 5 1 3
ans =
3 1
3 1
✌
✆
end operator is used to denote last index of the vector. For example
✞
-- A = [2 3 1 4; 5 3 1 8; 8 6 7 2; 4 5 1 3]
2 -- A(end)// last element of vector
✌
✆
✞
A =
2 3 1 4
5 3 1 8
8 6 7 2
4 5 1 3
ans =
3
✌
✆
The parameter of matrix variable may be controlled by range indices. For example, odd
elements of matrix and even elements of matrix can be extracted by
✞
1 -- A = [2 3 1 4; 5 3 1 8; 8 6 7 2; 4 5 1 3]
-- A(1:2: end) // Odd elements vector
3 -- A(2:2: end) // Even elements vector
✌
✆
✞
A =
2 3 1 4
5 3 1 8](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-66-320.jpg)
![1.3. ARITHMETICAL KEYWORDS 33
8 6 7 2
4 5 1 3
ans =
2 8 3 6 1 7 4 2
ans =
5 4 3 5 1 1 8 3
✌
✆
1.3 Arithmetical Keywords
Followings are the main keywords used in Scilab. The key by key explanation is given
below.
1.3.1 Result Variable (ans)
ans means “answer”. This variable is created automatically when expressions are not
assigned to any other variable. It is the last un-assigned evaluated value.
✞
1 -- a=10;
-- b=5;
3 -- a+b
✌
✆
✞
ans =
15
✌
✆
1.3.2 Left Matrix Division ()
‘’ is used for left matrix division. Let A ∗ x = b has a solution of x = Ab. In this
expression, succeeding variable to ‘’ is divided by the preceding one.
✞
-- a=10;
2 -- b=5;
-- ab
✌
✆
✞
ans =
0.5
✌
✆
The second example of the backslash command is
✞
-- A=2;
2 -- b=[1;1;1];
-- x=Ab
✌
✆
✞
x =
0.5
0.5
0.5
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-67-320.jpg)
![34 Scilab Core
1.3.3 Square Brackets ([...])
Square brackets are used to define a vector or a matrix. Each row of a vector or matrix
is separated by ‘;’ and each element of a row is separated by ‘,’ (comma) or space.
✞
-- x=[1;2;3]
✌
✆
✞
x =
1
2
3
✌
✆
A 3 × 3 matrix is written as
✞
-- x=[1 ,2 ,3;4 ,5 ,6;7 ,8 ,9]
✌
✆
✞
x =
1 2 3
4 5 6
7 8 9
✌
✆
In a row matrix or in a column matrix, elements of the row or matrix may be numbers or
function. The elements may be separated by comma or space. In otherwords, functions
may be part of the matrix elements. The exact element value of function element is its
return value.
✞
-- x=[1 sqrt (-1) 2 -sqrt (-1) 3]
✌
✆
✞
x =
1. i 2. - i 3.
✌
✆
Elements of a vector may contains text or strings too. See the following Scilab codes.
✞
-- [’This is’;’string’;’matrix’]
✌
✆
✞
ans =
!This is !
! !
!string !
! !
!matrix !
✌
✆
A new row of a matrix can also be started by adding row elements in new line.
✞
-- mat = [
2 Row A1
Row B1
4 Row C1
Row D1
6 ]
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-68-320.jpg)
![1.3. ARITHMETICAL KEYWORDS 35
Consistency of columns for each rows should be maintained to avoid the row/cols consis-
tence error. Following example gives error.
✞
-- mat = [
2 Row A1,Row A2
Row B1,
4 Row C1
Row D1
6 ]
✌
✆
While this example will give a matrix of four rows and two columns.
✞
-- mat = [
2 Row A1,Row A2
Row B1,Row B2
4 Row C1,Row C2
Row D1,Row D2
6 ]
✌
✆
1.3.4 Element-Wise Operation
Element-wise operation is performed on each element of a supplied argument to a function.
The structural properties of the supplied arguments are not considered. For example,
A = [1] is a scalar while B = [1, 4] is a vector/matrix but in element wise operations,
both are considered as scalars. It means only elements are meaningful in elementwise
operation while structures of A and B are ignored.
1.3.5 Matrix-Wise Operation
In matrix-wise operation, elements are accepted as element of a matrix and their result
is put in the similar matrix form in output window.
1.3.6 Colon (Range Operator)
This operator (:) is used to define a range of variable. Normally, it creates a vector/set
of elements. It is used by two ways.
✞
-- ll : ul
2 -- ll : inc : ul
✌
✆
Increment may be a positive value, or a negative value. If it is positive value then range
is in ascending order, if it is negative value then range is in descending order. In first
method of application, initial and final values are declared by user and suitable increment
value is selected by Scilab itself. By default increment is ‘1’.
✞
-- a = 1:10
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-69-320.jpg)
![36 Scilab Core
✞
a =
1. 2. 3. 4. 5. 6. 7. 8. 9. 10.
✌
✆
✞
-- a = 1:-10
✌
✆
✞
a =
[]
✌
✆
In second method of application (i.e. more than one colons (:) are used) first element
is initial value, second element is increment and third element is the upper level limit of
range. The last value of range does not exceed to the upper limit. After each increment,
initial value becomes equal to the sum of initial value and increment. This iteration is
followed until it becomes equal or more than the finale range of iteration.
✞
-- a = 1:2:10
✌
✆
✞
a =
1. 3. 5. 7. 9.
✌
✆
✞
-- a = 1:-2:-10
✌
✆
✞
a =
1. - 1. - 3. - 5. - 7. - 9.
✌
✆
The colon can be used for defining a rang into a matrix form. Each argument of this
function is comma separated. First argument is matrix range, second argument is number
of rows and third argument is the number of columns.
✞
-- a = matrix (1:12 ,6 ,2)
2 -- a
✌
✆
✞
a =
1. 7.
2. 8.
3. 9.
4. 10.
5. 11.
6. 12.
✌
✆
Elements of a matrix are retrieved by calling the matrix object as shown below:
✞
1 -- a(:)
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-70-320.jpg)
![1.3. ARITHMETICAL KEYWORDS 37
✞
ans =
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
✌
✆
The specific columns of matrices can be accessed by using first argument as colon symbol
and second argument as column index. See the example below:
✞
1 -- a = matrix (1:12 ,6 ,2)
-- b=a(:,1) //1 = first column
3 -- c=a(:,2) //2 = second column
✌
✆
✞
a =
1. 7.
2. 8.
3. 9.
4. 10.
5. 11.
6. 12.
b =
1.
2.
3.
4.
5.
6.
c =
7.
8.
9.
10.
11.
12.
✌
✆
We can use row or column index vectors for accessing multiple rows or columns.
✞
1 -- m=[1 ,2 ,3;4 ,5 ,6;7 ,8 ,9]
-- m(: ,[1 ,2]) // for multiple column indices
✌
✆
✞
m =](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-71-320.jpg)
![1.3. ARITHMETICAL KEYWORDS 39
✞
a =
1.
3.
5.
7.
9.
✌
✆
We can extract a part of matrix by using colon operator within parentheses as shown in
below example.
✞
-- A = [2 3 1 4; 5 3 1 8; 8 6 7 2; 4 5 1 3]
2 -- A(2:4 ,3:4) //A(row range , col range )
✌
✆
✞
A =
2 3 1 4
5 3 1 8
8 6 7 2
ans =
1 8
7 2
1 3
✌
✆
We can use the colon operator to print integer numbers from 0 to n with special purposes.
In the following example, n is restricted to 5, i.e. integers from 0 to 5 are printed in output.
✞
-- %i : 5
✌
✆
✞
ans =
0. 1. 2. 3. 4. 5.
✌
✆
This method of implementation is removed since Scilab 6.0 version.
1.3.7 Comma
Comma operator (,) is used as the identifier for column, instruction and used as argument
separator. A 3 × 3 matrix is represented in vector form as
✞
-- [1,2,3;4,5,6;7,8,9]
✌
✆
✞
x =
1 2 3
4 5 6
7 8 9
✌
✆
Space operator “ ” is also used as separator of the elements in a row of the matrix.](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-73-320.jpg)
![40 Scilab Core
1.3.8 Comments
Comments are the statements which explains to mathematical operations, numerical cal-
culations and special functions. Comments are embedded within the program codes. The
comments are never executed by the Scilab and they are simply skipped by the Scilab.
Symbol ‘//’ is used for the commenting of a line.
✞
-- a=5;
2 -- b=10;
-- a+b // summation of two variable .
✌
✆
✞
ans =
15
✌
✆
1.3.9 Dot
Dot symbol is used to represent the end of a sentence or the decimal fraction. It is also
used for element-wise dot product (.*) of two vectors or matrices. If A = aij and B = bij
are two matrices of n × n size then
[A · ∗B]ij = aij × bij
It is always true that [A ∗ B] = [B ∗ A]. If, A and B are 2 × 2 matrices as given by
A =
1 2
3 2
; B =
2 1
3 4
Then
C = A · ∗B =
1 × 2 2 × 1
3 × 3 2 × 4
=
2 2
9 8
✞
-- a=[1 ,2;3 ,2];
2 -- b=[2 ,1;3 ,4];
-- a.*b
✌
✆
✞
ans =
2. 2.
9. 8.
✌
✆
1.3.10 Empty
An empty vector or an empty matrix is represented by ‘[]’. Empty square brackets
represent to the empty set of matrix. White spaces inside the square brackets do not
affect the meaning of empty matrix.
✞
1 -- []
-- [ ]
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-74-320.jpg)
![1.3. ARITHMETICAL KEYWORDS 41
✞
ans =
[]
ans =
[]
✌
✆
1.3.11 Equal Sign
Equal operator (==) compares two values numerically and returns the ‘true’ if both
values are equal otherwise returns ‘false’. Remember that symbol ‘=’ is not same as to
‘==’. Symbol ‘=’ assigns a value to a variable while ‘==’ compares two values.
✞
-- i = 5;
2 -- j = 10;
-- if(i==j)
4 -- disp (E);
-- elseif(ij)
6 -- disp (N);
-- end
✌
✆
✞
N
✌
✆
1.3.12 global
It declares a variable as a global variable. The variable defined global can be called from
everywhere.
1.3.13 Hat Symbol
It (ˆ) represents to the exponent, i.e. bn
. It raises base (number at the left side to the
hat) to the power of n (number at the right side to the hat). It is also sometime refers as
power.
✞
1 -- 2^4
✌
✆
✞
ans =
16
✌
✆
Hat symbol (ˆ) can be also used to find the nth
root of a number.
✞
-- x^(1/ n)
✌
✆
✞
1 -- 2^(1/4)
✌
✆
✞
ans =
1.1892071
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-75-320.jpg)
![42 Scilab Core
1.3.14 Less Than
() is a comparative operator. It tells that the left hand value is lesser than the right
hand value. If left hand side value is less than the right hand side, then comparison is
true otherwise false. It returns “yes” on true state and “no” in false state.
✞
-- if (12)
2 -- disp (yes);
-- end
✌
✆
✞
ans =
yes
✌
✆
1.3.15 Minus
(–) sign is used to subtract right hand value from the left hand value. Subtraction is
algebraic. If right hand value is larger than left hand value then result is negative.
✞
-- 2-3
✌
✆
✞
ans =
-1
✌
✆
The two variables using minus may be a vector or a matrix. In case of vectors, subraction
takes place element-wise. Subtraction of vectors is a vector of similar size.
✞
-- [1 ,2] -[3 ,4]
✌
✆
✞
ans =
-2. -2.
✌
✆
In vector subtraction, size of two vectors must be equal.
1.3.16 Not
Symbol, ∼, is a logical NOT operator. It compares the two values and access them
according “value a is not equal to value b”. If the comparison is true according to this
statement, then it returns true otherwise it returns false.
✞
-- 2 ~= 3 //2 is not equal to 3.
✌
✆
✞
ans =
T
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-76-320.jpg)
![1.3. ARITHMETICAL KEYWORDS 43
1.3.17 Parenthesis
Parenthesis, i.e. ‘(...)’ brackets are used to group the statements, operations executions.
A variable or function initiated inside the parenthesis has local scope.
1.3.18 Percent
(%) is a special character. When it is prepend to string, literals are considered as with
special meaning as shown in the following table.
Symbol Meaning
%pi π
%i:n Integer from 0 to n
%i
√
−1
The functions whose names begin with % character are special functions. They are
used as primitives and used in operator’s overloading.
1.3.19 Plus
(+) is an addition operator. It returns sum of two or more values. It also concatenates
two or more strings. Its operands may be vectors, scalars or strings.
✞
-- 2+3
2 -- This is my + country .
✌
✆
✞
ans =
5
ans =
This is mycountry .
✌
✆
The two variables may be a vector or a matrices. In case of vector operands, addition
takes place element-by-element wise.
✞
--[1,2]+[3,4]
✌
✆
✞
ans =
4. 6.
✌
✆
In vector subtraction, size of two vectors must be equal.
1.3.20 Quote
There are two types of quotes, called single quotes (’) and double quotes (”). In Scilab,
single quotes and double quotes have different meaning. The contents written between
single quotes or double quotes are considered as strings. See the following example:](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-77-320.jpg)
![44 Scilab Core
✞
-- x = ‘The Good Boy ’
2 -- y = The Good Boy
✌
✆
✞
x =
The Good Boy
y =
The Good Boy
✌
✆
Single quote is also used as string delimiter (”), i.e. string within string. As string
delimiter, the single quote is used in a group of twice.
✞
-- x = ‘disp (‘‘Boy ’’)’
2 -- y = disp (‘‘Boy ’’)
-- z = disp (‘‘disp (‘‘disp (‘‘Boy ’’) ’’) ’’)
✌
✆
✞
x =
disp (‘Boy ’)
y =
disp (‘Boy ’)
z =
disp (‘disp (‘disp (‘Boy ’) ’) ’)
✌
✆
Single quote is also used in mathematics, specially in matrix. If a matrix is real matrix
then single quotes converts row vector into column vector and vice-versa. See the example
given below:
✞
-- a=[1 ,2]
2 -- a’
✌
✆
✞
a =
1. 2.
ans =
1.
2.
✌
✆
If matrix is a complex matrix then (’) is a complex conjugate transpose operator. It is
used in a matrix for conjugate transpose of the matrix. It is also used as string delimiter.
Assume a complex matrix of order 2 × 2 as
A =
1 + i 2
3 2 + i
Conjugate transpose of this matrix (A) will be
A =
1 − i 3
2 2 − i](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-78-320.jpg)
![1.3. ARITHMETICAL KEYWORDS 45
✞
1 -- [1+%i , 2; 3, 2+%i]’
✌
✆
✞
ans =
1. - i 3.
2. 2. - i
✌
✆
If a dot (.) is applied before (’), then the matrix transpose is called non-conjugate
transpose of matrix. Assume a complex matrix of order 2 × 2 as
A =
3 + i 2
1 2 + i
Then non-conjugate transpose of the matrix will be
A =
3 + i 1
2 2 + i
✞
1 -- [1+%i ,2; 3,2+ %i].’
✌
✆
✞
ans =
1. + i 3
2. 2. + i
✌
✆
1.3.21 Return
return assigns local variables to the calling variable.
✞
1 -- [a,b]= return (1,2)
✌
✆
✞
b =
2.
a =
1.
✌
✆
It is also used to return a value from inside of a function. A function is terminated in
execution, when keyword return is encountered.
✞
-- function [y]= myFunc(i, j)
2 -- y=i+j;
-- return 0;
4 -- y=i^j; // Not executed
-- endfunction
6 -- myFunc (2, 3)
✌
✆
✞
ans =
5.
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-79-320.jpg)
![46 Scilab Core
✞
-- function [y]= myFunc(i, j)
2 -- y=i+j;
-- // return 0;
4 -- y=i^j; // Executed and overloaded
-- // to previous result
6 -- endfunction
-- myFunc (2, 3)
✌
✆
✞
ans =
8.
✌
✆
1.3.22 Semicolon
Semicolon ‘;’ is used as a row separator in a matrix. It is also used to end a statement
line. Application of semicolon as a row separator is shown below:
✞
-- [1,2,3;4,5,6;7,8,9]
✌
✆
✞
x =
1 2 3
4 5 6
7 8 9
✌
✆
Application of semicolon as a end of line is shown in the following example.
✞
-- i = 5; // end of first line
2 -- j = 10; // end of second line
-- if(ij)
4 -- disp (L);
-- elseif(ij)
6 -- disp (G);
-- elseif(i==j)
8 -- disp (E);
-- end
✌
✆
✞
L
✌
✆
End-of-line application of semicolon (;) does not mean the skip of contents by the Scilab
or commenting of the rest of contents in the line. It only separates the two statements
written in a single line. Again, when a statement is terminated with semicolon, then the
output or result is stored in memory and it is not visible in the output console. The
output is obtained only when the object is called without terminating by semicolon.
✞
1 -- a=5+5; b=6+5;
-- a
3 -- b
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-80-320.jpg)
![1.3. ARITHMETICAL KEYWORDS 47
✞
a =
10.
b =
11.
✌
✆
1.3.23 Forward Slash
Slash (/) is used in division. The left side value to the forward slash is divided by its
right side value. When forward slash is used in pair, it acts as a commenting symbol. In
Scilab, line commenting symbol is ‘//’.
✞
-- i = 5; // end of first line
2 -- j = 10; // end of second line
-- i/j
✌
✆
✞
ans =
0.5
✌
✆
1.3.24 Space
Space operator (“ ”) is used as the identifier for columns in a matrix or in a vector. A
3 × 3 matrix is represented in vector form as
✞
-- [1 2 3;4 5 6;7 8 9]
✌
✆
✞
x =
1 2 3
4 5 6
7 8 9
✌
✆
Comma operator (,) is also used as separator of the elements in a row.
1.3.25 Asterisk
Star (*), i.e. asterisk is used as multiplier between two variables from left to right.
Multiplication of two vectors are allowed if number of rows in first vector is equals to the
number of columns in second vector. If A = aij and B = bij are two matrices of size
n × n then
[A ∗ B]kj =
n
X
i,k=0
aki × bik
It is not always true that [A ∗ B] = [B ∗ A]. If two inputs are integers then it performs
simple arithmetic.](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-81-320.jpg)
![48 Scilab Core
✞
-- i = 5; // end of first line
2 -- j = 10; // end of second line
-- i*j
✌
✆
✞
ans =
50
✌
✆
Multiplication of vector and scalar:
✞
-- [1 ,2]*4
✌
✆
✞
ans =
4. 8.
✌
✆
Asterisk performs multiplication of matrices. A matrix multiplication is performed if the
matrix product conditions are satisfied. For two vectors or matrices, if number of columns
of first matrix is equal to the number of rows of second matrix then matrix multiplication
is carried out. See the following example.
✞
-- [1 ,2]*[4;3] // 1x2 matrix by 2x1 matrix
✌
✆
✞
ans =
10.
✌
✆
If, A and B are 2 × 2 matrices as given by
A =
1 2
3 2
; B =
2 1
3 4
Then
C = A ∗ B =
1 × 2 + 2 × 3 1 × 1 + 2 × 4
3 × 2 + 2 × 3 3 × 1 + 2 × 4
=
8 9
12 11
✞
-- a=[1 ,2;3 ,2];
2 -- b=[2 ,1;3 ,4];
-- a*b
✌
✆
✞
ans =
8. 9.
12. 11.
✌
✆
If two matrices are not equal in size then they are taken as vectors and vector multiplica-
tion is performed. It happens when second matrix is 1 × 1 type matrix. Second operand
may be a scalar too as seen above in the product of vector and scalar. See the following
example.
✞
1 -- [1 ,2]*[4]
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-82-320.jpg)
![1.4. CORE KEYWORDS 49
✞
ans =
4. 8.
✌
✆
Consistency shall be maintained while performing vector or matrix multiplication. For
example, if second operand is a multicolumn vector then it must satisfy the condition
of matrix multiplication. See the following example, in which Scilab failed to give desire
result due to inconsistent multiplication.
✞
-- [1 ,2]*[3 ,4]
✌
✆
✞
!--error 10
Inconsistent multiplication .
✌
✆
1.3.26 Tilda
Tilda, (!) is a logical NOT. It is also used like (∼=) i.e. not equals to. It is an boolean
expression for NOT Gate.
✞
-- 2 != 3 //2 is not equal to 3.
✌
✆
✞
ans =
T
✌
✆
1.4 Core Keywords
1.4.1 Abort Process (abort)
abort interrupts current evaluation and gives the prompt. Within a pause level abort
return to level 0 prompt.
✞
-- i = 0;
2 -- while i10 do
-- disp (i);
4 -- i = i + 1;
-- if(i5)
6 -- abort;// abort key word
-- end
8 -- end
✌
✆
✞
0.
1.
2.
3.
4.
5.
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-83-320.jpg)
![50 Scilab Core
1.4.2 Add a Demo (add demo)
This function, add demo, is used to add user define file or codes into Scilab demos.
✞
-- // Create a simple demo script
2 -- path = TMPDIR+’/foo.sce ’;
-- mputl(’disp Hello’,path )
4 -- add_demo (’My first demo ’,path )
-- // Demo can be run using Demos menu .
✌
✆
We can find ‘My first demo’ in Demos options of ’Scilab Demonstrations’.
1.4.3 Number of Arguments (argn)
argn is similar to the argc command in ‘C’. It returns the number of input/output argu-
ments in a function call. Scilab uses ‘lhs’ and ‘rhs’ for identification of inputs arguments
and output arguments. For example, in the following function
y = f(x)
left hand side (lhs) argument is y while right hand side (rhs) argument is x. Actually for
this relation, x is input argument and y is output argument. argn has three arguments.
‘0’ for both lhs (output arguments) and rhs (input arguments) strings. ‘1’ for lhs (output
arguments) only and ‘2’ for rhs (input arguments) only. Its syntax are
✞
1 -- [lhs , rhs] = argn () // for both input/output arguments
-- lhs=argn (1) // for output arguments only
3 -- rhs=argn (2) // for input arguments only
✌
✆
The given example is
✞
1 -- funcprot (0);
-- function [t] = myf(a,b,c)
3 -- [lhs , rhs] = argn (0);
-- mprintf (Nos of outputs : %dn,lhs);
5 -- mprintf (Nos of inputs : %dn,rhs);
-- outs = argn (1);
7 -- ins = argn (2);
-- mprintf (Nos of outputs : %dn,outs );
9 -- mprintf (Nos of inputs : %dn,ins);
-- endfunction
11 -- x=myf (2,2,3)
✌
✆
✞
Nos of outputs : 1
Nos of inputs : 3
Nos of outputs : 1
Nos of inputs : 3
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-84-320.jpg)
![1.4. CORE KEYWORDS 51
1.4.4 Banner
It shows the default banner of Scilab.
✞
-- banner ()
✌
✆
1.4.5 Boolean
Boolean operators , | and ∼ are used to express the boolean relation between two
variables. These operators are used as logical AND, logical OR and logical NOT as short
cuts and as element-wise.
Shortcut And Elementwise
Before, Scilab 6.0, shortcut and elementwise boolean AND operators were same and both
were represented by . Since Scilab 6.0, shortcut and element-wise boolean operators are
now distinct. is shortcut boolean AND, while is element-wise AND operations.
Both shortcut and element-wise operators are evaluated from left to right.
✞
1 -- [1,3] [5,2] // is not defined before scilab 6.0
-- // Error shows in Scilab v 6.0
✌
✆
✞
[1,3] [5,2]
!-- error 2
Invalid factor.
✌
✆
✞
1 --[1,3] [5,2] // Works in all version of scilab
✌
✆
✞
ans =
T T
✌
✆
Shortcut || And Elementwise |
Before, Scilab 6.0, shortcut and elementwise boolean OR operators were same and both
were represented by . Since Scilab 6.0, shortcut and element-wise boolean operators
are now distinct. || is shortcut boolean OR, while | is element-wise OR operations. Both
shortcut and element-wise operators are evaluated from left to right.
✞
-- [1,3] || [5,2] // is not defined before scilab 6.0
2 -- // Error in scilab v 6.0
✌
✆
✞
[1,3] || [5,2]
!-- error 2
Invalid factor.
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-85-320.jpg)
![52 Scilab Core
✞
1 --[1,3] | [5,2] // Works in all version of scilab
✌
✆
✞
ans =
T T
✌
✆
1.4.6 Break a Process (break)
break keyword interrupt a current loop. It is always used inside the loop functions or
switch functions.
✞
-- i = 0;
2 -- while i10 do
-- disp (i);
4 -- i = i + 1;
-- if(i5)
6 -- break;// break the loop
-- end
8 -- end
✌
✆
✞
0.
1.
2.
3.
4.
5.
✌
✆
1.4.7 Case
case is used to compare a select value with arbitrary chosen value. If select value is equal
to case value, statement inside the case is executed.
✞
-- A = 2
2 -- select A
-- case 1 then
4 -- disp (1)
-- case 2 then
6 -- disp (2)
-- else
8 -- disp (3)
-- end
✌
✆
✞
2
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-86-320.jpg)
![1.4. CORE KEYWORDS 59
✞
!--error 10
! This value must be an integer!
✌
✆
An error number as argument is deprecated since Scilab 6.0 onward.
1.4.24 Exists a Variable (exists)
exists is used to check the availability of a variable.
✞
-- i=2;
2 -- if(exists(’i’,’a’))
-- disp (Variable i exists..);
4 -- else
-- disp (Variable i is not exist.);
6 -- end
✌
✆
✞
Variable i exists..
✌
✆
exists contains two parameters, first one is variable and second one is scope of variable.
Both variables and scope are supplied in the function as string values. Scope variable
‘a’ stands for ‘all’ variables, ‘l’ stands for ‘local’ variables and ‘n’ stands for ‘non-local’
variables.
1.4.25 Exit
exit is used to end the Scilab session and close the console.
1.4.26 Extraction
Extraction is a method of retrieving values from a matrix by supplying indices. The
indices counting for this function is started from 1 instead of 0. Though arguments in
extraction are indices of base matrix, yet their structure determines the order of the new
matrix. Number of elements in first argument in the extraction represents to the number
of rows and number of elements in the second argument in extraction represents to then
number of columns in the new matrix.
✞
1 -- // generate a matrix of 2x3 order
-- a=[1 2 3;4 5 6]
3 -- // extract first row second column element
-- //of the matrix and form a new matrix
5 -- a(1,2)
✌
✆
✞
a =
1. 2. 3.
4. 5. 6.
ans =
2.
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-93-320.jpg)
![60 Scilab Core
Argument in the extraction may be a scalar or a vector as and when required. If the
structure of first argument is a vector then number of elements in this vector represents
to the number of rows. Similarly, number of elements in second argument represents to
the number of columns in new matrix. In the following example, there are two rows and
one column.
✞
-- // generate a matrix of 2x3 order
2 -- a=[1 2 3;4 5 6]
-- // Extract first row second column ,
4 -- // first row second column , and construct
-- // new matrix of two rows and one column.
6 -- a([1 1],2)
✌
✆
✞
a =
1. 2. 3.
4. 5. 6.
ans =
2.
2.
✌
✆
Range operator (:) may also be used as arguments in the extraction. In the following
example, range operator selects all elements at the first column and forms new column
matrix having rows equal to the base matrix.
✞
1 -- // generate a matrix of 2x3 order
-- a=[1 2 3;4 5 6]
3 -- // Get elements of first column and
-- // construct new matrix
5 -- a(:,1)
✌
✆
✞
a =
1. 2. 3.
4. 5. 6.
ans =
1.
4.
✌
✆
Another example implementing the range operator (:).
✞
1 -- // generate a matrix of 2x3 order
-- a=[1 2 3;4 5 6]
3 -- // get reverse order of columns
-- a(: ,3: -1:1)
✌
✆
✞
a =
1. 2. 3.
4. 5. 6.](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-94-320.jpg)
![62 Scilab Core
✞
0.2164633 0.8833888
✌
✆
In exponential format
✞
1 -- x=rand (1,2); // Two random numbers
-- format(’e’ ,10);
3 -- x
✌
✆
✞
6.525D-01 3.076D -01
✌
✆
If you change the format of numbers into exponential then after finishing the calculations,
reset the format of numbers into variable format.
1.4.29 MD5 Hash (getmd5)
getmd5 returns the md5 checksum value of a string or file name.
✞
1 -- getmd5 ([’hello’ ; ’world’],’string ’)
✌
✆
✞
ans =
!5d41402 abc4b2a76b9719 d911017c592 !
!7d793037a0760186574 b0282 f2f435e7 !
✌
✆
For a file name
✞
1 -- getmd5( SCI+’/modules /core /etc/’+[’core .start’ ’core .quit ’])
✌
✆
✞
ans =
! ac68ad2e1905 ed5ec 12331ab91a25864
aba88d66950049 bd 1130 a7d9674 dc5a8 !
✌
✆
1.4.30 Get Memory
getmemory returns free and total system memory.
✞
1 -- [free , total]= getmemory ()
✌
✆
✞
total =
2.066D+06
free =
1.167D+06
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-96-320.jpg)
![1.4. CORE KEYWORDS 63
1.4.31 Get Modules
getmodules returns list of modules installed in Scilab.
✞
-- res=getmodules ()
✌
✆
1.4.32 Get Operating System
getos returns Operating System name and version.
✞
1 -- [OS , version] = getos()
✌
✆
✞
version =
XP
OS =
Windows
✌
✆
1.4.33 Get Scilab Mode
getscilabmode returns the mode of Scilab.
✞
-- getscilabmode ()
✌
✆
✞
ans =
STD
✌
✆
1.4.34 Get Shell
getshell returns current command interpreter.
✞
-- getshell ()
✌
✆
✞
ans =
cmd
✌
✆
1.4.35 Get Variale Stack
getvariablesonstack returns variable names on stack of Scilab.
✞
-- getvariablesonstack ();
2 -- getvariablesonstack (’local’);
-- getvariablesonstack (’global’);
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-97-320.jpg)
![64 Scilab Core
1.4.36 Version
getversion returns scilab and modules version information.
✞
1 -- version = getversion (’Scilab’)
✌
✆
✞
version =
5.000D+00 4.000D+00 0.000D+00 1.349D+09
✌
✆
1.4.37 Insertion
It is a process of adding an element in a matrix. It is reverse process of Extraction. Let
a matrix ‘a’ of order 2 × 3
✞
-- a=[1 2 3;4 5 6]
✌
✆
✞
a =
1. 2. 3.
4. 5. 6.
✌
✆
We can add an element ‘10’ at (1,1) position by indexing the element and assigning value
to that index of the array.
✞
1 -- a(1,2)=10
✌
✆
✞
a =
1. 10. 3.
4. 5. 6.
✌
✆
It is a keyword that executes a statement conditionally.
✞
1 -- i = 5;
-- j = 10;
3 -- if(i==j)//If both i j are equal
-- disp (E);// print ’E’ in output console.
5 -- elseif(ij)
-- disp (N);
7 -- end
✌
✆
✞
N
✌
✆
Each if started should be closed by using end command](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-98-320.jpg)
![1.4. CORE KEYWORDS 65
1.4.38 Interface Properties (intppty)
intppty sets interface argument passing properties.
✞
1 -- funs = intppty ()
✌
✆
✞
funs =
6. 13. 16. 19. 21. 23. 41. 42. 71.
✌
✆
1.4.39 Inverse Coefficients (inv coeff)
inv coeff is used to build a polynomial matrix by using coefficients.
✞
-- A=int (10* rand (2,6));
2 -- P=inv_coeff (A,1)// second argument is the
-- // order of polynomial .
✌
✆
✞
P =
8 + 3x 3 + 7x 9 + 4x
5 + 3x 3 + 2x 9 + 2x
✌
✆
The same coefficients are used for second order polynomial matrix.
✞
1 -- A=int (10* rand (2,6));
-- P=inv_coeff (A,2)// second argument is the
3 -- // order of polynomial .
✌
✆
P =
2 + 6x + 8x2
8x + 5x2
7 + 6x 3 + 6x + 6x2
1.4.40 Is Error
iserror returns ‘true’ or ‘false’ if there is error or not. This function is removed since
Scilab 6.
✞
1 -- iserror ([n])
✌
✆
If ‘n 0’, all errors are tested other wise only error numbered ‘n’ is tested.](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-99-320.jpg)
![1.4. CORE KEYWORDS 67
1.4.43 Last Error (lasterror)
lasterror returns the number of error occurs recently.
✞
-- ierr = execstr(’a=zzzzzzz ’,’errcatch ’);
2 -- if ierr 0 then
-- disp (lasterror ())
4 -- end
✌
✆
✞
Undefined variable : zzzzzzz
✌
✆
1.4.44 Macro To List
macr2lst primitive converts a compiled Scilab function name into a list which codes the
internal representation of the function (Reverse Polish Notation). This function will not
available since Scilab 6 and above.
✞
1 -- function y=myF(x, flag )
-- if flag then
3 -- y=sin(x)
-- else
5 -- y=cos(x)
-- end
7 -- endfunction
-- L=macr2lst (myF)
9 -- fun2string (L) // This function is removed in scilab 6.0
✌
✆
✞
ans =
!function y=myF(x,flag ) !
! if flag then !
! y = sin(x) !
! else !
! y = cos(x) !
! end , !
!endfunction !
✌
✆
1.4.45 Macro To Tree
macro2tree primitive converts a compiled Scilab function name into a tree.
✞
-- tree = macr2tree (cosh );
2 -- txt=tree2code (tree ,%T);
-- write(%io (2),txt ,’(a)’);
✌
✆
✞
function [t] = cosh (z)
//
// PURPOSE](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-101-320.jpg)
![68 Scilab Core
// element wise hyperbolic cosine
//
// METHOD
// 1/ in the real case use
//
// cosh (z) = 0.5 (exp(|z|) + exp(-|z|))
// = 0.5 ( y + 1/y ) with y = exp(|z|)
//
// The absolute value avoids the problem of a
// division by zero arising with the formula
// cosh (z) = 0.5 ( y + 1/y ), y=exp(z)
// when ieee = 0 for z such that exp(z) equal 0 in
// floating point arithmetic (approximately z -745)
//
// 2/ in the complex case use : cosh (z) = cos(i z)
//
rhs = argn (2);
if rhs$ sim $=1 then
error(msprintf (gettext (%s: Wrong number of input ..
argument (s): %d expected .n) ,cosh ,1));
end;
if type (z)$ sim $=1 then
error(msprintf (gettext (%s: Wrong type for input ..
argument #%d: Real or complex ..
matrix expected .n) ,cosh ,1));
end;
if isreal(z) then
y = exp(abs(z));
t = 0.5*(y+1 ./y)
else
t = cos(imult(z))
end;
endfunction
✌
✆
1.4.46 Matrices
Matrices are the arrangement of integers or variables into rows and columns. These
integers and variables are called elements of the vector of matrix.
✞
-- A=[1 ,2 ,3;4 ,5 ,6]
✌
✆
✞
A =
1. 2. 3.
4. 5. 6.
✌
✆
1.4.47 Matrix
matrix function is used to arrange elements in desired format of rows and columns. This
function is useful in rearranging of elements in desired order of matrix. matrix arranges](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-102-320.jpg)
![74 Scilab Core
✞
1 --r=rand (10,1, uniform ) //10 rows 1 columns
✌
✆
✞
r =
0.7560439
0.0002211
0.3303271
0.6653811
0.6283918
0.8497452
0.6857310
0.8782165
0.0683740
0.5608486
✌
✆
1.4.58 Read Gateway
Each module is assigned a gateway id and this id can be assessed by using readgateway
command.
✞
1 -- [primitives ,primitivesID ,gatewayID ] = readgateway (’core ’);
-- primitives (1); // ’debug ’ primitive
3 -- primitivesID (1); // 1 is ID of ’debug ’ in ’core ’ gateway
-- gatewayID (1) // 13 is ID of ’core ’ gateway in Scilab
✌
✆
✞
ans =
13
✌
✆
1.4.59 Resume
resume invokes Scilab to return to the current execution or resume the current execution
and copy some local variables. Scilab asks for resume or abort keywords when a loop is
paused by pause command. If resume is entered, then loop is started again and if abort is
entered then loop is exits. pause, resume and abort are treated as inter process interrupts.
✞
-- i = 0;
2 -- while i10 do
-- disp (i);
4 -- i = i + 1;
-- if(i5)
6 -- pause; // pause the loop
-- end
8 -- end
✌
✆
✞
0.
1.
2.](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-108-320.jpg)
![76 Scilab Core
1.4.63 Temporary Directory (TMPDIR)
‘TMPDIR’ is a token that points to the path of the temporary directory being used by
Scilab as its scratch directory, or it is being used for storing temprary data, files etc. For
my windows system the Scilab temporary directory path is
✞
1 -- path = TMPDIR;
-- disp (path )
✌
✆
✞
C: DOCUME ~1 ADMINI ~1 LOCALS ~1 Temp SCI_TMP _3104_
✌
✆
1.4.64 Test Matrix
testmatrix is used to generate special matrices, like Magic, Frank and Hilbert matrices.
The type of matrix being generated is identified by the first argument of this function.
For magic matrix, keyword is ‘magi’, for Frank matrix, keyword is ‘frk’ and for Hilbert
matrix, keyword is ‘hilb’. See the following examples, for magic matrix.
✞
1 -- [y]= testmatrix (’magi ’ ,2)
✌
✆
✞
[]
✌
✆
Frank matrix can be generated by
✞
1 -- [y]= testmatrix (’frk ’ ,2)
✌
✆
✞
y =
2. 1.
1. 1.
✌
✆
Hilbert matrix by
✞
1 -- [y]= testmatrix (’hilb ’ ,2)
✌
✆
✞
y =
4. - 6.
- 6. 12.
✌
✆
1.4.65 Then
then keyword is used along-with if keyword in the sequence of if-then-else structure. If if
condition is ‘true’ then statement inside the then block are executed otherwise statement
in else block are executed.](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-110-320.jpg)
![78 Scilab Core
Code Variable Type
1 sci matrix: a matrix of doubles
2 sci poly: a polynomials matrix
4 sci boolean: a boolean matrix
5 sci sparse: a sparse matrix
6 sci boolean sparse: a sparse boolean matrix
7 sci matlab sparse: a sparse matlab matrix
8 sci ints: a matrix of integers
9 sci handles: a graphical handle
10 sci strings: a matrix of strings
11 sci u function: an uncompiled Scilab function
13 sci c function: a compiled Scilab function
14 sci lib: a library of Scilab functions
15 sci list: a Scilab list
16 sci tlist: a Scilab tlist
17 sci mlist: a Scilab mlist
18 sci struct: a Scilab struct
19 sci cell: a Scilab cell
128 sci pointer : a pointer
✞
1 -- x = 2;
-- [i]= type (x)
✌
✆
✞
i =
1
✌
✆
1.4.68 Integer Data Type
Scilab supports, 8, 16, 32 and 64 signed and unsigned integer data type. Each integer
data type is defined as function
✞
-- int size (input )
2 -- uint size (input )
✌
✆
Where, ‘size’ is any value from 8, 16, 32 and 64. We can convert an integer into any type
among the defined size.
✞
-- int8 ([10 ,12 ,500 ,4000])
2 -- uint8 ([10 ,12 ,500 ,4000])
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-112-320.jpg)
![1.4. CORE KEYWORDS 79
✞
ans =
10 12 -12 -96
ans =
10 12 244 160
✌
✆
Other method is by application of function iconvert as
✞
-- iconvert (input , type )
✌
✆
Here, type is any code of the following table.
Type Function Range
0 (reals)
1 int8 [-128, 127]
2 int16 [-32768, 32767]
4 int32 [-2147483648, 2147483647]
8 int64 [-9223372036854775808, 9223372036854775807]
11 uint8 [0, 255]
12 uint16 [0, 65535]
14 uint32 [0, 4294967295]
18 uint64 [0, 18446744073709551615]
During the data conversion, values stored in the memory are not altered. Only method
and length of reading of memory bytes manipulated. For example, an integer is stored in
the memory as shown below. The shown data in each byte is in binary form.
iPtr
11000111 11010111 11001111 11100111
The decimal value of integer is 335280944710. For integer data type, all four bytes are
converted from binary value into decimal value at once. If this integer is converted into
8 bits data type (char type), then data from last byte having binary data 111001112 is
taken and converted. In the above case, output is −25 signed and 231 unsigned.
1.4.69 Varn (varn)
varn returns a polynomial matrix with same coefficients as x but with ‘s’ as symbolic
variable.
✞
1 -- s=poly (0,’s’);
-- p=[s^2+1,s];
3 -- varn (p);
-- varn (p,’x’)
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-113-320.jpg)
![1.5. FUNCTIONS 81
✞
-- i = 0
2 -- while i5 do
-- disp (i);
4 -- i = i + 1;
-- end
✌
✆
✞
ans =
0
1
2
3
4
✌
✆
1.5 Functions
Function, in computer science is a set of instructions. This set of instruction is collectively
called a script or code. Codes inside the function are not executed until unless function
is not called. Some times more than one functions or commands are successively used
for a specific purpose. The re-usability of these sets of functions or commands is very
problematic. Hence these set of functions or commands are put inside a new function
defined by user. Now this new defined function can be used as and when required
1.5.1 Defining Own Function
In Scilab, user can define their own functions. The syntax is
✞
-- // begin of function
2 -- function [outputs ]= myF(argumets )
-- /* Function Statements */
4 -- endfunction
-- // end the function
✌
✆
Any number of input arguments and output variables may be used in a function. Each
input and output variable shall be separated by a comma. Scilab function is initialize
by using the function keyword. This keyword is followed by output variables, either in
vector form or in matrix form, to which result is assigned by the function. Then, ‘=’
sign is followed by the valid name of function with or without function parameters. Each
function that is initiated should be terminated by using keyword endfunction keyword.
See the following example:
✞
1 -- // begin of function
-- function [x, y]= myF(a, b)
3 -- x=a+b // expressions
-- y=a-b // expressions
5 -- endfunction
-- // end the function
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-115-320.jpg)
![82 Scilab Core
When function is called like
✞
-- [x,y]= myF (5,2);
✌
✆
output on the screen is visible like
✞
x =
7.
y =
3.
✌
✆
If an output variable is not declared inside the function body, either as a returned
value or as a declared value, then when function is called with full decoration, will show
errors.
✞
-- function [x, y]= myF(a, b)
2 -- x=a+b; // expressions
-- endfunction
✌
✆
Since Scilab 6.0 version, a function may also be finished by using only ‘end’ keyword. deff
function may be used for inline definition of a function. Its syntax is
✞
1 -- deff (’[out var ]= func name (var 1, var 2)’ ,..
’function statements ’)
✌
✆
To define function z = x + y as inline function, method is
✞
-- deff (’[z]=f(x,y)’,’z=x+y’)
✌
✆
Here f is function name that would be called later. Since Scilab 6.0, function without
output argument cannot be called in assignment expression anymore. For example,
✞
1 -- function myFunc(i, j)
-- return i+j;
3 -- endfunction
-- r=myFunc (2, 3)// returns error in Scilab = 6.0
✌
✆
1.5.2 Rewriting Own Function
Scilab allow function rewriting with or without same signature. When new function is
written with same name as the existing function has, then new function hides to the
existing function with same name. Now, new function needs the parameter to be passed
to it in accordance with new signature of the function.
✞
-- function myF(a, b)// User defined function .
2 -- z=a+b;
-- disp (z);
4 -- endfunction
-- function myF(a, b)// rewritten function .
6 -- z=a*b;](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-116-320.jpg)
![2.1. LINEAR ALGEBRA 87
2Linear Algebra
2.1 Linear Algebra
Linear algebra is the branch of mathematics motivated by a system of linear equations
containing several unknowns.
2.1.1 Simultaneous Solution
Simultaneous solution of a group of equations is performed to find the roots of group
of equations. The solution of group of equations must be unique. Number of unknown
variables should be less than or equal to the number of equations. Take three algebraic
equations with variables x1, x2 and x3 as given,
x1 + x2 + x3 = 6
x1 − x2 + x3 = 2
x1 − x2 − x3 = −4
An algebraic equation in standard form contains only zero in right side of equal sine.
Therefore, each algebraic equation given above is rewrite as
x1 + x2 + x3 − 6 = 0
x1 − x2 + x3 − 2 = 0
x1 − x2 − x3 − 4 = 0
Before solving these equations, and finding the values of x1, x2 and x3, equations are
assigned to function names as given below:
f1 = x1 + x2 + x3 − 6
f2 = x1 − x2 + x3 − 2
f3 = x1 − x2 − x3 + 4
Scilab uses indexed based variables. For example, three variables x1, x2 and x3 are
represented by x(1), x(2) and x(3) respectively. The Scilab equivalent function of the
above algebraic functions is given below:
✞
-- function [f] = F(x)
2 -- f(1) = x(1) + x(2) + x(3) - 6;
-- f(2) = x(1) - x(2) + x(3) - 2;
4 -- f(3) = x(1) - x(2) - x(3) + 4;
-- endfunction
✌
✆
Now initiate initial values of variable x1, x2 and x3 as given in following syntax.](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-121-320.jpg)
![88 Linear Algebra
✞
1 -- x = [1 1 1];
✌
✆
Actually, x(1) represents to the value of x at index of ‘1’ from the array list of ‘x’. This is
why, first element of list of x is assigned to x(1) and second element of list of x is assigned
to x(2) and so on. Now solve the function F for variable ‘x’ by using fsolve() function.
Parameter ‘x’ represents to all variables x1, x2 and x3 and ‘F’ represents to all equations
f1, f2 and f3.
✞
1 -- y = fsolve(x, F);
✌
✆
The values of x1, x2 and x3 are assigned to parameter y and these values can be display
by calling disp() function.
✞
1 -- disp (y);
✌
✆
✞
3. 2. 1.
✌
✆
Solved Problem 2.1 Solve simultaneous equations 2x + y = 3 and 3x + 3y = 2.
Solution Let x = x(1) and y = x(2). The modified form of given equations are
2 × x(1) + x(2) = 3; 3 × x(1) + 3 × x(2) = 2
The two equations in function forms are
f(1) = 2 × x(1) + x(2) − 3; f(2) = 3 × x(1) + 3 × x(2) − 2
On solving these two function assuming x(1) = 0 and x(2) = 0, we get the values of x
and y as 7/3 and 5/3 respectively. The Scilab codes for the given equations is
✞
1 -- function [f] = F(x)
-- f(1) = 2*x(1) + x(2) - 3;
3 -- f(2) = 3*x(1) + 3*x(2) - 2;
-- endfunction
5 -- x = [0 0];
-- y = fsolve(x, F);
7 -- disp (y)
✌
✆
✞
x=2.3333333 , y= -1.6666667
✌
✆
These are solutions of the given equations.
2.1.2 Mean
Mean or average in mathematics is defined as the output found after division of algebraic
sum of all elements by the number of elements. Mathematically, it is represented as
m =
n
P
i=1
xi
n](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-122-320.jpg)
![2.1. LINEAR ALGEBRA 89
✞
1 -- x=[1,2,3,4,5,6,7,8,9]
-- m=mean (x)
✌
✆
✞
m =
5.
✌
✆
2.1.3 Regression
Regression is a process in which two data are fitted in a linear equation form y = a + bx
where x and y are data variables and ‘a’ ‘b’ are the regression coefficients. The data
size of both variables x, y must be same. The function regress() computes the regress
coefficients ‘a’ ‘b’.
✞
-- x=[1,2,3,4,5,6,7,8,9]
2 -- y=[0.5 ,1.5 ,2.5 ,3.5 ,4.5 ,5.5 ,6.5 ,7.5 ,8.5]
-- coefs=regress(x,y)
✌
✆
✞
coefs =
- 0.5
1.
✌
✆
2.1.4 Data Frequency
nfreq returns the frequencies of elements in a data array. This function rearranges data
in two columns. First column represents to data items and second column represents the
frequency of occurrence of that element in the data set. This is obsolete function.
✞
1 -- x=[1,1,3,8,5,6,5,8,5];
-- nfreq(x)
✌
✆
✞
ans =
1. 2.
3. 1.
8. 2.
5. 3.
6. 1.
✌
✆
2.1.5 Tabulation
nfreq arranges data into distinct items and their corresponding frequency of occurrence
of that elements in the data. The tabulated data items are not arranged in any order but
data is in order first occurrence of distinct elements. To arranged this tabulated data in
ascending or descending order, tabul() function is used to arrange the data in ascending
or descending order.](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-123-320.jpg)
![90 Linear Algebra
✞
-- x=[1,1,3,8,5,6,5,8,5];
2 -- t=tabul(x,’i’)
✌
✆
✞
t =
1. 2.
3. 1.
5. 3.
6. 1.
8. 2.
✌
✆
Second argument to tabul function is either ‘i’ or ‘d’. ‘i’ stands for increment, i.e. data
would be arranged in ascending order. Second is descending order, that is initialized by
‘d’. If order is not defined in tabul function, then data is arranged in the order of first
occurrence of distinct elements. t is a two column matrix who contains distinct values of
x in the first column the and number of occurrences in the second column. If x numeric
matrix or vector, then t is matrix and if x is string matrix or vector, then t is a list. First
column values can be accessed by using t(:, 1) and second column values can be accesses
by using t(:, 2).
✞
-- x=[1,1,3,8,5,6,5,8,5];
2 -- t=tabul(x,’i’)
-- t(:,2)
✌
✆
✞
t =
2.
1.
3.
1.
2.
✌
✆
2.2 Algebra
2.2.1 Clean (clean)
This function eliminates all the coefficients with absolute value or relative value in a
polynomial.
✞
-- x=poly (0,’x’);
2 -- w=[x,1,2+x;3+x,2-x,x^2;1 ,2 ,3+x]/3;
-- w*inv(w)
4 -- clean(w*inv(w))
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-124-320.jpg)
![2.2. ALGEBRA 91
ans =
1
1
0
1
0
1
0
1
1
1
0
1
0
1
0
1
1
1
ans =
1
1
0
1
0
1
0
1
1
1
0
1
0
1
0
1
1
1
2.2.2 Degree of Polynomial (degree)
Degree of a polynomial is its highest power of independent variable. For example, the
degree of following example
y = x3
− 4x + 2
is ‘3’. To get the degree of a polynomial, function degree is used. This function accepts a
function argument or a matrix as its argument. If argument supplied to this function is
a matrix then it returns the degree of each polynomial elements of the matrix.
✞
-- x=poly (0,’x’);
2 -- A=[2* x,3;2 ,4];
-- degree(A)
✌
✆
✞
ans =
1. 0.
0. 0.
✌
✆
degree also returns the degree of a linear polynomial.
✞
1 -- x=poly ([1,2,3], ’x’);
-- degree(x)
✌
✆
✞
ans =
3.
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-125-320.jpg)
![92 Linear Algebra
2.2.3 Solve Algebraic Equations (fsolve)
This function is used to solve algebraic equations. Take three algebraic equations with
variables x1, x2 and x3 as given,
x1 + x2 + x3 = 6
x1 − x2 + x3 = 2
x1 − x2 − x3 = −4
An algebraic equation in standard form contains only zero in right side. Therefore, each
algebraic equation given above is rewrite as
x1 + x2 + x3 − 6 = 0
x1 − x2 + x3 − 2 = 0
x1 − x2 − x3 + 4 = 0
Before solving these equations, and finding the values of x1, x2 and x3, equations are
assigned to function names as given below:
f1 = x1 + x2 + x3 − 6
f2 = x1 − x2 + x3 − 2
f3 = x1 − x2 − x3 + 4
In Scilab, unknown variables x1, x2 and x3 are represented by x(1), x(2) and x(3) re-
spectively. The Scilab equivalent functions of the above algebraic functions are given
below:
✞
-- function [f] = F(x)
2 -- f(1) = x(1) + x(2) + x(3) - 6;
-- f(2) = x(1) - x(2) + x(3) - 2;
4 -- f(3) = x(1) - x(2) - x(3) + 4;
-- endfunction
✌
✆
Now initiate initial values of variable x1, x2 and x3 as given in following syntex.
✞
1 -- x = [1 1 1];
✌
✆
Actually, x(1) represents to the value of x at index of ‘1’ from the array list of ‘x’. This is
why, first element of list of x is assigned to x(1) and second element of list of x is assigned
to x(2) and so on. Now solve the function F for variable ‘x’ by using fsolve() function.
Parameter ‘x’ represents to all variables x1, x2 and x3 and ‘F’ represents to all equations
f1, f2 and f3.
✞
1 -- y = fsolve(x, F);
✌
✆
The values of x1, x2 and x3 are assigned to parameter y and these values can be display
by calling disp() function.
✞
1 -- disp (y);
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-126-320.jpg)
![2.2. ALGEBRA 93
✞
3. 2. 1.
✌
✆
Solved Problem 2.2 Solve simultaneous equations x + y = 4 and 3x + 3y = 2.
Solution Let x = x(1) and y = x(2). The modified form of given equations are
x(1) + x(2) = 4; 3 × x(1) + 3 × x(2) = 2
The Scilab codes for the given equations is
✞
1 -- function [f] = F(x)
-- f(1) = x(1) + x(2) - 4;
3 -- f(2) = 3*x(1) + 3*x(2) - 2;
-- endfunction
5 -- x = [0 0];
-- y = fsolve(x, F);
7 -- disp (y)
✌
✆
✞
x=71.20891, y= -70.20891
✌
✆
These are solutions of the given equations.
2.2.4 Denominator (denom)
A polynomial fraction is given by
y =
x2
+ 3
x3 − 8
A polynomial fraction is acceptable if its degree of numerator is less than or equals to the
degree of its polynomial. If degree of numerator is larger than its degree of denominator,
then numerator is divide by denominator to convert it into whole and fraction parts.
y =
x4
+ 5x
x3 − 8
= x +
13x
x3 − 8
To get the denominator of a polynomial fraction, function denom is used. The argument
of this function may be either a fraction or a matrix of fractions.
✞
1 -- x=poly (0,’x’);
-- A=[2* x,3;2 ,4];
3 -- denom(A)
✌
✆
✞
ans =
1. 1.
1. 1.
✌
✆
If an element or polynomial term is a fraction number then denom returns the denomi-
nator the fraction.](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-127-320.jpg)
![96 Linear Algebra
✞
1 --n=poly ([1,2,3], ’z’);
--d=poly ([5,6,7], ’z’);
3 --R=syslin(’d’,n,d);
--R1=factors (R,’d’)
5 -- prettyprint (R1)
✌
✆
R1 =
−0.0047619 + 0.0285714z − 0.0523810z2
+ 0.0285714z3
−0.0047619 + 0.0857143z − 0.5095238z2 + z3
2.2.9 Greatest Common Divisor (gcd)
gcd is acronym of greatest common divisor. It is a polynomial or number that can divide
other polynomials without remainders. For example, the gcd of numbers 12 and 18 is
6. The same principle is applicable to the algebraic relations. For example, the greatest
common divisor of algebraic equations (x − 2)(x + 3) and (x − 2)(x + 4) is (x − 2).
✞
1 -- s=poly (0,’s’);
-- p=[s, s*(s+1)^2, 2*s^2+s^3];
3 -- gcd(p)
✌
✆
✞
ans =
s
✌
✆
2.2.10 Inverse of Matrix (invr)
invr returns the inverse matrix. Inverse of a matrix can be obtained if it is convertible.
All square matrices are not convertible. The square matrix which has an inverse is called
convertible or non-singular matrix. A square matrix is convertible when its determinant
is not zero, i.e. det(A) 6= 0. Inverse of a square matrix is given by
A−1
=
Adj(A)
Det(A)
Adj(A) of the matrix A is transpose matrix of the co-factor matrix of matrix A. Co-factor
of a matrix of m × n order in respect of ith
row and jth
column is given by Aij that is
equal to the product of (−1)i×j
and determinant of remaining matrix after eliminating
ith
row and jth
column. Let a matrix is given like
A =
1 2
3 4
The co-factors of the matrix are
a11 = (−1)1+1
× 4; a11 = (−1)1+2
× 3;
a21 = (−1)2+1
× 2; a22 = (−1)2+2
× 1;](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-130-320.jpg)
![2.2. ALGEBRA 97
Now co-factors matrix of matrix A is
Acf =
4 −3
−2 1
Now Adj(A) of matrix A is
Adj(A) =
4 −2
−3 1
Now the determinant of the matrix A is
Det(A) = −2
Finally, inverse of matrix A is
A−1
=
Adj(A)
Det(A)
=
−2. 1.
1.5 −0.5
✞
-- a=[1 ,2;3 ,4]
2 -- invr (a)
✌
✆
✞
ans =
- 2. 1.
1.5 - 0.5
✌
✆
2.2.11 Least Common Multiple (lcm)
lcm is acronym of least common multiple. It is the smallest number or polynomial that
can be divided by more than one polynomials. For example 30 is lcm of numbers 5 and
6. Similarly (x − 2)(x + 3) is least common multiple of the factors (x − 2) and (x − 3).
✞
1 -- s=poly (0,’s’);
-- p=[s,s*(s+1) ^2,2*s^2+s^3];
3 -- lcm(p)
✌
✆
ans =
2s2
+ 5s3
+ 4s4
+ s5
2.2.12 LCM By Diagonalization (lcmdiag)
lcmdiag returns the least common multiple of a matrix using diagonal factorization
method.
✞
1 -- s=poly (0,’s’);
-- H=[1/ s,s;1/s^2,2/s];
3 -- [N,D]= lcmdiag(H)
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-131-320.jpg)
![98 Linear Algebra
D =
s2
0
0 s
N =
s s2
1 2
2.2.13 Numerator (numer)
numer returns the numerator value of a fraction. A polynomial fraction is given by
y =
x2
+ 3
x3 − 8
A polynomial fraction is acceptable if its degree of numerator is less than or equals to the
degree of its polynomial. If degree of numerator is larger than its degree of denominator,
then numerator is divide by denominator to convert it into whole and fraction parts.
y =
x4
+ 5x
x3 − 8
= x +
13x
x3 − 8
To get the numerator of a polynomial fraction, function numer is used.
✞
1 -- s=poly (0,’s’);
-- numer (2/s)
✌
✆
✞
ans =
2
✌
✆
✞
-- s=poly (0,’s’);
2 -- H=[1/ s,s;1/s^2,2/s];
-- numer(H)
✌
✆
ans =
1 s
1 2](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-132-320.jpg)
![2.2. ALGEBRA 99
2.2.14 Polynomial (poly)
Any linear relation of a unknown variable having degree more than ‘2’ is known as poly-
nomials. For example, x3
+ 2x − 3 = 0 is a polynomial of variable x. Degree of the
polynomial is ‘3’. If [1, 2, 3] are the roots of a polynomial then degree of the polynomial
is ‘3’ (No of roots). Each root represents the factor of ‘x’. If x = rn are roots of a
polynomial then
n
Y
i=1
(x − rk) is polynomial of these roots. For given roots [1, 2, 3], factors
of the polynomial are
Roots x = 1 x = 2 x = 3
Factors (x-1) (x-2) (x-3)
Polynomial having these roots is
(x − 1) × (x − 2) × (x − 3) = 0
✞
1 -- x=poly ([1,2,3], ’x’)
✌
✆
ans =
− 6 + 11x − 6x2
+ x3
degree() returns the degree of the polynomial supplied as its argument.
✞
1 -- x=poly ([1,2,3], ’x’);
-- degree(x)
✌
✆
✞
ans =
3.
✌
✆
2.2.15 Polynomial Division (pdiv)
pdiv returns the euclidean division of polynomials. By default, it returns only quotient
value.
✞
-- s=poly (0,’s’);
2 -- pdiv (s^2-1, s^2)
✌
✆
✞
ans =
1
✌
✆
If quotient remainder both are to be found as returned values then this function is used
with return argument as shown in the following example.](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-133-320.jpg)
![100 Linear Algebra
✞
-- [r,q]= pdiv (p1 , p2 )
✌
✆
✞
1 -- s=poly (0,’s’);
-- [r,q]= pdiv (s^2-1, s -1)
✌
✆
✞
q =
1 + s
r =
0.
✌
✆
2.2.16 Residue (residu)
residu is the limit about a point of a function when it approach to that point. Residue
is measured for those points where function limit is not acceptable. Residue of a fraction
f(s), given in the form of
f(s) =
P(s)
Q1(s) ∗ Q2(s)
can be obtained by using Scilab function
✞
-- residu(P, Q1 , Q2)
✌
✆
Here, Q1 and Q2 must have not any common root. For example, consider a function
f(s) =
1
s3 − s4
Here P(s) = 1. To get the s3
− s4
in form of Q1(s) ∗ Q2(s), take common s3
which gives
s3
(1 − s). Now Q1(s) is s3
and Q2(s) is 1 − s. The fraction for residue function is
f(s) =
1
s3 ∗ (1 − s)
Expanding the relation
f(s) =
1
s3
+
1
s2
+
1
s
+ 1 + s + . . .
The coefficient b1, i.e. the numeric coefficient of 1/s is called the residue of the function.
Here, it is 1. In Scilab, supplying the three parameters P, Q1 and Q2 to residu() function
we get the residue of the function.
✞
1 -- s=poly (0,’s’);
-- P=1;
3 -- Q1=s^3;
-- Q2=(1- s);
5 -- residu(p, Q1 , Q2)
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-134-320.jpg)
![102 Linear Algebra
✞
1 -- x=poly (0,’x’)
-- roots(x^2 -3 * x + 3)
✌
✆
✞
ans =
1.5 + 0.8660254 i
1.5 - 0.8660254 i
✌
✆
Roots of Polynomials
Roots of higher degree polynomials can be obtained as
✞
1 -- x=poly (0,’x’)
-- roots(x^3 - 6 * x^2 + 11 * x -6)
✌
✆
✞
ans =
3.
2.
1.
✌
✆
All are the real roots. roots function also calculates the complex roots.
✞
-- x=poly (0,’x’)
2 -- roots(x^3 - 6 * x^2 + 11 * x + 1)
✌
✆
✞
ans =
3.04 + 1.50 i
3.04 - 1.50 i
- 0.08
✌
✆
roots returns all the roots of a polynomial function. Roots of a polynomial function
are those possible values which satisfy to the given polynomial to zero. For example,
x2
− 2x + 1 = 0 is a polynomial of degree ‘2’ and is known as quadratic equation. The
roots of this polynomial are x = +1 and x = +1. When in place of ‘x’, 1 is put then
polynomial value is zero.
p(1) = 12
− 2 × 1 + 1 = 0
Roots of a polynomial is obtained either by fraction method or by substitution and re-
duction method.
✞
-- p=poly ([1,2,3], ’s’)
2 -- roots(p)
✌
✆
✞
ans =
3.
2.
1.
✌
✆](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-136-320.jpg)

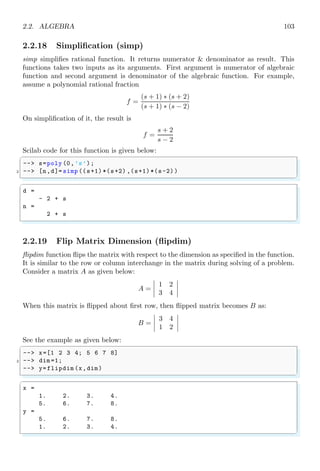

![2.2. ALGEBRA 103
2.2.18 Simplification (simp)
simp simplifies rational function. It returns numerator denominator as result. This
functions takes two inputs as its arguments. First argument is numerator of algebraic
function and second argument is denominator of the algebraic function. For example,
assume a polynomial rational fraction
f =
(s + 1) ∗ (s + 2)
(s + 1) ∗ (s − 2)
On simplification of it, the result is
f =
s + 2
s − 2
Scilab code for this function is given below:
✞
-- s=poly (0,’s’);
2 -- [n,d]= simp ((s+1) *(s+2) ,(s+1)*(s-2))
✌
✆
✞
d =
- 2 + s
n =
2 + s
✌
✆
2.2.19 Flip Matrix Dimension (flipdim)
flipdim function flips the matrix with respect to the dimension as specified in the function.
It is similar to the row or column interchange in the matrix during solving of a problem.
Consider a matrix A as given below:
A =](https://image.slidesharecdn.com/scilab-xcosprogrammingnotesforbeginners1-211010170342/85/Think-Like-Scilab-and-Become-a-Numerical-Programming-Expert-Notes-for-Beginners-1-of-2-by-Arun-Umrao-137-320.jpg)
More Related Content
Similar to Think Like Scilab and Become a Numerical Programming Expert- Notes for Beginners 1 of 2 by Arun Umrao
Think Like Scilab and Become a Numerical Programming Expert- Notes for Beginners 1 of 2 by Arun Umrao
- 1. 1 SCILAB AN INTRODUCTION Arun Umrao www.sites.google.com/view/arunumrao DRAFTCOPY - GPL LICENSING
- 2. 2 Contents I Scilab 7 1Scilab Core 9 1.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 1.1.1 Everything As Matrix . . . . . . . . . . . . . . . . . . . . . . . . . 10 1.1.2 Approximate Zero . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 1.1.3 Computational Error . . . . . . . . . . . . . . . . . . . . . . . . . . 11 1.2 Simple Arithmetic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 1.2.1 Addition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 1.2.2 Subtraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 1.2.3 Multiplication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 1.2.4 Division . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 1.2.5 Scoping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 1.2.6 Square Root (sqrt) . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 1.2.7 Exponent (ˆ Operator) . . . . . . . . . . . . . . . . . . . . . . . . 17 1.2.8 Algebraic Equations . . . . . . . . . . . . . . . . . . . . . . . . . . 20 1.2.9 Logarithm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 1.2.10 Index Expression . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 1.3 Arithmetical Keywords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 1.3.1 Result Variable (ans) . . . . . . . . . . . . . . . . . . . . . . . . . . 25 1.3.2 Left Matrix Division () . . . . . . . . . . . . . . . . . . . . . . . . 25 1.3.3 Square Brackets ([...]) . . . . . . . . . . . . . . . . . . . . . . . . . 26 1.3.4 Element-Wise Operation . . . . . . . . . . . . . . . . . . . . . . . . 27 1.3.5 Matrix-Wise Operation . . . . . . . . . . . . . . . . . . . . . . . . 27 1.3.6 Colon (Range Operator) . . . . . . . . . . . . . . . . . . . . . . . . 27 1.3.7 Comma . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 1.3.8 Comments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 1.3.9 Dot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 1.3.10 Empty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 1.3.11 Equal Sign . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 1.3.12 global . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 1.3.13 Hat Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 1.3.14 Less Than . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 1.3.15 Minus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 1.3.16 Not . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 1.3.17 Parenthesis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 1.3.18 Percent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 1.3.19 Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 1.3.20 Quote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 1.3.21 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 1.3.22 Semicolon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 1.3.23 Forward Slash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 1.3.24 Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 1.3.25 Asterisk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
- 3. 3 1.3.26 Tilda .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 1.4 Core Keywords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 1.4.1 Abort Process (abort) . . . . . . . . . . . . . . . . . . . . . . . . . 41 1.4.2 Add a Demo (add demo) . . . . . . . . . . . . . . . . . . . . . . . 42 1.4.3 Number of Arguments (argn) . . . . . . . . . . . . . . . . . . . . . 42 1.4.4 Banner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 1.4.5 Boolean . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Shortcut && And Elementwise & . . . . . . . . . . . . . . . . . . . 43 Shortcut || And Elementwise | . . . . . . . . . . . . . . . . . . . . . 43 1.4.6 Break a Process (break) . . . . . . . . . . . . . . . . . . . . . . . . 44 1.4.7 Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 1.4.8 Kill the Value (clear) . . . . . . . . . . . . . . . . . . . . . . . . . . 45 1.4.9 Remove a Function (clearfun) . . . . . . . . . . . . . . . . . . . . . 45 1.4.10 Clear Global . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 1.4.11 Compile Scilab Function (comp) . . . . . . . . . . . . . . . . . . . 45 1.4.12 Continue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 1.4.13 Debug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 1.4.14 Delete Break . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 1.4.15 Display Break Points (dispbpt) . . . . . . . . . . . . . . . . . . . . 47 1.4.16 Do . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 1.4.17 Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 1.4.18 Else . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 1.4.19 Else-If . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 1.4.20 End . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 1.4.21 Catch Error (errcatch) . . . . . . . . . . . . . . . . . . . . . . . . . 50 1.4.22 Clear The Error (errclear) . . . . . . . . . . . . . . . . . . . . . . . 50 1.4.23 Error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 1.4.24 Exists a Variable (exists) . . . . . . . . . . . . . . . . . . . . . . . 51 1.4.25 Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 1.4.26 Extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 1.4.27 For . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 1.4.28 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 1.4.29 MD5 Hash (getmd5) . . . . . . . . . . . . . . . . . . . . . . . . . . 54 1.4.30 Get Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 1.4.31 Get Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 1.4.32 Get Operating System . . . . . . . . . . . . . . . . . . . . . . . . . 55 1.4.33 Get Scilab Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 1.4.34 Get Shell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 1.4.35 Get Variale Stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 1.4.36 Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 1.4.37 Insertion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 1.4.38 Interface Properties (intppty) . . . . . . . . . . . . . . . . . . . . . 57 1.4.39 Inverse Coefficients (inv coeff) . . . . . . . . . . . . . . . . . . . . 57 1.4.40 Is Error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 1.4.41 Is Global . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 1.4.42 Line Spacing (linspace) . . . . . . . . . . . . . . . . . . . . . . . . 58 1.4.43 Last Error (lasterror) . . . . . . . . . . . . . . . . . . . . . . . . . 59
- 4. 4 1.4.44 Macro ToList . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 1.4.45 Macro To Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 1.4.46 Matrices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 1.4.47 Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 1.4.48 Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 1.4.49 Matlab Mode (mtlb mode) . . . . . . . . . . . . . . . . . . . . . . 62 1.4.50 Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 1.4.51 New Function (newfun) . . . . . . . . . . . . . . . . . . . . . . . . 63 1.4.52 Null . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 1.4.53 Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 1.4.54 Predefined Variables (predef) . . . . . . . . . . . . . . . . . . . . . 64 1.4.55 Print Output in L A TEX (prettyprint) . . . . . . . . . . . . . . . . . 65 1.4.56 Quit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 1.4.57 Random Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 1.4.58 Read Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 1.4.59 Resume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 1.4.60 Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 1.4.61 Set Break Points (setbpt) . . . . . . . . . . . . . . . . . . . . . . . 67 1.4.62 Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 1.4.63 Temporary Directory (TMPDIR) . . . . . . . . . . . . . . . . . . . 68 1.4.64 Test Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 1.4.65 Then . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 1.4.66 Try . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 1.4.67 Type (type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 1.4.68 Integer Data Type . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 1.4.69 Varn (varn) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 1.4.70 Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 1.4.71 With tk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 1.4.72 While . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 1.5 Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 1.5.1 Defining Own Function . . . . . . . . . . . . . . . . . . . . . . . . 73 1.5.2 Rewriting Own Function . . . . . . . . . . . . . . . . . . . . . . . . 74 1.5.3 Redefining Function Error . . . . . . . . . . . . . . . . . . . . . . . 75 1.5.4 Compilation Warning . . . . . . . . . . . . . . . . . . . . . . . . . 76 1.5.5 Undefined Variable Error . . . . . . . . . . . . . . . . . . . . . . . 76 1.5.6 Implementation Error . . . . . . . . . . . . . . . . . . . . . . . . . 77 1.5.7 Change Function in Prototype (funcprot) . . . . . . . . . . . . . . 77 1.5.8 Function Pointer (funptr) . . . . . . . . . . . . . . . . . . . . . . . 78 2 Linear Algebra 79 2.1 Linear Algebra . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 2.1.1 Simultaneous Solution . . . . . . . . . . . . . . . . . . . . . . . . . 79 2.1.2 Mean . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 2.1.3 Regression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 2.1.4 Data Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 2.1.5 Tabulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 2.2 Algebra . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
- 5. 5 2.2.1 Clean (clean). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 2.2.2 Degree of Polynomial (degree) . . . . . . . . . . . . . . . . . . . . 83 2.2.3 Solve Algebraic Equations (fsolve) . . . . . . . . . . . . . . . . . . 84 2.2.4 Denominator (denom) . . . . . . . . . . . . . . . . . . . . . . . . . 85 2.2.5 Derivative (derivat) . . . . . . . . . . . . . . . . . . . . . . . . . . 86 2.2.6 Determinant (determ) . . . . . . . . . . . . . . . . . . . . . . . . . 86 2.2.7 Determinant (detr) . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 2.2.8 Factors (factors) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 2.2.9 Greatest Common Divisor (gcd) . . . . . . . . . . . . . . . . . . . 88 2.2.10 Inverse of Matrix (invr) . . . . . . . . . . . . . . . . . . . . . . . . 88 2.2.11 Least Common Multiple (lcm) . . . . . . . . . . . . . . . . . . . . 89 2.2.12 LCM By Diagonalization (lcmdiag) . . . . . . . . . . . . . . . . . . 89 2.2.13 Numerator (numer) . . . . . . . . . . . . . . . . . . . . . . . . . . 90 2.2.14 Polynomial (poly) . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 2.2.15 Polynomial Division (pdiv) . . . . . . . . . . . . . . . . . . . . . . 91 2.2.16 Residue (residu) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 2.2.17 Roots of Polynomial (roots) . . . . . . . . . . . . . . . . . . . . . . 93 Roots of Quadratic Equation . . . . . . . . . . . . . . . . . . . . . 93 Roots of Polynomials . . . . . . . . . . . . . . . . . . . . . . . . . . 94 2.2.18 Simplification (simp) . . . . . . . . . . . . . . . . . . . . . . . . . . 95 2.2.19 Flip Matrix Dimension (flipdim) . . . . . . . . . . . . . . . . . . . 95 2.2.20 Permutation (permute) . . . . . . . . . . . . . . . . . . . . . . . . 96 2.2.21 Matrix Replication (repmat) . . . . . . . . . . . . . . . . . . . . . 96 2.2.22 Cumulative Product (cumprod) . . . . . . . . . . . . . . . . . . . . 96 2.2.23 Cumulative Summation (cumsum) . . . . . . . . . . . . . . . . . . 98 2.2.24 Kronekar Product (kron) . . . . . . . . . . . . . . . . . . . . . . . 99 2.2.25 Product (prod) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 2.2.26 Summation (sum) . . . . . . . . . . . . . . . . . . . . . . . . . . . 101 2.3 Matrices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102 2.3.1 Determinant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107 2.3.2 Transpose Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107 2.3.3 Diagonal Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 2.3.4 Identity Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 2.3.5 Inverse of Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 2.3.6 Normalization of Matrix . . . . . . . . . . . . . . . . . . . . . . . . 110 2.3.7 Normalzation Factor (norm) . . . . . . . . . . . . . . . . . . . . . . 111 2.3.8 Permutation & Transposition (pertrans) . . . . . . . . . . . . . . . 112 2.3.9 Orthogonal Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . 113 2.3.10 Complex Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113 2.3.11 Matrix Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114 2.3.12 Eigenvalues of Matrix . . . . . . . . . . . . . . . . . . . . . . . . . 115 2.3.13 Triangular Lower Matrix (tril) . . . . . . . . . . . . . . . . . . . . 116 2.3.14 Triangular Upper Matrix (triu) . . . . . . . . . . . . . . . . . . . . 116 2.3.15 Lower Upper Matrix (lu) . . . . . . . . . . . . . . . . . . . . . . . 117 2.3.16 Diagonal Matrix (diag) . . . . . . . . . . . . . . . . . . . . . . . . 117 2.3.17 Jordan Canonical Form (bdiag) . . . . . . . . . . . . . . . . . . . . 119 2.3.18 Cholensky Factorization (chol) . . . . . . . . . . . . . . . . . . . . 120
- 6. 6 2.3.19 Determinant ofMatrix (det) . . . . . . . . . . . . . . . . . . . . . 121 2.3.20 Inverse Matrix (inv) . . . . . . . . . . . . . . . . . . . . . . . . . . 122 2.3.21 Orthogonal Matrix (orth) . . . . . . . . . . . . . . . . . . . . . . . 123 2.3.22 Rank of Matrix (rank) . . . . . . . . . . . . . . . . . . . . . . . . . 125 2.3.23 Eigenvalues & Eigenvectors (spec) . . . . . . . . . . . . . . . . . . 126 2.3.24 Square Root of Matrix . . . . . . . . . . . . . . . . . . . . . . . . . 128 2.3.25 Hermitian Factorisation (sqroot) . . . . . . . . . . . . . . . . . . . 130 2.3.26 Signaular Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131 2.3.27 Singular Value Approximation (sva) . . . . . . . . . . . . . . . . . 131 2.3.28 Singular Value Decomposition (svd) . . . . . . . . . . . . . . . . . 131 2.3.29 Trace of Matrix (trace) . . . . . . . . . . . . . . . . . . . . . . . . 135 3 Calculus 137 3.1 Derivative Calculus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137 3.1.1 Derivative . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137 3.1.2 Numeric Derivative . . . . . . . . . . . . . . . . . . . . . . . . . . . 137 3.1.3 Numeric Difference . . . . . . . . . . . . . . . . . . . . . . . . . . . 138 3.1.4 Function Evaluation (feval) . . . . . . . . . . . . . . . . . . . . . . 138 3.2 Integral Calculus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139 3.2.1 Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139 3.2.2 Double Integral (int2d) . . . . . . . . . . . . . . . . . . . . . . . . 140 3.2.3 Tripple Integration (int3d) . . . . . . . . . . . . . . . . . . . . . . 141 3.2.4 Integrate (integrate) . . . . . . . . . . . . . . . . . . . . . . . . . . 143 3.2.5 Definite Integration (intg) . . . . . . . . . . . . . . . . . . . . . . . 143 3.2.6 Cauchy’s Integration (intc) . . . . . . . . . . . . . . . . . . . . . . 143 3.2.7 Cauchy Integration (intl) . . . . . . . . . . . . . . . . . . . . . . . 146 3.3 Differential Equations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148 3.3.1 Ordinary Differential Equation (ode) . . . . . . . . . . . . . . . . . 148 3.3.2 Differential Algebraic System Solver (dassl) . . . . . . . . . . . . . 150 4 Elementary Functions 157 4.1 Data Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157 4.1.1 Comparison of Data . . . . . . . . . . . . . . . . . . . . . . . . . . 157 4.1.2 Data Generation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158 4.1.3 Creation of Matrix Cell . . . . . . . . . . . . . . . . . . . . . . . . 158 4.1.4 Creation of List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159 4.2 Bitwise operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160 4.2.1 Bitwise AND (bitand) . . . . . . . . . . . . . . . . . . . . . . . . . 160 4.2.2 Bitwise Complements (bitcmp) . . . . . . . . . . . . . . . . . . . . 160 4.2.3 Get a Position Bit (bitget) . . . . . . . . . . . . . . . . . . . . . . 161 4.2.4 Bitwise OR (bitor) . . . . . . . . . . . . . . . . . . . . . . . . . . . 161 4.2.5 Set Bit In Position (bitset) . . . . . . . . . . . . . . . . . . . . . . 162 4.2.6 Bitwise Exclusive OR (bitxor) . . . . . . . . . . . . . . . . . . . . 162 4.3 Complex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163 4.3.1 Complex Number (complex) . . . . . . . . . . . . . . . . . . . . . . 163 4.3.2 Complex Imaginary (imag) . . . . . . . . . . . . . . . . . . . . . . 163 4.3.3 Iota Multiplication (imult) . . . . . . . . . . . . . . . . . . . . . . 164
- 7. 7 4.3.4 Is Real(isreal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164 4.3.5 Complex Real (real) . . . . . . . . . . . . . . . . . . . . . . . . . . 164 4.3.6 Complex Conjugate (conj) . . . . . . . . . . . . . . . . . . . . . . . 164 4.4 Discrete mathematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165 4.4.1 Binomials (binomial) . . . . . . . . . . . . . . . . . . . . . . . . . . 165 4.4.2 Factors (factor) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165 4.4.3 Factorial (factorial) . . . . . . . . . . . . . . . . . . . . . . . . . . . 166 4.4.4 Permutations (perms) . . . . . . . . . . . . . . . . . . . . . . . . . 166 4.4.5 Primes (primes) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166 4.5 Floating point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166 4.5.1 Ceiling To (ceil) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167 4.5.2 Double (double) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167 4.5.3 Number as Integer (int8) . . . . . . . . . . . . . . . . . . . . . . . 167 4.5.4 Fix to Zero (fix) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168 4.5.5 Round to Lower Integer (floor) . . . . . . . . . . . . . . . . . . . . 168 4.5.6 Base 2 Exponent (frexp) . . . . . . . . . . . . . . . . . . . . . . . . 169 4.5.7 Integer (int) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169 4.5.8 Whether Infinity (isinf) . . . . . . . . . . . . . . . . . . . . . . . . 169 4.5.9 Whether Not a Number (isnan) . . . . . . . . . . . . . . . . . . . . 170 4.5.10 Near Float (nearfloat) . . . . . . . . . . . . . . . . . . . . . . . . . 170 4.5.11 Round (round) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 4.6 Number Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 4.6.1 Conversion About Any Base (base2dec) . . . . . . . . . . . . . . . 170 4.6.2 Binary to Decimal (bin2dec) . . . . . . . . . . . . . . . . . . . . . 171 4.6.3 Decimal to Binary (dec2bin) . . . . . . . . . . . . . . . . . . . . . 171 4.6.4 Decimal To Hexadecimal (dec2hex) . . . . . . . . . . . . . . . . . . 171 4.6.5 Decimal to Octal (dec2oct) . . . . . . . . . . . . . . . . . . . . . . 172 4.6.6 Hexadecimal to Decimal (hex2dec) . . . . . . . . . . . . . . . . . . 172 4.6.7 Octal to Decimal (oct2dec) . . . . . . . . . . . . . . . . . . . . . . 172 4.7 Set operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173 4.7.1 Intersect (intersect) . . . . . . . . . . . . . . . . . . . . . . . . . . 173 4.7.2 Sorted Difference (setdiff) . . . . . . . . . . . . . . . . . . . . . . . 173 4.7.3 Union of Sets (union) . . . . . . . . . . . . . . . . . . . . . . . . . 174 4.7.4 Unique Component (unique) . . . . . . . . . . . . . . . . . . . . . 175 4.8 Trigonometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175 4.8.1 Inverse Trigonometric Functions . . . . . . . . . . . . . . . . . . . 176 Inverse Sine in Radian (asin) . . . . . . . . . . . . . . . . . . . . . 176 Inverse Sine in Degree (asind) . . . . . . . . . . . . . . . . . . . . . 176 Inverse Hyperbolic Sine (asinh) . . . . . . . . . . . . . . . . . . . . 176 Matrix Inverse Hyperbolic Sine (asinhm) . . . . . . . . . . . . . . 177 Matrix Inverse Sine (asinm) . . . . . . . . . . . . . . . . . . . . . . 177 Inverse Cosine in Radian (acos) . . . . . . . . . . . . . . . . . . . . 177 Inverse Cosine In Degree (acosd) . . . . . . . . . . . . . . . . . . . 177 Inverse Hyperbolic Cosine (acosh) . . . . . . . . . . . . . . . . . . 178 Matrix Inverse Hyperbolic Cosine (acoshm) . . . . . . . . . . . . . 178 Matrix Inverse Cosine (acosm) . . . . . . . . . . . . . . . . . . . . 179 Inverse Tangent in Radian (atan) . . . . . . . . . . . . . . . . . . . 179
- 8. 8 Inverse Tangent inDegree (atand) . . . . . . . . . . . . . . . . . . 179 Inverse Hyperbolic Tangent (atanh) . . . . . . . . . . . . . . . . . 179 Matrix Inverse Hyperbolic Tangent (atanhm) . . . . . . . . . . . . 180 Matrix Inverse Tangent (atanm) . . . . . . . . . . . . . . . . . . . 180 Inverse Cotangent in Radian(acot) . . . . . . . . . . . . . . . . . . 180 Inverse Cotangent in Degree (acotd) . . . . . . . . . . . . . . . . . 181 Inverse Hyperbolic Cotangent (acoth) . . . . . . . . . . . . . . . . 181 Inverse Secant in Radian (asec) . . . . . . . . . . . . . . . . . . . . 181 Inverse Secant in Degree (asecd) . . . . . . . . . . . . . . . . . . . 182 Inverse Hyperbolic Secant (asech) . . . . . . . . . . . . . . . . . . 182 Inverse Cosecant in Radian (acsc) . . . . . . . . . . . . . . . . . . 182 Inverse Cosecant in Degree (acscd) . . . . . . . . . . . . . . . . . . 183 Inverse Hyperbolic Cosecant (acsch) . . . . . . . . . . . . . . . . . 183 4.8.2 Trigonometric Functions . . . . . . . . . . . . . . . . . . . . . . . . 183 Sine - Argument in Radian (sin) . . . . . . . . . . . . . . . . . . . 183 Cardinal Sine (sinc) . . . . . . . . . . . . . . . . . . . . . . . . . . 184 Sine - Argument in Degree (sind) . . . . . . . . . . . . . . . . . . . 184 Hyperbolic Sine (sinh) . . . . . . . . . . . . . . . . . . . . . . . . . 185 Matrix Hyperbolic Sine (sinhm) . . . . . . . . . . . . . . . . . . . 185 Matrix Sine (sinm) . . . . . . . . . . . . . . . . . . . . . . . . . . . 185 Cosine - Argument In Radian (cos) . . . . . . . . . . . . . . . . . . 186 Cosine - Argument In Degree (cosd) . . . . . . . . . . . . . . . . . 186 Hyperbolic Cosine (cosh) . . . . . . . . . . . . . . . . . . . . . . . 186 Matrix Hyperbolic Cosine (coshm) . . . . . . . . . . . . . . . . . . 186 Matrix Cosine (cosm) . . . . . . . . . . . . . . . . . . . . . . . . . 187 Tangent - Argument in Radian (tan) . . . . . . . . . . . . . . . . . 187 Tangent - Argument in Degree (tand) . . . . . . . . . . . . . . . . 187 Hyperbolic Tangent (tanh) . . . . . . . . . . . . . . . . . . . . . . 187 Matrix Hyperbolic Tangent (tanhm) . . . . . . . . . . . . . . . . . 188 Matrix Tangent (tanm) . . . . . . . . . . . . . . . . . . . . . . . . 188 Cotangent - Argument in Degree (cotd) . . . . . . . . . . . . . . . 188 Hyperbolic Cotangent (coth) . . . . . . . . . . . . . . . . . . . . . 188 Matrix Hyperbolic Cotangent (cothm) . . . . . . . . . . . . . . . . 189 Secant - Argument in Radian (sec) . . . . . . . . . . . . . . . . . . 189 Secant - Argument in Degree (secd) . . . . . . . . . . . . . . . . . 189 Hyperbolic Secant (sech) . . . . . . . . . . . . . . . . . . . . . . . 189 Cosecant - Input in Radian (csc) . . . . . . . . . . . . . . . . . . . 190 Cosecant - Input in Degree (cscd) . . . . . . . . . . . . . . . . . . 190 Hyperbolic Cosecant (csch) . . . . . . . . . . . . . . . . . . . . . . 190 4.9 Arithmetic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190 4.9.1 Absolute (abs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190 4.9.2 Concatenate (cat) . . . . . . . . . . . . . . . . . . . . . . . . . . . 191 4.9.3 Cell Array to Matrix (cell2mat) . . . . . . . . . . . . . . . . . . . . 191 4.9.4 Cell String (cellstr) . . . . . . . . . . . . . . . . . . . . . . . . . . . 192 4.9.5 Integer to Char (char) . . . . . . . . . . . . . . . . . . . . . . . . . 192 4.9.6 Elliptical Integral (delip) . . . . . . . . . . . . . . . . . . . . . . . 192 4.9.7 Differentiation (diff) . . . . . . . . . . . . . . . . . . . . . . . . . . 193
- 9. 9 4.9.8 Exponential (exp). . . . . . . . . . . . . . . . . . . . . . . . . . . 195 4.9.9 Exponential Matrix (expm) . . . . . . . . . . . . . . . . . . . . . . 195 4.9.10 Interpolation (inttrap) . . . . . . . . . . . . . . . . . . . . . . . . . 197 4.9.11 Is Variable Defined (isdef) . . . . . . . . . . . . . . . . . . . . . . . 198 4.9.12 Is Variable Empty (isempty) . . . . . . . . . . . . . . . . . . . . . 198 4.9.13 Variables Are Equal (isequal) . . . . . . . . . . . . . . . . . . . . . 198 4.9.14 Bitwise Equality (isequalbitwise) . . . . . . . . . . . . . . . . . . . 199 4.9.15 Whether Vector (isvector) . . . . . . . . . . . . . . . . . . . . . . . 199 4.9.16 List Size (lstsize) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199 4.9.17 Maximum (max) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199 4.9.18 Minimum (min) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 4.9.19 Modulus (modulo) . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 4.9.20 Array Dimension (ndims) . . . . . . . . . . . . . . . . . . . . . . . 200 4.9.21 Signum Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201 Signum of Matrix (sign) . . . . . . . . . . . . . . . . . . . . . . . . 201 Signum Matrix (signm) . . . . . . . . . . . . . . . . . . . . . . . . 202 Complex Sign (csgn) . . . . . . . . . . . . . . . . . . . . . . . . . . 202 4.9.22 Object Size (size) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202 4.9.23 Square Root (sqrt) . . . . . . . . . . . . . . . . . . . . . . . . . . . 203 4.9.24 Square Wave (squarewave) . . . . . . . . . . . . . . . . . . . . . . 203 4.9.25 Object Type (typeof) . . . . . . . . . . . . . . . . . . . . . . . . . 204 4.10 Logarithm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204 4.10.1 Natural Logarithm (log) . . . . . . . . . . . . . . . . . . . . . . . . 205 4.10.2 Logarithm Base ‘10’ (log10) . . . . . . . . . . . . . . . . . . . . . . 205 4.10.3 Increment & Logarithm (log1p) . . . . . . . . . . . . . . . . . . . . 206 4.10.4 Logarithm Base ‘2’ (log2) . . . . . . . . . . . . . . . . . . . . . . . 206 4.10.5 Matrixwise Logarithm (logm) . . . . . . . . . . . . . . . . . . . . . 206 4.11 Interpolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207 4.11.1 Lineary Interpolation (interp1) . . . . . . . . . . . . . . . . . . . . 207 4.11.2 Two Data Linear Interpolation (interpln) . . . . . . . . . . . . . . 207 4.11.3 Linear Interpolation (linear interpn) . . . . . . . . . . . . . . . . . 208 4.12 Symbolic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208 4.12.1 Symbolic Addition (addf) . . . . . . . . . . . . . . . . . . . . . . . 209 4.12.2 Symbolic Left Division (ldivf) . . . . . . . . . . . . . . . . . . . . . 209 4.12.3 Symbolic Multiplication (mulf) . . . . . . . . . . . . . . . . . . . . 209 4.12.4 Symbolic Right Division (rdivf) . . . . . . . . . . . . . . . . . . . . 209 4.12.5 Symbolie Subtraction (subf) . . . . . . . . . . . . . . . . . . . . . . 210 5 Special Functions 211 5.1 Bessel Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211 5.1.1 Bessel Function of Second Kind (besselj) . . . . . . . . . . . . . . . 211 5.1.2 Bessel Function of Second Kind (bessely) . . . . . . . . . . . . . . 211 5.1.3 Bessel Function of First Kind (besseli) . . . . . . . . . . . . . . . . 212 5.1.4 Hyperbolic Bessel Function of Second Kind (besselk) . . . . . . . . 212 5.1.5 Bessel Function as Hankel Function (besselh) . . . . . . . . . . . . 213 5.2 Beta Function (beta) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213 5.3 Gamma Function (gamma) . . . . . . . . . . . . . . . . . . . . . . . . . . 213
- 10. 10 5.3.1 Logarithm ofGamma Function (gammaln) . . . . . . . . . . . . . 214 5.4 Legendre Function (legendre) . . . . . . . . . . . . . . . . . . . . . . . . . 214 5.5 Error Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214 5.5.1 Calculate Error (calerf) . . . . . . . . . . . . . . . . . . . . . . . . 214 5.5.2 Error Function (erf) . . . . . . . . . . . . . . . . . . . . . . . . . . 215 5.5.3 Complementary Error Function (erfc) . . . . . . . . . . . . . . . . 216 5.5.4 Inverse Error Function (erfinv) . . . . . . . . . . . . . . . . . . . . 216 6 Directory & Files 217 6.1 Directory Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217 6.1.1 Change Directory (chdir) . . . . . . . . . . . . . . . . . . . . . . . 217 6.1.2 Create Directory (createdir) . . . . . . . . . . . . . . . . . . . . . . 217 6.1.3 List Current Directory (dir) . . . . . . . . . . . . . . . . . . . . . . 217 6.1.4 Whether A Directory (isdir) . . . . . . . . . . . . . . . . . . . . . . 218 6.1.5 List Current Directory (ls) . . . . . . . . . . . . . . . . . . . . . . 218 6.1.6 Make Directory (mkdir) . . . . . . . . . . . . . . . . . . . . . . . . 218 6.1.7 Present Working Directory (pwd) . . . . . . . . . . . . . . . . . . . 218 6.1.8 Remove Directory (removedir) . . . . . . . . . . . . . . . . . . . . 219 6.1.9 Remove Directory (rmdir) . . . . . . . . . . . . . . . . . . . . . . . 219 6.1.10 Base Name of File (basename) . . . . . . . . . . . . . . . . . . . . 219 6.1.11 Directory name (dirname) . . . . . . . . . . . . . . . . . . . . . . . 219 6.1.12 Extension Name (fileext) . . . . . . . . . . . . . . . . . . . . . . . 220 6.1.13 Parts of File (fileparts) . . . . . . . . . . . . . . . . . . . . . . . . . 220 6.1.14 Path Separator (filesep) . . . . . . . . . . . . . . . . . . . . . . . . 220 6.1.15 Fill File Name (fullfile) . . . . . . . . . . . . . . . . . . . . . . . . 220 6.1.16 Full File Path (fullpath) . . . . . . . . . . . . . . . . . . . . . . . . 221 6.1.17 Drives In System (getdrives) . . . . . . . . . . . . . . . . . . . . . 221 6.1.18 Temporary Name (tempname) . . . . . . . . . . . . . . . . . . . . 221 6.2 file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221 6.2.1 Open a file (file) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222 6.2.2 Close a file (file) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222 6.2.3 Copy File (copyfile) . . . . . . . . . . . . . . . . . . . . . . . . . . 222 6.2.4 Delete File (deletefile) . . . . . . . . . . . . . . . . . . . . . . . . . 223 6.2.5 File Information (fileinfo) . . . . . . . . . . . . . . . . . . . . . . . 223 6.2.6 Search Files (findfiles) . . . . . . . . . . . . . . . . . . . . . . . . . 223 6.2.7 Write Matrix to File (fprintfMat) . . . . . . . . . . . . . . . . . . . 223 6.2.8 Read Matrix from File (fscanfMat) . . . . . . . . . . . . . . . . . . 223 6.2.9 Is It A File (isfile) . . . . . . . . . . . . . . . . . . . . . . . . . . . 224 6.2.10 Close a File Stream (mclose) . . . . . . . . . . . . . . . . . . . . . 224 6.2.11 Delete a File (mdelete) . . . . . . . . . . . . . . . . . . . . . . . . . 224 6.2.12 Check End of File (meof) . . . . . . . . . . . . . . . . . . . . . . . 224 6.2.13 Write Data to File (mfprintf) . . . . . . . . . . . . . . . . . . . . . 224 6.2.14 Read Data Stream (mfscanf) . . . . . . . . . . . . . . . . . . . . . 225 6.2.15 Read Line By Line (mgetl) . . . . . . . . . . . . . . . . . . . . . . 225 6.2.16 Open File Stream (mopen) . . . . . . . . . . . . . . . . . . . . . . 225 6.2.17 Move File (movefile) . . . . . . . . . . . . . . . . . . . . . . . . . . 226 6.2.18 Write Bytes to Stream (mput) . . . . . . . . . . . . . . . . . . . . 226
- 11. 11 6.2.19 Current Positionof Binary File (mseek) . . . . . . . . . . . . . . . 227 6.2.20 Length of Passed Data (mtell) . . . . . . . . . . . . . . . . . . . . 228 6.2.21 Environment (getenv) . . . . . . . . . . . . . . . . . . . . . . . . . 228 6.2.22 Process ID (getpid) . . . . . . . . . . . . . . . . . . . . . . . . . . 228 6.2.23 Stop Execution (halt) . . . . . . . . . . . . . . . . . . . . . . . . . 229 6.2.24 Prompt The Message (input) . . . . . . . . . . . . . . . . . . . . . 229 6.2.25 Read From a File (read) . . . . . . . . . . . . . . . . . . . . . . . . 229 6.2.26 Set Environment (setenv) . . . . . . . . . . . . . . . . . . . . . . . 229 6.2.27 Write Formatted Output to File (write) . . . . . . . . . . . . . . . 230 7 Strings 231 7.1 String Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231 7.1.1 ASCII . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231 7.1.2 Blanks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231 7.1.3 Convret To String (convstr) . . . . . . . . . . . . . . . . . . . . . . 231 7.1.4 Empty String (emptystr) . . . . . . . . . . . . . . . . . . . . . . . 231 7.1.5 Evaluate (eval) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232 7.1.6 Array Index (grep) . . . . . . . . . . . . . . . . . . . . . . . . . . . 232 7.1.7 Is Argument Alphabets or Numeric (isalphanum) . . . . . . . . . . 232 7.1.8 Is Argument Digit (isdigit) . . . . . . . . . . . . . . . . . . . . . . 232 7.1.9 Is Argument Letter (isletter) . . . . . . . . . . . . . . . . . . . . . 233 7.1.10 Is Argument Number (isnum) . . . . . . . . . . . . . . . . . . . . . 233 7.1.11 Length of Object (length) . . . . . . . . . . . . . . . . . . . . . . . 233 7.1.12 Part of String (part) . . . . . . . . . . . . . . . . . . . . . . . . . . 234 7.2 String Manipulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235 7.2.1 Concatenate String (strcat) . . . . . . . . . . . . . . . . . . . . . . 235 7.2.2 First Character Matching (strchr) . . . . . . . . . . . . . . . . . . 236 7.2.3 Compare String (strcmp) . . . . . . . . . . . . . . . . . . . . . . . 236 7.2.4 Case Independent Comparing (strcmpi) . . . . . . . . . . . . . . . 237 7.2.5 Trim Blanks (stripblanks) . . . . . . . . . . . . . . . . . . . . . . . 237 7.2.6 Copy Specific Parts (strncpy) . . . . . . . . . . . . . . . . . . . . . 237 7.2.7 Sub-String From Reverse (strrchr) . . . . . . . . . . . . . . . . . . 238 7.2.8 Reverse String (strrev) . . . . . . . . . . . . . . . . . . . . . . . . . 238 7.2.9 Explode String (strsplit) . . . . . . . . . . . . . . . . . . . . . . . . 238 7.2.10 Locate Substring (strstr) . . . . . . . . . . . . . . . . . . . . . . . 239 7.2.11 String to Double (strtod) . . . . . . . . . . . . . . . . . . . . . . . 239 7.2.12 Tokenise Splitting (strtok) . . . . . . . . . . . . . . . . . . . . . . . 240 7.2.13 Position of Token (tokenpos) . . . . . . . . . . . . . . . . . . . . . 240 7.3 Data File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240 7.3.1 CSV Default (csvDefault) . . . . . . . . . . . . . . . . . . . . . . . 240 7.3.2 CSV Write (csvWrite) . . . . . . . . . . . . . . . . . . . . . . . . . 241 7.3.3 CSV Read (csvRead) . . . . . . . . . . . . . . . . . . . . . . . . . . 241 7.3.4 Read Excel File (readxls) . . . . . . . . . . . . . . . . . . . . . . . 242 7.3.5 Scan CSV Test (csvTextScan) . . . . . . . . . . . . . . . . . . . . . 242
- 12. 12 8 GUI 245 8.1Graphics User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245 8.1.1 Add To Menu (addmenu) . . . . . . . . . . . . . . . . . . . . . . . 245 8.1.2 Close Figure (close) . . . . . . . . . . . . . . . . . . . . . . . . . . 247 8.1.3 Delete From Menu (delmenu) . . . . . . . . . . . . . . . . . . . . . 247 8.1.4 Create Window (createWindow) . . . . . . . . . . . . . . . . . . . 247 8.1.5 GUI Controls (uicontrol) . . . . . . . . . . . . . . . . . . . . . . . 248 8.1.6 Open Directory (uigetdir) . . . . . . . . . . . . . . . . . . . . . . . 252 8.1.7 Get Color (uigetcolor) . . . . . . . . . . . . . . . . . . . . . . . . . 252 8.1.8 Create Figure (figure) . . . . . . . . . . . . . . . . . . . . . . . . . 253 8.1.9 Get Value (getvalue) . . . . . . . . . . . . . . . . . . . . . . . . . . 253 8.1.10 Message Box (messagebox) . . . . . . . . . . . . . . . . . . . . . . 255 8.1.11 Print Figure (printfigure) . . . . . . . . . . . . . . . . . . . . . . . 255 8.1.12 Progression Bar (progressionbar) . . . . . . . . . . . . . . . . . . . 255 8.1.13 Set Menu (setmenu) . . . . . . . . . . . . . . . . . . . . . . . . . . 256 8.1.14 Set Unset Toolbar (toolbar) . . . . . . . . . . . . . . . . . . . . . . 256 8.1.15 Un-Set Menu (unsetmenu) . . . . . . . . . . . . . . . . . . . . . . . 256 8.1.16 Create Node (uiCreateNode) . . . . . . . . . . . . . . . . . . . . . 256 8.1.17 Delete Node (uiDeleteNode) . . . . . . . . . . . . . . . . . . . . . . 257 8.1.18 Create Tree (uiCreateTree) . . . . . . . . . . . . . . . . . . . . . . 257 8.1.19 Concate Tree (uiConcatTree) . . . . . . . . . . . . . . . . . . . . . 259 8.1.20 Menu in Figure (uimenu) . . . . . . . . . . . . . . . . . . . . . . . 262 8.1.21 Display Tree (uiDisplayTree) . . . . . . . . . . . . . . . . . . . . . 263 8.1.22 File Open Dialog (uigetfile) . . . . . . . . . . . . . . . . . . . . . . 263 8.1.23 Item of Menu (uimenu) . . . . . . . . . . . . . . . . . . . . . . . . 263 8.1.24 Open File Box (uiputfile) . . . . . . . . . . . . . . . . . . . . . . . 264 8.1.25 Wait Bar (waitbar) . . . . . . . . . . . . . . . . . . . . . . . . . . . 264 8.1.26 Choice Box (x choices) . . . . . . . . . . . . . . . . . . . . . . . . . 265 8.1.27 Input Dialog Box (x dialog) . . . . . . . . . . . . . . . . . . . . . . 265 8.1.28 Matrix Editing Window (x matrix) . . . . . . . . . . . . . . . . . . 266 8.1.29 Matrix Dialog Box (x mdialog) . . . . . . . . . . . . . . . . . . . . 266 9 Graphics 267 9.1 2D Plots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267 9.1.1 Function Plot (plot) . . . . . . . . . . . . . . . . . . . . . . . . . . 267 9.1.2 New Axes (newaxes) . . . . . . . . . . . . . . . . . . . . . . . . . . 267 9.1.3 Line Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 268 9.1.4 Surface Plot (Sfgrayplot) . . . . . . . . . . . . . . . . . . . . . . . 269 9.1.5 Colour Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271 Colour Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272 Colour Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272 Get Colour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273 9.1.6 Coloured Surface Plot (Sgrayplot) . . . . . . . . . . . . . . . . . . 273 9.1.7 Arrow Plot (champ) . . . . . . . . . . . . . . . . . . . . . . . . . . 273 9.1.8 Coloured Arrow Plot (champ1) . . . . . . . . . . . . . . . . . . . . 277 9.1.9 Comet Plot (comet) . . . . . . . . . . . . . . . . . . . . . . . . . . 278 9.1.10 2D Contours (contour2d) . . . . . . . . . . . . . . . . . . . . . . . 278
- 13. 13 9.1.11 Filled Contour(contourf) . . . . . . . . . . . . . . . . . . . . . . . 283 9.1.12 Error Bar Plot (errbar) . . . . . . . . . . . . . . . . . . . . . . . . 284 9.1.13 Histogram (histplot) . . . . . . . . . . . . . . . . . . . . . . . . . . 285 9.1.14 Animated Parametric Plot (paramfplot2d) . . . . . . . . . . . . . . 287 9.1.15 2D Plot (plot2d) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288 9.1.16 2D Step Plot (plot2d2) . . . . . . . . . . . . . . . . . . . . . . . . 290 9.1.17 2D Vertical Plot (plot2d3) . . . . . . . . . . . . . . . . . . . . . . . 291 9.1.18 2D Arrow Plot (plot2d4) . . . . . . . . . . . . . . . . . . . . . . . 292 9.1.19 Polar Plot (polarplot) . . . . . . . . . . . . . . . . . . . . . . . . . 293 9.2 3D Plot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294 9.2.1 3D Function Plot (plot3d) . . . . . . . . . . . . . . . . . . . . . . . 295 9.2.2 3D Level Plot (plot3d1) . . . . . . . . . . . . . . . . . . . . . . . . 298 9.2.3 3D Rectangular Plot (plot3d2) . . . . . . . . . . . . . . . . . . . . 298 9.2.4 3D Surface Plot (plot3d3) . . . . . . . . . . . . . . . . . . . . . . . 298 9.2.5 3D Comet (comet3d) . . . . . . . . . . . . . . . . . . . . . . . . . . 298 9.2.6 3D Contours (contour) . . . . . . . . . . . . . . . . . . . . . . . . . 299 9.2.7 3D Histogram (hist3d) . . . . . . . . . . . . . . . . . . . . . . . . . 299 9.2.8 3D Parametric Plot (param3d) . . . . . . . . . . . . . . . . . . . . 300 9.3 Sub Plots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301 9.4 Annotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302 9.4.1 Captions (caption) . . . . . . . . . . . . . . . . . . . . . . . . . . . 302 9.4.2 Legend (legend) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302 9.4.3 Title (title) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303 9.4.4 Axis Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303 9.5 Bar Plot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304 9.5.1 Vertical Bars (bar) . . . . . . . . . . . . . . . . . . . . . . . . . . . 304 9.5.2 Horizontal Bars (barh) . . . . . . . . . . . . . . . . . . . . . . . . . 304 9.6 Geometric Shapes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305 9.6.1 Arcs (xarc) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305 9.6.2 Arrows (xarrows) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306 9.6.3 Fill Arcs (xfarc) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306 9.6.4 Fill Rectangle (xfrect) . . . . . . . . . . . . . . . . . . . . . . . . . 307 9.6.5 Draw Rectangle (xrect) . . . . . . . . . . . . . . . . . . . . . . . . 307 9.7 Pie Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308 9.7.1 Pie (pie) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308 9.8 Polygon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309 9.8.1 Fill Polygon (xfpoly) . . . . . . . . . . . . . . . . . . . . . . . . . . 309 9.9 Fetching Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310 9.9.1 Get Current Figure (gcf) . . . . . . . . . . . . . . . . . . . . . . . 311 9.9.2 Set Current Figure (scf) . . . . . . . . . . . . . . . . . . . . . . . . 311 9.9.3 Delete Current Graphics (xdel) . . . . . . . . . . . . . . . . . . . . 311 9.9.4 Get Default Figure (gdf) . . . . . . . . . . . . . . . . . . . . . . . 312 9.9.5 Set Default Figure (sdf) . . . . . . . . . . . . . . . . . . . . . . . . 312 9.9.6 Get Current Axes (gca) . . . . . . . . . . . . . . . . . . . . . . . . 312 9.9.7 Get Default Axes (gda) . . . . . . . . . . . . . . . . . . . . . . . . 313 9.9.8 Set Default Axes (sda) . . . . . . . . . . . . . . . . . . . . . . . . . 313 9.9.9 Set As Current Axes (sca) . . . . . . . . . . . . . . . . . . . . . . . 313
- 14. 14 9.9.10 Get CurrentEntity (gce) . . . . . . . . . . . . . . . . . . . . . . . 314 9.10 Property Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314 9.10.1 Set Parameters (set) . . . . . . . . . . . . . . . . . . . . . . . . . . 315 9.10.2 Get Parameters (get) . . . . . . . . . . . . . . . . . . . . . . . . . 315 9.10.3 Move Entity (move) . . . . . . . . . . . . . . . . . . . . . . . . . . 315 9.10.4 Copy Entity (copy) . . . . . . . . . . . . . . . . . . . . . . . . . . . 315 9.10.5 Reset Current Graphics (clf) . . . . . . . . . . . . . . . . . . . . . 316 9.10.6 Twinkle Graphics (twinkle) . . . . . . . . . . . . . . . . . . . . . . 316
- 15.
- 17. 1.1. INTRODUCTION 17 1ScilabCore In Scilab there are thousands of the ready-made keywords and functions. We will discuss these keywords and function with suitable example(s). 1.1 Introduction Scilab is a strong numerical programming software used for instructions to junior high school students to graduate students. Scilab is written in ‘C’, ‘C++’ and ‘Java’ and its applications are similar to the application of other languages. Unlike ‘C’ Scilab does not required pre-definition of variable. Variables are automatically converted into integer, character etc forms according to the values assigned to them, i.e. a value is assigned to a variable by juggling. If a variable ‘a’ is being added with ‘2’ then the variable ‘a’ would be considered as an integer type variable. But if it is to be added with ‘2.00202201220215’ then variable ‘a’ will be considered as an long type variable i.e. type of a variable is considered as the use of it. Each statement performed internally should be terminated by ‘;’. The statement whose result would be display in output window should not end with ‘;’. Statements, strings and variables are grouped inside a parenthesis brackets, i.e. ‘(’ ... ‘)’. A syntax of a function can be spanned in multiple lines. When a part of syntax is terminated by ‘..’, Scilab waits for remaining part of the syntax passed to it in second line until syntax completion is not encountered. ✞ 1 --> a=( --> 1 3 --> 2 --> ) ✌ ✆ Execution of a function in multiline mode as shown above will produce errors while when above function is modified as ✞ --> a=( .. 2 --> 1 .. --> 2 .. 4 --> ) ✌ ✆ will be executed successfully and result will be ✞ ans = 12 ✌ ✆ Since Scilab 6, declaration of a number in two line is not supported as shown in above example. According to the Code Conventions for the Scilab Programming Language it is recommended: 1. Start each statement on a new line.
- 18. 18 Scilab Core 2.Write no more than one simple statement per line. 3. Break compound statements over multiple lines. Following example uses two integers 2, 3 & ‘;’ and prints their result at output window. ✞ --> a=2; // Without pre -identification of 2 --> // variable and terminated by ’;’ --> b=3; // Without pre -identification of 4 --> // variable and terminated by ’;’ --> a+b // Sum of two variables is called 6 --> // and line does not terminated by ’;’ ✌ ✆ ✞ ans = 5. ✌ ✆ If result of an operation is not assigned to a variable, then result is automatically assigned to ‘ans’ variable. 1.1.1 Everything As Matrix Numerical programming by Scilab is vector or matrix based computation, therefore each variable has a vector or matrix values. Each element of a variable is identified by its indices. For example, ✞ --> a = 2 // one dimensional vector 2 --> a = [1,2] --> a(1) // first element of vector ✌ ✆ ✞ ans = 1 ✌ ✆ The indices parameters inside the parentheses of variable ‘a’ may be one dimensional, two dimensional or three dimensional. ✞ --> a(1) // One dimensional 2 --> a(1, 2) // Two dimensional --> a(1, 2, 1)// Three dimensional ✌ ✆ In the first line of above codes, first element of vector a is returned. In second line of above codes, element at 1st row (x) and 2nd column (y) is returned. In the third line of above codes, elements at 1st row (x), 2nd column (y) and 1st layer (z) is returned. ✞ 1 --> a = [1,2,3;5,8,4] --> a(2,2) 3 --> b = 56; --> b(1) // First element 5 --> b(2) // Second element . Error!!! ✌ ✆
- 19. 1.1. INTRODUCTION 19 ✞ a= 1. 2. 3. 5. 8. 4. ans = 8. ans = 56. !--error 21 Invalid index. ✌ ✆ 1.1.2 Approximate Zero Numerical programming languages use double datatype floating point arithmetic. There- fore each number is denoted as a float value, i.e. 1 as 1.000000, 0.5 as 0.500000 etc. Sometime, even zero is represented as 2.5 × 10−18 or as 13.2 × 10−19 etc. These values are very very small and are close to zero. In floating point arithmetic, zero is taken as comparative value rather than absolute value. For example, in numerical calculations, identity matrix is represented as
- 26. 1 3.5 ×10−12 35 × 10−12 1
- 33. where 1 isvery large value in comparison to 3.5 × 10−12 or 35 × 10−12 . 1.1.3 Computational Error Numerical software uses iteration to find the numeric solutions. For example, every one knew that sin 90◦ is equal to one. But Numerical Software does not use fixed type values. They uses series solutions, i.e. for sin θ, they uses sine series: sin α = α − α3 3! + α5 5! − . . . Here, α is in radian. This series is valid if infinite number of steps are taken for computa- tion purpose. Computer does not take infinite terms of this series. It limits the number of terms for computation. But, how many terms? If number of terms is less, result shall be other than actual one but computational performance shall be good. And if number of steps is large then result shall be near accurate value but performance shall be compro- mised. Now, the question is that, how many steps shall be taken in this series. It depends on the required significant digits in the result. At the optimal result, the deviation of computed value from the actual one is called computational error. For the above series, we shall compute value for three terms and four terms, and corresponding results shall be compared. For Three Terms sin π 2 = 22 14 − 22 14 3 3! + 22 14 5 5!
- 34. 20 Scilab Core Or sin π 2 =1.5714286 − 0.6467444 + 0.0798531 It gives sin 90◦ = 1.0045373. For Four Terms sin π 2 = 22 14 − 22 14 3 3! + 22 14 5 5! − 22 14 7 7! Or sin π 2 = 1.5714286 − 0.6467444 + 0.0798531 − 0.0046950 It gives sin 90◦ = 0.9998423. It is seen here, the value oscillates about one as the number of terms increases and tends to one when number of terms are infinite. Numerical Software use sufficient long steps so that result is near to accurate result or upto desired significant digits. Now, computational error is difference between exact value of sin 90◦ and computed value. In first case computational error is 1 − 1.0045373, i.e. −0.0045373 and in second case, computational error is 1 − 0.9998423, i.e. 0.0001577. Error In Calculus In calculus, definite integration of a function is carried out by two ways. (i) By using first principle method and (ii) By using direct method. For example, I = Z 1 0 x dx may be solved by two ways. In first method, take dx = 0.1. It gives, n = b − a dx = 10 and x are computed by a + n × dx where a is lower limit of integration. I = 0 × 0.1 + 0.1 × 0.1 + . . . + 0.8 × 0.1 + 0.9 × 0.1 On solving it, we have I = 0 + 0.01 + 0.02 + 0.03 + 0.04 + 0.05 + 0.06 + 0.07 + 0.08 + 0.09 = 0.45 From direct method, I = Z 1 0 x dx = x2 2
- 38. 1 0 = 0.5 Now, thecomputational error by two methods is 0.50 − 0.45 = 0.05. So, computational errors, not only occur due to selection of number of steps but they also occur when we select different types of solution methods. 1.2 Simple Arithmetic Before we start the expertise application of Scilab in numerical programming, we first be hands out with simple mathematical applications like addition, subtraction, multiplica- tion, division, scoping and application of inbuilt functions.
- 39. 1.2. SIMPLE ARITHMETIC21 1.2.1 Addition Arithmetic addition is the summation of two or more numbers. Scilab obeys the simple arithmetic rules of addition. In the following example, two variables are declared and assigned some values. When we called addition by variable method, we got desired result. Remember, to print the result of a step of operation, it shall not terminated with ‘;’ (semi-colon). If you do so, the result shall be assigned to default answer variable ans without displaying it in output console. ✞ -- a=10; 2 -- b=10; -- a+b ✌ ✆ ✞ ans = 20. ✌ ✆ The default output in Scilab is a float or a double. A float number has fraction parts, i.e. fraction part succeed to decimal symbol (.). Numbers without (.) are pure integers. int8(x) converts a float or double number (x) into integer number by truncating its fraction part. ✞ -- a=10.5; 2 -- b=10.3; -- int8 (a+b) ✌ ✆ ✞ ans = 20 ✌ ✆ We can make symbolic addition of two numbers too. But before doing so, string or characters are defined as variable by using poly function of zero order. The first argument of poly function is degree of equation and ‘b’ is symbolic variable. ✞ -- a=10; 2 -- // poly (degree of eqn ,symbol ) -- b=poly (0,’b’); 4 -- a+b ✌ ✆ ✞ ans = b + 10 ✌ ✆ sum function does not takes inputs to be summed, but it accepts a vector or matrix as its argument. It adds vector elements or elements of a matrix cumulatively. Elements of vector or matrix are constructed by using ‘:’ (colon) loop operator twice. First argument of colon loop is initial limit of the array, second argument is iteration step increment after a loop and third argument is upper limit of the array. ✞ -- a=1:1:5 ✌ ✆
- 40. 22 Scilab Core ✞ ans= 1. 2. 3. 4. 5. ✌ ✆ The sum of array elements ✞ -- a=1:1:10; 2 -- sum(a) ✌ ✆ ✞ ans = 55 ✌ ✆ abs function is used to return the absolute value of a number x. When x is complex, abs(x) is the complex modulus (magnitude) of the elements of x. Mathematically abs(x) = |x| 1.2.2 Subtraction Arithmetic subtraction is the difference of two or more numbers. In standard form of subtraction, second operand is subtracted from first operand of subtraction operator (– ). The result may be positive or negative. If there are several consecutive subtraction without scope operators then LEFT-TO-RIGHT order of subtraction is followed. ✞ -- a=10; 2 -- b=10; -- c=10; 4 -- a-b-c ✌ ✆ ✞ ans = -10. ✌ ✆ We can also make symbolic subtraction of two numbers similar to the symbolic addition as explained above. ✞ -- a=10; 2 -- // poly (degree of eqn , symbol ) -- b=poly (0,’b’); 4 -- a-b ✌ ✆ ✞ ans = -b + 10 ✌ ✆ 1.2.3 Multiplication Arithmetic multiplication in Scilab is performed by asterisk operator (*). If there are several consecutive multiplication without scope operators then LEFT-TO-RIGHT order of multiplication is followed.
- 41. 1.2. SIMPLE ARITHMETIC23 ✞ -- 2*3*4*5 ✌ ✆ ✞ ans = 120. ✌ ✆ Cumulative array product of array elements can be performed by prod() function. See the example given below: ✞ -- a=1:1:10; 2 -- prod (a) ✌ ✆ ✞ ans = 3628800. ✌ ✆ 1.2.4 Division Arithmetic division in Scilab is denoted by forward slash. ✞ -- 2/3 ✌ ✆ ✞ ans = 0.6666667 ✌ ✆ The answer is in ten digit form. We can control the decimal places by using the function format() function by supplying format code and number of fraction digits as its arguments. ✞ -- format(’v’ ,4) ✌ ✆ Where ‘v’ is abbreviation of ‘variable’ and integer 4 controls the number of digits in answer. It does also meant that, the fourth digit shall also be rounded up. ✞ 1 -- format(’v’ ,4) -- 2/3 ✌ ✆ ✞ ans = 0.7 ✌ ✆ Changing the format of numbers kept in effective until Scilab session is not reset or it is not restarted. 1.2.5 Scoping The simple arithmetic, withing same scoping/grouping is performed according to BOD- MAS rule. It is an acronym for Bracket, Of, Division, Multiplication, Addition and
- 42. 24 Scilab Core Subtraction.Mathematical grouping is very essential to set the procedure of arithmetic operations. For example 1 2 2 = 0.4 But 1 2 2 = 1 Simple use of forward slash as divisor we can’t identify the numerator and denominator of a rational number or of a fractions. Same fractions represented in different way have different answers. This is why in Scilab, scoping/grouping of variables becomes necessary. If scoping/grouping is not in correct form the answer is unpredictable. For example, withough scoping then division of unity by two is ✞ -- 1/2 ✌ ✆ ✞ ans = 0.5 ✌ ✆ And division of half by two is ✞ -- 1/2/2 ✌ ✆ ✞ ans = 0.25 ✌ ✆ Now division of half by half is ✞ -- 1/2/1/2 ✌ ✆ ✞ ans = 0.25 ✌ ✆ It is not required answer as half divided by half must be unity. By scoping each fraction according to our requirement, we have correct answer. ✞ -- (1/2) /(1/2) ✌ ✆ ✞ ans = 1 ✌ ✆ 1.2.6 Square Root (sqrt) If x is a real number then its square root is given by y = √ x. In other words, if y is square root of x, then y2 = x. Roots computed by this function may be real or complex. Square root of negative numbers returned in complex form. In Scilab, square root is a scalar operator and it performs elementwise operation. Square root of a number can be obtained by
- 43. 1.2. SIMPLE ARITHMETIC25 ✞ -- sqrt (2) ✌ ✆ ✞ ans = 1.414 ✌ ✆ If argument is a vector, then square root of the vector is a vector of square root of its elements. If argument is a matrix then square root of the matrix is a matrix of square roots of its elements. ✞ -- a=[1 ,2;3 ,4]; 2 -- sqrt (a) ✌ ✆ ✞ ans = 1. 1.4142136 1.7320508 2. ✌ ✆ The algorithm used in computation of the square root of a real value, x, is √ x = e ln(x) 2 1.2.7 Exponent (ˆ Operator) ˆ is called exponent operator. If n is an index or a degree, or power of base x then exponents is represented by xn . If |n| ≥ 1, then exponent means “base is multiplied by itself n times”, and if |n| 1, then it is called nth root of base x. To find the kth root of base number x, we use ˆ operator as xk . ✞ 1 -- 2^(0.33) ✌ ✆ ✞ ans = 1.2570134 ✌ ✆ The output of exponents depends on the values of base and exponent. For example, if either base x or exponent n is less than one, then result is convergent, i.e. result is approaching towards zero. Similarly, if both base x and exponent n are greater than one then result is divergent. If n is one, then result is always base x itself. If base x is one and n is whatever value, then result is always one. If exponent is a complex then it is solved by using logarithm with natural base (e). For example, y = 2i is simplified as log y = log 2i It gives log y = i log 2 ⇒ y = ei log 2 Now, we can simplify right side using relation eiθ = cos θ + i sin θ as y = cos(log 2) + i sin(log 2)
- 44. 26 Scilab Core Notethat, ˆ acts like both, scalar and vector operator with vectors and matrices. If it is used like ‘.ˆ’ then it acts as elementwise operator and if it is used without dot, then it acts as vector operator. ✞ -- a=[1 ,2;3 ,4]; 2 -- a^(0.33) // vector operator ✌ ✆ ✞ ans = 0.6956785 + 0.4728372 i 0.4784401 - 0.2162886 i 0.7176602 - 0.3244328 i 1.4133387 + 0.1484044 i ✌ ✆ ✞ 1 -- a=[1 ,2;3 ,4]; -- a.^(0.33) // scalar operator ✌ ✆ ✞ ans = 1. 1.2570134 1.4369777 1.5800826 ✌ ✆ The algorithm used for computation of exponent is explained here. Assume a matrix of order 2 × 2 A = 1 2 3 4 Now its eigenvalues are given by |A − λI| = 0 i.e.
- 48. 1 2 3 4 −λ 1 0 0 1
- 52.
- 56. 1 − λ2 3 4 − λ
- 60. = 0 Or (1 −λ) × (4 − λ) − 6 = 0 On solving it λ = −0.372281; 5.372281 Or eigenvalues in matrix form, when they are arranged in descending order is d = 5.372281 0.000000 0.000000 −0.372281 For λ = 5.372281, eigenvector (v1) is (A − λI)v1 = 0. So, 1 − 5.372281 2 3 4 − 5.372281 x y = 0 −4.372281 2 3 −1.372281 x y = 0
- 61. 1.2. SIMPLE ARITHMETIC27 Or −4.372281x + 2y = 0; 3x − 1.372281y = 0 To get solutions, put x = 1 in −4.372281x + 2y = 0, we get the value of y = 2.186140. To get eigenvectors, we shall normalize these two values as x = 1 √ 12 + 2.1861402 ; y = 2.186140 √ 12 + 2.1861402 It gives, x = 0.415973 and y = 0.909376. As coefficients of above two eigenvector equa- tions are of opposite signs, hence values of x and y shall be either both negative or both positive. Now, we shall submit x and y values in equation g = 3x − 1.372281y to get minimum positive value. g = 3 × 0.415973 − 1.372281 × 0.909376 = 0.000000407 Taking sign convention, the other possible set of solution be x = −0.415973 and y = −0.909376. g = 3 × −0.415973 − 1.372281 × −0.909376 = 0.000000407 When x = −0.415973 and y = −0.909376, we have positive f value. This gives first eigenvector corresponding to λ = 5.372281. v1 = −0.415973 −0.909376 For λ = −0.372281, eigenvector (v2) is (A − λI)v2 = 0. So, 1 − (−0.372281) 2 3 4 − (−0.372281) x y = 0 1.372281 2 3 4.372281 x y = 0 Or 1.372281x + 2y = 0; 3x + 4.372281y = 0 As coefficients of above two eigenvector equations are of same signs, hence values of x and y shall be in opposite signs. On solving these two algebraic equations, as explained for λ = 5.372281, we have x = −0.824564 and y = 0.565767 or x = 0.824564 and y = −0.565767. This gives second eigenvector corresponding to λ = −0.372281. v2 = −0.824564 0.565767 The corresponding eigenvector matrix from above two eigenvectors (v1 and v2) is v = −0.415973 −0.824564 −0.909376 0.565767 Note that, each column of eignevectors is arranged to the corresponding eigenvalues. Now, the matrix A can be written as A = v × d × v−1 . The square root of the matrix is given by A 1 2 = v × d 1 2 × v−1
- 62. 28 Scilab Core 1.2.8Algebraic Equations Algebraic equations are those equations in which an unknown variable is in linear addition or in linear subtraction in different degrees. Numerical coefficients are multiplied with each terms to give a suitable relation for the unknown variable. To form a linear equation, first define the variable. ✞ 1 -- x=poly (0,’x’); -- f=2*x^2+2 ✌ ✆ f = 2 + 2x2 This algebraic equation is in symbolic form. All the algebraic function may be applicable to this equation. In the following example, function roots() is used to algebraic equation f to gets its all roots. ✞ -- x=poly (0,’x’); 2 -- f=2*x ^2+2; -- roots(f) ✌ ✆ ✞ ans = i - i ✌ ✆ Division of polynomials by a number or by a symbol can also be performed. Note that it returns only quotient of the division. ✞ 1 -- x=poly (0,’x’);// returns only degree 1 polynomial -- f=2*x ^2+2; 3 -- pdiv (f,x), ✌ ✆ ✞ ans = 2x ✌ ✆ LCM (Least Common Multiplier) and HCF (Highest Common Factor) of two algebraic functions can also applicable with the algebraic equations. ✞ -- x=poly (0,’x’); 2 -- f=2*x ^2+2; -- lcm([f,x]) ✌ ✆ ✞ ans = 3 2x + 2x ✌ ✆
- 63. 1.2. SIMPLE ARITHMETIC29 In Scilab, HCF is named as GCD (Greatest Common Divisor). ✞ 1 -- x=poly (0,’x’); -- f=2*x ^2+2; 3 -- gcd([f,x]) ✌ ✆ ✞ ans = 1 ✌ ✆ 1.2.9 Logarithm The natural logarithm of number 2 is obtained when this number is supplied as argument to the log function. ✞ -- log (2) ✌ ✆ ✞ ans = 0.6931472 ✌ ✆ Exponential to a number (n) is represented mathematically as en . In Scilab, it is given as ✞ -- exp (2) ✌ ✆ ✞ ans = 7.3890561 ✌ ✆ We may use different bases for logarithms, i.e. base ‘10’, base ‘2’ or natural base ‘e’. Logarithm of a number about base ‘10’ is computed as ✞ -- log10 (2) ✌ ✆ ✞ ans = 0.30103 ✌ ✆ Solved Problem 1.1 Write Scilab code for finding of natural and base ten logarithm of number 2.05 and find their difference. Solution The Scilab codes for the given problem is given below: ✞ -- log (2.05) -log10 (2.05) ✌ ✆ ✞ ans = 0.4060859 ✌ ✆ This is output of the given problem.
- 64. 30 Scilab Core 1.2.10Index Expression An index expression allows to scale, select or replace an element from a vector or matrix. Indices may be scalars, vectors, ranges, or the special operator ‘:’, which may be used to select entire rows or columns. Row and column indices, i.e. two parameters, are separated by comma. ✞ -- A(row indices , column indices ) ✌ ✆ When only one parameter is passed to matrix variable to extract the sub matrix, then at first, matrix is arranged in vector form in sequence of column vectors. For example, ✞ 1 -- A = [2 3 1 4; 5 3 1 8; 8 6 7 2; 4 5 1 3] -- A(:) ✌ ✆ ✞ A = 2 3 1 4 5 3 1 8 8 6 7 2 4 5 1 3 ans = 2 5 8 4 3 3 6 5 1 1 7 1 4 8 2 3 ✌ ✆ Now, only one parameter is supplied to vector variable, it is treated as indices for elements and it returns a vector of elements present at that indice. Note that, here index counting started from 1 rather than 0. ✞ -- A = [2 3 1 4; 5 3 1 8; 8 6 7 2; 4 5 1 3] 2 -- A(2) // element at index 2 ✌ ✆ ✞ A = 2 3 1 4 5 3 1 8 8 6 7 2 4 5 1 3
- 65. 1.2. SIMPLE ARITHMETIC31 ans = 5 ✌ ✆ Similarly, a range of indices can be given to matrix variable to extract a vector of elements present at that index. In the following example, sub vectors are returned by constructing elements present at indices from index 1 to index 2. There are two different way to pass same indices. ✞ 1 -- A = [2 3 1 4; 5 3 1 8; 8 6 7 2; 4 5 1 3] -- A(1:2) // 1st index to 2nd index 3 -- A([1;2]) // 1st index and 2nd index ✌ ✆ ✞ A = 2 3 1 4 5 3 1 8 8 6 7 2 4 5 1 3 ans = 2 5 ans = 2 5 ✌ ✆ When both parameters are passed to matrix variable, then first parameter is indices for rows and second parameter is for columns. Rows or columns may be discrete indices or range of indices but should not beyond the dimension of the matrix. In this case, matrix is not arranged in sequeces of elements of column vectors. See the below example. ✞ 1 -- A = [2 3 1 4; 5 3 1 8; 8 6 7 2; 4 5 1 3] -- A(2:4 ,3:4) // Row index from 2nd row to 4th row 3 // col index from 3rd col to 4th col ✌ ✆ ✞ A = 2 3 1 4 5 3 1 8 8 6 7 2 4 5 1 3 ans = 1 8 7 2 1 3 ✌ ✆ If both parameters are discrete indices, then row index are recursive for all column indices. See the following example, in which elements at second and third column of first row, and elements at second and third column of fourth row forms a sub matrix. ✞ 1 -- A = [2 3 1 4; 5 3 1 8; 8 6 7 2; 4 5 1 3] -- A([1,4], [2 ,3])// 1st row - 2nd 3rd columns 3 // 4th row - 2nd 3rd columns ✌ ✆
- 66. 32 Scilab Core ✞ A= 2 3 1 4 5 3 1 8 8 6 7 2 4 5 1 3 ans = 3 1 5 1 ✌ ✆ If same index number is used twice or more in row parameter, i.e. as [1,1], then output sub matrix has two rows as part of row index ‘1’ of the given matrix. ✞ -- A = [2 3 1 4; 5 3 1 8; 8 6 7 2; 4 5 1 3] 2 -- A([1,1], [2 ,3])// 1st row - 2nd 3rd columns // 1th row - 2nd 3rd columns ✌ ✆ ✞ A = 2 3 1 4 5 3 1 8 8 6 7 2 4 5 1 3 ans = 3 1 3 1 ✌ ✆ end operator is used to denote last index of the vector. For example ✞ -- A = [2 3 1 4; 5 3 1 8; 8 6 7 2; 4 5 1 3] 2 -- A(end)// last element of vector ✌ ✆ ✞ A = 2 3 1 4 5 3 1 8 8 6 7 2 4 5 1 3 ans = 3 ✌ ✆ The parameter of matrix variable may be controlled by range indices. For example, odd elements of matrix and even elements of matrix can be extracted by ✞ 1 -- A = [2 3 1 4; 5 3 1 8; 8 6 7 2; 4 5 1 3] -- A(1:2: end) // Odd elements vector 3 -- A(2:2: end) // Even elements vector ✌ ✆ ✞ A = 2 3 1 4 5 3 1 8
- 67. 1.3. ARITHMETICAL KEYWORDS33 8 6 7 2 4 5 1 3 ans = 2 8 3 6 1 7 4 2 ans = 5 4 3 5 1 1 8 3 ✌ ✆ 1.3 Arithmetical Keywords Followings are the main keywords used in Scilab. The key by key explanation is given below. 1.3.1 Result Variable (ans) ans means “answer”. This variable is created automatically when expressions are not assigned to any other variable. It is the last un-assigned evaluated value. ✞ 1 -- a=10; -- b=5; 3 -- a+b ✌ ✆ ✞ ans = 15 ✌ ✆ 1.3.2 Left Matrix Division () ‘’ is used for left matrix division. Let A ∗ x = b has a solution of x = Ab. In this expression, succeeding variable to ‘’ is divided by the preceding one. ✞ -- a=10; 2 -- b=5; -- ab ✌ ✆ ✞ ans = 0.5 ✌ ✆ The second example of the backslash command is ✞ -- A=2; 2 -- b=[1;1;1]; -- x=Ab ✌ ✆ ✞ x = 0.5 0.5 0.5 ✌ ✆
- 68. 34 Scilab Core 1.3.3Square Brackets ([...]) Square brackets are used to define a vector or a matrix. Each row of a vector or matrix is separated by ‘;’ and each element of a row is separated by ‘,’ (comma) or space. ✞ -- x=[1;2;3] ✌ ✆ ✞ x = 1 2 3 ✌ ✆ A 3 × 3 matrix is written as ✞ -- x=[1 ,2 ,3;4 ,5 ,6;7 ,8 ,9] ✌ ✆ ✞ x = 1 2 3 4 5 6 7 8 9 ✌ ✆ In a row matrix or in a column matrix, elements of the row or matrix may be numbers or function. The elements may be separated by comma or space. In otherwords, functions may be part of the matrix elements. The exact element value of function element is its return value. ✞ -- x=[1 sqrt (-1) 2 -sqrt (-1) 3] ✌ ✆ ✞ x = 1. i 2. - i 3. ✌ ✆ Elements of a vector may contains text or strings too. See the following Scilab codes. ✞ -- [’This is’;’string’;’matrix’] ✌ ✆ ✞ ans = !This is ! ! ! !string ! ! ! !matrix ! ✌ ✆ A new row of a matrix can also be started by adding row elements in new line. ✞ -- mat = [ 2 Row A1 Row B1 4 Row C1 Row D1 6 ] ✌ ✆
- 69. 1.3. ARITHMETICAL KEYWORDS35 Consistency of columns for each rows should be maintained to avoid the row/cols consis- tence error. Following example gives error. ✞ -- mat = [ 2 Row A1,Row A2 Row B1, 4 Row C1 Row D1 6 ] ✌ ✆ While this example will give a matrix of four rows and two columns. ✞ -- mat = [ 2 Row A1,Row A2 Row B1,Row B2 4 Row C1,Row C2 Row D1,Row D2 6 ] ✌ ✆ 1.3.4 Element-Wise Operation Element-wise operation is performed on each element of a supplied argument to a function. The structural properties of the supplied arguments are not considered. For example, A = [1] is a scalar while B = [1, 4] is a vector/matrix but in element wise operations, both are considered as scalars. It means only elements are meaningful in elementwise operation while structures of A and B are ignored. 1.3.5 Matrix-Wise Operation In matrix-wise operation, elements are accepted as element of a matrix and their result is put in the similar matrix form in output window. 1.3.6 Colon (Range Operator) This operator (:) is used to define a range of variable. Normally, it creates a vector/set of elements. It is used by two ways. ✞ -- ll : ul 2 -- ll : inc : ul ✌ ✆ Increment may be a positive value, or a negative value. If it is positive value then range is in ascending order, if it is negative value then range is in descending order. In first method of application, initial and final values are declared by user and suitable increment value is selected by Scilab itself. By default increment is ‘1’. ✞ -- a = 1:10 ✌ ✆
- 70. 36 Scilab Core ✞ a= 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. ✌ ✆ ✞ -- a = 1:-10 ✌ ✆ ✞ a = [] ✌ ✆ In second method of application (i.e. more than one colons (:) are used) first element is initial value, second element is increment and third element is the upper level limit of range. The last value of range does not exceed to the upper limit. After each increment, initial value becomes equal to the sum of initial value and increment. This iteration is followed until it becomes equal or more than the finale range of iteration. ✞ -- a = 1:2:10 ✌ ✆ ✞ a = 1. 3. 5. 7. 9. ✌ ✆ ✞ -- a = 1:-2:-10 ✌ ✆ ✞ a = 1. - 1. - 3. - 5. - 7. - 9. ✌ ✆ The colon can be used for defining a rang into a matrix form. Each argument of this function is comma separated. First argument is matrix range, second argument is number of rows and third argument is the number of columns. ✞ -- a = matrix (1:12 ,6 ,2) 2 -- a ✌ ✆ ✞ a = 1. 7. 2. 8. 3. 9. 4. 10. 5. 11. 6. 12. ✌ ✆ Elements of a matrix are retrieved by calling the matrix object as shown below: ✞ 1 -- a(:) ✌ ✆
- 71. 1.3. ARITHMETICAL KEYWORDS37 ✞ ans = 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. ✌ ✆ The specific columns of matrices can be accessed by using first argument as colon symbol and second argument as column index. See the example below: ✞ 1 -- a = matrix (1:12 ,6 ,2) -- b=a(:,1) //1 = first column 3 -- c=a(:,2) //2 = second column ✌ ✆ ✞ a = 1. 7. 2. 8. 3. 9. 4. 10. 5. 11. 6. 12. b = 1. 2. 3. 4. 5. 6. c = 7. 8. 9. 10. 11. 12. ✌ ✆ We can use row or column index vectors for accessing multiple rows or columns. ✞ 1 -- m=[1 ,2 ,3;4 ,5 ,6;7 ,8 ,9] -- m(: ,[1 ,2]) // for multiple column indices ✌ ✆ ✞ m =
- 72. 38 Scilab Core 1.2. 3. 4. 5. 6. 7. 8. 9. ans = 1. 2. 4. 5. 7. 8. ✌ ✆ Specific rows can be retrieved if argument location of range operator and index number is interchanged as given in following code snippets. ✞ -- a = matrix (1:12 ,6 ,2) 2 -- b=a(1,:) //1 = first row -- c=a(5,:) //2 = fifth row ✌ ✆ ✞ a = 1. 7. 2. 8. 3. 9. 4. 10. 5. 11. 6. 12. b = 1. 7. c = 5. 11. ✌ ✆ A single colon as argument to matrix handle means full range of the matrix elements. We can limit the range operator (:) for specific indices if colon is used as incremental operator. ✞ 1 -- (initial limit : increments /decrements : final limit ) ✌ ✆ There is an increment or decrement, it is depends on the sign of increment/decrement (second element in the range operator). Increments is always a positive integer and decrements is always a negative integer. For example ✞ 1 -- a(12: -3:1) ✌ ✆ ✞ a = 12. 9. 6. 3. ✌ ✆ ✞ 1 -- a(1:2:10) ✌ ✆
- 73. 1.3. ARITHMETICAL KEYWORDS39 ✞ a = 1. 3. 5. 7. 9. ✌ ✆ We can extract a part of matrix by using colon operator within parentheses as shown in below example. ✞ -- A = [2 3 1 4; 5 3 1 8; 8 6 7 2; 4 5 1 3] 2 -- A(2:4 ,3:4) //A(row range , col range ) ✌ ✆ ✞ A = 2 3 1 4 5 3 1 8 8 6 7 2 ans = 1 8 7 2 1 3 ✌ ✆ We can use the colon operator to print integer numbers from 0 to n with special purposes. In the following example, n is restricted to 5, i.e. integers from 0 to 5 are printed in output. ✞ -- %i : 5 ✌ ✆ ✞ ans = 0. 1. 2. 3. 4. 5. ✌ ✆ This method of implementation is removed since Scilab 6.0 version. 1.3.7 Comma Comma operator (,) is used as the identifier for column, instruction and used as argument separator. A 3 × 3 matrix is represented in vector form as ✞ -- [1,2,3;4,5,6;7,8,9] ✌ ✆ ✞ x = 1 2 3 4 5 6 7 8 9 ✌ ✆ Space operator “ ” is also used as separator of the elements in a row of the matrix.
- 74. 40 Scilab Core 1.3.8Comments Comments are the statements which explains to mathematical operations, numerical cal- culations and special functions. Comments are embedded within the program codes. The comments are never executed by the Scilab and they are simply skipped by the Scilab. Symbol ‘//’ is used for the commenting of a line. ✞ -- a=5; 2 -- b=10; -- a+b // summation of two variable . ✌ ✆ ✞ ans = 15 ✌ ✆ 1.3.9 Dot Dot symbol is used to represent the end of a sentence or the decimal fraction. It is also used for element-wise dot product (.*) of two vectors or matrices. If A = aij and B = bij are two matrices of n × n size then [A · ∗B]ij = aij × bij It is always true that [A ∗ B] = [B ∗ A]. If, A and B are 2 × 2 matrices as given by A = 1 2 3 2 ; B = 2 1 3 4 Then C = A · ∗B = 1 × 2 2 × 1 3 × 3 2 × 4 = 2 2 9 8 ✞ -- a=[1 ,2;3 ,2]; 2 -- b=[2 ,1;3 ,4]; -- a.*b ✌ ✆ ✞ ans = 2. 2. 9. 8. ✌ ✆ 1.3.10 Empty An empty vector or an empty matrix is represented by ‘[]’. Empty square brackets represent to the empty set of matrix. White spaces inside the square brackets do not affect the meaning of empty matrix. ✞ 1 -- [] -- [ ] ✌ ✆
- 75. 1.3. ARITHMETICAL KEYWORDS41 ✞ ans = [] ans = [] ✌ ✆ 1.3.11 Equal Sign Equal operator (==) compares two values numerically and returns the ‘true’ if both values are equal otherwise returns ‘false’. Remember that symbol ‘=’ is not same as to ‘==’. Symbol ‘=’ assigns a value to a variable while ‘==’ compares two values. ✞ -- i = 5; 2 -- j = 10; -- if(i==j) 4 -- disp (E); -- elseif(ij) 6 -- disp (N); -- end ✌ ✆ ✞ N ✌ ✆ 1.3.12 global It declares a variable as a global variable. The variable defined global can be called from everywhere. 1.3.13 Hat Symbol It (ˆ) represents to the exponent, i.e. bn . It raises base (number at the left side to the hat) to the power of n (number at the right side to the hat). It is also sometime refers as power. ✞ 1 -- 2^4 ✌ ✆ ✞ ans = 16 ✌ ✆ Hat symbol (ˆ) can be also used to find the nth root of a number. ✞ -- x^(1/ n) ✌ ✆ ✞ 1 -- 2^(1/4) ✌ ✆ ✞ ans = 1.1892071 ✌ ✆
- 76. 42 Scilab Core 1.3.14Less Than () is a comparative operator. It tells that the left hand value is lesser than the right hand value. If left hand side value is less than the right hand side, then comparison is true otherwise false. It returns “yes” on true state and “no” in false state. ✞ -- if (12) 2 -- disp (yes); -- end ✌ ✆ ✞ ans = yes ✌ ✆ 1.3.15 Minus (–) sign is used to subtract right hand value from the left hand value. Subtraction is algebraic. If right hand value is larger than left hand value then result is negative. ✞ -- 2-3 ✌ ✆ ✞ ans = -1 ✌ ✆ The two variables using minus may be a vector or a matrix. In case of vectors, subraction takes place element-wise. Subtraction of vectors is a vector of similar size. ✞ -- [1 ,2] -[3 ,4] ✌ ✆ ✞ ans = -2. -2. ✌ ✆ In vector subtraction, size of two vectors must be equal. 1.3.16 Not Symbol, ∼, is a logical NOT operator. It compares the two values and access them according “value a is not equal to value b”. If the comparison is true according to this statement, then it returns true otherwise it returns false. ✞ -- 2 ~= 3 //2 is not equal to 3. ✌ ✆ ✞ ans = T ✌ ✆
- 77. 1.3. ARITHMETICAL KEYWORDS43 1.3.17 Parenthesis Parenthesis, i.e. ‘(...)’ brackets are used to group the statements, operations executions. A variable or function initiated inside the parenthesis has local scope. 1.3.18 Percent (%) is a special character. When it is prepend to string, literals are considered as with special meaning as shown in the following table. Symbol Meaning %pi π %i:n Integer from 0 to n %i √ −1 The functions whose names begin with % character are special functions. They are used as primitives and used in operator’s overloading. 1.3.19 Plus (+) is an addition operator. It returns sum of two or more values. It also concatenates two or more strings. Its operands may be vectors, scalars or strings. ✞ -- 2+3 2 -- This is my + country . ✌ ✆ ✞ ans = 5 ans = This is mycountry . ✌ ✆ The two variables may be a vector or a matrices. In case of vector operands, addition takes place element-by-element wise. ✞ --[1,2]+[3,4] ✌ ✆ ✞ ans = 4. 6. ✌ ✆ In vector subtraction, size of two vectors must be equal. 1.3.20 Quote There are two types of quotes, called single quotes (’) and double quotes (”). In Scilab, single quotes and double quotes have different meaning. The contents written between single quotes or double quotes are considered as strings. See the following example:
- 78. 44 Scilab Core ✞ --x = ‘The Good Boy ’ 2 -- y = The Good Boy ✌ ✆ ✞ x = The Good Boy y = The Good Boy ✌ ✆ Single quote is also used as string delimiter (”), i.e. string within string. As string delimiter, the single quote is used in a group of twice. ✞ -- x = ‘disp (‘‘Boy ’’)’ 2 -- y = disp (‘‘Boy ’’) -- z = disp (‘‘disp (‘‘disp (‘‘Boy ’’) ’’) ’’) ✌ ✆ ✞ x = disp (‘Boy ’) y = disp (‘Boy ’) z = disp (‘disp (‘disp (‘Boy ’) ’) ’) ✌ ✆ Single quote is also used in mathematics, specially in matrix. If a matrix is real matrix then single quotes converts row vector into column vector and vice-versa. See the example given below: ✞ -- a=[1 ,2] 2 -- a’ ✌ ✆ ✞ a = 1. 2. ans = 1. 2. ✌ ✆ If matrix is a complex matrix then (’) is a complex conjugate transpose operator. It is used in a matrix for conjugate transpose of the matrix. It is also used as string delimiter. Assume a complex matrix of order 2 × 2 as A = 1 + i 2 3 2 + i Conjugate transpose of this matrix (A) will be A = 1 − i 3 2 2 − i
- 79. 1.3. ARITHMETICAL KEYWORDS45 ✞ 1 -- [1+%i , 2; 3, 2+%i]’ ✌ ✆ ✞ ans = 1. - i 3. 2. 2. - i ✌ ✆ If a dot (.) is applied before (’), then the matrix transpose is called non-conjugate transpose of matrix. Assume a complex matrix of order 2 × 2 as A = 3 + i 2 1 2 + i Then non-conjugate transpose of the matrix will be A = 3 + i 1 2 2 + i ✞ 1 -- [1+%i ,2; 3,2+ %i].’ ✌ ✆ ✞ ans = 1. + i 3 2. 2. + i ✌ ✆ 1.3.21 Return return assigns local variables to the calling variable. ✞ 1 -- [a,b]= return (1,2) ✌ ✆ ✞ b = 2. a = 1. ✌ ✆ It is also used to return a value from inside of a function. A function is terminated in execution, when keyword return is encountered. ✞ -- function [y]= myFunc(i, j) 2 -- y=i+j; -- return 0; 4 -- y=i^j; // Not executed -- endfunction 6 -- myFunc (2, 3) ✌ ✆ ✞ ans = 5. ✌ ✆
- 80. 46 Scilab Core ✞ --function [y]= myFunc(i, j) 2 -- y=i+j; -- // return 0; 4 -- y=i^j; // Executed and overloaded -- // to previous result 6 -- endfunction -- myFunc (2, 3) ✌ ✆ ✞ ans = 8. ✌ ✆ 1.3.22 Semicolon Semicolon ‘;’ is used as a row separator in a matrix. It is also used to end a statement line. Application of semicolon as a row separator is shown below: ✞ -- [1,2,3;4,5,6;7,8,9] ✌ ✆ ✞ x = 1 2 3 4 5 6 7 8 9 ✌ ✆ Application of semicolon as a end of line is shown in the following example. ✞ -- i = 5; // end of first line 2 -- j = 10; // end of second line -- if(ij) 4 -- disp (L); -- elseif(ij) 6 -- disp (G); -- elseif(i==j) 8 -- disp (E); -- end ✌ ✆ ✞ L ✌ ✆ End-of-line application of semicolon (;) does not mean the skip of contents by the Scilab or commenting of the rest of contents in the line. It only separates the two statements written in a single line. Again, when a statement is terminated with semicolon, then the output or result is stored in memory and it is not visible in the output console. The output is obtained only when the object is called without terminating by semicolon. ✞ 1 -- a=5+5; b=6+5; -- a 3 -- b ✌ ✆
- 81. 1.3. ARITHMETICAL KEYWORDS47 ✞ a = 10. b = 11. ✌ ✆ 1.3.23 Forward Slash Slash (/) is used in division. The left side value to the forward slash is divided by its right side value. When forward slash is used in pair, it acts as a commenting symbol. In Scilab, line commenting symbol is ‘//’. ✞ -- i = 5; // end of first line 2 -- j = 10; // end of second line -- i/j ✌ ✆ ✞ ans = 0.5 ✌ ✆ 1.3.24 Space Space operator (“ ”) is used as the identifier for columns in a matrix or in a vector. A 3 × 3 matrix is represented in vector form as ✞ -- [1 2 3;4 5 6;7 8 9] ✌ ✆ ✞ x = 1 2 3 4 5 6 7 8 9 ✌ ✆ Comma operator (,) is also used as separator of the elements in a row. 1.3.25 Asterisk Star (*), i.e. asterisk is used as multiplier between two variables from left to right. Multiplication of two vectors are allowed if number of rows in first vector is equals to the number of columns in second vector. If A = aij and B = bij are two matrices of size n × n then [A ∗ B]kj = n X i,k=0 aki × bik It is not always true that [A ∗ B] = [B ∗ A]. If two inputs are integers then it performs simple arithmetic.
- 82. 48 Scilab Core ✞ --i = 5; // end of first line 2 -- j = 10; // end of second line -- i*j ✌ ✆ ✞ ans = 50 ✌ ✆ Multiplication of vector and scalar: ✞ -- [1 ,2]*4 ✌ ✆ ✞ ans = 4. 8. ✌ ✆ Asterisk performs multiplication of matrices. A matrix multiplication is performed if the matrix product conditions are satisfied. For two vectors or matrices, if number of columns of first matrix is equal to the number of rows of second matrix then matrix multiplication is carried out. See the following example. ✞ -- [1 ,2]*[4;3] // 1x2 matrix by 2x1 matrix ✌ ✆ ✞ ans = 10. ✌ ✆ If, A and B are 2 × 2 matrices as given by A = 1 2 3 2 ; B = 2 1 3 4 Then C = A ∗ B = 1 × 2 + 2 × 3 1 × 1 + 2 × 4 3 × 2 + 2 × 3 3 × 1 + 2 × 4 = 8 9 12 11 ✞ -- a=[1 ,2;3 ,2]; 2 -- b=[2 ,1;3 ,4]; -- a*b ✌ ✆ ✞ ans = 8. 9. 12. 11. ✌ ✆ If two matrices are not equal in size then they are taken as vectors and vector multiplica- tion is performed. It happens when second matrix is 1 × 1 type matrix. Second operand may be a scalar too as seen above in the product of vector and scalar. See the following example. ✞ 1 -- [1 ,2]*[4] ✌ ✆
- 83. 1.4. CORE KEYWORDS49 ✞ ans = 4. 8. ✌ ✆ Consistency shall be maintained while performing vector or matrix multiplication. For example, if second operand is a multicolumn vector then it must satisfy the condition of matrix multiplication. See the following example, in which Scilab failed to give desire result due to inconsistent multiplication. ✞ -- [1 ,2]*[3 ,4] ✌ ✆ ✞ !--error 10 Inconsistent multiplication . ✌ ✆ 1.3.26 Tilda Tilda, (!) is a logical NOT. It is also used like (∼=) i.e. not equals to. It is an boolean expression for NOT Gate. ✞ -- 2 != 3 //2 is not equal to 3. ✌ ✆ ✞ ans = T ✌ ✆ 1.4 Core Keywords 1.4.1 Abort Process (abort) abort interrupts current evaluation and gives the prompt. Within a pause level abort return to level 0 prompt. ✞ -- i = 0; 2 -- while i10 do -- disp (i); 4 -- i = i + 1; -- if(i5) 6 -- abort;// abort key word -- end 8 -- end ✌ ✆ ✞ 0. 1. 2. 3. 4. 5. ✌ ✆
- 84. 50 Scilab Core 1.4.2Add a Demo (add demo) This function, add demo, is used to add user define file or codes into Scilab demos. ✞ -- // Create a simple demo script 2 -- path = TMPDIR+’/foo.sce ’; -- mputl(’disp Hello’,path ) 4 -- add_demo (’My first demo ’,path ) -- // Demo can be run using Demos menu . ✌ ✆ We can find ‘My first demo’ in Demos options of ’Scilab Demonstrations’. 1.4.3 Number of Arguments (argn) argn is similar to the argc command in ‘C’. It returns the number of input/output argu- ments in a function call. Scilab uses ‘lhs’ and ‘rhs’ for identification of inputs arguments and output arguments. For example, in the following function y = f(x) left hand side (lhs) argument is y while right hand side (rhs) argument is x. Actually for this relation, x is input argument and y is output argument. argn has three arguments. ‘0’ for both lhs (output arguments) and rhs (input arguments) strings. ‘1’ for lhs (output arguments) only and ‘2’ for rhs (input arguments) only. Its syntax are ✞ 1 -- [lhs , rhs] = argn () // for both input/output arguments -- lhs=argn (1) // for output arguments only 3 -- rhs=argn (2) // for input arguments only ✌ ✆ The given example is ✞ 1 -- funcprot (0); -- function [t] = myf(a,b,c) 3 -- [lhs , rhs] = argn (0); -- mprintf (Nos of outputs : %dn,lhs); 5 -- mprintf (Nos of inputs : %dn,rhs); -- outs = argn (1); 7 -- ins = argn (2); -- mprintf (Nos of outputs : %dn,outs ); 9 -- mprintf (Nos of inputs : %dn,ins); -- endfunction 11 -- x=myf (2,2,3) ✌ ✆ ✞ Nos of outputs : 1 Nos of inputs : 3 Nos of outputs : 1 Nos of inputs : 3 ✌ ✆
- 85. 1.4. CORE KEYWORDS51 1.4.4 Banner It shows the default banner of Scilab. ✞ -- banner () ✌ ✆ 1.4.5 Boolean Boolean operators , | and ∼ are used to express the boolean relation between two variables. These operators are used as logical AND, logical OR and logical NOT as short cuts and as element-wise. Shortcut And Elementwise Before, Scilab 6.0, shortcut and elementwise boolean AND operators were same and both were represented by . Since Scilab 6.0, shortcut and element-wise boolean operators are now distinct. is shortcut boolean AND, while is element-wise AND operations. Both shortcut and element-wise operators are evaluated from left to right. ✞ 1 -- [1,3] [5,2] // is not defined before scilab 6.0 -- // Error shows in Scilab v 6.0 ✌ ✆ ✞ [1,3] [5,2] !-- error 2 Invalid factor. ✌ ✆ ✞ 1 --[1,3] [5,2] // Works in all version of scilab ✌ ✆ ✞ ans = T T ✌ ✆ Shortcut || And Elementwise | Before, Scilab 6.0, shortcut and elementwise boolean OR operators were same and both were represented by . Since Scilab 6.0, shortcut and element-wise boolean operators are now distinct. || is shortcut boolean OR, while | is element-wise OR operations. Both shortcut and element-wise operators are evaluated from left to right. ✞ -- [1,3] || [5,2] // is not defined before scilab 6.0 2 -- // Error in scilab v 6.0 ✌ ✆ ✞ [1,3] || [5,2] !-- error 2 Invalid factor. ✌ ✆
- 86. 52 Scilab Core ✞ 1--[1,3] | [5,2] // Works in all version of scilab ✌ ✆ ✞ ans = T T ✌ ✆ 1.4.6 Break a Process (break) break keyword interrupt a current loop. It is always used inside the loop functions or switch functions. ✞ -- i = 0; 2 -- while i10 do -- disp (i); 4 -- i = i + 1; -- if(i5) 6 -- break;// break the loop -- end 8 -- end ✌ ✆ ✞ 0. 1. 2. 3. 4. 5. ✌ ✆ 1.4.7 Case case is used to compare a select value with arbitrary chosen value. If select value is equal to case value, statement inside the case is executed. ✞ -- A = 2 2 -- select A -- case 1 then 4 -- disp (1) -- case 2 then 6 -- disp (2) -- else 8 -- disp (3) -- end ✌ ✆ ✞ 2 ✌ ✆
- 87. 1.4. CORE KEYWORDS53 1.4.8 Kill the Value (clear) clear kills the value of a variable. If a variable is cleared inside the loop, an error is displayed as undefined variable. ✞ 1 --i = 0; --while i5 do 3 -- disp (i); -- i = i + 1; 5 -- if(i2) -- // Clear variable i. Now , in next loop variable 7 -- // i shall not be identified inside while loop . -- clear i; 9 -- end --end ✌ ✆ ✞ 0. 1. 2. while i5 do !--error 4 Undefined variable : i ✌ ✆ 1.4.9 Remove a Function (clearfun) clearfun is used to remove a function name in the table of Scilab functions. ✞ -- // Get the func ptr associated with the abs function 2 -- absptr=funptr(abs); -- // Create an alias of the abs function 4 -- newfun(abs_bis,absptr); -- clearfun (abs) ✌ ✆ ✞ ans = T ✌ ✆ 1.4.10 Clear Global clearglobal clears the global variable defined previously. 1.4.11 Compile Scilab Function (comp) comp compiles a function in Scilab. If a function is already compiled then it gives warning. ✞ -- comp (abs ,0) ✌ ✆ ✞ Warning : Function is already compiled . ✌ ✆
- 88. 54 Scilab Core Thereare three options of compilation of function. Default is ‘0’ and others are ‘1’ and ‘2’. Options Meaning 0 Default compilation value. 1 Obsolete, similar to option ‘0’. 2 Function to be compiled “for profiling”. 1.4.12 Continue continue pass the control to the next iteration of loop. To understand the working of continue keyword, we use same example in three different methods. In following example two for loops are used. ✞ 1 -- for j =1:1:3 -- for k=3: -1:1 3 -- if jk then -- disp (j*k); 5 -- end -- end 7 -- end ✌ ✆ ✞ 2. 6. 3. ✌ ✆ Now we put the continue command after disp(j*k) as ✞ 1 -- for j =1:1:3 -- for k=3: -1:1 3 -- if jk then -- disp (j*k); 5 -- continue ; -- end 7 -- end -- end ✌ ✆ ✞ 2. 6. 3. ✌ ✆ There is no change in output as disp put the result before continue encountered. Again if we put the continue command before disp(j*k) as ✞ 1 -- for j =1:1:3 -- for k=3: -1:1 3 -- if jk then -- continue ;
- 89. 1.4. CORE KEYWORDS55 5 -- disp (j*k); -- end 7 -- end -- end ✌ ✆ There is no output as continue pushes to the next iterator before disp put the result in output window. 1.4.13 Debug debug is used to find the errors and bad scripting in a code script. There are five levels of debugging, ranged from -1 to 4. This range defines the level of debugging. ✞ -- debug(-1) ✌ ✆ ✞ ans = 1 ✌ ✆ 1.4.14 Delete Break delbpt is used to delete a break point from the function. To set a breakpoint for function ‘foo’, we use setbpt. The setbpt sets break point one over other as stack in setbpt list. On call of delbpt the top most breakpoint is deleted from the stack. ✞ -- setbpt(’foo’ ,1); // set first break point at 1 2 -- setbpt(’foo’ ,10);// set second break point at 10 -- delbpt(’foo’ ,10);// deleted second break point at 10 4 -- dispbpt () // show first break point at 1 ✌ ✆ ✞ Breakpoints of function : foo 1 ✌ ✆ 1.4.15 Display Break Points (dispbpt) dispbpt is used to show a break point of a function from the setbpt list. ✞ -- setbpt(’foo’ ,1); // set first break point at 1 2 -- setbpt(’foo’ ,10);// set second break point at 10 -- delbpt(’foo’ ,10);// deleted second break point at 10 4 -- dispbpt () // show first break point at 1 ✌ ✆ ✞ Breakpoints of function : foo 1 ✌ ✆
- 90. 56 Scilab Core 1.4.16Do do keyword is used to execute a group of statements or programming script until unless a condition is being satisfied. do keyword is always used with while function. The scope of do keyword is from the next line of statement to the corresponding end keyword. ✞ -- i = 0 2 -- while i5 do -- disp (i); 4 -- i = i + 1; -- end ✌ ✆ ✞ ans = 0 1 2 3 4 ✌ ✆ 1.4.17 Edit Function edit is used to open a existing file or existing function in the Scilab editor or open editor for definition of new function. ✞ -- // open editor with text of existing function 2 -- edit (’edit ’) -- // open editor for a new function 4 -- edit (’myF’) ✌ ✆ The argument of this function is either a function name or a file name as absolute path. ✞ -- // open the file bar.sci in TMPDIR directory 2 -- edit ( fullfile (TMPDIR+’bar.sci’)) ✌ ✆ An existing file may be open in the Scilab editor with reaching to specific line of the script. The script line is specified by the second argument. Second argument is a pure integer value. ✞ -- edit (’test_run ’, 123) ✌ ✆ User defined function can also be open in default Scilab editor with the function scripts. ✞ 1 -- function a=b(c) -- c=1; 3 -- endfunction -- edit (’b’) ✌ ✆ This will open function ’b’ in Scilab editor.
- 91. 1.4. CORE KEYWORDS57 1.4.18 Else else is the false case of if condition. If a condition is not satisfied, statement in else section are executed. Another if-else loop can be initiated in the statement section of else as a nested loop. ✞ -- i = 5; 2 -- j = 10; -- if(i==j) 4 -- disp (T); -- else 6 -- disp (F); -- end ✌ ✆ ✞ T ✌ ✆ 1.4.19 Else-If elseif is used as false case of if with new if conditions. It is also used as chain conditional case. A nested loop can also be used within the elseif statement portion. ✞ 1 -- i = 5; -- j = 10; 3 -- if(ij) -- disp (L); 5 -- elseif(ij) -- disp (G); 7 -- elseif(i==j) -- disp (E); 9 -- end ✌ ✆ ✞ L ✌ ✆ 1.4.20 End end keyword is used to terminate a conditional statement. end is used for the following purposes 1. To finish a condition. 2. To finish a function definition by using endfunction for Scilab version 5.5 and prior or using end only since Scilab 6.0 and later. 3. To finish a statement. ✞ 1 -- i = 5; -- j = 10; 3 -- if(ij)
- 92. 58 Scilab Core --disp (L); 5 -- elseif(ij) -- disp (G); 7 -- elseif(i==j) -- disp (E); 9 -- end ✌ ✆ ✞ L ✌ ✆ 1.4.21 Catch Error (errcatch) errcatch is used to trap an error. This function is removed since Scilab 6. ✞ 1 -- errcatch (1,’pause’); ✌ ✆ The first variable in errcatch is number that is used to trap an error. If it is less than 0 then all errors are catch and if it is grater than 0 then errcatch traps that specific error assigned to this number. Second variable is action in string form that is to be performed if error catches. The actions are either ‘pause’, ‘continue’, ‘kill’ or ‘stop’. 1.4.22 Clear The Error (errclear) In scilab, error table contains the list of all errors being rose during the operation. errclear is used to clear a specific or all errors from the error list. It is used like ✞ 1 -- errclear (n); ✌ ✆ Where ‘n’ is the error number. If ‘n’ is positive (n 0), it is the number of the cleared error. If (n ≤ 0) then all errors are cleared (default case). 1.4.23 Error error function is standard way of printing errors during the process by Scilab. A cus- tomised error may also be constructed by using this function. It accepts two arguments, in which first argument is message and second argument is error number associated with message. It is used like ✞ 1 -- error(message ) -- error(message , n) 3 -- error(n) -- error(n, message ) 5 -- error(n, pos ) ✌ ✆ Here ‘message’ is the error message. ‘n’ is error number and ‘pos’ is a parameter of error message. By default ‘n’ is ‘10000’. ✞ 1 -- error(! This value must be an integer !, 10) ✌ ✆
- 93. 1.4. CORE KEYWORDS59 ✞ !--error 10 ! This value must be an integer! ✌ ✆ An error number as argument is deprecated since Scilab 6.0 onward. 1.4.24 Exists a Variable (exists) exists is used to check the availability of a variable. ✞ -- i=2; 2 -- if(exists(’i’,’a’)) -- disp (Variable i exists..); 4 -- else -- disp (Variable i is not exist.); 6 -- end ✌ ✆ ✞ Variable i exists.. ✌ ✆ exists contains two parameters, first one is variable and second one is scope of variable. Both variables and scope are supplied in the function as string values. Scope variable ‘a’ stands for ‘all’ variables, ‘l’ stands for ‘local’ variables and ‘n’ stands for ‘non-local’ variables. 1.4.25 Exit exit is used to end the Scilab session and close the console. 1.4.26 Extraction Extraction is a method of retrieving values from a matrix by supplying indices. The indices counting for this function is started from 1 instead of 0. Though arguments in extraction are indices of base matrix, yet their structure determines the order of the new matrix. Number of elements in first argument in the extraction represents to the number of rows and number of elements in the second argument in extraction represents to then number of columns in the new matrix. ✞ 1 -- // generate a matrix of 2x3 order -- a=[1 2 3;4 5 6] 3 -- // extract first row second column element -- //of the matrix and form a new matrix 5 -- a(1,2) ✌ ✆ ✞ a = 1. 2. 3. 4. 5. 6. ans = 2. ✌ ✆
- 94. 60 Scilab Core Argumentin the extraction may be a scalar or a vector as and when required. If the structure of first argument is a vector then number of elements in this vector represents to the number of rows. Similarly, number of elements in second argument represents to the number of columns in new matrix. In the following example, there are two rows and one column. ✞ -- // generate a matrix of 2x3 order 2 -- a=[1 2 3;4 5 6] -- // Extract first row second column , 4 -- // first row second column , and construct -- // new matrix of two rows and one column. 6 -- a([1 1],2) ✌ ✆ ✞ a = 1. 2. 3. 4. 5. 6. ans = 2. 2. ✌ ✆ Range operator (:) may also be used as arguments in the extraction. In the following example, range operator selects all elements at the first column and forms new column matrix having rows equal to the base matrix. ✞ 1 -- // generate a matrix of 2x3 order -- a=[1 2 3;4 5 6] 3 -- // Get elements of first column and -- // construct new matrix 5 -- a(:,1) ✌ ✆ ✞ a = 1. 2. 3. 4. 5. 6. ans = 1. 4. ✌ ✆ Another example implementing the range operator (:). ✞ 1 -- // generate a matrix of 2x3 order -- a=[1 2 3;4 5 6] 3 -- // get reverse order of columns -- a(: ,3: -1:1) ✌ ✆ ✞ a = 1. 2. 3. 4. 5. 6.
- 95. 1.4. CORE KEYWORDS61 ans = 3. 2. 1. 6. 5. 4. ✌ ✆ 1.4.27 For for keyword is used to start a loop to perform an operation multiple times. Each for loop must be closed by keyword end. Here noted that, the for loop accepts range operator. If there are three elements then first element is lower limit of for loop, second element is used for increment and third element is upper limit of for loop. If there are only two elements in the range operator then its first and second elements are used as lower and upper limits of the for loop and default increment value, i.e. 1 is used as increments. ✞ 1 -- for i=1:5 -- disp (i); 3 -- end ✌ ✆ ✞ 1. 2. 3. 4. 5. ✌ ✆ 1.4.28 Format format is used to toggle the output of number format (i.e. wrapping of decimal places of a decimal number in scientific notation or rounding up of digits etc). There are two formats or number outputs. (i) variable format (‘v’) and exponential format (‘e’). Followings are the method of use of format command. ✞ 1 -- x=rand (1,5); // Five random numbers -- format(’v’ ,10);// set random number 10 digits 3 -- // long to variable v -- format (20) ; // set random number 20 digits 5 -- // long to variable v -- format(’e’ ,10);// set random number 10 digits 7 -- // long and variable as exponential -- format (20) ; // set random number 20 digits 9 -- // long and variable as exponential ✌ ✆ Following is the example of getting numbers in required formats. In variable format ✞ 1 -- x=rand (1,2); // Two random numbers -- format(’v’ ,10); 3 -- x ✌ ✆
- 96. 62 Scilab Core ✞ 0.21646330.8833888 ✌ ✆ In exponential format ✞ 1 -- x=rand (1,2); // Two random numbers -- format(’e’ ,10); 3 -- x ✌ ✆ ✞ 6.525D-01 3.076D -01 ✌ ✆ If you change the format of numbers into exponential then after finishing the calculations, reset the format of numbers into variable format. 1.4.29 MD5 Hash (getmd5) getmd5 returns the md5 checksum value of a string or file name. ✞ 1 -- getmd5 ([’hello’ ; ’world’],’string ’) ✌ ✆ ✞ ans = !5d41402 abc4b2a76b9719 d911017c592 ! !7d793037a0760186574 b0282 f2f435e7 ! ✌ ✆ For a file name ✞ 1 -- getmd5( SCI+’/modules /core /etc/’+[’core .start’ ’core .quit ’]) ✌ ✆ ✞ ans = ! ac68ad2e1905 ed5ec 12331ab91a25864 aba88d66950049 bd 1130 a7d9674 dc5a8 ! ✌ ✆ 1.4.30 Get Memory getmemory returns free and total system memory. ✞ 1 -- [free , total]= getmemory () ✌ ✆ ✞ total = 2.066D+06 free = 1.167D+06 ✌ ✆
- 97. 1.4. CORE KEYWORDS63 1.4.31 Get Modules getmodules returns list of modules installed in Scilab. ✞ -- res=getmodules () ✌ ✆ 1.4.32 Get Operating System getos returns Operating System name and version. ✞ 1 -- [OS , version] = getos() ✌ ✆ ✞ version = XP OS = Windows ✌ ✆ 1.4.33 Get Scilab Mode getscilabmode returns the mode of Scilab. ✞ -- getscilabmode () ✌ ✆ ✞ ans = STD ✌ ✆ 1.4.34 Get Shell getshell returns current command interpreter. ✞ -- getshell () ✌ ✆ ✞ ans = cmd ✌ ✆ 1.4.35 Get Variale Stack getvariablesonstack returns variable names on stack of Scilab. ✞ -- getvariablesonstack (); 2 -- getvariablesonstack (’local’); -- getvariablesonstack (’global’); ✌ ✆
- 98. 64 Scilab Core 1.4.36Version getversion returns scilab and modules version information. ✞ 1 -- version = getversion (’Scilab’) ✌ ✆ ✞ version = 5.000D+00 4.000D+00 0.000D+00 1.349D+09 ✌ ✆ 1.4.37 Insertion It is a process of adding an element in a matrix. It is reverse process of Extraction. Let a matrix ‘a’ of order 2 × 3 ✞ -- a=[1 2 3;4 5 6] ✌ ✆ ✞ a = 1. 2. 3. 4. 5. 6. ✌ ✆ We can add an element ‘10’ at (1,1) position by indexing the element and assigning value to that index of the array. ✞ 1 -- a(1,2)=10 ✌ ✆ ✞ a = 1. 10. 3. 4. 5. 6. ✌ ✆ It is a keyword that executes a statement conditionally. ✞ 1 -- i = 5; -- j = 10; 3 -- if(i==j)//If both i j are equal -- disp (E);// print ’E’ in output console. 5 -- elseif(ij) -- disp (N); 7 -- end ✌ ✆ ✞ N ✌ ✆ Each if started should be closed by using end command
- 99. 1.4. CORE KEYWORDS65 1.4.38 Interface Properties (intppty) intppty sets interface argument passing properties. ✞ 1 -- funs = intppty () ✌ ✆ ✞ funs = 6. 13. 16. 19. 21. 23. 41. 42. 71. ✌ ✆ 1.4.39 Inverse Coefficients (inv coeff) inv coeff is used to build a polynomial matrix by using coefficients. ✞ -- A=int (10* rand (2,6)); 2 -- P=inv_coeff (A,1)// second argument is the -- // order of polynomial . ✌ ✆ ✞ P = 8 + 3x 3 + 7x 9 + 4x 5 + 3x 3 + 2x 9 + 2x ✌ ✆ The same coefficients are used for second order polynomial matrix. ✞ 1 -- A=int (10* rand (2,6)); -- P=inv_coeff (A,2)// second argument is the 3 -- // order of polynomial . ✌ ✆ P = 2 + 6x + 8x2 8x + 5x2 7 + 6x 3 + 6x + 6x2 1.4.40 Is Error iserror returns ‘true’ or ‘false’ if there is error or not. This function is removed since Scilab 6. ✞ 1 -- iserror ([n]) ✌ ✆ If ‘n 0’, all errors are tested other wise only error numbered ‘n’ is tested.
- 100. 66 Scilab Core 1.4.41Is Global isglobal checks the scope of a variable that whether it has global scope or local scope. This function is useful in checking of scope of a variable. Variables may be updated, modified according to the scope of the variable as and when required. ✞ 1 -- global a; -- isglobal (a) ✌ ✆ ✞ ans = T ✌ ✆ If variable is global then isglobal returns ‘true’ other wise returns ‘false’. 1.4.42 Line Spacing (linspace) The function linspace generates a vector of 1 × n size along the number line. -5 -4 -3 -2 -1 0 1 2 3 4 5 This function accepts three inputs, initial point, final point and number of parts (elements). In the created vector, initial and final values are included in the generated vector. The width between two consecutive values is d = b − a n − 1 Where, a and b are initial and final limits of the vector. The syntax of this function is ✞ -- x = linspace (initial limit , .. 2 -- final limit , .. -- n .. 4 -- ) ✌ ✆ For example, ✞ -- x = linspace (0, 1, 5) ✌ ✆ creates a vector of 1 × 5 size having five elements, including initial value 0 and final value 5. d = 1 − 0 5 − 1 = 0.25 Thus the vector x is ✞ x = 0. 0.25 0.5 0.75 1. ✌ ✆ 0 1 0.0 0.25 0.5 0.75 1.0
- 101. 1.4. CORE KEYWORDS67 1.4.43 Last Error (lasterror) lasterror returns the number of error occurs recently. ✞ -- ierr = execstr(’a=zzzzzzz ’,’errcatch ’); 2 -- if ierr 0 then -- disp (lasterror ()) 4 -- end ✌ ✆ ✞ Undefined variable : zzzzzzz ✌ ✆ 1.4.44 Macro To List macr2lst primitive converts a compiled Scilab function name into a list which codes the internal representation of the function (Reverse Polish Notation). This function will not available since Scilab 6 and above. ✞ 1 -- function y=myF(x, flag ) -- if flag then 3 -- y=sin(x) -- else 5 -- y=cos(x) -- end 7 -- endfunction -- L=macr2lst (myF) 9 -- fun2string (L) // This function is removed in scilab 6.0 ✌ ✆ ✞ ans = !function y=myF(x,flag ) ! ! if flag then ! ! y = sin(x) ! ! else ! ! y = cos(x) ! ! end , ! !endfunction ! ✌ ✆ 1.4.45 Macro To Tree macro2tree primitive converts a compiled Scilab function name into a tree. ✞ -- tree = macr2tree (cosh ); 2 -- txt=tree2code (tree ,%T); -- write(%io (2),txt ,’(a)’); ✌ ✆ ✞ function [t] = cosh (z) // // PURPOSE
- 102. 68 Scilab Core //element wise hyperbolic cosine // // METHOD // 1/ in the real case use // // cosh (z) = 0.5 (exp(|z|) + exp(-|z|)) // = 0.5 ( y + 1/y ) with y = exp(|z|) // // The absolute value avoids the problem of a // division by zero arising with the formula // cosh (z) = 0.5 ( y + 1/y ), y=exp(z) // when ieee = 0 for z such that exp(z) equal 0 in // floating point arithmetic (approximately z -745) // // 2/ in the complex case use : cosh (z) = cos(i z) // rhs = argn (2); if rhs$ sim $=1 then error(msprintf (gettext (%s: Wrong number of input .. argument (s): %d expected .n) ,cosh ,1)); end; if type (z)$ sim $=1 then error(msprintf (gettext (%s: Wrong type for input .. argument #%d: Real or complex .. matrix expected .n) ,cosh ,1)); end; if isreal(z) then y = exp(abs(z)); t = 0.5*(y+1 ./y) else t = cos(imult(z)) end; endfunction ✌ ✆ 1.4.46 Matrices Matrices are the arrangement of integers or variables into rows and columns. These integers and variables are called elements of the vector of matrix. ✞ -- A=[1 ,2 ,3;4 ,5 ,6] ✌ ✆ ✞ A = 1. 2. 3. 4. 5. 6. ✌ ✆ 1.4.47 Matrix matrix function is used to arrange elements in desired format of rows and columns. This function is useful in rearranging of elements in desired order of matrix. matrix arranges
- 103. 1.4. CORE KEYWORDS69 elements in column wise. For example, 1, 2, 3, 4 elements if arranged in a matrix of 2 × 2 order, then elements will be arranged as shown below: 1 3 2 4 See the example given below: ✞ 1 -- A=1:1:6; -- // matrix command converts element of 3 -- // A into two rows and three columns . -- matrix(A,2,3) ✌ ✆ ✞ A = 1. 3. 5. 2. 4. 6. ✌ ✆ ‘n’ algebraic equations having ‘n’ unknowns can also be arranged in matrix form which is called determinant of the given matrix. For example, consider these three algebraic equations of three unknown variables a1x + b1y + c1z = l a2x − b2y + c2z = m a3x + b3y − c3z = n The matrix arrangement of coefficients of unknown variables, unknown variables and constants of these three equations can be written in the matrix form AX = B as given below: a1 b1 c1 a2 −b2 c2 a3 b3 −c3 x y z = l m n 1.4.48 Mode mode is used to select the execution mode of Scilab. By default Scilab execution mode is ‘-1’. The execution mode are k = 0 The new variable values are displayed if required. k = -1 The exec-file or Scilab function executes silently. It is default mode of the scilab execution. Each code line is prompted with . Variable outputs are not returned. Output can only be found via disp() function. k = 2 It is the default value on Scilab prompt. This mode of execution is not used from prompt but it is used only in an exec-file or a Scilab function. All variable returns and output via disp() are shown in Scilab console output. k = 1 or k = 3 Each line of instructions is echoed preceded of the prompt (if possible). The new variable values are displayed if required. This is the default for exec-files.
- 104. 70 Scilab Core k= 4 or k = 7 The new variable values are displayed if required, each line of instructions is echoed (if possible) and a prompt () is issued after each line waiting for a carriage return. If the carriage return follows character “p” the execution is paused. k 7 7 User mode. If you define your own mode, it is recommended to use a value 100. ✞ 1 -- function example_mode (level_mode ) -- mode (level_mode ) 3 -- a = 3 -- disp (mode ()); 5 -- endfunction -- example_mode (0) ✌ ✆ ✞ a = 3. 0. 2. ✌ ✆ Mode ‘-1’ execution : ✞ -- function example_mode (level_mode ) 2 -- mode (level_mode ) -- a = 3 4 -- disp (mode ()); -- endfunction 6 -- example_mode (-1) ✌ ✆ ✞ -1. ✌ ✆ Mode ‘4’ execution: ✞ 1 -- function example_mode (level_mode ) -- mode (level_mode ) 3 -- a = 3 -- disp (mode ()); 5 -- endfunction -- example_mode (4) ✌ ✆ ✞ Pause mode : enter empty lines to continue . a = 3. ✌ ✆ 1.4.49 Matlab Mode (mtlb mode) mtlb mode switches Scilab to Matlab evaluation mode for additions and substractions and vice versa.
- 105. 1.4. CORE KEYWORDS71 ✞ -- mtlb_mode (%t)// switch to matlab mode 2 -- mtlb_mode (%f)// switch to Scilab mode ✌ ✆ 1.4.50 Names In scilab, variables, functions and pointers are identified by their name. A valid name of a variable or function is name that is accepted by Scilab. A scilab variable or function name is alphanumeric entity/literals. % symbol is acceptable with internal variables of scilab. ✞ -- // Valid names 2 -- %eps ✌ ✆ ✞ %eps = 2.220D-16 ✌ ✆ % is not acceptable as variable literal digit. ✞ -- eps% // Not acceptable . ✌ ✆ Special character # and are valid. Numeric digits are not allowed at prefix to the variable name. ✞ 1 -- A1 = 123 -- #Color = 8 ✌ ✆ ✞ A1 = 123. #Color = 8. ✌ ✆ Scilab accepts long variables but not too long. 1.4.51 New Function (newfun) newfun is used to add a function name in the table of Scilab functions. If new function is already present in function list the Scilab shows an error of ‘Redefining function’. A new function name should not be a keyword or a reserved function name. ✞ -- // get the func ptr associated with the abs function 2 -- absptr=funptr(abs); -- // create an alias of the abs function 4 -- newfun(abs_bis,absptr); -- abs_bis (-1+ %i) ✌ ✆ ✞ ans = 1.4142136 ✌ ✆
- 106. 72 Scilab Core 1.4.52Null null is used to delete an element from a list. Actually null does not delete and element from the list but it replace the element identified by index with a null value. ✞ --l=list (1,2,3) ; 2 --l(2)=null () ✌ ✆ ✞ l = 1. 3. ✌ ✆ 1.4.53 Pause pause keyword interrupt the loop and hold for user’s response. Scilab prompt for resume or abort after each pause interrupt. ✞ 1 -- i = 0; -- while i10 do 3 -- disp (i); -- i = i + 1; 5 -- if(i5) -- pause;// pause the loop 7 -- end -- end ✌ ✆ ✞ 0. 1. 2. 3. 4. 5. Type ’resume ’ or ’abort ’ to return to standard level prompt. ✌ ✆ If user’s response is ‘resume’ loop iterate once again for next value of i and again ask for user’s response as value of i is larger than ‘5’. If user’s response is ‘abort’ then loop is terminated. 1.4.54 Predefined Variables (predef) predef is used to protect a variable being modified or redefined. ✞ 1 -- // Gets the number of protected variables . -- n = predef (); 3 -- // sets the max(n, 7) last defined variables as -- // protected , it also return the old and new 5 -- // value of protected variables number. -- oldnew = predef(n); 7 -- // Sets all variables protected , it also returns
- 107. 1.4. CORE KEYWORDS73 -- // old and new values of protected variables 9 -- oldnew = predef(’all ’); -- // Unprotect all but the last 7 variables , it also 11 -- // returns old and new value of protected variables -- oldnew = predef(’clear’); 13 -- // Returns a vector of strings with the name of -- // protected variables . 15 -- variables_name = predef(’names’); ✌ ✆ 1.4.55 Print Output in L A TEX (prettyprint) It returns the output text in L A TEX format. ✞ 1 -- n = prettyprint (a) ✌ ✆ ✞ n = $a$ ✌ ✆ 1.4.56 Quit quit terminates the current function inside which it is declared and decreases the pause level. ✞ -- function foo(x) 2 -- if x then -- quit 4 -- end -- endfunction 6 -- foo(%t) ✌ ✆ 1.4.57 Random Number The function rand generates random numbers using the linear congruential generator of the form : x = (ax + c) mod M where the constants are a = 843314861, c = 453816693 and m = 231 as given in Scilab manual. We can also choose other prime values of constants. x is seeded either by using user’s pass phrase or secret number or by taking time stamp internally. For variable random number, x is time stamp and for fixed random numbers, x is user’s pass phrase or secret number. The syntax of function is ✞ -- r = rand (m1 ,m2 ,..., key) ✌ ✆ Here, m1, m2, . . . are the dimensions of the matrix of random number r. ‘key’ is a string which controls distribution of random numbers and these are “uniform” (by default) and “normal”.
- 108. 74 Scilab Core ✞ 1--r=rand (10,1, uniform ) //10 rows 1 columns ✌ ✆ ✞ r = 0.7560439 0.0002211 0.3303271 0.6653811 0.6283918 0.8497452 0.6857310 0.8782165 0.0683740 0.5608486 ✌ ✆ 1.4.58 Read Gateway Each module is assigned a gateway id and this id can be assessed by using readgateway command. ✞ 1 -- [primitives ,primitivesID ,gatewayID ] = readgateway (’core ’); -- primitives (1); // ’debug ’ primitive 3 -- primitivesID (1); // 1 is ID of ’debug ’ in ’core ’ gateway -- gatewayID (1) // 13 is ID of ’core ’ gateway in Scilab ✌ ✆ ✞ ans = 13 ✌ ✆ 1.4.59 Resume resume invokes Scilab to return to the current execution or resume the current execution and copy some local variables. Scilab asks for resume or abort keywords when a loop is paused by pause command. If resume is entered, then loop is started again and if abort is entered then loop is exits. pause, resume and abort are treated as inter process interrupts. ✞ -- i = 0; 2 -- while i10 do -- disp (i); 4 -- i = i + 1; -- if(i5) 6 -- pause; // pause the loop -- end 8 -- end ✌ ✆ ✞ 0. 1. 2.
- 109. 1.4. CORE KEYWORDS75 3. 4. 5. Type ’resume ’ or ’abort ’ to return to standard level prompt. ✌ ✆ 1.4.60 Select select keyword is used to choose a variable for the further use. It is used mostly in switch-case like statements. select keyword enables Scilab to choose the value of vari- able identified in select command and the value of the selected variable shall be used in comparison in case statements. In select key, two or more same case identifiers are not permitted. ✞ 1 -- A = 2 -- select A 3 -- case 1 then -- disp (1) 5 -- case 2 then -- disp (2) 7 -- else -- disp (3) 9 -- end ✌ ✆ ✞ 2 ✌ ✆ 1.4.61 Set Break Points (setbpt) setbpt is used to set a break point to the function. To set a breakpoint for function ‘foo’, we use ✞ 1 -- setbpt(’foo’ ,1); // set first break point at 1 -- setbpt(’foo’ ,10);// set second break point at 10 3 -- dispbpt () // show first break point at 1 ✌ ✆ ✞ Breakpoints of function : foo 1 10 ✌ ✆ 1.4.62 Symbols Scilab uses symbols, i.e. ‘+’, ‘–’, ‘*’ and ‘$’ etc for specific operations. Arithmatic symbols are used in the arithmetic operations.
- 110. 76 Scilab Core 1.4.63Temporary Directory (TMPDIR) ‘TMPDIR’ is a token that points to the path of the temporary directory being used by Scilab as its scratch directory, or it is being used for storing temprary data, files etc. For my windows system the Scilab temporary directory path is ✞ 1 -- path = TMPDIR; -- disp (path ) ✌ ✆ ✞ C: DOCUME ~1 ADMINI ~1 LOCALS ~1 Temp SCI_TMP _3104_ ✌ ✆ 1.4.64 Test Matrix testmatrix is used to generate special matrices, like Magic, Frank and Hilbert matrices. The type of matrix being generated is identified by the first argument of this function. For magic matrix, keyword is ‘magi’, for Frank matrix, keyword is ‘frk’ and for Hilbert matrix, keyword is ‘hilb’. See the following examples, for magic matrix. ✞ 1 -- [y]= testmatrix (’magi ’ ,2) ✌ ✆ ✞ [] ✌ ✆ Frank matrix can be generated by ✞ 1 -- [y]= testmatrix (’frk ’ ,2) ✌ ✆ ✞ y = 2. 1. 1. 1. ✌ ✆ Hilbert matrix by ✞ 1 -- [y]= testmatrix (’hilb ’ ,2) ✌ ✆ ✞ y = 4. - 6. - 6. 12. ✌ ✆ 1.4.65 Then then keyword is used along-with if keyword in the sequence of if-then-else structure. If if condition is ‘true’ then statement inside the then block are executed otherwise statement in else block are executed.
- 111. 1.4. CORE KEYWORDS77 ✞ 1 -- if rand (1,1) 0.5 then -- disp (T); 3 -- else -- disp (F); 5 -- end ✌ ✆ ✞ ans = F ✌ ✆ 1.4.66 Try try is the beginning of catch block in try-catch control instruction. If try statement is true then it executes the catch statements other wise shows error. This method is used to prevent the assigning a string like an integer value or vice versa. ✞ -- function nestedtry (a, b) 2 -- disp (START); -- try 4 -- z=a+b; // err when either ’a’ or ’b’ -- // is string , jump to catch 6 -- disp (z); // don ’t executed -- catch // execute on err in try 8 -- disp (Can not sum two values .....); -- end 10 -- disp (THE END); -- endfunction 12 -- nestedtry (1,1) // second variable as integer -- nestedtry (1,’1’)// second variable as string ✌ ✆ ✞ START 2. THE END START Can not sum two values ..... THE END ✌ ✆ 1.4.67 Type (type) It returns the type of a variable. The data type in Scilab are listed in the table given below:
- 112. 78 Scilab Core CodeVariable Type 1 sci matrix: a matrix of doubles 2 sci poly: a polynomials matrix 4 sci boolean: a boolean matrix 5 sci sparse: a sparse matrix 6 sci boolean sparse: a sparse boolean matrix 7 sci matlab sparse: a sparse matlab matrix 8 sci ints: a matrix of integers 9 sci handles: a graphical handle 10 sci strings: a matrix of strings 11 sci u function: an uncompiled Scilab function 13 sci c function: a compiled Scilab function 14 sci lib: a library of Scilab functions 15 sci list: a Scilab list 16 sci tlist: a Scilab tlist 17 sci mlist: a Scilab mlist 18 sci struct: a Scilab struct 19 sci cell: a Scilab cell 128 sci pointer : a pointer ✞ 1 -- x = 2; -- [i]= type (x) ✌ ✆ ✞ i = 1 ✌ ✆ 1.4.68 Integer Data Type Scilab supports, 8, 16, 32 and 64 signed and unsigned integer data type. Each integer data type is defined as function ✞ -- int size (input ) 2 -- uint size (input ) ✌ ✆ Where, ‘size’ is any value from 8, 16, 32 and 64. We can convert an integer into any type among the defined size. ✞ -- int8 ([10 ,12 ,500 ,4000]) 2 -- uint8 ([10 ,12 ,500 ,4000]) ✌ ✆
- 113. 1.4. CORE KEYWORDS79 ✞ ans = 10 12 -12 -96 ans = 10 12 244 160 ✌ ✆ Other method is by application of function iconvert as ✞ -- iconvert (input , type ) ✌ ✆ Here, type is any code of the following table. Type Function Range 0 (reals) 1 int8 [-128, 127] 2 int16 [-32768, 32767] 4 int32 [-2147483648, 2147483647] 8 int64 [-9223372036854775808, 9223372036854775807] 11 uint8 [0, 255] 12 uint16 [0, 65535] 14 uint32 [0, 4294967295] 18 uint64 [0, 18446744073709551615] During the data conversion, values stored in the memory are not altered. Only method and length of reading of memory bytes manipulated. For example, an integer is stored in the memory as shown below. The shown data in each byte is in binary form. iPtr 11000111 11010111 11001111 11100111 The decimal value of integer is 335280944710. For integer data type, all four bytes are converted from binary value into decimal value at once. If this integer is converted into 8 bits data type (char type), then data from last byte having binary data 111001112 is taken and converted. In the above case, output is −25 signed and 231 unsigned. 1.4.69 Varn (varn) varn returns a polynomial matrix with same coefficients as x but with ‘s’ as symbolic variable. ✞ 1 -- s=poly (0,’s’); -- p=[s^2+1,s]; 3 -- varn (p); -- varn (p,’x’) ✌ ✆
- 114. 80 Scilab Core ans= 1 + x2 x 1.4.70 Warning warning command is used to show the warning. It is useful function to inform user about mistakes and errors being done by him. ✞ -- warning (’on’);// enable the warning 2 -- warning (’this is a warning ’) ✌ ✆ ✞ WARNING: this is a warning ✌ ✆ ✞ 1 -- warning (’off’);// disable the warning -- warning (’this is a warning ’) ✌ ✆ ✞ ✌ ✆ To see the state of warning use the warning function with sting intput ‘query’ as shown in the following syntax: ✞ 1 -- warning (’off’); // disable the warning -- warning (’query’);// show the state of warning ✌ ✆ ✞ ans = off ✌ ✆ 1.4.71 With tk Checks if Scilab has been built with TCL/TK. If tcl/tk is installed then it returns ‘true’ otherwise returns ‘false’. ✞ -- r=with_tk (); ✌ ✆ ✞ ans = 1 ✌ ✆ 1.4.72 While while keyword is used in the loop structure do-while. The do statements are executed until the while condition is ‘true’. When while condition becomes ‘false’, do loop is terminated.
- 115. 1.5. FUNCTIONS 81 ✞ --i = 0 2 -- while i5 do -- disp (i); 4 -- i = i + 1; -- end ✌ ✆ ✞ ans = 0 1 2 3 4 ✌ ✆ 1.5 Functions Function, in computer science is a set of instructions. This set of instruction is collectively called a script or code. Codes inside the function are not executed until unless function is not called. Some times more than one functions or commands are successively used for a specific purpose. The re-usability of these sets of functions or commands is very problematic. Hence these set of functions or commands are put inside a new function defined by user. Now this new defined function can be used as and when required 1.5.1 Defining Own Function In Scilab, user can define their own functions. The syntax is ✞ -- // begin of function 2 -- function [outputs ]= myF(argumets ) -- /* Function Statements */ 4 -- endfunction -- // end the function ✌ ✆ Any number of input arguments and output variables may be used in a function. Each input and output variable shall be separated by a comma. Scilab function is initialize by using the function keyword. This keyword is followed by output variables, either in vector form or in matrix form, to which result is assigned by the function. Then, ‘=’ sign is followed by the valid name of function with or without function parameters. Each function that is initiated should be terminated by using keyword endfunction keyword. See the following example: ✞ 1 -- // begin of function -- function [x, y]= myF(a, b) 3 -- x=a+b // expressions -- y=a-b // expressions 5 -- endfunction -- // end the function ✌ ✆
- 116. 82 Scilab Core Whenfunction is called like ✞ -- [x,y]= myF (5,2); ✌ ✆ output on the screen is visible like ✞ x = 7. y = 3. ✌ ✆ If an output variable is not declared inside the function body, either as a returned value or as a declared value, then when function is called with full decoration, will show errors. ✞ -- function [x, y]= myF(a, b) 2 -- x=a+b; // expressions -- endfunction ✌ ✆ Since Scilab 6.0 version, a function may also be finished by using only ‘end’ keyword. deff function may be used for inline definition of a function. Its syntax is ✞ 1 -- deff (’[out var ]= func name (var 1, var 2)’ ,.. ’function statements ’) ✌ ✆ To define function z = x + y as inline function, method is ✞ -- deff (’[z]=f(x,y)’,’z=x+y’) ✌ ✆ Here f is function name that would be called later. Since Scilab 6.0, function without output argument cannot be called in assignment expression anymore. For example, ✞ 1 -- function myFunc(i, j) -- return i+j; 3 -- endfunction -- r=myFunc (2, 3)// returns error in Scilab = 6.0 ✌ ✆ 1.5.2 Rewriting Own Function Scilab allow function rewriting with or without same signature. When new function is written with same name as the existing function has, then new function hides to the existing function with same name. Now, new function needs the parameter to be passed to it in accordance with new signature of the function. ✞ -- function myF(a, b)// User defined function . 2 -- z=a+b; -- disp (z); 4 -- endfunction -- function myF(a, b)// rewritten function . 6 -- z=a*b;
- 117. 1.5. FUNCTIONS 83 --disp (z); 8 -- endfunction -- myF (1,2) // call the function ✌ ✆ ✞ ans = 2 ✌ ✆ Function rewriting, with same nabe but with new signature, hides the existing function, and during the function call, parameters should be in accordance to the signature of new function. In the following example, function ‘myF’, which was previously written with two input parameters is now rewritten with three input parameters. When function is called with two input parameters, it shows error while it gives desire output when function is called with three input parameters. ✞ -- function myF(a, b)// User defined function . 2 -- z=a+b; -- disp (z); 4 -- endfunction -- function myF(a, b, c)// rewritten function . 6 -- z=a*b+c; -- disp (z); 8 -- endfunction -- myF (1,2) // call the function , shows error 10 -- myF(1,2,3) // call the function ✌ ✆ ✞ !--error 4 Undefined variable : c ..... ans = 5 ✌ ✆ 1.5.3 Redefining Function Error This error is shown by Scilab when same function is called several times. ✞ -- function nestedtry (a, b)// User defined function . 2 -- disp (START) -- try 4 -- z=a+b; // err when string show catch -- disp (z);// show output 6 -- catch -- disp (Can not sum two values .....) 8 -- end -- disp (THE END) 10 -- endfunction -- nestedtry (1,1) // First time call 12 -- nestedtry (1,’1’)// Second time call ✌ ✆
- 118. 84 Scilab Core ✞ Warning: redefining function : nestedtry Use funcprot (0) to avoid this message . START 2. THE END START Can not sum two values ..... THE END ✌ ✆ This warning can be avoided by using funcprot(0); before defining own function. ✞ 1 -- funcprot (0); -- function nestedtry (a, b)// User defined function . 3 -- disp (START) -- try 5 -- z=a+b; // err when string show catch -- disp (z);// show output 7 -- catch -- disp (Can not sum two values .....) 9 -- end -- disp (THE END) 11 -- endfunction -- nestedtry (1,1) // First time call 13 -- nestedtry (1,’1’)// Second time call ✌ ✆ ✞ START 2. THE END START Can not sum two values ..... THE END ✌ ✆ 1.5.4 Compilation Warning If a function is compiled with Scilab and function is already compiled then a warning is displayed by scilab about that function is already compiled. ✞ 1 -- comp (abs ,0) ✌ ✆ ✞ Warning : Function is already compiled . ✌ ✆ 1.5.5 Undefined Variable Error This error is shown by Scilab when it encounters to a variable that is undefined. In the following example, keyword clear clears the variable ‘i’ and ultimately, ‘i’ is eloped. For
- 119. 1.5. FUNCTIONS 85 nextiteration, while shall not identify the variable ‘i’ and hence Scilab will show error of undefined variable. ✞ 1 -- i = 0; -- while i5 do 3 -- disp (i); -- i = i + 1; 5 -- if(i2) -- clear i; 7 -- end -- end ✌ ✆ ✞ 0. 1. 2. while i5 do !-- error 4 Undefined variable : i ✌ ✆ 1.5.6 Implementation Error If a function is called in Scilab and the function is not implemented in Scilab yet, then this error is shown by the Scilab. ✞ -- sqrtm (2) ✌ ✆ ✞ !--error 43 Not implemented in Scilab ... ✌ ✆ 1.5.7 Change Function in Prototype (funcprot) funcprot is used to change a function in prototype mode. It is also used to avoid ‘Re- defining function’ warning. ✞ -- function nestedtry (a, b)// User defined function . 2 -- disp (START) -- try 4 -- z=a+b; // error when string show catch -- disp (z);//don ’t show output , show catch body 6 -- catch -- disp (Can not sum two values .....) 8 -- end -- disp (THE END) 10 -- endfunction -- nestedtry (1,1) // First time call 12 -- nestedtry (1,’1’)// Second time call ✌ ✆
- 120. 86 Linear Algebra ✞ Warning: redefining function : nestedtry Use funcprot (0) to avoid this message . START 2. THE END START Can not sum two values ..... THE END ✌ ✆ This warning can be avoided by using funcprot(0); before defining own function. ✞ 1 -- funcprot (0); -- function nestedtry (a, b)// User defined function . 3 -- disp (START) -- try 5 -- z=a+b; // error when string show catch -- disp (z);// don ’t show output , show catch body 7 -- catch -- disp (Can not sum two values .....) 9 -- end -- disp (THE END) 11 -- endfunction -- nestedtry (1,1) // First time call 13 -- nestedtry (1,’1’)// Second time call ✌ ✆ ✞ START 2. THE END START Can not sum two values ..... THE END ✌ ✆ 1.5.8 Function Pointer (funptr) funptr is used to get the function pointer (ptr) associated with a specific function. ✞ 1 -- // get the func ptr associated with the abs function -- absptr=funptr(abs); 3 -- disp ( absptr) ✌ ✆ ✞ ans = 0 ✌ ✆

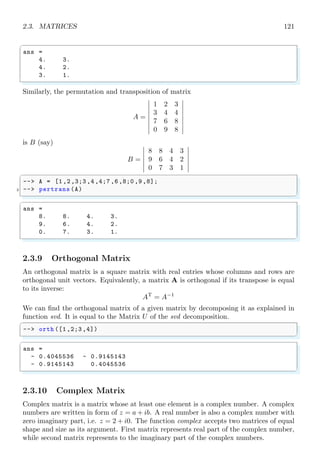

- 121. 2.1. LINEAR ALGEBRA87 2Linear Algebra 2.1 Linear Algebra Linear algebra is the branch of mathematics motivated by a system of linear equations containing several unknowns. 2.1.1 Simultaneous Solution Simultaneous solution of a group of equations is performed to find the roots of group of equations. The solution of group of equations must be unique. Number of unknown variables should be less than or equal to the number of equations. Take three algebraic equations with variables x1, x2 and x3 as given, x1 + x2 + x3 = 6 x1 − x2 + x3 = 2 x1 − x2 − x3 = −4 An algebraic equation in standard form contains only zero in right side of equal sine. Therefore, each algebraic equation given above is rewrite as x1 + x2 + x3 − 6 = 0 x1 − x2 + x3 − 2 = 0 x1 − x2 − x3 − 4 = 0 Before solving these equations, and finding the values of x1, x2 and x3, equations are assigned to function names as given below: f1 = x1 + x2 + x3 − 6 f2 = x1 − x2 + x3 − 2 f3 = x1 − x2 − x3 + 4 Scilab uses indexed based variables. For example, three variables x1, x2 and x3 are represented by x(1), x(2) and x(3) respectively. The Scilab equivalent function of the above algebraic functions is given below: ✞ -- function [f] = F(x) 2 -- f(1) = x(1) + x(2) + x(3) - 6; -- f(2) = x(1) - x(2) + x(3) - 2; 4 -- f(3) = x(1) - x(2) - x(3) + 4; -- endfunction ✌ ✆ Now initiate initial values of variable x1, x2 and x3 as given in following syntax.
- 122. 88 Linear Algebra ✞ 1-- x = [1 1 1]; ✌ ✆ Actually, x(1) represents to the value of x at index of ‘1’ from the array list of ‘x’. This is why, first element of list of x is assigned to x(1) and second element of list of x is assigned to x(2) and so on. Now solve the function F for variable ‘x’ by using fsolve() function. Parameter ‘x’ represents to all variables x1, x2 and x3 and ‘F’ represents to all equations f1, f2 and f3. ✞ 1 -- y = fsolve(x, F); ✌ ✆ The values of x1, x2 and x3 are assigned to parameter y and these values can be display by calling disp() function. ✞ 1 -- disp (y); ✌ ✆ ✞ 3. 2. 1. ✌ ✆ Solved Problem 2.1 Solve simultaneous equations 2x + y = 3 and 3x + 3y = 2. Solution Let x = x(1) and y = x(2). The modified form of given equations are 2 × x(1) + x(2) = 3; 3 × x(1) + 3 × x(2) = 2 The two equations in function forms are f(1) = 2 × x(1) + x(2) − 3; f(2) = 3 × x(1) + 3 × x(2) − 2 On solving these two function assuming x(1) = 0 and x(2) = 0, we get the values of x and y as 7/3 and 5/3 respectively. The Scilab codes for the given equations is ✞ 1 -- function [f] = F(x) -- f(1) = 2*x(1) + x(2) - 3; 3 -- f(2) = 3*x(1) + 3*x(2) - 2; -- endfunction 5 -- x = [0 0]; -- y = fsolve(x, F); 7 -- disp (y) ✌ ✆ ✞ x=2.3333333 , y= -1.6666667 ✌ ✆ These are solutions of the given equations. 2.1.2 Mean Mean or average in mathematics is defined as the output found after division of algebraic sum of all elements by the number of elements. Mathematically, it is represented as m = n P i=1 xi n
- 123. 2.1. LINEAR ALGEBRA89 ✞ 1 -- x=[1,2,3,4,5,6,7,8,9] -- m=mean (x) ✌ ✆ ✞ m = 5. ✌ ✆ 2.1.3 Regression Regression is a process in which two data are fitted in a linear equation form y = a + bx where x and y are data variables and ‘a’ ‘b’ are the regression coefficients. The data size of both variables x, y must be same. The function regress() computes the regress coefficients ‘a’ ‘b’. ✞ -- x=[1,2,3,4,5,6,7,8,9] 2 -- y=[0.5 ,1.5 ,2.5 ,3.5 ,4.5 ,5.5 ,6.5 ,7.5 ,8.5] -- coefs=regress(x,y) ✌ ✆ ✞ coefs = - 0.5 1. ✌ ✆ 2.1.4 Data Frequency nfreq returns the frequencies of elements in a data array. This function rearranges data in two columns. First column represents to data items and second column represents the frequency of occurrence of that element in the data set. This is obsolete function. ✞ 1 -- x=[1,1,3,8,5,6,5,8,5]; -- nfreq(x) ✌ ✆ ✞ ans = 1. 2. 3. 1. 8. 2. 5. 3. 6. 1. ✌ ✆ 2.1.5 Tabulation nfreq arranges data into distinct items and their corresponding frequency of occurrence of that elements in the data. The tabulated data items are not arranged in any order but data is in order first occurrence of distinct elements. To arranged this tabulated data in ascending or descending order, tabul() function is used to arrange the data in ascending or descending order.
- 124. 90 Linear Algebra ✞ --x=[1,1,3,8,5,6,5,8,5]; 2 -- t=tabul(x,’i’) ✌ ✆ ✞ t = 1. 2. 3. 1. 5. 3. 6. 1. 8. 2. ✌ ✆ Second argument to tabul function is either ‘i’ or ‘d’. ‘i’ stands for increment, i.e. data would be arranged in ascending order. Second is descending order, that is initialized by ‘d’. If order is not defined in tabul function, then data is arranged in the order of first occurrence of distinct elements. t is a two column matrix who contains distinct values of x in the first column the and number of occurrences in the second column. If x numeric matrix or vector, then t is matrix and if x is string matrix or vector, then t is a list. First column values can be accessed by using t(:, 1) and second column values can be accesses by using t(:, 2). ✞ -- x=[1,1,3,8,5,6,5,8,5]; 2 -- t=tabul(x,’i’) -- t(:,2) ✌ ✆ ✞ t = 2. 1. 3. 1. 2. ✌ ✆ 2.2 Algebra 2.2.1 Clean (clean) This function eliminates all the coefficients with absolute value or relative value in a polynomial. ✞ -- x=poly (0,’x’); 2 -- w=[x,1,2+x;3+x,2-x,x^2;1 ,2 ,3+x]/3; -- w*inv(w) 4 -- clean(w*inv(w)) ✌ ✆
- 125. 2.2. ALGEBRA 91 ans= 1 1 0 1 0 1 0 1 1 1 0 1 0 1 0 1 1 1 ans = 1 1 0 1 0 1 0 1 1 1 0 1 0 1 0 1 1 1 2.2.2 Degree of Polynomial (degree) Degree of a polynomial is its highest power of independent variable. For example, the degree of following example y = x3 − 4x + 2 is ‘3’. To get the degree of a polynomial, function degree is used. This function accepts a function argument or a matrix as its argument. If argument supplied to this function is a matrix then it returns the degree of each polynomial elements of the matrix. ✞ -- x=poly (0,’x’); 2 -- A=[2* x,3;2 ,4]; -- degree(A) ✌ ✆ ✞ ans = 1. 0. 0. 0. ✌ ✆ degree also returns the degree of a linear polynomial. ✞ 1 -- x=poly ([1,2,3], ’x’); -- degree(x) ✌ ✆ ✞ ans = 3. ✌ ✆
- 126. 92 Linear Algebra 2.2.3Solve Algebraic Equations (fsolve) This function is used to solve algebraic equations. Take three algebraic equations with variables x1, x2 and x3 as given, x1 + x2 + x3 = 6 x1 − x2 + x3 = 2 x1 − x2 − x3 = −4 An algebraic equation in standard form contains only zero in right side. Therefore, each algebraic equation given above is rewrite as x1 + x2 + x3 − 6 = 0 x1 − x2 + x3 − 2 = 0 x1 − x2 − x3 + 4 = 0 Before solving these equations, and finding the values of x1, x2 and x3, equations are assigned to function names as given below: f1 = x1 + x2 + x3 − 6 f2 = x1 − x2 + x3 − 2 f3 = x1 − x2 − x3 + 4 In Scilab, unknown variables x1, x2 and x3 are represented by x(1), x(2) and x(3) re- spectively. The Scilab equivalent functions of the above algebraic functions are given below: ✞ -- function [f] = F(x) 2 -- f(1) = x(1) + x(2) + x(3) - 6; -- f(2) = x(1) - x(2) + x(3) - 2; 4 -- f(3) = x(1) - x(2) - x(3) + 4; -- endfunction ✌ ✆ Now initiate initial values of variable x1, x2 and x3 as given in following syntex. ✞ 1 -- x = [1 1 1]; ✌ ✆ Actually, x(1) represents to the value of x at index of ‘1’ from the array list of ‘x’. This is why, first element of list of x is assigned to x(1) and second element of list of x is assigned to x(2) and so on. Now solve the function F for variable ‘x’ by using fsolve() function. Parameter ‘x’ represents to all variables x1, x2 and x3 and ‘F’ represents to all equations f1, f2 and f3. ✞ 1 -- y = fsolve(x, F); ✌ ✆ The values of x1, x2 and x3 are assigned to parameter y and these values can be display by calling disp() function. ✞ 1 -- disp (y); ✌ ✆
- 127. 2.2. ALGEBRA 93 ✞ 3.2. 1. ✌ ✆ Solved Problem 2.2 Solve simultaneous equations x + y = 4 and 3x + 3y = 2. Solution Let x = x(1) and y = x(2). The modified form of given equations are x(1) + x(2) = 4; 3 × x(1) + 3 × x(2) = 2 The Scilab codes for the given equations is ✞ 1 -- function [f] = F(x) -- f(1) = x(1) + x(2) - 4; 3 -- f(2) = 3*x(1) + 3*x(2) - 2; -- endfunction 5 -- x = [0 0]; -- y = fsolve(x, F); 7 -- disp (y) ✌ ✆ ✞ x=71.20891, y= -70.20891 ✌ ✆ These are solutions of the given equations. 2.2.4 Denominator (denom) A polynomial fraction is given by y = x2 + 3 x3 − 8 A polynomial fraction is acceptable if its degree of numerator is less than or equals to the degree of its polynomial. If degree of numerator is larger than its degree of denominator, then numerator is divide by denominator to convert it into whole and fraction parts. y = x4 + 5x x3 − 8 = x + 13x x3 − 8 To get the denominator of a polynomial fraction, function denom is used. The argument of this function may be either a fraction or a matrix of fractions. ✞ 1 -- x=poly (0,’x’); -- A=[2* x,3;2 ,4]; 3 -- denom(A) ✌ ✆ ✞ ans = 1. 1. 1. 1. ✌ ✆ If an element or polynomial term is a fraction number then denom returns the denomi- nator the fraction.
- 128. 94 Linear Algebra ✞ 1-- s=poly (0,’s’); -- denom (2/s) ✌ ✆ ✞ D = s ✌ ✆ 2.2.5 Derivative (derivat) derivat computes the derivative of a polynomial function. If f(x) is a function of x then its derivative is given by d dx f(x) = f′ (x) In form of first principle method of derivatives f′ (x) = lim h→0 f(x + h) − f(x) h ✞ -- s=poly (0,’s’); 2 -- derivat (1/s) ✌ ✆ ✞ ans = - 1 - 2 s ✌ ✆ To print the output nicely, use prettyprint function to generate L A TEX output of the result. ✞ 1 -- s=poly (0,’s’); -- t=derivat (1/s); 3 -- prettyprint (t) ✌ ✆ ans = − 1 s2 2.2.6 Determinant (determ) determ returns the determinant of a real polynomial matrix based on Fast Fourier Trans- form (FFT). The determinant of a real polynomial matrix is given by |A|. If a matrix A is given by A = 1 2 3 4
- 129. 2.2. ALGEBRA 95 thenits determinant is given by |A| = 1 × 4 − 3 × 2 = 4 − 6 = −2 The Scilab code for determination of determinant is given below. ✞ 1 -- s=poly (0,’s’); -- w=s*rand (10 ,10) ; 3 -- determ(w) ✌ ✆ ✞ ans = 10 - 0.0042723* s ✌ ✆ 2.2.7 Determinant (detr) This is similar to function determ but uses different algorithm and type of matrix. Read carefully its description along-with description of determ. The prototype of determinant function is detr ✞ 1 -- d=detr (h) ✌ ✆ It returns the determinant ‘d’ of the polynomial or rational function matrix ‘h’. The determinant computation of this function is based on Leverrier’s algorithm. ✞ 1 -- s=poly (0,’s’); -- w=s*rand (2,2); 3 -- detr (w) ✌ ✆ ✞ ans = 2 - 0.0984453* s ✌ ✆ Leverrier’s Algorithm A square matrix, A of order n × n can has eigenvalues equals to the roots of the equation det(A − λI) = 0. This relation can also be written as det(A − λI) = c0λn + c1λn−1 + . . . + cnλ0 = 0 Here, I is n × n identical matrix and c1, c2, . . ., cn are the coefficients of λ. The roots of this polynomial equations are the characteristics values of the matrix. This algorithm is used to find the coefficients of the characteristic polynomial. 2.2.8 Factors (factors) factors returns the factor of a polynomial.
- 130. 96 Linear Algebra ✞ 1--n=poly ([1,2,3], ’z’); --d=poly ([5,6,7], ’z’); 3 --R=syslin(’d’,n,d); --R1=factors (R,’d’) 5 -- prettyprint (R1) ✌ ✆ R1 = −0.0047619 + 0.0285714z − 0.0523810z2 + 0.0285714z3 −0.0047619 + 0.0857143z − 0.5095238z2 + z3 2.2.9 Greatest Common Divisor (gcd) gcd is acronym of greatest common divisor. It is a polynomial or number that can divide other polynomials without remainders. For example, the gcd of numbers 12 and 18 is 6. The same principle is applicable to the algebraic relations. For example, the greatest common divisor of algebraic equations (x − 2)(x + 3) and (x − 2)(x + 4) is (x − 2). ✞ 1 -- s=poly (0,’s’); -- p=[s, s*(s+1)^2, 2*s^2+s^3]; 3 -- gcd(p) ✌ ✆ ✞ ans = s ✌ ✆ 2.2.10 Inverse of Matrix (invr) invr returns the inverse matrix. Inverse of a matrix can be obtained if it is convertible. All square matrices are not convertible. The square matrix which has an inverse is called convertible or non-singular matrix. A square matrix is convertible when its determinant is not zero, i.e. det(A) 6= 0. Inverse of a square matrix is given by A−1 = Adj(A) Det(A) Adj(A) of the matrix A is transpose matrix of the co-factor matrix of matrix A. Co-factor of a matrix of m × n order in respect of ith row and jth column is given by Aij that is equal to the product of (−1)i×j and determinant of remaining matrix after eliminating ith row and jth column. Let a matrix is given like A = 1 2 3 4 The co-factors of the matrix are a11 = (−1)1+1 × 4; a11 = (−1)1+2 × 3; a21 = (−1)2+1 × 2; a22 = (−1)2+2 × 1;
- 131. 2.2. ALGEBRA 97 Nowco-factors matrix of matrix A is Acf = 4 −3 −2 1 Now Adj(A) of matrix A is Adj(A) = 4 −2 −3 1 Now the determinant of the matrix A is Det(A) = −2 Finally, inverse of matrix A is A−1 = Adj(A) Det(A) = −2. 1. 1.5 −0.5 ✞ -- a=[1 ,2;3 ,4] 2 -- invr (a) ✌ ✆ ✞ ans = - 2. 1. 1.5 - 0.5 ✌ ✆ 2.2.11 Least Common Multiple (lcm) lcm is acronym of least common multiple. It is the smallest number or polynomial that can be divided by more than one polynomials. For example 30 is lcm of numbers 5 and 6. Similarly (x − 2)(x + 3) is least common multiple of the factors (x − 2) and (x − 3). ✞ 1 -- s=poly (0,’s’); -- p=[s,s*(s+1) ^2,2*s^2+s^3]; 3 -- lcm(p) ✌ ✆ ans = 2s2 + 5s3 + 4s4 + s5 2.2.12 LCM By Diagonalization (lcmdiag) lcmdiag returns the least common multiple of a matrix using diagonal factorization method. ✞ 1 -- s=poly (0,’s’); -- H=[1/ s,s;1/s^2,2/s]; 3 -- [N,D]= lcmdiag(H) ✌ ✆
- 132. 98 Linear Algebra D= s2 0 0 s N = s s2 1 2 2.2.13 Numerator (numer) numer returns the numerator value of a fraction. A polynomial fraction is given by y = x2 + 3 x3 − 8 A polynomial fraction is acceptable if its degree of numerator is less than or equals to the degree of its polynomial. If degree of numerator is larger than its degree of denominator, then numerator is divide by denominator to convert it into whole and fraction parts. y = x4 + 5x x3 − 8 = x + 13x x3 − 8 To get the numerator of a polynomial fraction, function numer is used. ✞ 1 -- s=poly (0,’s’); -- numer (2/s) ✌ ✆ ✞ ans = 2 ✌ ✆ ✞ -- s=poly (0,’s’); 2 -- H=[1/ s,s;1/s^2,2/s]; -- numer(H) ✌ ✆ ans = 1 s 1 2
- 133. 2.2. ALGEBRA 99 2.2.14Polynomial (poly) Any linear relation of a unknown variable having degree more than ‘2’ is known as poly- nomials. For example, x3 + 2x − 3 = 0 is a polynomial of variable x. Degree of the polynomial is ‘3’. If [1, 2, 3] are the roots of a polynomial then degree of the polynomial is ‘3’ (No of roots). Each root represents the factor of ‘x’. If x = rn are roots of a polynomial then n Y i=1 (x − rk) is polynomial of these roots. For given roots [1, 2, 3], factors of the polynomial are Roots x = 1 x = 2 x = 3 Factors (x-1) (x-2) (x-3) Polynomial having these roots is (x − 1) × (x − 2) × (x − 3) = 0 ✞ 1 -- x=poly ([1,2,3], ’x’) ✌ ✆ ans = − 6 + 11x − 6x2 + x3 degree() returns the degree of the polynomial supplied as its argument. ✞ 1 -- x=poly ([1,2,3], ’x’); -- degree(x) ✌ ✆ ✞ ans = 3. ✌ ✆ 2.2.15 Polynomial Division (pdiv) pdiv returns the euclidean division of polynomials. By default, it returns only quotient value. ✞ -- s=poly (0,’s’); 2 -- pdiv (s^2-1, s^2) ✌ ✆ ✞ ans = 1 ✌ ✆ If quotient remainder both are to be found as returned values then this function is used with return argument as shown in the following example.
- 134. 100 Linear Algebra ✞ --[r,q]= pdiv (p1 , p2 ) ✌ ✆ ✞ 1 -- s=poly (0,’s’); -- [r,q]= pdiv (s^2-1, s -1) ✌ ✆ ✞ q = 1 + s r = 0. ✌ ✆ 2.2.16 Residue (residu) residu is the limit about a point of a function when it approach to that point. Residue is measured for those points where function limit is not acceptable. Residue of a fraction f(s), given in the form of f(s) = P(s) Q1(s) ∗ Q2(s) can be obtained by using Scilab function ✞ -- residu(P, Q1 , Q2) ✌ ✆ Here, Q1 and Q2 must have not any common root. For example, consider a function f(s) = 1 s3 − s4 Here P(s) = 1. To get the s3 − s4 in form of Q1(s) ∗ Q2(s), take common s3 which gives s3 (1 − s). Now Q1(s) is s3 and Q2(s) is 1 − s. The fraction for residue function is f(s) = 1 s3 ∗ (1 − s) Expanding the relation f(s) = 1 s3 + 1 s2 + 1 s + 1 + s + . . . The coefficient b1, i.e. the numeric coefficient of 1/s is called the residue of the function. Here, it is 1. In Scilab, supplying the three parameters P, Q1 and Q2 to residu() function we get the residue of the function. ✞ 1 -- s=poly (0,’s’); -- P=1; 3 -- Q1=s^3; -- Q2=(1- s); 5 -- residu(p, Q1 , Q2) ✌ ✆
- 135. 2.2. ALGEBRA 101 ✞ ans= 1 ✌ ✆ Again, changing the function Q2 = 2 − 3s, we have f(s) = 1 s3 ∗ (2 − 3s) Expanding the relation f(s) = 1 2s3 + 3 4s2 + 9 8s + 27 16 + 81 32 s + . . . The coefficient b1, i.e. the numeric coefficient of 1/s is called the residue of the function. Here, it is 1.125. ✞ -- s=poly (0,’s’); 2 -- P=1; -- Q1=s^3; 4 -- Q2 =(2 -3*s); -- residu(p, Q1 , Q2) ✌ ✆ ✞ ans = 1.125 ✌ ✆ 2.2.17 Roots of Polynomial (roots) Roots of a polynomial are those values which on substituted in place of variable gives polynomial value zero. A polynomial having degree of ‘n’ has n roots. Root values may be real numbers (either integers or fractions) or complex numbers. Roots of Quadratic Equation An equation of variable ‘x’ having degree ‘2’ is known as quadratic equation. Roots of the quadratic equation (Eg ax2 + bx + c = 0) can be obtained by using Shridharacharys Formula x = −b ± √ b2 − 4ac 2a Scilab example is given below ✞ -- x=poly (0,’x’) 2 -- roots(x^2 -3 * x + 2) ✌ ✆ ✞ ans = 2. 1. ✌ ✆ All the roots are real in integers. If equation is modified then roots becomes
- 136. 102 Linear Algebra ✞ 1-- x=poly (0,’x’) -- roots(x^2 -3 * x + 3) ✌ ✆ ✞ ans = 1.5 + 0.8660254 i 1.5 - 0.8660254 i ✌ ✆ Roots of Polynomials Roots of higher degree polynomials can be obtained as ✞ 1 -- x=poly (0,’x’) -- roots(x^3 - 6 * x^2 + 11 * x -6) ✌ ✆ ✞ ans = 3. 2. 1. ✌ ✆ All are the real roots. roots function also calculates the complex roots. ✞ -- x=poly (0,’x’) 2 -- roots(x^3 - 6 * x^2 + 11 * x + 1) ✌ ✆ ✞ ans = 3.04 + 1.50 i 3.04 - 1.50 i - 0.08 ✌ ✆ roots returns all the roots of a polynomial function. Roots of a polynomial function are those possible values which satisfy to the given polynomial to zero. For example, x2 − 2x + 1 = 0 is a polynomial of degree ‘2’ and is known as quadratic equation. The roots of this polynomial are x = +1 and x = +1. When in place of ‘x’, 1 is put then polynomial value is zero. p(1) = 12 − 2 × 1 + 1 = 0 Roots of a polynomial is obtained either by fraction method or by substitution and re- duction method. ✞ -- p=poly ([1,2,3], ’s’) 2 -- roots(p) ✌ ✆ ✞ ans = 3. 2. 1. ✌ ✆
- 137. 2.2. ALGEBRA 103 2.2.18Simplification (simp) simp simplifies rational function. It returns numerator denominator as result. This functions takes two inputs as its arguments. First argument is numerator of algebraic function and second argument is denominator of the algebraic function. For example, assume a polynomial rational fraction f = (s + 1) ∗ (s + 2) (s + 1) ∗ (s − 2) On simplification of it, the result is f = s + 2 s − 2 Scilab code for this function is given below: ✞ -- s=poly (0,’s’); 2 -- [n,d]= simp ((s+1) *(s+2) ,(s+1)*(s-2)) ✌ ✆ ✞ d = - 2 + s n = 2 + s ✌ ✆ 2.2.19 Flip Matrix Dimension (flipdim) flipdim function flips the matrix with respect to the dimension as specified in the function. It is similar to the row or column interchange in the matrix during solving of a problem. Consider a matrix A as given below: A =
- 141.
- 145. When this matrixis flipped about first row, then flipped matrix becomes B as: B =
- 149.
