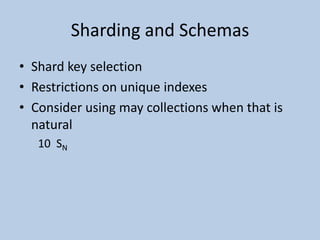

This document discusses schema design considerations for MongoDB, a document-oriented database. It recommends embedding related data rather than linking when possible to facilitate queries and atomicity. It also discusses using compare-and-swap operations to update documents atomically. Indexes should be used to make queries fast. Collections may need to be sharded, requiring the shard key to be chosen carefully. Multiple collections can model more complex data when natural.

1. Schema Design with MongoDBDwight MerrimanCEO10gen

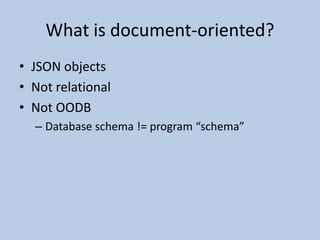

2. What is document-oriented?JSON objectsNot relationalNot OODBDatabase schema != program “schema”

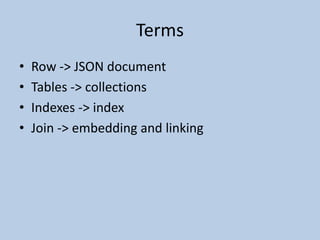

3. TermsRow -> JSON documentTables -> collectionsIndexes -> indexJoin -> embedding and linking

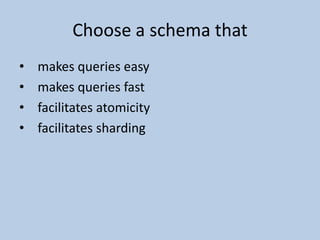

4. Choose a schema that makes queries easy makes queries fast facilitates atomicity facilitates sharding

5. Key question: embed vs. link“Contains relationship” : embedEmbed = “pre-joined”Links: client/server turnaroundsOn a close call, embed. Use rich documents.Note the 4MB object size limitArbitrary limit but pushes one towards good designs

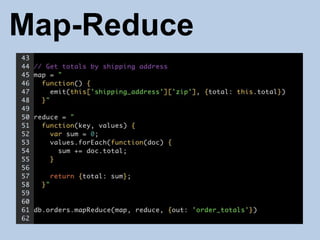

11. Map-Reduce

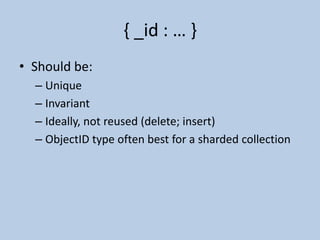

12. { _id : … }Should be:Unique Invariant Ideally, not reused (delete; insert)ObjectID type often best for a sharded collection

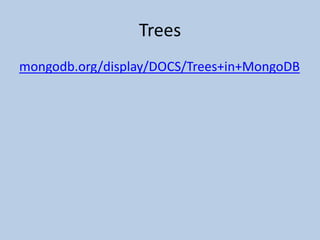

13. Treesmongodb.org/display/DOCS/Trees+in+MongoDB

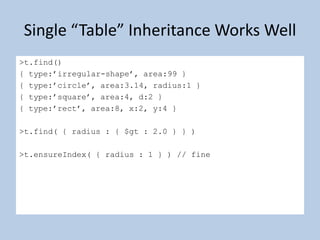

14. Single “Table” Inheritance Works Well> t.find(){ type:’irregular-shape’, area:99 }{ type:’circle’, area:3.14, radius:1 }{ type:’square’, area:4, d:2 }{ type:’rect’, area:8, x:2, y:4 }> t.find( { radius : { $gt : 2.0 } } )> t.ensureIndex( { radius : 1 } ) // fine

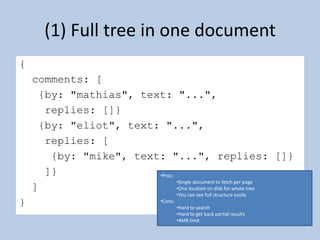

15. (1) Full tree in one document{ comments: [ {by: "mathias", text: "...", replies: []} {by: "eliot", text: "...", replies: [ {by: "mike", text: "...", replies: []} ]} ] }Pros:

16. Single document to fetch per page

17. One location on disk for whole tree

18. You can see full structure easily

19. Cons:

20. Hard to search

21. Hard to get back partial results

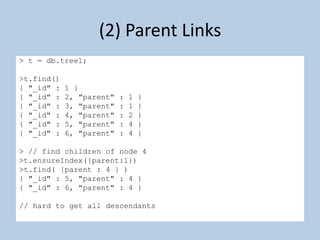

22. 4MB limit(2) Parent Links> t = db.tree1;> t.find(){ "_id" : 1 }{ "_id" : 2, "parent" : 1 }{ "_id" : 3, "parent" : 1 }{ "_id" : 4, "parent" : 2 }{ "_id" : 5, "parent" : 4 }{ "_id" : 6, "parent" : 4 }> // find children of node 4> t.ensureIndex({parent:1})> t.find( {parent : 4 } ){ "_id" : 5, "parent" : 4 }{ "_id" : 6, "parent" : 4 }// hard to get all descendants

23. (3) Array of Ancestors> t = db.mytree;> t.find(){ "_id" : "a" }{ "_id" : "b", "ancestors" : [ "a" ], "parent" : "a" }{ "_id" : "c", "ancestors" : [ "a", "b" ], "parent" : "b" }{ "_id" : "d", "ancestors" : [ "a", "b" ], "parent" : "b" }{ "_id" : "e", "ancestors" : [ "a" ], "parent" : "a" }{ "_id" : "f", "ancestors" : [ "a", "e" ], "parent" : "e" }{ "_id" : "g", "ancestors" : [ "a", "b", "d" ], "parent" : "d" }> t.ensureIndex( { ancestors : 1 } )> // find all descendents of b:> t.find( { ancestors : 'b' }){ "_id" : "c", "ancestors" : [ "a", "b" ], "parent" : "b" }{ "_id" : "d", "ancestors" : [ "a", "b" ], "parent" : "b" }{ "_id" : "g", "ancestors" : [ "a", "b", "d" ], "parent" : "d" }> // get all ancestors of f:> anc = db.mytree.findOne({_id:'f'}).ancestors[ "a", "e" ]> db.mytree.find( { _id : { $in : anc } } ){ "_id" : "a" }{ "_id" : "e", "ancestors" : [ "a" ], "parent" : "a" }

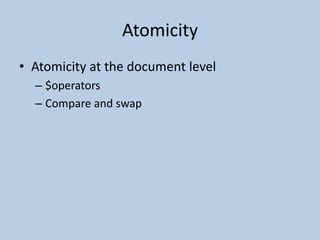

24. AtomicityAtomicity at the document level$operatorsCompare and swap

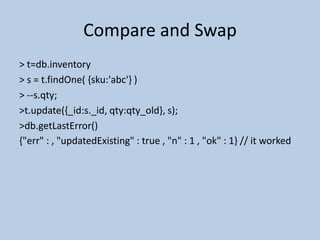

25. Compare and Swap> t=db.inventory> s = t.findOne( {sku:'abc'} )> --s.qty;> t.update({_id:s._id, qty:qty_old}, s);> db.getLastError(){"err" : , "updatedExisting" : true , "n" : 1 , "ok" : 1} // it worked

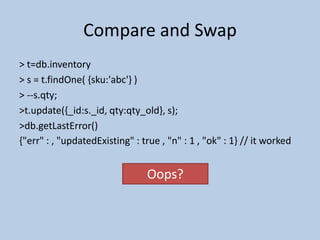

26. Compare and Swap> t=db.inventory> s = t.findOne( {sku:'abc'} )> --s.qty;> t.update({_id:s._id, qty:qty_old}, s);> db.getLastError(){"err" : , "updatedExisting" : true , "n" : 1 , "ok" : 1} // it worked Oops?

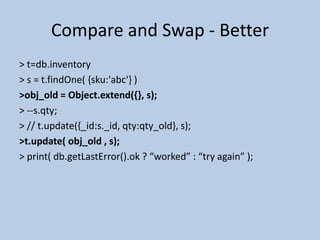

27. Compare and Swap - Better> t=db.inventory> s = t.findOne( {sku:'abc'} )> obj_old = Object.extend({}, s);> --s.qty;> // t.update({_id:s._id, qty:qty_old}, s);> t.update( obj_old , s);> print( db.getLastError().ok ? “worked” : “try again” );

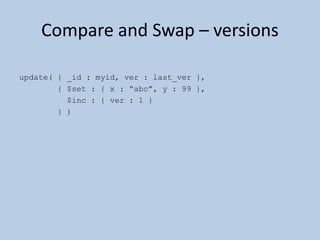

28. Compare and Swap – versionsupdate( { _id : myid, ver : last_ver }, { $set : { x : “abc”, y : 99 }, $inc : { ver : 1 } } )
