MongoDB

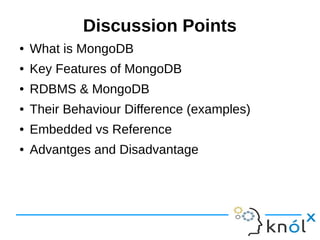

Discussion Points
● What is MongoDB
● Key Features of MongoDB
● RDBMS & MongoDB
● Their Behaviour Difference (examples)
● Embedded vs Reference
● Advantges and Disadvantages
What is mongoDB
● MongoDB is an open-source document
database that provides high performance, high
availability, and automatic scaling.
● High Performance
MongoDB provides high performance data
persistence. In particular,
● Support for embedded data models reduces I/O
activity on database system.

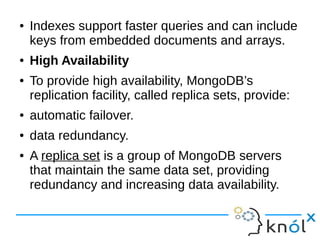

● Indexes support faster queries and can include
keys from embedded documents and arrays.
● High Availability
● To provide high availability, MongoDB’s
replication facility, called replica sets, provide:
● automatic failover.
● data redundancy.
● A replica set is a group of MongoDB servers
that maintain the same data set, providing
redundancy and increasing data availability.

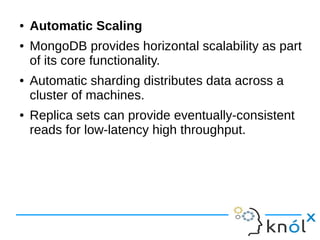

● Automatic Scaling
● MongoDB provides horizontal scalability as part
of its core functionality.
● Automatic sharding distributes data across a
cluster of machines.
● Replica sets can provide eventually-consistent
reads for low-latency high throughput.

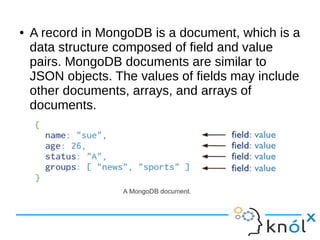

● A record in MongoDB is a document, which is a
data structure composed of field and value
pairs. MongoDB documents are similar to
JSON objects. The values of fields may include
other documents, arrays, and arrays of
documents.

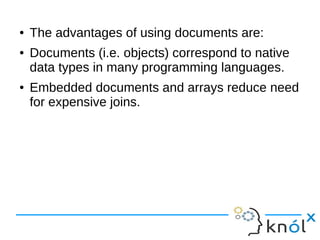

● The advantages of using documents are:
● Documents (i.e. objects) correspond to native
data types in many programming languages.
● Embedded documents and arrays reduce need
for expensive joins.

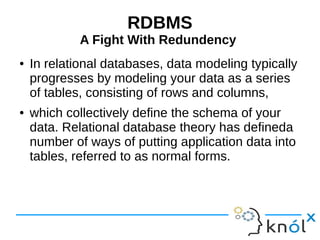

RDBMS
A Fight With Redundency
● In relational databases, data modeling typically
progresses by modeling your data as a series
of tables, consisting of rows and columns,
● which collectively define the schema of your
data. Relational database theory has defineda
number of ways of putting application data into
tables, referred to as normal forms.

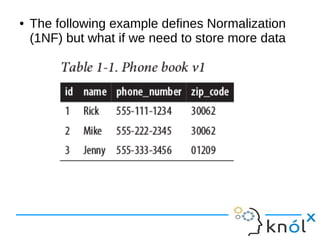

● The following example defines Normalization
(1NF) but what if we need to store more data
● SELECT name FROM contacts WHERE phone_numbers LIKE
'%555-222-2345%';
● But now we have a table that’s no longer in first normal form

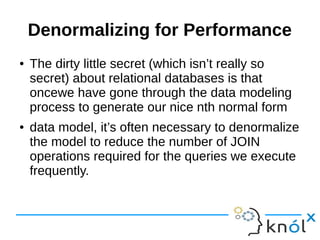

Denormalizing for Performance
● The dirty little secret (which isn’t really so
secret) about relational databases is that
oncewe have gone through the data modeling
process to generate our nice nth normal form
● data model, it’s often necessary to denormalize
the model to reduce the number of JOIN
operations required for the queries we execute
frequently.
Do we need Normalization??
● Data doesn’t always have to be tabular,
basically throwing most of traditional database
normalization out, starting with first normal
form. In MongoDB, data is stored in documents.
● This means that where the first normal form in
relational databases required that each row-column
intersection contain exactly one value,
MongoDB allows you to store an array of
values if you so desire.
Document Structure
● The key decision in designing data models for
MongoDB applications revolves around the
structure of documents and how the application
represents relationships between data.
● There are two tools that allow applications to
represent these relationships:
● references and embedded documents.

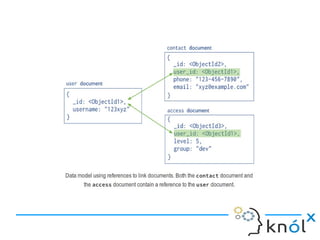

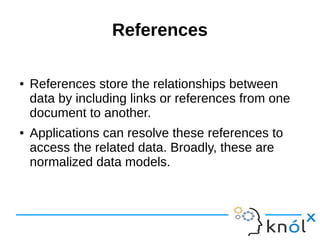

References
● References store the relationships between
data by including links or references from one
document to another.
● Applications can resolve these references to
access the related data. Broadly, these are
normalized data models.

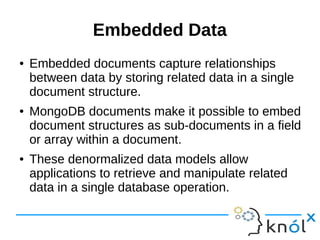

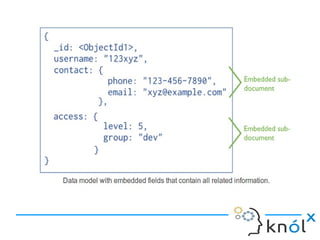

Embedded Data
● Embedded documents capture relationships
between data by storing related data in a single
document structure.
● MongoDB documents make it possible to embed
document structures as sub-documents in a field
or array within a document.
● These denormalized data models allow
applications to retrieve and manipulate related
data in a single database operation.

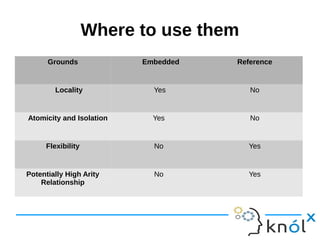

Where to use them
Grounds Embedded Reference
Locality Yes No
Atomicity and Isolation Yes No
Flexibility No Yes
Potentially High Arity
Relationship
No Yes

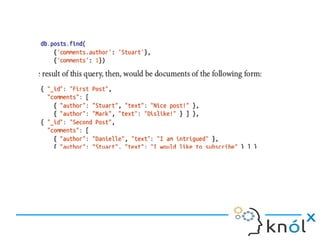

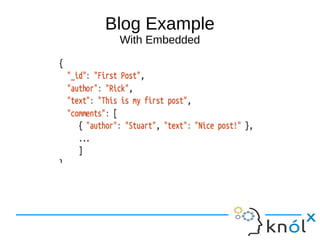

Blog Example
With Embedded

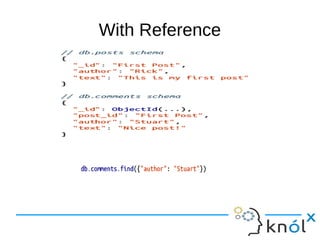

With Reference
Advantages & Disadvantages
● High Performance
● Models
● Flexible Schema
● Solution to complex distributed transactions
and Join operations
● RAM limitations

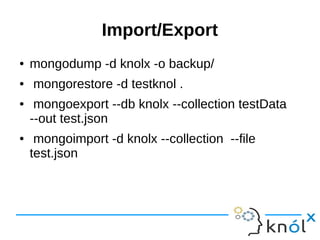

Import/Export
● mongodump -d knolx -o backup/
● mongorestore -d testknol .
● mongoexport --db knolx --collection testData
--out test.json
● mongoimport -d knolx --collection --file
test.json

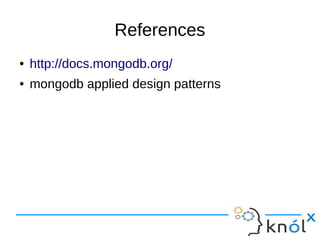

References
● http://docs.mongodb.org/
● mongodb applied design patterns
Thank You :)
