MongoDB is a cross-platform document-oriented database that provides high performance, high availability, and easy scalability. It uses a document-based data model where data is stored in JSON-like documents within collections, instead of using tables with rows as in relational databases. MongoDB can be scaled horizontally and supports replication and sharding. It also supports dynamic queries on documents using a document-based query language.

1. MONGO DB

2. MONGO DB
 MongoDB is a cross-platform, document oriented
database that provides, high performance, high
availability and easy scalability.
 MongoDB works on concept of collection and document.

3. MONGO DB
Developed by 10gen
 Founded in 2007
 A document-oriented, NoSQL database
 Hash-based, schema-less database
 No Data Definition Language
 In practice, this means it can store hashes with any keys
and values.
 Keys are a basic data type but in reality stored as strings

4. Contd,
 Application tracks the schema and mapping
 Based on JSON – B, B stands for Binary
 Written in C++
 Supports APIs (drivers) in many computer languages,
 JavaScript, Python, Ruby, Perl, Java, Scala, C#, C++,
Haskell, Erlang.

5. Who uses MongoDB

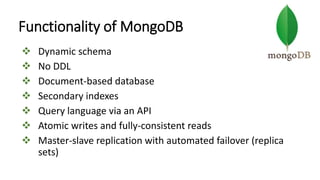

6. Functionality of MongoDB
 Dynamic schema
 No DDL
 Document-based database
 Secondary indexes
 Query language via an API
 Atomic writes and fully-consistent reads
 Master-slave replication with automated failover (replica
sets)

7. MongoDB: CAP approach
Focus on Consistency and
Partition tolerance
Consistency:
 All replicas contain the
same version of data
Availability
 System remains operational
on failing nodes
Partition tolarence
 Multiple entry points
 System remains operational
on system split
CAP Theorem:
satisfying all three at the
same time is impossible

8. Document Store
RDBMS MongoDB
Database Database
Table, View Collection
Row Document
Column Field
Index Index
Join Embedded Document
Foreign Key Reference

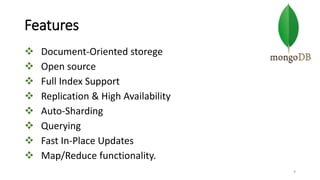

9. Features
 Document-Oriented storege
 Open source
 Full Index Support
 Replication & High Availability
 Auto-Sharding
 Querying
 Fast In-Place Updates
 Map/Reduce functionality.
9

10. Contd,
 Easy to install and use
 Detailed documentation
 Various APIs
 Community
10

11. Advantages of MongoDB over RDBMS
 Schema less: MongoDB is a document database in
which one collection holds different documents.
Number of fields, content and size of the
document can differ from one document to
another.
 Structure of a single object is clear.
 No complex joins.
 Deep query-ability. MongoDB supports dynamic
queries on documents using a document-based
query language that's nearly as powerful as SQL.

12. Contd,
 Ease of scale-out: MongoDB is easy to scale.
 Conversion/mapping of application objects to database
objects not needed.
 Uses internal memory for storing the working set,
enabling faster access of data.

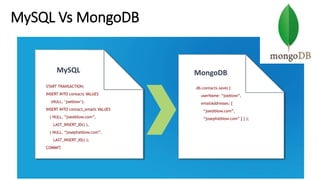

13. MySQL Vs MongoDB
START TRANSACTION;
INSERT INTO contacts VALUES
(NULL, ‘joeblow’);
INSERT INTO contact_emails VALUES
( NULL, ”joe@blow.com”,
LAST_INSERT_ID() ),
( NULL, “joseph@blow.com”,
LAST_INSERT_ID() );
COMMIT;
MongoDB
db.contacts.save( {
userName: “joeblow”,
emailAddresses: [
“joe@blow.com”,
“joseph@blow.com” ] } );
MySQL

14. CRUD
Create
db.collection.insert( <document> )
db.collection.save( <document> )
Read
db.collection.find( <query>, <projection> )
db.collection.findOne( <query>, <projection> )

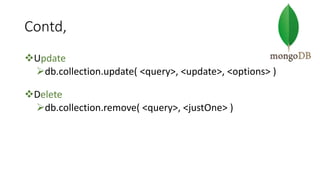

15. Contd,
Update
db.collection.update( <query>, <update>, <options> )
Delete
db.collection.remove( <query>, <justOne> )

16. Create Database
The use Command,
MongoDB use DATABASE_NAME is used to create
database. The command will create a new database if it
doesn't exist, otherwise it will return the existing database.
Syntax
use DATABASE_NAME

17. Contd,
To check the currently selected database, use the
command db.
 Syntax
>db
To check all database lists use the command
 Syntax
>show dbs
In MongoDB default database is test. If you didn't create
any database, then collections will be stored in test
database.

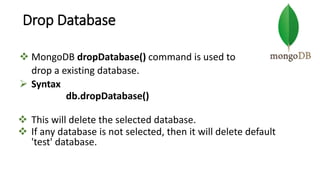

18. Drop Database
 MongoDB dropDatabase() command is used to
drop a existing database.
 Syntax
db.dropDatabase()
 This will delete the selected database.
 If any database is not selected, then it will delete default
'test' database.

20. Create Collection
 MongoDB createCollection is used to create
collection.
 Syntax
db.createCollection(name, options)
 name is name of collection to be created.
 Options is a document and is used to specify
configuration of collection like memory size and indexing.
 To check the created collection by using the command show
collections.

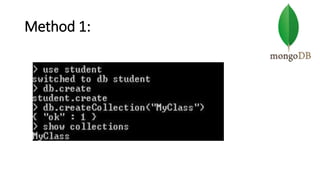

21. Method 1:

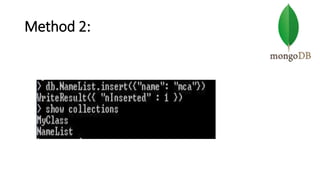

22. Method 2:

23. Drop a Collection
MongoDB's collection.drop() is used to drop a collection
from the database.
 Syntax
db.COLLECTION_NAME.drop()

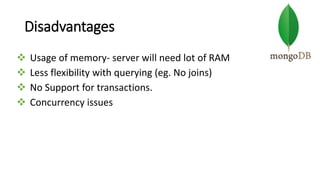

25. Disadvantages
 Usage of memory- server will need lot of RAM
 Less flexibility with querying (eg. No joins)
 No Support for transactions.
 Concurrency issues

26. QUERIES???

27. REFERENCES
• www.tutorialspoint/mongodb
• www.mongodb.com/
• www.wikipedia.org/mongodb

28. THANK YOU!!!
