This document discusses real-time analytics and introduces WSO2 Complex Event Processing (CEP) as a SQL-like language for real-time analytics. It describes how CEP can be used to define filtering, aggregation, pattern matching, and other common operations on streaming data. It also discusses how CEP queries can be scaled out across multiple nodes by partitioning streams and queries. CEP provides an easy to use yet powerful way to perform real-time analytics on streaming data at scale.

1. Scalable Realtime
Analytics with
declarative, SQL like,
Complex Event
Processing Scripts
Srinath Perera
Director, Research WSO2
Apache Member
(@srinath_perera)
srinath@wso2.com

2. (Batch) Analytics
Scientists are doing this for 25 year with
MPI (1991) on special Hardware
Took off with Google’s MapReduce
paper (2004), Apache Hadoop, Hive and
whole eco system created.
It was successful, So we are here!!
But, processing takes time.

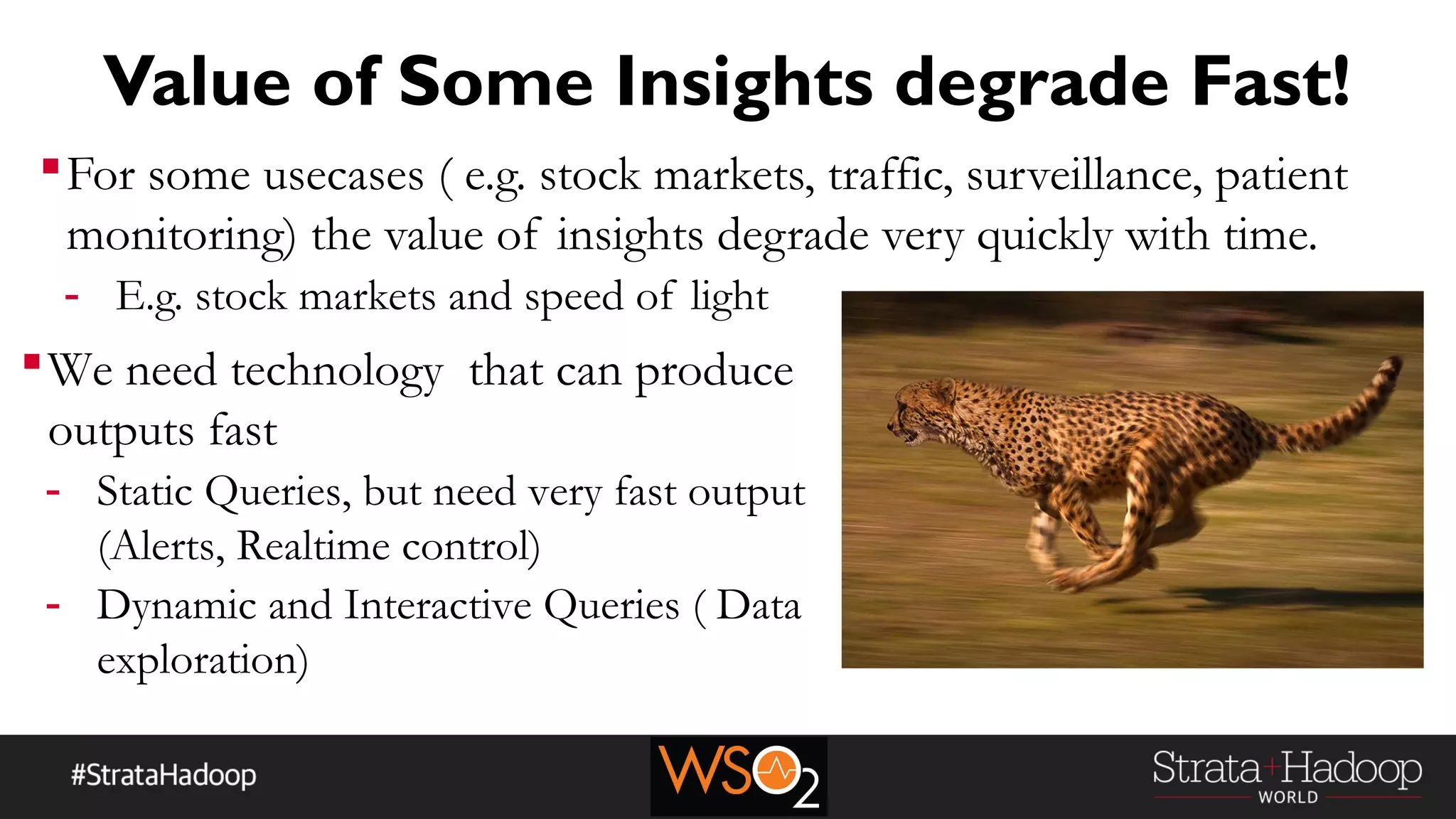

3. Value of Some Insights degrade Fast!
For some usecases ( e.g. stock markets, traffic, surveillance, patient
monitoring) the value of insights degrade very quickly with time.
- E.g. stock markets and speed of light
We need technology that can produce
outputs fast
- Static Queries, but need very fast output
(Alerts, Realtime control)
- Dynamic and Interactive Queries ( Data
exploration)

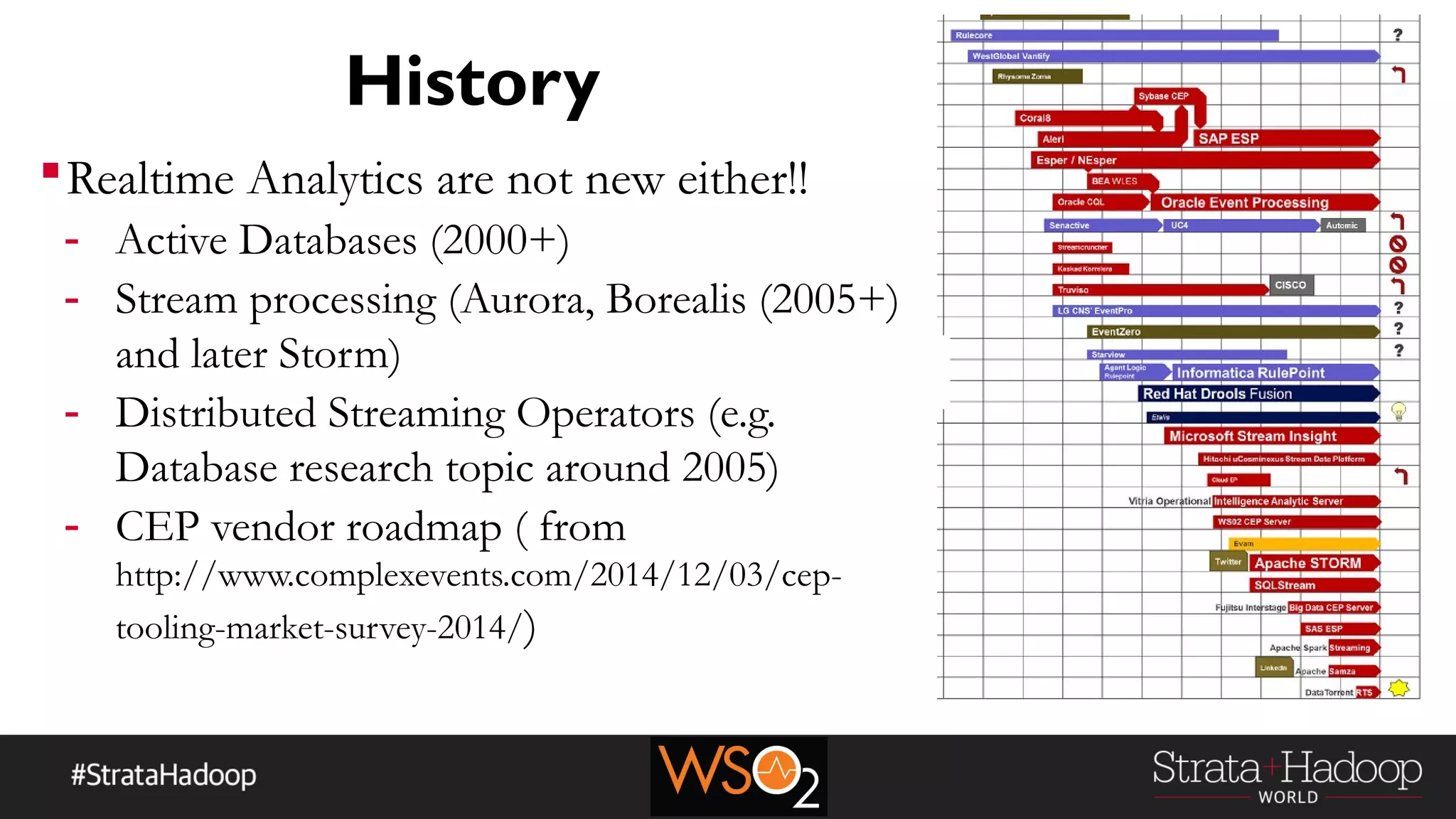

4. History
Realtime Analytics are not new either!!
- Active Databases (2000+)
- Stream processing (Aurora, Borealis (2005+)
and later Storm)
- Distributed Streaming Operators (e.g.
Database research topic around 2005)
- CEP vendor roadmap ( from
http://www.complexevents.com/2014/12/03/cep-
tooling-market-survey-2014/)

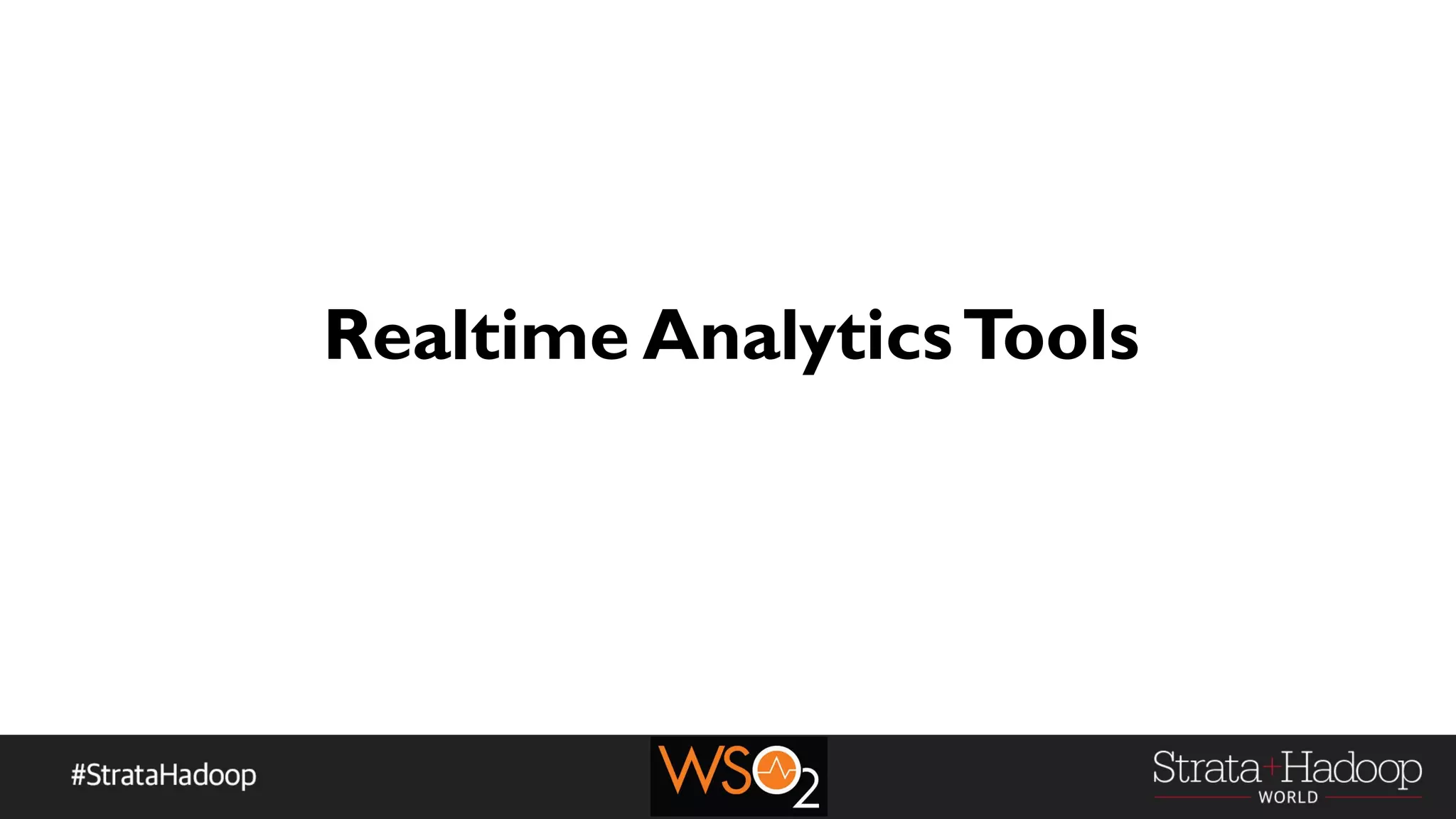

6. Realtime AnalyticsTools

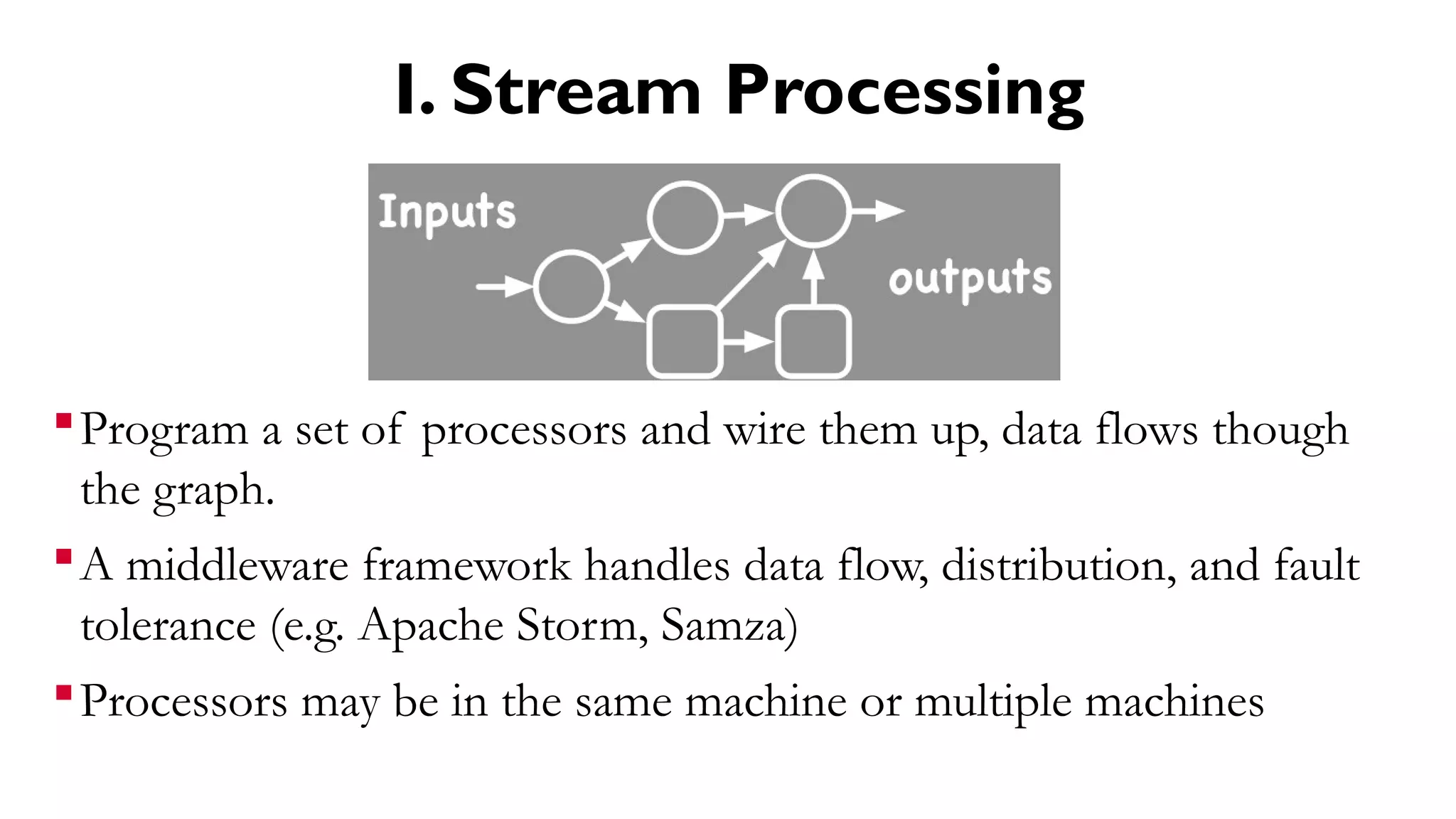

7. I. Stream Processing
Program a set of processors and wire them up, data flows though
the graph.
A middleware framework handles data flow, distribution, and fault
tolerance (e.g. Apache Storm, Samza)
Processors may be in the same machine or multiple machines

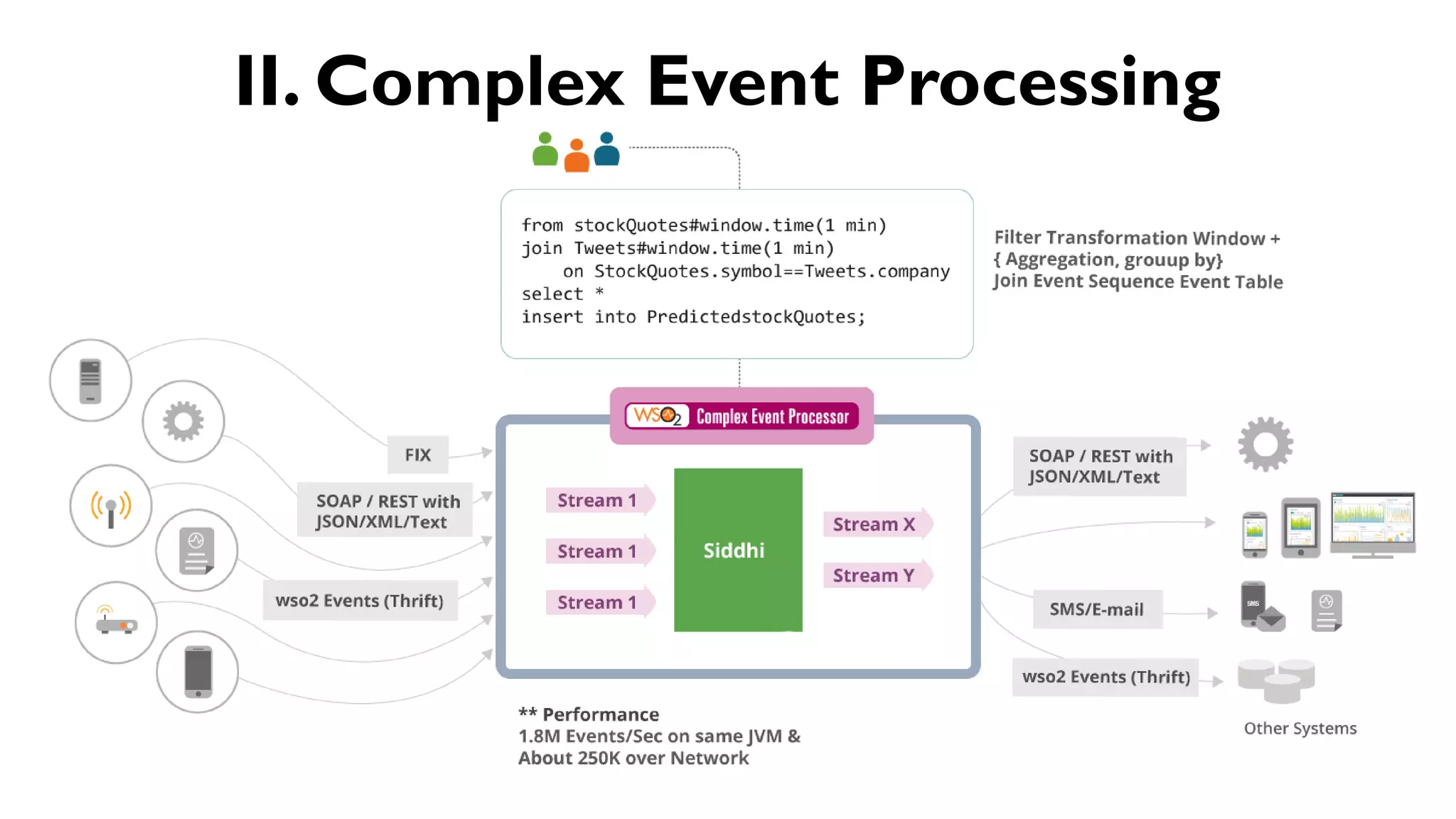

8. II. Complex Event Processing

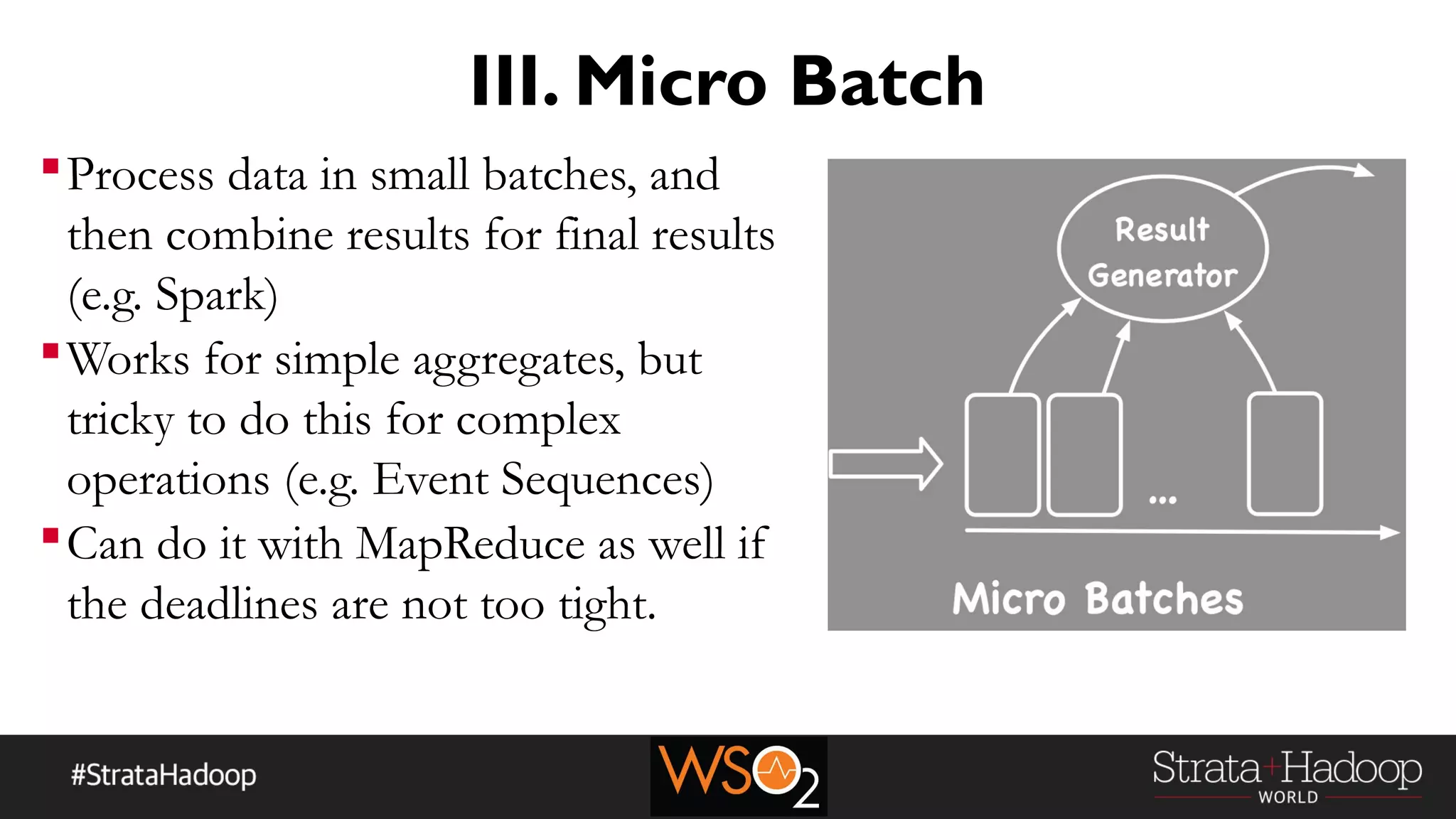

9. III. Micro Batch
Process data in small batches, and
then combine results for final results
(e.g. Spark)
Works for simple aggregates, but
tricky to do this for complex
operations (e.g. Event Sequences)
Can do it with MapReduce as well if
the deadlines are not too tight.

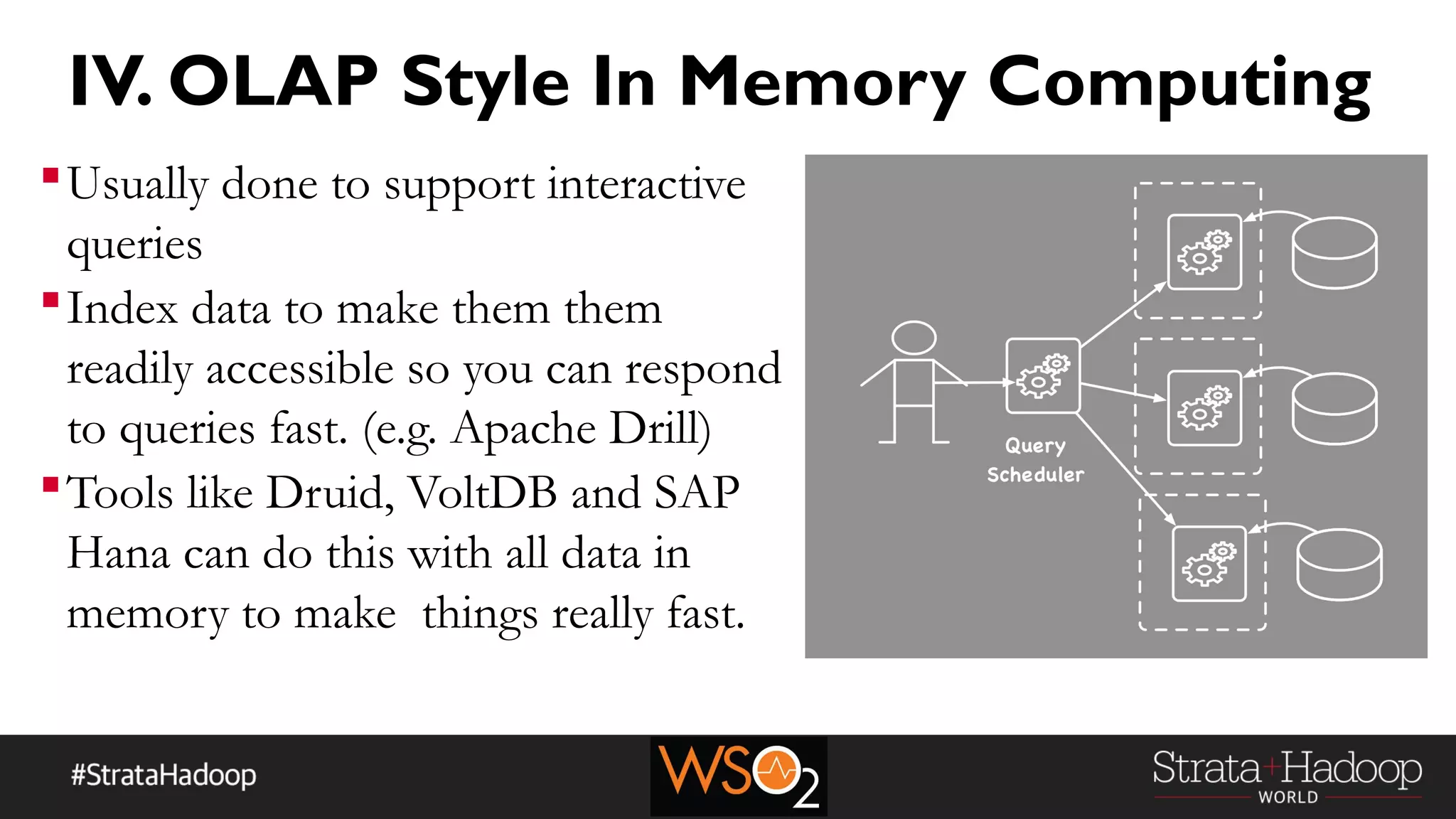

10. IV. OLAP Style In Memory Computing
Usually done to support interactive
queries
Index data to make them them
readily accessible so you can respond
to queries fast. (e.g. Apache Drill)
Tools like Druid, VoltDB and SAP
Hana can do this with all data in
memory to make things really fast.

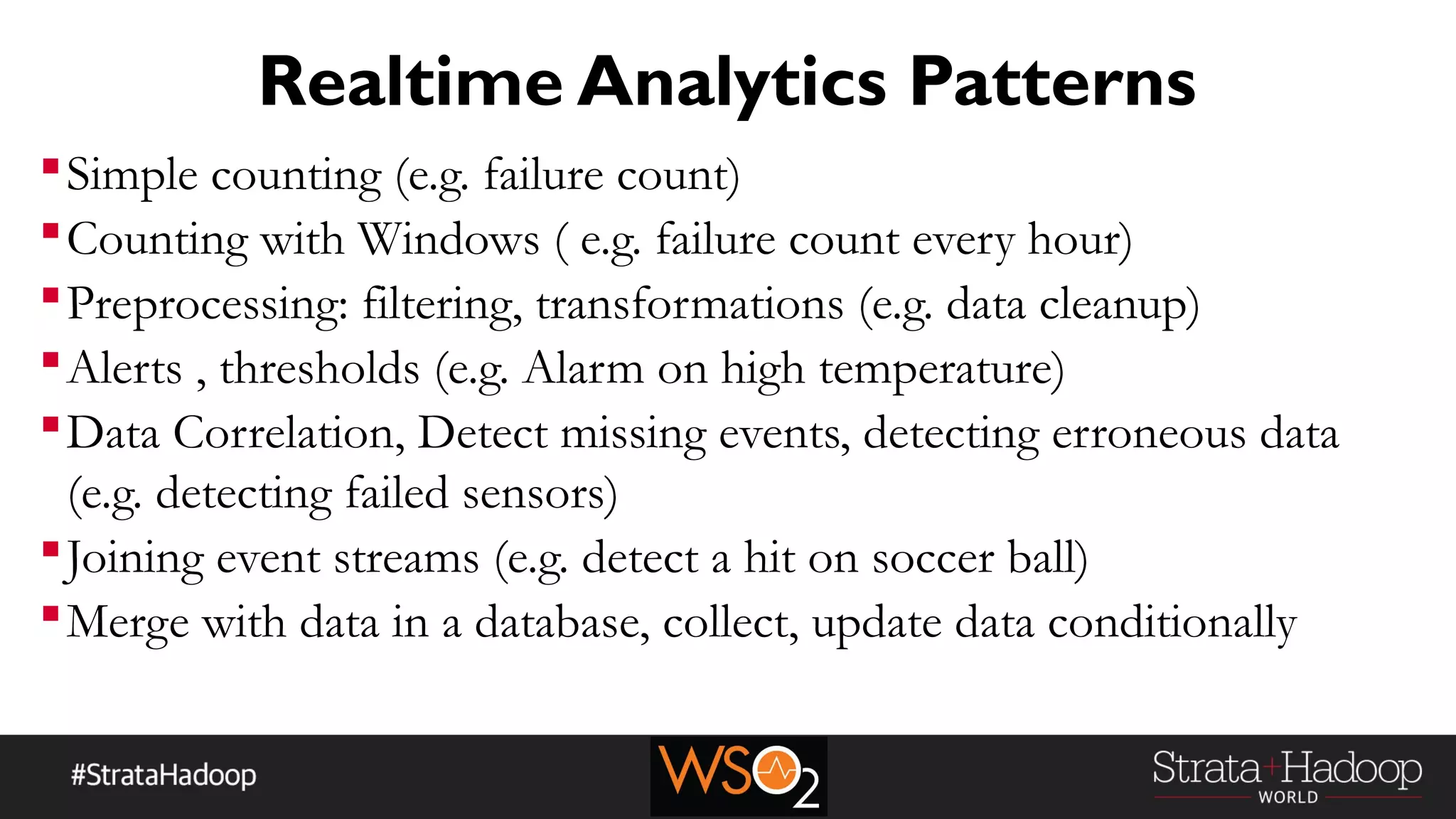

11. Realtime Analytics Patterns
Simple counting (e.g. failure count)
Counting with Windows ( e.g. failure count every hour)
Preprocessing: filtering, transformations (e.g. data cleanup)
Alerts , thresholds (e.g. Alarm on high temperature)
Data Correlation, Detect missing events, detecting erroneous data
(e.g. detecting failed sensors)
Joining event streams (e.g. detect a hit on soccer ball)
Merge with data in a database, collect, update data conditionally

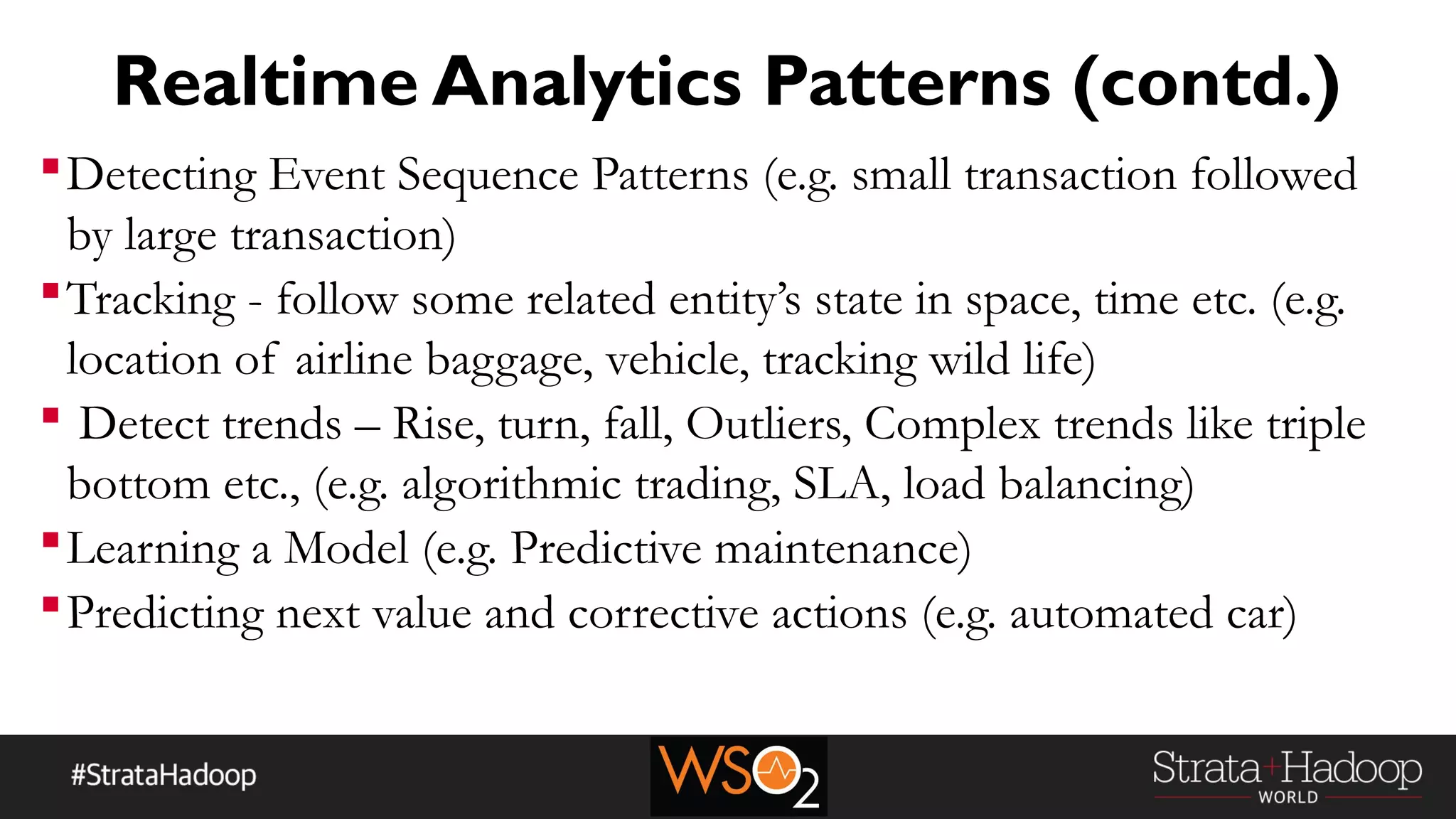

12. Realtime Analytics Patterns (contd.)
Detecting Event Sequence Patterns (e.g. small transaction followed
by large transaction)
Tracking - follow some related entity’s state in space, time etc. (e.g.
location of airline baggage, vehicle, tracking wild life)
 Detect trends – Rise, turn, fall, Outliers, Complex trends like triple
bottom etc., (e.g. algorithmic trading, SLA, load balancing)
Learning a Model (e.g. Predictive maintenance)
Predicting next value and corrective actions (e.g. automated car)

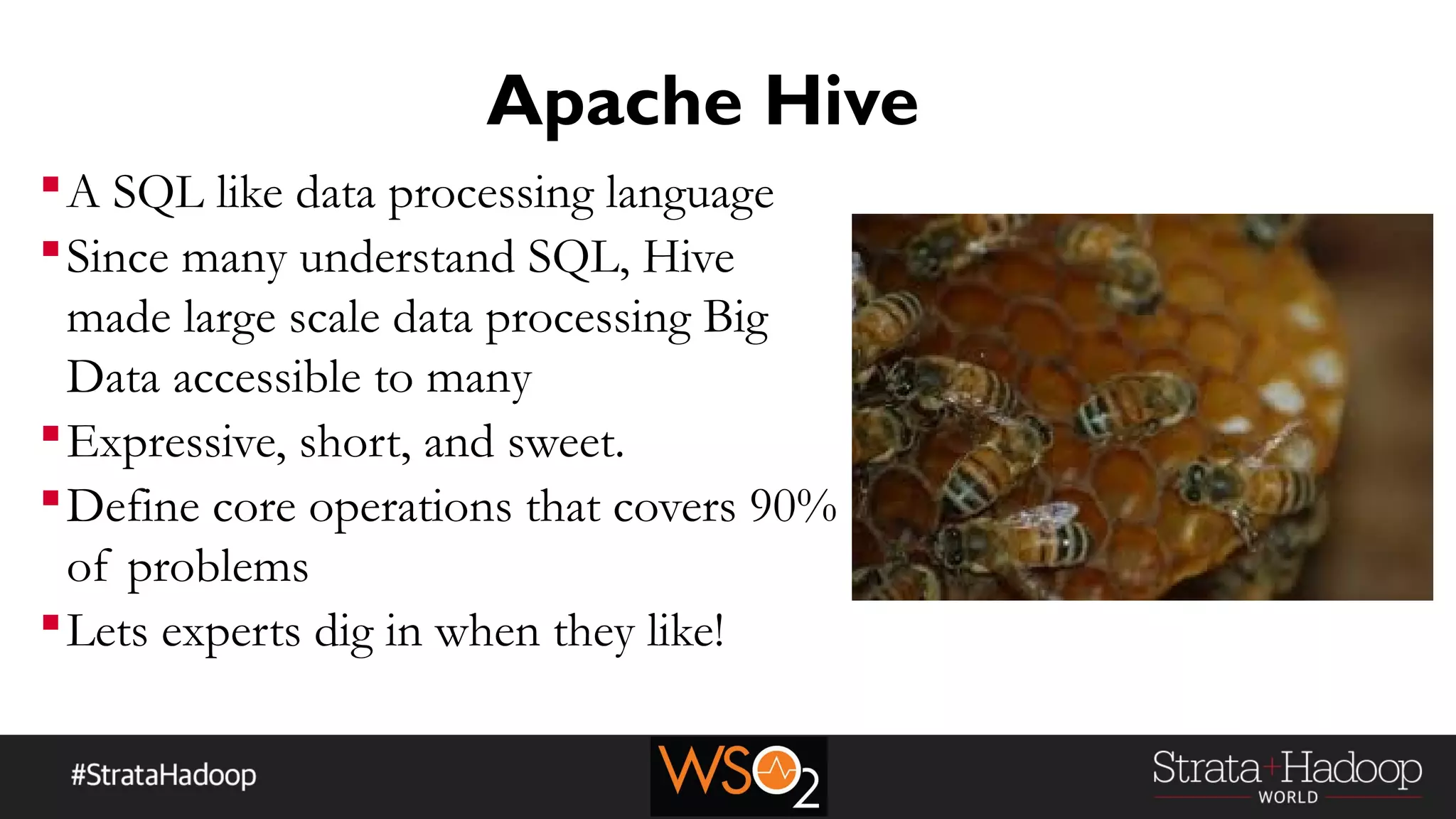

13. Apache Hive
A SQL like data processing language
Since many understand SQL, Hive
made large scale data processing Big
Data accessible to many
Expressive, short, and sweet.
Define core operations that covers 90%
of problems
Lets experts dig in when they like!

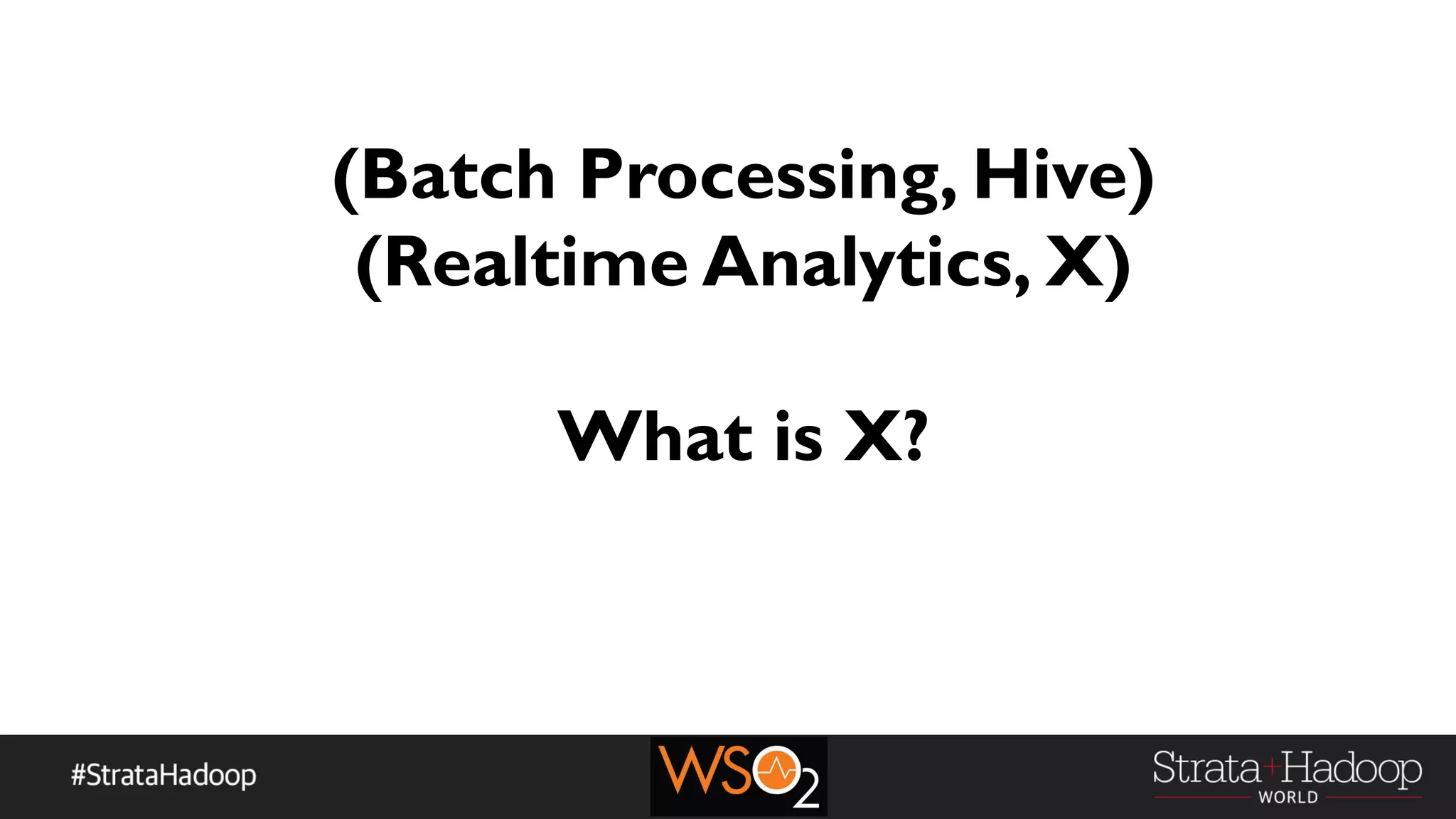

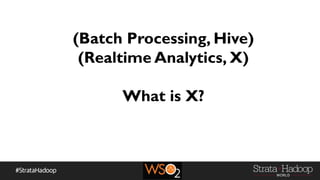

14. (Batch Processing, Hive)
(Realtime Analytics, X)
What is X?

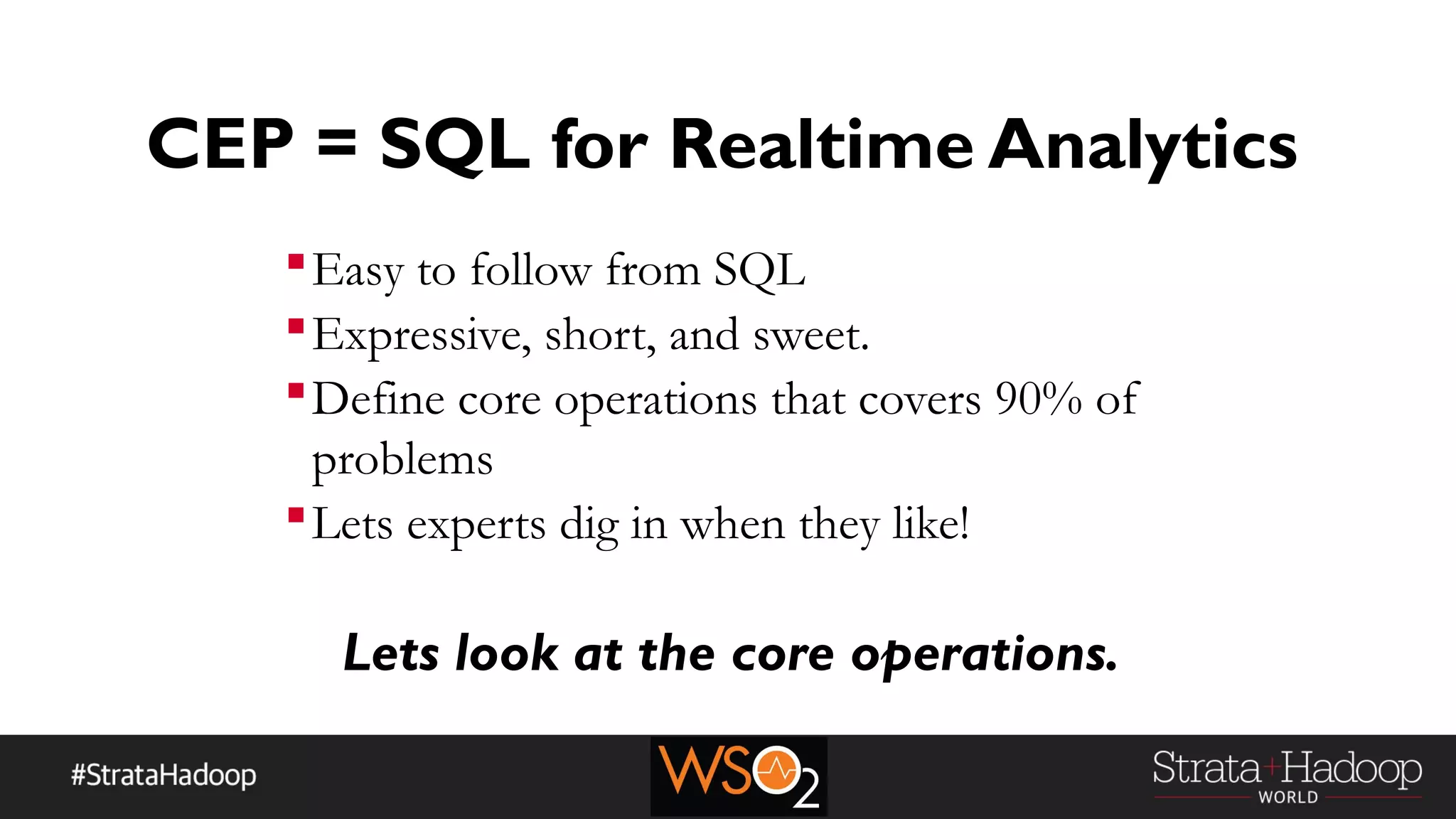

15. CEP = SQL for Realtime Analytics
Easy to follow from SQL
Expressive, short, and sweet.
Define core operations that covers 90% of
problems
Lets experts dig in when they like!
Lets look at the core operations.

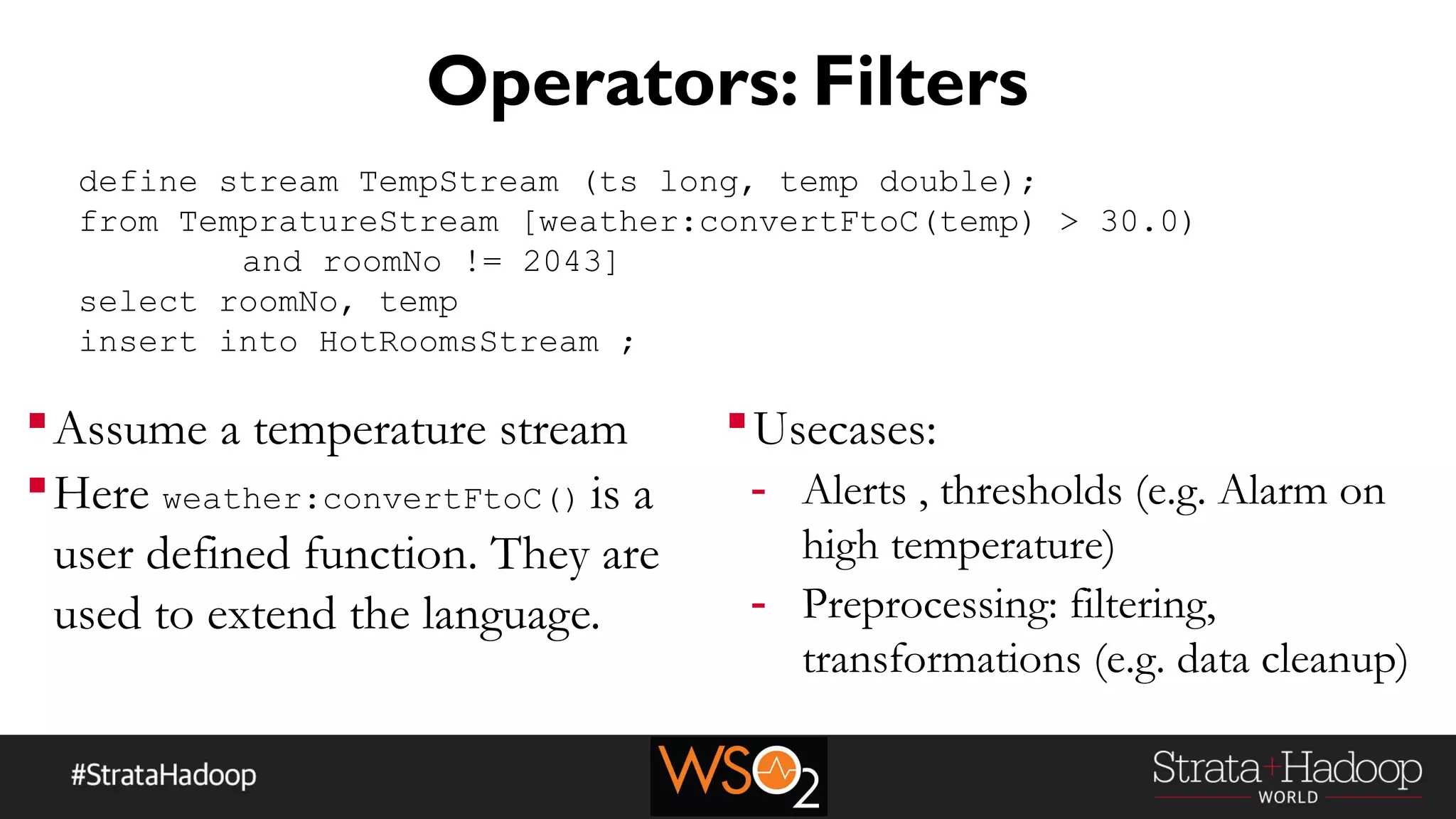

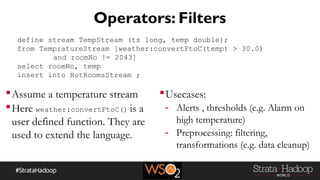

16. Operators: Filters
Assume a temperature stream
Here weather:convertFtoC() is a
user defined function. They are
used to extend the language.
define stream TempStream (ts long, temp double);
from TempratureStream [weather:convertFtoC(temp) > 30.0)
and roomNo != 2043]
select roomNo, temp
insert into HotRoomsStream ;
Usecases:
- Alerts , thresholds (e.g. Alarm on
high temperature)
- Preprocessing: filtering,
transformations (e.g. data cleanup)

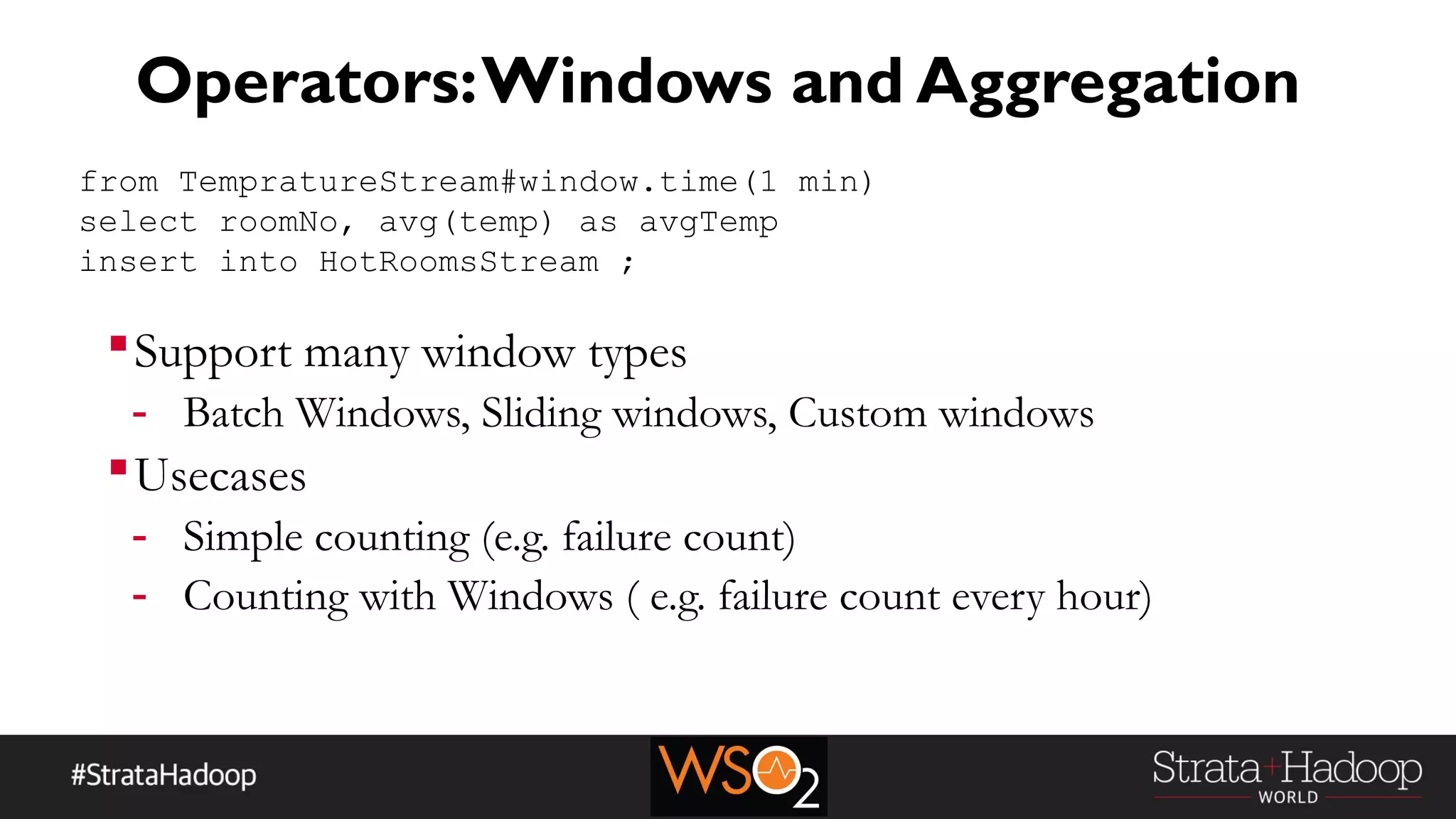

17. Operators:Windows and Aggregation
Support many window types
- Batch Windows, Sliding windows, Custom windows
Usecases
- Simple counting (e.g. failure count)
- Counting with Windows ( e.g. failure count every hour)
from TempratureStream#window.time(1 min)
select roomNo, avg(temp) as avgTemp
insert into HotRoomsStream ;

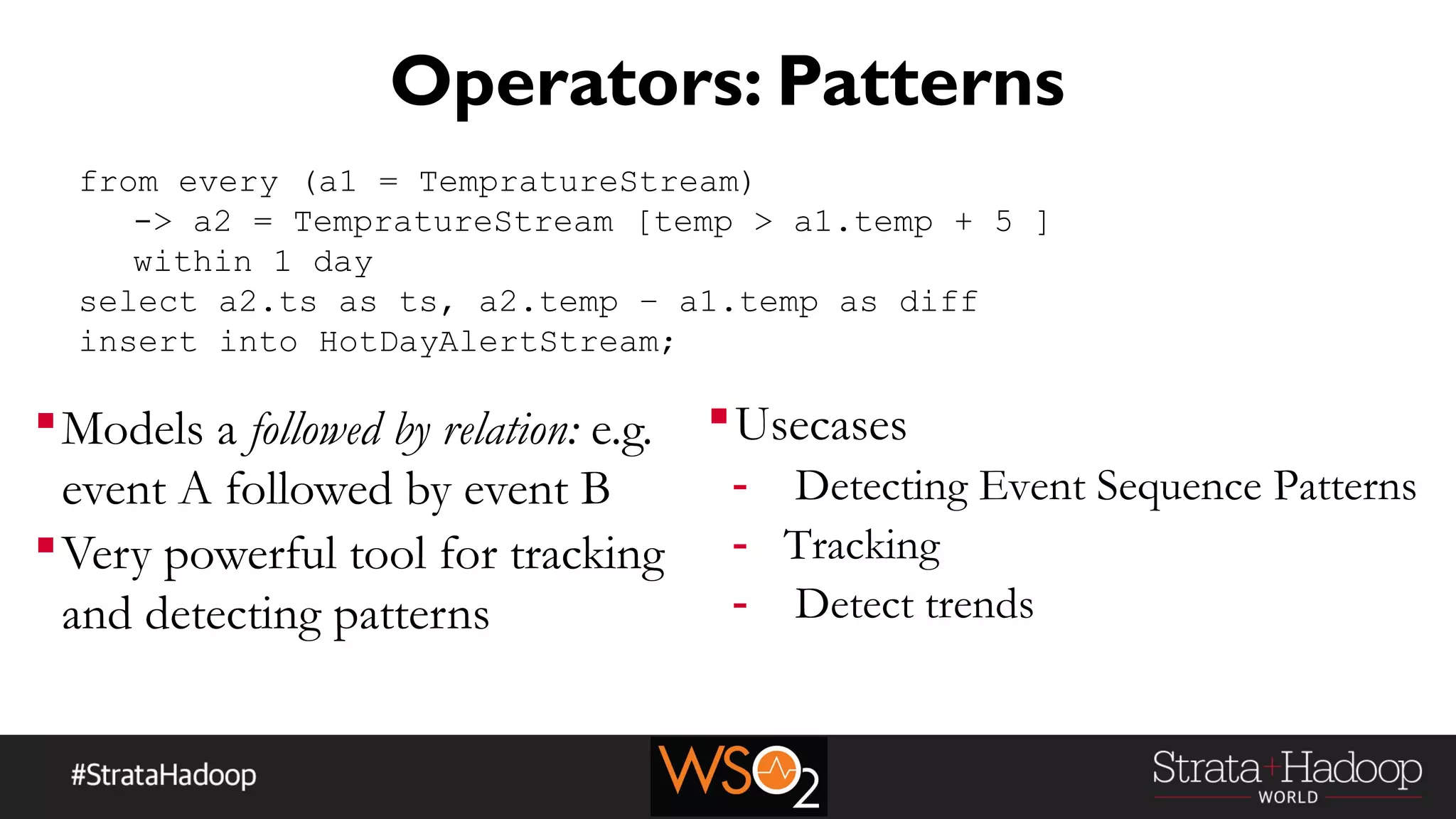

18. Operators: Patterns
Models a followed by relation: e.g.
event A followed by event B
Very powerful tool for tracking
and detecting patterns
from every (a1 = TempratureStream)
-> a2 = TempratureStream [temp > a1.temp + 5 ]
within 1 day
select a2.ts as ts, a2.temp – a1.temp as diff
insert into HotDayAlertStream;
Usecases
- Detecting Event Sequence Patterns
- Tracking
- Detect trends

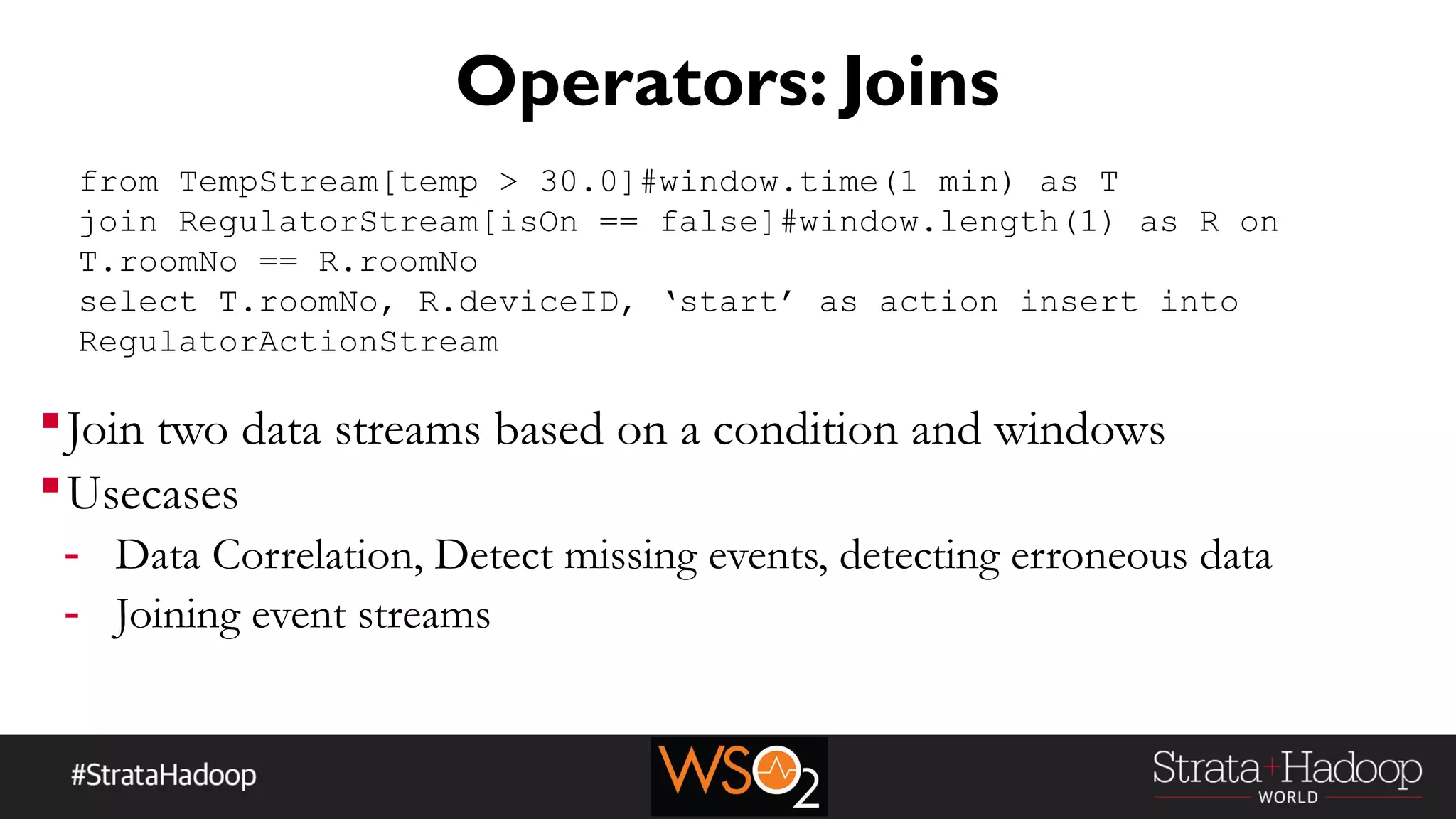

19. Operators: Joins
Join two data streams based on a condition and windows
Usecases
- Data Correlation, Detect missing events, detecting erroneous data
- Joining event streams
from TempStream[temp > 30.0]#window.time(1 min) as T
join RegulatorStream[isOn == false]#window.length(1) as R on
T.roomNo == R.roomNo
select T.roomNo, R.deviceID, ‘start’ as action insert into
RegulatorActionStream

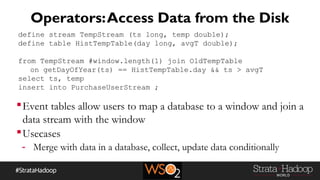

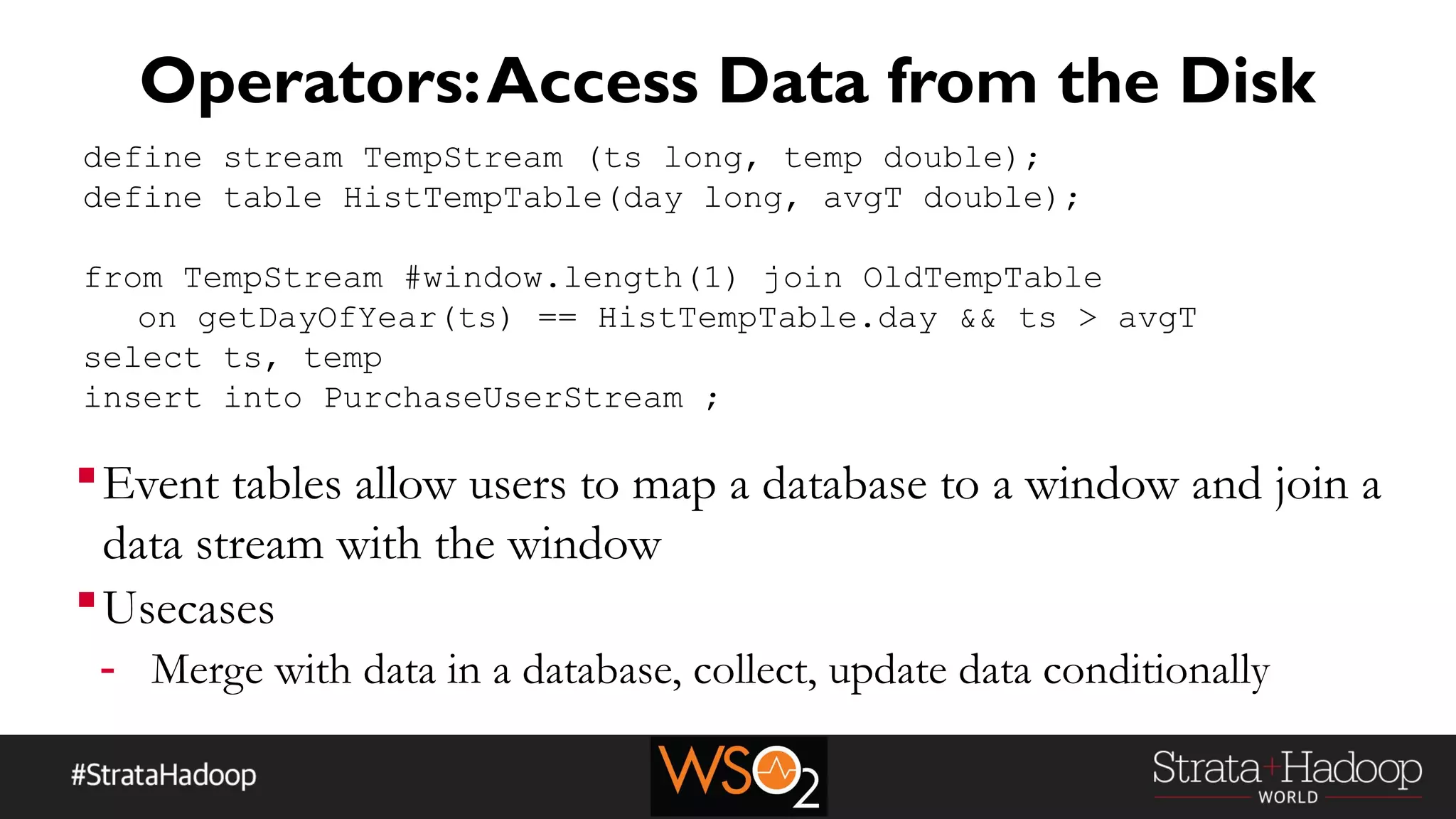

20. Operators:Access Data from the Disk
Event tables allow users to map a database to a window and join a
data stream with the window
Usecases
- Merge with data in a database, collect, update data conditionally
define stream TempStream (ts long, temp double);
define table HistTempTable(day long, avgT double);
from TempStream #window.length(1) join OldTempTable
on getDayOfYear(ts) == HistTempTable.day && ts > avgT
select ts, temp
insert into PurchaseUserStream ;

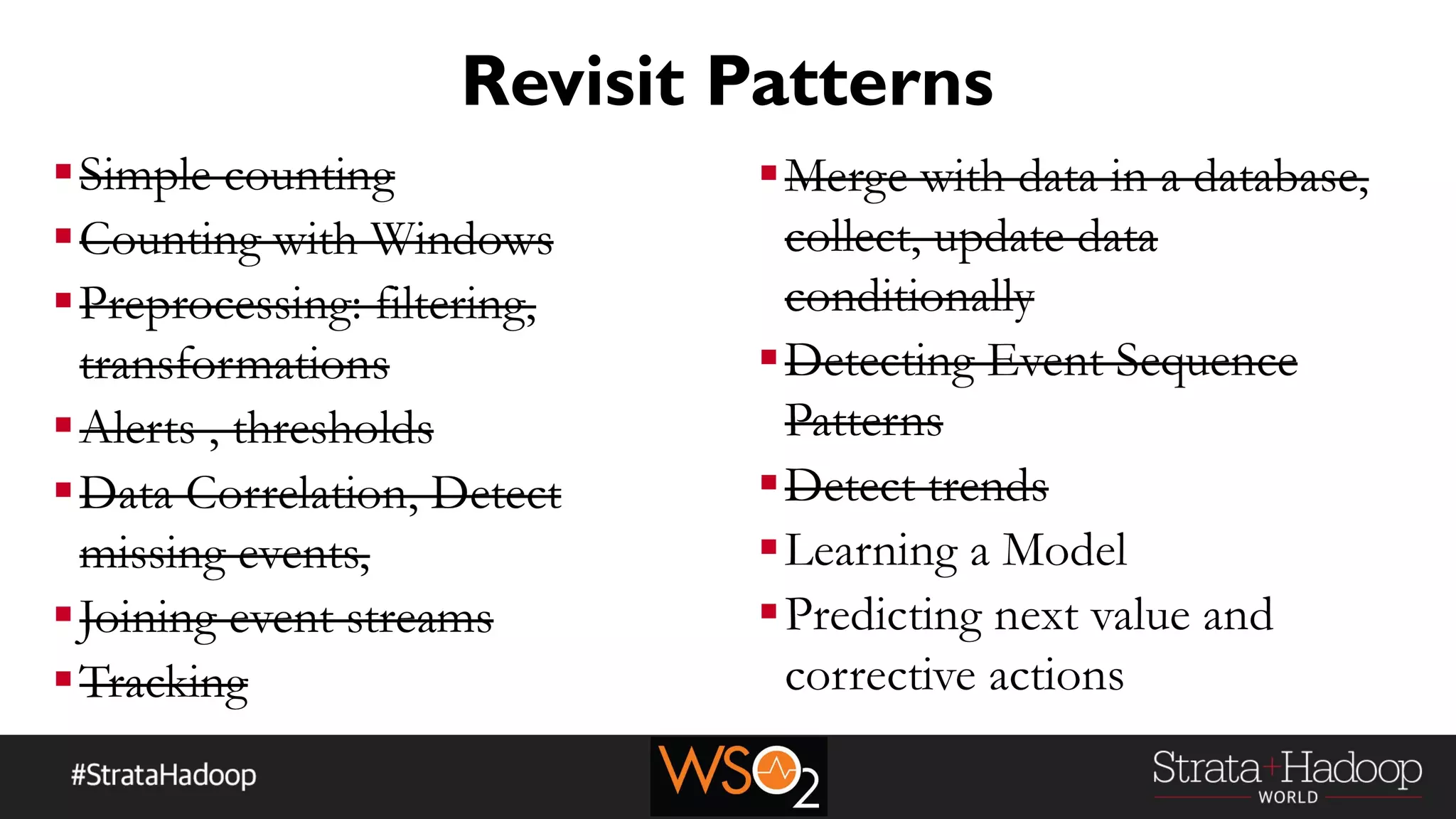

21. Revisit Patterns

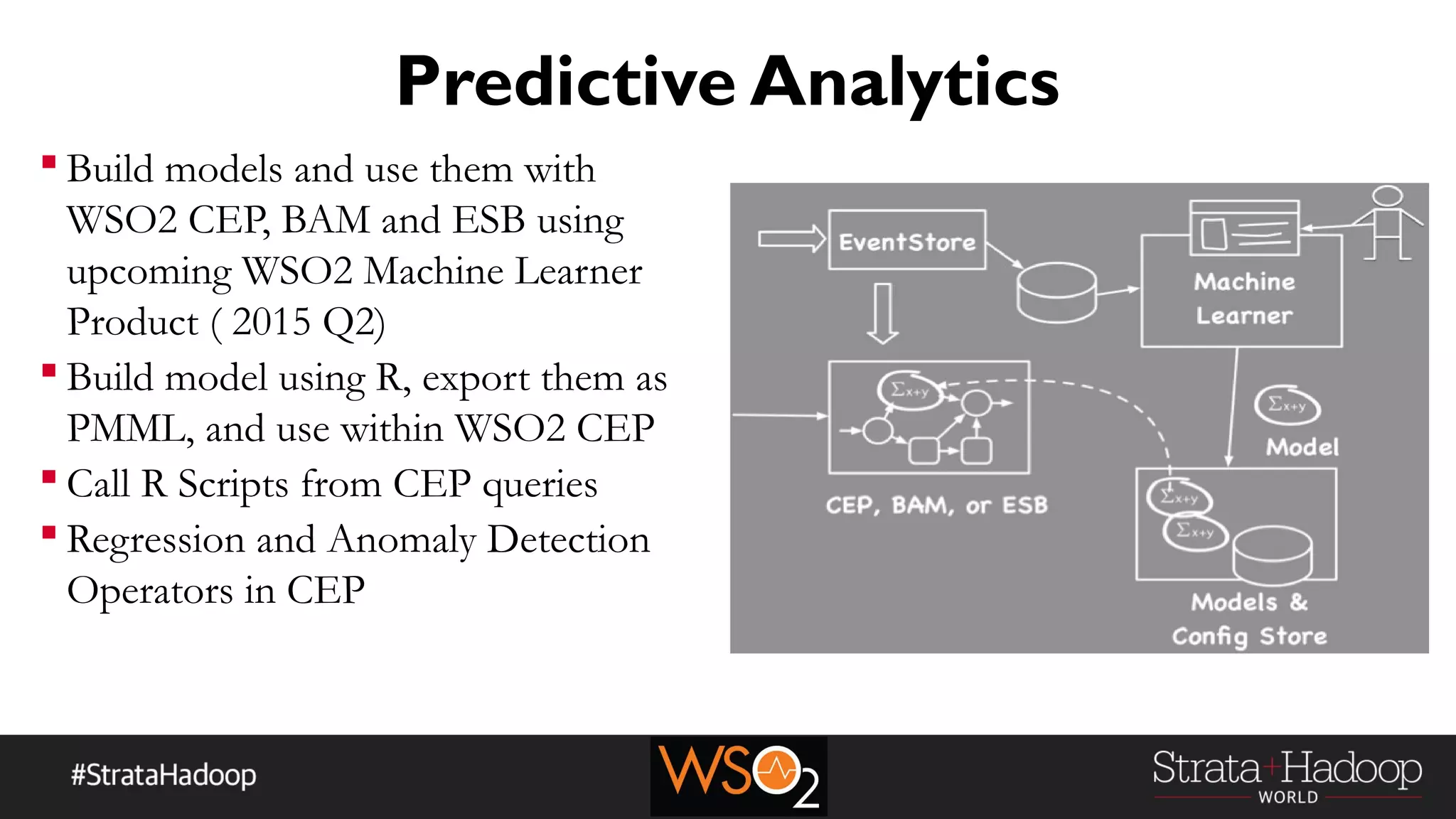

22. Predictive Analytics
 Build models and use them with
WSO2 CEP, BAM and ESB using
upcoming WSO2 Machine Learner
Product ( 2015 Q2)
 Build model using R, export them as
PMML, and use within WSO2 CEP
 Call R Scripts from CEP queries
 Regression and Anomaly Detection
Operators in CEP

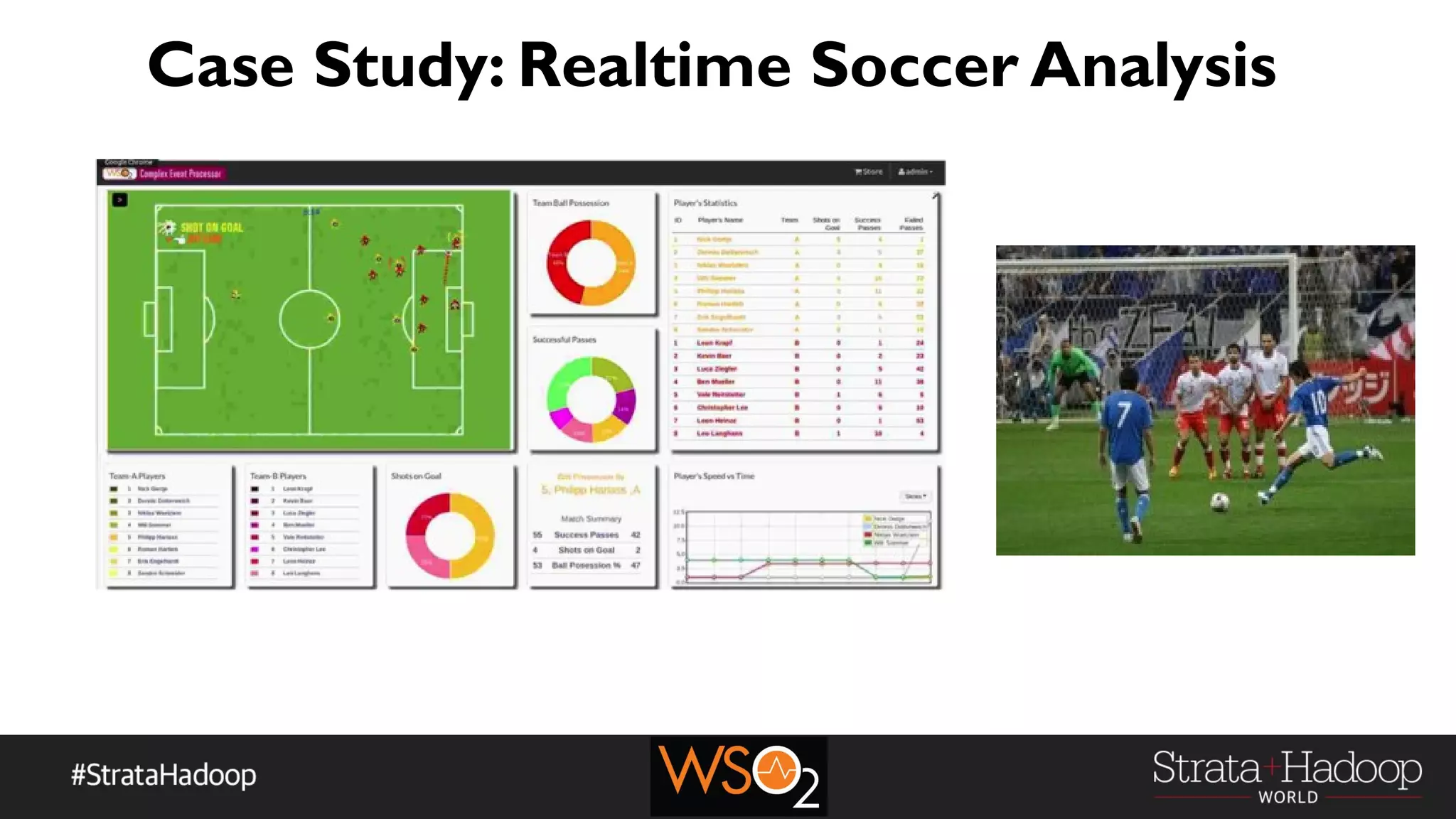

23. Case Study: Realtime Soccer Analysis
Watch at: https://www.youtube.com/watch?v=nRI6buQ0NOM

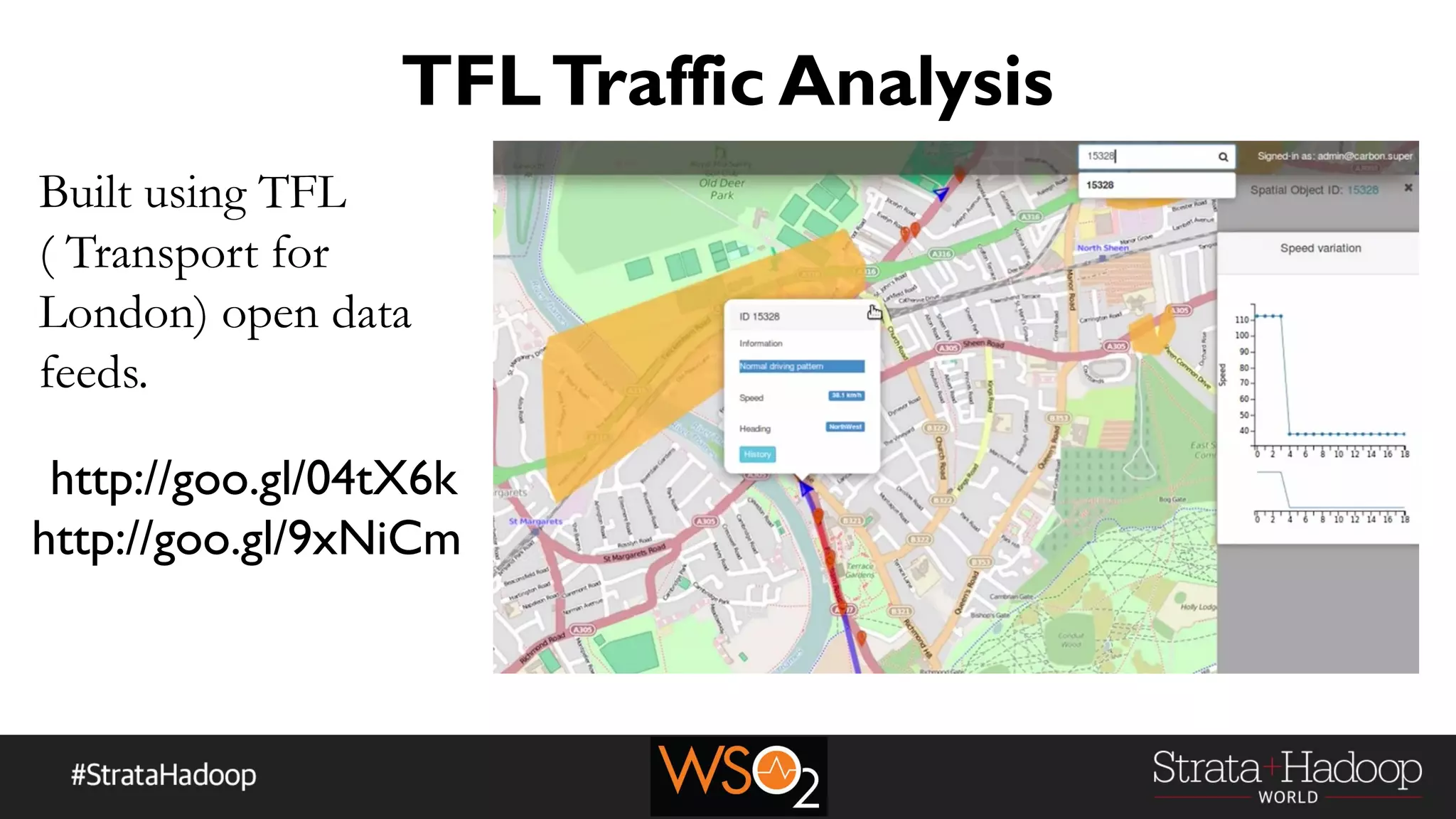

24. TFLTraffic Analysis
Built using TFL
( Transport for
London) open data
feeds.
http://goo.gl/04tX6k
http://goo.gl/9xNiCm

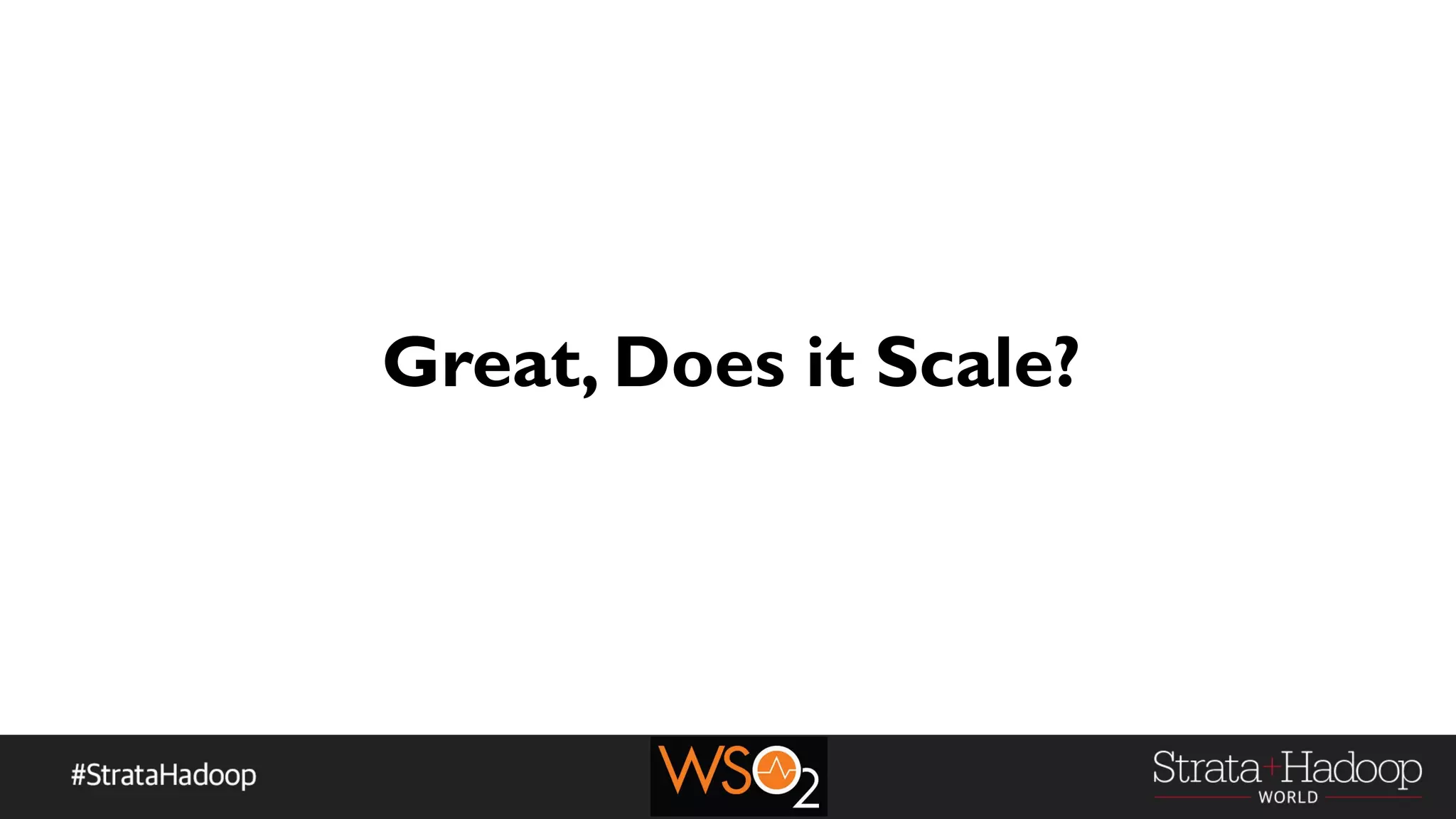

25. Great, Does it Scale?

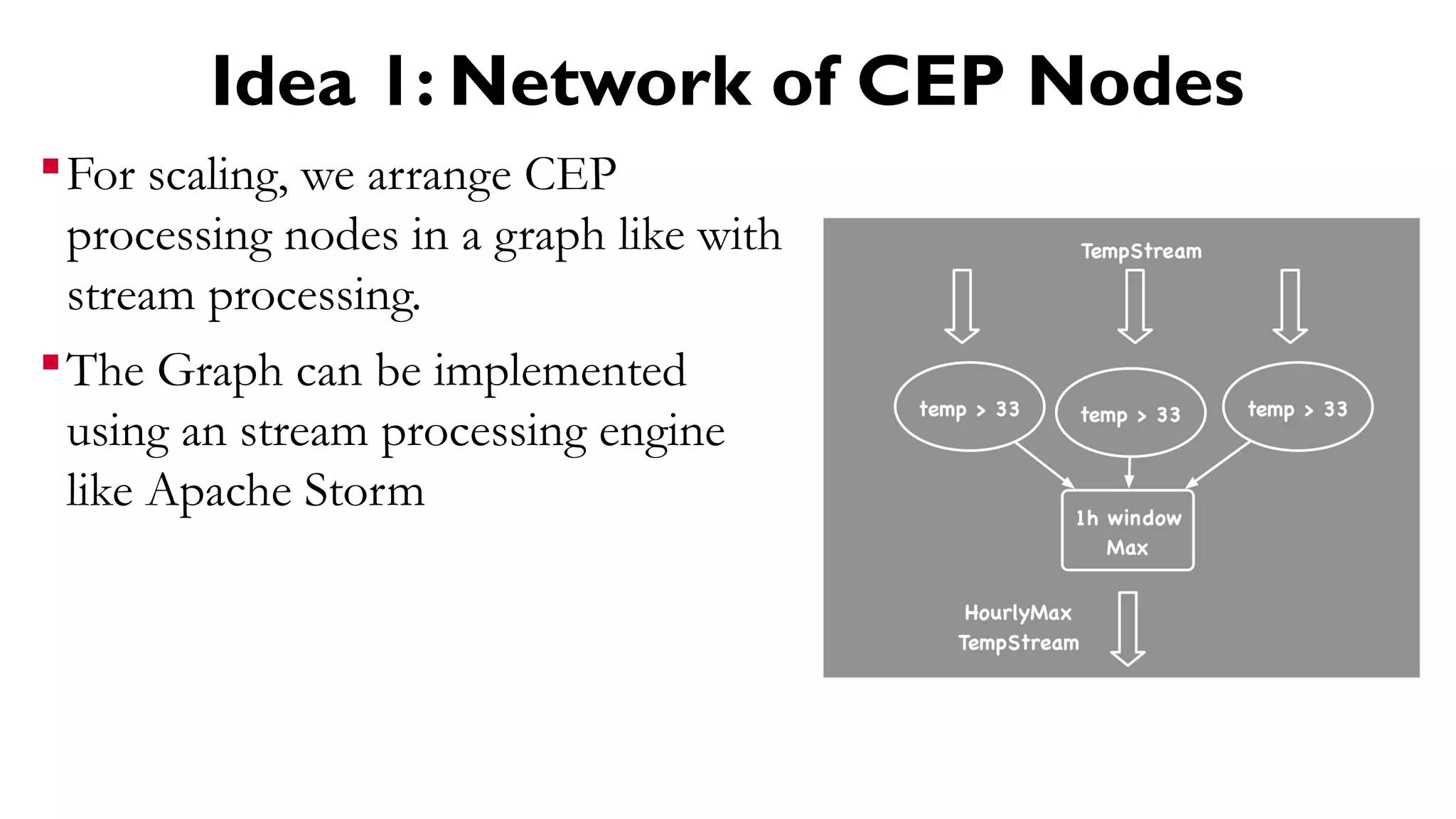

26. Idea 1: Network of CEP Nodes
For scaling, we arrange CEP
processing nodes in a graph like with
stream processing.
The Graph can be implemented
using an stream processing engine
like Apache Storm

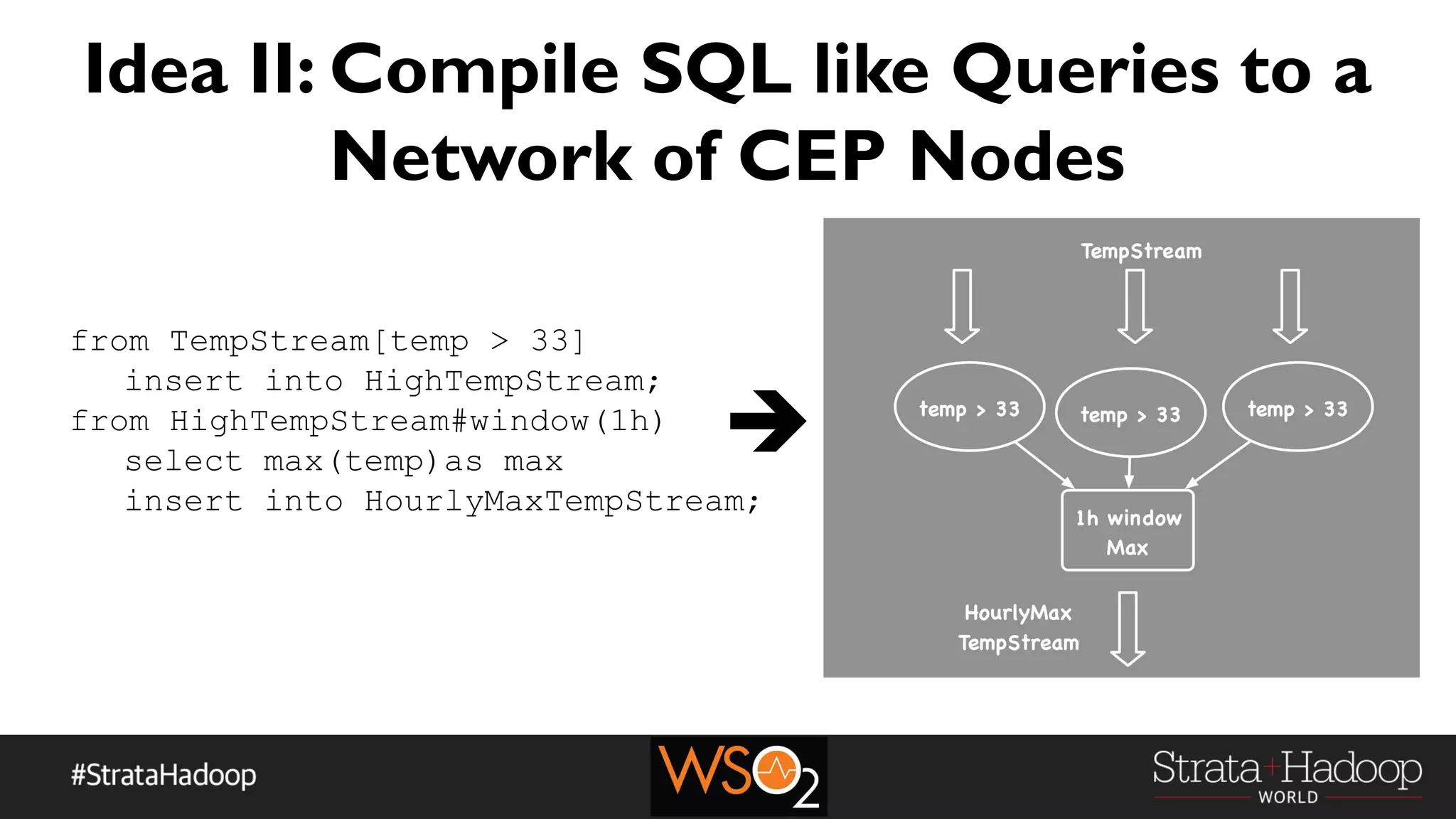

27. Idea II: Compile SQL like Queries to a
Network of CEP Nodes
from TempStream[temp > 33]
insert into HighTempStream;
from HighTempStream#window(1h)
select max(temp)as max
insert into HourlyMaxTempStream;


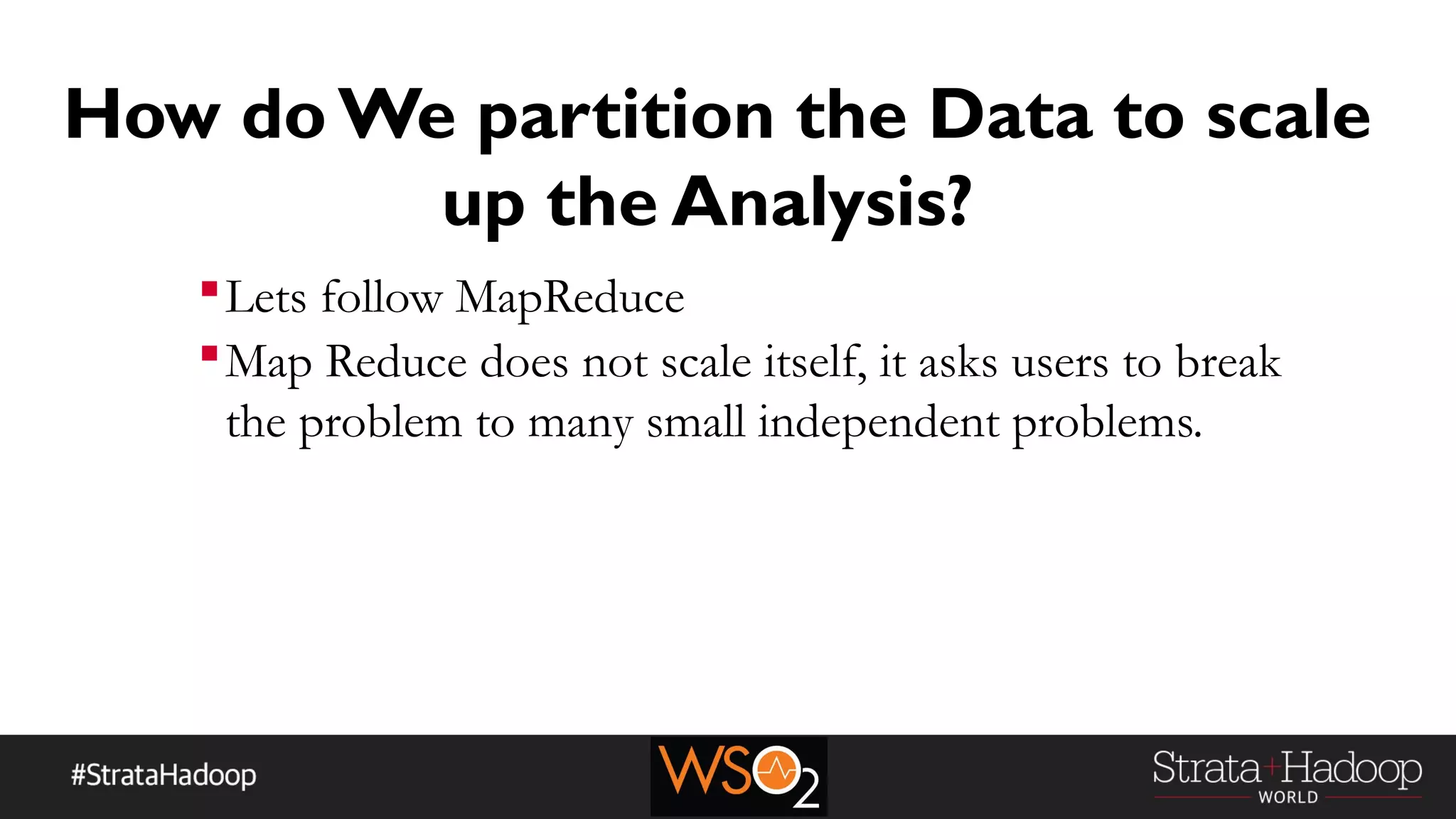

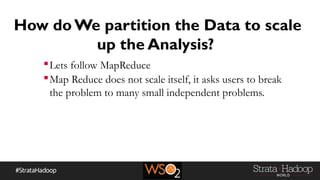

28. How do We partition the Data to scale
up the Analysis?
Lets follow MapReduce
Map Reduce does not scale itself, it asks users to break
the problem to many small independent problems.

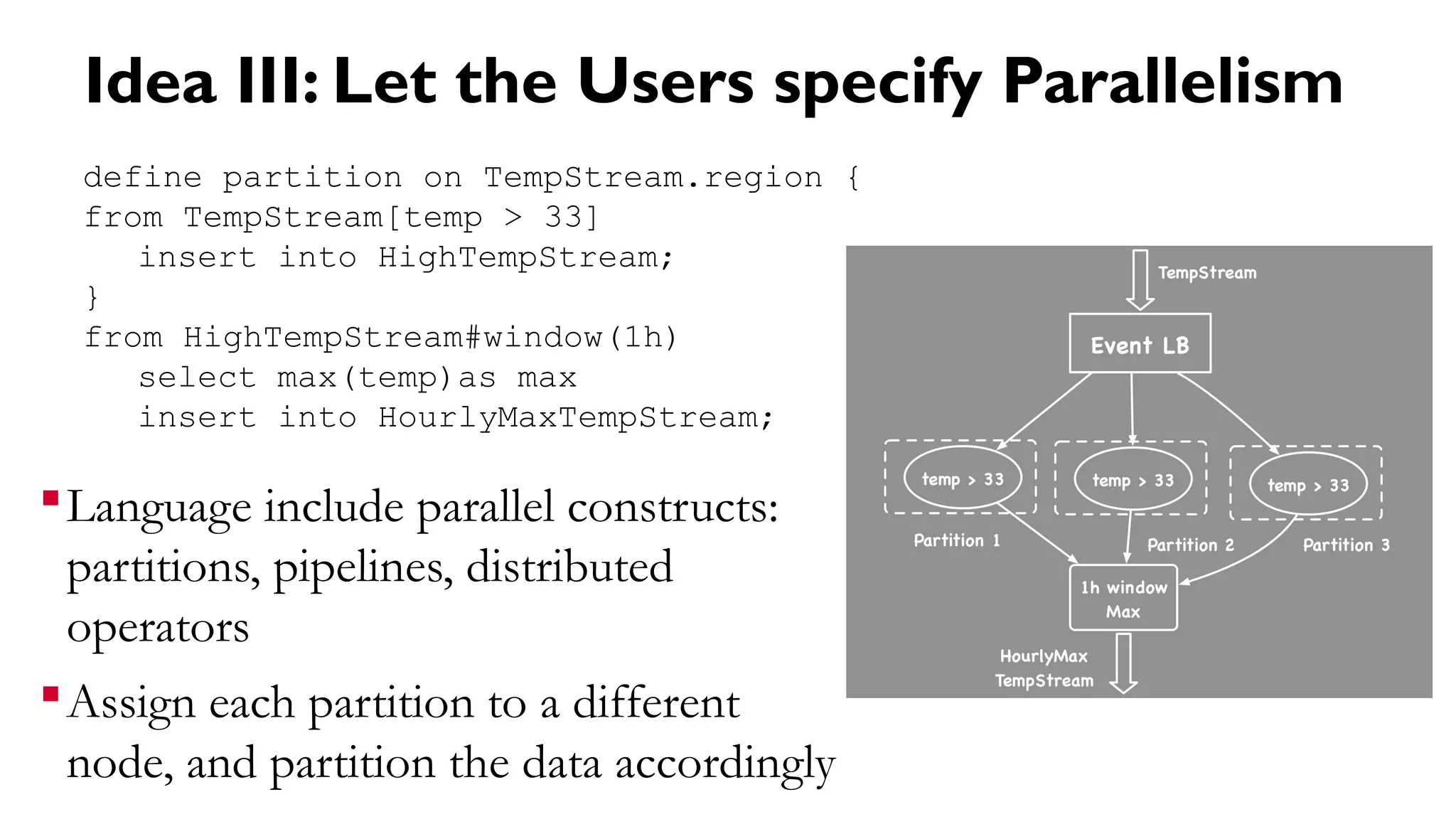

29. Idea III: Let the Users specify Parallelism
Language include parallel constructs:
partitions, pipelines, distributed
operators
Assign each partition to a different
node, and partition the data accordingly
define partition on TempStream.region {
from TempStream[temp > 33]
insert into HighTempStream;
}
from HighTempStream#window(1h)
select max(temp)as max
insert into HourlyMaxTempStream;

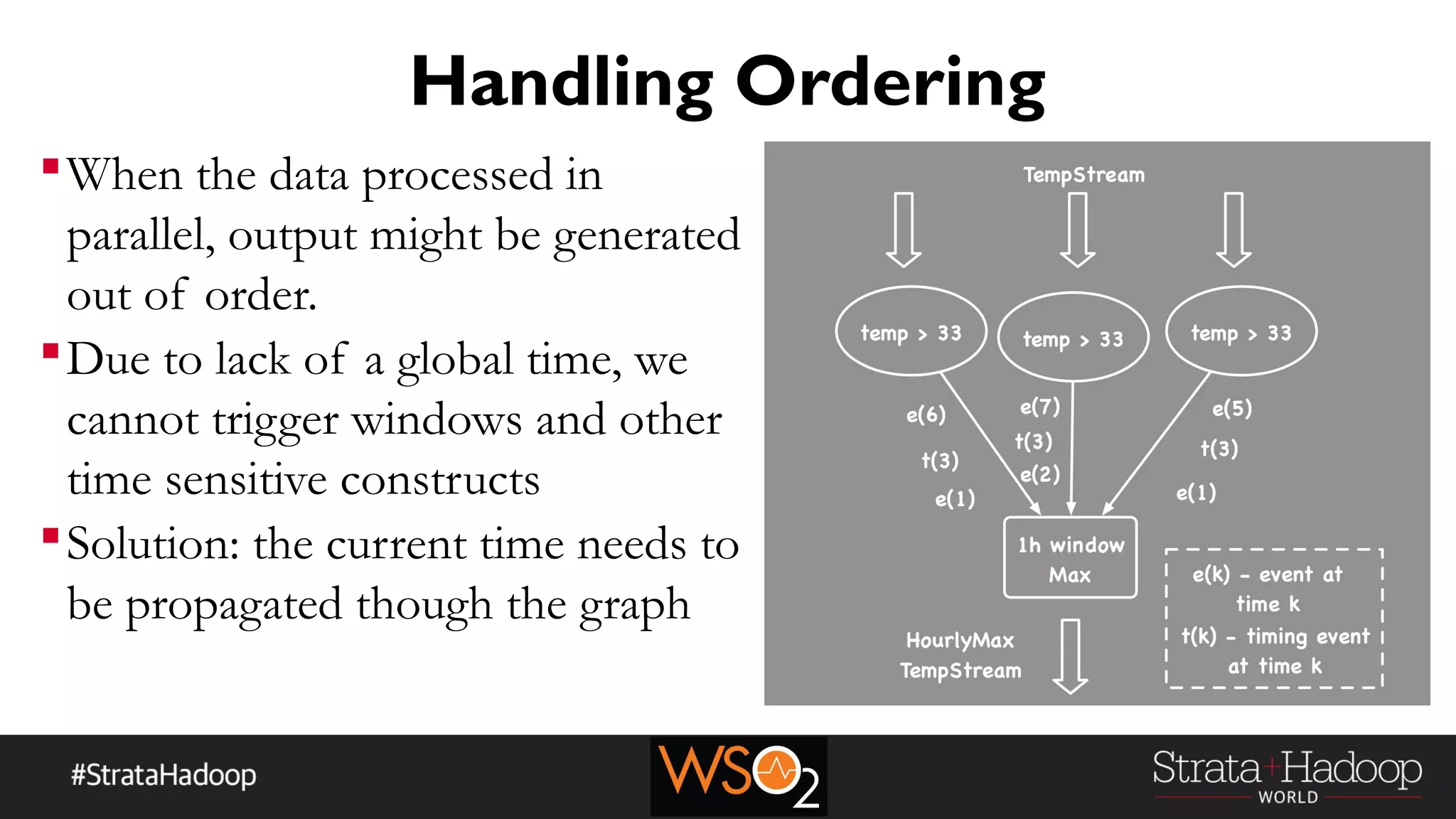

30. Handling Ordering
When the data processed in
parallel, output might be generated
out of order.
Due to lack of a global time, we
cannot trigger windows and other
time sensitive constructs
Solution: the current time needs to
be propagated though the graph

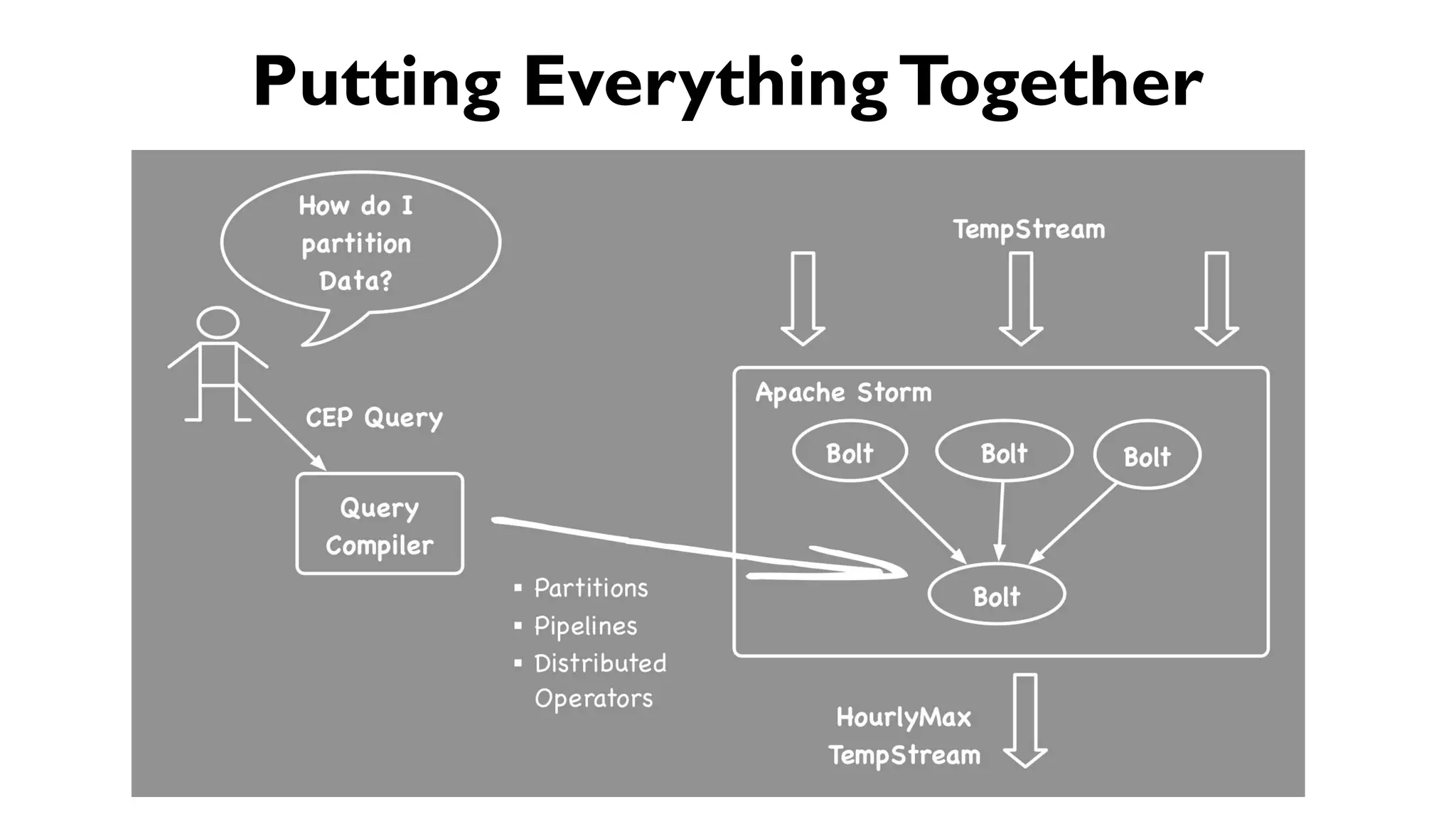

31. Putting EverythingTogether

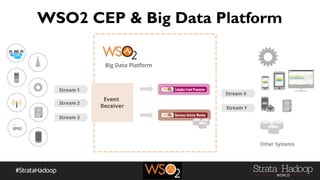

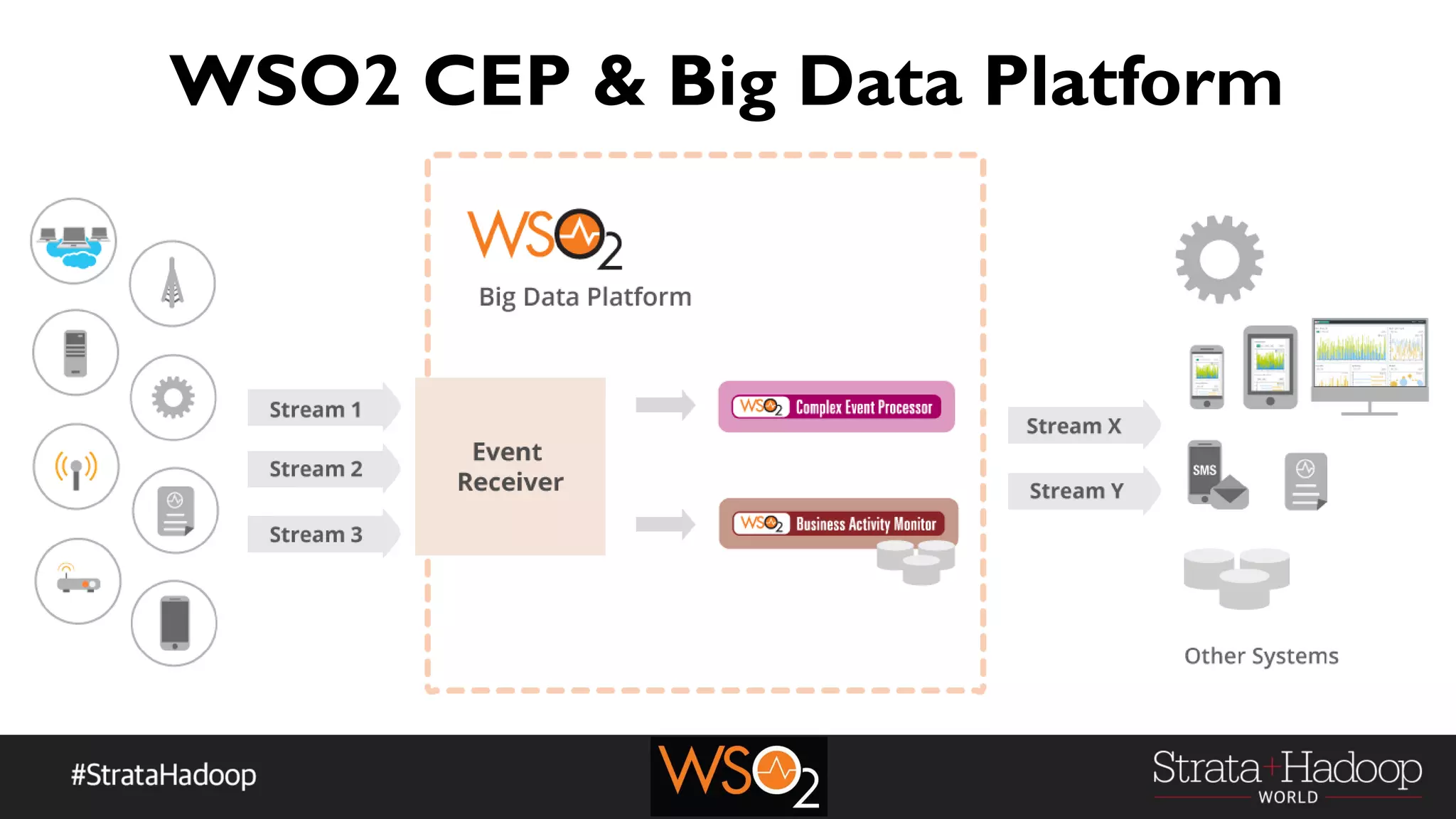

32. WSO2 CEP & Big Data Platform

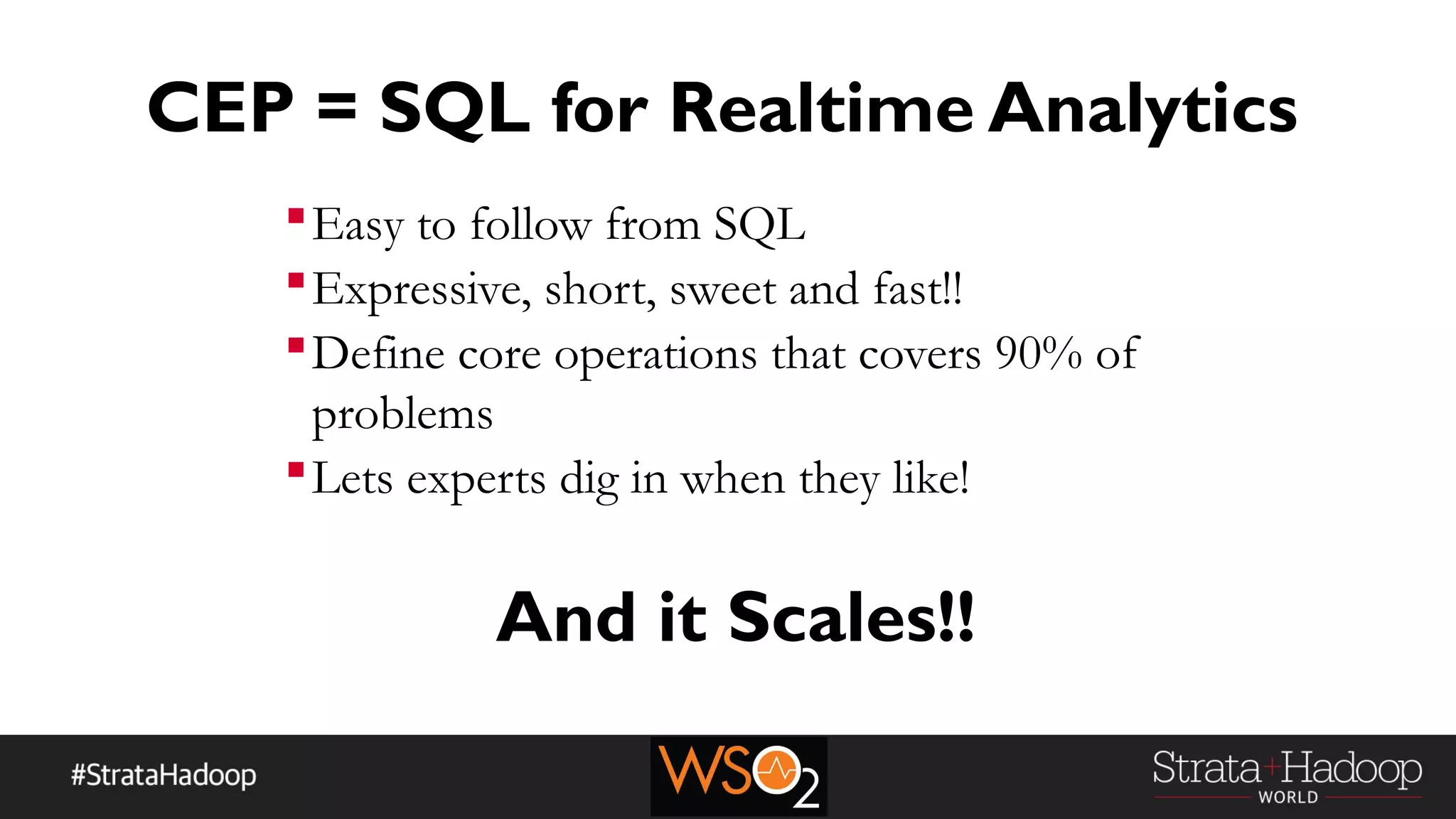

33. CEP = SQL for Realtime Analytics
Easy to follow from SQL
Expressive, short, sweet and fast!!
Define core operations that covers 90% of
problems
Lets experts dig in when they like!
And it Scales!!

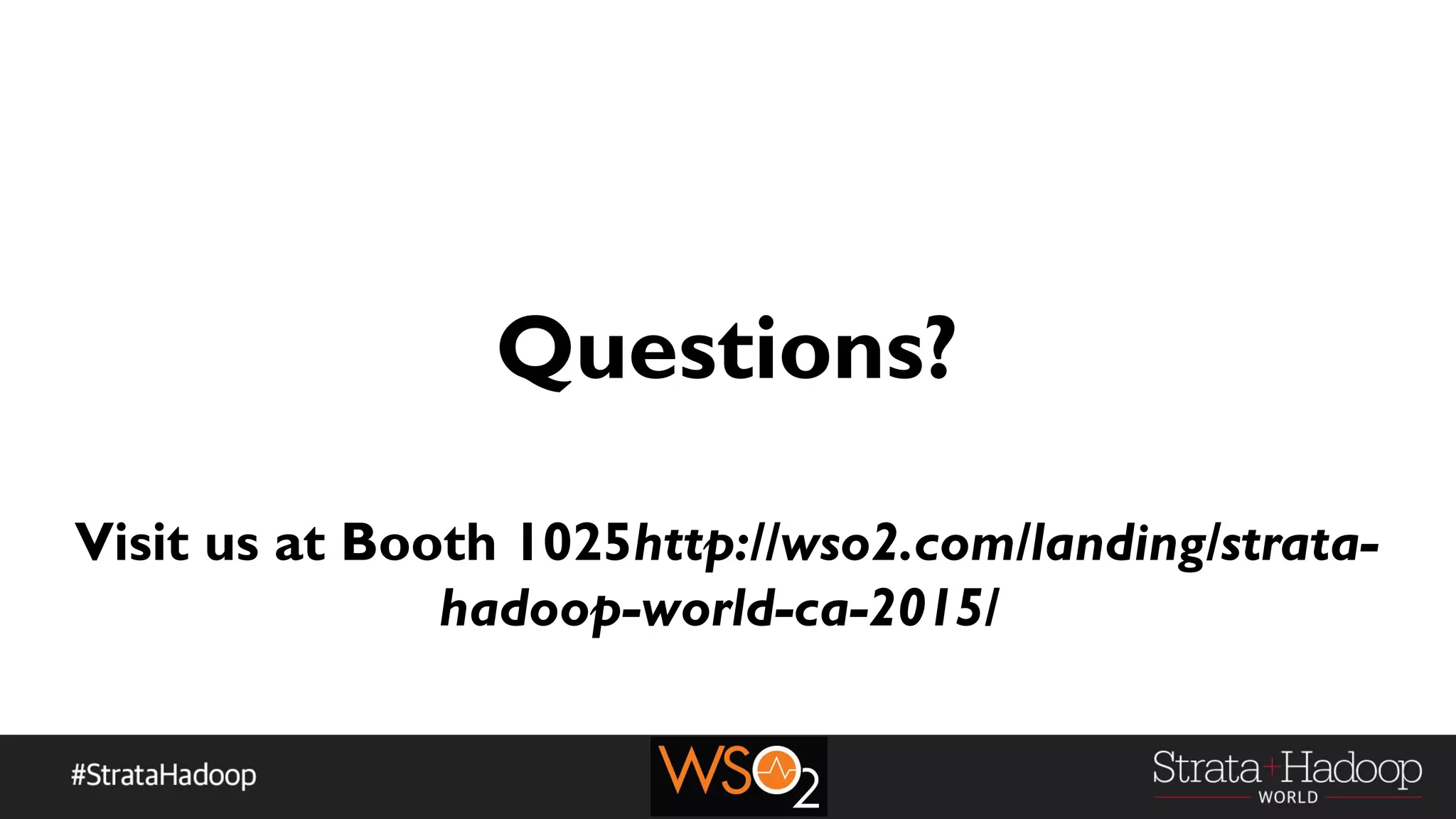

34. Questions?
Visit us at Booth 1025http://wso2.com/landing/strata-
hadoop-world-ca-2015/
