This document provides an overview of the WSO2 Analytics Platform. It discusses how analytics is evolving from initial use cases to everyday, efficient use involving recovery, decision making, and other forms like real-time, interactive, and predictive analytics. The WSO2 Analytics Platform provides a single platform for all four forms of analytics with a consistent programming model. Key components include tools for collecting, analyzing, communicating, and storing streaming data. Real-world use cases demonstrate applications in health, transportation, smart cities, and more.

1. Associate Director / Solutions Architect
22nd June 2016 | Sydney, Australia.
dassanaATwso2.com
Dassana Wijesekara
WSO2 Workshop 2016 | Sydney . Australia.
WSO2 Analytics Platform

2. Analytics is Growing Up
▪ It is no longer about doing
your first analytics usecase.
▪ It is about
▪ How to do it everyday,
efficiently?
▪ How to recover?
▪ How to make
decisions?
▪ How to do other forms
like real-time ,
Interactive, and
predicative analytics

3. Analytics 2.0 Platform
▪ One platform for all
four forms of analytics
▪ Single consistent
programming model
▪ One analytics archive
format)
▪ Support for the lifecycle
of analytics Apps
Integrate well with rest of the
enterprise!!

5. Collect Data
▪ One Sensor API to
publish events
- REST, Thrift, JMS, Kafka
- Java clients, java script
clients*
▪ First you define streams
(think it as a infinite table
in SQL DB)
▪ Then send events via
Sensor API
Can send to batch pipeline, Realtime pipeline or both via
configuration!

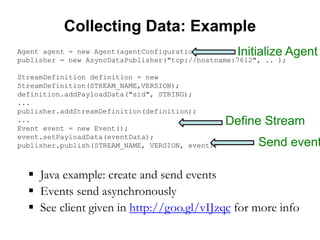

6. Collecting Data: Example
 Java example: create and send events
 Events send asynchronously
 See client given in http://goo.gl/vIJzqc for more info
Agent agent = new Agent(agentConfiguration);
publisher = new AsyncDataPublisher("tcp://hostname:7612", .. );
StreamDefinition definition = new
StreamDefinition(STREAM_NAME,VERSION);
definition.addPayloadData("sid", STRING);
...
publisher.addStreamDefinition(definition);
...
Event event = new Event();
event.setPayloadData(eventData);
publisher.publish(STREAM_NAME, VERSION, event); Send event
Define Stream
Initialize Agent

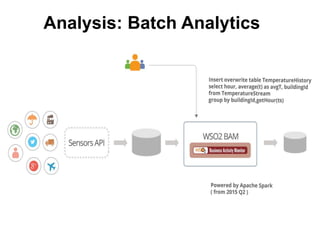

7. Analysis: Batch Analytics

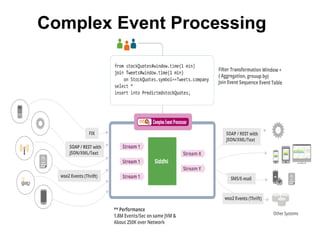

8. Complex Event Processing

9. Analytics logic with SQL like
Queries
▪ Both BAM and CEP provides a
SQL like data processing language
▪ Since many understands SQL,
above languages made large scale
data processing Big Data
accessible to many
▪ Expressive, short, and sweet.
▪ Define core operations that covers
90% of problems
▪ Lets experts dig in when they like!
(via User Defined functions)

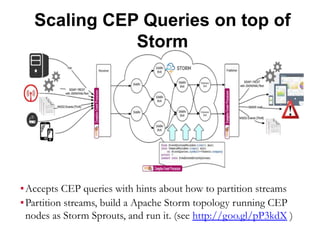

10. Scaling CEP Queries on top of
Storm
▪Accepts CEP queries with hints about how to partition streams
▪Partition streams, build a Apache Storm topology running CEP
nodes as Storm Sprouts, and run it. (see http://goo.gl/pP3kdX )

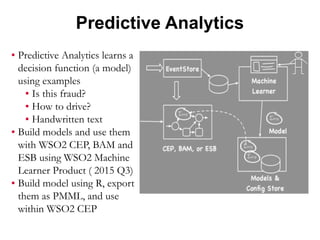

11. Predictive Analytics
▪ Predictive Analytics learns a
decision function (a model)
using examples
▪ Is this fraud?
▪ How to drive?
▪ Handwritten text
▪ Build models and use them
with WSO2 CEP, BAM and
ESB using WSO2 Machine
Learner Product ( 2015 Q3)
▪ Build model using R, export
them as PMML, and use
within WSO2 CEP

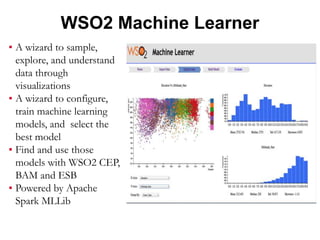

12. WSO2 Machine Learner
▪ A wizard to sample,
explore, and understand
data through
visualizations
▪ A wizard to configure,
train machine learning
models, and select the
best model
▪ Find and use those
models with WSO2 CEP,
BAM and ESB
▪ Powered by Apache
Spark MLLib

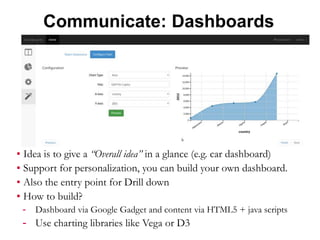

13. Communicate: Dashboards
▪ Idea is to give a “Overall idea” in a glance (e.g. car dashboard)
▪ Support for personalization, you can build your own dashboard.
▪ Also the entry point for Drill down
▪ How to build?
- Dashboard via Google Gadget and content via HTML5 + java scripts
- Use charting libraries like Vega or D3

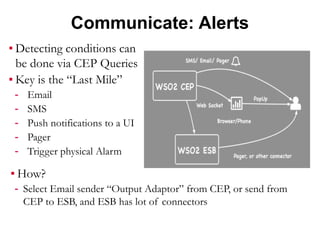

14. Communicate: Alerts
▪ Detecting conditions can
be done via CEP Queries
▪ Key is the “Last Mile”
- Email
- SMS
- Push notifications to a UI
- Pager
- Trigger physical Alarm
▪ How?
- Select Email sender “Output Adaptor” from CEP, or send from
CEP to ESB, and ESB has lot of connectors

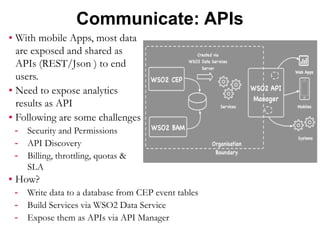

15. Communicate: APIs
▪ With mobile Apps, most data
are exposed and shared as
APIs (REST/Json ) to end
users.
▪ Need to expose analytics
results as API
▪ Following are some challenges
- Security and Permissions
- API Discovery
- Billing, throttling, quotas &
SLA
▪ How?
- Write data to a database from CEP event tables
- Build Services via WSO2 Data Service
- Expose them as APIs via API Manager

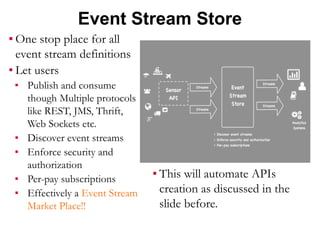

16. Event Stream Store
▪ One stop place for all
event stream definitions
▪ Let users
▪ Publish and consume
though Multiple protocols
like REST, JMS, Thrift,
Web Sockets etc.
▪ Discover event streams
▪ Enforce security and
authorization
▪ Per-pay subscriptions
▪ Effectively a Event Stream
Market Place!!
▪ This will automate APIs
creation as discussed in the
slide before.

17. What is it good for?
▪ Batch Analytics
▪ Realtime Streaming analytics
▪ Realtime Interactive analytics
▪ Lambda Architecture
▪ Train and use a ML model
▪ Selective Detailed Analysis
http://tinybuddha.com/blog/a-simple-technique-to-
solve-problems-before-they-get-bigger/

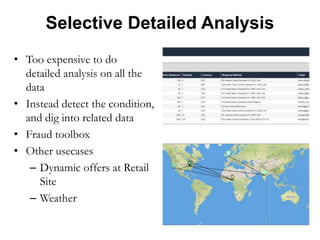

18. Selective Detailed Analysis
• Too expensive to do
detailed analysis on all the
data
• Instead detect the condition,
and dig into related data
• Fraud toolbox
• Other usecases
– Dynamic offers at Retail
Site
– Weather

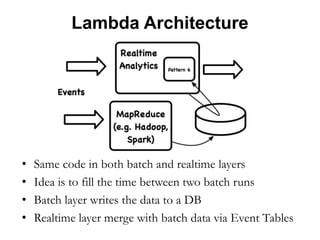

19. Lambda Architecture
• Same code in both batch and realtime layers
• Idea is to fill the time between two batch runs
• Batch layer writes the data to a DB
• Realtime layer merge with batch data via Event Tables

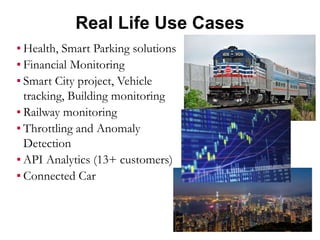

20. Real Life Use Cases
▪ Health, Smart Parking solutions
▪ Financial Monitoring
▪ Smart City project, Vehicle
tracking, Building monitoring
▪ Railway monitoring
▪ Throttling and Anomaly
Detection
▪ API Analytics (13+ customers)
▪ Connected Car

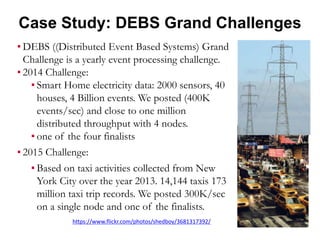

21. Case Study: DEBS Grand Challenges
▪ DEBS ((Distributed Event Based Systems) Grand
Challenge is a yearly event processing challenge.
▪ 2014 Challenge:
▪ Smart Home electricity data: 2000 sensors, 40
houses, 4 Billion events. We posted (400K
events/sec) and close to one million
distributed throughput with 4 nodes.
▪ one of the four finalists
▪ 2015 Challenge:
▪ Based on taxi activities collected from New
York City over the year 2013. 14,144 taxis 173
million taxi trip records. We posted 300K/sec
on a single node and one of the finalists.
https://www.flickr.com/photos/shedboy/3681317392/

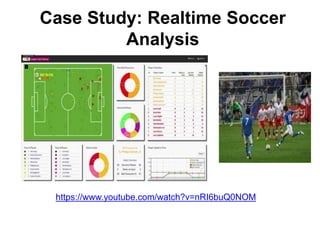

22. Case Study: Realtime Soccer
Analysis
Watch at:
https://www.youtube.com/watch?v=nRI6buQ0NOM

23. Case Study: TFL Traffic Analysis
Built using TFL (
Transport for
London) open data
feeds.
http://goo.gl/04tX
6k
http://goo.gl/9xNi
Cm

24. Select the Product
Product Features
WSO2 Data
Analytics Server
(DAS)
Everything : Batch,
Realtime, Interactive,
and Predictive
Analytics
WSO2 Complex
Event Processor
(CEP)
Realtime Analytics
only
WSO2 Machine
Learner
Predictive Analytics
only
