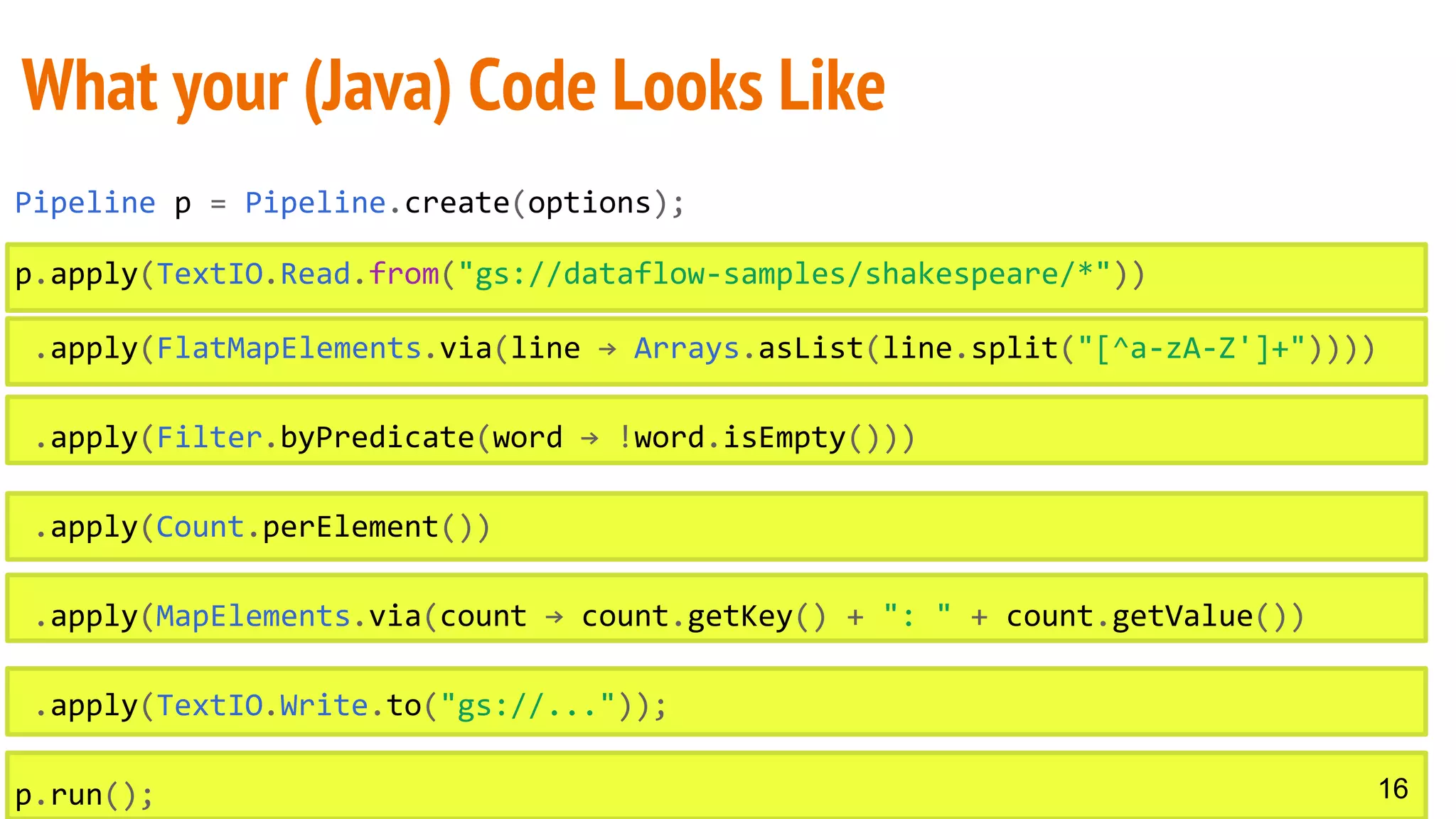

![Pipeline p = Pipeline.create(options);
p.apply(TextIO.Read.from("gs://dataflow-samples/shakespeare/*"))
.apply(FlatMapElements.via(line → Arrays.asList(line.split("[^a-zA-Z']+"))))
.apply(Filter.byPredicate(word → !word.isEmpty()))
.apply(Count.perElement())
.apply(MapElements.via(count → count.getKey() + ": " + count.getValue())
.apply(TextIO.Write.to("gs://..."));
p.run();
What your (Java) Code Looks Like
16](https://image.slidesharecdn.com/apexmeetup2016-06-27-160630182003/75/Apache-Beam-incubating-16-2048.jpg)
![Committers from Google, Data Artisans, Cloudera, Talend, Paypal
● ~40 commits/week
● Rigorous code review for every commit
Contributors [with GitHub badges] from:
Spotify, Intel, Twitter, Capital One, DataTorrent, …, <your name here>
● Improvements to existing I/O connectors
● Improvements to Spark runner
● Utility classes for users
● Documentation fixes
● Bug diagnoses
● New I/O connectors
● Gearpump runner PoC
● Apex runner PoC!
… and it has been awesome
apache/incubator-beam](https://image.slidesharecdn.com/apexmeetup2016-06-27-160630182003/75/Apache-Beam-incubating-67-2048.jpg)
![Why Apache Beam?
http://data-artisans.com/why-apache-beam/
"We firmly believe that the Beam model is the
correct programming model for streaming and
batch data processing."
- Kostas Tzoumas (Data Artisans)
https://cloud.google.com/blog/big-
data/2016/05/why-apache-beam-a-google-
perspective
"We hope it will lead to a healthy ecosystem of
sophisticated runners that compete by making
users happy, not [via] API lock in."
- Tyler Akidau (Google)](https://image.slidesharecdn.com/apexmeetup2016-06-27-160630182003/75/Apache-Beam-incubating-71-2048.jpg)
Uploaded byApache Apex
Apache Beam (incubating)
The document discusses Apache Beam, a unified model for handling batch and streaming data processing. It highlights the importance of event time versus processing time, as well as the need for user-friendly pipeline writing and extensibility across different execution environments. The presentation emphasizes creating a community-driven effort to grow the Apache Beam ecosystem with contributions from various organizations.
In this document
Powered by AI
Introduction to the Apache Beam project by Kenneth Knowles, addressing motivation and agenda.
Highlights the challenges faced in data processing such as unbounded streams and tradeoffs between completeness, latency, and cost.
Overview of the Beam model, key questions to ask, and computation methods including Sum per Key for data processing.
Focus on distinguishing between event time and processing time, emphasizing their implications on data windows.
Discusses watermarks, their role in measuring completeness, and methods to manage late data.
Explains the concept of triggers in the Beam model, including types of triggers and their configurations.
Describes the vision for the Beam project, including its community aspects, capabilities, and contributions.
Wraps up the presentation, encouraging community involvement and further exploration of Apache Beam.
More Related Content
Apache Beam (incubating)
- 1. Apache Beam (incubating) KennethKnowles klk@google.com @KennKnowles Apache Apex Meetup, 2016-06-27 https://goo.gl/LTLjKt
- 2. Motivation Beam Model Beam Project/ Technical Vision Agenda 1 2 3 2
- 3.
- 4.

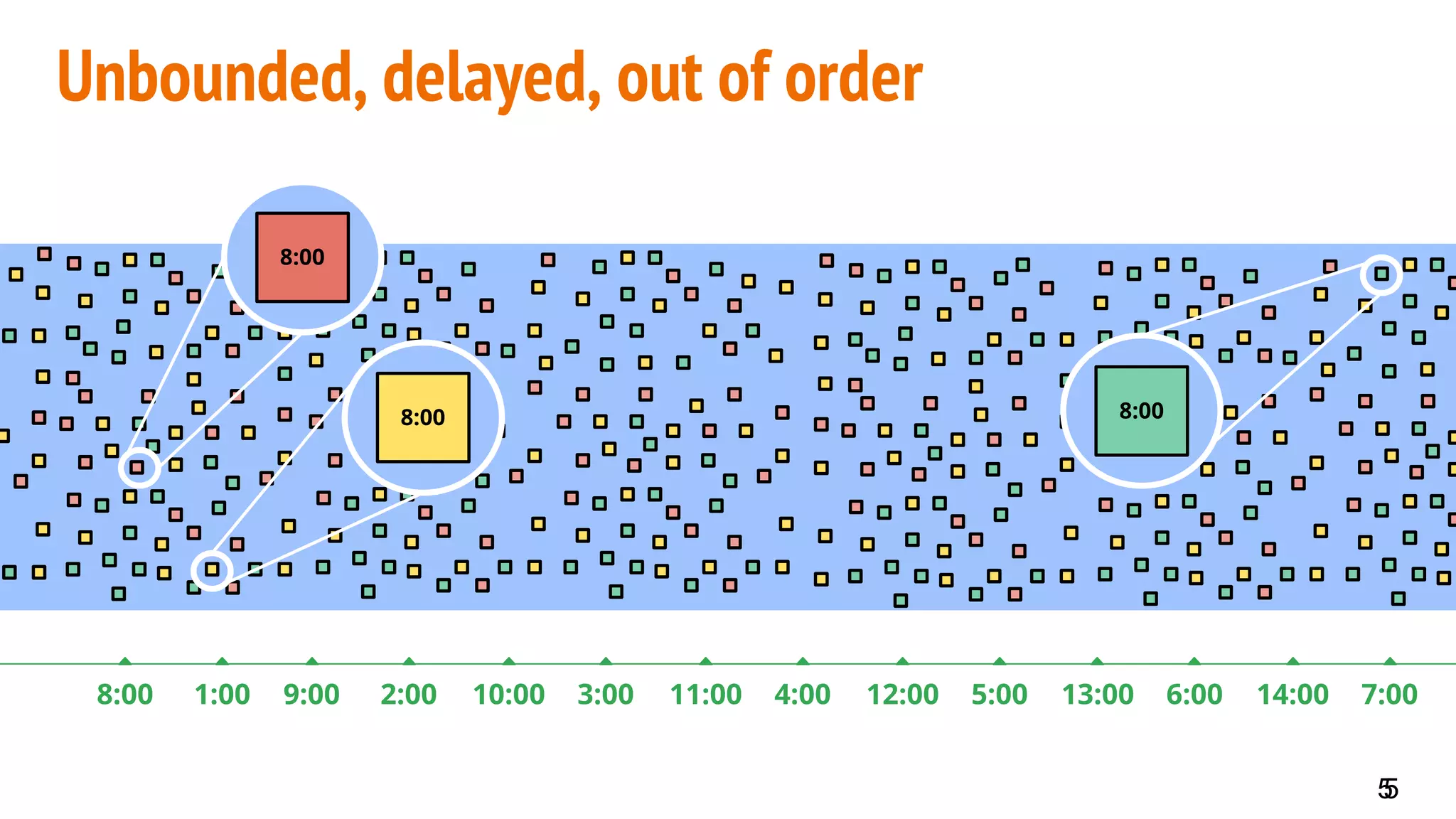

- 5. 5 Unbounded, delayed, outof order 9:008:00 14:0013:0012:0011:0010:002:001:00 7:006:005:004:003:00 5 8:00 8:008:00
- 6.
- 7.

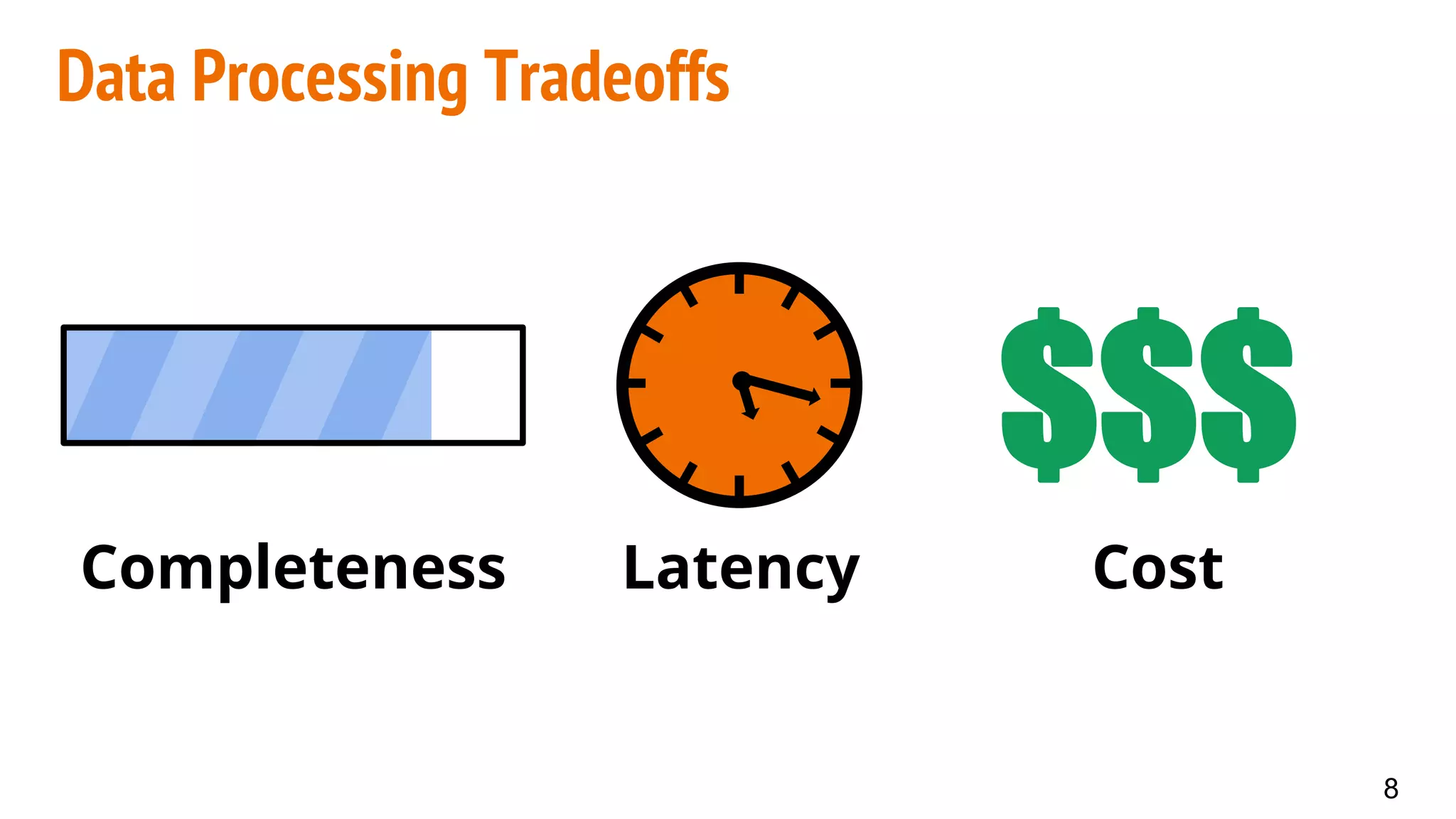

- 8. Completeness Latency Cost $$$ DataProcessing Tradeoffs 8

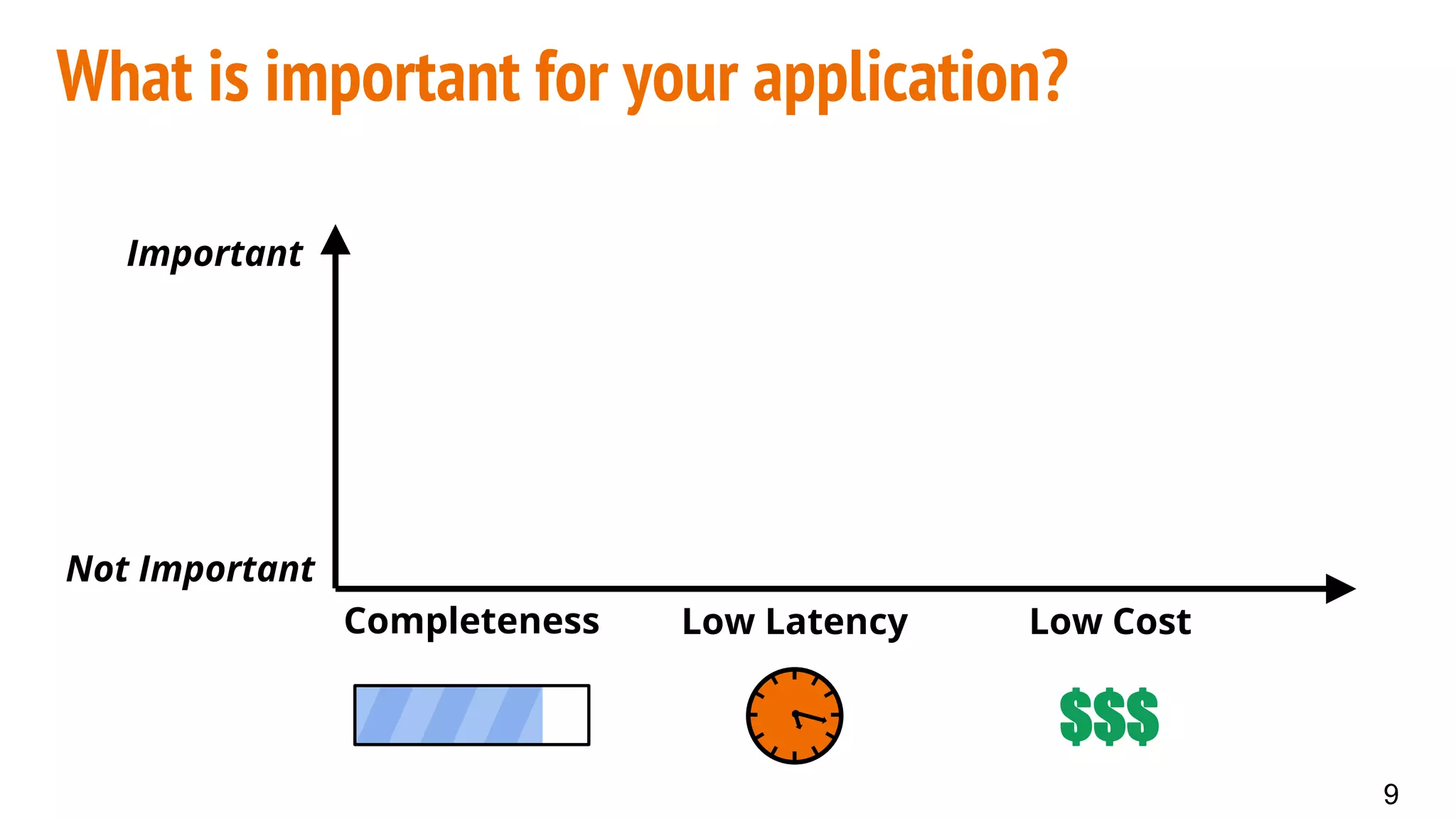

- 9. What is importantfor your application? Completeness Low Latency Low Cost Important Not Important $$$ 9

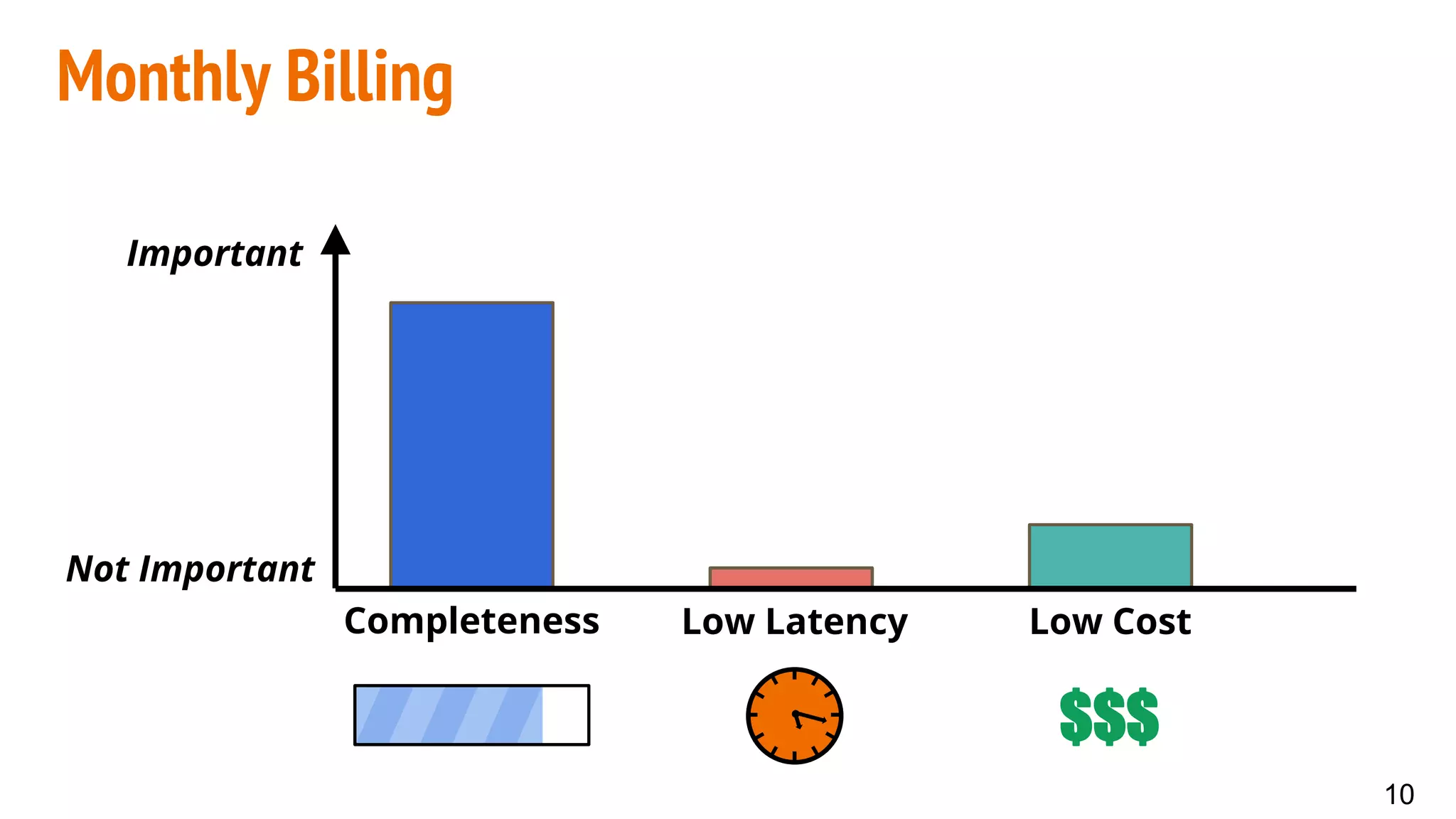

- 10. Monthly Billing Completeness LowLatency Low Cost Important Not Important $$$ 10

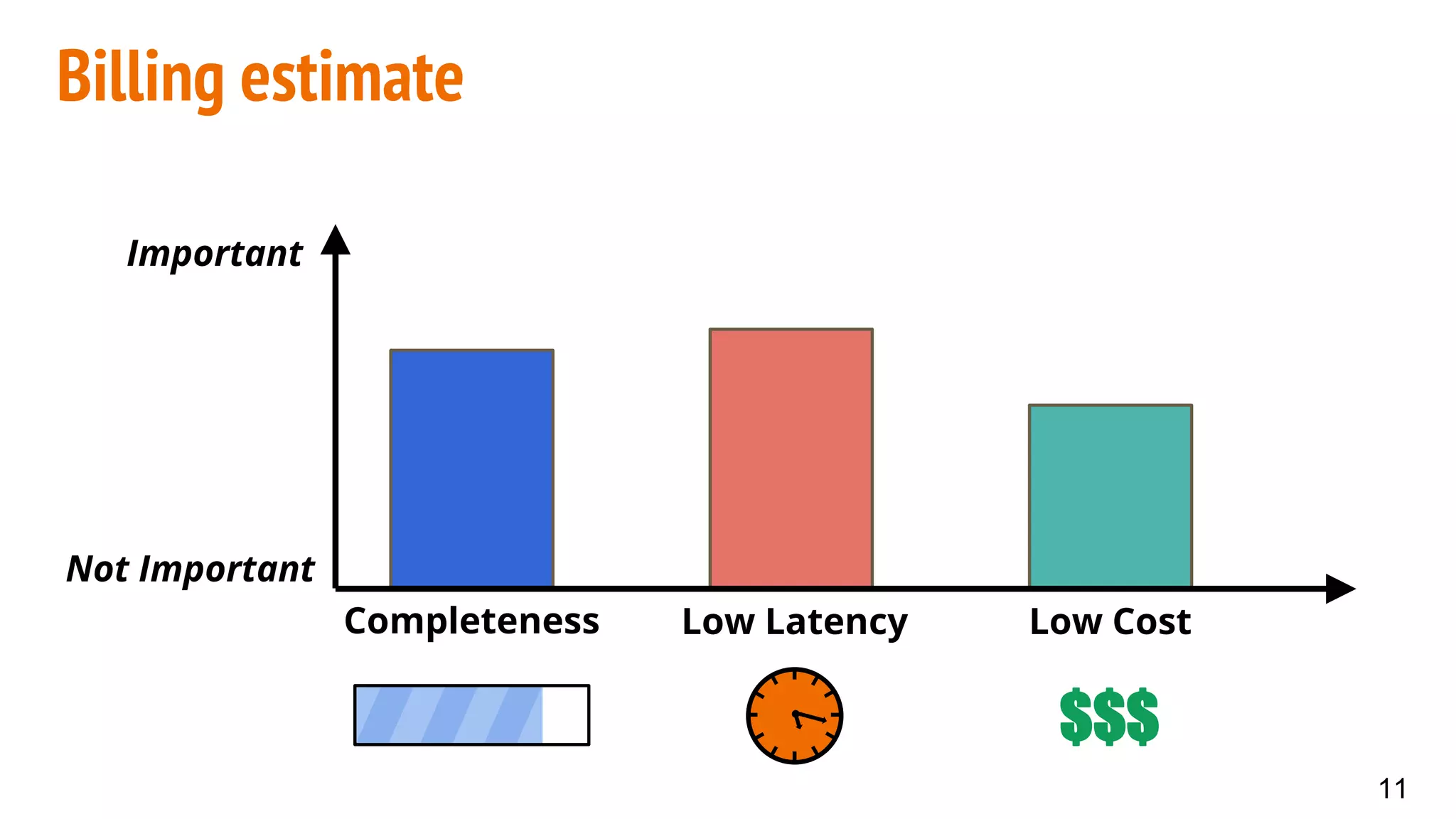

- 11. Billing estimate Completeness LowLatency Low Cost Important Not Important $$$ 11

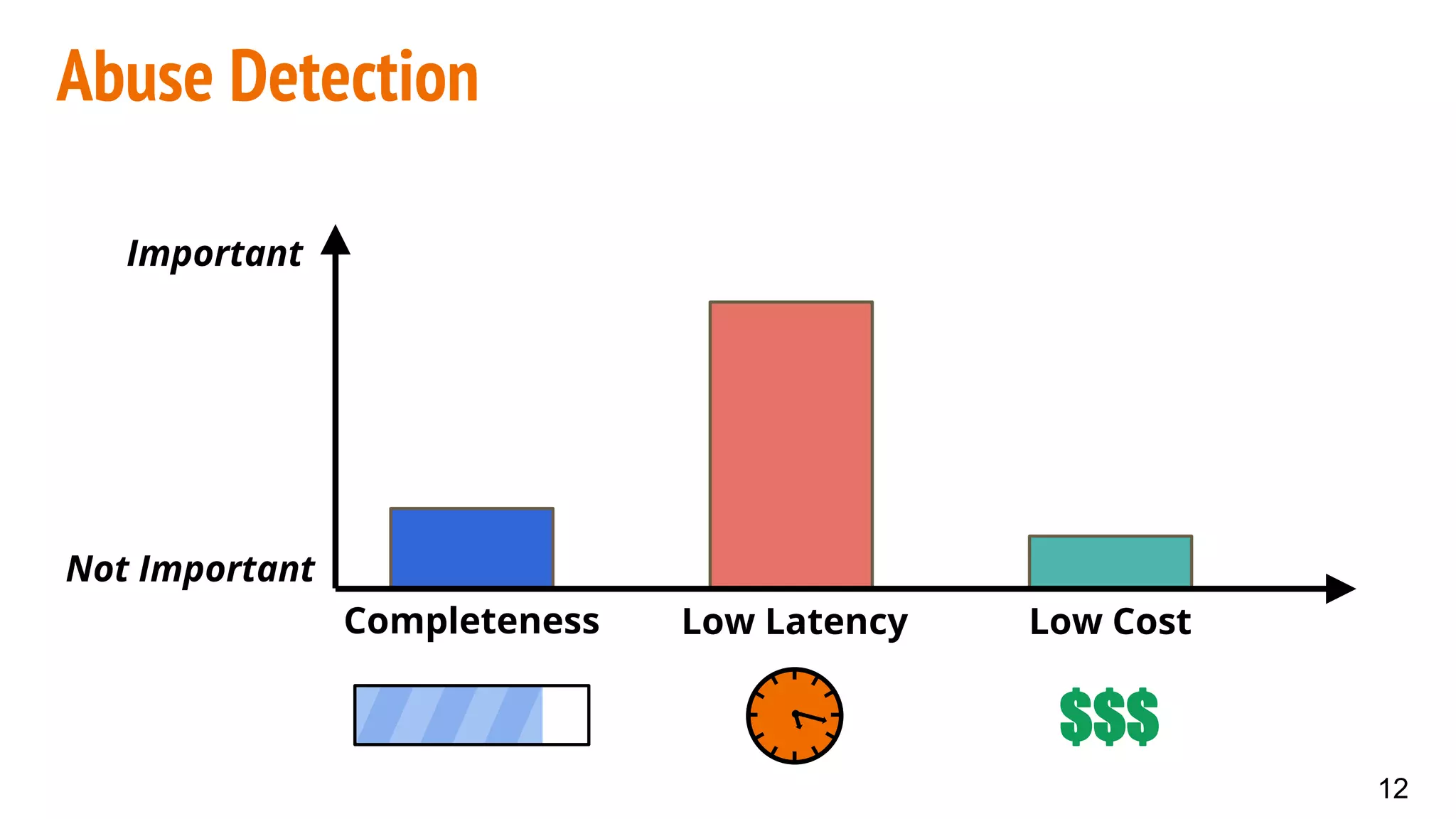

- 12. Abuse Detection Completeness LowLatency Low Cost Important Not Important $$$ 12
- 13.
- 14.

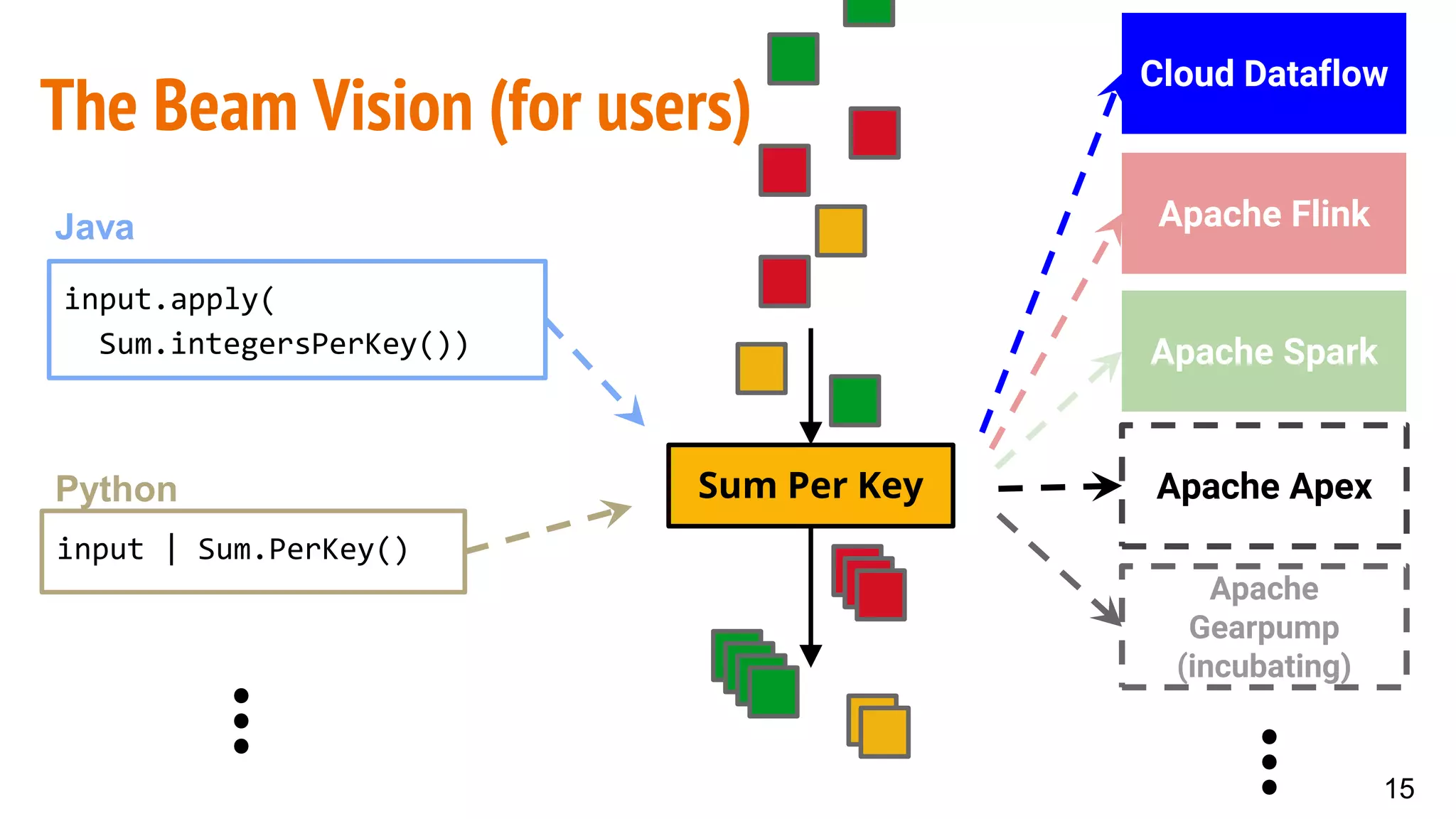

- 15. The Beam Vision(for users) Sum Per Key 15 input.apply( Sum.integersPerKey()) Java input | Sum.PerKey() Python Apache Flink Apache Spark Cloud Dataflow ⋮ ⋮ Apache Apex Apache Gearpump (incubating)
- 16. Pipeline p =Pipeline.create(options); p.apply(TextIO.Read.from("gs://dataflow-samples/shakespeare/*")) .apply(FlatMapElements.via(line → Arrays.asList(line.split("[^a-zA-Z']+")))) .apply(Filter.byPredicate(word → !word.isEmpty())) .apply(Count.perElement()) .apply(MapElements.via(count → count.getKey() + ": " + count.getValue()) .apply(TextIO.Write.to("gs://...")); p.run(); What your (Java) Code Looks Like 16
- 17. The Beam Model:Asking the Right Questions What are you computing? Where in event time? When in processing time are results produced? How do refinements relate? 17

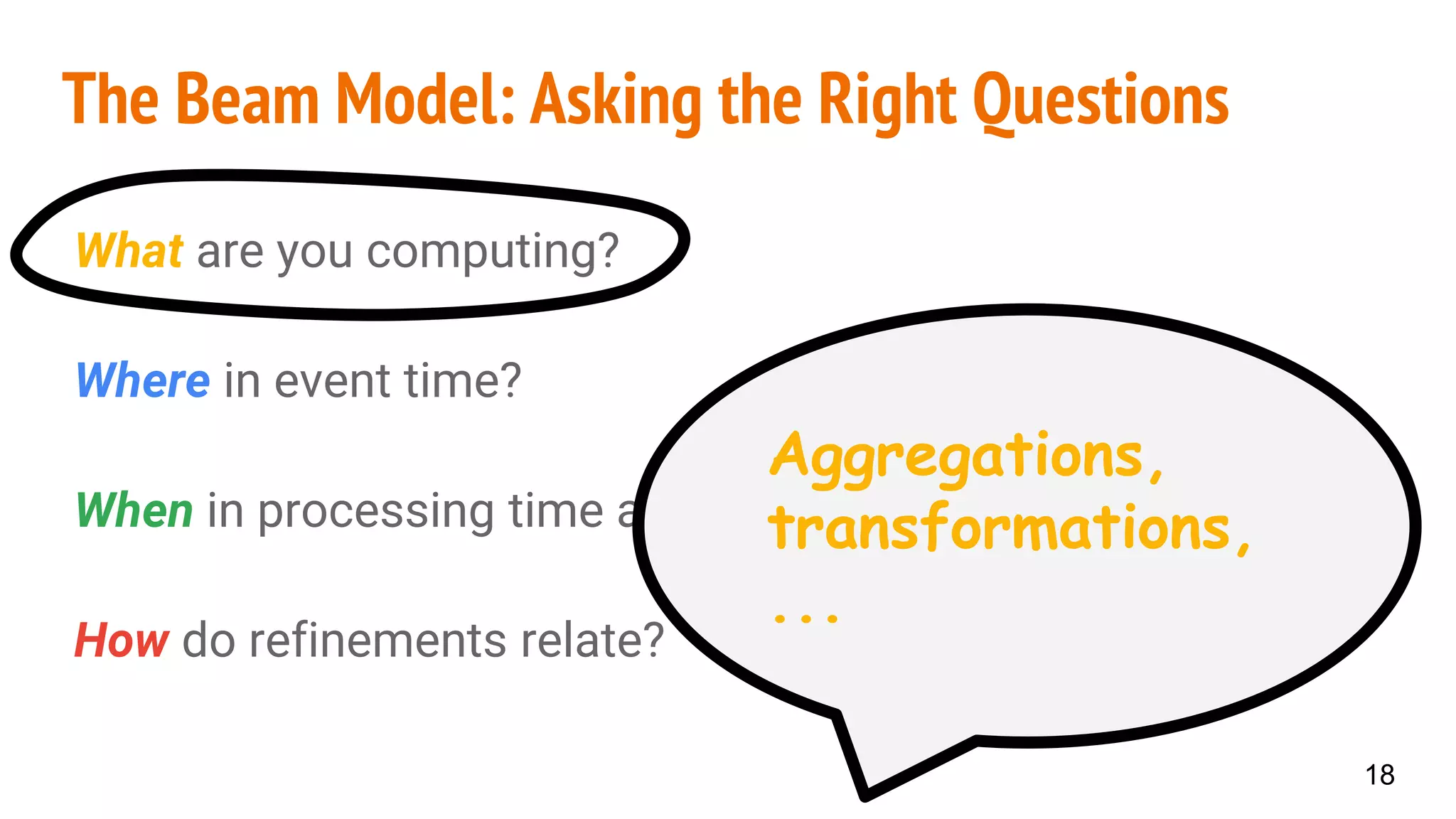

- 18. The Beam Model:Asking the Right Questions What are you computing? Where in event time? When in processing time are results produced? How do refinements relate? 18 Aggregations, transformations, ...

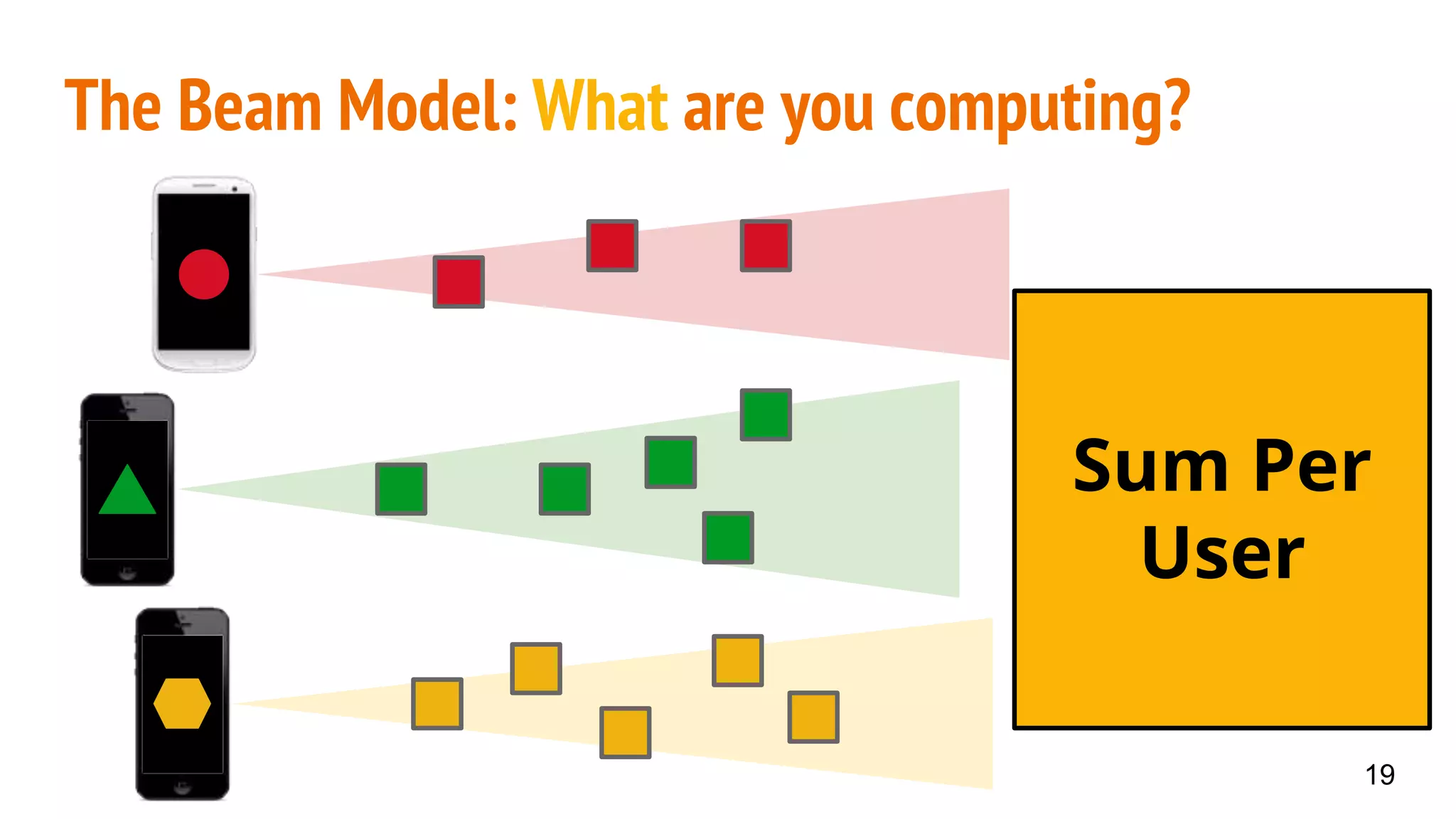

- 19. The Beam Model:What are you computing? Sum Per User 19

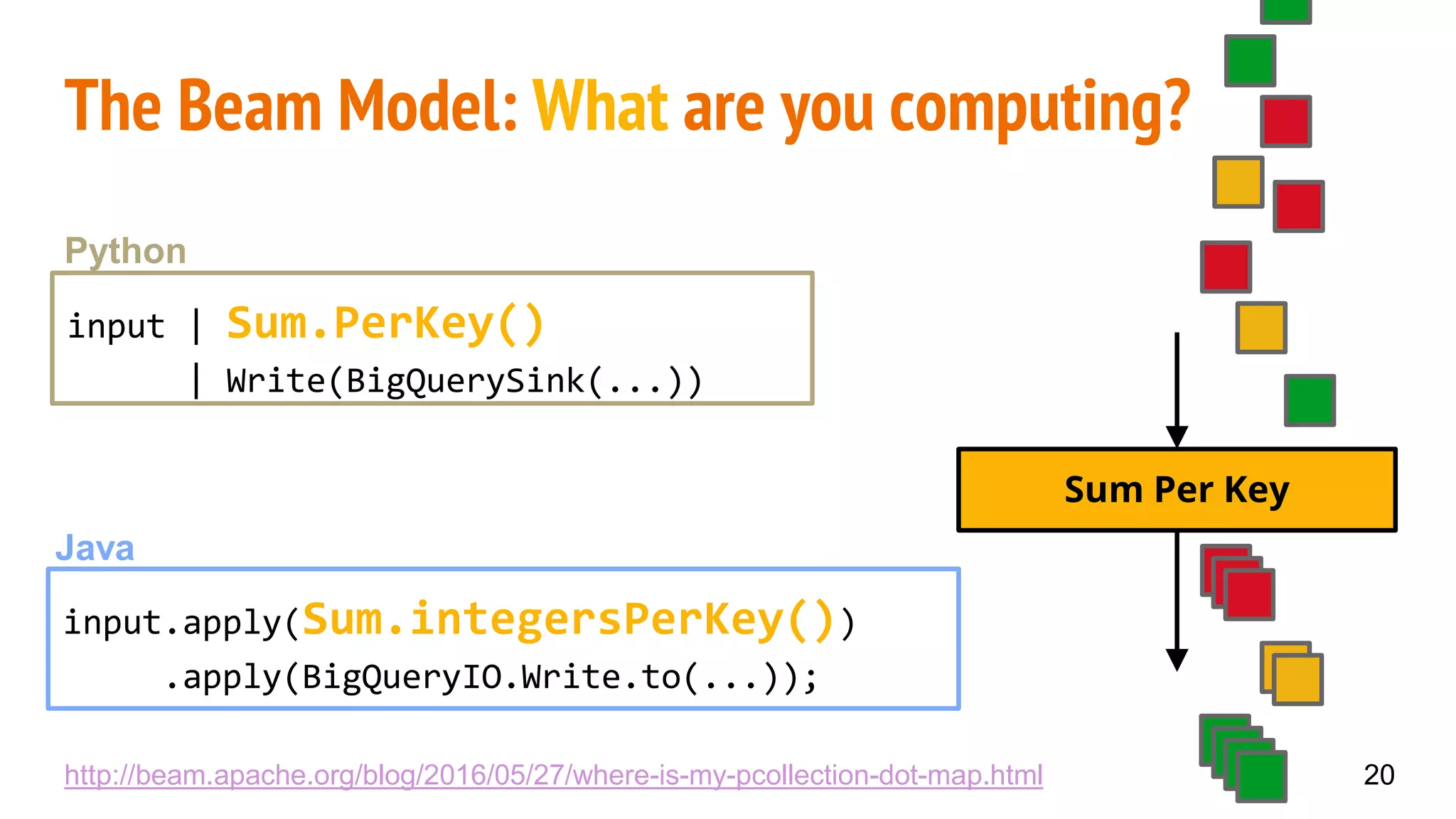

- 20. The Beam Model:What are you computing? Sum Per Key 20 input.apply(Sum.integersPerKey()) .apply(BigQueryIO.Write.to(...)); Java input | Sum.PerKey() | Write(BigQuerySink(...)) Python http://beam.apache.org/blog/2016/05/27/where-is-my-pcollection-dot-map.html
- 21. The Beam Model:Asking the Right Questions What are you computing? Where in event time? When in processing time are results produced? How do refinements relate? 21 Event time windowing

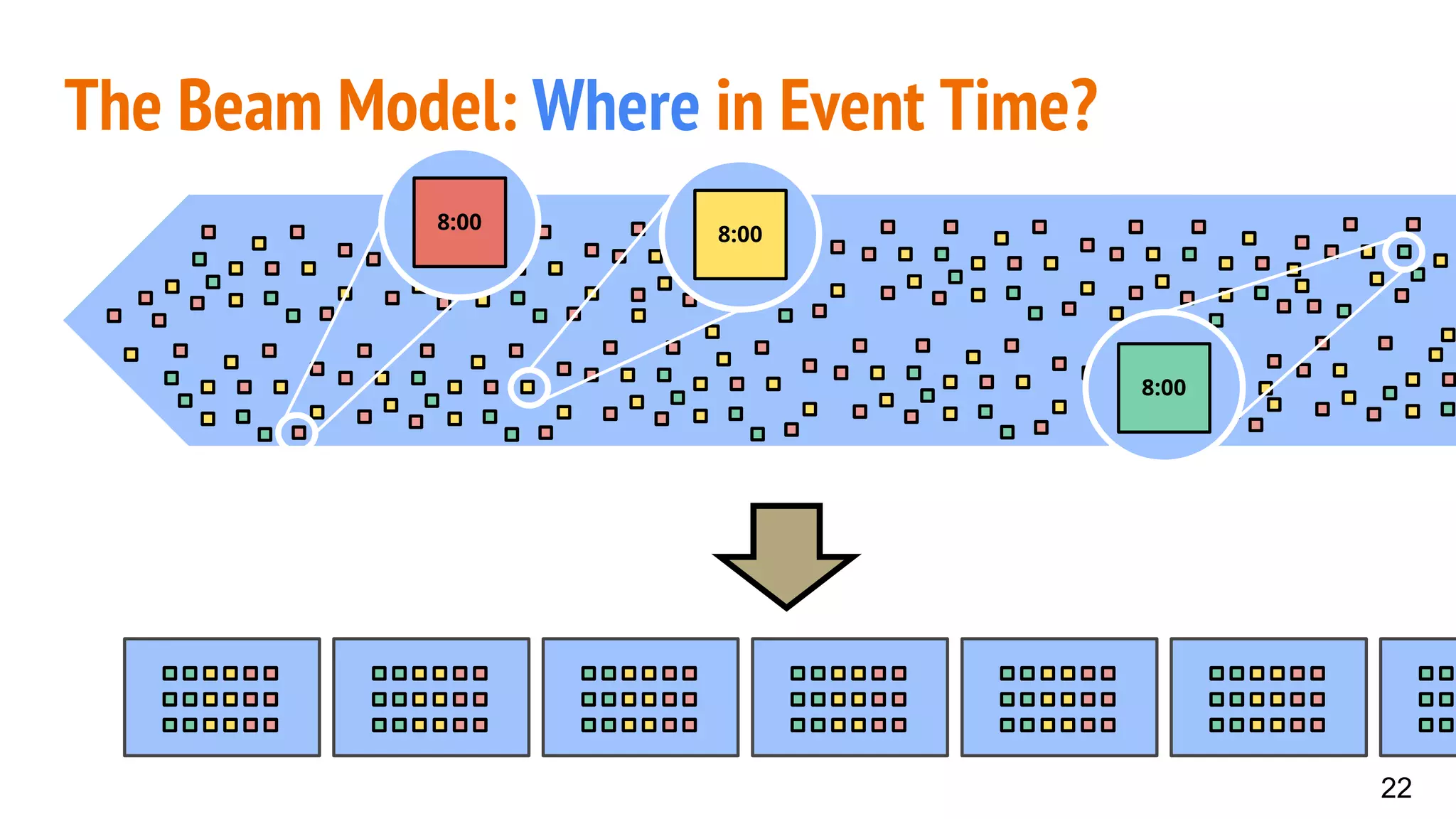

- 22. 22 The Beam Model:Where in Event Time? 8:00 8:00 8:00

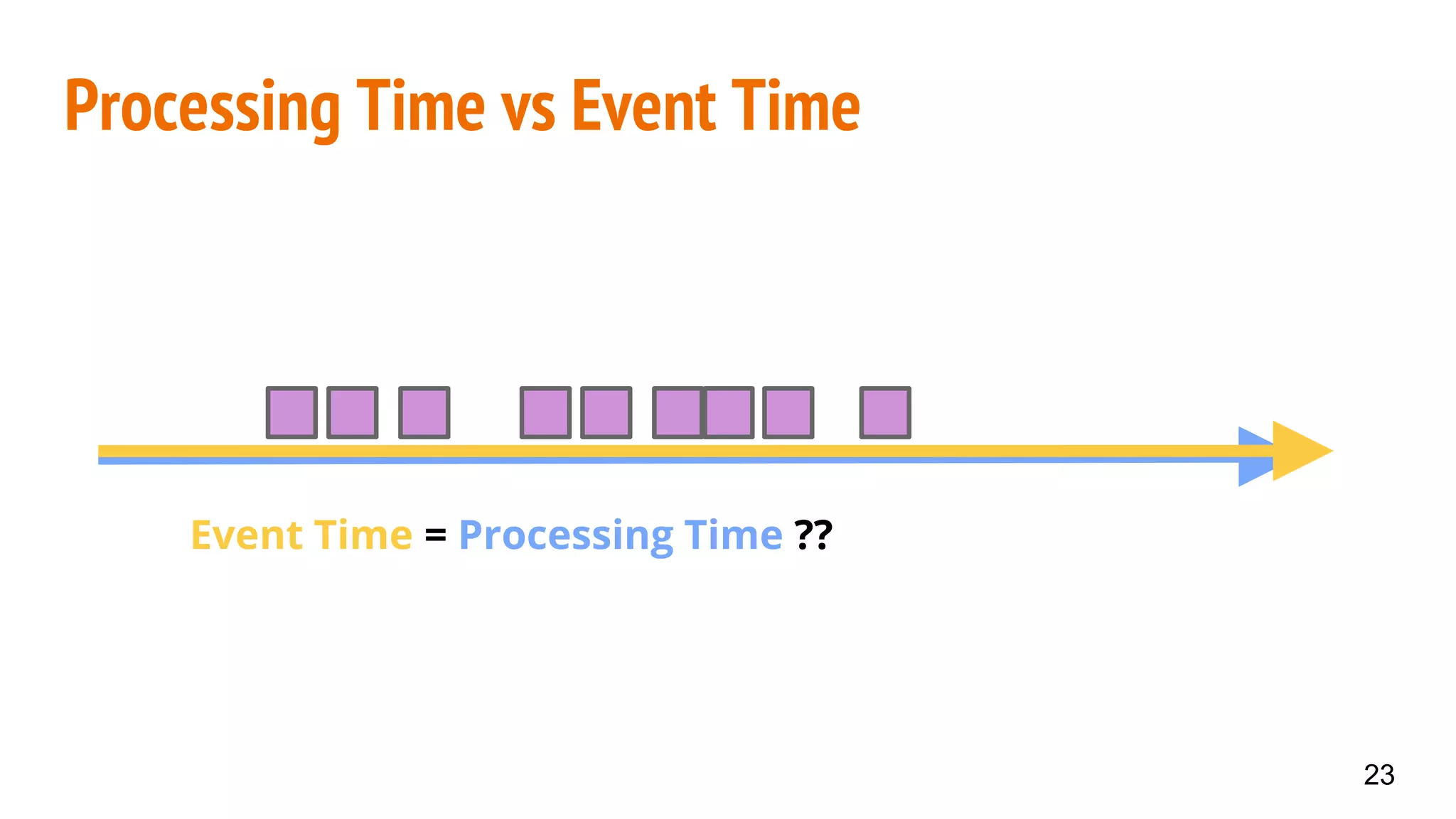

- 23. Processing Time vsEvent Time Event Time = Processing Time ?? 23

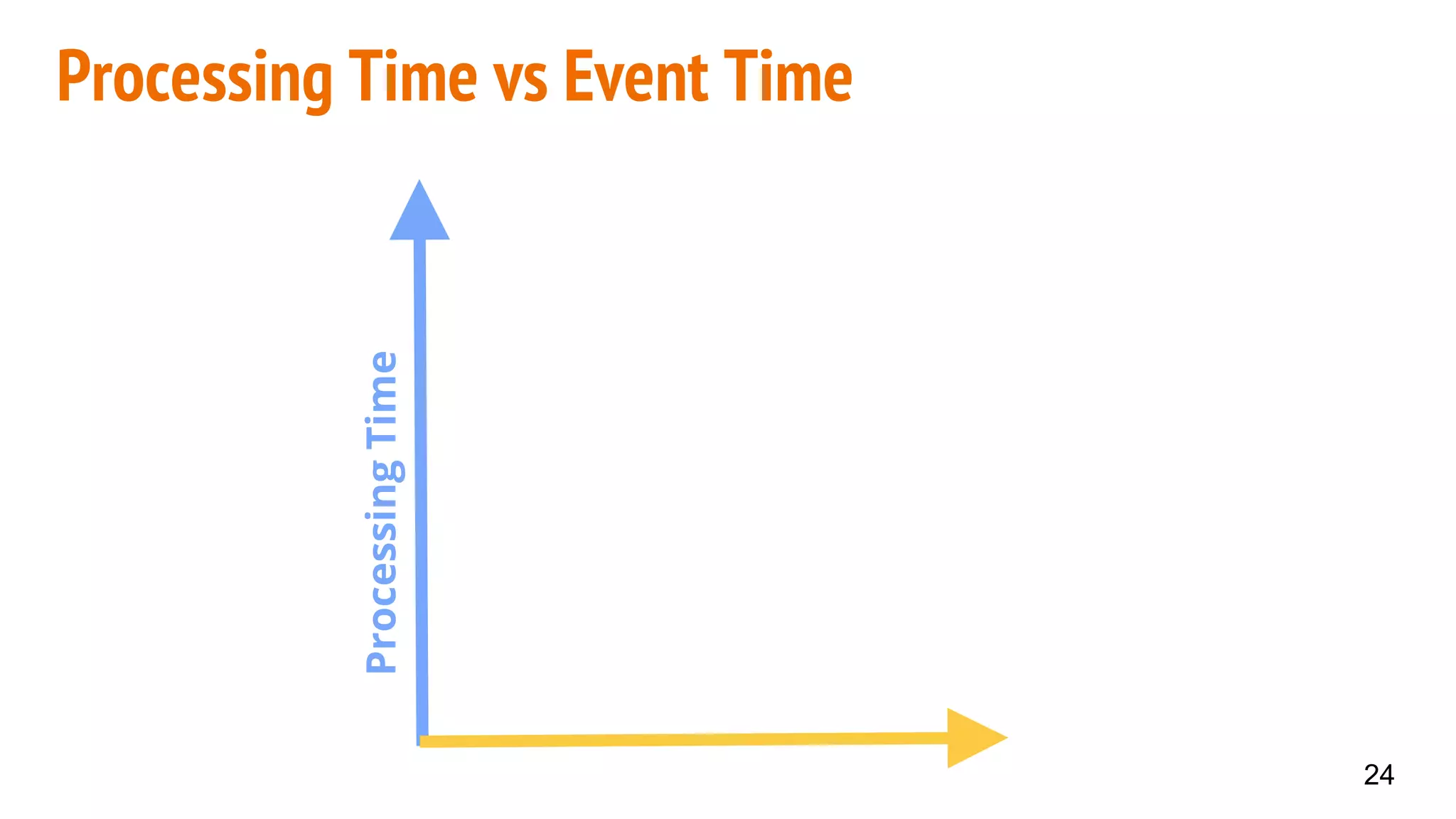

- 24. Processing Time vsEvent Time 24 ProcessingTime

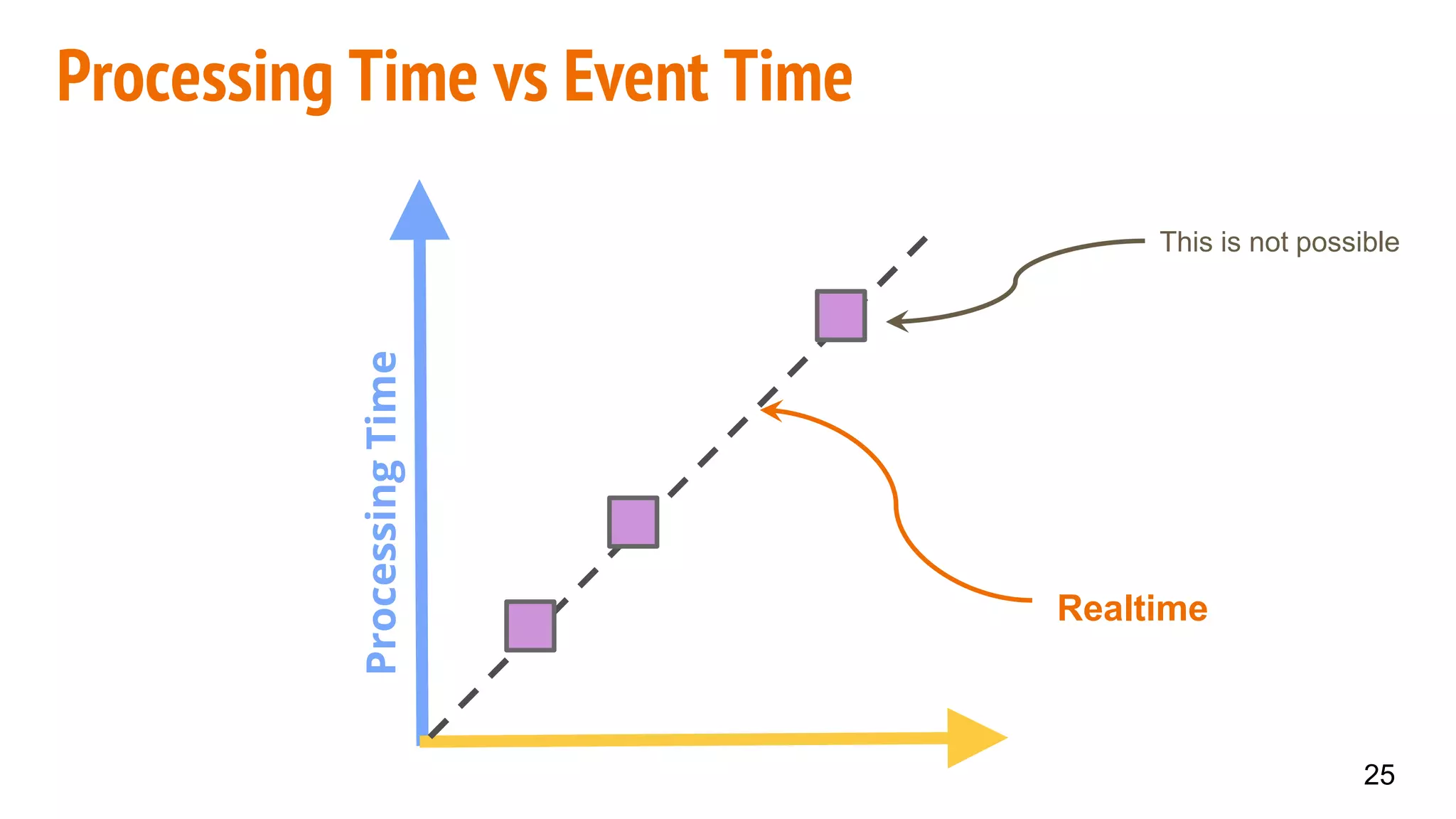

- 25. ProcessingTime Processing Time vsEvent Time Realtime 25 This is not possible
- 26. Processing Time vsEvent Time 26 Processing Delay ProcessingTime

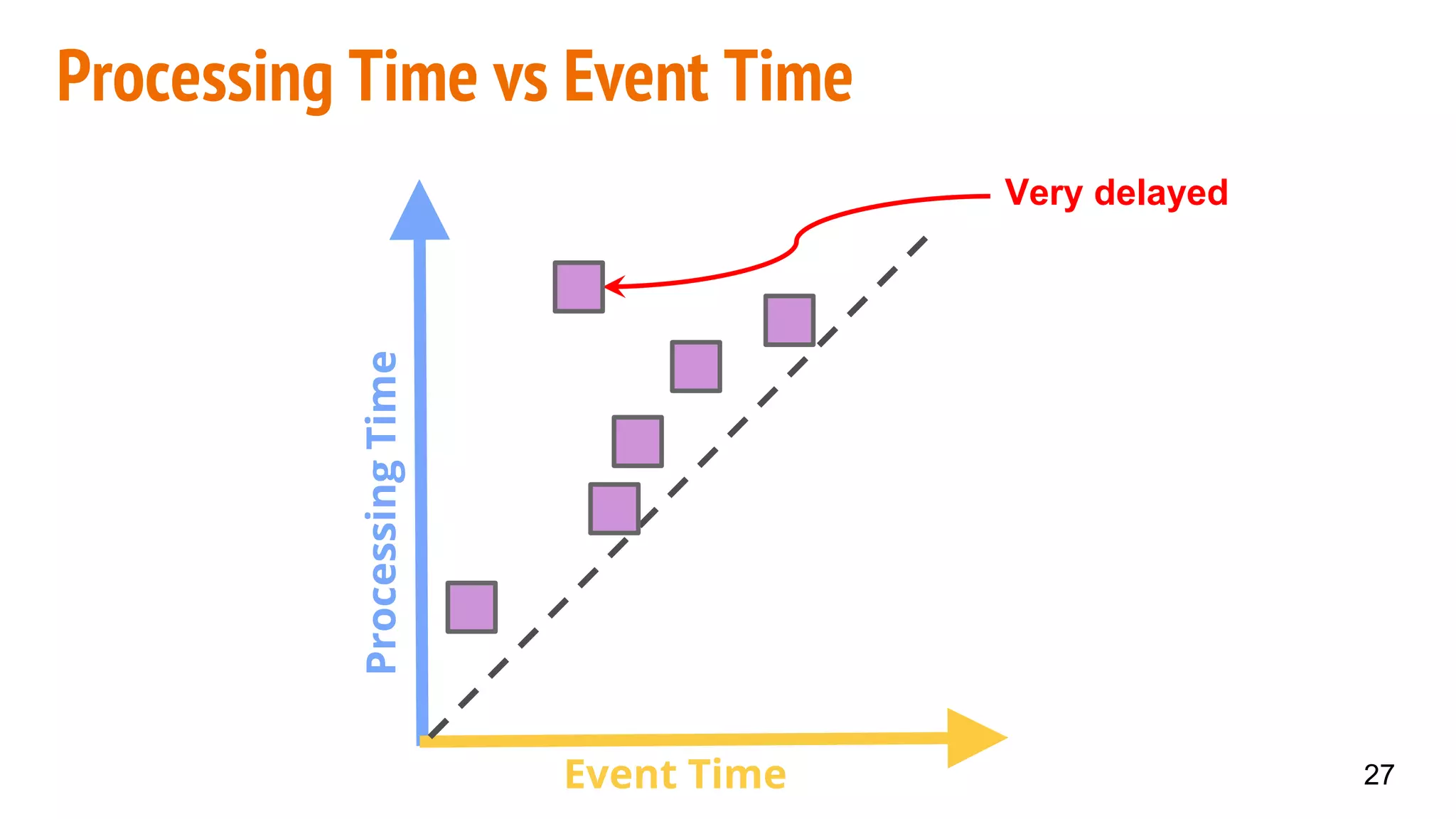

- 27. Processing Time vsEvent Time Very delayed 27 ProcessingTime Event Time

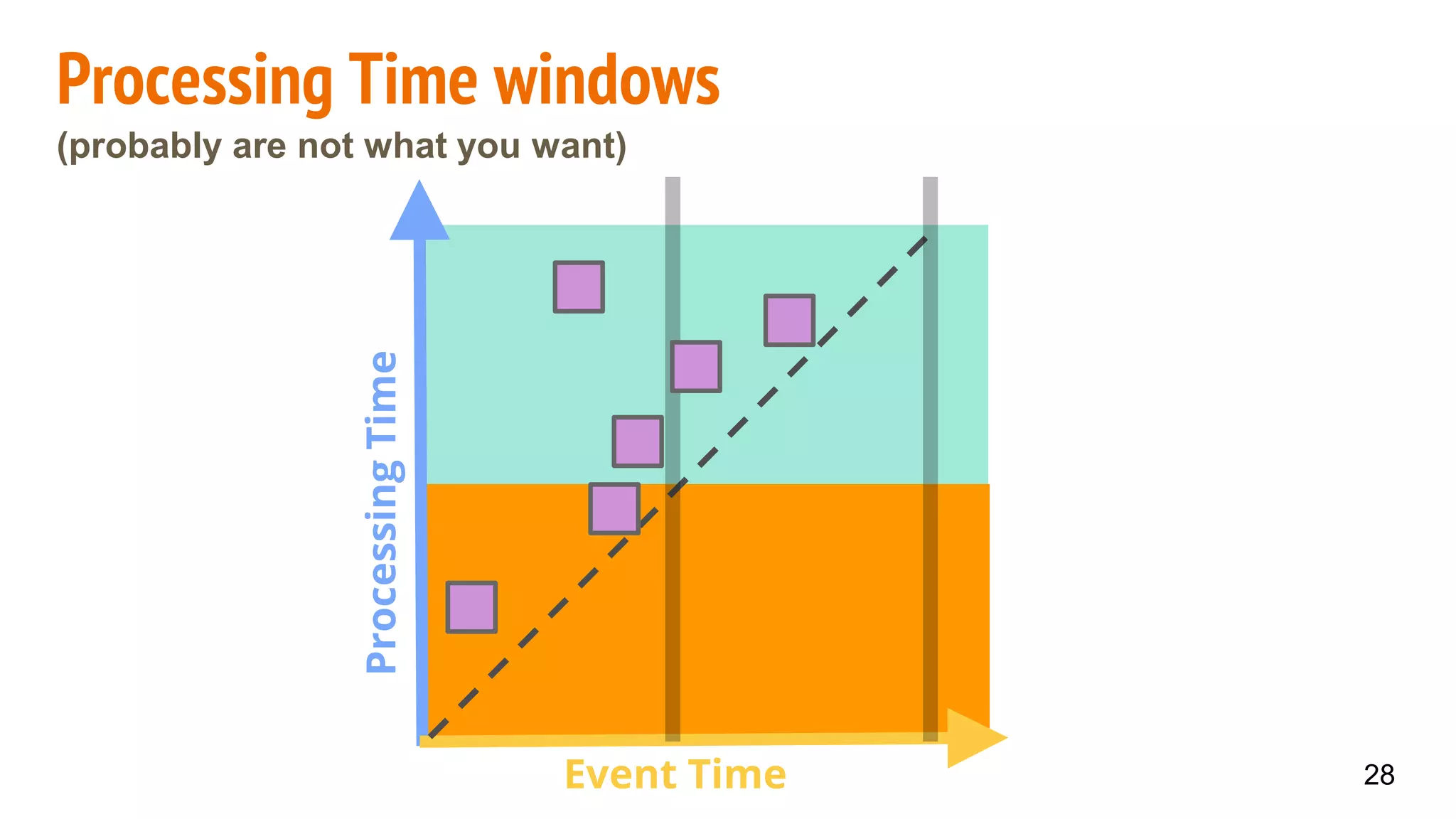

- 28. Processing Time windows (probablyare not what you want) ProcessingTime Event Time 28
- 29.

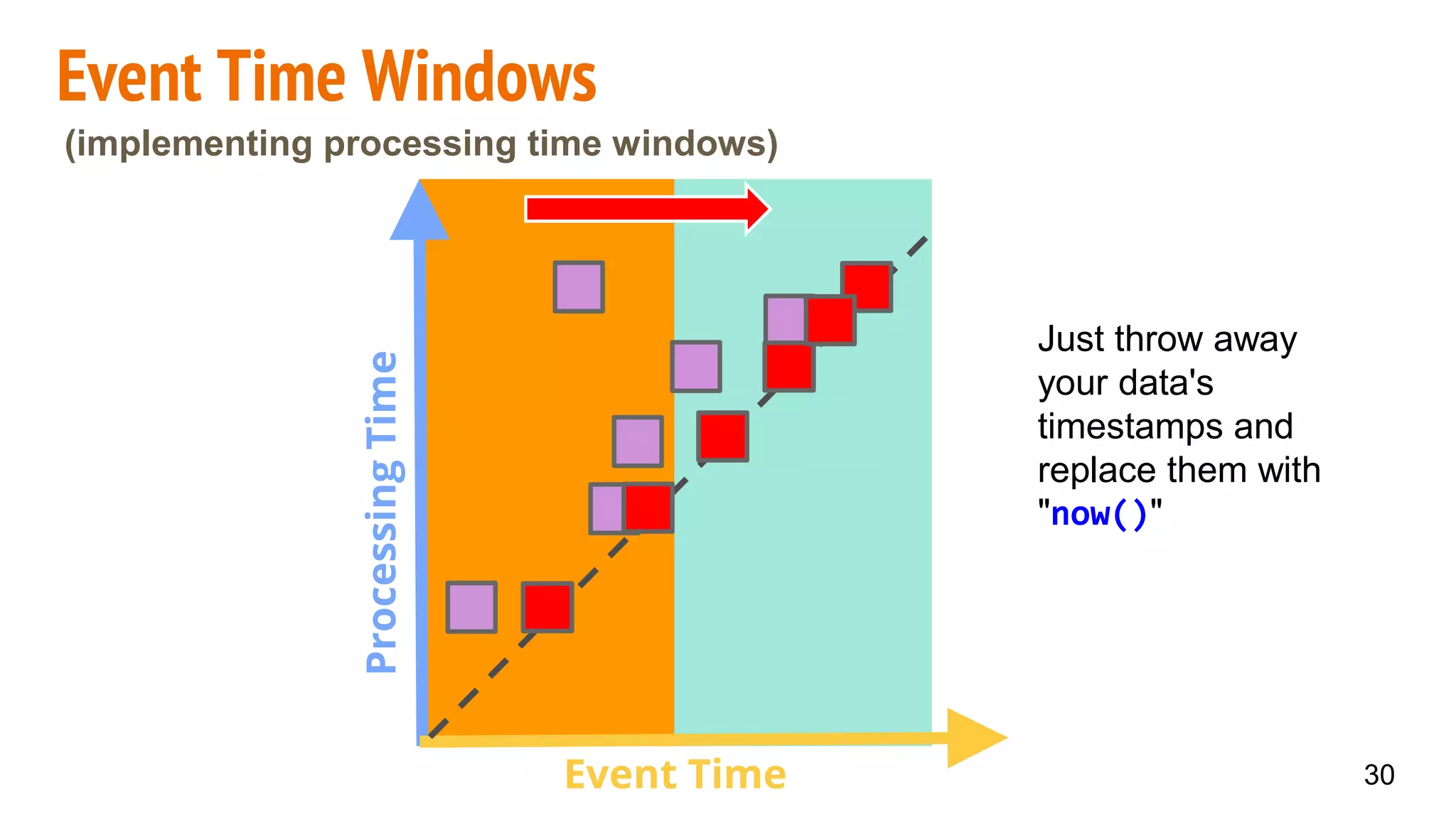

- 30. ProcessingTime Event Time Event TimeWindows 30 (implementing processing time windows) Just throw away your data's timestamps and replace them with "now()"

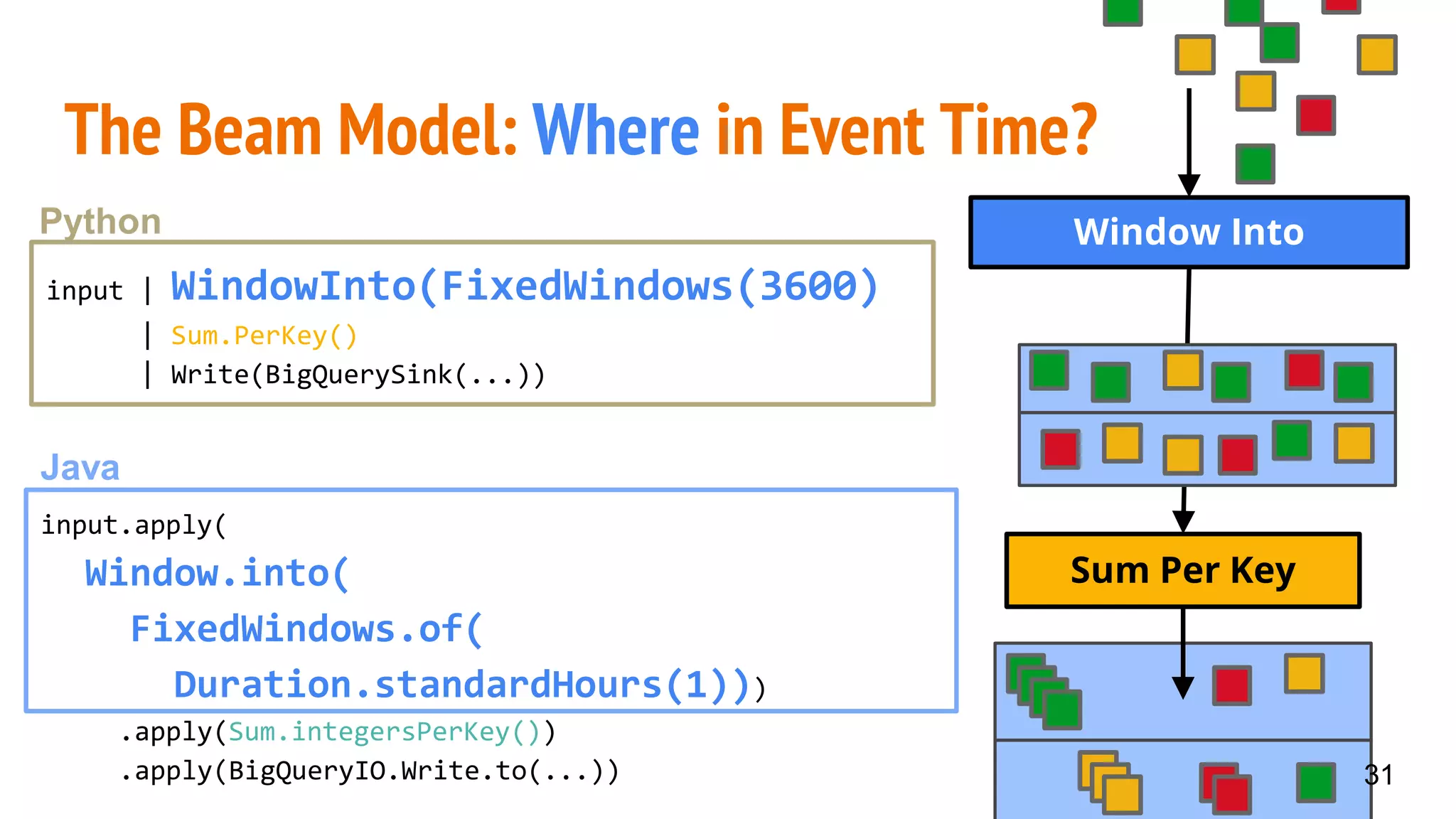

- 31. input | WindowInto(FixedWindows(3600) |Sum.PerKey() | Write(BigQuerySink(...)) Python The Beam Model: Where in Event Time? Sum Per Key Window Into 31 input.apply( Window.into( FixedWindows.of( Duration.standardHours(1))) .apply(Sum.integersPerKey()) .apply(BigQueryIO.Write.to(...)) Java

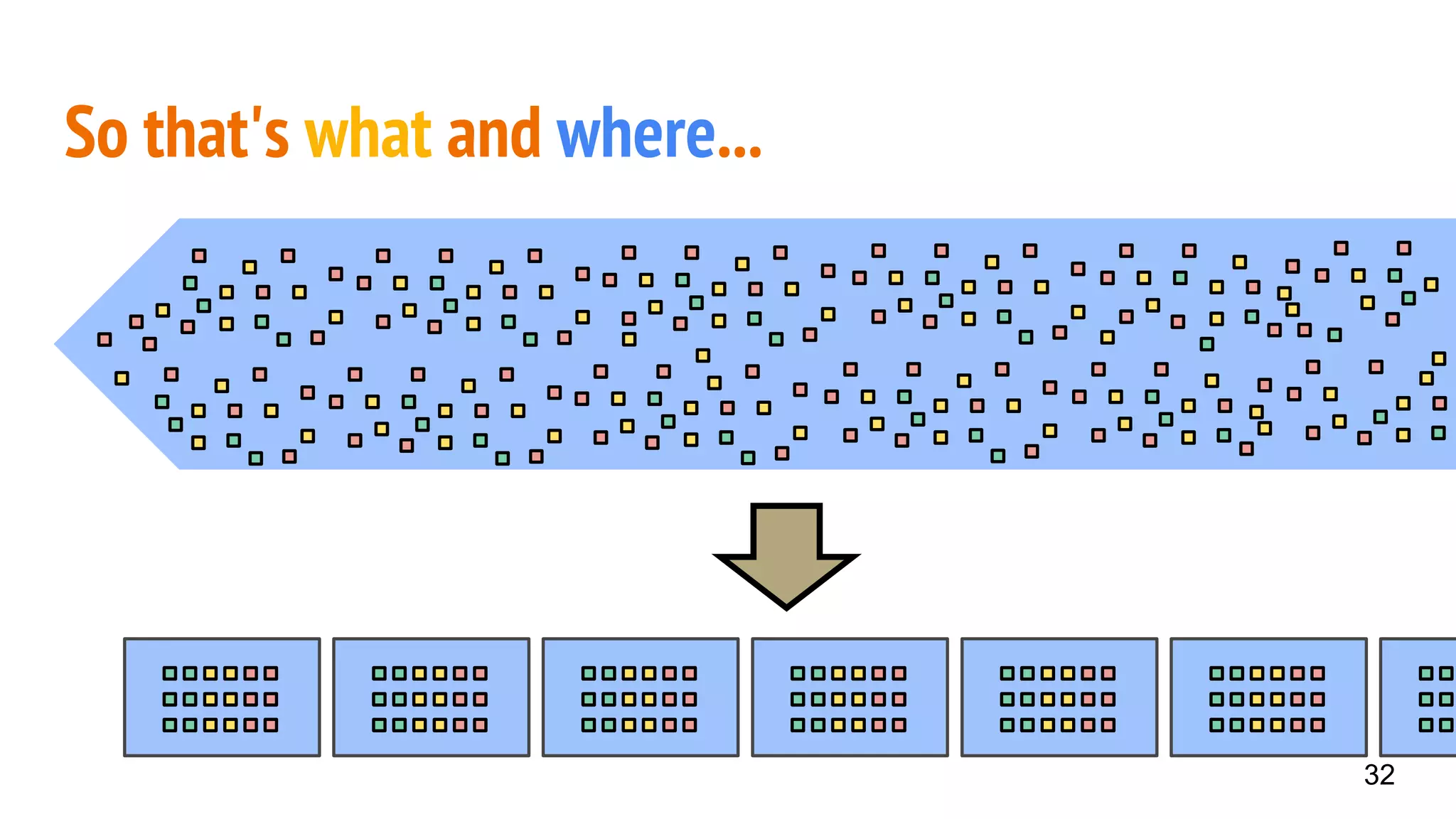

- 32. So that's whatand where... 32
- 33. The Beam Model:Asking the Right Questions What are you computing? Where in event time? When in processing time are results produced? How do refinements relate? 33 Watermarks & Triggers
- 34.

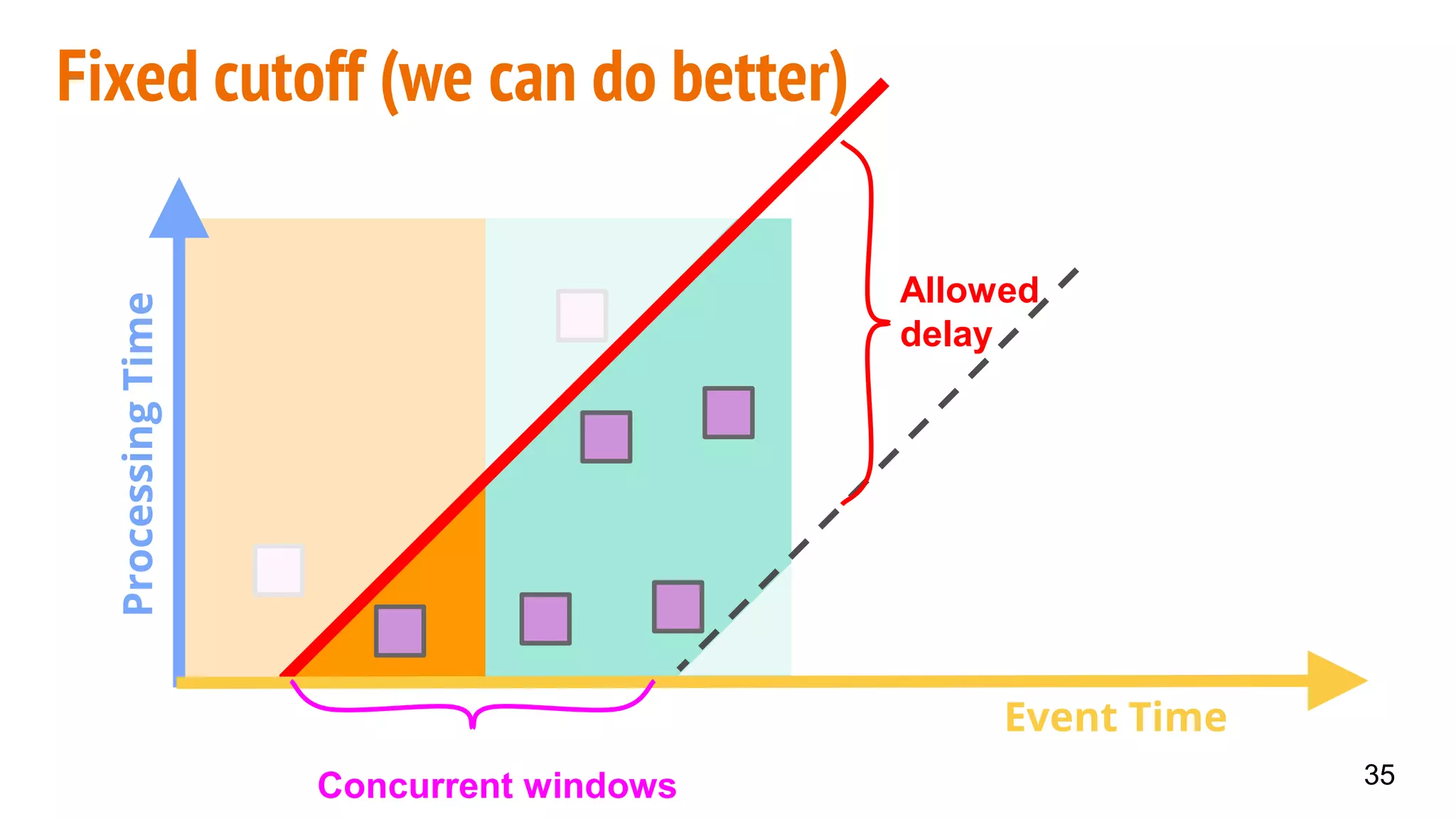

- 35. Fixed cutoff (wecan do better) ProcessingTime Event Time 35 Allowed delay Concurrent windows

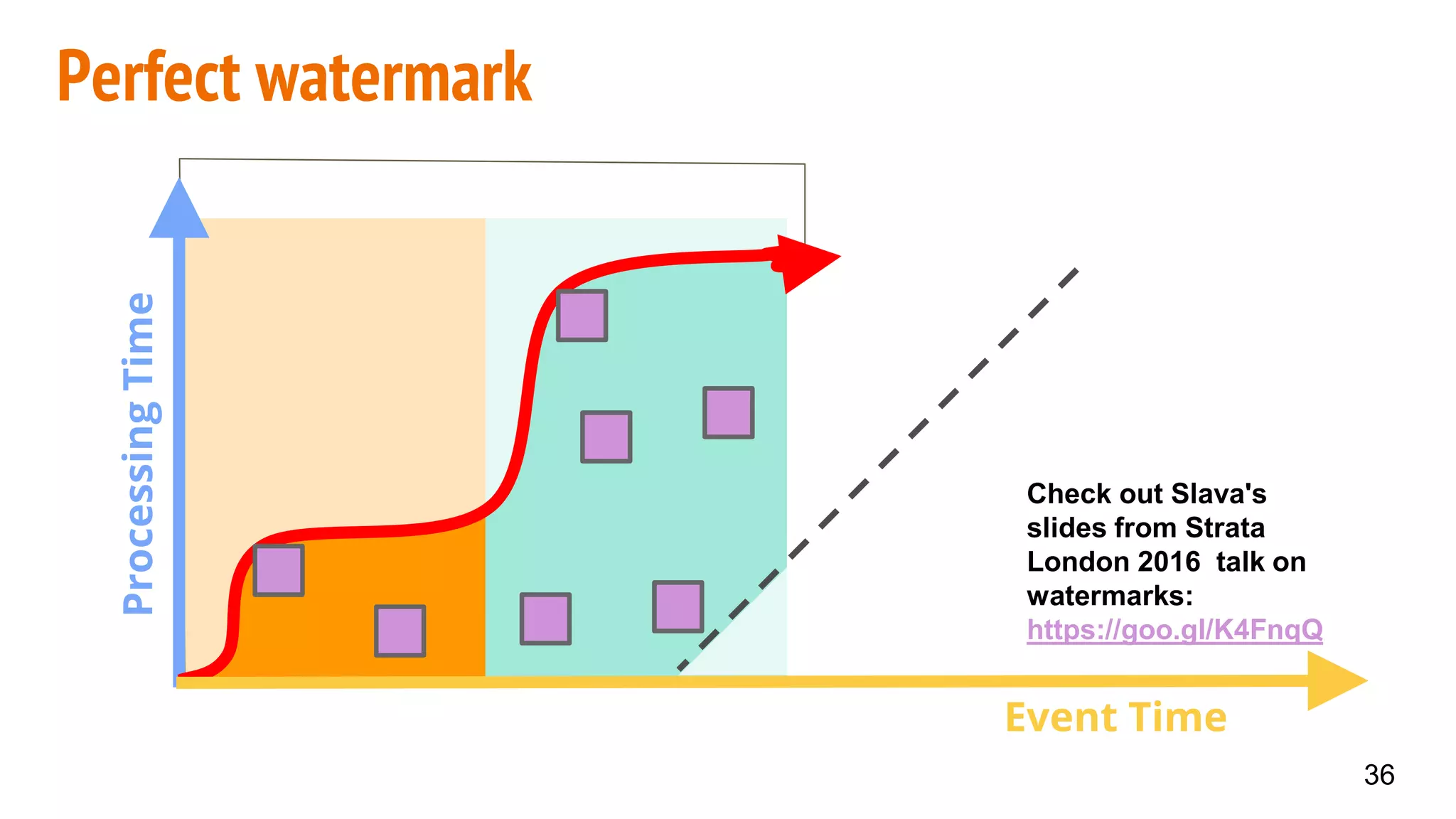

- 36. Perfect watermark ProcessingTime 36 Event Time Checkout Slava's slides from Strata London 2016 talk on watermarks: https://goo.gl/K4FnqQ
- 37.

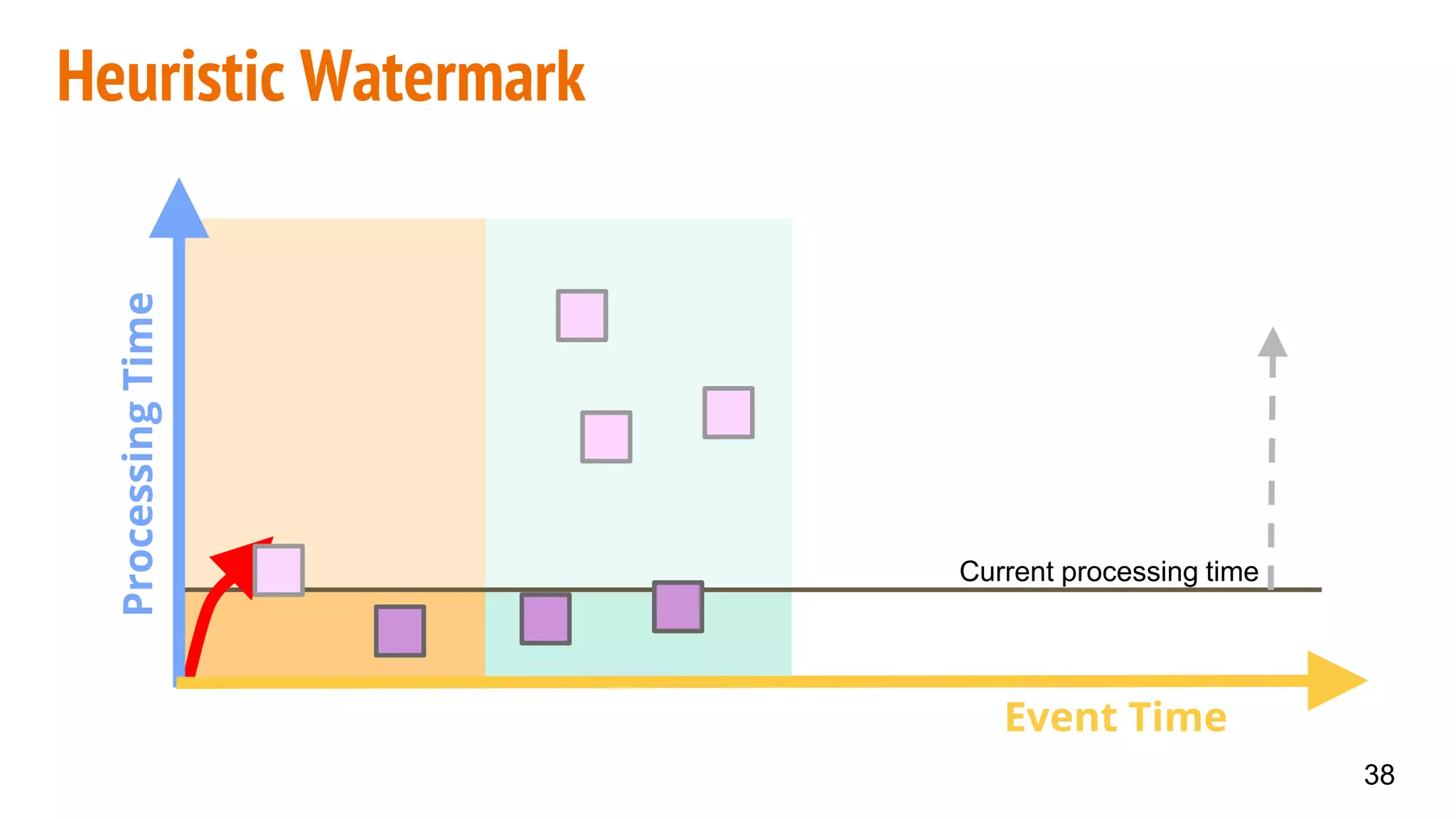

- 38. Heuristic Watermark ProcessingTime 38 Current processingtime Event Time

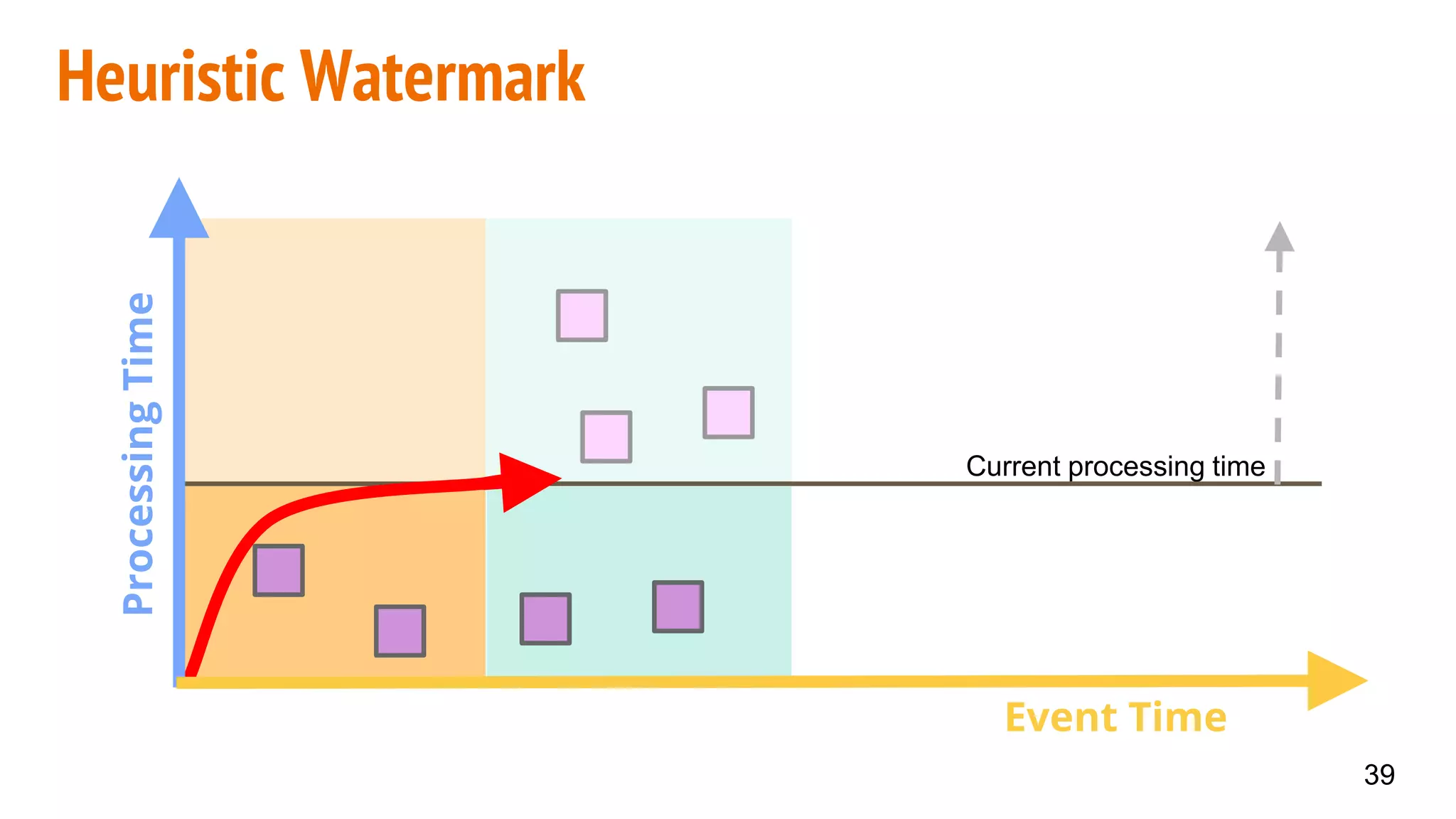

- 39. Heuristic Watermark ProcessingTime 39 Current processingtime Event Time

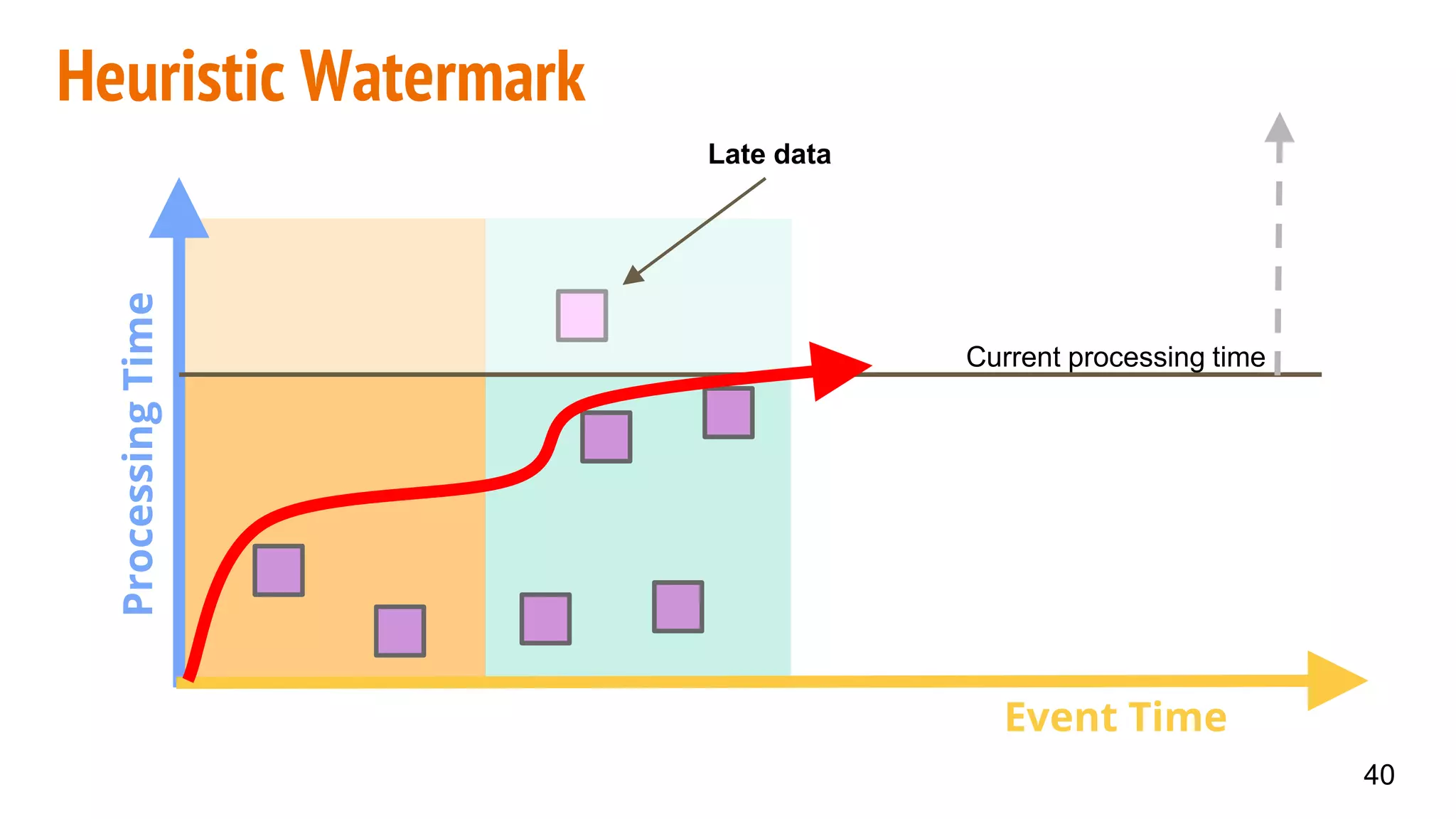

- 40. Heuristic Watermark ProcessingTime 40 Current processingtime Late data Event Time

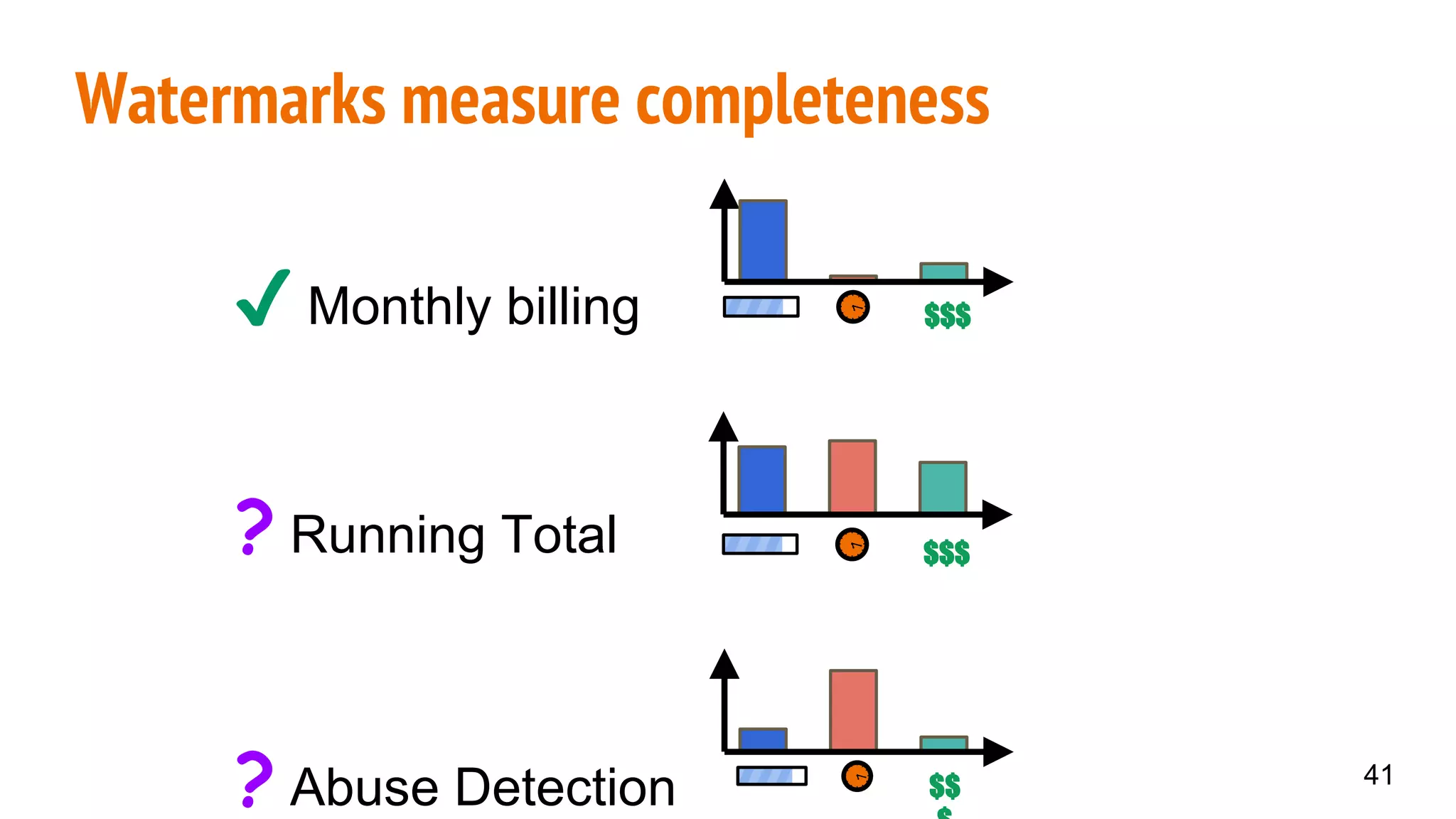

- 41. Watermarks measure completeness 41 $$$ $$$ $$ ?Running Total ✔ Monthly billing ? Abuse Detection

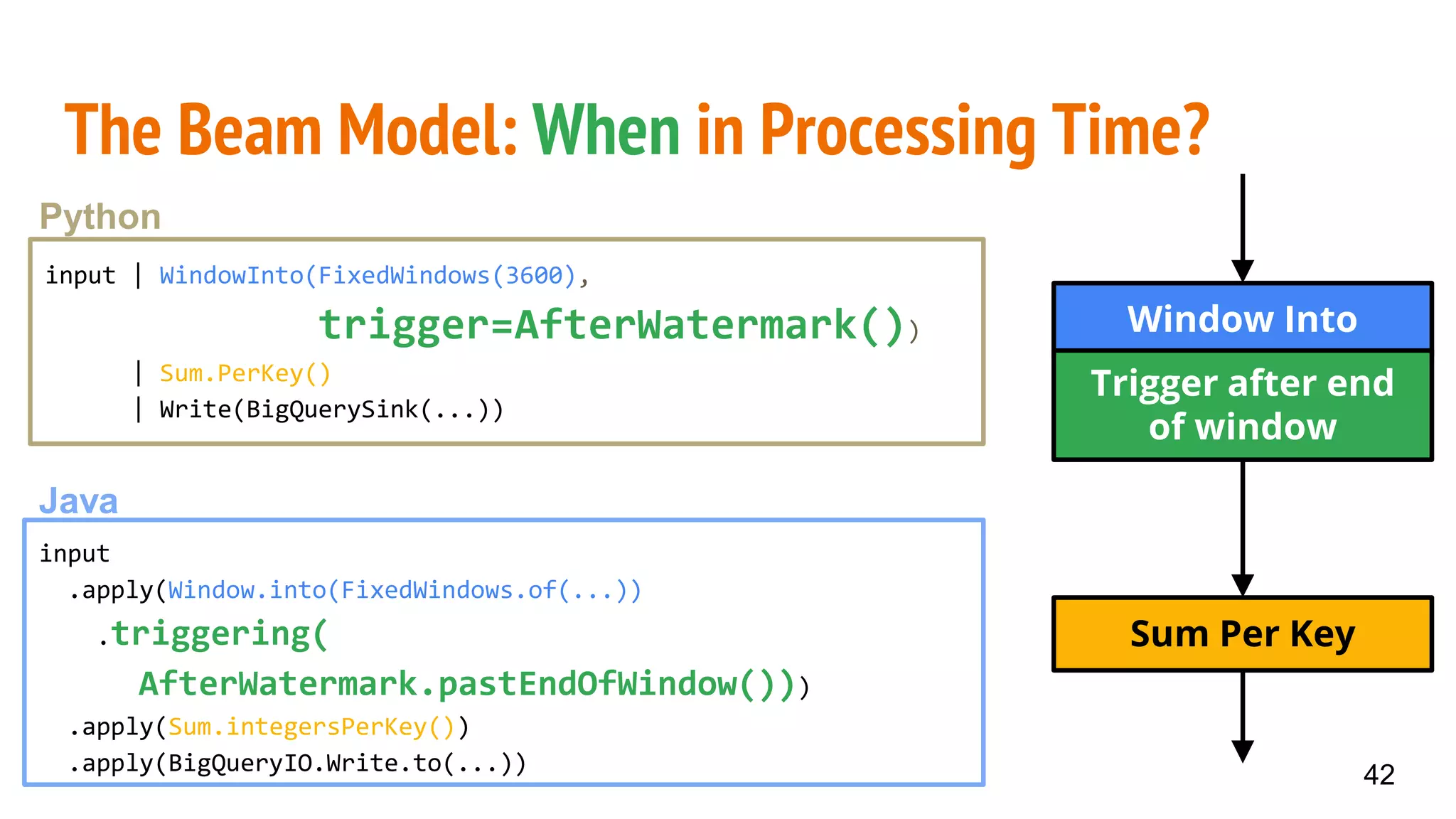

- 42. The Beam Model:When in Processing Time? Sum Per Key Window Into 42 input .apply(Window.into(FixedWindows.of(...)) .triggering( AfterWatermark.pastEndOfWindow())) .apply(Sum.integersPerKey()) .apply(BigQueryIO.Write.to(...)) Java input | WindowInto(FixedWindows(3600), trigger=AfterWatermark()) | Sum.PerKey() | Write(BigQuerySink(...)) Python Trigger after end of window
- 43.

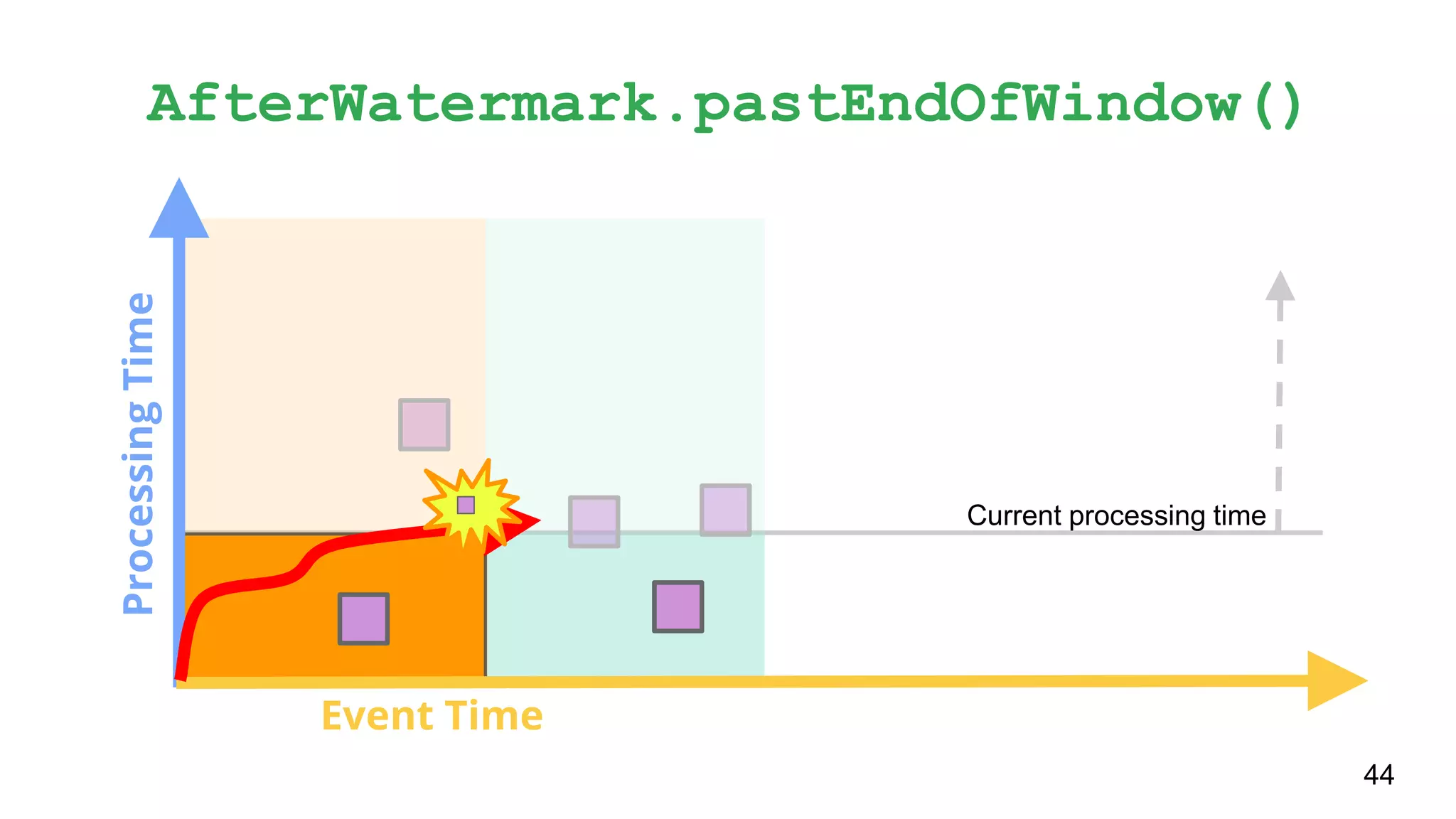

- 44. Current processing time ProcessingTime EventTime 44 AfterWatermark.pastEndOfWindow()

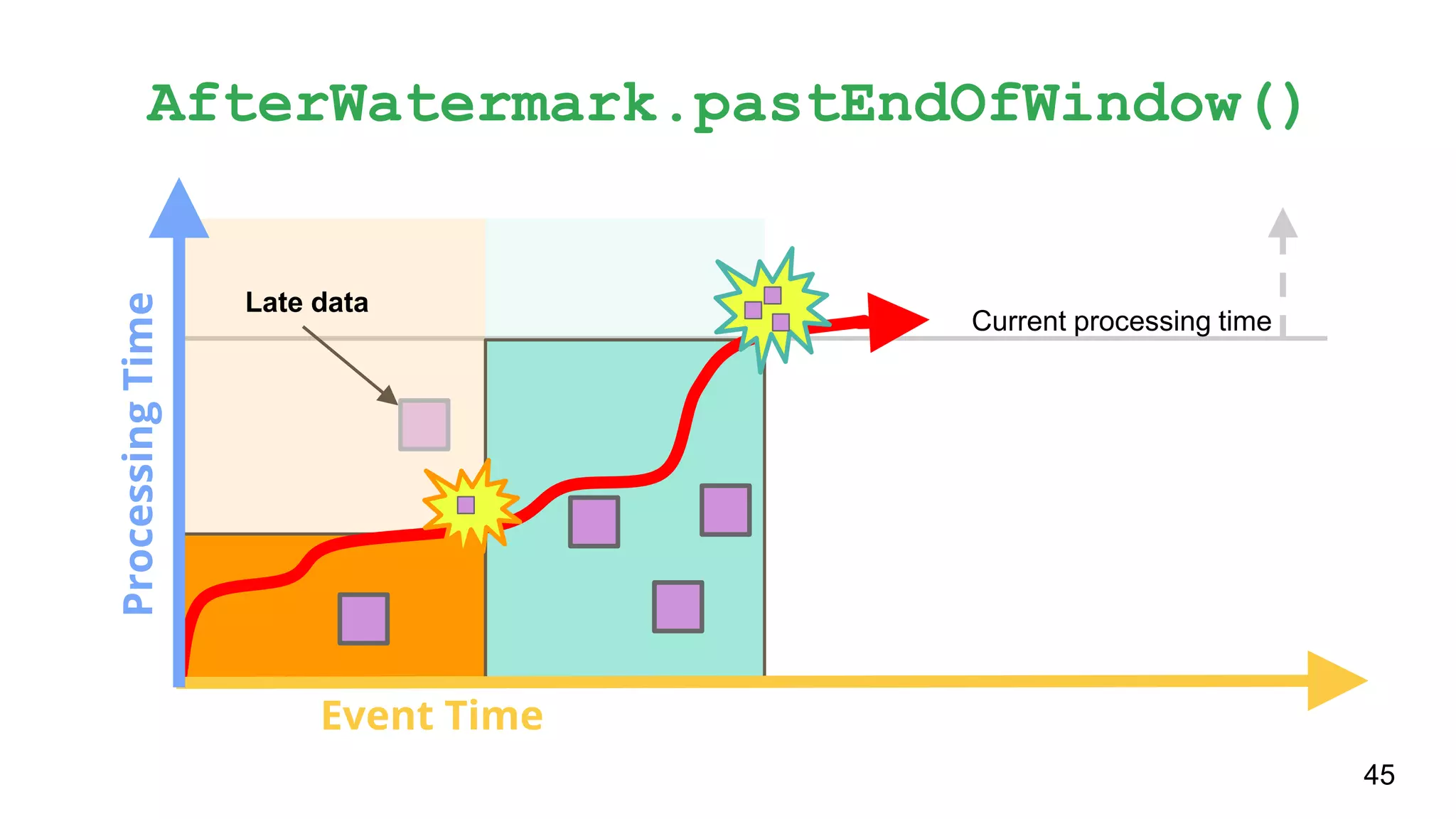

- 45. ProcessingTime Event Time Late data 45 Currentprocessing time AfterWatermark.pastEndOfWindow()

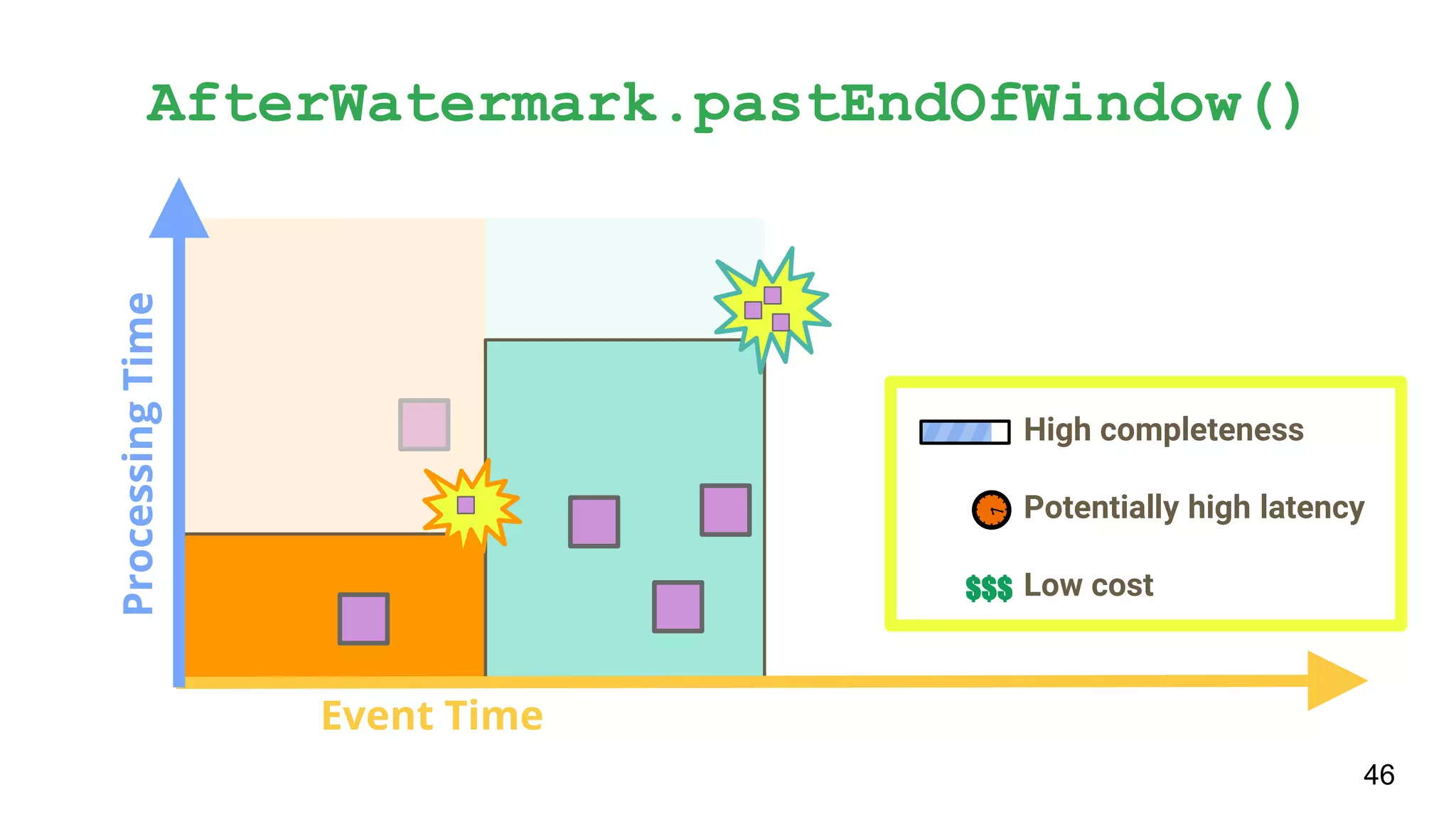

- 46. ProcessingTime Event Time 46 High completeness Potentiallyhigh latency Low cost AfterWatermark.pastEndOfWindow() $$$
- 47.

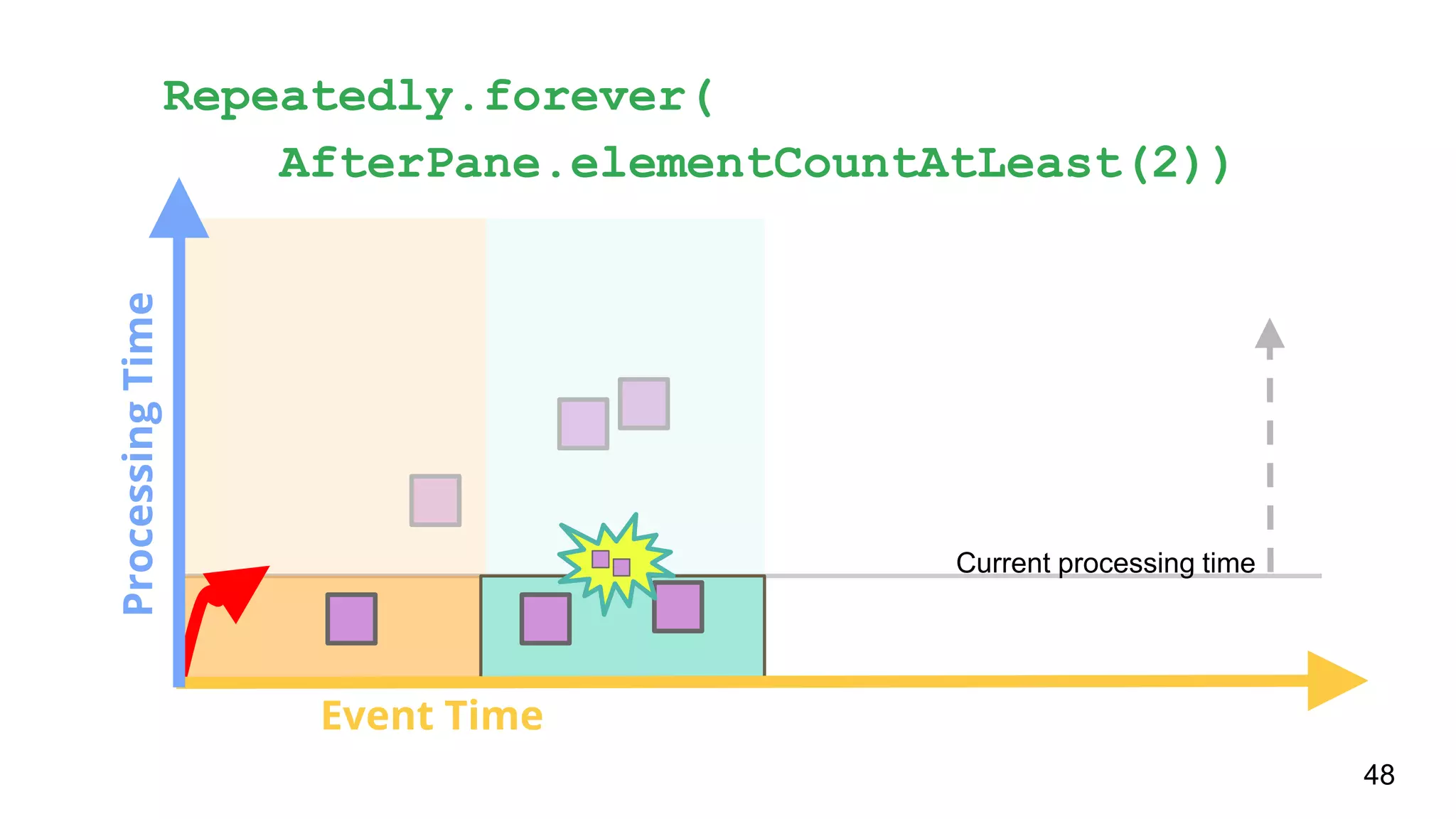

- 48. ProcessingTime Event Time 48 Current processingtime Repeatedly.forever( AfterPane.elementCountAtLeast(2))

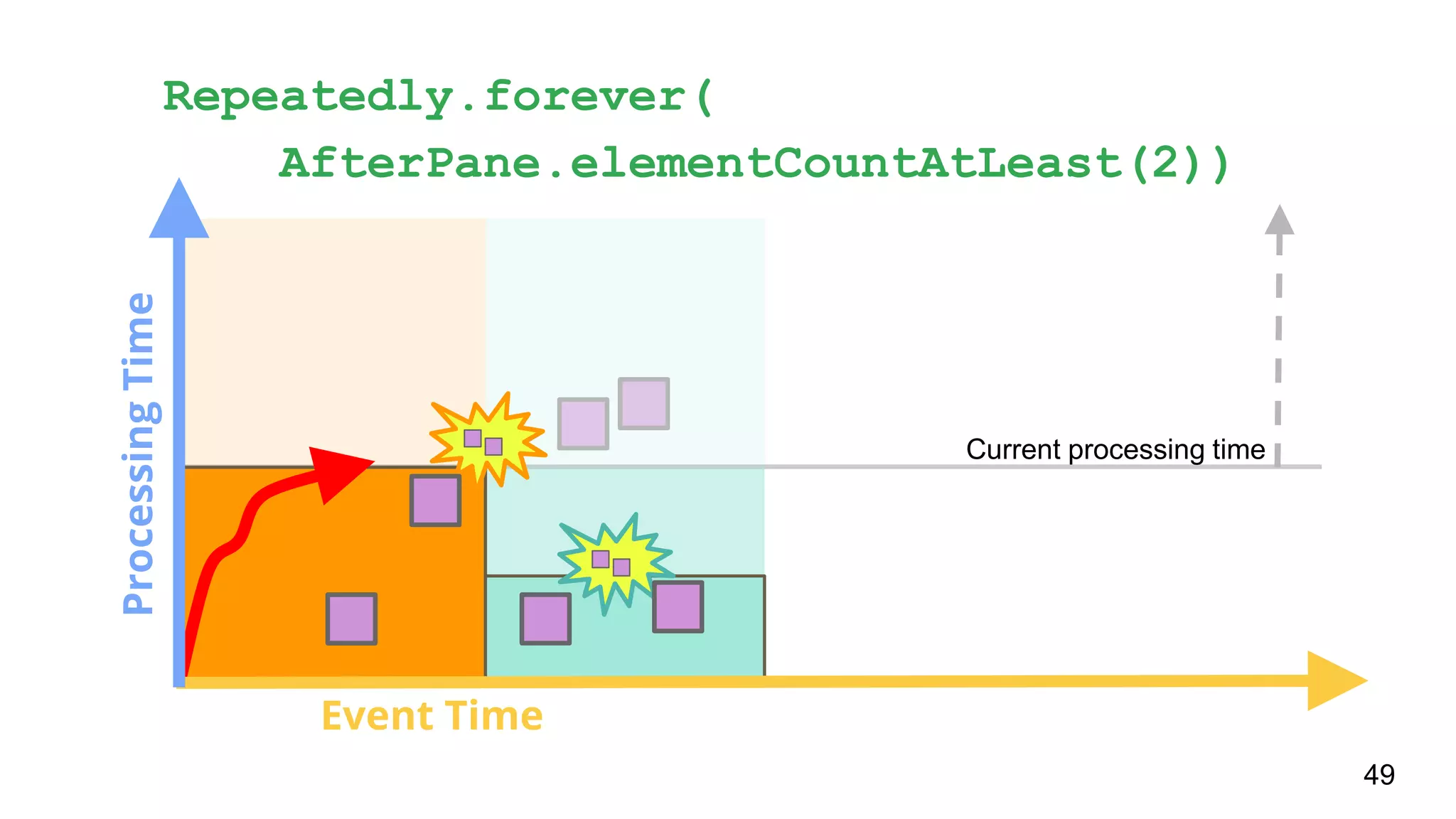

- 49. Current processing time ProcessingTime EventTime 49 Repeatedly.forever( AfterPane.elementCountAtLeast(2))

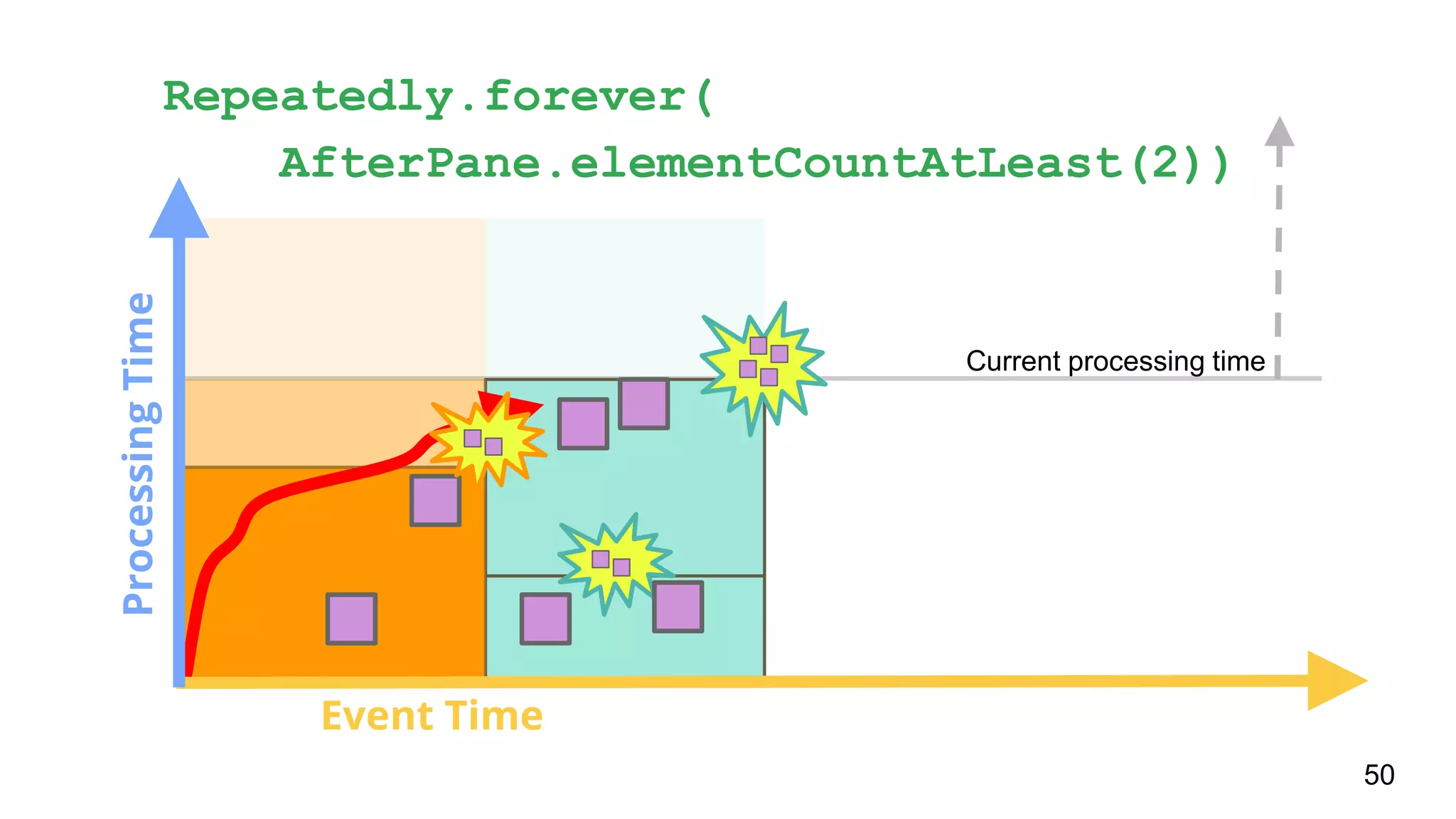

- 50. ProcessingTime Event Time 50 Current processingtime Repeatedly.forever( AfterPane.elementCountAtLeast(2))

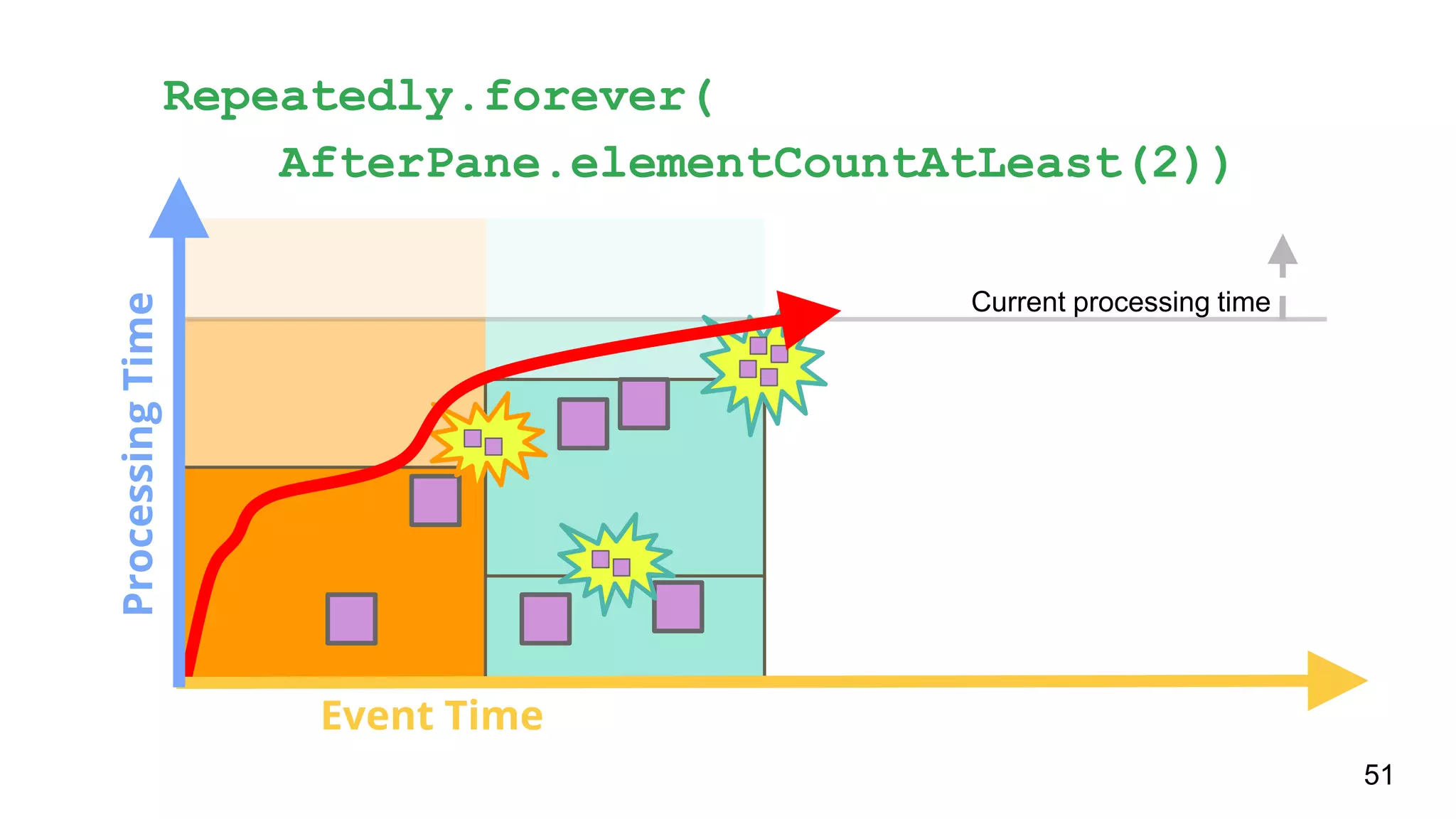

- 51. Current processing time ProcessingTime EventTime 51 Repeatedly.forever( AfterPane.elementCountAtLeast(2))

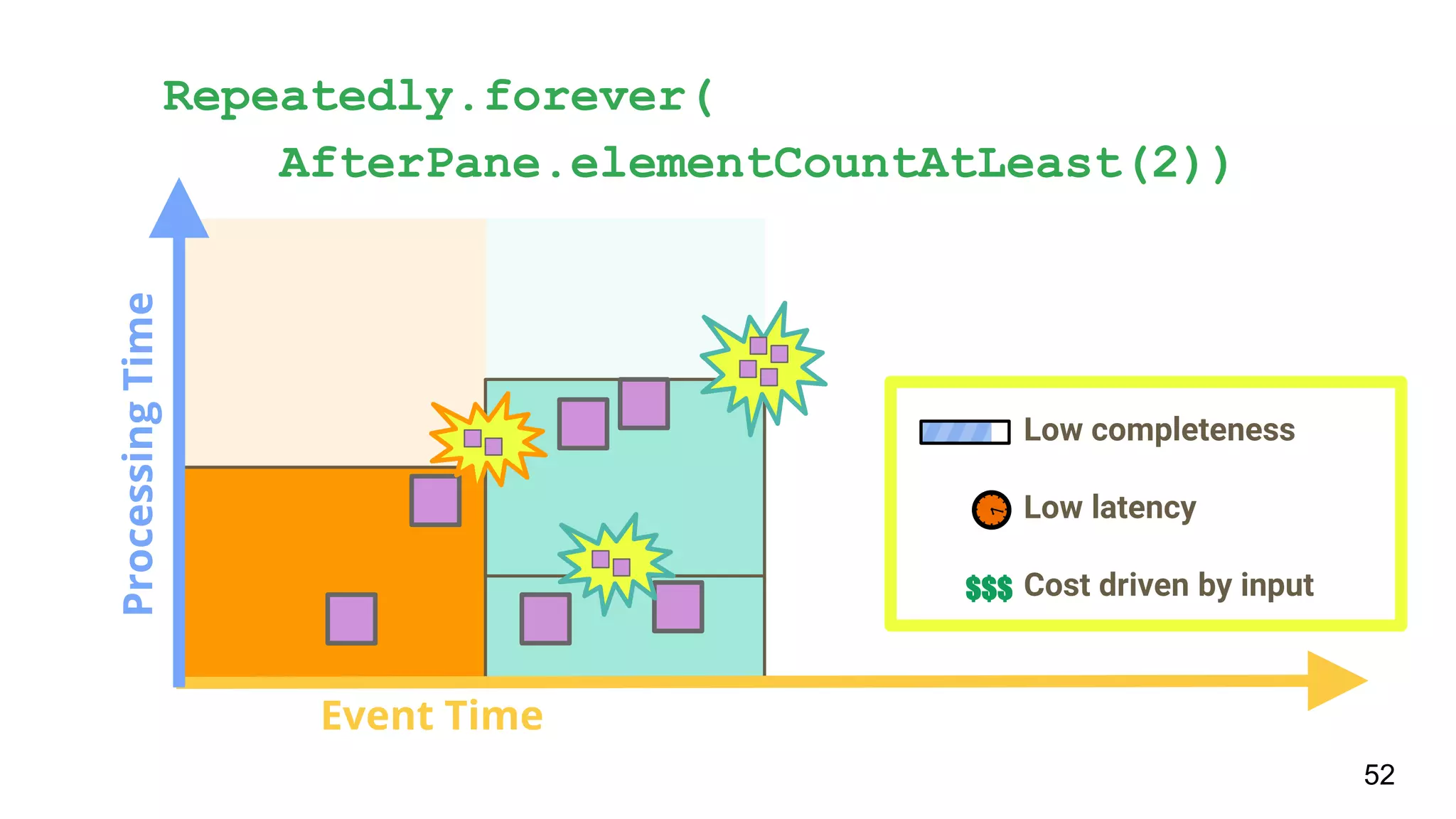

- 52. ProcessingTime Event Time 52 Repeatedly.forever( AfterPane.elementCountAtLeast(2)) Low completeness Lowlatency Cost driven by input$$$

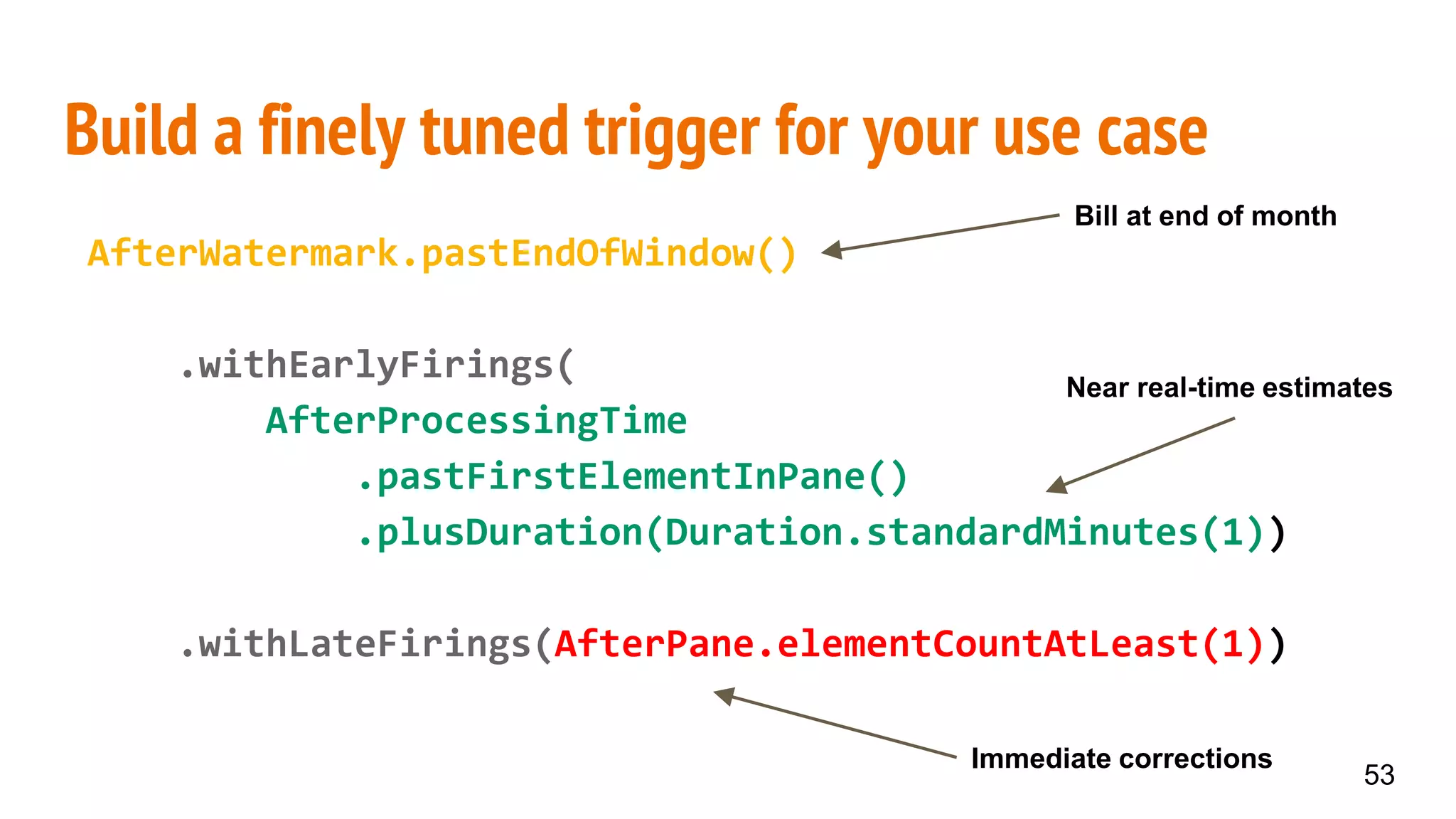

- 53. Build a finelytuned trigger for your use case AfterWatermark.pastEndOfWindow() .withEarlyFirings( AfterProcessingTime .pastFirstElementInPane() .plusDuration(Duration.standardMinutes(1)) .withLateFirings(AfterPane.elementCountAtLeast(1)) 53 Bill at end of month Near real-time estimates Immediate corrections

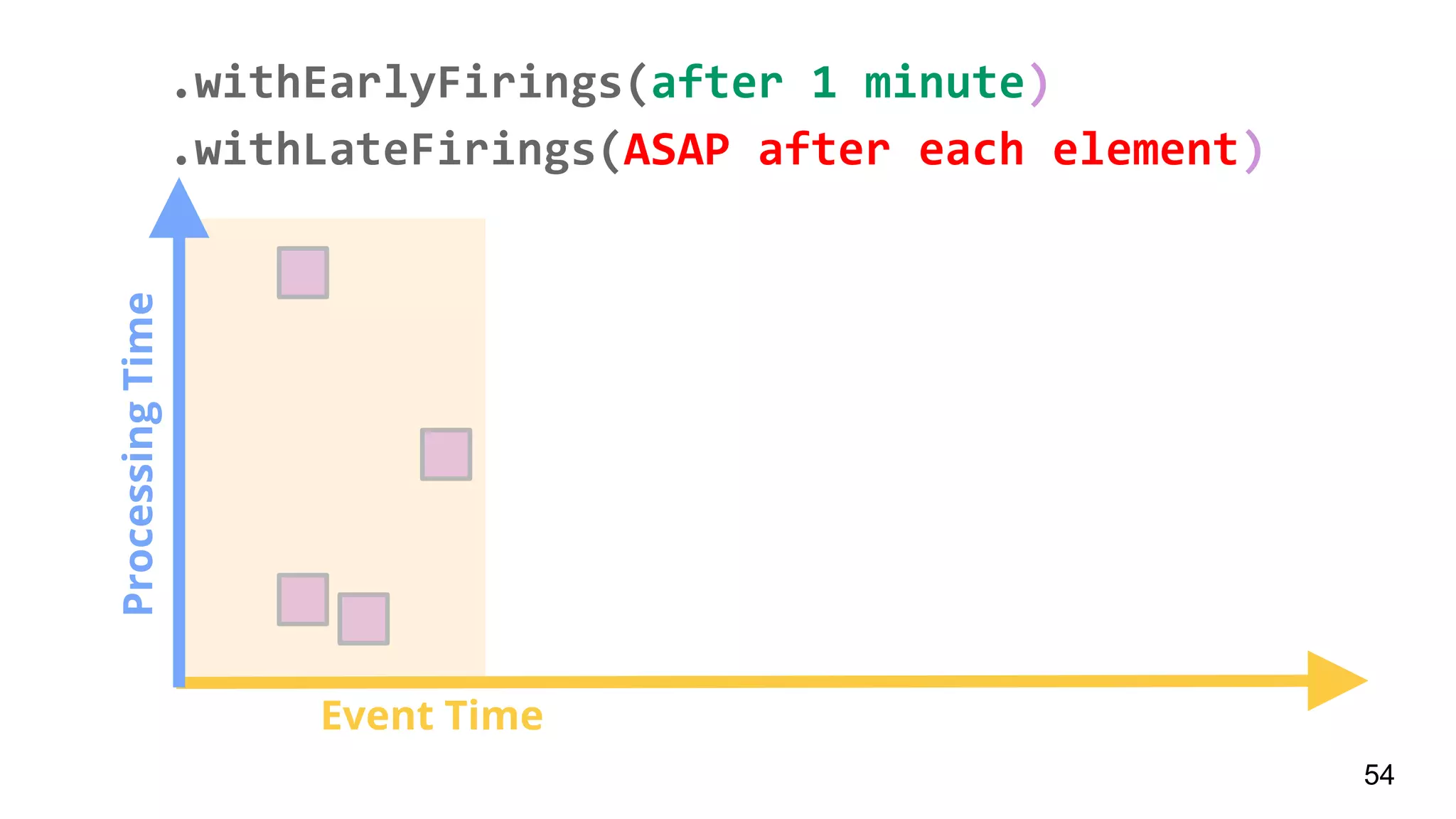

- 54. ProcessingTime Event Time 54 .withEarlyFirings(after 1minute) .withLateFirings(ASAP after each element)

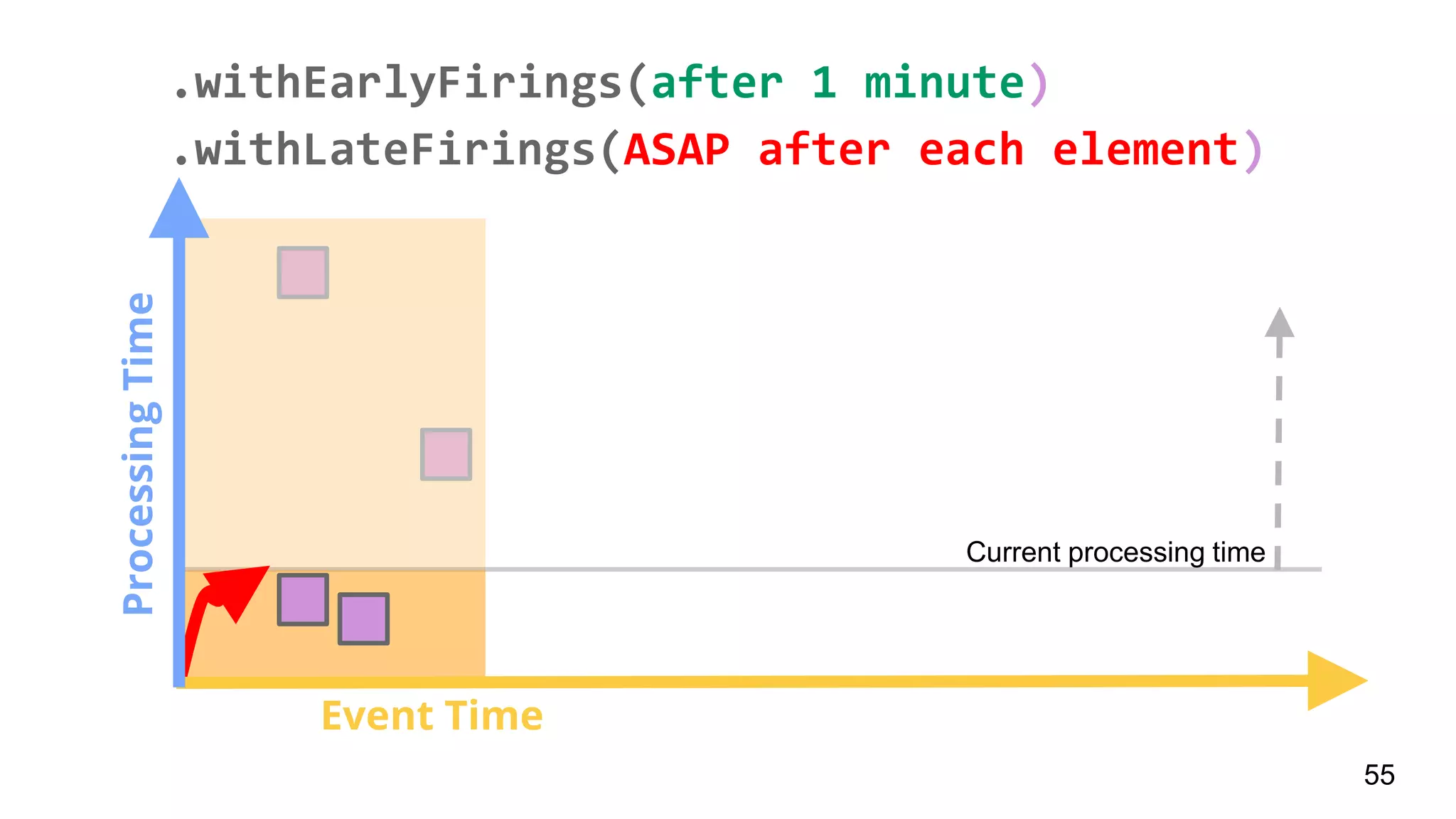

- 55. ProcessingTime Event Time 55 Current processingtime .withEarlyFirings(after 1 minute) .withLateFirings(ASAP after each element)

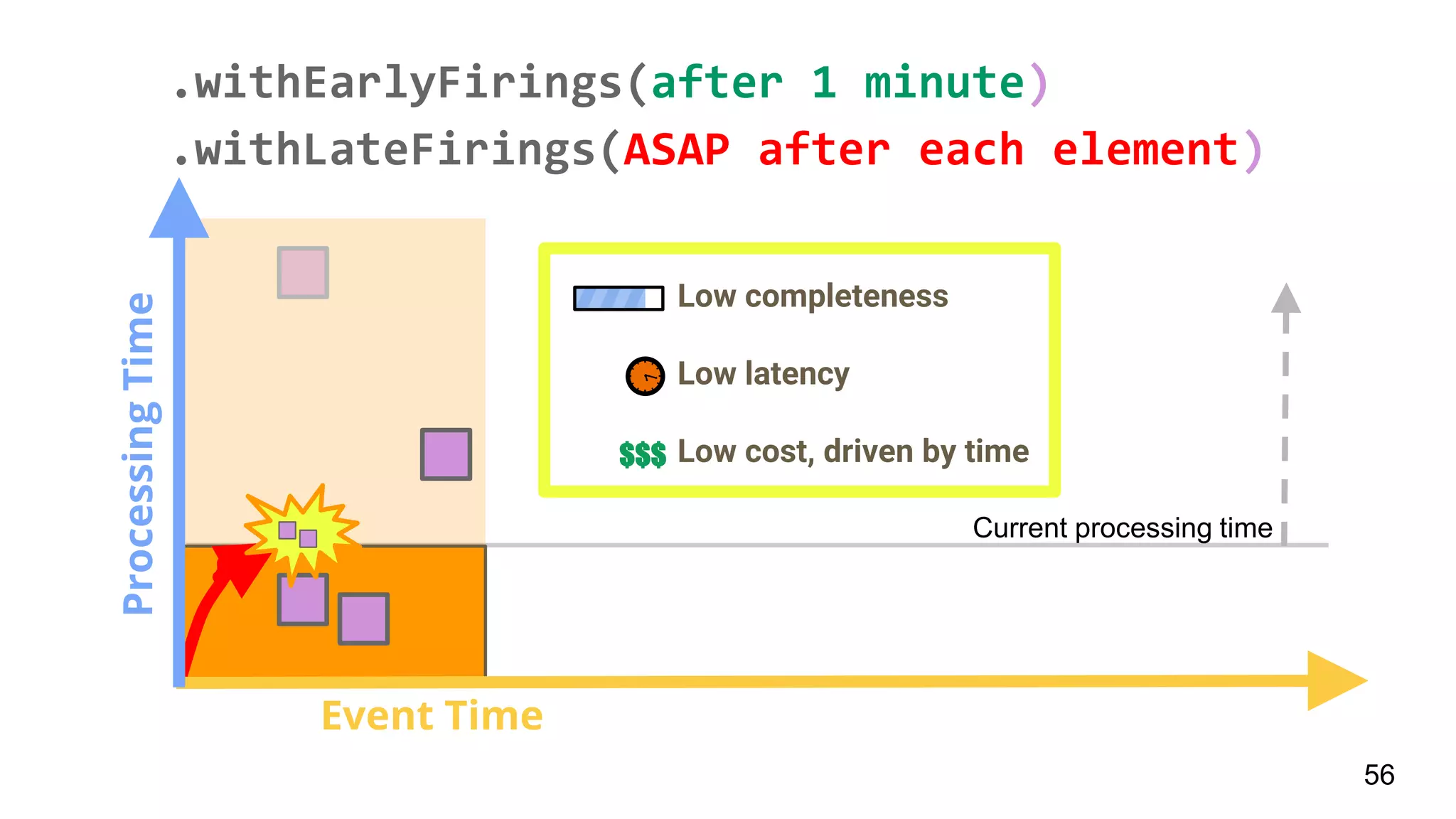

- 56. ProcessingTime Event Time 56 Current processingtime Low completeness Low latency Low cost, driven by time$$$ .withEarlyFirings(after 1 minute) .withLateFirings(ASAP after each element)

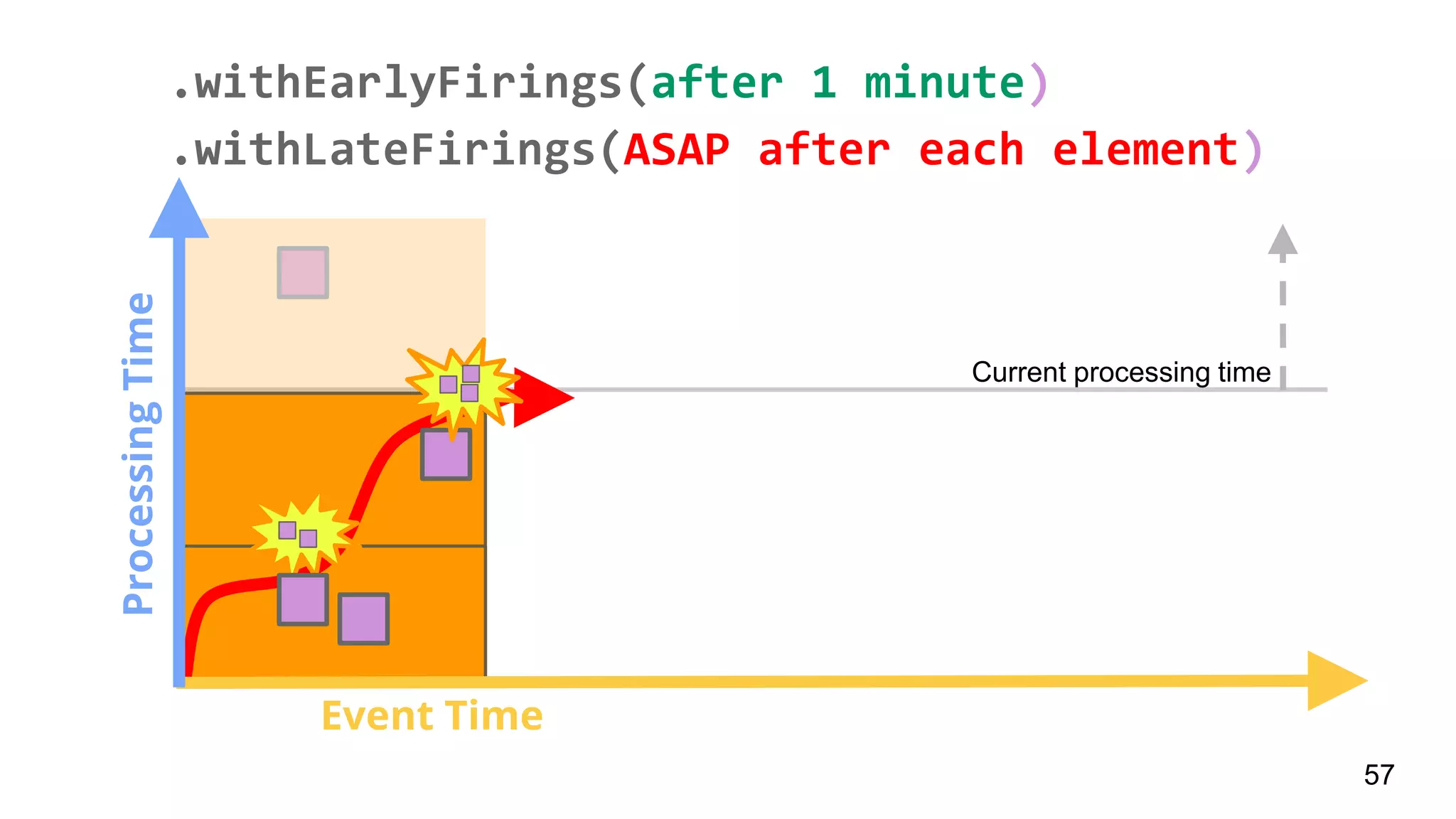

- 57. Current processing time ProcessingTime EventTime 57 .withEarlyFirings(after 1 minute) .withLateFirings(ASAP after each element)

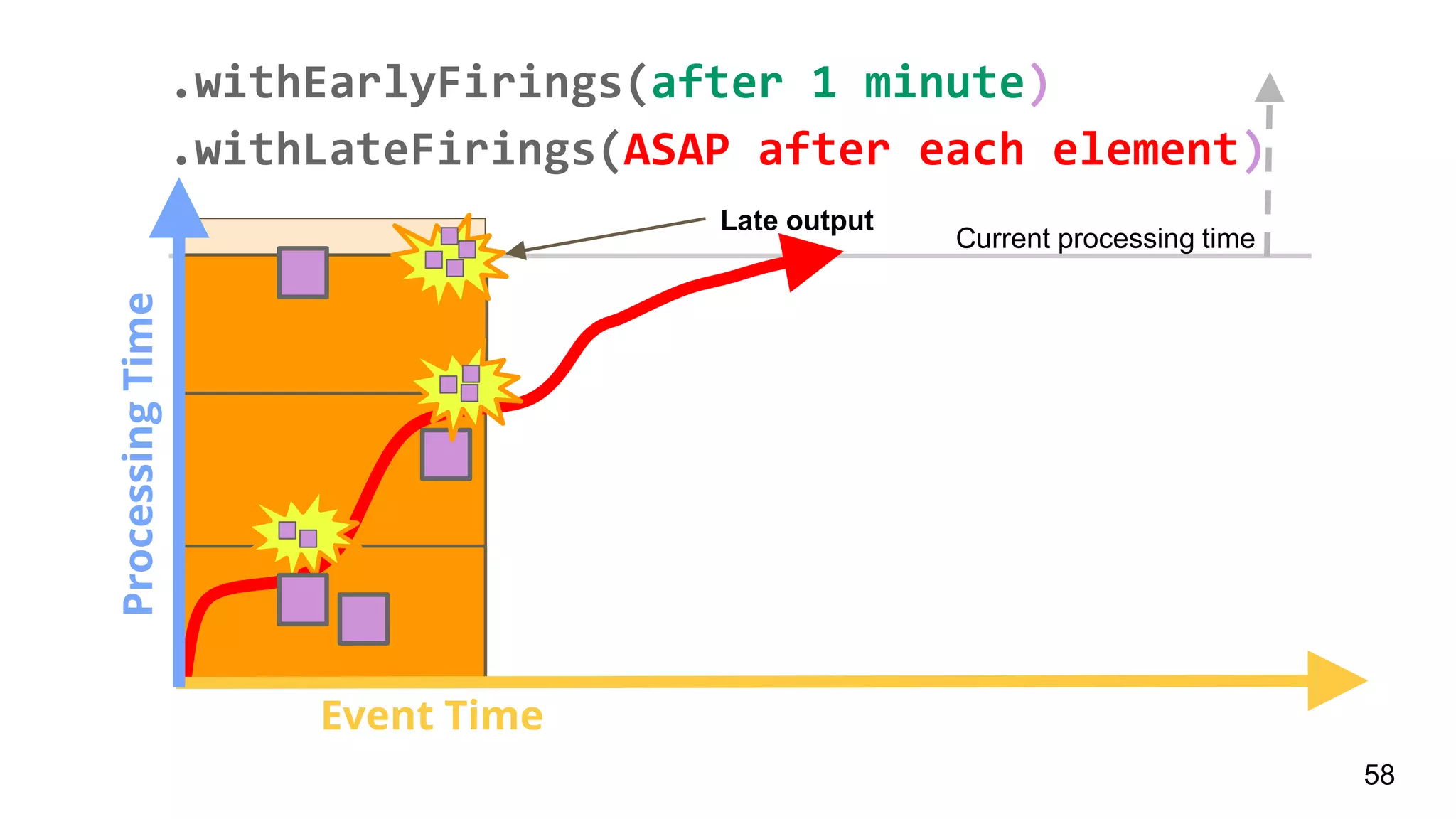

- 58. Current processing time ProcessingTime EventTime Late output 58 .withEarlyFirings(after 1 minute) .withLateFirings(ASAP after each element)

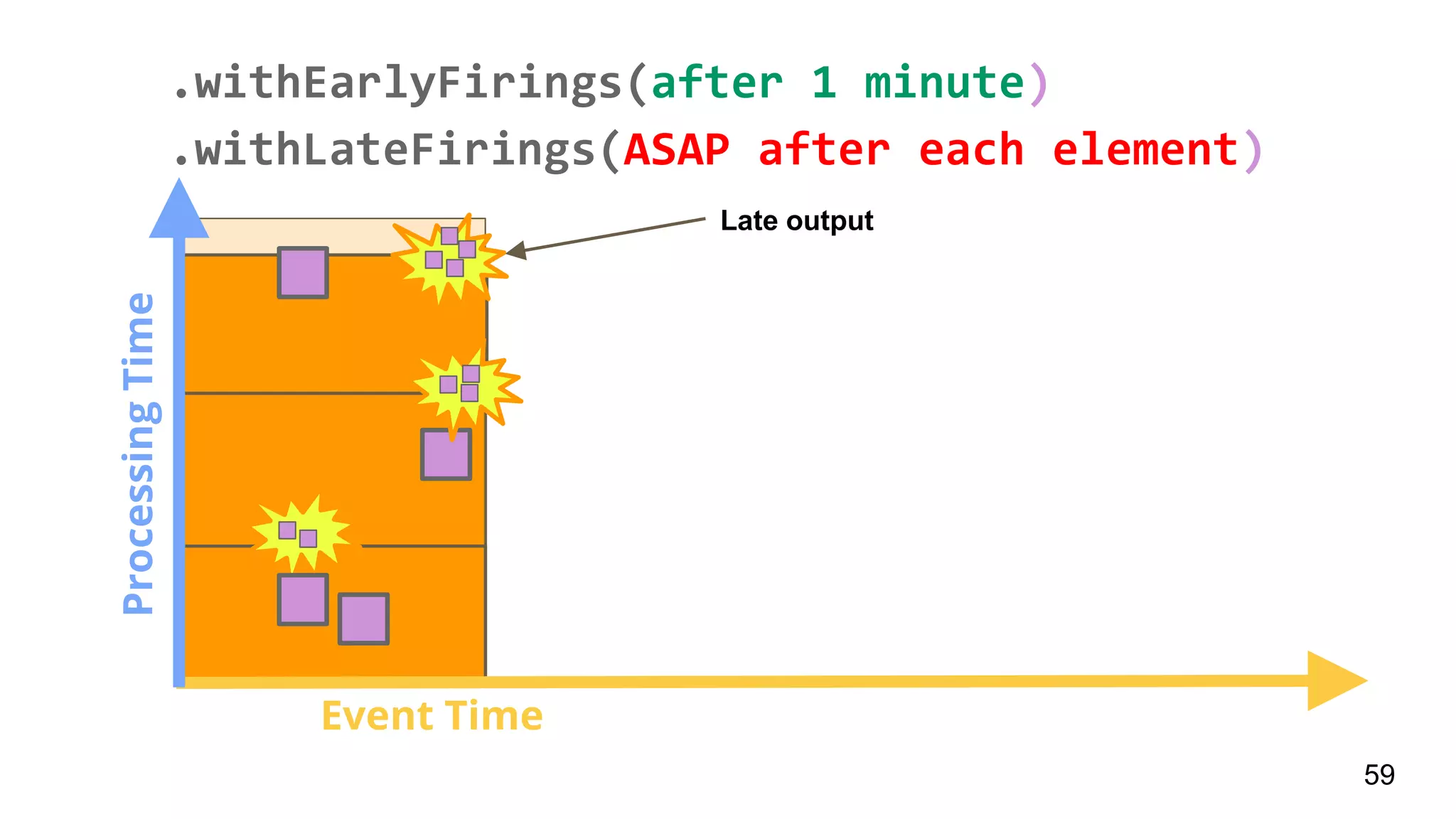

- 59. ProcessingTime Event Time Late output 59 .withEarlyFirings(after1 minute) .withLateFirings(ASAP after each element)

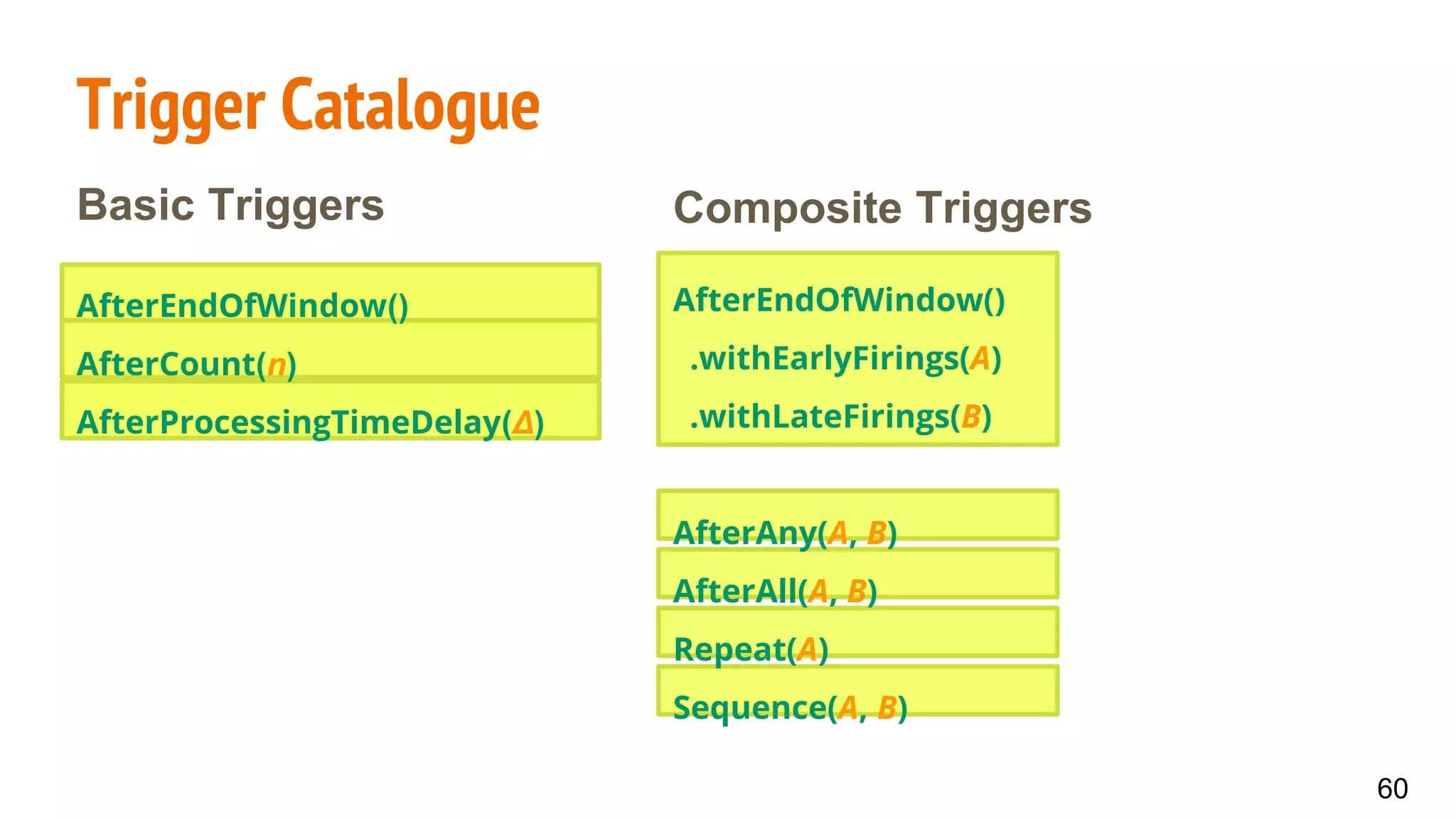

- 60. Trigger Catalogue Composite TriggersBasicTriggers 60 AfterEndOfWindow() AfterCount(n) AfterProcessingTimeDelay(Δ) AfterEndOfWindow() .withEarlyFirings(A) .withLateFirings(B) AfterAny(A, B) AfterAll(A, B) Repeat(A) Sequence(A, B)
- 61. The Beam Model:Asking the Right Questions What are you computing? Where in event time? When in processing time are results produced? How do refinements relate? 61 Accumulation Mode

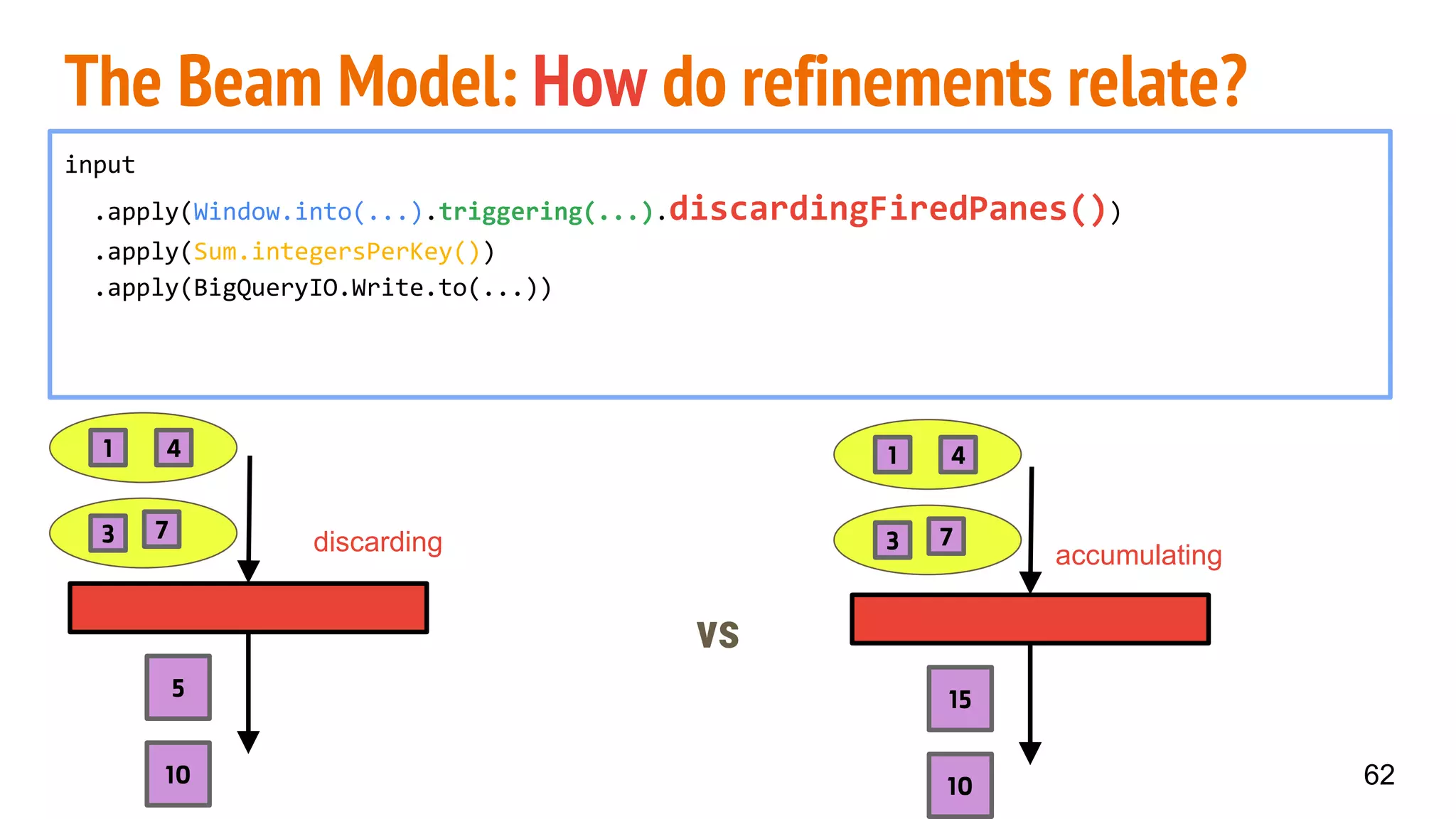

- 62. The Beam Model:How do refinements relate? 62 input .apply(Window.into(...).triggering(...).discardingFiredPanes()) .apply(Sum.integersPerKey()) .apply(BigQueryIO.Write.to(...)) vs 1 3 7 4 10 5 1 3 7 4 10 15 discarding accumulating
- 63. The Beam Model:Asking the Right Questions What are you computing? Where in event time? When in processing time are results produced? How do refinements relate? 63
- 64. 64 Beam Project /Technical Vision3

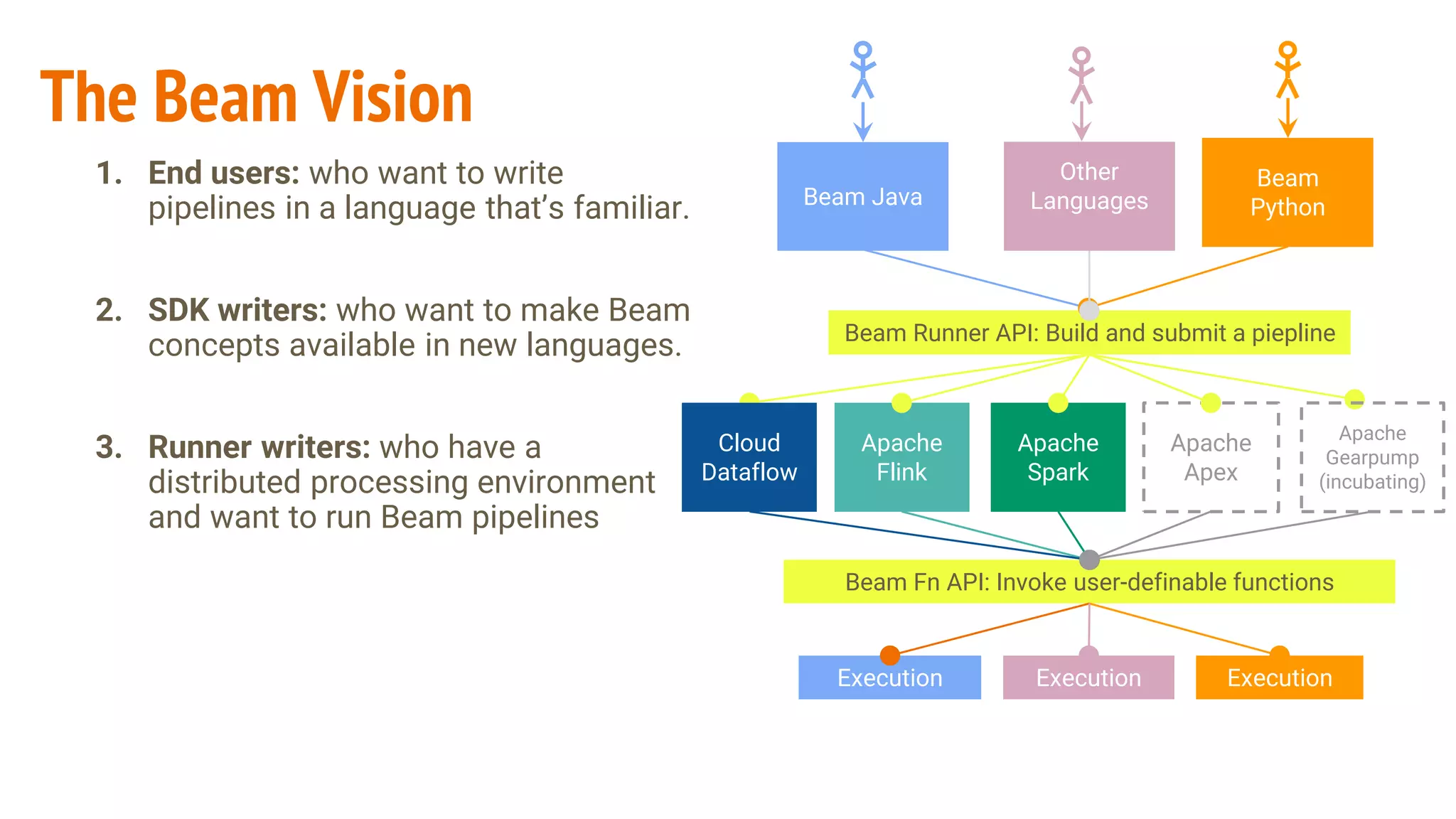

- 65. 1. End users:who want to write pipelines in a language that’s familiar. 2. SDK writers: who want to make Beam concepts available in new languages. 3. Runner writers: who have a distributed processing environment and want to run Beam pipelines Beam Fn API: Invoke user-definable functions Apache Flink Apache Spark Beam Runner API: Build and submit a piepline Other LanguagesBeam Java Beam Python Execution Execution Cloud Dataflow Execution The Beam Vision Apache Apex Apache Gearpump (incubating)

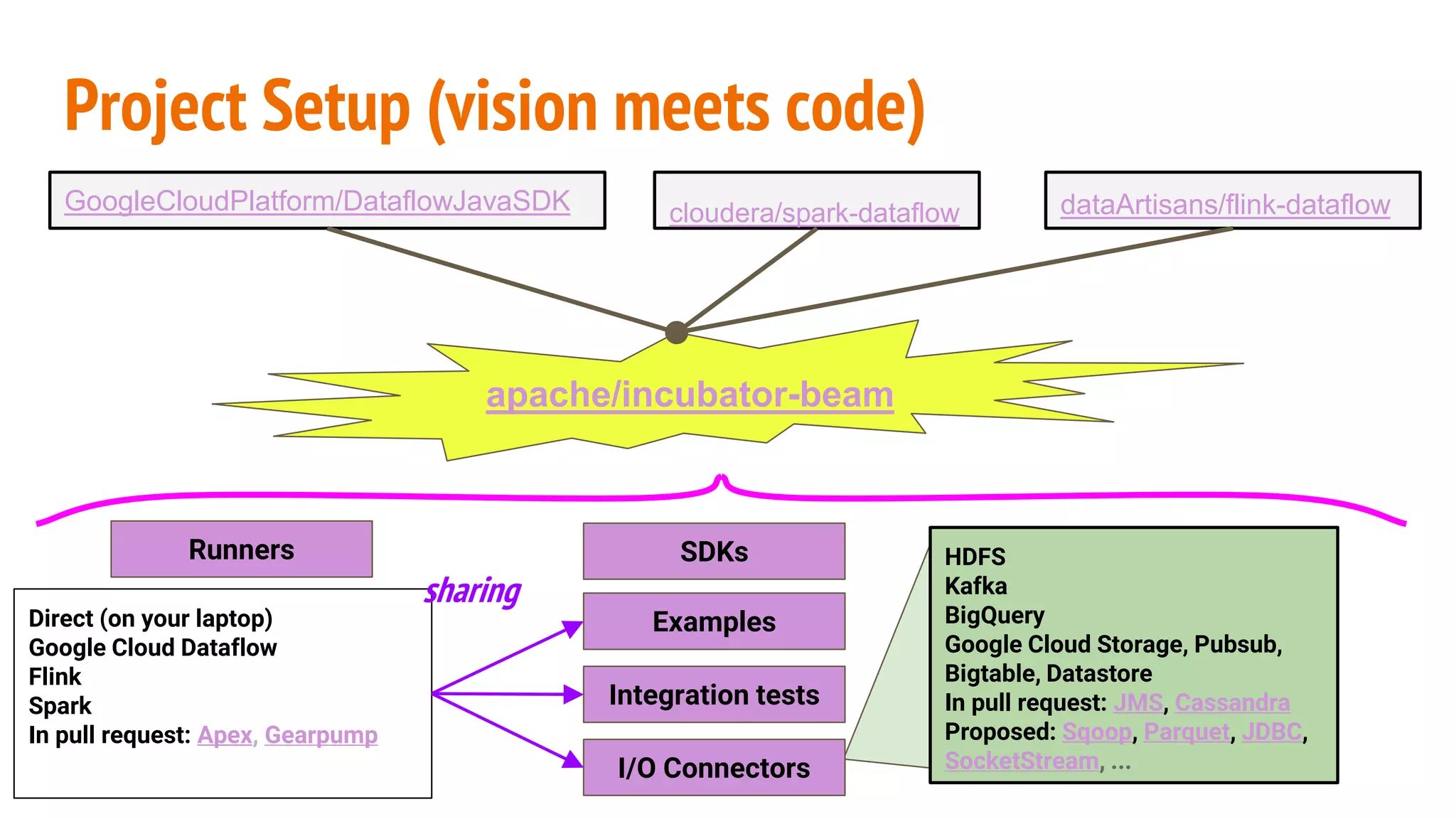

- 66. Project Setup (visionmeets code) GoogleCloudPlatform/DataflowJavaSDK cloudera/spark-dataflow dataArtisans/flink-dataflow apache/incubator-beam Direct (on your laptop) Google Cloud Dataflow Flink Spark In pull request: Apex, Gearpump Integration tests Runners Examples I/O Connectors sharing HDFS Kafka BigQuery Google Cloud Storage, Pubsub, Bigtable, Datastore In pull request: JMS, Cassandra Proposed: Sqoop, Parquet, JDBC, SocketStream, ... SDKs
- 67. Committers from Google,Data Artisans, Cloudera, Talend, Paypal ● ~40 commits/week ● Rigorous code review for every commit Contributors [with GitHub badges] from: Spotify, Intel, Twitter, Capital One, DataTorrent, …, <your name here> ● Improvements to existing I/O connectors ● Improvements to Spark runner ● Utility classes for users ● Documentation fixes ● Bug diagnoses ● New I/O connectors ● Gearpump runner PoC ● Apex runner PoC! … and it has been awesome apache/incubator-beam

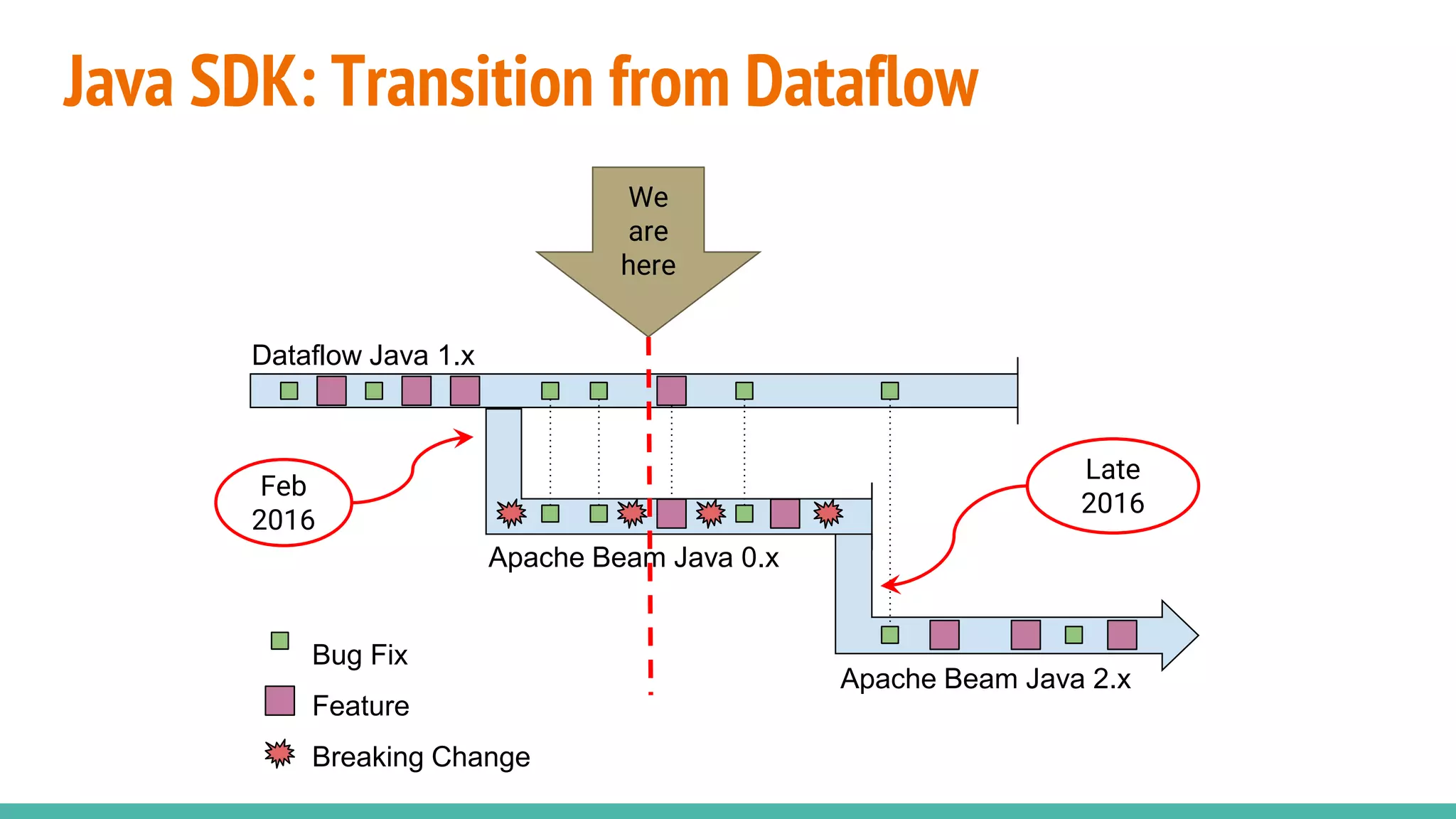

- 68. Java SDK: Transitionfrom Dataflow Dataflow Java 1.x Apache Beam Java 0.x Apache Beam Java 2.x Bug Fix Feature Breaking Change We are here Feb 2016 Late 2016
- 69.
- 70. Why Apache Beam? Unified- One model handles batch and streaming use cases. Portable - Pipelines can be executed on multiple execution environments, avoiding lock-in. Extensible - Supports user and community driven SDKs, Runners, transformation libraries, and IO connectors.
- 71. Why Apache Beam? http://data-artisans.com/why-apache-beam/ "Wefirmly believe that the Beam model is the correct programming model for streaming and batch data processing." - Kostas Tzoumas (Data Artisans) https://cloud.google.com/blog/big- data/2016/05/why-apache-beam-a-google- perspective "We hope it will lead to a healthy ecosystem of sophisticated runners that compete by making users happy, not [via] API lock in." - Tyler Akidau (Google)
- 72. 72 Creating an ApacheBeam Community Collaborate - Beam is becoming a community-driven effort with participation from many organizations and contributors. Grow - We want to grow the Beam ecosystem and community with active, open involvement so Beam is a part of the larger OSS ecosystem. We love contributions. Join us!
- 73. Apache Beam http://beam.incubator.apache.org/ Why ApacheBeam? (from Data Artisans) Why Apache Beam? (from Google) Programming Model Overviews Streaming 101 Streaming 102 The Dataflow Beam Model Join the community! User discussions - user-subscribe@beam.incubator.apache.org Development discussions - dev-subscribe@beam.incubator.apache.org Follow @ApacheBeam on Twitter Learn More! 73
