1. WITH AKKA-CLUSTERSANE SHARDING
MichaĿ PĿachta

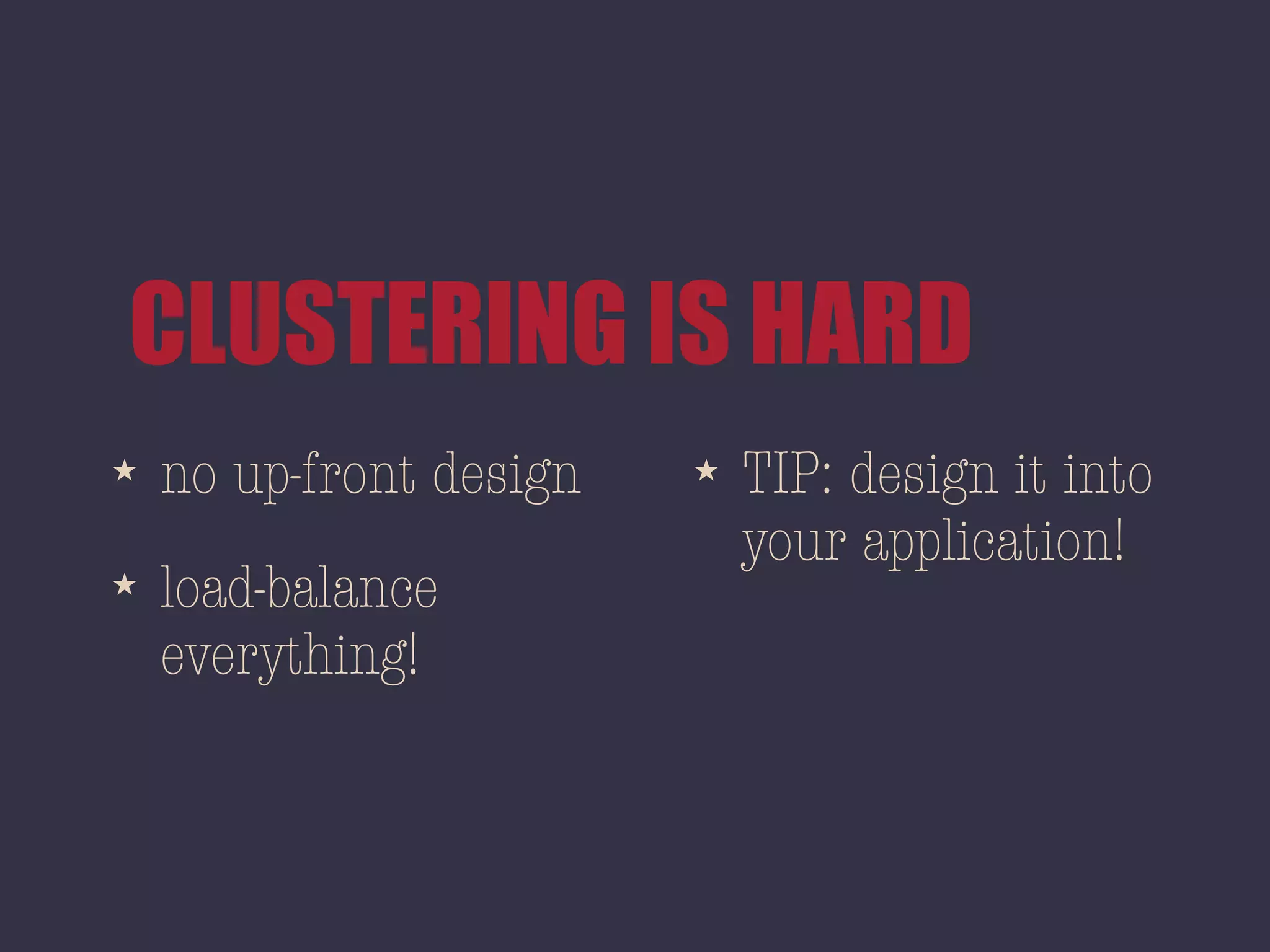

2. CLUSTERING IS HARD
★ no up-front design
★ load-balance
everything!
★ TIP: design it into
your application!

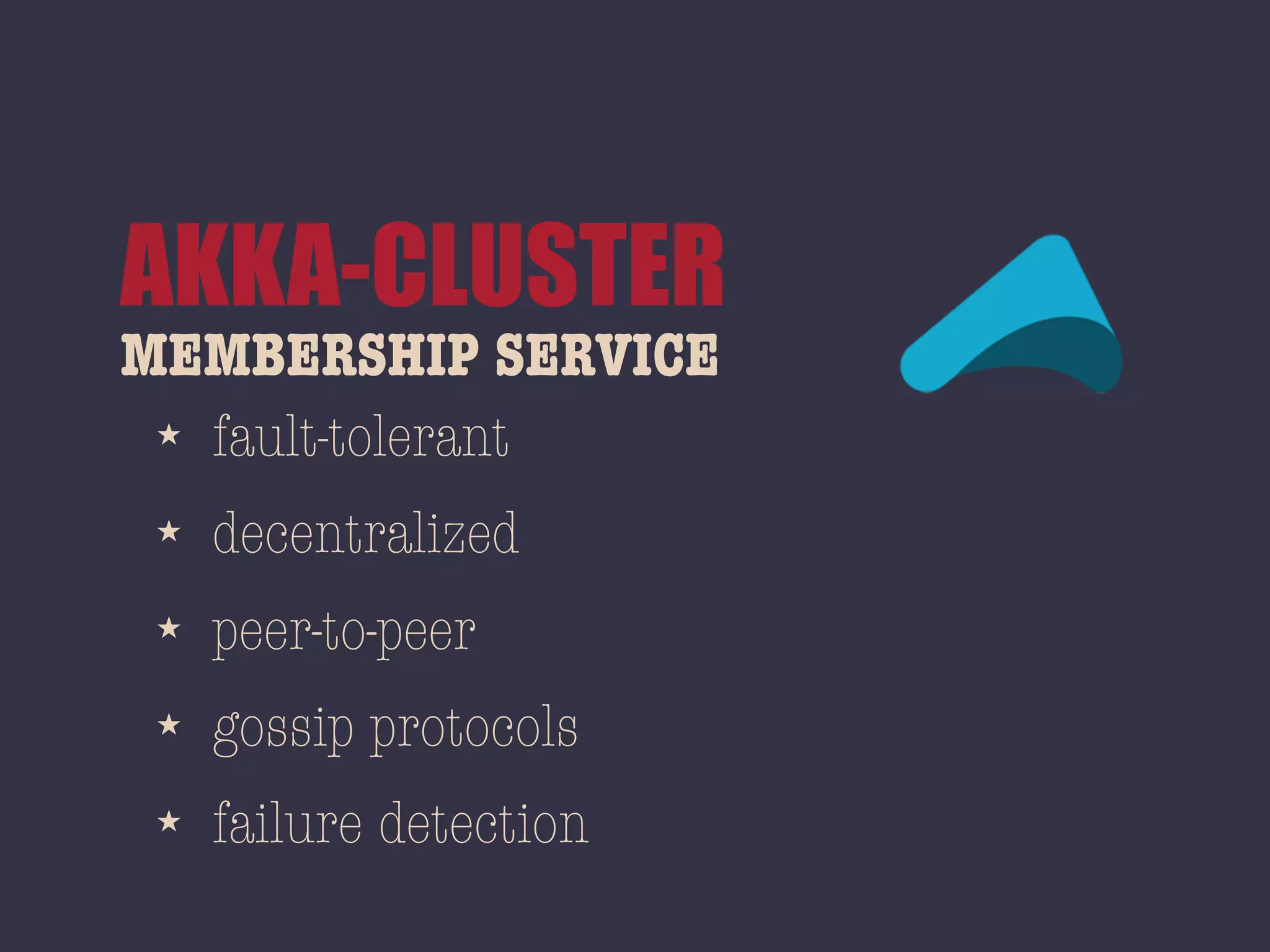

3. MEMBERSHIP SERVICE
AKKA-CLUSTER
★ fault-tolerant
★ decentralized
★ peer-to-peer
★ gossip protocols
★ failure detection

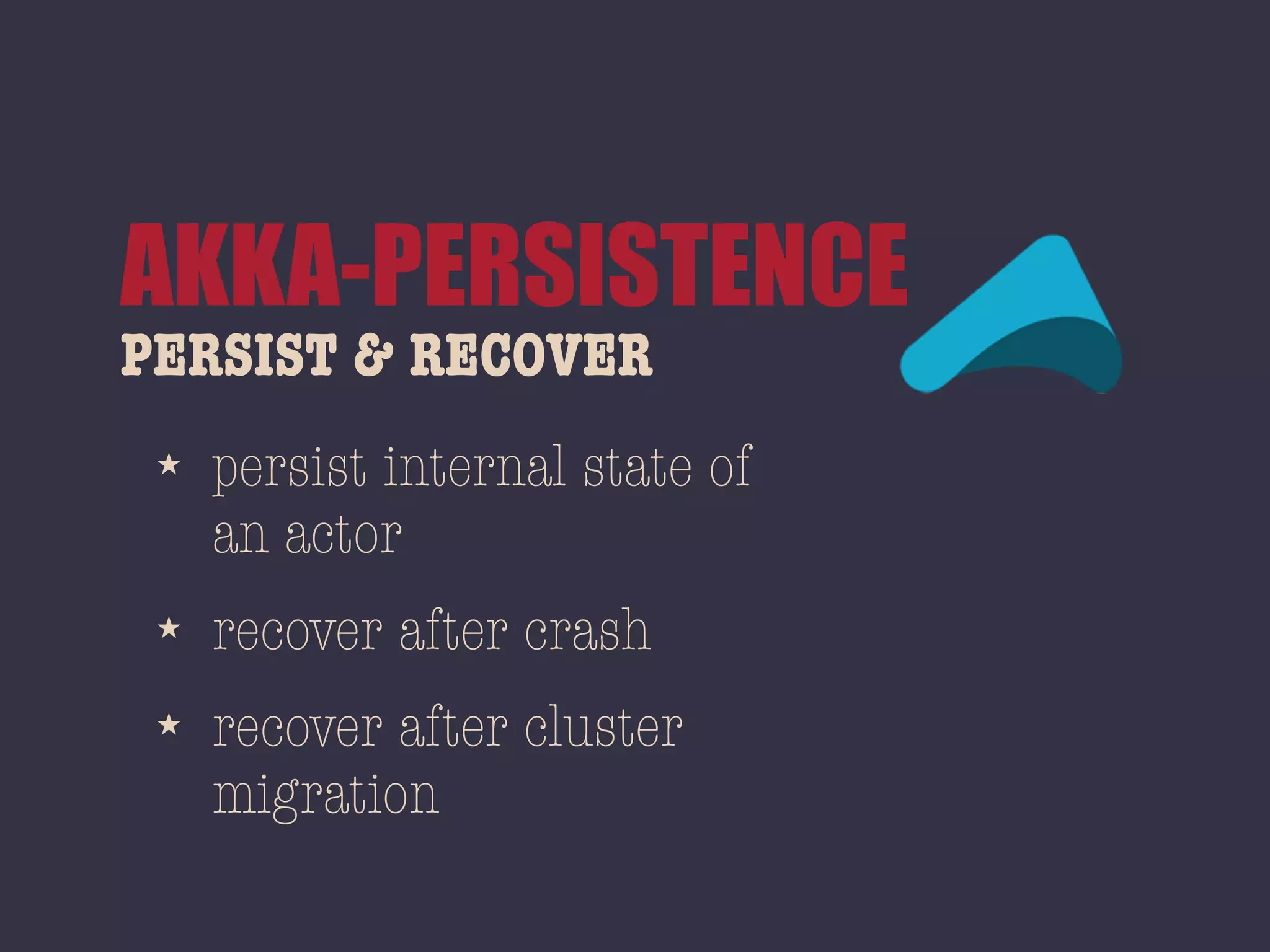

4. PERSIST & RECOVER
AKKA-PERSISTENCE
★ persist internal state of
an actor
★ recover after crash
★ recover after cluster
migration

5. THE SHOESORTER CASE

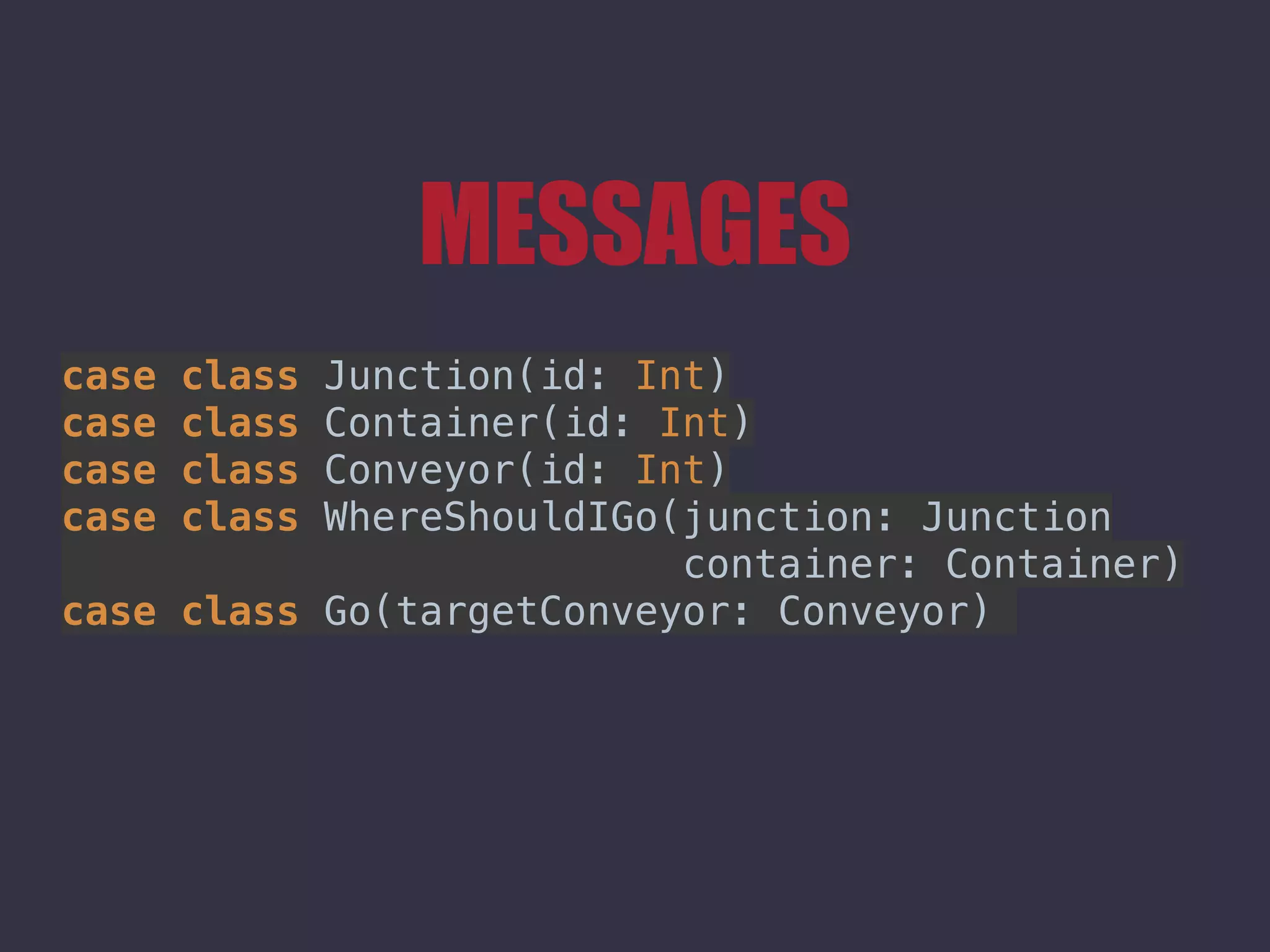

6. MESSAGES
case class Junction(id: Int)
case class Container(id: Int)
case class Conveyor(id: Int)
case class WhereShouldIGo(junction: Junction
container: Container)
case class Go(targetConveyor: Conveyor)

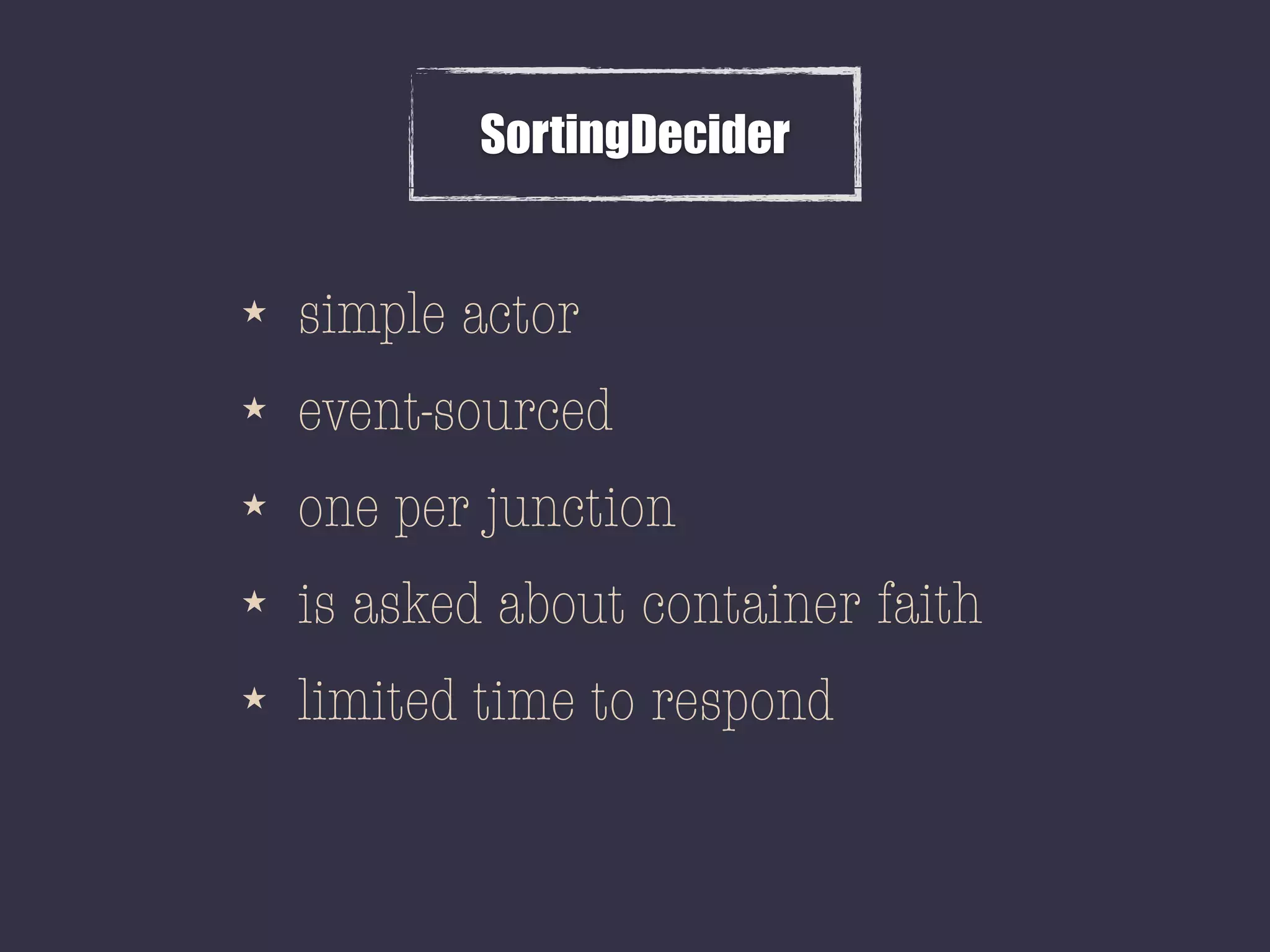

7. SortingDecider
★ simple actor
★ event-sourced
★ one per junction
★ is asked about container faith
★ limited time to respond

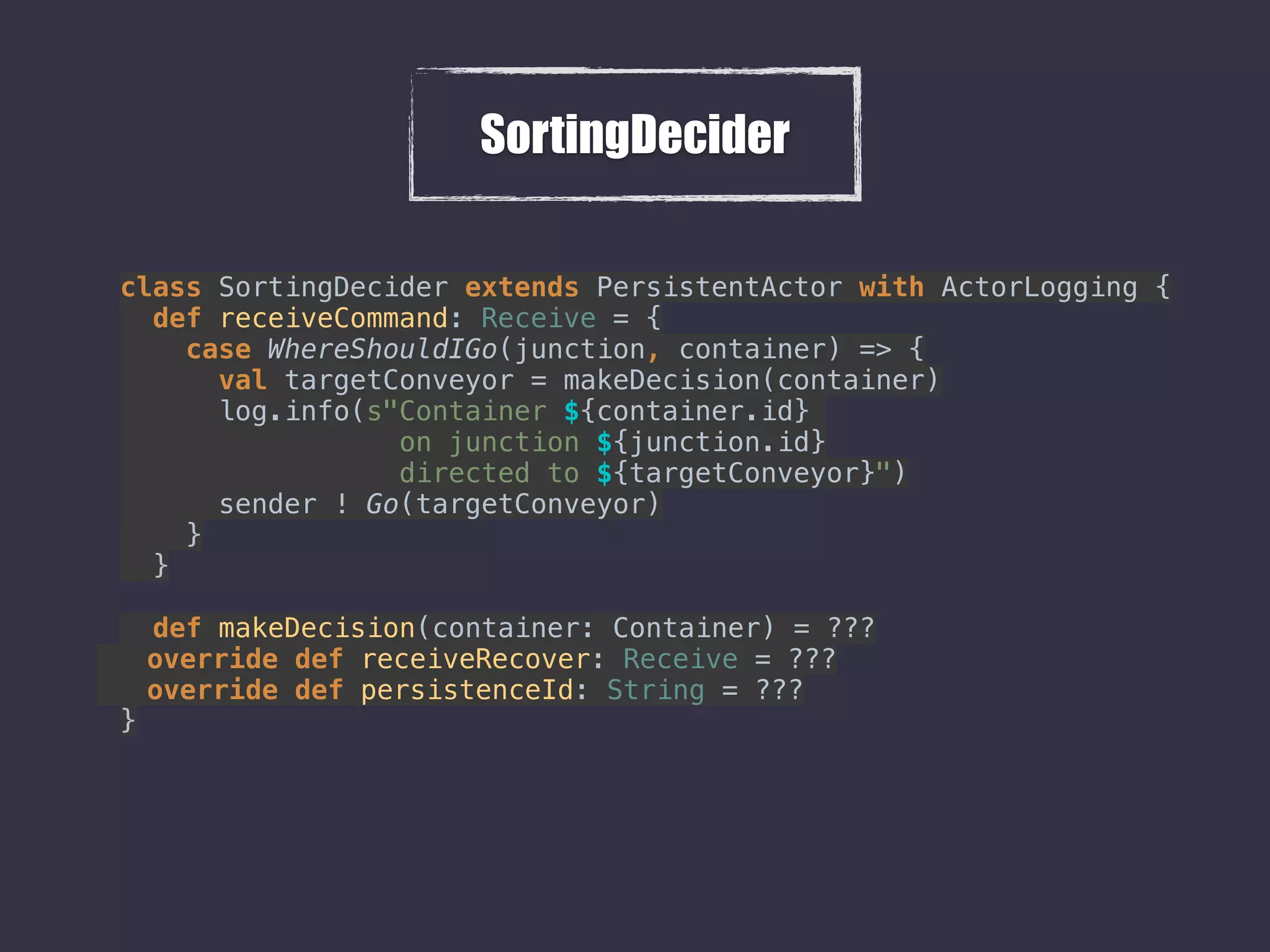

8. SortingDecider
class SortingDecider extends PersistentActor with ActorLogging {
def receiveCommand: Receive = {
case WhereShouldIGo(junction, container) => {
val targetConveyor = makeDecision(container)
log.info(s"Container ${container.id}
on junction ${junction.id}
directed to ${targetConveyor}")
sender ! Go(targetConveyor)
}
}
def makeDecision(container: Container) = ???
override def receiveRecover: Receive = ???
override def persistenceId: String = ???
}

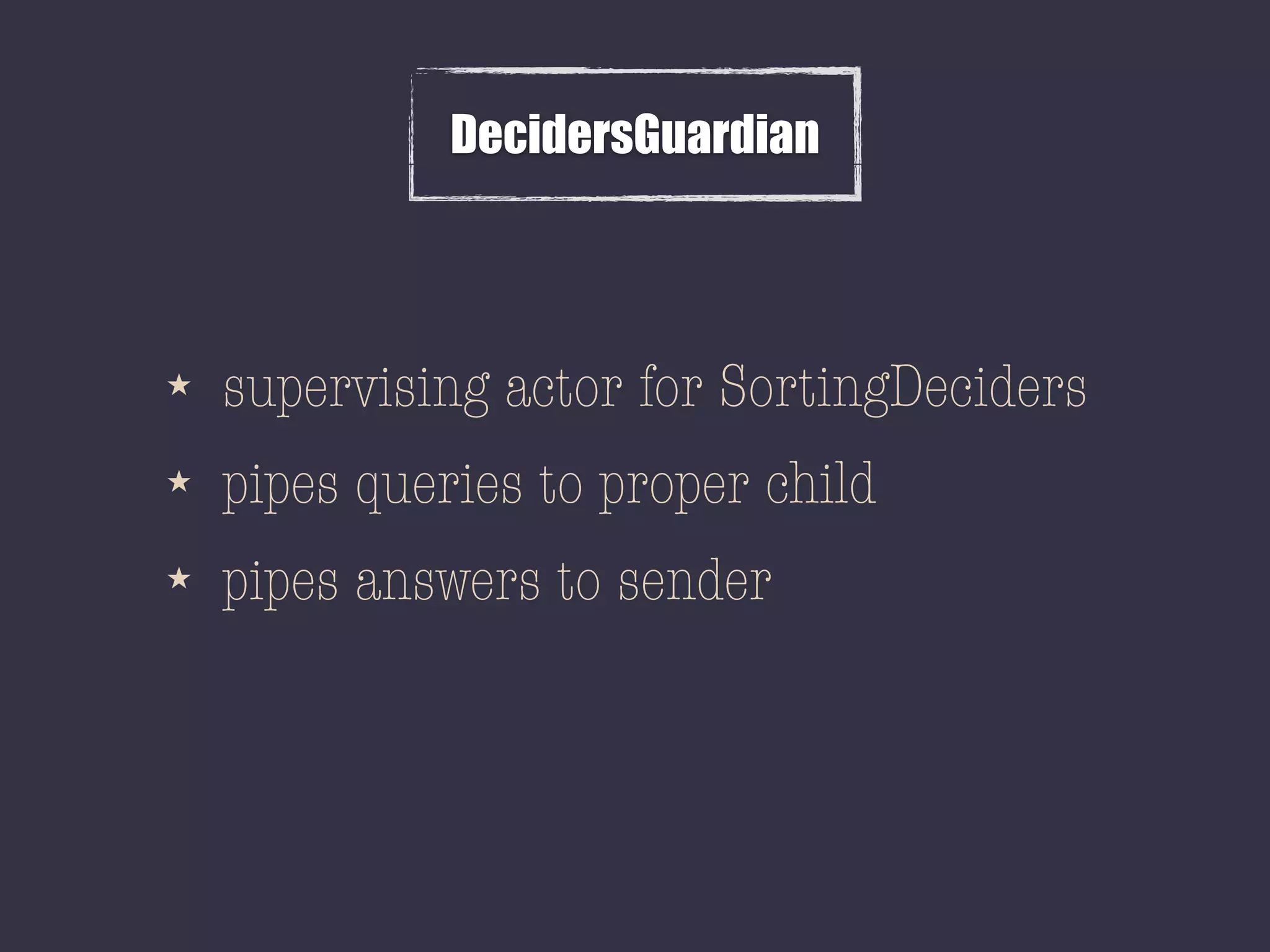

9. DecidersGuardian
★ supervising actor for SortingDeciders
★ pipes queries to proper child
★ pipes answers to sender

10. DecidersGuardian
class DecidersGuardian extends Actor {
implicit val timeout = Timeout(5 seconds)
def receive = {
case msg @ WhereShouldIGo(junction, _) =>
val sortingDecider = getOrCreateChild("J" + junction.id,
SortingDecider.props)
val futureAnswer = (sortingDecider ? msg).mapTo[Go]
futureAnswer.pipeTo(sender())
}
def getChild(name: String): Option[ActorRef] = context.child(name)
def getOrCreateChild(name: String, props: Props): ActorRef = {
getChild(name) getOrElse context.actorOf(props, name)
}
}

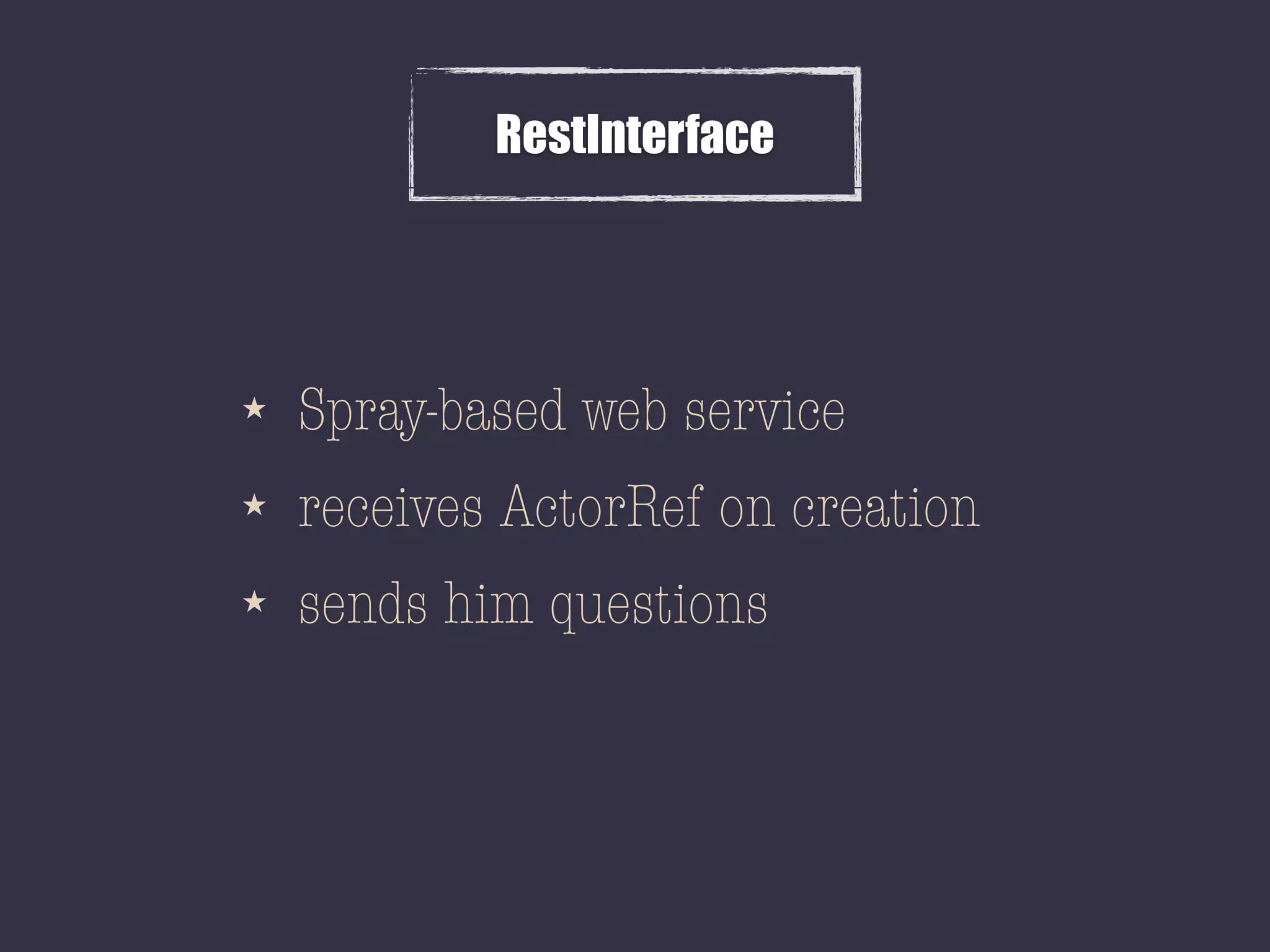

11. RestInterface
★ Spray-based web service
★ receives ActorRef on creation
★ sends him questions

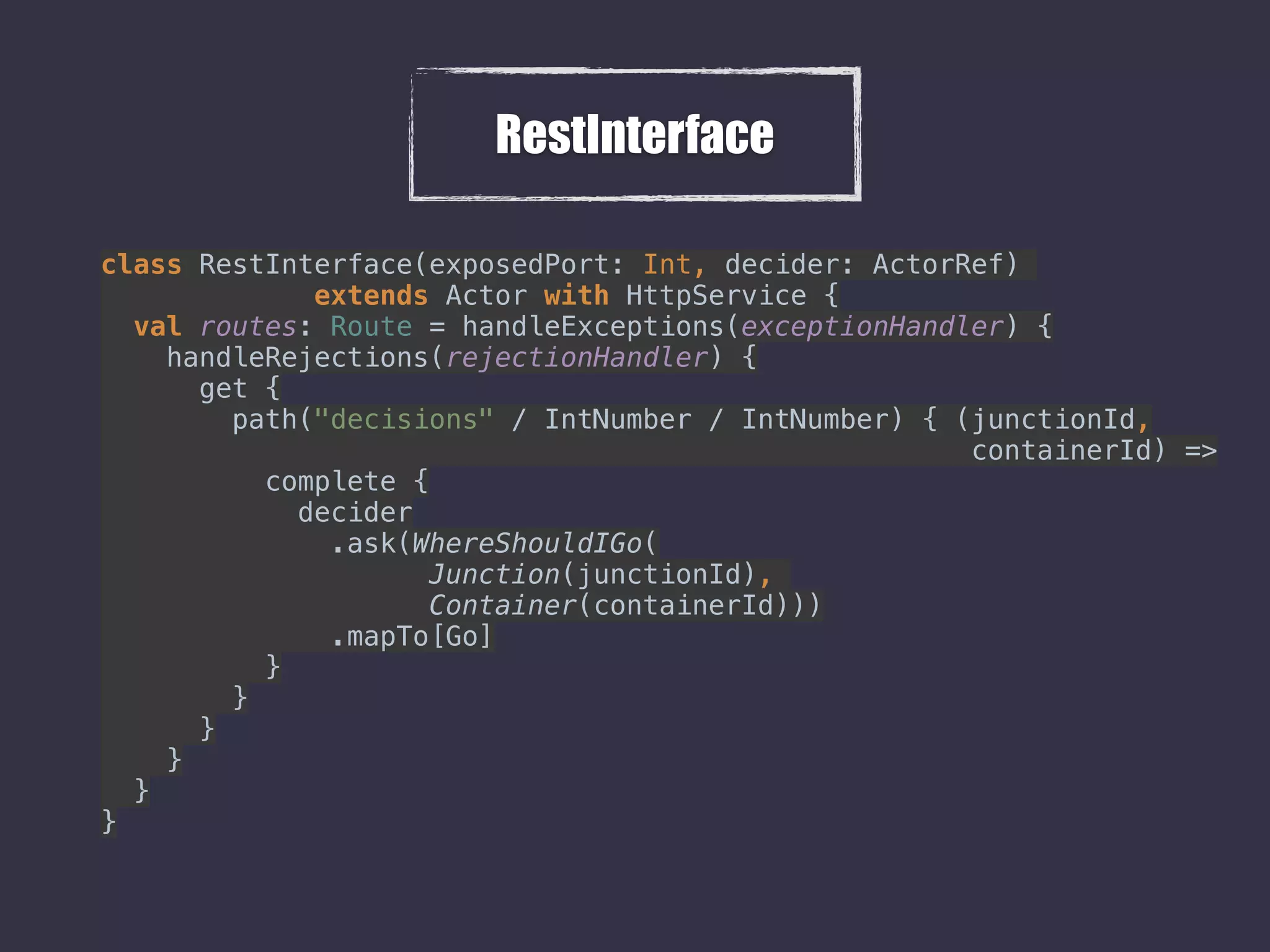

12. RestInterface
class RestInterface(exposedPort: Int, decider: ActorRef)
extends Actor with HttpService {
val routes: Route = handleExceptions(exceptionHandler) {
handleRejections(rejectionHandler) {
get {
path("decisions" / IntNumber / IntNumber) { (junctionId,
containerId) =>
complete {
decider
.ask(WhereShouldIGo(
Junction(junctionId),
Container(containerId)))
.mapTo[Go]
}
}
}
}
}
}

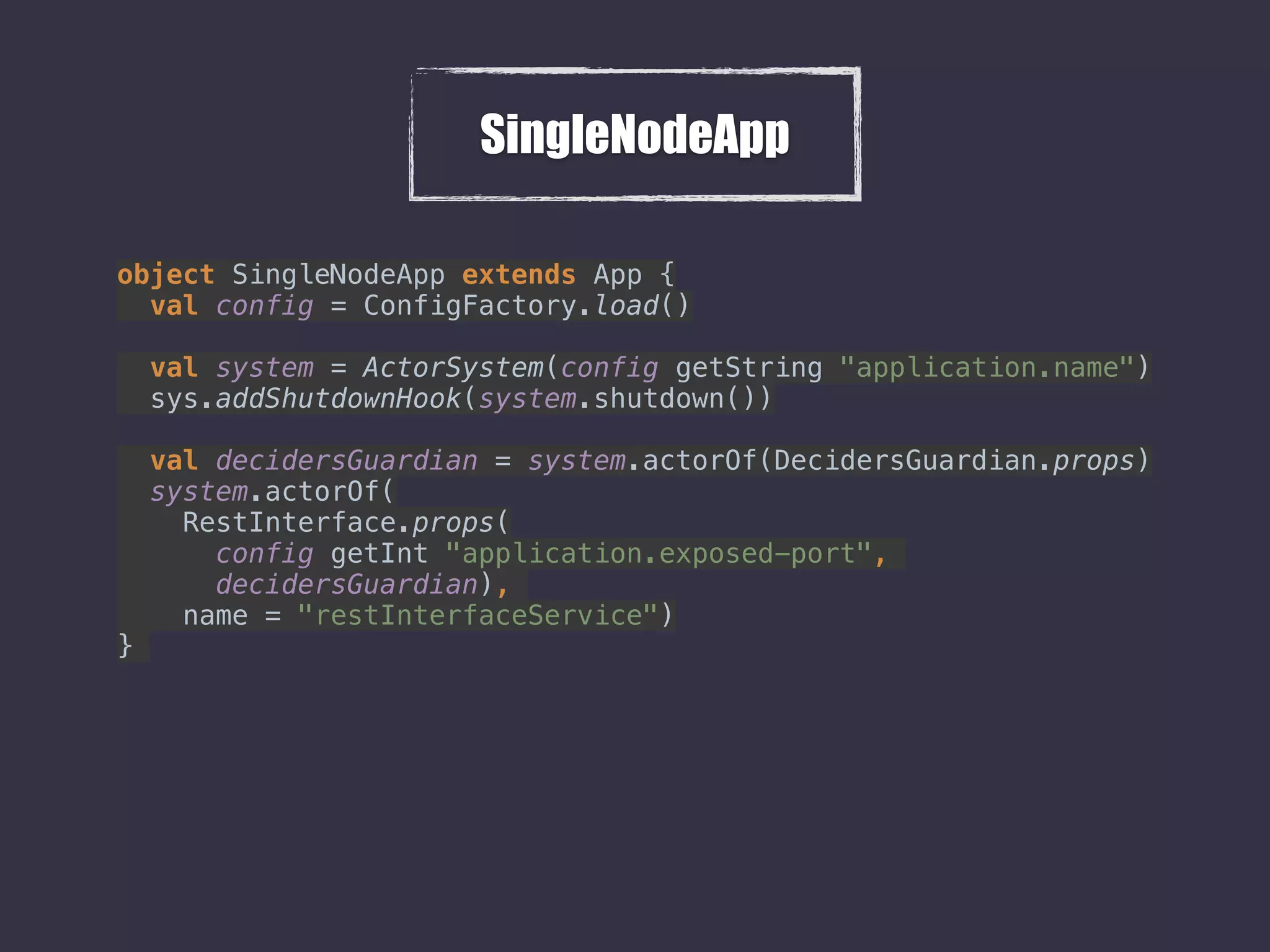

13. SingleNodeApp
object SingleNodeApp extends App {
val config = ConfigFactory.load()
val system = ActorSystem(config getString "application.name")
sys.addShutdownHook(system.shutdown())
val decidersGuardian = system.actorOf(DecidersGuardian.props)
system.actorOf(
RestInterface.props(
config getInt "application.exposed-port",
decidersGuardian),
name = "restInterfaceService")
}

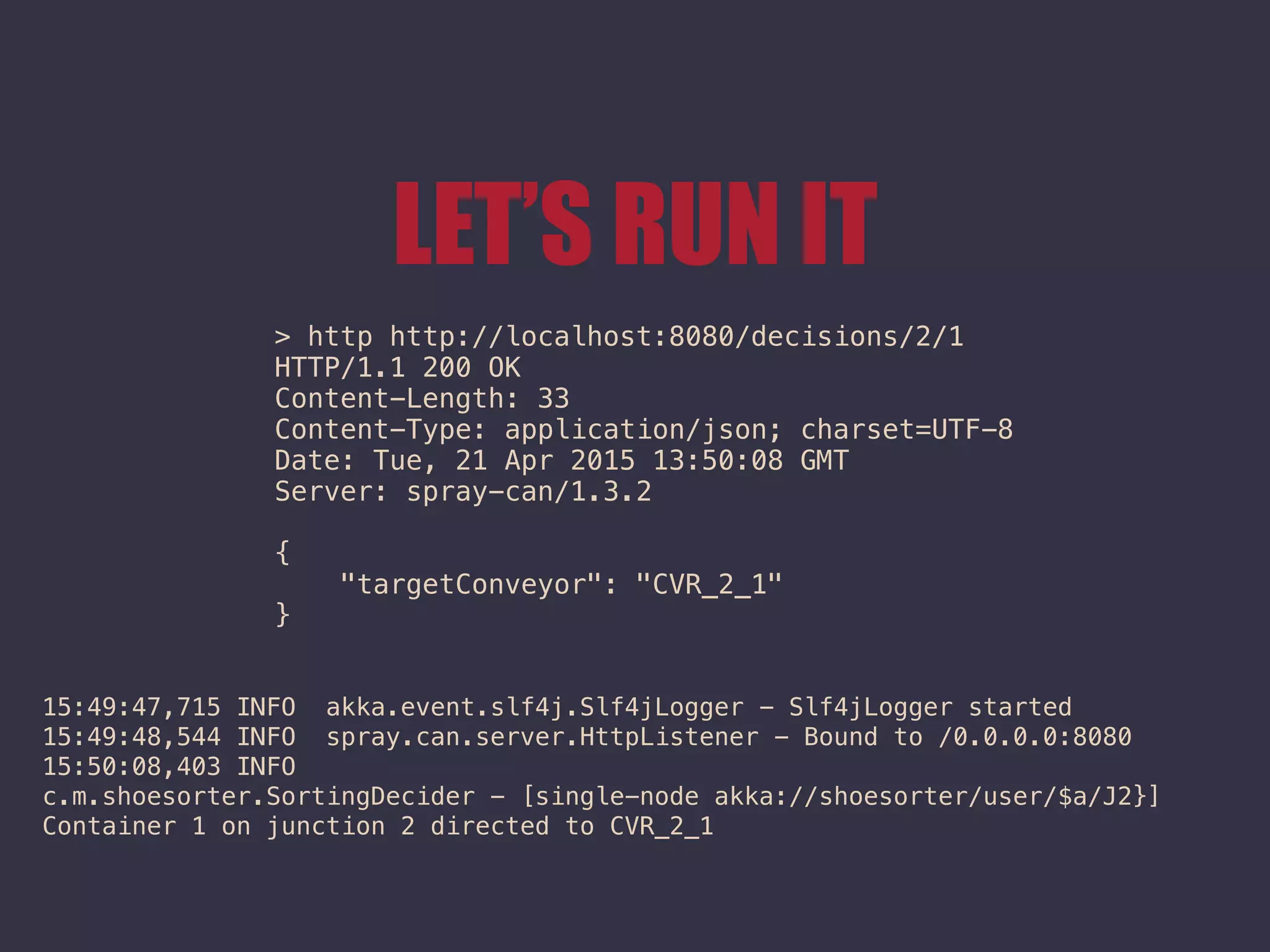

14. LET’S RUN IT
> http http://localhost:8080/decisions/2/1
HTTP/1.1 200 OK
Content-Length: 33
Content-Type: application/json; charset=UTF-8
Date: Tue, 21 Apr 2015 13:50:08 GMT
Server: spray-can/1.3.2
{
"targetConveyor": "CVR_2_1"
}
15:49:47,715 INFO akka.event.slf4j.Slf4jLogger - Slf4jLogger started
15:49:48,544 INFO spray.can.server.HttpListener - Bound to /0.0.0.0:8080
15:50:08,403 INFO
c.m.shoesorter.SortingDecider - [single-node akka://shoesorter/user/$a/J2}]
Container 1 on junction 2 directed to CVR_2_1

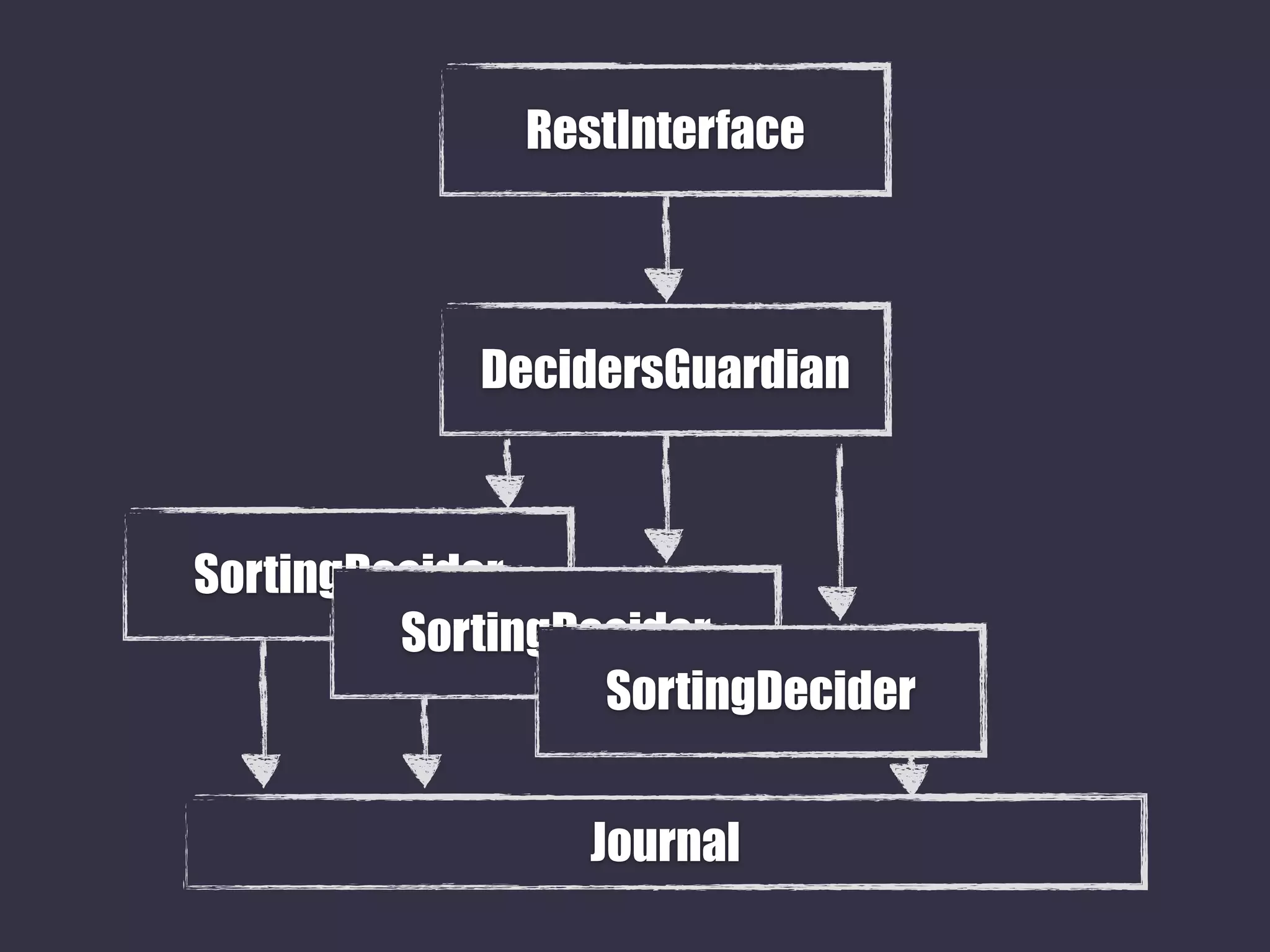

15. RestInterface
DecidersGuardian
SortingDecider
SortingDecider
SortingDecider
Journal

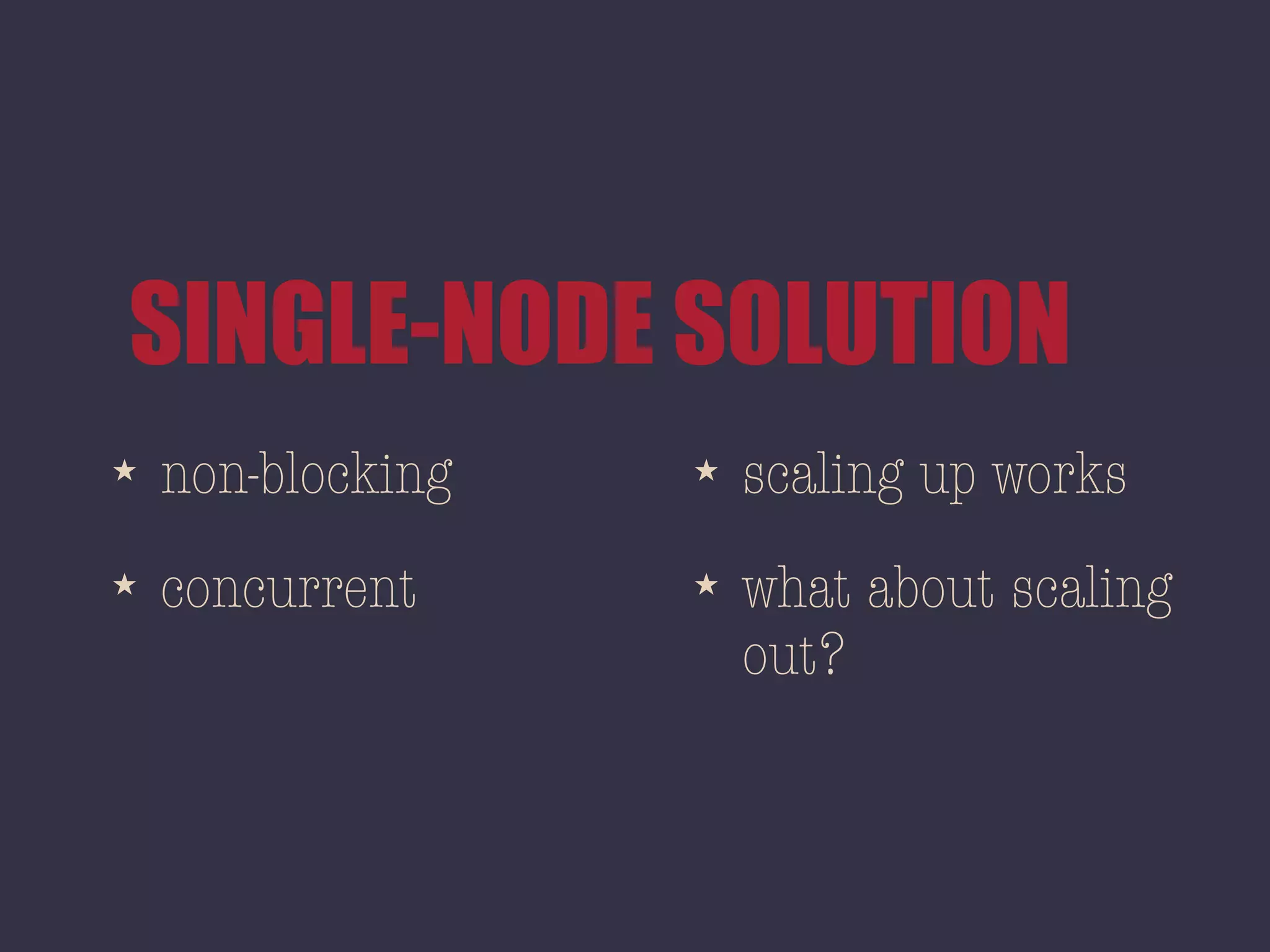

16. SINGLE-NODE SOLUTION
★ non-blocking
★ concurrent
★ scaling up works
★ what about scaling
out?

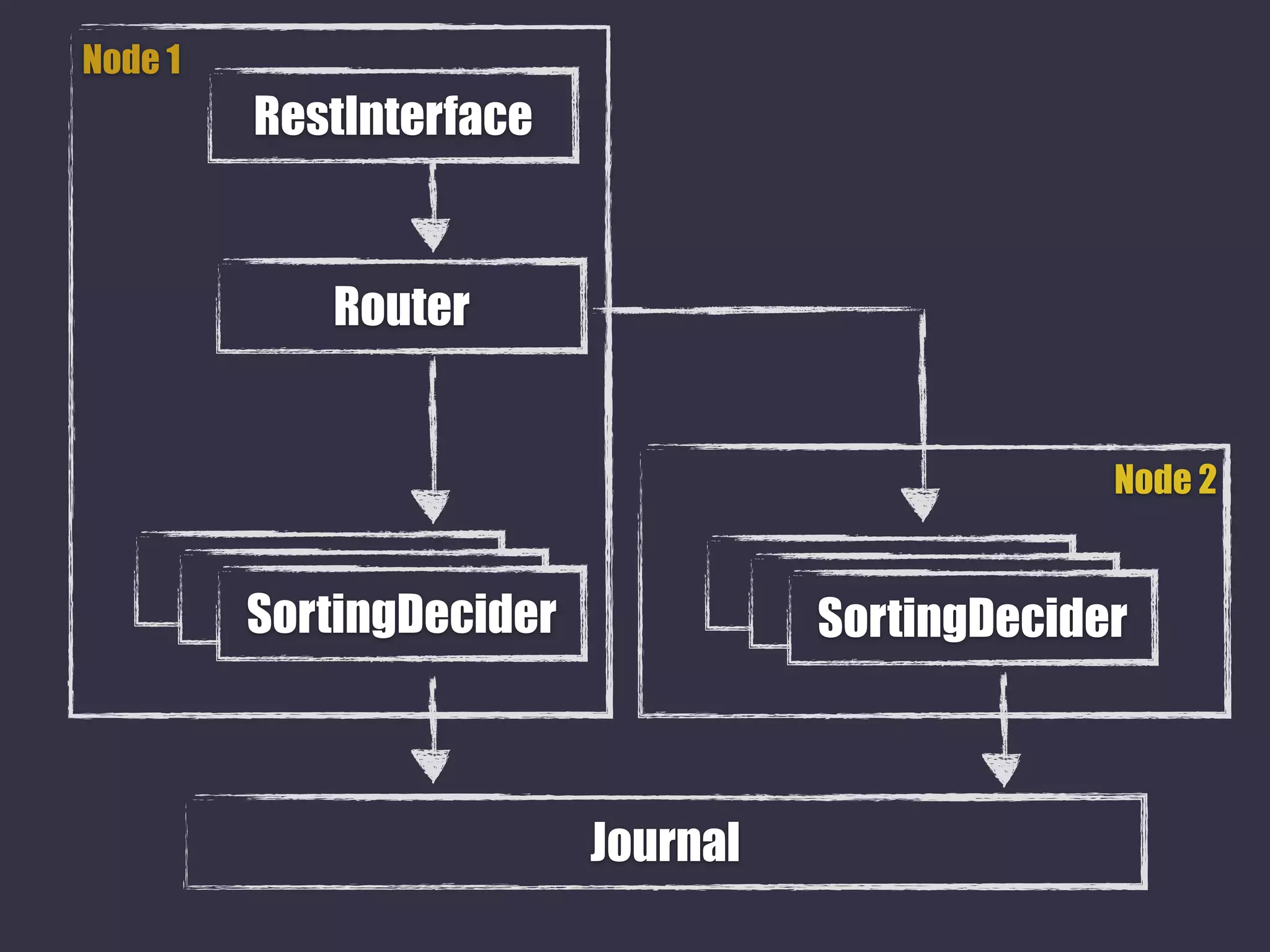

17. Node 1
RestInterface
Router
v vSortingDecider
Node 2
Journal
v vSortingDecider

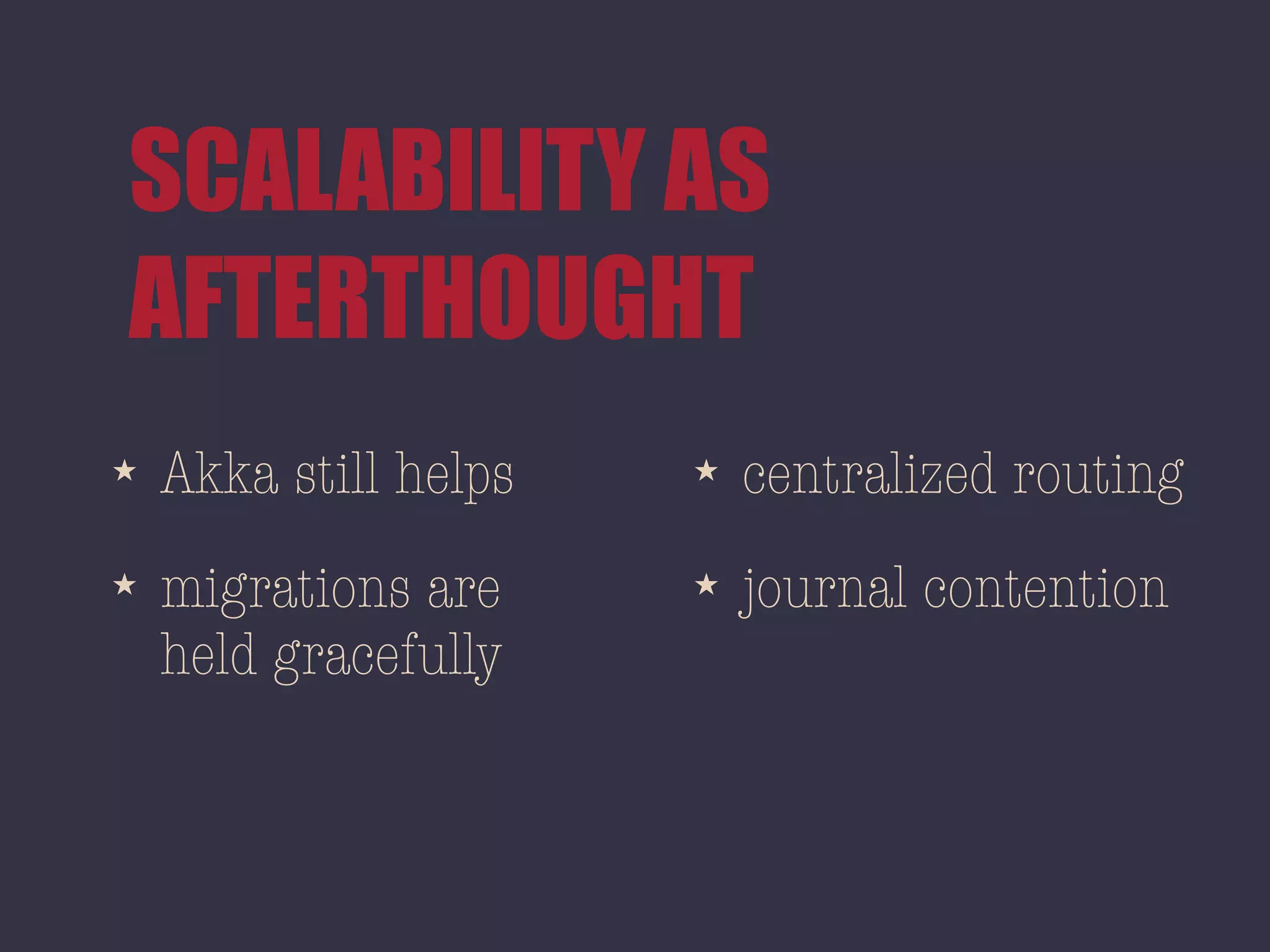

18. SCALABILITY AS
AFTERTHOUGHT
★ Akka still helps
★ migrations are
held gracefully
★ centralized routing
★ journal contention

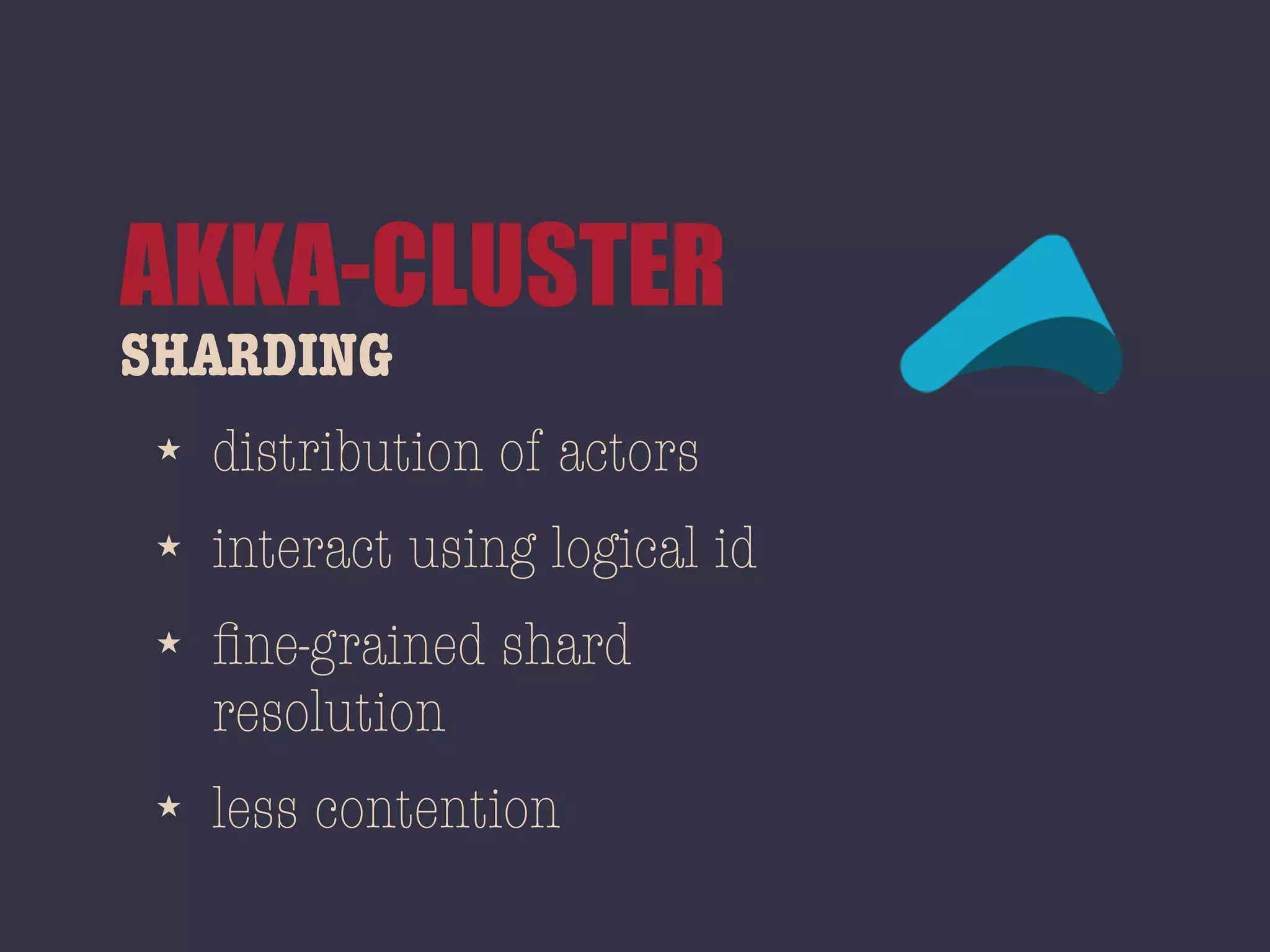

19. SHARDING
AKKA-CLUSTER
★ distribution of actors
★ interact using logical id
★ fine-grained shard
resolution
★ less contention

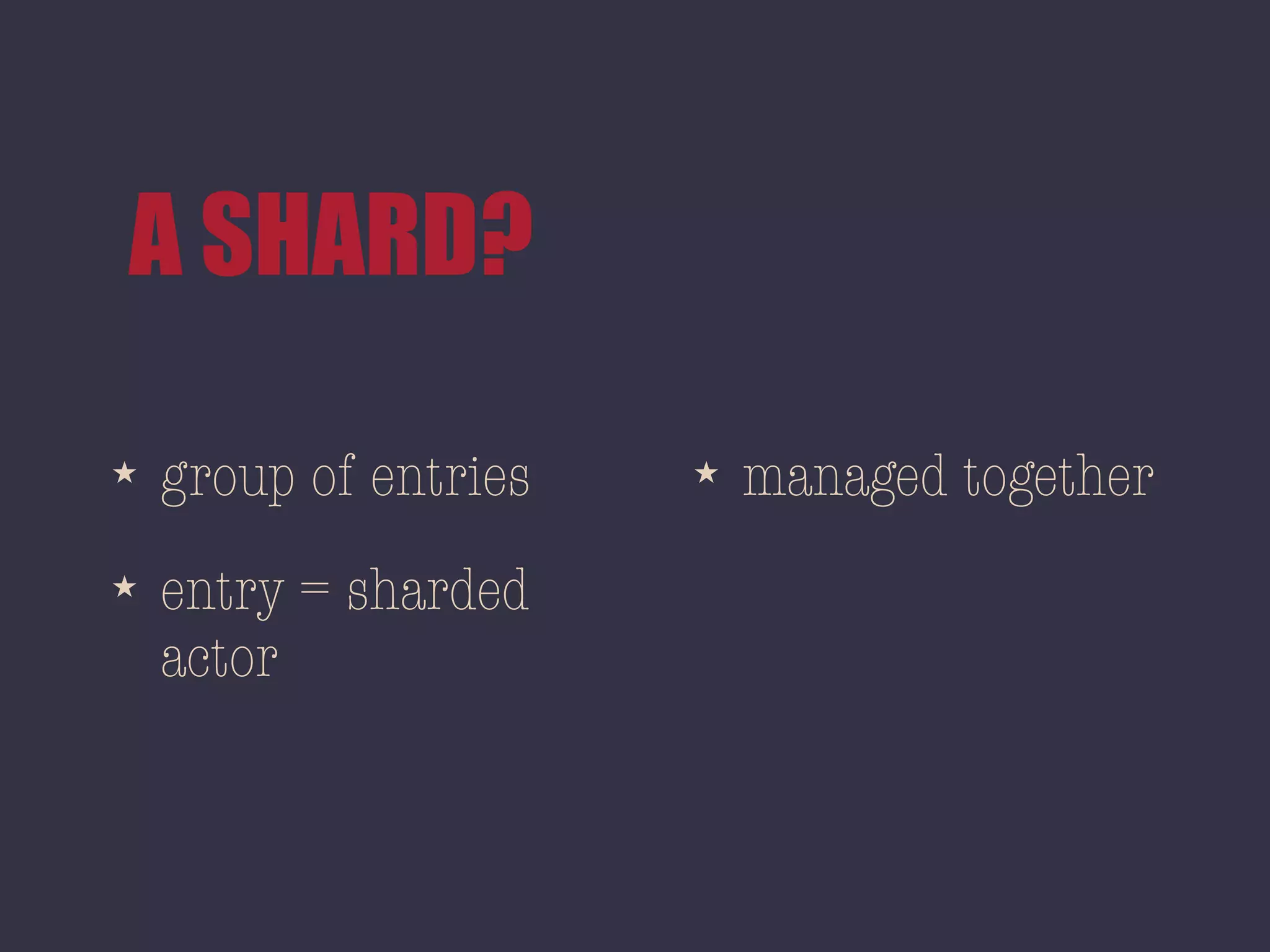

20. A SHARD?
★ group of entries
★ entry = sharded
actor
★ managed together

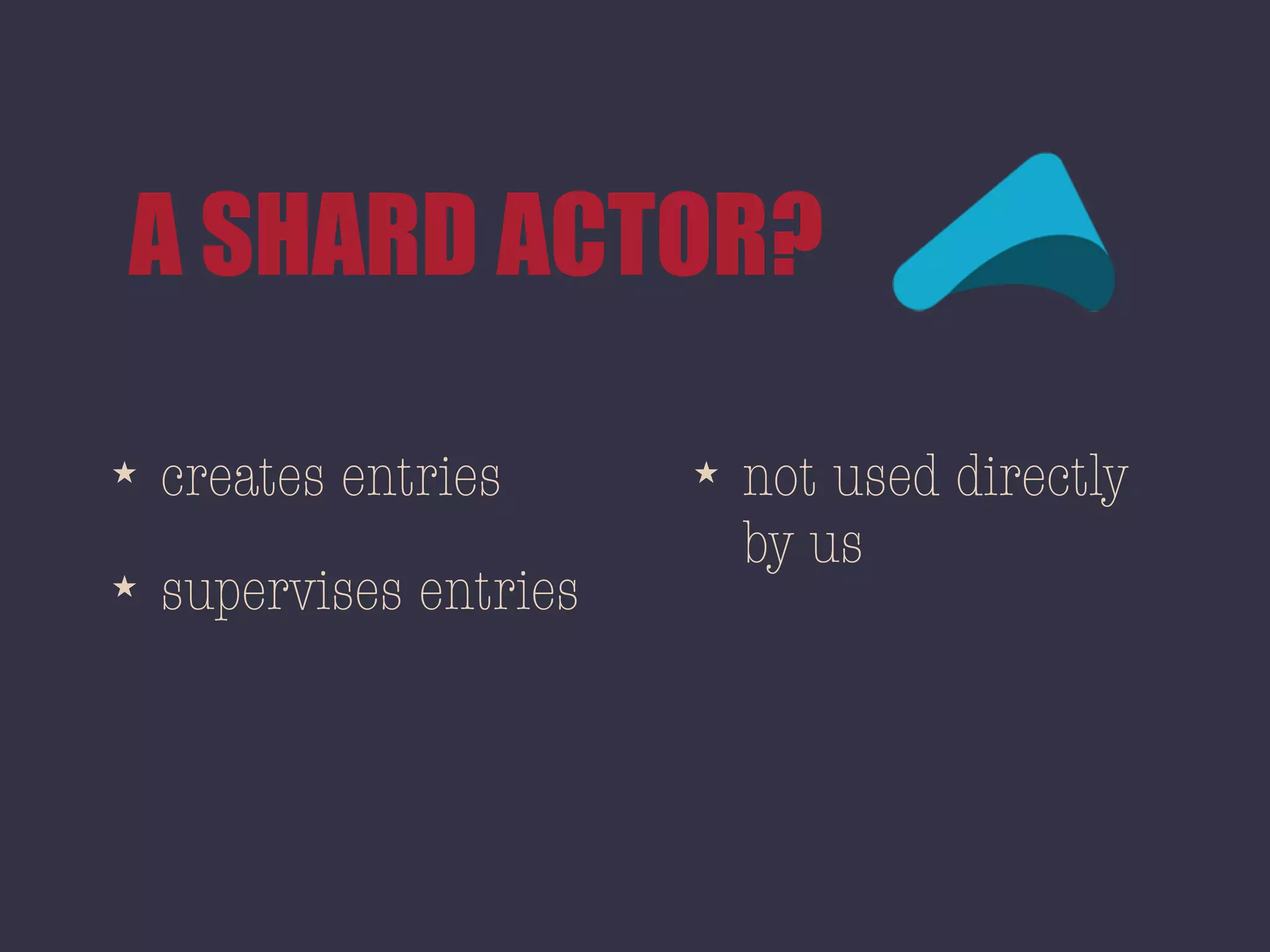

21. A SHARD ACTOR?
★ creates entries
★ supervises entries
★ not used directly
by us

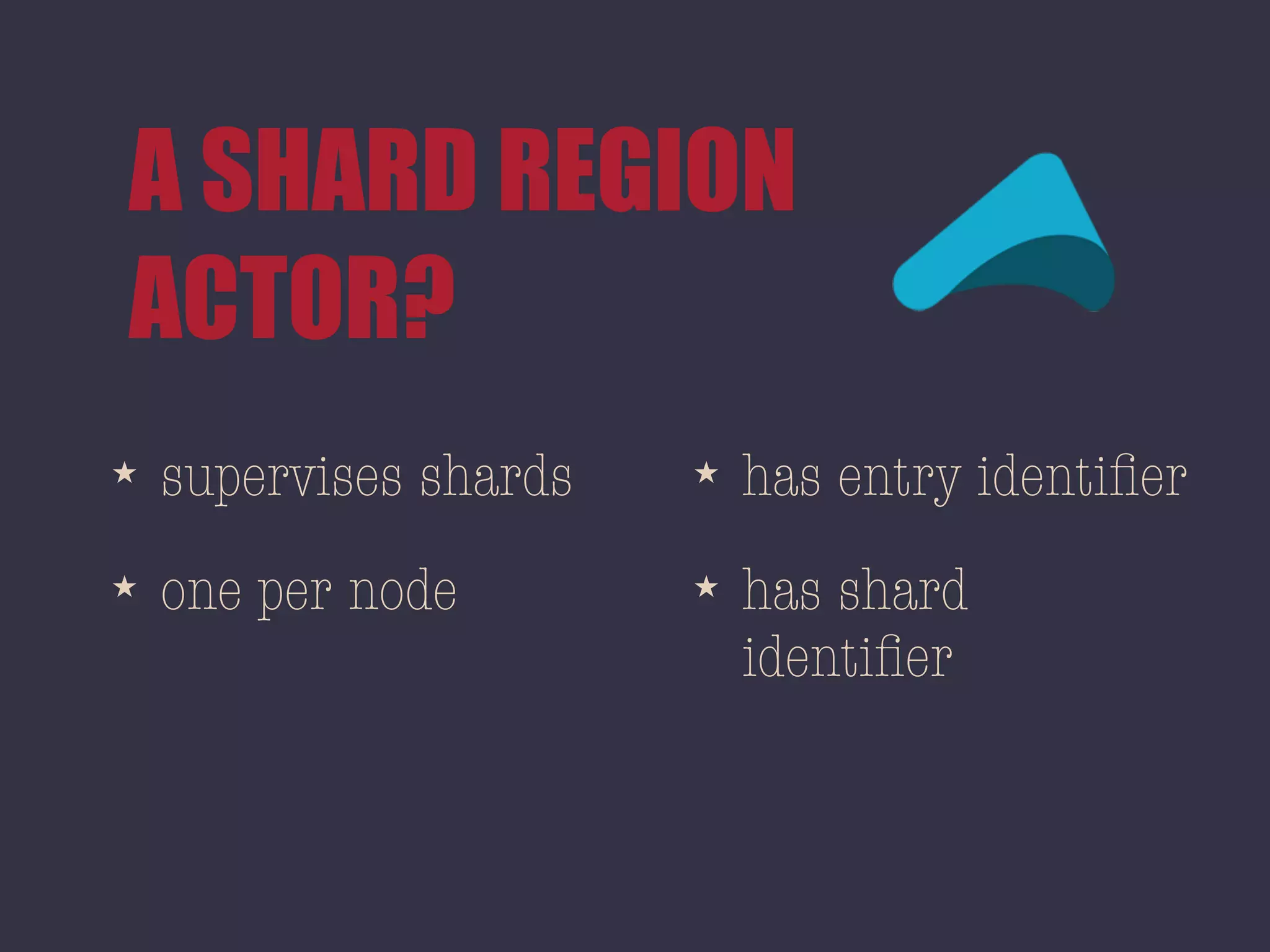

22. A SHARD REGION
ACTOR?
★ supervises shards
★ one per node
★ has entry identifier
★ has shard
identifier

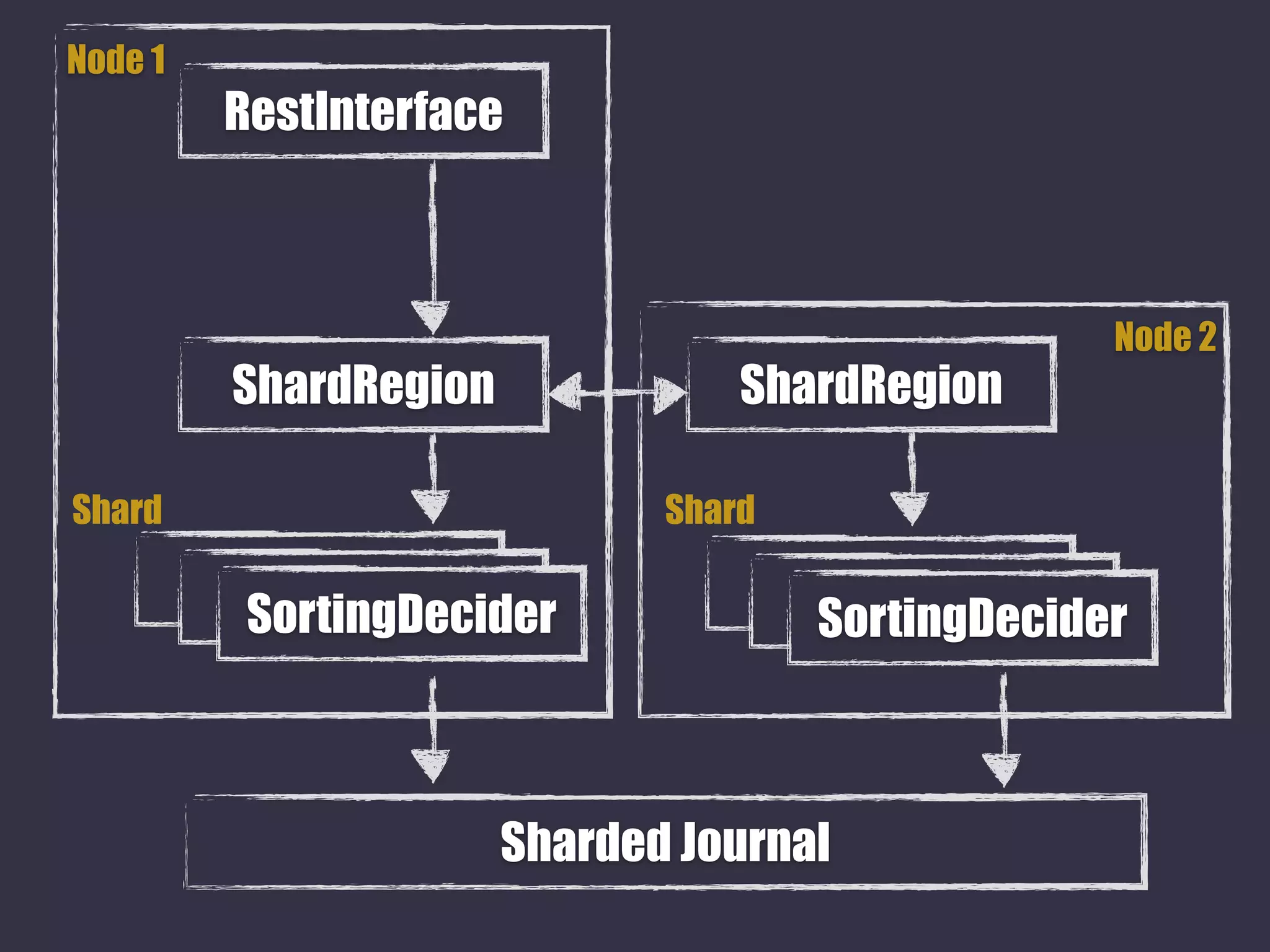

23. Node 1
RestInterface
v vSortingDecider
Node 2
Sharded Journal
v vSortingDecider
ShardRegion ShardRegion
Shard Shard

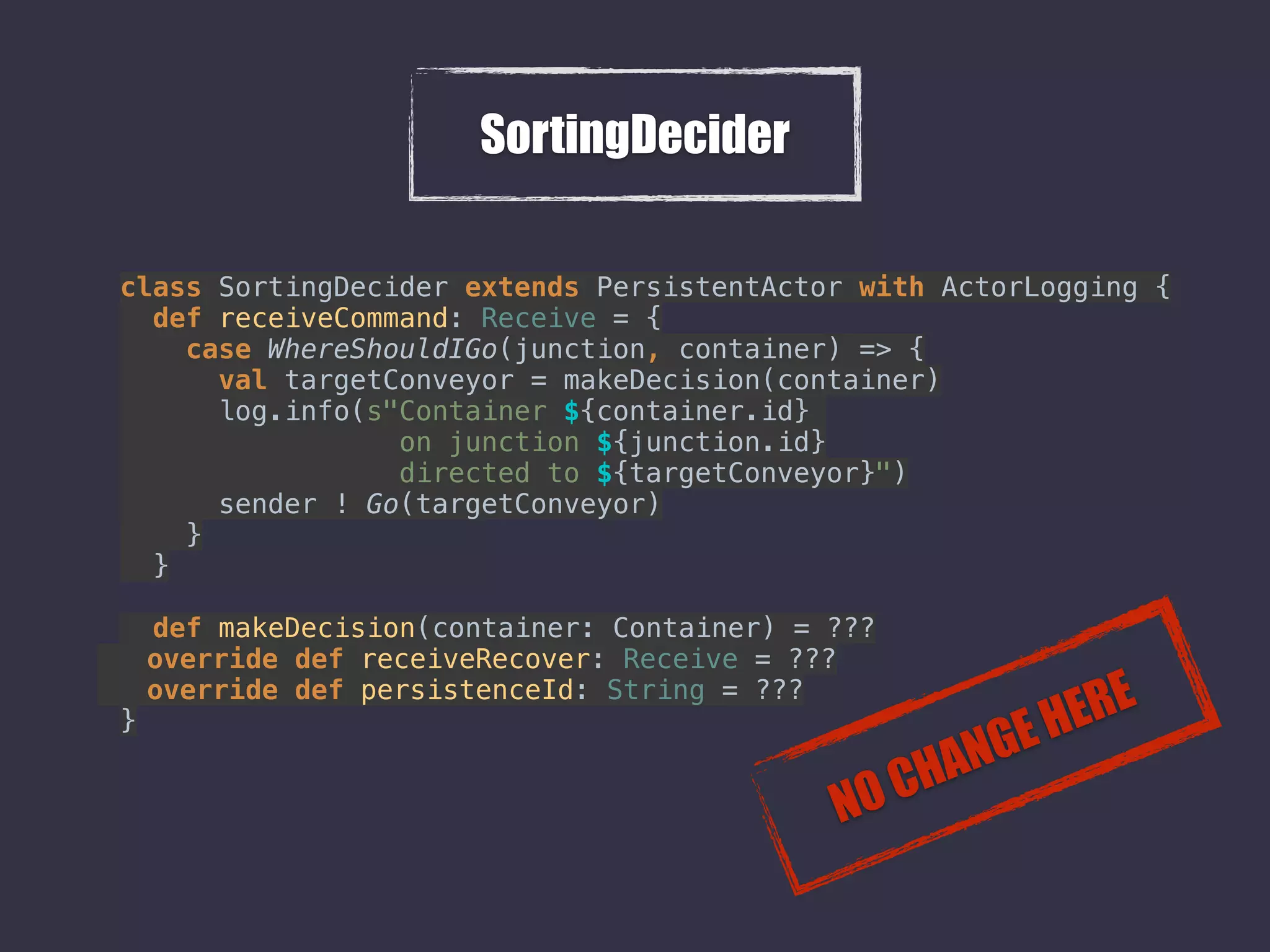

24. SortingDecider
class SortingDecider extends PersistentActor with ActorLogging {
def receiveCommand: Receive = {
case WhereShouldIGo(junction, container) => {
val targetConveyor = makeDecision(container)
log.info(s"Container ${container.id}
on junction ${junction.id}
directed to ${targetConveyor}")
sender ! Go(targetConveyor)
}
}
def makeDecision(container: Container) = ???
override def receiveRecover: Receive = ???
override def persistenceId: String = ???
}
NO CHANGE HERE

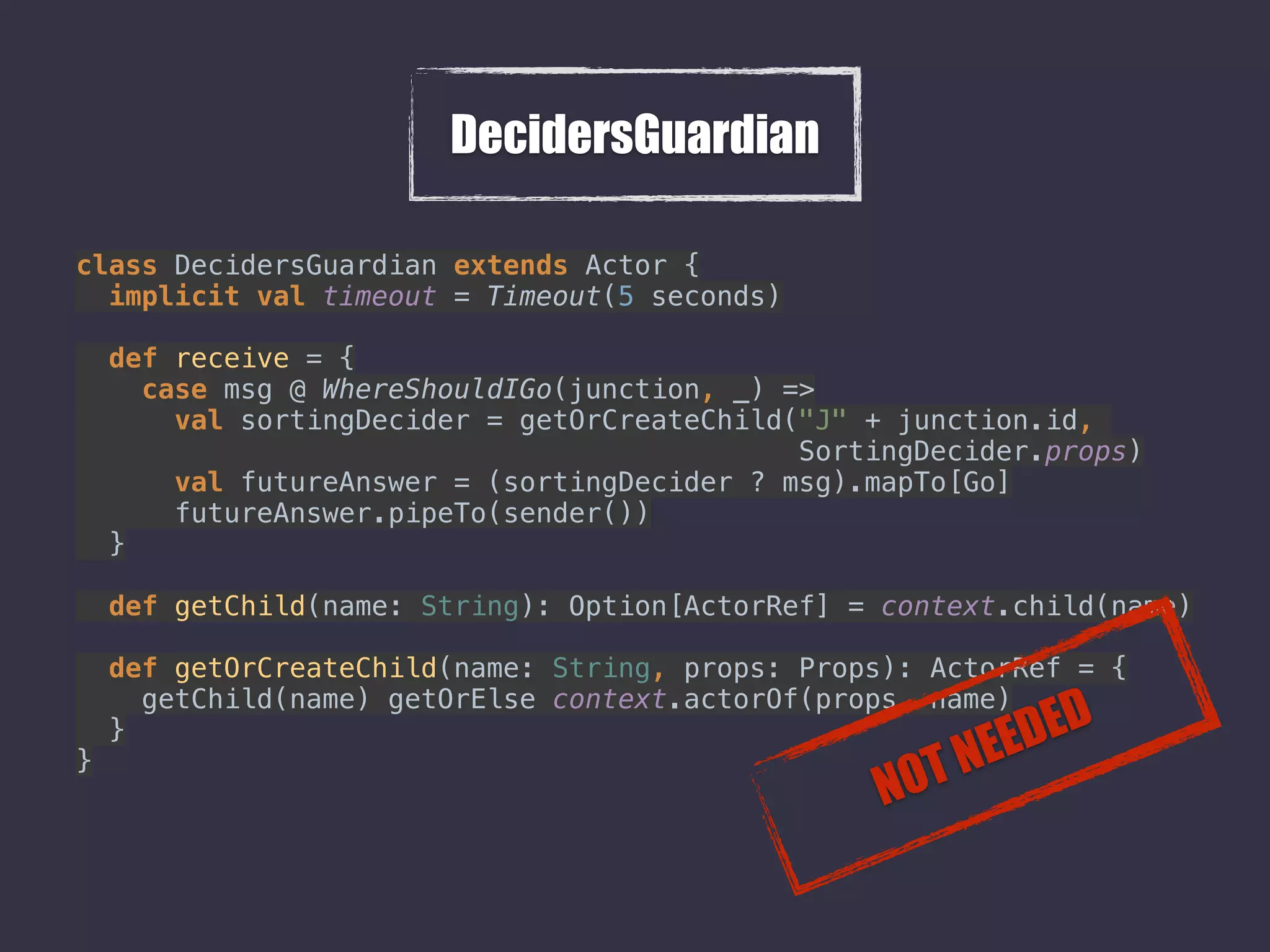

25. DecidersGuardian
class DecidersGuardian extends Actor {
implicit val timeout = Timeout(5 seconds)
def receive = {
case msg @ WhereShouldIGo(junction, _) =>
val sortingDecider = getOrCreateChild("J" + junction.id,
SortingDecider.props)
val futureAnswer = (sortingDecider ? msg).mapTo[Go]
futureAnswer.pipeTo(sender())
}
def getChild(name: String): Option[ActorRef] = context.child(name)
def getOrCreateChild(name: String, props: Props): ActorRef = {
getChild(name) getOrElse context.actorOf(props, name)
}
}
NOT NEEDED

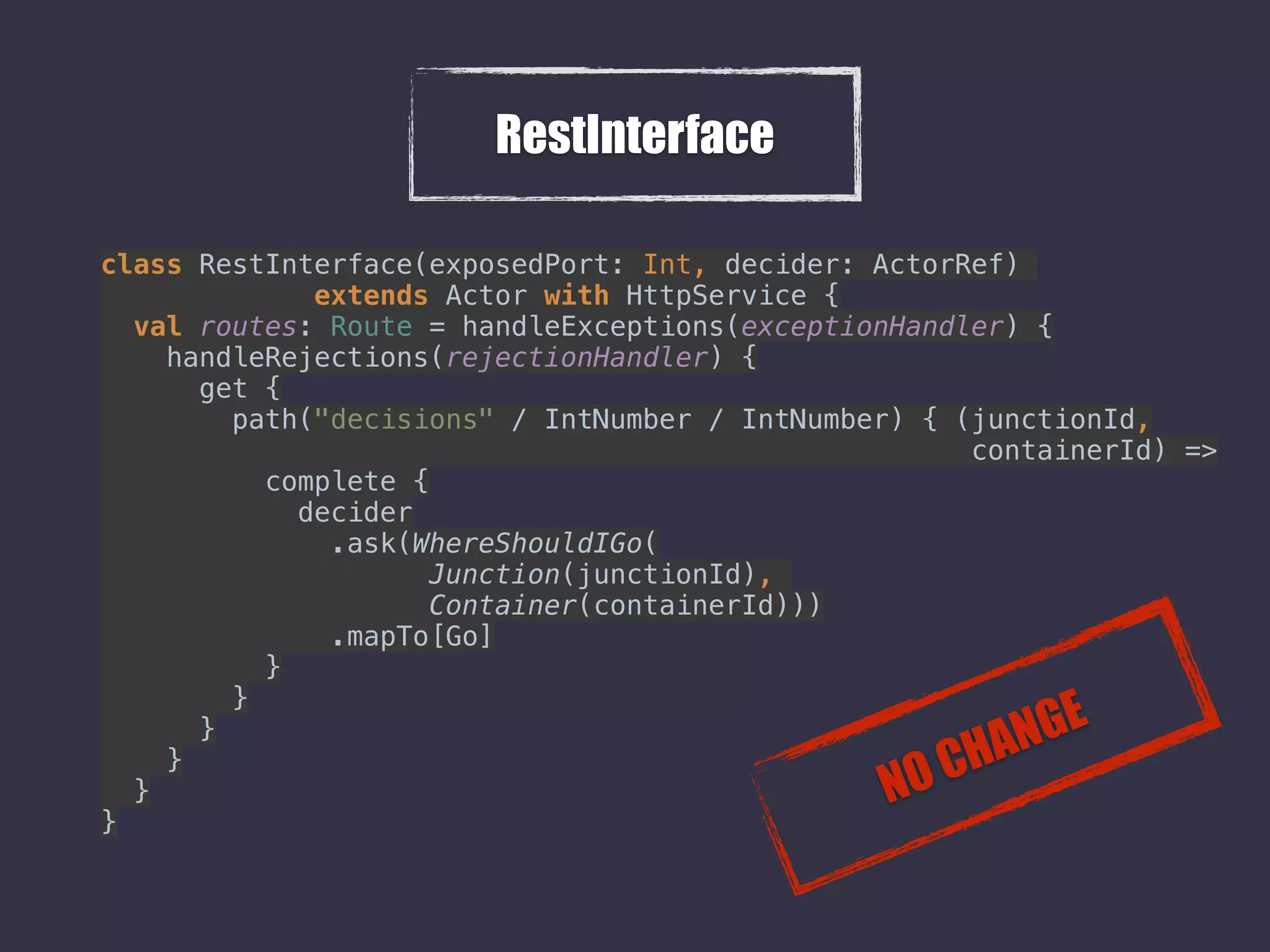

26. RestInterface
class RestInterface(exposedPort: Int, decider: ActorRef)
extends Actor with HttpService {
val routes: Route = handleExceptions(exceptionHandler) {
handleRejections(rejectionHandler) {
get {
path("decisions" / IntNumber / IntNumber) { (junctionId,
containerId) =>
complete {
decider
.ask(WhereShouldIGo(
Junction(junctionId),
Container(containerId)))
.mapTo[Go]
}
}
}
}
}
}
NO CHANGE

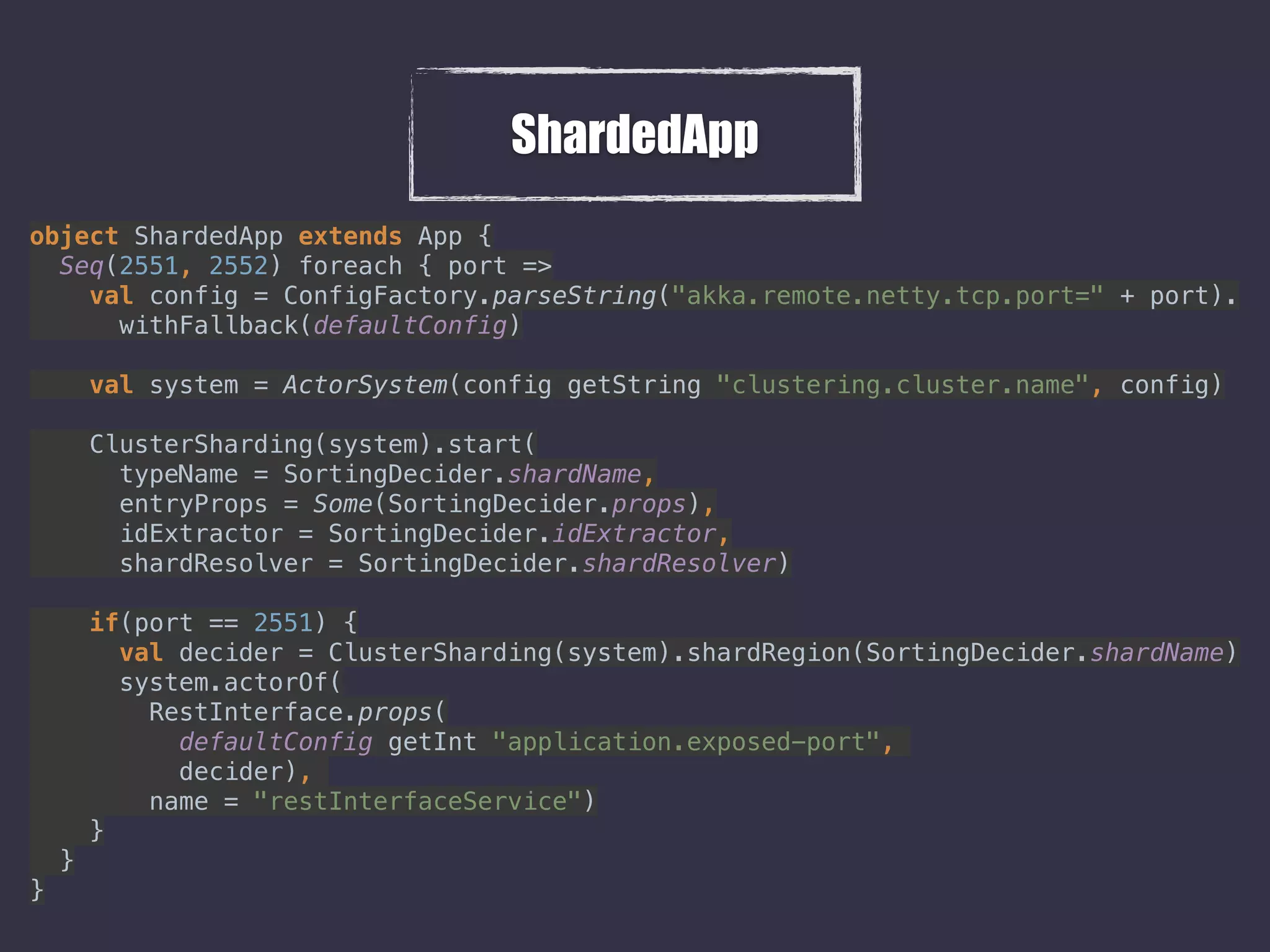

27. ShardedApp
object ShardedApp extends App {
Seq(2551, 2552) foreach { port =>
val config = ConfigFactory.parseString("akka.remote.netty.tcp.port=" + port).
withFallback(defaultConfig)
val system = ActorSystem(config getString "clustering.cluster.name", config)
ClusterSharding(system).start(
typeName = SortingDecider.shardName,
entryProps = Some(SortingDecider.props),
idExtractor = SortingDecider.idExtractor,
shardResolver = SortingDecider.shardResolver)
if(port == 2551) {
val decider = ClusterSharding(system).shardRegion(SortingDecider.shardName)
system.actorOf(
RestInterface.props(
defaultConfig getInt "application.exposed-port",
decider),
name = "restInterfaceService")
}
}
}

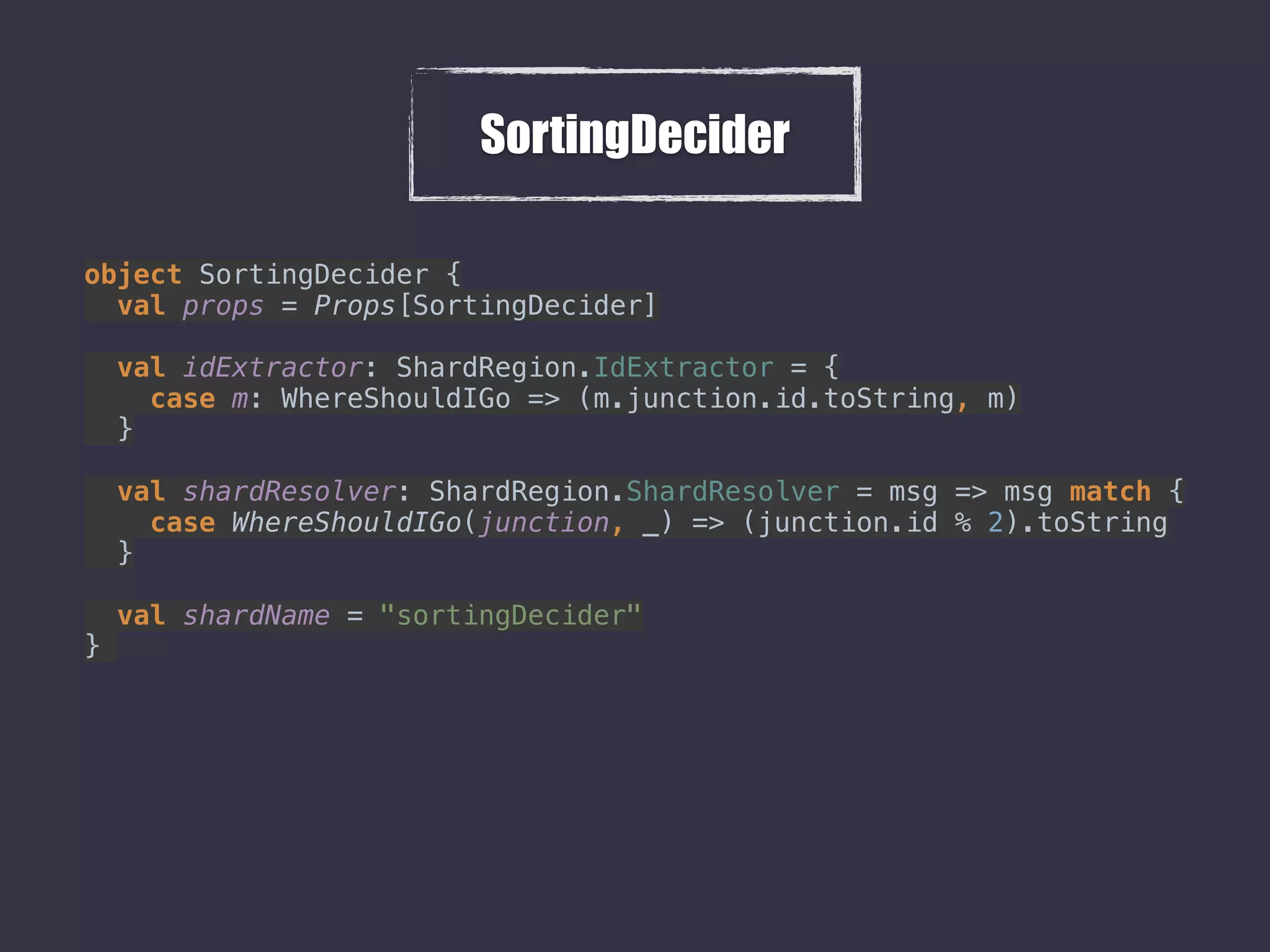

28. SortingDecider
object SortingDecider {
val props = Props[SortingDecider]
val idExtractor: ShardRegion.IdExtractor = {
case m: WhereShouldIGo => (m.junction.id.toString, m)
}
val shardResolver: ShardRegion.ShardResolver = msg => msg match {
case WhereShouldIGo(junction, _) => (junction.id % 2).toString
}
val shardName = "sortingDecider"
}

29. LET’S RUN IT
> http http://localhost:8080/decisions/2/1
HTTP/1.1 200 OK
{
"targetConveyor": "CVR_2_2"
}
> http http://localhost:8080/decisions/1/4
{
"targetConveyor": "CVR_1_2"
}
[shoesorter-cluster@127.0.0.1:2551 akka://shoesorter-cluster/user/sharding/
sortingDecider/2}] Container 1 on junction 2 directed to CVR_2_2
[shoesorter-cluster@127.0.0.1:2552 akka://shoesorter-cluster/user/sharding/
sortingDecider/1}] Container 4 on junction 1 directed to CVR_1_2

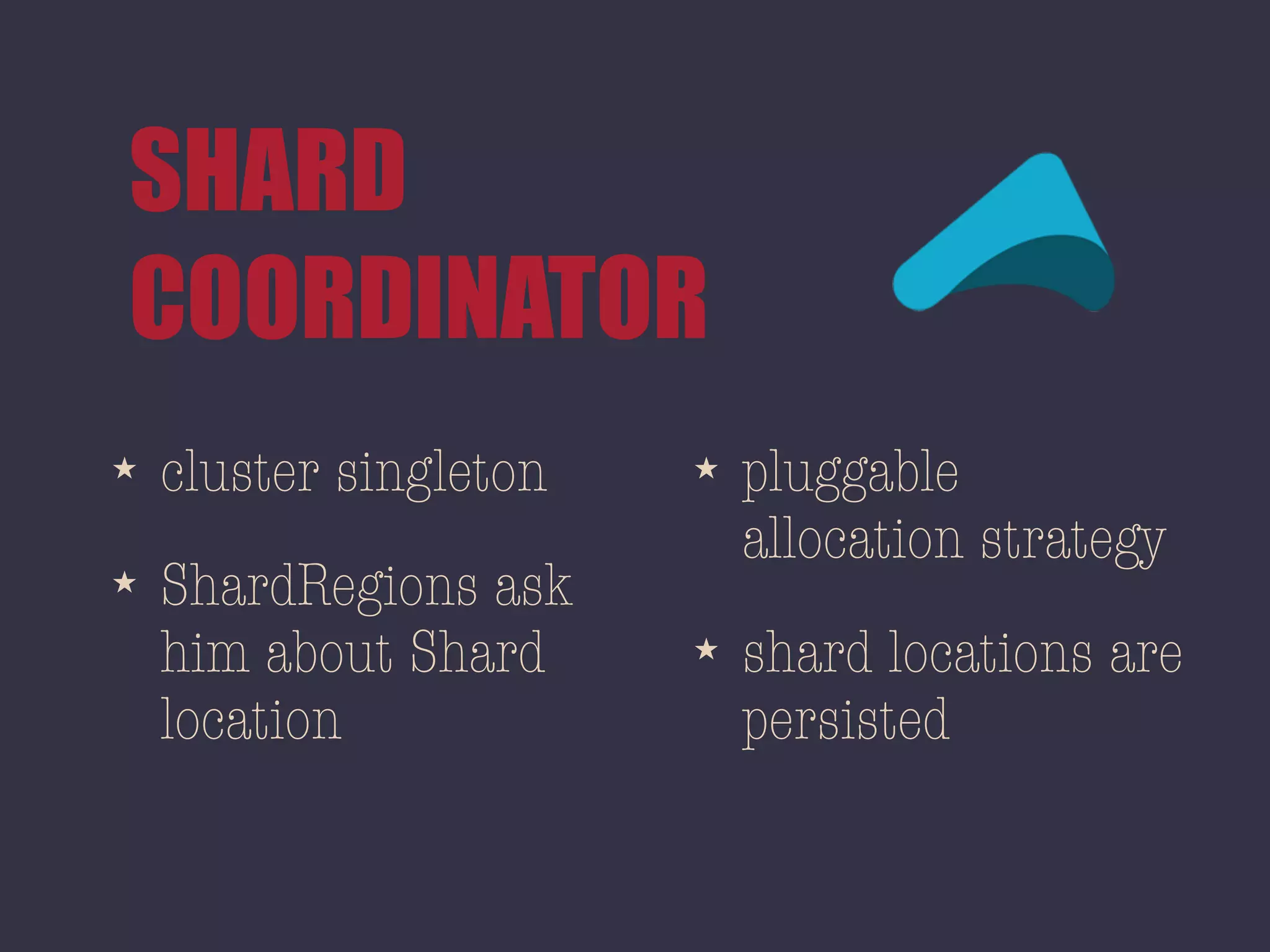

30. SHARD
COORDINATOR
★ cluster singleton
★ ShardRegions ask
him about Shard
location
★ pluggable
allocation strategy
★ shard locations are
persisted

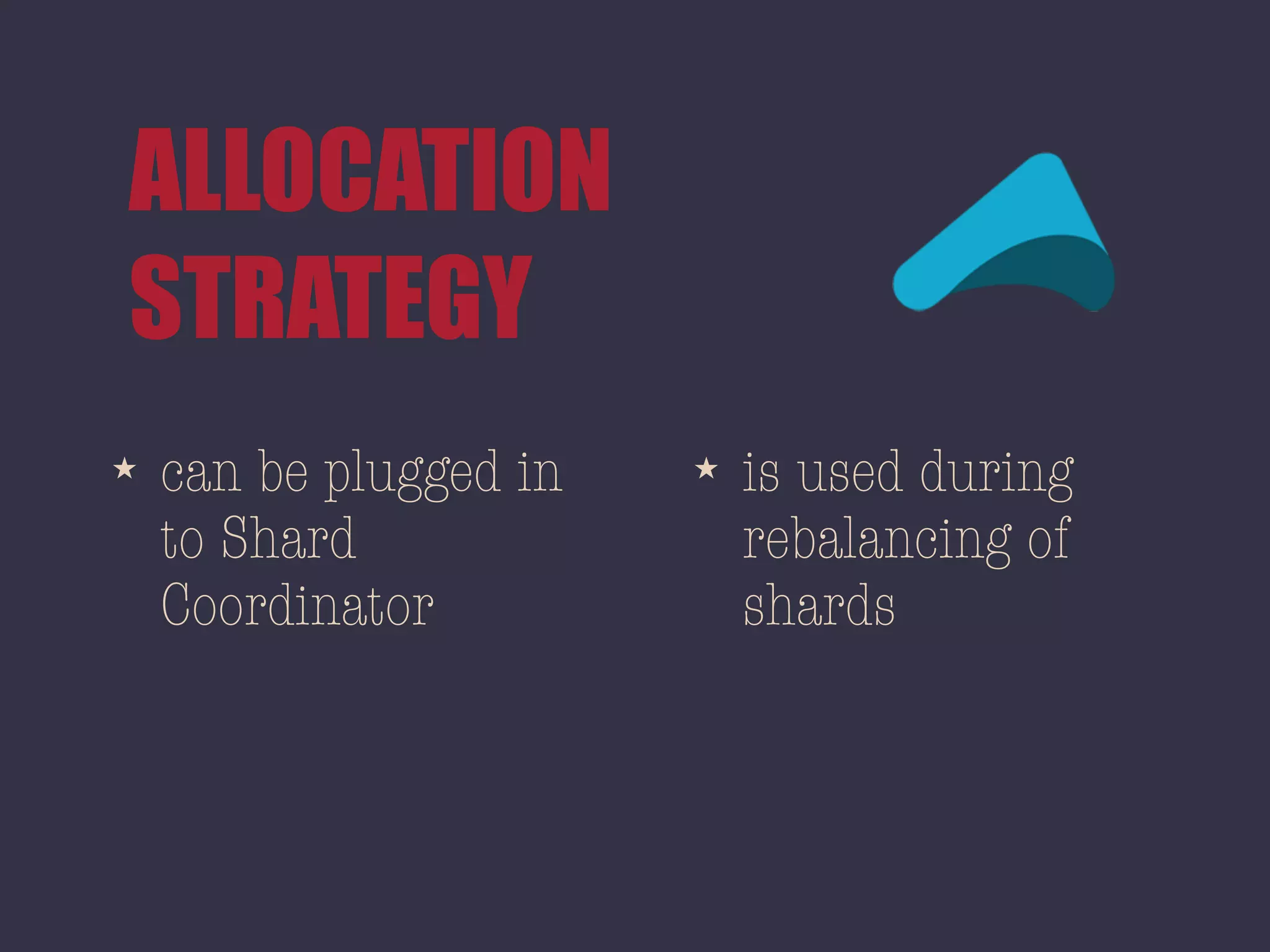

31. ALLOCATION
STRATEGY
★ can be plugged in
to Shard
Coordinator
★ is used during
rebalancing of
shards

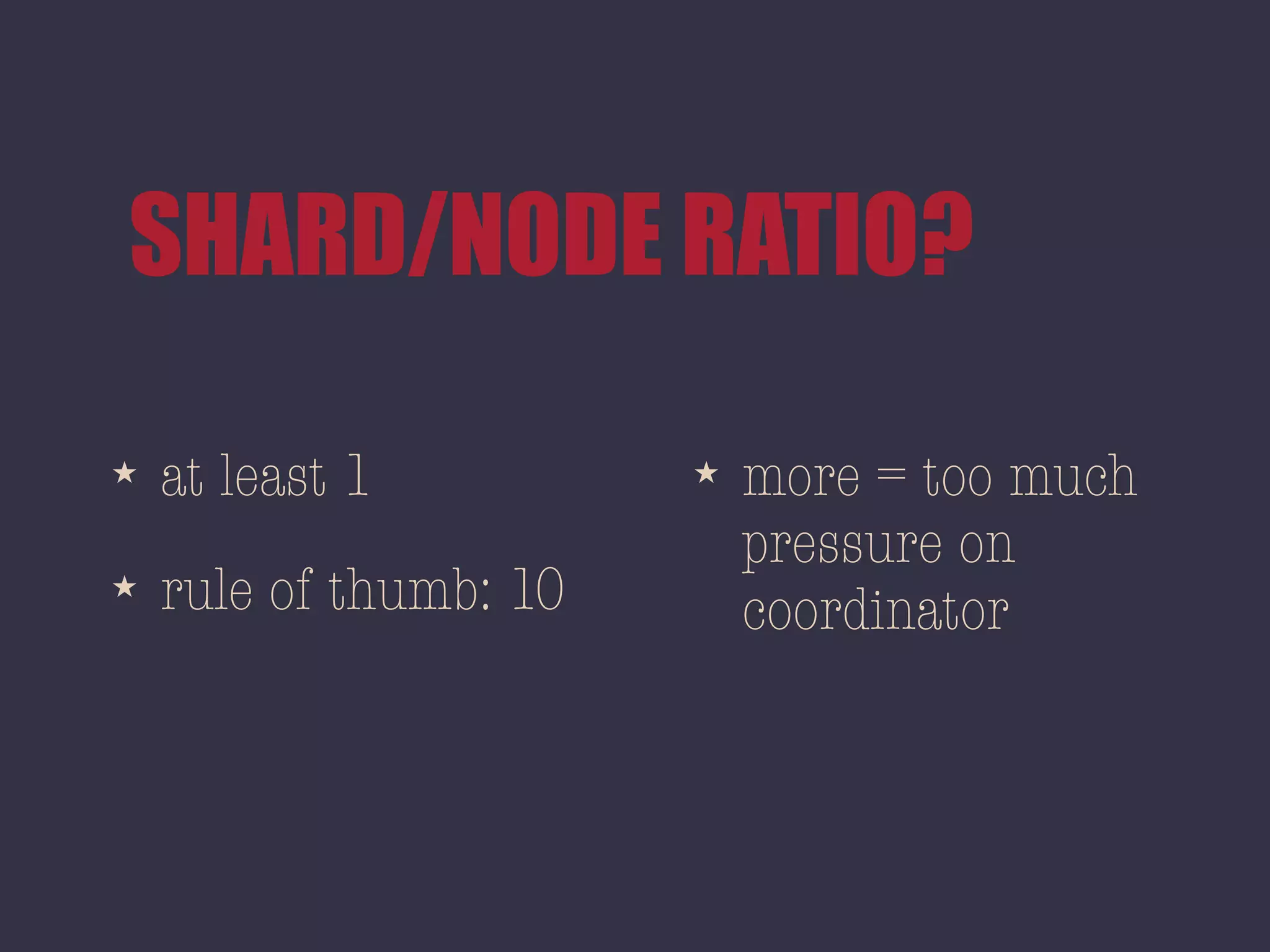

32. SHARD/NODE RATIO?
★ at least 1
★ rule of thumb: 10
★ more = too much
pressure on
coordinator

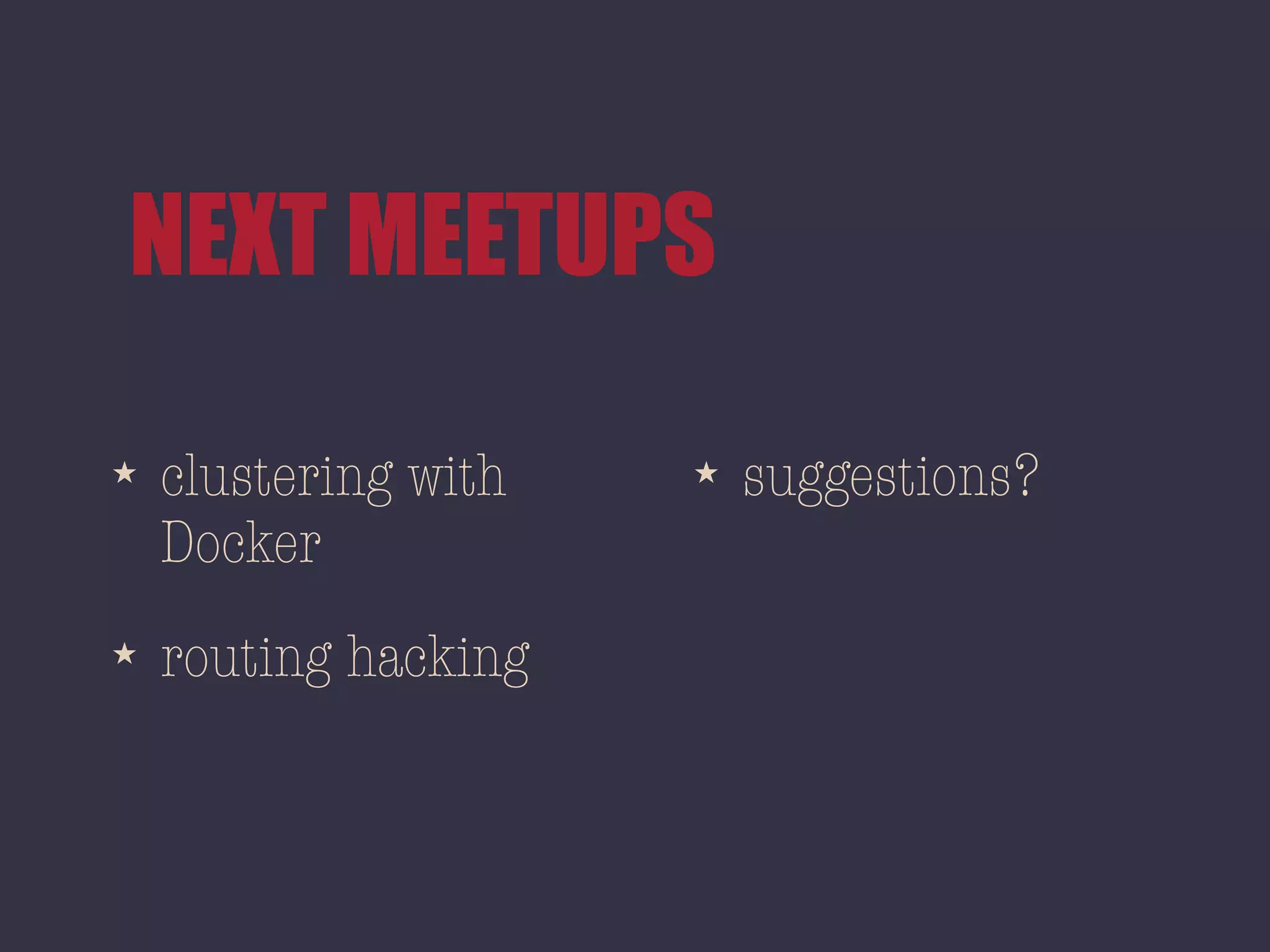

33. NEXT MEETUPS
★ clustering with
Docker
★ routing hacking
★ suggestions?

34. WITH AKKA-CLUSTERSANE SHARDING
MichaĿ PĿachta
