Akka 2.0 allows actors to be distributed across multiple nodes in a cluster in a transparent manner. It introduces new concepts like actor addresses and deployment configurations. The clustering functionality leverages ZooKeeper for distributed coordination and stores serialized actor factories. This allows actors to be dynamically created, migrated, and replicated across nodes for fault tolerance and load balancing. Composable futures also allow combining results from multiple asynchronous messages.

1. Akka 2.0: towards new heights
@remeniuk
emilypolar@flickr

2. Location Transparency

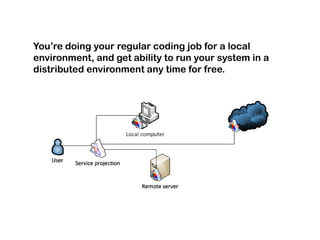

3. You’re doing your regular coding job for a local
environment, and get ability to run your system in a
distributed environment any time for free.

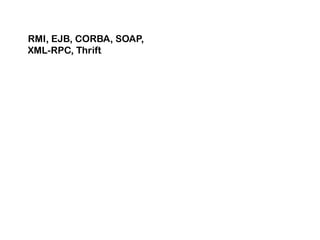

4. RMI, EJB, CORBA, SOAP,
XML-RPC, Thrift

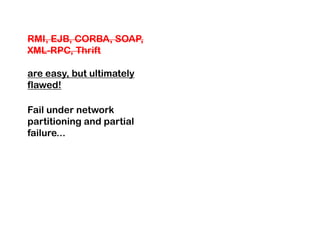

5. RMI, EJB, CORBA, SOAP,
XML-RPC, Thrift
are easy, but ultimately
flawed!
Fail under network
partitioning and partial
failure...

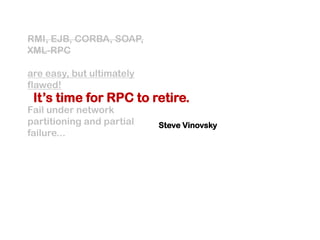

6. RMI, EJB, CORBA, SOAP,
XML-RPC
are easy, but ultimately
flawed!
It’s time for RPC to retire.
Fail under network
partitioning and partial Steve Vinovsky
failure...

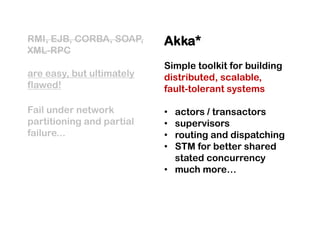

7. RMI, EJB, CORBA, SOAP, Akka*
XML-RPC
Simple toolkit for building
are easy, but ultimately distributed, scalable,
flawed! fault-tolerant systems
Fail under network • actors / transactors
partitioning and partial • supervisors
failure... • routing and dispatching
• STM for better shared
stated concurrency
• much more…

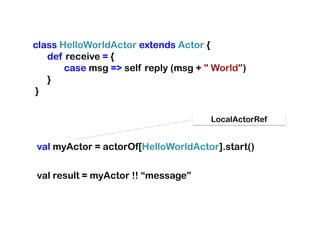

8. class HelloWorldActor extends Actor {
def receive = {
case msg => self reply (msg + " World")
}
}
LocalActorRef
val myActor = actorOf[HelloWorldActor].start()
val result = myActor !! “message”

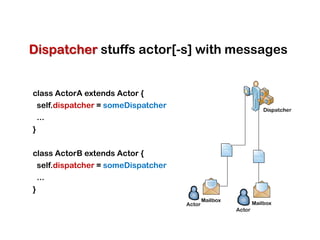

9. Dispatcher stuffs actor[-s] with messages
class ActorA extends Actor {
self.dispatcher = someDispatcher
...
}
class ActorB extends Actor {
self.dispatcher = someDispatcher
...
}

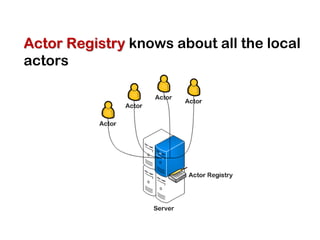

10. Actor Registry knows about all the local
actors

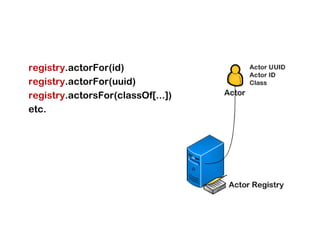

11. registry.actorFor(id)
registry.actorFor(uuid)
registry.actorsFor(classOf[...])
etc.

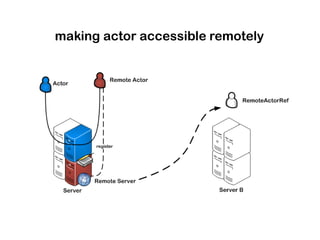

12. making actor accessible remotely

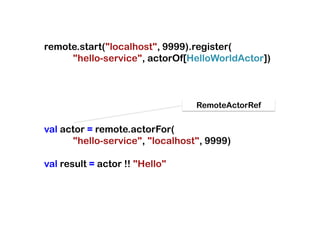

13. remote.start("localhost", 9999).register(
"hello-service", actorOf[HelloWorldActor])
RemoteActorRef
val actor = remote.actorFor(
"hello-service", "localhost", 9999)
val result = actor !! "Hello"

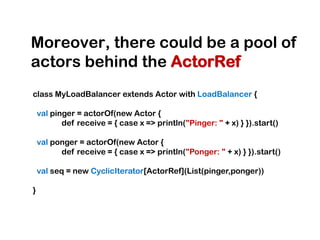

14. Moreover, there could be a pool of
actors behind the ActorRef
class MyLoadBalancer extends Actor with LoadBalancer {
val pinger = actorOf(new Actor {
def receive = { case x => println("Pinger: " + x) } }).start()
val ponger = actorOf(new Actor {
def receive = { case x => println("Ponger: " + x) } }).start()
val seq = new CyclicIterator[ActorRef](List(pinger,ponger))
}

15. Fault tolerance
Groups of linked, supervised actors define subsystems:
those actors crash and restart together

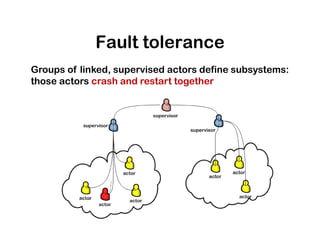

16. Fault tolerance
Groups of linked, supervised actors define subsystems:
those actors crash and restart together

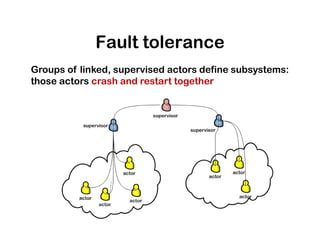

17. Fault tolerance
Groups of linked, supervised actors define subsystems:
those actors crash and restart together

18. Fault tolerance
Groups of linked, supervised actors define subsystems:
those actors crash and restart together

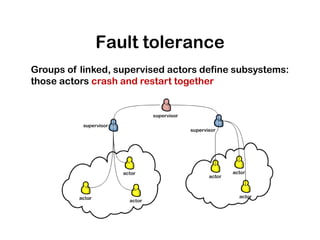

19. Fault tolerance
Groups of linked, supervised actors define subsystems:
those actors crash and restart together

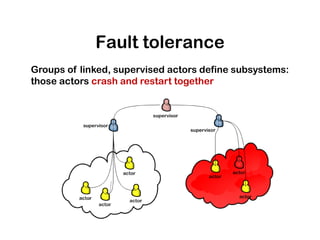

20. Fault tolerance
Groups of linked, supervised actors define subsystems:
those actors crash and restart together

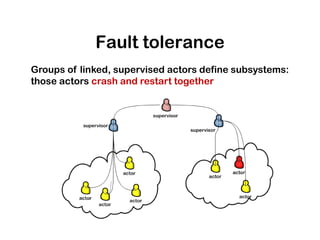

21. Fault tolerance
Groups of linked, supervised actors define subsystems:
those actors crash and restart together

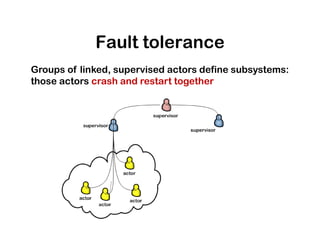

22. Fault tolerance
Groups of linked, supervised actors define subsystems:
those actors crash and restart together

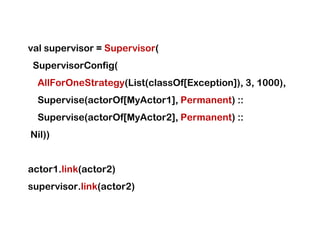

23. val supervisor = Supervisor(
SupervisorConfig(
AllForOneStrategy(List(classOf[Exception]), 3, 1000),
Supervise(actorOf[MyActor1], Permanent) ::
Supervise(actorOf[MyActor2], Permanent) ::
Nil))
actor1.link(actor2)
supervisor.link(actor2)

24. Akka 2.0

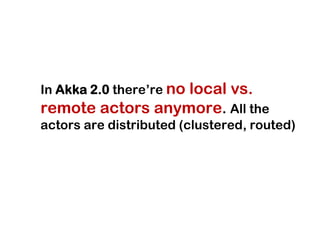

25. In Akka 2.0 there’re no
local vs.
remote actors anymore. All the
actors are distributed (clustered, routed)

26. the new level of transparency

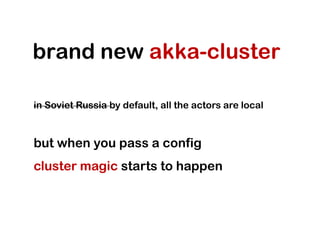

27. brand new akka-cluster
in Soviet Russia by default, all the actors are local
but when you pass a config
cluster magic starts to happen

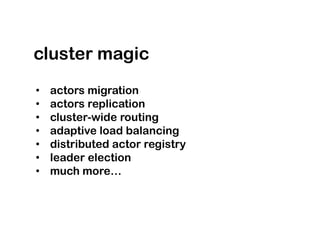

28. cluster magic

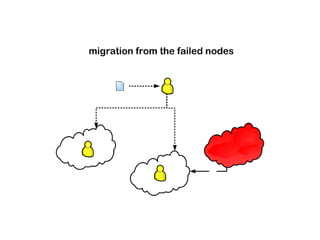

• actors migration
• actors replication
• cluster-wide routing
• adaptive load balancing
• distributed actor registry
• leader election
• much more…

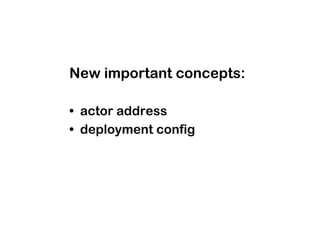

29. New important concepts:
• actor address
• deployment config

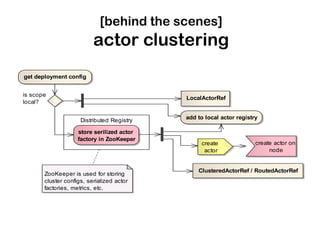

30. [behind the scenes]
actor clustering
get deployment config
is scope
LocalActorRef
local?
Distributed Registry add to local actor registry
store serilized actor
factory in ZooKeeper
create create actor on
actor node
ClusteredActorRef / RoutedActorRef
ZooKeeper is used for storing
cluster configs, serialized actor
factories, metrics, etc.

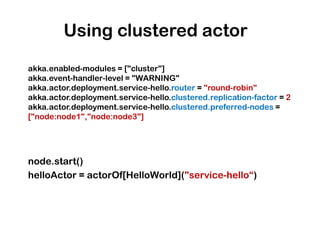

31. Using clustered actor
akka.enabled-modules = ["cluster"]
akka.event-handler-level = "WARNING"
akka.actor.deployment.service-hello.router = "round-robin"
akka.actor.deployment.service-hello.clustered.replication-factor = 2
akka.actor.deployment.service-hello.clustered.preferred-nodes =
["node:node1","node:node3"]
node.start()
helloActor = actorOf[HelloWorld]("service-hello“)

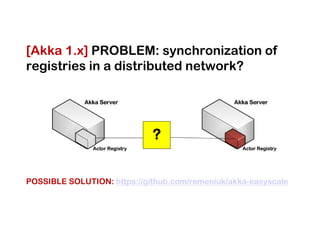

36. [Akka 1.x] PROBLEM: synchronization of
registries in a distributed network?
POSSIBLE SOLUTION: https://github.com/remeniuk/akka-easyscale

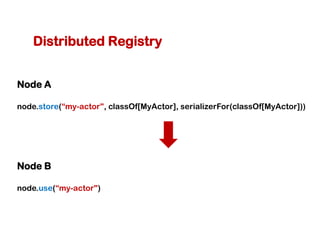

37. Distributed Registry
Node A
node.store(“my-actor", classOf[MyActor], serializerFor(classOf[MyActor]))
Node B
node.use(“my-actor")

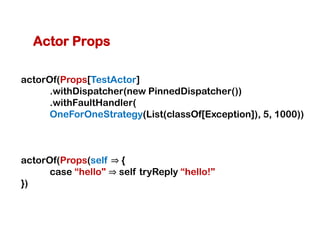

38. Actor Props
actorOf(Props[TestActor]
.withDispatcher(new PinnedDispatcher())
.withFaultHandler(
OneForOneStrategy(List(classOf[Exception]), 5, 1000))
actorOf(Props(self ⇒ {
case “hello" ⇒ self tryReply “hello!"
})

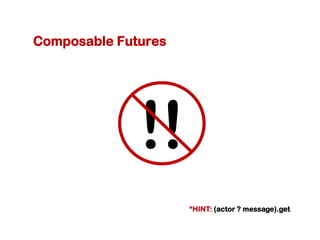

39. Composable Futures
!!
*HINT: (actor ? message).get

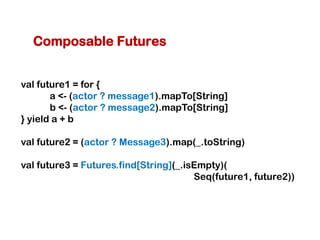

40. Composable Futures
val future1 = for {
a <- (actor ? message1).mapTo[String]
b <- (actor ? message2).mapTo[String]
} yield a + b
val future2 = (actor ? Message3).map(_.toString)
val future3 = Futures.find[String](_.isEmpty)(
Seq(future1, future2))

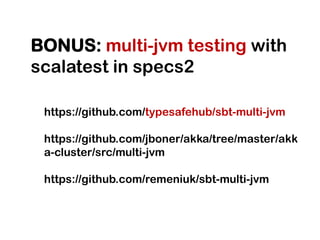

41. BONUS: multi-jvm testing with
scalatest in specs2
https://github.com/typesafehub/sbt-multi-jvm
https://github.com/jboner/akka/tree/master/akk
a-cluster/src/multi-jvm
https://github.com/remeniuk/sbt-multi-jvm

42. GO AND TRY IT!
> git clone https://github.com/jboner/akka
> sbt
