This document outlines a presentation on developing distributed applications with Akka and Akka Cluster. It introduces Akka as a toolkit for building highly concurrent, distributed, and fault tolerant applications. It discusses concurrency paradigms like actors, dataflow, and software transactional memory. Live demos are presented showing actors, Akka remoting and clustering, and consistent replicated data types. The presentation emphasizes building distributed systems with Akka's actor model and using features like routers, deployment, and CRDTs to manage distributed state.

1. Developing distributed applications
with Akka and Akka Cluster
Presented by K.Tsykulenko

2. Introduction

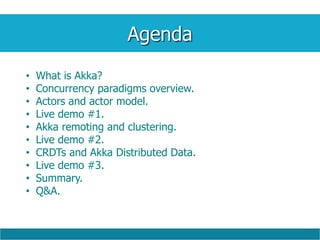

3. Agenda
• What is Akka?
• Concurrency paradigms overview.
• Actors and actor model.
• Live demo #1.
• Akka remoting and clustering.
• Live demo #2.
• CRDTs and Akka Distributed Data.
• Live demo #3.
• Summary.
• Q&A.

4. What is Akka?
http://akka.io
Akka is a toolkit and runtime for building highly
concurrent, distributed, and fault tolerant event-driven
applications on the JVM.

5. What is Akka?
http://akka.io

6. Concurrency paradigms

7. Concurrency paradigms
• Shared state and locks
• Software Transactional Memory (STM)
• Message-Passing Concurrency (Actors)
• Dataflow Concurrency
• and more…

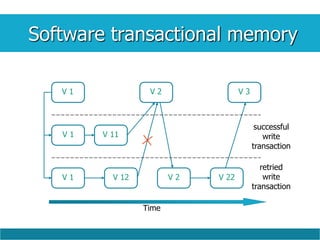

8. Software transactional memory
V 1 V 2
V 1 V 12
V 11
V 3
V 2 V 22
successful
write
transaction
retried
write
transaction
V 1
Time

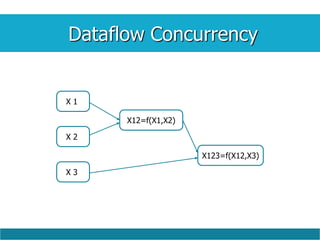

9. Dataflow Concurrency
X 1
X12=f(X1,X2)
X123=f(X12,X3)
X 2
X 3

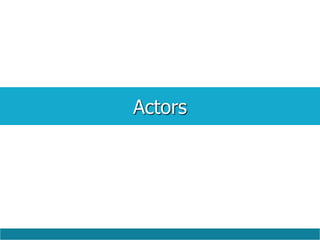

10. Actors

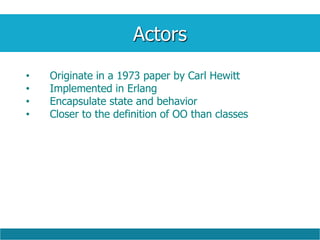

11. Actors
• Originate in a 1973 paper by Carl Hewitt
• Implemented in Erlang
• Encapsulate state and behavior
• Closer to the definition of OO than classes

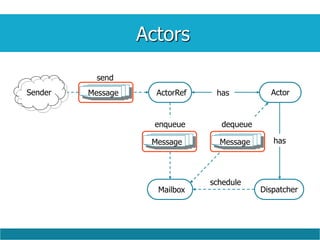

12. Actors
Sender ActorRef Actor
Dispatcher
hasMessageMessage
Message
Mailbox
has
enqueue dequeue
schedule
send

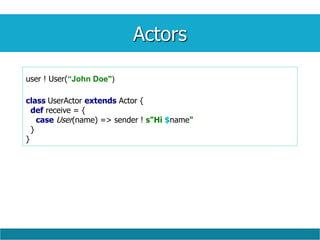

13. Actors
user ! User(“John Doe")
class UserActor extends Actor {
def receive = {
case User(name) => sender ! s"Hi $name"
}
}

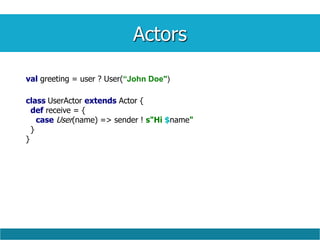

14. Actors
val greeting = user ? User(“John Doe")
class UserActor extends Actor {
def receive = {
case User(name) => sender ! s"Hi $name"
}
}

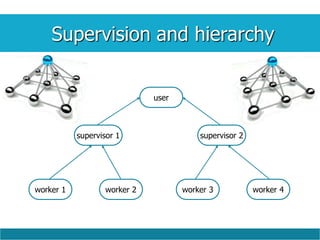

15. Supervision and hierarchy
worker 1 worker 2 worker 3 worker 4
supervisor 1 supervisor 2
user

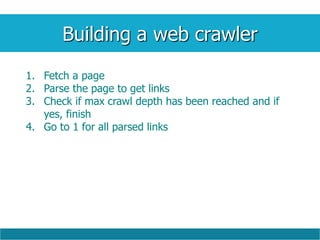

16. Building a web crawler
1. Fetch a page
2. Parse the page to get links
3. Check if max crawl depth has been reached and if
yes, finish
4. Go to 1 for all parsed links

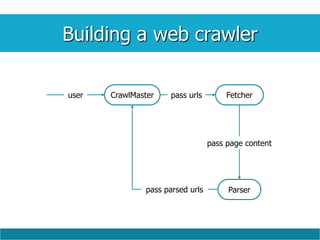

17. Building a web crawler
Parser
CrawlMasteruser Fetcherpass urls
pass page content
pass parsed urls

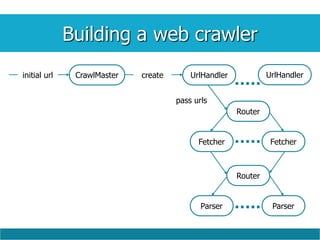

18. Building a web crawler
Router
pass urls
CrawlMasterinitial url UrlHandlercreate UrlHandler
Fetcher Fetcher
Router
Parser Parser

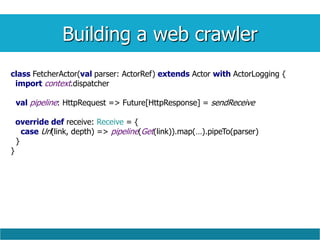

19. Building a web crawler
class FetcherActor(val parser: ActorRef) extends Actor with ActorLogging {
import context.dispatcher
val pipeline: HttpRequest => Future[HttpResponse] = sendReceive
override def receive: Receive = {
case Url(link, depth) => pipeline(Get(link)).map(…).pipeTo(parser)
}
}

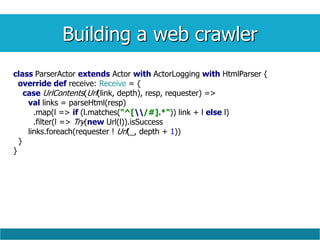

20. Building a web crawler
class ParserActor extends Actor with ActorLogging with HtmlParser {
override def receive: Receive = {
case UrlContents(Url(link, depth), resp, requester) =>
val links = parseHtml(resp)
.map(l => if (l.matches("^[/#].*")) link + l else l)
.filter(l => Try(new Url(l)).isSuccess
links.foreach(requester ! Url(_, depth + 1))
}
}

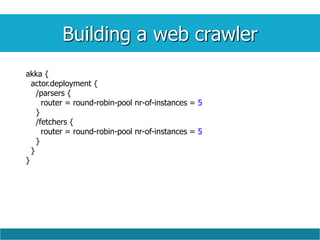

21. Building a web crawler
akka {
actor.deployment {
/parsers {
router = round-robin-pool nr-of-instances = 5
}
/fetchers {
router = round-robin-pool nr-of-instances = 5
}
}
}

22. Live demo #1

23. Going remote
• Everything works using asynchronous message
passing which is good for remoting
• Akka-remoting allows working with remote actors
just as if they were in the same JVM
• Still need to handle additional issues like
serialization and handling potential networking
problems

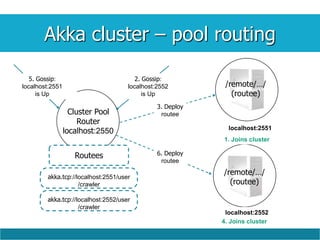

24. Akka cluster – pool routing
akka.tcp://localhost:2551/user
/crawler
Routees
akka.tcp://localhost:2552/user
/crawler
Cluster Pool
Router
localhost:2550
5. Gossip:
localhost:2551
is Up
2. Gossip:
localhost:2552
is Up
6. Deploy
routee
3. Deploy
routee
localhost:2551
localhost:2552
1. Joins cluster
4. Joins cluster
/remote/…/
(routee)
/remote/…/
(routee)

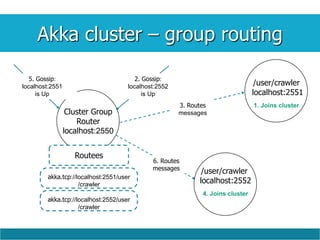

25. 1. Joins cluster
Akka cluster – group routing
akka.tcp://localhost:2551/user
/crawler
Routees
akka.tcp://localhost:2552/user
/crawler
Cluster Group
Router
localhost:2550
5. Gossip:
localhost:2551
is Up
2. Gossip:
localhost:2552
is Up
6. Routes
messages
3. Routes
messages
/user/crawler
localhost:2551
4. Joins cluster
/user/crawler
localhost:2552

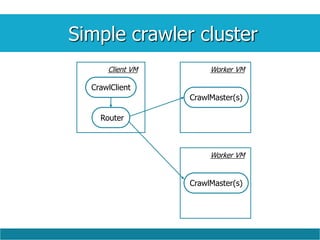

26. Simple crawler cluster
Client VM
CrawlClient
Router
Worker VM
CrawlMaster(s)
Worker VM
CrawlMaster(s)

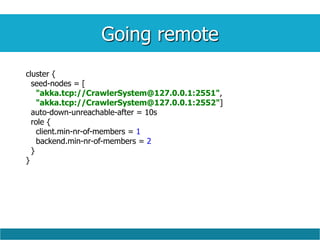

27. Going remote
cluster {
seed-nodes = [
"akka.tcp://CrawlerSystem@127.0.0.1:2551",
"akka.tcp://CrawlerSystem@127.0.0.1:2552"]
auto-down-unreachable-after = 10s
role {
client.min-nr-of-members = 1
backend.min-nr-of-members = 2
}
}

28. Going remote
actor {
deployment {
/workerRouter {
router = consistent-hashing-group
nr-of-instances = 100
routees.paths = ["/user/master"]
cluster {
enabled = on
allow-local-routees = on
use-role = backend
}
}
}
provider = "akka.cluster.ClusterActorRefProvider“
}

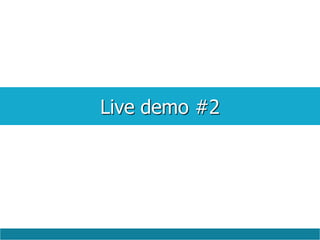

29. Live demo #2

30. Distributed state

31. Distributed state

32. But what if we need to?

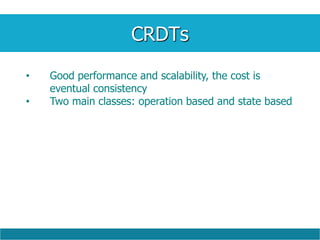

33. CRDTs
• Good performance and scalability, the cost is
eventual consistency
• Two main classes: operation based and state based

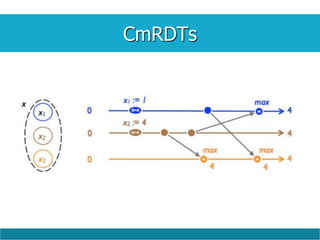

34. CmRDTs

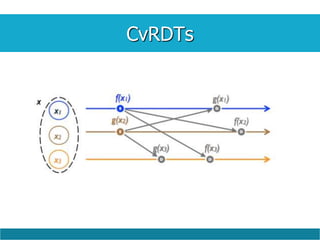

35. CvRDTs

36. Live demo #3

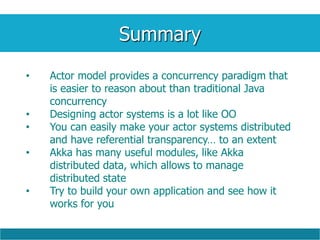

37. Summary
• Actor model provides a concurrency paradigm that
is easier to reason about than traditional Java
concurrency
• Designing actor systems is a lot like OO
• You can easily make your actor systems distributed
and have referential transparency… to an extent
• Akka has many useful modules, like Akka
distributed data, which allows to manage
distributed state
• Try to build your own application and see how it
works for you

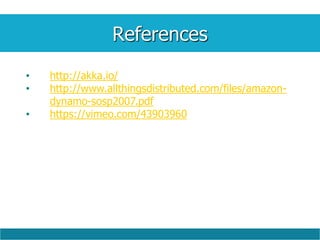

38. References
• http://akka.io/
• http://www.allthingsdistributed.com/files/amazon-
dynamo-sosp2007.pdf
• https://vimeo.com/43903960

39. Q&A

40. Thank you!
Konstantin Tsykulenko
@Tsykulenko_K
