The document discusses reactive application patterns and principles. It describes how Akka actors can be used to build message-driven, resilient, elastic, and responsive applications. It provides an example of using Play, Akka Cluster Sharding to build a reactive user management system that is horizontally scalable and always available.

1. What Constitutes a Reactive Application
Reactive Patterns Applied
Henrik Engstrom
Software Engineer
@h3nk3

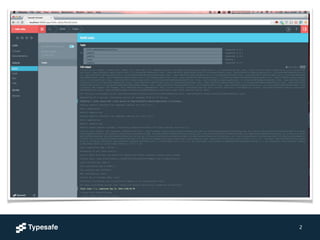

2. 2

3. 3
Activator UI!
(JavaScript, Knockout, CSS3, black magic…)
websockets
Play Application!
(Play 2.3.x, Akka 2.3.x, sbt 0.13.x)
sbt protocol
sbt Server
Async Communication!
Websockets!
Akka Actors
Other
Clients
(Eclipse,
Terminal, etc.)

4. DEMO
4

5. The Four Reactive Traits
Reactive Applications
5
http://reactivemanifesto.org/

6. Message-Driven
!
The Foundation of being Reactive

7. Akka Actors in 5 minutes or so…
7

8. 8
ACTORS

9. import akka.actor._
!
class GreetingActor extends Actor with ActorLogging {
9
import GreetingActor._
def receive = {
case User(name) =>
log.info(s“Hello there ${name}”)
}
}
!
object GreetingActor {
case class User(name: String)
def props: Props = Props(classOf[GreetingActor])
}

10. 10
MAILBOXES

11. 11
THREADS

12. 12
STATE

13. 13
CONTAINERS

14. 14
val system = ActorSystem(“MySystem”)
val greeter: ActorRef =
system.actorOf(GreetingActor.props, “greeter”)

15. 15
MESSAGES

16. 16
greeter ! GreetingActor.User(“PlayNYC”)
// or
greeter.tell(GreetingActor.User(“PlayNYC”))

17. 17
import akka.actor._
!
object Sample extends App {
val system = ActorSystem(“MySystem”)
val greeter = system.actorOf(GreetingActor.props, “greeter”)
greeter ! GreetingActor.User(“PlayNYC”)
Thread.sleep(1000) // wait a little before shutting down
system.shutdown()
}
!
class GreetingActor extends Actor with ActorLogging {
def receive = {
case GreetingActor.User(name) =>
log.info(s“Hello there ${name}”)
}
}
!
object GreetingActor {
case class User(name: String)
def props: Props = Props(classOf[GreetingActor])
}

18. 18
he-mbp:sample he$ scalac Sample.scala
!
he-mbp:sample he$ scala Sample
!
[INFO] [09/15/2014 16:57:19.879] [MySystem-akka.actor.default-dispatcher-
4] [akka://MySystem/user/greeter] Hello there PlayNYC
!
he-mbp:sample he$

19. Resilient
!
Responsive in the Face of Failure

20. 20
SUPERVISION

21. 21
import akka.actor.OneForOneStrategy
import akka.actor.SupervisorStrategy._
import scala.concurrent.duration._
class SupervisorActor extends Actor with ActorLogging {
override val supervisorStrategy =
OneForOneStrategy(maxNrOfRetries = 10,
withinTimeRange = 1 minute) {
case _: SomeDbException => Resume
case _: SomeOtherDbException => Restart
case _: Exception => Escalate
}
!
val dbActor = context.actorOf(DbActor.props)
def receive = {
case op: SomeDbOperation =>
dbActor forward op
}
}

22. 22
BULKHEAD

23. 23
CIRCUIT
BREAKER

24. Elastic
!
Responsive in the Face of Changing Load

25. 25
SOME CHALLENGES
• Each user has state Proxy
(location)
• Horizontal scaling => !sticky sessions
• How do we route to the right node?
• Node Crashes
Proxy Play is App SPOF
1 Play App2 Play App n
• …

26. 26
Play App
Akka!
Cluster!
Node
Akka!
Cluster!
Node
Akka!
Cluster!
Node
Akka!
Cluster!
Node

27. 27
Akka!
Cluster!
Node
Akka!
Cluster!
Node
Akka!
Cluster!
Node
Akka!
Cluster!
Node
Shard
Coord.
Shard
Region
Shard
Region
Shard
Region
Shard
Region

28. Supported HTTP commands (Play routes file)
!
GET / controller.Application.index
PUT /create/user/:userId c.Application.createUser(userId: String)
POST /update/user/:userId c.Application.updateUser(userId: String)
28

29. 29
package controller
object Application extends Controller {
val userController =
AppGlobal.system.actorOf(UserController.props)
!
def index = Action {
Ok(“Node is up”)
}
!
def createUser(userId: String) = Action {
userController ! UserController.CreateUser(userId)
Ok("new user is created")
}
!
def updateUser(userId: String) = Action {
userController ! UserController.UpdateUser(userId,
request.getQueryString(“msg"))
Ok("user is updated")
}
}

30. 30
object AppGlobal extends GlobalSettings {
private[this] var _system: Option[ActorSystem] = None
def system = _system.getOrElse(throw new RuntimeException(“…”))
!
override def onStart(app: Application) = {
_system = Some(ActorSystem(“ClusterSystem”))
_system.foreach(createShard(_))
}
!
override def onStop(app: Application) = {
system.foreach(_.shutdown())
}
!
private def createShard(system: ActorSystem) = {
ClusterSharding(system).start(
typeName = User.shardName,
entryProps = Some(User.props),
idExtractor = User.idExtractor,
shardResolver = User.shardResolver
)
}
}

31. 31
object User {
val shardName = "users"
def props: Props = Props(classOf[User])
!
trait UserMessage { def userId: String }
case class CreateUser(userId: String)
extends UserMessage
case class UpdateUser(userId: String, text: String)
extends UserMessage
val idExtractor: ShardRegion.IdExctrator = {
case um: UserMessage => (um.userId, um)
}
val shardResolver: ShardRegion.ShardResolver = {
case um: UserMessage =>
(Math.abs(um.userId.hashCode) % 20).toString
}
}

32. 32
class User extends Actor with ActorLogging {
var currentMessage: Option[String] = None
def receive = {
case CreateUser(userId) =>
currentMessage = Some(s"User created: ${userId}”)
case UpdateUser(userId, text) =>
log.info(s“User ${userId} now has msg ${text}”)
currentMessage = Some(text)
}
}

33. 33
akka {
actor.provider = "akka.cluster.ClusterActorRefProvider"
remote.nettytcp {
port = 0
hostname = "127.0.0.1"
}
!
remote.log-remote-lifecycle-events = on
!
cluster {
seed-nodes = [
"akka.tcp://ClusterSystem@127.0.0.1:2551",
"akka.tcp://ClusterSystem@127.0.0.1:2552"
]
}
!
auto-down-unreachable-after = 30s
}

34. 34
Play App
Akka!
Cluster!
Node
Akka!
Cluster!
Node
Akka!
Cluster!
Node
Akka!
Cluster!
Node

35. Responsive
!
Always Available -
Interactive -
(near) Real-Time

36. 36
package controllers
!
import play.api._
import play.api.mvc._
import play.api.libs.json._
import play.api.Play.current
import actors.WebSocketActor
!
object Application extends Controller {
def index = Action {
Ok(views.html.index("Your new application is ready."))
}
!
def socket = WebSocket.acceptWithActor[JsValue, JsValue] {
request => out =>
WebSocketActor.props(out)
}
}

37. 37
object WebSocketActor {
def props(out: ActorRef) = Props(new WebSocketActor(out))
case object Again
}
!
class WebSocketActor(out: ActorRef) extends Actor {
import WebSocketActor._
var user: Option[String] = None
def receive = {
case json: JsValue =>
val name = (json "name").as[String]
user = Some(name)
reply(name)
context.system.scheduler.scheduleOnce(3 seconds, self, Again)
case Again =>
user.foreach{reply(_)}
}
!
def reply(name: String) = {
out ! Json.obj("message" -> s"Hello there ${name}")
}
}

38. # routes file
GET / controllers.Application.index
GET /socket controllers.Application.socket
!
> var ws = new WebSocket("ws://localhost:9000/socket");
> ws.onmessage = function(msg) { console.log(">", msg); };
> ws.send(JSON.stringify({"name": “PlayNYC"}));
!
> MessageEvent {ports: Array[0], data: "{"message":"Hello
there PlayNYC"}", source: null, lastEventId: "", origin:
"ws://localhost:9000"…}
!
> MessageEvent {ports: Array[0], data: "{"message":"Hello
there PlayNYC"}", source: null, lastEventId: "", origin:
"ws://localhost:9000"…}
38

39. import play.api.libs.json._
import play.api.mvc.WebSocket.FrameFormatter
!
implicit val inEventFormat = Json.format[InEvent]
implicit val outEventFormat = Json.format[OutEvent]
!
//Play provides default FrameFormatter for String or JsValue
implicit val inEFF = FrameFormatter.jsonFrame[InEvent]
implicit val outEFF = FrameFormatter.jsonFrame[OutEvent]
!
def socket = WebSocket.acceptWithActor[InEvent, OutEvent] {
request => out =>
WebSocketActor.props(out)
}
39

40. 40
Request Response
Coord
Actor
Entry
Actor
TwActor FBActor WActor
Twitter Facebook weather.com

41. RESOURCES
!
Activator - get it now!
http://typesafe.com/platform/getstarted
!
Awesome Example Code by Nilanjan Raychaudhuri
https://github.com/nraychaudhuri/scaladays2014/tree/master/
play-akka-sharding
!
Play Websockets
https://www.playframework.com/documentation/2.3.x/
ScalaWebSockets
!
Akka Cluster Sharding
http://doc.akka.io/docs/akka/2.3.6/contrib/cluster-sharding.
41
html

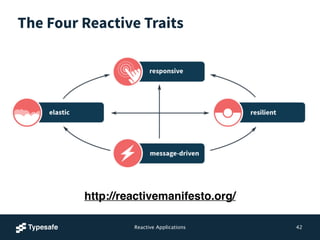

42. The Four Reactive Traits
Reactive Applications
42
http://reactivemanifesto.org/

43. ©Typesafe 2014 – All Rights Reserved
All images in this presentation are from www.morguefile.com
