The document discusses various patterns and anti-patterns related to Akka actors. It begins by describing some common anti-patterns like asking actors for information instead of telling them, which can lead to timeouts. It then discusses patterns like dependency injection using actor references, blocking actors safely, initializing actors through messages or parameterized receives, and safely closing over actor state using a local executor. The document concludes by covering flow control patterns like push-based messaging, throttling, and push with acknowledgements or pull-based approaches.

1. Akka
Patterns and anti-patterns
Roman Timushev
2014

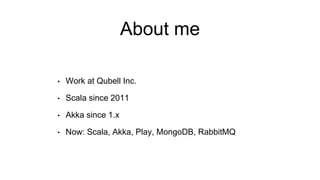

2. About me
• Work at Qubell Inc.
• Scala since 2011
• Akka since 1.x
• Now: Scala, Akka, Play, MongoDB, RabbitMQ

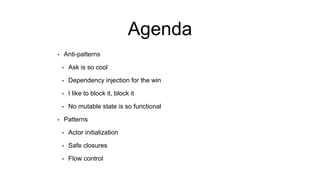

3. Agenda
• Anti-patterns
• Ask is so cool
• Dependency injection for the win
• I like to block it, block it
• No mutable state is so functional
• Patterns
• Actor initialization
• Safe closures
• Flow control

4. Ask is so cool

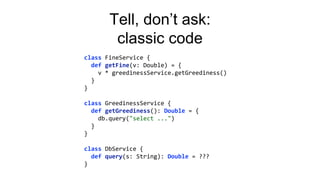

5. Tell, don’t ask:
classic code
class FineService {
def getFine(v: Double) = {
v * greedinessService.getGreediness()
}
}
class GreedinessService {
def getGreediness(): Double = {
db.query("select ...")
}
}
class DbService {
def query(s: String): Double = ???
}

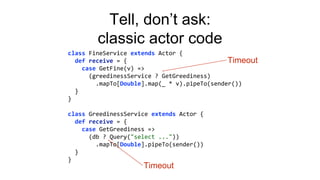

6. Tell, don’t ask:
classic actor code
class FineService extends Actor {
def receive = {
case GetFine(v) =>
(greedinessService ? GetGreediness)
.mapTo[Double].map(_ * v).pipeTo(sender())
}
}
class GreedinessService extends Actor {
def receive = {
case GetGreediness =>
(db ? Query("select ..."))
.mapTo[Double].pipeTo(sender())
}
}
Timeout
Timeout

7. Tell, don’t ask
• Works perfect until loaded
• Timeouts everywhere
• equal — you don’t get the exact cause
• different — unmanageable hell
• Use thoughtful!

8. Tell, don’t ask:
invert control flow
class FineService extends Actor {
var greediness: Double = 0
def receive = {
case GetFine(v) => sender() ! greediness
case SetGreediness(g) => greediness = g
}
}
class GreedinessService extends Actor {
def receive = {
case ReloadGreediness =>
(db ? Query("select ..."))
.mapTo[Double].map(SetGreediness).pipeTo(fineService)
}
}

9. Dependency injection
for the win

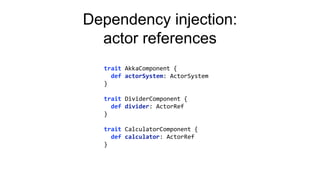

10. Dependency injection:
actor references
trait AkkaComponent {
def actorSystem: ActorSystem
}
trait DividerComponent {
def divider: ActorRef
}
trait CalculatorComponent {
def calculator: ActorRef
}

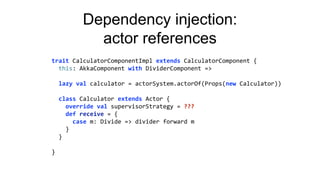

11. Dependency injection:
actor references
trait CalculatorComponentImpl extends CalculatorComponent {
this: AkkaComponent with DividerComponent =>
lazy val calculator = actorSystem.actorOf(Props(new Calculator))
class Calculator extends Actor {
override val supervisorStrategy = ???
def receive = {
case m: Divide => divider forward m
}
}
}

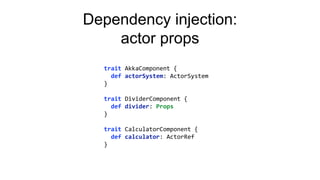

12. Dependency injection:
actor props
trait AkkaComponent {
def actorSystem: ActorSystem
}
trait DividerComponent {
def divider: Props
}
trait CalculatorComponent {
def calculator: ActorRef
}

13. I like to
block it, block it

14. Blocking
class Blocker extends Actor {
import context._
def receive = {
case GetThreadCount =>
sender() ! Await.result(sleep(), 10 seconds)
// or
sender() ! spinAwait(sleep(), 10 seconds)
}
def sleep() =
after(10 millis, system.scheduler)(Future.successful())
}

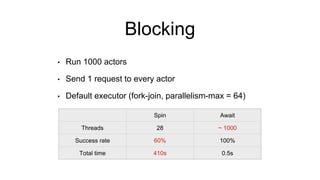

15. Blocking
• Run 1000 actors
• Send 1 request to every actor
• Default executor (fork-join, parallelism-max = 64)
Spin Await
Threads 28 ~ 1000
Success rate 60% 100%
Total time 410s 0.5s

16. No mutable state
is so functional

17. Stateless actor
class StatelessActor extends Actor {
def receive = {
case Divide(a, b) => sender() ! (a / b)
}
}
class Calculator extends Actor {
def receive = {
case Calculate =>
context.actorOf(Props[StatelessActor]) ! Divide(84, 2)
case result: Int =>
println(s"The answer is $result")
}
}

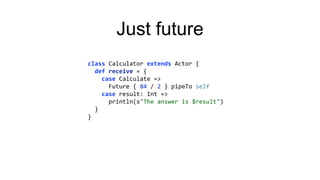

18. Just future
class Calculator extends Actor {
def receive = {
case Calculate =>
Future { 84 / 2 } pipeTo self
case result: Int =>
println(s"The answer is $result")
}
}

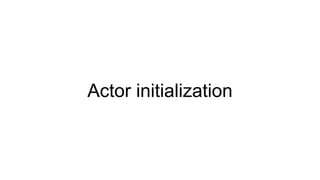

19. Actor initialization

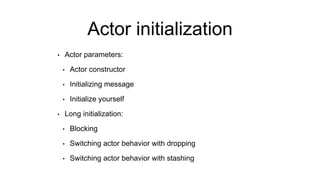

20. Actor initialization
• Actor parameters:
• Actor constructor
• Initializing message
• Initialize yourself
• Long initialization:
• Blocking
• Switching actor behavior with dropping
• Switching actor behavior with stashing

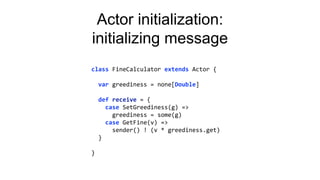

21. Actor initialization:
initializing message
class FineCalculator extends Actor {
var greediness = none[Double]
def receive = {
case SetGreediness(g) =>
greediness = some(g)
case GetFine(v) =>
sender() ! (v * greediness.get)
}
}

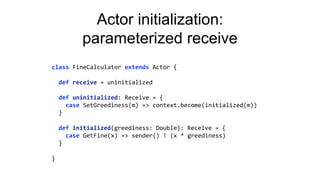

22. Actor initialization:
parameterized receive
class FineCalculator extends Actor {
def receive = uninitialized
def uninitialized: Receive = {
case SetGreediness(m) => context.become(initialized(m))
}
def initialized(greediness: Double): Receive = {
case GetFine(x) => sender() ! (x * greediness)
}
}

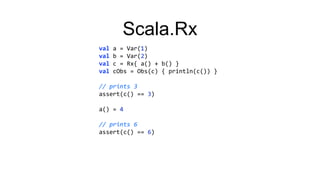

23. Scala.Rx
val a = Var(1)
val b = Var(2)
val c = Rx{ a() + b() }
val cObs = Obs(c) { println(c()) }
// prints 3
assert(c() == 3)
a() = 4
// prints 6
assert(c() == 6)

24. Actor initialization:
reactive receive
class FineCalculator extends Actor {
val greediness = Var(none[Double])
val actorReceive =
Rx { greediness().fold(uninitialized)(initialized) }
val actorReceiveObs =
Obs(actorReceive) { context.become(actorReceive()) }
def receive = uninitialized
def uninitialized: Receive = {
case SetGreediness(g) => greediness() = some(g)
}
def initialized(g: Double): Receive = uninitialized orElse {
case GetFine(v) => sender() ! (v * g)
}
}

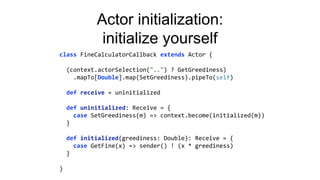

25. Actor initialization:
initialize yourself
class FineCalculatorCallback extends Actor {
(context.actorSelection("..") ? GetGreediness)
.mapTo[Double].map(SetGreediness).pipeTo(self)
def receive = uninitialized
def uninitialized: Receive = {
case SetGreediness(m) => context.become(initialized(m))
}
def initialized(greediness: Double): Receive = {
case GetFine(x) => sender() ! (x * greediness)
}
}

26. Safe closures

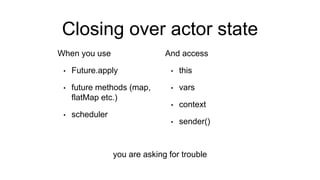

27. Closing over actor state
When you use
• Future.apply
• future methods (map,
flatMap etc.)
• scheduler
And access
• this
• vars
• context
• sender()
you are asking for trouble

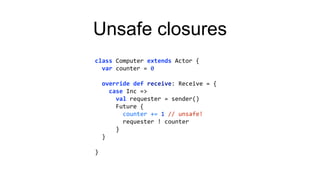

28. Unsafe closures
class Computer extends Actor {
var counter = 0
override def receive: Receive = {
case Inc =>
val requester = sender()
Future {
counter += 1 // unsafe!
requester ! counter
}
}
}

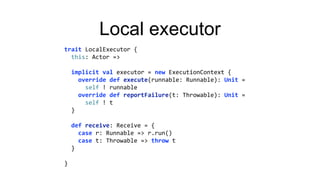

29. Local executor
trait LocalExecutor {
this: Actor =>
implicit val executor = new ExecutionContext {
override def execute(runnable: Runnable): Unit =
self ! runnable
override def reportFailure(t: Throwable): Unit =
self ! t
}
def receive: Receive = {
case r: Runnable => r.run()
case t: Throwable => throw t
}
}

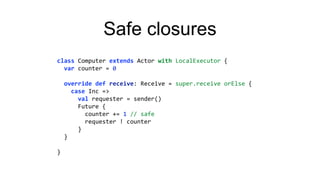

30. Safe closures
class Computer extends Actor with LocalExecutor {
var counter = 0
override def receive: Receive = super.receive orElse {
case Inc =>
val requester = sender()
Future {
counter += 1 // safe
requester ! counter
}
}
}

31. Flow control

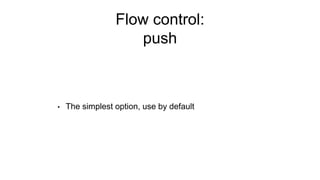

32. Flow control:
push
• The simplest option, use by default

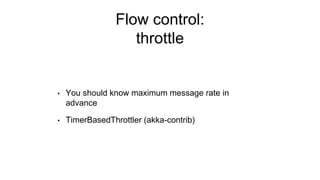

33. Flow control:
throttle
• You should know maximum message rate in
advance
• TimerBasedThrottler (akka-contrib)

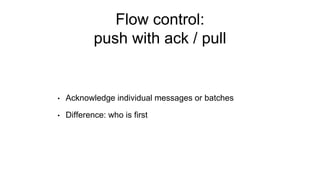

34. Flow control:
push with ack / pull
• Acknowledge individual messages or batches
• Difference: who is first

35. Questions?

36. References
