Running Spark and MapReduce together in Production
•
6 likes•1,714 views
This document discusses running Spark and MapReduce together in production environments and some of the challenges that arise. It addresses issues like resource conflicts that can occur when running interactive frameworks like Spark alongside batch frameworks like MapReduce. Specific solutions discussed include increasing container sizes, reserving nodes for interactive workloads, and using features like node labels and gang scheduling to avoid fragmentation. Ongoing challenges of security, web serving, resource attribution, and balancing stability vs agility are also covered. The document advocates for using Hadoop as a service rather than managing it yourself to avoid spending time on cluster maintenance.
Recommended
More Related Content
What's hot
What's hot (20)
Viewers also liked
Viewers also liked (20)
Similar to Running Spark and MapReduce together in Production
Similar to Running Spark and MapReduce together in Production (20)
More from DataWorks Summit
More from DataWorks Summit (20)
Recently uploaded
Recently uploaded (20)
Running Spark and MapReduce together in Production

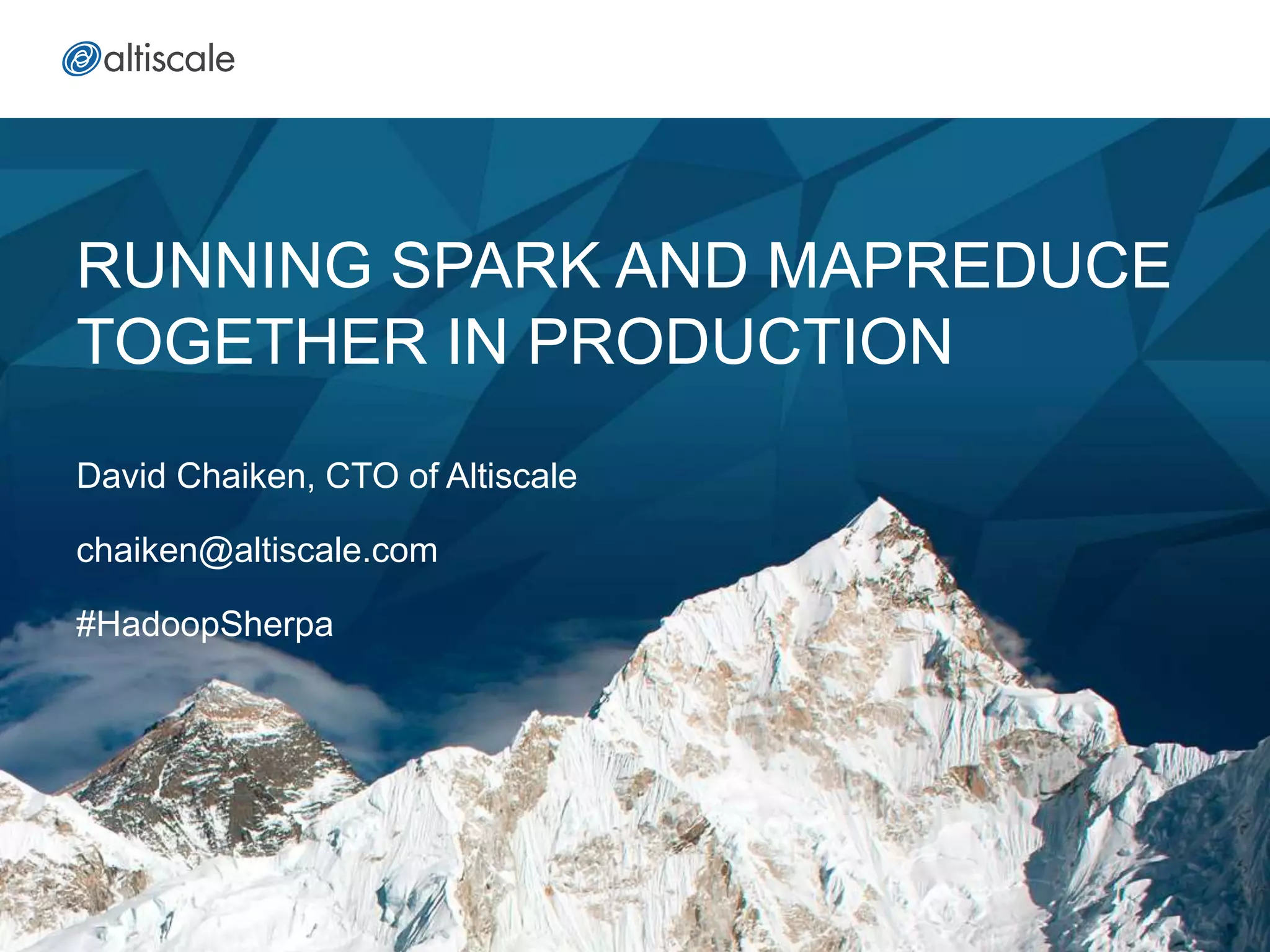

- 1. RUNNING SPARK AND MAPREDUCE TOGETHER IN PRODUCTION David Chaiken, CTO of Altiscale chaiken@altiscale.com #HadoopSherpa

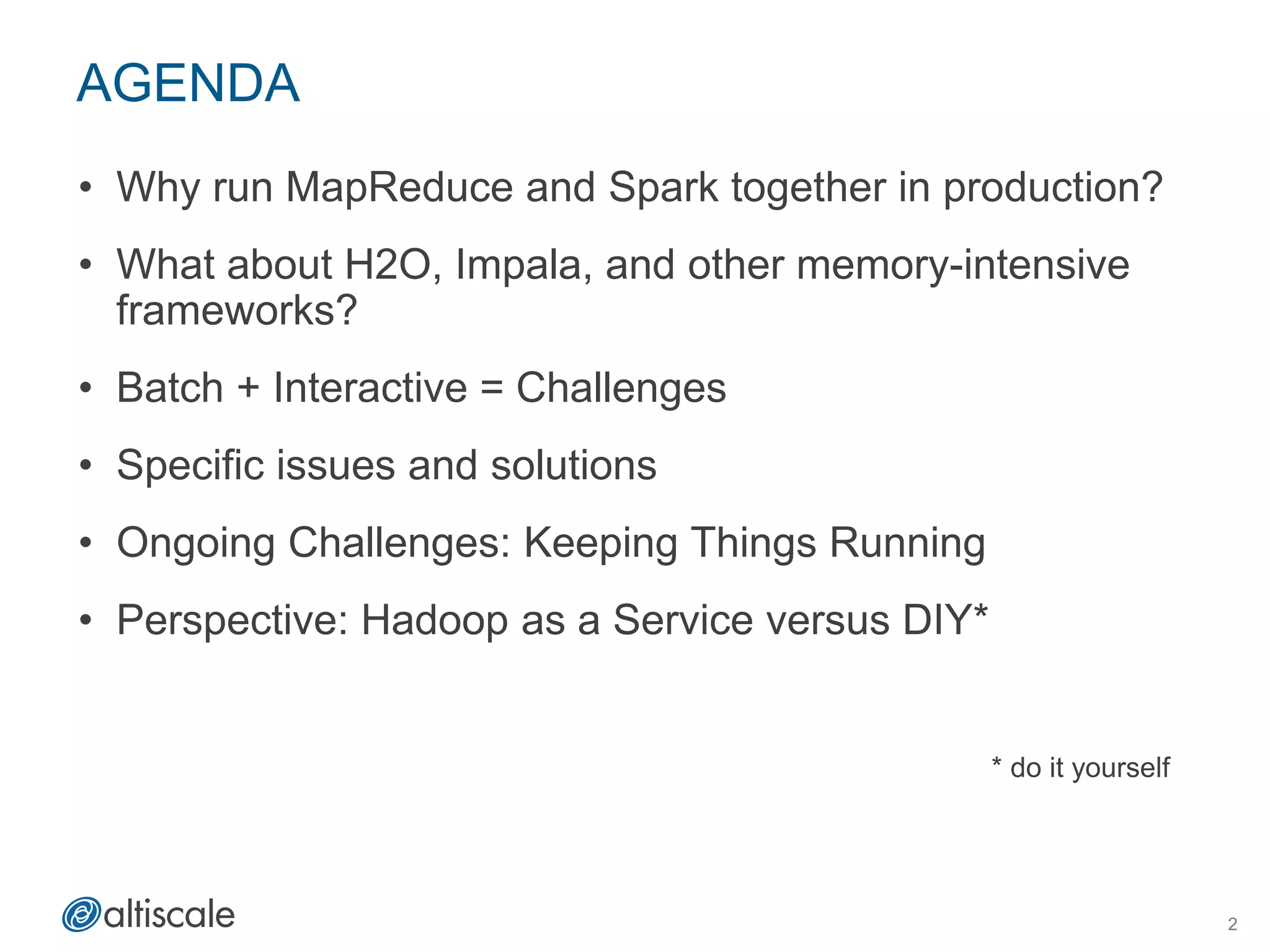

- 2. 2 AGENDA • Why run MapReduce and Spark together in production? • What about H2O, Impala, and other memory-intensive frameworks? • Batch + Interactive = Challenges • Specific issues and solutions • Ongoing Challenges: Keeping Things Running • Perspective: Hadoop as a Service versus DIY* * do it yourself
- 3. ALTISCALE PERSPECTIVE: INFRASTRUCTURE NERDS • Experienced Technical Yahoos • Raymie Stata, CEO. Former Yahoo! CTO, advocate of Apache Software Foundation • David Chaiken, CTO. Former Yahoo! Chief Architect • Charles Wimmer, Head of Operations. Former Yahoo! SRE • Hadoop as a Service, built and managed by Big Data, SaaS, and enterprise software veterans • Yahoo!, Google, LinkedIn, VMWare, Oracle, ... 3
- 4. 4 SOLVED: COST-EFFECTIVE DATA SCIENCE AT SCALE But how do you make it easier for data scientists? Two bad options: 1. Use Hadoop directly using unfamiliar and unproductive command- line tools and APIs 2. Use Hadoop indirectly via a back-and-forth with data engineers who translate needs into Hadoop programs
- 5. Data Scientist’s Workflow ModelingExploration Production Cleansing Flattening Serving Hive Source Data CSV 5 COMMON HADOOP WORKFLOW Model Flatten Explore Exploration
- 6. 6 ENTER SPARK. . . AND IMPALA AND H2O • Interactive, iterative analysis • Quick turns • Memory heavy
- 7. 7 DOES THIS MEAN THAT MAPREDUCE DOESN’T MATTER ANYMORE? HA! (Don’t believe the hype.)
- 8. Exploration Hive Source Data CSV IT MATTERS SO MUCH THAT YOU WANT BOTH ON ONE CLUSTER. Flattening Exploration Modeling Serving Production Cleansing BIG DATA MODELING WORKFLOW 8
- 9. THE CHALLENGE. . . 9 “Why is my Spark job not starting?” “Why is my Spark job consuming so many resources?” Resource conflicts! 9
- 11. INTERACTIVE: INCREASE CONTAINER SIZE Challenge: Memory intensive systems take as much local DRAM as available. Solutions: • Spark and H20: Increase YARN container memory size • Impala: Box using operating system containers 11
- 12. • Caution: Larger YARN container settings for interactive jobs may not be right for batch systems like Hive • Container size: needs to combine vcores and memory: yarn.scheduler.maximum-allocation-vcores yarn.nodemanager.resource.cpu-vcores ... HIVE+INTERACTIVE: WATCH OUT FOR LARGE CONTAINER SIZE 12
- 13. HIVE + INTERACTIVE: WATCH OUT FOR FRAGMENTATION • Caution: Attempting to schedule interactive systems and batch systems like Hive may result in fragmentation • Interactive systems may require all-or-nothing scheduling • Batch jobs with little tasks may starve interactive jobs 13
- 14. HIVE + INTERACTIVE: WATCH OUT FOR FRAGMENTATION Solutions: • Reserve interactive nodes before starting batch jobs • Reduce interactive container size (if the algorithm permits) • Node labels (YARN-2492) and gang scheduling (YARN-624) 14
- 15. ONGOING CHALLENGES Keeping things running. . . 15
- 16. 16 CHALLENGE: SECURITY • Challenge: User Management not uniform • MapReduce: collaboration requires getting groups right • Hive: proxyuser settings have to be right for hiveserver2 • Spark application owner versus connected users • Impala: “I just gotta be me!” • As usual, watch out for cluster administrator accounts! • Challenge: Port and Protocol Management • Best security practice: open specific ports for specific protocols • Spark: “I just gotta be free!” • Spark improved between version 1.0.2 -> 1.1.0, but still confusing
- 17. 17 CHALLENGE: WEB SERVING • How to provide interactive services to business user? • Concerns: security, variable resources, latency, availability • Keep serving infrastructure separate from Hadoop
- 18. 18 CHALLENGE: RESOURCE ATTRIBUTION (BILLING) • Accounting for long-running Spark, H2O, Impala clusters? • Is reserving resources the same as using the resources? • Trade-off: availability/response time vs. oversubscription.
- 19. 19 CHALLENGE: STABILITY VERSUS AGILITY • Never-ending story: latest hotness versus SLAs* • New system stability curve. Example… • SPARK-1476: 2GB limit in Spark for blocks • Interoperation issues. Example… • IMPALA-1416: Queries fail with metastore exception after upgrade and compute stat • HIVE-8627: Compute stats on a table from Impala caused the table to be corrupted • Many issues come down to YARN container size and JVM heap size configuration * service level agreements
- 20. 20 PERSPECTIVE: HADOOP AS A SERVICE VERSUS DIY (DO IT YOURSELF) • Data Scientists and Data Engineers: use the right tools for the right job • Data Scientists and Data Engineers: don’t spend your time on cluster maintenance • Hadoop As A Service: have your cake and eat it, too • Benefit from the experiences of other customers • One size does not fit all, but one configuration schema does • Leave the maintenance to us infrastructure nerds
Editor's Notes
- http://2015.hadoopsummit.org/san-jose/agenda/ Abstract: Clusters must be tuned properly to run memory-intensive systems like Spark, H2O, and Impala alongside traditional MapReduce jobs. This talk describes Altiscale's experience running the new memory-intensive systems in production for our customers. We focus on the cluster tuning that we needed to do to create environments that run a mix of processing frameworks reliably and efficiently. Our results show that there's no need to rip and replace MapReduce clusters in favor of Spark, or any other memory-intensive system.
- back-and-forth between data engineers: latency, misunderstanding good news: newer tools (developed over the last 5 years) eliminate the need for data scientists to use the raw interfaces
- think about nested loops of activity. inner loop: modeling pop out to outer loop (flattening): e.g. to use different classifier to get better signal outer loop: exploration, looks at source form data directly. note that data is often stored twice: source form data (can always go back to it if you need it) and structured/cleaned data typically in hive: more convenient to use this data set in general. from time to time, need to go back to the source form data to look for signal that may not be in the structured source. kind of like flattening, but data is dirtier, harder to understand. common but not universal workflow. mostly an example for the tips in the rest of the presentation
- back-and-forth between data engineers: latency, misunderstanding good news: newer tools (developed over the last 5 years) eliminate the need for data scientists to use the raw interfaces
- meme: Google stopped using Map/Reduce years ago reality: there are still lots of M/R jobs running in Google’s infrastructure
- best of breed suite also applies to modeling, directly on big data, directly on Hadoop over the last few years, huge evolution of tools: ability to do scale-out modeling directly on top of Hadoop. in the past, used to be a relatively rare thing, e.g. Mahout was fairly difficult, only worthwhile using when there’s a lot of benefit. more recently: move modeling off of workstations and directly onto Hadoop cluster tools on top: Hadoop-native, built for scale-out, big data manner, where Hadoop is strong lower: legacy tools that are embracing scale-out computation directly on Hadoop, directly on big data
- You want them on one cluster because big data is big. When you have the data in multiple environments, like EMR, you pay a penalty. Your jobs run two times slower because you have to keep moving the data around. Data scientists need a mixed environment. It’s not effective for them to have Spark off on its own cluster. It’s just not how they work. However, the community has not come to grips with mixed workloads yet. It’s a bit unstable and you can see this when you start asking yourself questions like “Why is my Spark job not starting?” or “Why is my Spark job consuming so many resources?” Analogy: OLTP + OLAP = Challenges Map/Reduce (especially hidden under SQL) is still awesome for data cleaning and other tasks that are a high bandwidth game. Spark, H2O, Impala are great for interactive, iterative, “inner-loop” data analysis that is a low latency game. Map/Reduce tends to generate lots of little tasks; the newer frameworks self-schedule and need lots of DRAM (soon: lots of DRAM and/or Flash) Running both types together causes resource conflicts!
- Challenge: Memory intensive systems take as much local DRAM as available. Solutions: Increase YARN container memory size for DRAM-intensive systems like Spark and H2O. Use operating system containers to box Impala on datanodes. Note: alignment of diagrams on the next few slides is critical The diagram could benefit from a legend! - circles instead of squares to avoid the Hermann grid illusion Stinger = hive 0.13 + Tez is intended to be more balanced
- At Altiscale, we think that AWS is awesome for web serving – even though we know that AWS is not great for Hadoop.
- Operating system containers (namespaces + cgroups) can help with container/heap size issues. Wouldn’t it be great if JVM could ask for more resources instead of putting itself into a GC loop? Interoperation issues aren’t just technical (or even mostly technical). IMPALA and HIVE have to interoperate, but are championed by competitors (Cloudera and Hortonworks) SPARK-1476 details are in https://altiscale.zendesk.com/agent/tickets/1589 IMPALA-1416/HIVE-8627 are in https://altiscale.zendesk.com/agent/tickets/1510
- Data scientists should never be spending time getting all of these frameworks to work well together. That’s the job that infrastructure nerds should be doing. Hadoop As A Service: modeled after the internal services of Internet companies
