1. Scaling MySQL – Sharding Made Easy

2. 2
Agenda
• Scalability Issues
• MySQL 5.6
• Why Do-It-Yourself (DIY) Sharding Sucks
• ScaleBase Data Distribution:
– Successful sharding on Amazon and private clouds
– Single vs. multiple shards per server
– Eliminating data silos
– Creating a redundant, fault-tolerant architecture
– Re-balancing and splitting shards
• Q & A

3. 3
Doron Levari, Founder & CTO
Doron Levari,
Founder & CTO
A technologist and long-
time veteran of the
database industry. Prior
to founding
ScaleBase, Doron was
CEO to Aluna.

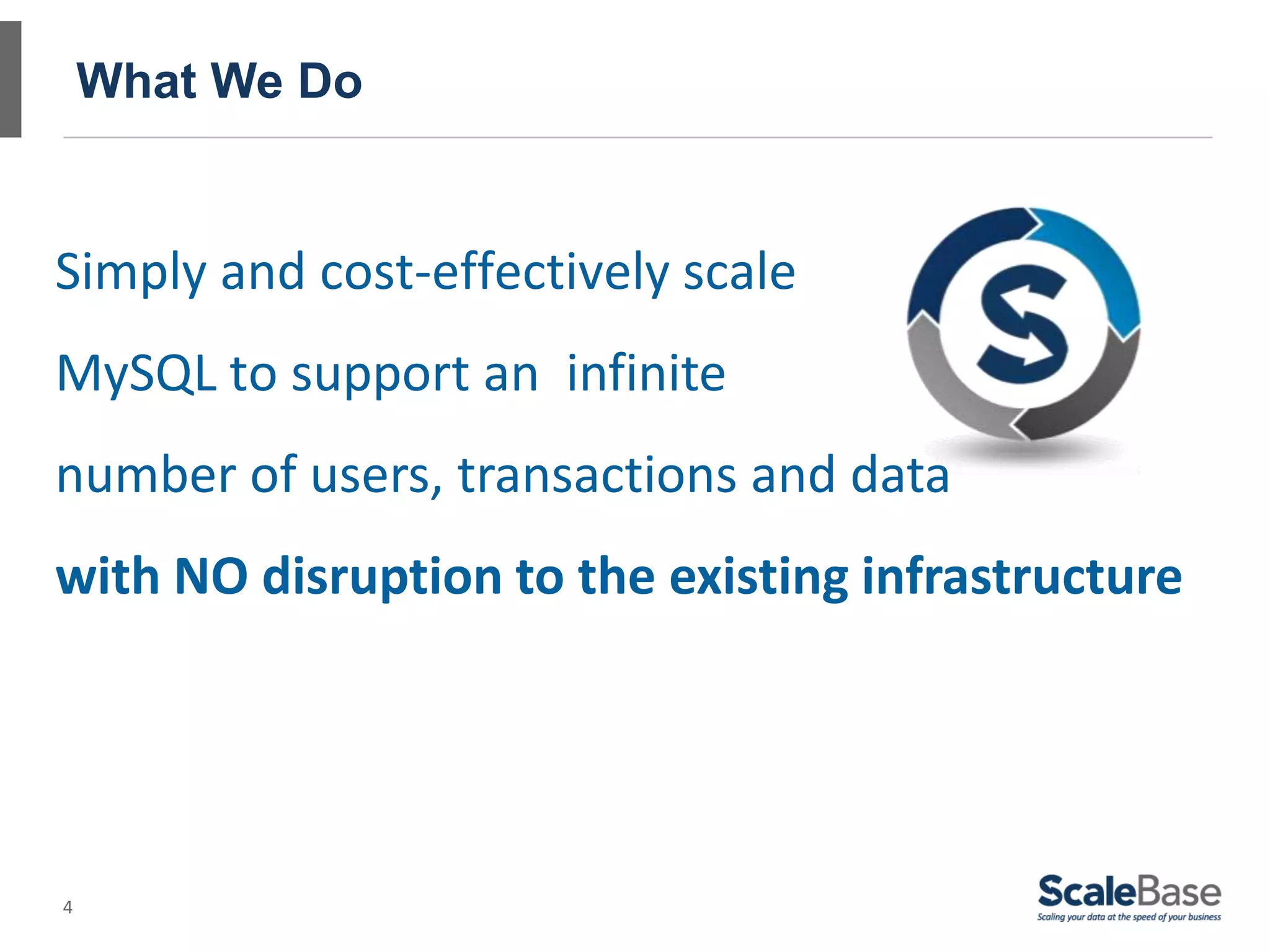

4. 4
What We Do
Simply and cost-effectively scale
MySQL to support an infinite
number of users, transactions and data
with NO disruption to the existing infrastructure

5. Scalability Issues and MySQL 5.6

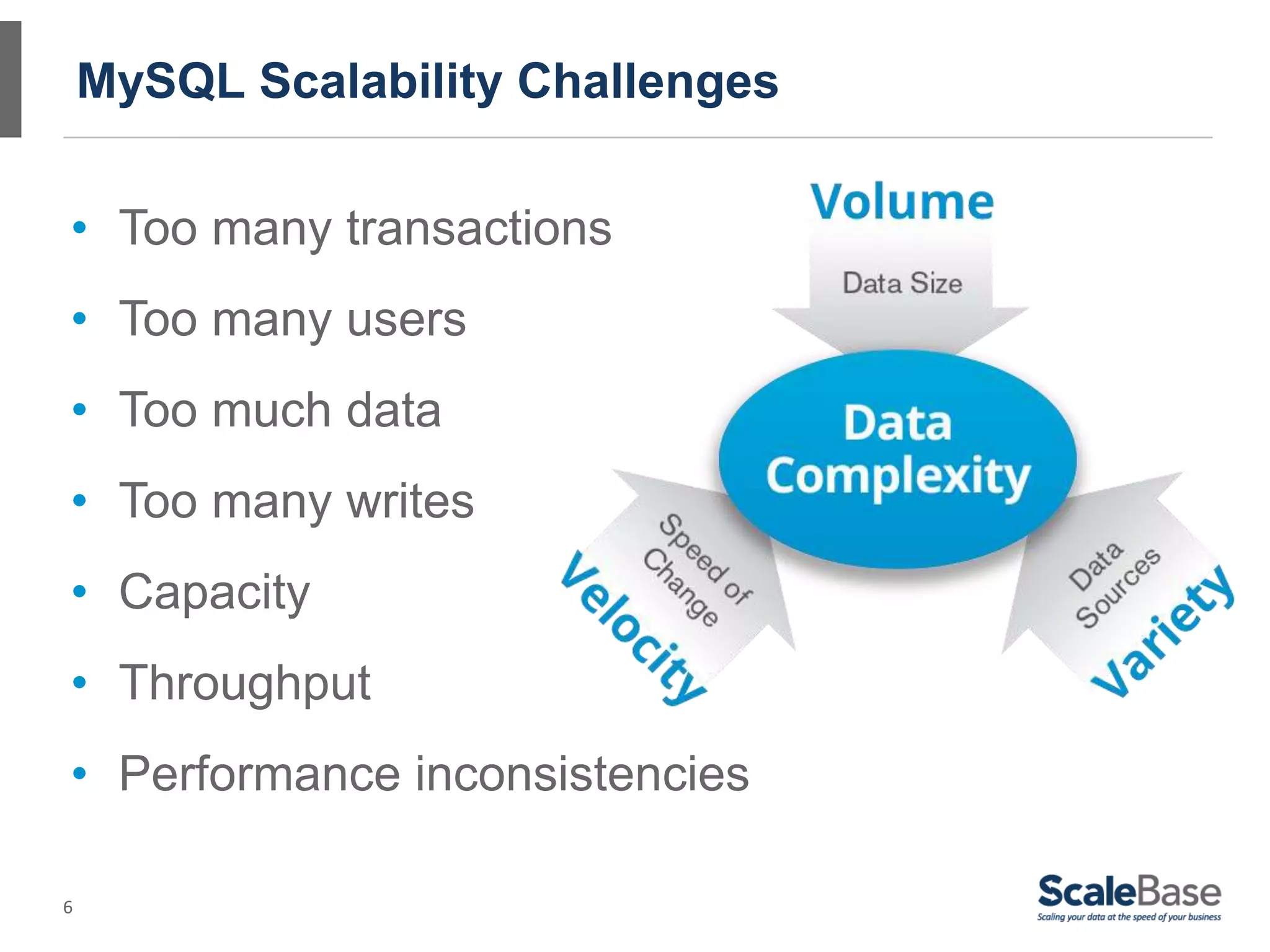

6. 6
MySQL Scalability Challenges
• Too many transactions
• Too many users
• Too much data
• Too many writes
• Capacity
• Throughput
• Performance inconsistencies

7. 7

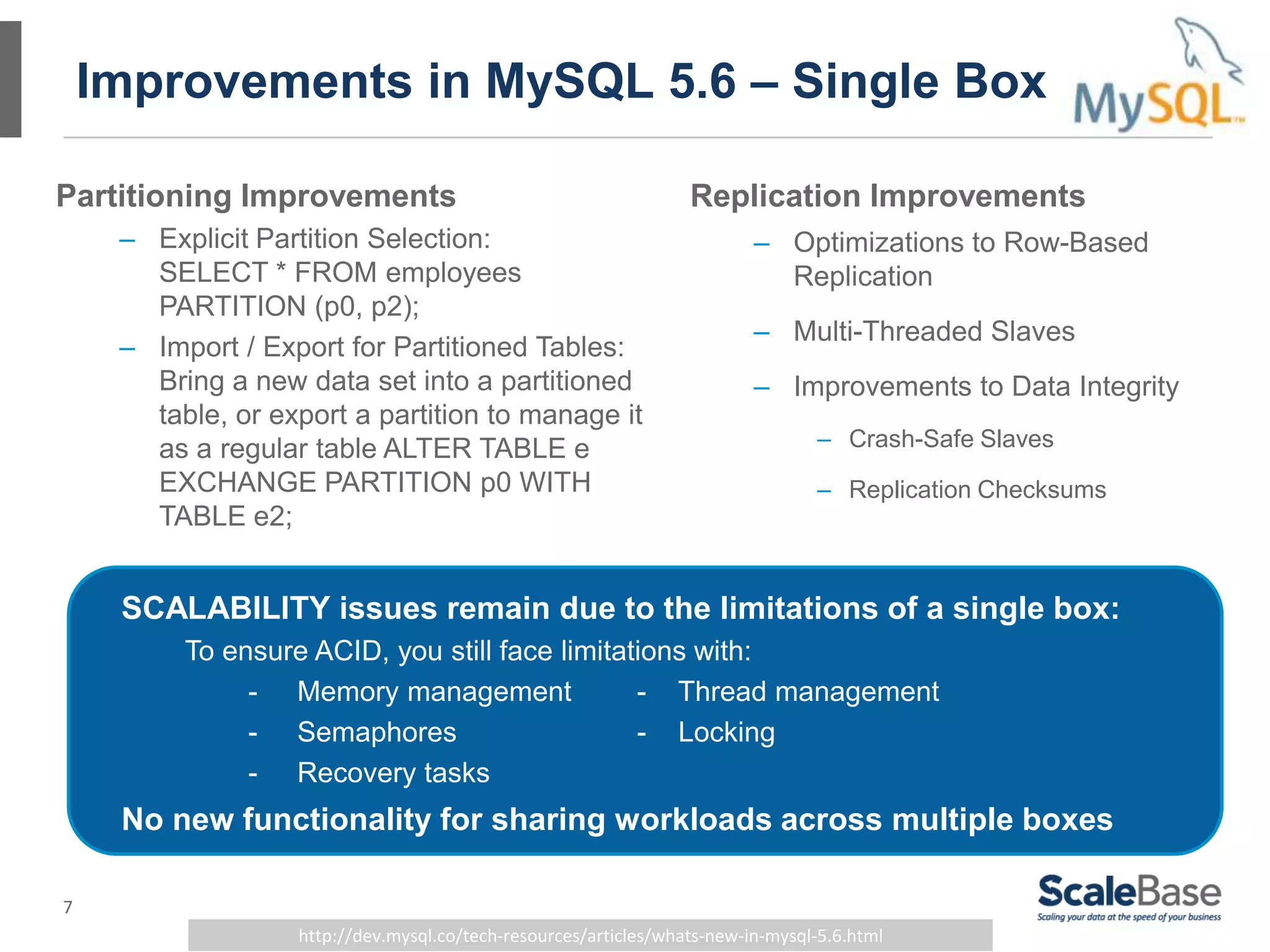

Improvements in MySQL 5.6 – Single Box
Partitioning Improvements
– Explicit Partition Selection:
SELECT * FROM employees
PARTITION (p0, p2);
– Import / Export for Partitioned Tables:
Bring a new data set into a partitioned
table, or export a partition to manage it
as a regular table ALTER TABLE e
EXCHANGE PARTITION p0 WITH
TABLE e2;
http://dev.mysql.co/tech-resources/articles/whats-new-in-mysql-5.6.html
Replication Improvements
– Optimizations to Row-Based
Replication
– Multi-Threaded Slaves
– Improvements to Data Integrity
– Crash-Safe Slaves
– Replication Checksums
SCALABILITY issues remain due to the limitations of a single box:
To ensure ACID, you still face limitations with:
- Memory management - Thread management
- Semaphores - Locking
- Recovery tasks
No new functionality for sharing workloads across multiple boxes

8. 8

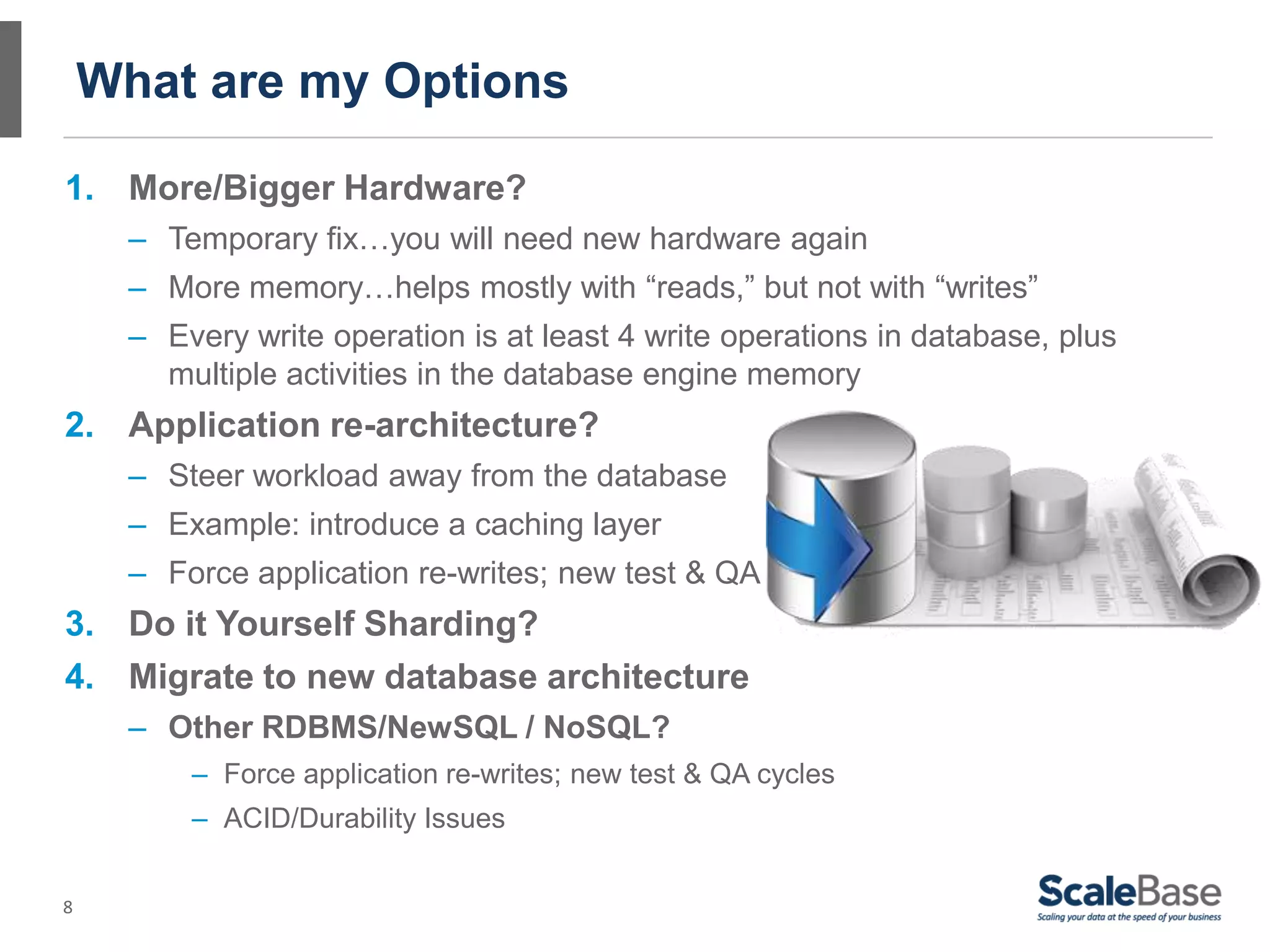

What are my Options
1. More/Bigger Hardware?
– Temporary fix…you will need new hardware again
– More memory…helps mostly with “reads,” but not with “writes”
– Every write operation is at least 4 write operations in database, plus
multiple activities in the database engine memory
2. Application re-architecture?
– Steer workload away from the database
– Example: introduce a caching layer
– Force application re-writes; new test & QA cycles
3. Do it Yourself Sharding?
4. Migrate to new database architecture
– Other RDBMS/NewSQL / NoSQL?
– Force application re-writes; new test & QA cycles
– ACID/Durability Issues

9. 9
Scale Out your Existing MySQL
• Keep your MySQL - keep your InnoDB
• Ecosystem compatibility, preserve skills
• 100% application compatibility
• Smoother migration, no down-time, no forklift
• Your data is safe
• No “in-memory” magic
• No “in-memory” size limit
Don’t throw out the baby with the bath water!

10. Why Do It Yourself Sharding “Sucks”

11. 11
What is Sharding?
Wikipedia - Shard (database architecture) http://en.wikipedia.org/wiki/Shard_(database_architecture)
A database shard is a horizontal partition in a
database or search engine. Each individual partition
is referred to as a shard.
Horizontal partitioning is a database design
principle whereby rows of a database table are held
separately, rather than being split into columns.
Each partition forms part of a shard, which may in
turn be located on a separate database server or
physical location.

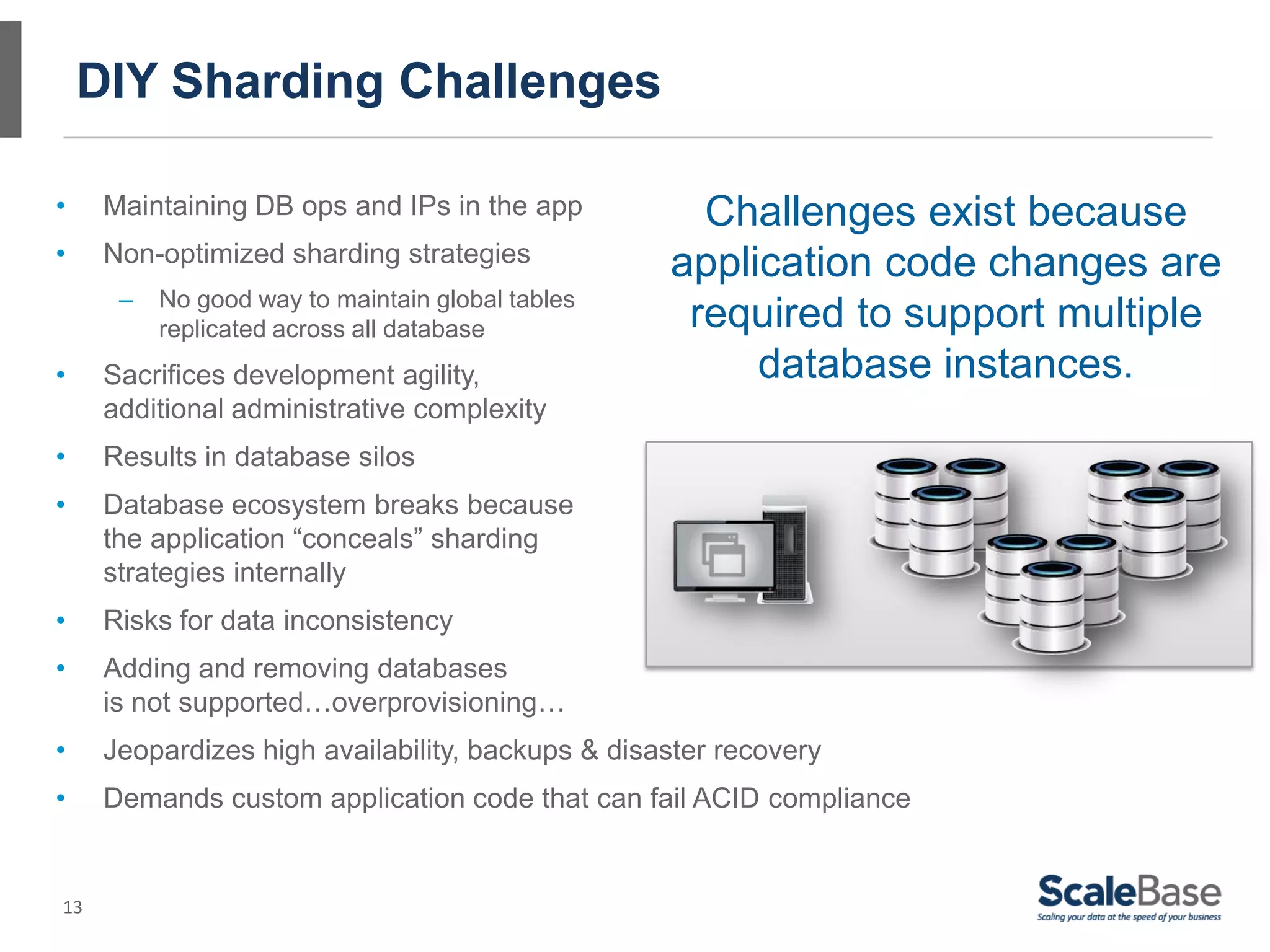

12. 12
DIY Sharding Challenges
Applications must be modified to support multiple shards

13. 13
• Maintaining DB ops and IPs in the app
• Non-optimized sharding strategies
– No good way to maintain global tables
replicated across all database
• Sacrifices development agility,
additional administrative complexity
• Results in database silos
• Database ecosystem breaks because
the application “conceals” sharding
strategies internally
• Risks for data inconsistency
• Adding and removing databases
is not supported…overprovisioning…
• Jeopardizes high availability, backups & disaster recovery
• Demands custom application code that can fail ACID compliance
DIY Sharding Challenges
Challenges exist because
application code changes are
required to support multiple
database instances.

14. ScaleBase Data Distribution Overview

15. 15

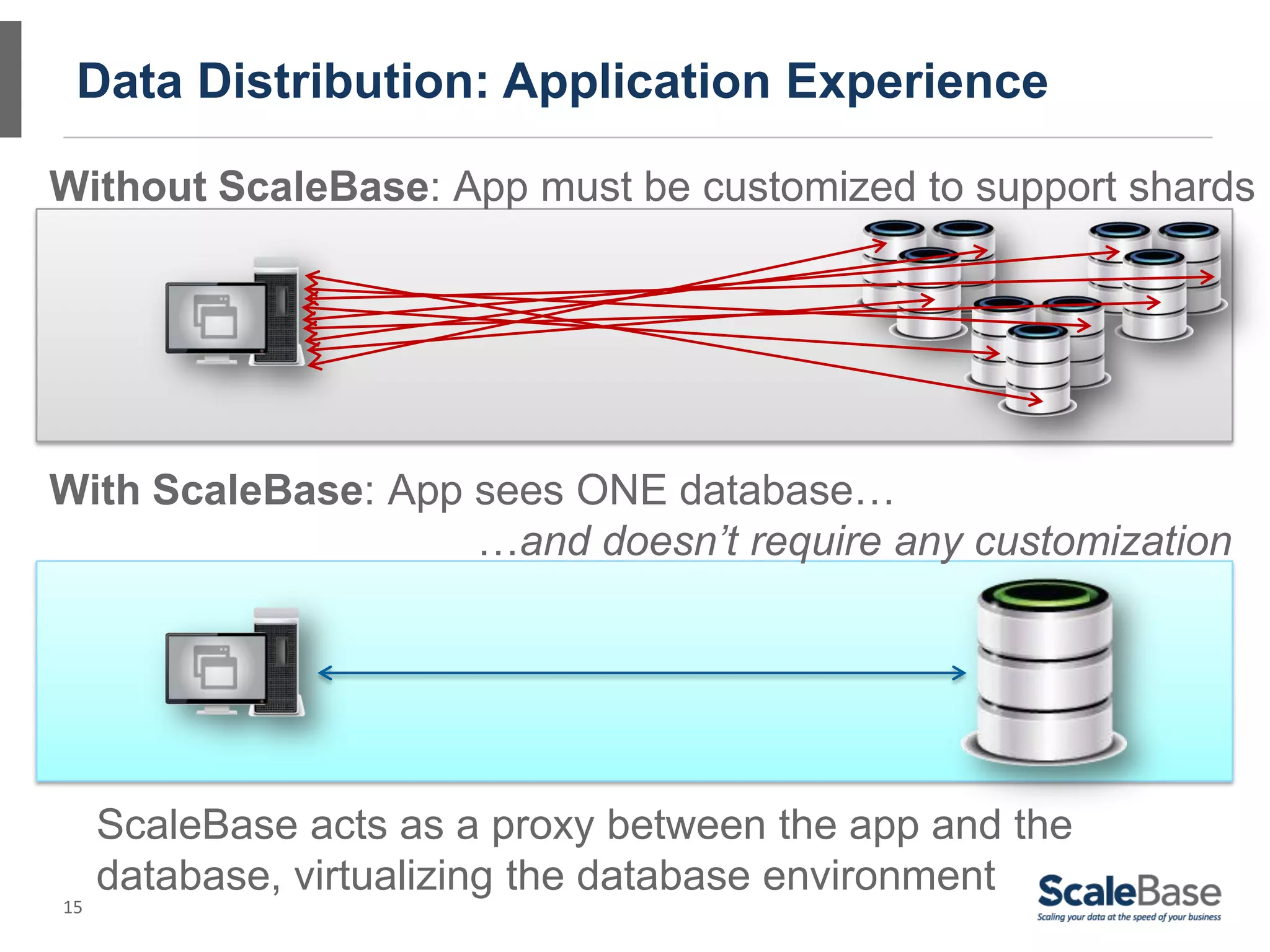

Data Distribution: Application Experience
Without ScaleBase: App must be customized to support shards
With ScaleBase: App sees ONE database…
…and doesn’t require any customization
ScaleBase acts as a proxy between the app and the
database, virtualizing the database environment

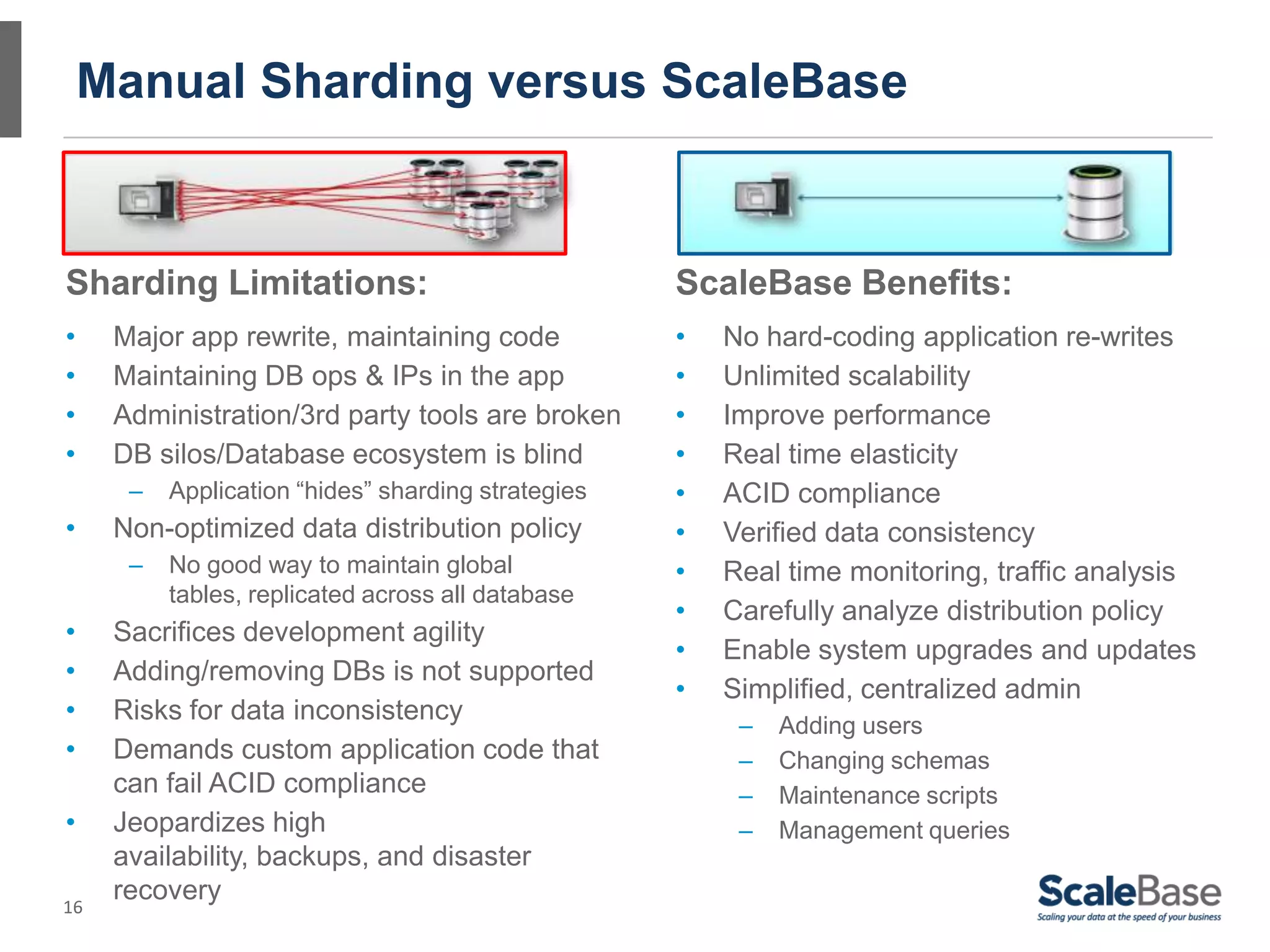

16. 16
Manual Sharding versus ScaleBase
Sharding Limitations:
• Major app rewrite, maintaining code
• Maintaining DB ops & IPs in the app
• Administration/3rd party tools are broken
• DB silos/Database ecosystem is blind
– Application “hides” sharding strategies
• Non-optimized data distribution policy
– No good way to maintain global
tables, replicated across all database
• Sacrifices development agility
• Adding/removing DBs is not supported
• Risks for data inconsistency
• Demands custom application code that
can fail ACID compliance
• Jeopardizes high
availability, backups, and disaster
recovery
ScaleBase Benefits:
• No hard-coding application re-writes
• Unlimited scalability
• Improve performance
• Real time elasticity
• ACID compliance
• Verified data consistency
• Real time monitoring, traffic analysis
• Carefully analyze distribution policy
• Enable system upgrades and updates
• Simplified, centralized admin
– Adding users
– Changing schemas
– Maintenance scripts
– Management queries

17. 17

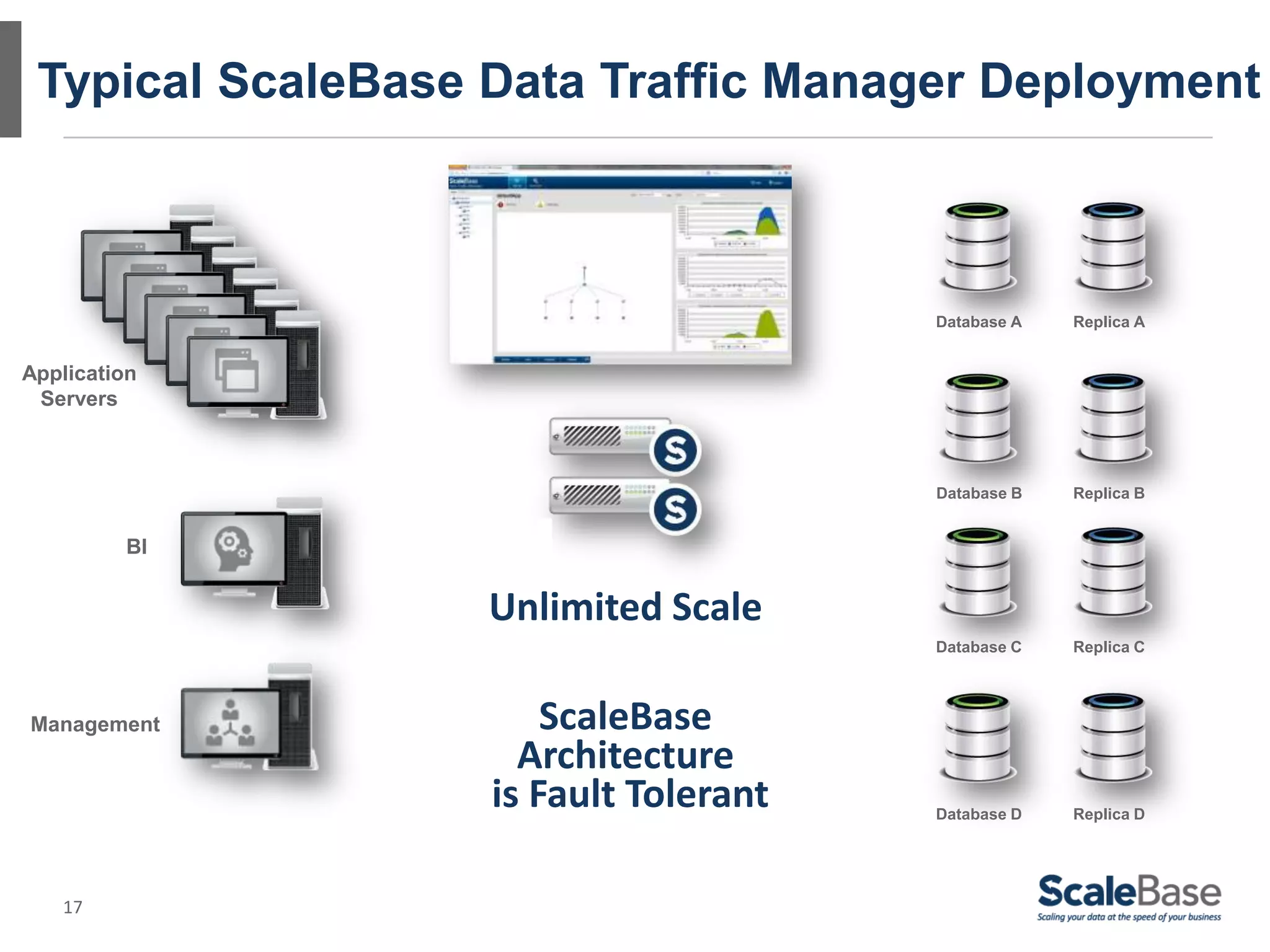

Typical ScaleBase Data Traffic Manager Deployment
Application
Servers
BI
Management
Database A Replica A
Database B Replica B
Database C Replica C
Database D Replica D
Unlimited Scale
ScaleBase
Architecture
is Fault Tolerant

18. ScaleBase Data Distribution – In Detail

19. 19

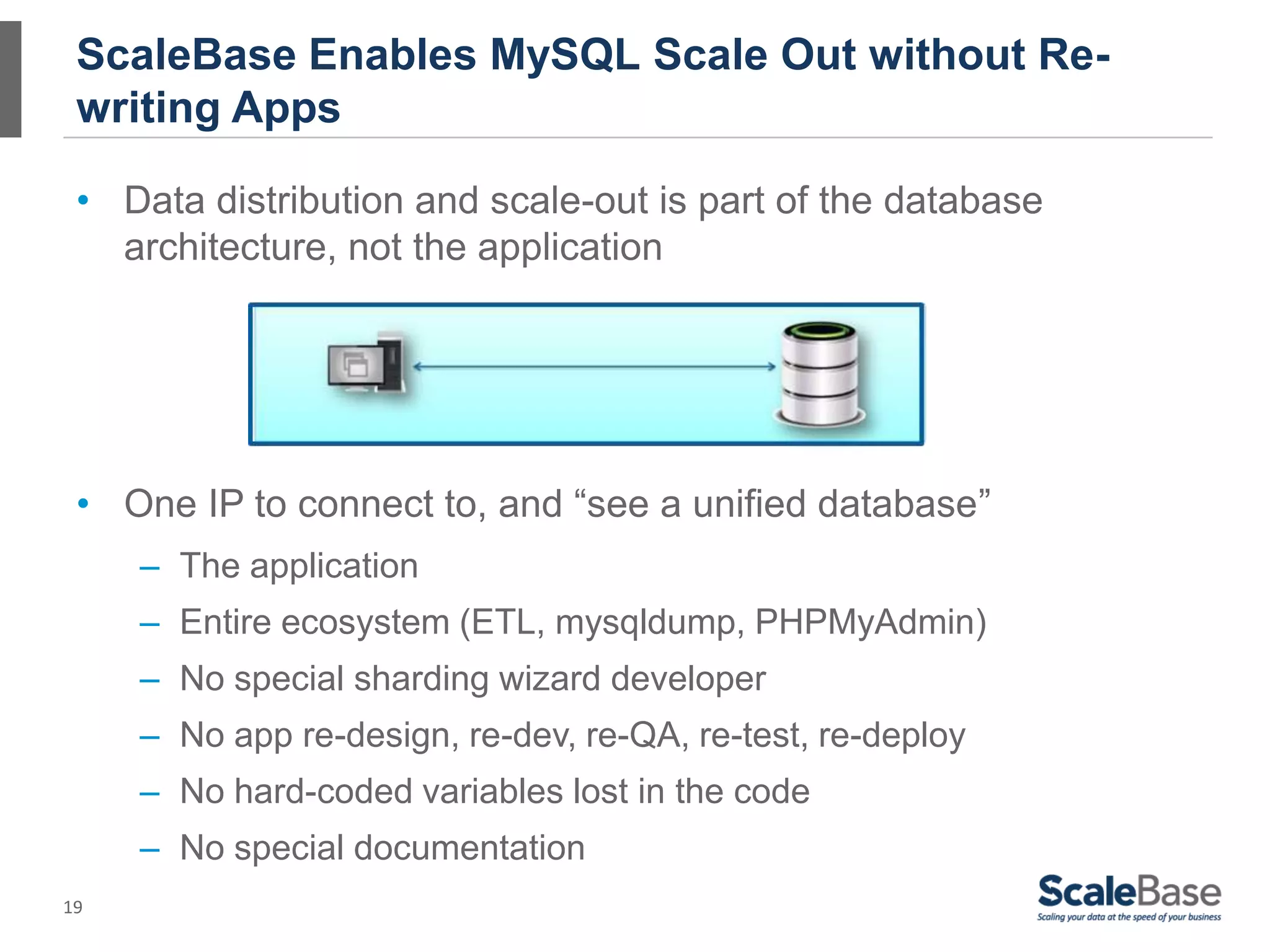

ScaleBase Enables MySQL Scale Out without Re-
writing Apps
• Data distribution and scale-out is part of the database
architecture, not the application
• One IP to connect to, and “see a unified database”
– The application
– Entire ecosystem (ETL, mysqldump, PHPMyAdmin)
– No special sharding wizard developer
– No app re-design, re-dev, re-QA, re-test, re-deploy
– No hard-coded variables lost in the code
– No special documentation

20. 20

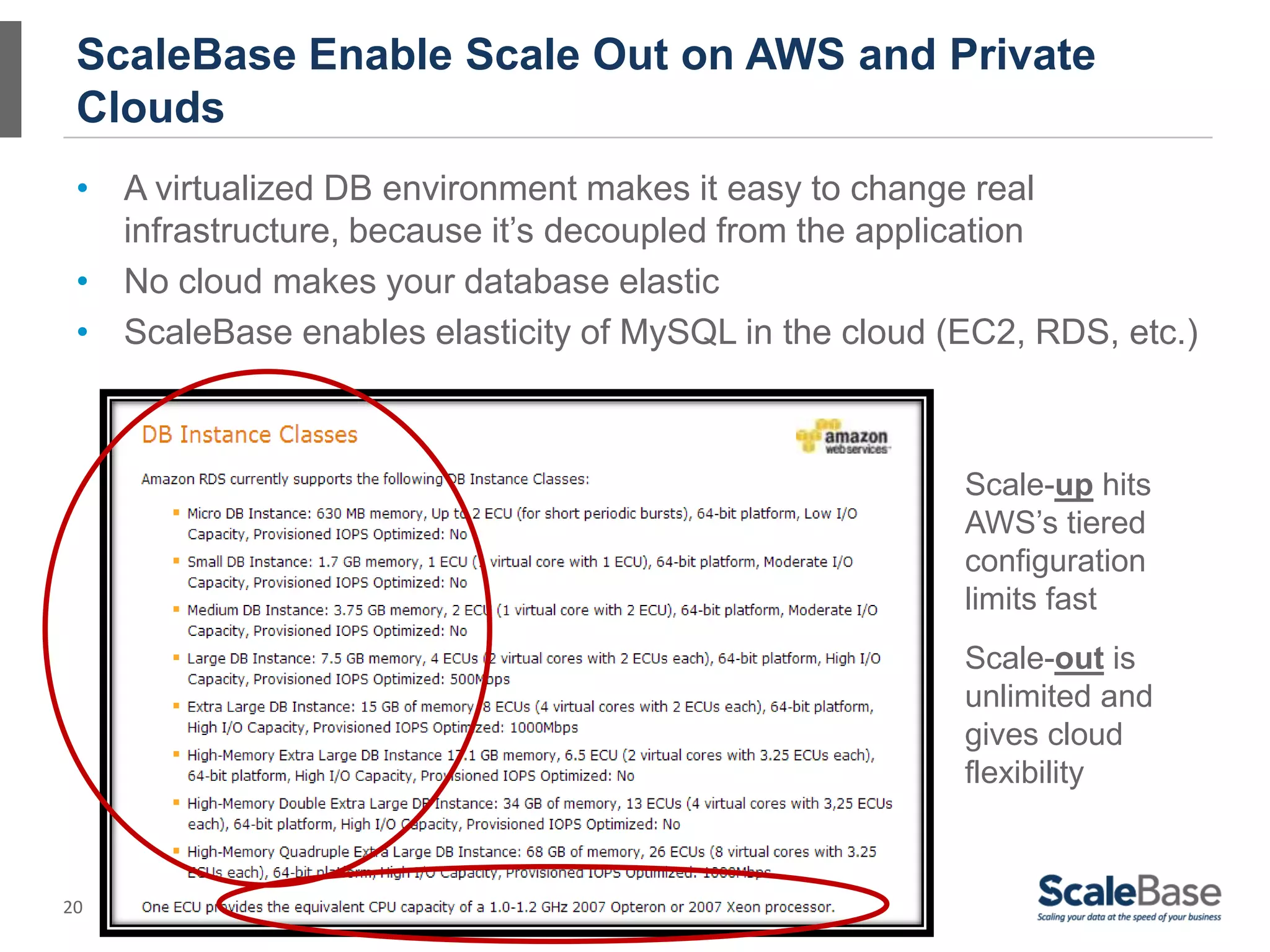

ScaleBase Enable Scale Out on AWS and Private
Clouds
• A virtualized DB environment makes it easy to change real
infrastructure, because it’s decoupled from the application
• No cloud makes your database elastic
• ScaleBase enables elasticity of MySQL in the cloud (EC2, RDS, etc.)
Scale-up hits
AWS’s tiered
configuration
limits fast
Scale-out is
unlimited and
gives cloud
flexibility

21. 21
ScaleBase Supports Scale Out on Single & Multiple
Machines
Advantages of several
shards on one machine:
– Several smaller MySQL
instances better utilize
cores, memory
– When data grows, each
instance can later on
migrate to a bigger
machine of its own
Advantages of several shards
on multiple machines
– Leverage commodity hardware
– When reaches machine limits -
ScaleBase enables online data
redistribution (resharding) and
shard-split

22. 22

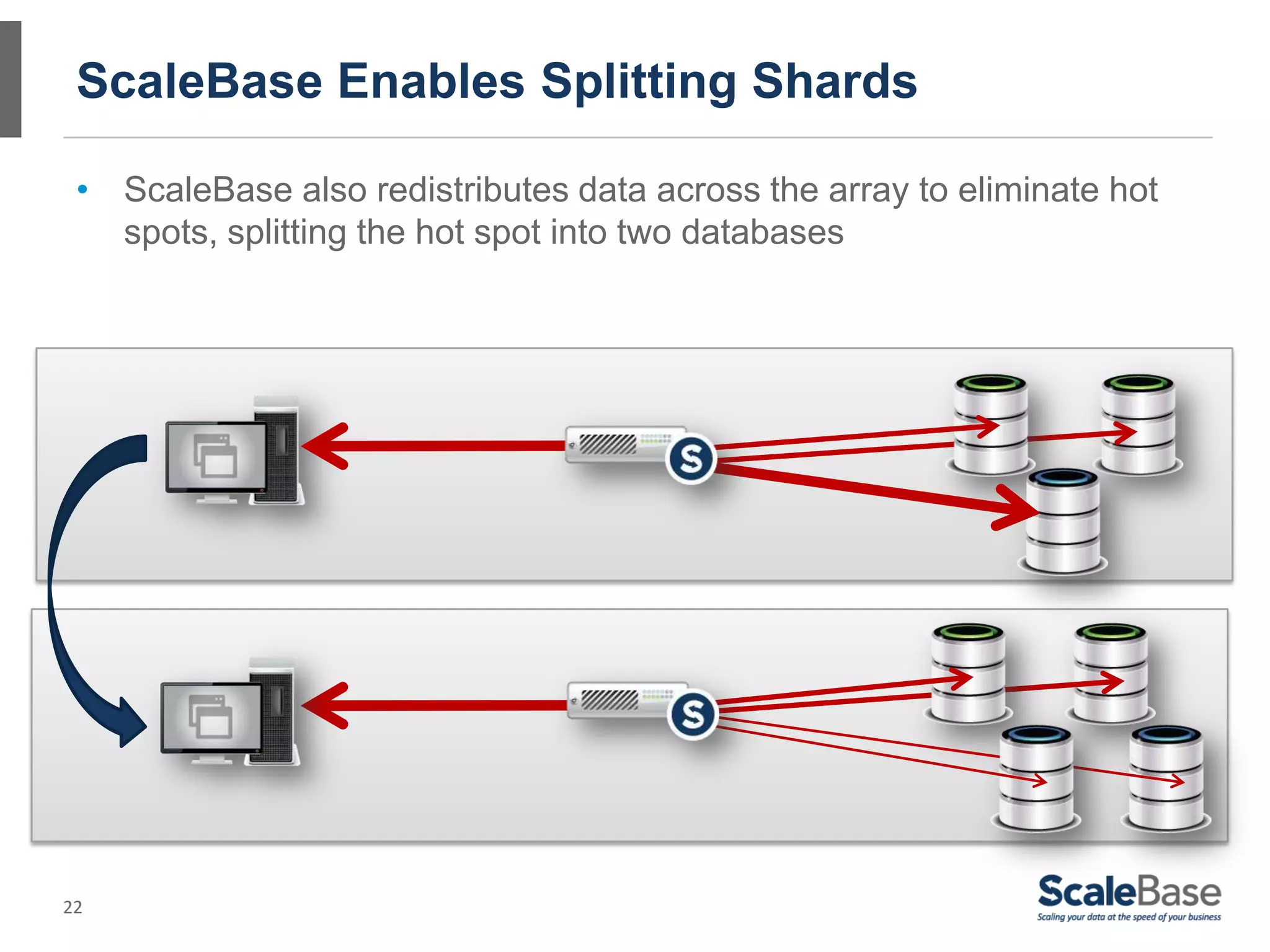

ScaleBase Enables Splitting Shards
• ScaleBase also redistributes data across the array to eliminate hot
spots, splitting the hot spot into two databases

23. 23

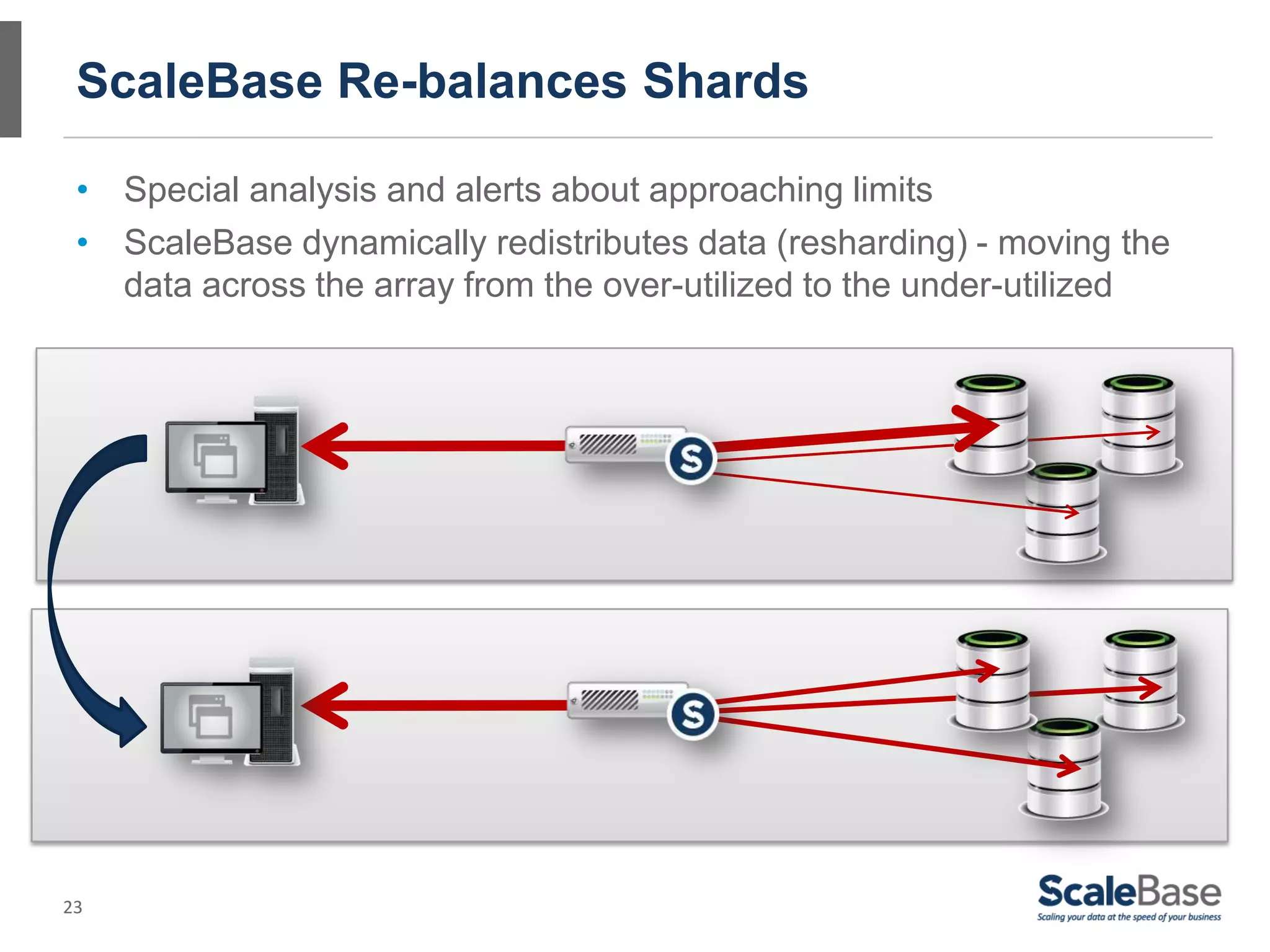

ScaleBase Re-balances Shards
• Special analysis and alerts about approaching limits
• ScaleBase dynamically redistributes data (resharding) - moving the
data across the array from the over-utilized to the under-utilized

24. 24
ScaleBase Provides Optimal Data Distribution Policies
A good data distribution policy ensures that a specific
transaction is directed to a specific database
1,000 transactions
250
transactions
250
transactions
250
transactions
250
transactions
1,000 transactions

25. 25
ScaleBase Eliminates Data Silos
When a query needs data
from several databases,
ScaleBase:
– Runs the query in parallel
on all databases
– Aggregates results into one
meaningful result-set to be returned to the client – the same
result-set that would have been returned from a single DB!
– Including cross-db GROUP BY, ORDER BY, aggregate functions
– Including cross-db JOIN operations
– Enables 2-phase commit for transactions spanning multiple
databases

26. 26

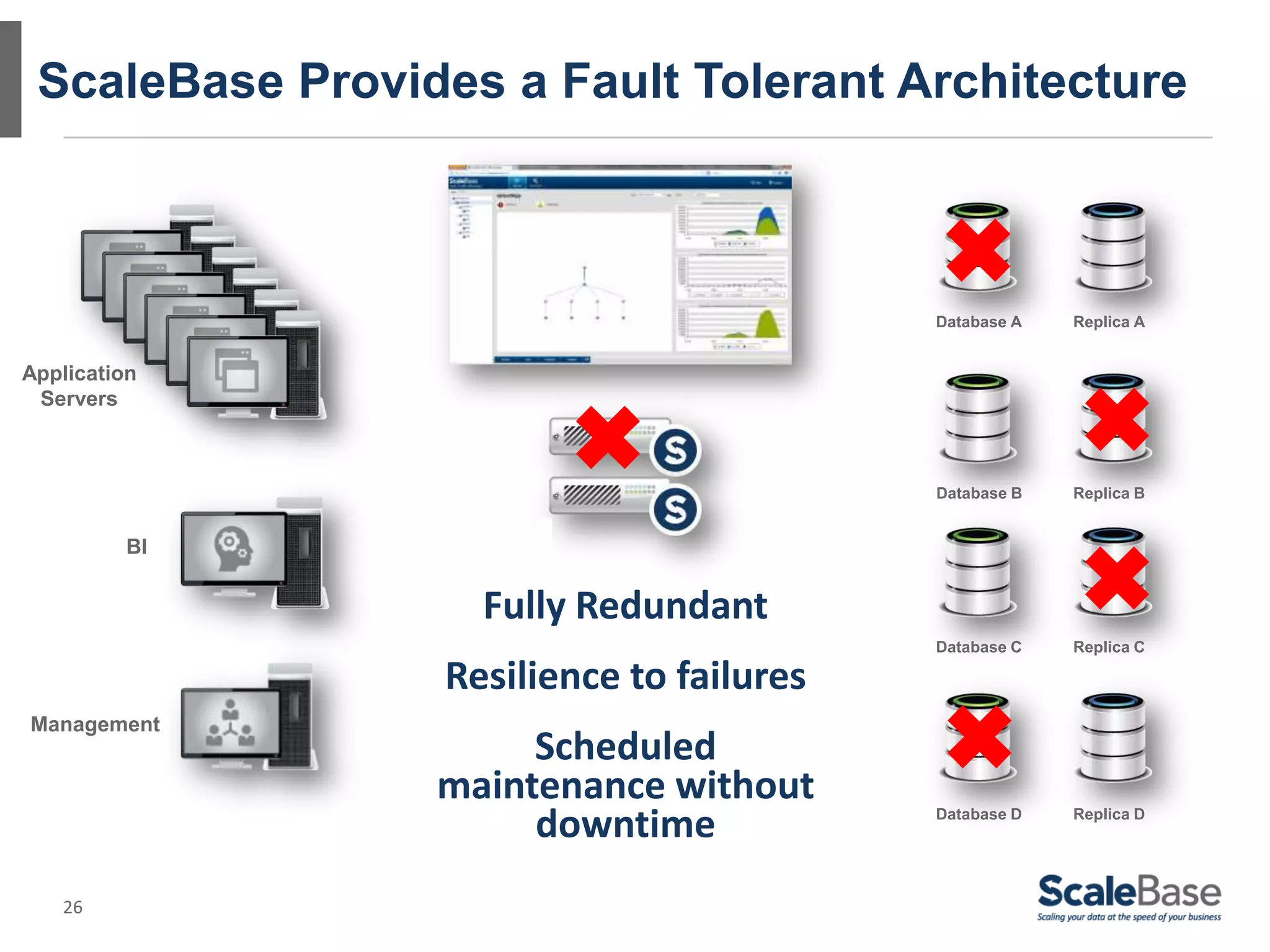

ScaleBase Provides a Fault Tolerant Architecture
Application
Servers
BI
Management
Database A Replica A
Database B Replica B
Database C Replica C
Database D Replica D
Fully Redundant
Resilience to failures
Scheduled
maintenance without
downtime

27. Summary

28. 28
ScaleBase Delivers Scalability
Scale to
Unlimited
Throughput
No Specialized
Hardware
No
Re-architecture
No Application
Rewrites

30. 30
Detailed Scale Out Case Studies
Large Chip Co
• Scalability
• Multiple Apps
• Multiple growing
users
• Availability
• MySQL DB
Solar Edge
• Next Gen
Monitoring App
• Massive Scale
• Monitors real
time data from
thousands of
distributed
systems
Mozilla
• New Product/
Next Gen App/
AppStore
• Scalability
• Geo-clustering
AppDynamics
• Next gen APM
company
• Scalability for the
Netflix
implementation

31. 31

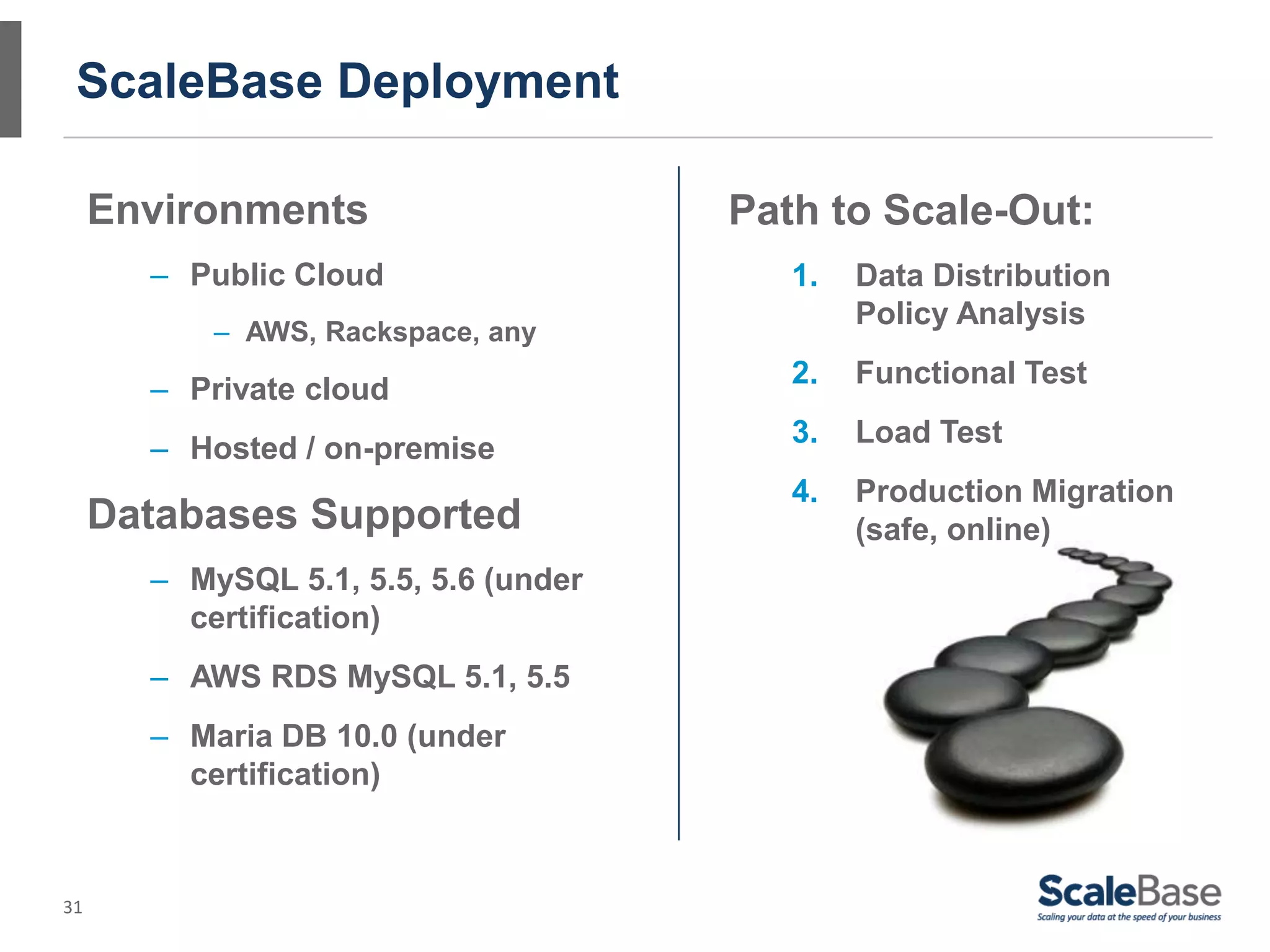

ScaleBase Deployment
Environments
– Public Cloud
– AWS, Rackspace, any
– Private cloud
– Hosted / on-premise
Databases Supported
– MySQL 5.1, 5.5, 5.6 (under
certification)
– AWS RDS MySQL 5.1, 5.5
– Maria DB 10.0 (under
certification)
Path to Scale-Out:
1. Data Distribution
Policy Analysis
2. Functional Test
3. Load Test
4. Production Migration
(safe, online)

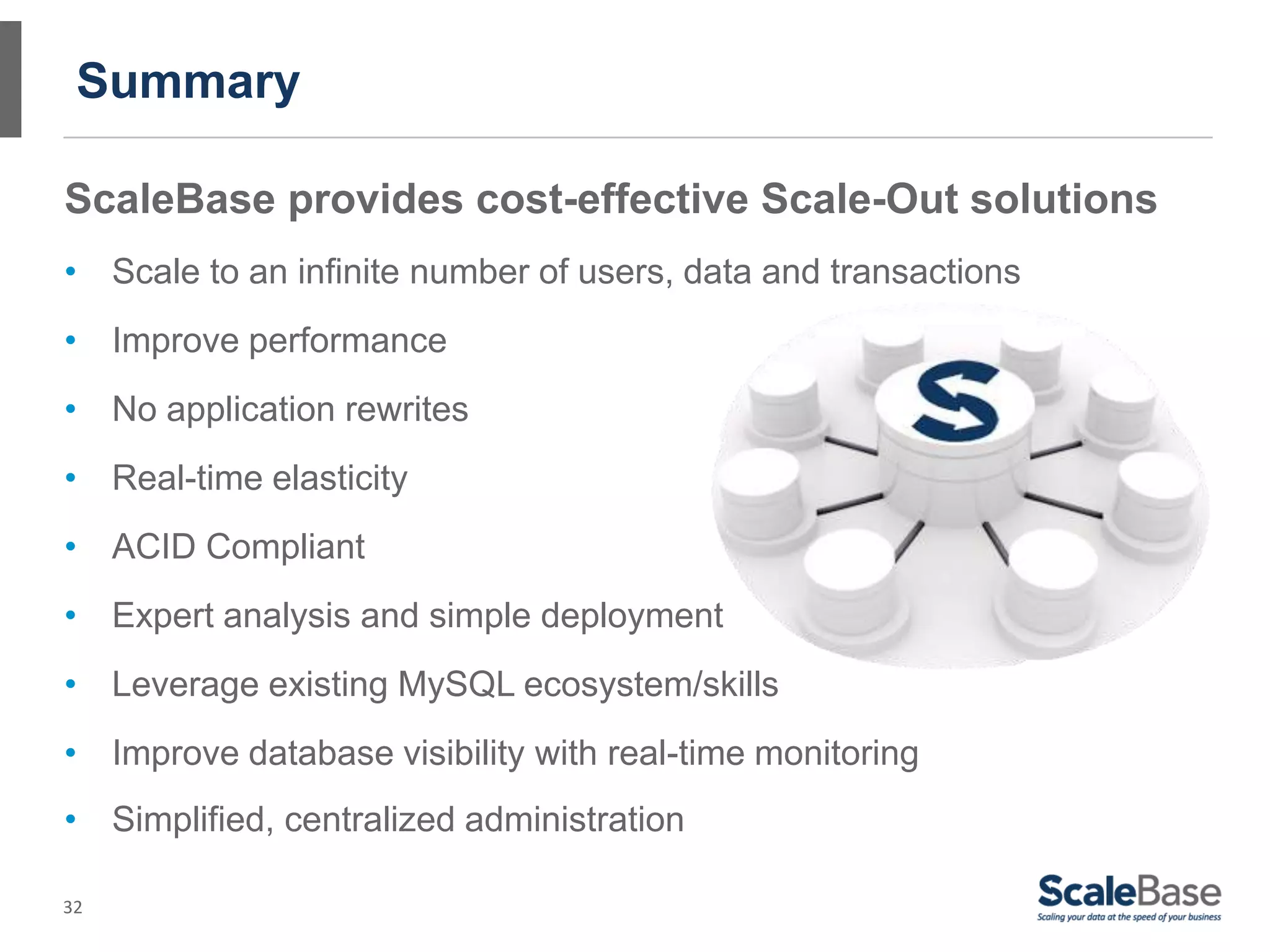

32. 32
Summary
ScaleBase provides cost-effective Scale-Out solutions
• Scale to an infinite number of users, data and transactions
• Improve performance
• No application rewrites
• Real-time elasticity
• ACID Compliant
• Expert analysis and simple deployment
• Leverage existing MySQL ecosystem/skills
• Improve database visibility with real-time monitoring
• Simplified, centralized administration

33. 33
Questions (please enter directly into the GTW side panel)
paul.campaniello@scalebase.com
doron.levari@scalebase.com
www.ScaleBase.com
617.630.2800
Additional Resources
http://www.scalebase.com/blog/
http://www.scalebase.com/resources/
@scalebase
