---Robotics
UNIT-2

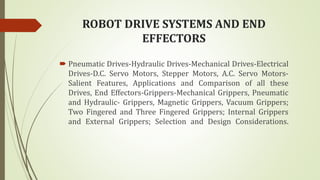

ROBOT DRIVE SYSTEMS AND END
EFFECTORS
 Pneumatic Drives-Hydraulic Drives-Mechanical Drives-Electrical
Drives-D.C. Servo Motors, Stepper Motors, A.C. Servo Motors-
Salient Features, Applications and Comparison of all these
Drives, End Effectors-Grippers-Mechanical Grippers, Pneumatic
and Hydraulic- Grippers, Magnetic Grippers, Vacuum Grippers;
Two Fingered and Three Fingered Grippers; Internal Grippers
and External Grippers; Selection and Design Considerations.
ROBOT DRIVE SYSTEMS
 Drive means operate the robot.
 The drive system is to provide a means to control the speed and
also torque (or) power.
 Drive system is used for converting hydraulic, pneumatic, and
electrical energy into useful mechanical energy. It is used to
motion transfer and drive the robot.

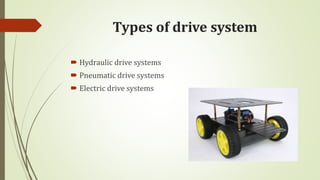

Types of drive system
 Hydraulic drive systems
 Pneumatic drive systems
 Electric drive systems

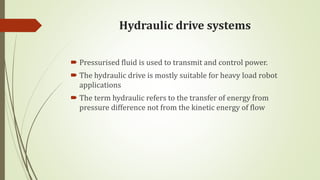

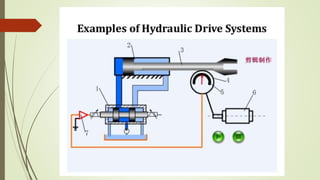

Hydraulic drive systems
 Pressurised fluid is used to transmit and control power.
 The hydraulic drive is mostly suitable for heavy load robot
applications
 The term hydraulic refers to the transfer of energy from
pressure difference not from the kinetic energy of flow

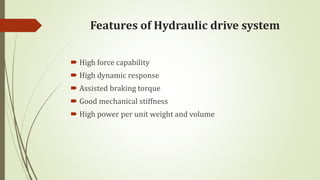

Features of Hydraulic drive system
 High force capability
 High dynamic response
 Assisted braking torque
 Good mechanical stiffness
 High power per unit weight and volume

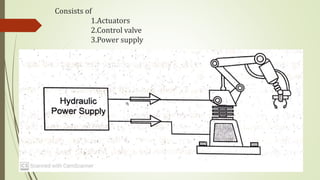

Consists of
1.Actuators
2.Control valve
3.Power supply

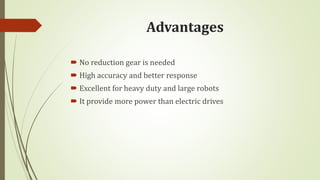

Advantages
 No reduction gear is needed
 High accuracy and better response
 Excellent for heavy duty and large robots
 It provide more power than electric drives

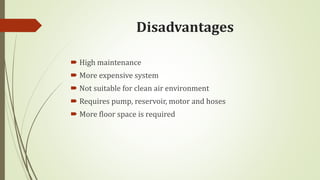

Disadvantages
 High maintenance
 More expensive system
 Not suitable for clean air environment
 Requires pump, reservoir, motor and hoses
 More floor space is required

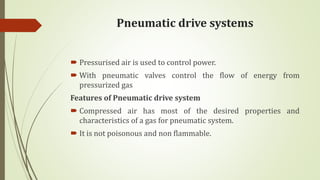

Pneumatic drive systems
 Pressurised air is used to control power.
 With pneumatic valves control the flow of energy from
pressurized gas
Features of Pneumatic drive system
 Compressed air has most of the desired properties and
characteristics of a gas for pneumatic system.
 It is not poisonous and non flammable.

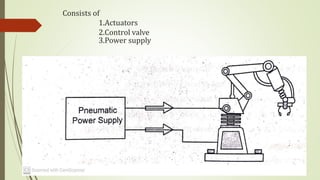

Consists of
1.Actuators
2.Control valve
3.Power supply
Pneumatic System in Packaging
Advantages
 Good accuracy
 Excellent speed
 Easy installation
 Small leakage can be tolerated
 Economical than hydraulic drives

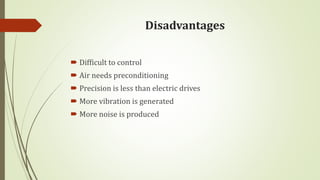

Disadvantages
 Difficult to control
 Air needs preconditioning
 Precision is less than electric drives
 More vibration is generated
 More noise is produced

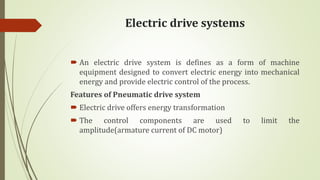

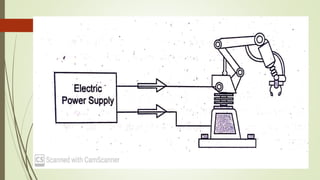

Electric drive systems
 An electric drive system is defines as a form of machine
equipment designed to convert electric energy into mechanical
energy and provide electric control of the process.
Features of Pneumatic drive system
 Electric drive offers energy transformation
 The control components are used to limit the
amplitude(armature current of DC motor)

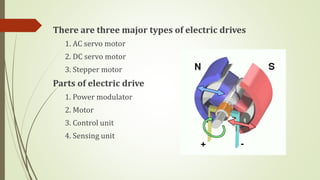

There are three major types of electric drives
1. AC servo motor
2. DC servo motor
3. Stepper motor
Parts of electric drive
1. Power modulator
2. Motor
3. Control unit
4. Sensing unit

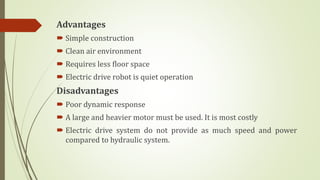

Advantages
 Simple construction
 Clean air environment
 Requires less floor space
 Electric drive robot is quiet operation
Disadvantages
 Poor dynamic response
 A large and heavier motor must be used. It is most costly
 Electric drive system do not provide as much speed and power
compared to hydraulic system.

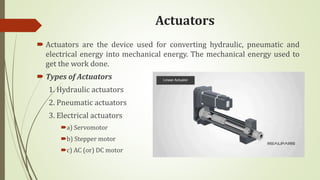

Actuators
 Actuators are the device used for converting hydraulic, pneumatic and
electrical energy into mechanical energy. The mechanical energy used to
get the work done.
 Types of Actuators
1. Hydraulic actuators
2. Pneumatic actuators
3. Electrical actuators
a) Servomotor
b) Stepper motor
c) AC (or) DC motor

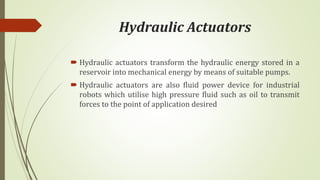

Hydraulic Actuators
 Hydraulic actuators transform the hydraulic energy stored in a
reservoir into mechanical energy by means of suitable pumps.
 Hydraulic actuators are also fluid power device for industrial
robots which utilise high pressure fluid such as oil to transmit
forces to the point of application desired

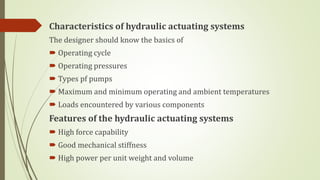

Characteristics of hydraulic actuating systems
The designer should know the basics of
 Operating cycle
 Operating pressures
 Types pf pumps
 Maximum and minimum operating and ambient temperatures
 Loads encountered by various components
Features of the hydraulic actuating systems
 High force capability
 Good mechanical stiffness
 High power per unit weight and volume

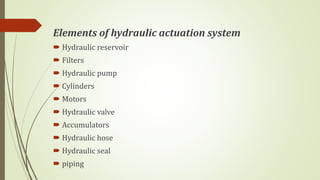

Elements of hydraulic actuation system
 Hydraulic reservoir
 Filters
 Hydraulic pump
 Cylinders
 Motors
 Hydraulic valve
 Accumulators
 Hydraulic hose
 Hydraulic seal
 piping
Types of Hydraulic Actuators
 Single acting spring return type
 Double acting cylinder
 Ram type

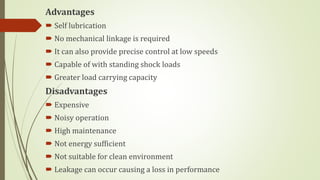

Advantages
 Self lubrication
 No mechanical linkage is required
 It can also provide precise control at low speeds
 Capable of with standing shock loads
 Greater load carrying capacity
Disadvantages
 Expensive
 Noisy operation
 High maintenance
 Not energy sufficient
 Not suitable for clean environment
 Leakage can occur causing a loss in performance

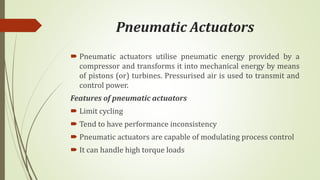

Pneumatic Actuators
 Pneumatic actuators utilise pneumatic energy provided by a
compressor and transforms it into mechanical energy by means
of pistons (or) turbines. Pressurised air is used to transmit and
control power.
Features of pneumatic actuators
 Limit cycling
 Tend to have performance inconsistency
 Pneumatic actuators are capable of modulating process control
 It can handle high torque loads

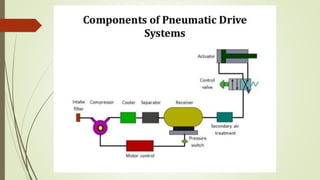

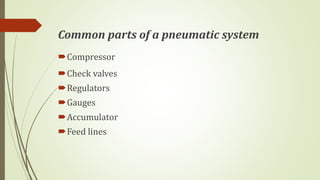

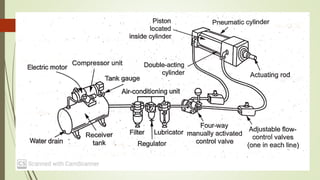

Common parts of a pneumatic system
Compressor
Check valves
Regulators
Gauges
Accumulator
Feed lines

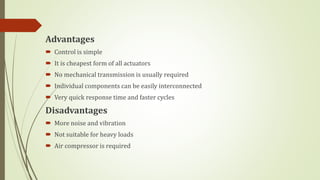

Advantages
 Control is simple
 It is cheapest form of all actuators
 No mechanical transmission is usually required
 Individual components can be easily interconnected
 Very quick response time and faster cycles
Disadvantages
 More noise and vibration
 Not suitable for heavy loads
 Air compressor is required
Electric Actuators
 An actuator obtaining electrical energy from mechanical system
is called electric actuator
Features of the electric actuators
 High band with provide accurate and fast control
 High maximum force allows high acceleration

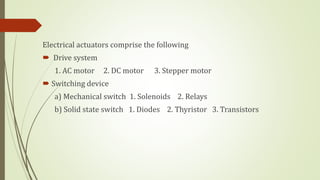

Electrical actuators comprise the following
 Drive system
1. AC motor 2. DC motor 3. Stepper motor
 Switching device
a) Mechanical switch 1. Solenoids 2. Relays
b) Solid state switch 1. Diodes 2. Thyristor 3. Transistors

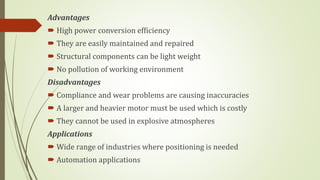

Advantages
 High power conversion efficiency
 They are easily maintained and repaired
 Structural components can be light weight
 No pollution of working environment
Disadvantages
 Compliance and wear problems are causing inaccuracies
 A larger and heavier motor must be used which is costly
 They cannot be used in explosive atmospheres
Applications
 Wide range of industries where positioning is needed
 Automation applications

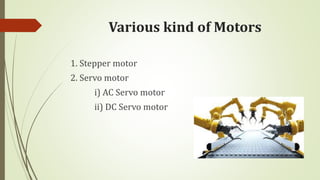

Various kind of Motors
1. Stepper motor

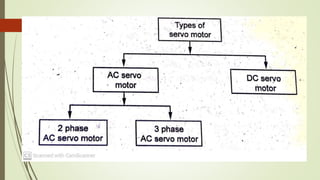

2. Servo motor
i) AC Servo motor
ii) DC Servo motor

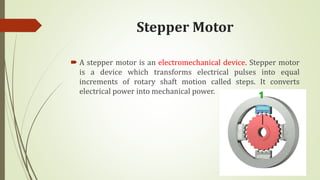

Stepper Motor
 A stepper motor is an electromechanical device. Stepper motor
is a device which transforms electrical pulses into equal
increments of rotary shaft motion called steps. It converts
electrical power into mechanical power.

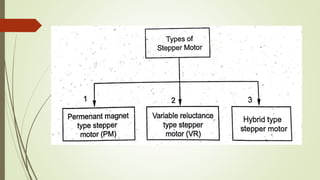

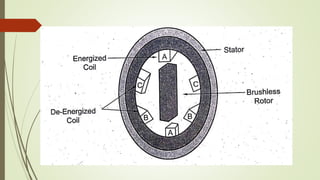

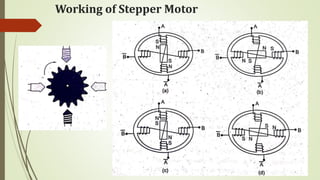

Working of Stepper Motor

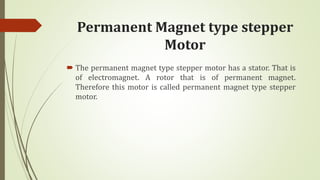

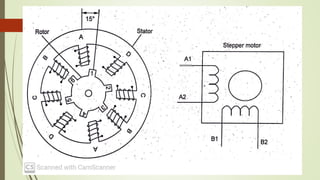

Permanent Magnet type stepper
Motor
 The permanent magnet type stepper motor has a stator. That is
of electromagnet. A rotor that is of permanent magnet.
Therefore this motor is called permanent magnet type stepper
motor.

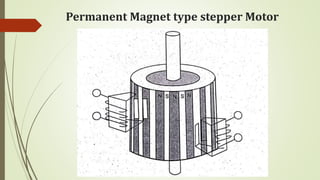

Permanent Magnet type stepper Motor

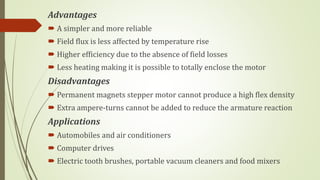

Advantages
 A simpler and more reliable
 Field flux is less affected by temperature rise
 Higher efficiency due to the absence of field losses
 Less heating making it is possible to totally enclose the motor
Disadvantages
 Permanent magnets stepper motor cannot produce a high flex density
 Extra ampere-turns cannot be added to reduce the armature reaction
Applications
 Automobiles and air conditioners
 Computer drives
 Electric tooth brushes, portable vacuum cleaners and food mixers
Variable reluctance type stepper
motor
 The principle of variable reluctance stepper motor is based on
the principle of the flux lines which capture the low reluctance
path. The stator and the rotor of the motor are aligned in such as
way that the magnetic reluctance is minimum.
Variable reluctance type stepper motor

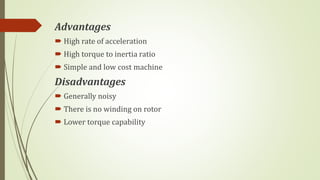

Advantages
 High rate of acceleration
 High torque to inertia ratio
 Simple and low cost machine
Disadvantages
 Generally noisy
 There is no winding on rotor
 Lower torque capability

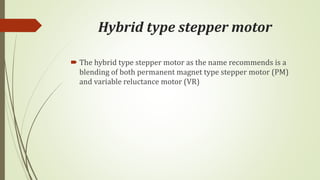

Hybrid type stepper motor
 The hybrid type stepper motor as the name recommends is a
blending of both permanent magnet type stepper motor (PM)
and variable reluctance motor (VR)

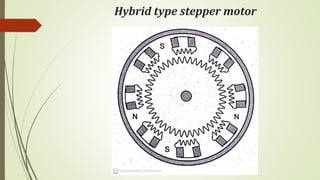

Hybrid type stepper motor
Advantages
 It has more torque
 Lower stepping rate
 More efficient at low speeds
 The length of step is smaller
Disadvantages
 Higher inertia
 If the magnetic strength is varied, the performance of the motor is
affected.
 The weight of the motor is more because of the presence of the rotor
magnet.
 Cost is more

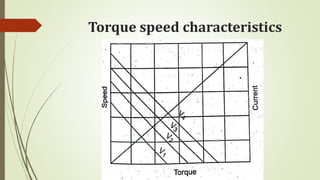

Torque vs speed characteristics

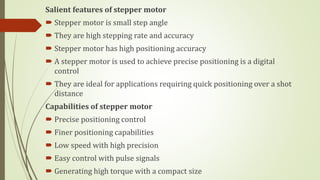

Salient features of stepper motor
 Stepper motor is small step angle
 They are high stepping rate and accuracy
 Stepper motor has high positioning accuracy
 A stepper motor is used to achieve precise positioning is a digital
control
 They are ideal for applications requiring quick positioning over a shot
distance
Capabilities of stepper motor
 Precise positioning control
 Finer positioning capabilities
 Low speed with high precision
 Easy control with pulse signals
 Generating high torque with a compact size
Advantages
 Low cost
 High reliability
 High torque at low speeds
 Operates in almost any environment
 Stepper motor is simple to operate
Disadvantages
 lower efficiency
 Low torque to inertia ratio
 Lower power output for their weight and size
 Smooth movement often requires micro stepping
Applications
 Gaming machines
 Textile machinery
 Welding equipment

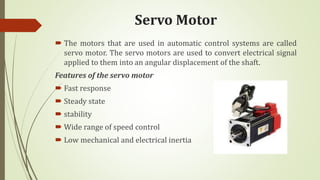

Servo Motor
 The motors that are used in automatic control systems are called
servo motor. The servo motors are used to convert electrical signal
applied to them into an angular displacement of the shaft.
Features of the servo motor
 Fast response
 Steady state
 stability
 Wide range of speed control
 Low mechanical and electrical inertia
Controlling of Servomotors
Advantages
 Servo motor is small and efficient
 High speed operation is possible
Disadvantages
 Higher cost
 It is not suitable for precision control of rotation
 It is not suitable if we need to prevent vibration
Uses of the servo motor
 The servo motor is built into the camera to correct a lens of the camera to
improve out of focus image
 The servo motor is used in textile to control spinning and weaving
machines
 Used in metal forming and cutting machines to provide specific motion
control for milling machines.

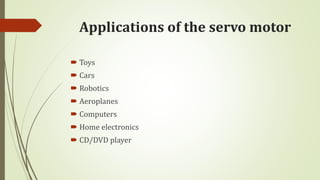

Applications of the servo motor
 Toys
 Cars
 Robotics
 Aeroplanes
 Computers
 Home electronics
 CD/DVD player

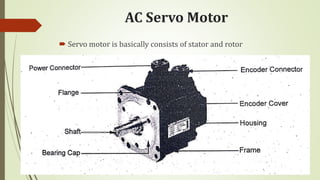

AC Servo Motor
 Servo motor is basically consists of stator and rotor
Rotor
 The rotor is generally of two types.
 1. squirrel cage rotor 2. Drag cup type rotor

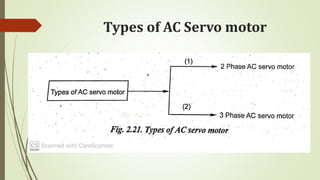

Types of AC Servo motor

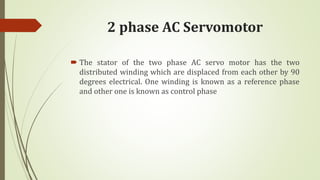

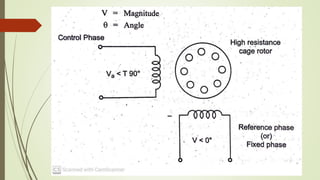

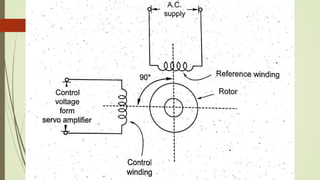

2 phase AC Servomotor
 The stator of the two phase AC servo motor has the two
distributed winding which are displaced from each other by 90
degrees electrical. One winding is known as a reference phase
and other one is known as control phase

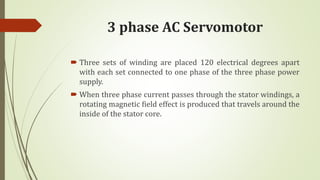

3 phase AC Servomotor
 Three sets of winding are placed 120 electrical degrees apart
with each set connected to one phase of the three phase power
supply.
 When three phase current passes through the stator windings, a
rotating magnetic field effect is produced that travels around the
inside of the stator core.

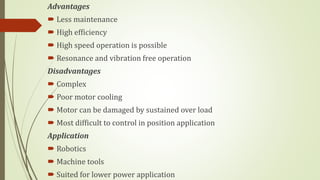

Advantages
 Less maintenance
 High efficiency
 High speed operation is possible
 Resonance and vibration free operation
Disadvantages
 Complex
 Poor motor cooling
 Motor can be damaged by sustained over load
 Most difficult to control in position application
Application
 Robotics
 Machine tools
 Suited for lower power application

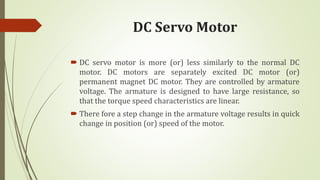

DC Servo Motor
 DC servo motor is more (or) less similarly to the normal DC
motor. DC motors are separately excited DC motor (or)
permanent magnet DC motor. They are controlled by armature
voltage. The armature is designed to have large resistance, so
that the torque speed characteristics are linear.
 There fore a step change in the armature voltage results in quick
change in position (or) speed of the motor.

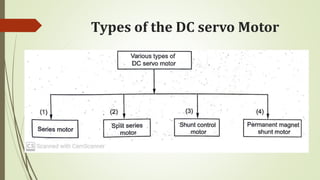

Types of the DC servo Motor

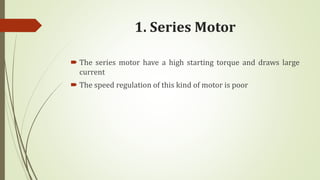

1. Series Motor
 The series motor have a high starting torque and draws large
current
 The speed regulation of this kind of motor is poor

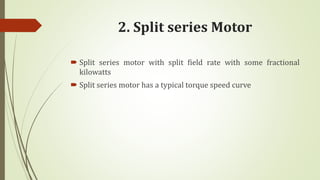

2. Split series Motor
 Split series motor with split field rate with some fractional
kilowatts
 Split series motor has a typical torque speed curve

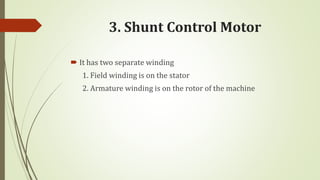

3. Shunt Control Motor
 It has two separate winding
1. Field winding is on the stator
2. Armature winding is on the rotor of the machine
4. Permanent Magnet shunt motor
 Permanent magnet shunt motor is a fixed excitation motor
where the field is actually supply by a permanent magnet

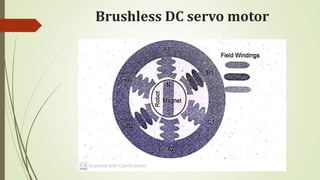

Brushless DC servo motor

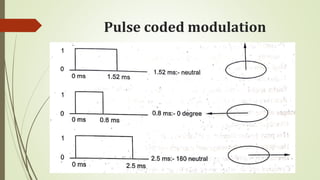

Pulse coded modulation
Torque speed characteristics

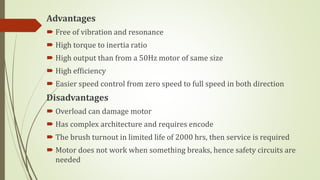

Advantages
 Free of vibration and resonance
 High torque to inertia ratio
 High output than from a 50Hz motor of same size
 High efficiency
 Easier speed control from zero speed to full speed in both direction
Disadvantages
 Overload can damage motor
 Has complex architecture and requires encode
 The brush turnout in limited life of 2000 hrs, then service is required
 Motor does not work when something breaks, hence safety circuits are
needed
Robotics - Unit-II
Robotics - Unit-II
Robotics - Unit-II
Robotics - Unit-II

More Related Content

What's hot (20)

Robotics and automation _ power sources and sensors
Robotics and automation _  power sources and sensorsRobotics and automation _  power sources and sensors
Robotics and automation _ power sources and sensors

Machine Vision System
Machine Vision SystemMachine Vision System
Machine Vision System

ROBOTICS – SENSORS AND MACHINE VISION
ROBOTICS – SENSORS AND MACHINE VISIONROBOTICS – SENSORS AND MACHINE VISION
ROBOTICS – SENSORS AND MACHINE VISION

Robotics unit3 sensors
Robotics unit3 sensorsRobotics unit3 sensors
Robotics unit3 sensors

Robot Programming
Robot ProgrammingRobot Programming
Robot Programming

Unit 3 machine vision
Unit 3 machine vision Unit 3 machine vision
Unit 3 machine vision

sensors in robotics
sensors in roboticssensors in robotics
sensors in robotics

Unit iv robot programming
Unit iv robot programmingUnit iv robot programming
Unit iv robot programming

Robot control
Robot controlRobot control
Robot control

Robot Machine Vision
Robot Machine VisionRobot Machine Vision
Robot Machine Vision

Robot vision
Robot visionRobot vision
Robot vision

Contact and Non Contact Sensors.pptx
Contact and Non Contact Sensors.pptxContact and Non Contact Sensors.pptx
Contact and Non Contact Sensors.pptx

Robots
Robots Robots
Robots

Robotics - unit-2.ppt
Robotics - unit-2.pptRobotics - unit-2.ppt
Robotics - unit-2.ppt

Industrial robotics pick & place
Industrial robotics pick & placeIndustrial robotics pick & place
Industrial robotics pick & place

Robot manipulator
Robot manipulatorRobot manipulator
Robot manipulator

Robot Configuration - 2
Robot Configuration - 2Robot Configuration - 2
Robot Configuration - 2

Grippers
GrippersGrippers
Grippers

Robotics - unit-2-- Drive Systems
Robotics - unit-2-- Drive SystemsRobotics - unit-2-- Drive Systems
Robotics - unit-2-- Drive Systems

Robotics - unit-2 - end effector
Robotics - unit-2 - end effectorRobotics - unit-2 - end effector
Robotics - unit-2 - end effector


Similar to Robotics - Unit-II

electricdrives-210202173128.55555555pptx
electricdrives-210202173128.55555555pptxelectricdrives-210202173128.55555555pptx
electricdrives-210202173128.55555555pptxOmkarDangre

CED Unit 1.pptx
CED Unit 1.pptxCED Unit 1.pptx
CED Unit 1.pptxSowmiyaA27

CNC AND ITS COMPONENTS
CNC AND ITS COMPONENTSCNC AND ITS COMPONENTS
CNC AND ITS COMPONENTSananya0122

CNC AND ITS COMPONENTS
CNC AND ITS COMPONENTSCNC AND ITS COMPONENTS
CNC AND ITS COMPONENTSananya0122

1.general block diagram
1.general block diagram1.general block diagram
1.general block diagramRaja d

Introduction to Actuators
Introduction to ActuatorsIntroduction to Actuators
Introduction to ActuatorsVeerakumar S

electronics_1.pptx
electronics_1.pptxelectronics_1.pptx
electronics_1.pptxewnetukassa2

Electrical drive unit 1 as per IP university_EEE
Electrical drive unit 1 as per IP university_EEEElectrical drive unit 1 as per IP university_EEE
Electrical drive unit 1 as per IP university_EEEamrutapattnaik2

EE6801 - Electric Energy Generation Utilisation and Conservation
EE6801 - Electric Energy Generation Utilisation and ConservationEE6801 - Electric Energy Generation Utilisation and Conservation
EE6801 - Electric Energy Generation Utilisation and Conservationrmkceteee

PECD ELECRICAL DRIVES dddddddddddddddddd
PECD ELECRICAL DRIVES ddddddddddddddddddPECD ELECRICAL DRIVES dddddddddddddddddd
PECD ELECRICAL DRIVES ddddddddddddddddddAjayKumarSingh711098


Similar to Robotics - Unit-II (20)

electricdrives-210202173128.55555555pptx
electricdrives-210202173128.55555555pptxelectricdrives-210202173128.55555555pptx
electricdrives-210202173128.55555555pptx

CED Unit 1.pptx
CED Unit 1.pptxCED Unit 1.pptx
CED Unit 1.pptx

Cnc
CncCnc
Cnc

CNC AND ITS COMPONENTS
CNC AND ITS COMPONENTSCNC AND ITS COMPONENTS
CNC AND ITS COMPONENTS

CNC AND ITS COMPONENTS
CNC AND ITS COMPONENTSCNC AND ITS COMPONENTS
CNC AND ITS COMPONENTS

Stepper motor
Stepper motorStepper motor
Stepper motor

Electric drives
Electric drivesElectric drives
Electric drives

1.general block diagram
1.general block diagram1.general block diagram
1.general block diagram

Introduction to Actuators
Introduction to ActuatorsIntroduction to Actuators
Introduction to Actuators

electronics_1.pptx
electronics_1.pptxelectronics_1.pptx
electronics_1.pptx

Electrical drive unit 1 as per IP university_EEE
Electrical drive unit 1 as per IP university_EEEElectrical drive unit 1 as per IP university_EEE
Electrical drive unit 1 as per IP university_EEE

EE6801 - Electric Energy Generation Utilisation and Conservation
EE6801 - Electric Energy Generation Utilisation and ConservationEE6801 - Electric Energy Generation Utilisation and Conservation
EE6801 - Electric Energy Generation Utilisation and Conservation

Inverter motors
Inverter motorsInverter motors
Inverter motors

Electrical Drives and Controls
Electrical Drives and Controls Electrical Drives and Controls
Electrical Drives and Controls

Actuators
ActuatorsActuators
Actuators

Motors
MotorsMotors
Motors

Mf3620902095
Mf3620902095Mf3620902095
Mf3620902095

PECD ELECRICAL DRIVES dddddddddddddddddd
PECD ELECRICAL DRIVES ddddddddddddddddddPECD ELECRICAL DRIVES dddddddddddddddddd
PECD ELECRICAL DRIVES dddddddddddddddddd

Motor.ppt
Motor.pptMotor.ppt
Motor.ppt

Motors
MotorsMotors
Motors


More from Muthukumar V

NON-METALLIC MATERIALS
NON-METALLIC MATERIALSNON-METALLIC MATERIALS
NON-METALLIC MATERIALSMuthukumar V

TESTING OF MECHANICAL PROPERTIES
TESTING OF MECHANICAL PROPERTIESTESTING OF MECHANICAL PROPERTIES
TESTING OF MECHANICAL PROPERTIESMuthukumar V

FERROUS AND NON FERROUS METALS
FERROUS AND NON FERROUS METALSFERROUS AND NON FERROUS METALS
FERROUS AND NON FERROUS METALSMuthukumar V

CONSTITUTION OF ALLOYS
CONSTITUTION OF ALLOYSCONSTITUTION OF ALLOYS
CONSTITUTION OF ALLOYSMuthukumar V

Unit-V---Implementation of Robot
Unit-V---Implementation of RobotUnit-V---Implementation of Robot
Unit-V---Implementation of RobotMuthukumar V

Economic analysis of robot
Economic analysis of robotEconomic analysis of robot
Economic analysis of robotMuthukumar V

UNIT-IV-- Robotics
UNIT-IV-- RoboticsUNIT-IV-- Robotics
UNIT-IV-- RoboticsMuthukumar V

Unit-2-- End effector
Unit-2-- End effectorUnit-2-- End effector
Unit-2-- End effectorMuthukumar V

Overview of management
Overview of managementOverview of management
Overview of managementMuthukumar V

Propertis and applications of thermoplastics
Propertis and applications of thermoplasticsPropertis and applications of thermoplastics
Propertis and applications of thermoplasticsMuthukumar V

Testing of UTM-Hardness-Impact
Testing of  UTM-Hardness-ImpactTesting of  UTM-Hardness-Impact
Testing of UTM-Hardness-ImpactMuthukumar V


More from Muthukumar V (20)

HEAT TREATMENT
HEAT TREATMENTHEAT TREATMENT
HEAT TREATMENT

NON-METALLIC MATERIALS
NON-METALLIC MATERIALSNON-METALLIC MATERIALS
NON-METALLIC MATERIALS

TESTING OF MECHANICAL PROPERTIES
TESTING OF MECHANICAL PROPERTIESTESTING OF MECHANICAL PROPERTIES
TESTING OF MECHANICAL PROPERTIES

FERROUS AND NON FERROUS METALS
FERROUS AND NON FERROUS METALSFERROUS AND NON FERROUS METALS
FERROUS AND NON FERROUS METALS

CONSTITUTION OF ALLOYS
CONSTITUTION OF ALLOYSCONSTITUTION OF ALLOYS
CONSTITUTION OF ALLOYS

UNIT-II---FEA
UNIT-II---FEAUNIT-II---FEA
UNIT-II---FEA

UNIT-IV-- FEA
UNIT-IV-- FEAUNIT-IV-- FEA
UNIT-IV-- FEA

Unit-III---FEA
Unit-III---FEAUnit-III---FEA
Unit-III---FEA

Unit-I--FEA
Unit-I--FEAUnit-I--FEA
Unit-I--FEA

Unit 5--FEA
Unit 5--FEAUnit 5--FEA
Unit 5--FEA

Unit-V---Implementation of Robot
Unit-V---Implementation of RobotUnit-V---Implementation of Robot
Unit-V---Implementation of Robot

Economic analysis of robot
Economic analysis of robotEconomic analysis of robot
Economic analysis of robot

UNIT-IV-- Robotics
UNIT-IV-- RoboticsUNIT-IV-- Robotics
UNIT-IV-- Robotics

Unit-2-- End effector
Unit-2-- End effectorUnit-2-- End effector
Unit-2-- End effector

Unit-I Robotics
Unit-I RoboticsUnit-I Robotics
Unit-I Robotics

Planning
PlanningPlanning
Planning

Overview of management
Overview of managementOverview of management
Overview of management

Cast iron
Cast ironCast iron
Cast iron

Propertis and applications of thermoplastics
Propertis and applications of thermoplasticsPropertis and applications of thermoplastics
Propertis and applications of thermoplastics

Testing of UTM-Hardness-Impact
Testing of  UTM-Hardness-ImpactTesting of  UTM-Hardness-Impact
Testing of UTM-Hardness-Impact


Recently uploaded

DEVICE DRIVERS AND INTERRUPTS SERVICE MECHANISM.pdf
DEVICE DRIVERS AND INTERRUPTS  SERVICE MECHANISM.pdfDEVICE DRIVERS AND INTERRUPTS  SERVICE MECHANISM.pdf
DEVICE DRIVERS AND INTERRUPTS SERVICE MECHANISM.pdfAkritiPradhan2

Main Memory Management in Operating System
Main Memory Management in Operating SystemMain Memory Management in Operating System
Main Memory Management in Operating SystemRashmi Bhat

National Level Hackathon Participation Certificate.pdf
National Level Hackathon Participation Certificate.pdfNational Level Hackathon Participation Certificate.pdf
National Level Hackathon Participation Certificate.pdfRajuKanojiya4

Engineering Drawing section of solid
Engineering Drawing     section of solidEngineering Drawing     section of solid
Engineering Drawing section of solidnamansinghjarodiya

Research Methodology for Engineering pdf
Research Methodology for Engineering pdfResearch Methodology for Engineering pdf
Research Methodology for Engineering pdfCaalaaAbdulkerim

Immutable Image-Based Operating Systems - EW2024.pdf
Immutable Image-Based Operating Systems - EW2024.pdfImmutable Image-Based Operating Systems - EW2024.pdf
Immutable Image-Based Operating Systems - EW2024.pdfDrew Moseley

Levelling - Rise and fall - Height of instrument method
Levelling - Rise and fall - Height of instrument methodLevelling - Rise and fall - Height of instrument method
Levelling - Rise and fall - Height of instrument methodManicka Mamallan Andavar

Class 1 | NFPA 72 | Overview Fire Alarm System
Class 1 | NFPA 72 | Overview Fire Alarm SystemClass 1 | NFPA 72 | Overview Fire Alarm System
Class 1 | NFPA 72 | Overview Fire Alarm Systemirfanmechengr

Correctly Loading Incremental Data at Scale
Correctly Loading Incremental Data at ScaleCorrectly Loading Incremental Data at Scale
Correctly Loading Incremental Data at ScaleAlluxio, Inc.

CCS355 Neural Networks & Deep Learning Unit 1 PDF notes with Question bank .pdf
CCS355 Neural Networks & Deep Learning Unit 1 PDF notes with Question bank .pdfCCS355 Neural Networks & Deep Learning Unit 1 PDF notes with Question bank .pdf
CCS355 Neural Networks & Deep Learning Unit 1 PDF notes with Question bank .pdfAsst.prof M.Gokilavani

Mine Environment II Lab_MI10448MI__________.pptx
Mine Environment II Lab_MI10448MI__________.pptxMine Environment II Lab_MI10448MI__________.pptx
Mine Environment II Lab_MI10448MI__________.pptxRomil Mishra

Paper Tube : Shigeru Ban projects and Case Study of Cardboard Cathedral .pdf
Paper Tube : Shigeru Ban projects and Case Study of Cardboard Cathedral .pdfPaper Tube : Shigeru Ban projects and Case Study of Cardboard Cathedral .pdf
Paper Tube : Shigeru Ban projects and Case Study of Cardboard Cathedral .pdfNainaShrivastava14

Risk Management in Engineering Construction Project
Risk Management in Engineering Construction ProjectRisk Management in Engineering Construction Project
Risk Management in Engineering Construction ProjectErbil Polytechnic University

GSK & SEAMANSHIP-IV LIFE SAVING APPLIANCES .pptx
GSK & SEAMANSHIP-IV LIFE SAVING APPLIANCES .pptxGSK & SEAMANSHIP-IV LIFE SAVING APPLIANCES .pptx
GSK & SEAMANSHIP-IV LIFE SAVING APPLIANCES .pptxshuklamittt0077

Indian Dairy Industry Present Status and.ppt
Indian Dairy Industry Present Status and.pptIndian Dairy Industry Present Status and.ppt
Indian Dairy Industry Present Status and.pptMadan Karki

"Exploring the Essential Functions and Design Considerations of Spillways in ...
"Exploring the Essential Functions and Design Considerations of Spillways in ..."Exploring the Essential Functions and Design Considerations of Spillways in ...
"Exploring the Essential Functions and Design Considerations of Spillways in ...Erbil Polytechnic University

Computer Graphics Introduction, Open GL, Line and Circle drawing algorithm
Computer Graphics Introduction, Open GL, Line and Circle drawing algorithmComputer Graphics Introduction, Open GL, Line and Circle drawing algorithm
Computer Graphics Introduction, Open GL, Line and Circle drawing algorithmDeepika Walanjkar

Turn leadership mistakes into a better future.pptx
Turn leadership mistakes into a better future.pptxTurn leadership mistakes into a better future.pptx
Turn leadership mistakes into a better future.pptxStephen Sitton

List of Accredited Concrete Batching Plant.pdf
List of Accredited Concrete Batching Plant.pdfList of Accredited Concrete Batching Plant.pdf
List of Accredited Concrete Batching Plant.pdfisabel213075

THE SENDAI FRAMEWORK FOR DISASTER RISK REDUCTION
THE SENDAI FRAMEWORK FOR DISASTER RISK REDUCTIONTHE SENDAI FRAMEWORK FOR DISASTER RISK REDUCTION
THE SENDAI FRAMEWORK FOR DISASTER RISK REDUCTIONjhunlian


Recently uploaded (20)

DEVICE DRIVERS AND INTERRUPTS SERVICE MECHANISM.pdf
DEVICE DRIVERS AND INTERRUPTS  SERVICE MECHANISM.pdfDEVICE DRIVERS AND INTERRUPTS  SERVICE MECHANISM.pdf
DEVICE DRIVERS AND INTERRUPTS SERVICE MECHANISM.pdf

Main Memory Management in Operating System
Main Memory Management in Operating SystemMain Memory Management in Operating System
Main Memory Management in Operating System

National Level Hackathon Participation Certificate.pdf
National Level Hackathon Participation Certificate.pdfNational Level Hackathon Participation Certificate.pdf
National Level Hackathon Participation Certificate.pdf

Engineering Drawing section of solid
Engineering Drawing     section of solidEngineering Drawing     section of solid
Engineering Drawing section of solid

Research Methodology for Engineering pdf
Research Methodology for Engineering pdfResearch Methodology for Engineering pdf
Research Methodology for Engineering pdf

Immutable Image-Based Operating Systems - EW2024.pdf
Immutable Image-Based Operating Systems - EW2024.pdfImmutable Image-Based Operating Systems - EW2024.pdf
Immutable Image-Based Operating Systems - EW2024.pdf

Levelling - Rise and fall - Height of instrument method
Levelling - Rise and fall - Height of instrument methodLevelling - Rise and fall - Height of instrument method
Levelling - Rise and fall - Height of instrument method

Class 1 | NFPA 72 | Overview Fire Alarm System
Class 1 | NFPA 72 | Overview Fire Alarm SystemClass 1 | NFPA 72 | Overview Fire Alarm System
Class 1 | NFPA 72 | Overview Fire Alarm System

Correctly Loading Incremental Data at Scale
Correctly Loading Incremental Data at ScaleCorrectly Loading Incremental Data at Scale
Correctly Loading Incremental Data at Scale

CCS355 Neural Networks & Deep Learning Unit 1 PDF notes with Question bank .pdf
CCS355 Neural Networks & Deep Learning Unit 1 PDF notes with Question bank .pdfCCS355 Neural Networks & Deep Learning Unit 1 PDF notes with Question bank .pdf
CCS355 Neural Networks & Deep Learning Unit 1 PDF notes with Question bank .pdf

Mine Environment II Lab_MI10448MI__________.pptx
Mine Environment II Lab_MI10448MI__________.pptxMine Environment II Lab_MI10448MI__________.pptx
Mine Environment II Lab_MI10448MI__________.pptx

Paper Tube : Shigeru Ban projects and Case Study of Cardboard Cathedral .pdf
Paper Tube : Shigeru Ban projects and Case Study of Cardboard Cathedral .pdfPaper Tube : Shigeru Ban projects and Case Study of Cardboard Cathedral .pdf
Paper Tube : Shigeru Ban projects and Case Study of Cardboard Cathedral .pdf

Risk Management in Engineering Construction Project
Risk Management in Engineering Construction ProjectRisk Management in Engineering Construction Project
Risk Management in Engineering Construction Project

GSK & SEAMANSHIP-IV LIFE SAVING APPLIANCES .pptx
GSK & SEAMANSHIP-IV LIFE SAVING APPLIANCES .pptxGSK & SEAMANSHIP-IV LIFE SAVING APPLIANCES .pptx
GSK & SEAMANSHIP-IV LIFE SAVING APPLIANCES .pptx

Indian Dairy Industry Present Status and.ppt
Indian Dairy Industry Present Status and.pptIndian Dairy Industry Present Status and.ppt
Indian Dairy Industry Present Status and.ppt

"Exploring the Essential Functions and Design Considerations of Spillways in ...
"Exploring the Essential Functions and Design Considerations of Spillways in ..."Exploring the Essential Functions and Design Considerations of Spillways in ...
"Exploring the Essential Functions and Design Considerations of Spillways in ...

Computer Graphics Introduction, Open GL, Line and Circle drawing algorithm
Computer Graphics Introduction, Open GL, Line and Circle drawing algorithmComputer Graphics Introduction, Open GL, Line and Circle drawing algorithm
Computer Graphics Introduction, Open GL, Line and Circle drawing algorithm

Turn leadership mistakes into a better future.pptx
Turn leadership mistakes into a better future.pptxTurn leadership mistakes into a better future.pptx
Turn leadership mistakes into a better future.pptx

List of Accredited Concrete Batching Plant.pdf
List of Accredited Concrete Batching Plant.pdfList of Accredited Concrete Batching Plant.pdf
List of Accredited Concrete Batching Plant.pdf

THE SENDAI FRAMEWORK FOR DISASTER RISK REDUCTION
THE SENDAI FRAMEWORK FOR DISASTER RISK REDUCTIONTHE SENDAI FRAMEWORK FOR DISASTER RISK REDUCTION
THE SENDAI FRAMEWORK FOR DISASTER RISK REDUCTION


Robotics - Unit-II

  • 2. ROBOT DRIVE SYSTEMS AND END EFFECTORS  Pneumatic Drives-Hydraulic Drives-Mechanical Drives-Electrical Drives-D.C. Servo Motors, Stepper Motors, A.C. Servo Motors- Salient Features, Applications and Comparison of all these Drives, End Effectors-Grippers-Mechanical Grippers, Pneumatic and Hydraulic- Grippers, Magnetic Grippers, Vacuum Grippers; Two Fingered and Three Fingered Grippers; Internal Grippers and External Grippers; Selection and Design Considerations.
  • 3. ROBOT DRIVE SYSTEMS  Drive means operate the robot.  The drive system is to provide a means to control the speed and also torque (or) power.  Drive system is used for converting hydraulic, pneumatic, and electrical energy into useful mechanical energy. It is used to motion transfer and drive the robot.
  • 4. Types of drive system  Hydraulic drive systems  Pneumatic drive systems  Electric drive systems
  • 5. Hydraulic drive systems  Pressurised fluid is used to transmit and control power.  The hydraulic drive is mostly suitable for heavy load robot applications  The term hydraulic refers to the transfer of energy from pressure difference not from the kinetic energy of flow
  • 6. Features of Hydraulic drive system  High force capability  High dynamic response  Assisted braking torque  Good mechanical stiffness  High power per unit weight and volume
  • 8.

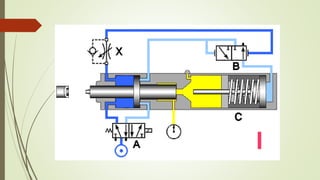

  • 9.
  • 10. Advantages  No reduction gear is needed  High accuracy and better response  Excellent for heavy duty and large robots  It provide more power than electric drives
  • 11. Disadvantages  High maintenance  More expensive system  Not suitable for clean air environment  Requires pump, reservoir, motor and hoses  More floor space is required
  • 12. Pneumatic drive systems  Pressurised air is used to control power.  With pneumatic valves control the flow of energy from pressurized gas Features of Pneumatic drive system  Compressed air has most of the desired properties and characteristics of a gas for pneumatic system.  It is not poisonous and non flammable.
  • 14.
  • 15.
  • 16. Pneumatic System in Packaging
  • 17. Advantages  Good accuracy  Excellent speed  Easy installation  Small leakage can be tolerated  Economical than hydraulic drives
  • 18. Disadvantages  Difficult to control  Air needs preconditioning  Precision is less than electric drives  More vibration is generated  More noise is produced

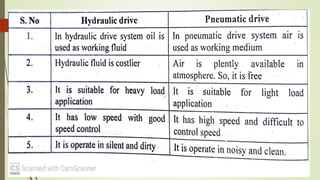

  • 19.
  • 20. Electric drive systems  An electric drive system is defines as a form of machine equipment designed to convert electric energy into mechanical energy and provide electric control of the process. Features of Pneumatic drive system  Electric drive offers energy transformation  The control components are used to limit the amplitude(armature current of DC motor)
  • 21. There are three major types of electric drives 1. AC servo motor 2. DC servo motor 3. Stepper motor Parts of electric drive 1. Power modulator 2. Motor 3. Control unit 4. Sensing unit
  • 22.
  • 23. Advantages  Simple construction  Clean air environment  Requires less floor space  Electric drive robot is quiet operation Disadvantages  Poor dynamic response  A large and heavier motor must be used. It is most costly  Electric drive system do not provide as much speed and power compared to hydraulic system.
  • 24. Actuators  Actuators are the device used for converting hydraulic, pneumatic and electrical energy into mechanical energy. The mechanical energy used to get the work done.  Types of Actuators 1. Hydraulic actuators 2. Pneumatic actuators 3. Electrical actuators a) Servomotor b) Stepper motor c) AC (or) DC motor
  • 25. Hydraulic Actuators  Hydraulic actuators transform the hydraulic energy stored in a reservoir into mechanical energy by means of suitable pumps.  Hydraulic actuators are also fluid power device for industrial robots which utilise high pressure fluid such as oil to transmit forces to the point of application desired
  • 26. Characteristics of hydraulic actuating systems The designer should know the basics of  Operating cycle  Operating pressures  Types pf pumps  Maximum and minimum operating and ambient temperatures  Loads encountered by various components Features of the hydraulic actuating systems  High force capability  Good mechanical stiffness  High power per unit weight and volume
  • 27.
  • 28. Elements of hydraulic actuation system  Hydraulic reservoir  Filters  Hydraulic pump  Cylinders  Motors  Hydraulic valve  Accumulators  Hydraulic hose  Hydraulic seal  piping
  • 29. Types of Hydraulic Actuators  Single acting spring return type  Double acting cylinder  Ram type
  • 30. Advantages  Self lubrication  No mechanical linkage is required  It can also provide precise control at low speeds  Capable of with standing shock loads  Greater load carrying capacity Disadvantages  Expensive  Noisy operation  High maintenance  Not energy sufficient  Not suitable for clean environment  Leakage can occur causing a loss in performance
  • 31. Pneumatic Actuators  Pneumatic actuators utilise pneumatic energy provided by a compressor and transforms it into mechanical energy by means of pistons (or) turbines. Pressurised air is used to transmit and control power. Features of pneumatic actuators  Limit cycling  Tend to have performance inconsistency  Pneumatic actuators are capable of modulating process control  It can handle high torque loads
  • 32. Common parts of a pneumatic system Compressor Check valves Regulators Gauges Accumulator Feed lines
  • 33.
  • 34. Advantages  Control is simple  It is cheapest form of all actuators  No mechanical transmission is usually required  Individual components can be easily interconnected  Very quick response time and faster cycles Disadvantages  More noise and vibration  Not suitable for heavy loads  Air compressor is required
  • 35. Electric Actuators  An actuator obtaining electrical energy from mechanical system is called electric actuator Features of the electric actuators  High band with provide accurate and fast control  High maximum force allows high acceleration
  • 36. Electrical actuators comprise the following  Drive system 1. AC motor 2. DC motor 3. Stepper motor  Switching device a) Mechanical switch 1. Solenoids 2. Relays b) Solid state switch 1. Diodes 2. Thyristor 3. Transistors

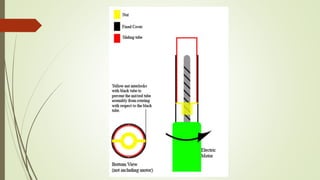

  • 37.
  • 38. Advantages  High power conversion efficiency  They are easily maintained and repaired  Structural components can be light weight  No pollution of working environment Disadvantages  Compliance and wear problems are causing inaccuracies  A larger and heavier motor must be used which is costly  They cannot be used in explosive atmospheres Applications  Wide range of industries where positioning is needed  Automation applications

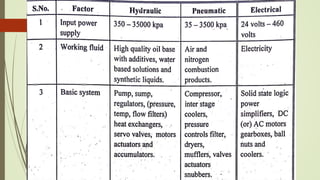

  • 39.

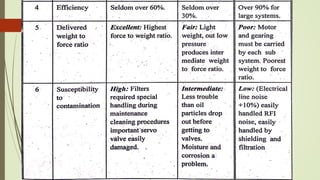

  • 40.

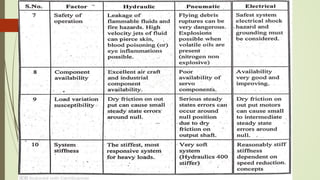

  • 41.
  • 42. Various kind of Motors 1. Stepper motor 2. Servo motor i) AC Servo motor ii) DC Servo motor
  • 43. Stepper Motor  A stepper motor is an electromechanical device. Stepper motor is a device which transforms electrical pulses into equal increments of rotary shaft motion called steps. It converts electrical power into mechanical power.
  • 44.
  • 46.
  • 47.
  • 48. Permanent Magnet type stepper Motor  The permanent magnet type stepper motor has a stator. That is of electromagnet. A rotor that is of permanent magnet. Therefore this motor is called permanent magnet type stepper motor.
  • 49. Permanent Magnet type stepper Motor
  • 50. Advantages  A simpler and more reliable  Field flux is less affected by temperature rise  Higher efficiency due to the absence of field losses  Less heating making it is possible to totally enclose the motor Disadvantages  Permanent magnets stepper motor cannot produce a high flex density  Extra ampere-turns cannot be added to reduce the armature reaction Applications  Automobiles and air conditioners  Computer drives  Electric tooth brushes, portable vacuum cleaners and food mixers
  • 51. Variable reluctance type stepper motor  The principle of variable reluctance stepper motor is based on the principle of the flux lines which capture the low reluctance path. The stator and the rotor of the motor are aligned in such as way that the magnetic reluctance is minimum.
  • 52. Variable reluctance type stepper motor
  • 53. Advantages  High rate of acceleration  High torque to inertia ratio  Simple and low cost machine Disadvantages  Generally noisy  There is no winding on rotor  Lower torque capability
  • 54. Hybrid type stepper motor  The hybrid type stepper motor as the name recommends is a blending of both permanent magnet type stepper motor (PM) and variable reluctance motor (VR)
  • 56. Advantages  It has more torque  Lower stepping rate  More efficient at low speeds  The length of step is smaller Disadvantages  Higher inertia  If the magnetic strength is varied, the performance of the motor is affected.  The weight of the motor is more because of the presence of the rotor magnet.  Cost is more
  • 57. Torque vs speed characteristics
  • 58. Salient features of stepper motor  Stepper motor is small step angle  They are high stepping rate and accuracy  Stepper motor has high positioning accuracy  A stepper motor is used to achieve precise positioning is a digital control  They are ideal for applications requiring quick positioning over a shot distance Capabilities of stepper motor  Precise positioning control  Finer positioning capabilities  Low speed with high precision  Easy control with pulse signals  Generating high torque with a compact size
  • 59. Advantages  Low cost  High reliability  High torque at low speeds  Operates in almost any environment  Stepper motor is simple to operate Disadvantages  lower efficiency  Low torque to inertia ratio  Lower power output for their weight and size  Smooth movement often requires micro stepping Applications  Gaming machines  Textile machinery  Welding equipment
  • 60. Servo Motor  The motors that are used in automatic control systems are called servo motor. The servo motors are used to convert electrical signal applied to them into an angular displacement of the shaft. Features of the servo motor  Fast response  Steady state  stability  Wide range of speed control  Low mechanical and electrical inertia
  • 61.
  • 63. Advantages  Servo motor is small and efficient  High speed operation is possible Disadvantages  Higher cost  It is not suitable for precision control of rotation  It is not suitable if we need to prevent vibration Uses of the servo motor  The servo motor is built into the camera to correct a lens of the camera to improve out of focus image  The servo motor is used in textile to control spinning and weaving machines  Used in metal forming and cutting machines to provide specific motion control for milling machines.
  • 64. Applications of the servo motor  Toys  Cars  Robotics  Aeroplanes  Computers  Home electronics  CD/DVD player
  • 65. AC Servo Motor  Servo motor is basically consists of stator and rotor
  • 66.
  • 67. Rotor  The rotor is generally of two types.  1. squirrel cage rotor 2. Drag cup type rotor
  • 68. Types of AC Servo motor
  • 69. 2 phase AC Servomotor  The stator of the two phase AC servo motor has the two distributed winding which are displaced from each other by 90 degrees electrical. One winding is known as a reference phase and other one is known as control phase
  • 70.

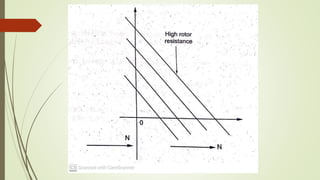

  • 71.
  • 72. 3 phase AC Servomotor  Three sets of winding are placed 120 electrical degrees apart with each set connected to one phase of the three phase power supply.  When three phase current passes through the stator windings, a rotating magnetic field effect is produced that travels around the inside of the stator core.
  • 73. Advantages  Less maintenance  High efficiency  High speed operation is possible  Resonance and vibration free operation Disadvantages  Complex  Poor motor cooling  Motor can be damaged by sustained over load  Most difficult to control in position application Application  Robotics  Machine tools  Suited for lower power application
  • 74. DC Servo Motor  DC servo motor is more (or) less similarly to the normal DC motor. DC motors are separately excited DC motor (or) permanent magnet DC motor. They are controlled by armature voltage. The armature is designed to have large resistance, so that the torque speed characteristics are linear.  There fore a step change in the armature voltage results in quick change in position (or) speed of the motor.
  • 75. Types of the DC servo Motor
  • 76. 1. Series Motor  The series motor have a high starting torque and draws large current  The speed regulation of this kind of motor is poor
  • 77. 2. Split series Motor  Split series motor with split field rate with some fractional kilowatts  Split series motor has a typical torque speed curve
  • 78. 3. Shunt Control Motor  It has two separate winding 1. Field winding is on the stator 2. Armature winding is on the rotor of the machine
  • 79. 4. Permanent Magnet shunt motor  Permanent magnet shunt motor is a fixed excitation motor where the field is actually supply by a permanent magnet

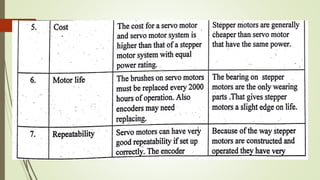

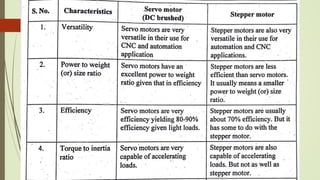

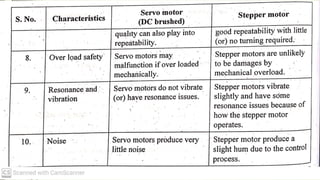

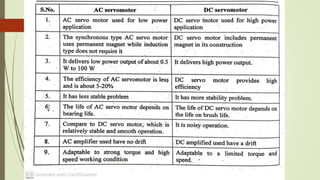

  • 83. Advantages  Free of vibration and resonance  High torque to inertia ratio  High output than from a 50Hz motor of same size  High efficiency  Easier speed control from zero speed to full speed in both direction Disadvantages  Overload can damage motor  Has complex architecture and requires encode  The brush turnout in limited life of 2000 hrs, then service is required  Motor does not work when something breaks, hence safety circuits are needed
